As magnetic field strength in Magnetic Resonance Imaging (MRI) technology increases, maintaining the specific absorption rate (SAR) within safe limits across human head tissues becomes challenging due to the formation of standing waves at a shortened wavelength. Compounding this challenge is the uncertainty in the dielectric properties of head tissues, which notably affects the SAR induced by the radiofrequency (RF) coils in an ultra-high-field (UHF) MRI system. To this end, this study introduces a computational framework to quantify the impacts of uncertainties in head tissues’ dielectric properties on the induced SAR. The framework employs a surrogate model-assisted Monte Carlo (MC) technique, efficiently generating surrogate models of MRI observables (electric fields and SAR) and utilizing them to compute SAR statistics. Particularly, the framework leverages a high-dimensional model representation technique, which constructs the surrogate models of the MRI observables via univariate and bivariate component functions, approximated through generalized polynomial chaos expansions. The numerical results demonstrate the efficiency of the proposed technique, requiring significantly fewer deterministic simulations compared with traditional MC methods and other surrogate model-assisted MC techniques utilizing machine learning algorithms, all while maintaining high accuracy in SAR statistics. Specifically, the proposed framework constructs surrogate models of a local SAR with an average relative error of 0.28% using 289 simulations, outperforming the machine learning-based surrogate modeling techniques considered in this study. Furthermore, the SAR statistics obtained by the proposed framework reveal fluctuations of up to 30% in SAR values within specific head regions. These findings highlight the critical importance of considering dielectric property uncertainties to ensure MRI safety, particularly in 7 T MRI systems. Full article

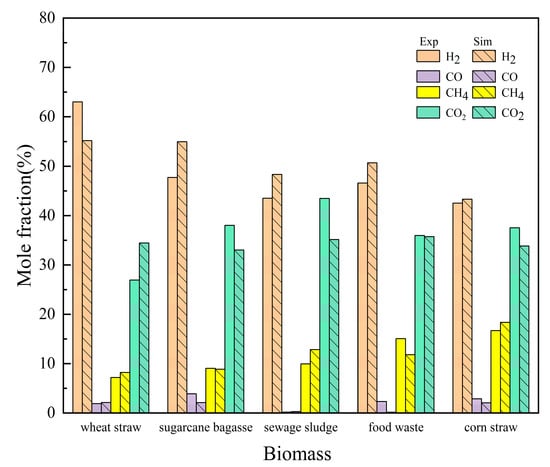

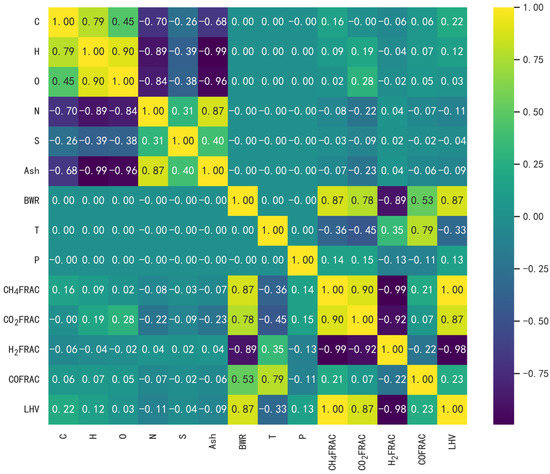

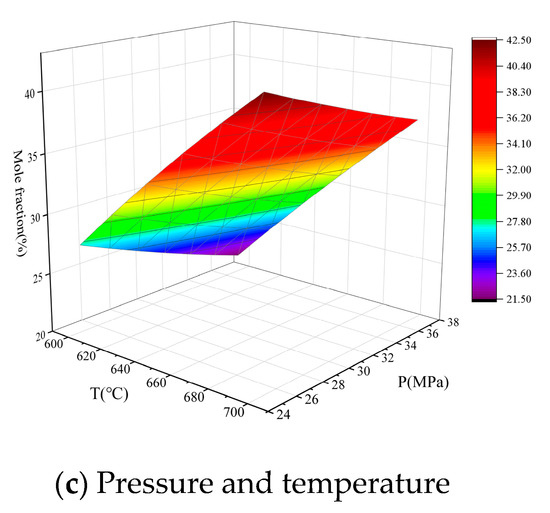

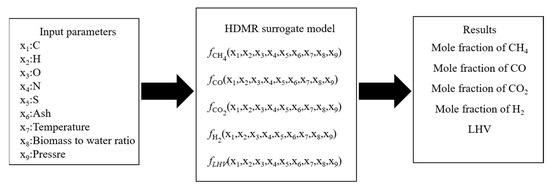

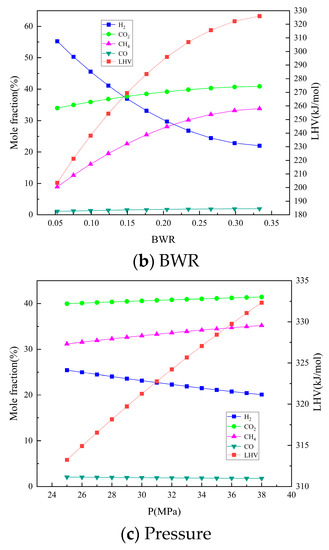

Supercritical water gasification (SCWG) coupled with solar energy systems is a new biomass gasification technology developed in recent decades. However, conventional solar-powered biomass gasification technology has intermittent operation issues and involves multi-variable characteristics, strong coupling, and nonlinearity. To solve the above problems, firstly, a solar-driven biomass supercritical water gasification technology combined with a molten salt energy storage system is proposed in this paper. This system effectively overcomes the intermittent problem of solar energy and provides a new method for the carbon-neutral process of hydrogen production. Secondly, the high dimensional model representation (HDMR) approach, as a surrogate model, was used to predict the production and lower heating value of syngas developed in Aspen Plus, which were validated using experimental data obtained from the literature. The ultimate analysis of biomass, temperature, pressure, and biomass-to-water ratio (BWR) were selected as input variables for the model. The non-dominated sorted genetic algorithm II (NSGA II) was considered to maximize the gasification yield of H₂ and the LHV of syngas in the SCWG process for five different types of biomass. Firstly, the results showed that HDMR models demonstrated high performance in predicting the mole fraction of H₂, CH₄, CO, CO₂, gasification yield of H_2, and lower heating value (LHV) with R² of 0.995, 0.996, 0.997, 0.996, 0.999, and 0.995, respectively. Secondly, temperature and BWR were found to have significant effects on SCWG compared to pressure. Finally, the multi-objective optimization results for five different types of biomass are discussed in this paper. Therefore, these operating parameters can provide an optimal solution for increasing the economics and characteristics of syngas, thus keeping the process energy efficient. Full article

A metamodeling technique based on Bivariate Cut High Dimensional Model Representation (Bivariate Cut HDMR) is implemented for a semiconductor packaging design problem with 10 design variables. Bivariate Cut-HDMR constructs a metamodel by considering only up to second-order interactions. The implementation uses three uniformly distributed sample points (s = 3) with quadratic spline interpolation to construct the component functions of Bivariate Cut-HDMR, which can be used to make a direct comparison with a metamodel based on Central Composite Design (CCD). The performance of Bivariate Cut-HDMR is evaluated by two well-known error metrics: R-squared and Relative Average Absolute Error (RAAE). The results are compared with the performance of CCD. Bivariate Cut HDMR does not compromise the accuracy compared to CCD, although the former uses only one-fifth of sample points (201 sample points) required by the latter (1045 sample points). The sampling schemes and the predictions of cut-planes and boundary-planes are discussed to explain possible reasons for the outstanding performance of Bivariate Cut HDMR. Full article

Because the penetration level of renewable energy sources has increased rapidly in recent years, uncertainty in power system operation is gradually increasing. As an efficient tool for power system analysis under uncertainty, probabilistic power flow (PPF) is becoming increasingly important. The point-estimate method (PEM) is a well-known PPF algorithm. However, two significant defects limit the practical use of this method. One is that the PEM struggles to estimate high-order moments accurately; this defect makes it difficult for the PEM to describe the distribution of non-Gaussian output random variables (ORVs). The other is that the calculation burden is strongly related to the scale of input random variables (IRVs), which makes the PEM difficult to use in large-scale power systems. A novel approach based on principal component analysis (PCA) and high-dimensional model representation (HDMR) is proposed here to overcome the defects of the traditional PEM. PCA is applied to decrease the dimension scale of IRVs and eliminate correlations. HDMR is applied to estimate the moments of ORVs. Because HDMR considers the cooperative effects of IRVs, it has a significantly smaller estimation error for high-order moments in particular. Case studies show that the proposed method can achieve a better performance in terms of accuracy and efficiency than traditional PEM. Full article
