Search Results (13)

The development of ultrahigh-strength steels with good ductility is crucial for improving the crashworthiness of automobiles. In the present work, the mechanical responses and deformation behaviors of 1.5 GPa ultrahigh-strength steel were systematically investigated over a wide range of strain rates, from 10⁻³ s⁻¹ to 10³ s⁻¹. The yield strength and tensile elongation at quasi-static strain rate (10⁻³ s⁻¹) were 1548 MPa and 20%, respectively. The yield strength increased to 1930 MPa at an extremely high strain rate (10³ s⁻¹), and the steel maintained excellent ductility, with values as high as 17%. It was found that the prevailing of the transformation-induced plasticity (TRIP) effect at quasi-static condition resulted in the formation of fresh martensite. This produced strong hetero-deformation-induced (HDI) stress and strain partitioning, contributing to the enhancement of strain hardening. The TRIP effect is remarkably suppressed under high strain rates, and thus the retained austenite with excellent deformation ability sustains the subsequent deformation, leading to superior ductility when the TRIP effect and HDI strengthening are retarded. Ultrahigh-strength steel with great strength–ductility combination over a wide range of strain rates has great potential in improving component performance while reducing vehicle weight. Full article

Aluminum matrix composites (AMCs) with hetero-grains exhibit high strength with good ductility. A trimodal grain structure composed of ultrafine grains (UFGs), fine grains (FGs) and coarse grains (CGs) prevents the pre-mature cracking of hetero-zone boundaries in conventional bimodal grain structures; thus, it is favored by AMCs. However, the design of the size and distribution of hetero-domains in trimodal AMCs is tough, with complicated multi-scale deformation mechanisms. This study tunes the distribution of FG domains elaborately via altering the volume fraction of FG from 10 vol.% to 60 vol.% and investigates the distribution effect of FG domains on strength–ductility synergy. The optimized 2024 Al matrix composites with 30 vol.% FG exhibited a tensile strength of over 700 MPa and an elongation of 7.5%, respectively, realizing a good combination of high strength and ductility. This work enlightens the heterostructure design with a balance between heterogeneous deformation induced (HDI) strain hardening and high-content soft phase induced strain homogenization. Full article

The strength–ductility mechanism of the low-carbon steels processed by laser cutting is investigated in this paper. A typical gradient-phased structure can be obtained near the laser cutting surface, which consists of a laser-remelted layer (LRL, with the microstructure of lath bainite + granular bainite) and heat-affected zone (HAZ). As the distance from the laser cutting surface increases, the content of lath martensite decreases in the HAZ, which is accompanied by a rise in the content of ferrite. Considering that the microstructures of the LRL and HAZ are completely different from the base metal (BM, ferrite + pearlite), a significant strain gradient can be inevitably generated by the remarkable microhardness differences in the gradient-phased structure. The hetero-deformation-induced strengthening and hardening will be produced, which is related to the pileups of the geometrically necessary dislocations (GNDs) that are generated to accommodate the strain gradient near interfaces. Plural phases of the HAZ can also contribute to the increment of the hetero-deformation-induced strengthening and hardening during deformation. Due to the gradient-phased structure, the low carbon steels under the process of laser cutting have a superior combination of strength and ductility as yield strength of ~487 MPa, tensile strength of ~655 MPa, and total elongation of ~32.7%. Full article

The microstructures and mechanical properties of equiatomic CoCrFeMnNi high-entropy alloys (HEAs) treated with various processing parameters of laser surface heat treatment are studied in this paper. The typical inverse gradient-grained structure, which is composed of a hard central layer and a soft surface layer, can be obtained by laser surface heat treatment. A much narrower gradient layer leads to the highest yield strength by sacrificing ductility when the surface temperature of the laser-irradiated region remains at ~850 °C, whereas the fully recrystallized microstructure, which exists from the top surface layer to the ~1.05 mm depth layer, increases the ductility but decreases the yield strength as the maximum heating temperature rises to ~1050 °C. Significantly, the superior strength–ductility combination can be acquired by controlling the surface temperature of a laser-irradiated surface at ~1000 °C with a scanning speed of ~4 mm/s due to the effect of hetero-deformation-induced strengthening and hardening, as well as the enhanced interaction between dislocation and nanotwins by the hierarchical nanotwins. Therefore, retaining the partial recrystallized microstructure with a relatively high microhardness in the central layer, promoting the generation of hierarchical nanotwins, and increasing the volume proportion of gradient layer can effectively facilitate the inverse gradient-grained CoCrFeMnNi HEAs to exhibit a desirable strength–ductility synergy. Full article

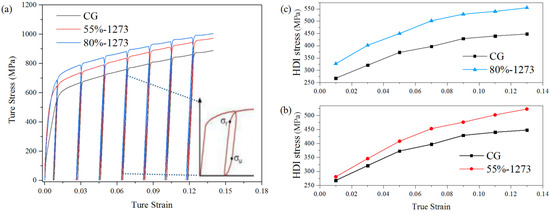

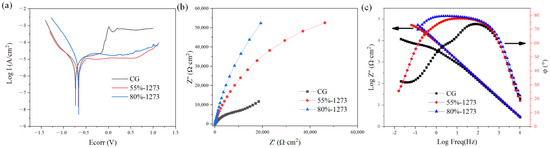

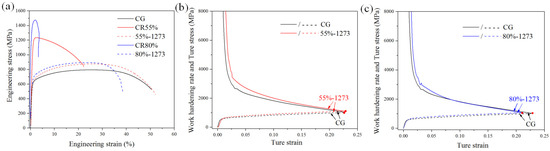

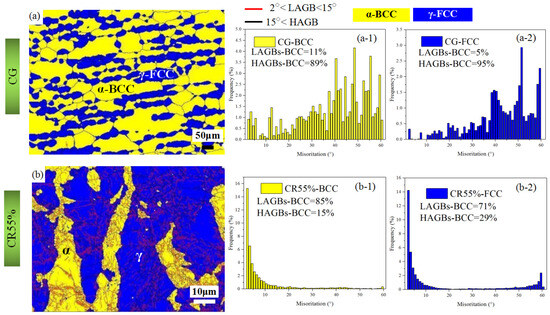

SAF2507 duplex stainless steel (DSS) is often used as a structural component in ocean-going vessels and marine petroleum exploitation equipment, which require superior mechanical properties. In this study, we used cold rolling (CR) at room temperature with 55% or 80% deformation amounts and subsequent annealing at 1273 K in 1 min to prepare SAF2507 samples with a heterogeneous structure (HS) that was composed of ferrite and austenite phases with different grain sizes. Compared with the homogeneous structure samples, the yield strength of the HS samples increased, while the ductility did not decrease. The 55%-1273 and 80%-1273 samples exhibited the hetero-zone boundary-affected regions on both sides of the grain boundary, phase boundary, and twin boundary. This resulted in hetero-deformation-induced (HDI) strengthening and strain hardening of samples during tensile deformation, which improved the ultimate tensile strength of the HS samples while maintaining a good uniform elongation. In addition, the heterogeneous structure of DSS had better corrosion resistance than the initial sample of coarse grain (CG) structure; mainly because the HS samples had finer grains and more grain boundaries on the DSS surface than the CG structure, which is conducive to the formation of high-density passivation film on the surface of stainless steel. The current study provides a new method of material selection of some structural components with the demands of high strength and good ductility. Full article

Multiple deformed substructures including dislocation cells, nanotwins (NTs) and martensite were introduced in super austenitic stainless steels (SASSs) by cryogenic rolling (Cryo-R, 77 K/22.1 mJ·m⁻²). With the reduction increasing, a low stacking fault energy (SFE) and increased flow stress led to the activation of secondary slip and the occurrence of NTs and martensite nano-laths, while only dislocation tangles were observed under a heavy reduction by cold-rolling (Cold-R, 293 K/49.2 mJ·m⁻²). The multiple precursors not only possess variable deformation stored energy, but also experience competition between recrystallization and reverse transformation during subsequent annealing, thus contributing to the formation of a heterogeneous structure (HS). The HS, which consists of bimodal-grained austenite and retained martensite simultaneously, showed a higher yield strength (~1032 MPa) and a larger tensile elongation (~9.1%) than the annealed coarse-grained Cold-R sample. The superior strength–ductility and strain hardening originate from the synergistic effects of grain refinement, dislocation and hetero-deformation-induced hardening. Full article

The as-extruded (EX) Mg-Gd-Y alloy studied here exhibited a bimodal structure, composed of fine dynamic recrystallized (DRXed) grains with random orientations and longitudinal coarse hot-worked grains. The slip analysis showed the DRXed grains exhibited mainly basal slips, while the hot-worked grains exhibited mainly prismatic slips during the tensile deformation. The distribution of geometrically necessary dislocations (GNDs) showed that there was strain partitioning between the fine and coarse grain regions. The hetero-deformation induced (HDI) hardening occurred between the two domains. It improves the strength and strain hardening capability of the alloy, leading to good strength-ductility synergy. Microcracks tended to nucleate at the DRXed grain boundaries, as well as at the interface between the two domains. The calculation of geometric compatibility parameter (m’) indicated that strain incompatibility between the adjacent grains induced the crack nucleation. The toughening effect of the fine DRXed grains hindered the crack propagation. However, the major crack formed at the interface between the two domains propagated unstably, due to the high stress concentration and the large crack size, causing the final failure. Full article

The conventional 4340 steel was used after quenching and tempering, strengthened by the classical pearlitic structure where cementite particles are dispersed through the ferrite matrix. In the present study, a heterostructure microstructure consisting of micro-sized residual ferrite zones and pearlitic zones was introduced by an optimized process of intercritical quenching and tempering, resulting in a steel with higher strength and better toughness. The pearlite steel has a tensile strength of 1233 MPa, yield strength of 1156 MPa, and toughness of 121.5 MJ/m³. Compared with the pearlite steel, the tensile strength and yield strength of the heterostructure steel have been improved by 67 MPa and 74 MPa, respectively, while the toughness has been increased by 52.5 MJ/m³. In this heterostructure, the micro-sized ferrite bulks serve as the soft zones surrounded by the hard zones of the pearlite structure to achieve a remarkable work-hardening capacity. Statistical analysis shows that the heterostructure has the best hetero-deformation-induced (HDI) hardening capability when the residual ferrite bulk contributes ~31% by volume fraction, and the quenching temperature is around 780 °C. This study opens new ways of thinking about the strengthening and toughening mechanism of heat treatment of medium carbon steels. Full article

One of the most important issues in materials science is to overcome the strength–ductility trade-off in engineering alloys. The formation of heterogeneous and complex microstructures is a useful approach to achieving this purpose. In this investigation, a CoCrFeNiMn high-entropy alloy was processed via cold rolling followed by post-deformation annealing over a temperature range of 650–750 °C, which led to a wide range of grain sizes. Annealing at 650 °C led to the formation of a heterogeneous structure containing recrystallized areas with ultrafine and fine grains and non-recrystallized areas with an average size of ~75 μm. The processed material showed strength–ductility synergy with very high strengths of over ~1 GPa and uniform elongations of over 12%. Different deformation mechanisms such as dislocation slip, deformation twinning and hetero-deformation-induced hardening were responsible for achieving this mechanical property. Increasing the annealing temperature up to 700 °C facilitated the acquisition of bimodal grain size distributions of ~1.5 and ~6 μm, and the heterogeneous structure was eliminated via annealing at higher temperatures, which led to a significant decrease in strength. Full article

A strategy to improve the mechanical and electrochemical properties of Cr₁₅Fe₂₀Co₃₅Ni₂₀Mo₁₀ (Mo₁₀) high-entropy alloys (HEA) by regulating the thermal-mechanical process was investigated. Due to the mutual competition between recrystallization and μ-phase precipitation behavior, the microstructure after annealing consists of recrystallized fine face-centered cubic grains with numerous annealing twins, non-recrystallized deformed grains with high-density dislocations as well as high-density nanoscale μ-phase precipitates. The combination of grain boundary strengthening, precipitation strengthening, and hetero-deformation induced strengthening endowed an ultrahigh yield strength of 1189 MPa and a uniform elongation of 17.5%. The increased yield strength activated the formation of stacking faults and deformation twinning as the additional deformation modes, which enabled the Mo₁₀ HEA to exhibit a high strain-hardening rate and thus maintained superior ductility and enhanced tensile strength. Most importantly, when high-density dislocations accumulate at the phase boundaries, the nanoscale μ-phase can plastically deform by dislocation slips and the formation of stacking faults, which can relieve the high stress concentrations and thus prevent the cracking. The electrochemical properties of the annealed Mo₁₀ HEA are decreased (compared to the homogenized ones), but can be optimized by adjusting the content and size and fraction of the μ-phase. This work sheds light on developing high-performance HEAs. Full article

Heterogeneous structures with both heterogeneous grain structure and dual phases have been designed and obtained in a high-Mn microband-induced plasticity (MBIP) steel. The heterogeneous structures show better synergy of strength and ductility as compared to the homogeneous structures. Higher contribution of hetero-deformation induced hardening to the overall strain hardening was observed and higher density of geometrically necessary dislocations were found to be induced at various domain boundaries in the heterogeneous structures, resulting in higher extra strain hardening for the observed better tensile properties as compared to the homogeneous structures. MBIP effect is found to be still effective in the coarse austenite grains of heterogeneous structures, while the typical Taylor lattice structure and the formation of microband are not observed in the ultra-fine austenite grains of heterogeneous structures, indicating that decreasing grain size might inhibit the occurrence of microbands. High density of dislocation is also observed in the interiors of BCC grains, indicating that both phases are deformable and can accommodate plastic deformation. It is interesting to note that the deformation mechanisms are highly dependent on the phase and grain size for the present MBIP steel with heterogeneous structures. Full article

Martensite transformation and grain refinement can make austenitic stainless steel stronger, but this comes at a dramatic loss of both ductility and corrosion resistance. Here we report a novel gradient structure in 301 stainless steel sheets, which enables an unprecedented combination of high strength, improved ductility and good corrosion resistance. After producing inter-layer microstructure gradient by surface mechanical attrition treatment, the sheet was annealed at high temperature for a short duration, during which partial reverse transformation occurred to form recrystallized austenitic nano-grains in the surface layer, i.e., introducing extra intra-layer heterogeneity. Such 3D microstructure heterogeneity activates inter-layer and inter-phase interactions during deformation, thereby producing back stress for high yield strength and hetero-deformation induced (HDI) hardening for high ductility. Importantly, the recrystallized austenitic nano-grains significantly ameliorates the corrosion resistance. These findings suggest an effective route for evading the strength–ductility and strength–corrosion tradeoffs in stainless steels simultaneously. Full article

The tensile properties and the corresponding deformation mechanism of the graded 304 stainless steel (ss) at both room and cryogenic temperatures were investigated and compared with those of the coarse-grained (CGed) 304 ss. Gradient structures were found to have excellent synergy of strength and ductility at room temperature, and both the yield strength and the uniform elongation were found to be simultaneously improved at cryogenic temperature in the gradient structures, as compared to those for the CG sample. The hetero-deformation-induced (HDI) hardening was found to play a more important role in the gradient structures as compared to the CG sample and be more obvious at cryogenic temperature as compared to that at room temperature. The central layer in the gradient structures provides stronger strain hardening during tensile deformation at both temperatures, due to more volume fraction of martensitic transformation. The volume fraction of martensitic transformation in the gradient structures was found to be much higher at cryogenic temperature, resulting in a much stronger strain hardening at cryogenic temperature. The amount of martensitic transformation at the central layer of the gradient structures is observed to be even higher than that for the CG sample at cryogenic temperature, which is one of the origins for the simultaneous improvement of strength and ductility by the gradient structures at cryogenic temperature. Full article
