A novel design of a proton exchange membrane electrolyzer is presented. In contrast to previous designs, the flow field plates are round and oriented horizontally with the feed water entering from a central hole and spreading evenly outward over the anode flow field in radial, interdigitated flow channels. The cathode flow field consists of a spiral channel with an outlet hole near the outside of the bipolar plate. This results in anode and cathode flow channels that run perpendicular to avoid shear stresses. The novel sealing concept requires only o-rings, which press against the electrolyte membrane and are countered by circular gaskets that are placed over the flow channels to prevent the membrane from penetrating the channels, which makes for a much more economical sealing concept compared to prior designs using custom-made gaskets. Hydrogen leaves the electrolyzer through a vertical outward pipe placed off-center on top of the electrolyzer. The electrolyzer stack is housed in a cylinder to capture the oxygen and water vapor, which is then guided into a heat exchanger section, located underneath the electrolyzer partition. The function of the heat exchanger is to preheat the incoming fresh water and condense the escape water, thus improving the efficiency. It also serves as internal phase separator in that a level sensor controls the water level and triggers a recirculation pump for the condensate, while the oxygen outlet is located above the water level and can be connected to a vacuum pump to allow for electrolyzer operation at sub-ambient pressure to further increase efficiency and/or reduce the iridium loading. Full article

The study investigates, by calculations, some ways to improve the thermal efficiency of plate heat exchangers (PHEs) used in the vegetable oil processing industry. The performance of these heat exchangers is limited by the heat transfer rate of the oil side and by the low thermal conductivity of the plate material. The study starts from a base case with vegetable oils cooled with water in plate heat exchangers, all with a chevron angle of 30° and a different number of channels and plate transfer areas. The change in one geometrical characteristic of the plates, namely the chevron angle, from 30° to 45° then to 60°, led to a significant increase in the overall heat transfer coefficients of 16.0% when changing from 30° to 45° and of 28.1%, on average, when increasing the angle from 45° to 60°. This is a significant increase accompanied by a rise in the pressure drops of the circuits, but the values are acceptable since they do not exceed 1 bar on the oil circuit and 1.4 bar on the cold fluid circuit, respectively. The use of Fe₃O₄–SiO₂/Water hybrid nanofluids with concentrations of 0.5% v/v, 0.75% v/v, and 1% v/v were investigated to replace the cooling water. An increase of 2.2% on average was noticed when using the 1% v/v nanofluid comparatively with water, which is not large but adds to the chevron angle increase. A supplementary 2.6% increase is possible by changing the manufacturing material for plates with aluminum alloy 6060 and also by adding to the performances obtained by previous modifications. The total increase for all sets of modifications can increase the performance by 34.2% on average. Thus, for the design of new PHEs, miniaturization of the equipment becomes possible. Full article

This paper studies how the correlation with the Nusselt number affects the final result of the efficiency, ε, and exergy efficiency, η_ex, of a chevron-type gasketed plate heat exchanger, which is installed in a typical small solar installation dedicated to single-family housing; the solar fluid is a TiO₂:SiO₂/EG:DI hybrid nanofluid with concentrations from 0% to 1.5% vol. The experimental model assumes constant flow of the solar fluid and varies on the domestic hot water side—from 3 lpm to 6 lpm. The inlet temperatures are 30 °C and 60 °C on the cold and hot sides of the heat exchanger, respectively. Of the six analysed correlations that showed similar trends, it is concluded that for the assumed flow conditions, geometry, and chevron angle of the plate heat exchanger, one model is the most accurate. The largest difference between the η_ex values for a given concentration is 3.4%, so the exergy efficiency is not affected by the chosen Nusselt model by very much. However, the choice of correlation with the Nusselt number significantly affects the efficiency, ε; the difference between the values obtained within a given concentration is more than 40% and depends on the Reynolds number and flow. Most research discusses the scenario with the nanofluid as a coolant. This paper considers the opposite situation in which the solar fluid is a hotter working medium that transfers heat to domestic hot water installation. Full article

In the oil and gas industry, heat exchangers are subject to loads that cause malfunctioning. These loads are divided into thermal and mechanical stresses; however, most efforts are focused on studying thermal stresses. The present work reduces mechanical stresses by mitigating pressure events in a gasket plate heat exchanger (GPHE). GPHE requires that the hot and cold stream branches have approximately the same pressure. Thus, the work focuses on controlling the pressure difference between the branches. A test bench was used to emulate, on a small scale, the typical pressure events of an oil production plant. A control valve was used in different positions to evaluate the controller. In the experiments, it was observed that the best option to control the pressure difference is to use a hydraulic pump and control valve in the flow of the controlled thermal fluid branch. The reduction in pressure events was approximately 50%. Actuator efforts are also reduced in this configuration. Full article

Plate heat exchangers (PHEs) have significant potential to improve energy efficiency in the process industries. However, realizing their full potential to achieve such energy savings requires a systematic approach to screen the many options available. Thus, this work presents a generalized novel approach for the optimal design of both gasket and welded plate heat exchangers, with different plate geometries and flow configurations. A new design method coupled with an optimization framework is proposed to obtain the optimal solution with minimum total transfer area by setting up a series of relations between temperatures among each single-pass block with known inlet and outlet temperatures of process streams. An MINLP mathematical model is developed to select the best combination of the flow pass configuration and available commercial plate geometries within practical design constraints. The differences between the design methodology of gasket and welded PHEs are highlighted. Two case studies are used to demonstrate the proposed method for both gasket and welded PHEs. Results show that better design with reduced heat transfer area by 10.71% and design time by 83.3% is obtained compared with previously proposed approaches. Full article

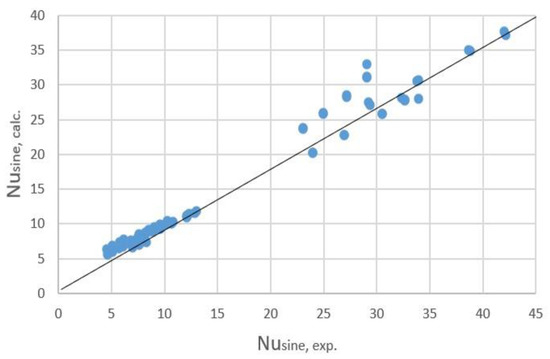

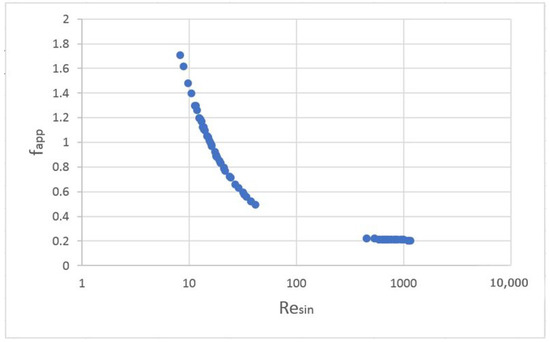

Many models for accurately predicting the performance of gasket plate heat exchangers were developed in the last decades, grouped in three categories: empirical, semi-analytical or theoretical/numerical, with the view to saving materials and energy through correct design of industrial equipment. This work addresses one such model, namely Lévêque correlation modified by Martin and by Dović, which is promising due to the correct assumption of the flow in sine duct channels and the consideration of energy losses caused by flow reversal at plate edges and the flow path changing when entering the chevron angle. This model was validated by our own experimental data under industrial conditions for vegetable oils processing, both in laminar flow (Re = 8–42) and fully developed turbulent flow (Re = 446–1137). Moreover, in this study, particular values for constants/parameters of the model were determined for the corrugation inclination angle relative to vertical direction equal to 30°. Through statistical analysis, this study demonstrates that this particularized form of the generalized Lévêque correlation can be used with confidence. Full article

We examined the cost implications of selecting six different types of heat exchangers as the lean/rich heat exchanger in an amine-based CO₂ capture process. The difference in total capital cost between different capture plant scenarios due to the different costs of the heat exchangers used as the lean/rich heat exchanger, in each case, is in millions of Euros. The gasketed-plate heat exchanger (G-PHE) saves significant space, and it saves considerable costs. Selecting the G-PHE instead of the shell and tube heat exchangers (STHXs) will save €33 million–€39 million in total capital cost (CAPEX), depending on the type of STHX. About €43 million and €2 million in total installed costs (CAPEX) can be saved if the G-PHE is selected instead of the finned double-pipe heat exchanger (FDP-HX) or welded-plate heat exchanger, respectively. The savings in total annual cost is also in millions of Euros/year. Capture costs of €5/tCO₂–€6/tCO₂ can be saved by replacing conventional STHXs with the G-PHE, and over €6/tCO₂ in the case of the FDP-HX. This is significant, and it indicates the importance of clearly stating the exact type and not just the broad classification of heat exchanger used as lean/rich heat exchanger. This is required for cost estimates to be as accurate as possible and allow for appropriate comparisons with other studies. Therefore, the gasketed-plate heat exchanger is recommended to save substantial costs. The CO₂ capture costs of all scenarios are most sensitive to the steam cost. The plate and frame heat exchangers (PHEs) scenario’s capture cost can decline from about €77/tCO₂ to €59/tCO₂ or rise to €95/tCO₂. Full article
