Search Results (8)

In this study, chitosan (CS) and 2-acrylamido-2-methylpropane sulfonic acid (AMPS)-based hydrogels were formulated by the free radical polymerization technique for the controlled release of gallic acid. Fourier transform infrared spectroscopy (FTIR) confirmed the successful preparation and loading of gallic acid within the hydrogel network. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) confirmed the increased thermal stability of the hydrogels following the crosslinking and polymerization of chitosan and AMPS. In X-ray diffraction analysis (XRD), the crystallinity of the raw materials decreased, indicating strong crosslinking of the reagents and the formation of a new polymeric network of hydrogels. Scanning electron microscopy (SEM) revealed that the hydrogel had a rough, dense, and porous surface, which is consistent with the highly polymerized composition of the hydrogel. After 48 h, the hydrogels exhibited higher swelling at pH 1.2 (swelling ratio of 19.93%) than at pH 7.4 (swelling ratio of 15.65%). The drug release was analyzed using ultraviolet-visible (UV-Vis) spectrophotometer and demonstrated that after 48 h, gallic acid release was maximum at pH 1.2 (85.27%) compared to pH 7.4 (75.19%). The percent porosity (78.36%) and drug loading increased with the increasing concentration of chitosan and AMPS, while a decrease was observed with the increasing concentration of ethylene glycol dimethyl methacrylate (EGDMA). Crosslinking of the hydrogels increased with concentrations of chitosan and EGDMA but decreased with AMPS. In vitro studies demonstrated that the developed hydrogels were biodegradable (8.6% degradation/week) and had antimicrobial (zone of inhibition of 21 and 16 mm against Gram-positive bacteria Escherichia coli and Staphylococcus aureus as well as 13 mm against Gram-negative bacteria Pseudomonas aeruginosa, respectively) and antioxidant (73% DPPH and 70% ABTS) properties. Therefore, the prepared hydrogels could be used as an effective controlled drug delivery system. Full article

Bio-enzymatic grafting phenolic acid to chitosan derivative is an efficient and environmentally friendly molecular synthesis technology. In the present study, N-carboxymethyl chitosan (CMCS) was grafted with gallic acid (GA) using recombinant bacterial laccase from Streptomyces coelicolor as a catalyst. GA and CMCS were successfully grafted as determined by measuring amino acid content, Fourier transform infrared (FTIR) spectroscopy and ultraviolet-visible (UV-Vis) spectroscopy. Then, the effect of GA-g-CMCS coating on the freshness of strawberries at 20 ± 2 °C was explored. The physiological and biochemical quality indicators of strawberries during storage were monitored. The 1.5% GA-g-CMCS coating helped to protect the antioxidant properties and nutrients of strawberries and extend the shelf life. Specifically, it reduced the weight loss of strawberries during preservation (originally 12.7%) to 8.4%, maintained titratable acidity content (TA) residuals above 60% and reduced decay rate from 36.7% to 8.9%. As a bioactive compound, GA-g-CMCS has the potential to become an emerging food packing method. These results provide a theoretical basis and reference method for the subsequent synthesis and application of CMCS derivatives. Full article

Infection-related titanium implant failure rates remain exceedingly high in the clinic. Functional surface coating represents a very promising strategy to improve the antibacterial and bioactive properties of titanium alloy implants. Here, we describe a novel bioactive surface coating that consists of a mussel-inspired carboxymethyl chitosan hydrogel loaded with silver nanoparticles (AgNPs) to enhance the bioactive properties of the titanium alloy. The preparation of hydrogel is based on gallic acid grafted carboxymethyl chitosan (CMCS-GA) catalyzed by DMTMM (4-(4,6-dimethoxy-1,3,5-triazin-2-yl)-4-methylmorpholinium chloride). To build a firm bonding between the hydrogel and titanium alloy plate, a polydopamine layer was introduced onto the surface of the titanium alloy. With HRP/H₂O₂ catalysis, CMCS-GA can simply form a firm gel layer on the titanium alloy plate through the catechol groups. The surface properties of titanium alloy were characterized by scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), and water contact angle. Silver nanoparticles were loaded into the gel layer by in situ reduction to enhance the antibacterial properties. In vitro antibacterial and cell viability experiments showed that the AgNPs-loaded Ti-gel possesses excellent antibacterial properties and did not affect the proliferation of rabbit mesenchymal stem cells (MSCs). Full article

Hydrogels have gained a niche in the market as wound dressings due to their high water content and plasticity. However, traditional hydrogel wound dressings are difficult to fully adapt to irregular-shaped wound areas. Additionally, excessive reactive oxygen species (ROS) accumulated in the damaged area impede the wound healing process. Therefore, hydrogels with injectable and antioxidant properties offer promising qualities for wound healing, but their design and development remain challenges. In this study, HT/QGA (tyramine-grafted hyaluronic acid/gallic acid-grafted quaternized chitosan) hydrogels with injectable and antioxidant properties were prepared and characterized. This hydrogel exhibited excellent injectability, favorable antioxidant activity, and good biocompatibility. Moreover, we evaluated the therapeutic effect of HT/QGA hydrogel in a full-thickness skin injury model. These results suggested that HT/QGA hydrogel may offer a great potential application in wound healing. Full article

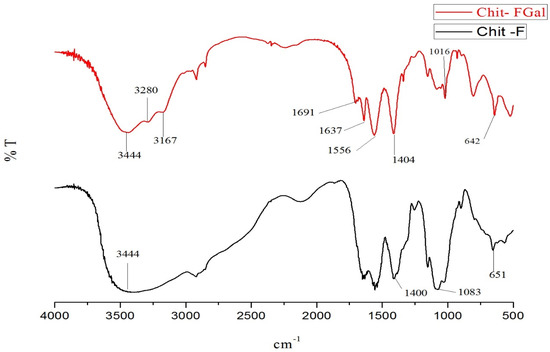

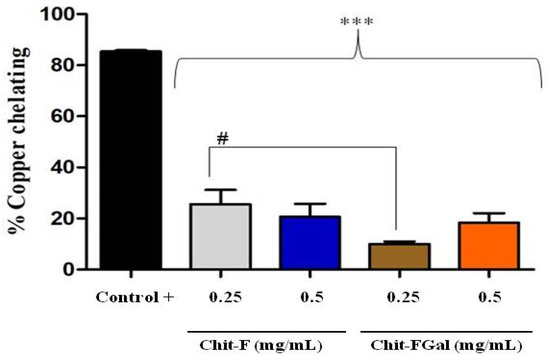

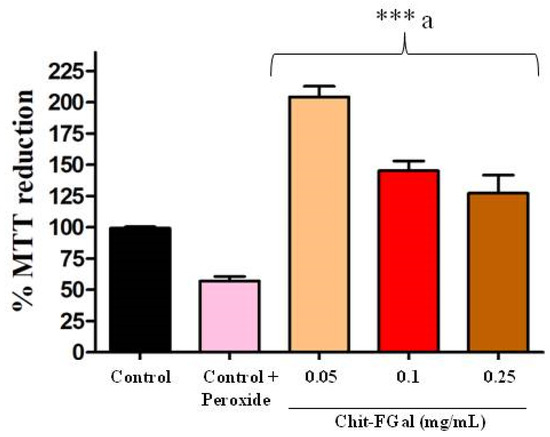

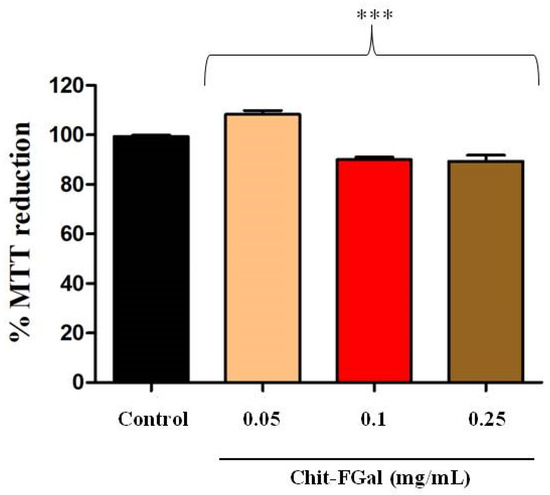

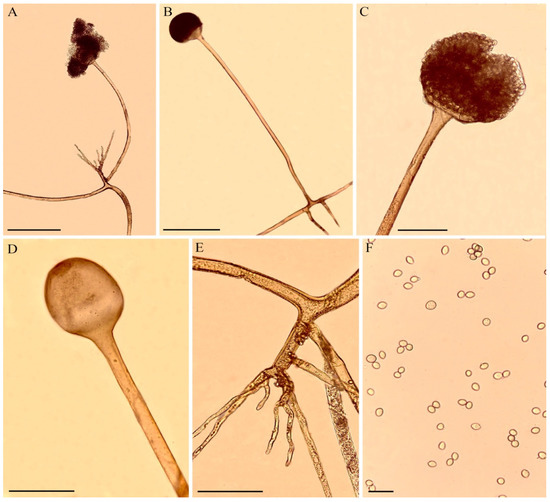

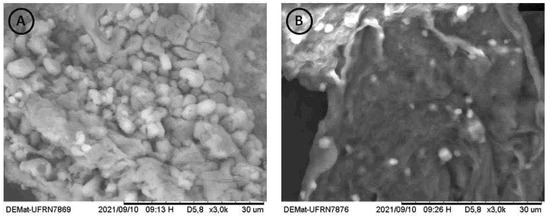

Oxidative stress is the cause of numerous diseases in humans; therefore, there has been a continuous search for novel antioxidant molecules. Fungal chitosan is an attractive molecule that has several applications (antifungal, antibacterial, anticancer and antiparasitic action) owing to its unique characteristics; however, it exhibits low antioxidant activity. The aim of this study was to obtain fungal chitosan (Chit-F) from the fungus Rhizopus arrhizus and synthesize its derivative, fungal chitosan-gallic acid (Chit-FGal), as a novel antioxidant chitosan derivative for biomedical use. A low molecular weight Chi-F (~3.0 kDa) with a degree of deacetylation of 86% was obtained from this fungus. Chit-FGal (3.0 kDa) was synthesized by an efficient free radical-mediated method using hydrogen peroxide (H₂O₂) and ascorbic acid. Both Chit-F and Chit-FGal showed similar copper chelating activities; however, Chit-FGal was more efficient as an antioxidant, exhibiting twice the total antioxidant capacity than Chi-F (p < 0.05). Furthermore, H₂O₂ (0.06 M) promoted a 50% decrease in the viabilities of the 3T3 fibroblast cells. However, this effect was abolished in the presence of Chit-FGal (0.05–0.25 mg/mL), indicating that Chit-FGal protected the cells from oxidative damage. These results suggest that Chit-FGal may be a promising agent to combat oxidative stress. Full article

It has recently been shown that chitosan (Chit) induces the formation of calcium oxalate (CaOx) crystals, which are mainly responsible for the appearance of kidney stones, and this might limit the use of Chit in vivo. Here, Chit was conjugated with gallic acid (Chit-Gal) to decrease the formation of CaOx crystal. This conjugation was confirmed by FTIR and NMR analyses. Chit-Gal contains 10.2 ± 1.5 mg GA per g of Chit. Compared to the control group, Chit increased the number of crystals by six-fold, mainly in the number of monohydrated CaOx crystals, which are the most harmful CaOx crystals. In addition, Chit increased the zeta potential (ζ) of CaOx crystals by three-fold, indicating that Chit was associated with the crystals. These alterations were abolished when Chit-gal was used in these tests. As oxidative stress is related to renal calculus formation, Chit and Chit-Gal were also evaluated as antioxidants using total antioxidant Capacity (TAC), reducing power, ferrous chelation, and copper chelation tests. Chit-gal was more efficient antioxidant agent in TAC (2 times), in ferrous chelation (90 times), and in reducing Power (5 times) than Chit. Overall, Chit-gal has higher antioxidant activity than Chit, does not induce the formation of CaOx crystals. Thus, Chit-Gal has potential to be used as a chit substitute. Full article

High-resistance paper was manufactured by laccase-grafting of carboxymethyl cellulose (CMC) and chitosan (CPX) on Kraft pulp fiber. The reaction was mediated in the presence of laccase by one of the following polyphenols in the presence of air: gallic acid (GA), vanillic acid (VA) and catechol (1,2–DHB). Enzyme was added at constant loading (24 kg ton⁻¹), 1% pulp consistency, 0.005% CMC, pH = 6.3 ± 0.5 and 2 mM of mediator. CPX content was assessed at two levels (0% and 0.005%). Treated pulps were analyzed by different mechanical tests (ring crush, mullen, corrugating medium test (CMT) flat crush of corrugating medium test and tension). An improvement in these parameters was obtained by biopolymer coupling and selected mediator. When using GA, three parameters increased more than 40%, while ring crush increased 120%. For the case of VA, properties were enhanced from 74% to 88% when CPX was added. For 1,2–DHB, there was not found a statistically significant difference between the results in the presence of CPX. Scanning electron microscopy, confocal microscopy, FTIR and ¹³C NMR were used in all papers in order to evaluate grafting. Hence, it was possible to correlate polymerization with an improvement of paper’s mechanical properties. Full article

To elucidate the structure–antioxidant activity relationships of chitosan gallate (CG), a series of CG derivatives with different degrees of substitution (DS’s) and molecular weights (MWs) were synthesized from chitosan (CS) and gallic acid (GA) via a free radical graft reaction. A higher MW led to a lower DS of CG. The structures of CG were characterized by FT-IR and ¹H NMR, and results showed that GA was mainly conjugated to the C-2 and C-6 positions of the CS chain. The antioxidant activity (the DPPH radical scavenging activity and reducing power) were enhanced with an increased DS and a decreased MW of CG. A correlation between antioxidant activities and the DS and MW of CG was also established. In addition, a suitable concentration (0~250 μg/mL) of CG with different MWs (32.78~489.32 kDa) and DS’s (0~92.89 mg·GAE/g CG) has no cytotoxicity. These results should provide a guideline to the application of CG derivatives in food or pharmacology industries. Full article
