Search Results (6)

This study systematically investigated the formulation optimization, performance evaluation, and practical application of epoxy-based composite materials for colored asphalt pavement. By conducting comprehensive experiments, we optimized the composition of epoxy-based composites, verifying their excellent bonding performance, good heat resistance, and UV aging resistance under various temperature conditions. The key optimized component ratios were determined as a 1:1 blend of Type I and Type II epoxy resins, 30 phr of curing agent, 10 phr of toughening agent, 5 phr of diluent, 10% filler, 12% flame retardant, and 10% pigment. At the recommended dosage of 2.0 kg/m² of epoxy binder, the composite structure exhibited the best reinforcement effect, improving low-temperature performance significantly. Compared to ordinary asphalt mixtures, the colored pavement composite structure showed superior mechanical strength, deformation capacity, high-temperature stability (dynamic stability approximately three times higher), and water stability (TSR values up to 95.5%). Furthermore, its fatigue life decay rate was significantly lower, with fatigue limit loading frequencies more than three times those of ordinary asphalt mixtures, demonstrating excellent fatigue resistance. This study provides strong technical support and a theoretical basis for the development and practical application of colored asphalt pavement. Full article

Asphalt binder is a complex mixture of dark brown polymers composed of hydrocarbons with generally poor fire resistance. To improve its flame retardancy when used in tunnel asphalt pavements, a new inorganic flame-retardant filler (FR) containing magnesium hydroxide, aluminum hydroxide, inorganic phosphate, and melamine salt was explored. Thereafter, limiting oxygen index (LOI) and smoke suppression tests for the flame-retarded asphalt binder (FRA) mastics mixed with FR and styrene-butadiene-styrene (SBS) copolymer asphalt binder were conducted. Thermogravimetric (TG) and differential scanning calorimetry (DSC) curves for the FRA were correspondingly generated. Based on the TG data, the reaction function g(α), apparent activation energy E_a, and pre-exponential factor A were quantitatively evaluated using kinetic analysis. In addition, a Fourier transform infrared spectrometry (FTIR) test was utilized to assess the effects of the presence of FR on the chemical composition of the asphalt binder. Dynamic shear rheometer (DSR) tests were also performed to evaluate the rheological behavior of FRA. Results show that the presence of the FR significantly reduced the LOI and improved the smoke suppression during combustion of the asphalt binder mastics. The presence of FR was found to increase the E_a and the complexity of the combustion reaction, thereby improving the flame retardancy of the asphalt binder. FTIR analysis indicated that the presence of FR did not induce any strong chemical reactions to significantly impact or alter the functional groups of the asphalt binder. Furthermore, it was also observed that the rutting parameter and critical failure temperature of FRA increased with the addition of FR due to the stiffening effect of the solid FR particles. Full article

The inflammability of asphalt road will promote fire spread in the tunnel and produce lots of toxic smoke. To improve the fire resistance of asphalt pavement, mineral powder flame retardants are generally replaced by flame retardants in equal amounts. In this study, the effects of the synergistic flame retardancy system of halloysite nanotubes (HNTs) and conventional flame retardants (CFR) on the flame retardancy performance and mechanism of asphalt were investigated. Firstly, the flame retardancy properties of the HNTs and CFR composite modified asphalt were investigated based on the Cleveland open cup method (COC), Limiting oxygen index meter (LOI), and Cone calorimeter tests (CCTs). Then, the flame retardancy mechanism of the modified asphalt was studied based on Thermogravimetric analyzer (TGA), Fourier-transform infrared (FTIR), and Scanning electron microscopy (SEM). The results show that adding HNTs could improve the flame retardancy of the CFR modified asphalt binder. When 1 wt % HNTs and 8 wt % CFR were used, the limiting oxygen index of asphalt increased by 40.1%, the ignition temperature increased by 40 °C, while the heat release rate, total heat release, the smoke production rate, total smoke release, and other parameters decreased with varying degrees. Based on TG, FTIR, and SEM, the targeted flame retardancy mechanism and synergistic effect of HNTs/CFR flame retardancy system were revealed and summarized as three stages: (1) Stage 1, aluminum hydroxide (ATH) absorbs heat through thermal decomposition and inhibits the decomposition of lightweight components in asphalt; (2) Stage 2, aluminum diethyl phosphate (ADP) decomposes and produces organic phosphoric acid, which catalyzes crosslinking and ring thickening of asphalt and the quenching effect of phosphorus free radicals to block the combustion; and (3) Stage 3, HNTs plays an important role in increasing the integrity and density of the barrier layer. In addition, the Al₂O₃ produced by the decomposition of ATH, the carbon layer formed by the ADP catalyzed pitch, and HNTs play a significant synergistic effect in the formation of the barrier layer. Thus, the combination of HNTs and CFR has been proved to be a prospective flame retardancy system for asphalt. Full article

In order to analyze the effect of flame retardant and warm mix asphalt (WMA) additives-Sasobit on the flame-retardant performance and pavement performance of asphalt binder, the limiting oxygen index test, conventional performance test, and Superpave evaluation index tests were performed on asphalt binders in the study. The test results show that flame retardant can effectively improve the flame resistance of asphalt binder, while Sasobit has a certain combustion-supporting effect. Therefore, when warm-mixed flame-retardant technology is applied, the concentration of Sasobit should be controlled appropriately. These two modifiers can significantly enhance the high-temperature performance of asphalt binder, but both of them have a slight negative influence on the low-temperature cracking resistance. Sasobit can substantially reduce the high-temperature viscosity of asphalt binder, which helps to improve the construction workability of asphalt binder, while the flame retardant adversely affects the viscosity reduction effect of Sasobit to a certain extent, but the overall impact is not large. Full article

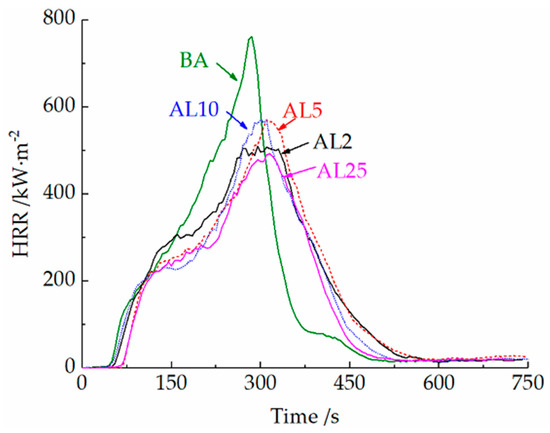

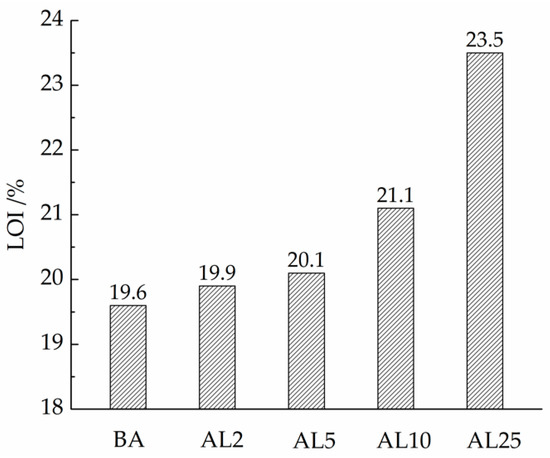

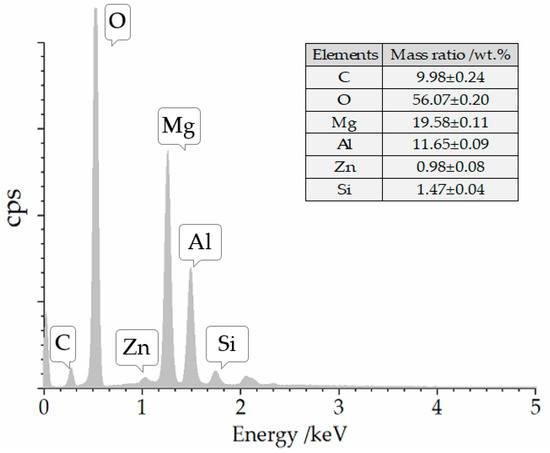

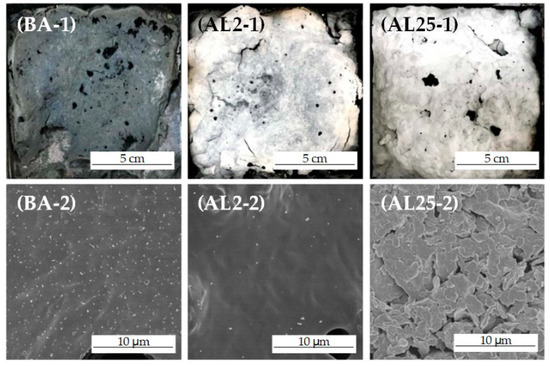

The flame retardancy of asphalt binders with layered double hydroxides (LDHs) was investigated using limiting oxygen index (LOI) and cone calorimeter tests. The flame-retardant mechanism of the LDHs was also studied with thermogravimetry and differential scanning calorimetry (TG–DSC), scanning electron microscopy (SEM), and X-ray photoelectron spectroscopy (XPS). The cone calorimeter testing results indicated that 2 wt.% of the LDHs can decease the peak heat and smoke release rate of asphalt binders. Because a low dose of LDHs can be well dispersed in asphalt binder and favor the formation of polyaromatic structures during combustion, the thermal oxidation resistance and compactness of the char layer can be improved. The LOI of asphalt binder can be increased and the heat and smoke release during combustion can be decreased with 25 wt.% LDHs. The decomposition of LDHs can absorb the heat release of the initial two stages of asphalt combustion and reduce the burning rate of asphalt. Due to the loss of loosely bound water in the LDHs during the blending process and the decrease of dispersibility at a high LDH dose, the improvement of thermal stability is limited. Full article

When a fire occurs in a tunnel, the instantaneous high temperature and smoke cause great danger to people. Therefore, the asphalt pavement material in the tunnel must have sufficient fire resistance. In this study, the effects of aluminum hydroxide and layered double hydroxide on the fire resistance of styrene-butadiene-styrene (SBS) polymer-modified asphalt was investigated. The fire resistance of the asphalt was evaluated by using a limiting oxygen index (LOI). The impact of aluminum hydroxide (ATH), layered double hydroxide (LDHs), and mixed flame retardant (MFR) on LOI was studied. The synergistic fire resistance mechanism of ATH and LDHs in asphalt binder was analyzed by using an integrated thermal analyzer‒mass spectrometry combined system (TG-DSC-MS) and Fourier transform infrared spectrometer (FTIR). The experimental results indicated that the main active temperature range of these flame retardants was 221–483 °C. The main components of smoke were methane, hydroxyl, water, carbon monoxide, aldehyde, carbon dioxide, etc. The addition of flame retardants could inhibit the production of methane, carbon monoxide, and aldehyde. Moreover, due to the good synergistic effects of ATH and LDHs, 20 wt % MFR had the best fire resistance. Full article
