Search Results (4)

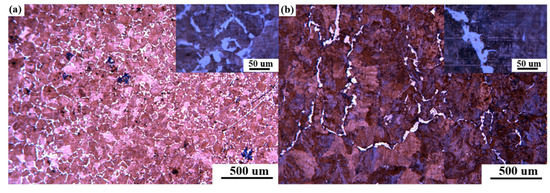

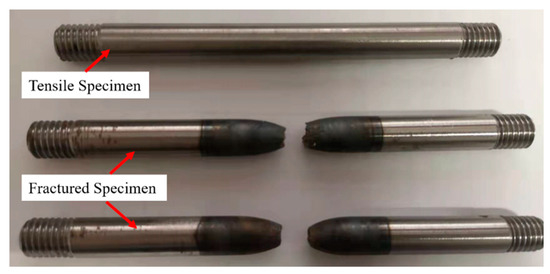

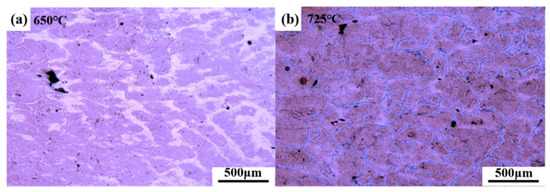

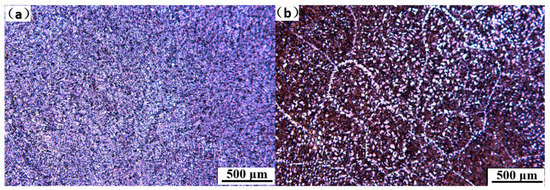

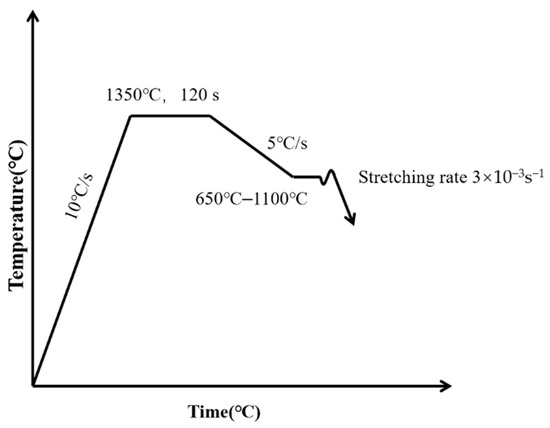

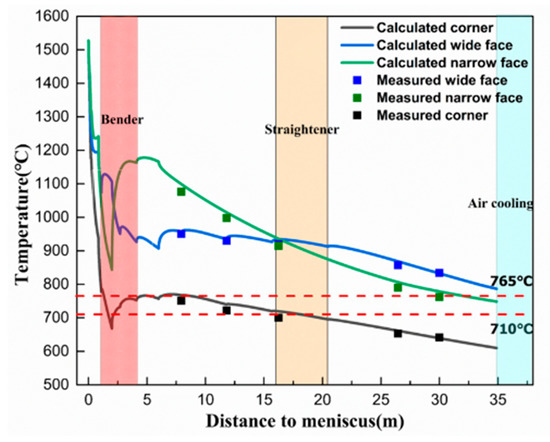

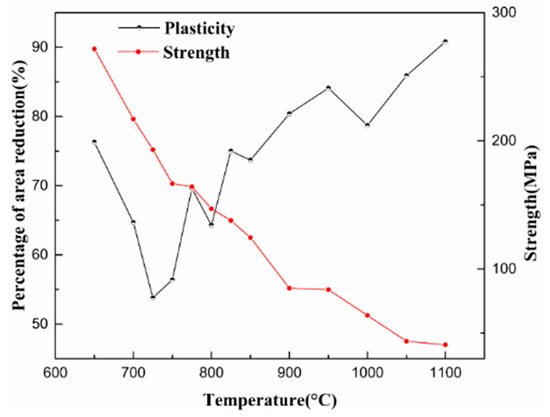

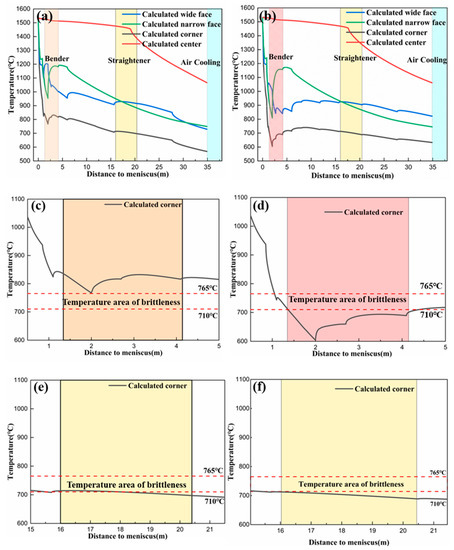

The high temperature brittleness range of medium carbon microalloyed steel under an actual continuous casting process was determined by the high temperature tensile test. The test results revealed that only a third of the brittle temperature range from 650–825 °C was due to intergranular ferrite in the experimental steel. In addition, it was found that the plastic recovery was fast and stable when the temperature was lower than 725 °C (the lowest plastic temperature). Bending/straightening operation in this temperature range was conducive to controlling the generation of corner cracks. In order to keep the corner temperature at the low temperature end of the plastic curve when the slab was bent/straightened, the cooling water scheme of the secondary cooling zone of the continuous caster was formulated by numerical calculation. By appropriately increasing the cooling water flow in the foot roll and the secondary cooling zones 1–5, the corner temperature of slab during bending operation was 600–700 °C, avoiding the brittle temperature range. The industrial test was then carried out. The results showed that after using the optimized water volume, the corner grains of the slab were uniform and the microstructure was mainly pearlite + ferrite. In addition, the abnormally large grain size was reduced, and a large amount of ferrite was generated inside the grain, which avoided stress concentration at the corner of the slab during bending/straightening operation, and basically eliminated the corner crack of the slab. Full article

Particles in molten steel, including argon-gas bubbles, slag droplets, and non-metallic inclusions, are removed into the surface-slag layer or captured by the solidifying steel-shell during continuous steel casting. Captured particles often become serious defects in the final steel product, so understanding particle-capture mechanisms is important for steel quality. Slab casters often have a straight mold and upper-strand prior to a curved lower-strand. The present work investigates particle capture in such a caster using computational modeling with a standard k-ε model for molten-steel flow, a discrete phase model for inclusion transport, and an advanced capture criterion for inclusion entrapment and engulfment into the steel shell. A new postprocessing methodology is presented and applied to predict inclusion-capture rates in commercial cast product. The locations and size distributions of particles captured into the shell, and actual capture rates are quantified. The model predictions are validated with ultrasonic-test plant measurements of the locations of large particles captured in a steel slab. The results reveal how large-inclusion capture accumulates in the beginning of the curved strand, leading to a capture band in the slab inside radius. Finally, the capture fractions and locations due to all capture mechanisms are compared for different inclusion sizes, and the implications are discussed. Full article

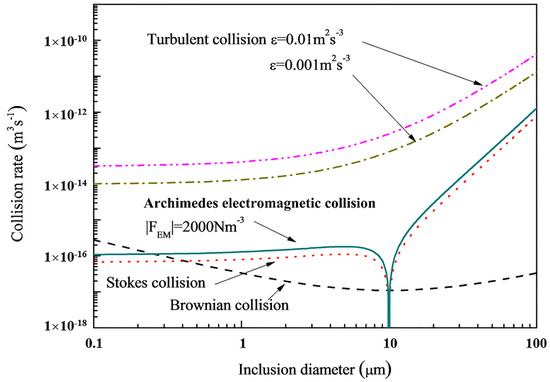

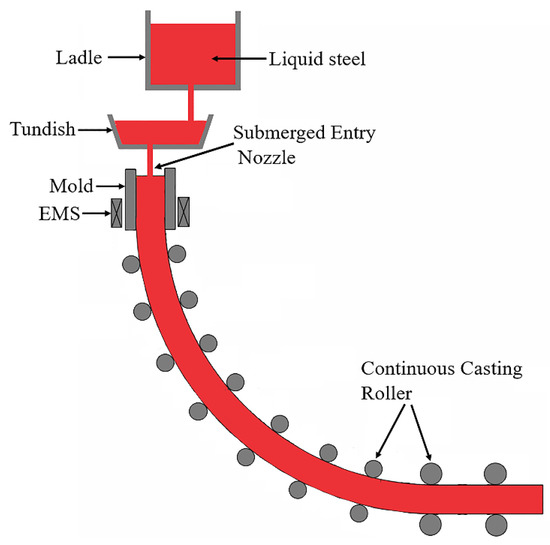

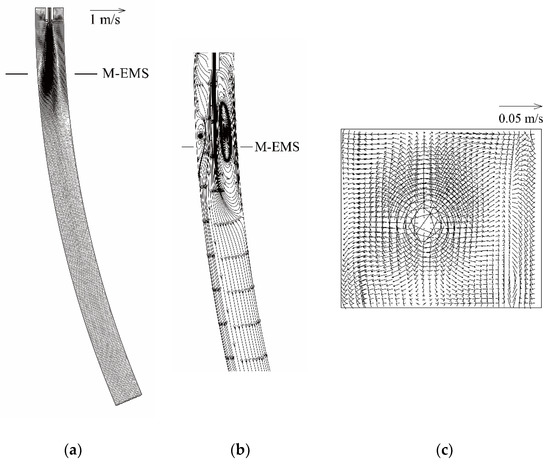

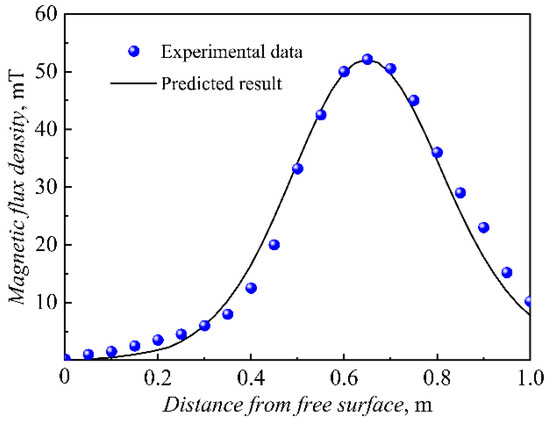

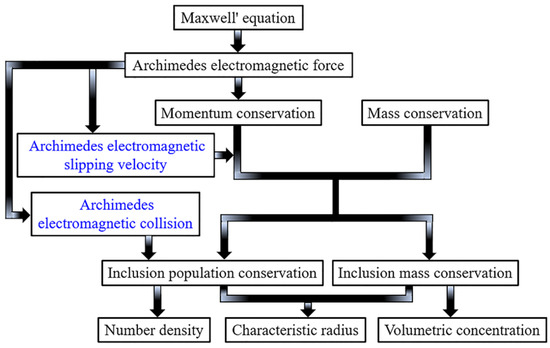

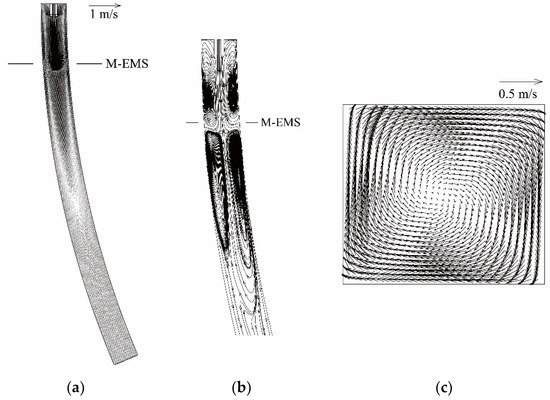

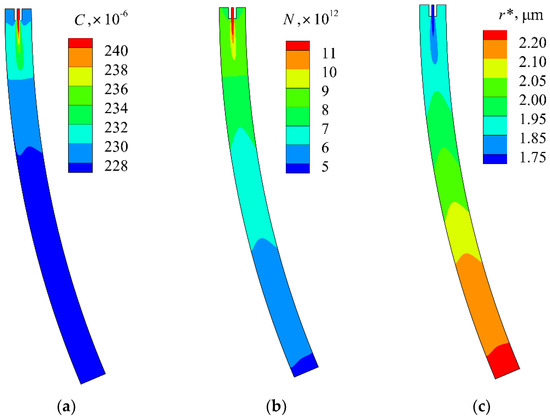

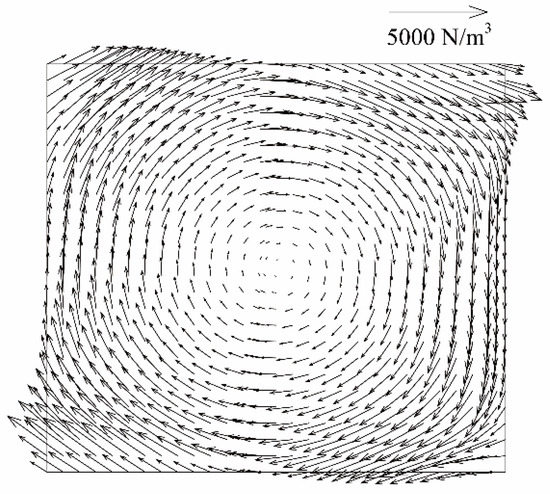

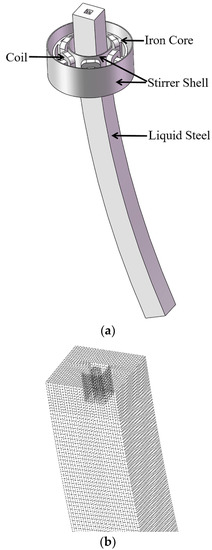

Mold electromagnetic stirring (M-EMS) has been widely used in many continuous casters. In order to have a deep insight into the collision-coalescence among inclusions under M-EMS by a Eulerian approach, the effects of Archimedes electromagnetic force on the inclusion are expressed by three-dimensional Archimedes electromagnetic slipping velocity and Archimedes electromagnetic collision. Numerical results show that a turbulent collision is the most important factor to cause inclusions to collide with each other, Archimedes electromagnetic collision has a minor effect, Stokes collision is the third factor, and Brownian can be ignored. In the case of M-EMS, there are two recirculation zones above and below the M-EMS central cross-section, and the inclusion spatial distributions have the inverted U-shape. Full article

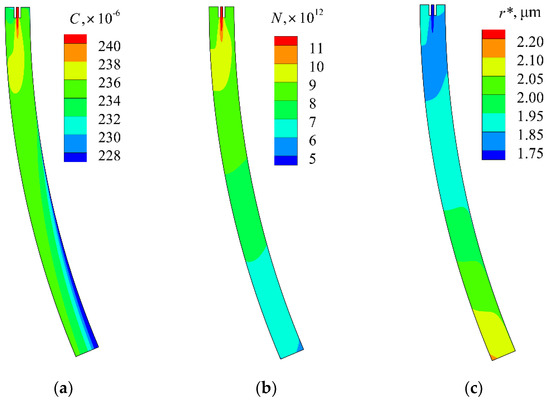

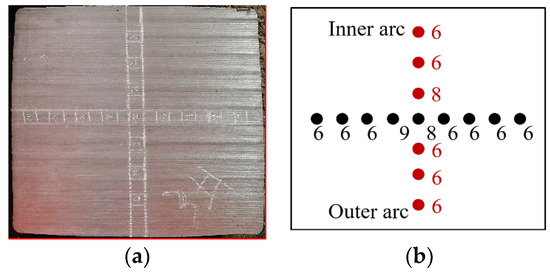

Inclusions entrapped by the solidifying front during continuous casting would deteriorate the properties of the final steel products. In order to investigate the inclusion motion and the entrapment during the full solidification in curved billet caster, the present work has developed a three-dimensional numerical model coupling the flow, solidification, and inclusion motion. The predicted result indicates that the inclusion distribution inside the liquid pool of the mold is not perfectly symmetrical. Furthermore, the motion and the entrapment of micro inclusions in the mold are mainly affected by the molten steel flow pattern, however, those of macro inclusions depend both on the molten steel flow pattern and the buoyancy force of the inclusions. In the curved part of the strand, macro inclusions shift to the solidifying front of the inner radius as time goes on, while the solidifying front of the outer radius cannot entrap inclusions. The distributions of inclusions smaller than 5 μm in the solidified strand are even. However, for inclusions that are larger than 5 μm, their distributions become uneven. To validate the model, measurement of the strand surface temperature and the detection of inclusions in samples obtained from a plant have been performed. Good agreement is found between the predicted and experimental results. Full article
