Search Results (9)

Biocomposites are defined as eco-friendly materials from an environmental point of view. Because of the importance of this class of materials, their study is important, especially in moist and heated conditions. In this sense, this work aims to evaluate the transient behavior of moisture absorption and mechanical performance of biocomposites composed of a matrix of high-density biopolyethylene (originated from ethanol produced from sugarcane) filled with curauá vegetable fiber and organophilic montmorillonite clay. For this purpose, dry biocomposites filled with organophilic montmorillonite clay and curauá fiber (1, 3, and 5 wt.%) were prepared using a hand lay-up technique and subjected to moisture absorption and mechanical (flexural and impact tests) characterizations at different times. The experiments were carried out at water bath temperatures of 30 °C and 70 °C. The results have proven the strong influence of chemical composition and temperature on the moisture absorption behavior of biocomposites across time. For a higher percentage of reinforcement on the polymeric matrix, a higher moisture migration rate was verified, reaching a higher hygroscopic equilibrium condition at 16.9% for 5 wt.% of curauá fiber and 10.25% for 5 wt.% of montmorillonite clay particles. In contrast, the mechanical properties of all of the biocomposites were strongly reduced with an increasing moisture content, especially at higher fiber content and water bath temperature conditions. The innovative aspects of this research are related to the study of a new material and its transient mechanical behavior in dry and wet conditions. Full article

The palm oil industry (POI) generates significant amounts of waste, including calcium carbonate (CaCO₃) from the clay bath system used for the separation of palm kernels from shells. This CaCO₃ waste is often discarded, leading to environmental issues. However, the CaCO₃ can potentially be reused in the clay bath separation process to improve efficiency and reduce waste. To obtain PKO, the kernel is separated from the palm shell using a clay bath unit, where natural CaCO₃ acts as a decanting agent and adsorbent. This wet separation method, involving a mixture of water and CaCO₃ with a density of 1.12 g/mL, generates substantial amounts of saturated CaCO₃ waste that is often discarded into the environment. Therefore, this research aimed to regenerate oil-bound CaCO₃ waste for reuse as a decanter and adsorbent. Three treatments were tested, with CaCO₃ waste-to-water ratios of 1:1, 1:3, and 1:6, under varying pH levels (8, 10, 11, 12) and temperatures (28 °C, 80 °C, 100 °C). The regeneration process was conducted in an open reactor at 450 rpm with a volume of 0.0054 m³, followed by drying and grinding the waste for analysis. The results showed approximately 75.75% oil removal and CaCO₃ regeneration rates between 94.50% and 99.26%, with an increase in density from 1.687 g/mL to 2.467 g/mL. The efficiency of reusing regenerated CaCO₃ waste is 96.87%. When mixed with 25% natural CaCO₃, the efficiency increases to 99.24%. Additionally, a mixture of 50% regenerated CaCO₃ waste and 50% natural CaCO₃ achieves an average efficiency of 99.46% over five consecutive feed additions. This showed that the reuse of CaCO₃ waste regeneration results for the separation of palm shells and kernels has a high potential for application. These findings suggest that regenerated CaCO₃ waste can be effectively reused, offering a sustainable solution for palm oil mills. Full article

The synthesis of zeolites from natural aluminosilicate minerals has drawn extensive attention due to its significant utility in greening the zeolite manufacturing process. In this study, pure-phase NaX zeolite was synthesized via a low-temperature hydrothermal method, utilizing natural, low-quality attapulgite clay as the raw material. Acidified clay was fully activated through alkali fusion at 200 °C, and the impact of alkali fusion temperature, H₂O/Na₂O ratio, aging temperature, and crystallization time on the resulting crystalline NaX zeolite was investigated. The optimal conditions for obtaining pure NaX zeolite were determined to be alkali melting at 200 °C for 4 h, an H₂O/Na₂O ratio of 50, aging at 40 °C, and a crystallization period of 11 h at 90 °C. With a large BET surface area of 328.43 m²/g, the obtained NaX zeolite was used to adsorb Pb²⁺ from wastewater with a removal rate of 95%. This research provides a valuable method for the extensive and efficient utilization of low-grade natural attapulgite clay. Moreover, this is the first report on the synthesis of pure-phase NaX zeolite using only low-quality natural attapulgite clay as raw material through an atmospheric pressure water bath method. Full article

With the development of the Belt and Road Initiative in China, high-speed railways are booming and inevitably pass through seasonal frost regions. In Nanyang basin, due to seasonal changes, railway subgrades will undergo frost heaving and thawing subsidence. The freezing characteristics of the soil are characterized by the freezing characteristic curve, and the important factors affecting the freezing characteristic curve are the content of expansive clay minerals in the soil and the salt solution. Therefore, three soil samples with different montmorillonite contents were saturated with salt solutions of different concentrations, and the freezing temperature of the soil samples was controlled by a cold bath. After the temperature equilibrium, the frozen stable soil samples were put into a nuclear magnetic resonance instrument to test the unfrozen water content, and the relationship between the freezing temperature and the unfrozen water content of expansive soil under different salt solution concentrations was obtained. Additionally, a unified model was used to simulate the test results. The results show that SFCC shifts to the left, that is, the sodium chloride salt solution reduces the freezing point of the soil sample so that it has more unfrozen water at the same temperature. At the same time, the soil’s freezing characteristic curves are closely related to content of expansive clay minerals in the soil. The more expansive clay mineral content, the greater the corresponding unfrozen water content. These results provide some basic insights for improving the frost heave and thaw subsidence problems of railway subgrades in seasonal permafrost regions, which will have a positive impact on promoting the management and rational application of land resources and the promotion of sustainable development. Full article

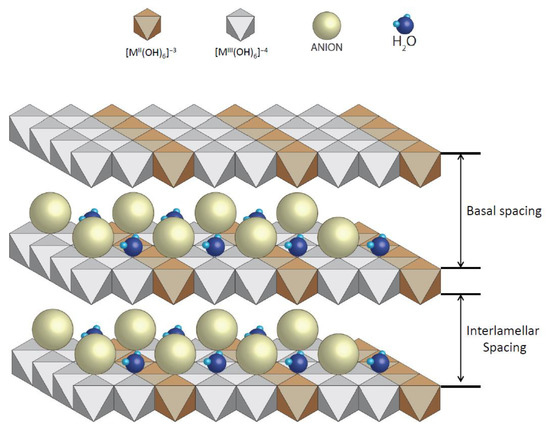

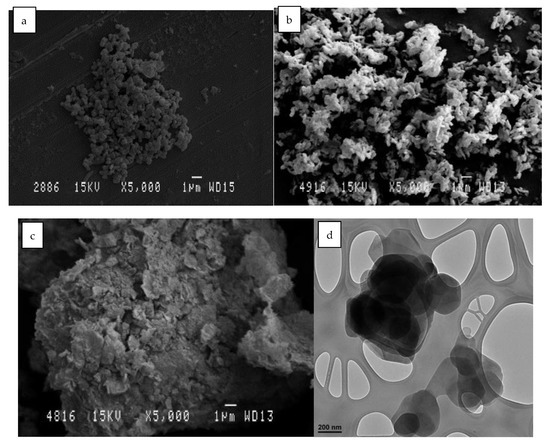

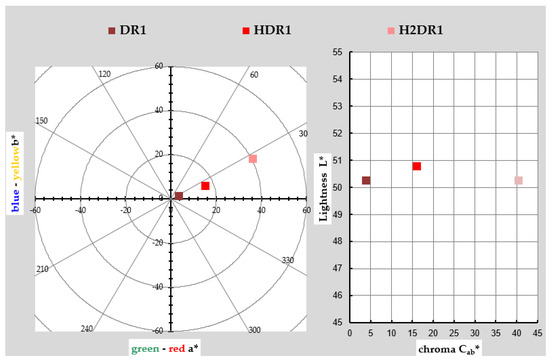

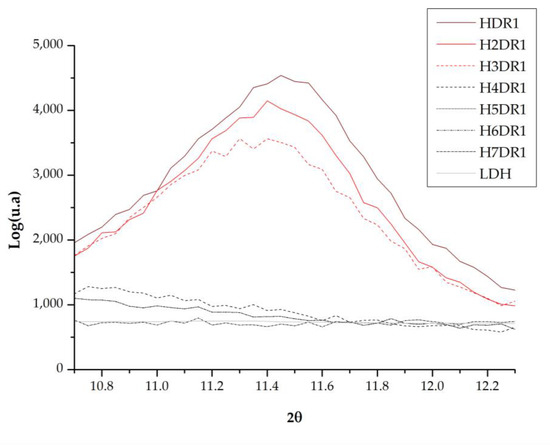

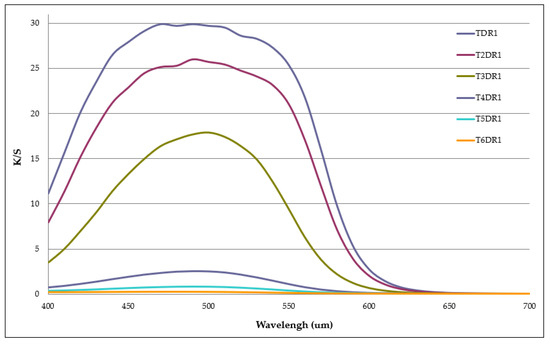

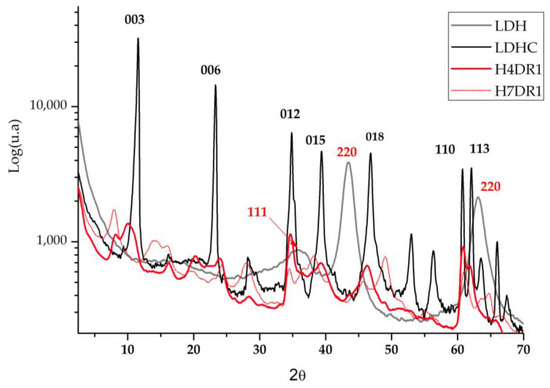

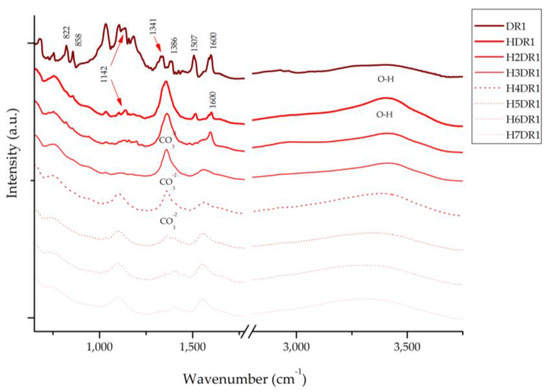

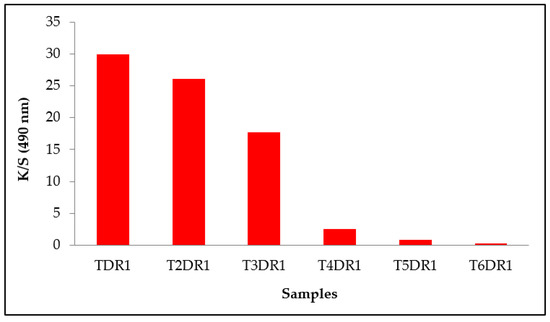

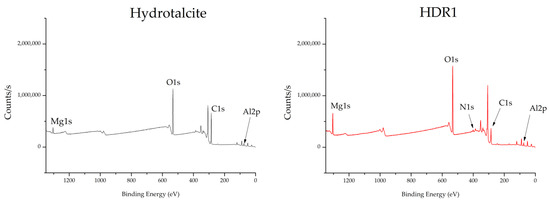

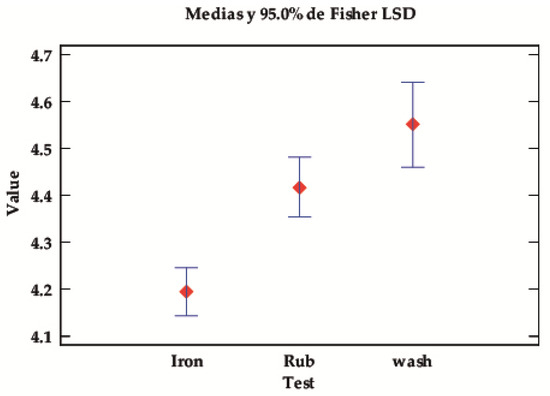

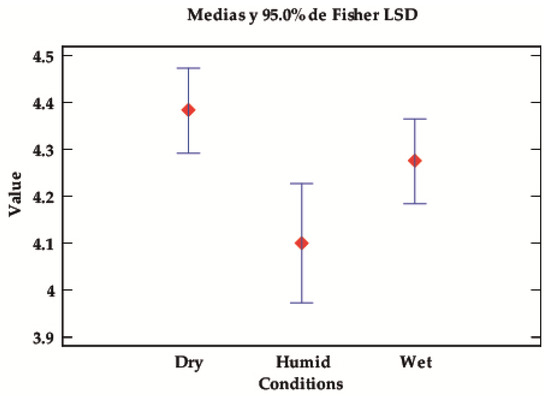

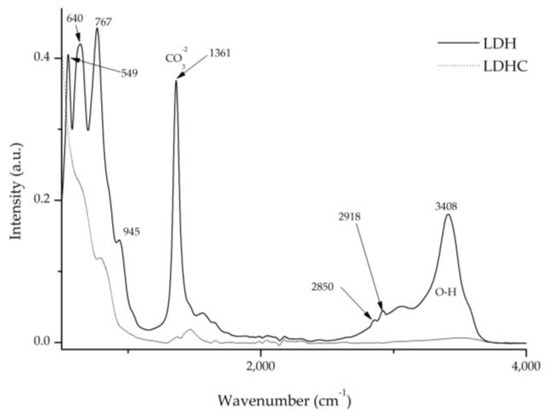

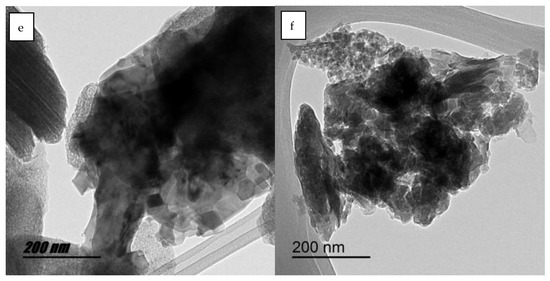

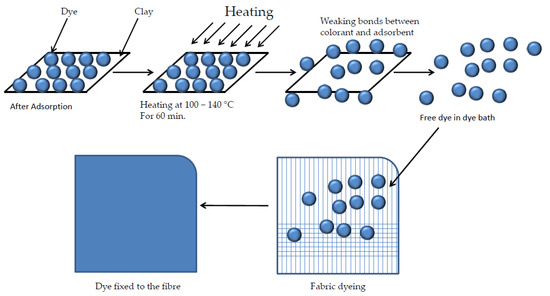

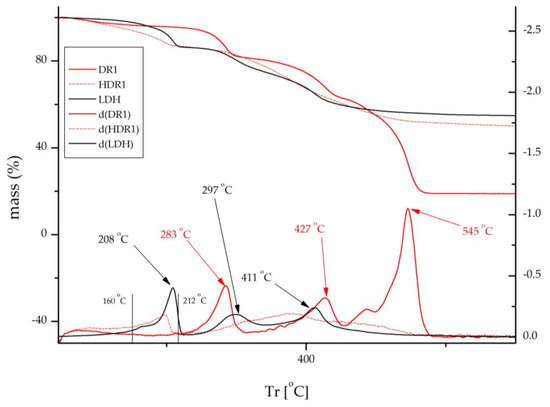

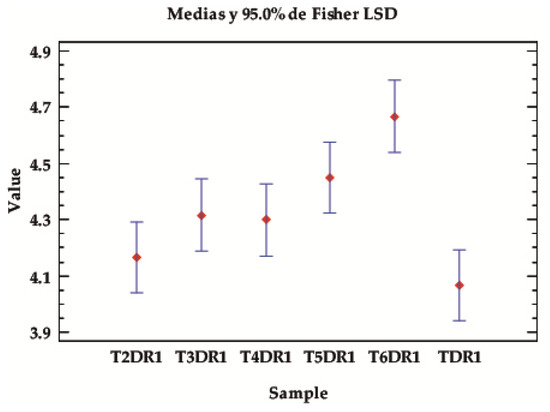

Clays are considered great nanoadsorbents for many materials, including textile dyes. The use of these materials for cleaning textile wastewater is well known; however, it is not at all common to find applications for the hybrid materials formed from the clay and dye. In this work, a dye-loaded clay material was used to make new dye baths and colour a polyester textile substrate. The same hybrid could be used several times as it did not use all the adsorbed dye in a single dyeing. The hybrid obtained from hydrotalcite (nanoclay) and the dispersed red 1 dye was analysed by measuring the colour obtained, carrying out an X-ray diffraction analysis that provided information after each desorption–dyeing process, and using infrared spectroscopy to analyse the specific bands of each characteristic group. Both analyses showed that the amount of dye present in the hybrid decreases. Thermogravimetry (TGA), surface area and porosity measurements (BET), and X-ray photoelectron spectroscopy (XPS) tests were conducted. Chemical stability was assessed by subjecting the hybrid to the actions of different reagents. In addition, colour fastness tests were carried out after dyeing and washing the polyester test tubes to check for the correct fixing of the dye to the fibre. These fastness results showed that the dyeing was carried out correctly and as if it was a conventional dyeing process. Full article

One of the significant challenges of the ceramics industry is to increase the corrosion resistance of ceramic materials, and the study of this corrosion requires a detailed investigation using several characterization methods, such as the knowledge of technological properties including the absorption, apparent porosity, and mechanical resistance of these ceramic materials. This corrosion resistance can be further improved by using a protective coating on the surface of ceramic materials, such as cashew nut shell liquid (CNSL), which has been used as a green, environmentally friendly corrosion inhibitor. This work investigated the inhibitory action of CNSL on the corrosion of ceramic materials. Clay from the Brazilian Northeast was used in a simulated seawater environment at room temperature for the immersion corrosion test. Sets of prismatic specimens bathed in CNSL were immersed in a corrosive solution and compared with other samples without CNSL immersed in a corrosive environment. At the end of 70 days in corrosive solution, the ceramic specimens without CNSL showed signs of wear on the surface, associated with an average mass loss of 20 mg and an average corrosive rate of 0.017 mm/year. On the other hand, the bodies bathed in CNSL showed no mass loss, reinforcing the potential of CNSL as a protective agent against corrosion. Full article

A simple method for organically modifying a natural acid clay (Japanese acid clay) rapidly with alkylamine has been developed. Japanese acid clay mainly consists of acidic montmorillonite and was successfully modified with decylamine in water at room temperature for a short time period (10 min) using an ultrasonic bath without any pretreatments. The structure of the modified clay changed from exterior surface modification to intercalation with an increase in the decylamine content. The equilibrium adsorption capacity for the anionic dye methyl orange (MO) increased with increasing decylamine content. The adsorption kinetics and isotherm were well described by the pseudo-second-order and Langmuir models, respectively. Better MO adsorption was obtained under the conditions of high dosage, low pH value, and low temperature. The adsorbent was also found to have good adsorption for not only MO but also other anionic dyes (Congo red and eosin Y) and cationic dyes (methylene blue, crystal violet, and rhodamine B). In particular, the decylamine-intercalated clay adsorbent exhibited a high level of adsorption capacity for Congo red and crystal violet. The results demonstrate that the synthesis process can provide a simple and cost-effective organoclay as an adsorbent with high performance for the removal of anionic and cationic dyes. Full article

In Roman times long distance water transport was realized by means of aqueducts. Water was conveyed in mortared open channels with a downward slope from spring to destination. Also wooden channels and clay pipelines were applied. The Aqua Appia, the oldest aqueduct of Rome, was constructed in the third Century BCE. During the Pax Romana (second Century CE), a time of little political turmoil, prosperity greatly increased, almost every town acquiring one or more aqueducts to meet the rising demand from the growth of population, the increasing number of public and private bath buildings, and the higher luxury level in general. Until today over 1600 aqueducts have been described, Gallia (France) alone counting more than 300. Whenever a valley was judged to be too wide or too deep to be crossed by a bridge, pressure lines known as ‘inverted siphons’ or simply ‘siphons’ were employed. These closed conduits transported water across a valley according the principle of communicating vessels. About 80 classical siphons are presently known with one out of twenty aqueducts being equipped with a siphon. After an introductory note about aqueducts in general, this report treats the ancient pressure conduit systems with the technical problems encountered in design and function, the techniques that the ancient engineers applied to cope with these problems, and the texts of the Roman author Vitruvius on the subject. Reviewers noted that the report is rather long, and it is. Yet to understand the difficulties that the engineers of those days encountered in view of the materials available for their siphons (stone, ceramics, lead), many a hydraulic aspect will be discussed. Aspects that for the modern hydraulic engineer may be common knowledge and of minor importance when constructing pressure lines, in view of modern construction materials. It was different in Vitruvius’s days. Full article

Synthesizing functional nanomaterials from naturally abundant clay has always been of vital importance for resource utilization, however, the lack of new methods to effectively utilize low-grade clay presents a significant challenge. Herein, a calcium oxalate/sepiolite nanocomposite (SMN-x) was prepared by using the water bath heating method to convert the associated calcium carbonate in low-grade sepiolite into calcium oxalate. The developed composite was subsequently used to remove Pb(II) from the aqueous solutions. The SMN-3 adsorbent prepared by heating in a water bath at 90 °C for 3 h (with a high specific surface area of 234.14 m²·g⁻¹) revealed the maximum Pb(II) adsorption capacity of 504.07 mg·g⁻¹ at pH 5, which was about five times higher than that of sepiolite (105.57 mg·g⁻¹). Further, the SMN-3 adsorbent possessed a much higher selectivity for Pb(II) as compared to the other metal ions. Moreover, the residue was noted to be stable and safe. The adsorption kinetics and isotherms conformed to the quasi-second-order kinetic and Langmuir models. During the adsorption process, ion exchange was noted to the main mechanism, however, it was also accompanied by electrostatic attraction. This study provides a novel strategy for the sustainable development of simple and efficient adsorbents by utilizing low-grade clay minerals. Full article
