Search Results (12)

Thermoplastic carbon fiber/aluminum alloy hybrid composite laminates fully integrate the advantages of fiber-reinforced composites and metallic materials, exhibiting high fatigue resistance and impact resistance, with broad applications in fields such as national defense, aerospace, automotive engineering, and marine engineering. In this paper, thermoplastic carbon fiber/aluminum alloy hybrid composite laminates were first prepared using a hot-press machine; then, high-velocity impact tests were conducted on the specimens using a first-stage light gas gun test system. Comparative experimental analyses were performed to evaluate the energy absorption performance of laminates with different ply thicknesses and layup configurations. High-speed cameras and finite element analysis software were employed to analyze the failure process and modes of the laminates under impact loading. The results demonstrate that fiber–metal laminates exhibit higher specific energy absorption than carbon fiber composite laminates. Meanwhile, the numerical simulation results can effectively reflect the experimental outcomes in terms of the velocity–time relationship, failure modes during the laminate impact process, and failure patterns after the laminate impact. Full article

To achieve carbon neutrality, a reduction in car body weight is essential. Multi-material structures that use lightweight materials such as carbon fiber-reinforced polymers (CFRP) and aluminum (Al) alloy are used to replace parts of steel components. This multi-material method requires specific joining techniques for bonding dissimilar materials. Friction stir spot welding (FSSW) is one of the joining techniques used for joining dissimilar materials, enabling rapid and strong joints. FSSW for bonding A5052 Al alloy and carbon fiber-reinforced thermosetting resin (CFRTS) utilizing composite laminates with integrally molded thermoplastic resin in the outermost layer has been developed. However, joints using this method cause pyrolysis due to excessive frictional heating at the tool’s bottom, which may affect joint strength and promote corrosion in Al alloy. Therefore, this study developed new tools, a concave-shaped tool without a probe, a concave-shaped tool with a probe and a conventional FSSW tool, and investigated the influence of heat distribution and joint strength using the three new tools. The newly developed concave-shaped tool with a probe suppressed 7% of maximum heat input, decreased the pyrolysis area of epoxy resin by 47%, and increased joint strength by 4%. Finite element analysis also showed the suppression of heat input through the newly developed concave-shaped tool with a probe, achieved by reducing the contact area between the tool and Al alloy. Full article

This study designed laser engraving and resin pre-coating (RPC) treatments on an aluminum alloy (AA) surface to construct through-the-thickness “epoxy pins” for improving the bonding strength with carbon fiber reinforced polymer (CFRP). A laser engraving treatment was used to create a pitted structure on the AA surface; higher wettability was acquired and greater vertical spaces were formed to impregnate epoxy resin, resulting in stronger mechanical interlocking. The RPC technique was further used to guide high-viscosity epoxy resin into pits to form the epoxy coatings and to minimize defects between the resin and the substrate. The bonding strength of the specimen treated with both laser engraving with a unit dimension of 0.3 mm and RPC increased up to 227.1% in comparison with that of the base. The failure modes of the hybrid composites changed from the debonding failure of the AA surface to the delamination-dominated failure of the laminated CFRP composites. It was confirmed that laser engraving is a feasible and effective method when combined with RPC for treating AAs to improve the bonding strength of AA-CFRP composites, which provides a reference for preparing high-performance hybrid composites with metals. Full article

To reduce car body weight, multi-material structures with lightweight materials such as carbon-fiber-reinforced plastics (CFRPs) and aluminum alloys (Als) are used to replace parts of steel components, and joining technologies for such dissimilar materials are essential. Friction stir spot welding (FSSW) is one of the technologies used to rapidly and strongly join dissimilar materials. FSSW for carbon-fiber-reinforced thermosetting resin (CFRTS) and Als has been developed using composite laminates with integrally molded thermoplastic resin in the outermost layer. To suppress excessive heating under the tool, this study investigated whether multi-stage heating with a non-heating time during joining affects the heat distribution and strength properties of the joint. Due to heat diffusion in Al during the non-heating time, multi-stage heating can suppress excessive heating under the tool compared to continuous heating, resulting in up to 27% larger welded area, up to 37% smaller decomposed area, and up to 6% lower maximum temperature. The use of multi-stage heating results in up to 5% higher tensile shear strength and 210% longer fatigue life by reducing the thermal decomposition of CFRP matrix resin and PA12 resin. Full article

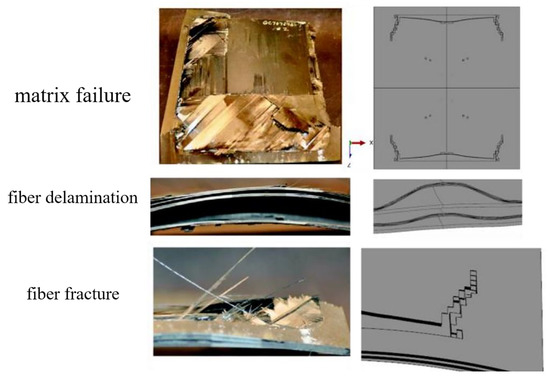

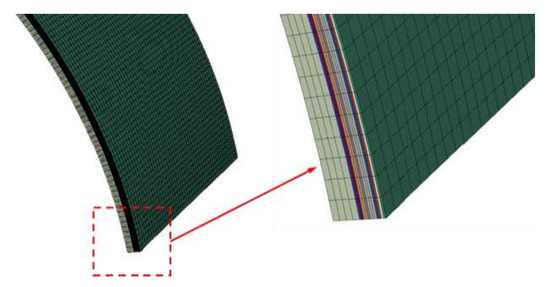

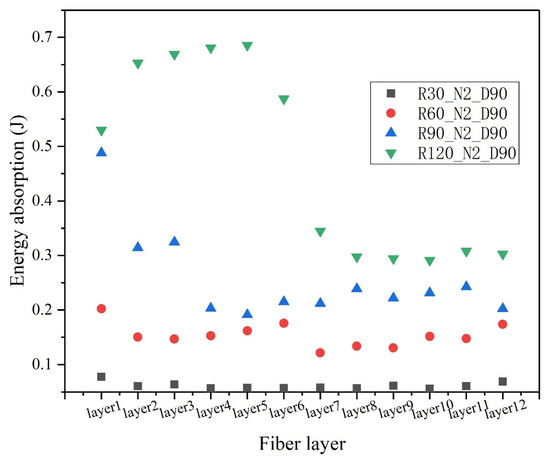

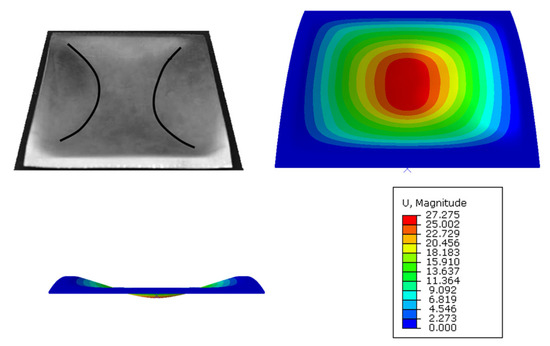

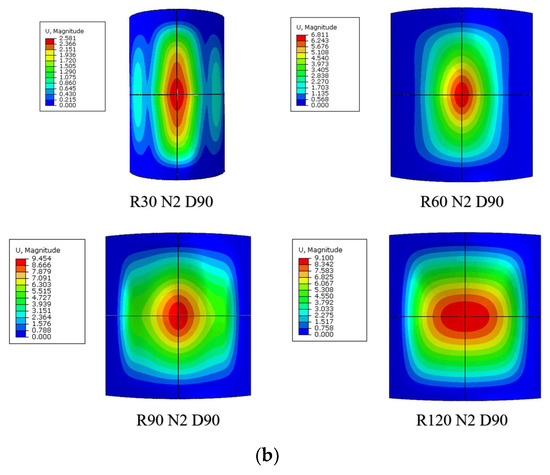

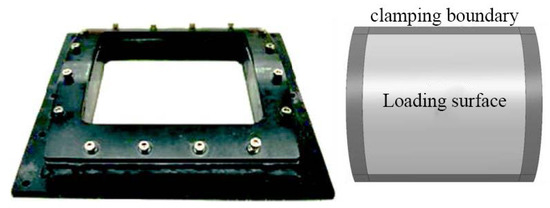

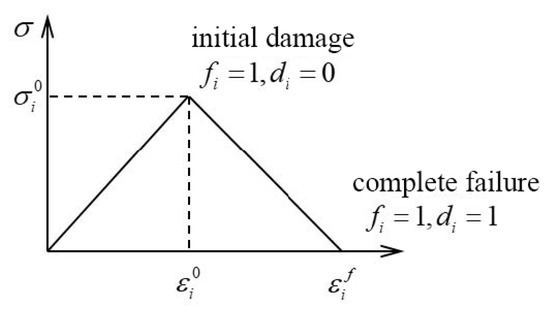

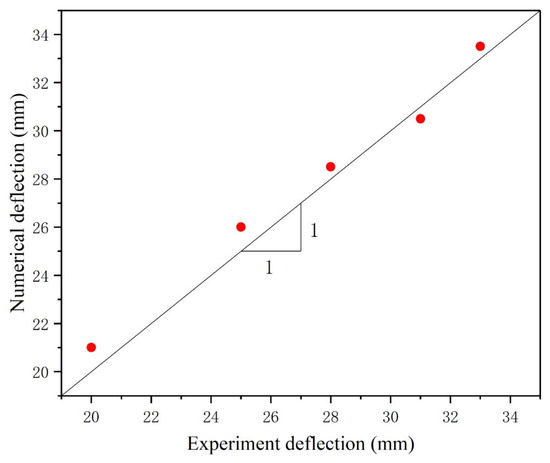

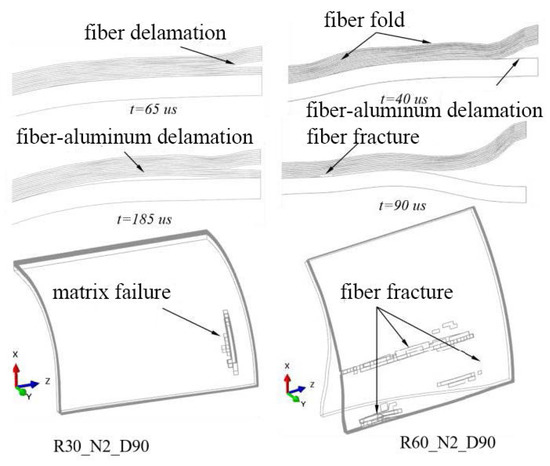

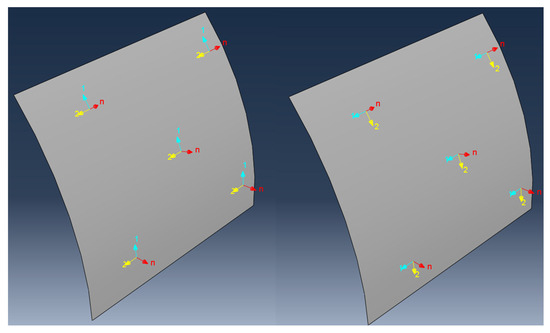

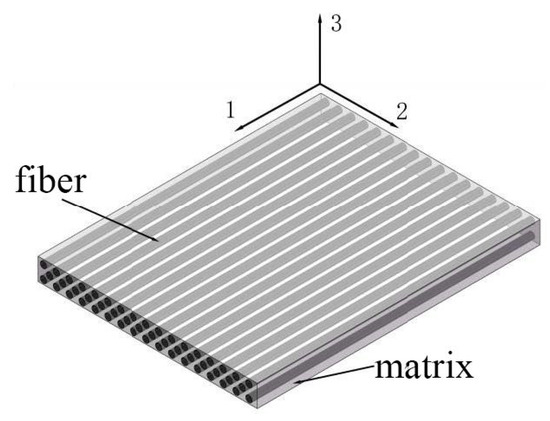

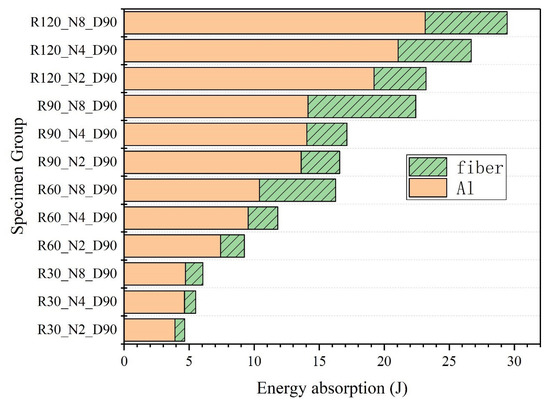

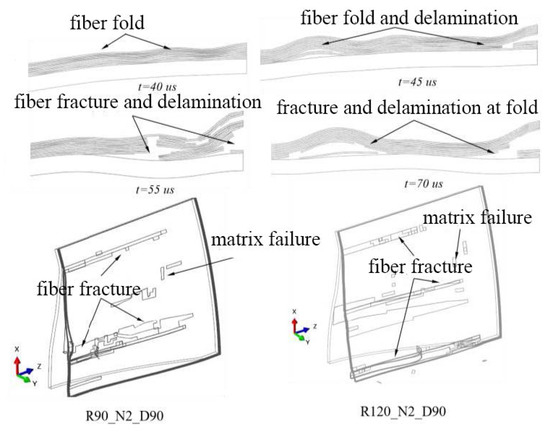

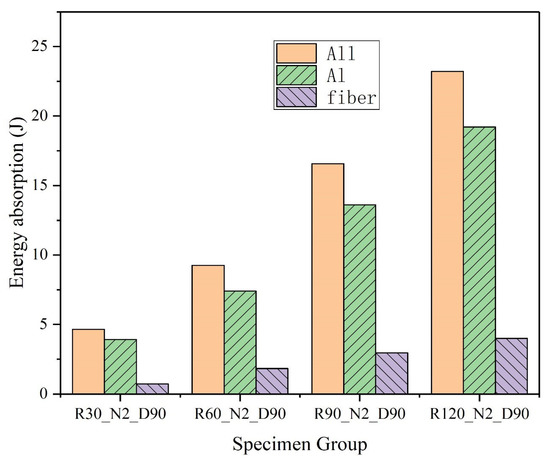

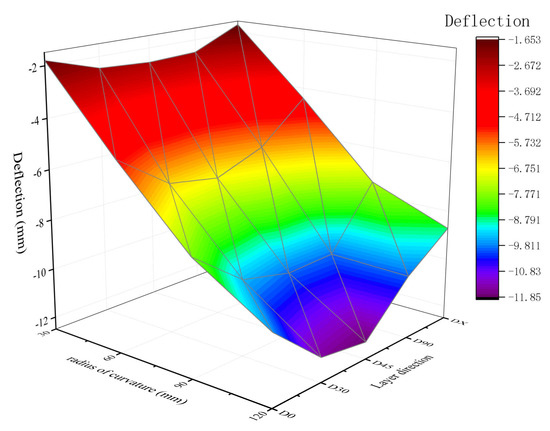

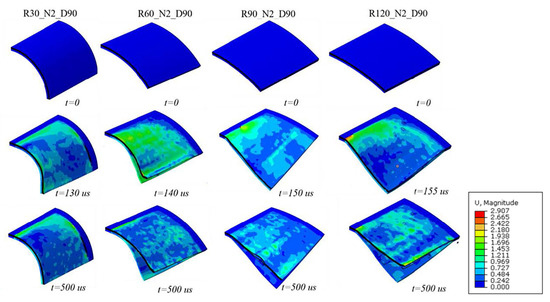

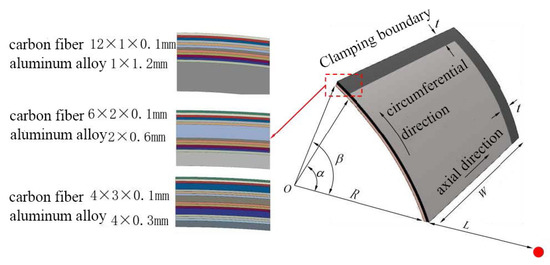

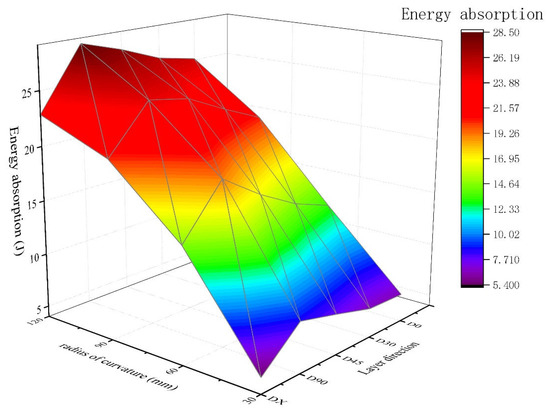

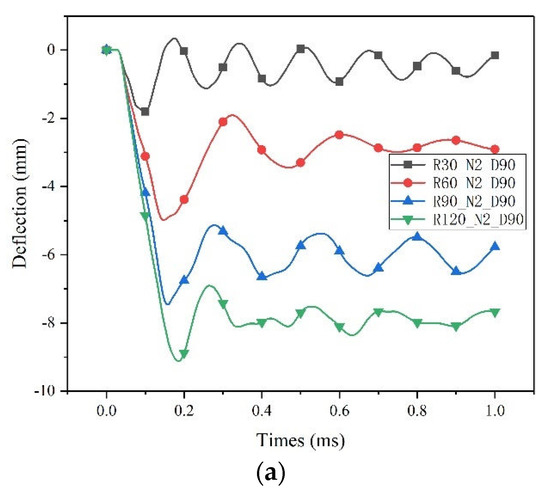

In this study, the dynamic responses under blast loading of carbon fiber reinforced aluminum alloy laminates with different curvature radii, different numbers of layers, and different layer directions of carbon fiber under blast loading were compared numerically. The finite element models were built with ABAQUS/Explicit. To calibrate the numerical models, experiments on curved carbon fiber and curved aluminum alloy were modeled, and the numerical results showed good agreement with the experimental data. The calibrated numerical models were used to simulate the dynamic response of cylindrical panels subject to external explosion loading. The stiffness degradation coefficient was introduced to more accurately simulate the failure mode of the composite structures. The deformation and energy absorption of carbon fiber reinforced aluminum alloy laminates under different structural parameters were obtained. These simulation findings can guide the theoretical study and optimal design of carbon fiber reinforced structures subject to external blast loading. Full article

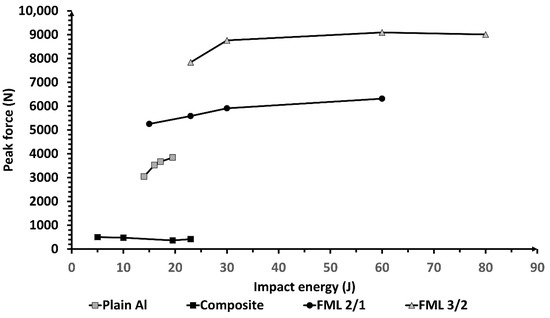

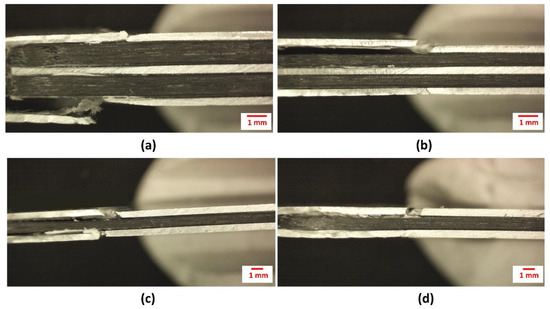

Fiber Metal Laminates (FMLs) are hybrid materials that combine metal components with fiber-reinforced composites. The properties and failure modes of CArbon fiber Reinforced composites/Aluminum Laminates (CARALLs) composed of T700/PA6 unidirectional prepreg and 6061 aluminum alloy were studied using experimental and numerical simulation analysis. Through three-point bending experiments, the bending behavior of CARALLs with different composite/metal layer methods was examined. It was found that FMLs in the 2/1 patch form (one layer of aluminum and two layers of T700/PA6 unidirectional prepreg) show the highest bending modulus and strength compared with other stacking sequences. With the metal volume fraction increased, the bending properties of CARALLs decreased, suggesting the important role of the carbon fiber composite layer in the load-bearing capacity. Lastly, the Linde and Hashin failure criteria were employed to analyze the bending behavior and damage mechanism of CARALLs with different stacking sequences. The simulation results were in good agreement with the experimental results, which provides more insight into the prediction of the bending behavior of CARALLs hybrids. Full article

This paper reports analyses of a 5-degrees-of-freedom (5-DOF) carbon fiber-reinforced polymer (CFRP) robot manipulator, which has been developed for farm applications. The manipulator was made of aluminum alloy (AA) and steel materials. However, to check the effectiveness of CFRP materials on the static and free-vibration performance of the manipulator, the AA parts were replaced with CFRP. For this purpose, the effects of various cross-sections and layups on three design criteria—deflection, load-carrying capacity, and natural frequency—were investigated. Two types of thin-walled laminated sections, specifically the I section and rectangular tubular sections, were used for the composite parts. These parts were made from three hollow square section (“SSS” section) beams and three I section (“III” section) beams. These multi-cell beams were modeled using the finite element (FE) method. Three configurations were selected for analysis based on the manipulator’s most common operating conditions. The results indicated that the use of CFRP increased the manipulator’s natural frequencies, increased the load-carrying capacity, and decreased the manipulator’s tip deflection when compared with its AA counterpart. An analysis showed that using CFRP in the manipulator’s structure could improve static and vibrational performances. It was observed that the “SSS” section beams were 1.17 times stiffer, could carry a 1.20 times higher load, and were 1.40 times heavier than the “III” section beams. Also, decreasing the fiber direction in angle-ply layups from 90° to 0° and adding 0° plies, while keeping the total number of layers constant, decreased the manipulator’s tip deflection and increased its natural frequencies. Full article

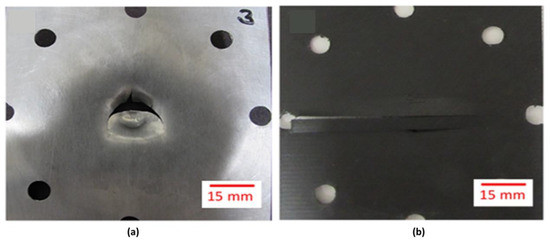

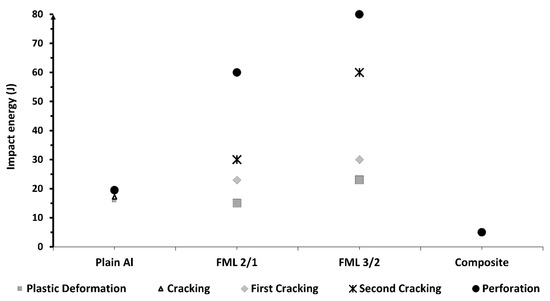

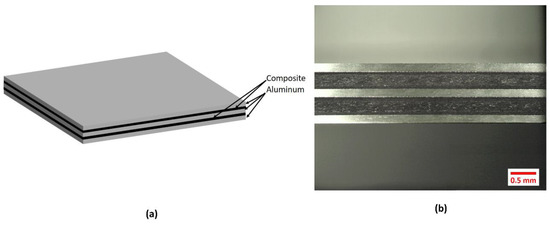

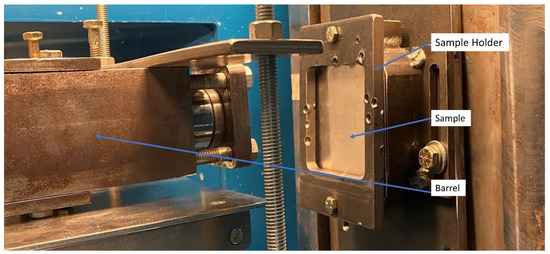

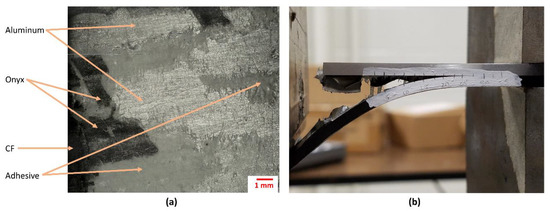

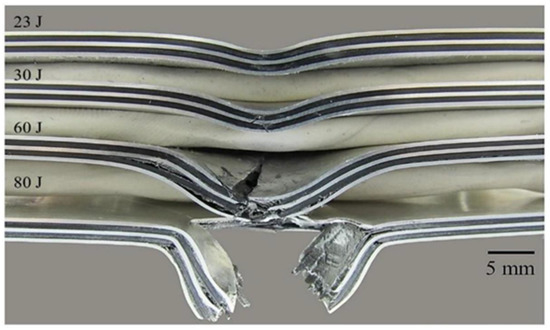

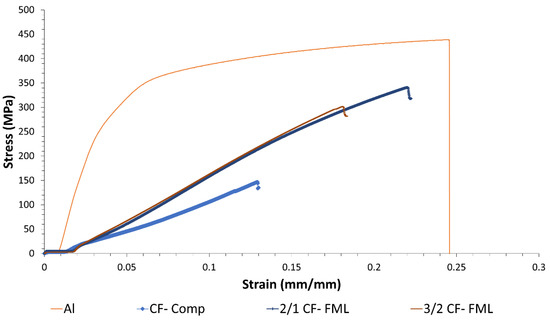

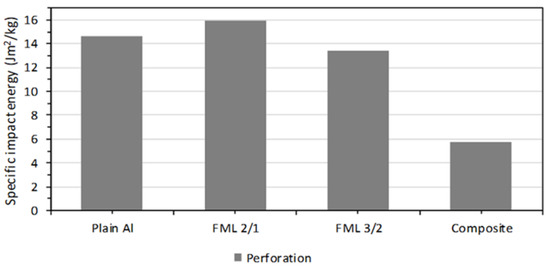

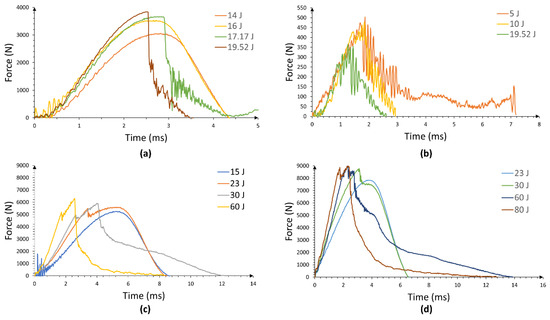

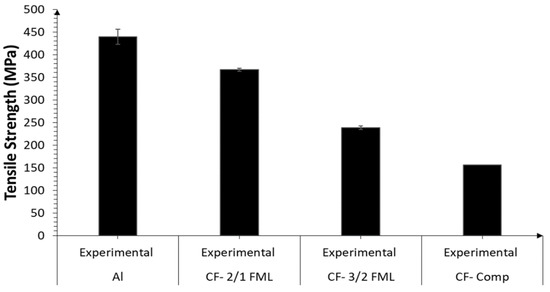

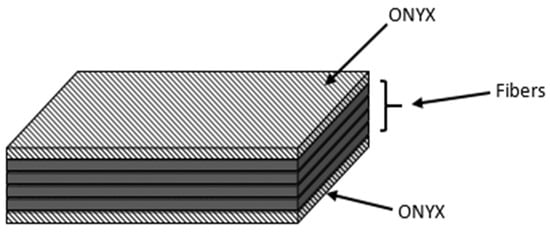

The production and mechanical properties of fiber metal laminates (FMLs) based on 3D printed composites have been investigated in this study. FMLs are structures constituting an alternating arrangement of metal and composite materials that are used in the aerospace sector due to their unique mechanical performance. 3D printing technology in FMLs could allow the production of structures with customized configuration and performance. A series of continuous carbon fiber reinforced composites were printed on a Markforged system and placed between layers of aluminum alloy to manufacture a novel breed of FMLs in this study. These laminates were subjected to tensile, low velocity and high velocity impact tests. The results show that the tensile strength of the FMLs falls between the strength of their constituent materials, while the low and high velocity impact performance of the FMLs is superior to those observed for the plain aluminum and the composite material. This mechanism is related to the energy absorption process displayed by the plastic deformation, and interfacial delamination within the laminates. The present work expects to provide an initial research platform for considering 3D printing in the manufacturing process of hybrid laminates. Full article

Hybrid laminates consist of layers of different materials, which determine the mechanical properties of the laminate itself. Furthermore, the structure and interfacial properties between the layers play a key role regarding the performance under load and therefore need to be investigated in respect to industrial applicability. In this regard, a hybrid laminate comprised of AA6082 aluminum alloy sheets and glass and carbon fiber-reinforced thermoplastic (polyamide 6) is investigated in this study with a focus on the influence of aluminum surface treatment application on tensile and fatigue behavior. Four different aluminum surface treatments are discussed (adhesion promoter, mechanical blasting, phosphating, and anodizing), which were characterized by Laser Scanning Microscopy. After the thermal consolidation of the hybrid laminate under defined pressure, double notch shear tests and tensile tests were performed and correlated to determine the resulting interfacial strength between the aluminum sheet surface and the fiber-reinforced plastic, and its impact on tensile performance. To investigate the performance of the laminate under fatigue load in LCF and HCF regimes, a short-time procedure was applied consisting of resource-efficient instrumented multiple and constant amplitude tests. Digital image correlation, thermography, and hysteresis measurement methods were utilized to gain information about the aluminum surface treatment influence on fatigue damage initiation and development. The results show that fatigue-induced damage initiation, development, and mechanisms differ significantly depending on the applied aluminum surface treatment. The used measurement technologies proved to be suitable for this application and enabled correlations in between, showing that the hybrid laminates damage state, in particular regarding the interfacial bonding of the layers, can be monitored not just through visual recordings of local strain and temperature development, but also through stress-displacement hysteresis analysis. Full article

The aim of the study was to assess the selected properties of a hybrid organic–inorganic silane sol–gel coating (HSG) used in hybrid fiber metal laminates (FML) in a corrosion environment. The HSG coating on the aluminum alloy was produced using 3M™ AC130-2 formulation consisting of 3-glycidoxypropyl-trimethoxysilane (GPTMS) and tetra-n-propoxyzirconium (zirconium(IV) propoxide) (TPOZ). Laminates consisted of aluminum alloy AA2024-T3 sheets, with carbon fiber reinforced polymers (CFRPs) and a glass fiber reinforced metal–composite structure (GFRP). Potentiodynamic and polarization curve and impedance (EIS) tests were carried out on HSG at ambient temperatures after 1 h and 150 h of soaking. Neutral 0.5 M NaCl and 0.8 M NaCl solutions were used for open circuit potential (OCP) and potentiodynamic tests, and 0.5 NaCl was used for the EIS test. A neutral salt spray (NSS) test was applied to laminates with a 12 week exposure period. The results obtained revealed that the HSG coating did not provide sufficient protection against corrosion of the aluminum alloy in direct contact with an aggressive environment but was effective as an interlayer. Local aluminum sheet perforation did not lead to delamination at the metal–composite interface regardless of the type or configuration of the composite. This confirms the durability of HSG used in FMLs. Full article

The study of propagating, evanescent and complex wavenumbers of guided waves (GWs) in high-performance composites using a stable and robust semi-analytical finite element (SAFE) method is presented. To facilitate understanding of the wavenumber trajectories, an incremental material change study is performed moving gradually from isotropic aluminum alloy to carbon fiber reinforced polymer (CFRP) composites. The SAFE results for an isotropic aluminum alloy plate are compared with the exact analytical solutions, which shows that N = 20 SAFE elements across the thickness provides <0.5% error in the highest evanescent wavenumber for the given frequency-wavenumber range. The material change study reveals that reducing the transverse and shear moduli moves the wavenumber solution towards one similar to composite material. The comparison of the propagating, evanescent and complex wavenumber trajectories between composites and aluminum alloy show that antisymmetric imaginary Lamb wave modes always exist in composites although they may not exist in isotropic aluminum alloy at some frequencies. The wavenumber trajectories for a unidirectional CFRP plate show that the range of real wavenumber is much smaller than in the isotropic aluminum alloy. For laminated CFRP composite plates (e.g., unidirectional, off-axis, transverse, cross-ply and quasi-isotropic laminates), the quasi Lamb wave and shear horizontal (SH) wave trajectories are also identified and discussed. The imaginary SH wave trajectories in laminated composites are distorted due to the presence of ±45 plies. The convergence study of the SAFE method in various CFRP laminates indicates that sufficient accuracy can always be achieved by increasing the number of SAFE elements. Future work will address the stress-continuity between composite layers. Full article

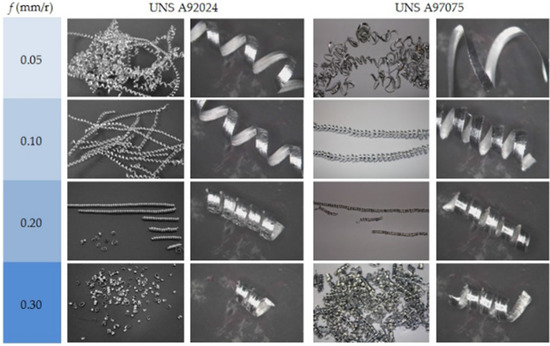

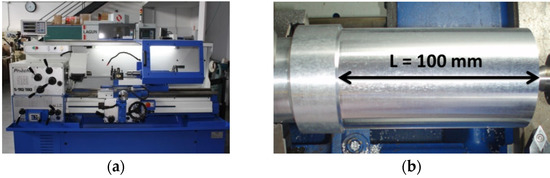

Aluminum alloys are widely used in the manufacturing of structural parts for aircraft, frequently in combination with other materials such as CFRP (Carbon Fiber Reinforced Polymer), to form FML (Fiber Metal Laminates) structures (CFRP/Al). The dry machining of these structures presents several problems, some of which are related to chip evacuation, either when machining aluminum alloys as an isotropic material, or during hybridization with composites. In this work, a study of the way in which cutting parameters influence the chip morphology in the dry machining of UNS A97075-T6 (Al-Zn) and UNS A92024-T3 (Al-Cu) alloys, is performed. Thus, different geometric parameters of the chip morphology have been obtained, and their evolution with feed has been analysed. Finally, the different relationships which occur between these geometric parameters and feed, have been obtained. These relationships allow a prediction of the evolution of some of the geometric parameters of the chip, as a function of feed. Full article
