Search Results (6)

For the treatment of bone defects, biodegradable, compressive biomaterials are needed as replacements that degrade as the bone regenerates. The problem with existing materials has either been their insufficient mechanical strength or the excessive differences in their elastic modulus, leading to stress shielding and eventual failure. In this study, the compressive strength of CPC ceramics (with a layer thickness of more than 12 layers) was compared with sintered β-TCP ceramics. It was assumed that as the number of layers increased, the mechanical strength of 3D-printed scaffolds would increase toward the value of sintered ceramics. In addition, the influence of the needle inner diameter on the mechanical strength was investigated. Circular scaffolds with 20, 25, 30, and 45 layers were 3D printed using a 3D bioplotter, solidified in a water-saturated atmosphere for 3 days, and then tested for compressive strength together with a β-TCP sintered ceramic using a Zwick universal testing machine. The 3D-printed scaffolds had a compressive strength of 41.56 ± 7.12 MPa, which was significantly higher than that of the sintered ceramic (24.16 ± 4.44 MPa). The 3D-printed scaffolds with round geometry reached or exceeded the upper limit of the compressive strength of cancellous bone toward substantia compacta. In addition, CPC scaffolds exhibited more bone-like compressibility than the comparable β-TCP sintered ceramic, demonstrating that the mechanical properties of CPC scaffolds are more similar to bone than sintered β-TCP ceramics. Full article

The aim of this in vitro study was to evaluate the remineralizing ability of three glass ionomers on demineralized dentin with different thicknesses and time periods. Fifty third molars were obtained and were sectioned into 1-, 2-, and 3-mm thick slices (n = 36 for each thickness). The specimens were demineralized with 18% EDTA for 2 h. From the glass ionomer cements (GICs) under study (Ketac Molar Aplicap, Equia Forte, or Riva Light Cure), 1 mm was placed over each slice, set, and preserved in PBS until observation after 1, 7, 14, and 28 days after placement. For each material, thickness, and time, three samples were prepared. Using Fourier Transform Infrared Spectrometry (FTIR), apatite formation was determined on the side opposite to that on which the material had been placed. By means of Energy Dispersive Spectroscopy (EDX), the changes in the Calcium/Phosphate (Ca/P) ratio were evaluated. These changes were compared between the different materials by means of a two-way ANOVA test, considering time and dentin thickness, for a significance level of p < 0.05. Results: FTIR showed a peak at 1420 cm⁻¹, evidencing the presence of carbonated hydroxyapatite in all the materials after 14 days, which indicates that a remineralization process occurred. Riva Light Cure showed the most homogeneous results at all depths at 28 days. The Ca/P ratio was maximum at 7 days in 2 mm of dentin for Riva Light Cure and Equia Forte HT (3.16 and 3.07; respectively) and for Ketac Molar at 14 days in 1 mm (3.67). All materials induced remineralization. Equia Forte achieved the greatest effect at 2 mm and Ketac Molar at 1 mm, whereas Riva Light Cure showed similar results at all depths. In terms of Ca/P ratio, Equia Forte and Riva Light Cure remineralized best at 2 mm, whereas for Ketac Molar, it was 1 mm. Carbonate apatite formation was higher at 24 h and 7 days for Ketac Molar, whereas it decreased at 14 days for Ketac Molar and peaked in Riva Light Cure and Equia Forte. Full article

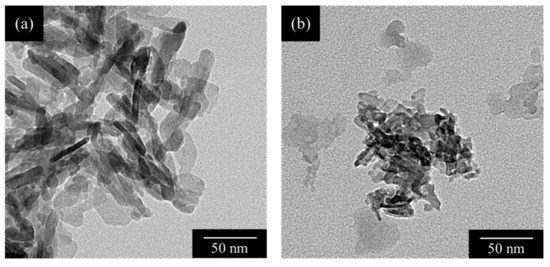

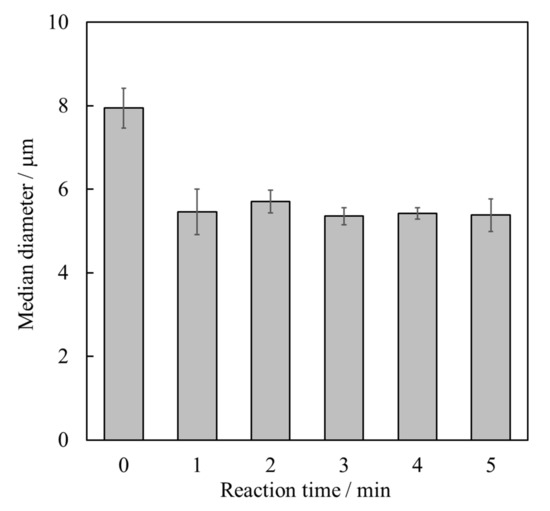

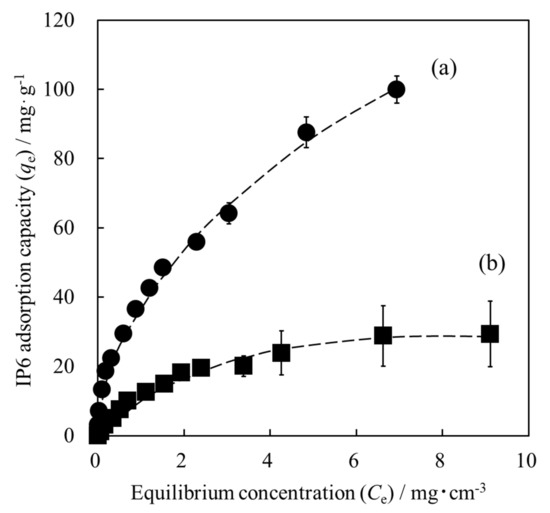

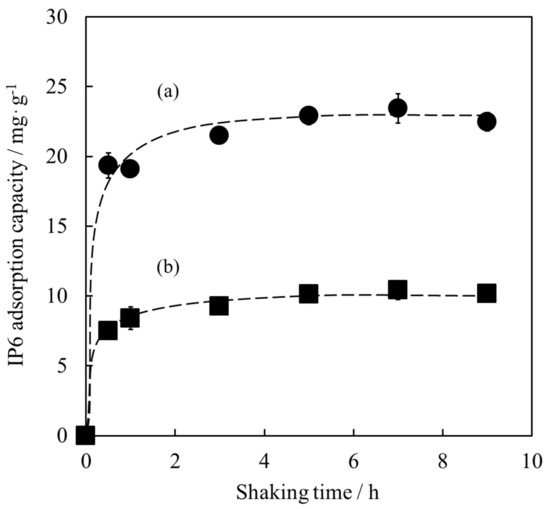

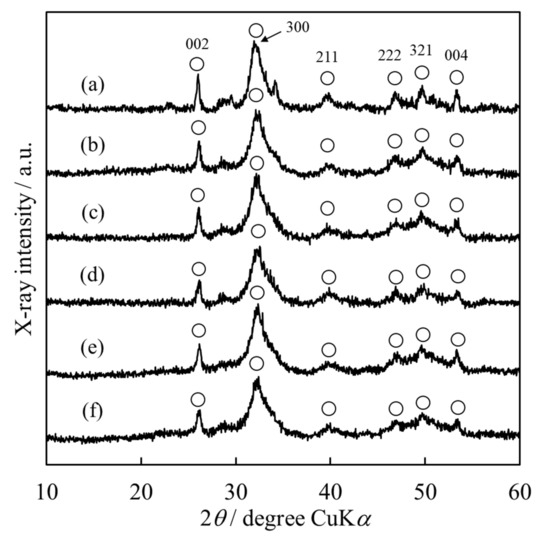

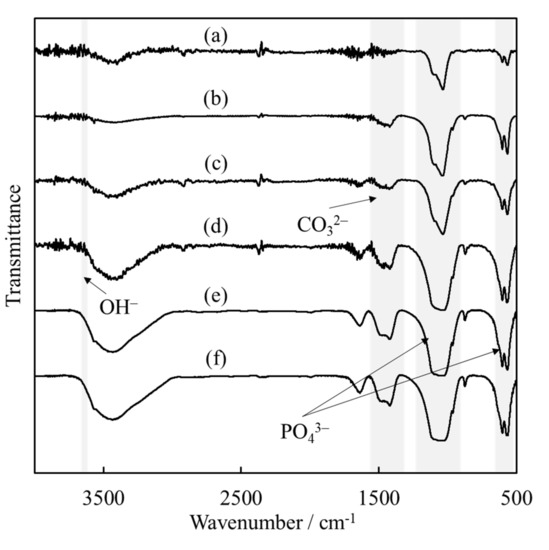

Chelate-setting calcium-phosphate cements (CPCs) have been developed using inositol phosphate (IP6) as a chelating agent. However, the compressive strength of the CPC fabricated from a commercially available hydroxyapatite (HAp) powder was approximately 10 MPa. In this study, we miniaturized HAp particles as a starting powder to improve the compressive strength of chelate-setting CPCs and examined the adsorption properties of IP6 onto HAp powders. An HAp powder with a specific surface area (SSA) higher than 200 m²/g (HApHS) was obtained by ultrasonic irradiation for 1 min in a wet synthesis process, greatly improving the SSA (214 m²/g) of the commercial powder without ultrasonic irradiation. The HApHS powder was found to be a B-type carbonate-containing HAp in which the phosphate groups in apatite were replaced by carbonate groups. Owing to the high SSA, the HApHS powder also showed high IP6 adsorption capacity. The adsorption phenomena of IP6 to our HApHS and commercially available Hap powders were found to follow the Freundlich and Langmuir models, respectively. We found that IP6 adsorbs on the HApHS powder by both physisorption and chemisorption. The fine HapHS powder with a high SSA is a novel raw powder material, expected to improve the compressive strength of chelate-setting CPCs. Full article

Bacterial adhesion to the calcium phosphate surface is a serious problem in surgery. To prevent bacterial infection, the development of calcium-phosphate cements (CPCs) with bactericidal properties is indispensable. The aim of this study was to fabricate antibacterial CPCs and evaluate their biological properties. Silver-containing tricalcium phosphate (Ag-TCP) microspheres consisting of α/β-TCP phases were synthesized by an ultrasonic spray-pyrolysis technique. The powders prepared were mixed with the setting liquid to fabricate the CPCs. The resulting cements consisting of β-TCP and hydroxyapatite had a porous structure and wash-out resistance. Additionally, silver and calcium ions could be released into the culture medium from Ag-TCP cements for a long time accompanied by the dissolution of TCP. These data showed the bioresorbability of the Ag-TCP cement. In vitro antibacterial evaluation demonstrated that both released and immobilized silver suppressed the growth of bacteria and prevented bacterial adhesion to the surface of CPCs. Furthermore, histological evaluation by implantation of Ag-TCP cements into rabbit tibiae exhibited abundant bone apposition on the cement without inflammatory responses. These results showed that Ag-TCP cement has a good antibacterial property and good biocompatibility. The present Ag-TCP cements are promising for bone tissue engineering and may be used as antibacterial biomaterials. Full article

We have succeeded in improving the material properties of a chelate-setting calcium-phosphate cement (CPC), which is composed of hydroxyapatite (HAp) the surface of which has been modified with inositol hexaphosphate (IP6) by adding α-tricalcium phosphate (α-TCP) powder. In order to create a novel chelate-setting CPC with sufficient bioresorbability, gelatin particles were added into the IP6-HAp/α-TCP cement system to modify the material properties. The effects of adding polysaccharides (chitosan, chondroitin sulfate, and sodium alginate) into the sodium dihydrogen phosphate mixing solution on the material properties of the gelatin-hybridized CPC were evaluated. The results of mechanical testing revealed that chondroitin sulfate would be the most suitable for fabricating the hybridized CPC with higher compressive strength. Moreover, further addition of an appropriate amount of citric acid could improve the anti-washout capability of the cement paste. In summary, a gelatin-hybridized IP6-HAp/α-TCP cement system prepared with a mixing solution containing chondroitin sulfate and citric acid is expected to be a beneficial CPC, with sufficient bioresorbability and material properties. Full article

Powder-liquid poly (methyl methacrylate) (PMMA) bone cements are widely utilized for augmentation of bone fractures and fixation of orthopedic implants. These cements typically have an abundance of beneficial qualities, however their lack of bioactivity allows for continued development. To enhance osseointegration and bioactivity, calcium phosphate cements prepared with hydroxyapatite, brushite or tricalcium phosphates have been introduced with rather unsuccessful results due to increased cement viscosity, poor handling and reduced mechanical performance. This has limited the use of such cements in applications requiring delivery through small cannulas and in load bearing. The goal of this study is to design an alternative cement system that can better accommodate calcium-phosphate additives while preserving cement rheological properties and performance. In the present work, a number of brushite-filled two-solution bone cements were prepared and characterized by studying their complex viscosity-versus-test frequency, extrusion stress, clumping tendency during injection through a syringe, extent of fill of a machined void in cortical bone analog specimens, and compressive strength. The addition of brushite into the two-solution cement formulations investigated did not affect the pseudoplastic behavior and handling properties of the materials as demonstrated by rheological experiments. Extrusion stress was observed to vary with brushite concentration with values lower or in the range of control PMMA-based cements. The materials were observed to completely fill pre-formed voids in bone analog specimens. Cement compressive strength was observed to decrease with increasing concentration of fillers; however, the materials exhibited high enough strength for consideration in load bearing applications. The results indicated that partially substituting the PMMA phase of the two-solution cement with brushite at a 40% by mass concentration provided the best combination of the properties investigated. This alternative material may find applications in systems requiring highly injectable and viscous cements such as in the treatment of spinal fractures and bone defects. Full article
