Search Results (5)

Cross-linked polyethylene power cables are widely used in high-voltage DC transmission lines, owing to their good dielectric and physical–chemical properties. However, the production process of XLPE involves cross-linking and degassing, in which the cross-linking process produces a variety of cross-linking by-products, and the changes in the properties of the cable insulation caused by the degassing process are not well understood. XLPE samples were degassed at 90 °C for 7 and 14 days in this paper, and the main by-products were found to be α-methylstyrene, acetophenone, and cumyl alcohol, the contents of which all declined after the degassing treatment. The results show that the space charge density, the leakage current under a high electric field at different temperatures, and the breakdown strength of the XLPE samples all decreased after the degassing treatment. On the other hand, the XLPE sample after 7 days’ degassing had the lowest conductivity and the highest conductance activation, and the space charge density and the charge decay rate as well as the breakdown strength after 7 days’ degassing differed little from the 14-day treated sample, demonstrating that the 7-day degassing treatment at 90 °C would be enough to achieve superior performance. Full article

In this work, void formation was systematically observed for the glass frit bonding technique as a function of the annealing temperature, annealing time, and annealing ambient. High annealing temperature and long annealing time were adopted to reach the maximum heat flux to avoid voids/bubbles. As demonstrated in the experiments, the voids appearing during glass frit bonding are related to the quantity of byproducts from the combustion of organic matter. The experimental results indicate that solely in air, under vacuum, or annealed for short time, the combustion products cannot be fully degassed, and voids occur. It was shown that the alternating three-step conditioning process including glass liquid forming in air, bubble removal under vacuum, and void filling-up in air can lead to void-free and uniform wafer bonding. The glass frit bonding samples with lots of voids/bubbles were compared to the ones without any defects. Full article

Herein, we apply a computational diffusion model based on Fick’s law to study the manner in which a cable production line and its operating conditions can be enhanced to effectively reduce the CH${}_4$ concentration in cables insulated with cross-linked polyethylene (XLPE). Thus, we quantitatively analyze the effect of the conductor temperature, curing tube temperature distribution, transition zone length, and online relaxation on CH${}_4$ generation and transport during the production of 132 kV cables with an insulation thickness of 16.3 mm. Results show that the conductor temperature, which is initially controlled by a preheater, and the curing tube temperature distribution considerably affect the CH${}_4$ concentration in the cable because of their direct impact on the insulation temperature. The simulation results show 2.7% less CH${}_4$ remaining in the cable when the preheater is set at 160 °C compared with that when no preheater is used. To study the curing tube temperature distribution, we consider three distribution patterns across the curing tube: constant temperature and linear incremental and decremental temperature. The amount of CH${}_4$ remaining in the cable when the temperature was linearly increased from 300 to 400 °C was 1.6% and 3.7% lower than in the cases with a constant temperature at 350 °C and a linear temperature decrease from 400 to 300 °C, respectively. In addition, simulations demonstrate that the amount of CH${}_4$ removal from the cable can be increased up to 9.7% by applying an elongated and insulated transition zone, which extends the residence time for CH${}_4$ removal and decelerates the decrease in cable temperature. Finally, simulations show that the addition of the online relaxation section can reduce the CH${}_4$ concentration in the cable because the high cable temperature in this section facilitates CH${}_4$ removal up to 2.2%, and this effect becomes greater at low production speeds. Full article

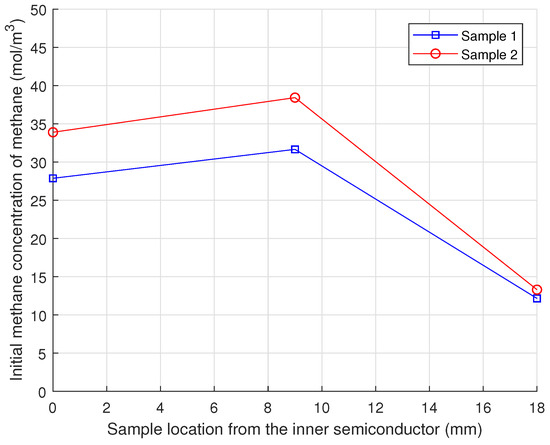

In this work, we apply a computational diffusion model based on Fick’s laws to study the generation and transport of methane (CH ${}_4$ ) during the production of a cross-linked polyethylene (XLPE) insulated cable. The model takes into account the heating process in a curing tube where most of the cross-linking reaction occurs and the subsequent two-stage cooling process, with water and air as the cooling media. For the calculation of CH ${}_4$ generation, the model considers the effect of temperature on the cross-linking reaction selectivity. The cross-linking reaction selectivity is a measure of the preference of cumyloxy to proceed either with a hydrogen abstraction reaction, which produces cumyl alcohol, or with a $\beta$ -scission reaction, which produces acetophenone and CH ${}_4$ . The simulation results show that, during cable production, a significant amount of CH ${}_4$ is generated in the XLPE layer, which diffuses out of the cable and into the conductor part of the cable. Therefore, the diffusion pattern becomes a non-uniform radial distribution of CH ${}_4$ at the cable take-up point, which corresponds well with existing experimental data. Using the model, we perform a series of parametric studies to determine the effect of the cable production conditions, such as the curing temperature, line speed, and cooling water flow rate, on CH ${}_4$ generation and transport during cable production. The results show that the curing temperature has the largest impact on the amount of CH ${}_4$ generated and its distribution within the cable. We found that under similar curing and cooling conditions, varying the line speed induces a notable effect on the CH ${}_4$ transport within the cable, while the cooling water flow rate had no significant impact. Full article

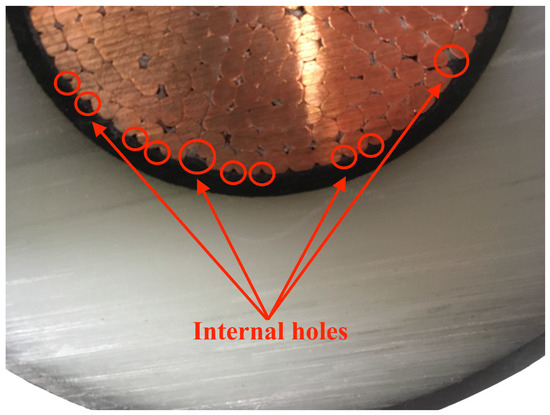

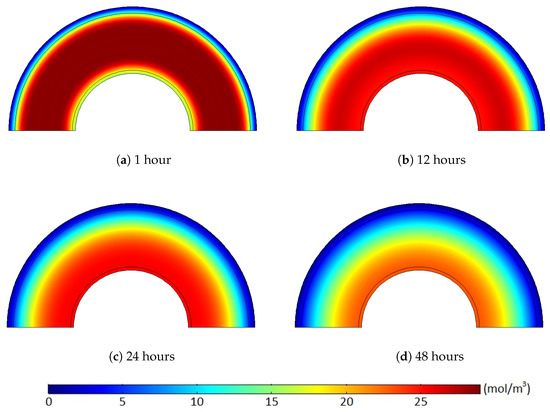

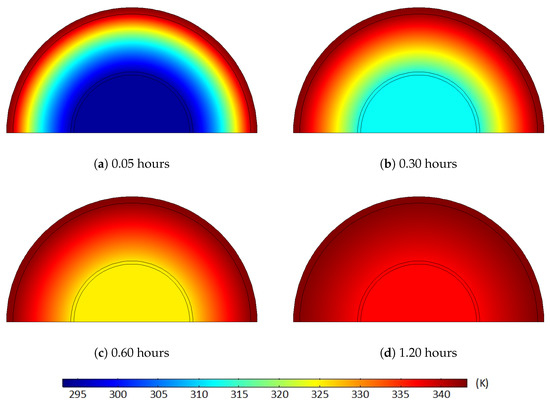

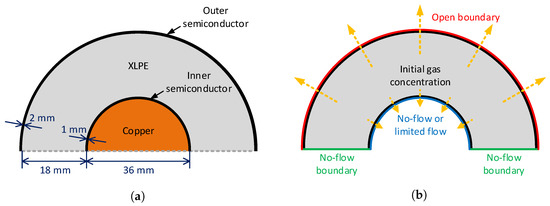

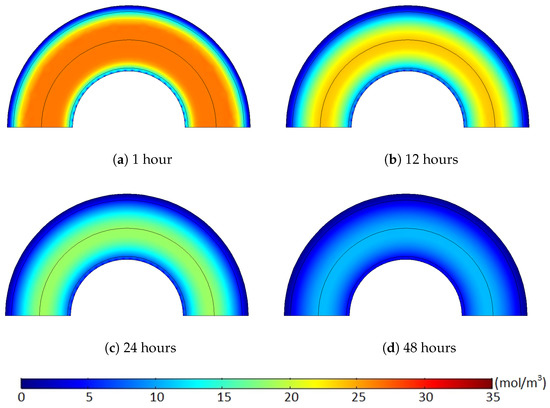

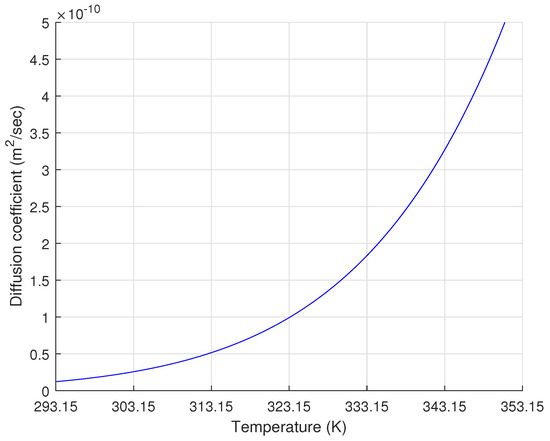

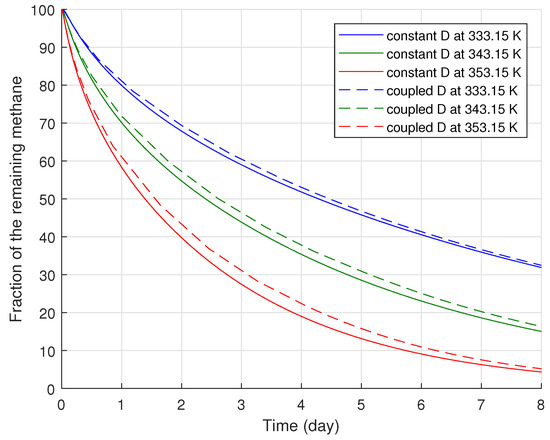

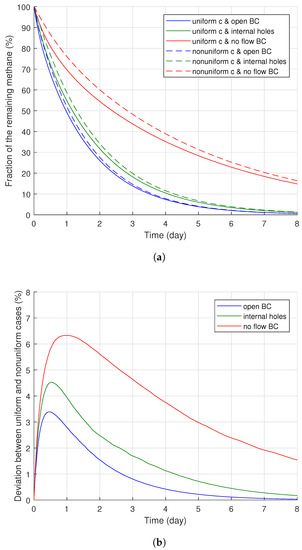

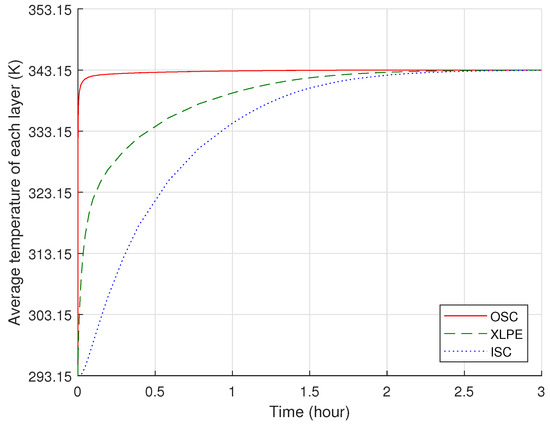

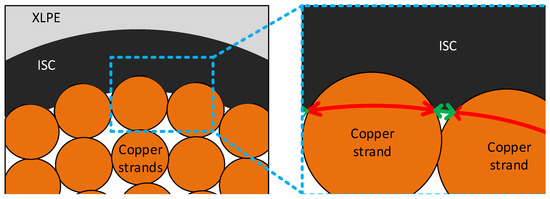

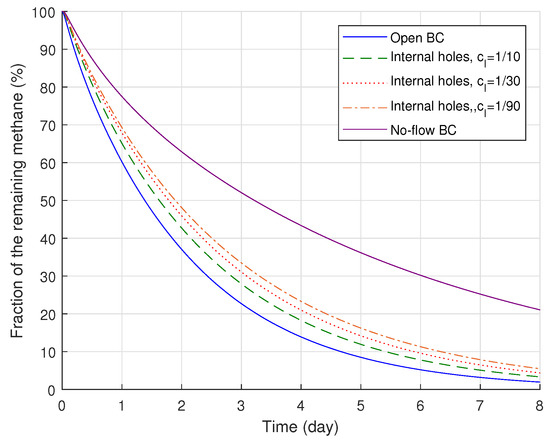

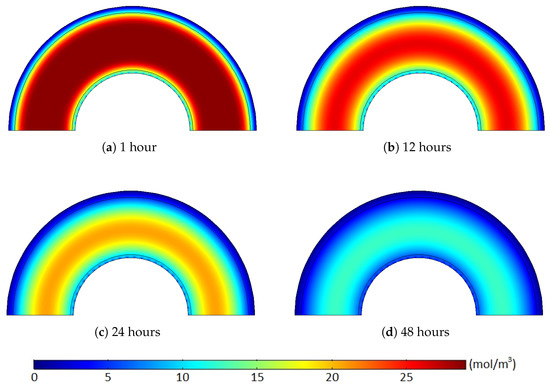

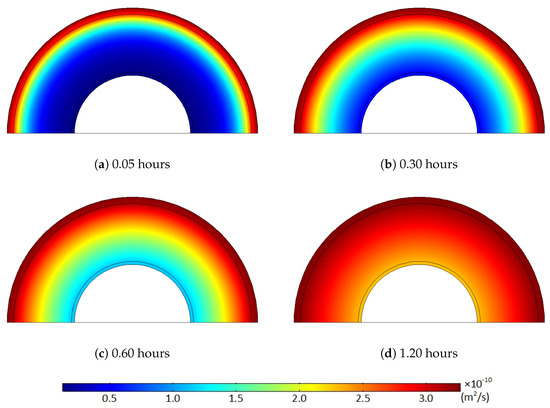

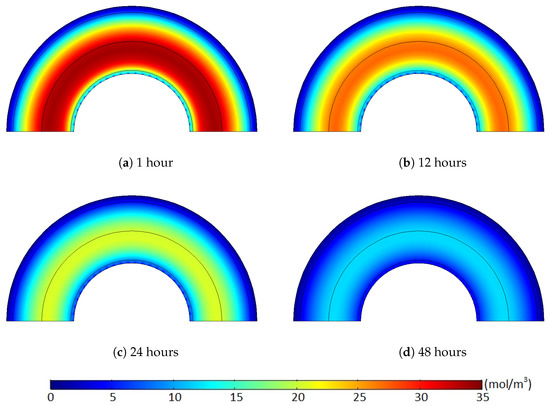

Here, we analyze the degassing process of a byproduct (methane) formed during the peroxide-induced crosslinking of polyethylene. A diffusion model based on Fick’s law is used to obtain the controlling factors of degassing in a crosslinked polyethylene (XLPE) insulated power cable (132 kV with 18 mm of insulation). We quantitatively analyze different scenarios of the diffusion of methane through the XLPE insulation and two semiconductor layers under various in situ degassing conditions. The analyzed degassing conditions include heat transfer and its effect on the diffusion properties, the different transport and boundary conditions due to the free spaces within the cable conductor, and the nonuniform distribution of methane concentrations within the insulation layers. Our simulation results clearly demonstrate that the free spaces between the copper strands in the cable conductor significantly affect the degassing efficiency. However, the temperature-diffusion coupling has a relatively minor effect on the overall degassing efficiency due to the rapid temperature increase of the polymer layers during the initial stages of degassing. Moreover, we find that the nonuniform distribution of methane in the initial stages also plays an important role in degassing in the cable, but this effect varies significantly during the degassing process. Full article
