The impact of radomization on the radiation pattern of a millimeter-wave antenna for an ETA system utilizing synthetic aperture radar (SAR) is examined with special emphasis placed on the phase shift across both the beamwidth and the bandwidth, rather than the amplitude. Three different radomization approaches, including one based on metasurfaces, are evaluated for a radar antenna operating within the 24.05–24.25 GHz frequency range. Fabricated prototypes, both of the standalone antenna and the radomized version, are tested and compared in terms of electromagnetic image quality. The metasurface-based radome provides the best results among the radomization options analyzed. Full article

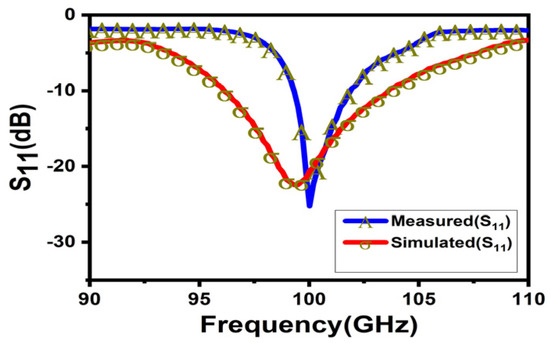

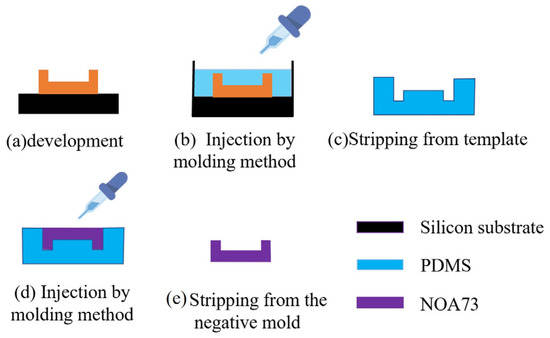

This paper presents a waveguide Lens antenna at the W-band adopting dual-focusing Lens to improve the performance. The Lens antenna consisted of a waveguide slotted structure and lenses processed using NOA73 meet the demands of miniaturization for current communication systems. The antenna radome fabricated using NOA73 not only protects the antenna structure but also improves the gain of the antenna by about 9.5 dBi via electromagnetic wave dual-focusing. A prototype is fabricated using novel UV-LIGA technology. Measured results are compared with simulated values. Measured results confirmed the fabricated antenna operated in the W-band with a 10 dB fractional bandwidth (FBW) of 6.5% from 97.5 to 104 GHz and a peak gain of 22 dBi at 100 GHz in the direction perpendicular to the plane of the feed waveguide. A good agreement between simulation and measurement is obtained, demonstrating efficient radiations in the operating band. Full article

Radar systems are a type of sensor that detects radio signals reflected from objects located a long distance from transmitters. For covering a longer range and a higher resolution in the operation of a radar, a high-frequency band and an array antenna are measures to take. Given a limited size to the antenna aperture in the front end of the radar, the choice of a millimeter-wave band leads to a denser layout for the array antenna and a higher antenna gain. Millimeter-wave signals tend to become attenuated faster by a larger loss of the covering material like the radome, implying this disadvantage offsets the advantage of high antenna directivity, compared to the C-band and X-band ones. As the radome is essential to the radar system to protect the array antenna from rain and dust, a metamaterial surface in the layer is suggested to meet multiple objectives. Firstly, the proposed electromagnetic structure is the protection layer for the source of radiation. Secondly, the metasurface does not disturb the millimeter-wave signal and makes its way through the cover layer to the air. This electromagnetically transparent surface transforms the phase distribution of the incident wave into the equal phase in the transmitted wave, resulting in an increased antenna gain. This is fabricated and assembled with the array antenna held in a 3D-printed jig with harnessing accessories. It is examined in view of S₂₁ as the transfer coefficient between two ports of the VNA, having the antenna alone and with the metasurface. Additionally, the far-field test comes next to check the validity of the suggested structure and design. The bench test shows around a 7 dB increase in the transfer coefficient, and the anechoic chamber field test gives about a 5 dB improvement in antenna gain for a 24-band GHz array antenna. Full article

In this paper, an efficient method based on volume integral equation is developed to analyze the effects of ablation of a radome on the boresight error. To avoid recalculating the whole impedance matrix when the permittivity of the radome or the shape of the top portion is slightly changed due to ablation, the radome is divided into unaffected and affected parts and the volume equivalent current instead of the displacement current is used as the unknown. This permits us to reassemble rather than recalculate the impedance matrix when the ablation condition is altered. Moreover, a viable preconditioning technique is introduced and integrated with the multilevel fast multipole algorithm (MLFMA) to cope with the electrically large antenna-radome system (ARS). Simulation results are provided for the boresight error (BSE) and boresight error slope (BSES) of the ARS at some different ablation states. The present approach is considerably faster than using the conventional methods. Full article

In this work, an efficient slotted waveguide antenna (SWA) system is designed for S-band high power microwave (HPM) applications. The designed SWA comprises of 10-slot elements placed on the broad wall of SWA with a modified Gaussian distribution (MGD), integrated with two inside-grooves and a Gaussian dielectric radome of high-density polyethylene (HDPE) material. The inside-grooves are introduced to suppress the surface current on the waveguide, which results in high gain as well as sidelobe level (SLL) reduction in the E-plane. The MGD controls the SLLs, and the unique Gaussian profile shape radome offers constant radiation characteristics. The proposed antenna system, within existing size constraints, offers a high gain of 20.1 dBi in conjunction with a high-power handling capability of greater than 100 MW. The designed SWA system has compact dimensions of 8.46λ₀ × 1.38λ₀ × 1.50λ₀, with SLLs of −20 dB and −22 dB in the H- and E-plane, respectively. The HPM antenna system, radiating at 3 GHz, is fabricated on aluminium material using the milling process. The simulated SWA system has good agreement with measured results. Moreover, the proposed SWA system offers clear advantages in terms of its robustness, design simplicity, high power handling capability, and high gain. Full article

Water vapor is one of the most important greenhouse gases in the world. There are many techniques that can measure water vapor directly or remotely. In this work, we first study the Global Positioning System (GPS)- and the Global Navigation Satellite System (GLONASS)-derived Zenith Wet Delay (ZWD) time series based on 11 years of the second reprocessing campaign of International Global Navigation Satellite Systems (GNSS) Service (IGS) using 320 globally distributed stations. The amount of measurement, the local environment, and the antenna radome are shown to be the main factors that affect the GNSS ZWDs and the corresponding a posteriori formal errors. Furthermore, antenna radome is able to effectively reduce the systematic bias of ZWDs and a posteriori formal errors between the GPS- and GLONASS-based solutions. With the development of the GLONASS, the ZWD differences between the GPS- and the GLONASS-based solutions have gradually decreased to sub-mm-level after GLONASS was fully operated. As the GPS-based Precipitable Water Vapor (PWV) is usually used as the reference to evaluate the other PWV products, the PWV consistency among several common techniques is evaluated, including GNSSs, spaceborne sensors, and numerical products from the European Center for Medium-Range Weather Forecasts (ECMWF). As an example of the results from a detailed comparison analysis, the long-term global analysis shows that the PWV obtained from the GNSS and the ECMWF have great intra-agreements. Based on the global distribution of the magnitude of the PWV and the PWV drift, most of the techniques showed superior agreement and proved their ability to do climate research. With a detailed study performed for the ZWDs and PWV on a long-term global scale, this contribution provides a useful supplement for future research on the GNSS ZWD and PWV. Full article

The word radome is a contraction of radar and dome. The function of radomes is to protect antennas from atmospheric agents. Radomes are closed structures that protect the antennas from environmental factors such as wind, rain, ice, sand, and ultraviolet rays, among others. The radomes are passive structures that introduce return losses, and whose proper design would relax the requirement of complex front-end elements such as amplifiers. The radome consists mostly in a thin dielectric curved shape cover and sometimes needs to be tuned using metal inserts to cancel the capacitive performance of the dielectric. Radomes are in the near field region of the antennas and a full wave analysis of the antenna with the radome is the best approach to analyze its performance. A major numerical problem is the full wave modeling of a large radome-antenna-array system, as optimization of the radome parameters minimize return losses. In the present work, the finite difference time domain (FDTD) combined with a genetic algorithm is used to find the optimal radome for a large radome-antenna-array system. FDTD uses general curvilinear coordinates and sub-cell features as a thin dielectric slab approach and a thin wire approach. Both approximations are generally required if a problem of practical electrical size is to be solved using a manageable number of cells and time steps in FDTD inside a repetitive optimization loop. These approaches are used in the full wave analysis of a large array of crossed dipoles covered with a thin and cylindrical dielectric radome. The radome dielectric has a thickness of ~λ/10 at its central operating frequency. To reduce return loss a thin helical wire is introduced in the radome, whose diameter is ~0.0017λ and the spacing between each turn is ~0.3λ. The genetic algorithm was implemented to find the best parameters to minimize return losses. The inclusion of a helical wire reduces return losses by ~10 dB, however some minor changes of radiation pattern could distort the performance of the whole radome-array-antenna system. A further analysis shows that desired specifications of the system are preserved. Full article

The Chang’e-5 lunar exploration mission of China is equipped with a Lunar Regolith Penetrating Radar (LRPR) for measuring the thickness and structures of the lunar regolith in the landing area. Since the LRPR is stationary, an ultra-wideband multiple-input multiple-output (MIMO) array is designed as a replacement for conventional mobile subsurface probing systems. The MIMO array, with 12 antenna elements and a switch matrix, operates in the frequency band from 1.0 to 4.75 GHz. In this work, the design and layout of the antenna elements were optimized with respect to the lander. To this end, the antenna elements were designed as miniaturized Vivaldi antennas with quarter elliptical slots (i.e., quarter elliptical slotted antenna, or QESA). QESAs are significantly small while being able to mitigate the impact of the lander on antenna electrical performances. QESAs also have a wide operating bandwidth, flat gain, and excellent time domain characteristics. In addition, a high-temperature resistant ultra-light radome with high transmissivity is designed to protect the external antenna array. After calibration, the MIMO array is used to detect targets embedded in volcanic ash. The detection depth reaches 2.5 m, and the detection effect is good. Full article

This paper presents an ultralow profile, low passive intermodulation (PIM), and super-wideband in-building ceiling mount antenna that covers both the cellular and public safety ultra high frequency (UHF) band for distributed antenna system (DAS) applications. The proposed antenna design utilizes a modified 2-D planar discone design concept that is miniaturized to fit into a small disc-shaped radome. The 2-D planar discone has an elliptical-shaped disc monopole and a bell-shaped ground plane, a stub at the shorting path, with asymmetrical structure and an additional proximity coupling patch to maximize the available electrical path to support the 350 MHz band range. The proposed design maximizes the radome area with a reduction of about 62% compared to similar concept type antennas. Besides, the proposed design exhibits an improved radiation pattern with null reduction compared to a typical dipole/monopole when lies at the horizontal plane. A prototype was manufactured to demonstrate the antenna performance. The VSWR and radiation pattern results agreed with the simulated results. The proposed antenna achieves a band ratio of 28.57:1 while covering a frequency range of 350–10000 MHz. The measured passive intermodulation levels are better than −150 dBc (2 × 20 Watts) for 350, 700 and 1920 MHz bands. Full article

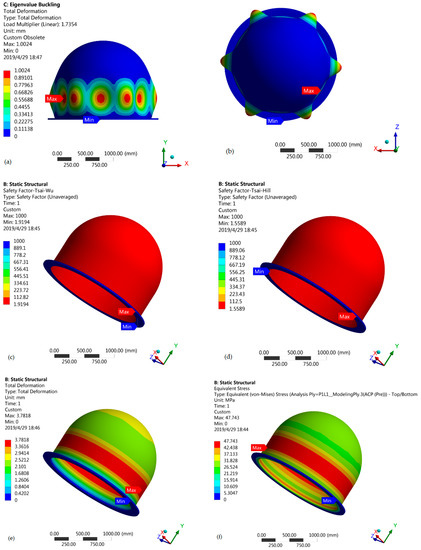

Radomes are usually constructed from sandwich structures made of materials which usually have a low dielectric constant so that they do not interfere with electromagnetic waves. Performance of the antenna is increased by the appropriate assortment of materials enabling it to survive under marine applications, and it depends on composite strength-to-weight ratio, stiffness, and resistance to corrosion. The design of a sandwich core submarine radome greatly depends on the material system, number of layers, orientation angles, and thickness of the core material. In this paper, a conceptual design study for a sandwich core submarine radome is carried out with the help of finite element analysis (FEA) using two unidirectional composite materials—glass fiber reinforced polymer (GFRP) and carbon fiber reinforced polymer (CFRP)—as a skin material and six different core materials. Conceptual designs are obtained based on constraints on the composite materials’ failure, buckling, and strength. The thickness of the core is reduced under constraints on material and buckling strength. Finite element analysis software ANSYS WORKBENCH is used to carry out all the simulations. Full article
