Search Results (9)

Flexible polymer-based piezoelectric nanogenerators (PENGs) have gained significant interest due to their ability to deliver clean and sustainable energy for self-powered electronics and wearable devices. Recently, the incorporation of fillers into the ferroelectric polymer matrix has been used to improve the relatively low piezoelectric properties of polymer-based PENGs. In this study, we investigated the effect of various nanofillers such as titania (TiO₂), zinc oxide (ZnO), reduced graphene oxide (rGO), and lead zirconate titanate (PZT) on the PENG performance of the nanocomposite thin films containing the nanofillers in poly(vinylidene fluoride-co-trifluoro ethylene) (P(VDF-TrFE)) matrix. The nanocomposite films were prepared by depositing molecularly thin films of P(VDF-TrFE) and nanofiller nanoparticles (NPs) spread at the air/water interface onto the indium tin oxide-coated polyethylene terephthalate (ITO-PET) substrate, and they were characterized by measuring their microstructures, crystallinity, β-phase contents, and piezoelectric coefficients (d₃₃) using SEM, FT-IR, XRD, and quasi-static meter, respectively. Multiple PENGs incorporating various nanofillers within the polymer matrix were developed by assembling thin film-coated substrates into a sandwich-like structure. Their piezoelectric properties, such as open-circuit output voltage (V_OC) and short-circuit current (I_SC), were analyzed. As a result, the PENG containing 4 wt% PZT, which was named P-PZT-4, showed the best performance of V_OC of 68.5 V with the d₃₃ value of 78.2 pC/N and β-phase content of 97%. The order of the maximum V_OC values for the PENGs of nanocomposite thin films containing various nanofillers was PZT (68.5 V) > rGO (64.0 V) > ZnO (50.9 V) > TiO₂ (48.1 V). When the best optimum PENG was integrated into a simple circuit comprising rectifiers and a capacitor, it demonstrated an excellent two-dimensional power density of 20.6 μW/cm² and an energy storage capacity of 531.4 μJ within 3 min. This piezoelectric performance of PENG with the optimized nanofiller type and content was found to be superior when it was compared with those in the literature. This PENG comprising nanocomposite thin film with optimized nanofiller type and content shows a potential application for a power source for low-powered electronics such as wearable devices. Full article

Chitosan, a biopolymer derived from chitin, exhibits significant antifungal properties, making it a valuable compound for various applications in agriculture food preservation, and biomedicine. The present study aimed to assess the antifungal properties of chitosan-modified films using sol–gel derivatives (CS:ZnO) or graphene-filled chitosan, (CS:GO and CS:rGO) against two strains of fungi that are the most common cause of food spoilage: Aspergillus flavus ATCC 9643 and Penicillium expansum DSM 1282. The results indicate important differences in the antifungal activity of native chitosan films and zinc oxide-modified chitosan films. CS:ZnO nanocomposites (2:1 and 5:1) completely inhibited spore germination of the two tested fungal strains. Furthermore, a decrease in spore viability was observed after exposure to CS:Zn films. Significant differences in the permeability of cell envelopes were observed in the A. flavus. Moreover, the genotoxicity of the materials against two cell lines, human BJ fibroblasts and human KERTr keratinocytes, was investigated. Our studies showed that the tested nanocomposites did not exhibit genotoxicity towards human skin fibroblasts, and significant damage in the DNA of keratinocytes treated with CS:ZnO composites. Nanocomposites based on chitosan may help reduce synthetic fungicides and contribute to sustainable food production and food preservation practices. Full article

The role of industrial lubricants in machinery is to reduce friction and wear between moving components. Due to the United Nations’ tendency to reduce dependency on fossil fuel, a general awareness is strongly driven towards developing more eco-friendly lubricants. Palm oil possesses promising properties, which promote it to be a competitive alternative to the hostile mineral oils. Still, marginal oxidation stability, viscosity, and tribological properties remain critical issues for performance improvement. This paper presents an improved palm grease using reduced graphene oxide (rGO) and zinc oxide (ZnO) nano-additives at different concentrations. Oil and grease samples were tested for viscosity, oxidation stability, pour point, penetration, roll stability, dropping point, churned grease-oil release, copper corrosion, friction, and wear. ZnO additives enhanced the oxidation stability by 60% and shifted the pour point to 6 °C. Adding ZnO and rGO to the palm grease increased the load-carrying capacity between 30% and 60%, respectively, and reduced the friction coefficient by up to 60%. From the wear scar morphologies, it is believed that graphene 2D nanoparticles formed absorption layers which contributed to the increase in load-carrying capacity, while ZnO chemically reacted with the metallic surface layer, forming zinc compounds that resulted in a protective boundary lubricating film. Full article

A convenient and low-cost sol–gel approach for the one-step synthesis of ZnO–P₂O₅–rGO nanostructures with tuned bandgap and fluorescence was investigated. The obtained hybrid nanostructures exploit the properties of zinc oxide, graphene oxide and phosphorous oxide as promising candidates for a wide range of optoelectronic applications. A predominant amorphous structure, ZnO–P₂O₅–rGO, containing ZnO nanorods was evidenced by X-ray diffraction analysis (XRD) and scanning electron microscopy (SEM). The estimated size of the ZnO nanorods in nanostructures with P₂O₅ was noticed to decrease when the P₂O₅/ZnO ratio was increased. The presence of ZnO, P₂O₅ and rGO was confirmed by Fourier-transform infrared spectroscopy (FTIR) and Raman investigation. P₂O₅ was noticed to tune the bandgap and the fluorescence emissions of the nanostructured films, as estimated by UV–Vis–NIR and fluorescence spectroscopy, respectively. The electrical measurements performed at room temperature showed that the main influence on the film’s resistivity does not come from the 1% rGO doping but from the P₂O₅/ZnO ratio. It was found that a 10/90 molar ratio of P₂O₅/ZnO decreases the resistivity almost seven-fold compared with rGO-doped ZnO films. Full article

Zn-ZnO(Nw)-rGO hybrid electrodes for supercapacitor applications were successfully prepared in situ by a one-step microwave-assisted hydrothermal method by deposition of reduced graphene oxide (rGO) on the structure of ZnO nanowires grown on the Zn foil. During the hydrothermal treatment, two processes occur the reduction of graphene oxide (GO) and the deposition of rGO on the Zn-ZnO(Nw) support. The growth of ZnO nanowires was achieved by thermal oxidation below the melting point of the Zn foil in a controlled atmosphere. The as-obtained electrodes were assessed for structural, optical, and morphological properties by X-ray diffraction, Raman spectroscopy, ultraviolet-visible spectroscopy, SEM microscopy, and EDX analysis. The supercapacitor properties of the Zn-ZnO(Nw)-rGO hybrid electrodes were investigated by cyclic voltammetry, electrochemical impedance spectroscopy, and galvanostatic charge-discharge analysis. The CV curve reveals that the Zn-ZnO(Nw)-rGO hybrid structures work as negative electrodes and exhibit a non-ideal rectangle-like shape, suggesting that the as-synthesized structure behaves as a pseudo-capacitor. A maximum capacitance was determined to be 395.79 mF cm⁻² at a scan rate of 5 mV s⁻¹. Based on GCD analysis, the maximum specific capacitance of 145.59 mF cm⁻² was achieved at a low power density of 2 mA cm⁻². The cycle life assessment of the Zn-ZnO(Nw)-rGO hybrid electrode over a 250-cycle number was performed by CV and GCD analysis. The maximum retention rate of 120.86% was achieved from GCD analysis over 250 cycles for the Zn-ZnO(Nw)-rGO hybrid electrode. Full article

Bionanocomposite materials have been designed as a promising route to enhance biopolymer properties, especially for food packaging application. The present study reports the preparation of bionanocomposite films of alginate with different loadings of pure reduced graphene oxide (rGO) or of mixed zinc oxide-rGO (ZnO-rGO) fillers by solvent casting. Sepiolite is used to make compatible rGO with the hydrophilic matrix. The addition of fillers to alginate matrix maintains the low water solubility promoted by the calcium chloride treatment, and, additionally, they demonstrate a weaker mechanical properties, and a slight increase in water vapor permeability and wettability. Due to the properties of ZnO-rGO, the alginate bionanocomposites show an increase of electrical conductivity with the increase of filler content. While the highest electrical conductivity (0.1 S/m) is achieved by the in-plane measurement, it is in the through-plane measurement the remarkable enhancement of almost 30 times greater than the alginate film. With 50% of ZnO-rGO filler, the bionanocomposites present the highest antioxidant and antibacterial activities. The combination of electrical conductivity with bioactive properties makes these films promising not only to extend food shelf-life but also to allow packaged food sterilization at low temperature. Full article

Synthetic materials commonly used in the packaging industry generate a considerable amount of waste each year. Chitosan is a promising feedstock for the production of functional biomaterials. From a biological point of view, chitosan is very attractive for food packaging. The purposes of this study were to evaluate the antibacterial activity of a set of chitosan-metal oxide films and different chitosan-modified graphene (oxide) films against two foodborne pathogens: Campylobacter jejuni ATCC 33560 and Listeria monocytogenes 19115. Moreover, we wanted to check whether the incorporation of antimicrobial constituents such as TiO₂, ZnO, Fe₂O₃, Ag, and graphene oxide (GO) into the polymer matrices can improve the antibacterial properties of these nanocomposite films. Finally, this research helps elucidate the interactions of these materials with eukaryotic cells. All chitosan-metal oxide films and chitosan-modified graphene (oxide) films displayed improved antibacterial (C. jejuni ATCC 33560 and L. monocytogenes 19115) properties compared to native chitosan films. The CS-ZnO films had excellent antibacterial activity towards L. monocytogenes (90% growth inhibition). Moreover, graphene-based chitosan films caused high inhibition of both tested strains. Chitosan films with graphene (GO, GOP, GOP-HMDS, rGO, GO-HMDS, rGOP), titanium dioxide (CS-TiO₂ 20:1a, CS-TiO₂ 20:1b, CS-TiO₂ 2:1, CS-TiO₂ 1:1a, CS-TiO₂ 1:1b) and zinc oxide (CS-ZnO 20:1a, CS-ZnO 20:1b) may be considered as a safe, non-cytotoxic packaging materials in the future. Full article

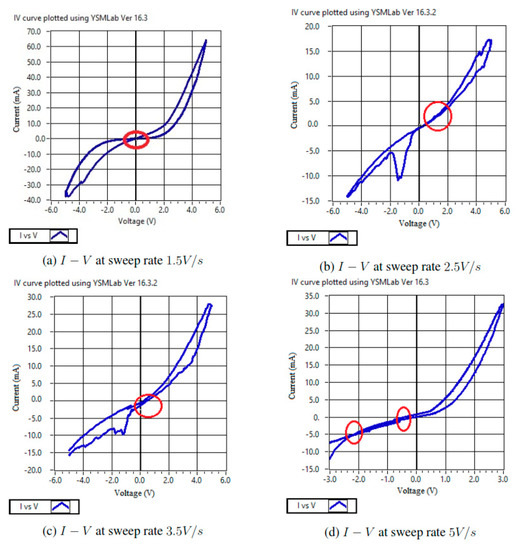

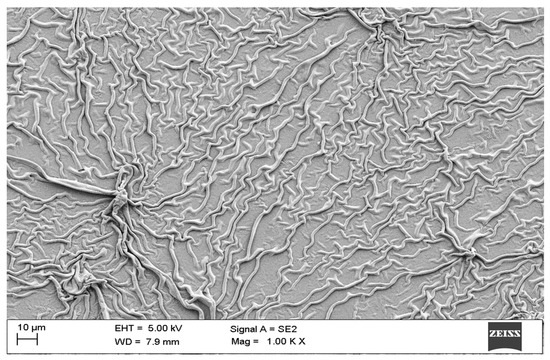

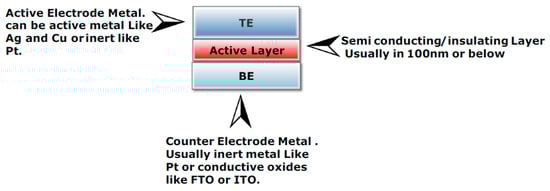

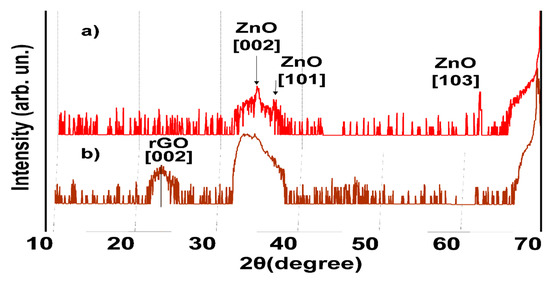

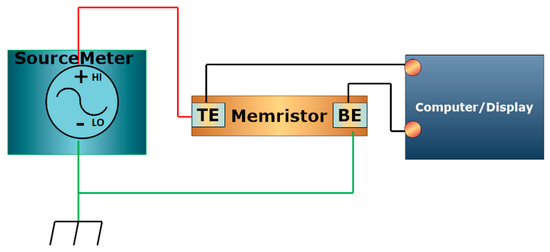

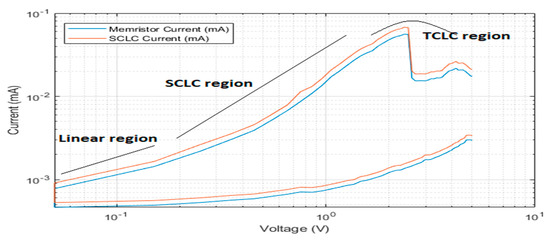

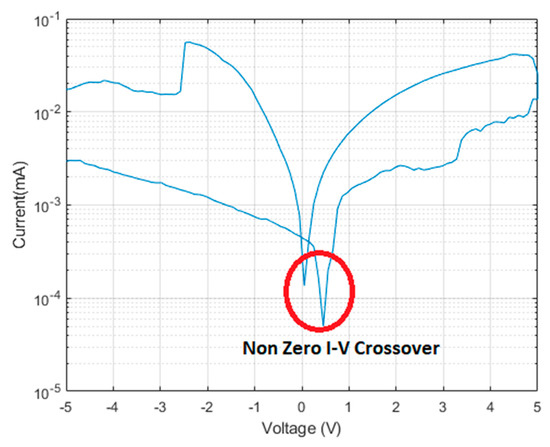

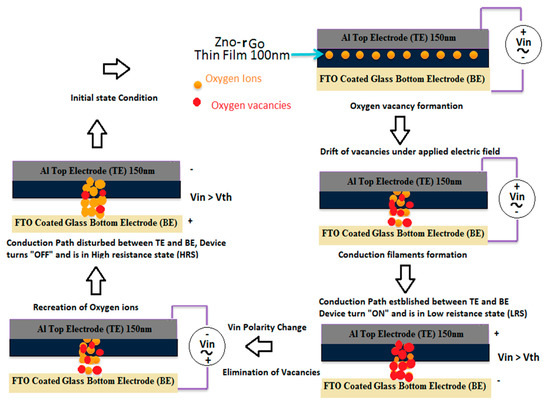

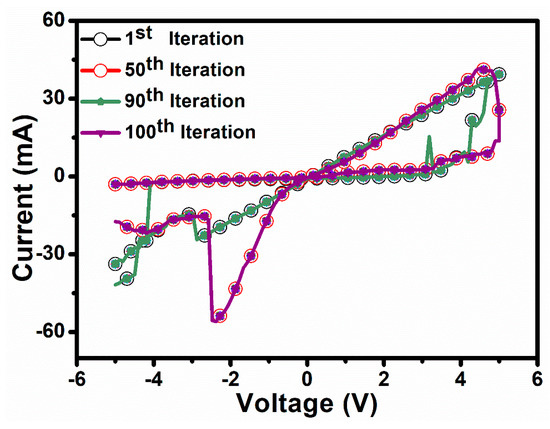

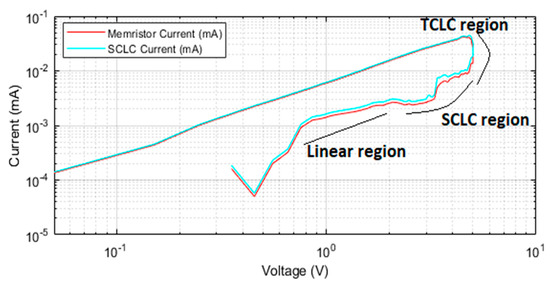

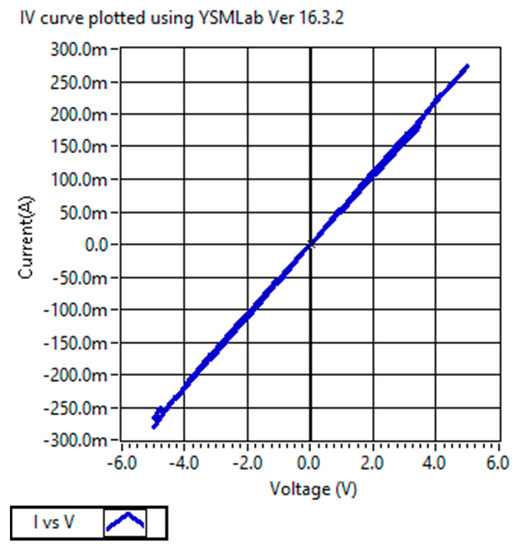

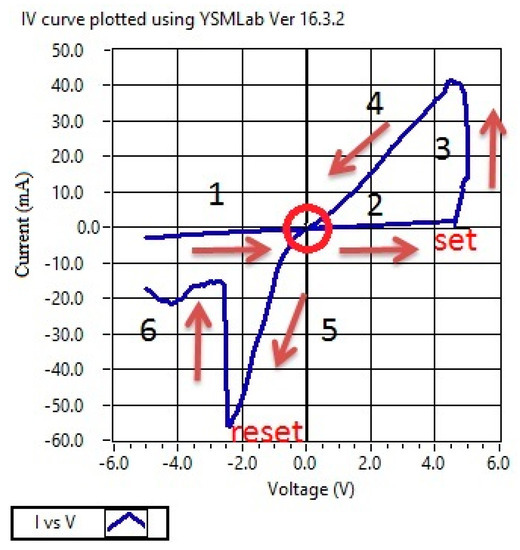

An oxygen-rich ZnO-reduced graphene oxide (rGO) thin film was synthesized using a photo-annealing technique from zinc precursor (ZnO)–graphene oxide (GO) sol–gel solution. X-ray diffraction (XRD) results show a clear characteristic peak corresponding to rGO. The scanning electron microscope (SEM) image of the prepared thin film shows an evenly distributed wrinkled surface structure. Transition Metal Oxide (TMO)-based memristive devices are nominees for beyond CMOS Non-Volatile Memory (NVRAM) devices. The two-terminal Metal–TMO (Insulator)–Metal (MIM) memristive device is fabricated using a synthesized ZnO–rGO as an active layer on fluorine-doped tin oxide (FTO)-coated glass substrate. Aluminum (Al) is deposited as a top metal contact on the ZnO–rGO active layer to complete the device. Photo annealing was used to reduce the GO to rGO to make the proposed method suitable for fabricating ZnO–rGO thin-film devices on flexible substrates. The electrical characterization of the Al–ZnO–rGO–FTO device confirms the coexistence of memristive and memimpedance characteristics. The coexistence of memory resistance and memory impedance in the same device could be valuable for developing novel programmable analog filters and self-resonating circuits and systems. Full article

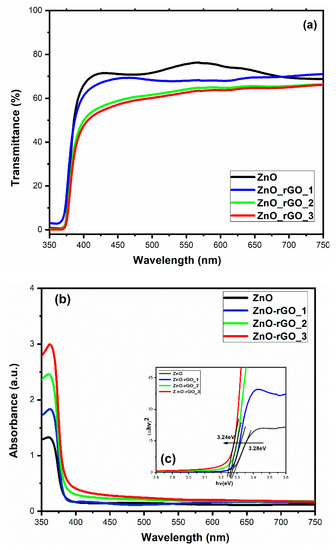

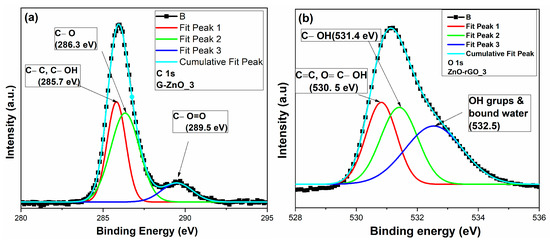

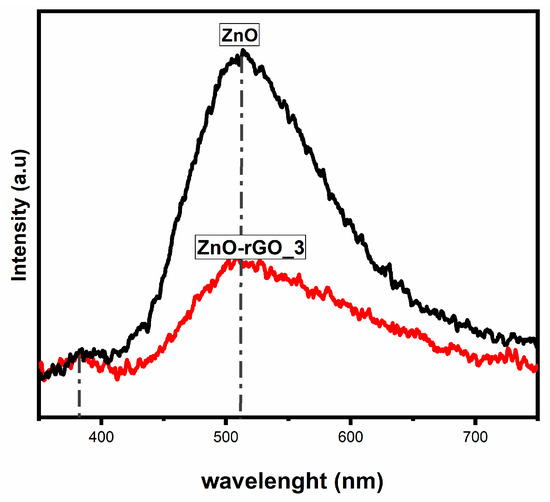

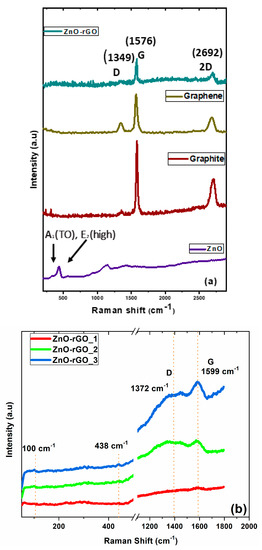

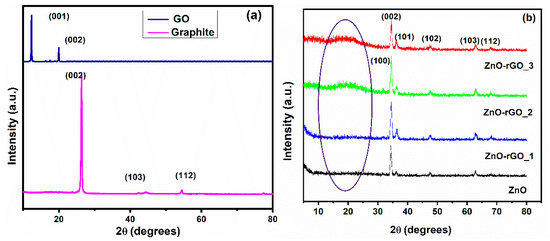

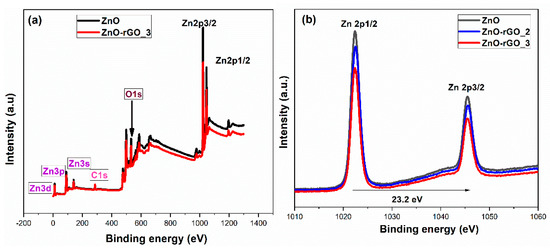

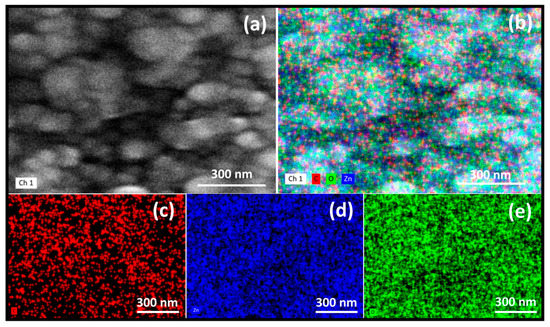

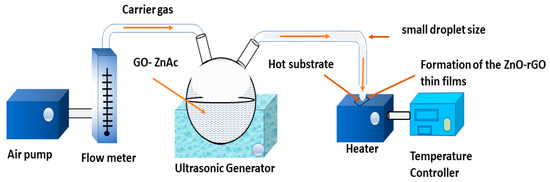

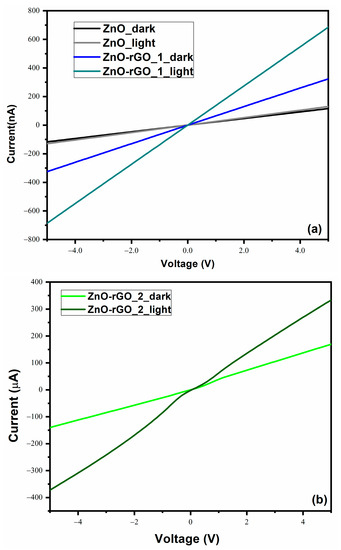

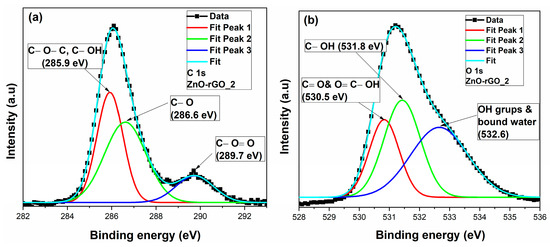

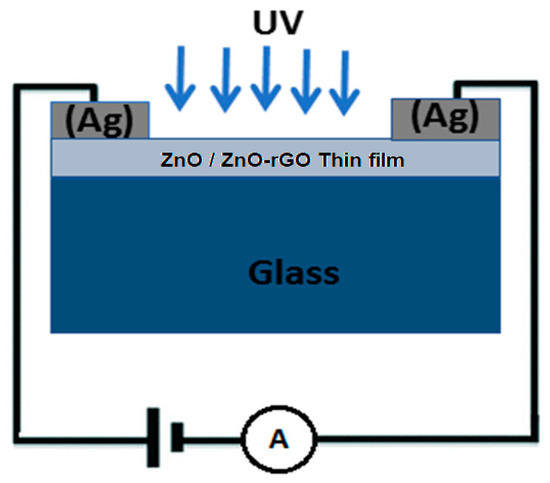

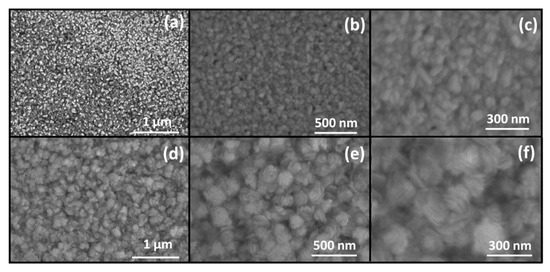

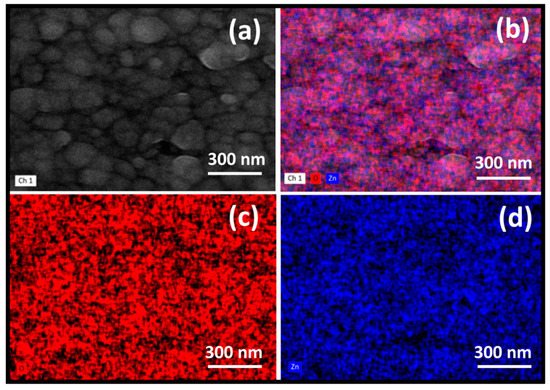

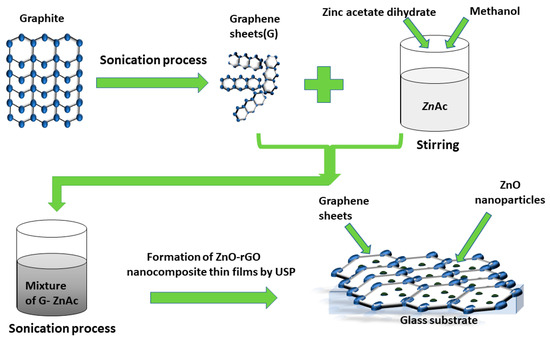

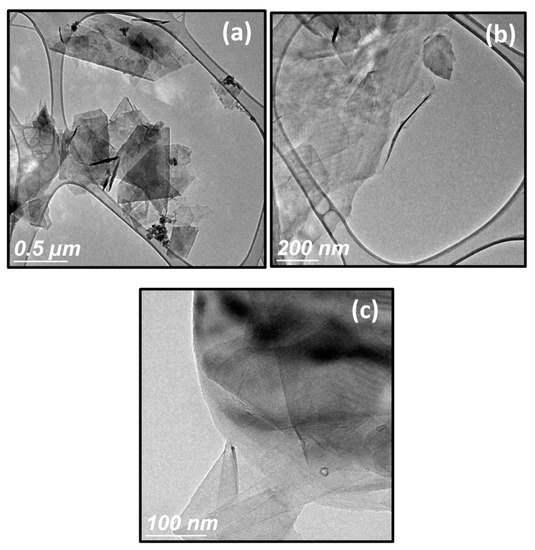

Thin films of nanocomposite of zinc oxide–reduced graphene oxide (ZnO-rGO) deposited on soda-lime glass substrates were prepared using ultrasonic spray pyrolysis (USP) at 460 °C. The preparation process does not use harsh acids and is environmentally friendly. The deposition period of 2, 3.5 and 5 min resulted in compact, uniform samples with thicknesses of 148, 250 and 365 nm, respectively. After performing structural, morphological, optical and electrical characterization of the prepared nanocomposite, an influence of the deposition time on the physical properties of the obtained films was determined. TEM analyses indicate that the ZnO-rGO nanocomposite presents ZnO nanoparticles anchored on graphene sheets, while XRD, X-ray Photoelectron Spectroscopy (XPS) and Raman results show the presence of a ZnO phase in the ZnO-rGO films. HR-SEM studies showed changes of the ZnO-rGO thin films morphology due to the incorporation of graphene into the ZnO films. Here, the particles of ZnO are similar to small grains of rice and graphene films have the appearance of a little “rose”. As the thickness of the film increases with deposition time, it reduces the structure of resistance of the nanocomposite thin films to 135 Ω. In addition, the optical transmission of the thin films in the visible region resulted affected. Here, we report a simple methodology for the preparation of ZnO-rGO nanocomposite thin films. Full article
