Search Results (3)

With the fast consumption of traditional fossil fuels and the urgent requirement for a low-carbon economy and sustainable development, supercapacitors are gaining more and more attention as a clean energy storage and conversion device. The research on electrode materials for supercapacitors has become a hot topic nowadays. An electrode material for a supercapacitor, comprising the ZIF-67 in-built carbon-based material, was prepared from a biomass pre-hydrolysate via a hydrothermal process. As a by-product of dissolving slurry, the pre-hydrolysate is rich in carbon, which is an excellent biomass resource. The utilization of pre-hydrolysate to prepare carbon energy materials could realize the high value utilization of pre-hydrolysate and the efficient energy conversion of biomass. Meanwhile, the cobalt-based MOF (such as ZIF-67), as a porous crystalline material, has the advantages of having a regular order, high specific surface area and controllable pore size, as well as good thermal and chemical stability. The addition of ZIF-67 modified the morphology and pore structure of the carbon, and the obtained samples showed outstanding electrochemical performance. One- and two-step synthetic processes generated specimens with a coral-like cross-linked structure and a new type of rough, hollow, dandelion-like structure, respectively, and the pore size was in the range of 2.0–5.0 nm, which is conducive to ion transport and charge transfer. In C2-ZIF-67, the hollow structures could effectively prevent the accumulation of the electrochemical active center, which could provide enough space for the shrinkage and expansion of particles to protect them from the interference of electrolytes and the formation of solid electrolyte interphase film layers. Additionally, the plush tentacle structure with low density and a large specific surface area could expose more active sites and a large electrolyte electrode contact area, and short electron and charge transport paths. Importantly, active, free electrons of small amounts of Co-MOF (1 wt%) could be stored and released through the redox reaction, further improving the electrical conductivity of Carbon-ZIF-67 materials in this work. Consequently, C2-ZIF-67 exhibited superior specific capacitance (400 F g⁻¹, at 0.5 A g⁻¹) and stability (90%, after 10,000 cycles). Full article

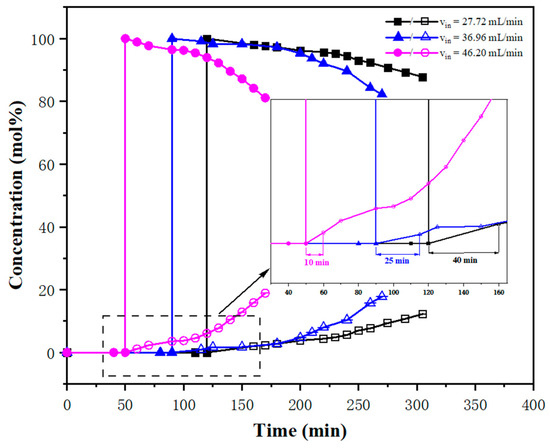

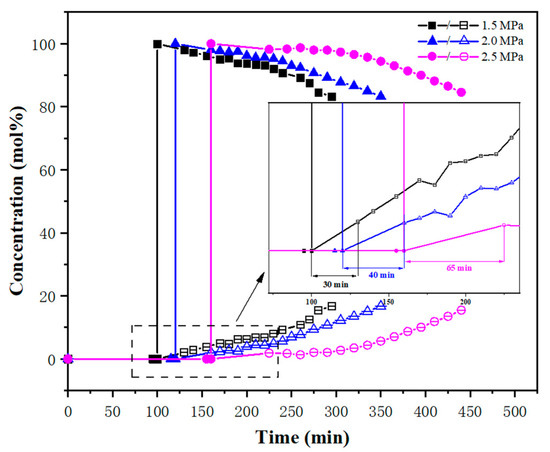

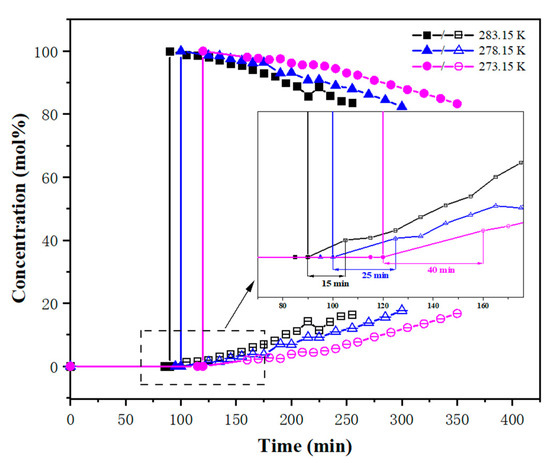

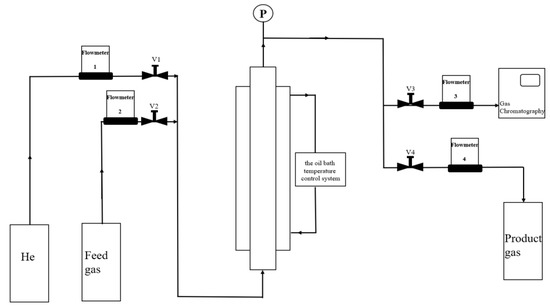

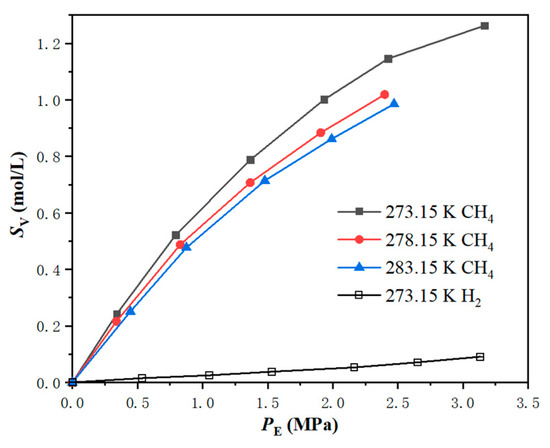

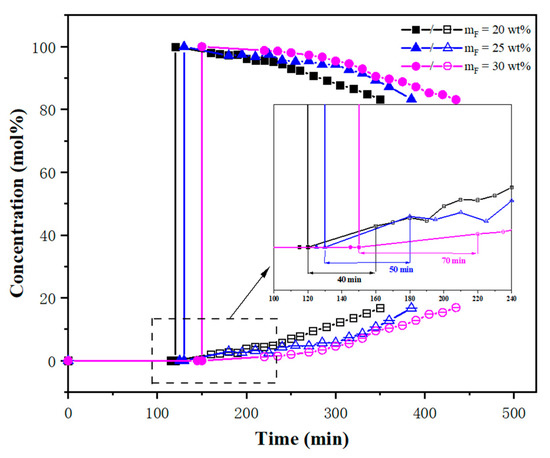

A large amount of COG (coke oven gas) is produced from coking plants every year, which contains 55–60% H₂. In this work, the breakthrough separation of H₂ from COG with ZIF-8/ethylene glycol-water slurry was studied. Following the investigation of the (ab-ad)sorption isotherms of the single component gas CH₄ and H₂, the main components of coke oven gas, in different slurries and their corresponding viscosities, and the influence of the operating conditions on the dynamic performance of CH₄/H₂ separation in slurry were studied in a bubble column. Low temperature, inlet flow rate, high pressure, and solid content can extend the breakthrough time, where the longest breakthrough time interval between H₂ and CH₄ can be as long as 70 min, meaning the high purity of H₂ product could be obtained easily. All the results of this work prove the feasibility of the slurry method to separate CH₄/H₂ mixture and provide a theoretical basis for practical industrial applications. Full article

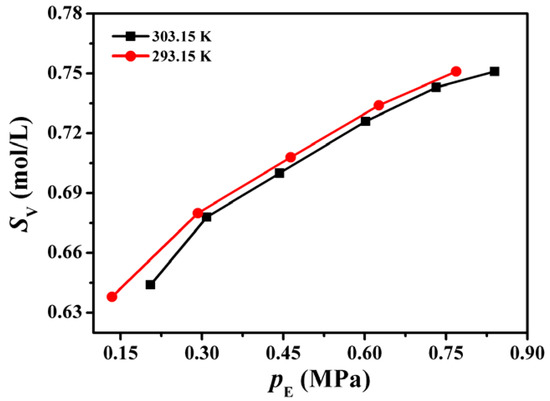

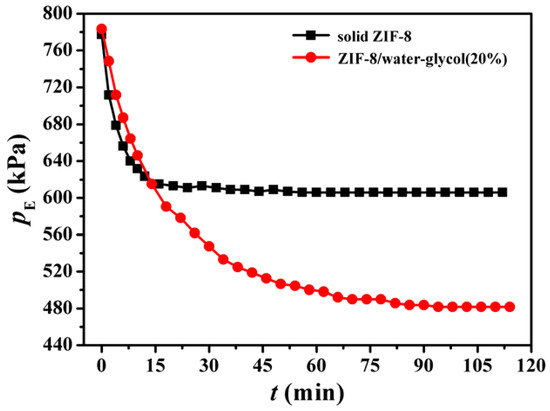

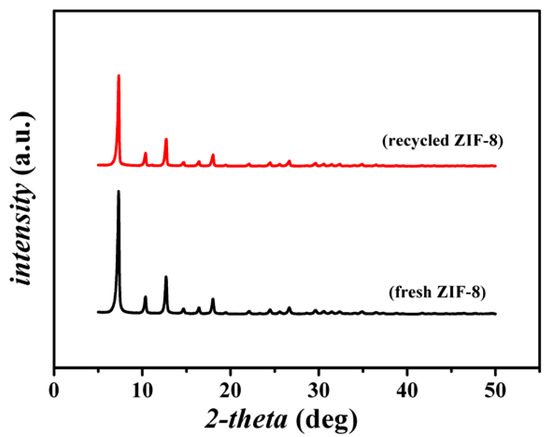

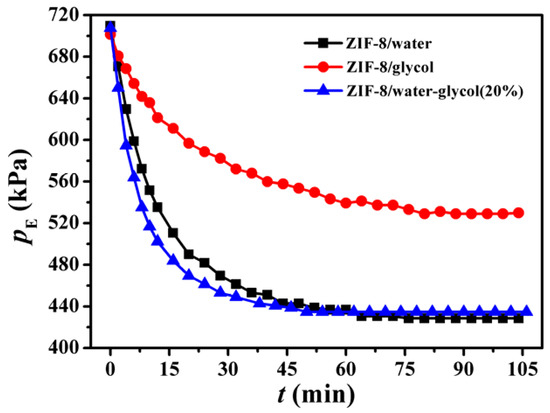

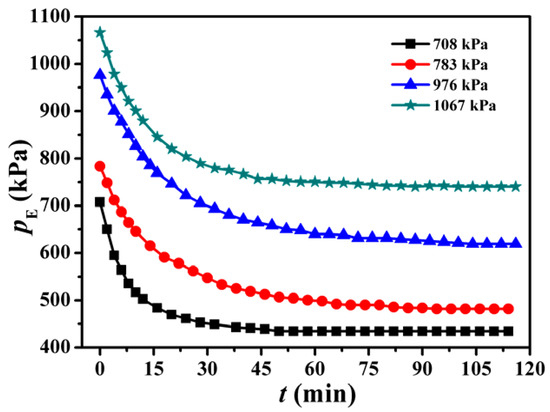

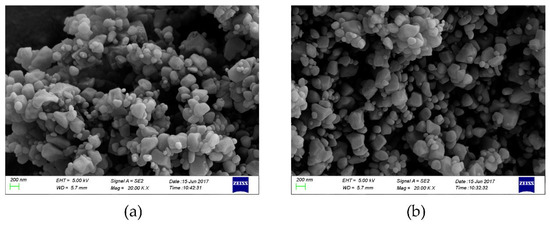

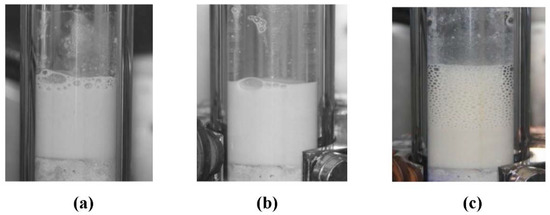

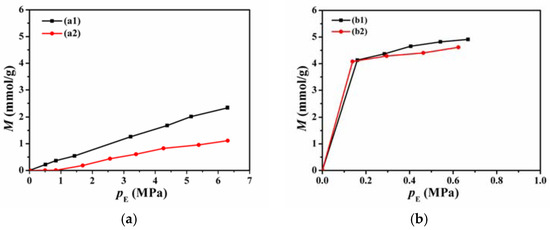

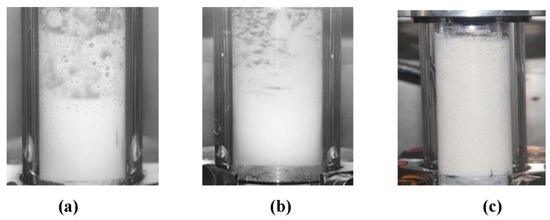

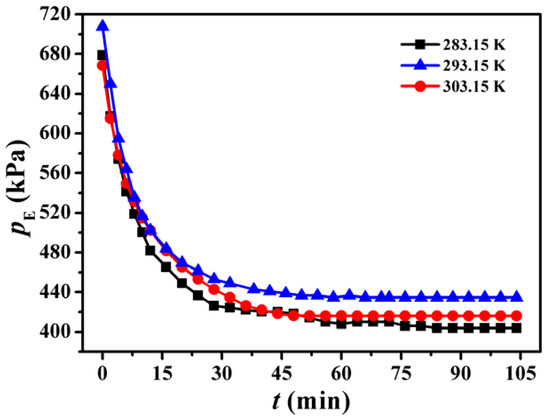

In this work, zeolitic imidazolate framework-8 (ZIF-8), a subclass of metal organic frameworks (MOFs), was dispersed in a water-glycol solution to form a porous slurry. Using this porous slurry, a tail gas mixture containing hydrogen/propylene was separated. Experiments were performed to investigate the effects of using only the solid ZIF-8 material, a ZIF-8/water slurry, a ZIF-8/glycol slurry, or a ZIF-8/water-glycol slurry on the selectivity of the separation. The experimental results show that the slurry made from ZIF-8/water-glycol (20%) achieves good gas separation. The respective influences of the solid content, initial pressure, and temperature on the separation performance were also investigated in detail. We found that lower temperature, a ZIF-8 mass fraction of 20 wt %, and a higher operation pressure are suitable for the recovering of hydrogen from a H₂/C₃H₆ mixture. The selectivity of C₃H₆ over H₂ reaches 128 at 680 kPa initial pressure. The slurries were completely reusable for at least three cycles. The structure of the ZIF-8 material was not altered after repeated separation, meaning the material can likely be reused more than three times on an industrial scale. Full article
