Search Results (16)

Converting carbon dioxide (CO₂) into solar fuels through photocatalysis represents an appealing approach to tackling the escalating energy crisis and mitigating the greenhouse effect. In this study, using melamine–formaldehyde (MF) nanospheres as a nitrogen source, a N element was simultaneously doped into the TiO₂ nanoparticle structure supported by carbon hollow spheres using a one-step carbonization method to form a heterojunction N-CHS@N-TiO₂ (marked as (N-(CHS@TiO₂)). The composite showed superior photocatalytic activity in reducing CO₂ compared with TiO₂ and N-CHS: after 6 h of visible light irradiation, the CO yield was 4.3 times that of N-CHS and TiO₂; 6 h of UV irradiation later, the CO yield reached 2.6 times that of TiO₂ and 7 times that of N-CHS. The substantial enhancement in photocatalytic activity was attributed to the nitrogen simultaneously doped carbon hollow spheres and TiO₂, mesoporous structure, small average TiO₂ crystal size, large surface areas, and the heterostructure formed by N-CHS and N-TiO₂. The UV-vis diffuse reflectance spectra (DRS) exhibit a significant improvement in light absorption, attributed to the visible-light-active carbon hollow sphere and the N element doping, thereby enhancing solar energy utilization. Full article

Fabricating photoanodes with a strong light-scattering effect can improve the photoconversion efficiency of dye-sensitized solar cells (DSSCs). In this work, a facile microwave hydrothermal process was developed to prepare Au@TiO₂ core–shell nanostructures, and then the Au core was removed by etching, resulting in hollow TiO₂. Morphological characterizations such as field emission scanning and transmission electron microscopy measurements have been used for the successful formation of core–shell and hollow TiO₂ nanostructures. Next, we attempted to deposit the different-sized hollow TiO₂-based microspheres simultaneously on the surface of small-sized TiO₂ nanoparticles-based compact film as light-scattering layers via electrophoretic deposition. The deposited hollow TiO₂ microspheres constitute bi- and tri-layers that not only improve the light-harvesting properties but also speed up the photogenerated charge transfer. Compared to commercial TiO₂ compact film (4.75%), the resulting bi-layer and tri-layered films-based DSSCs displayed power conversion efficiencies of 6.33% and 8.08%, respectively. It is revealed that the deposited bi- and tri-layered films can enhance the light absorption ability via multiple photon reflection. This work validates a novel and controllable strategy to develop light-scattering layers with increased light-harvesting properties for highly efficient dye-sensitized solar cells. Full article

Zinc oxide and titanium dioxide are materials with strong photocatalytic and antimicrobial activity. This activity is greater when the material is in nanocrystalline form. It has been seen that these properties are also present in the ZnO-TiO₂ nanocomposite material, and the extent depends on multiple factors, such as crystallinity, structural composition, crystallite size, and morphology. These structural properties can be varied by acting on the synthesis of the material, obtaining a wide variety of composites: random nanoparticles, nanorods, nanowires, nanotubes, nanofibers, tetrapods, core–shell, hollow spheres, inverse opal structures (IOSs), hierarchical structures, and films. When an interface between nanocrystallites of the two oxides is created, the composite system manages to have photocatalytic activity greater than that of the two separate oxides, and in certain circumstances, even greater than P25. The antimicrobial activity results also improved for the composite system compared to the two separate oxides. These two aspects make these materials interesting in various fields, such as wastewater and air treatment, energy devices, solar filters, and pharmaceutical products and in the context of the restoration of monumental cultural assets, in which their use has a preventive purpose in the formation of biofilms. In this review we analyse the synthesis techniques of ZnO-TiO₂ nanocomposites, correlating them to the shape obtained, as well as the photocatalytic and antimicrobial activity. It is also illustrated how ZnO-TiO₂ nanocomposites can have a less negative impact on toxicity for humans and the environment compared to the more toxic ZnO nanoparticles or ZnO. Full article

The fluorinated titanium dioxide (F-TiO₂) hollow spheres with varying F to Ti molar ratios were prepared by a simple one-step hydrothermal method followed by thermal processing. The diameter of the F-TiO₂-0.3 hollow spheres with a nominal ratio of F:Ti = 0.3:1 was about 200–400 nm. Compared with the sensor based on pristine TiO₂ sensing materials, the F-TiO₂-0.3 sensor displayed an enhanced sensing performance toward gaseous formaldehyde (HCHO) vapor at room temperature under ultraviolet (UV) light irradiation. The F-TiO₂-0.3 sensor demonstrated an approximately 18-fold enhanced response (1.56) compared to the pristine TiO₂ sensor (0.085). The response and recovery times of the F-TiO₂-0.3 sensor to 10 ppm HCHO were about 56 s and 64 s, respectively, and a limit-of-detection value of 0.5 ppm HCHO was estimated. The F-TiO₂-0.3 sensor also demonstrated good repeatability and selectivity to HCHO gas under UV light irradiation. The outstanding HCHO gas-sensing properties of the F-TiO₂-0.3 sensor were related to the following factors: the excitation effect caused by the UV light facilitated surface chemical reactions with analyte gas species; the hollow sphere structure provided sufficient active sites; and the surface fluoride (≡Ti−F) created additional chemisorption sites on the surface of the TiO₂ material. Full article

Engineering the surface structure of semiconductor is one of the most promising strategies for improving the separation and transfer efficiency of charge, which is a key issue in photocatalysis. Here, we designed and fabricated the C decorated hollow TiO₂ photocatalysts (C–TiO₂), in which 3-aminophenol-formaldehyde resin (APF) spheres were used as template and carbon precursor. It was determined that the C content can be easily controlled by calcinating the APF spheres with different time. Moreover, the synergetic effort between the optimal C content and the formed Ti–O–C bonds in C–TiO₂ were determined to increase the light absorption and greatly promote the separation and transfer of charge in the photocatalytic reaction, which is verified from UV–vis, PL, photocurrent, and EIS characterizations. Remarkably, the activity of the C–TiO₂ is 5.5-fold higher than that of TiO₂ in H₂ evolution. A feasible strategy for rational design and construction of surface-engineered hollow photocatalysts to improve the photocatalytic performance was provided in this study. Full article

The possibility of generating organically modified hollow TiO₂ microspheres via a simple sol-gel synthesis was demonstrated for the first time in this work. A mixture of titania precursors, including an organically modified precursor, was used to obtain methyl-modified hollow TiO₂ microspheres selective for bilirubin by the molecular imprinting technique (Methyl-HTM-MIM). Methyl-HTM-MIM were prepared by a sol-gel method using titanium (IV) isopropoxide (TTIP), and methyltitanium triisopropoxide (MTTIP) as precursors. Two ratios of titania precursors were tested (1/6 and 1/30 mol_MTTIP/mol_TTIP). With the characterization results obtained by the SEM and ATR-FTIR techniques, it was possible to establish that only the 1/30 mol_MTTIP/mol_TTIP ratio allowed for the preparation of hollow spheres with a reasonably homogeneous methylated-TiO₂ shell. It was possible to obtain a certain degree of organization of the hybrid network, which increased with calcination temperatures. By adjusting isothermal adsorption models, imprinting parameters were determined, indicating that the new methylated microspheres presented greater selectivity for bilirubin than the totally inorganic hollow TiO₂ microspheres. The effectiveness of the molecular imprinting technique was proven for the first time in an organically modified titania material, with imprinting factor values greater than 1.4, corresponding to a significant increase in the maximum adsorption capacity of the template represented by the molecularly imprinted microspheres. In summary, the results obtained with the new methyl-HTM-MIM open the possibility of exploring the application of these microspheres for selective sorption (separation or sensing, for example) or perhaps even for selective photocatalysis, particularly for the degradation of organic compounds. Full article

Tb-doped TiO₂ (anatase) micro-hollow spheres (HSs) with nano-shells, in the range 0.00–3.00 at.% Tb, were successfully synthesized by a simultaneous chemical implantation route of both Ti and Tb cations from chlorides to a poly-styrene (PST)-co-poly-divinyl benzene (PDVB) sacrificial template, followed by controlled hydrolysis and polycondensation reactions. After water addition to the mixture of the precursors with the template, a decrease in the intensity and a shift to lower wavenumbers of the C=O absorption band in the IR spectra can indicate not only the anchoring of Ti and Tb ions to the carbonyl group of the template but also the hydrolysis of the implanted precursors. This latter process can involve a proton attack on the Ti–Cl, Tb–Cl and C=O bonds, the occupation of a vacant site by a water molecule, and then the dissociation of the dangling Ti–Cl, Tb–Cl ligands and C=O bonds. It gives rise to Ti_1−xTb_x[(OH)_4−uCl_v]@PST–PDVB and Ti_1−xTb_x[(OH)_4−y]@PST–PDVB complexes (x = 0.00, 0.0012, 0.0170 and 0.030). Finally, polycondensation of these species leads to Ti_1−xTb_xO_2−w′@PST–PDVB compounds. After subsequent thermal removal at 550 °C of the template, the IR bands of the core (template) totally vanished and new bands were observed in the 400–900 cm⁻¹ region which can be attributed to the metalloxane bondings (M–O, M’–O, M–O–M, M–O–M’ and/or M’–O–M’, being M and M’ = Ti and Tb, respectively, i.e., mainly vibration modes of anatase). Then, micron-sized HSs of TiO₂ and Tb-doped-TiO₂ (anatase) were obtained with nano-shells according to field emission gun scanning electron microscopy (FEG-SEM) and transmission electron microscopy (TEM) observations. Furthermore, X-ray photoelectron spectroscopy (XPS) measurements confirmed the presence of Tb⁴⁺ (38.5 and 41.2% for 1.70 and 3.00 at.% Tb, respectively) in addition to Tb³⁺ in the resulting HSs, with increasing Tb⁴⁺ content with both Tb doping and higher calcination temperatures. Then, these HSs can be considered as rare earth (RE) co-doped systems, at least for 1.70 and 3.00 at.% Tb contents being the transition to rutile phase favored by Tb doping for those compositions. Finally, diffusion of Tb from the inner parts to the surface of the HSs with the calcination treatments was also observed by XPS. Full article

The high recombination rate of the electron-hole pair on the surface of rutile TiO₂ (RT) reduces its photocatalytic performance, although it has high thermodynamic stability and few internal grain defects. Therefore, it is necessary for RT to develop effective methods to reduce electron-hole pair recombination. In this study, magnetic α-Fe₂O₃/Rutile TiO₂ self-assembled hollow spheres were fabricated via a facile hydrothermal reaction and template-free method. Based on the experimental result, phosphate concentration was found to play a crucial role in controlling the shape of these hollow α-Fe₂O₃/RT nanospheres, and the optimal concentration is 0.025 mM. Due to a heterojunction between α-Fe₂O₃ and RT, the electron-hole pair recombination rate was reduced, the as-synthesized hollow α-Fe₂O₃/RT nanospheres exhibited excellent photocatalysis in rhodamine B (RhB) photodegradation compared to α-Fe₂O₃ and RT under visible-light irradiation, and the degradation rate was about 16% (RT), 60% (α-Fe₂O₃), and 93% (α-Fe₂O₃/RT) after 100 min. Moreover, α-Fe₂O₃/RT showed paramagnetism and can be recycled to avoid secondary environmental pollution. Full article

Pt/TiO₂ composites were synthesized by single-step ultrasonic spray pyrolysis (USP) at different temperatures. In an in-situ method, Pt and TiO₂ particles were generated from tetra-n-butyl orthotitanate and chloroplatinic acid, and hydrothermally-prepared TiO₂ colloidal dispersion served as Pt support in an ex-situ USP approach. USP-synthesized Pt/TiO₂ composites were generated in the form of a solid mixture, morphologically organized in nesting huge hollow and small solid spheres, or TiO₂ core/Pt shell regular spheroids by in-situ or ex-situ method, respectively. This paper exclusively reports on characteristic mechanisms of the formation of novel two-component solid composites, which are intrinsic from the USP approach and controlled precursor composition. The generation of the two morphological components within the in-situ approach, the hollow spheres and all-solid spheres, was indicated to be caused by characteristic sol-gel/solid phase transition of TiO₂. Both the walls of the hollow spheres and the cores of all-solid ones consist of TiO₂ matrix populated by 10 nm-sized Pt. On the other hand, spherical, uniformly-sized, Pt particles of a few nanometers in size created a shell uniformly deposited onto TiO₂ spheres of ca. 150 nm size. Activities of the prepared samples in an oxygen reduction reaction and combined oxygen reduction and hydrogen evolution reactions were electrochemically tested. The ex-situ synthesized Pt/TiO₂ was more active for oxygen reduction and combined oxygen reduction and hydrogen reactions in comparison to the in-situ Pt/TiO₂ samples, due to better availability of Pt within a core/shell structure for the reactions. Full article

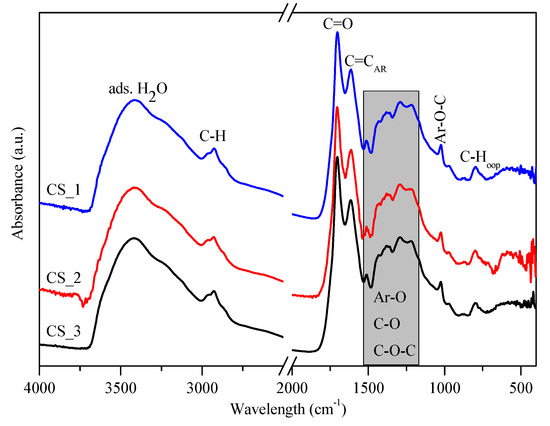

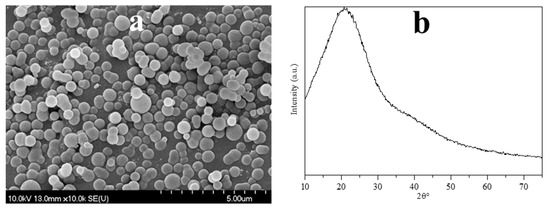

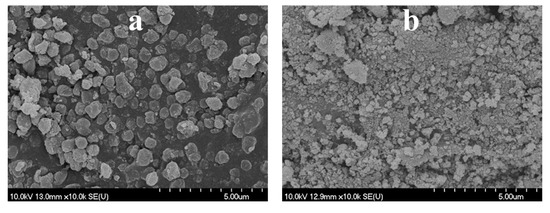

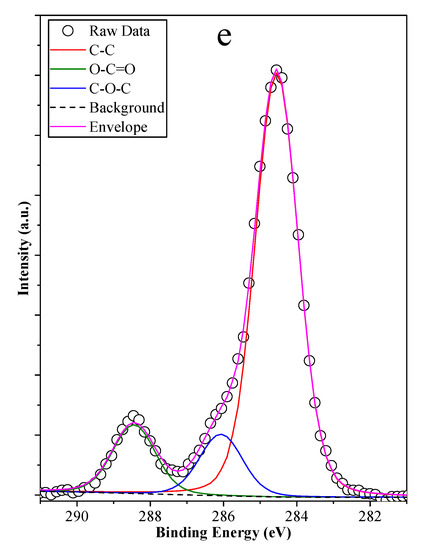

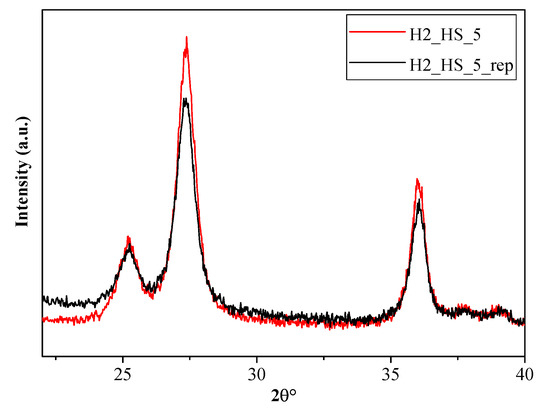

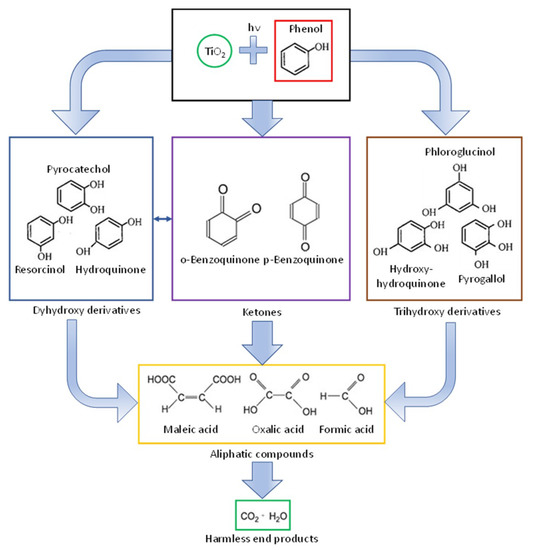

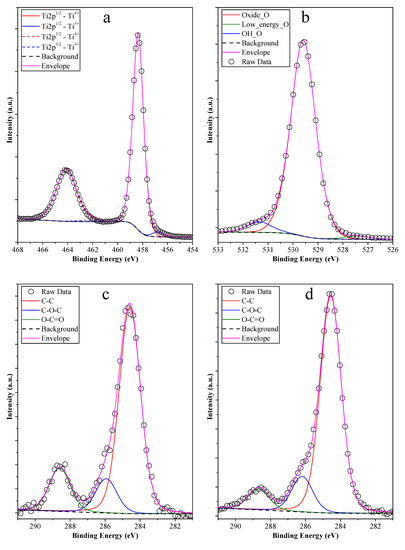

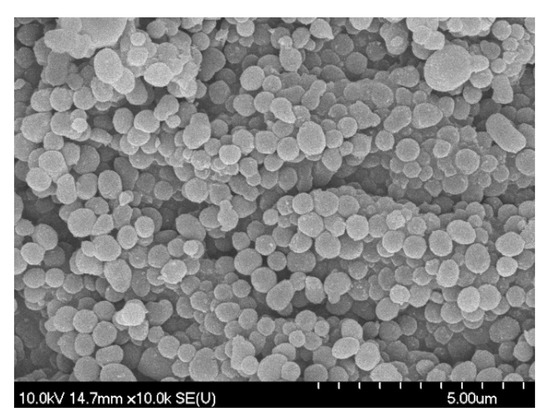

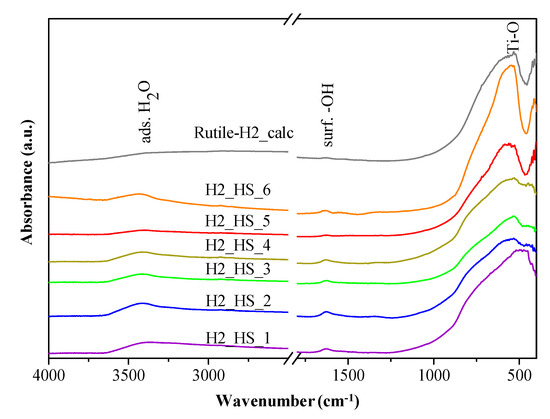

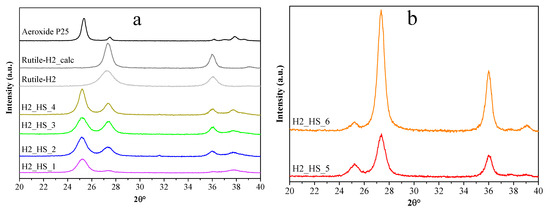

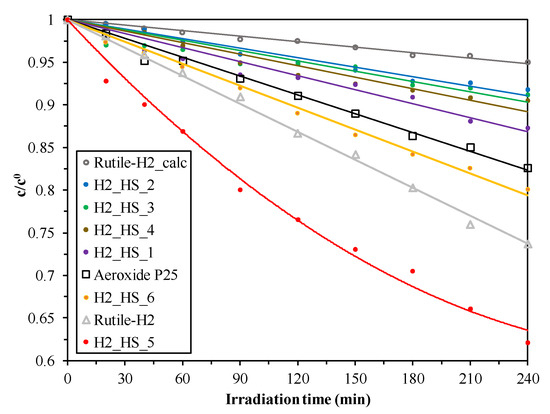

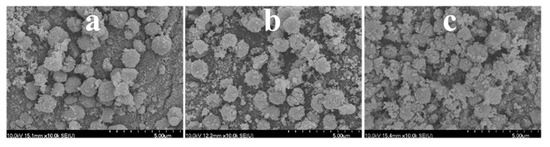

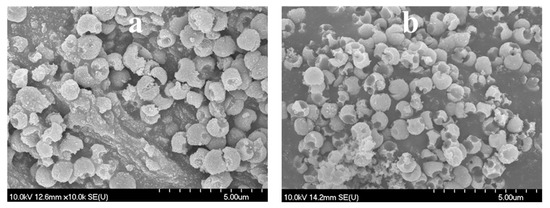

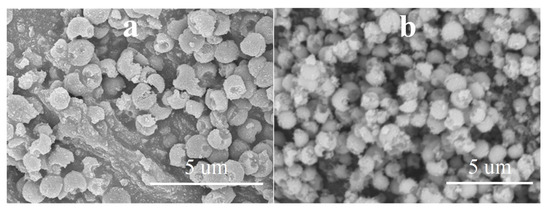

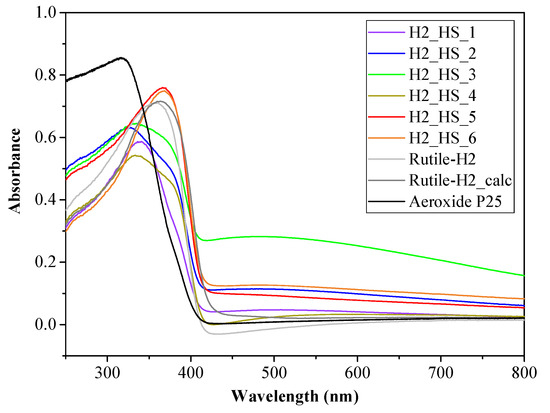

Titanium dioxide–carbon sphere (TiO₂–CS) composites were constructed via using prefabricated carbon spheres as templates. By the removal of template from the TiO₂–CS, TiO₂ hollow structures (HS) were synthesized. The CS templates were prepared by the hydrothermal treatment of ordinary table sugar (sucrose). TiO₂–HSs were obtained by removing CSs with calcination. Our own sensitized TiO₂ was used for coating the CSs. The structure of the CSs, TiO₂–CS composites, and TiO₂–HSs were characterized by scanning electron microscopy (SEM), infrared spectroscopy (IR), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and diffuse reflectance spectroscopy (DRS). The effect of various synthesis parameters (purification method of CSs, precursor quantity, and applied furnace) on the morphology was investigated. The photocatalytic activity was investigated by phenol model pollutant degradation under visible light irradiation (λ > 400 nm). It was established that the composite samples possess lower crystallinity and photocatalytic activity compared to TiO₂ hollow structures. Based on XPS measurements, the carbon content on the surface of the TiO₂–HS exerts an adverse effect on the photocatalytic performance. The synthesis parameters were optimized and the TiO₂–HS specimen having the best absolute and surface normalized photocatalytic efficiency was identified. The superior properties were explained in terms of its unique morphology and surface properties. The stability of this TiO₂–HS was investigated via XRD and SEM measurements after three consecutive phenol degradation tests, and it was found to be highly stable as it entirely retained its crystal phase composition, morphology and photocatalytic activity. Full article

Size controllable TiO₂ hollow microspheres (HMS) were synthesized by a carbonaceous spheres (CS) template method. Based on TiO₂ HMS, the ZnS/CdS quantum dots (QDs) were loaded to form a ZnS/CdS@TiO₂ HMS photoanode for quantum dots sensitized solar cell (QDSSC). The size effects of TiO₂ HMS on photovoltaic performance were investigated, and showed that TiO₂ HMS with sizes ~560 nm produced the best short-circuit current density (J_sc) of 8.02 mA cm⁻² and highest power conversion efficiency (PCE) of 1.83%, showing a better photovoltaic performance than any other QDSSCs based on TiO₂ HMS with size ~330 nm, ~400 nm, and ~700 nm. The improvement of photovoltaic performance based on ~560 nm TiO₂ HMS which can be ascribed to the enhanced light harvesting efficiency caused by multiple light reflection and strong light scattering of TiO₂ HMS. The ultraviolet-visible (UV-vis) spectra and incident photo to the current conversion efficiency (IPCE) test results confirmed that the size of TiO₂ HMS has an obvious effect on light harvesting efficiency. A further application of ~560 nm TiO₂ HMS in ZnS/PbS/CdS QDSSC can improve the PCE to 2.73%, showing that TiO₂ HMS has wide applicability in the design of QDSSCs. Full article

Although TiO₂ or MnO₂-based materials have been widely used for the degradation of phenolic compounds, complete mineralization is still a challenge, especially for TiO₂-based materials. Here, we devise a hierarchically-structured TiO₂/MnO₂ (HTM) hollow sphere, in which hollow TiO₂ acts as a skeleton for the deposition of MnO₂ in order to prevent the aggregation of MnO₂ nanoparticles and to maintain its hollow structure. During the oxidation reaction, the as-synthesized HTM can fully exert their respective advantages of the TiO₂ and MnO₂ species to realize the first stage of the rapid oxidation degradation of phenol and the second stage of the complete photo-mineralization of residual phenol and its intermediates, which efficiently overcomes the incomplete mineralization of phenolic compounds. The degradation mechanism and pathway of phenol are also proposed according to the analysis of Mass Spectrometry (MS). Therefore, this work provides a new insight for exploring hierarchically-structured materials with two or more species. Full article

TiO₂-based composites have been paid significant attention in the photocatalysis field. The size, crystallinity and nanomorphology of TiO₂ materials have an important effect on the photocatalytic efficiency. The synthesis and photocatalytic activity of TiO₂-based materials have been widely investigated in past decades. Based on our group’s research works on TiO₂ materials, this review introduces several methods for the fabrication of TiO₂, rare-earth-doped TiO₂ and noble-metal-decorated TiO₂ particles with different morphologies. We focused on the preparation and the formation mechanism of TiO₂-based materials with unique structures including spheres, hollow spheres, porous spheres, hollow porous spheres and urchin-like spheres. The photocatalytical activity of urchin-like TiO₂, noble metal nanoparticle-decorated 3D (three-dimensional) urchin-like TiO₂ and bimetallic core/shell nanoparticle-decorated urchin-like hierarchical TiO₂ are briefly discussed. Full article

TiO₂ hollow spheres modified with spatially separated Ag species and RuO₂ cocatalysts have been prepared via an alkoxide hydrolysis–precipitation method and a facile impregnation method. High-resolution transmission electron microscopy studies indicate that Ag species and RuO₂ co-located on the inner and outer surface of TiO₂ hollow spheres, respectively. The resultant catalysts show significantly enhanced activity in photocatalytic hydrogen production under simulated sunlight attributed to spatially separated Ag species and RuO₂ cocatalysts on TiO₂ hollow spheres, which results in the efficient separation and transportation of photogenerated charge carriers. Full article

Three kinds of N-doped mesoporous TiO₂ hollow spheres with different N-doping contents, surface area, and pore size distributions were prepared based on a sol–gel synthesis and combined with a calcination process. Melamine formaldehyde (MF) microspheres have been used as sacrificial template and cetyltrimethyl ammonium bromide (CTAB) or polyvinylpyrrolidone (PVP) was selected as pore-directing agent. Core–shell intermediate spheres of titania-coated MF with diameters of 1.2–1.6 μm were fabricated by varying the volume concentration of TiO₂ precursor from 1 to 3 vol %. By calcining the core–shell composite spheres at 500 °C for 3 h in air, an in situ N-doping process occurred upon the decomposition of the MF template and CTAB or PVP pore-directing surfactant. N-doped mesoporous TiO₂ hollow spheres with sizes in the range of 0.4–1.2 μm and shell thickness from 40 to 110 nm were obtained. The composition and N-doping content, thermal stability, morphology, surface area and pore size distribution, wall thickness, photocatalytic activities, and optical properties of the mesoporous TiO₂ hollow spheres derived from different conditions were investigated and compared based on Fourier-transformation infrared (FTIR), SEM, TEM, thermogravimetric analysis (TGA), nitrogen adsorption–desorption, and UV–vis spectrophotoscopy techniques. The influences of particle size, N-doping, porous, and hollow characteristics of the TiO₂ hollow spheres on their photocatalytic activities and optical properties have been studied and discussed based on the composition analysis, structure characterization, and optical property investigation of these hollow spherical TiO₂ matrices. Full article
