Search Results (8)

High-entropy alloys (HEAs) have attracted a great deal of research interest these days because of their attractive properties. Low-temperature chemical synthesis methods are being developed to obtain nanoscale HEAs with low energy consumption. In this study, we prepared HEA Al_0.2Co_1.5CrFeNi_1.5Ti_0.5 nanoparticles from high-entropy oxide (HEO) (Al_0.2Co_1.5CrFeNi_1.5Ti_0.5)₃O₄ by a deoxidation process via a CaH₂-assisted molten salt method at 600 °C. X-ray diffraction measurements demonstrated that the oxide precursor and the reduced product have single-phases of spinel structure and face-centered cubic structures, indicating the formation of HEO and HEA, respectively. The HEA nanoparticles exhibited superior catalytic performance in the liquid-phase hydrogenation of p-nitrophenol at room temperature with little leaching of the component elements. Scanning electron microscopy (SEM) with energy-dispersive X-ray spectrometry (EDX) exhibited a good distribution of constituent elements over the HEA nanoparticles in a micro-sized range. However, transmission electron microscopy (TEM) with EDX revealed a slight deviation of elemental distributions of Al and Ti from those of Co, Cr, Fe, and Ni in a nano-sized range, probably due to the incomplete reduction of aluminum and titanium oxides. The elemental homogeneity in the HEA nanoparticles could be improved by taking advantage of the HEO precursor with homogeneous elemental distributions, but the experimental results suggested the importance of the total reduction of oxide precursors to prepare homogeneous HEAs from HEOs. Full article

Oxide metallurgy technology can improve the microstructure of a coarse-grained heat-affected zone (CGHAZ) but introduces extra inclusions. Local corrosion behavior of the CGHAZ of a Zr–Ti–Al–RE deoxidized steel was investigated in this work using theoretical calculations and experimental verification. The modified inclusions have a (Zr–Mg–Al–Ca–RE)O_x core claded by a CaS and TiN shell. CaS dissolves first, followed by the oxide core, leaving TiN parts. This confirms that the addition of rare earth can reduce lattice distortion and prevent a galvanic couple between the inclusions and the matrix, while the chemical dissolution of CaS causes localized acidification, resulting in the pitting corrosion initiation. Full article

To understand and clarify the formation mechanisms and evolution of complex inclusions in Ti-Ca deoxidized offshore structural steel, inclusions in industrial steel were systematically investigated. The number density of total inclusions generally decreased from Ladle Furnace (LF), Vacuum Degassing (VD), Tundish to the final product except for Ti and Ca addition. The major inclusions during the refining process were CaO-Al₂O₃-SiO₂-(MgO)-TiO_x and CaO-Al₂O₃-SiO₂. CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusion initially originated from the combination of CaO-SiO₂-(MgO) in refining slag or refractory and deoxidization product Al₂O₃ and TiO₂. With the refining process proceeding and Ca addition, the Al₂O₃ concentration in the CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusions gradually dropped while the CaO and TiO₂ concentrations gradually increased. The CaO-Al₂O₃-SiO₂ inclusions originally came from refining slag, existing as 2CaO∙ Al₂O₃∙ SiO₂, and maintained a liquid state during the early stage of LF. After Ca treatment, it was gradually transferred to 2CaO∙ SiO₂ due to Al₂O₃ continuously being reduced by Ca. The liquidus of 2CaO∙ SiO₂ inclusion was higher than that of molten steel, so they presented as a solid-state during the refining process. After welding thermal simulation, CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusions were proven effective for inducing intragranular acicular ferrite (IAF) while CaO-Al₂O₃-SiO₂ was inert for IAF promotion. Additionally, Al₂O₃-MgO spinel in multiphase CaO-Al₂O₃-SiO₂-(MgO)-TiO_x inclusion has different formation mechanisms: (1) initial formation as individual Al₂O₃-MgO spinel as a solid-state in molten steel; (2) and it presented as a part of liquid inclusion CaO-Al₂O₃-SiO₂-(MgO)-TiO_x and firstly precipitated due to its low solubility. Full article

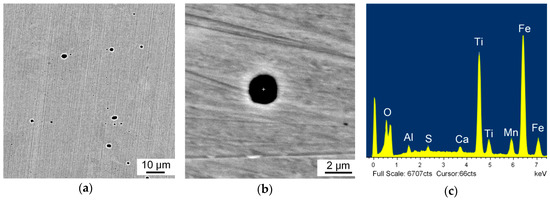

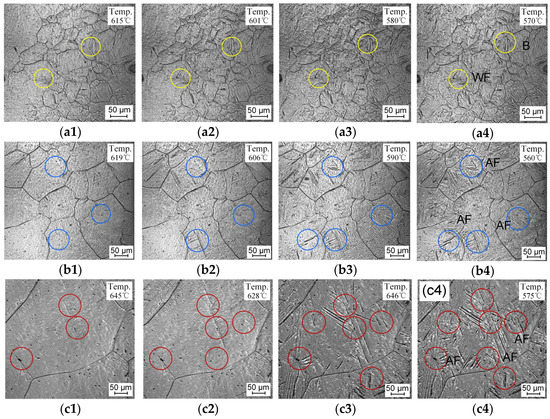

In this study, the acicular ferrite transformation behavior of a Ti–Ca deoxidized low carbon steel was studied using a high-temperature laser scanning confocal microscopy (HT-LSCM). The in situ observation of the transformation behavior on the sample surface with different cooling rates was achieved by HT-LSCM. The microstructure between the surface and interior of the HT-LSCM sample was compared. The results showed that Ti–Ca oxide particles were effective sites for acicular ferrite (AF) nucleation. The start transformation temperature at grain boundaries and intragranular particles decreased with an increase in cooling rate, but the AF nucleation rate increased and the surface microstructure was more interlocked. The sample surface microstructure obtained at 3 °C/s was dominated by ferrite side plates, while the ferrite nucleating sites transferred from grain boundaries to intragranular particles when the cooling rate was 15 °C/s. Moreover, it was interesting that the microstructure and microhardness of the sample surface and interior were different. The AF dominating microstructure, obtained in the sample interior, was much finer than the sample surface, and the microhardness of the sample surface was much lower than the sample interior. The combined factors led to a coarse size of AF on the sample surface. AF formed at a higher temperature resulted in the coarse size. The available particles for AF nucleation on the sample surface were quite limited, such that hard impingement between AF plates was much weaker than that in the sample interior. In addition, the transformation stress in austenite on the sample surface could be largely released, which contributed to a coarser AF plate size. The coarse grain size, low dislocation concentration and low carbon content led to lower hardness on the sample surface. Full article

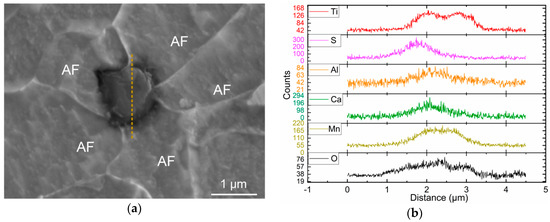

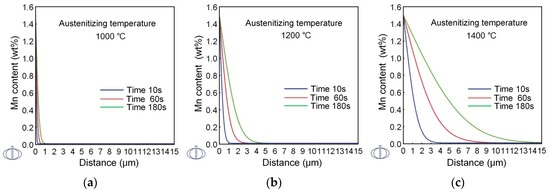

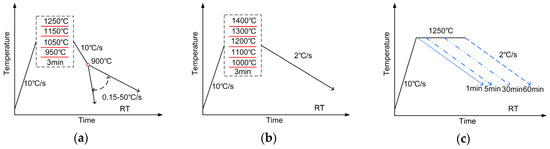

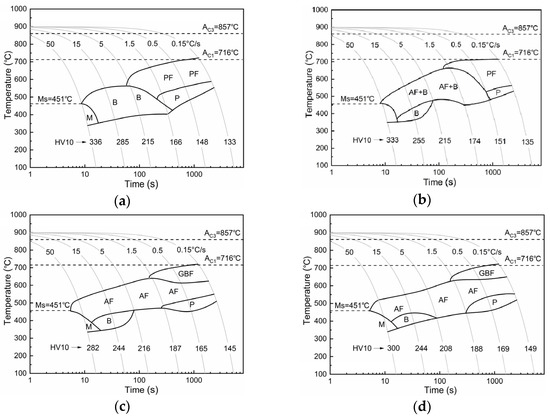

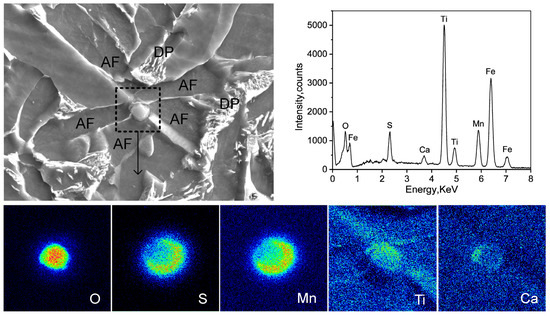

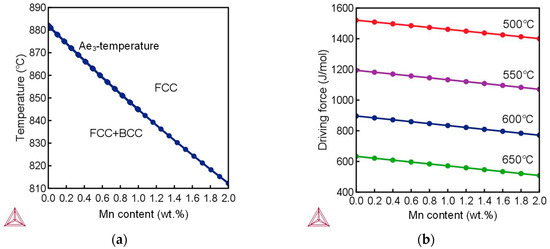

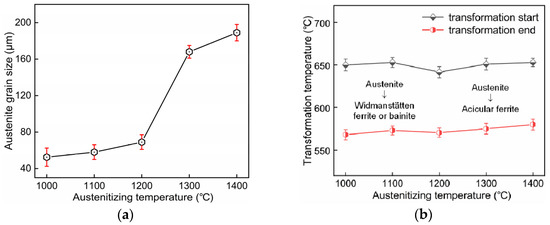

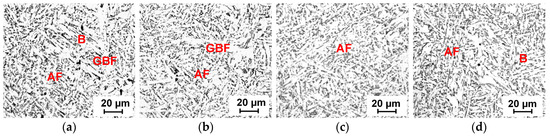

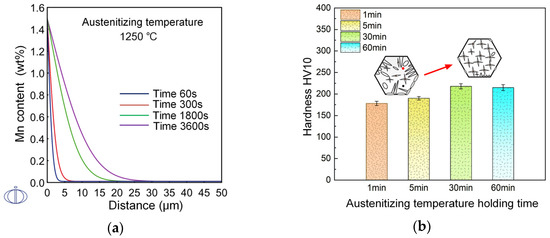

Inclusion-induced acicular ferrite (AF) nucleation has been used for microstructure refinement in steel. Austenitization conditions have a significant influence on AF nucleation ability. In this paper, the effects of austenitization temperature and holding time on the transformation behaviors of low carbon steel containing Ti–Ca oxide particles were studied. A thermal treatment experiment, high temperature in situ observation, and calculation of Mn diffusion were carried out. The results indicate that small austenite grain size under low austenitizing temperature promoted grain boundary reaction products. With an increase in austenitizing temperature, the nucleation sites transferred to intragranular particles and AF transformation was improved. The inclusion particles in the Ti–Ca deoxidized steel were featured by an oxide core rich in Ti and a lesser amount of Ca and with MnS precipitation on the local surface, which showed a strong ability to promote AF nucleation. At a low austenitizing temperature, Mn diffusion was limited and the development of Mn-depleted zones (MDZs) around inclusions was not sufficient. The higher diffusion capacity of Mn at a high austenitizing temperature promoted the formation of MDZs to a larger degree and increased the AF nucleation ability. Boron segregation at large-sized austenite grain boundaries played an important role in AF transformation. Austenite grain size, Mn-depleted zone development, and boron segregation at grain boundaries were the decisive factors influencing the transformation behaviors under different austenitization conditions for the test steel. Full article

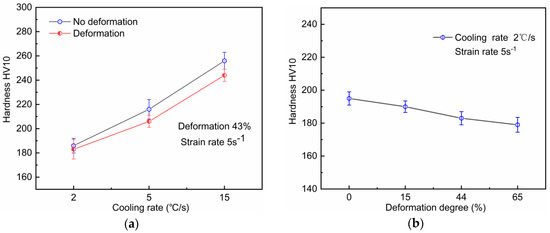

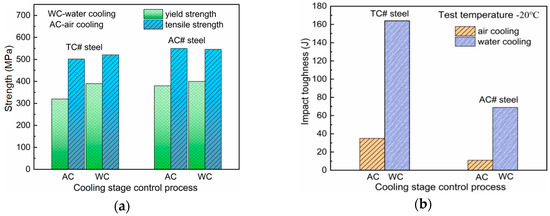

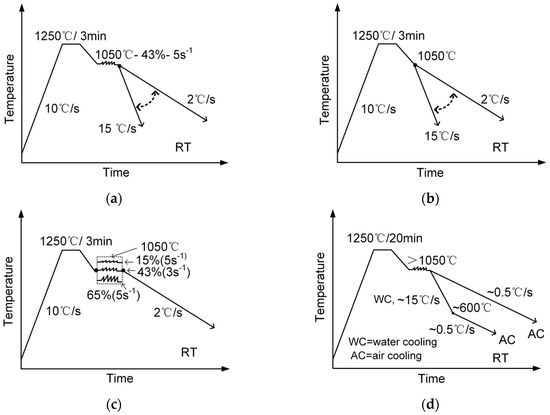

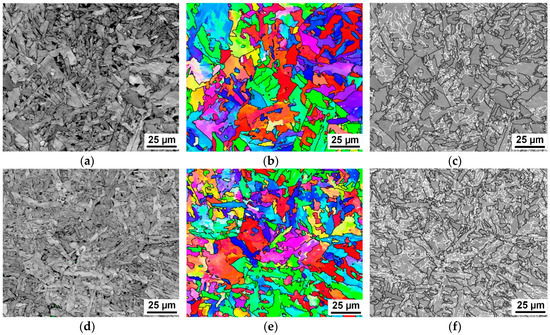

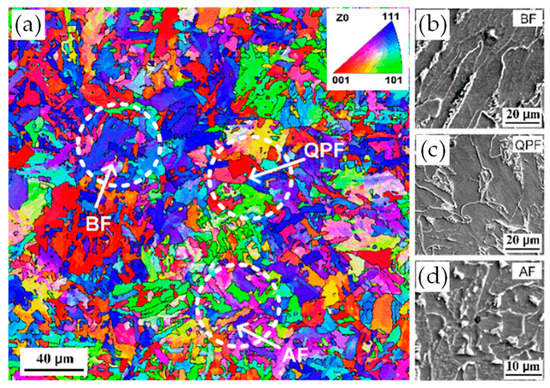

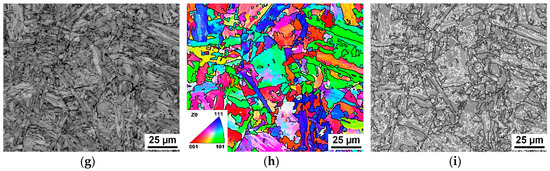

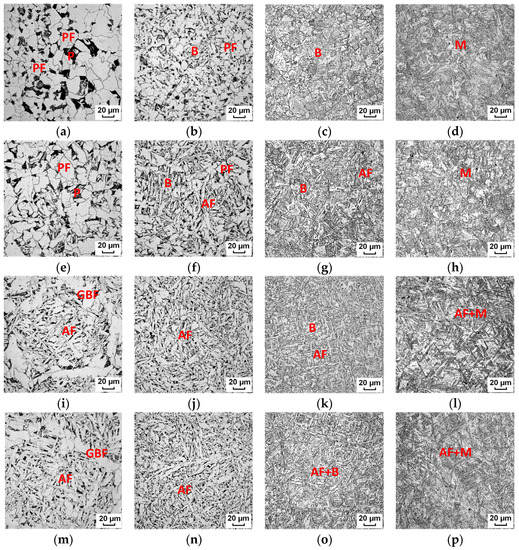

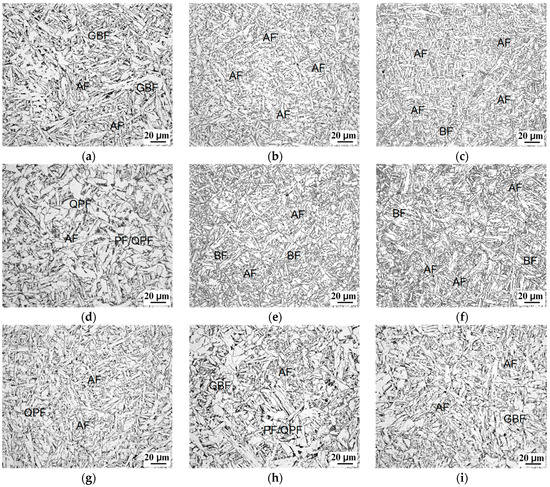

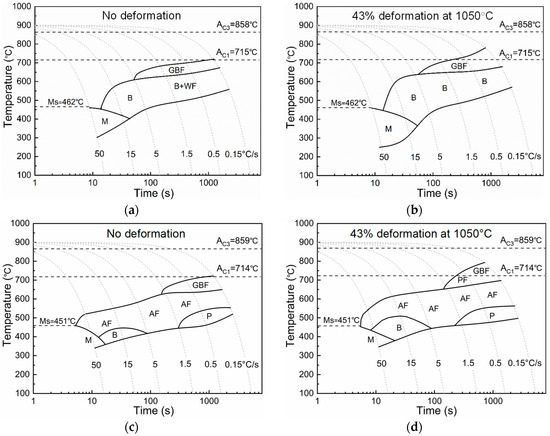

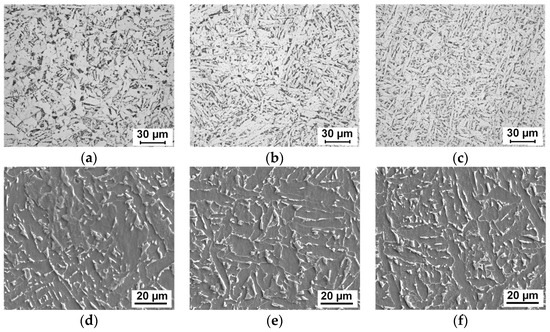

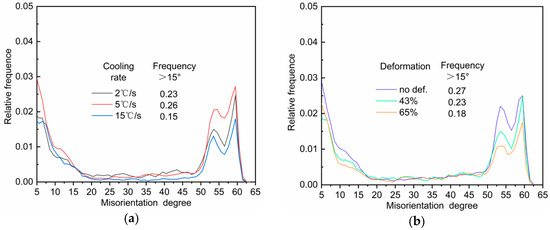

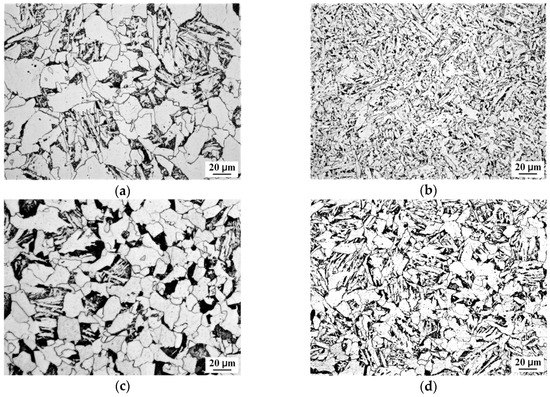

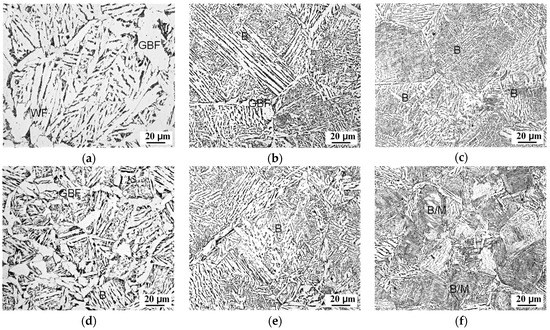

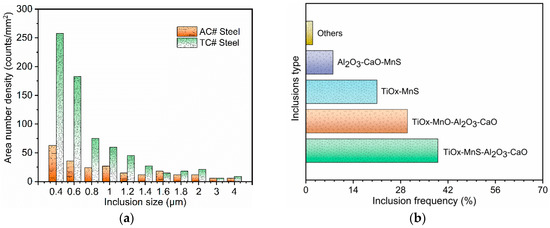

Transformation behaviors and mechanical properties under thermomechanical treatment conditions of Ti–Ca deoxidized low carbon steel were studied in comparison to Al–Ca treated steel. A thermomechanical simulation and a hot rolling experiment were carried out. Inclusions and microstructures were characterized, and the transformation mechanism was analyzed. The results indicated that typical inclusions in Ti–Ca deoxidized steel were TiO_x-MnS-Al₂O₃-CaO, TiO_x-MnO-Al₂O₃-CaO, and TiO_x-MnS, which were effective for acicular ferrite (AF) nucleation. Acicular ferrite formation temperature decreased with an increase in cooling rate. A fine AF dominant microstructure was formed under a high driving force for the transformation from austenite to ferrite at lower temperatures. A high deformation of 43–65% discouraged the formation of acicular ferrite because of the increase in austenite grain boundaries serving as nucleation sites. The fraction of high-angled grain boundaries that acted as obstacles to cleavage cracks was the highest in the sample cooled at 5 °C/s because of full AF structure formation. The hardness increased significantly as the cooling rate increased from 2 to 15 °C/s, whereas it decreased under the condition of deformation because of the formation of (quasi-)polygonal ferrite. By applying accelerated water cooling, the mechanical properties, particularly impact toughness, were significantly improved as a result of fine AF microstructure formation. Full article

Experimental simulations of steelmaking with different amounts of aluminum were achieved in the tube furnace at 1873 K and field scanning electron microscopy and energy dispersive X-ray spectroscopy (FE-SEM and EDX) were employed to explore the characteristics of the inclusions in Ti-bearing steel during the calcium treatment process. It was found that morphologies, chemical compositions, and the size distribution of the inclusions were obviously different before and after calcium treatment. The calcium addition need be carefully considered regarding the mass fraction of aluminum with the purpose of modifying the solid inclusions to liquid phases. The thermodynamic analysis of inclusion formation in the Al–Ti–Ca–O system at 1873 K was conducted, as well as transformation behaviors of inclusions including all types of solid inclusions and liquid phases during solidification. The thermodynamic equilibrium calculations are in good agreement with experimental data, which can be used to estimate inclusion formation in Ti-bearing steel. Full article

The characteristics of inclusions and microstructure in heat-affected zones (HAZs) of steel plates with Ca deoxidation after high heat input welding of 400 kJ·cm⁻¹ were investigated through simulated welding experiments and inclusions automatic analyzer systems. Typical inclusions in HAZs of steels containing 11 ppm and 27 ppm Ca were recognized as complex inclusions with the size in the range of 1~3 μm. They consisted of central Al₂O₃ and peripheral CaS + MnS with TiN distributing at the edge (Al₂O₃ + CaS + MnS + TiN). With increasing Ca content in steel, the average size of inclusions decreased from 2.23 to 1.46 μm, and the number density increased steadily from 33.7 to 45.0 mm⁻². Al₂O₃ + CaS + MnS + TiN complex inclusions were potent to induce the formation of intragranular acicular ferrite (IAF). Therefore, the HAZ toughness of steel plates after high heat input welding was improved significantly by utilizing oxide metallurgy technology with Ca deoxidation. Full article
