Search Results (14)

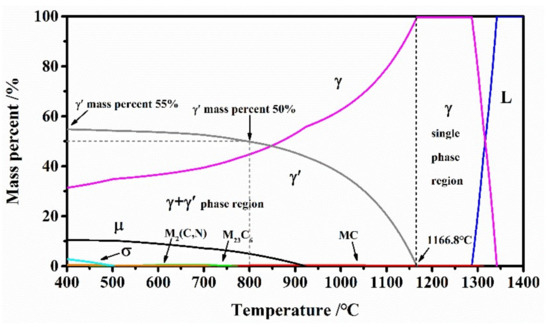

GH2097, a Fe-Ni-Co-based superalloy extensively employed in high-temperature critical components such as aircraft engines, was investigated to elucidate the influence of Si content on its precipitation behavior and mechanical properties. By systematically adjusting Si concentrations, it was demonstrated that Si significantly modulates the size, distribution, and stability of γ′ phase (Ni₃TiNb). As Si content increases, γ′ phase coarsening (mean size: 30.1→40.3 nm) results in a marginal increase in volume fraction of 2%. Mechanical testing revealed a direct correlation between Si content and yield strength enhancement, achieving a maximum increment of 97.1 MPa. Post solution-aging treatment, γ′ strengthening dominated the strengthening mechanisms in GH2097, contributing over 50% to the overall strength. Microstructural characterization (SEM/TEM) further confirmed that optimal Si addition balances precipitation kinetics and grain boundary stabilization without inducing detrimental phases. Therefore, it is important to consider the role of the Si element in the microstructure control of GH2907 alloy. Full article

In this paper, the as-cast microstructure, microsegregation, the kinetics of secondary precipitation phase, and thermal deformation behavior in Ta-containing GH4151 alloy (Ta-GH4151) were studied using optical microscope (OM), scanning electron microscope (SEM), electron probe (EPMA), differential scanning calorimetry (DSC), mechanical testing and simulation (MTS) and electron backscattering diffraction (EBSD). The results indicate that Ti, Ta, Nb and Mo are mainly distributed in the interdendritic region and exhibit negative segregation characteristics, while Cr and W are mainly distributed in the dendritic arm region and exhibit positive segregation characteristics. The initial dissolution temperatures for Laves phase, eutectic (γ + γ′) and η phase are 1140–1150 °C, 1150–1160 °C and 1170–1180 °C, respectively. The diffusion activation energies of Nb, Ta and W are 313 kJ/mol, 323 kJ/mol and 345 kJ/mol, respectively. The hot deformation activation energy of Ta-GH4151 alloy after homogenization is 1694.173 kJ/mol. Based on the constitutive equation and hot processing map, the optimum hot deformation temperature and strain rate range are determined to be 1160–1170 °C/0.3–1 s⁻¹. The addition of Ta not only increases the redissolution temperature of the Laves phase, eutectic (γ + γ′) and η phase but also increases the segregation of Nb, Ta and W, diffusion activation energy and homogenization. The results are expected to provide a more comprehensive understanding of the modification and accelerated application of GH4151 alloy. Full article

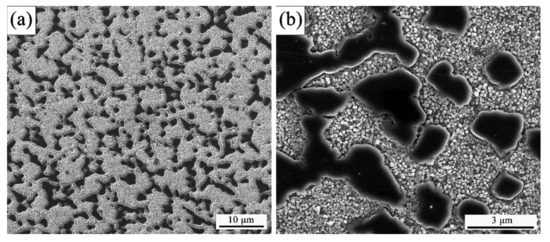

This study aimed to optimize the electrochemical dissolution process of GH4738 scrap, a Ni-based superalloy, to achieve a high dissolution rate with minimal energy consumption. Using the Plackett–Burman design, we identified four key factors from a pool of eight candidates that significantly influence both the dissolution rate and energy consumption: current density, NiCl₂ concentration, electrolysis time, and H₂SO₄ concentration. The steepest ascent method was then applied to define a region that minimized energy consumption while maximizing the dissolution rate. Response surface methodology (RSM) was used to determine the central point for further analysis, providing valuable insights for optimizing the dissolution parameters. The study demonstrated that increasing the NiCl₂ concentration reduced the breakdown potential, and at an H₂SO₄ concentration of 1.5 mol/L, high dissolution efficiency was achieved with minimal energy consumption. The interactions among the parameters significantly affected the dissolution performance. Analysis of variance (ANOVA) confirmed the significant influence of these parameters on the dissolution behavior of Ni-based superalloys. This research contributes to the understanding of GH4738 scrap dissolution and provides a systematic approach for optimizing the process, which is crucial for efficient material recovery and laboratory sustainability. Full article

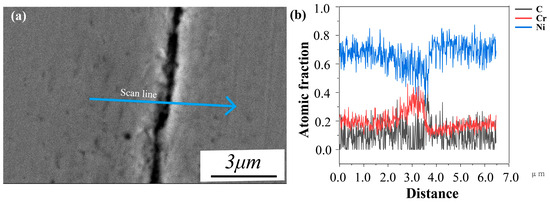

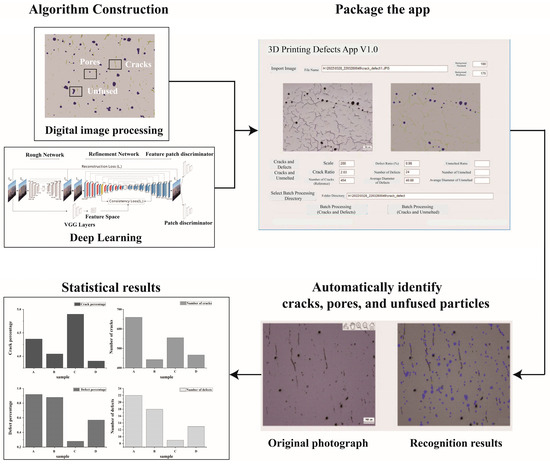

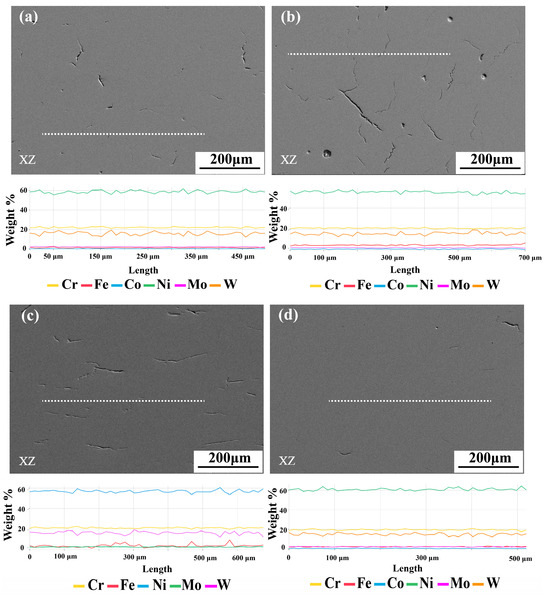

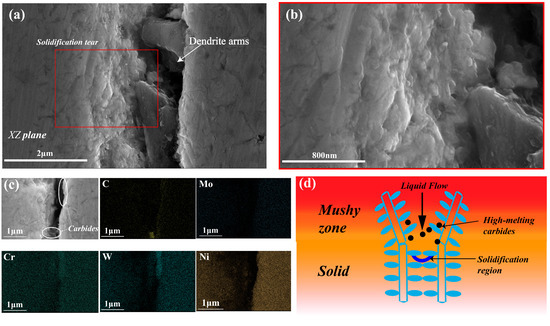

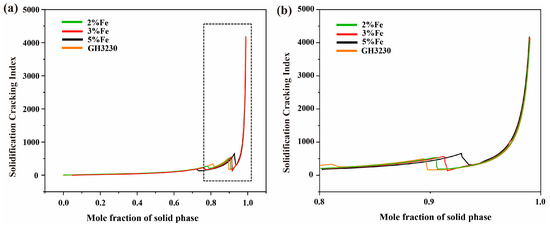

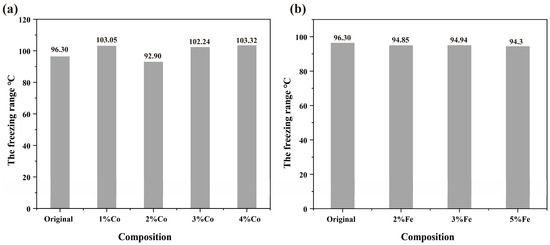

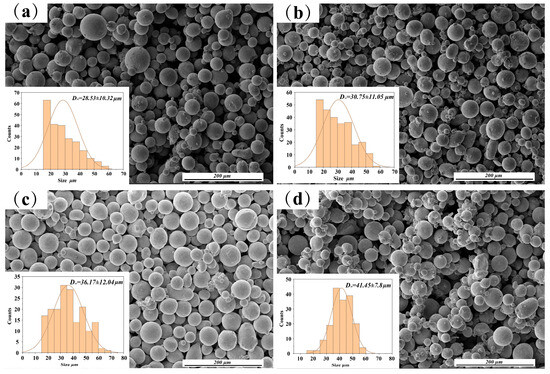

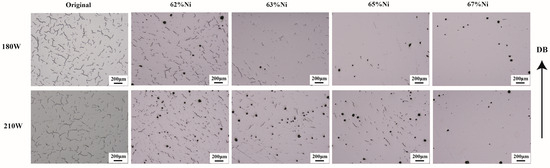

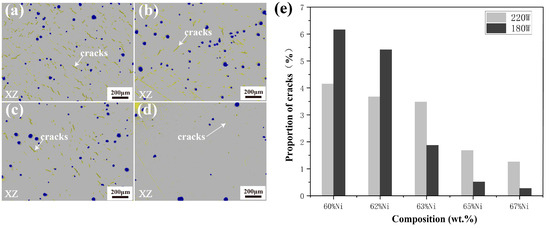

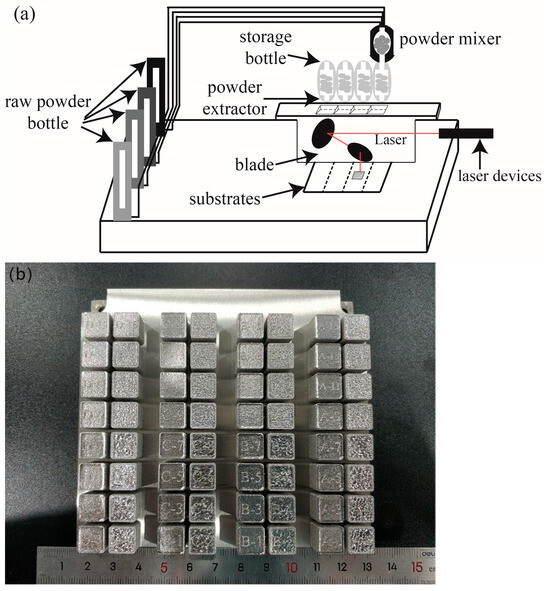

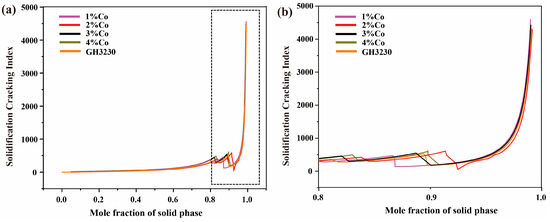

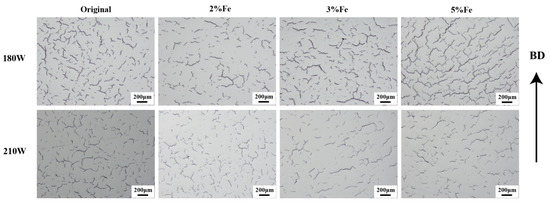

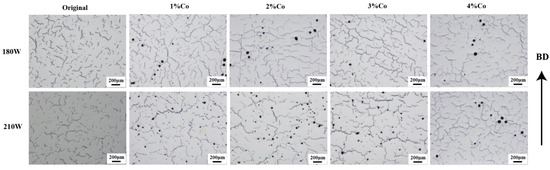

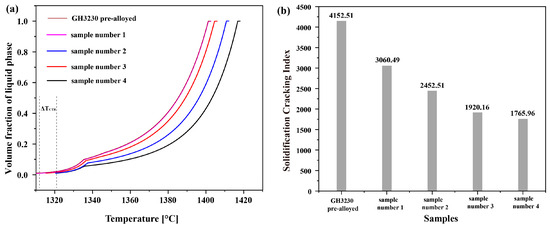

This study utilized Fe, Co, Ni elemental powders alongside GH3230 pre-alloyed powder as raw materials, employing high-throughput additive manufacturing based on laser powder bed fusion in situ to alloying technology to fabricate the bulk samples library for GH3230 superalloy efficiently. A quantitative identification algorithm for detecting crack and hole defects in additive manufacturing samples was developed. The primary focus was to analyze the composition variations in specimens at varying Fe, Co, and Ni elemental compositions and their impact on crack formation. Experimental results demonstrated that increased laser power improved element distribution uniformity but it proved to be not significantly effective in reducing crack defects. Moreover, augmented Fe and Co alloying content could not eliminate these defects. However, elevated Ni content led to a decrease in the alloy’s solidification cracking index and carbide reduction in solidification products. Notably, a significant reduction in cracks was observed when the Ni content of the alloy reached 63 wt.%, and these defects were nearly eliminated at 67 wt.% Ni content. Full article

The effect of the active element yttrium and its content on the oxidation behavior of GH4169 Ni-based superalloy at extreme temperature was studied by isothermal oxidation experiments. The results show that the oxide scale of GH4169 alloy presents a multi-layer structure, in which the continuous and dense Cr₂O₃ oxide layer is located in the subouter layer (II layer) and the continuous Nb-rich layer is in the subinner layer (III layer). These layers can inhibit the diffusion of oxygen and alloying elements, preventing the further oxidation of the alloy. The appropriate addition of yttrium can promote the selective oxidation of Cr element, reduce the thickness of the oxide scale and the oxidation rate of the alloy, inhibit the formation of voids at the interface of the oxide scale/alloy matrix, improve the resistance of the alloy to spalling as well as the adhesion of the oxide scale, and improve the high-temperature oxidation resistance of the alloy. Of those tested, the alloy containing 0.04 wt.%Y has the lowest oxidation weight gain, the slowest oxidation rate, and less oxide scale spalling. Based on this, the effect of yttrium on the high-temperature oxidation behavior of GH4169 Ni-based superalloy and its mechanism were revealed. Full article

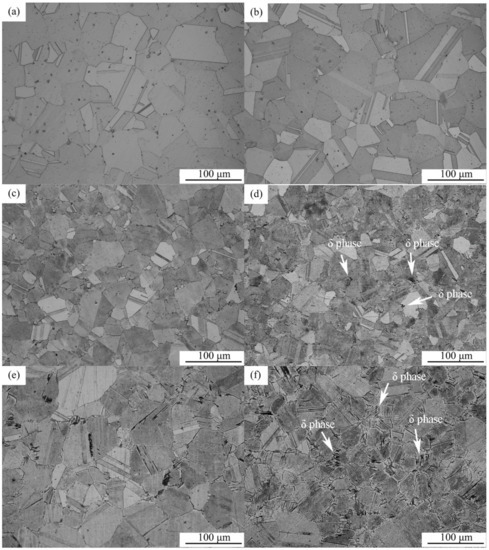

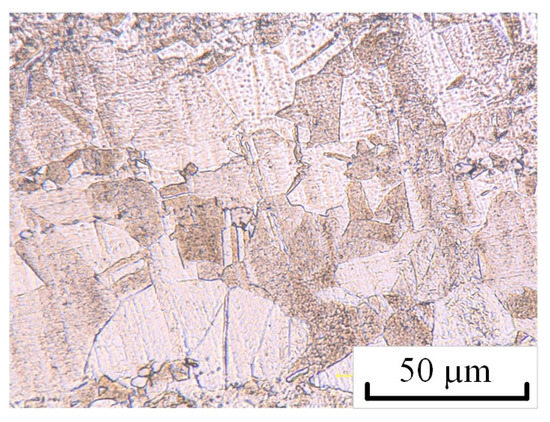

In this study, post-welding aging treatments were applied to a novel Ni-based superalloy GH4065A inertia friction welding (IFW) joint to improve its high-temperature properties. The effect of aging treatment on the microstructure and creep resistance of the IFW joint was systematically investigated. The results indicated that the original ${\mathsf{\gamma }}^{\prime }$ precipitates in the weld zone almost completely dissolved during the welding process, and fine tertiary ${\mathsf{\gamma }}^{\prime }$ precipitated during the subsequent cooling process. Aging treatment did not significantly change the characteristics of grain structures and primary ${\mathsf{\gamma }}^{\prime }$ in the IFW joint. After aging, the size of tertiary ${\mathsf{\gamma }}^{\prime }$ in the weld zone and secondary ${\mathsf{\gamma }}^{\prime }$ in the base material increased, but their morphology and volume fraction did not change evidently. After 760 °C, 5 h aging treatment, the tertiary ${\mathsf{\gamma }}^{\prime }$ in the weld zone of the joint grew from 12.4 nm to 17.6 nm. Correspondingly, the creep rupture time of the joint at 650 °C and 950 MPa increased from 7.51 h to 147.28 h, which is about 19.61 times higher than that of the as-welded joint. The creep rupture was more likely to occur in the base material instead of the weld zone for the IFW joint. This revealed that the creep resistance of the weld zone was significantly improved after aging due to the growth of $\mathrm{tertiary} {\mathsf{\gamma }}^{\prime }$. However, increasing the aging temperature or extending the aging time promoted the growth of secondary ${\mathsf{\gamma }}^{\prime }$ in the base material, and meanwhile, M₂₃C₆ carbides tended to continuously precipitate at the grain boundaries of the base material. It might decrease the creep resistance of the base material. Full article

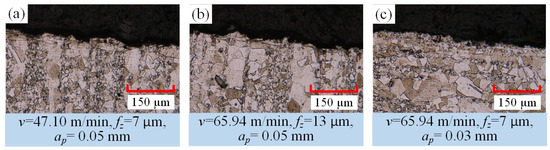

To investigate the formation mechanism of the white layer on the machined surface during high-speed milling of nickel-based superalloy GH4169, several cutting parameters were selected for milling experiments. Energy dispersive spectroscopy (EDS), X-ray diffraction (XRD), and electron backscattered diffraction (EBSD) were employed to characterize element distribution, phase transformation, and microstructure changes in the machined surface of the superalloy and then reveal the formation mechanism of the white layer on the machined surface. The results show that the white layer appears on the machined surface of GH4169, which is dense and has no obvious structural features. The total amount of elements in the white layer remains unchanged, but the distribution of elements such as C, N, O, Fe, and Ni changes due to phase change. The formation mechanism of the white layer is due to the dynamic recovery and dynamic recrystallization caused by the heat–force coupling effect, which leads to the grain refinement of the material and thus forms the white layer. This investigation can provide theoretical support to improve the service life of the parts in actual machining. Full article

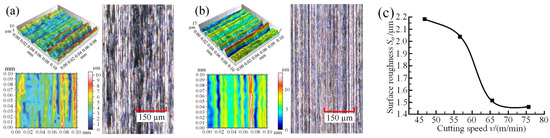

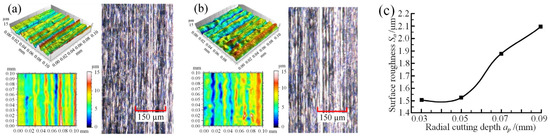

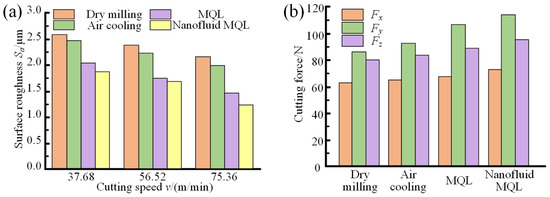

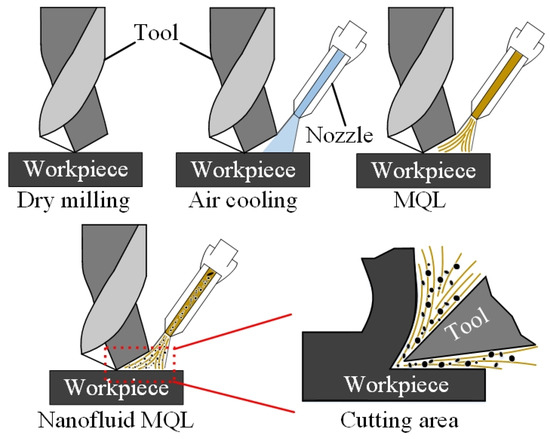

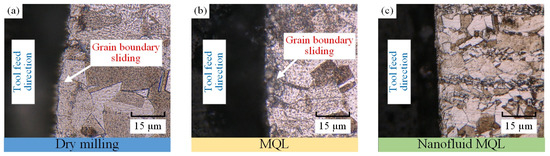

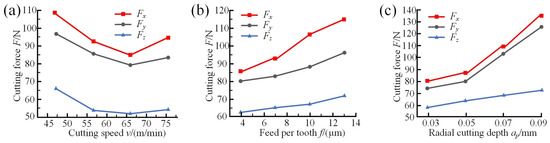

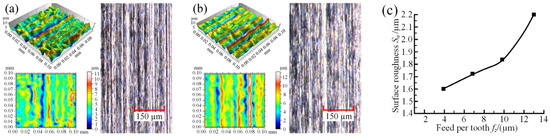

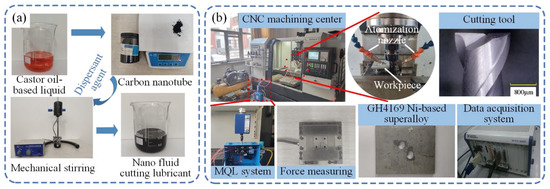

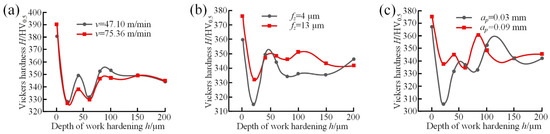

To explore the milling characteristics of Ni-based superalloy under minimal quantity lubrication (MQL), a single-factor experiment was adopted to investigate the milling machinability of GH4169 Ni-based superalloy. The influences of milling parameters and cooling methods on workpiece surface roughness, milling force, and surface hardness were analyzed. The results showed that the milling parameters and cooling methods have significant effects on the milling machinability of GH4169 Ni-based superalloy. The milling force was F_y > F_x > F_z, and the milling force decreased first and then increased with the increasing cutting speed. The surface roughness, surface hardness, and work hardening rate of the workpieces decreased with the increasing cutting speed and increased with the increasing feed per tooth and radial cutting depth. The milling parameters had a nonsignificant effect on the depth of the work hardening layer in GH4169 Ni-based superalloy. The order of cooling methods to obtain the minimum surface roughness and minimum milling force is nanofluid MQL > MQL > air cooling > no cooling. Full article

GH4169 superalloy and Si₃N₄ ceramics were vacuum-brazed with AgCuTi+Cu foam composite filler. The effect of brazing temperature on the microstructure and mechanical properties of the GH4169/Si₃N₄ joint was studied. The results show that the interface microstructure of the GH4169/Si₃N₄ joint is the GH4169 superalloy/TiCu+Ti₂Ni+TiCu₂+Ag(s, s)+TiCu₄+Cu(s, s)+TiN+Ti₅Si₃/Si₃N₄ ceramics. With the increase in brazing temperature, the element diffusion between the base metal and the brazing filler intensifies, and the interfacial reaction layer thickens, which is conducive to the improvement of shear strength. At 850 °C, the maximum shear strength of the joint is 196.85 MPa. After further increases in the brazing temperature, Cu foam dissolves completely, and the Ti-Cu intermetallic compounds increase, which is harmful to the shear strength due to the increases in the brittle phase. However, when the brazing temperature reaches 910 °C, the shear strength of the brazing joint slightly increases under the combined effect of the Ti-Cu intermetallic compounds and the thickness of the reaction layer. Full article

The welded joints of 1Cr18Ni9Ti austenitic stainless steel and GH1140 nickel-based superalloy dissimilar materials used in certain types of aero-engine combustion liner components are prone to crack initiation during service, seriously affecting the service life of the combustion liner. In this study, laser shock peening (LSP) was applied to the dissimilar metal weld of 1Cr18Ni9Ti and GH1140, which are used in the combustion liner parts of aero engines. The effects of LSP on the residual stress, microhardness, microstructure and high-cycle fatigue performance of the weld were analyzed. The results show that the residual stress in the weld and heat-affected zones was converted from tensile residual stress to high amplitude compressive residual stress via LSP. Furthermore, the surface hardness of every region of the combustion liner weld was increased, especially in the weld zone, where an increase of 41.4% from 162 HV to 229 HV was observed. Simultaneously, with the introduction of grain refinement, gradient plastic deformation in the depth direction and the dislocation structure of the surface material, the high-cycle fatigue limit of the weld specimen was significantly increased and the fatigue limit of the 1Cr18Ni9Ti/GH1140 welded joint was improved by 65.39%, from 289 to 478 MPa. Full article

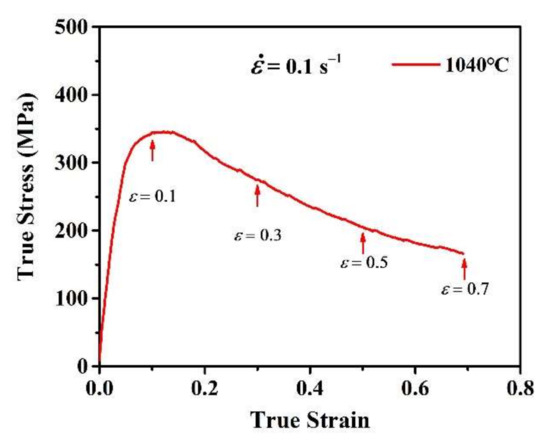

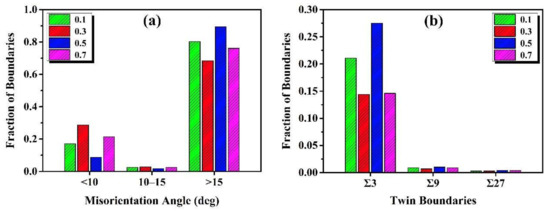

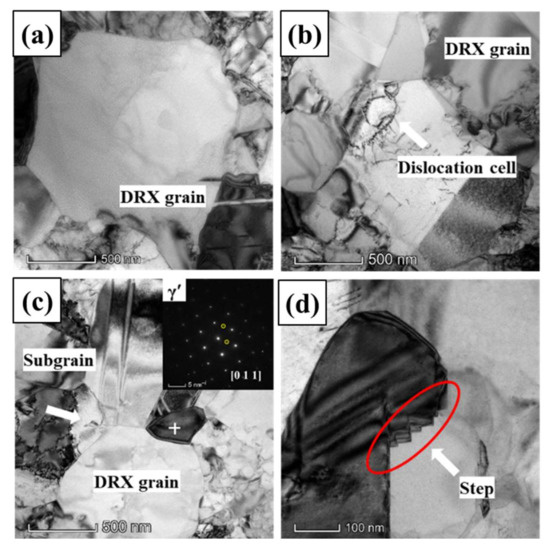

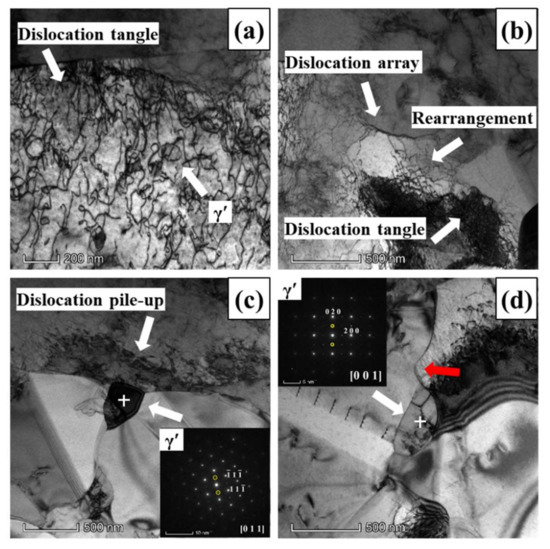

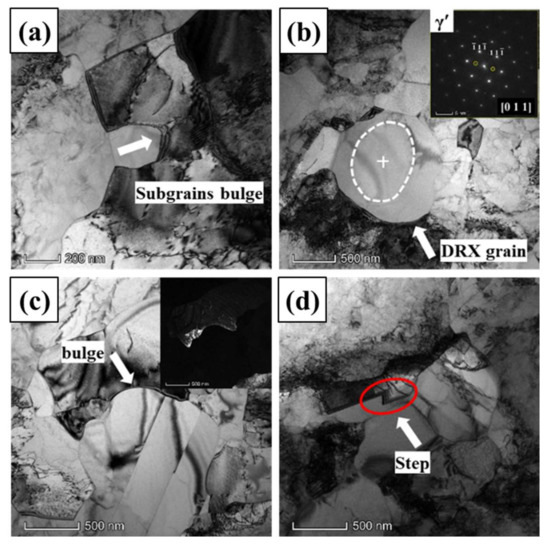

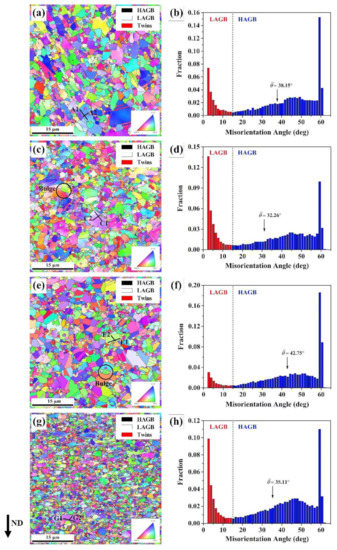

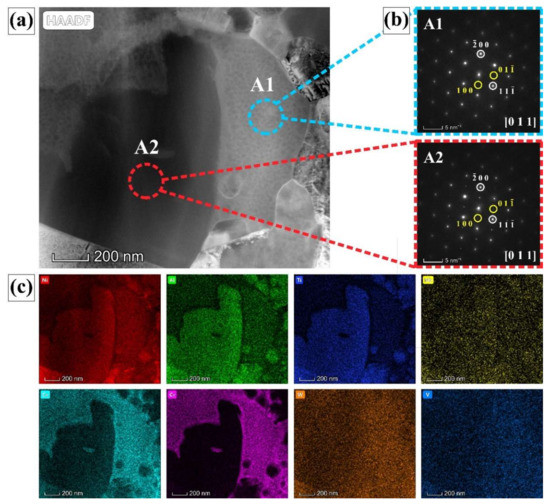

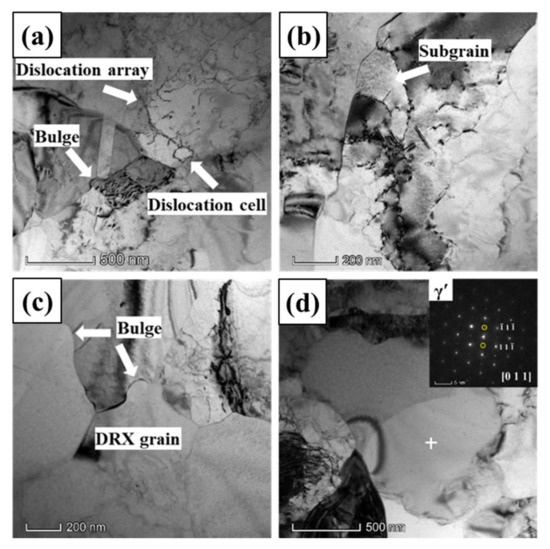

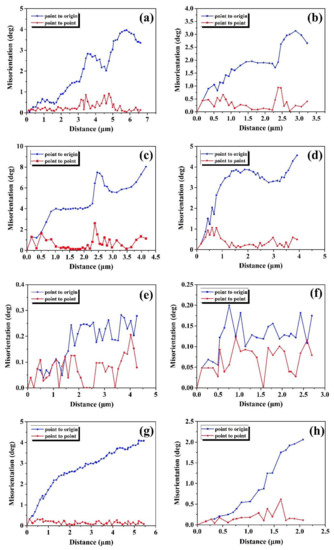

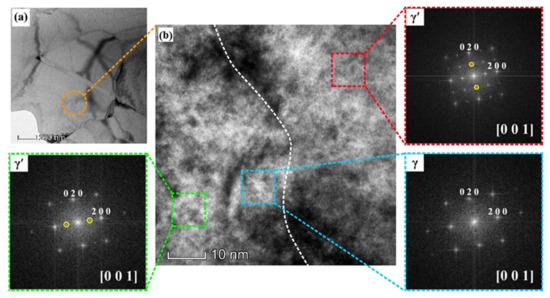

Sub-solvus dynamic recrystallization (DRX) mechanisms in an advanced γ-γ’ nickel-based superalloy GH4151 were investigated by isothermal compression experiments at 1040 °C with a strain rate of 0.1 s⁻¹ and various true strain of 0.1, 0.3, 0.5, and 0.7, respectively. This has not been reported in literature before. The electron backscatter diffraction (EBSD) and transmission electron microscope (TEM) technology were used for the observation of microstructure evolution and the confirmation of DRX mechanisms. The results indicate that a new dynamic recrystallization mechanism occurs during hot deformation of the hot-extruded GH4151 alloy. The nucleation mechanism can be described as such a feature, that is a primary γ’ (Ni₃(Al, Ti, Nb)) precipitate embedded in a recrystallized grain existed the same crystallographic orientation, which is defined as heteroepitaxial dynamic recrystallization (HDRX). Meanwhile, the conventional DRX mechanisms, such as the discontinuous dynamic recrystallization (DDRX) characterized by bulging grain boundary and continuous dynamic recrystallization (CDRX) operated through progressive sub-grain merging and rotation, also take place during the hot deformation of the hot-extruded GH4151 alloy. In addition, the step-shaped structures can be observed at grain boundaries, which ensure the low-energy surface state during the DRX process. Full article

To explore the macro-fracture mechanism of a friction welded joint between TiAl alloy and GH3039 superalloy, the micromechanical properties of intermediate phases at the joint interface are characterized and the relationship between the macro-fracture and micro-fracture of the joint is established. The indentation technique has been employed to calculate the nano-hardness and fracture toughness of the intermediate phases. The dynamic in-situ tensile test in SEM has been applied to observe the initiation and propagation process of cracks at the interface. It has been found that Al₃NiTi₂ and AlNi₂Ti have the highest nano-hardness and elastic recovery rates, while TiAl and GH3039 base metals have the lowest nano-hardness and elastic recovery rates. This indicates that the harder the materials, the more prone they are to elastic deformation. Nevertheless, the fracture toughness of Al₃NiTi₂ and AlNi₂Ti are the two lowest, which were 1.7 MPa·m^1/2 and 2.7 MPa·m^1/2, respectively. The cracks sprouted from Al₃NiTi₂ and AlNi₂Ti and then spread throughout the entire intermediate phase zone. In other words, the fracture mainly happened in these two phase layers. It has been concluded that Al₃NiTi₂ and AlNi₂Ti were the two weakest phases at the interface and their poor fracture toughness results in low joint strength. Full article

This paper established a microstructure-related hardness model of a polycrystalline Ni-based superalloy GH4720Li, and the sizes and area fractions of γ’ precipitates were extracted from scanning electron microscope (SEM) images using a deep learning method. The common method used to obtain morphological parameters of γ’ precipitates is the thresholding method. However, this method is not suitable for distinguishing different generations of γ’ precipitates with similar gray values in SEM images, which needs many manual interventions. In this paper, we employ SEM with ATLAS (AuTomated Large Area Scanning) module to automatically and quickly detect a much wider range of microstructures. A deep learning method of U-Net is firstly applied to automatically and accurately segment different generations of γ’ precipitates and extract their parameters from the large-area SEM images. Then the obtained sizes and area fractions of γ’ precipitates are used to study the precipitate stability and microstructure-related hardness of GH4720Li alloy at long-term service temperatures. The experimental results show that primary and secondary γ’ precipitates show good stability under long-term service temperatures. Tertiary γ’ precipitates coarsen selectively, and their coarsening behavior can be predicted by the Lifshitz–Slyozov encounter modified (LSEM) model. The hardness decreases as a result of γ’ coarsening. A microstructure-related hardness model for correlating the hardness of the γ’/γ coherent structures and the microstructure is established, which can effectively predict the hardness of the alloy with different microstructures. Full article

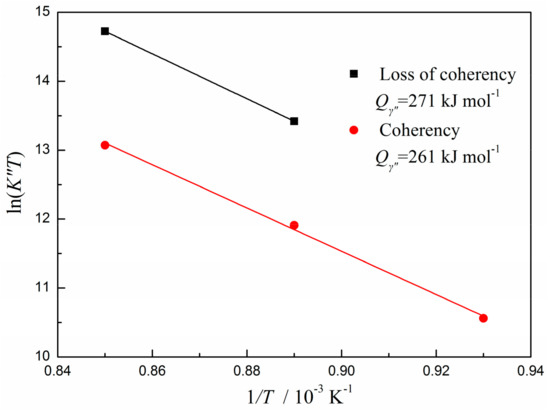

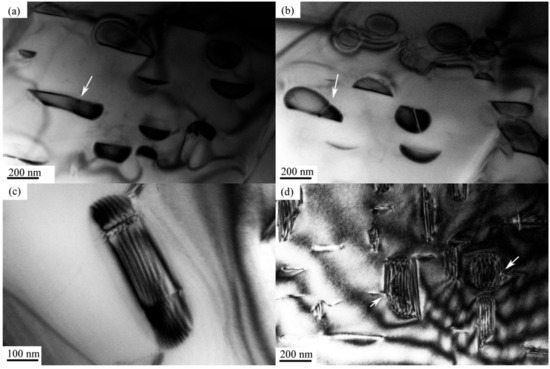

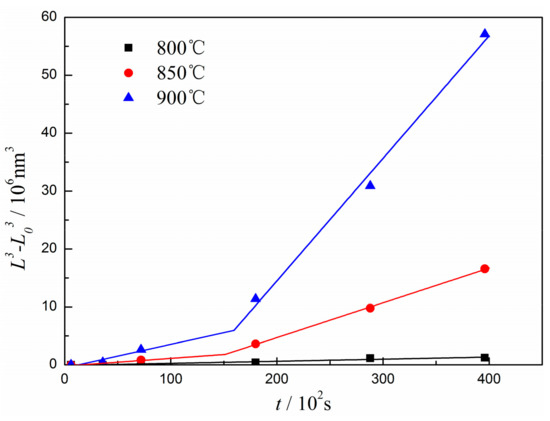

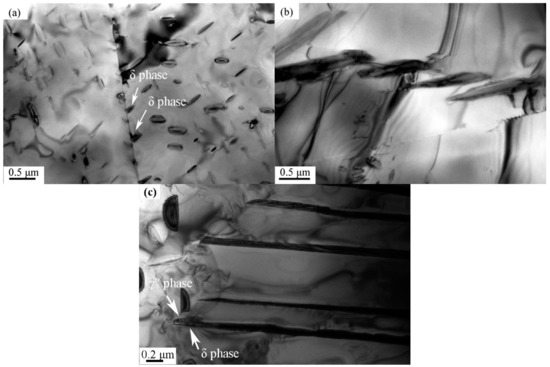

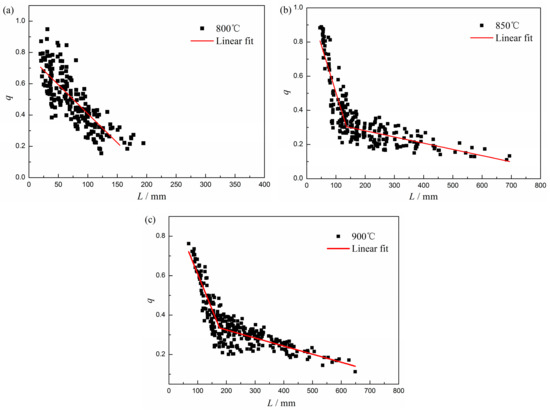

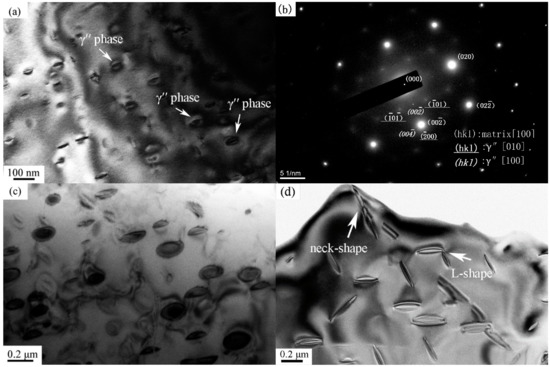

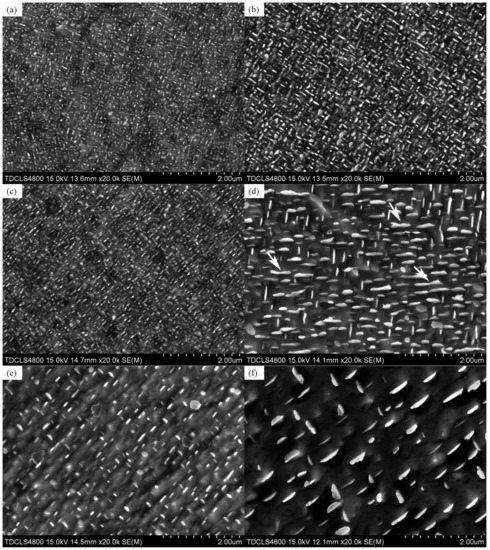

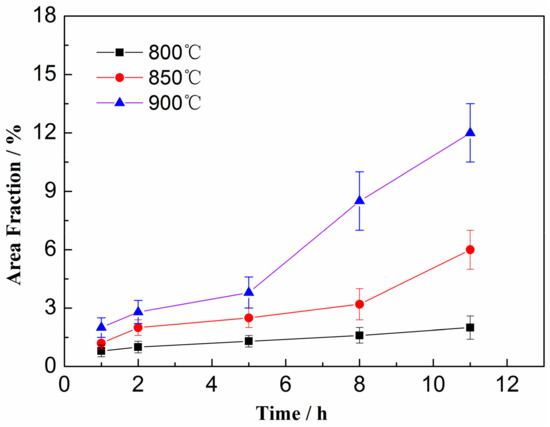

The growth of precipitates in Ni-based superalloy GH4169 is critical as it controls the mechanical properties and long-term stability of the alloy. In this paper, the coarsening behavior of the main strengthening phase γ″ in the temperature range from 800 °C to 900 °C is investigated. Two heat treatment steps, i.e., pre-precipitation of γ″ phase and coarsening of precipitates at high temperatures, were performed on the GH4169 alloy. It was found that there were three morphological forms of γ″ phase in chronological order: lip-shape, disc-shape, and irregular rectangle-shape with larger size. The coarsening kinetics of γ″ phase followed the Lifshitz-Slyozov-Wagner (LSW) time-law for diffusion-controlled growth, and the activation energies of γ″ phase before and after losing the coherent relationship with matrix were 261 kJ mol⁻¹ and 271 kJ mol⁻¹, respectively. Full article
