Search Results (9)

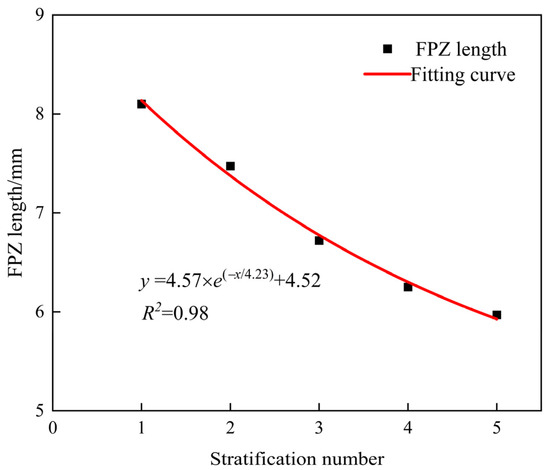

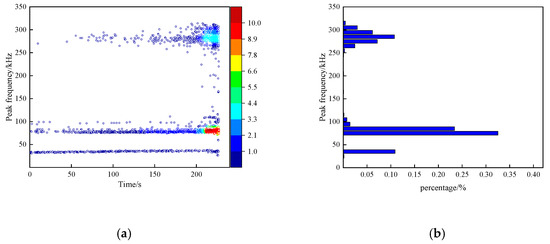

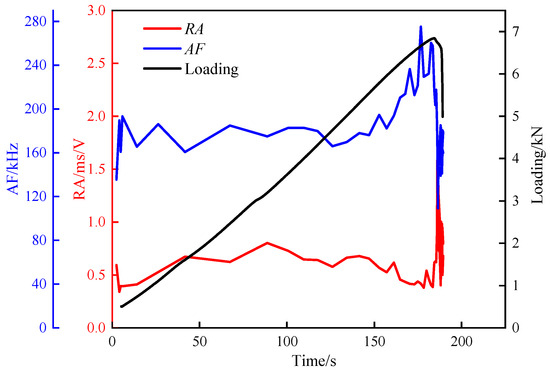

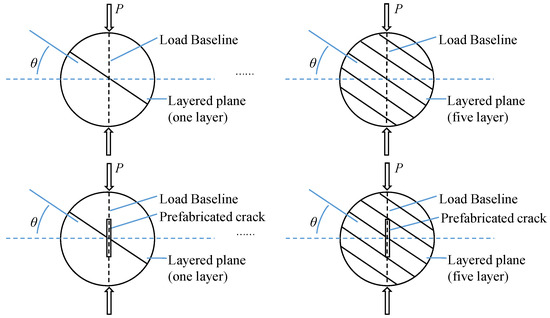

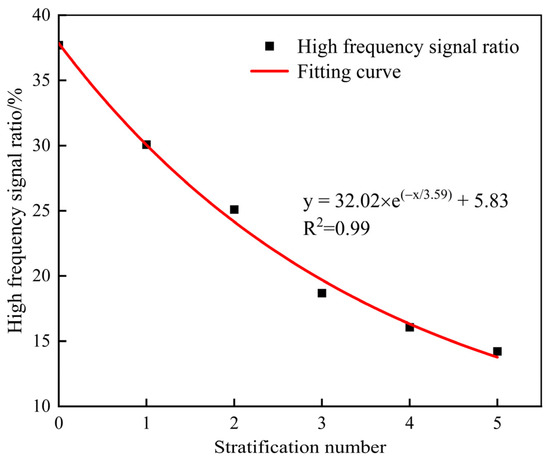

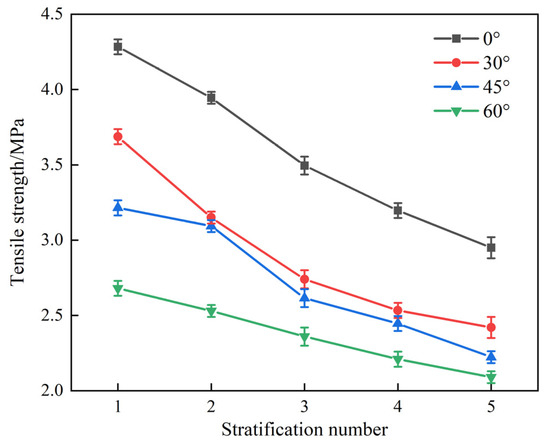

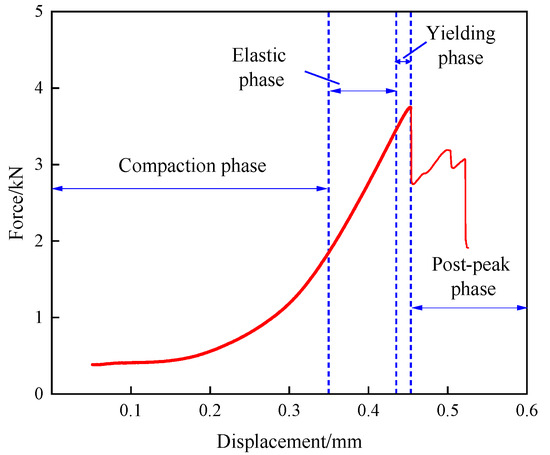

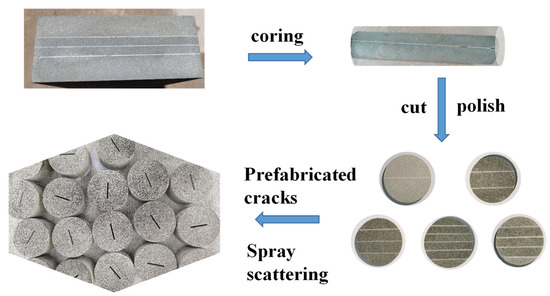

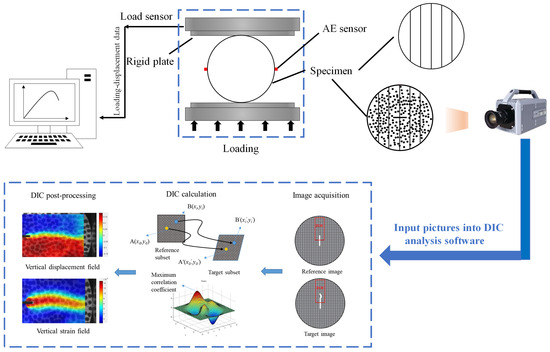

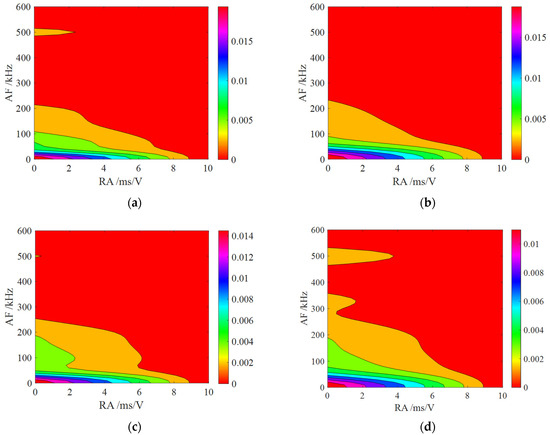

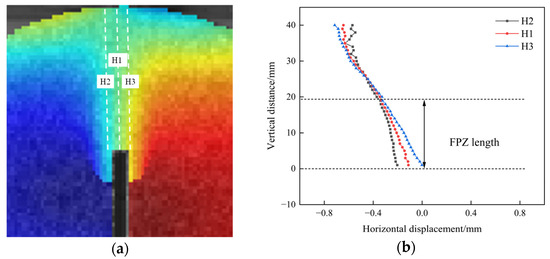

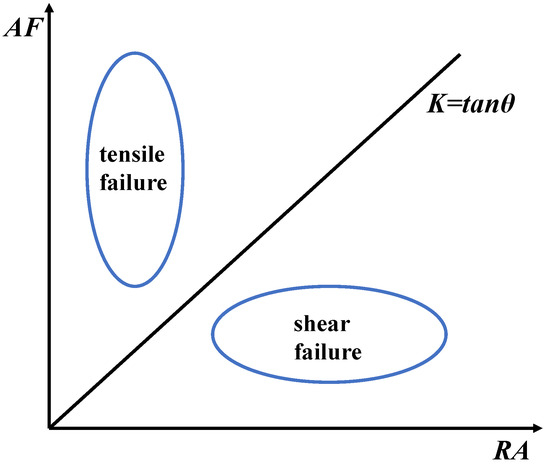

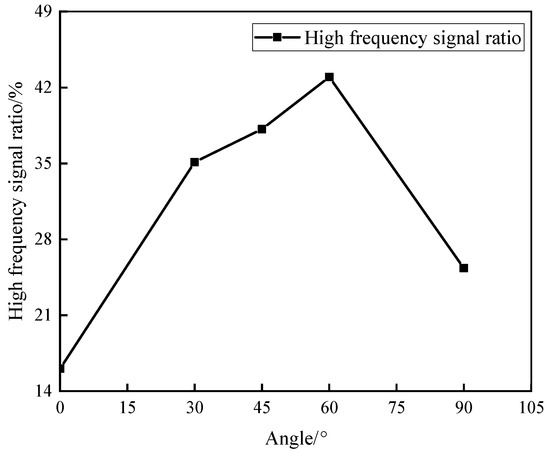

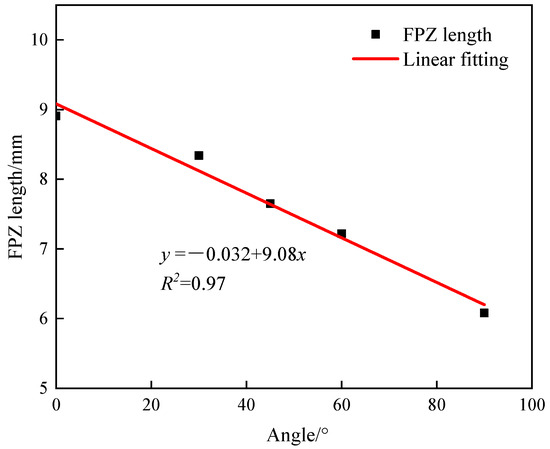

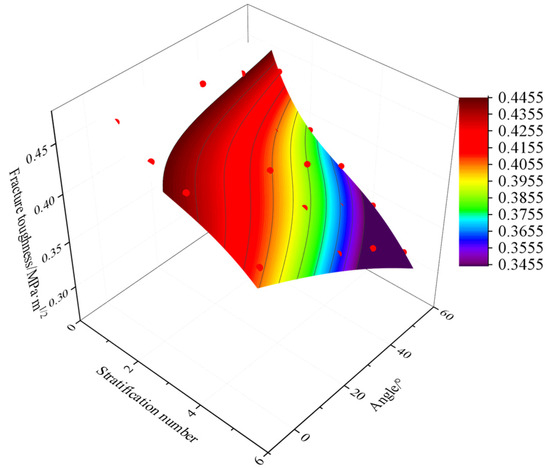

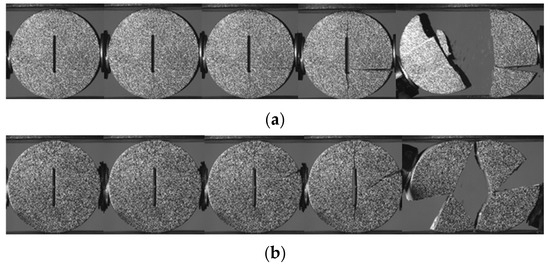

To investigate the stratification effect on rock splitting and Mode I fracture characteristics, standard Brazilian splitting disk specimens and straight-crack disk specimens were subjected to splitting loading tests, and a high-speed camera system and acoustic emission (AE) system were used to study the rocks’ mechanical properties, fracture parameters, and AE characteristics. The results demonstrate the following: (1) The tensile strength and fracture toughness of the layered rock exhibit significant stratification effects, gradually decreasing with the increase in the number of layers and the layer angle. (2) The different angles of the stratification planes lead to the diversity of failure modes in the disk specimens. (3) The S-value and the cumulative AE count curve of specimens without prefabricated cracks show two types of pattern during loading: fluctuating increase mode, and “gentle–steep” increase mode. (4) Layered rock specimens exhibit a low ratio of rise time to voltage amplitude (RA) value and high average frequency (AF) characteristics during fracture, and the shear failure mainly occurs during the stable propagation phase after the initiation of macroscopic cracks. (5) The fracture process zone (FPZ)’s length at the peak point of the specimens decreases exponentially with the increase in the number of layers, but this reduction does not go on indefinitely, and there exists a minimum value. Within the range of 0° to 60°, the FPZ length decreases linearly with increasing stratification angle. Full article

The bottom-hole pressure of hydraulic fracturing in ductile reservoirs is much higher than that of the hydraulic fracturing simulation, and the fracture toughness inferred from the field data is 1–3 orders of magnitude higher than that measured in the laboratory. The rock apparent fracture toughness increases with the increase in the confining pressure. Excluding the influence of the fluid viscosity and the fluid lag on the apparent fracture toughness, the fracture process zone (FPZ) at the fracture tip can explain the orders of magnitude of difference in the apparent fracture toughness between the laboratory and the field. The fracture tip is passivated by plastic deformation, forming a wide and short hydraulic fracture. However, the size of the FPZ obtained in the laboratory is in the order of centimeters to decimeters, while an FPZ of 10 m magnitude is speculated in the field. The FPZ size is affected by the rock property, grain size, pore fluid, temperature, loading rate, and loading configuration. It is found that the FPZ has a size effect that tends to disappear when the rock specimen size reaches the scale of meters. However, this cannot fully explain the experience of hydraulic fracturing practice. The hydraulic fracturing behavior is also affected by the relation between the fracture toughness and the fracture length. The fracture behavior of type II and mixed type for the ductile rock is poorly understood. At present, the apparent fracture toughness model and the cohesive zone model (CZM) are the most suitable criteria for the fracture propagation in ductile reservoirs, but they cannot fully characterize the influence of the rock plastic deformation on the hydraulic fracturing. The elastic-plastic constitutive model needs to be used to characterize the stress–strain behavior in the hydraulic fracturing simulation, and the fracture propagation criteria suitable for ductile reservoirs also need to be developed. Full article

The conventional fracture in shale hydraulic fracturing belongs to the type-I fracture, and the size of the fracture process zone (FPZ) is an important index to measure the fracability of rock mass. This index is also one of the feasible entry points to study the complexity of the fracture network. In order to visually observe the type-I FPZ at the tip of shale fractures, and to study the relationship between the mechanical properties, the shape and size of the FPZ, and the bedding structure, Notched Semi-Circular Bend (NSCB) tests were conducted with three typical fracture direction-bedding orientations (splitter, arrester, divider). The digital image correlation (DIC) method was used to realize the intuitive observation of the real fracture process and the FPZ near the fracture tip. The test found that the FPZ of shale is narrow and long as a whole and is “flame-like”. The height-to-length ratio of the FPZ at the fracture tip determines whether bending and deflection happen between the new fracture and the prefabricated cracks when the fracture occurs. Most of the specimens often appear in the FPZ with a beaded high shear strain zone before the fracture, which is caused by the oblique communication of micro-cracks in the FPZ before the fracture. The appearance of a beaded zone of high shear strain indicates that macroscopic fracture is imminent. The research results can be used for the design of disaster early warning and prevention programs. Full article

This study presents three-point bending fracture tests on glass fiber-reinforced polymer (GFRP) reinforced concrete notched beams. Few studies have been conducted to date to understand the fracture behavior of this type of specimens. The specimens have nominal depth, width, and length equal to 150 mm, 150 mm, and 550 mm. Plain concrete notched beams with the same dimensions are cast from the same batch of concrete to compare the responses with GFRP reinforced concrete notched beams. The notch of the plain concrete specimens is either saw cut or cast. These two notch fabrication methods are compared based on the load responses. The peak load, crack mouth opening displacement (CMOD), GFRP bar slip at two ends, and load point displacement are used to discuss the results of the fracture tests. In addition, digital image analysis is performed to identify the fracture process zone (FPZ) and the location of the neutral axis, which are used to determine the force in the GFRP bar via cross-sectional analysis. Finally, the GFRP bar force versus slip responses are compared with those from the pull-out tests performed on the same bar to show that the bond of the bar in the pull-out tests represents an upper bound limit compared to the behavior in bending. Full article

Aiming at the numerical simulation of the entire crack propagation process in concrete, a numerical method is proposed, in which cohesive stress on the fracture process zone (FPZ) is simulated and applied by a nonlinear spring element. Using displacement control, the cohesive stress values on the FPZ are obtained from solving a system of nonlinear equations through an iterative process. According to a crack propagation criterion based on initial fracture toughness, the approach adds the spring elements to finite element analysis when simulating mode I crack propagation in standard three-point bending notched concrete beams with different strengths, initial crack ratios ${(\mathrm{a}}_0/\mathrm{D})$, and depths (D). The simulated load versus displacement (P-Delta) curves are performed to recalculate the fracture energy and verify the accuracy of cohesion in the proposed method. The simulated load versus crack mouth opening displacement (P-CMOD) curves are consistent with the previous experimental results. Subsequently, the variations of the FPZ length and the crack extension resistance (${\mathrm{K}}_{\mathrm{R}})$ curves are studied according to the proposed iterative approach. Compared with the existing methods using a noniterative process, the iterative approach generates a larger maximum FPZ length and ${\mathrm{K}}_{\mathrm{R}}$ curve where the FPZ length is mainly determined by the fracture energy, tensile strength, and geometry shape of the beam, and the ${\mathrm{K}}_{\mathrm{R}}$ curve is primarily determined by the fracture energy and FPZ length. The significant differences in numerical results indicate that the applying cohesion is essential in numerical simulation. It is reasonable to conclude that the proposed nonlinear spring element is more applicable and practical in the numerical simulation of the concrete mode I crack propagation process by improving the accuracy of the cohesion applied on the FPZ. Full article

The mechanoluminescent (ML) technology that is being developed as a new and substitutive technology for structural health monitoring systems (SHMS) comprises stress/strain sensing micro-/nanoparticles embedded in a suitable binder, digital imaging system, and digital image processing techniques. The potential of ML technology to reveal the fracture process zone (FPZ) that is commonly found in structural materials like concrete and to calculate the stress intensity factor (SIF) of concrete, which are crucial for SHMS, has never been done before. Therefore, the potential of ML technology to measure the length of the FPZ and to calculate the SIF has been demonstrated in this work by considering a single-edge notched bend (SENB) test of the concrete structures. The image segmentation approach based on the histogram of an ML image as well the skeletonization of an ML image have been introduced in this work to facilitate the measurement of the length of ML pattern, crack, and FPZ. The results show ML technology has the potential to determine fracture toughness, to visualize FPZ and cracks, and to measure their lengths in structural material like concrete, which makes it applicable to structural health monitoring systems (SHMS) to characterize the structural integrity of structures. Full article

As a state-of-the-art method, the digital image correlation (DIC) technique is used to capture the fracture properties of wood along the longitudinal direction, such as the crack propagation, the strain field, and the fracture process zone (FPZ). Single-edge notched (SEN) specimens made of Douglas fir (Pseudotsuga menziesii) from Canada with different notch-to-depth ratios are tested by three-point-bending (3-p-b) experiment. The crack mouth opening displacements (CMOD) measured by the clip gauge and DIC technique agree well with each other, verifying the applicability of the DIC technique. Then, the quasi-brittle fracture process of wood is analyzed by combing the load-CMOD curve and the strain field in front of the preformed crack. Additionally, the equivalent elastic crack length is calculated using the linear superposition hypothesis. The comparison between the FPZ evolution and the equivalent elastic crack shows that specimens with higher notch-to-depth ratios have better cohesive effect and higher cracking resistance. Full article

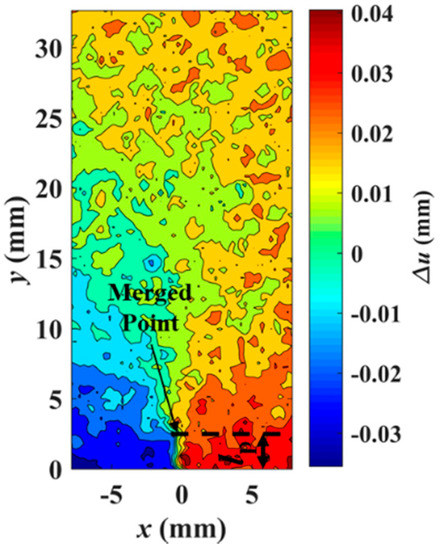

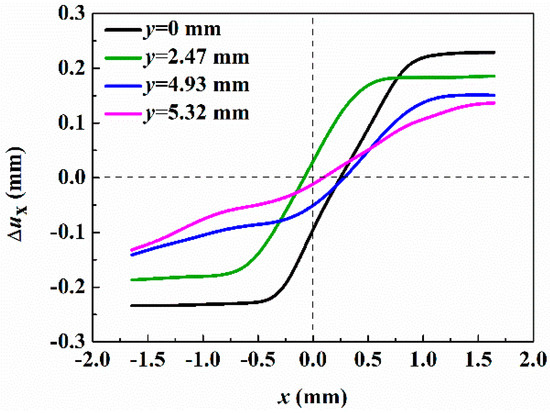

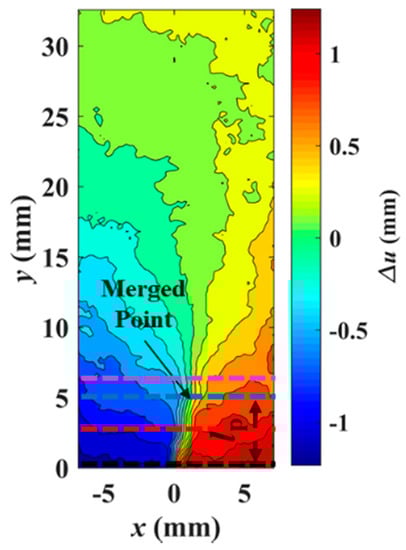

The present work focuses on investigating the characteristics of the fracture process zone (FPZ) in concrete. The Single-edge notched (SEN) concrete beams under three-points bending are employed for conducting mode I fracture propagation. The displacement fields on the specimen surface and the internal AE signal of specimen are obtained simultaneously in real time by digital image correlation (DIC) and acoustic emission (AE) techniques. The experimental and analytical results indicated that the crack tip position, the crack extension length and the stress intensity factors (SIF) are obtained dynamically and quantitatively by DIC technique, and the length of FPZ is identified, respectively, by DIC and AE techniques in the crack extension process. The distribution of internal AE events is consistent with that of FPZ identified from surface deformation of specimens. Full article

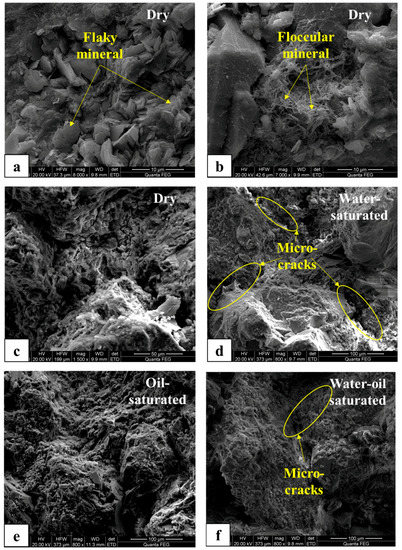

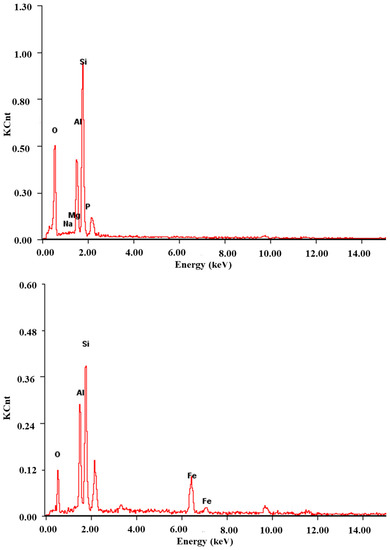

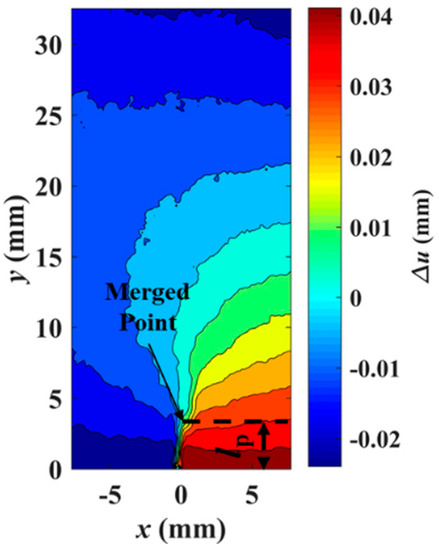

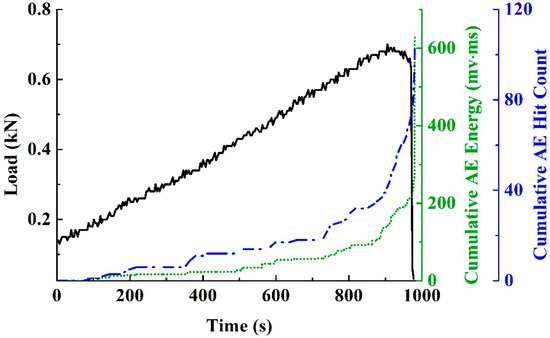

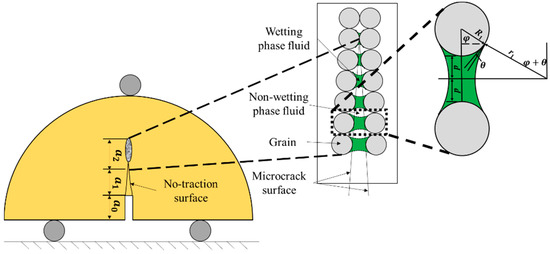

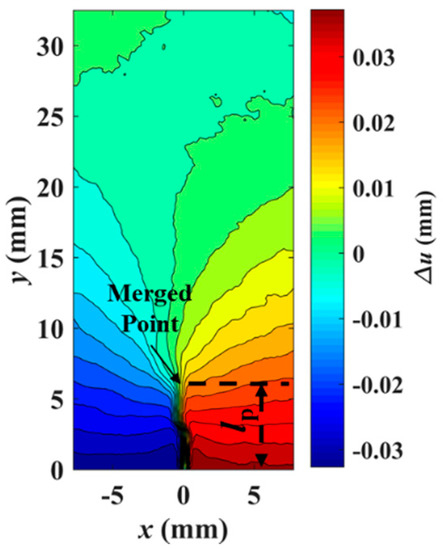

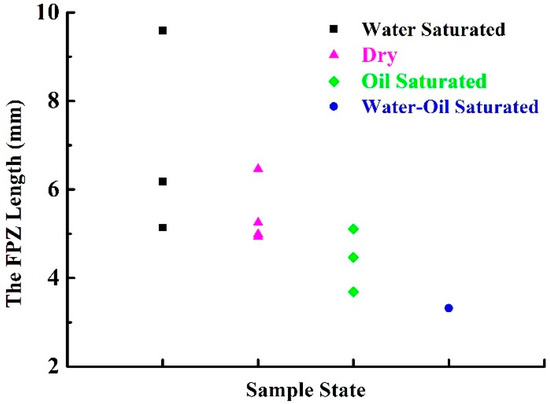

The wetting and nonwetting fluid saturations in porous reservoirs always change during long-term injection and production. The fracture process zone (FPZ) is a prominent feature in the rock fracture process. If the FPZ properties are influenced by pore fluids, the process of hydraulic fracturing will change greatly. The existing models do not consider the role of pore fluid when characterizing the FPZ. In this paper, a modified Dugdale–Barenblatt (D–B) model with capillary pressure is proposed. The model reflects the fact that the FPZ length decreases nonlinearly with the increase in capillary pressure, and it reveals the mechanism of capillary pressure on the equivalent fracture cohesion in the FPZ, which affects the FPZ length. Three-point bending tests were carried out on sandstone under various fluid saturations through digital image correlation (DIC), acoustic emission (AE), and scanning electron microscope (SEM). It was found that the FPZ length of the water–oil-saturated samples was 30–50% smaller than that of water-saturated/oil-saturated samples due to the capillary pressure effect, and the modified D–B model was well consistent with the experiments. The AE behaviors of different saturated samples were not the same: The cumulative AE signals changed abruptly at 90% of the peak load for the water–oil-saturated samples and at 50% of the peak load for water-saturated samples. This demonstrated that the effect of capillary pressure was more obvious than the weakening effect of microstructural damages. The significant influence of capillary pressure on FPZ requires continuous recognition in hydraulic fracturing design. Full article
