Search Results (9)

This study evaluates the tribological behavior of two elastomeric sealing materials—EPDM and TPV—sliding against 30 wt.% glass fiber-reinforced polyamide 66 (PA66GF30), a composite widely used in structural and guiding components. The application context is low-leakage valve systems in polymer electrolyte membrane fuel cells (PEMFCs), particularly on the cathodic (air) side, where dry contact and low-friction sealing are critical. Pin-on-disk tests were conducted under three normal loads (1, 3, and 6 N) and sliding speeds of approximately 0.05, 0.10, and 0.15 m/s (92, 183, and 286 RPM). The coefficient of friction (CoF), mass loss, and wear morphology were analyzed. TPV generally exhibited lower and more stable friction than EPDM, with CoF values exceeding 1.0 at 1 N but falling within 0.32–0.52 under typical operating conditions (≥3 N). EPDM reached a maximum mass loss of 0.060%, while TPV remained below 0.022%. Microscopy revealed more severe wear features in EPDM, including tearing and abrasive deformation, whereas TPV surfaces displayed smoother, more uniform wear consistent with its dual-phase morphology. These findings support the selection of TPV over EPDM in dry-contact sealing interfaces involving composite counterfaces in PEMFC systems. Full article

Thermoplastic vulcanizates (TPVs) are multifunctional materials consisting of two or more phases with solid elastomeric properties at room temperatures and fluid-like properties above their melting point. They are produced through a reactive blending process known as dynamic vulcanization. The most widely produced TPV type is ethylene propylene diene monomer/polypropylene (EPDM/PP), which is the focus of this study. The peroxides are mainly selected to be used in crosslinking of EPDM/PP-based TPV. However, they still have some disadvantages, such as the side reactions resulting in the beta chain scission of the PP phase and undesired disproportionation reactions. To eliminate these disadvantages, coagents are used. In this study, for the first time, the use of vinyl functionalized polyhedral oligomeric silsesquioxane (OV-POSS) nanoparticles was investigated as a potential coagent in EPDM/PP-based TPV production via peroxide-initiated dynamic vulcanization. The properties of the TPVs having POSS were compared with the conventional TPVs containing conventional coagents, such as triallyl cyanurate (TAC). POSS content and EPDM/PP ratio were investigated as the material parameters. Mechanical properties of EPDM/PP TPVs exhibited higher values in the presence of OV-POSS, which resulted from the active participation of OV-POSS into the three-dimensional network structure of EPDM/PP during dynamic vulcanization. Full article

Ethylene–propylene–diene monomer (EPDM) rubber is one of the rapidly developing synthetic rubbers for use as a gasket material in proton exchange membrane (PEM) fuel cell applications. Despite its excellent elastic and sealing properties, EPDM faces challenges such as molding processability and recycling ability. To overcome these challenges, thermoplastic vulcanizate (TPV), which comprises vulcanized EPDM in polypropylene matrix, was investigated as a gasket material for PEM fuel cell applications. TPV showed better long-term stability in terms of tension and compression set behaviors under accelerated aging conditions than EPDM. Additionally, TPV exhibited significantly higher crosslinking density and surface hardness than EPDM, regardless of the test temperature and aging time. TPV and EPDM showed similar leakage rates for the entire range of test inlet pressure values, regardless of the applied temperature. Therefore, we can conclude that TPV exhibits a similar sealing capability with more stable mechanical properties compared with commercialized EPDM gaskets in terms of He leakage performance. Full article

Moony viscosity of ethylene-propylene-diene monomers (EPDMs) can have effect on the crystallization dynamics, structure, and properties of EPDM/polypropylene (PP)-based thermoplastic vulcanizates (TPVs). TPVs with two different Moony viscosities are prepared via a twin-screw extruder, respectively. Crosslinked EPDM with lower Moony viscosity has a higher crosslinking density and the nucleation effect of its crosslink point improves the crystallization ability of PP in TPV, leading to PP phase crystallization at higher temperatures. For TPV with an EPDM of higher Moony viscosity, it has higher crystallinity and the EPDM phase crystallized earlier. Synchrotron radiation studies show that the EPDM with low Moony viscosity has no obvious crystalline structure, and the prepared TPV has an obvious phase separation structure, while the TPV with higher Mooney viscosity of the EPDM does not exhibit obvious phase separation, indicating that the longer EPDM chains have better compatibility with PP in TPV, also evidenced by the almost disappearance of the PP glass transition peak in TPV, from the dynamic mechanical analysis. The longer EPDM chains in TPV provide more physical entanglement and better interaction with PP molecules, resulting in a stronger strain hardening process, longer elongation at break, and higher tensile stress in TPV. Full article

Thermoplastic elastomer vulcanizate (TPV) and liquid silicone rubber (LSR) are replacement candidates for ethylene-propylene-diene rubbers (EPDM), as they offer the possibility for two-component injection moulding. In this study, these material types were compared side by side in cyclic compression tests. The materials were also characterized to provide details on the formulations. Compared to the rubbers, the TPV had higher compression set (after a given cycle) and hysteresis loss, and a stronger Mullins effect. This is due to the thermoplastic matrix in the TPV. The LSR had lower compression set (after a given cycle) than the EPDM, but stronger Mullins effect and higher relative hysteresis loss. These differences between the LSR and the EPDM are likely due to differences in polymer network structure and type of filler. Methods for quantifying the Mullins effect are proposed, and correlations between a Mullins index and parameters such as compression set are discussed. The EPDMs showed a distinct trend in compression set, relative hysteresis loss and relaxed stress fraction vs. strain amplitude; these entities were almost independent of strain amplitude in the range 15–35%, while they increased in this range for the TPV and the LSR. The difference between the compression set values of the LSR and the EPDM decreased with increasing strain amplitude and increasing strain recovery time. Full article

The development of smart elastomeric materials with inherent self-repairing abilities after mechanical damage has important technological and scientific implications, particularly in regard to the durability and life cycle of rubber products. The interest in self-healing materials for automotive applications is rapidly growing along with the increasing importance of vehicle scratch quality and quantity. The creation of a reversible network by noncovalent ionic cross-linking in elastomer/rubber blends is an effective approach to generate the self-healing phenomenon, with reprocessing and recycling properties. In this work, thermoplastic vulcanizates (TPVs) were prepared using ethylene–propylene–diene (EPDM) polymers and high-acid-containing thermoplastic ionomers. Along with the general EPDM, maleic anhydride grafted EPDM (EPDM-g-MAH) was also used for the preparation of the TPVs. The strategy was based on a simple ionic crosslinking reaction between the carboxyl groups present in the ionomer and zinc oxide (ZnO), where the formation of reversible Zn²⁺ salt bondings exhibits the self-healing behavior. The heterogeneous blending of EPDM and ionomers was also used to investigate the thermal and mechanical properties of the TPVs. The experimental findings were further supported by the surface morphology of the fracture surfaces viewed using microscopy. The self-healing behavior of the TPVs has been identified by scratch resistance testing, where the EPDM-g-MAH TPVs showed excellent healing efficiency of the scratch surface. Therefore, this work provides an efficient approach to fabricate new ionically cross-linked thermoplastic vulcanizates with excellent mechanical and self-repairing properties for the skins of automotive interior door trims and instrument panel applications. Full article

The objective of this work is to study the influence of the ratio between the elastomer (EPDM) phase and the thermoplastic phase (PP) in thermoplastic vulcanizates (TPVs) as well as the associated morphology of the compression set of the material. First, from a study of the literature, it is concluded that the rubber phase must be dispersed with a large distribution of the domain size in the thermoplastic phase in order to achieve a high concentration, i.e., a maximal packing fraction close to ~0.80. From this discussion, it is inferred that a certain degree of progress in the crosslinking reaction must be reached when the thermoplastic phase is melted during mixing in order to achieve dispersion of the elastomeric phase in the thermoplastic matrix under maximum stress. In terms of elasticity recovery which is measured from the compression set experiment, it is observed that the crosslinking agent nature (DCP or phenolic resin) has no influence in the case of a TPV compared with a pure crosslinked EPDM system. Then, the TPV morphology and the rubber phase concentration are the first order parameters in the compression set of TPVs. Finally, the addition of carbon black fillers leads to an improvement of the mechanical properties at break for the low PP concentration (20%). However, the localization of carbon black depends on the crosslinking chemistry nature. With radical chemistry by organic peroxide decomposition, carbon black is located at the interface of EPDM and PP acting as a compatibilizer. Full article

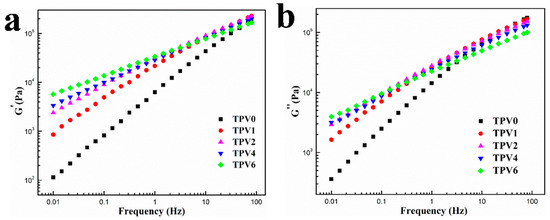

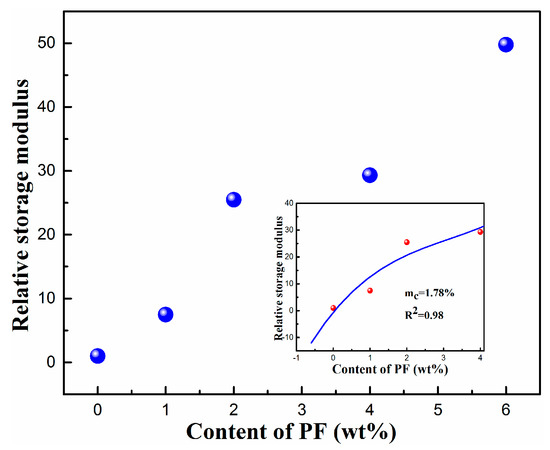

As a special class of “green” elastomers, thermoplastic vulcanizates (TPVs) have been widely used in industries due to the combination of the excellent resilience of conventional elastomers and the easy recyclability of thermoplastics. Here, the morphology evolution of TPVs based on polyamide 6/ethylene-propylene-diene rubber (PA6/EPDM) blends was investigated by varying the content of the curing agent, phenolic resin (PF). With the incorporation of 6 wt% PF, the gel content of the EPDM phase reaches a high value of 49.6 wt% and a typical sea-island structure is formed with EPDM domain in a micro-nano size. The dynamic rheology behaviors of TPVs showed that with the curing degree of EPDM phase increasing, a denser network of EPDM particles is formed in PA6 matrix. Additionally, a lower crystal degree and crystal peak temperature are observed, indicating that there exists a growth restriction of PA6 crystal plate induced by a thinner plastic layer between the adjacent EPDM particles. However, the crystal form of PA6 is not changed with the increasing curing degree of the EPDM phase. This study provides an effective strategy to realize a new kind of TPVs, which can be easily introduced into industrial applications. Full article

We previously reported that the dispersed rubber microparticles in ethylene-propylene-diene monomer (EPDM)/polypropylene (PP) thermoplastic vulcanizates (TPVs) are actually agglomerates of rubber nanoparticles. In this study, based on this new understanding of the microstructure of TPV, we further revealed the microstructure-properties relationship of EPDM/PP TPV during dynamic vulcanization, especially the effect of the size of rubber nanoparticle agglomerates (d_n), the thicknesses of PP ligaments (ID_poly) and the rubber network on the properties of EPDM/PP TPV. We were able to simultaneously obtain a high tensile strength, elongation at break, elastic modulus, and elasticity for the EPDM/PP TPV by the achievement of a smaller d_n, a thinner ID_poly and a denser rubber network. Interestingly, the effect of d_n and ID_poly on the elastic modulus of EPDM/PP TPV composed of rubber nanoparticle agglomerates is different from that of EPDM/PP TPVs composed of rubber microparticles reported previously. The deformation behavior of the TPVs during stretching was studied to understand the mechanism for the achievement of good mechanical properties. Interestingly, the rubber nanoparticle agglomerates are oriented along the tensile direction during stretching. The TPV samples with smaller and more numerous rubber nanoparticle agglomerates can slow down the development of voids and cracks more effectively, thus leading to increase in tensile strength and elongation at break of the EPDM/PP TPV. Full article
