The growing imperative for sustainable building retrofits has spurred significant interest in advanced photovoltaic (PV) solutions. This study evaluates the feasibility and competitiveness of incorporating CIGS thin-film photovoltaic (PV) modules into retrofit projects for aging buildings. By combining qualitative analyses of market and environmental factors with a quantitative multi-criteria index model, this research assesses CIGS performance across five critical dimensions: aesthetic, economic, safety, energy saving, and innovation. The weights assigned to each criterion were determined through expert evaluations derived from structured focus group discussions. The results demonstrate that CIGS exhibits substantial strengths in aesthetic, economic, safety, energy saving, and innovation while maintaining reasonable economic feasibility. The quantitative assessment demonstrated that CIGS thin-film solar cells received the highest overall score (88.92), surpassing silicon-based photovoltaics (86.03), window retrofitting (88.83), and facade cladding (82.21) in all five key metrics of aesthetics, economic feasibility, safety, energy efficiency, and innovation. The findings indicate that CIGS technology exhibits not only exceptional visual adaptability but also attains balanced performance with regard to environmental and structural metrics. This renders it a highly competitive and comprehensive solution for sustainable building retrofits. Full article

Thin-film solar cells (TFSCs) represent a promising frontier in renewable energy technologies due to their potential for cost reduction, material efficiency, and adaptability. This literature review examines the key materials and advancements that make up TFSC technologies, with a focus on Cu(In,Ga)Se₂ (CIGS), cadmium telluride (CdTe), and Cu₂ZnSnS₄ (CZTS) and its sulfo-selenide counterpart Cu₂ZnSn(S,Se)₄ (CZTSSe). Each material’s unique properties—including tuneable bandgaps, high absorption coefficients, and low-cost scalability—make them viable candidates for a wide range of applications, from building-integrated photovoltaics (BIPV) to portable energy solutions. This review explores recent progress in the enhancement of power conversion efficiency (PCE), particularly through bandgap engineering, alkali metal doping, and interface optimization. Key innovations such as silver (Ag) alloying in CIGS, selenium (Se) alloying in CdTe, and sulfur (S) to Se ratio optimization in CZTSSe have driven PCE improvements and expanded the range of practical uses. Additionally, the adaptability of TFSCs for roll-to-roll manufacturing on flexible substrates has further cemented their role in advancing renewable energy adoption. Challenges remain, including environmental concerns, but ongoing research addresses these limitations, paving the way for TFSCs to become a crucial technology for transitioning to sustainable energy systems. Full article

Flexibility, light weight, and mechanical robustness are the key advantages of flexible photovoltaic (PV) modules, making them highly versatile for sustainable energy solutions. Unlike traditional rigid PV modules, their flexible nature makes them incredibly versatile for harnessing energy in places where doing so was once impossible. They have a wide range of applications due to their flexibility and moldability, making it possible to conform these modules to surfaces like curved rooftops and other irregular structures. In this paper, we provide a comprehensive review of all the materials used in flexible PV modules with a focus on their role in sustainability. We thoroughly discuss the active-layer materials for crystalline silicon (c-Si)-based solar cells (SC) and thin-film solar cells such as cadmium telluride (CdTe), as well as copper indium gallium diselenide (CIGS), amorphous thin-film silicon (a-Si), perovskite and organic solar cells. Various properties, such as the optical, barrier, thermal, and mechanical properties of different substrate materials, are reviewed. Transport layers and conductive electrode materials are discussed with a focus on emerging trends and contributions to sustainable PV technology. Various fabrication techniques involved in making flexible PV modules, along with advantages, disadvantages, and future trends, are highlighted in the paper. The commercialization of flexible PV is also discussed, which is a crucial milestone in advancing and adapting new technologies in the PV industry with a focus on contributing toward sustainability. Full article

In recent years, the efficiency of high-efficiency Cu(In,Ga)Se₂ (CIGS) solar cells has been significantly improved, particularly for narrow-gap types. One of the key reasons for the enhancement of narrow-gap device performance is the formation of the “Spike” structure at the CdS/CIGS heterojunction interface. Wide-gap CIGS solar cells excel in modular production but lag behind in efficiency compared to narrow-gap cells. Some studies suggest that the “Cliff” structure at the heterojunction of wide-gap CIGS solar cells may be one of the factors contributing to this decreased efficiency. This paper utilizes the SCAPS software, grounded in the theories of semiconductor physics and photovoltaic effects, to conduct an in-depth analysis of the impact of “Cliff” and “Spike” heterojunction structures on the performance of wide band gap CIGS solar cells through numerical simulation methods. The aim is to verify whether the “Spike” structure is also advantageous for enhancing wide-gap CIGS device performance. The simulation results show that the “Spike” structure is beneficial for reducing interfacial recombination, thereby enhancing the V_OC of wide-gap cells. However, an electronic transport barrier may form at the heterojunction interface, resulting in a decrease in J_SC and FF, which subsequently reduces device efficiency. The optimal heterojunction structure should exhibit a reduced “Cliff” degree, which can facilitate the reduction of interfacial recombination while simultaneously preventing the formation of an electronic barrier, ultimately enhancing both V_OC and device performance. Full article

Historically, multi-junction solar cells have evolved to capture a broader spectrum of sunlight, significantly enhancing efficiency beyond conventional solar technologies. In this study, we utilized Silvaco TCAD tools to optimize a five-junction solar cell composed of AlInP, AlGaInP, AlGaInAs, GaInP, GaAs, InGaAs, and Ge, drawing on advancements documented in the literature. Our research focused on optimizing these cells through sophisticated statistical modeling and material innovation, particularly examining the relationship between layer thickness and electrical yield under one sun illumination. Employing III-V tandem solar cells, renowned for their superior efficiency in converting sunlight to electricity, we applied advanced statistical models to a reference solar cell configured with predefined layer thicknesses. Our analysis revealed significant positive correlations between layer thickness and electrical performance, with correlation coefficients (R² values) impressively ranging from 0.86 to 0.96 across different regions. This detailed statistical insight led to an improvement in overall cell efficiency to 44.2. A key innovation in our approach was replacing the traditional germanium (Ge) substrate with Copper Indium Gallium Selenide (CIGS), known for its adjustable bandgap and superior absorption of long-wavelength photons. This strategic modification not only broadened the absorption spectrum but also elevated the overall cell efficiency to 47%. Additionally, the optimization process involved simulations using predictive profilers and Silvaco Atlas tools, which systematically assessed various configurations for their spectral absorption and current–voltage characteristics, further enhancing the cell’s performance. These findings underscore the critical role of precise material engineering and sophisticated statistical analyses in advancing solar cell technology, setting new efficiency benchmarks, and driving further developments in the field. Full article

In the dynamic field of photovoltaic technology, the pursuit of efficiency and sustainability has led to continuous novelty, shaping the landscape of solar energy solutions. One of the key elements affecting the efficiency of photovoltaic cells of II^nd and III^rd generation is the presence of transparent conductive oxide (TCO) layers, which are key elements impacting the efficiency and durability of solar panels, especially for DSSC, CdTe, CIGS (copper indium gallium diselenide) or organic, perovskite and quantum dots. TCO with low electrical resistance, high mobility, and high transmittance in the VIS–NIR region is particularly important in DSSC, CIGS, and CdTe solar cells, working as a window and electron transporting layer. This layer must form an ohmic contact with the adjacent layers, typically the buffer layer (such as CdS or ZnS), to ensure efficient charge collection Furthermore it ensures protection against oxidation and moisture, which is especially important when transporting the active cell structure to further process steps such as lamination, which ensures the final seal. Transparent conductive oxide layers, which typically consist of materials such as indium tin oxide (ITO) or alternatives such as fluorine-doped tin oxide (FTO), serve dual purposes in photovoltaic applications. Primarily located as the topmost layer of solar cells, TCOs play a key role in transmitting sunlight while facilitating the efficient collection and transport of generated electrical charges. This complex balance between transparency and conductivity highlights the strategic importance of TCO layers in maximizing the performance and durability of photovoltaic systems. As the global demand for clean energy increases and the photovoltaic industry rapidly develops, understanding the differential contribution of TCO layers becomes particularly important in the context of using PV modules as building-integrated elements (BIPV). The use of transparent or semi-transparent modules allows the use of building glazing, including windows and skylights. In addition, considering the dominant position of the Asian market in the production of cells and modules based on silicon, the European market is intensifying work aimed at finding a competitive PV technology. In this context, thin-film, organic modules may prove competitive. For this purpose, in this work, we focused on the electrical parameters of two different thicknesses of a transparent FTO layer. First, the influence of the FTO layer thickness on the transmittance over a wide range was verified. Next, the chemical composition was determined, and key electrical parameters, including carrier mobility, resistivity, and the Hall coefficient, were determined. Full article

The demand for sustainable and cost-effective materials for photovoltaic technology has led to an increasing interest in Cu₃BiS₃ thin films as potential absorber layers. This review provides a comprehensive overview of the main physical properties, synthesis methods, and theoretical studies of Cu₃BiS₃ thin films for photovoltaic applications. The high optical absorption coefficient and band gap energy around the optimal 1.4 eV make Cu₃BiS₃ orthorhombic Wittichenite-phase a promising viable alternative to conventional thin film absorber materials such as CIGS, CZTS, and CdTe. Several synthesis techniques, including sputtering, thermal evaporation, spin coating, chemical bath deposition, and spray deposition, are discussed, highlighting their impact on film quality and photovoltaic performance. Density Functional Theory studies offer insights into the electronic structure and optical properties of Cu₃BiS₃, aiding in the understanding of its potential for photovoltaic applications. Additionally, theoretical modeling of Cu3BiS3-based photovoltaic cells suggests promising efficiencies, although experimental challenges remain to be addressed. Overall, this review underscores the potential of CBS thin films as sustainable and cost-effective materials for future PV technology while also outlining the ongoing research efforts and remaining challenges in this field. Full article

Second-generation thin-film Cu(In, Ga)Se₂ (CIGS) solar cells are a well-established photovoltaic technology with a record power conversion efficiency of 23.6%. However, their reliance on critical raw materials, such as In and Ga, requires new approaches to reduce the amount of critical raw materials employed. The micro-concentrator concept involves the combination of thin-film photovoltaic technology with concentrator photovoltaic technology. This approach reduces the size of the solar cell to the micrometer range and uses optical concentration to collect sunlight from a larger area, focusing it onto micro solar cells. This work is devoted to the development of a process for manufacturing pre-structured substrates with regular arrays of holes with 200 and 250 µm diameters inside a SiO_x insulating matrix. Subsequently, a Cu–In–Ga precursor is deposited by sputtering, followed by photoresist lift-off and the application of a Cu–In–Ga thermal annealing at 500 °C to improve precursor quality and assess pre-structured substrate stability under elevated temperatures. Finally, a two-stage selenization process leads to the formation of CIGS absorber micro-dots. This study presents in detail the fabrication process and explores the feasibility of a bottom-up approach using pre-structured substrates, addressing challenges encountered during fabrication and providing insights for future improvements in CIGS absorber materials. Full article

Thin-film solar cells have been referred to as second-generation solar photovoltaics (PV) or next-generation solutions for the renewable energy industry. The layer of absorber materials used to produce thin-film cells can vary in thickness, from nanometers to a few micrometers. This is much thinner than conventional solar cells. This review focuses on inorganic thin films and, therefore, hybrid inorganic–organic perovskite, organic solar cells, etc., are excluded from the discussion. Two main families of thin-film solar cells, i.e., silicon-based thin films (amorphous (a-Si) and micromorph silicon (a-Si/c-Si), and non-silicon-based thin films (cadmium telluride (CdTe) and copper–indium–gallium diselenide (CIGS)), are being deployed on a commercial scale. These commercial technologies, until a few years ago, had lower efficiency values compared to first-generation solar PV. In this regard, the concept of driving enhanced performance is to employ low/high-work-function metal compounds to form asymmetric electron and hole heterocontacts. Moreover, there are many emerging thin-film solar cells conceived to overcome the issue of using non-abundant metals such as indium (In), gallium (Ga), and tellurium (Te), which are components of the two commercial thin-film technologies, and therefore to reduce the cost-effectiveness of mass production. Among these emerging technologies are kesterite CZTSSE, intensively investigated as an alternative to CIGS, and Sb₂(S,Se)₃. In this review, after a general overview of the current scenario of PV, the three main challenges of inorganic thin-film solar cells, i.e., the availability of (safe) metals, power conversion efficiency (PCE), and long-term stability, are discussed. Full article

In this paper, the performance of Cu-(In,Ga)-S₂ (CIGS₂) solar cells with adjusting composite [Cu]/([Ga] + [In]) (CGI)-ratio absorber was explored and compared through an improved three-stage co-evaporation technique. For co-evaporating CIGS₂ absorber as a less toxic alternative to Cd-containing film, we analyzed the effect of the CGI-ratio stoichiometry and crystallinity, and explored its opto-electric sensing characteristic of individual solar cell. The results of this research signified the potential of high-performance CIGS₂-absorption solar cells for photovoltaic (PV)-module industrial applications. For the optimal CIGS₂-absorption film (CGI = 0.95), the Raman main-phase signal (A1) falls at 291 cm⁻¹, which was excited by the 532 nm line of Ar⁺-laser. Using photo-luminescence (PL) spectroscopy, the corresponding main-peak bandgaps measured was 1.59 eV at the same CGI-ratio film. Meanwhile, the best conversion efficiency (η = 3.212%) and the average external quantum efficiency (EQE = 51.1% in the visible-wavelength region) of photo-electric properties were achieved for the developed CIGS₂-solar cells (CGI = 0.95). The discoveries of this CIGS₂-absorption PV research provided a new scientific understanding of solar cells. Moreover, this research undeniably contributes to a major advancement towards practical PV-module applications and can help more to build an eco-friendly community. Full article

The rapid growth and evolution of solar panel technology have been driven by continuous advancements in materials science. This review paper provides a comprehensive overview of the diverse range of materials employed in modern solar panels, elucidating their roles, properties, and contributions to overall performance. The discussion encompasses both traditional crystalline silicon-based panels and emerging thin-film technologies. A detailed examination of photovoltaic materials, including monocrystalline and polycrystalline silicon as well as alternative materials such as cadmium telluride (CdTe), copper indium gallium selenide (CIGS), and emerging perovskite solar cells, is presented. Furthermore, the impact of transparent conductive materials, encapsulation polymers, and antireflective coatings on solar panel efficiency and durability is explored. The review delves into the synergistic interplay between material properties, manufacturing processes, and environmental considerations. Through a comprehensive survey of materials utilized in modern solar panels, this paper provides insights into the current state of the field, highlighting avenues for future advancements and sustainable solar energy solutions. Full article

Perovskite-based solar cells are a promising photovoltaic technology capable of offering higher conversion efficiency at low costs compared with the standard of the market. They can be produced via a thin film technology that allows for considerable environmental sustainability, thus representing an efficient, sustainable, flexible, and light solution. Tandem solar cells represent the next step in the evolution of photovoltaics (PV). They promise higher power conversion efficiency (PCE) than those currently dominating the market. The tandem solar cell design overcomes the limitations of single junction solar cells by reducing the thermal losses as well as the manufacturing costs. Perovskite has been employed as a partner in different kinds of tandem solar cells, such as the Si and CIGS (copper indium gallium selenide) based cells that, in their tandem configuration with perovskite, can convert light more efficiently than standalone sub-cells. This brief review presents the main engineering and scientific challenges in the field. The state-of-the-art three main perovskite tandem technologies, namely perovskite/silicon, perovskite/CIGS, and perovskite/perovskite tandem solar cells, will be discussed, providing a side-by-side comparison of theoretical and experimental efficiencies of multijunction solar cells. Full article

Copper–indium–gallium–diselenide Cu(In,Ga)Se₂ (CIGS) is a semiconductor compound belonging to group I-III-VI, with a chalcopyrite crystal structure. CIGS is promising for the development of high-performance photovoltaic applications in terms of stability and conversion efficiency. It is one of the main candidates to rival the efficiency and stability of conventional crystalline silicon cells, due to its high light absorption coefficient, lower material cost, and high stability. The limitation of its use is that CIGS integrates indium (In) and gallium (Ga), which are rare and expensive materials. The amount of these materials in the CIGS cell can be reduced by optimizing the thickness of the absorber. We show that the introduction of a layer of highly doped silicon in the structure of the solar cell between the absorber layer and the back surface field layer effectively allows for decreasing the thickness of the absorber. Within the same objective, we focus on the danger of cadmium in the CdS buffer layer. In the first optimizations, we replaced the n-type CdS buffer layer with a n-type Zn(O,S) buffer layer. For this work, we used a one-dimensional simulation program, named Solar Cell Capacitance Simulator in one Dimension (SCAPS-1D), to investigate this new CIGS solar cell structure. After optimization, a maximum conversion efficiency of 24.43% was achieved with a 0.2 μm CIGS absorber layer and a 1 µm Si BSF layer. Full article

The primary purpose of recent research on solar cells is to achieve a higher power conversion efficiency with stable characteristics. To push the developments of photovoltaic (PV) technology, tandem solar cells are being intensively researched, as they have higher power conversion efficiency (PCE) than single-junction cells. Perovskite solar cells (PSCs) are recently used as a top cell of tandem solar cells thanks to their tunable energy gap, high short circuit current, and low cost of fabrication. One of the main challenges in PSCs cells is the stability issue. Carbon perovskite solar cells (CPSCs) without a hole transport material (HTM) presented a promising solution for PSCs’ stability. The two-terminal monolithic tandem solar cells demonstrate the commercial tandem cells market. Consequently, all the proposed tandem solar cells in this paper are equivalent to two-terminal monolithic tandem devices. In this work, two two-terminal tandem solar cells are proposed and investigated using the SCAPS-1D device simulator. Carbon perovskite solar cell (CPSC) without hole transport material (HTM) is used as the top cell with a new proposed gradient doping in the perovskite layer. This proposal has led to a substantial enhancement of the stability issue known to be present in carbon perovskite cells. Moreover, a higher PCE, exceeding 22%, has been attained for the proposed CPSC. Two bottom cells are examined, Si and CIGS-GeTe solar cells. The suggested CPSC/Si and CPSC/CIGS-GeTe tandem solar cells have the advantage of having just two junctions, which reduces the complexity and cost of solar cells. The performance parameters are found to be improved. In specific, the PCEs of the two proposed cells are 19.89% and 24.69%, respectively. Full article

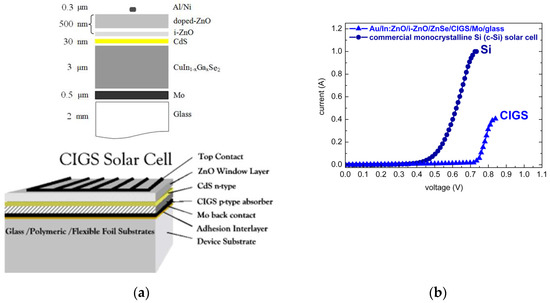

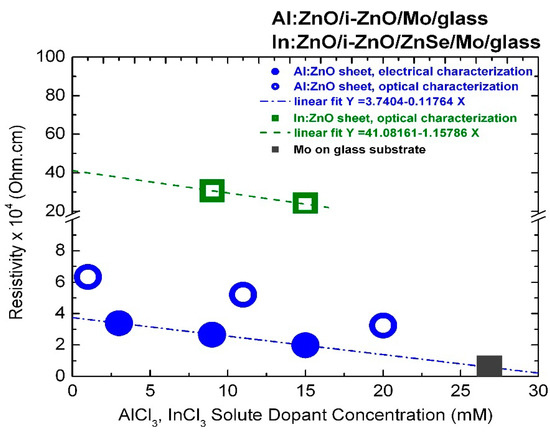

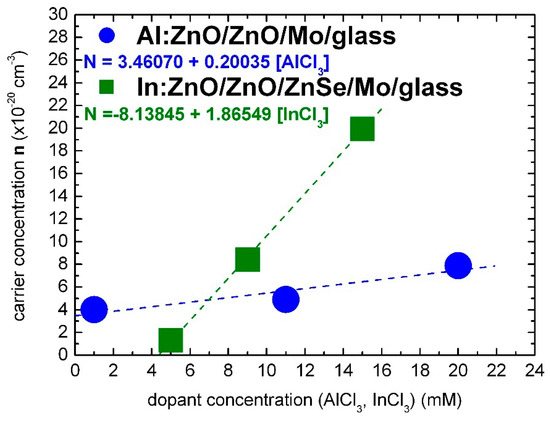

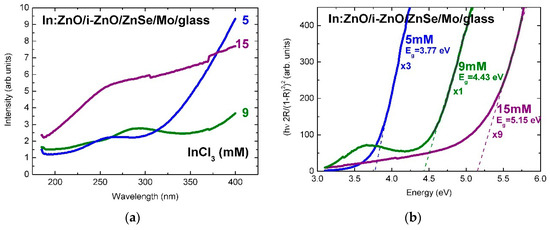

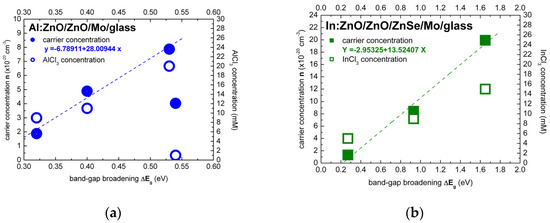

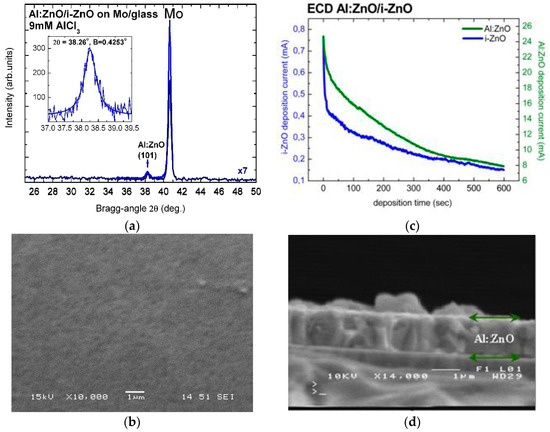

Resistivity and transparency of zinc-oxide layers (ZnO) for chalcopyrite photovoltaic technology applications were engineered by activation of the Burstein–Moss (BM) effect at high concentrations of aluminium (Al) and indium (In) dopant. The Al:ZnO and In:ZnO layers were processed by cost-effective, large-area, fast-rate electrochemical deposition techniques from aqueous solution of zinc nitrate (Zn(NO₃)₂) and dopant trichlorides, at negative electrochemical potential of E_C = (−0.8)–(−1.2) V, moderate temperature of 80 °C, and solute dopant concentrations of AlCl₃ and InCl₃ up to 20 and 15 mM, respectively. Both Al:ZnO and In:ZnO layers were deposited on Mo/glass substrates with ZnO and ZnO/ZnSe buffers (Al:ZnO/ZnO/Mo/glass, In:ZnO/ZnO/ZnSe/Mo/glass), respectively. Based on the band-gap energy broadening of Al:ZnO and In:ZnO originated by the BM effect, maximum carrier concentrations of the order 10²⁰ and 10²¹ cm⁻³, respectively, were determined by optical characterization techniques. The (electrical) resistivity values of Al:ZnO calculated from optical measurements were commensurate with the results of electrical measurements (10⁻⁴ Ohm·cm). In both cases (Al:ZnO and In:ZnO), calibration of carrier density in dependence of solute dopant concentration (AlCl₃ and InCl₃) was accomplished. The p–n junctions of Au/In:ZnO/ZnO/ZnSe/CIGS/Mo on glass substrate exhibited current–voltage (I–V) characteristics competing with those of crystalline silicon (c-Si) solar cells. Full article
