Search Results (6)

Membrane distillation (MD) is considered a promising technology for desalination. In the MD process, membrane pores are easily contaminated and wetted, which will degrade the permeate flux and salt rejection of the membrane. In this work, SiC ceramic membranes were used as the supports, and an Al₂O₃ micro-nano structure was constructed on its surface. The surface energy of Al₂O₃@SiC micro-nano composite membranes was reduced by organosilane grafting modification. The effective deposition of Al₂O₃ nanoflowers on the membrane surface increased membrane roughness and enhanced the anti-fouling and anti-wetting properties of the membranes. Simultaneously, the presence of nanoflowers also regulated the pore structures and thus decreased the membrane pore size. In addition, the effects of Al₂(SO₄)₃ concentration and sintering temperature on the surface morphology and performance of the membranes were investigated in detail. It was demonstrated that the water contact angle of the resulting membrane was 152.4°, which was higher than that of the pristine membrane (138.8°). In the treatment of saline water containing 35 g/L of NaCl, the permeate flux was about 11.1 kg⋅m⁻²⋅h⁻¹ and the salt rejection was above 99.9%. Note that the pristine ceramic membrane cannot be employed for MD due to its larger membrane pore size. This work provides a new method for preparing superhydrophobic ceramic membranes for MD. Full article

In this study, we utilized a sapphire substrate with a matrix protrusion structure as a template. We employed a ZnO gel as a precursor and deposited it onto the substrate using the spin coating method. After undergoing six cycles of deposition and baking, a ZnO seed layer with a thickness of 170 nm was formed. Subsequently, we used a hydrothermal method to grow ZnO nanorods (NRs) on the aforementioned ZnO seed layer for different durations. ZnO NRs exhibited a uniform outward growth rate in various directions, resulting in a hexagonal and floral morphology when observed from above. This morphology was particularly evident in ZnO NRs synthesized for 30 and 45 min. Due to the protrusion structure of ZnO seed layer, the resulting ZnO nanorods (NRs) displayed a floral and matrix morphology on the protrusion ZnO seed layer. To further enhance their properties, we utilized Al nanomaterial to decorate the ZnO nanoflower matrix (NFM) using a deposition method. Subsequently, we fabricated devices using both undecorated and Al-decorated ZnO NFMs and deposited an upper electrode using an interdigital mask. We then compared the gas-sensing performance of these two types of sensors towards CO and H₂ gases. The research findings indicate that sensors based on Al-decorated ZnO NFM exhibit superior gas-sensing properties compared to undecorated ZnO NFM for both CO and H₂ gases. These Al-decorated sensors demonstrate faster response times and higher response rates during the sensing processes. Full article

As much as two-phase mixture models resolve more physics than single-phase homogeneous models, their inconsistent heat transfer predictions have limited their use in modelling nanofluid cooled minichannel heat sinks. This work investigates, addresses, and solves this key shortcoming, enabling reliable physically sound predictions of minichannel nanoflows, using the two-phase mixture model. It does so by applying the single-phase and the two-phase mixture model to a nine-passages rectangular minichannel, 3 mm deep and 1 mm wide, cooled by a 1% by volume suspension of Al₂O₃ nanoparticles in water, over the Reynolds number range 92 to 455. By varying the volume fraction ${\alpha }_{nf}$ of the second phase between 2% and 50%, under a constant heat flux of 16.67 W/cm² and 30 Celsius coolant inflow, it is shown that the two-phase mixture model predicts heat transfer coefficient, pressure loss, friction factor, exergy destruction rate, exergy expenditure rate, and second law efficiency values converging to the single-phase model ones at increasing ${\alpha }_{nf}$. A two-phase mixture model defined with 1% second phase volume fraction and 100% nanoparticles volume fraction in the second phase breaks the Newtonian fluid assumption within the model and produces outlier predictions. By avoiding this unphysical regime, the two-phase mixture model matched experimental measurements of average heat transfer coefficient to within 1.76%. This has opened the way for using the two-phase mixture model with confidence to assess and resolve uneven nanoparticle dispersion effects and increase the thermal and mass transport performance of minichannels. Full article

Nowadays, the oxidation activity at the low-temperature regime for Co₃O₄ catalysts needs to be improved to meet the stringent regulation of multi-pollutant diesel exhaust. Herein, nanoflower-like Co₃O₄ diesel oxide catalysts (DOCs) were fabricated with the addition of a low-content Pt to trigger better catalytic activities for oxidizing multi-pollutants (CO, C₃H₆, and NO) emissions by taking advantage of the strong-metal supporting interaction. Compared to the conventional DOCs based on Pt/Al₂O₃, the as-synthesized Pt/Co₃O₄ catalysts not only exhibited better multi-pollutants oxidation activities at the low temperature but also obtained better resistance toward NO inhibition. Moreover, Pt/Co₃O₄ catalysts showed exceptional hydrothermal durability throughout long-term tests in the presence of water vapor. According to the XPS and H₂-TPR results, Pt promoted low-temperature catalytic activity by increasing the active surface oxygen species and reducibility due to the robust synergistic interaction between metallic Pt and supporting Co₃O₄. Meanwhile, TGA curves confirmed the Pt atoms that facilitated the desorption of surface-active oxygen and hydroxyl radicals in a low-temperature regime. Furthermore, instead of probing the intermediates during CO and C₃H₆ oxidation for Pt/Co₃O₄ catalysts, which included carbonates, formate, and acetate species, in situ DRIFTs experiments also revealed C₃H₆ oxidation mainly took place over metallic Pt sites. Full article

A novel method to synthesize large-scale ZnO nanoflower arrays using a protrusion patterned ZnO seed layer was investigated. Different thicknesses of aluminum (Al) film were deposited on the concave patterned sapphire substrate as a sacrificial layer. ZnO gel was layered onto the Al film as a seed layer and OE-6370HF AB optical glue was used as the adhesive material. A lift-off technique was used to transfer the protrusion patterned ZnO/AB glue seed layer to a P-type Si <100> wafer. The hydrothermal method using Zn(CH₃COO)₂ and C₆H₁₂N₄ solutions as liquid precursors was used to synthesize ZnO nanoflower arrays on the patterned seed layer. X-ray diffraction spectra, field-effect scanning electron microscopy, focused ion beam milling (for obtaining cross-sectional views), and photoluminescence (PL) spectrometry were used to analyze the effects that different synthesis times and different thicknesses of Al sacrificial layer had on the properties of ZnO nanoflower arrays. These effects included an increased diameter, and a decreased height, density (i.e., number of nanorods in μm⁻²), total surface area, total volume, and maximum emission intensity of PL spectrum. We showed that when the synthesis time and the thickness of the Al sacrificial layer were increased, the emission intensities of the ultraviolet light and visible light had different variations. Full article

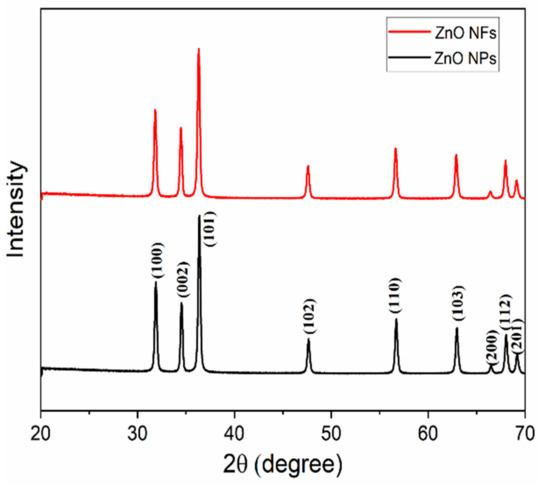

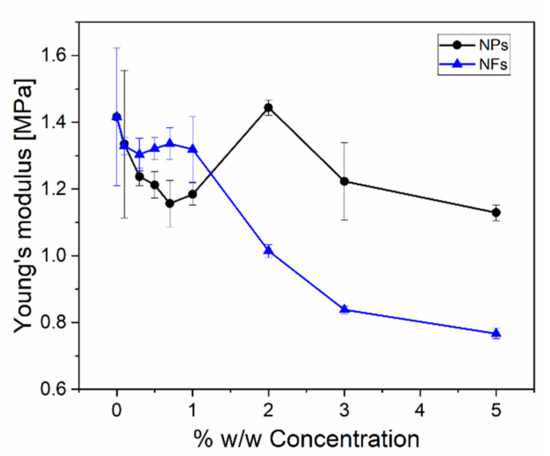

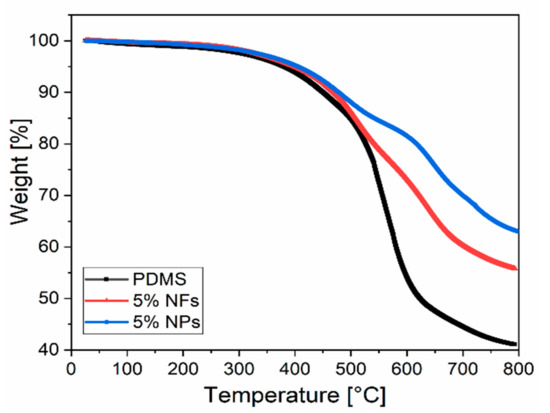

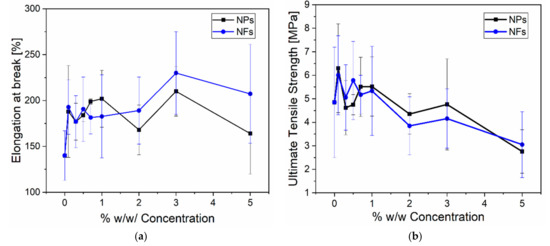

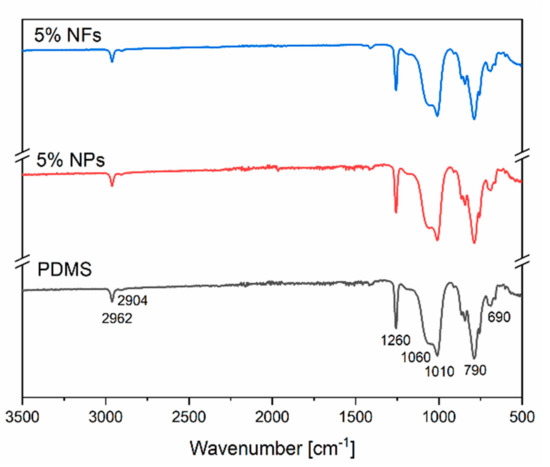

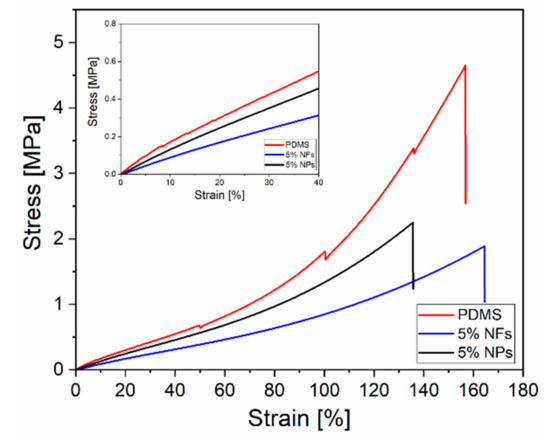

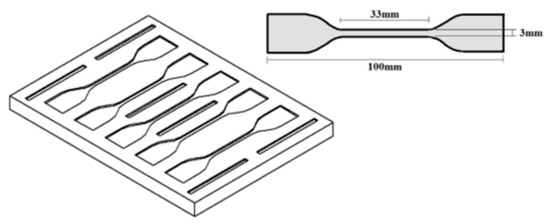

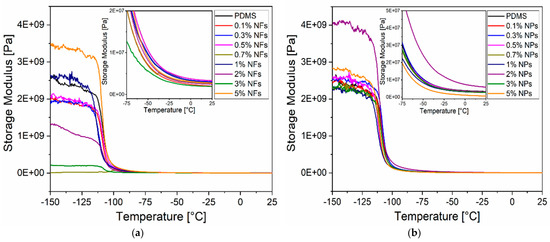

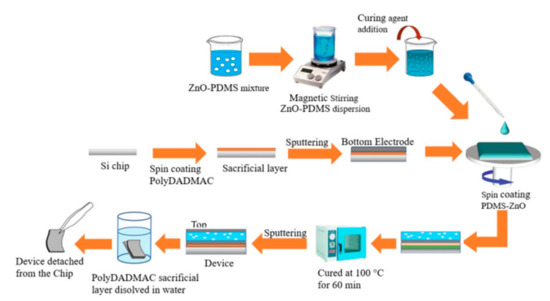

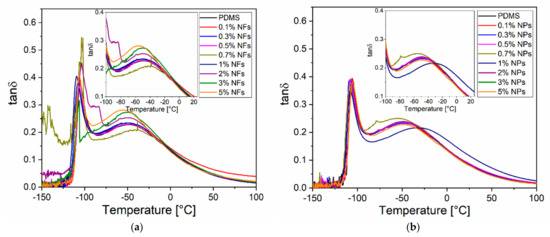

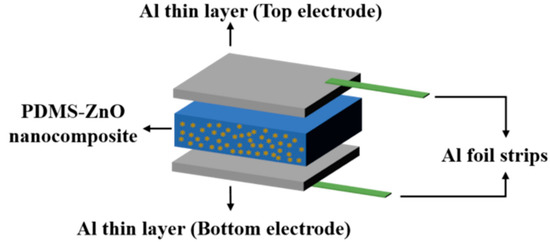

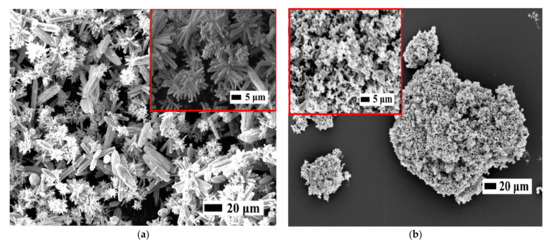

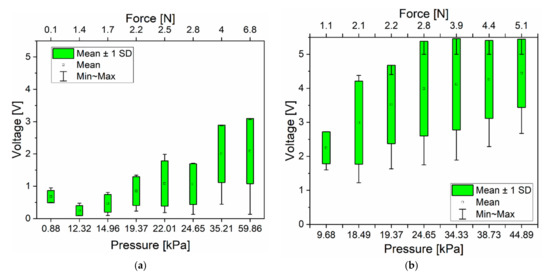

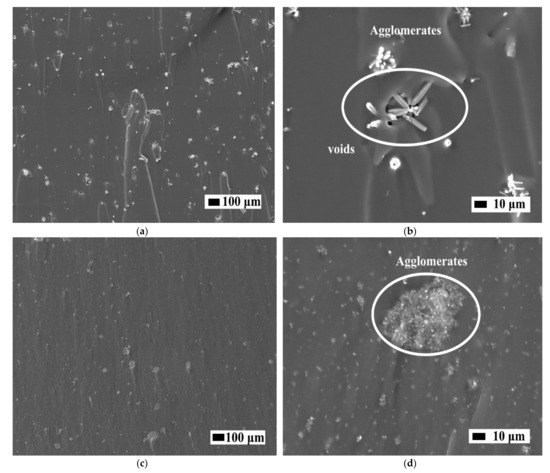

The addition of piezoelectric zinc oxide (ZnO) fillers into a flexible polymer matrix has emerged as potential piezocomposite materials that can be used for applications such as energy harvesters and pressure sensors. A simple approach for the fabrication of PDMS-ZnO piezoelectric nanocomposites based on two ZnO fillers: nanoparticles (NP) and nanoflowers (NF) is presented in this paper. The effect of the ZnO fillers’ geometry and size on the thermal, mechanical and piezoelectric properties is discussed. The sensors were fabricated in a sandwich-like structure using aluminium (Al) thin films as top and bottom electrodes. Piezocomposites at a concentration of 10% w/w showed good flexibility, generating a piezoelectric response under compression force. The NF piezocomposites showed the highest piezoelectric response compared to the NP piezocomposites due to their geometric connectivity. The piezoelectric compound NF generated 4.2 V while the NP generated 1.86 V under around 36 kPa pressure. The data also show that the generated voltage increases with increasing applied force regardless of the type of filler. Full article
