Search Results (13)

Background/Objectives: Bacterial resistance and virulence are challenges in treating bacterial infections, especially in Klebsiella pneumoniae. Plants of the Launaea Cass. genus are used traditionally to address a variety of diseases, including infections, but the potential bioactive compounds are unknown. Our goals were to verify the potential contribution of two major polyacetylene glycosides isolated from our previous study, (3S,6E,12E)-6,12-tetradecadiene-8,10-diyne-1-ol 3-O-β-D-glucopyranoside (1) and bidensyneoside A (syn. gymnasterkoreaside A) [(3R,8E)-3-hydroxy-8-decene-4,6-diyn-1-yl β-D-glucopyranoside] (2), to the anti-infective properties of Launaea capitata and to develop a dependable HPLC method for their quantification; Methods: On a panel of K. pneumoniae clinical isolates, the antibacterial action of 1, 2, and the methanol extract of the whole L. capitata plant were evaluated by broth microdilution assay, while their antibiofilm action was evaluated by the crystal violet assay. qRT-PCR investigated luxS, mrkA, wzm, and wbbm genes that encode biofilm formation and quorum sensing (QS). The antibacterial activity of 1 was revealed by employing mice infection. Chromatographic separation was conducted using isocratic elution on a Hypersil BDS C18 column using a photodiode array (PDA) detector; Results: Compound 1 showed antibacterial activity with MIC values of 16–128 µg/mL. It remarkably reduced strong and moderate biofilm-forming bacterial isolates from 84.21% to 42.1% compared with the extract (68.42%) and 2 (78.95%). Compound 1 also downregulated the QS genes, luxS, mrkA, wzm, and wbbm, and exhibited in vivo antibacterial action through the enhancement of the histological construction of the liver and spleen, decreased TNF-α immunoreaction, bacterial burden, and the inflammatory mediators IL-1β and IL-6. A successful HPLC-PDA approach was developed to separate the binary mixture of 1 and 2 in less than 10 min with high sensitivity, with detection limits down to 0.518 and 0.095 µg/mL for 1 and 2, respectively; Conclusions: Compound 1 exhibited remarkable antibacterial and antibiofilm properties and may contribute to the anti-infectious traditional uses of L. capitata, meriting further clinical studies and serving as a reliable quality control biomarker for the plant. Full article

The chemical structure of the surface of glass fibers, including silanized fibers, was studied. Highly efficient heat-resistant composites were obtained by impregnating silanized glass fiber with a polysulfone solution, and the effect of modification of the surface of glass fibers on the physical, mechanical and thermophysical properties of the composite materials was studied. As a result of the study, it was found that the fiber-to-polymer ratio of 70/30 wt.% showed the best mechanical properties for composites reinforced with pre-heat-treated and silanized glass fibers. It has been established that the chemical treatment of the glass fibers with silanes makes it possible to increase the mechanical properties by 1.5 times compared to composites reinforced with initial fibers. It was found that the use of silane coupling agents made it possible to increase the thermal stability of the composites. Mechanisms that improve the interfacial interaction between the glass fibers and the polymer matrix have been identified. It has been shown that an increase in adhesion occurs both due to the uniform distribution of the polymer on the surface of the glass fibers and due to the improved wettability of the fibers by the polymer. An interpenetrating network was formed in the interfacial region, providing a chemical bond between the functional groups on the surface of the glass fiber and the polymer matrix, which was formed as a result of treating the glass fiber surface with silanes, It has been shown that when treated with aminopropyltriethoxysilane, significant functional unprotonated amino groups NH⁺/NH₂⁺ are formed on the surface of the fibers; such free amino groups, oriented in the direction from the fiber surface, form strong bonds with the matrix polymer. Based on experimental data, the chemical structure of the polymer/glass fiber interface was identified. Full article

In clinical practice, drug–drug interactions (DDIs) pose significant risks to a large number of patients. Consequently, healthcare providers are required to diligently identify, monitor, and effectively handle these interactions in order to enhance patient outcomes. In Egypt, DDIs are poorly addressed, with no reports for DDIs in primary care. In our cross-sectional, retrospective, observational study, we collected a total of five thousand, eight hundred and twenty prescriptions across eight major governorates in Egypt. Prescriptions were collected over a span of 15 months between 1 June 2021 and 30 September 2022. These prescriptions were analyzed for potential DDIs using the Lexicomp^® drug interactions tool. The prevalence of DDIs was found to be 18%, with 22% of the prescriptions having two or more potential DDIs. Moreover, we found 1447 DDIs of categories C (monitoring therapy recommended), D (therapy modification suggested), and X (avoid combination). The most commonly interacting drugs in our study were diclofenac, aspirin, and clopidogrel, while non-steroidal anti-inflammatory drugs (NSAIDs) were the most reported therapeutic class implicated in pharmacologic DDIs. Pharmacodynamic agonistic activity was the most common mechanism of interaction. Therefore, it is crucial to conduct screenings, detect early signs, and closely monitor drug–drug interactions (DDIs) to enhance patients’ overall health outcomes, medication responses, and safety. In this regard, the clinical pharmacist assumes a vital role in implementing these preventive measures. Full article

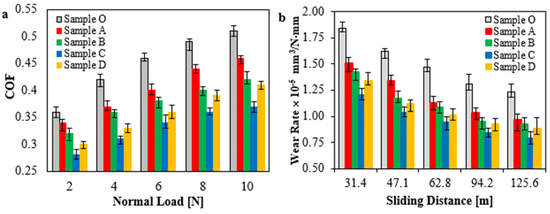

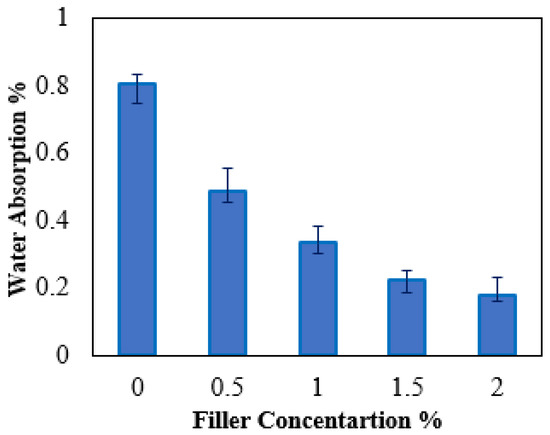

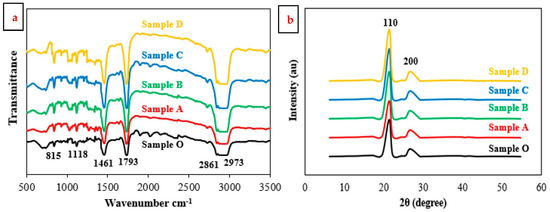

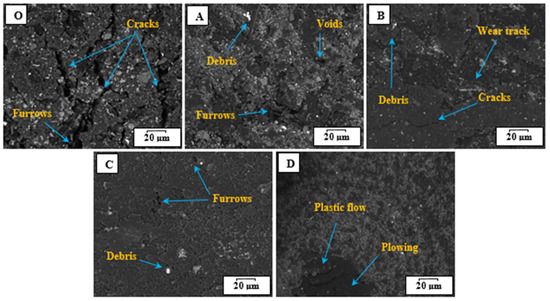

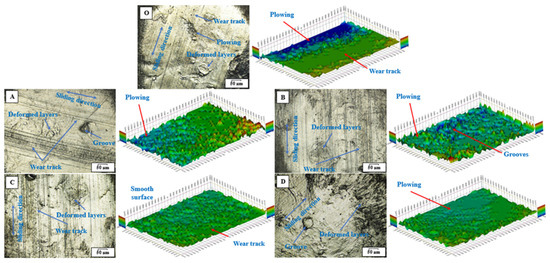

Hip joint collapse is a very common health problem. Many cases need a joint replacement, so nano-polymeric composites are an ideal alternative solution. Due to its mechanical properties and wear resistance, HDPE might be considered a suitable alternative to frictional materials. The current research focuses on using hybrid nanofiller TiO₂ NPs and nano-graphene with various loading compositions to evaluate the best loading amount. The compressive strength, modules of elasticity, and hardness were examined via experiments. The COF and wear resistance were evaluated via a pin-on-disk tribometer. The worn surfaces were analyzed based on 3D topography and SEM images. The HDPE samples with various compositions of 0.5%, 1.0%, 1.5%, and 2.0 wt.% filling content of TiO₂ NPs and Gr (with a ratio of 1:1) were analyzed. Results revealed that hybrid nanofiller with a composition of 1.5 wt.% exhibits superior mechanical properties compared to other filling compositions. Moreover, the COF and wear rate decreased by 27.5% and 36.3%, respectively. Full article

Gliomas are the most common type of primary brain tumors and one of the highest causes of mortality worldwide. Accurate grading of gliomas is of immense importance to administer proper treatment plans. In this paper, we develop a comprehensive non-invasive multimodal magnetic resonance (MR)-based computer-aided diagnostic (CAD) system to precisely differentiate between different grades of gliomas (Grades: I, II, III, and IV). A total of 99 patients with gliomas (M = 49, F = 50, age range = 1–79 years) were included after providing their informed consent to participate in this study. The proposed imaging-based glioma grading (GG-CAD) system utilizes three different MR imaging modalities, namely; contrast-enhanced T1-MR, T2-MR known as fluid-attenuated inversion-recovery (FLAIR), and diffusion-weighted (DW-MR) to extract the following imaging features: (i) morphological features based on constructing the histogram of oriented gradients (HOG) and estimating the glioma volume, (ii) first and second orders textural features by constructing histogram, gray-level run length matrix (GLRLM), and gray-level co-occurrence matrix (GLCM), (iii) functional features by estimating voxel-wise apparent diffusion coefficients (ADC) and contrast-enhancement slope. These features are then integrated together and processed using a Gini impurity-based selection approach to find the optimal set of significant features. The reduced significant features are then fed to a multi-layer perceptron artificial neural networks (MLP-ANN) classification model to obtain the final diagnosis of a glioma tumor as Grade I, II, III, or IV. The GG-CAD system was evaluated on the enrolled 99 gliomas (Grade I = 13, Grade II = 22, Grade III = 22, and Grade IV = 42) using a leave-one-subject-out (LOSO) and k-fold stratified (with k = 5 and 10) cross-validation approach. The GG-CAD achieved 0.96 ± 0.02 quadratic-weighted Cohen’s kappa and 95.8% ± 1.9% overall diagnostic accuracy at LOSO and an outstanding diagnostic performance at k = 10 and 5. Alternative classifiers, including RFs and SVM${}_{lin}$ produced inferior results compared to the proposed MLP-ANN GG-CAD system. These findings demonstrate the feasibility of the proposed CAD system as a novel tool to objectively characterize gliomas using the comprehensive extracted and selected imaging features. The developed GG-CAD system holds promise to be used as a non-invasive diagnostic tool for Precise Grading of Glioma. Full article

In this study, the mechanical and thermophysical properties of carbon fiber-reinforced polyethersulfone are investigated. To enhance the interfacial interaction between carbon fibers and the polymer matrix, the surface modification of carbon fibers by thermal oxidation is conducted. By means of AFM and X-ray spectroscopy, it is determined that surface modification changes the morphology and chemical composition of carbon fibers. It is shown that surface modification dramatically increases the mechanical properties of the composites. Thus, flexural strength and the E-modulus of the composites reinforced with modified fibers reached approximately 962 MPa and 60 GPa, respectively, compared with approximately 600 MPa and 50 GPa for the composites reinforced with the initial ones. The heat deflection temperatures of the composites reinforced with the initial and modified fibers were measured. It is shown that composites reinforced with modified fibers lose their stability at temperatures of about 211 °C, which correlates with the glass transition temperature of the PES matrix. The thermal conductivity of the composites with different fiber content is investigated in two directions: in-plane and transverse to layers of carbon fibers. The obtained composites had a relatively high realization of the thermal conductive properties of carbon fibers, up to 55–60%. Full article

Carbon nanotubes (CNTs) are favored materials in the manufacture of electrochemical devices because of their mechanical and chemical stability, good thermal and electrical conductivities, physiochemical consistency, and featherweight. With such intriguing carbon nanotubes properties in mind, the current research aims to investigate the flow of hybridized nano liquid containing MWCNTs (multi-wall carbon nanotubes) and SWCNTs (single-wall carbon nanotubes) across a slendering surface in the presence of a gyrotactic-microorganism. The temperature and solutal energy equation are modified with the impact of the modified Fourier and Fick’s law, binary chemical reaction, viscous dissipation, and joule heating. The slip conditions are imposed on the surface boundaries. The flow equations are converted into ODEs by applying similarity variables. The bvp4c approach is applied to tackle the coupled and extremely nonlinear boundary value problem. The outputs are compared with the PCM (Parametric continuation method) to ensure that the results are accurate. The influence of involved characteristics on energy distribution, velocity profiles, concentration, and microorganism field are presented graphically. It is noted that the stronger values of the wall thickness parameter and the Hartmann number produce a retardation effect; as a result, the fluid velocity declines for MWCNT and SWCNT hybrid nano liquid. Furthermore, the transport of the mass and heat rate improves with a higher amount of both the hybrid and simple nanofluids. The amount of local skin friction and the motile density of microorganisms are discussed and tabulated. Furthermore, the findings are validated by comparing them to the published literature, which is a notable feature of the present results. In this aspect, venerable stability has been accomplished. Full article

Exosomes (EXOs) were given attention as an extracellular vesicle (EV) with a pivotal pathophysiological role in the development of certain neurodegenerative disorders (NDD), such as Parkinson’s and Alzheimer’s disease (AD). EXOs have shown the potential to carry pathological and therapeutic cargo; thus, researchers have harnessed EXOs in drug delivery applications. EXOs have shown low immunogenicity as natural drug delivery vehicles, thus ensuring efficient drug delivery without causing significant adverse reactions. Recently, EXOs provided potential drug delivery opportunities in AD and promising future clinical applications with the diagnosis of NDD and were studied for their usefulness in disease detection and prediction prior to the emergence of symptoms. In the future, the microfluidics technique will play an essential role in isolating and detecting EXOs to diagnose AD before the development of advanced symptoms. This review is not reiterative literature but will discuss why EXOs have strong potential in treating AD and how they can be used as a tool to predict and diagnose this disorder. Full article

The structure of self-reinforced composites (SRCs) based on ultra-high molecular weight polyethylene (UHMWPE) was studied by means of Wide-Angle X-ray Scattering (WAXS), X-ray tomography, Raman spectroscopy, Scanning Electron Microscopy (SEM) and in situ tensile testing in combination with advanced processing tools to determine the correlation between the processing conditions, on one hand, and the molecular structure and mechanical properties, on the other. SRCs were fabricated by hot compaction of UHMWPE fibers at different pressure and temperature combinations without addition of polymer matrix or softener. It was found by WAXS that higher compaction temperatures led to more extensive melting of fibers with the corresponding reduction of the Herman’s factor reflecting the degree of molecular orientation, while the increase of hot compaction pressure suppressed the melting of fibers within SRCs at a given temperature. X-ray tomography proved the absence of porosity while polarized light Raman spectroscopy measurements for both longitudinal and perpendicular fiber orientations showed qualitatively the anisotropy of SRC samples. SEM revealed that the matrix was formed by interlayers of molten polymer entrapped between fibers in SRCs. Moreover, in situ tensile tests demonstrated the increase of Young’s modulus and tensile strength with increasing temperature. Full article

Antifriction hybrid fluorinated ethylene propylene-based composites filled with quasicrystalline Al₇₃Cu₁₁Cr₁₆ powder, polytetrafluoroethylene, synthetic graphite and carbon black were elaborated and investigated. Composite samples were formed by high-energy ball milling of initial powders mixture with subsequent consolidation by injection molding. Thermal, mechanical, and tribological properties of the obtained composites were studied. It was found that composite containing 5 wt.% of Al₇₃Cu₁₁Cr₁₆ quasicrystals and 2 wt.% of nanosized polytetrafluoroethylene has 50 times better wear resistance and a 1.5 times lower coefficient of dry friction comparing with unfilled fluorinated ethylene propylene. Addition of 15 wt.% of synthetic graphite to the above mentioned composition allows to achieve an increase in thermal conductivity in 2.5 times comparing with unfilled fluorinated ethylene propylene, at that this composite kept excellent tribological properties. Full article

The effect of thermal treatment of glass fibers (GF) on the mechanical and thermo-mechanical properties of polysulfone (PSU) based composites reinforced with GF was investigated. Flexural and shear tests were used to study the composites’ mechanical properties. A dynamic mechanical analysis (DMA) and a heat deflection temperature (HDT) test were used to study the thermo-mechanical properties of composites. The chemical structure of the composites was studied using IR-spectroscopy, and scanning electron microscopy (SEM) was used to illustrate the microstructure of the fracture surface. Three fiber to polymer ratios of initial and preheated GF composites (50/50, 60/40, 70/30 (wt.%)) were studied. The results showed that the mechanical and thermo-mechanical properties improved with an increase in the fiber to polymer ratio. The interfacial adhesion in the preheated composites enhanced as a result of removing the sizing coating during the thermal treatment of GF, which improved the properties of the preheated composites compared with the composites reinforced with initial untreated fibers. The SEM images showed a good distribution of the polymer on the GF surface in the preheated GF composites. Full article

Carbon fabrics are widely used in polymer based composites. Nowadays, most of the advanced high-performance composites are based on thermosetting polymer matrices such as epoxy resin. Thermoplastics have received high attention as polymer matrices due to their low curing duration, high chemical resistance, high recyclability, and mass production capability in comparison with thermosetting polymers. In this paper, we suggest thermoplastic based composite materials reinforced with carbon fibers. Composites based on polysulfone reinforced with carbon fabrics using polymer solvent impregnation were studied. It is well known that despite the excellent mechanical properties, carbon fibers possess poor wettability and adhesion to polymers because of the fiber surface chemical inertness and smoothness. Therefore, to improve the fiber–matrix interfacial interaction, the surface modification of the carbon fibers by thermal oxidation was used. It was shown that the surface modification resulted in a noticeable change in the functional composition of the carbon fibers’ surface and increased the mechanical properties of the polysulfone based composites. Significant increase in composites mechanical properties and thermal stability as a result of carbon fiber surface modification was observed. Full article

Interfacial interaction is one of the most important factors that affect the mechanical properties of the fiber reinforced composites. The effect of fabrics′ sizing removal from glass fibers’ surface by thermal treatment on the mechanical characteristics of polyethersulfone based composites at different fiber to polymer weight ratios was investigated. Three fiber to polymer weight ratios of 50/50, 60/40, and 70/30 were studied. Flexural and shear tests were carried out to illustrate the mechanical properties of the composites; the structure was studied using Fourier-transform infrared spectroscopy and scanning electron microscopy. It was shown that solution impregnation of glass fabrics with polyethersulfone before compression molding allows to achieve good mechanical properties of composites. The thermal treatment of glass fabrics before impregnation results in an increase in flexural and shear strength for all the composites due to the improvement of fiber–matrix interaction. Full article
