Data-Driven Assessment of the Impact of Solar Photovoltaic Generation on Distribution Network Harmonic Distortion

Abstract

As the penetration of distributed energy resources (DERs) continues to increase, there is conjecture concerning the power quality implications of the inverters used to interface these DERs with low-voltage (LV) electricity supply networks. As a power electronics converter, inverters are a known source of harmonic emissions. Using a combination of large-scale field measurements, laboratory evaluations of inverter performance, and power system modelling, this study applies an empirical data-driven approach to investigate the impact of small-scale solar PV inverters on LV harmonic distortion magnitudes. This multi-facetted approach, involving field data analysis, laboratory assessments of inverter performance, and power system simulation to evaluate the impact of small-scale DER on harmonic distortion in LV networks, is novel in comparison to other studies, which only utilise one or two of the analysis methods of simulation, laboratory evaluation, or analysis of field measurements but not all three. The analysis of field measurement data collected over the past decade does not indicate any significant changes in harmonic distortion magnitudes that can be attributed to the increasing penetration of DERs. Power system modelling, which incorporates data obtained from laboratory inverter performance evaluations, indicates that, even at very high levels of penetration, the harmonic current emissions from solar PV inverters are only sufficient to add modest levels of harmonic distortion to LV networks, a 0.25% increase in THD for 40% penetration and a 0.62% increase in THD for 100% penetration, providing an explanation for the findings of the field data analysis.

1. Introduction

With increasing volumes of solar photovoltaic (PV) generation come increasing numbers of power electronic converters connected to low-voltage (LV) distribution networks. These inverters are a source of harmonic distortion emissions, which are intrinsic to their operation [1,2]. While there is no conjecture that PV inverters are a source of harmonic emissions, the characteristics of these emissions (e.g., magnitudes, phase angles, and sensitivity to supply voltage waveform distortion) and their overall impact on electricity supply networks are yet to be fully understood. Using a combination of empirical data, laboratory evaluations of inverter harmonic emission, and power system modelling to provide a data-driven evaluation, this paper investigates the impact of solar PV inverters on harmonic voltage distortion magnitudes in LV networks. This study is novel through the application of this three-facetted approach, with other studies only using one or two methods of simulation, laboratory evaluation, or analysis of field data, to predict PV inverter harmonic impacts.

With respect to the characteristics of the harmonic current distortion emitted from PV inverters,

Table 1. Summary of the literature evaluating the harmonic emissions of small-scale inverters.

Study	Year	Details	Outcome
[3]	2008	In situ measurements of current emissions of a 20 kW solar PV inverter	Study identifies that the magnitude of individual current harmonic orders increases as the fundamental current increases, and that the maximum harmonic current is correlated with the maximum fundamental current. However, relatively high harmonic current magnitudes (in amps) are observed for low magnitudes of fundamental current.
[4]	2019	Laboratory measurements of harmonic current emissions of an 8 kW solar PV inverter	Maximum harmonic current magnitudes for individual harmonic orders are generally observed for maximum fundamental current, correlating well with [3]. The study also identified high current THD levels at low output powers and contained measurements which attempted to quantify the relationship between harmonic current emissions and network voltage distortion. The findings indicate that distortion of the supply voltage waveform leads to strong increases in 5th, 7th, and 11th harmonic current magnitudes. Harmonic voltage distortion appears to have little impact on 3rd and 9th harmonic current magnitudes. These results align well with [5].
[2]	2018	Measurements of harmonic emissions from a 5.5 kW solar PV inverter	Study identifies the phenomenon of high current THD at low inverter output power.
[6]	2019	In situ measurements of harmonic current emissions from a 10 kVA micro-inverter and a 15 kVA solar inverter	Odd order harmonics were found to be high and exceed the allowable limits of AS 4777 standard during minimum solar condition and PV power level. It is stated that this is due to the effect of reduced fundamental current over the harmonic current of the inverter at a low power mode of operation.
[7]	2013	In situ measurements of current harmonic emissions from 13 identical inverters	Study identifies higher harmonic current THD at lower output power levels.
[8]	2004	In situ measurements of harmonic current emissions from three different 20 kW solar inverters	Study identifies that current THD decreases as output power increases. Considerable difference in current THD performance was observed across the three different inverters.
[5]	2008	Measurements of two inverters (one in the field, one in the laboratory) when subject to a distorted supply voltage	This study appears to draw on the findings of [9]. The high-level outcome of the study is that supply voltage distortion has a significant impact on current emissions.
[10]	2006	In situ measurements of harmonic current emissions from a 5 kW inverter	Very similar outcomes to [8].
[11]	2025	In situ power quality measurements of a 400 kW PV system—two inverters: 1 × 150 kW and 1 × 250 kW	Similar outcomes to other studies—current THD is identified to be higher at a low power output and reduces to less than 5% at a higher power output.

provides a summary of the relevant literature, including study details and outcomes.

A limitation of several of the studies shown in Table 1 is that they conflate high current THD values with significant harmonic impacts. This is an inaccurate inference, as it is the overall magnitude of the harmonic current that leads to increases in harmonic voltage distortion, not the relationship between the total harmonic current and the fundamental current. The studies in [3,4] identify that the emission of individual current harmonic orders may not decrease linearly with the fundamental current, resulting in a higher current THD at a low fundamental current (or power) output. However, the majority of studies indicate that the maximum magnitude of the harmonic current is correlated with the maximum output power. Notwithstanding the potentially misguided analysis related to the assessment of current THD values, several of the studies indicate that the current emissions of solar inverters are relatively low. For example, Refs. [7,11] indicate low current THD when inverters operate at power levels greater than 60% of rated power. A limitation of many of the studies is that measurements were undertaken using inverters connected to the distribution network, i.e., an uncontrolled supply voltage, and that the size of the inverters assessed, a function of the age of the studies, is significantly smaller than those now commonly installed (5 kW or greater).

With respect to the impact of variations in harmonic distortion in the supply voltage waveform on inverter current harmonic emissions, Ref. [5] evaluates inverter performance using both laboratory and field measurements (specifications of laboratory-based inverter not provided). The study in [4] also utilises laboratory measurements in an attempt to quantify the relationship between harmonic current emissions and network voltage distortion. Published in 2019, this is a relatively recent study, and the results align well with those presented in [5]. The study presented in [12] provides measurements of the current emissions from a 3 kW inverter under varying supply voltage distortion, indicating that the distortion of the supply voltage has a significant impact on current emissions. However, the behaviour for individual orders does not necessarily align with that identified in [4,5], particularly for the 3rd harmonic, which increases as opposed to a downward or low-impact trend in the two aforementioned studies, and the 5th harmonic, which does not appear to be greatly impacted—opposing the strong upward trend in [4,5]. These results provide some indication that, while high level outcomes, i.e., supply voltage distortion, have a significant impact on current emissions, performance may differ significantly for individual harmonic orders depending on the individual inverter assessed.

The study in [13] uses a combination of simulations (using IsSPICE) and experimental methods to evaluate the impact of supply voltage distortion on PV inverter current harmonic emissions. The simulation evaluated performance at four power levels: 25%, 50%, 75%, and 100% of the inverter rating. The simulation study found that the addition of distortion into the supply waveform has a significant impact on the current harmonic emissions. The experimental component of the study involved the assessment of the performance of a 400 W inverter. It was found that an increase in the voltage THD leads to a significant increase in the current THD. The study concludes that grid connected PV inverters are highly susceptible to harmonic distortion of the grid voltage waveform, and voltage distortion can easily result in twice the current distortion of the rated output under typical operational circumstances of sub-peak power.

A major limitation of many of the above studies is that the outcomes are based on measurements of only a small number of inverters, often only one or two. No consideration has been given to whether performance varies across inverters from [4,5] different manufacturers. In the case of [5,13], which were published in 2008 and 2000, respectively, the results are now quite dated, and the assessed inverters may not be characteristic of modern designs. Additionally, the studies do not consider a full suite of potential voltage harmonic distortion scenarios, particularly with respect to the phase angle of the supply voltage distortion. The study presented in [14] investigates the impact of supply voltage distortion on single-phase rectifier current emissions. The study finds that the current harmonic emission performance is sensitive to the shape of the voltage waveform—flat waveforms tend to decrease current harmonics, while peaky waveforms increase them. Furthermore, the study finds the following:

• Low-order supply voltage harmonics have a significant impact on the harmonic current components of the input line current.
• The harmonic characteristics of the line current are dependent on both the magnitude and phase angle of the supply voltage harmonics.

The bridge rectifier circuits investigated in [14] are similar to the circuits employed in small-scale PV inverters. Consequently, it may be reasonable to assume that inverter current harmonic emissions may also be sensitive to the shape of the supply voltage waveform, as well as the magnitude of the harmonic components. There are no studies which could be identified that examined scenarios related to the supply voltage waveform shape on solar inverter current harmonic emissions.

Overall, there is a limited literature assessing the current emission performance of modern inverters when subject to supply voltage waveforms that may contain background voltage harmonic distortion. An accurate evaluation of the current emissions of the inverters is essential if precise modelling to estimate the impact of increasing solar PV penetration on harmonic voltage distortion levels is to be achieved.

Considering the impact of solar PV inverters on harmonic distortion magnitudes, there is a significant body of literature which implements a range of computer simulation techniques to estimate the impact of solar PV generation on LV network voltage harmonic distortion levels. These studies utilise a range of simulation packages and have been conducted using various scenarios for network topologies and characteristics. There is significant variation in the methods used to simulate the emissions of PV inverters.

Table 2. Summary of simulation studies evaluating impact of solar PV on voltage harmonic distortion levels.

Study	Year	Simulation Package	Inverter Spectrum	Notes	Verified by Measurements
[15]	2021	ETAP	Not specified	Model of one 15 kV feeder in Bahir City, Ethiopia. Feeder rated power is 1.86 MW/1.25 MVAr. Emphasis on voltage profile and harmonics (THD).	No
[16]	2021	ETAP	Taken from [17]	Modified IEEE-34 bus system. Various PV penetration levels (0–100%) assessed.	No
[18]	2016	PSCAD	Based on the output of the time domain simulation of an inverter model	Two inverter topologies considered; current-regulated current source inverter and current-controlled voltage source inverter.	Field measurements at one location
[3]	2008	PSIM	Based on field measurements	Study investigates the impact of a 20 kW system on an LV feeder in Greece.	Several days of measurement in 2007
[19]	2012	Unspecified	Adapted from measurements given in [20]	Simulation of a 12.47 kV feeder. Simulation includes capacitors which have resonance effects.	No
[21]	2006	MATLAB	Adapted from emission limits specified in AS/NZS 4777:2002	Applies models from Standards Australia HB264 [22]. Study examines penetration of PV before harmonic limits are exceeded.	No
[23]	2014	Open DSS	Not specified	Simulation of modified Brazilian LV network.	No
[17]	2011	DIgSILENT PowerFactory	Based on measurements	Uses measurements of a 10 kW system to extrapolate to higher penetration levels.	Measurements of one 10 kW system
[24]	2018	MATLAB/ Simulink	Based on the output of the time domain simulation of an inverter model	Simulation of an LV network.	No
[25]	2006	FORTRAN	Based on the output of the time domain simulation of an inverter model	Simulation of an 11.4 kV radial feeder with 10 buses in Taiwan.	No
[26]	2011	PSIM	Based on the output of the time domain simulation of an inverter model	Simulation of a radial LV feeder.	Measurements of one 20 kW plant
[27]	2022	ETAP	No details provided	Case study of a system with total capacity of 9570 kW (comprising multiple smaller systems) supplying a hospital in Saudi Arabia. The simulation output indicated very significant increases in voltage THD—from less than 1% without PV to an excess of 10% with PV.	No

provides a summary of simulation studies within the literature, including the software package utilised and details of the modelled network(s).

The outcomes of the studies summarised in Table 2 are varied in terms of their conclusions with respect to the impact of solar PV generation on voltage harmonic magnitudes. The studies generally contain one or more of the following limitations:

• They only apply a single harmonic current emission spectrum and do not appear to consider that this spectrum may vary between inverters from different manufacturers.
• Simulation studies use harmonic emission spectra for inverters which are based supply from an undistorted voltage waveform. In practice, this may be a significant limitation of the studies, as supply voltage waveform distortion can have a significant impact on the current harmonic emission magnitudes of electronic loads [18,28].
• The simulation studies are also predicated on the network being modelled. There are no studies which can be cited that are considered equivalent to Australian LV networks.
• The majority of the studies identified are now quite dated.
• In many cases, simulated penetration levels are significantly lower than those now being observed in Australian LV distribution networks, which are world-leading with regard to the growth of PV inverter installations (approaching 40% penetration).

Given the limitations of the studies cited, there is a need for additional research, representative of distribution networks in terms of both topology and solar PV penetration levels, and which utilise harmonic emission spectra that are commensurate with those produced by modern inverters, considering performance when subject to varying supply voltage conditions.

The literature review provided above demonstrates that a consensus is yet to be reached regarding the likely impact of high penetrations of solar PV generation on LV harmonic distortion magnitudes. The purpose of this work is to provide further clarity to this discourse and to provide a comprehensive assessment of the impact of solar PV generation on harmonic distortion in LV electricity supply networks. The next section provides an empirical assessment of the impact of solar PV generation on harmonic distortion magnitudes based on data collected from a significant number of LV sites in Australia. This analysis expands on that provided in [29]. Subsequent sections of the paper provide experimental and simulation results that explain the findings of the empirical assessment. In the first instance, the emission characteristics of a range of solar PV inverters as determined using laboratory evaluations are presented (Section 3). This includes assessment of performance under varying levels of supply voltage distortion. The data from the laboratory evaluation were then used in a power system modelling exercise (Section 4) to provide an explanation of the empirical results.

2. Empirical Investigation of the Impact of Solar PV Generation on Distribution Network Harmonic Distortion

In this section, an assessment of the impact of small-scale solar PV generation on harmonic distortion magnitudes in LV networks has been conducted by investigating the hourly aggregates of voltage THD magnitudes. The data used for this investigation were sourced from the Power Quality Compliance Audit (PQCA) project [30], which is administered by the author through the Australian Power Quality Research Centre at the University of Wollongong. The PQCA has been operating since 2002, meaning that there is a significant amount of data prior to the high penetration of solar PV generation, which began to increase rapidly in 2010. Using PQCA data, ‘pre’ significant solar penetration data can be compared to ‘present’ data (data to 2022) to assess the impact of the increasing penetration of solar PV on harmonic distortion magnitudes.

Table 3. Numbers of LV sites used in empirical analysis.

Year	Annual	January	April	July	October
2009	1369	179	178	703	1065
2010	1868	1406	1561	1665	1687
2011	1865	1649	1646	244	256
2012	308	272	266	256	261
2013	620	284	298	352	369
2014	3559	391	312	3150	3150
2015	3580	3091	3097	3140	3210
2016	3552	3244	2489	3054	2833
2017	3280	2895	2421	2326	527
2018	807	539	544	450	407
2019	859	668	684	716	677
2020	2464	735	515	552	1160
2021	5115	3273	3370	3385	3380
2022	10,480	3198	3349	7797	7691

shows the numbers of LV sites available for analysis each year. Some variation in site numbers is observed due to the PQCA project relying on sites being submitted by participating NSPs, which may change from year to year. Here, it is noted that, while there is a variation in the number of sites and variation in participating NSPs, previous studies have indicated that approximately 200 sites in total are required to ensure statistical confidence in calculated indices for large electricity supply networks [31]. As seen in Table 3, the number of sites included in this study generally exceeds 200 by a significant margin. Consequently, the number of sites included is sufficient to ameliorate any concerns related to statistical confidence in the data.

The process of investigation involves comparing voltage THD magnitudes across the years for which data are available. For each year, voltage THD magnitudes have been calculated for each hour of the day. If PV generation was having a significant impact on THD magnitudes, substantial changes in the THD magnitudes should be observed during daylight hours—i.e., when solar PV systems are generating energy (considered to be 9 am to 6 pm for the purposes of this investigation).

The process for calculating voltage THD indices for each hour of the day was as follows:

• Data at each site are sorted depending on the hour of the day they are measured.
• The 95th percentile voltage THD index for the period of interest (month or year) is calculated for each hour of the day at each site.
• Indices for each period of interest for all sites are calculated—the indices calculated are the 5th percentile value, median value, and 95th percentile value.

Once the above indices have been calculated, analysis was undertaken to identify if there were any significant changes to the profile of voltage THD magnitudes across the day for the period of 2009–2022. Assessment has been made of THD magnitudes for both the entire year (annual) and each season, with summer, autumn, winter, and spring represented by values from January, April, July, and October, respectively. A seasonal analysis has been performed to investigate whether the time of the year has an impact on outcomes.

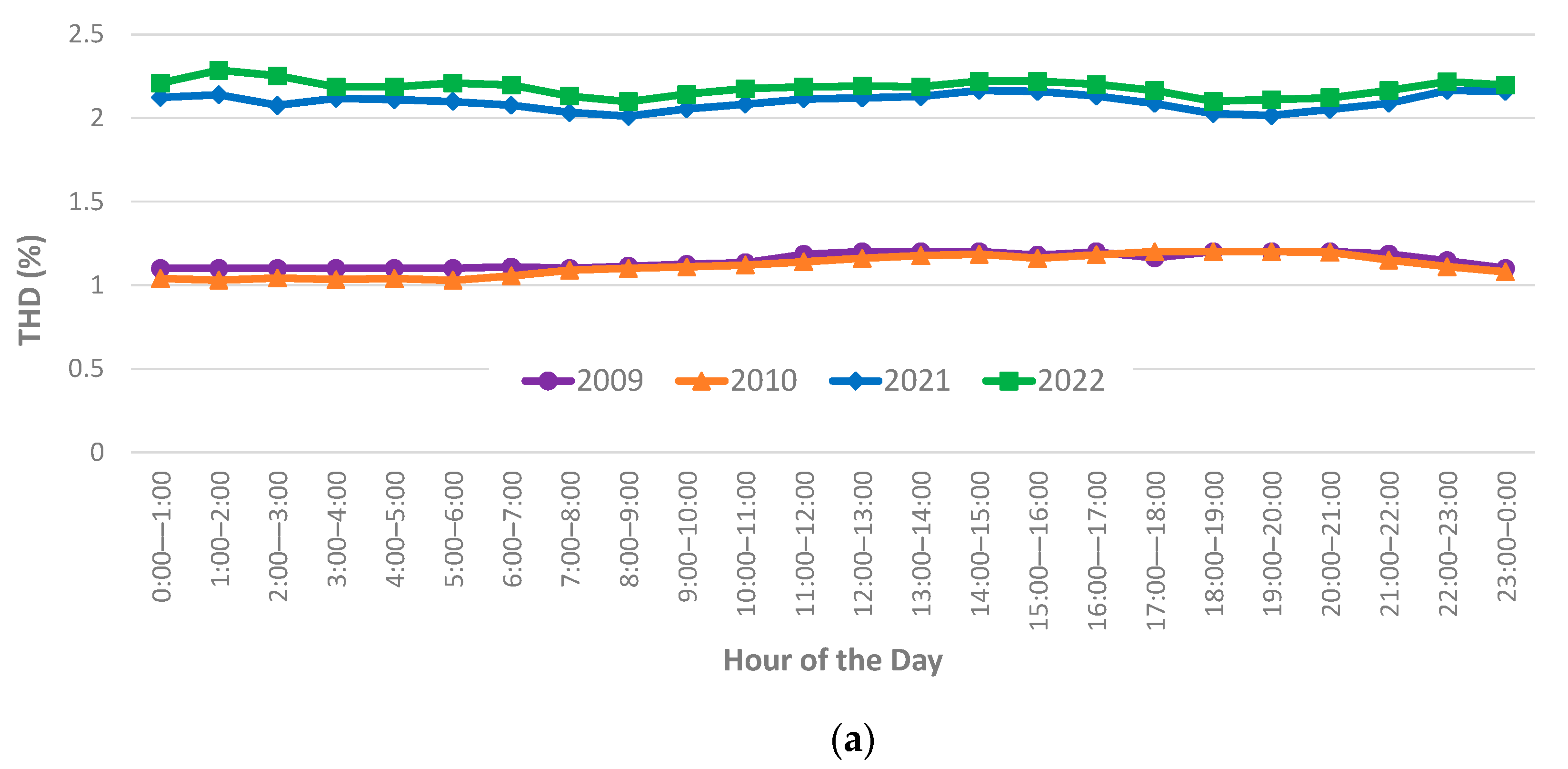

As an example of an outcome of the above data analysis procedure, Figure 1 shows the hourly profile of voltage THD magnitudes for annual median values. While it is difficult to comprehensively analyse Figure 1, it does appear that, while the overall THD magnitudes have varied across the years, i.e., the hourly profiles move up and down on the graph, there is little to suggest that the overall shape of the profiles has changed, i.e., there do not appear to be strong changes in the shapes of the curves between 9 am and 6 pm.

To simplify the analysis, the further presentation of data has been restricted to ‘pre’ data from 2009 and 2010 (before the significant penetration of solar) and ‘present’ data from 2021 and 2022 (after the significant penetration of solar). Figure 2 shows the hourly profile of voltage THD magnitudes for these data. It can be observed in the figures that, while the overall THD magnitudes have increased since 2009–2010, there is little change to the overall daily profile, i.e., values have increased consistently across every hour of the day as opposed to increases during daylight hours, which could be attributed to solar PV generation. As such, there is little evidence that solar PV generation is leading to increases (or decreases) in voltage THD values. As a comparison, Figure 3 shows the profiles of steady-state voltage magnitudes. In this figure, a clear daytime ‘hump’ (highlighted by the red box) in magnitudes can be observed within the 2020 data when compared to the 2009 data, showing the influence of solar PV generation on steady-state voltage magnitudes. Equation (1) has been used to quantify the variation in THD values during the hours 9 am–6 pm to quantify the variation in voltage THD during periods associated with solar PV generation. The outcomes of this calculation for 95th percentile voltage THD values, along with the year-end solar installed PV capacity for each year, are shown in Figure 4. Figure 4 clearly shows that the variation in voltage THD slightly decreases as the installed capacity increases.

$$\mathrm{V}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}(\mathrm{\%})={\displaystyle \frac{\mathrm{m}\mathrm{a}\mathrm{x}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{m} \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}-\mathrm{m}\mathrm{i}\mathrm{n}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{m} \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}}{\mathrm{m}\mathrm{i}\mathrm{n}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{m} \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}}}\times 100\mathrm{\%}$$

(1)

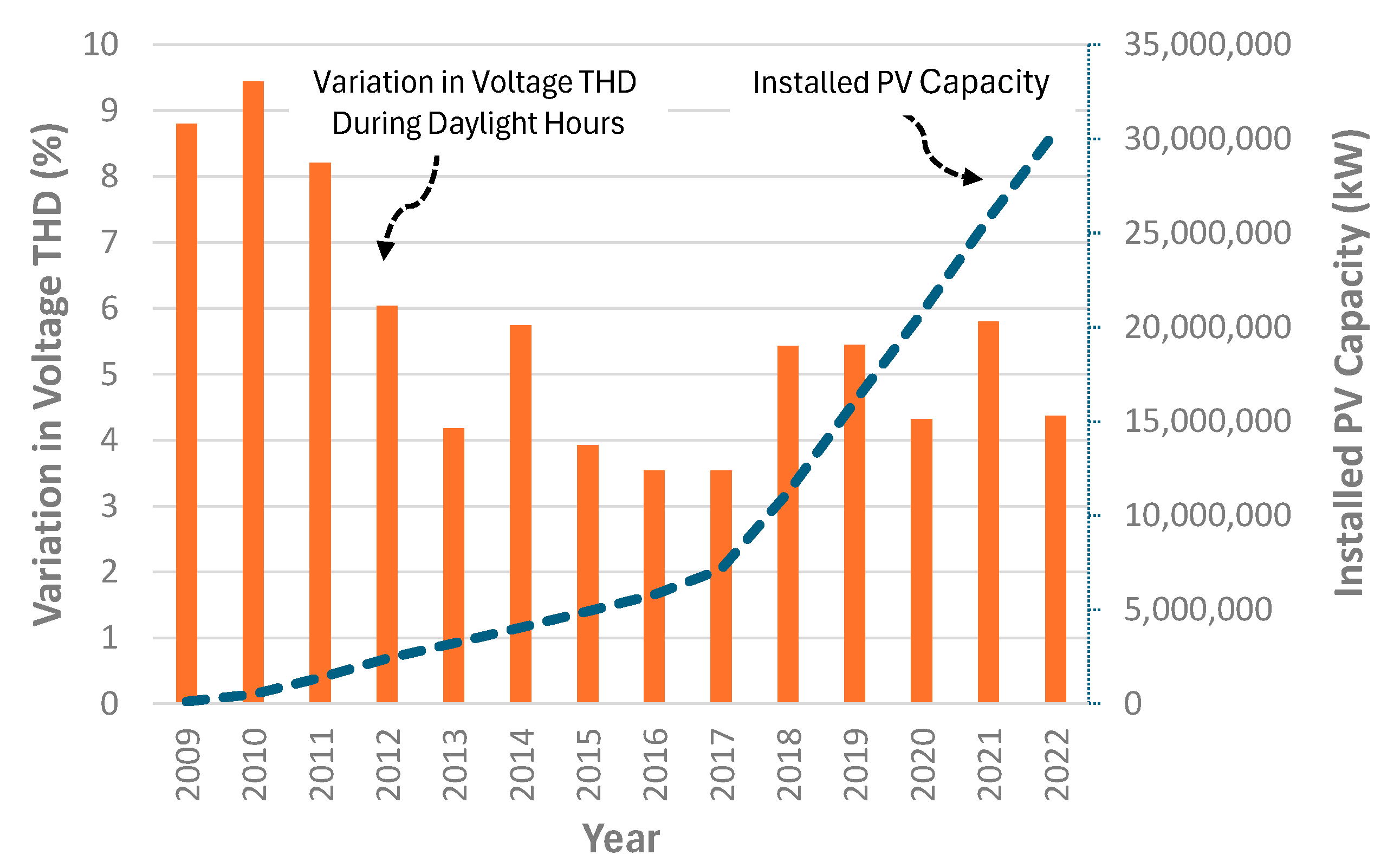

The overall increases in voltage THD values across all hours of the day between 2009 and 2010 and 2021 and 2022 may be due to the inclusion of a higher number of sites toward the ends of LV feeders, while the 2009–2010 data were highly biassed towards sites at the distribution transformer terminals. It is well accepted that voltage harmonic distortion will be higher towards the ends of feeders compared to magnitudes at the transformer terminals [32]. While it is accepted that this variation in site characteristics can impact voltage THD magnitudes, as detailed above, the number of sites included in the study is considered to be sufficient for statistical confidence in outcomes. Furthermore, the inclusion of sites at the ends of feeders would be expected to exaggerate the impacts of any injected harmonic current emissions—the data do not show this to be the case.

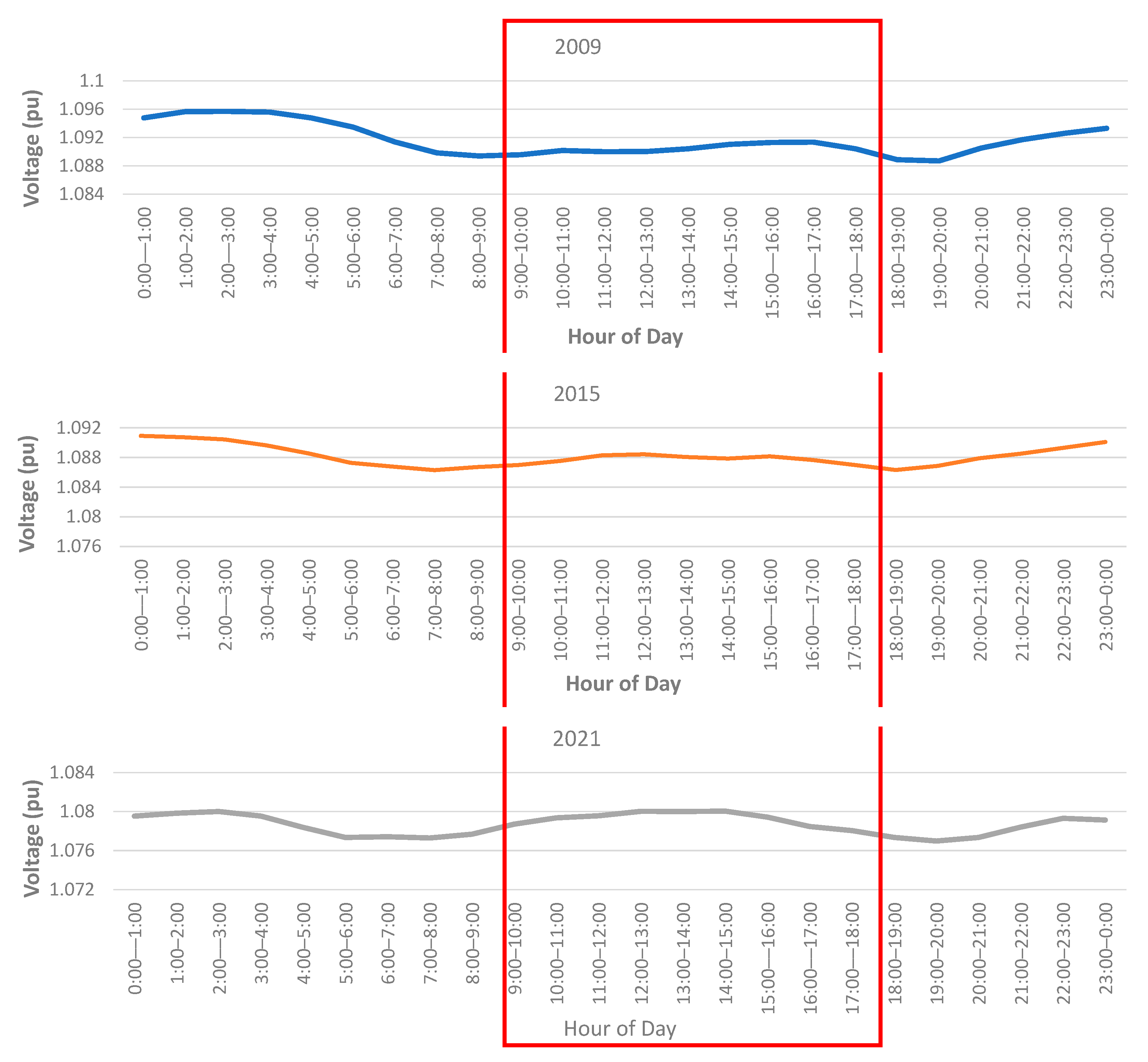

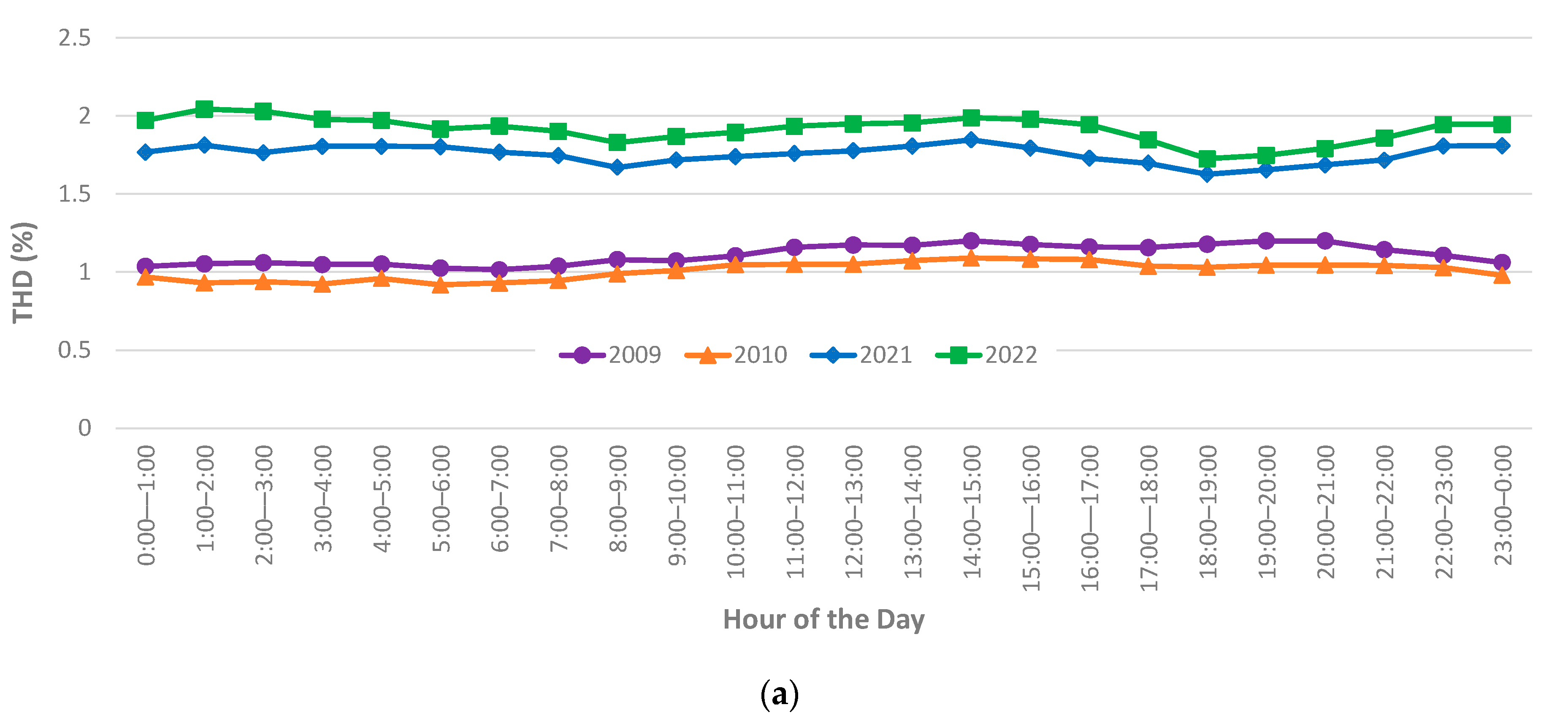

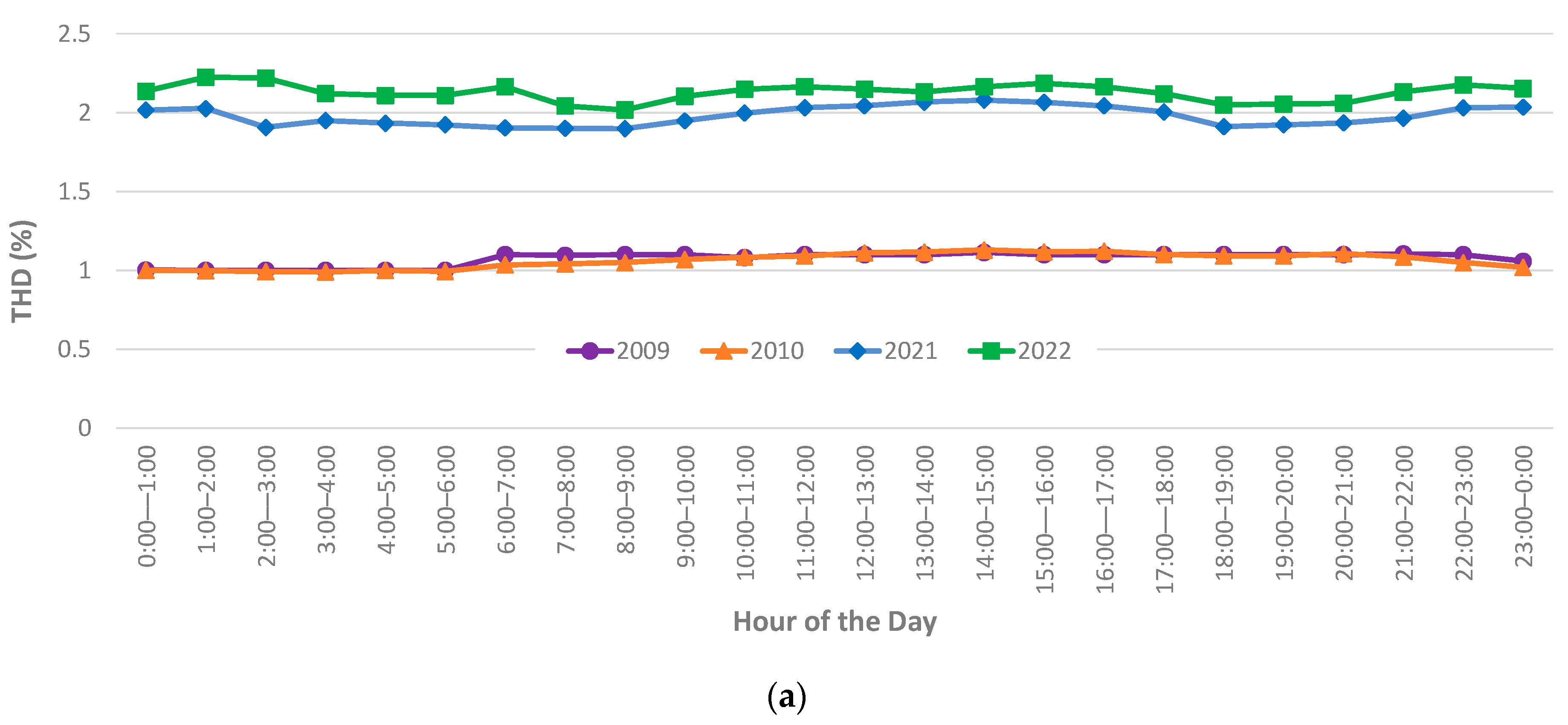

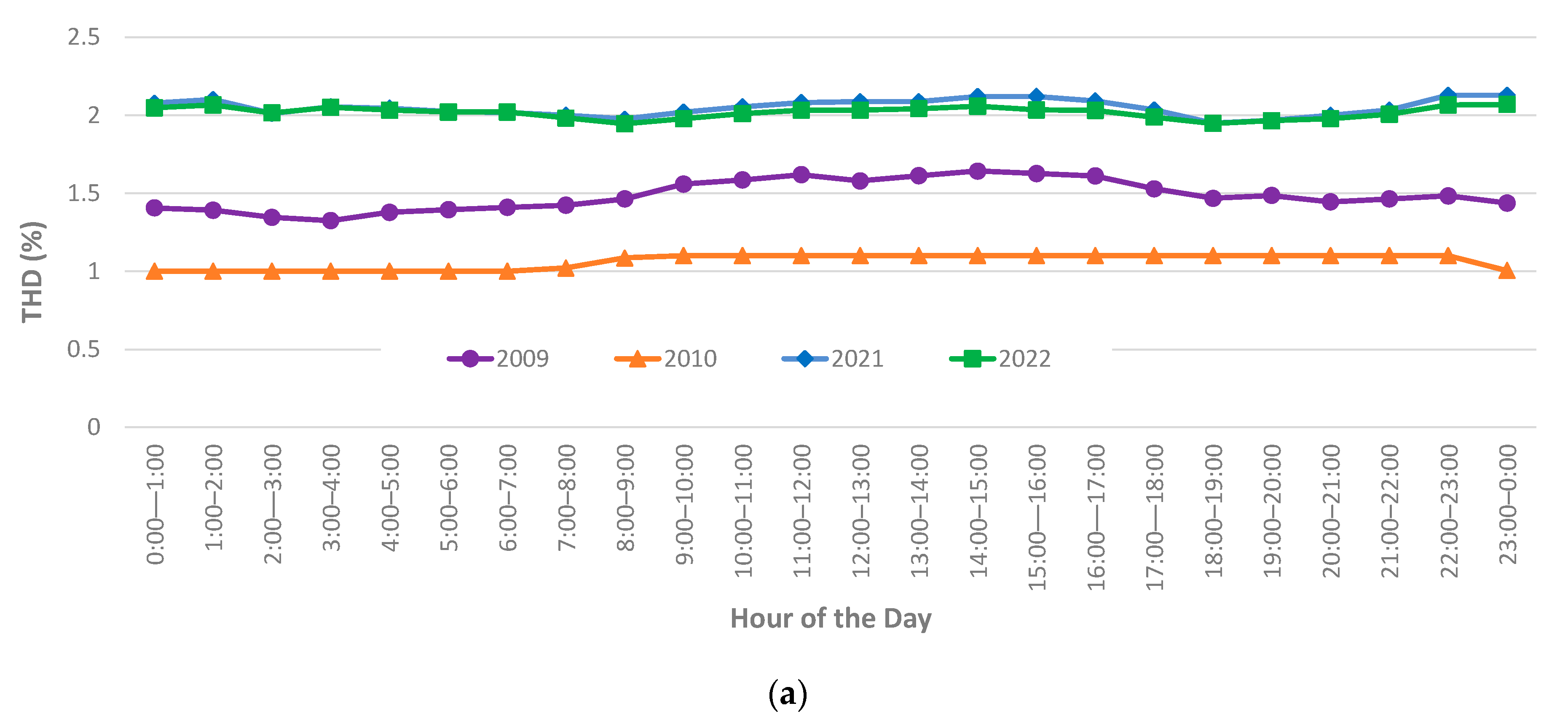

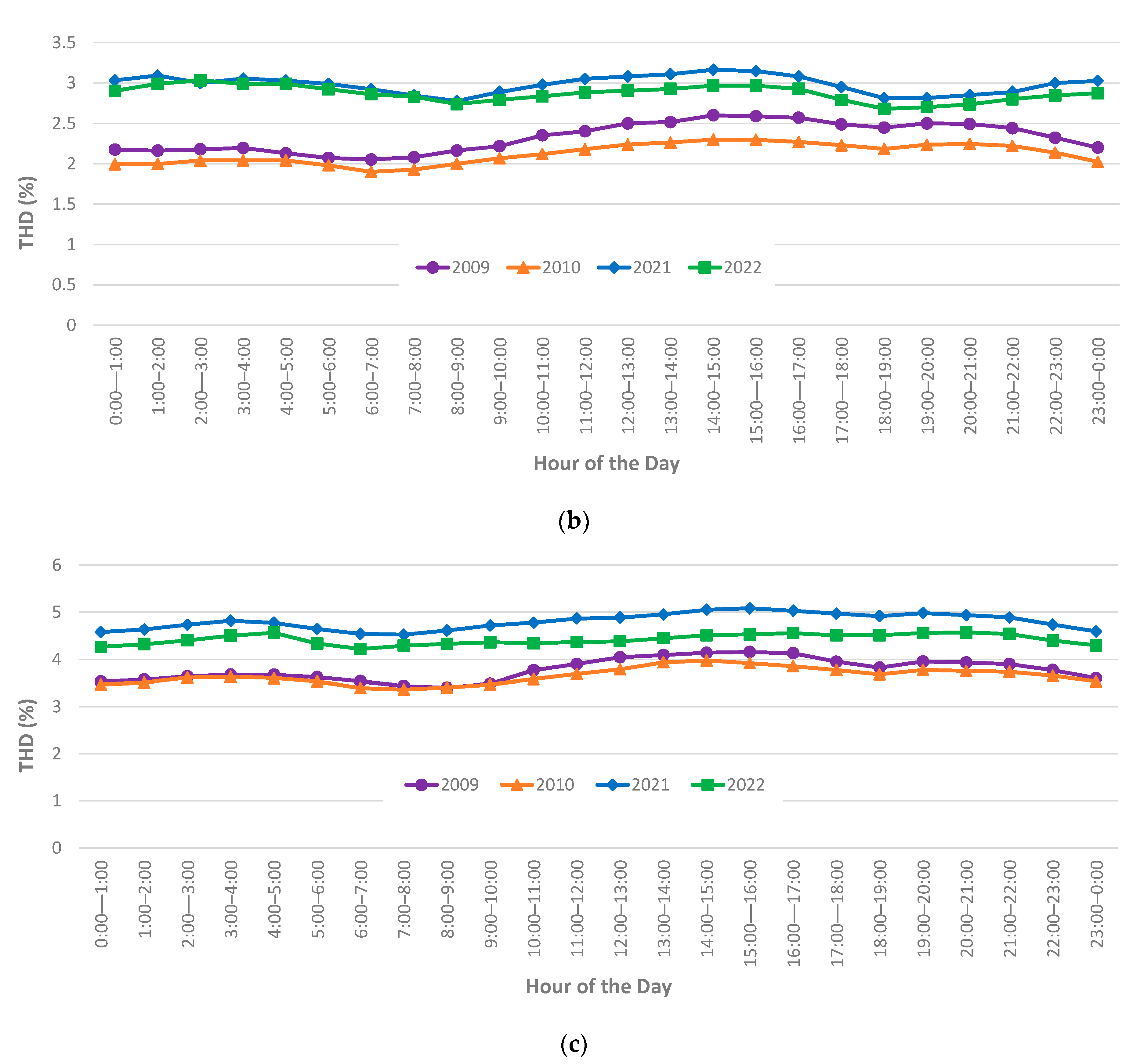

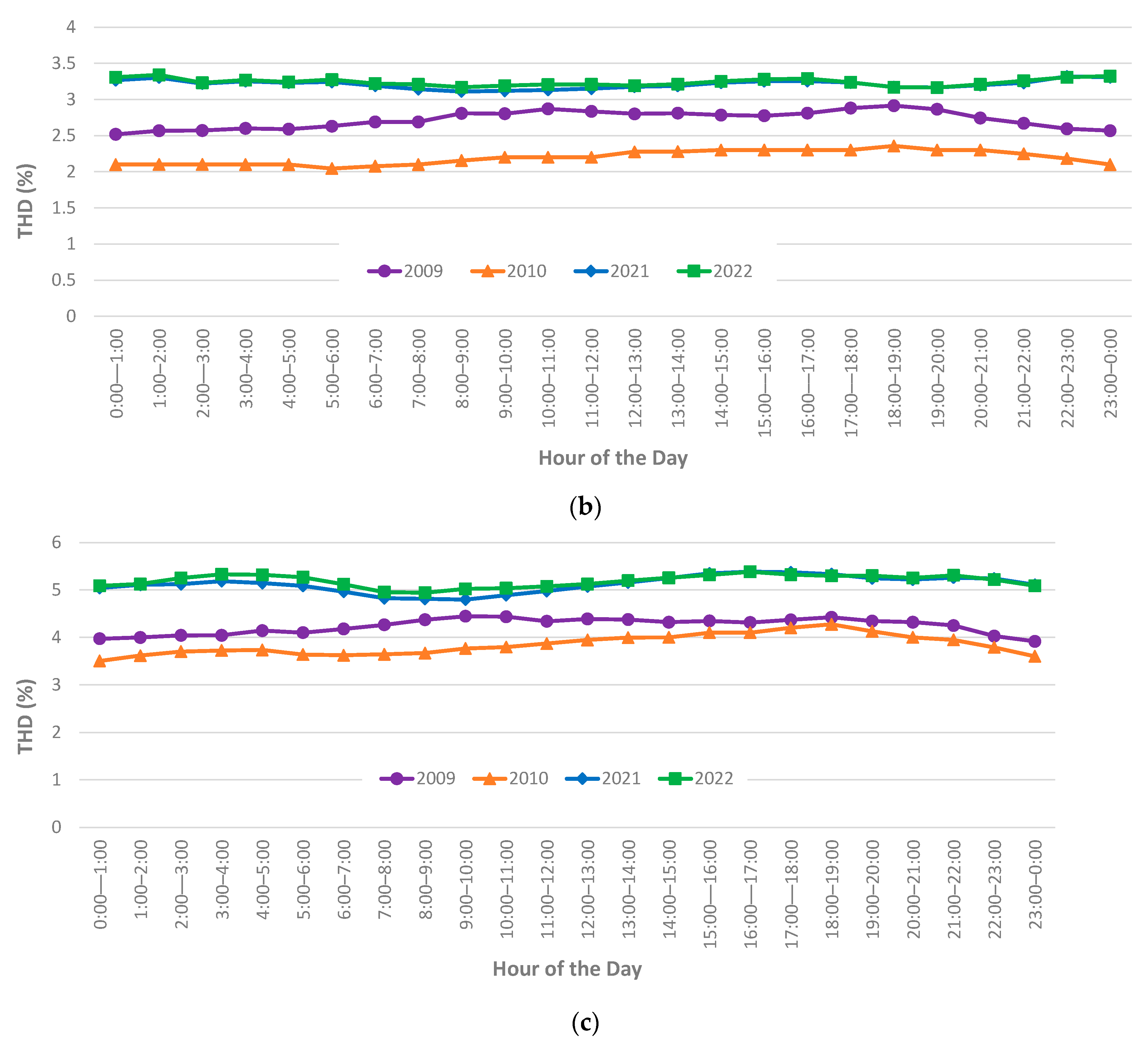

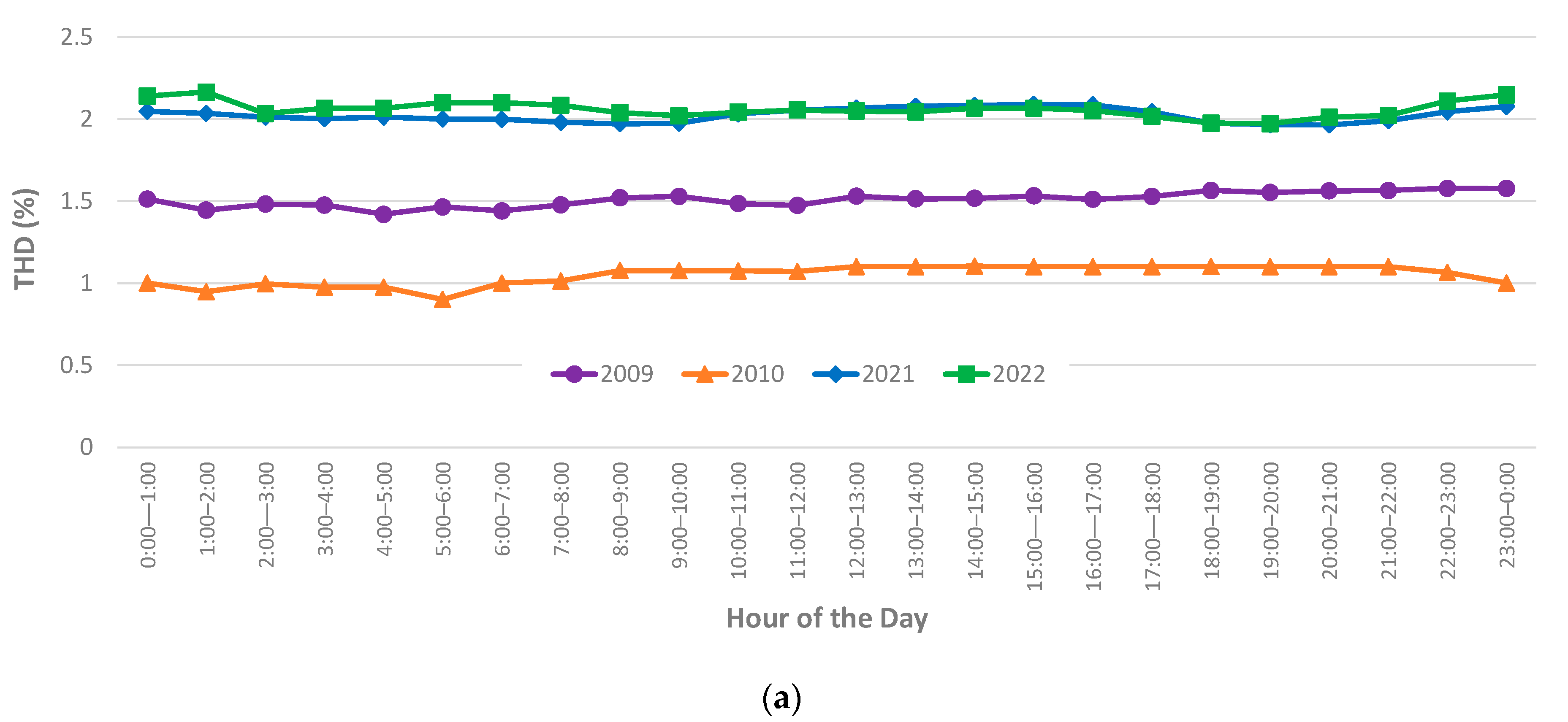

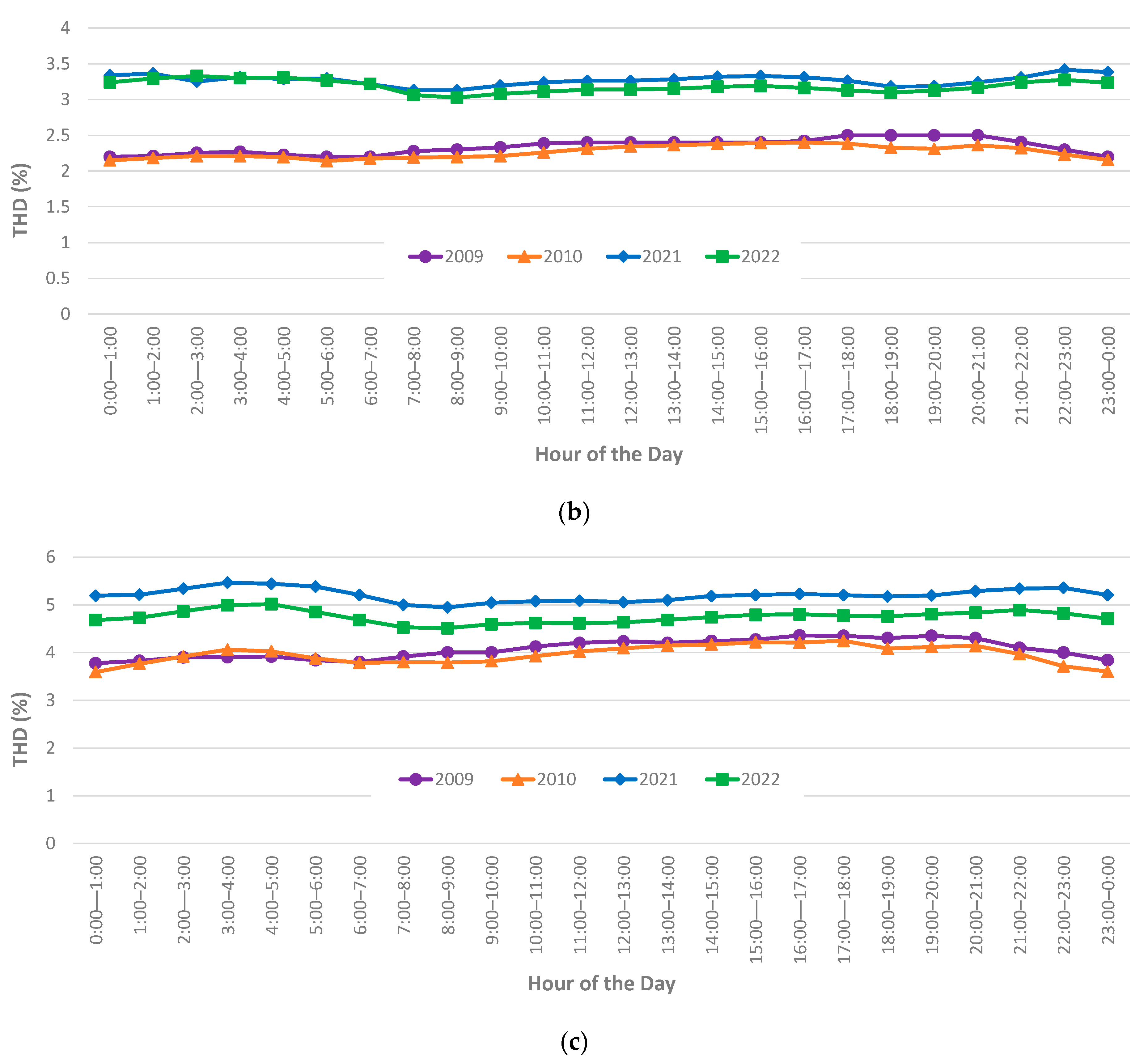

Appendix A shows the seasonal profiles of voltage THD magnitudes. Similar outcomes are observed for the seasonal data as for the annual data shown in Figure 2. The analysis of the measured data does not indicate that solar PV generation is having a significant impact on voltage THD magnitudes in LV networks, despite significant levels of solar PV penetration. The subsequent sections of this paper use the laboratory evaluation of inverter performance and power system modelling to explain this behaviour.

3. Laboratory Evaluation of Solar PV Inverter Harmonic Emissions

The previous section provided empirical evidence which suggests that, despite the relatively high penetration of solar PV generation, little evidence of any impact on LV harmonic distortion levels can be observed. This section provides an extensive laboratory evaluation of the harmonic current emissions of seven residential-scale single-phase solar inverters. The inverters which have been evaluated are standard types designed for use in residential applications from a range of well-known manufacturers. The inverters are configured for operation in the Australian marketplace and will have firmware installed for compliance with the Australian standard for inverters connected to LV networks in Australia, AS 4777. The inverter design and firmware should ensure a compliance with the harmonic current emission limits prescribed in AS 4777. All evaluated inverters were of a transformerless configuration, with integrated EMC filters. These current emission data are then used to develop plausible current harmonic distortion emission scenarios for power system modelling, as detailed in Section 4.

A summary of the specifications of the inverters evaluated is provided in

Table 4. Details of evaluated inverters.

Inverter	Rating (kW)	Approximate Year of Manufacture
1	2.6	2013
2	3.0	2017
3	3.6	2010
4	3.0	2013
5	4.99	2017
6	2.5	2013
7	5.0	2017

. Inverters 1 and 2 are from the same manufacturer, while Inverters 6 and 7 are also from the same manufacturer (different to Inverter 1 and 2). Performance has been evaluated at four output active power magnitudes: 25%, 50%, 75%, and 100% of the rated output. A range of supply voltage waveforms was applied to each inverter to understand the performance when subject to differing supply voltage scenarios (which will be the case in practice).

3.1. Supply Voltage Test Waveforms

Five supply voltage waveforms were applied in the laboratory evaluation. These waveform scenarios were selected to align with the likely operating scenarios in LV networks. Details of the waveforms are as follows:

• Sinusoidal at nominal voltage (230 V): This is the base case used for comparisons.
• Two waveforms (with a fundamental voltage of 230 V) containing low-order harmonic distortion: These waveforms were designed to assess the impact of background distortion on performance. The magnitude of the distortion for these scenarios is based on the median and 95th percentile values for 3rd, 5th, and 7th order voltage harmonics as determined from data collected by the Power Quality Compliance Audit (PQCA) [30]. The 3rd, 5th, and 7th harmonic orders have been selected, as these are the dominant orders in LV networks. The test waveforms containing low-order harmonic distortion have been termed Waveform 1 (WF1) and Waveform 2 (WF2), where WF1 is based on the median value of voltage harmonic distortion and WF2 is based on 95th percentile values. For both WF1 and WF2, the phase angle of each of the harmonic components added to the waveform was set to 0°.
• Two waveforms (with a fundamental voltage of 230 V) containing low-order harmonic distortion with differing phase angles: These waveforms were designed to assess the impact of adjusting the phase angle of the background distortion, relative to the fundamental voltage, on performance. The magnitude of the harmonic components of these waveforms were identical for those used in WF1, while the phase angles used were 180° for the first waveform and the phase angle values published in [33] for the second waveform. The values in [33] are based on the survey results of prevailing phase angles in LV networks worldwide. These waveforms have been termed Waveform 3 (WF3) and Waveform 4 (WF4), respectively.

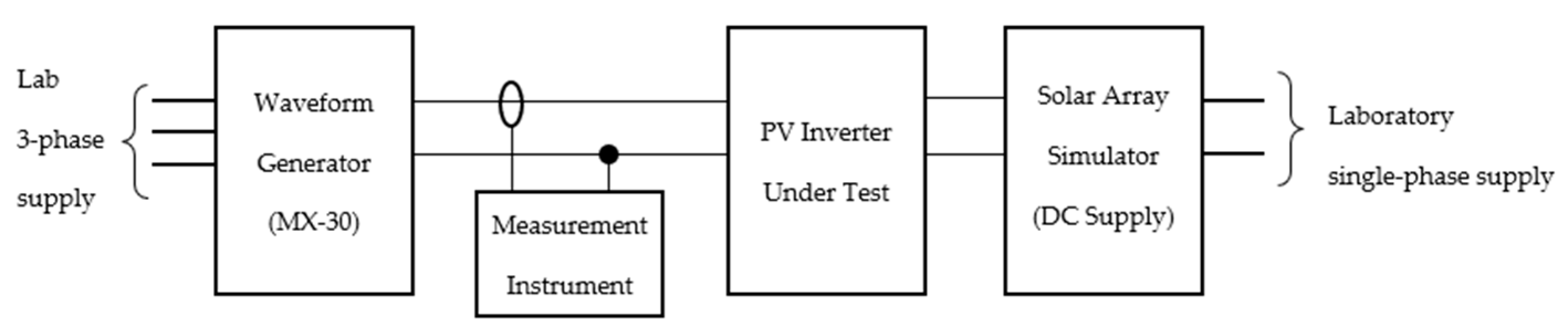

In all cases, a high-precision, low-output distortion laboratory power supply (California Instrument MX-30, manufactured in California Instrument, San Diego, CA, USA) was utilised to supply AC voltage/waveforms. An Elgar Terra solar array simulator (SAS 2023) (manufactured in Elgar Corporation, San Diego, CA, USA) was utilised as the DC input to the inverters under test. In all cases, adjustments in the inverter output power were achieved by varying the output of the solar array simulator. The measurement instrument used was a Hioki 3198 power quality analyser(V10.10, HIOKI, Ueda, Japan). This instrument is compliant with Class A of IEC 61000-4-30 [34]. A diagram illustrating the laboratory set-up is included below in Figure 5.

The characteristics of the supply voltage waveforms applied to the evaluated inverters are given in

Table 5. Details of supply voltage waveforms.

Waveform	3rd Harmonic		5th Harmonic		7th Harmonic
	Magnitude (%)	Phase (°)	Magnitude (%)	Phase (°)	Magnitude (%)	Phase (°)
WF1	0.30	0	1.60	0	1.10	0
WF2	0.65	0	3.47	0	1.97	0
WF3	0.30	180	1.60	180	1.10	180
WF4	0.30	90	1.60	270	1.10	0

. The selections of phase angles for WF3 and WF4 were as per the details outlined above. The voltage THD values were 1.95% and 4.00% for WF1/WF3 and WF2/WF4, respectively.

3.2. Performance Under Sinusoidal Supply Voltage Waveform Conditions

This section provides an analysis of the performance of the inverters when supplied using a sinusoidal supply voltage waveform. While it is recognised that this analysis is somewhat flawed, since electricity supply networks will always contain some level of harmonic distortion (i.e., background distortion), an analysis based on measurements using sinusoidal supply voltage waveforms provides a ‘base case’ which can be compared to the results obtained for the other supply voltage waveform scenarios.

Figure 6 shows one cycle of the output current for each of the seven inverters when supplied with a sinusoidal voltage waveform for 50% and 100% of the inverter rated output power. In both cases, the waveforms appear to be quite sinusoidal, indicating that the magnitude of harmonic distortion is low. This is confirmed by the THD values, which are shown in

Table 6. Current THD values for sinusoidal supply voltage scenario.

Inverter	Current THD (%)
	50% Rated Power	100% Rated Power
1	1.9	1.8
2	4.8	3.5
3	3.3	3.0
4	2.4	1.6
5	1.8	1.5
6	4.5	3.2
7	0.8	0.8

.

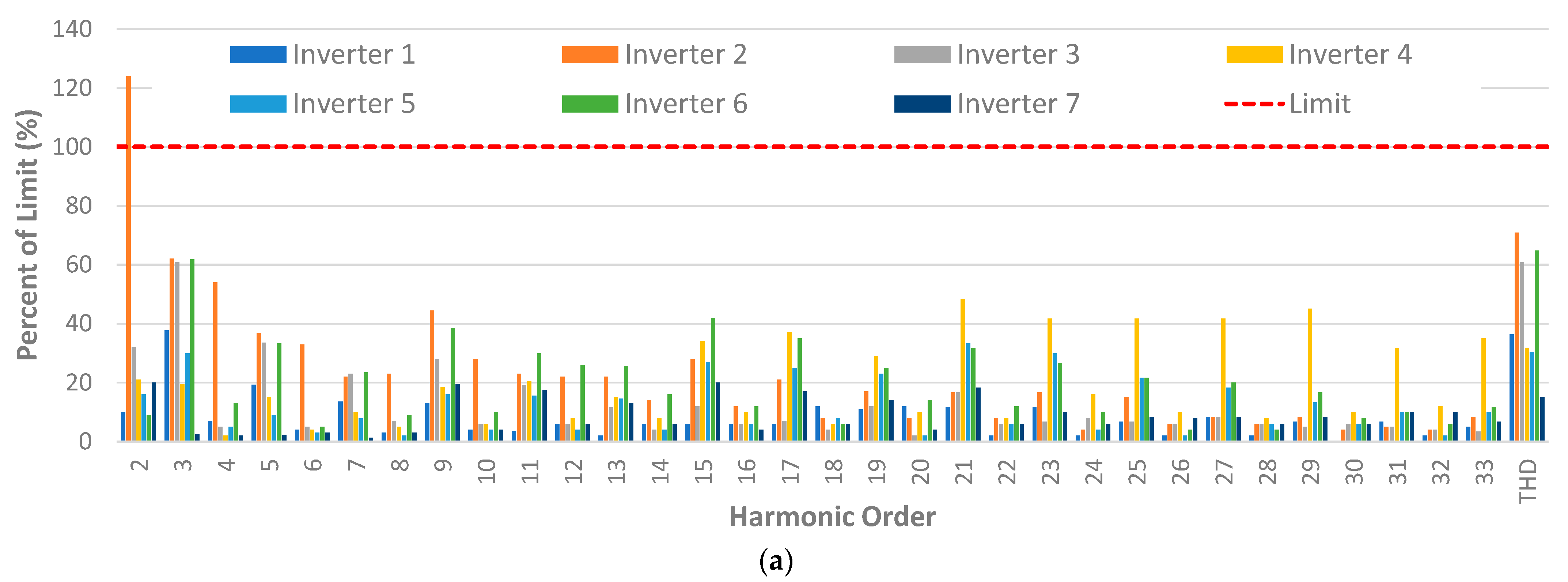

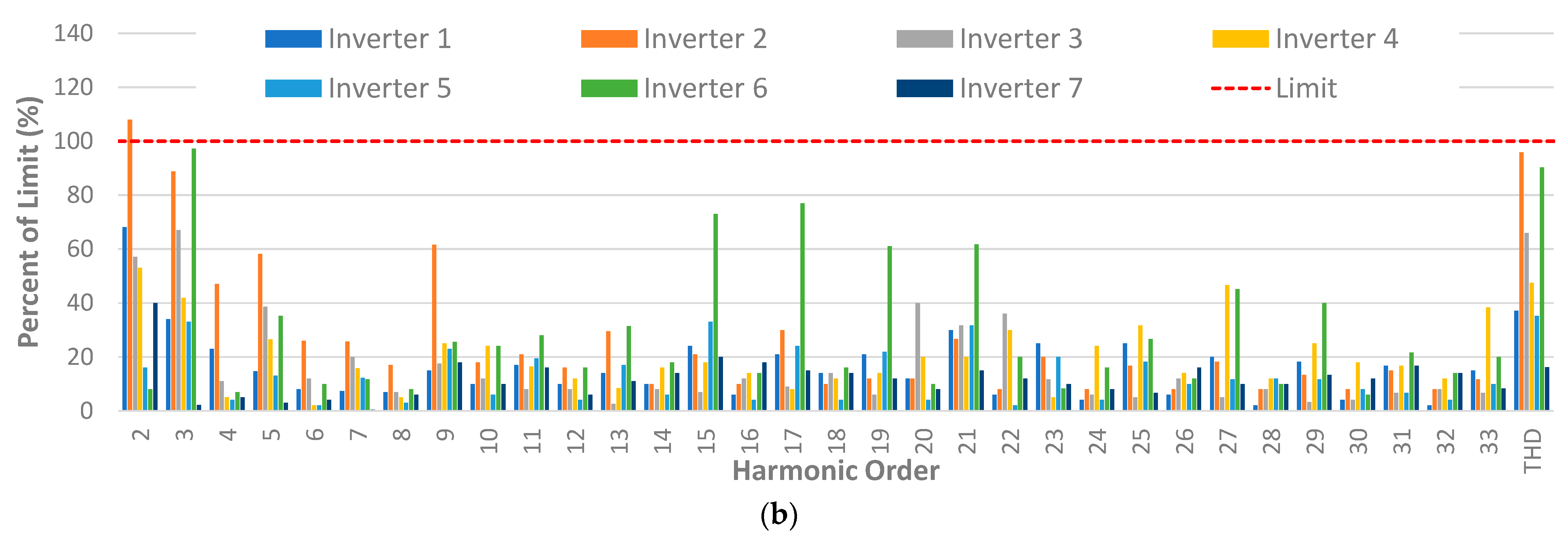

Figure 7 provides a comparison of the harmonic current emissions normalised against the limits specified in AS 4777 [35] (the Australian Standard for Inverters connecting to LV networks) when the inverters were supplied with sinusoidal voltage waveforms for 50% and 100% of the rated output power. The majority of the inverters have harmonic current emissions which are well within the prescribed limits—only two exceedances were observed across all measurements: the 2nd harmonic for Inverter 2 for both the 50% and 100% rated power output scenarios. The performance with respect to the limits was worse for the 50% rated output power scenario.

3.3. Characteristics of Emissions

This section investigates the characteristics of the current harmonic emissions when the inverters are supplied using sinusoidal supply voltage waveforms. The purpose of this analysis is to better understand the phase angle relationships between the emissions from different inverters to assess if emissions are likely to add or cancel. The phase angle measurements used are based on 13-cycle waveform captures measured using the IEC 61000-4-30 Class A requirements, as built into the measurement instrument.

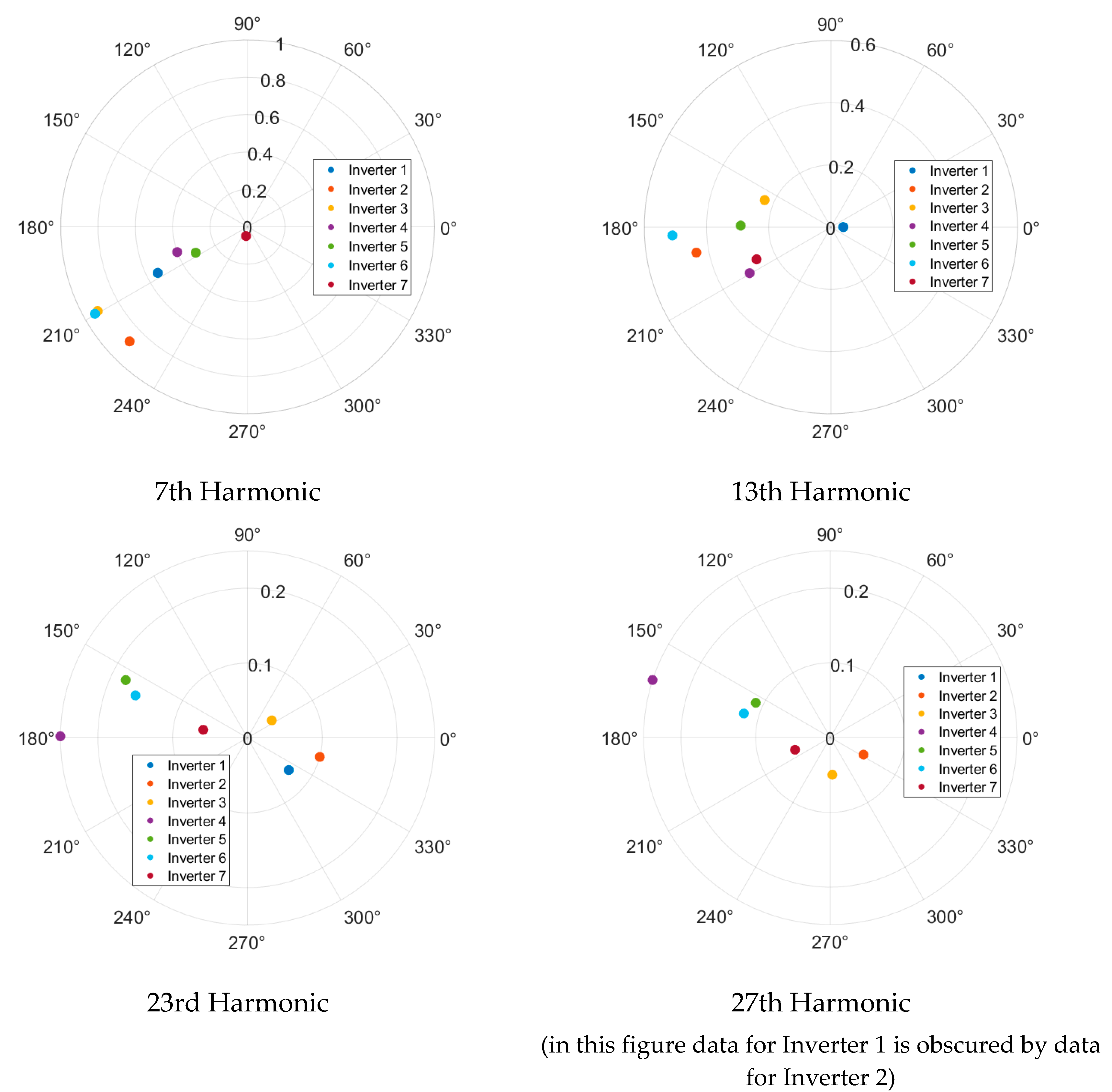

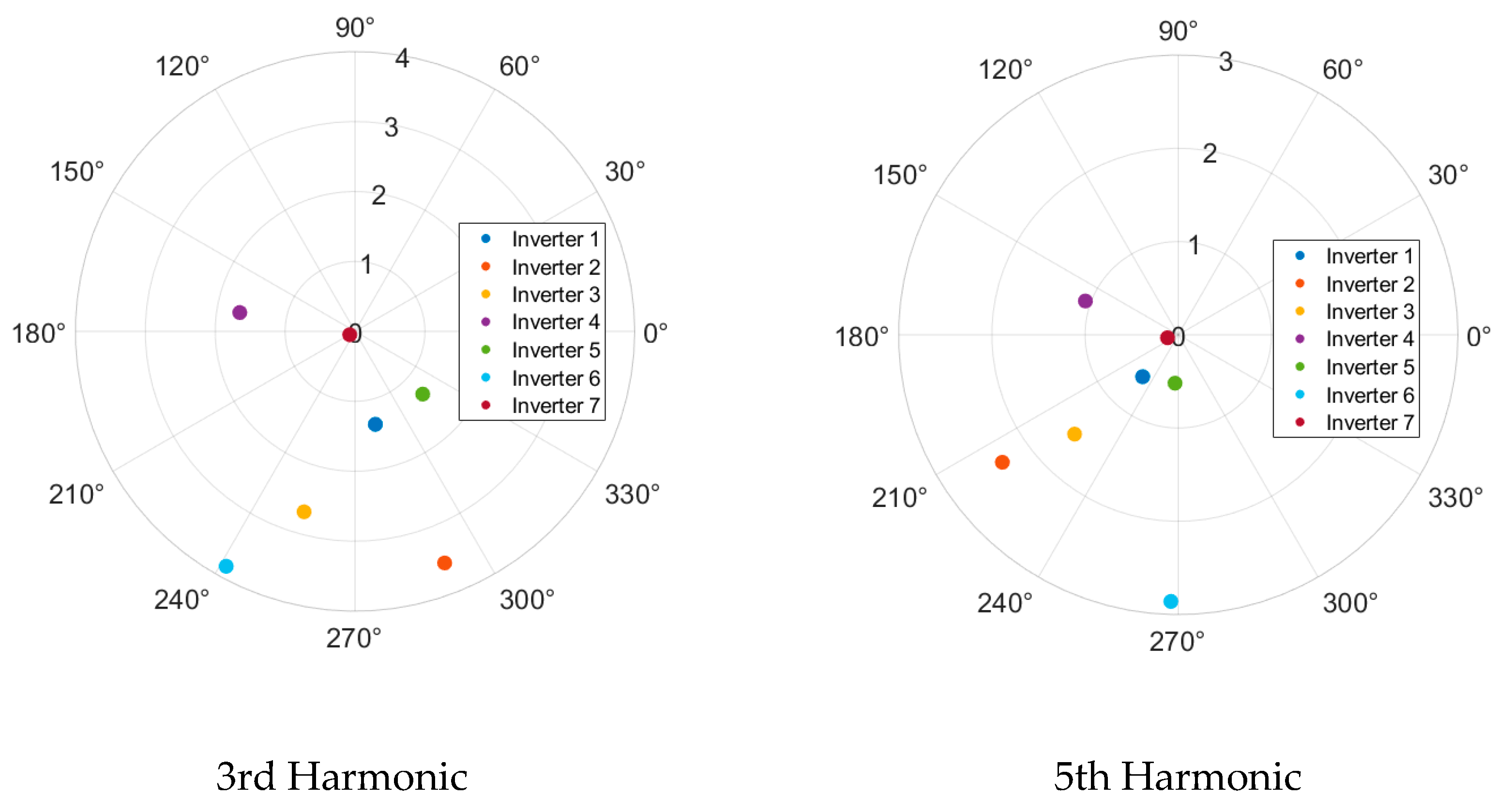

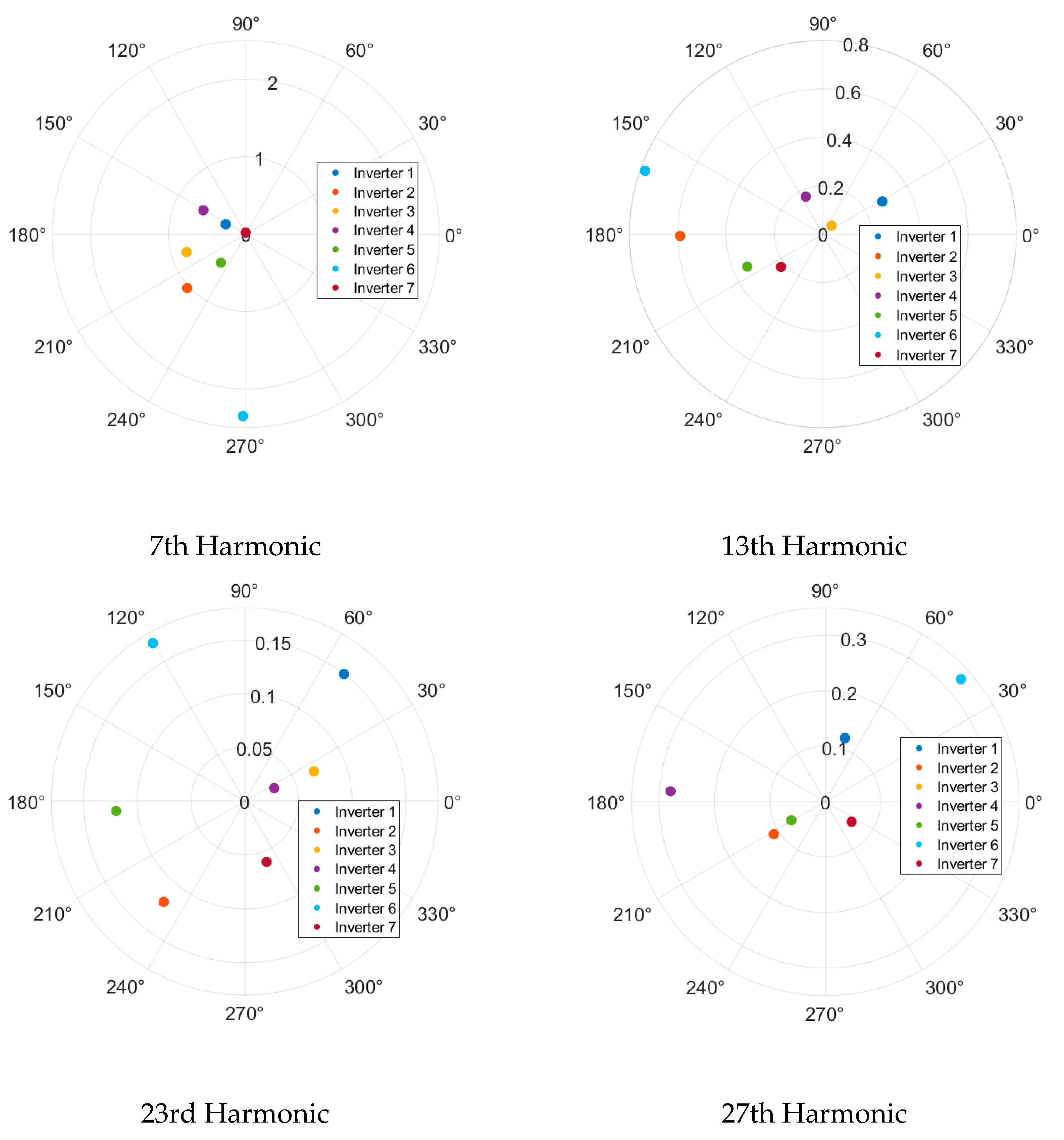

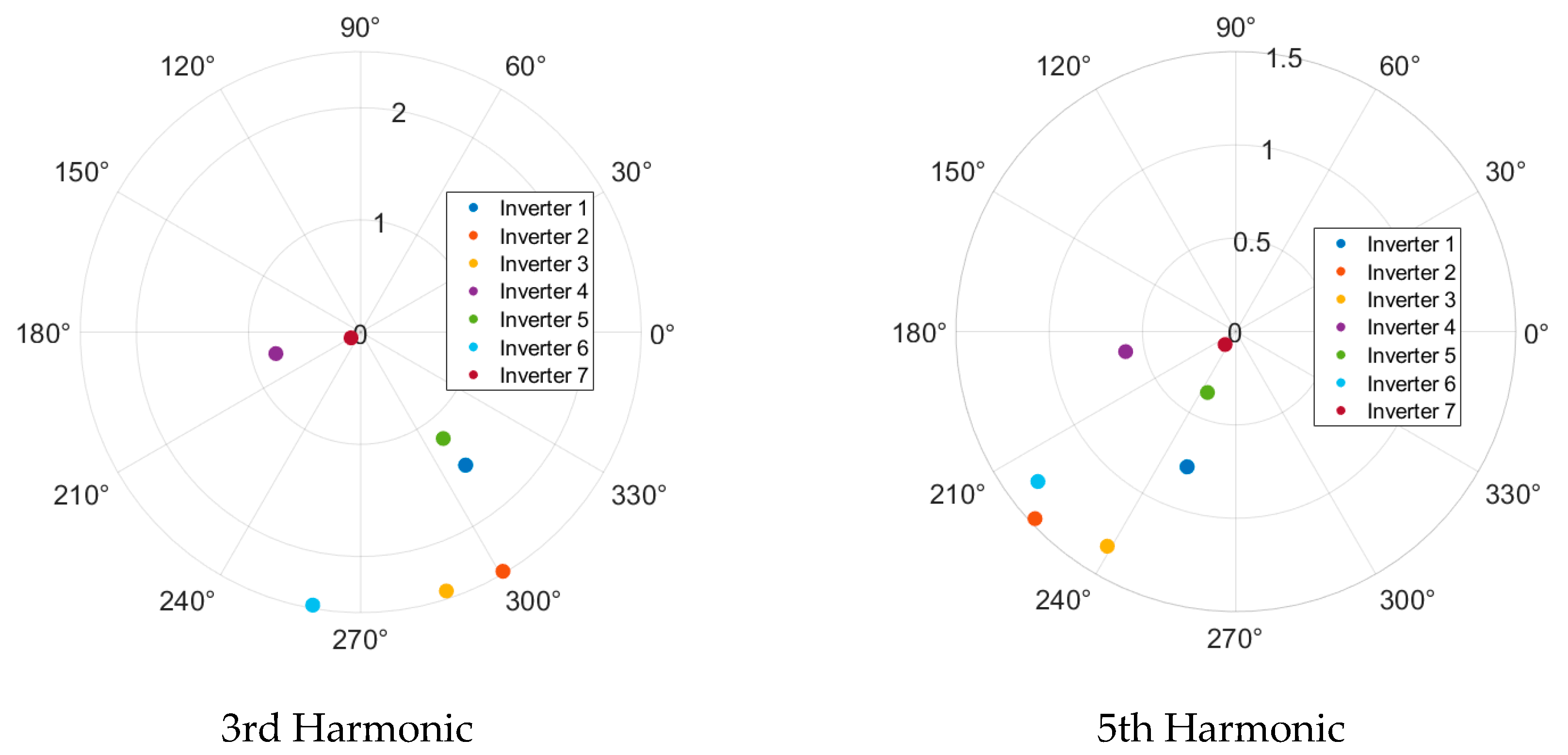

Figure 8 shows a sample of the harmonic current emissions analysed for 50% rated output power, while Figure 9 shows the same information for 100% rated output power. In each figure, the magnitude is given as a percentage of the fundamental current, while the phase angle is in degrees. The results for a range of harmonic orders are shown in appreciation of the fact that while the distortion for a particular harmonic order is applied with a varying magnitude and phase, due to the internal operation of the inverter and the complex interactions between the inverter components and the network, there may be variation in the resulting harmonic current characteristics across multiple harmonic orders.

The following conclusions can be derived from the data shown in Figure 8 and Figure 9 and the other harmonic orders analysed:

• In general, the phase angle diversity increases as the harmonic order increases. As such, when supplied with sinusoidal voltage waveforms, there will likely be some addition of low-order harmonic current emissions, while some cancellation can be expected for higher-order harmonics.
• The amount of phase angle diversity is similar for both output power levels for four of the six harmonic orders shown.
• The phase angle diversity is lower at 100% rated power compared to 50% rated power for three of the nine harmonic orders shown.
• The magnitudes of harmonic current emissions (in % of fundamental) are generally higher for the 50% rated output power scenario. However, it should be noted that the overall magnitudes of harmonic current emissions (in amperes) are highest at 100% rated output power.

3.4. Impact of Output Power Magnitude

This section examines the impact of the output power magnitude on emissions.

Table 7. Harmonic current emissions for 25%, 50%, 75%, and 100% rated output power.

Inv.	Output Power	Harmonic Order
		3rd		5th		7th		13th		15th		17th		23rd		25th		27th
		Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)
1	25%	2.5	263	1.0	254	0.4	121	0.5	100	0.3	118	0.3	133	0.1	243	0.1	254	0.1	285
	50%	1.4	282	0.6	230	0.3	154	0.3	29	0.2	30	0.2	45	0.2	52	0.2	69	0.1	73
	75%	1.4	300	0.7	243	0.3	195	0.1	5	0.1	3	0.1	5	0.1	13	0.1	23	0.1	24
	100%	1.5	308	0.8	250	0.5	207	0.0	1	0.1	340	0.1	342	0.1	322	0.0	344	0.1	333
	Var	81	46	63	24	86	86	1200	99	333	337	433	337	114	309	275	321	140	308
2	25%	6.2	312	2.0	255	0.7	329	1.0	217	0.6	332	0.3	212	0.2	341	0.2	358	0.1	26
	50%	3.6	291	2.3	216	1.0	223	0.6	181	0.2	31	0.3	188	0.1	231	0.1	246	0.1	212
	75%	2.8	300	1.8	233	1.0	246	0.6	211	0.2	262	0.3	209	0.1	240	0.1	240	0.1	205
	100%	2.5	301	1.5	223	0.9	224	0.4	191	0.3	346	0.2	199	0.1	345	0.1	352	0.1	333
	Var	150	21	59	39	51	106	130	36	167	316	43	24	140	114	243	118	120	307
3	25%	3.7	249	1.1	243	0.1	30	0.1	349	0.1	261	0.1	247	0.1	114	0.1	76	0.1	226
	50%	2.7	254	1.5	224	0.8	197	0.1	45	0.1	343	0.1	33	0.1	23	0.0	11	0.0	235
	75%	2.3	271	1.5	229	0.9	202	0.2	155	0.1	142	0.0	110	0.1	299	0.1	260	0.1	28
	100%	2.4	288	1.3	239	0.9	209	0.2	158	0.1	137	0.1	130	0.0	36	0.0	328	0.1	273
	Var	57	40	47	20	557	179	360	304	140	206	225	214	150	275	167	317	133	245
4	25%	3.8	155	2.4	123	1.8	102	0.8	358	0.3	301	0.2	213	0.2	67	0.3	17	0.2	355
	50%	1.7	171	1.1	160	0.6	151	0.2	114	0.2	159	0.1	146	0.0	24	0.2	183	0.3	176
	75%	1.0	181	0.7	176	0.4	177	0.1	202	0.3	201	0.2	206	0.1	178	0.4	180	0.3	169
	100%	0.8	194	0.6	190	0.4	200	0.3	209	0.3	205	0.4	200	0.3	180	0.3	173	0.3	162
	Var	382	39	297	67	356	97	508	244	89	142	363	67	733	156	111	166	113	193
5	25%	2.4	315	1.6	293	1.1	271	0.3	253	0.3	221	0.2	221	0.1	147	0.1	130	0.0	316
	50%	1.3	317	0.5	266	0.5	229	0.3	203	0.3	201	0.2	211	0.1	184	0.1	181	0.1	209
	75%	1.2	312	0.4	258	0.4	217	0.3	198	0.3	199	0.2	200	0.2	188	0.1	190	0.1	192
	100%	1.2	308	0.4	245	0.3	207	0.3	179	0.3	178	0.3	174	0.2	155	0.1	156	0.1	155
	Var	98	9	331	48	242	65	17	74	27	42	47	47	100	41	30	60	175	160
6	25%	1.3	135	2.8	334	6.0	237	3.0	355	2.3	29	1.5	110	1.4	207	0.4	233	0.8	355
	50%	3.8	241	2.9	268	2.4	269	0.8	160	0.8	192	0.9	203	0.2	120	0.3	48	0.3	42
	75%	3.2	248	2.7	255	2.4	253	0.4	150	0.3	150	0.2	150	0.2	150	0.2	136	0.2	129
	100%	2.5	260	1.3	217	0.9	210	0.5	183	0.4	181	0.4	173	0.2	159	0.1	175	0.1	165
	Var	190	125	115	117	539	59	643	205	769	163	739	93	756	87	231	184	550	313
7	25%	0.2	202	0.2	216	0.1	232	0.4	27	0.4	30	0.3	36	0.4	65	0.3	77	0.2	76
	50%	0.1	212	0.1	195	0.0	100	0.2	218	0.2	220	0.2	213	0.1	290	0.0	351	0.1	323
	75%	0.1	201	0.1	221	0.0	261	0.2	210	0.2	212	0.1	199	0.1	202	0.1	223	0.1	198
	100%	0.1	211	0.1	230	0.1	261	0.3	203	0.2	195	0.2	186	0.1	170	0.1	171	0.1	199
	Var	88	11	100	35	200	162	77	191	112	190	183	177	517	225	575	274	360	247
Average Variation		149	42	144	50	290	108	419	165	234	199	290	137	359	172	233	206	227	253

shows harmonic current emission magnitudes (in percentage of fundamental current) and phase angles (in degrees) for selected harmonic orders for each inverter (Inv. in the table) for the evaluations conducted at 25%, 50%, 75%, and 100% of the rated active output power. The variation (Var in the table) in values is calculated for each inverter using (1).

The variation in the phase angle is calculated as the maximum value minus the minimum value. The average deviation is calculated as the arithmetic average of the variation values across the seven inverters. The data in the table have been formatted as follows:

• Changes in magnitude of up to 40% are shaded green,
• Changes in magnitude between 40% and 100% are shaded orange,
• Changes in magnitude greater than 100% are shaded red,
• Changes in phase angle of up to 60° are shaded green,
• Changes in magnitude between 60° and 120° are shaded orange,
• Changes in phase angle greater than 120° are shaded red.

While there is inconsistent performance across the evaluated inverters, the following provides a summary of the performance:

• The output power magnitude has a significant impact on the magnitude (in percentage of fundamental) of the current harmonic emissions, particularly for higher-order harmonics.
• Where there is a variation in the magnitude (in percentage of fundamental current) of harmonic current emissions, the magnitude tends to decrease as the output power magnitude increases. This finding aligns with the results published in [3,4]. It should be noted that, while distortion as a percentage of the fundamental current is highest at a low output power, the value of the harmonic emission in amperes is highest at the highest output power (i.e., where the output power is reduced, the fundamental current decreases to a greater extent than the harmonic current components).
• The output power magnitude generally does not have a significant impact on the phase angle for the low-order harmonics (3rd, 5th, and to a lesser extent 7th).
• The output power magnitude has a significant impact on the phase angle diversity for orders above the 7th. This suggests that there could be a phase cancellation of harmonic current emissions from inverters of the same type which are operating at different output power magnitudes.

3.5. Impact of Background Distortion

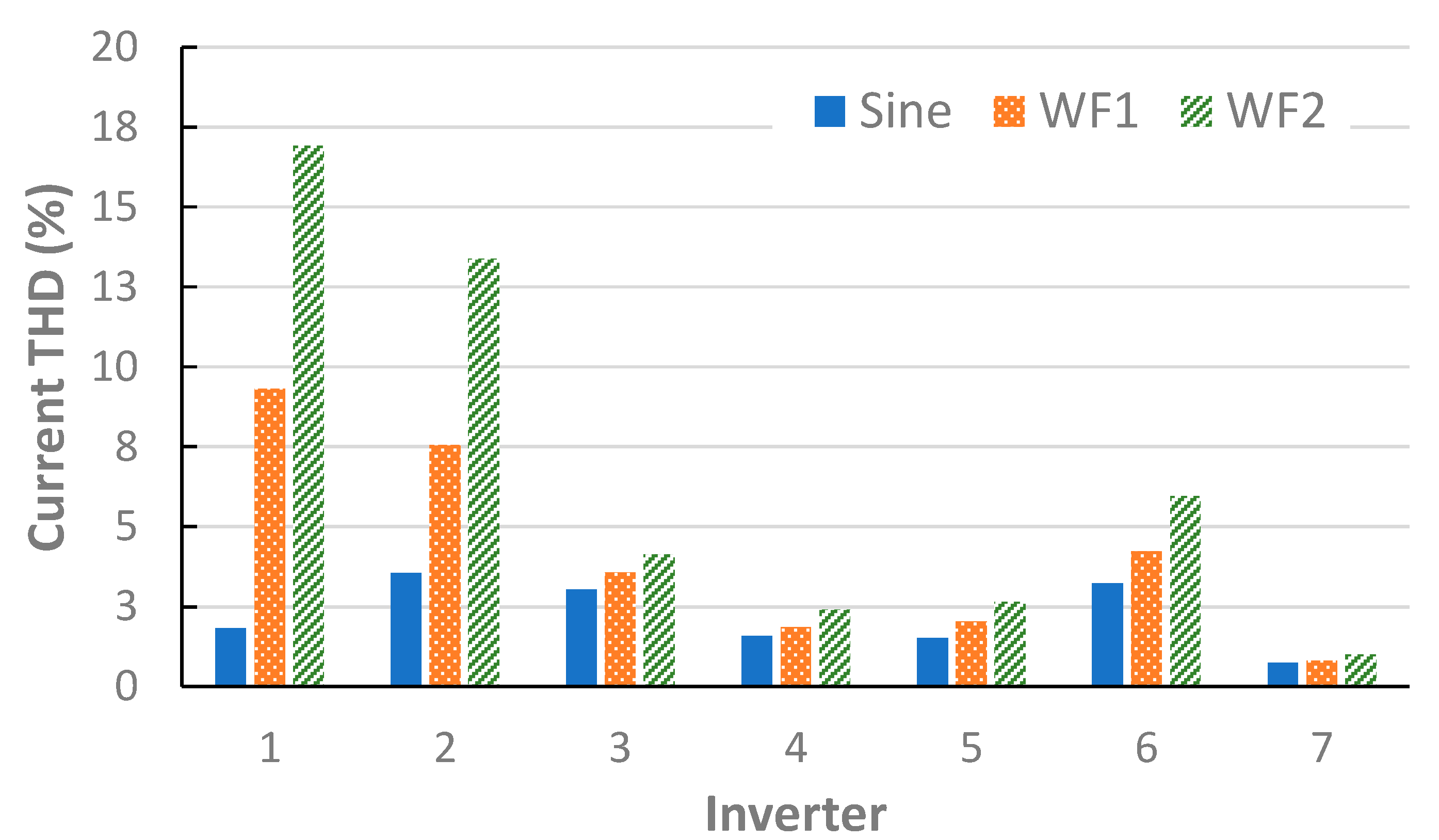

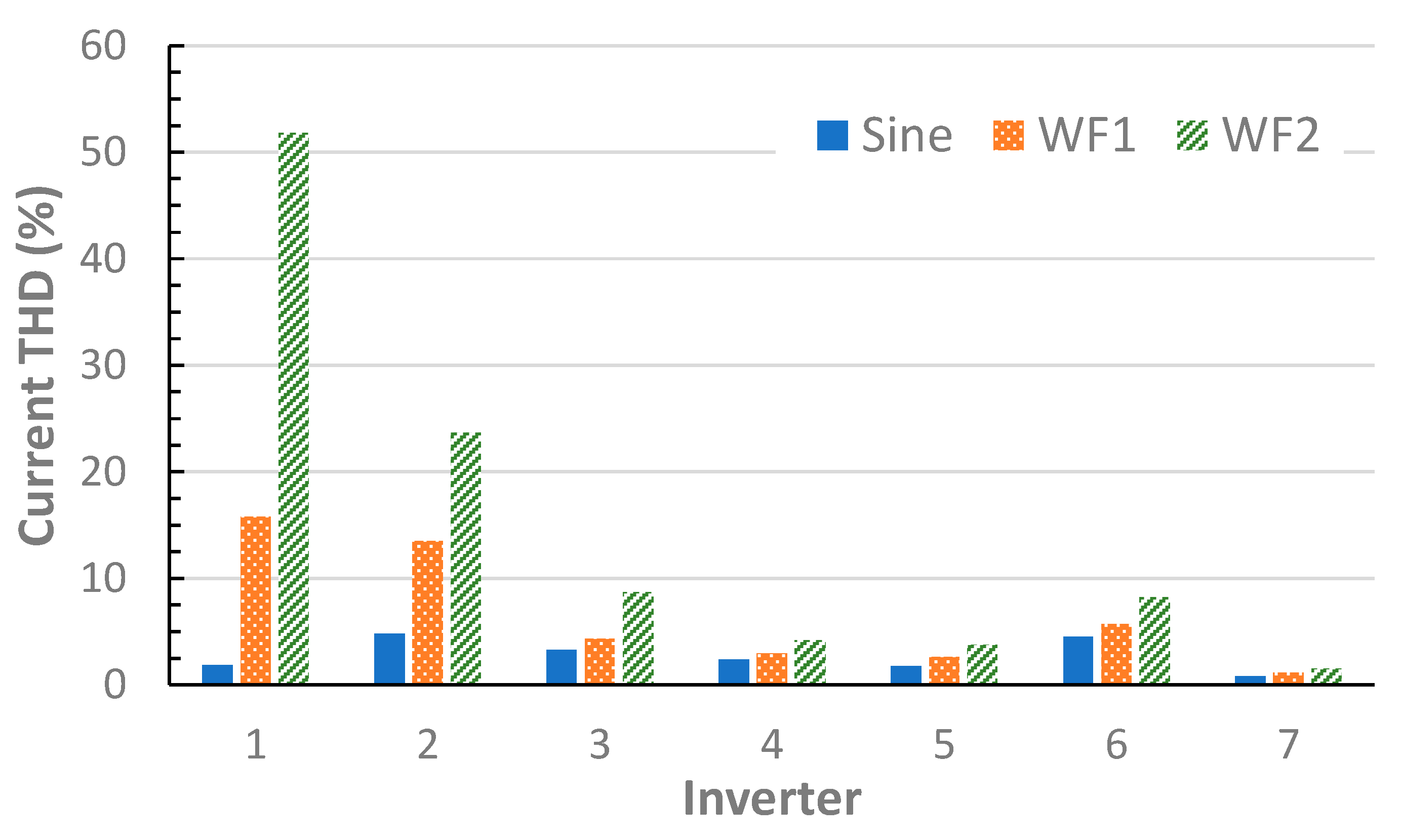

This section investigates the impact of distortion on the supply voltage waveform (i.e., background distortion) of current harmonic emissions.

Table 8. Current THD when supplied with undistorted (Sine), WF1, and WF2 for 100% rated output power.

Inverter	Current THD (%)			Variation (%)
	Sine	WF1	WF2
1	1.8	9.3	16.9	830
2	3.5	7.6	13.4	278
3	3.0	3.6	4.1	36
4	1.6	1.9	2.4	51
5	1.5	2.0	2.6	74
6	3.2	4.2	6.0	84
7	0.8	0.8	1.0	32

and

Table 9. Current THD when supplied with undistorted (Sine), WF1, and WF2 for 50% rated output power.

Inverter	Current THD (%)			Variation (%)
	Sine	WF1	WF2
1	1.9	15.8	51.9	2703
2	4.8	13.5	23.7	395
3	3.3	4.3	8.7	164
4	2.4	2.9	4.2	77
5	1.8	2.6	3.8	115
6	4.5	5.7	8.2	82
7	0.8	1.1	1.5	89

show the current THD values when the PV inverters were supplied with a sinusoidal waveform (labelled ‘Sine’), as well as WF1 and WF2, for 100% and 50% rated output power, respectively. The percentage variation, which is provided to allow for an easy appreciation of the impacts of the various test waveforms, in each table is calculated using (2):

$$\mathrm{V}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}(\mathrm{\%})={\displaystyle \frac{(\mathrm{S}\mathrm{i}\mathrm{n}\mathrm{e} \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}-\mathrm{W}\mathrm{F}2 \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e})}{\mathrm{S}\mathrm{i}\mathrm{n}\mathrm{e} \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}}}\times 100\mathrm{\%}$$

(2)

The data in Table 8 and Table 9 are shown graphically in Figure 10 and Figure 11, respectively.

Several conclusions can be drawn from the data shown above:

• Current THD magnitudes are low when the inverters are supplied with undistorted supply voltage waveforms.
• The inclusion of low-order harmonic distortion on the supply voltage waveform has a significant impact on the current THD emissions. The presence of even modest levels of voltage distortion, as is the case for WF1, results in a 32% increase in current THD in the best case, and an increase of over 800% in the worst case, when considering the performance at 100% rated output power.
• The impact of distorted supply voltage waveforms on the current THD is not consistent across all inverters. The largest variation is observed for Inverters 1 and 2, while the smallest is for Inverters 3 and 7.
• THD tends to increase as rated power decreases. This performance is in line with the observations in [8,13]. However, it should be noted that the total harmonic current magnitude in amperes is higher at rated power (100%) than at 50% power. The reason for THD increasing is that the harmonic current components do not decrease at the same rate as the fundamental current.
• In general, increases in the current THD as voltage distortion increases are larger for the 50% rated output power case.

Table 10. Harmonic current emissions for Sine, WF1, and WF2 supply voltage waveforms for 100% rated output power.

Inverter	Waveform	Harmonic Order
		3rd		5th		7th		13th		15th		17th		23rd		25th		27th
		Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)
1	Sine	1.5	308	0.8	250	0.5	207	0.0	1	0.1	340	0.1	342	0.1	322	0.0	344	0.1	333
	WF1	1.8	282	7.0	217	5.7	185	0.3	340	0.2	322	0.2	303	0.1	340	0.1	346	0.1	346
	WF2	2.2	260	13.8	216	9.3	183	0.7	330	0.3	311	0.2	329	0.1	355	0.1	350	0.1	348
	Var	42	48	1688	34	1630	24	1550	339	450	29	167	39	43	33	100	5	40	15
2	Sine	2.5	301	1.5	223	0.9	224	0.4	191	0.3	346	0.2	199	0.1	345	0.1	352	0.1	333
	WF1	2.2	277	5.8	213	4.1	200	0.4	127	0.3	51	0.1	129	0.1	59	0.1	37	0.0	59
	WF2	2.9	274	11.1	216	6.7	203	0.2	24	0.3	343	0.2	216	0.1	204	0.0	252	0.0	248
	Var	31	27	654	10	663	24	91	166	16	295	69	87	100	286	125	315	150	273
3	Sine	2.4	288	1.3	239	0.9	209	0.2	158	0.1	137	0.1	130	0.0	36	0.0	328	0.1	273
	WF1	2.5	291	1.9	240	1.2	225	0.2	124	0.2	58	0.1	350	0.2	292	0.1	291	0.1	287
	WF2	2.5	290	2.5	244	1.7	231	0.2	135	0.2	94	0.2	26	0.1	308	0.2	277	0.1	261
	Var	4	3	90	5	80	22	5	34	50	79	143	324	300	273	275	51	160	26
4	Sine	0.8	194	0.6	190	0.4	200	0.3	209	0.3	205	0.4	200	0.3	180	0.3	173	0.3	162
	WF1	0.8	193	1.0	218	0.9	225	0.2	216	0.3	206	0.3	205	0.2	195	0.3	181	0.3	170
	WF2	0.8	192	1.7	228	1.3	231	0.1	219	0.2	210	0.2	210	0.1	209	0.3	187	0.3	177
	Var	6	3	175	38	213	31	200	9	55	5	61	10	127	30	12	15	4	15
5	Sine	1.2	308	0.4	245	0.3	207	0.3	179	0.3	178	0.3	174	0.2	155	0.1	156	0.1	155
	WF1	1.5	304	1.0	259	0.7	244	0.3	176	0.3	172	0.2	170	0.2	143	0.2	146	0.1	142
	WF2	1.6	300	1.6	260	1.1	253	0.3	167	0.2	158	0.2	157	0.1	127	0.1	124	0.1	106
	Var	37	8	347	15	255	46	16	12	23	20	19	18	29	27	15	32	20	49
6	Sine	2.5	260	1.3	217	0.9	210	0.5	183	0.4	181	0.4	173	0.2	159	0.1	175	0.1	165
	WF1	2.6	262	2.2	260	2.1	255	0.5	162	0.4	151	0.3	144	0.2	140	0.1	134	0.1	132
	WF2	2.7	266	3.8	276	3.5	266	0.4	145	0.3	128	0.2	110	0.1	94	0.1	137	0.1	117
	Var	10	6	189	59	267	56	16	38	31	53	46	63	60	66	18	41	56	47
7	Sine	0.1	211	0.1	230	0.1	261	0.3	203	0.2	195	0.2	186	0.1	170	0.1	171	0.1	199
	WF1	0.1	215	0.3	237	0.3	253	0.2	208	0.2	192	0.1	180	0.1	160	0.1	188	0.0	239
	WF2	0.2	225	0.5	241	0.4	252	0.2	198	0.2	184	0.1	184	0.1	183	0.1	185	0.1	207
	Var	50	14	489	10	700	9	18	10	25	11	31	7	33	23	0	16	50	40
Average Variation		26	15	519	24	544	30	271	87	93	70	76	78	99	105	78	68	69	66

shows the impact of the addition of background distortion (i.e., the impact of supply using WF1 and WF2) to the values of magnitudes and phase angles for a selection of harmonic orders for Inverter 1 to Inverter 7, respectively, at 100% output power. The calculations for variations in parameters, as well as the coloured shading in the table, are equivalent to those applied in Section 3.4 (Table 7). The following summarises the analysis of Table 10:

• The addition of distortion to the supply voltage waveform generally has a modest impact on the 3rd harmonic current emission magnitudes and has little impact on the 3rd harmonic current phase angles.
• The addition of distortion to the supply voltage waveform leads to large increases in the current emission magnitudes for both 5th and 7th harmonic orders. The impact on phase angles is reasonably small.
• There is an inconsistent performance across the inverters for the other harmonic orders shown. However, the data demonstrate that the addition of low-order harmonic distortion to the supply voltage waveform can have significant impacts on the current emissions (in terms of both magnitude and phase angle) for higher-order harmonics.
• As a general principle, the addition of low-order voltage harmonic distortion to the supply voltage waveforms leads to larger changes in the current harmonic emission magnitudes than phase angles.

3.6. Impact of Background Distortion Phase Angle

This section examines the current harmonic emissions when variations in the phase angle are added to the background distortion in the supply voltage waveforms. Effectively, this is a comparison of performance between WF1, WF3, and WF4.

Table 11. Harmonic current emissions for WF1, WF3, and WF4 supply voltage waveforms for 100% rated output power.

Inverter	Waveform	Harmonic Order
		3rd		5th		7th		13th		15th		17th		23rd		25th		27th
		Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)	Mag (%)	Ph (°)
1	WF1	1.8	282	7.0	217	5.7	185	0.3	340	0.2	322	0.2	303	0.1	340	0.1	346	0.1	346
	WF3	1.5	341	6.0	31	5.1	2	0.2	199	0.1	206	0.0	188	0.0	356	0.0	347	0.0	9
	WF4	2.2	322	5.9	133	5.1	194	0.3	303	0.2	297	0.2	298	0.1	316	0.1	319	0.1	322
	Var	44	59	19	187	13	193	96	141	205	117	331	115	194	39	219	28	170	337
2	WF1	2.2	277	5.8	213	4.1	200	0.4	127	0.3	51	0.1	129	0.1	59	0.1	37	0.0	59
	WF3	2.1	314	3.3	36	3.1	20	0.7	196	0.3	212	0.4	192	0.2	191	0.1	186	0.1	182
	WF4	2.6	300	5.1	143	4.3	206	0.4	136	0.2	211	0.2	131	0.1	156	0.0	216	0.0	51
	Var	22	37	75	177	40	186	87	69	91	160	191	63	231	132	268	179	492	131
3	WF1	2.5	291	1.9	240	1.2	225	0.2	124	0.2	58	0.1	350	0.2	292	0.1	291	0.1	287
	WF3	2.3	288	0.8	230	0.6	173	0.2	164	0.1	142	0.1	138	0.1	353	0.0	317	0.0	296
	WF4	2.4	287	1.6	216	1.4	225	0.2	157	0.1	136	0.1	144	0.0	193	0.0	90	0.0	288
	Var	6	4	126	24	137	52	4	40	29	84	79	212	390	159	298	227	399	9
4	WF1	0.8	193	1.0	218	0.9	225	0.2	216	0.3	206	0.3	205	0.2	195	0.3	181	0.3	170
	WF3	0.7	195	0.5	123	0.4	114	0.4	214	0.5	204	0.4	202	0.3	178	0.3	168	0.4	158
	WF4	0.7	193	1.1	166	0.9	226	0.2	215	0.4	204	0.3	204	0.2	177	0.3	166	0.3	157
	Var	12	3	125	95	147	112	101	2	71	2	38	2	97	18	21	15	42	13
5	WF1	1.5	304	1.0	259	0.7	244	0.3	176	0.3	172	0.2	170	0.2	143	0.2	146	0.1	142
	WF3	1.1	318	0.3	110	0.4	124	0.3	187	0.3	183	0.3	185	0.2	170	0.1	162	0.1	161
	WF4	1.4	310	0.7	208	0.8	235	0.3	184	0.3	176	0.3	173	0.2	151	0.1	144	0.1	148
	Var	29	14	229	148	72	120	11	11	14	11	9	15	11	27	17	19	15	20
6	WF1	2.6	262	2.2	260	2.1	255	0.5	162	0.4	151	0.3	144	0.2	140	0.1	134	0.1	132
	WF3	2.3	258	1.8	156	1.6	130	0.5	209	0.4	208	0.3	207	0.2	192	0.1	196	0.1	189
	WF4	2.5	259	2.9	209	2.1	245	0.5	167	0.4	164	0.3	161	0.1	123	0.1	119	0.1	149
	Var	10	3	60	103	34	125	3	46	24	57	19	63	69	68	100	78	67	58
7	WF1	0.1	215	0.3	237	0.3	253	0.2	208	0.2	192	0.1	180	0.1	160	0.1	188	0.0	239
	WF3	0.1	197	0.1	64	0.1	63	0.3	207	0.2	195	0.2	183	0.1	183	0.1	173	0.1	178
	WF4	0.1	218	0.2	174	0.2	258	0.3	199	0.2	186	0.2	181	0.1	180	0.1	175	0.1	170
	Var	43	21	148	173	85	194	34	9	41	10	18	4	13	23	58	15	98	69
Average Variation		24	20	112	130	76	140	48	45	68	63	98	68	144	67	140	80	183	91

shows the impact of the addition of phase angle diversity to the background distortion on the values of the magnitude and phase angle for a selection of harmonic orders for Inverter 1 to Inverter 7, respectively, at 100% output power. The calculations for variations in parameters, as well as the coloured shading in the table, are equivalent to those applied in Section 3.4 (Table 7). The following summarises the analysis of Table 11:

• The impact of the phase angle of the background distortion on 3rd harmonic current emissions is generally small.
• The addition of phase angle diversity leads to a significant diversity in the phase angle of the harmonic current emissions for the 5th and 7th harmonics. This suggests that there may be significant phase cancellation depending on the characteristics of the background voltage distortion.
• The impact on higher-order harmonic current emissions is inconsistent across the various inverters:

  ○

  There is very little impact for Inverter 4, 5, and 7.

  ○

  There is a significant variation in the phase angle values for Inverter 1, 2, and 3 depending on the harmonic order.

3.7. Summary

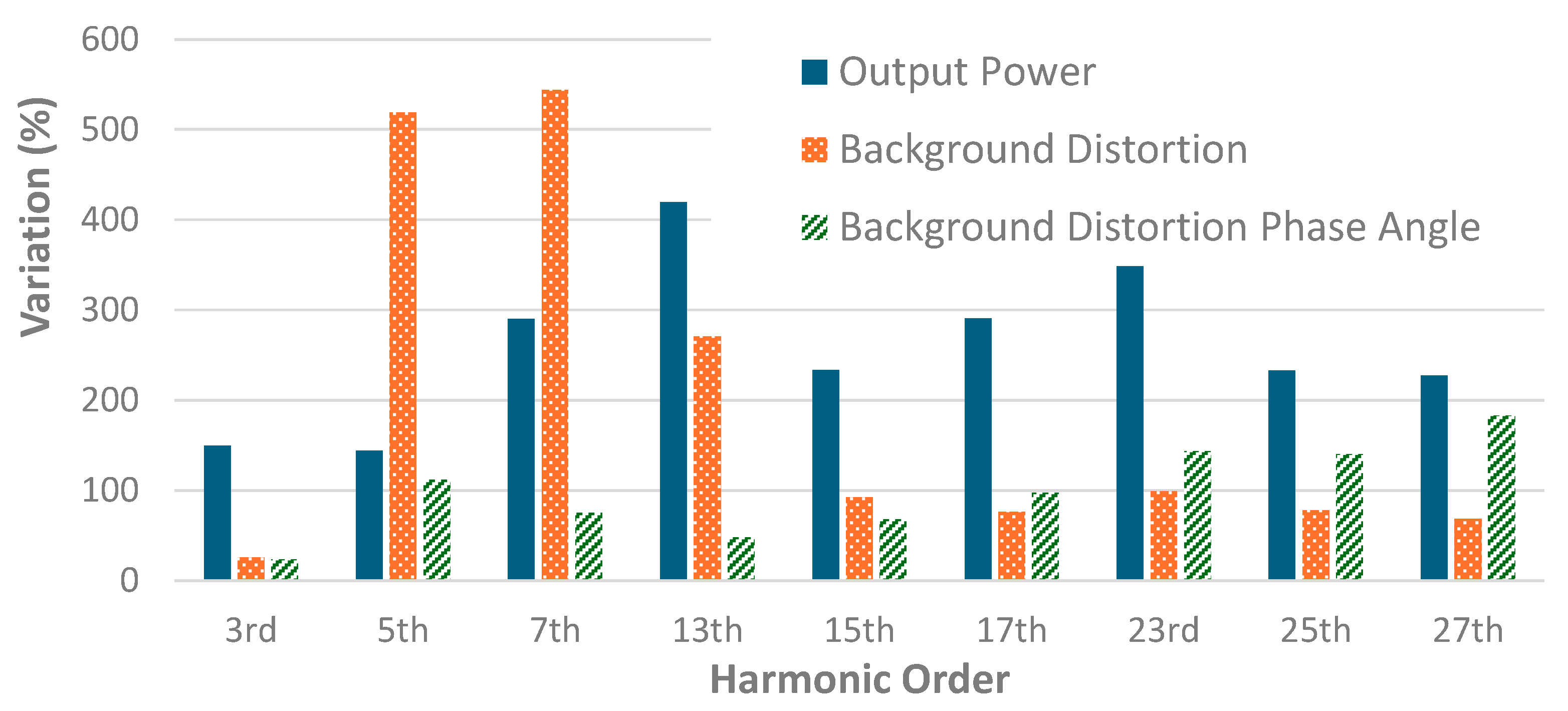

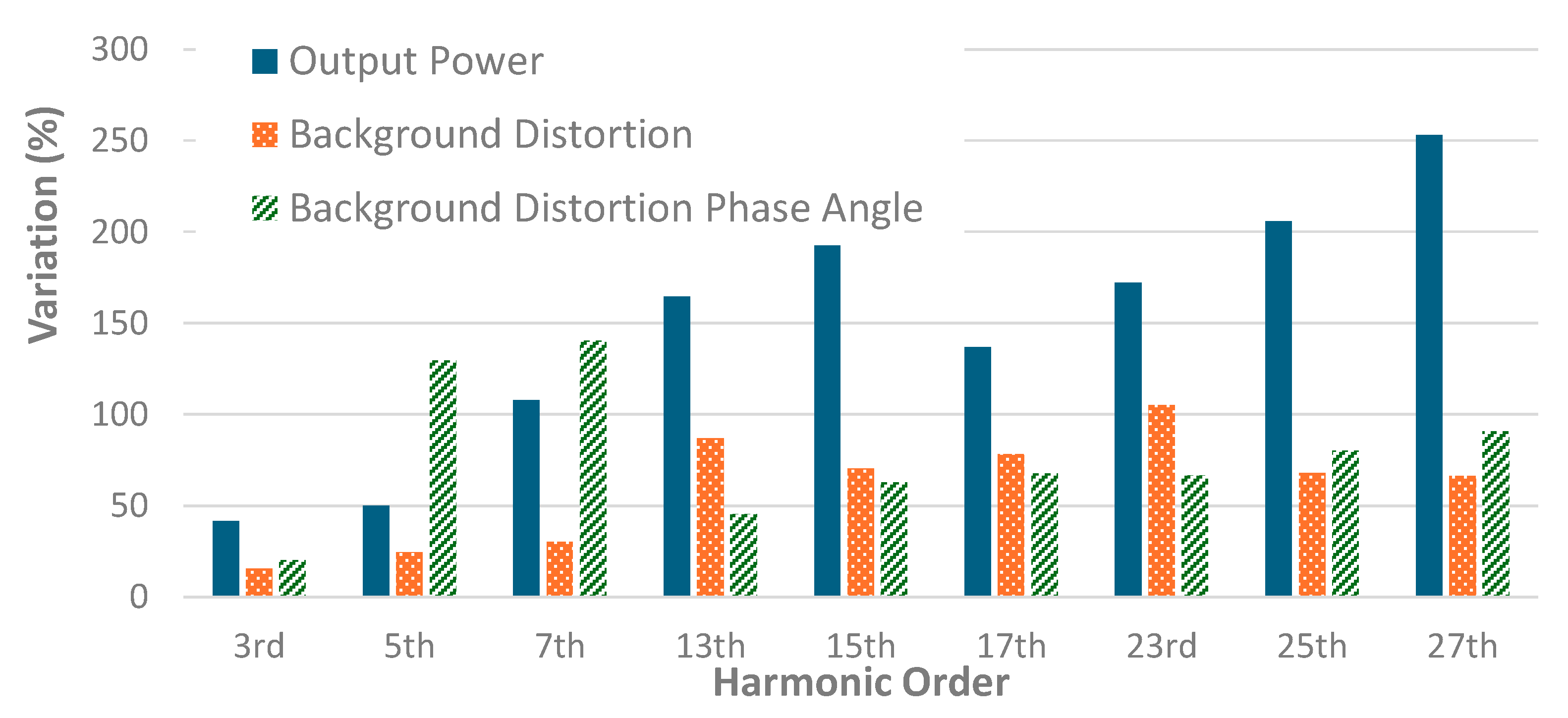

Figure 12 and Figure 13 show the average variations in harmonic current emission magnitudes and phase angles for the three operating scenarios considered in Section 3.4–Section 3.6 for magnitude and phase angle respectively. These graphs allow for an easy visualisation of the operating scenario that has the largest impact on harmonic current emission characteristics. With respect to magnitude, background distortion has the most significant impact on the 5th and 7th harmonics, while output power has a larger impact for the higher-order harmonics. With respect to the phase angle, the phase angle of the background distortion has the largest impact on 5th and 7th harmonics, while the output power is more relevant for higher-order harmonics. The impact of all scenarios on the 3rd harmonic is relatively modest.

4. Power System Modelling

4.1. Modelling Methodology and Parameters

This section utilises the laboratory data obtained in the previous section as an input for low-voltage network modelling, which aims to explain the lack of a significant impact of solar PV inverter current harmonic emissions on LV THD levels, as described in Section 2. A simple current injection calculation has been undertaken in the MATLAB software package (version R2023b Update 3) to simulate the worst-case scenario. The following are the details of the modelling methodology and inputs:

• The results of the laboratory evaluation indicate that the maximum harmonic current is always commensurate with the maximum output power (i.e., 100% rated power). As such, the harmonic current magnitudes for 100% rated power have been used.
• The harmonic emissions for WF2 have been used, as this waveform results in the highest harmonic current emission magnitude.
• Only emissions for the 3rd, 5th, and 7th harmonics have been considered. The laboratory results indicate that emissions for other harmonics are low and have a high degree of phase angle diversity, indicating that there will likely be a significant phase cancellation of emissions.
• The maximum harmonic emission magnitude across all seven inverters has been used as the injected current magnitude.

  Table 12. Harmonic current inputs for low-voltage feeder model.

  Harmonic Order	Magnitude (% PV Rating)	Phase Angle (Degrees)
  3rd	3.76	−119
  5th	13.77	−123
  7th	9.34	−130

  shows the details of the injected emission magnitudes. The average of the measured phase angles for the 3rd, 5th, and 7th harmonic orders has been used as the indicative phase angle for use in the model. This is justified, as there is no significant phase angle variation for these harmonic orders, as indicated in Section 3 (Figure 9). The use of a single-phase angle for all inverters means that phase angles will add arithmetically, which represents the worst-case scenario.
• The harmonic emissions are all injected at the end of the modelled feeder. As such, all emissions flow through the total impedance of the feeder. This results in the highest harmonic voltage.
• All harmonic spectra are represented as fixed current sources in the model.
• The network is assumed to be balanced in terms of both loading and impedance.

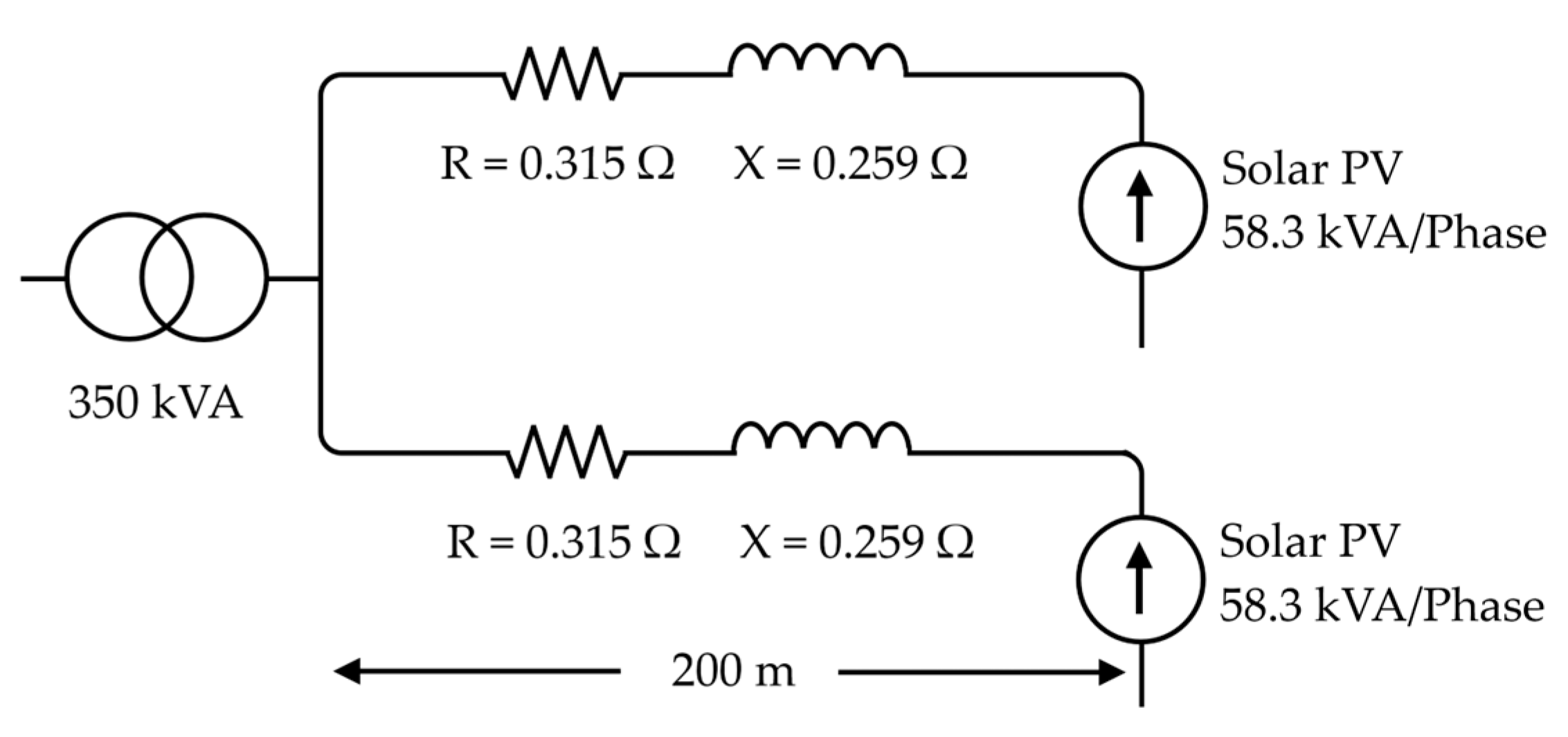

The network model consists of a 350 kVA transformer suppling two identical voltage feeders of 200 m in length (i.e., 175 kVA per feeder). The distribution network is modelled using actual network parameters obtained from Endeavour Energy, an Australian Network Service Provider. The network model was designed through typical voltage distribution feeder construction. The conductor type used for the network model is Olex Mercury, which is a 111 mm² All Aluminium Conductor (AAC) type. This conductor has the following impedance properties:

• Resistance: 0.315 Ω/km (at 50 Hz, 75 °C),
• Inductive Reactance: 0.259 Ω /km (to 0.3 m at 50 Hz).

The penetration of solar PV generation is assumed to be equal to the rating of the feeder, i.e., 175 kVA ÷ 3 = 58.3 kVA per phase. Figure 14 shows a single-phase equivalent representation of the modelled network.

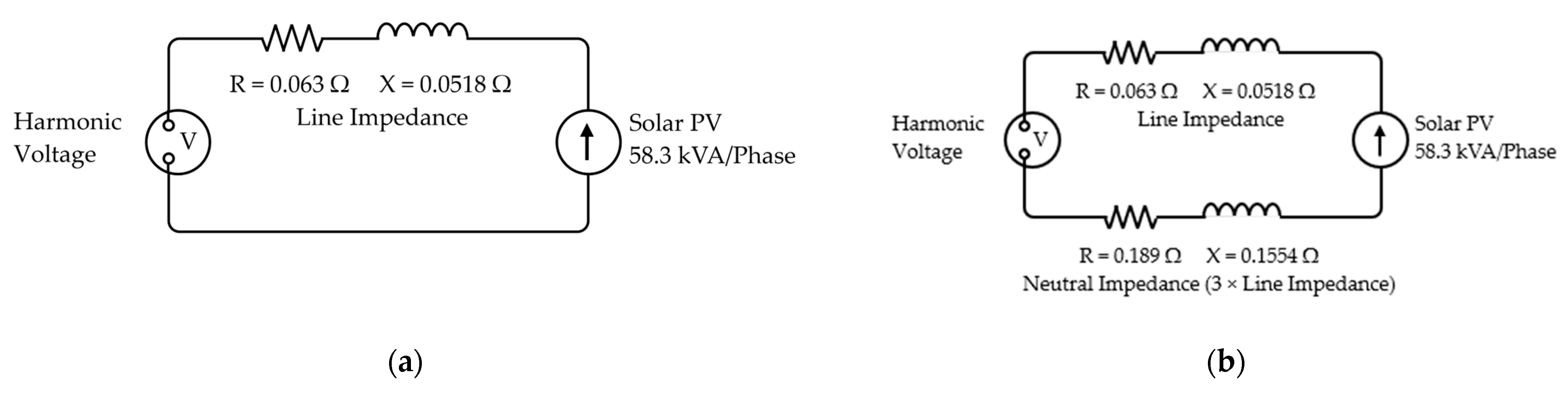

Differences in the sequence characteristics of triplen and non-triplen harmonics necessitated the implementation of different models for triplen and non-triplen harmonic orders. For non-triplen harmonics, the network can be modelled as a simple single-phase equivalent. For such models, only the impedance of the active conductor needs to be modelled, as in a balanced system no harmonic current will flow in the neutral conductor. For triplen harmonics, the neutral impedance must also be modelled, as currents from these harmonic orders will add in the neutral as zero sequence harmonics (assuming a balanced level of harmonics are on each phase). To convert this three-phase interaction into a single-phase equivalent, the impedance of the neutral conductor must be multiplied by 3 and added to the active conductor impedance. As such, the effective impedance used in the single-phase equivalent circuit is four times the active conductor impedance (given the assumption that the neutral conductor is constructed of the same material as the active conductors). Figure 15 shows the equivalent circuits used in modelling.

4.2. Model Outputs

Table 13. Harmonic current outputs for low-voltage feeder model at 100% penetration.

Harmonic Order	Magnitude (% of Nominal Voltage)
3rd	0.28
5th	0.41
7th	0.38
THD	0.62

shows the output of the model for each harmonic order, as well as the calculated THD value.

The model presented in this section represents an extreme worst-case scenario, utilising the highest harmonic emission magnitudes injected into the maximum system impedance and ignoring any phase diversity. Even under these circumstances, the output of the model indicates that, at a 100% penetration of solar PV generation, the solar PV generation current harmonic emissions only result in a contribution of 0.62% to the voltage THD per LV feeder.

The overall penetration of solar PV generation in Australia is approximately 40%. Scaling the model outputs to this value produces the results shown in

Table 14. Harmonic current outputs for low-voltage feeder model scaled for 40% penetration.

Harmonic Order	Magnitude (% of Nominal Voltage)
3rd	0.11
5th	0.16
7th	0.15
THD	0.25

.

Overall, the very low contributions to harmonic distortion magnitudes obtained by using laboratory-based inverter emissions as inputs to power system modelling provide an explanation for the empirical results detailed in Section 2 and indicate that it is unlikely that harmonic current emissions from residential solar PV inverters will result in significant impacts on harmonic voltage magnitudes.

5. Conclusions

The paper investigates the impact of residential-scale solar PV generators on harmonic distortion magnitudes in low-voltage electricity supply networks. A three-stage approach was adopted.

In the first instance, measured voltage THD data from Australian LV networks have been used to provide an empirical evaluation of how voltage THD magnitudes have changed over time as solar PV penetration has increased. This empirical evaluation indicated that there is little evidence that solar PV generation is having a significant impact.

The second and third stages involved a laboratory evaluation of the harmonic current emissions from a range of solar PV inverters for differing output power values, background distortion magnitudes, and background distortion phase angles. The outcomes of this laboratory evaluation were used as inputs to a worst-case power system model to assess the impact of solar PV current emissions on harmonic voltage distortion magnitudes. The output of the modelling indicates that, even under worst-case operating conditions, solar PV inverter current emissions are too small to have a significant impact on harmonic voltage distortion magnitudes. The combination of laboratory evaluation and power system modelling provides an explanation for the findings of the empirical study. As an overall outcome, this paper provides data-driven evidence to suggest that solar PV inverters are unlikely to have a significant impact on harmonic voltage distortion.

The most significant limitation of this paper is that it deals with equipment and networks in the Australian context. Australian networks at a low voltage have a 4-wire, 230 V nominal configuration. This network configuration will obviously not be relevant in all parts of the world. An additional limitation is that, while the performance of a significant number of inverters has been evaluated, there are many more models in the marketplace. The evaluation of the performance of additional inverters is an avenue for future work. Other future work includes continuing to monitor data collected from the field to observe the trends in harmonic distortion magnitudes as small-scale solar PV penetration continues to increase (as it is forecast to do).
