Approach for the Calculation of Transmission Ratios and Their Errors in 4-Bar Mechanisms, Considering the Precision Variations by Dimensional Tolerances

Abstract

This paper presents research and theoretical development of a mathematical model that, first, allows us to understand how the positional exactitude of the output link of a four-bar mechanism depends on the manufacturing dimensional tolerances. To find this dependence, the total differentials of the kinematic constraint functions that govern the field of positions must be determined for each kinematic cycle of the mechanism under consideration. These total differentials lead to a system of equations whose solution gives the positional errors of the movable output links as a function of the manufacturing dimensional errors and an incidence matrix that varies with each one of the positions of the input element. On the other hand, the theoretical transmission ratio between the output velocities with respect to the input velocity of the articulated kinematic chain is defined, and for determining the total errors in each ratio, the total differential of each one of them is calculated, showing a clear dependence with respect to the positional errors of the output links (previously defined) of the mechanism. The sum of the theoretical transmission ratio and its respective error provides the real transmission ratio. Furthermore, the described methodology allows for determining the sensitivity (influence coefficients) in the transmission ratios due to errors inherent in the link lengths. Finally, the presented analytical approach is numerically implemented through an example of articulated parallelogram design, principally characterizing in graphic form the transmission ratios in their regions of permitted movements and blocking positions, for a specific IT degree of precision of the bilateral dimensional tolerances of their functional geometric parameters, with the objective of analyzing every aspect related to the performance of the mechanisms. This formalism is validated through three particular design cases using a CAD model in a simulation module of kinematic motion analysis; additionally, the evolution of the transmission angle is discussed. The methods and conclusions proposed in this document also leave open the way as future work to study separately the magnitudes and signs of the positional errors and the transmission ratio, or even the influence coefficients themselves, in order to assign the most convenient degree of IT precision for each link in the mechanism with the purpose of reducing errors in the designs and obtain better efficiency in the transmission ratio.

1. Introduction

The purpose of any mechanism composed of interconnected elements is to convert the energy supplied to the input link into force or movement toward the output link. Fundamentally, articulated mechanisms are used today in many practical industrial applications (machines) around the world, some of which require a high degree of positional exactitude of their output links around one or various prescribed operating positions that allow one to define the best possible efficiency in its transmission ratios.

During the past four decades, the world advanced manufacturing industry has been increasing its focus of attention on fabrication quality. It is common to observe that the drawings supplied by manufacturers do not provide, among other important technical specifications, manufacturing dimensional tolerances or clearances at kinematic linkage points, or the functional dimensions of the links, but rather a part number [1]. This leaves unknown the role that manufacturing dimensional quality plays in the operation of an articulated mechanism, specifically the precision and movement requirements in the transmission ratios.

The analysis and synthesis of precision articulated mechanisms primarily require the challenge of achieving positional accuracy of the output element, making it vital to define the degree of precision of the dimensional tolerances of its components. Under common mechanical operating conditions, the manufacturing tolerances of the dimensional parameters of the kinematics chain are commonly assigned using the bilateral tolerances (IT grades) specified in the ISO 286-2:2010 norm [2,3].

The four-bar linkages, or “articulated quadrilaterals”, have a wide application in contemporary technology and great versatility and diffusion in the industry, also because this mechanism constitutes the most basic chain of links connected by rotating pairs that allow relative movement between the parts. Although these applications can be quite diverse, the four-bar linkages can be classified, depending on the tasks that they perform, as function generators, path generators, and motion generators [4,5].

Historically, the knowledge necessary to elucidate the true importance of these aspects in the performance of the mechanism can be seen from the research of Sutherland et al. [6], in which they address the problem of designing a four-bar mechanism considering the errors introduced by the functional structure of the mechanism itself and by the dimensional tolerances in the path followed by a point of the coupler and in the positioning of the connecting rod. As a result of this work, a unique value of maximum dimensional tolerance is proposed that all the geometric parameters involved must have to guarantee the required accuracy. In 1995, Fogarasy et al. [7] developed a method in which, starting from the kinematic restriction equations and their total differentials, they calculate the velocities and accelerations for different cases of articulated plane mechanisms. However, to achieve this, they despise the errors that may be introduced by the generalized input coordinate. An extension work reported in [8] indicates the use of kinematic constraint equations to analyze the influence of the manufacturing tolerances in the kinematic performance of the mechanisms. The theme of the reliability of the real trajectory followed by a point of the coupler of an articulated mechanism when it must be generated with a specific precision, has generally been studied taking into account the influence of dimensional manufacturing errors and clearances existing in any deviation from the trajectory. For example, in [9] by assigning different IT degrees from an ideal distribution and by means of the Jacobian matrix method, the sensitivity of the dimensional tolerances with respect to the quality of the performance in a four-bar linkage is determined, which allows for identification of the most robust and ideal design. Other similar studies are implemented numerically for a slider-crank mechanism [10] and the kinematic synthesis of four-bar mechanisms for the generation of multiphase motion with tolerances [11]. As well, an analysis and synthesis procedure has been reported by Monte Carlo simulation that uses the measurement of the deviation of the real trajectory of the coupling point with respect to the desired one (reliability index); this method based on the reliability of the mechanical error in the trajectory generation mechanisms allows for assignment of optimal tolerances and clearances [12]. In the last decade, the use of specialized software in computational mechanics for modeling and simulation has allowed for optimization of four-bar planar mechanisms from a dynamic and structural approach (considering external loads, displacement and vibration); this computational methodology can provide improved design data of stress, deformation, and vibration frequency [13,14]. Furthermore, these software packages have contributed to developing optimized linkages by estimating the positional mechanical error of the output links as a function of the influence due to the sensitivities caused by the dimensions and tolerances of its components (pins, diameters of holes and lengths of links). In this regard, we can mention the error estimation through the numerical study of the modified partial derivative formulation [15], the deduction of the direct and inverse kinematics of the mechanism with respect to a set of variations in the tolerances and input coordinates to obtain the maximum error [16], and the use of a Taylor series approximation with modified error equation [17,18]; all the previous reports were verified through a CAD model. Many researchers have addressed the optimization of dimensions and tolerances in mechanisms with the objective of satisfying the quality and minimizing the manufacturing costs of the manipulators, through various techniques such as Lagrange multipliers using an expanded formulation of the reciprocal power function cost-tolerance or genetic algorithm (see [19,20] and references therein).

Within the practical requirements of power transmission systems, it is important to maintain a constant ratio between the motions of the input link and its corresponding output element. To date, the analysis of specific cases of generating a quasi-constant transmission ratio [21,22,23,24] or the study of the quality of transmission angle ranges during the mechanism synthesis [25,26] are topics that have been extensively investigated.

In the classical literature, the kinematic approach is oriented toward classical models that assume rigid bars and perfect connections, whose theoretical analysis does not consider dimensional errors or tolerances. Consequently, the transmission ratio is derived from the nominal measurements of the links without taking these deviations into account. The complexity of the error analysis requires modeling angular misalignments and dimensional tolerances, which can lead to nonlinear error propagation. As described, this implies a complex mathematical analysis whose solution depends on statistical/numerical methods. Regarding scientific reports in the area, few are addressed regarding the influence or sensitivity in the transmission ratios of the output components due to dimensional errors or tolerances in the links lengths.

An interesting study is reported in Ref. [27], where a robust design of mechanisms based on an analytical approach is proposed and flat four-bar and slider-crank articulated systems are analyzed to transmit the rotation between two parallel axes with a constant transmission ratio of 1:1. Here, the authors graphically illustrate the importance of reducing the transmission ratio sensitivity, a product of the variations in the links length caused by the assignment of manufacturing tolerances or operating deformations, which highly affects the ideal theoretical value of the transmission ratio. And it is in this field of study where the main objectives of the work presented in this paper focus on establishing an analytical approach for four-bar mechanisms that allows for independent calculation of the positional errors, the influence coefficients (sensitivities), the transmission ratios and their errors, as well as the ranges and regions of permitted and blocking motion, due to the assignment of dimensional tolerances by IT precision grades. This proposed formalism proves to be useful for analyzing the best efficiency in the transmission ratios and is another possible future option for defining admissible geometric variations. Specifically, unlike the previous investigations, our approach can be divided into stages that allow an independent analysis of how the output transmission ratio evolves due to little dimensional or angular variations in the mechanism. A simplified graphical representation of the developed methodology is illustrated in Figure 1.

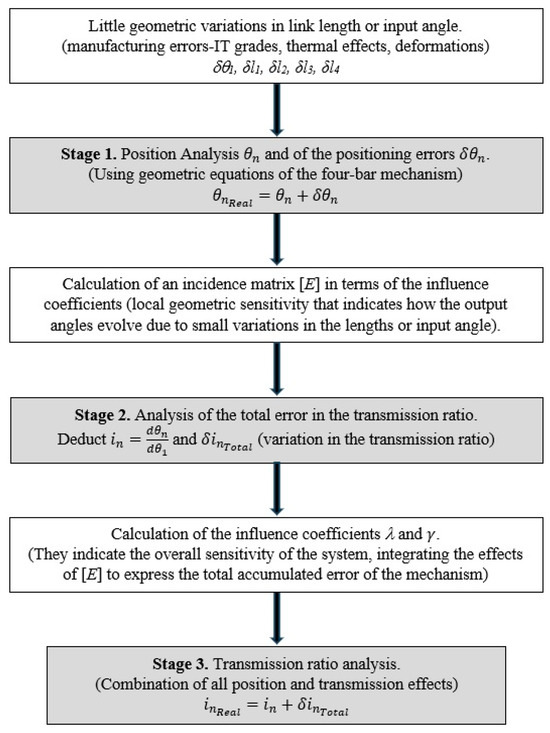

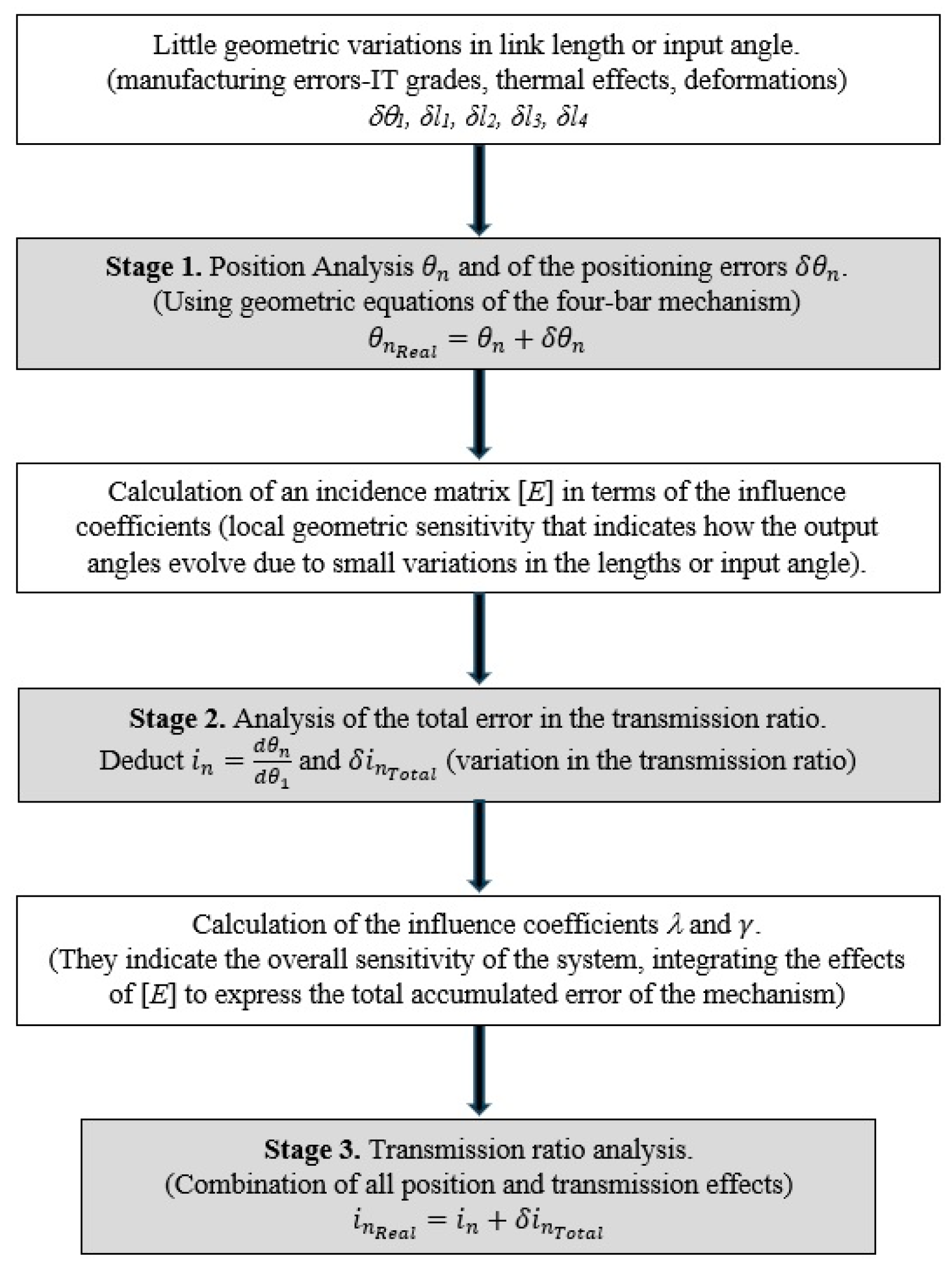

The investigation presented in this document is organized as follows: Section 2 provides a complete overview of the theoretical foundations and mathematical procedures necessary for the deduction of explicit formulas to calculate the position errors/sensitivities and consequently the real positions of the output links. In that same sense, based on the derivations of the previous section, Section 3 delves into the analytical formalism for obtaining the errors/sensitivities in the transmission ratios and subsequently the real transmission ratios. Section 4 discusses the numerical implementation of the methodology, including graphical representations for a comparative analysis of the solutions for the ideal transmission ratios versus those dependent of the sensitivity due to bilateral tolerances/errors specified in ISO 286-2 norm (IT degrees) and the intervals of regions of permitted and blocking movement are characterized. In Section 5, a validation is performed for three representative cases of mechanisms via a CAD model and a simulation module of kinematic motion analysis; the evolution of the transmission angle is also discussed. Finally, the conclusions of the work are presented.

2. Mathematical Model to Evaluate the Influence of Dimensional Tolerances and Errors on Positioning Exactitude

In this section, we will develop a model that allows knowing the influences of the dimensional manufacturing tolerances of the geometric parameters and the angular deviation of the input link on the positioning error of the output links of a four-bar linkage mechanism. For this, the kinematic restriction equations of the mechanism will be found and its total differentials will be calculated. The results of the mathematical model that takes into account the influence of the dimensional tolerances of the geometric parameters allow us to know which of the functional dimensions of the mechanism links is the one that has the greatest or least influence on said positioning errors, thus being able to know which one link assign a greater or lesser degree of dimensional precision in order to guarantee a rigorous positioning of the output element in the case that the designer so requires.

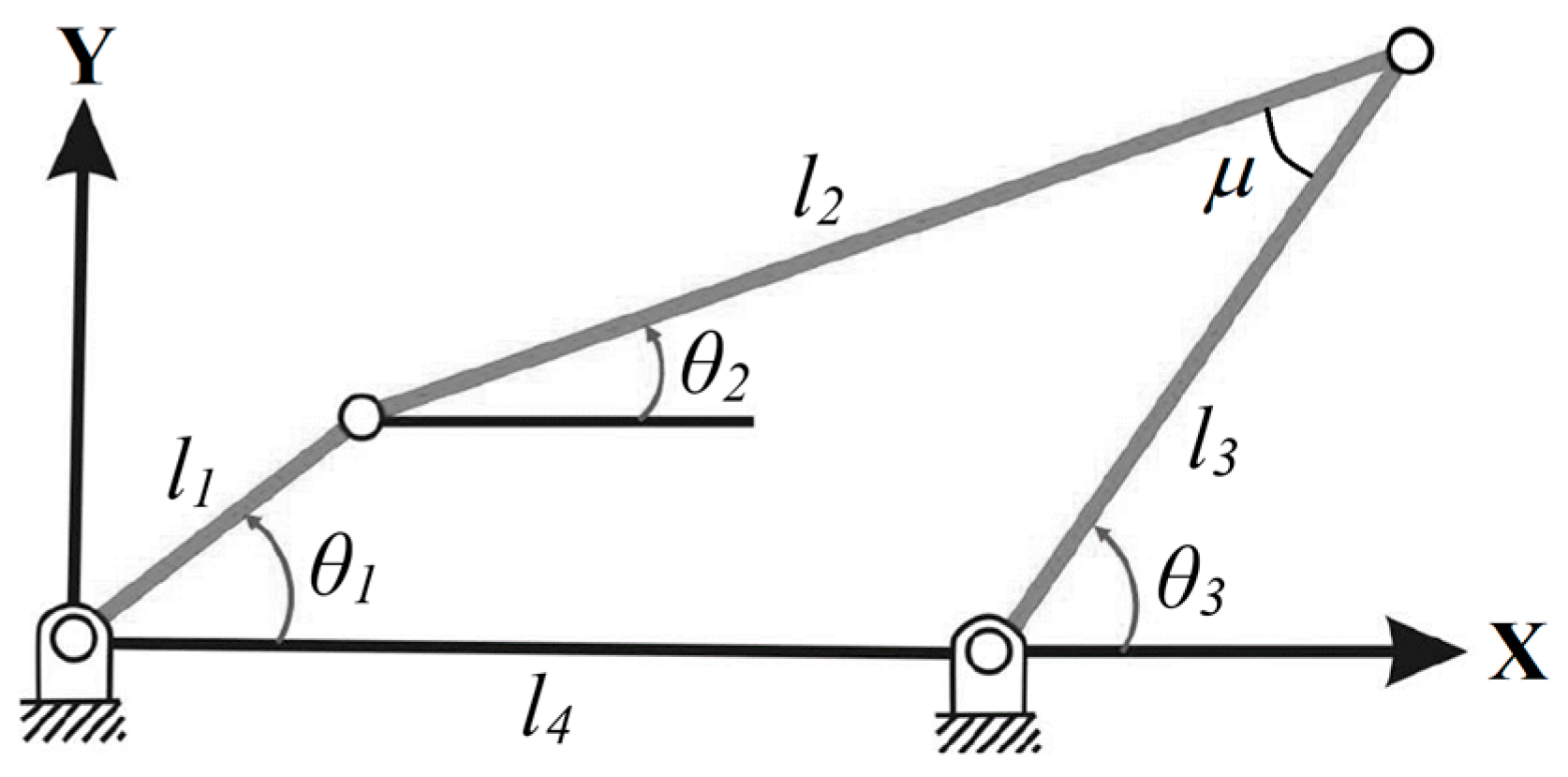

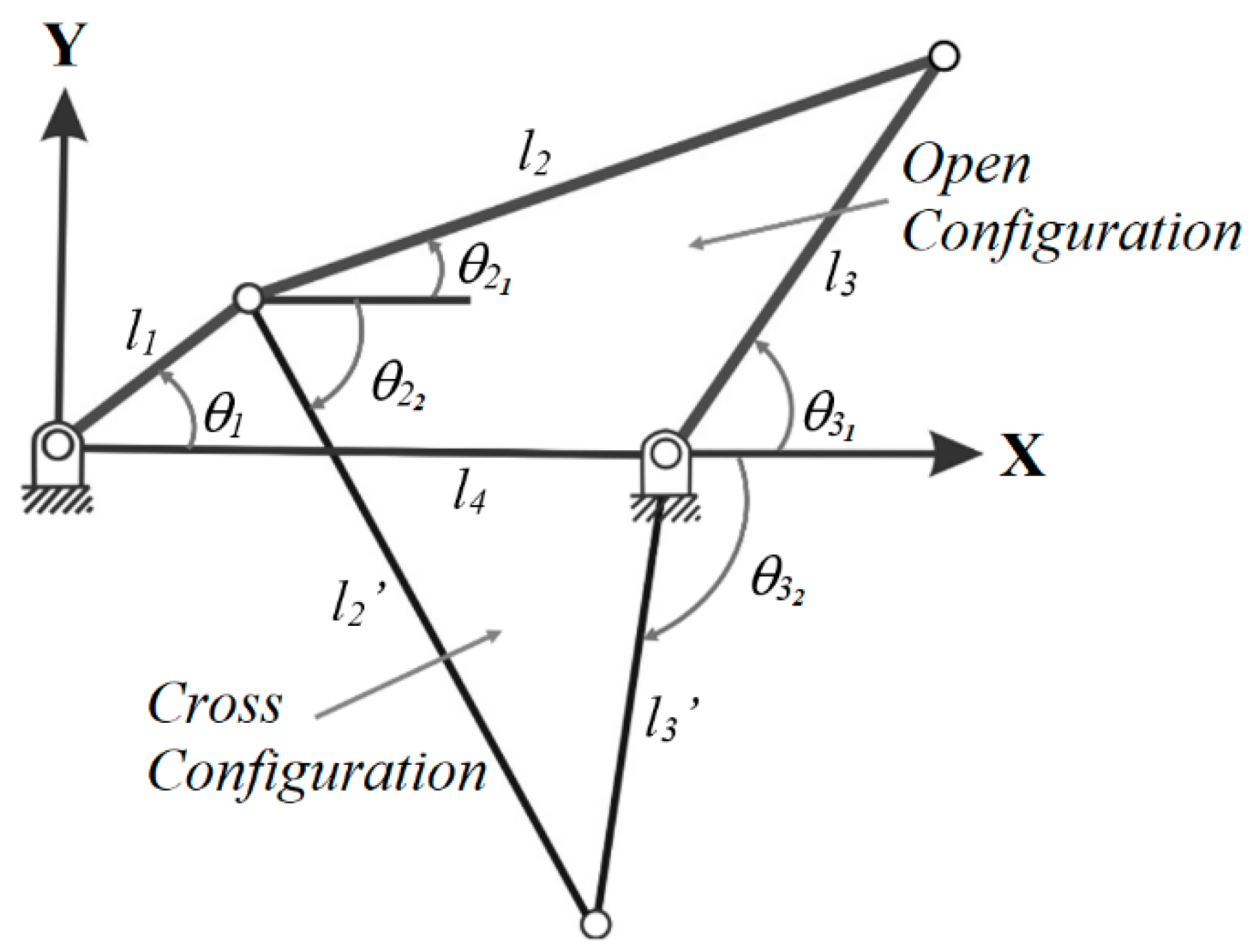

The four-bar linkage mechanism can be considered like a mechanism with plane movement; the lengths of the links are l₁, l₂, l₃, l₄ and their respective angles are represented in the Figure 2. It can be seen that both link l₁ and link l₃ are attached to the fixed frame by one of its ends. This mechanism is of one degree of freedom (demonstrated by the well-known Kutzbach–Gruebler equation) [28]. Therefore, knowing the lengths of the links a single input parameter is required to completely define their positions, this being the angle of the link l₁, denoted as θ₁.

The kinematic restriction equations obtained from the projection of the mechanism on the x and y axes are given by the Equations (1) and (2), respectively:

$$l_1\cos {\theta }_1+l_2\cos {\theta }_2-l_3\cos {\theta }_3-l_4=0,$$

(1)

$$l_1\sin {\theta }_1+l_2\sin {\theta }_2-l_3\sin {\theta }_3=0.$$

(2)

The trigonometric scalar Equations (1) and (2) can be solved simultaneously to find the output angles θ₂ and θ₃, defined as follows [28]:

$${\theta }_2=2{\tan }^{-1}\left({\displaystyle \frac{-E\pm \sqrt{E^2-4DF}}{2D}}\right),$$

(3)

$${\theta }_3=2{\tan }^{-1}\left({\displaystyle \frac{-B\pm \sqrt{B^2-4AC}}{2A}}\right),$$

(4)

where

$$A=\cos {\theta }_1-k_1-k_2\cos {\theta }_1+k_3,$$

$$B=E=-2\sin {\theta }_1,$$

$$C=k_1-(k_2+1)\cos {\theta }_1+k_3,$$

$$D=\cos {\theta }_1-k_1+k_4\cos {\theta }_1+k_5,$$

$$F=k_1+(k_4-1)\cos {\theta }_1+k_5,$$

$$k_1={\displaystyle \frac{l_4}{l_1}},$$

$$k_2={\displaystyle \frac{l_4}{l_3}},$$

$$k_3={\displaystyle \frac{l_1^2-l_2^2+l_3^2+l_4^2}{2l_1{l}_3}},$$

$$k_4={\displaystyle \frac{l_4}{l_2}},$$

$$k_5={\displaystyle \frac{l_3^2-l_1^2-l_2^2-l_4^2}{2l_1{l}_2}}.$$

Equations (3) and (4) have two solutions, corresponding to the open and crossed configurations shown in the Figure 3.

Total Differentials of the Kinematic Constraint Equations and Positional Errors of the Output Links

Next, we will determine the total differential of the kinematic constraint functions that govern the field of positions. Such total differentials lead to a system of equations whose solution gives the positional errors of the mobile output links as a function of the manufacturing dimensional tolerances and of an incidence matrix that varies with each one of the positions of the input element.

Then, the total differential of the Equations (1) and (2) with respect to the input and output coordinates (θ₁, θ₂ and θ₃) and the geometric parameters (l₁, l₂, l₃ and l₄), is written as follows:

$$\cos {\theta }_1\delta l_1-l_1\sin {\theta }_1\delta {\theta }_1+\cos {\theta }_2\delta l_2-l_2\sin {\theta }_2\delta {\theta }_2-\cos {\theta }_3\delta l_3+l_3\sin {\theta }_3\delta {\theta }_3-\delta l_4=0,$$

(5)

$$\sin {\theta }_1\delta l_1+l_1\cos {\theta }_1\delta {\theta }_1+\sin {\theta }_2\delta l_2+l_2\cos {\theta }_2\delta {\theta }_2-\sin {\theta }_3\delta l_3-l_3\cos {\theta }_3\delta {\theta }_3=0.$$

(6)

We are interested in obtaining the output positional errors; these errors are a function of the positioning error δθ₁ of the input coordinate and the dimensional tolerances δl₁, δl₂, δl₃, and δl₄. Hence, we can express the total differentials indicated in the Equations (5) and (6) in matrix form, through

$$\left[\begin{array}{ccc}\cos {\theta }_1& \cos {\theta }_2& -\cos {\theta }_3\\ \sin {\theta }_1& \sin {\theta }_2& -\sin {\theta }_3\end{array} \begin{array}{cc}-1& -l_1\sin {\theta }_1\\ 0& l_1\cos {\theta }_1\end{array}\right]\left[\begin{array}{c}\delta l_1\\ \begin{array}{c}\delta l_2\\ \begin{array}{c}\delta l_3\\ \delta l_4\end{array}\end{array}\\ \delta {\theta }_1\end{array}\right]+\left[\begin{array}{cc}-l_2\sin {\theta }_2& l_3\sin {\theta }_3\\ l_2\cos {\theta }_2& -l_3\cos {\theta }_3\end{array}\right]\left[\begin{array}{c}\delta {\theta }_2\\ \delta {\theta }_3\end{array}\right]=\left[\begin{array}{c}0\\ 0\end{array}\right].$$

(7)

Thus, the output positional error vectors δθ₂ and δθ₃ are given by

$$\left[\begin{array}{c}\delta {\theta }_2\\ \delta {\theta }_3\end{array}\right]={-\left[B\right]}^{-1}\left[A\right]\left[\begin{array}{c}\delta l_1\\ \begin{array}{c}\delta l_2\\ \begin{array}{c}\delta l_3\\ \delta l_4\end{array}\end{array}\\ \delta {\theta }_1\end{array}\right],$$

(8)

where

$$\left[A\right]=\left[\begin{array}{ccc}\cos {\theta }_1& \cos {\theta }_2& -\cos {\theta }_3\\ \sin {\theta }_1& \sin {\theta }_2& -\sin {\theta }_3\end{array} \begin{array}{cc}-1& -l_1\sin {\theta }_1\\ 0& l_1\cos {\theta }_1\end{array}\right],$$

$${\left[B\right]}^{-1}={\displaystyle \frac{1}{l_2{l}_3\sin ({\theta }_2-{\theta }_3)}}\left[\begin{array}{cc}-l_3\cos {\theta }_3& -l_3\sin {\theta }_3\\ -l_2\cos {\theta }_2& -l_2\sin {\theta }_2\end{array}\right].$$

The product $-{\left[B\right]}^{-1}\left[A\right]$ of both matrices forms the matrix $\left[E\right]$, which contains the influence coefficients (${\epsilon }_{ij}$), reducing the Equation (8) is as follows:

$$\left[\begin{array}{c}\delta {\theta }_2\\ \delta {\theta }_3\end{array}\right]=\left[E\right]\left[\begin{array}{c}\delta l_1\\ \begin{array}{c}\delta l_2\\ \begin{array}{c}\delta l_3\\ \delta l_4\end{array}\end{array}\\ \delta {\theta }_1\end{array}\right],$$

(9)

where

$$\left[E\right]=\left[\begin{array}{ccc}{\epsilon }_{21}& {\epsilon }_{22}& {\epsilon }_{23}\\ {\epsilon }_{31}& {\epsilon }_{32}& {\epsilon }_{33}\end{array} \begin{array}{cc}{\epsilon }_{24}& {\epsilon }_{25}\\ {\epsilon }_{34}& {\epsilon }_{35}\end{array}\right].$$

(10)

Each of the terms ${\epsilon }_{ij}$ of the matrix $\left[E\right]$ will be equal to the following:

$${\epsilon }_{21}={\displaystyle \frac{\cos ({\theta }_3-{\theta }_1)}{l_2\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{22}={\displaystyle \frac{\cos ({\theta }_3-{\theta }_2)}{l_2\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{23}={\displaystyle \frac{-1}{l_2\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{24}={\displaystyle \frac{-\cos {\theta }_3}{l_2\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{25}={\displaystyle \frac{{-l}_1\sin ({\theta }_1-{\theta }_3)}{l_2\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{31}={\displaystyle \frac{\cos ({\theta }_2-{\theta }_1)}{l_3\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{32}={\displaystyle \frac{1}{l_3\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{33}={\displaystyle \frac{-\cos ({\theta }_2-{\theta }_3)}{l_3\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{34}={\displaystyle \frac{-\cos {\theta }_2}{l_3\sin ({\theta }_2-{\theta }_3)}},$$

$${\epsilon }_{35}={\displaystyle \frac{{-l}_1\sin ({\theta }_1-{\theta }_2)}{l_3\sin ({\theta }_2-{\theta }_3)}}.$$

In general, $\left[E\right]$ is the incidence matrix derived from the joint action of the errors in the input coordinate δθ₁ and the manufacturing dimensional tolerances δl₁, δl₂, δl₃, and δl₄ of the geometric parameters of the mechanism. Notice that Equation (9) can be obtained as long as the determinant ${\left[B\right]}^{-1}$ of the Equation (8) is different from zero. The null determinant of ${\left[B\right]}^{-1}$ is obtained when $\sin \left({\theta }_2-{\theta }_3\right)=0$, so we have the restriction $({\theta }_2\ne {\theta }_3+n\pi )$; with n ∈ Z. This only physically occurs in a special four-bar mechanism called “Articulated Parallelogram”, when the entry angle of the primary element is 0 or π, in which case all the links of the mechanism are aligned with each other [28].

Therefore, the complete calculation of the positioning errors for each one of the links two and three of a four-bar linkage mechanism is defined by rewriting Equation (8) as

$$\delta {\theta }_2={\epsilon }_{21}{\delta l}_1+{\epsilon }_{22}{\delta l}_2+{\epsilon }_{23}{\delta l}_3+{\epsilon }_{24}{\delta l}_4+{\epsilon }_{25}{\delta \theta }_1,$$

(11)

$$\delta {\theta }_3={\epsilon }_{31}{\delta l}_1+{\epsilon }_{32}{\delta l}_2+{\epsilon }_{33}{\delta l}_3+{\epsilon }_{34}{\delta l}_4+{\epsilon }_{35}{\delta \theta }_1.$$

(12)

It is important to indicate that the magnitudes of δl₁, δl₂, δl₃, and δl₄ depend on the values assigned by the international standards for Dimensional and Geometrical Product Specifications (GPS) and Verification, in particular the ISO 286-2:2010 standard (GPS—ISO code system for tolerances on linear sizes. Part 2: Tables of standard tolerance classes and limit deviations for holes and shafts) [3]. The use of this standard allows us to assign a tolerance range based on a nominal measurement (in mm), which corresponds to the functional geometric parameter $l_j$ of the mechanism. Twenty degrees (or indexes) of tolerance have been provided, designated by the abbreviations IT0, IT01, and IT1–IT18, from the most precise to the coarsest, whose numerical values are calculated for a group of nominal measurements and constitute the fundamental tolerances of the system. On the other hand, the positioning error δθ₁ corresponding to the input angular coordinate only applies to elements that do not make complete turns, that is, for specific work positions. Its values are assigned according to the ISO 2768-1:1989 standard (General tolerances—Part 1: Tolerances for linear and angular dimensions without individual tolerance indications) [29].

Moreover, the coefficients ε₂₁ to ε₂₄ and ε₃₁ to ε₃₄ possess units of ${\displaystyle \frac{1}{\mathrm{u}\mathrm{n}\mathrm{i}\mathrm{t} \mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h}}}$ and have a variable sign, which establishes the possibility that the designer controls the final sign of the product ε_ijδl_j, by assigning a fundamental position for the dimensional tolerance δl_j (the ISO system defines 28 different positions with respect to the zero line as tolerance zones; see Upper and Lower limit deviations for shafts in [3]), in order to reduce the final output error around a specific operating position of the mechanism. The coefficients ε₂₅ and ε₃₅ are dimensionless.

Finally, the real position can be approximated by

$${\theta }_{2_{Real}}={\theta }_2+{\delta \theta }_2,$$

(13)

$${\theta }_{3_{Real}}={\theta }_3+{\delta \theta }_3.$$

(14)

3. Transmission Ratio

The transmission ratio is defined as the output angular velocity divided by the input angular velocity of the mechanism. Below, we shall obtain the equations for the transmission ratio in a four-bar linkage mechanism, specifically we will find the transmission ratio between the input angle θ₁ associated with the output angles θ₂ and θ₃.

The first step consists in isolating one of the two output angles in the left side of the Equations (1) and (2); subsequently, both sides of the equations are squared and added, and finally, it is simplified by substitution of trigonometric identities. When carrying out this procedure for θ₂ and θ₃, the following Freudenstein expressions are obtained [30,31]:

$$l_1^2-l_2^2+l_3^2+l_4^2-2l_1{l}_3\left(\cos \left({\theta }_1-{\theta }_3\right)\right)-2l_1{l}_4\cos {\theta }_1+2l_3{l}_4\cos {\theta }_3=0,$$

(15)

$$l_1^2+l_2^2-l_3^2+l_4^2+2l_1{l}_2\left(\cos \left({\theta }_1-{\theta }_2\right)\right)-2l_1{l}_4\cos {\theta }_1-2l_2{l}_4\cos {\theta }_2=0.$$

(16)

Further on, we implicitly derive the Equations (15) and (16) with respect to θ₁, namely,

$$2l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)\left(1-{\displaystyle \frac{d{\theta }_3}{d{\theta }_1}}\right)+2l_1{l}_4\sin {\theta }_1-2l_3{l}_4\sin {\theta }_3{\displaystyle \frac{d{\theta }_3}{d{\theta }_1}}=0,$$

$$-2l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)\left(1-{\displaystyle \frac{d{\theta }_2}{d{\theta }_1}}\right)+2l_1{l}_4\sin {\theta }_1+2l_2{l}_4\sin {\theta }_2{\displaystyle \frac{d{\theta }_2}{d{\theta }_1}}=0.$$

As an outcome, we solve for the terms ${\displaystyle \frac{d{\theta }_2}{d{\theta }_1}}$ (i₂₁) and ${\displaystyle \frac{d{\theta }_3}{d{\theta }_1}}$ (i₃₁) that define the transmission ratios between the output and input angles, which are expressed by

$$i_{21}={\displaystyle \frac{d{\theta }_2}{d{\theta }_1}}={\displaystyle \frac{{\omega }_2}{{\omega }_1}}={\displaystyle \frac{l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)-l_1{l}_4\sin {\theta }_1}{l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin {\theta }_2}},$$

(17)

$$i_{31}={\displaystyle \frac{d{\theta }_3}{d{\theta }_1}}={\displaystyle \frac{{\omega }_3}{{\omega }_1}}={\displaystyle \frac{l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_1{l}_4\sin {\theta }_1}{l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin {\theta }_3}}.$$

(18)

Obviously, the quotient of angular velocities is dimensionless.

Total Errors in the Transmission Ratio

As was shown in the previous section, it can be seen that the transmission ratio can be expressed as a function of the geometry and angular positioning of the links of the four-bar mechanism; therefore, it is sensitive to positional errors and dimensional manufacturing tolerances.

In this section, we shall calculate the total differential of the Equations (17) and (18) with respect to angular positioning and geometric parameters, in order to determine the total error in the transmission ratios, according to the following formulas:

$$\delta i_{{21}_{Total}}={\displaystyle \frac{\delta i_{21}}{\delta l_1}}+{\displaystyle \frac{\delta i_{21}}{\delta l_2}}+{\displaystyle \frac{\delta i_{21}}{\delta l_4}}+{\displaystyle \frac{\delta i_{21}}{\delta {\theta }_1}}+{\displaystyle \frac{\delta i_{21}}{\delta {\theta }_2}},$$

(19)

$$\delta i_{{31}_{Total}}={\displaystyle \frac{\delta i_{31}}{\delta l_1}}+{\displaystyle \frac{\delta i_{31}}{\delta l_3}}+{\displaystyle \frac{\delta i_{31}}{\delta l_4}}+{\displaystyle \frac{\delta i_{31}}{\delta {\theta }_1}}+{\displaystyle \frac{\delta i_{31}}{\delta {\theta }_3}},$$

(20)

where

$${\displaystyle \frac{\delta i_{21}}{\delta l_1}}={\displaystyle \frac{\left[l_2\sin \left({\theta }_1-{\theta }_2\right)-l_4\sin \left({\theta }_1\right)\right]\left[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)\right]-\left[l_2\sin \left({\theta }_1-{\theta }_2\right)\right]\left[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)-l_1{l}_4\sin \left({\theta }_1\right)\right]}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\delta l_1,$$

$${\displaystyle \frac{\delta i_{21}}{\delta l_2}}={\displaystyle \frac{\left[l_1\sin \left({\theta }_1-{\theta }_2\right)\right]\left[l_1{l}_2\sin \left({{\theta }_1-\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)\right]-[l_1\sin \left({\theta }_1-{\theta }_2\right)+l_4\sin \left({\theta }_2\right)][l_1{l}_2\sin \left({{\theta }_1-\theta }_2\right)-l_1{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\delta l_2,$$

$${\displaystyle \frac{\delta i_{21}}{\delta l_4}}={\displaystyle \frac{\left[-l_1\sin \left({\theta }_1\right)\right]\left[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)\right]-\left[l_2\sin \left({\theta }_2\right)\right][l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)-l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\delta l_4,$$

$${\displaystyle \frac{\delta i_{21}}{\delta {\theta }_1}}={\displaystyle \frac{\left[l_1{l}_2\cos \left({{\theta }_1-\theta }_2\right)-l_1{l}_4\cos \left({\theta }_1\right)\right]\left[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)\right]-\left[l_1{l}_2\cos \left({{\theta }_1-\theta }_2\right)\right][l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)-l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\delta {\theta }_1,$$

$${\displaystyle \frac{\delta i_{21}}{\delta {\theta }_2}}={\displaystyle \frac{\left[-l_1{l}_2\cos \left({{\theta }_1-\theta }_2\right)\right]\left[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)\right]-[-l_1{l}_2\cos \left({{\theta }_1-\theta }_2\right)+l_2{l}_4\cos \left({\theta }_2\right)][l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)-l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\delta {\theta }_2,$$

$${\displaystyle \frac{\delta i_{31}}{\delta l_1}}={\displaystyle \frac{\left[l_3\sin \left({\theta }_1-{\theta }_3\right)+l_4\sin \left({\theta }_1\right)\right]\left[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)\right]-\left[l_3\sin \left({\theta }_1-{\theta }_3\right)\right]\left[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_1{l}_4\sin \left({\theta }_1\right)\right]}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\delta l_1,$$

$${\displaystyle \frac{\delta i_{31}}{\delta l_3}}={\displaystyle \frac{\left[l_1\sin \left({\theta }_1-{\theta }_3\right)\right]\left[l_1{l}_3\sin \left({{\theta }_1-\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)\right]-[l_1\sin \left({\theta }_1-{\theta }_3\right)+l_4\sin \left({\theta }_3\right)][l_1{l}_3\sin \left({{\theta }_1-\theta }_3\right)+l_1{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\delta l_3,$$

$${\displaystyle \frac{\delta i_{31}}{\delta l_4}}={\displaystyle \frac{\left[l_1\sin \left({\theta }_1\right)\right]\left[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)\right]-\left[l_3\sin \left({\theta }_3\right)\right][l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\delta l_4,$$

$${\displaystyle \frac{\delta i_{31}}{\delta {\theta }_1}}={\displaystyle \frac{\left[l_1{l}_3\cos \left({{\theta }_1-\theta }_3\right)+l_1{l}_4\cos \left({\theta }_1\right)\right]\left[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)\right]-\left[l_1{l}_3\cos \left({{\theta }_1-\theta }_3\right)\right][l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\delta {\theta }_1,$$

$${\displaystyle \frac{\delta i_{31}}{\delta {\theta }_3}}={\displaystyle \frac{\left[-l_1{l}_3\cos \left({{\theta }_1-\theta }_3\right)\right]\left[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)\right]-[-l_1{l}_3\cos \left({{\theta }_1-\theta }_3\right)+l_3{l}_4\cos \left({\theta }_3\right)][l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_1{l}_4\sin \left({\theta }_1\right)]}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\delta {\theta }_3.$$

If in the previous expressions we substitute the positioning errors δθ₂ and δθ₃, defined in the Equations (11) and (12). The Formulas (19) and (20) can be rewritten in function on the dimensional tolerances δl₁, δl₂, δl₃, δl₄, and δθ₁ as

$$\delta i_{{21}_{Total}}={\lambda }_{l_1}\delta l_1+{\lambda }_{l_2}\delta l_2+{\lambda }_{l_3}\delta l_3+{\lambda }_{l_4}\delta l_4+{\lambda }_{{\theta }_1}\delta {\theta }_1,$$

(21)

$$\delta i_{{31}_{Total}}={\gamma }_{l_1}\delta l_1+{\gamma }_{l_2}\delta l_2+{\gamma }_{l_3}\delta l_3+{\gamma }_{l_4}\delta l_4+{\gamma }_{{\theta }_1}\delta {\theta }_1,$$

(22)

where

$${\lambda }_{l_1}={\displaystyle \frac{l_2^2{l}_4\sin \left({\theta }_1-{\theta }_2\right)\sin \left({\theta }_2\right)-l_2{l}_4^2\sin \left({\theta }_1\right)\sin \left({\theta }_2\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}+\left[\left[{\displaystyle \frac{-l_1^2{l}_2{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_2\right)+l_1{l}_2{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_2\right)-l_1{l}_2^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]\left[{\displaystyle \frac{\cos \left({{\theta }_3-\theta }_1\right)}{l_2\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],$$

$${\lambda }_{l_2}={\displaystyle \frac{l_1^2{l}_4\sin \left({\theta }_1-{\theta }_2\right)\sin \left({\theta }_1\right)+l_1{l}_4^2\sin \left({\theta }_1\right)\sin \left({\theta }_2\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}+\left[\left[{\displaystyle \frac{-l_1^2{l}_2{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_2\right)+l_1{l}_2{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_2\right)-l_1{l}_2^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]\left[{\displaystyle \frac{\cos \left({{\theta }_3-\theta }_2\right)}{l_2\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],$$

$${\lambda }_{l_3}=\left[{\displaystyle \frac{-l_1^2{l}_2{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_2\right)+l_1{l}_2{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_2\right)-l_1{l}_2^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]\left[{\displaystyle \frac{-1}{l_2\sin \left({\theta }_2-{\theta }_3\right)}}\right],$$

$${\lambda }_{l_4}=-\left[{\displaystyle \frac{l_1^2{l}_2\sin \left({\theta }_1-{\theta }_2\right)\sin \left({\theta }_1\right)+l_1{l}_2^2\sin \left({\theta }_1-{\theta }_2\right)\sin \left({\theta }_2\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]+\left[\left[{\displaystyle \frac{-l_1^2{l}_2{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_2\right)+l_1{l}_2{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_2\right)-l_1{l}_2^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]\left[{\displaystyle \frac{-\cos \left({\theta }_3\right)}{l_2\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],$$

$$\begin{array}{c}{\lambda }_{{\theta }_1}={\displaystyle \frac{l_1{l}_2^2{l}_4\sin \left({\theta }_2\right)\cos \left({{\theta }_1-\theta }_2\right)-l_1{l}_2{l}_4^2\sin \left({\theta }_2\right)\cos \left({\theta }_1\right)+l_1^2{l}_2{l}_4\sin \left({\theta }_2\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}+\\ \left[\left[{\displaystyle \frac{-l_1^2{l}_2{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_2\right)+l_1{l}_2{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_2\right)-l_1{l}_2^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_2\sin \left({\theta }_1-{\theta }_2\right)+l_2{l}_4\sin \left({\theta }_2\right)]}^2}}\right]\left[{\displaystyle \frac{-l_1\sin \left({\theta }_1-{\theta }_3\right)}{l_2\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],\end{array}$$

$$\begin{array}{c}{\gamma }_{l_1}={\displaystyle \frac{l_3^2{l}_4\sin \left({\theta }_1-{\theta }_3\right)\sin \left({\theta }_3\right)+l_3{l}_4^2\sin \left({\theta }_1\right)\sin \left({\theta }_3\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}+\\ \left[\left[{\displaystyle \frac{l_1^2{l}_3{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_3\right)-l_1{l}_3{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_3\right)-l_1{l}_3^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]\left[{\displaystyle \frac{\cos \left({{\theta }_2-\theta }_1\right)}{l_3\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],\end{array}$$

$${\gamma }_{l_2}=\left[{\displaystyle \frac{l_1^2{l}_3{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_3\right)-l_1{l}_3{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_3\right)-l_1{l}_3^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]\left[{\displaystyle \frac{1}{l_3\sin \left({\theta }_2-{\theta }_3\right)}}\right],$$

$$\begin{array}{c}{\gamma }_{l_3}=-\left[{\displaystyle \frac{l_1^2{l}_4\sin \left({\theta }_1-{\theta }_3\right)\sin \left({\theta }_1\right)+l_1{l}_4^2\sin \left({\theta }_1\right)\sin \left({\theta }_3\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]+\\ \left[\left[{\displaystyle \frac{l_1^2{l}_3{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_3\right)-l_1{l}_3{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_3\right)-l_1{l}_3^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]\left[{\displaystyle \frac{-\cos \left({{\theta }_2-\theta }_3\right)}{l_3\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],\end{array}$$

$$\begin{array}{c}{\gamma }_{l_4}={\displaystyle \frac{l_1^2{l}_3\sin \left({\theta }_1-{\theta }_3\right)\sin \left({\theta }_1\right)-l_1{l}_3^2\sin \left({\theta }_1-{\theta }_3\right)\sin \left({\theta }_3\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}+\\ \left[\left[{\displaystyle \frac{l_1^2{l}_3{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_3\right)-l_1{l}_3{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_3\right)-l_1{l}_3^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]\left[{\displaystyle \frac{-\cos \left({\theta }_2\right)}{l_3\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right],\end{array}$$

$$\begin{array}{c}{\gamma }_{{\theta }_1}={\displaystyle \frac{l_1{l}_3^2{l}_4\sin \left({\theta }_3\right)\cos \left({{\theta }_1-\theta }_3\right)+l_1{l}_3{l}_4^2\sin \left({\theta }_3\right)\cos \left({\theta }_1\right)-l_1^2{l}_3{l}_4\sin \left({\theta }_3\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}+\\ \left[\left[{\displaystyle \frac{l_1^2{l}_3{l}_4\sin \left({\theta }_1\right)\cos \left({{\theta }_1-\theta }_3\right)-l_1{l}_3{l}_4^2\sin \left({\theta }_1\right)\cos \left({\theta }_3\right)-l_1{l}_3^2{l}_4\sin \left({\theta }_1\right)}{{[l_1{l}_3\sin \left({\theta }_1-{\theta }_3\right)+l_3{l}_4\sin \left({\theta }_3\right)]}^2}}\right]\left[{\displaystyle \frac{-l_1\sin \left({\theta }_1-{\theta }_2\right)}{l_3\sin \left({\theta }_2-{\theta }_3\right)}}\right]\right].\end{array}$$

According to the expressions (21) and (22), let us formally write the total errors of the transmission ratios i₂₁ and i₃₁ in matrix form, conveniently defined as

$$\left[\begin{array}{c}\delta i_{{21}_{Total}}\\ \delta i_{{31}_{Total}}\end{array}\right]=\left[\begin{array}{ccc}{\lambda }_{l_1}& {\lambda }_{l_2}& {\lambda }_{l_3}\\ {\gamma }_{l_1}& {\gamma }_{l_2}& {\gamma }_{l_3}\end{array}\hspace{1em}\begin{array}{cc}{\lambda }_{l_4}& {\lambda }_{{\theta }_1}\\ {\gamma }_{l_4}& {\gamma }_{{\theta }_1}\end{array}\right]\left[\begin{array}{c}\delta l_1\\ \begin{array}{c}\delta l_2\\ \begin{array}{c}\delta l_3\\ \delta l_4\end{array}\end{array}\\ \delta {\theta }_1\end{array}\right].$$

(23)

Finally, the real transmission ratios can be approximated by

$$i_{{21}_{Real}}=i_{21}+\delta i_{{21}_{Total}},$$

(24)

$$i_{{31}_{Real}}=i_{31}+\delta i_{{31}_{Total}}.$$

(25)

4. Study Cases

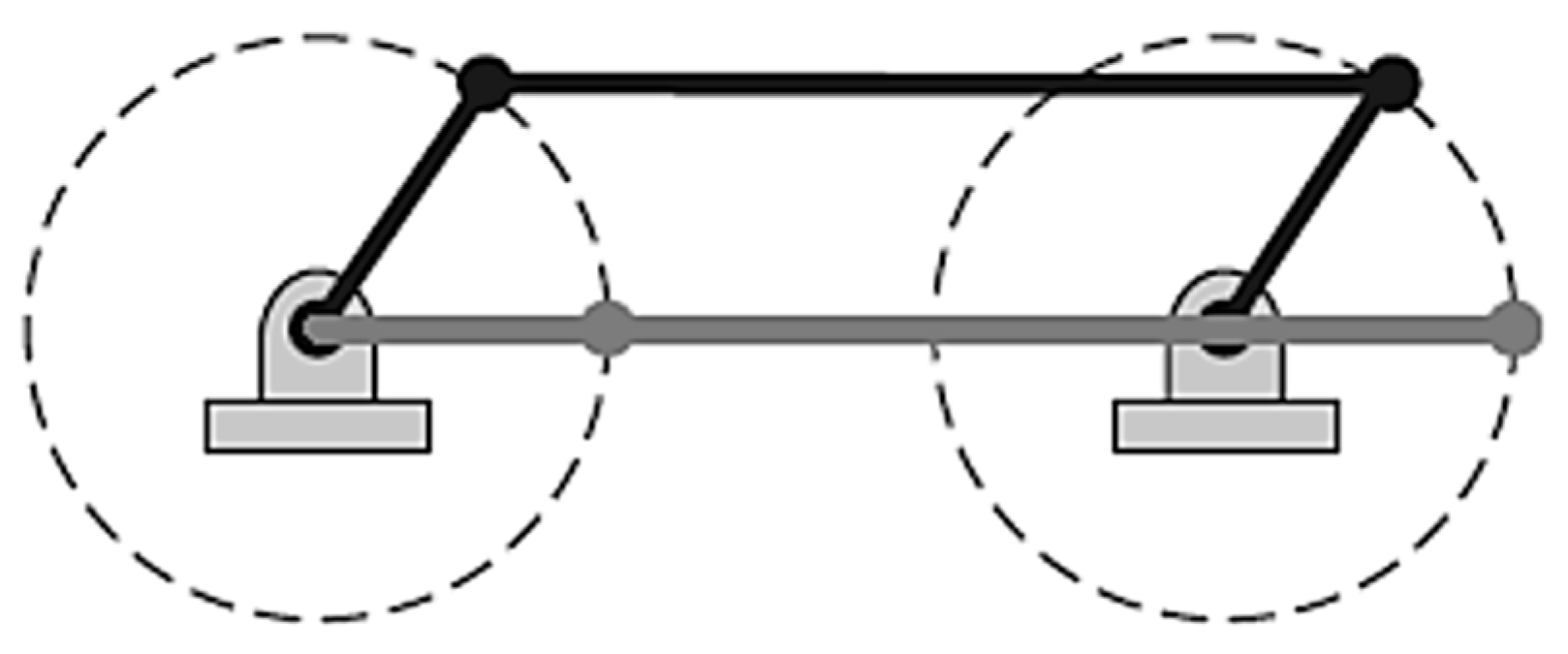

4.1. Parallelogram Four-Bar Linkage

Let us apply the derived Formulas (17) and (18) for calculating the theoretical transmission ratios of a four-bar mechanism in parallelogram configuration (Special-Case Grashof linkage). The Grashof condition for a four-bar linkage is satisfied if S + L ≤ P + Q, where S is the shortest link, L is the longest, and P and Q are the other links; this implies that at least one bar of the mechanism will be able to realize complete turns.

In this first case study, the nominal measurements of the elements (between hole centres) of the mechanism satisfy the following conditions: l₁ = l₃ = 25 mm and l₂ = l₄ = 250 mm (S + L = P + Q). Specifically, we will present our results using the category of mechanism with change point, this category implies that during the movement in a determined position all the bars of the mechanism are collinear; therefore, the follower link can change its direction of rotation (two times per revolution of the input crank); see Figure 4. Consequently, the mechanism adopts the open configuration double-crank (the rotation angles of the cranks l₁ and l₃ are identical) and the crossed configuration crank-rocker. Notice that in the collinearity positions the movement of the mechanism becomes indeterminate and it can become an antiparallelogram mechanism. In practice, the movement must be limited to avoid these positions.

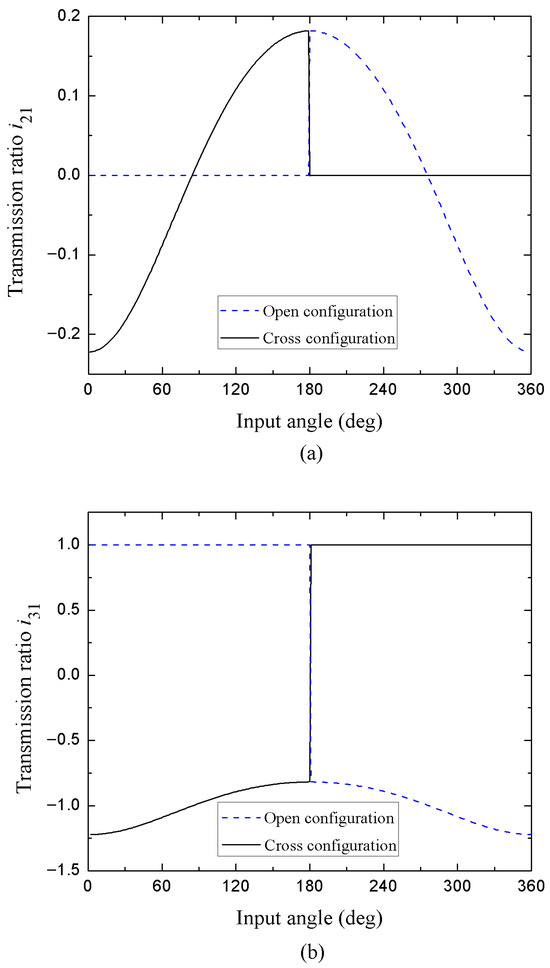

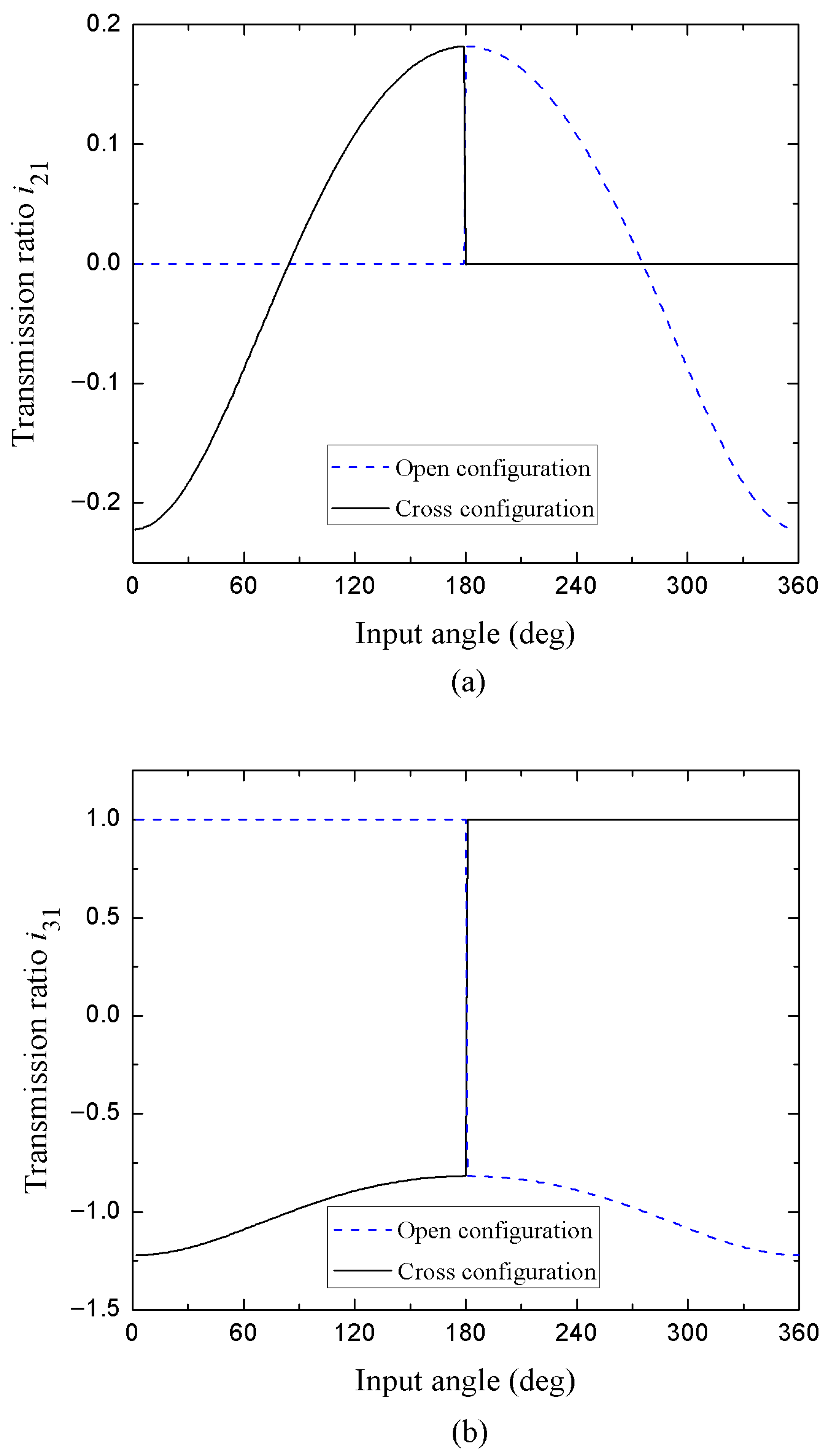

The theoretical transmission ratios $i_{21}$ and $i_{31}$ are shown in the Figure 5, for open and crossed configuration. The results of our modeling show for the case of the transmission ratio $i_{21}$ (Figure 5a), that at the beginning of the movement from an open configuration (dotted blue line), that is, in the range 0° ≤ θ₁ ≤ π, the angles of rotation of the cranks l₁ and l₃ will be identical and consequently all the points of the connecting rod l₂ will describe a semicircle of radius equal to the length of l₁, which implies that both its angular displacement and velocity are zero; therefore, $i_{21}$ = 0. Subsequently, in the position θ₁ = π, the four links are collinear and the mechanism undergoes the change point condition and begins the crossed configuration (antiparallelogram), in that second range (π ≤ θ₁ ≤ 2π) the cranks l₁ and l₃ rotate in opposite directions with unequal angular velocities, therefore, the link l₂ experiences an increase in its angular displacement and hence acquires angular velocity. In that interval, the graph shows a inflection point and a curvilinear variation in the transmission ratio with a decay towards negative values, which is due to the fact that when θ₁ ≈ 275° the link l₂ inverts the direction of rotation and its angular displacement begins to decrease until again all the links align (θ₁ = 2π). Regarding the transmission ratio $i_{31}$ (Figure 5b), analyzing the solution in the range 0° ≤ θ₁ ≤ π, when the movement of the mechanism begins from an open configuration (dotted blue line), as mentioned before, both the links l₁ and l₃ have the same angles of rotation and consequently the same angular velocities, this leads to $i_{31}$ = 1. An inflection point is clearly observed in θ₁ = π, in which the articulated parallelogram switch to a crossed configuration, in the interval π ≤ θ₁ ≤ 2π the cranks l₁ y l₃ rotate with unequal angular speeds and in the opposite direction; therefore, the plot shows a descending curvilinear behavior with a negative solution (the minus sign indicates that the direction of rotation is inverted). The solid black line shown in the Figure 5a,b, indicates the transmission ratios $i_{21}$ and $i_{31}$ when the parallelogram four-bar initiates the movement from a crossed configuration and whose behavior obeys the previous explanations.

On the other hand, we demonstrate the efficiency of the method proposed here, by comparing the transmission ratio $i_{31}$ with that calculated by the analytical approach through the Kutzbach–Gruebler equation described in Ref. [27]. The results obtained there show good agreement with our theory.

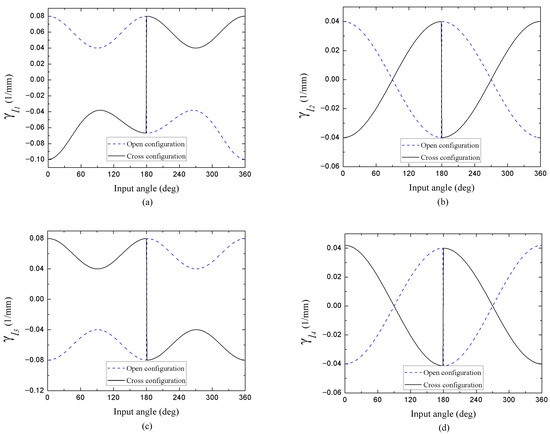

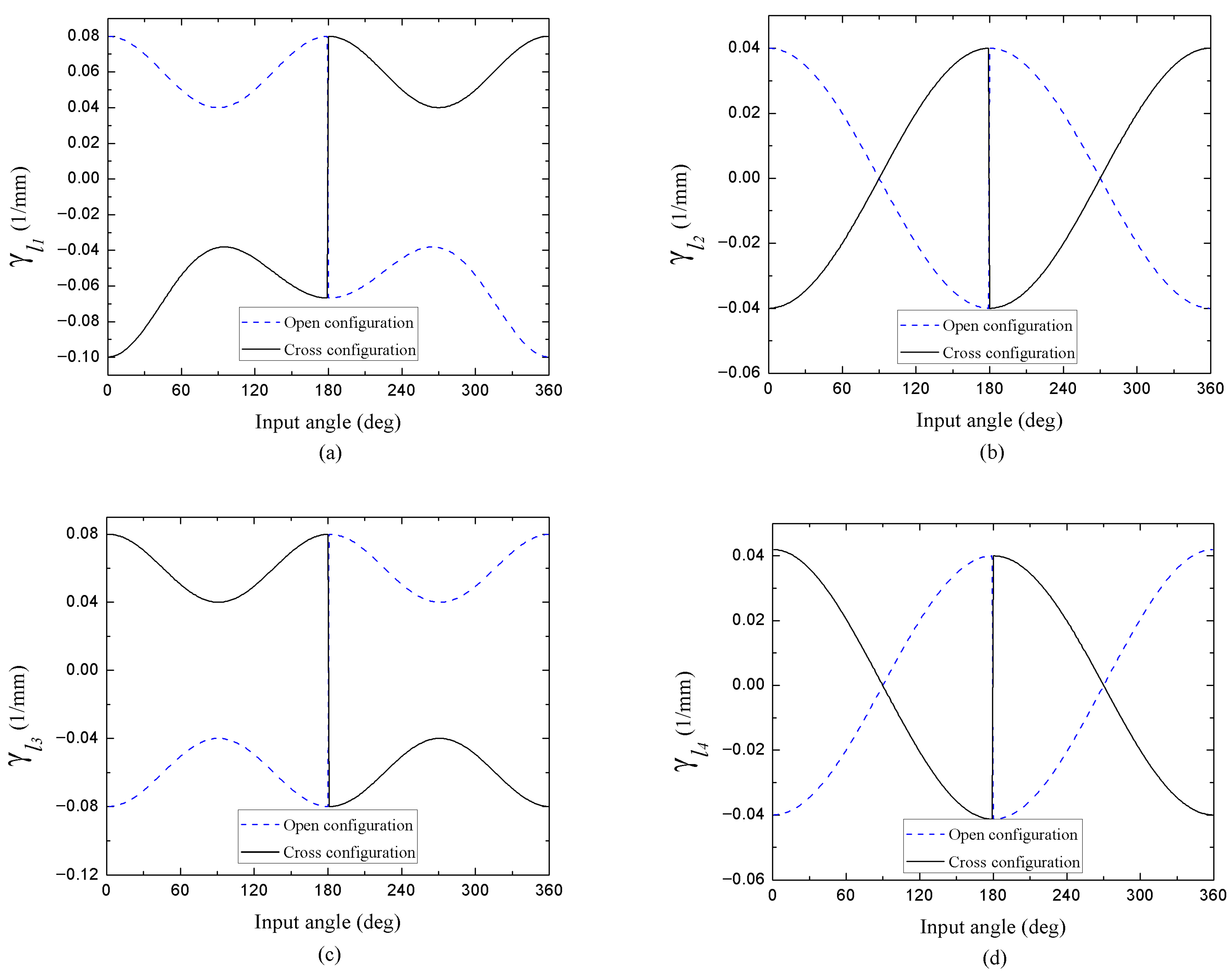

In addition to this, we also calculated the influence coefficients ${\gamma }_{l_i}$ for the same parallelogram configuration. The Figure 6 exhibits the coefficients ${\gamma }_{l_i}$ numerically calculated, and agree with the criteria for analyzing the sensitivities of the transmission ratio $i_{31}$ predicted by Rothenhofer et al. [27] (singularities exist at 0° and 180°). These coefficients, as well as the coefficients ${\lambda }_{l_i}$, are in function of the input angle and of each one of the lengths of the links, and can present positive or negative solutions in the open and crossed configuration ranges with a symmetrical behavior in both configurations, whose change point occurs at θ₁ = π. Their units are ${\displaystyle \frac{1}{\mathrm{u}\mathrm{n}\mathrm{i}\mathrm{t} \mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h}}}$ and determine the susceptibility in the calculation of the total errors of the transmission ratios $\delta i_{{21}_{Total}}$ and $\delta i_{{31}_{Total}}$, for the case when the magnitudes of δl₁, δl₂, δl₃, δl₄, and δθ₁ are not zero (see Equation (23)).

Unlike the influence coefficients ${\epsilon }_{ij}$ that appear in the incidence matrix defined by Equation (10), which indicate how much the output angle or position of the mechanism changes due to a small variation in the link lengths or input angle. The influence coefficients ${\lambda }_{l_i}$/${\gamma }_{l_i}$ in the Equation (23) express the ratio of change in the transmission ratio of the mechanism due to errors in the nominal lengths or input angle, i.e., they measure the sensitivity of the transmission ratio by geometric variations. From Figure 6a–d, we can observe for each position of θ₁, the sensitivity ${\gamma }_{l_i}$ of the transmission ratio $i_{31}$ per unit change in the length of each link $l_i$. That is, the product $\left({\gamma }_{l_i}\right) ({\delta }_{l_i}=\pm \mathrm{I}\mathrm{T}\mathrm{t}\mathrm{o}\mathrm{l}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{c}\mathrm{e})$ provides the error contribution in the ratio by $l_i$, summing the contributions of all the links gives $\delta i_{{31}_{Total}}$. From the same graphs, it can be noted that high values of γ imply a transmission ratio that is very sensitive to that length, unlike small values where little influence is observed.

4.2. Variations in the Link Lengths Due to Dimensional Tolerances

The most demonstrative case is the study of the real transmission ratios by solving numerically the Equations (24) and (25), within the formalism described in previous subsections and varying the length of the links according to the ISO 286-2:2010 standard. It is important to indicate that the criteria for selecting IT tolerance grades are based primarily on the practical application of the part, manufacturing costs, and the stages within its production process. The key is to choose the widest tolerance to minimize costs; generally, tighter tolerances are applied only to functional characteristics critical for the assembly and operation process. As mentioned throughout this document, this selection is made within the framework of the ISO 286-2:2010 specifications, with three qualities (amplitudes) of tolerances (e.g., IT01 (ultraprecise), IT9 (medium), and IT18 (very coarse)), which are based on the nominal size of the feature and the manufacturing process.

Table 1. Dimensional tolerances depending on the nominal measurement of the links and the quality index.

Dimensional Tolerance	Quality (Grade) of Tolerance
	IT01 (mm)	IT9 (mm)	IT18 (mm)
δl1	0.0006	0.052	3.3
δl2	0.002	0.115	7.2
δl3	0.0006	0.052	3.3
δl4	0.002	0.115	7.2

shows the amplitudes of the ISO tolerances for δl₁, δl₂, δl₃, and δl₄ as a function of the nominal measurements of the links (l₁ = l₃ = 25 mm and l₂ = l₄ = 250 mm) for three degrees of tolerances. According to the Grashof law, in this type of mechanism the input angular coordinate ranges from 0 to 360°; therefore, its positioning error will be zero (δθ₁ = 0).

We shall analyze the cases when the position of the tolerance zone with respect to the nominal measurement (Zero Line) is located above and below it (for practicality, the fundamental deviation criterion will not be considered). This means that the dimensional tolerances will be added or subtracted to the magnitude of the nominal measurements of the links (bilateral tolerances). To illustrate our results, in this section we present a comprehensive analysis of results for the particular case of the IT18 tolerance grade; this choice is made in a convenient and practical way to significantly illustrate the variations in the length of the components of the kinematic chain. It is important to note that in moving parts, a tolerance grade IT18 may be assigned to cases that are very irrelevant or exceptional from a functional point of view. This may imply excessive clearances that can cause a loss of mechanical efficiency. Now, we should take into account that the articulated parallelogram mechanism in its theoretical design has only two different nominal measurements for its links, but considering the fact of adding or subtracting the tolerance, the final magnitude of the length of each link will have two variants. Therefore, sixteen different articulated four-bar mechanisms can be designed that are obtained from variations with repetition of two different measurements per link taken four at a time, that is 2⁴ = 16 different designs. For a clearer idea,

Table 2. Sign of the dimensional tolerances and Grashof condition for the 16 designs of articulated mechanisms.

Design Number	Sign of Dimensional Tolerances				Grashof Condition
1	−δl1	−δl2	−δl3	−δl4	S + L = P + Q
2	−δl1	−δl2	−δl3	δl4	Non-Grashof
3	−δl1	−δl2	δl3	−δl4	S + L < P + Q
4	−δl1	−δl2	δl3	δl4	Non-Grashof
5	−δl1	δl2	−δl3	−δl4	Non-Grashof
6	−δl1	δl2	−δl3	δl4	S + L = P + Q
7	−δl1	δl2	δl3	−δl4	Non-Grashof
8	−δl1	δl2	δl3	δl4	S + L < P + Q
9	δl1	−δl2	−δl3	−δl4	Non-Grashof
10	δl1	−δl2	−δl3	δl4	Non-Grashof
11	δl1	−δl2	δl3	−δl4	S + L = P + Q
12	δl1	−δl2	δl3	δl4	Non-Grashof
13	δl1	δl2	−δl3	−δl4	Non-Grashof
14	δl1	δl2	−δl3	δl4	Non-Grashof
15	δl1	δl2	δl3	−δl4	Non-Grashof
16	δl1	δl2	δl3	δl4	S + L = P + Q

shows the sign of the dimensional tolerances applied and type of Grashof condition for each articulated mechanism design.

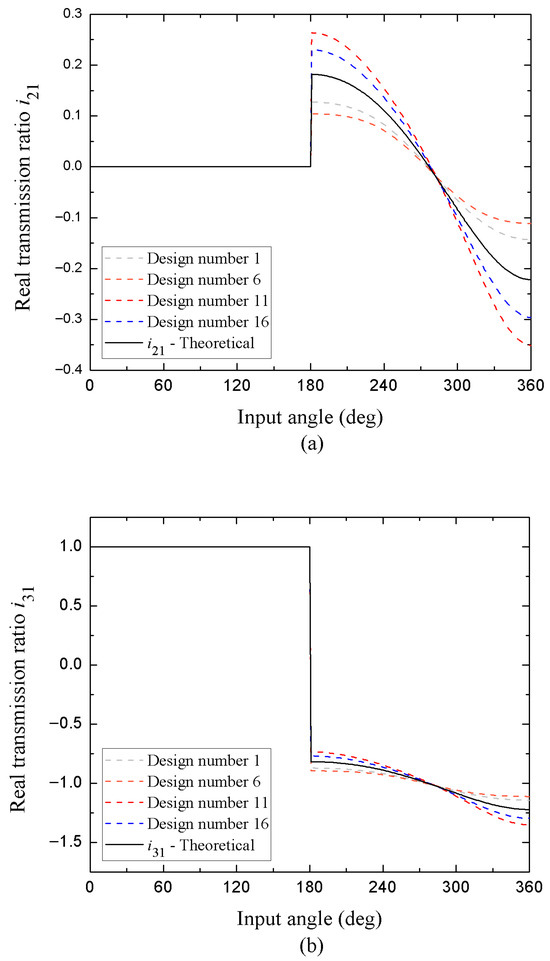

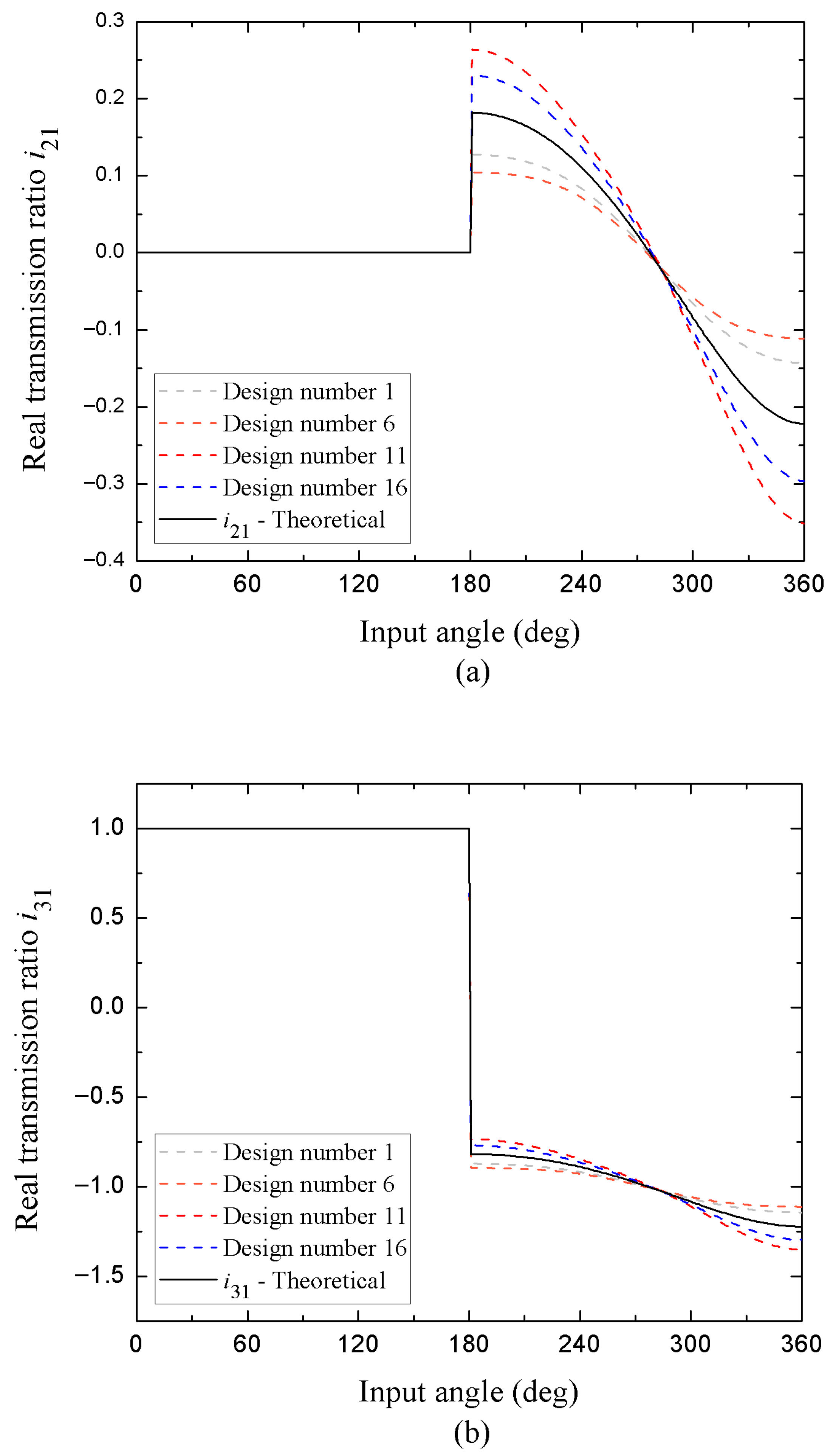

The Figure 7 and Figure 8 show, respectively, the theoretical transmission ratios $i_{21}$ and $i_{31}$ in open configuration compared versus the real transmission ratios $i_{{21}_{Real}}$ and $i_{{31}_{Real}}$, for Grashof mechanisms articulated parallelogram-type and of continuous motion with different degrees of tolerance. As it is seen, the Figure 7a,b correspond to mechanisms that satisfy the condition S + L = P + Q and adjust to the discussion presented in Section 4.1. Due to the change in the nominal measurements of the links, a change in the inclination of the slope is noticeable in the characteristic curves of the real transmission ratio with respect to the theoretical curve, both in the region of positive and negative values, being more pronounced in the case of designs when the dimensional tolerances increase the final size of the mechanism; note that all curves coincide in the change from positive to negative values at the same inflection point at θ₁ ≈ 275°.

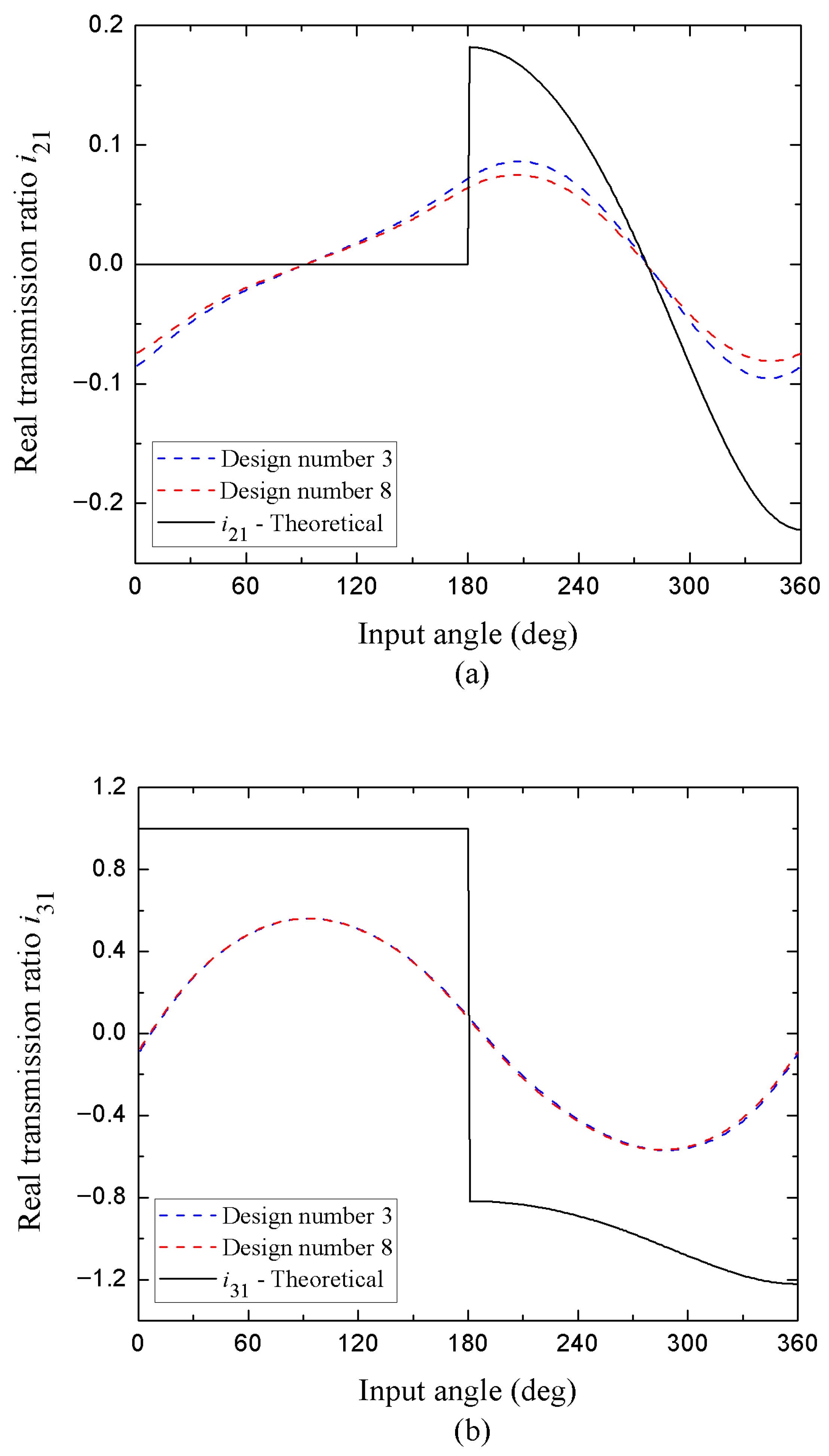

Now, in Figure 8a,b a comparison is realized between the theoretical transmission ratios versus the real transmission ratios for two types of mechanism designs that depending on the dimensional tolerances applied to the nominal measurements, form the configuration Crank (l₁)-Connecting rod (l₂)-Rocker (l₃), satisfying the condition S + L < P + Q. Based on the above, the graphs of the transmission ratios ideal, theoretical, and real do not show any similarity between them. The behavior of the curve for $i_{{21}_{Real}}$ shown in Figure 8a makes evident the translation movement of the connecting rod; in the range of 0° ≤ θ₁ ≤ 210°, the slope shows a slight decrease, later from 210° ≤ θ₁ ≤ 2π, the change in the inclination of the slope is pronounced. In addition, two inflection points are observed for the change from positive to negative values at θ₁ ≈ 95° and θ₁ ≈ 275°. On the other hand, Figure 8b shows the curve for $i_{{31}_{Real}}$ and has a well-defined crest and trough behavior, demonstrating that this link does not have the capacity for complete rotation. This component connected to the base can only oscillate (rocker), and there is an inflection point of change from positive to negative values at θ₁ ≈ π. As already mentioned in the previous section, for all the cases presented, the crossed configuration has a graphic mirrored-symmetrical behavior with respect to Figure 7 and Figure 8, whose explanation can be discussed in a similar way. Furthermore, the change from positive to negative values (or vice versa) in the evolution of the graphs indicates when the link invests its angular displacement.

Finally, the scope and utility of our analytical formalism extend to those linkages that do not have a continuous motion between them, known as non-Grashof mechanisms and satisfying the inequality S + L > P + Q. For our case of study, by modifying the nominal measurements of its components with the IT18 tolerance grade, ten mechanisms of this class are obtained. Since none of its three moving links realize a complete revolution with respect to the reference plane, they are always in oscillatory motion; these types of mechanisms are also called triple rocker. Therefore, one of the main objectives is to find out the interval of permissible limit positions of the input link.

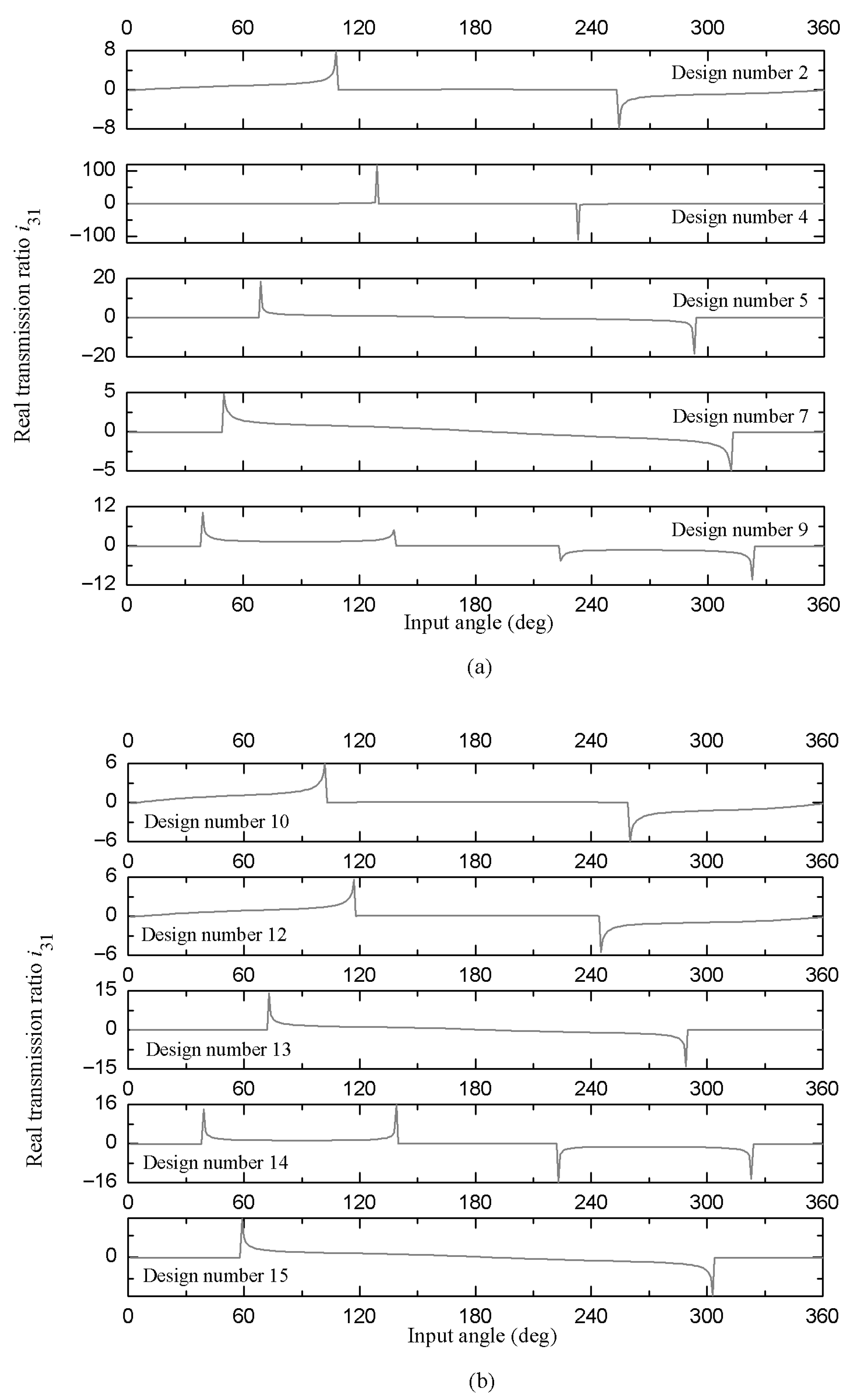

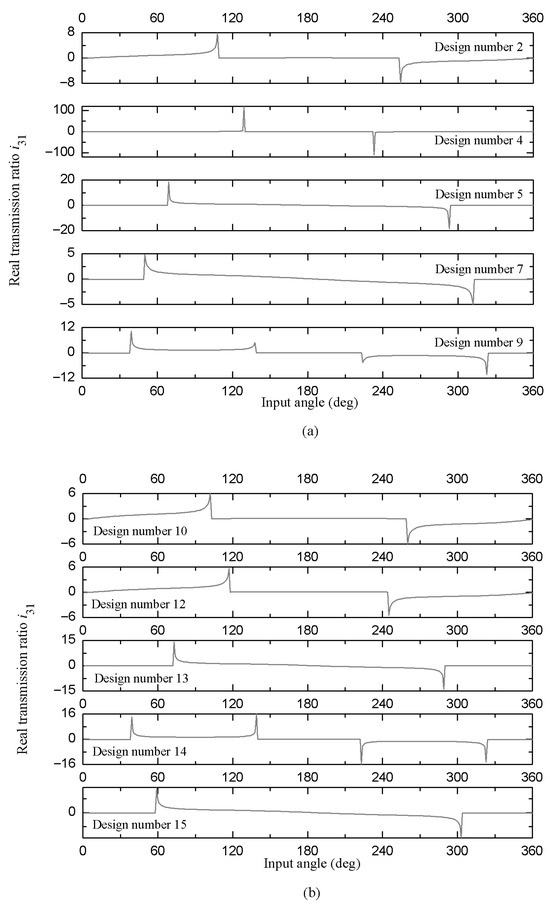

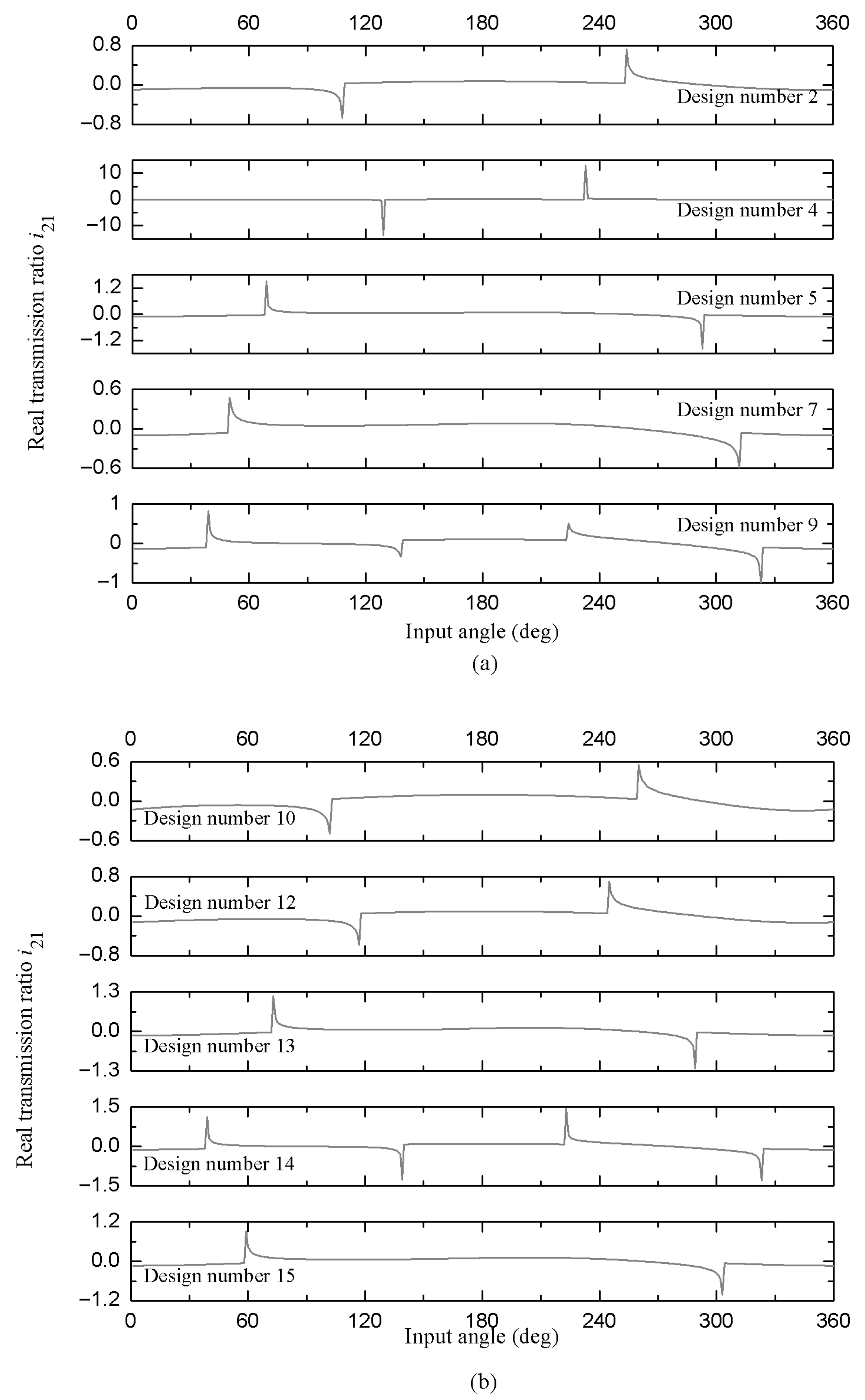

Within this framework, Figure 9 and Figure 10 illustrate, respectively, the real transmission ratios $i_{{21}_{Real}}$ and $i_{{31}_{Real}}$, as well as the angular position range θ₁ corresponding to the permitted movements. Additionally, they also provide the angular ranges of the blocking positions.

It is important to emphasize that the behavior of the graphs must be carefully analyzed as follows: (i) here, we can identify vertical lines located on the horizontal axis at $i_{{21}_{Real}}$ (or $i_{{31}_{Real}}$) = 0, when they intersect perpendicularly with those lines that coincide on this same axis (in some cases a slight deviation can be noticed due to precision errors in the numerical calculations), the value intervals of θ₁ that define the blocking of the mechanism are specified. (ii) On the other hand, we can notice that these same vertical lines can be directed towards positive or negative values (as has been highlighted throughout this document, the above indicates the inversion of the direction of rotation of the link), and they are connected to each other end to end by means of a curve that indicates the transmission ratio of the angular interval of the allowed movement positions of the articulated assembly.

In what follows, for a better understanding of the analysis strategy indicated for the transmission ratios graphs illustrated in Figure 9 and Figure 10,

Table 3. Input angle intervals that define allowed movements and blocking positions.

Design Number	Input Angle Interval θ1
	Allowed Movements	Blocking Positions
2	0 ≤ θ1 ≤ 107° and 253° ≤ θ1 ≤ 360°	108° ≤ θ1 ≤ 252°
4	0° ≤ θ1 ≤ 128° and 232° ≤ θ1 ≤ 360°	129° ≤ θ1 ≤ 231°
5	68° ≤ θ1 ≤ 292°	0° ≤ θ1 ≤ 67° and 293° ≤ θ1 ≤ 360°
7	49° ≤ θ1 ≤ 311°	0° ≤ θ1 ≤ 48° and 312° ≤ θ1 ≤ 360°
9	38° ≤ θ1 ≤ 137° and 223° ≤ θ1 ≤ 322°	0 ≤ θ1 ≤ 37°,138° ≤ θ1 ≤ 222° and 323° ≤ θ1 ≤ 360°
10	0 ≤ θ1 ≤ 101° and 259° ≤ θ1 ≤ 360°	102° ≤ θ1 ≤ 258°
12	0 ≤ θ1 ≤ 116° and 244° ≤ θ1 ≤ 360°	117° ≤ θ1 ≤ 243°
13	72° ≤ θ1 ≤ 288°	0 ≤ θ1 ≤ 71° and 289° ≤ θ1 ≤ 360°
14	38° ≤ θ1 ≤ 138° and 222° ≤ θ1 ≤ 322°	0° ≤ θ1 ≤ 37°, 139° ≤ θ1 ≤ 221° and 323° ≤ θ1 ≤ 360°
15	58° ≤ θ1 ≤ 302°	0° ≤ θ1 ≤ 57° and 303° ≤ θ1 ≤ 360°

shows for the ten non-Grashof mechanism designs presented in this work, the ranges of the input angle θ₁ for the allowed movements and the blocking of these articulated kinematic assemblies.

The results obtained demonstrate that the assignment of IT precision grades does not necessarily improve the performance of the mechanism. Some configurations satisfying the Grashof condition deviate considerably from the ideal theoretical value of an articulated parallelogram. Furthermore, there are also cases where the increase of the bilateral tolerances leads to the Grashof relation not being fulfilled. This complete characterization of the efficiency of the transmission ratios proposes the present methodology as a useful option for assigning the most appropriate IT precision grade for each nominal dimension of the links, with the purpose of reducing design errors and obtaining a better efficiency. Another notable feature of our approach lies in the separate calculation of the positional errors and transmission ratios, as well as the influence coefficients themselves.

5. Validation Using a CAD Model

In this section, the analytical results obtained by our approximation of the transmission ratios $i_{{31}_{Real}}$ corresponding to the first three representative cases listed in Table 2 (S + L = P + Q, non-Grashof and S + L < P + Q, respectively), will be compared with the values provided through the use of a CAD model and the SolidWorks Motion module version 2024 with academic license and Spanish configuration (supplied by the first affiliation institution). Once that the assemblies are built, the kinematic motion analysis is performed with the following conditions: the drive link will rotate at 60 rpm (ω_in) counterclockwise, therefore one cycle will be completed in 1 s; the graphical representation provided by the module will be angular velocity (deg/sec) versus time (sec). Finally, to determine the gear ratio, the well-known formula i = ω_n/ω_in will be used for each value given in the graph.

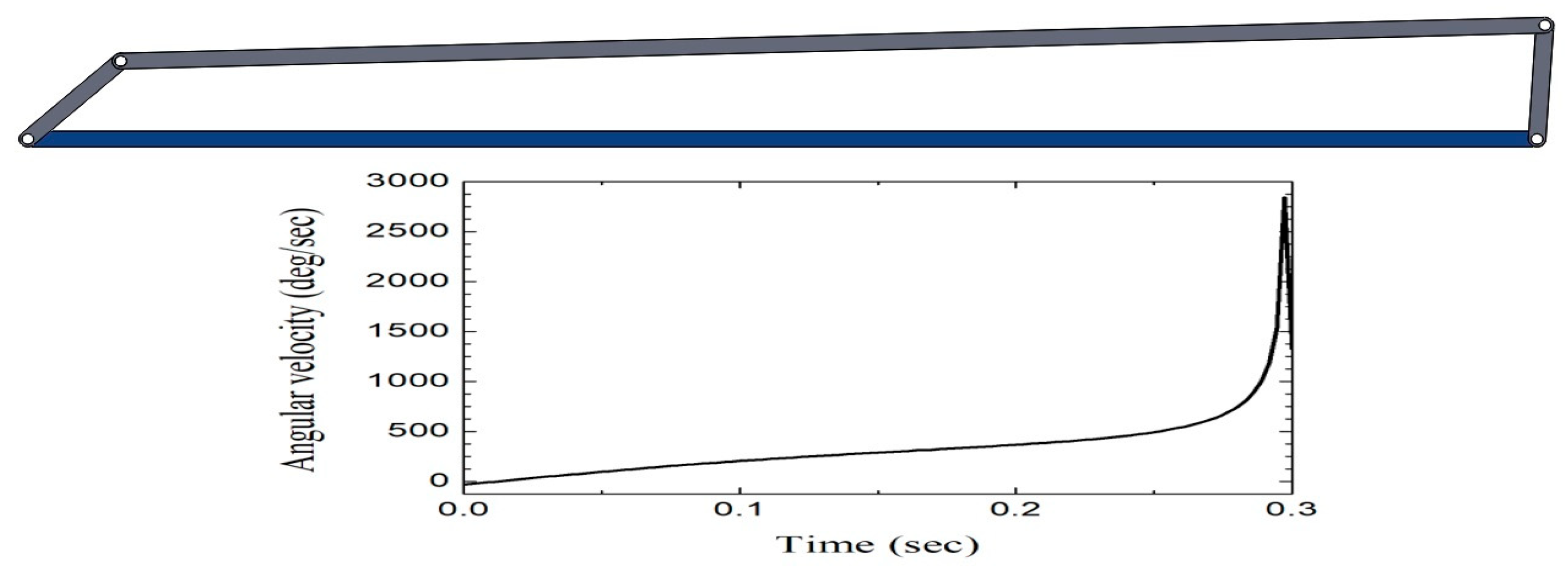

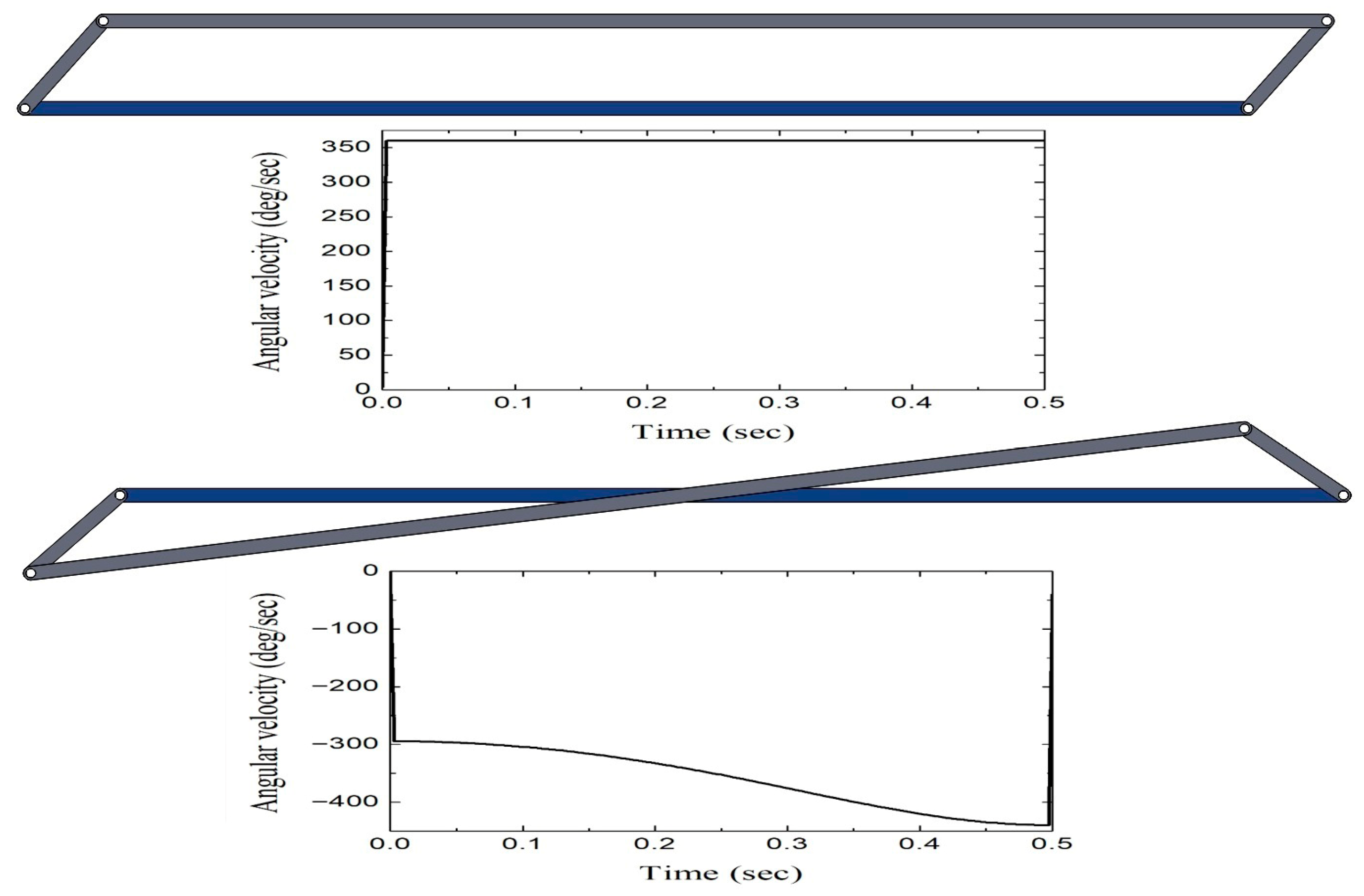

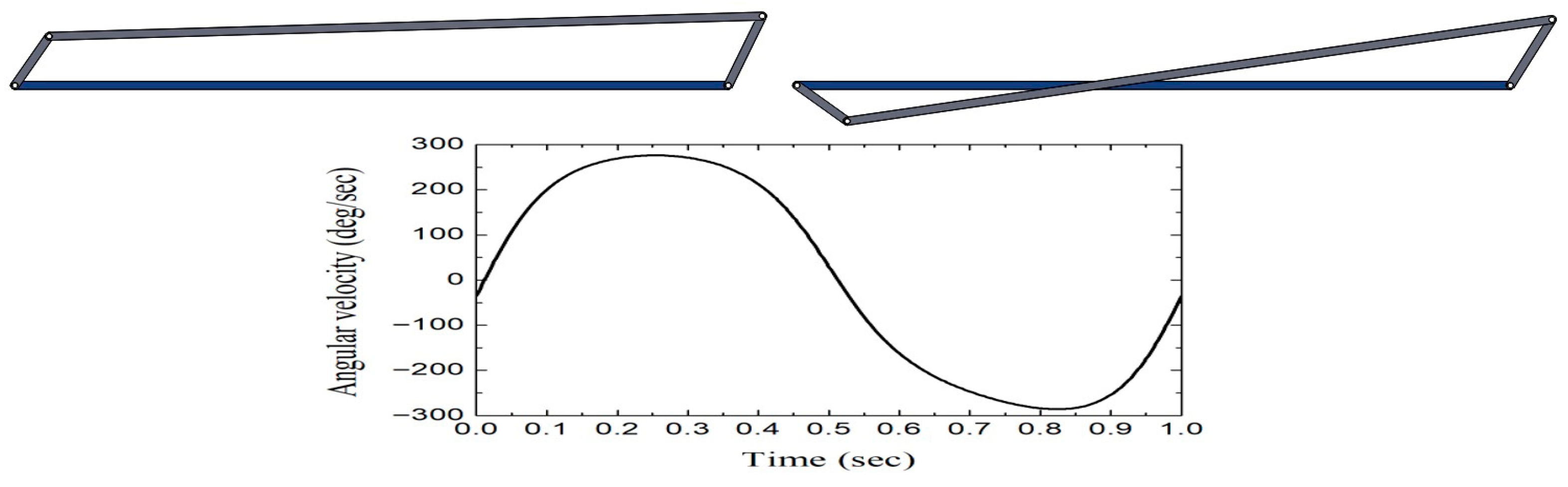

Figure 11, Figure 12 and Figure 13 show the CAD models and their respective output angular velocity graphs for a complete cycle corresponding to link l₃, of the first three representative cases listed in Table 2, respectively.

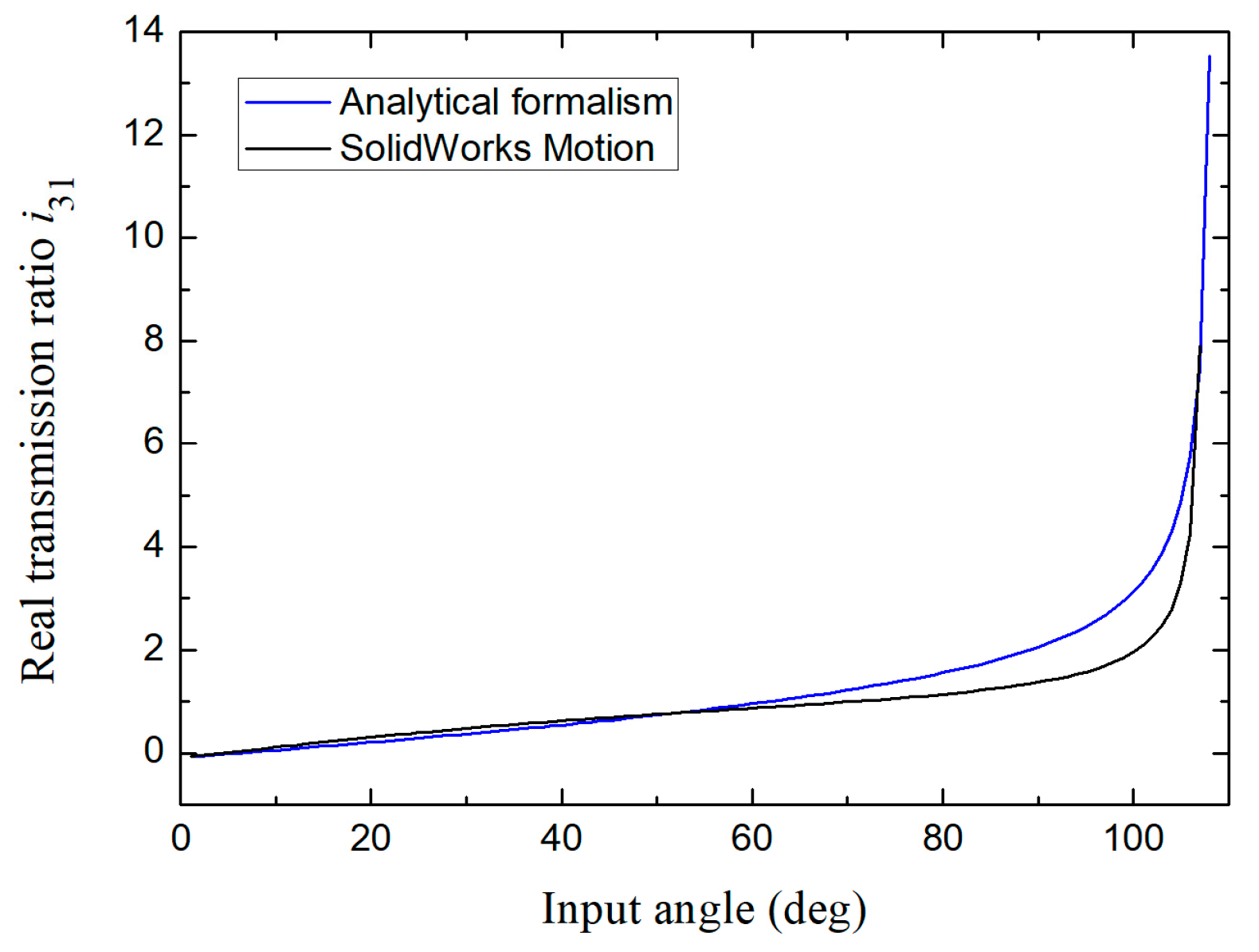

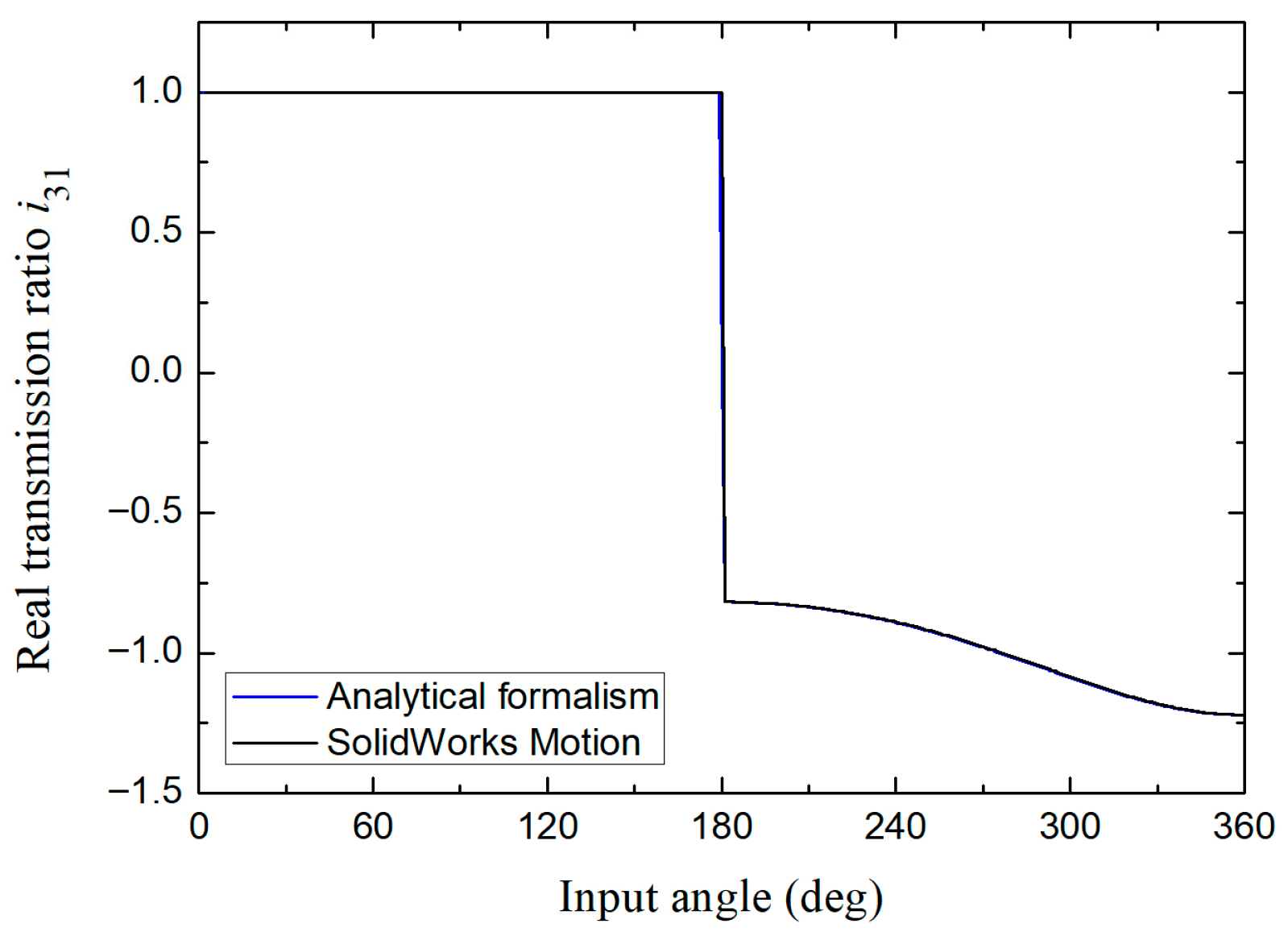

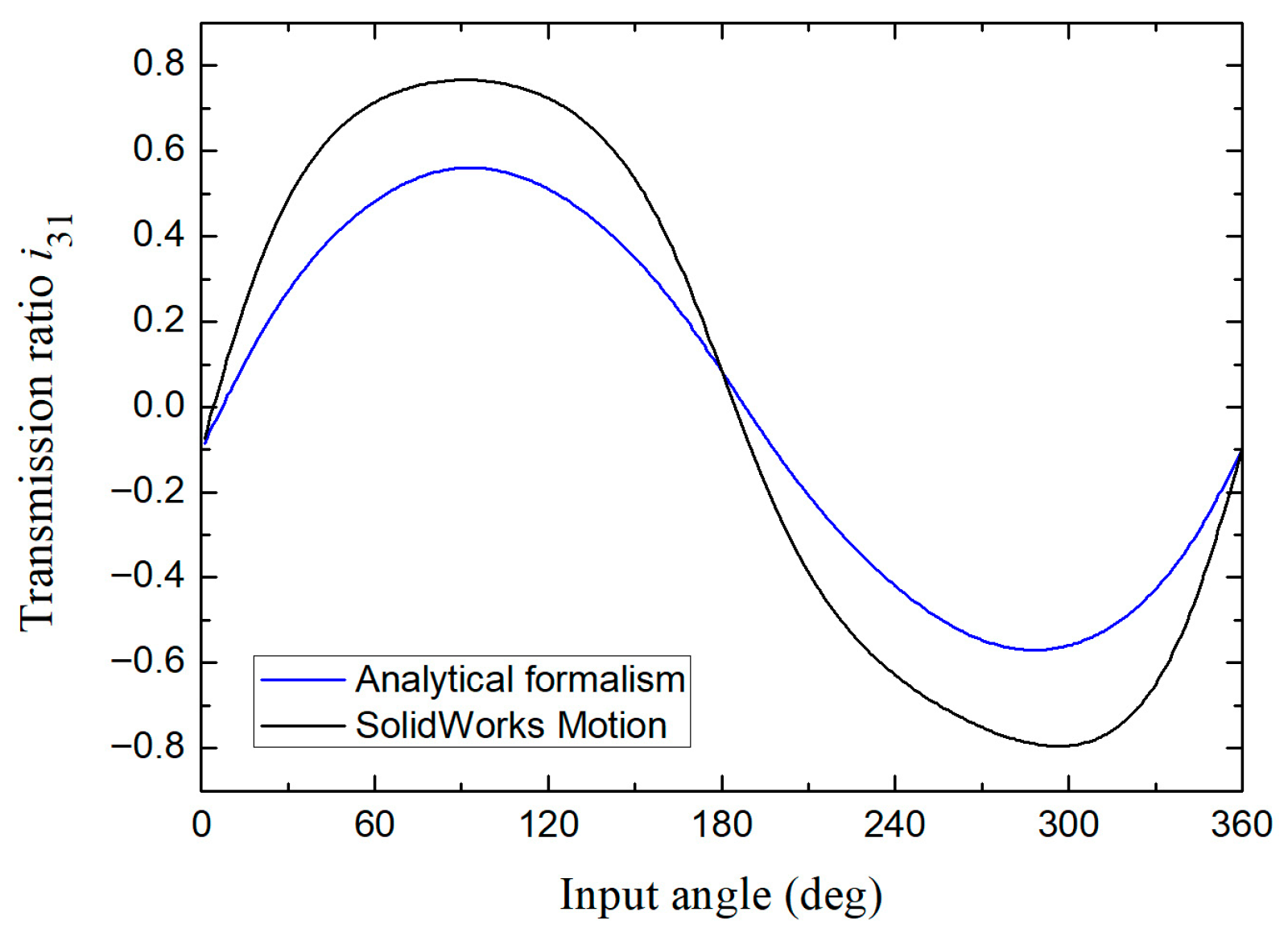

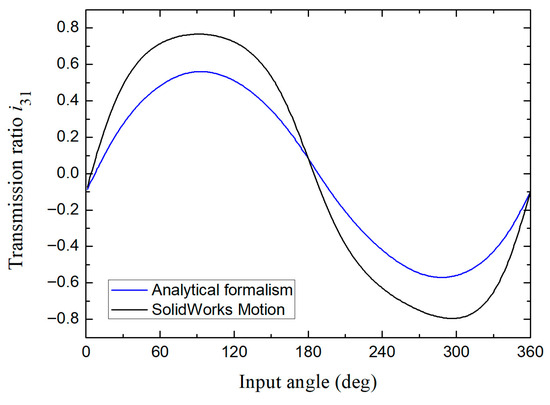

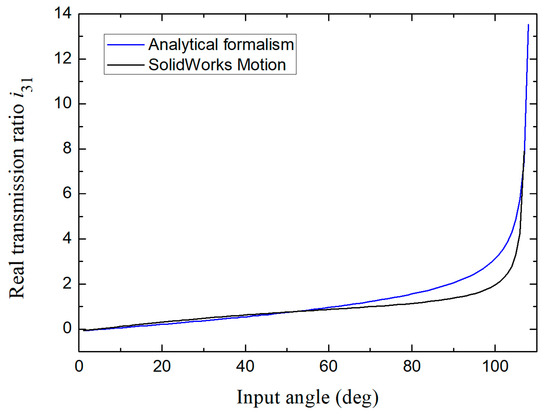

Next, the comparative graphs of the transmission ratios $i_{{31}_{Real}}$ obtained are presented using the theoretical formalism presented here with respect to those provided by the simulation module; see Figure 14, Figure 15 and Figure 16.

As can be seen, the results for the case of articulated parallelogram show a good match (Figure 14). Subsequently, once that the dimensional tolerances are assigned, the cases of non-Grashof and S + L < P + Q mechanisms emerge (see Figure 15 and Figure 16, respectively). There, it can be noted that the curves shown for these mechanisms coincide in their behavior, but in both cases the graphs provided by the simulation module show a slight difference in their concavity zones. This situation can arise due to a lack of contact restrictions between components or errors in the simulation resolution settings this has repercussions in inaccurate results in the sampling frequency. Based on the above, the formalism presented here proves to be a good option in terms of precision and also allows alternatively to independently analyze the sensitivity/influence coefficients to characterize how much each error (length or angle) of the mechanism elements contributes to the output variable.

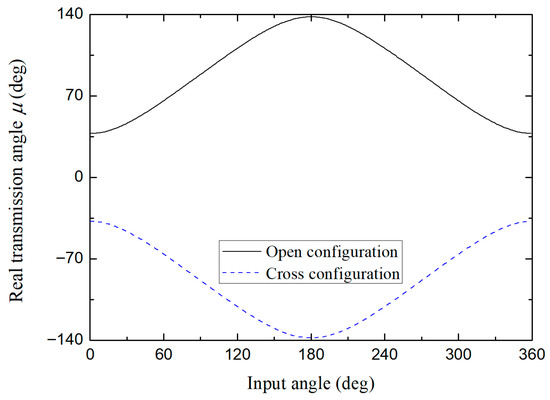

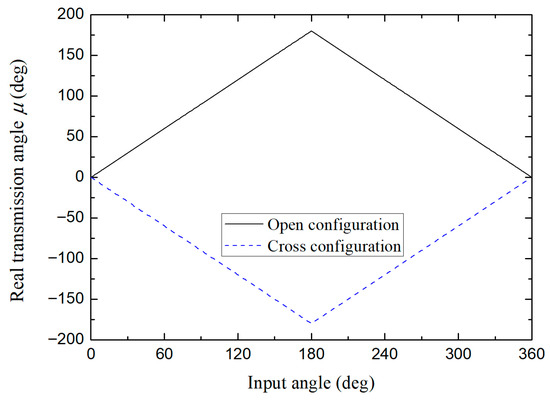

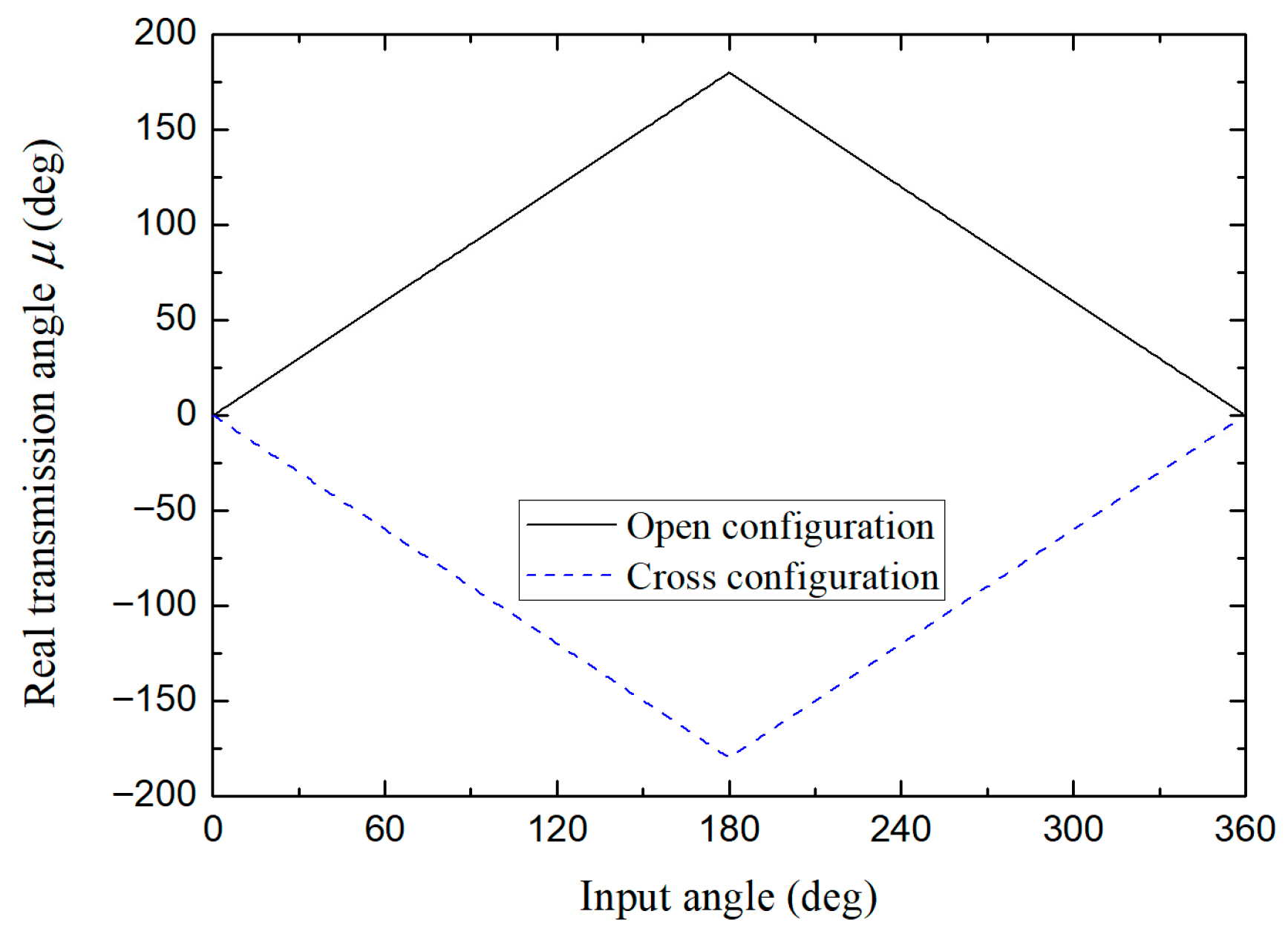

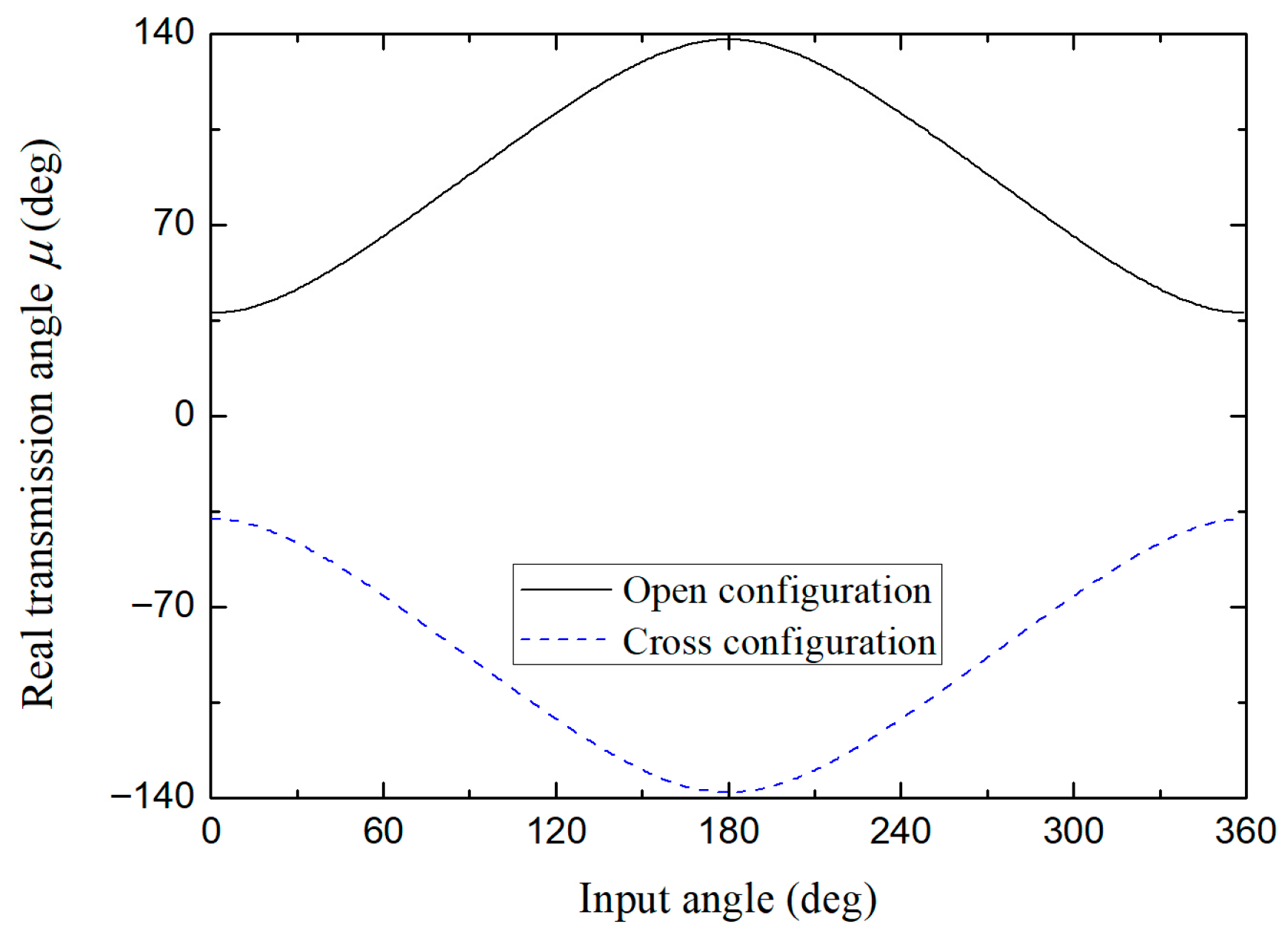

Finally, it may be useful to analyze how the transmission angle is affected when the dimensions of length of the links are altered by the assignment of bilateral tolerances. The location of the transmission angle ($\mu$) is indicated in the Figure 2; the calculation expression for the real transmission angle (${\mu }_{Real}$) is given by

$${\mu }_{Real}=\mu +\delta \mu ,$$

(26)

where

$$\mu ={\theta }_3-{\theta }_2,$$

$$\delta \mu =\delta {\theta }_3+\delta {\theta }_2.$$

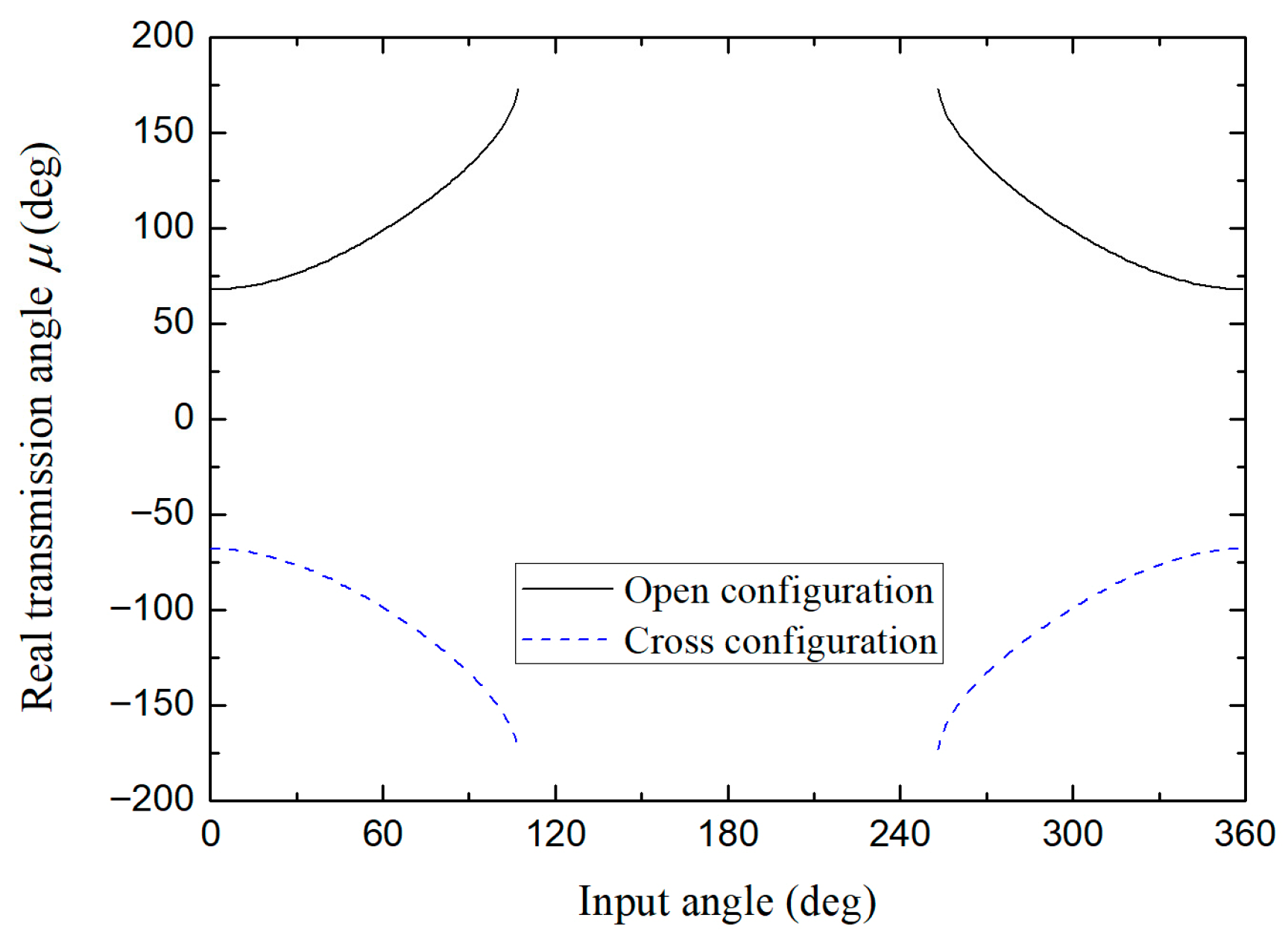

Again, the first three designs indicated in Table 2 (S + L = P + Q, non-Grashof and S + L < P + Q, respectively) will be used as reference examples. Figure 17, Figure 18 and Figure 19 show the evolution of the transmission angle for each type of mechanism. In the case of the articulated parallelogram, when its links are aligned (at the beginning and middle of the cycle), ${\mu }_{Real}$ can acquire its values in the interval $0\le {\mu }_{Real}\le 180°$, observing linear behavior (see Figure 17) which is symmetrical in the second half of the cycle. Figure 18 indicates a non-linear evolution in a limited interval $68°\le {\mu }_{Real}\le 173$ within a permitted range of motion, typical of a non-Grashof mechanism. On the other hand, Figure 19 also shows a non-linear evolution of the transmission angle for a Grashof type design. In this case, the system will make complete turns, but its links will never align. Consequently, the range of values in the first half of the cycle is within a certain interval, here $37°\le {\mu }_{Real}\le 138°$, and is also symmetrical in the second half of the cycle.

The importance of evaluating the transmission angle lies in the purpose of qualifying the transmission of movement of the mechanism. It has been shown that at values close to 90°, the mechanism shows low sensitivity to manufacturing tolerances in the measurements of its links and even an effective transmission of force [27].

6. Conclusions

The principal objective of this paper consisted in present an analytical and numerical methodology using the formulation of partial derivatives, for the estimation of real transmission ratios in four-bar mechanisms, considering the influence of bilateral tolerances in the dimensions of their links. This formulation, as a first step, allowed us to predict for any angular position of the input element of the mechanism, the positional errors of the output links in function of the manufacturing tolerances of their functional dimensions and the positioning error of the input link itself. Subsequently, the errors of the transmission ratios were deduced, which demonstrated a dependence with the positional errors of the output elements; the sum of these errors with the theoretical ratio provided the real ratio of the mechanism. Our analytical approach allowed us to define an incidence matrix, formed by variable coefficients with the input coordinate that indicate the relative importance that has each geometric parameter of the mechanism in the positioning error at the output.

On the other hand, the numerical solution of the influence coefficients (relative influence that the dimensional tolerances have on the positioning error of the output links) and the theoretical transmission ratio $i_{31}$, for an illustrative case of mechanism type articulated parallelogram, were validated through the analytical theory described in [27], where the only possible transmission ratio has a value of 1.

As mentioned in the previous sections, for common mechanical operating conditions, IT grades are used to assign bilateral tolerances to the dimensional parameters of a system, as specified in ISO 286-2 norm. Considering the same case study of articulated parallelogram, an IT18 tolerance grade was assigned. Our numerical calculations show that, as a result of the variations in the links lengths due to dimensional tolerances, when the articulated parallelogram condition is not met, the real transmission ratios of the mechanism deviate substantially from their ideal theoretical value (i.e., 1 for the case of $i_{31}$). It is even evident that such small changes in the lengths of its components in some cases cause unacceptable instantaneous variations in the transmission ratio (the Grashof relation is no longer fulfilled).

It is important to highlight that the graphical representations of the real transmission ratios obtained by our approach allow us to characterize the efficiency of designs that meet the Grashof condition, and beyond, define the permitted and blocking motion ranges for those designs that do not satisfy this condition. We can establish that we have a method that provides a complete overview for assigning a rational combination of dimensional tolerances for any degree of IT accuracy, with the goal of reducing the errors in the designs and achieving a better efficiency in the transmission ratio in four-bar mechanisms.

Furthermore, the validation using the SolidWorks Motion simulation module demonstrated that the theory developed in this work is a good option in terms of accuracy and also allows the independent analysis of the sensitivity/influence coefficients to characterize the contribution of each error (length or angle) of the mechanism elements to the output variable. This also includes the evolution of the transmission angle when the link length dimensions are altered by the assignment of bilateral tolerances.

To date, there are no reports in the classical and specialized literature in the area of synthesis and analysis of mechanisms that, unlike our theoretical formalism, provide expressions that independently calculate the errors in the transmission ratios and positional, as well as influence coefficients. Therefore, a future scope may lie in studying how the magnitudes and signs of the aforementioned parameters allow one to assign the most appropriate IT precision degree for each nominal dimension, in order to obtain motion and precision conditions that translate into efficient transmission ratios.
