Rheological and Aesthetical Properties of Polyolefin Composites for Flame Retardant Cables with High Loading of Mineral Fillers

Abstract

It was found that the use of natural magnesium hydroxide (n–MDH) as mineral filler in EVA based composites provided mechanical and rheological properties that did not completely comply with the halogen-free flame-retardant (HFFR) cables parameters. Moreover, the use of n–MDH mostly gave a rough grey surface in the compound extruded by rheometry capillary. In contrast, with the use of synthetic material (s–MDH), a combination of better outcomes was observed. Mechanical and rheological properties were more aligned with the application, and the aesthetics were also improved, i.e., the surface was smooth and whiter. Therefore, with the aim of obtaining good aesthetical quality on the extrudate, we studied formulations by varying the type of polymer matrix and using a mixture of the natural magnesium hydroxide combined with other kind of fillers (in a 3:1 ratio using as main filler n–MDH). On this account, we found a synergistic effect in the mechanical, rheological, and aesthetic properties for the filler blend system containing n–MDH in combination with s–MDH or Böhmite AlO(OH), or using a secondary polymer belonging to the polybutene family combined with EVA.

1. Introduction

Outer sheathing compounds of halogen-free flame-retardant (HFFR) electrical cable require robust mechanical properties, good surface quality, and flame retardancy. These performance attributes are achieved by the incorporation of a high amount of mineral fillers into a polyolefin matrix [1,2]. Our previous work [2] demonstrated that the use of natural magnesium hydroxide Mg(OH)₂ (n–MDH, cost-effective and widely available) as filler in a poly(ethylene-co-vinyl acetate) EVA/polyolefin matrix partly complies with the mechanical and flame retardant properties required for cables application due to its irregular particles with wide size distribution and presence of impurities such as carbonates. Higher performances were observed using synthetic magnesium hydroxide Mg(OH)₂ (s–MDH) that is characterized by regular particles with hexagonal geometry and narrow size distribution.

Many formulations were studied in the last work [2], which aimed to find the optimal dosage of the selected ingredients and to maximize the mechanical and flame-retardant properties.

The basic formulations, described in

Table 1. Basic formulation.

Ingredients	% in Weight	Function
EVA 28-3	27	Flexibility, polarity, good behaviour in fire tests (char forming)
Ethylene α-olefin copolymer	9	Modifier of rheology and surface quality
Mineral filler	60	Flame retardant
ULDPE-g-MAH	3	Coupling agent
Silicon MB	1	Processing aid

, included the 60 wt.% of the mineral filler, the 3 wt.% of ULDPE-g-MAH as the coupling agent, the 1 wt.% of the processing aid (silicon MB), and the 36 wt.% that consisted of a mixture of the 27 wt.% of poly(ethylene-co-vinyl acetate (EVA) with a content of 28 wt.% of vinyl acetate comonomer and the remaining 9 wt.% of the ethylene α-olefin.

Nevertheless, the major limitation of n–MDH as flame retardant is its use at high concentrations (typically 60–65% by weight, corresponding to approximately 36–42% by volume), which adversely affect some of the properties of the polymer matrix. Attempts to enhance the composite properties were made by changing the polymer matrix and adding n–MDH in combination with other fillers in a 3:1 ratio. Notably, n–MDH combined with Böhmite (AlO(OH)) was found as the most synergic combination for the mechanical and flame retardant characteristics enhancement.

Böhmite, expressed also as Al₂O₃∙H₂O, is a mineral filler obtained by careful control of time and temperature during the process production of alumina trihydrate (ATH, Al(OH)₃). It possesses numerous outstanding properties, such as high melting point, low thermal conductivity, high surface area, good chemical stability, low cost, and flame retardancy attributed to the capacity of improving the char formation on the burning materials due to its particle shape [3,4,5]. In the literature, examples are present for the optimization of the filler–matrix interactions to enhance the composite properties [6,7], but only a few of them report on natural fillers [8,9] due to the problematic rationalization of their behaviour within the composite system.

In this study, the same formulations were evaluated regarding the rheological properties and the aesthetical quality of the extrudates prepared using a capillary rheometer. Notably, our aim was to design a new method able to provide reliable indications and predictions on the surface quality of the materials once processed in industrial-scale cable extrusion lines. In this direction, it was decided to test formulations varying in one case the polymer matrix (a blend of an ethylene vinyl acetate copolymer (EVA) and a polymer that can be polyethylene, polypropylene or polybutene) and subsequently the mineral filler.

Notably, the rheology of highly filled composites has a pivotal role since high doping contents are critical in finding the best processing parameters such as temperature, pressure, etc in industrial formulations. High filler contents generally increase shear viscosity over the whole range of shear rates and frequencies [10] and render the rheology of the composites difficult to rationalize since the flow behaviour is also strongly affected by the filler characteristics, such as particle size, morphology, and surface chemistry [11,12]. Therefore, under these conditions, the rheological behaviour of highly filled composites is hardly predicted by the existing theories [13].

The main challenge of this work is to find the optimum trade-off between improvements in the ultimate (mechanical) composite properties provided by fillers and the processing conditions. Specifically, different formulations in terms of both the mineral filler and the polymer composition were selected and tested to obtain the best composite properties that comply with those of the sector regulations and the current production processes. To this aim, the use of a laboratory-scale method based on a capillary rheometer able to study the flow properties at high shear rates and simulate the conditions of large-scale industrial production was introduced.

2. Materials and Methods

The raw materials used for the experiments were:

• Poly(ethylene-co-vinyl acetate) EVA28, ELVAX 265A, Dow (Dow Europe GmbH, Horgen, Switzerland), containing 28 wt.% of vinyl acetate, Melt Flow Index 190 °C = 3 g/10 min, Density = 0.955 g/cm³.
• ULDPE-g-MAH, Fusabond N525, Dow (Dow Europe GmbH, Horgen, Switzerland), Ultra Low Density Polyethylene C₂-C₈ Copolymer, grafted with Maleic Anhydride (0.7–1.1 wt.%), Melt Flow Index 190° C = 3.7 g/10 min, Density = 0.88 g/cm³.
• Masterbatch of PDMS, Silmaprocess AL1142A by Silma Srl (Prato, Italy), composed by 50 wt.% of high viscosity PMDS and 50 wt.% LLDPE, Silicon MB.
• Fillers used are described in

  Table 2. Type of Fillers used in this work.

  Ingredient	Chemical Formula	Origin	Trade name	Supplier	D50 *1 (μm)	BET *2 (m2/g)
  n–MDH	Mg(OH)2	Natural	Ecopiren 3,5	Europiren (Rotterdam, Netherlands)	3.43	11–13
  CaCO3 stearic coated	CaCO3	Natural	Polyplex 0	Calcit (Stahovica, Slovenia)	2.10	9.5
  Böhmite	AlO(OH)	Synthetic	Aluprem TB 1/T	Tor Minerals (Hattem, Netherlands)	1.21	12
  s–MDH	Mg(OH)2	Synthetic	Magnifin H5	Huber (Bergheim, Germany)	1.50	4–6
  Huntite	CaMg3(CO3)4	Natural	Portafill H5	Sibelco (Maastricht, Netherlands)	3.27	18

  *¹ D₅₀: The portions of particles with diameters smaller and larger than this value are 50%. Also known as the median diameter. Measured by laser diffraction method according to ISO 13320. *² BET: Determination of the overall specific external and internal surface area of disperse or porous solids measuring the amount of physically adsorbed gas (N₂) according to ISO 9277. From TDS.

  :
• Grades of poly(ethylene-co-α-olefin) used are described in

  Table 3. Grades of Poly(ethylene-co-α-olefin) used in this work.

  Ingredient *3	Trade Name	Supplier	Density *1	MFI *2	Catalysis
  C4-LLDPE	Flexirene CL10U	Versalis (Mantova, Italy)	0.918	2.5	Z-N
  C6-mLLDPE	Exceed 3518	ExxonMobil (Machelen, Belgium)	0.918	3.5	metallocene
  C6-mLLDPE	Exceed 3812	ExxonMobil (Machelen, Belgium)	0.912	3.8	metallocene
  C6-mLLDPE	Evolue SP1071C	Prime Polymer (Tembusu, Singapore)	0.910	10	metallocene
  C6-mLLDPE	Exceed 0015XC	ExxonMobil (Machelen, Belgium)	0.918	15	metallocene
  C8-ULDPE	Engage 8450	Dow (Horgen, Switzerland)	0.902	3	metallocene
  C4-VLDPE	Clearflex MBQ0	Versalis (Mantova, Italy)	0.911	13	Z-N

  *¹ ASTM D792/ASTM D1505 (g/cm³). *² MFI (2.16 kg@190 °C) ASTM D1238/ISO 1133 (g/10 min). *³ C₄-VLDPE = Very Low Density Polyethylene (comonomer butene), C₄-LLDPE = Low Linear Density Polyethylene (comonomer butene), C₈-ULDPE = Ultra Low Density Polyethylene (comonomer octene), C₆-mLLDPE = metallocenic Linear Low Density Polyethylene (comonomer 1-hexene).

  :
• Grades of C₃-C₂ copolymers (propylene-rich) in

  Table 4. Grades of C₃-C₂ copolymers used in this work.

  Ingredient	Trade Name	Supplier	Density *1	MFI *2	Catalysis
  Heterophasic PP-EPR	Hifax CA10A	Lyndell-Basell (Ferrara, Italy)	0.880	0.6	Z-N
  C3-C2 copolymer	Vistamaxx 6202	Exxon-Mobil (Machelen, Belgium)	0.862	9.1	metallocene
  C3-C2 copolymer	Versify 3000	Dow (Horgen, Switzerland)	0.891	8	metallocene

  *¹ ASTM D792/ASTM D1505. *² MFI (2.16 kg@190 °C) ASTM D1238/ISO 1133.

  :

All the composites were prepared via a twin-roll mixer with rolls of 45 cm × 15 cm at the constant temperature of 140 °C for 10 min. At first, the polymer matrix was melted for 1 min and then the fillers and additives were added as a mixture. After mixing, composites with a thickness of 1.5 mm were recovered.

The flow properties were measured using a Melt Flow Index (MFI) instrument according to the standard ISO 1133:1 and using a capillary rheometer (Gottfert Rheograph 2002) at the constant temperature of 150 °C.

The particle size distribution of the fillers (D₅₀) was evaluated using a laser diffraction method. The analyses were carried out using a Mastersizer 2000 by Malvern Panalytical.

The surface characteristics of the extrudates obtained at different shear rate from the capillary rheometer were observed by using optical microscope (MOTIC B1-220E, Pisa, Italy), and scanning electron microscopy analyses (SEM) were performed to point out morphological properties using a FEI Quanta 450 ESEM FEG.

3. Results

As mineral fillers, natural magnesium hydroxide (n–MDH, Mg(OH)₂, Ecopiren 3,5) was compared with the synthetic magnesium hydroxide (s–MDH, Mg(OH)₂, Magnifin H5) which was reported to provide significantly higher performances to at the expense of the cost of the formulation [14,15].

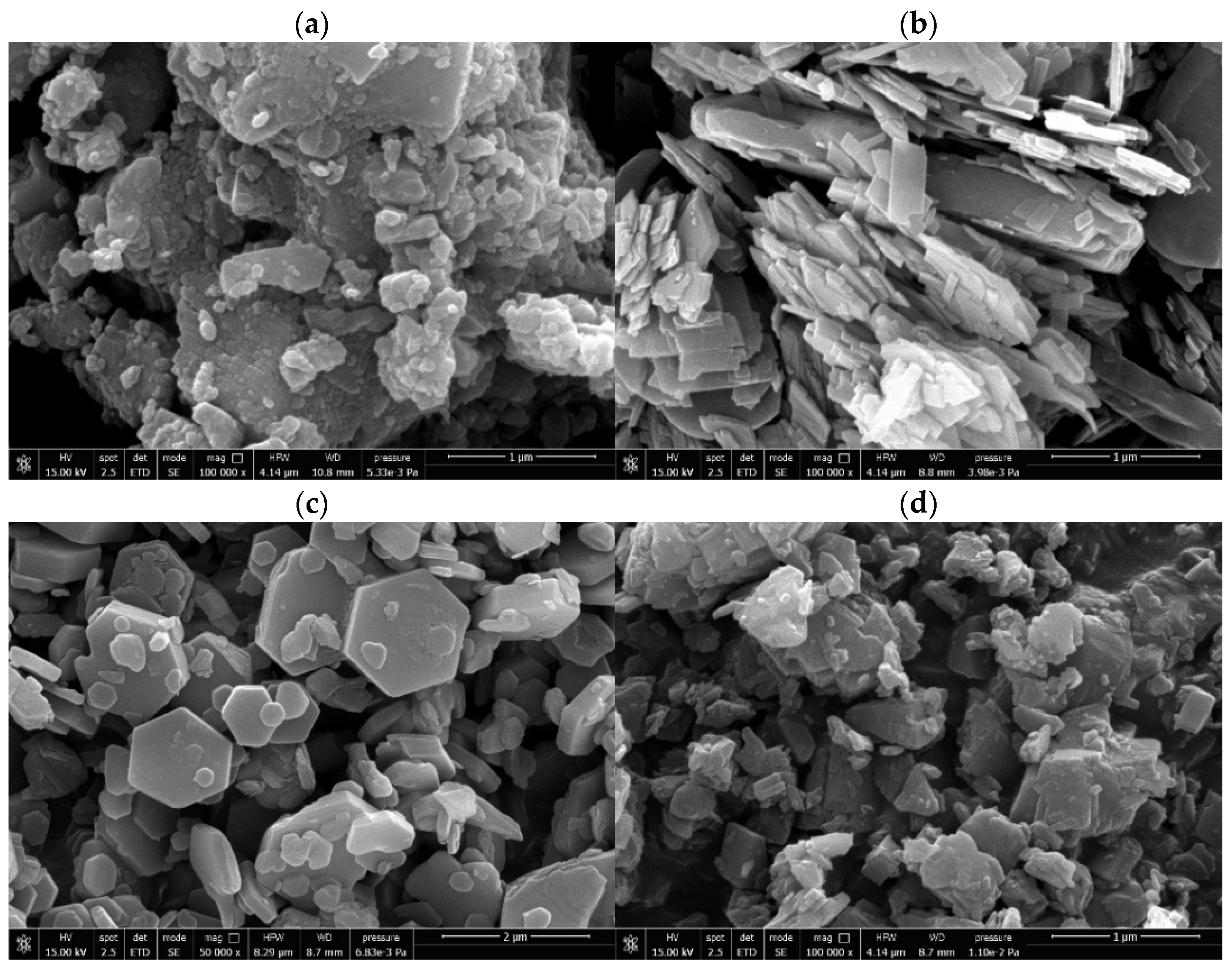

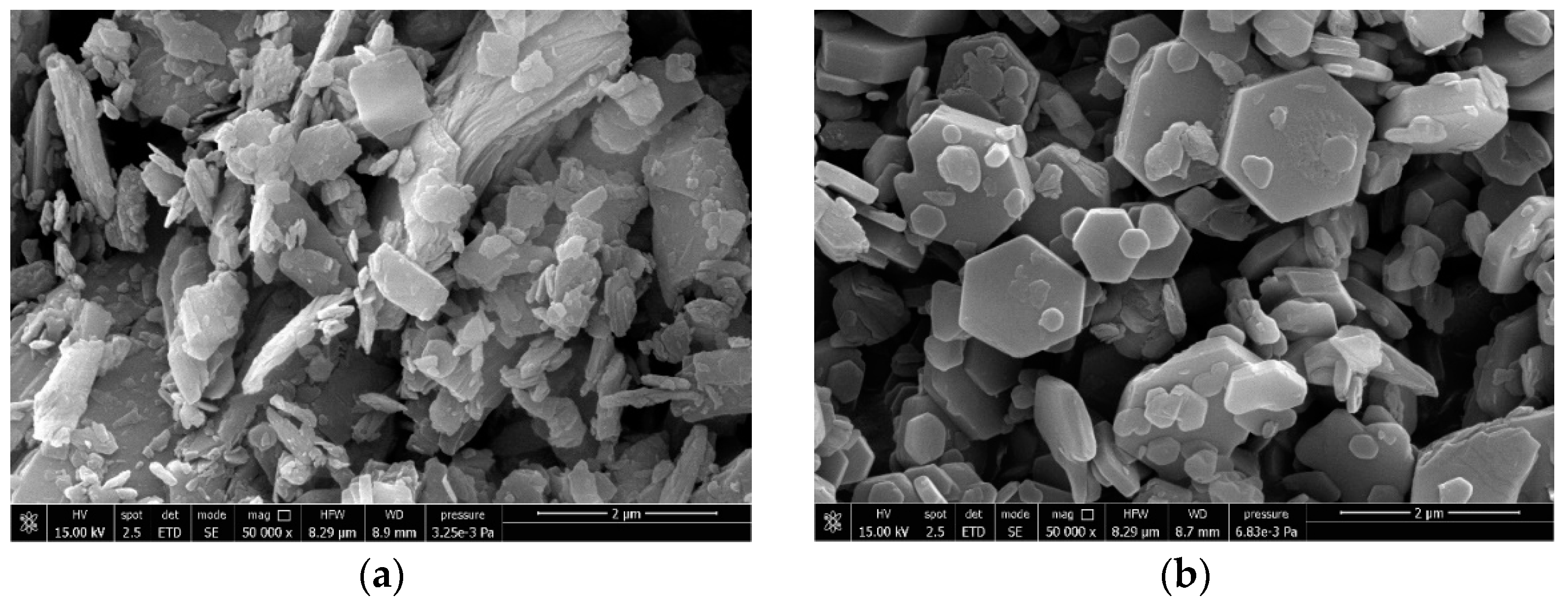

Notably, the fillers are characterized by different particles shape and size, due to their production process, i.e., a milling process for n–MDH instead a precipitation process for s–MDH. The n–MDH presents impurities, such as carbonates and irregular needle-like shape particles. Instead, the s–MDH presents hexagonal platy regular particle shapes (Figure 1). The rheological and aesthetical features of the composites filled by the two different fillers were then investigated.

3.1. Capillary Rheometer Analysis

The rheological properties were investigated by means of a capillary rheometer equipped with three kinds of geometry die (Length L—Diameter ∅, in millimetres): 10–1, 10–2 and 30–1, with the aim of developing a laboratory method able to reproduce the extrusion conditions and to have an indication of the surface quality of the extruded material.

Depending on the capillary die, extrudates with different diameters (1 mm and 2 mm) were obtained at various speeds and the rheological properties plotted in Figure 2 and Figure 3 for n–MDH and s–MDH, respectively. In particular, the rheograms show the dependence of apparent shear stress on the apparent shear rate of the different formulations.

Notably, the term “apparent shear rate”, γ_app (s⁻¹), defines the shear rate that the melt at the wall would experience at the given volume flow rate if its behaviour were Newtonian (Equation (1)), whereas the “apparent shear stress”, τ (Pa) is defined as the shear stress experienced by the melt in contact with the die wall (Equation (2)).

The velocity with which the piston presses on the material was varied from 2 mm/s (the rightmost point of the curve) to a minimum value of 0.0156 mm/s (the leftmost point). Each point (8 in total) is characterized by a piston speed halved compared to the previous one. All the measurements were conducted at 150 °C to be sure that all the polymer was melted within the chamber.

As shown, the curves obtained with the capillary 10–2, and therefore with double diameter compared to capillaries 10–1 and 30–1, are translated to lower apparent shear rates (γ_app), according to the theory (Equation (1)) [16,17]

$${\gamma }_{app}=\frac{4Q}{\pi R^3}$$

(1)

Equation (1) Apparent shear rate (s⁻¹)

where:

▪

Q is the flow rate, which is proportional to the speed of the piston pushing the material

▪

R is the die radius

Apparent shear stress (τ), is defined by the Equation (2):

$$\tau =\frac{RP}{2L}$$

(2)

Equation (2) Apparent shear stress (Pa)

where:

▪

P is the pressure difference and depends on the pressure measured inside the capillary rheometer’s die

▪

R is the die radius

▪

L is the die length

So, with the same capillary geometry, the shear stress is dependent on the pressure measured inside the rheometer die.

An important parameter obtained by using a capillary rheometer is the apparent shear viscosity, η (Pa*s), given by the Equation (3):

$$\eta =\frac{\tau }{{\gamma }_{app}}$$

(3)

Equation (3) Apparent shear viscosity (Pa*s)

where:

▪

τ is the shear stress

▪

γ_app is the shear rate

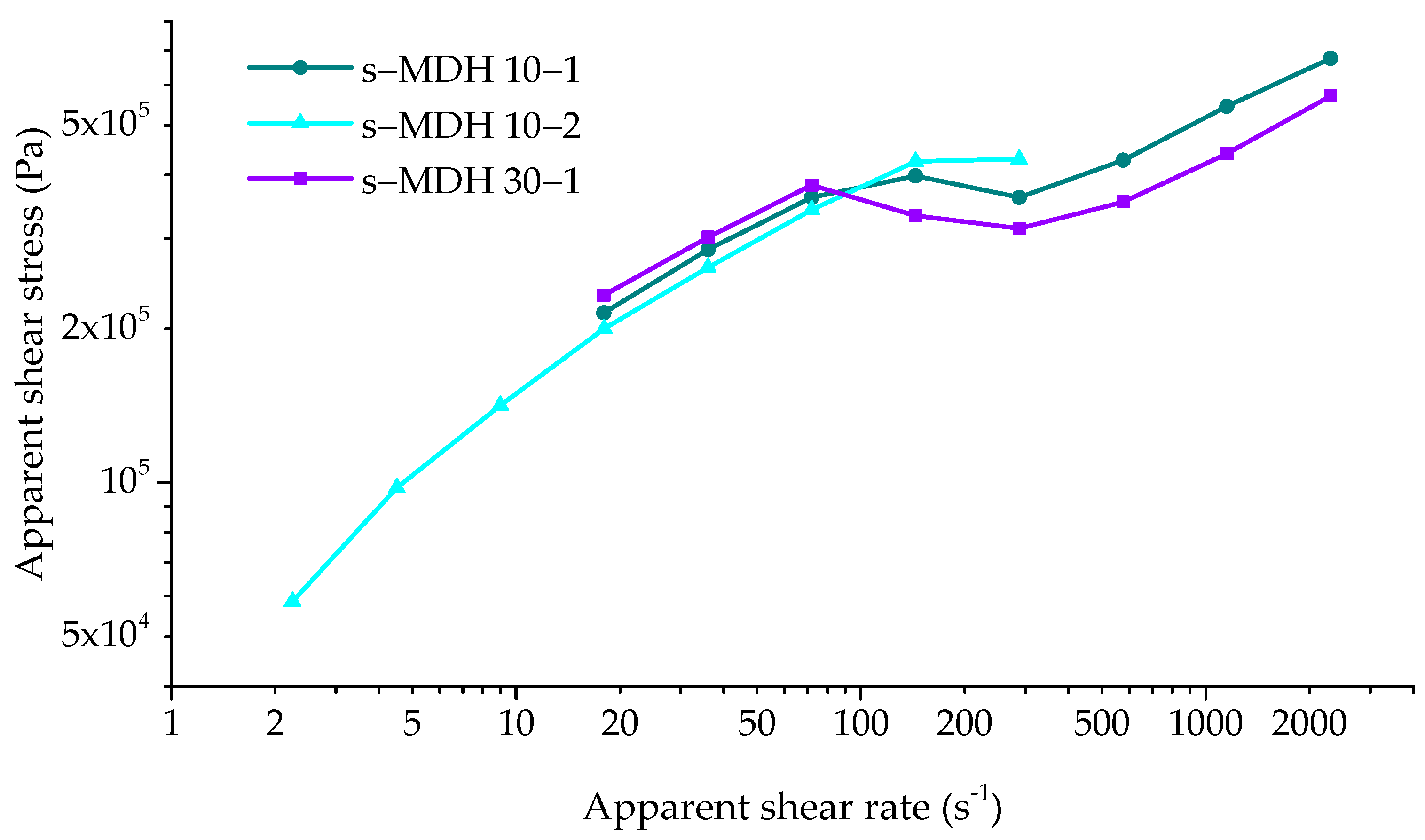

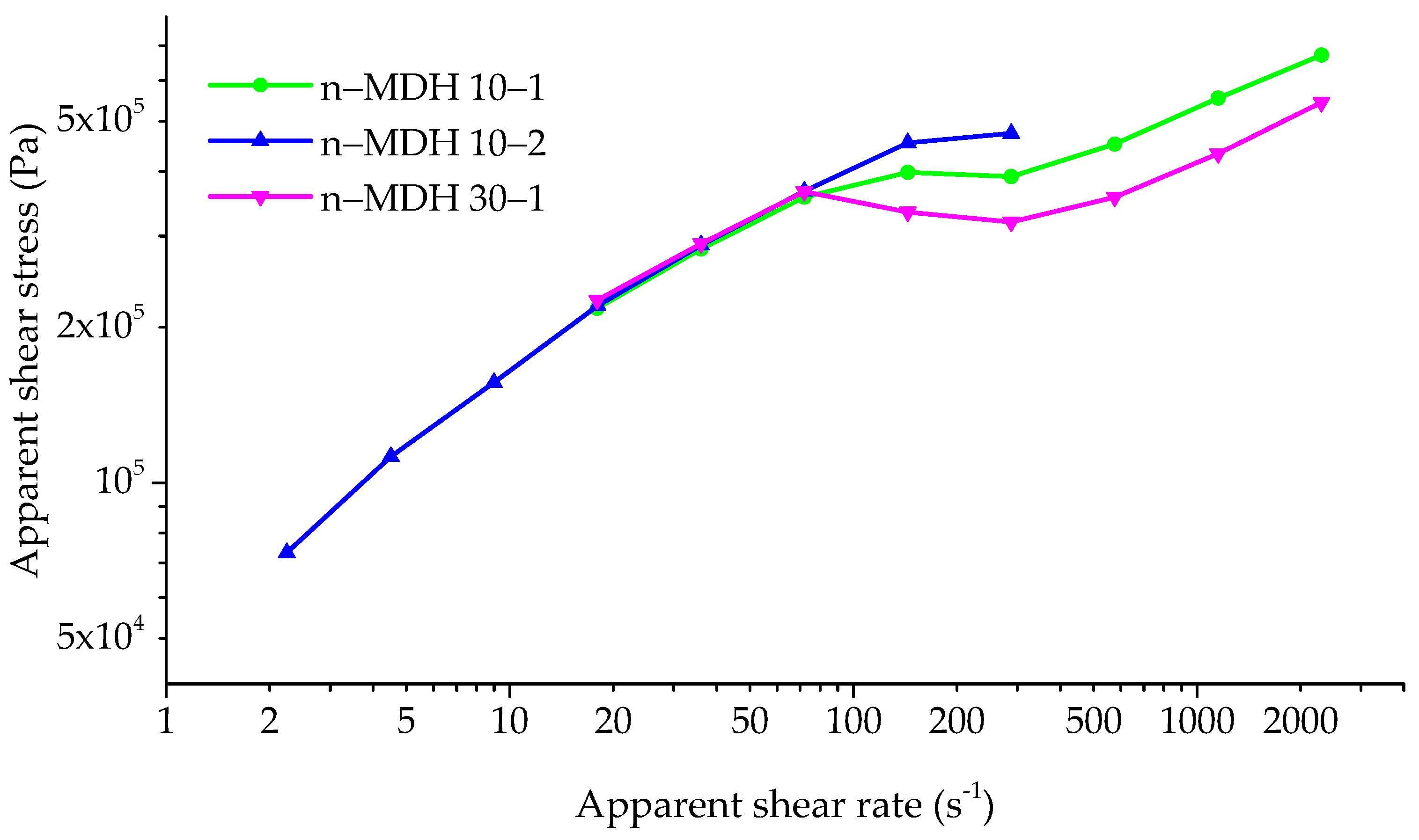

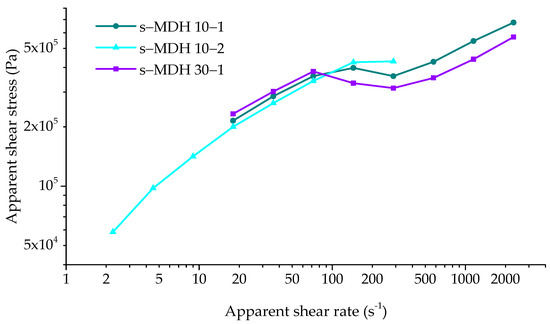

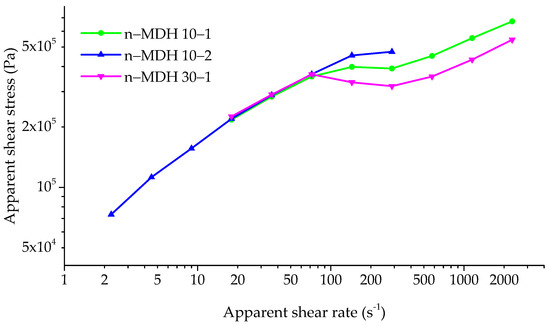

From both rheograms in Figure 2 and Figure 3 similar trends were observed:

• In the right part of the rheogram (around 280–2300 s⁻¹), the higher apparent shear rates correspond to the higher apparent shear stress. In this condition Bingham [18] assumed that, during the flow of concentrated suspensions, a “plug flow” system is established and an apparent slip layer is formed. This fact is ascribed to a lack of adhesion between the material and the shearing surface with a thickness that is independent of the flow rate and the nature of the flow mechanism [19]. In this region, the material always comes out smooth thanks to the high pressure that is applied to the surface before the exit from the capillary die. The formation of the apparent slip layer is pivotal for the determination of the rheological parameters, and affects the processing conditions also in terms of the process/product quality control relation. Notably, wall slip reduces the pressurization rate of the single and twin-screw extruders and their mixing capabilities, and the pressure drop in die flows [19].
• Transition zone (around 150–300 s⁻¹ of apparent shear rate): the phenomenon of sliding overhang (the so-called “slip-stick”) is observed. In particular, during piston lowering there is an increase in pressure until reaching a maximum value. Subsequently, a leakage of the material from the capillary is observed at high speed, thus resulting in a sudden drop of the measured pressure. At this point, the cycle starts again with the decrease of the velocity of exit from the capillary and a new increase of the pressure. Note that under these conditions the measured value of pressure is not accurate, as it follows an oscillatory trend, so the relative value of measured apparent shear stress is to be considered with a greater uncertainty. In this region, the shark-skinned rough extrudate (stick) topology alternates with the smooth glossy extrudate (slip) one. The apparent shear rate increases the intensity of the distortion, which is made less evident by increasing the capillary length [6].

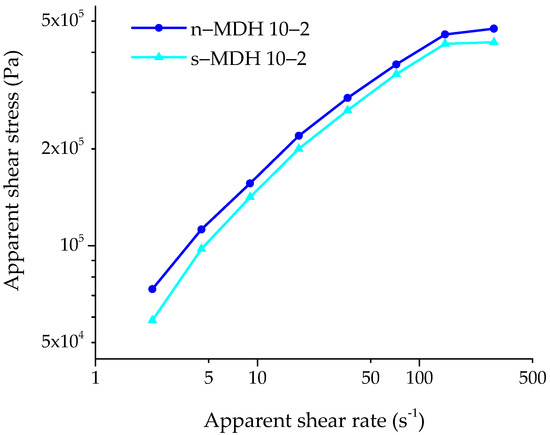

• In the rheogram of Figure 4, a magnification of the left part of the overlay of the rheograms of n–MDH and s–MDH (2–500 s⁻¹) is reported. Notably, it is possible to notice that there are some differences between the curves obtained using the 10–2 die. This difference could be ascribed to the particle shape as described before: i.e., n–MDH is characterised by an irregular shape (needle-like) that allows the formation of more interactions between the polymer matrix and the filler, thus resulting in a more viscous system (the blue curve is higher than the other one), as also demonstrated by a lower value of MFI observed in literature (9.2 ± 0.5 g/10 min for n–MDH vs. 12.8 ± 0.6 g/10 min for s–MDH) [2].

It is possible to evidence that, since s–MDH particles have a hexagonal platy regular shape, during the capillary measurements, in the melt composite, s–MDH particles should orientate along the flux direction, thus providing a lower obstructing effect of the filler on the plastic flow.

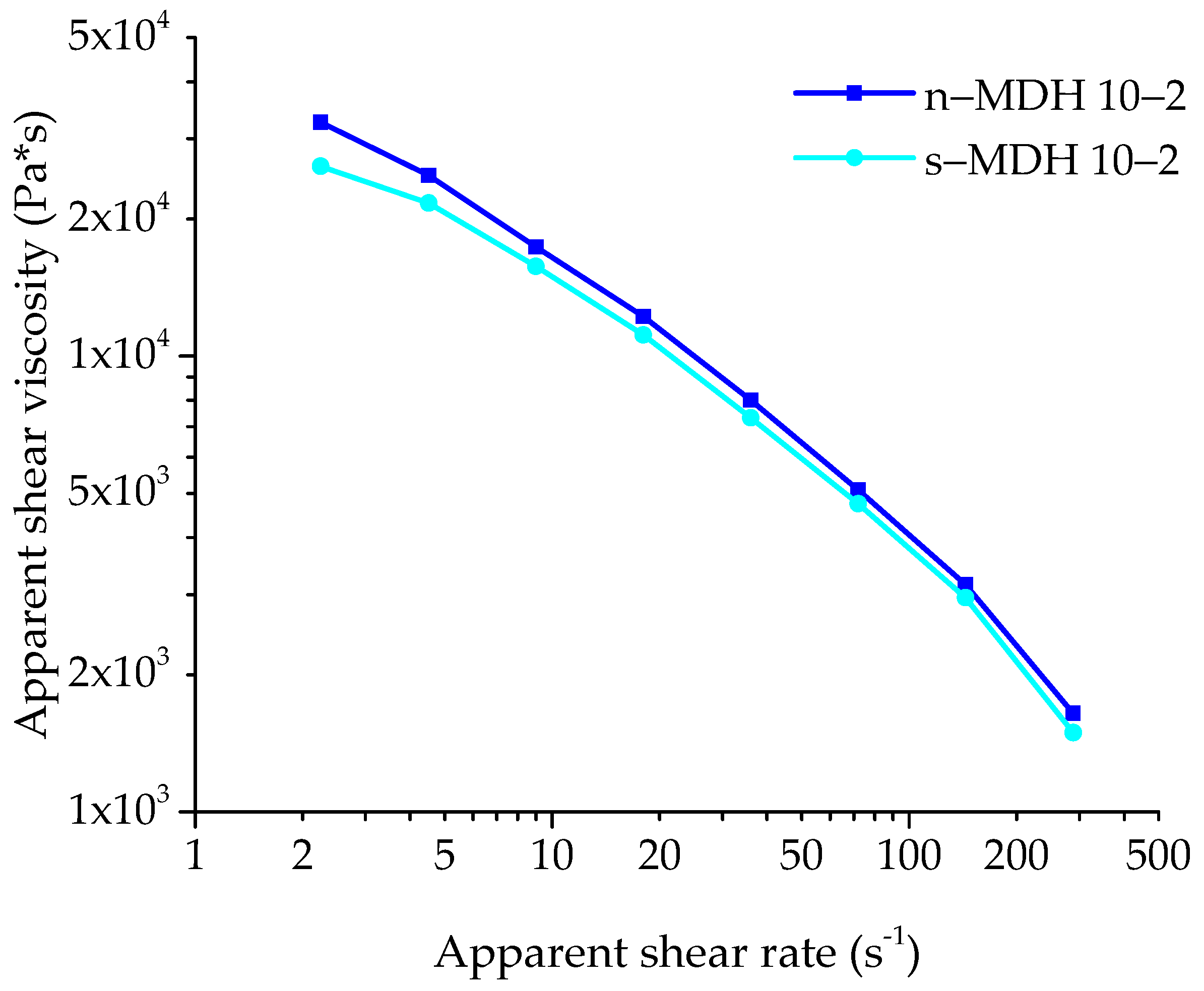

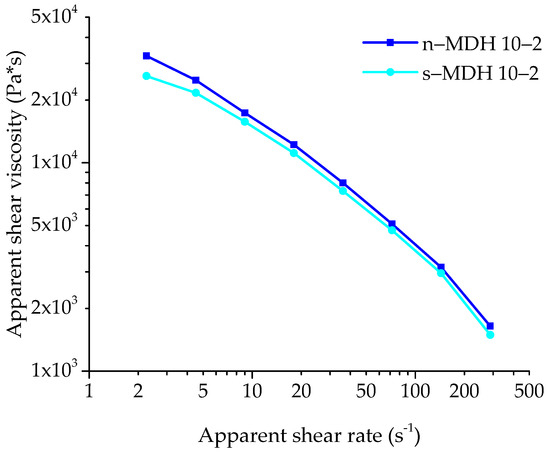

A graph of the apparent viscosity as a function of the apparent shear rate (Figure 5) is presented as well. It is evident that as the shear rate increases, the viscosity decreases, as associated to a shear thinning behaviour typical of pseudoplastic materials [5], as described in the next paragraphs.

3.2. Surface Analysis

After evaluating the mechanical and rheological properties, surface quality of the extrusions obtained from the capillary rheometer was investigated. Flow instability and melt fracture contribute to the formation of surface defect during polymer extrusion, thus enabling the formation of roughness and tearing on the extrudate surface once the material is emerged from the die.

The capillary rheometer allows the analysis of the extrudate morphology can be analysed by capillary rheometry, since different portion of the extrudate can be selected as a function of the shear rate during extrusion. The surface roughness of the extrudates was studied by means of optical and SEM microscopy at the lowest shear rates spanning from 10–20 s⁻¹ to 200–300 s⁻¹, which are typical for cable production [20]. Moreover, under these conditions, the flow and hydrodynamic interaction among composite components are less effective than the intrinsic composite properties.

The surface analysis of the extrudates (n–MDH in

Table 5. Surface analysis of the extrudates at various size die at different shear rate of the piston for n–MDH composite.

	n–MDH (Ecopiren 3,5)
Capillary Die	High Shear (2 mm/s)	Low Shear (0.0156 mm/s)
10–1 L = 10 mm ∅ = 1 mm
10–2 L = 10 mm ∅ = 2 mm
30–1 L = 30 mm ∅ = 1 mm

and s–MDH in

Table 6. Surface analysis of the extrudates at various size die at different shear rate of the piston for s–MDH composite.

	s–MDH (Magnifin H5)
Capillary Die	High Shear (2 mm/s)	Low Shear (0.0156 mm/s)
10–1 L = 10 mm ∅ = 1 mm
10–2 L = 10 mm ∅ = 2 mm
30–1 L = 30 mm ∅ = 1 mm

) was first performed on the extrudate obtained from the capillary rheometer using all the capillaries available (10–1, 10–2, and 30–1).

It is possible to observe that at higher shear rate, regardless the geometry of the capillary and the mineral filler (n–MDH or s–MDH), only smooth surfaces were obtained, and corresponding to the plug flow behaviour of the molten compound inside the die. This phenomenon could be explained due to the high pressures, and these could release the material at uniform speeds along the section of the capillary. A polymer film possibly formed on the capillary wall, which favoured the slippage of the melt inside the die, limiting the phenomena of friction as described earlier.

In particular, the incorporation of s–MDH (Magnifin H5) leads to a white, regular, and smooth external morphology at any shear rate, regardless of the geometry of the capillary, confirming that the regularity of the particles shape (hexagonal one, Figure 1b) was also effective on the extrudate surface properties as already reported for mechanical ones [2]. However, the use of this kind of filler makes the compound very expensive, as described in literature [14,15].

From previous studies in our laboratory [5], we know that extruding materials with high n–MDH content presents problems for the surface in addition to producing grey colour composites due to the presence of impurities in the filler resulting from milling process of the brucite [2,15].

As the shear rate decreases it is difficult to clearly classify the n–MDH surface morphology: in this case the pressure involved was much lower and this could cause the presence of inhomogeneous flows responsible for the evident periodic defects causing high surface roughness (sharkskin effect) of the material. This is particularly evident with the use of the capillary die 10–2, confirming those observations from the rheological experiments, where a more evident differentiation is obtained.

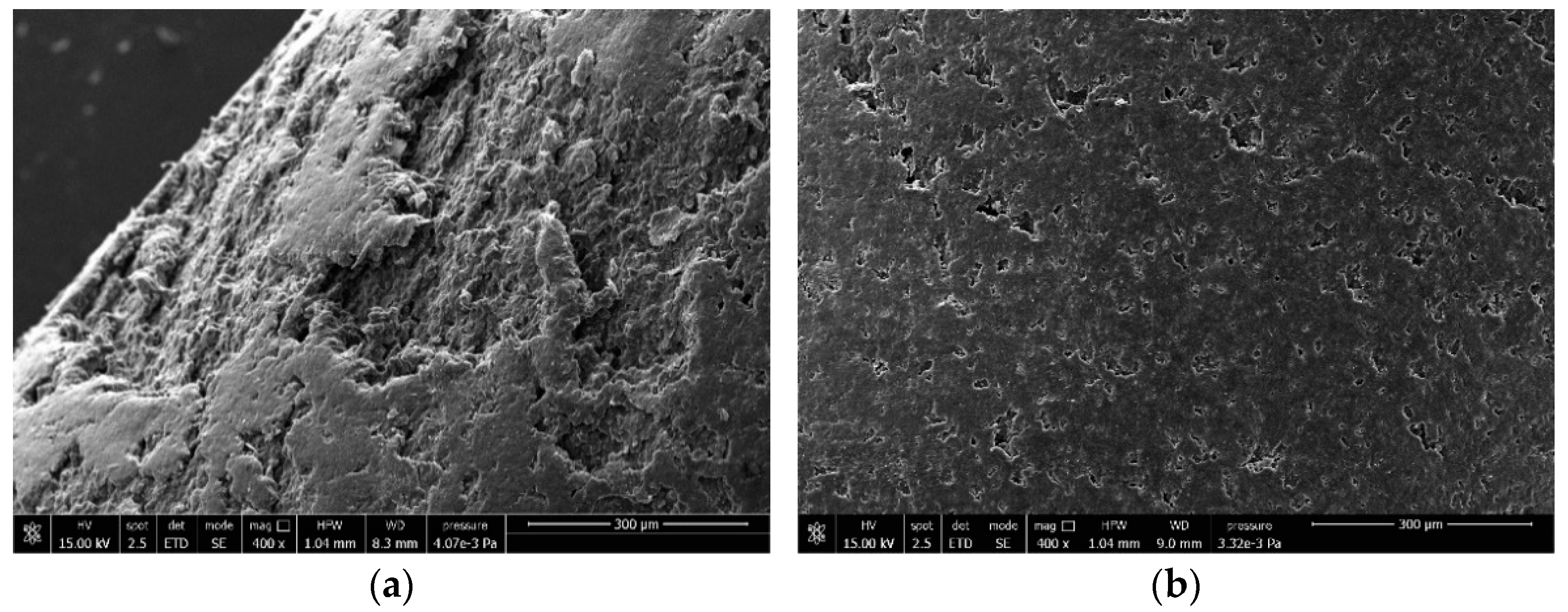

SEM analysis (Figure 6) was conducted to evaluate the surface difference among the extrudates with n–MDH at different shear rates.

It is observed that at lower shear rate (Figure 6a), the cohesion between filler and matrix is broken, creating defect points on the surface. Conversely at higher shear rate (Figure 6b), the filler–matrix adhesion is strong enough and the material looks quite homogeneous.

Despite this phenomenon (roughness at lower shear rates) the n–MDH is generally used as flame retardant due to its low cost, its great availability in the world and its natural origin [1].

So, in order to render the surface of n–MDH composite extrudates smoother, the mixing of n–MDH with another filler and the use of a different secondary polymer were taken into account.

3.3. Variation of Type of Mineral Filler Used in Combination with n–MDH

Natural fillers such as calcium carbonate (CaCO₃, Polyplex 0), a mixture of huntite/hydromagnesite (Mg₂Ca(CO₃)₄, Portafill H5), and synthetic fillers, such as Böhmite (AlO(OH), Aluprem TB 1/T), and synthetic magnesium hydroxide (Magnifin H5), were studied.

In particular, CaCO₃ (Polyplex 0) presents rounded particles coated with stearic acid while huntite/hydromagnesite (Portafill H5) is characterised by long lamellar with a high BET value of 18 m²/g. Regarding the synthetic fillers, they are characterized by regular shape, i.e., Böhmite (AlO(OH), Aluprem TB 1/T) showing particles almost similar to spheres, while s–MDH (Magnifin H5) presents hexagonal platy shape particles (Figure 7).

3.3.1. Analysis at Capillary Rheometer

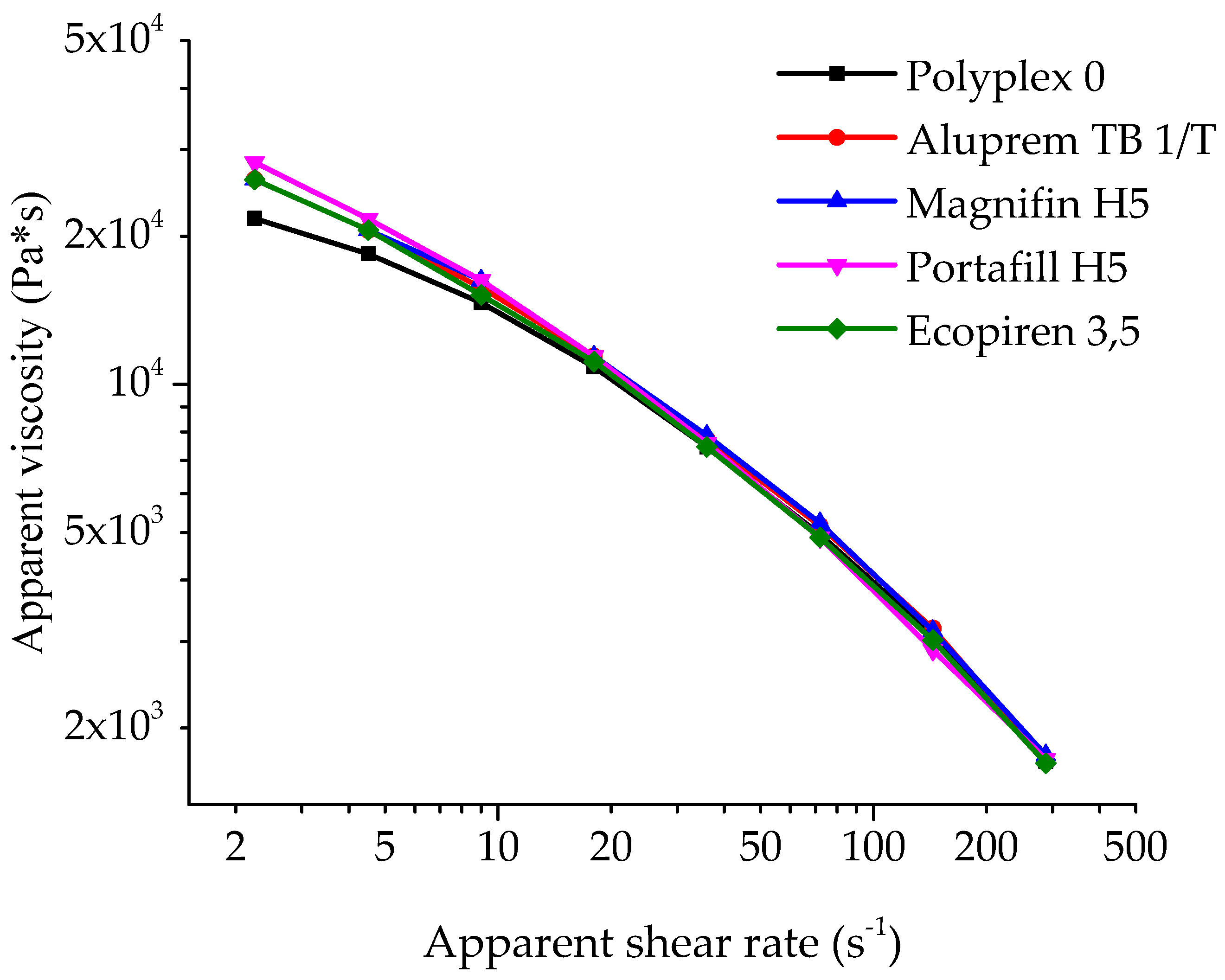

The rheological studies shown in Figure 8 were conducted with the capillary die 10–2. Notably, the materials showed viscosity differences at low shear rates, only, and with the typical shear thinning effect at high shear rates. All the composites behave like pseudoplastic materials, i.e., showing viscosity decreasing at higher shearing due to the disentanglement process [21]. Notably, at high shear rates, the presence of filler appears irrelevant for viscosity, since properties are mostly influenced by the hydrodynamic interaction only [21].

In particular, the incorporation of all the types of filler in the polymer matrix (in a 3:1 ratio to n–MDH) causes the increase of the shear stress and the shear viscosity of the materials. Among the curves reported in the graph the presence of natural or synthetic fillers does not lead to evident differences

Therefore, it can be concluded that among all the filler properties, the particle shape seems to be the most influential on the rheological properties of the composites. In fact, differently from fillers with regular shape such as s–MDH, particles characterised by irregular shape such as n–MDH strongly contribute to viscosity enhancement that adversely affects the processability of the filled polymer matrix.

From literature [22,23,24], it is well known that the presence of an organic layer as a surface coating of the particles reduces their tendency to agglomerate, leading to a general reduction in viscosity, as evident from the experiments at lower shear rates for n–MDH combined with stearic acid coated CaCO₃ (Polyplex 0).

3.3.2. Surface Analysis

The composites obtained using the natural fillers in combination with the n–MDH were studied in terms of their surface quality. By observing the images embedded in Figure 9, it is possible to see a clear improvement in surface quality compared to the reference compound based only on n–MDH (Ecopiren 3,5) in Table 6.

In particular, calcium carbonate (Polyplex 0) gives a smoother surface than the use of the huntite/hydromagnesite (Portafill H5), possibly due to their different particle size, as described before in Figure 7a,b, respectively. Calcium carbonate presents rounded particles coated with stearic acid that allows an easier dispersion into the polymer matrix generating a good quality of the extrudate surface also at lower shear rate (36 mm/s). Regarding the huntite/hydromagnesite (Portafill H5), the filler is characterised by long lamellar particles that probably agglomerate, thus limiting its wetting by the polymer matrix despite a value of BET of 18 m²/g.

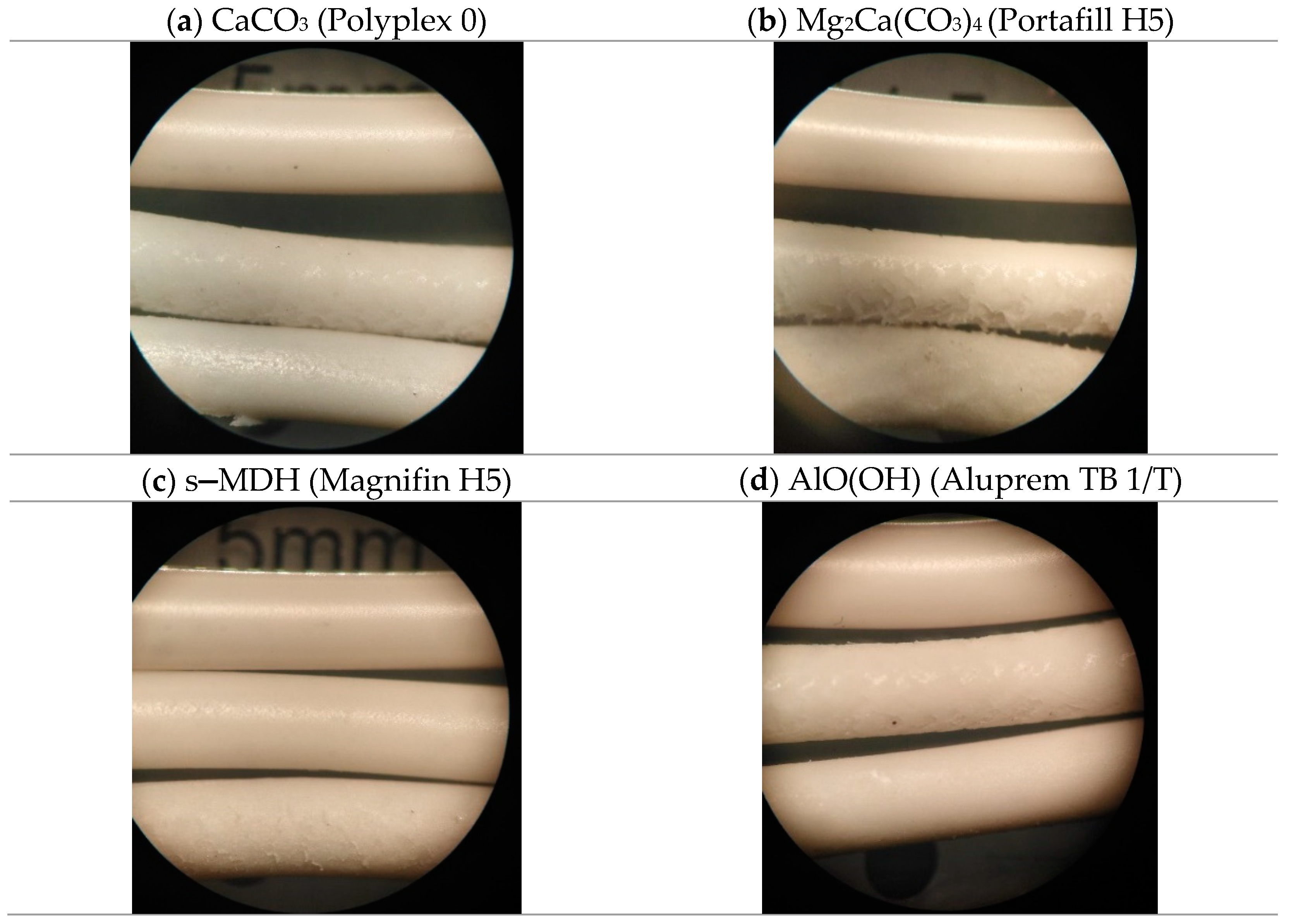

The incorporation of synthetic fillers such as magnesium hydroxide (s–MDH, Magnifin H5) and Böhmite (AlO(OH), Aluprem TB 1/T) leads to regular and smooth external morphology [5], confirming that the regularity of the particle shape of the filler (Figure 7a,d, respectively) is very influential on the extrudate surface properties, as evidenced in Figure 9.

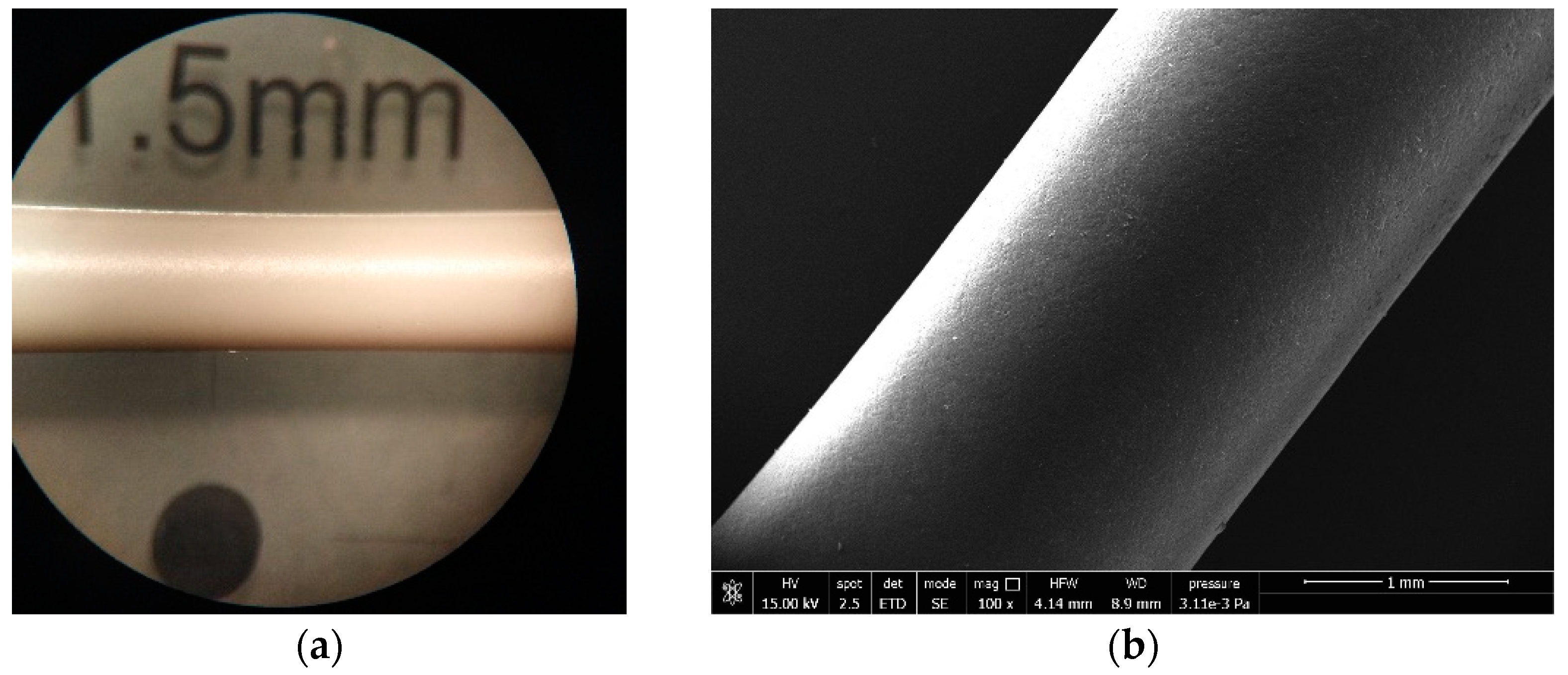

In particular, the mixture of natural magnesium hydroxide (n–MDH) with calcium carbonate (Figure 9a), the mixture of n–MDH with the precipitated one (s–MDH) (Figure 9c), and the mixture of n–MDH with AlO(OH) (Figure 9d) were found to be the best combination of fillers in providing smoothest surface also at very low shear rate (4.5 mm/s) flanked by the lowest viscosity, especially for calcium carbonate as explained earlier. This result is in line also with the mechanical properties obtained in the previous work [2] and is expected particularly for magnesium hydroxide since it gives always smooth surfaces in any extrusion condition [5].

3.4. Variation of Type of Polyoefin Used in Combination with EVA

After evaluating the effect of the filler on the surface quality of the various extrudates, the effect of the secondary polymer was investigated. The filler was kept fixed to 60% of n–MDH and varying the polymer partner of EVA28 to maintain a 3:1 ratio with polymers, such as polyethylene, polypropylene, or polybutene, being common matrices for cable formulations [25].

3.4.1. Analysis at Capillary Rheometer

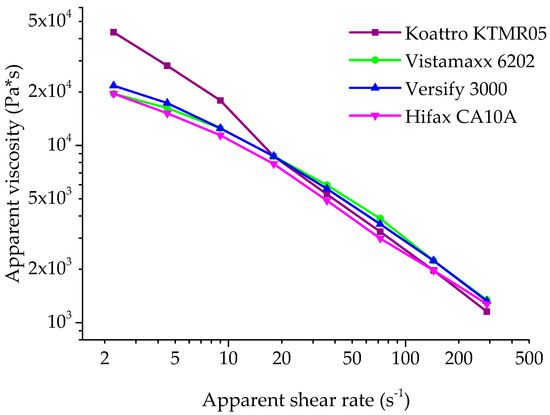

The dependence of viscosity on the shear rate was studied (Figure 10) for the secondary polymer belonging to the polyethylene family and (Figure 11) for polypropylene or polybutene. Again, it can be noted that all the curves show the same trend: the higher difference in viscosity among the materials are more marked at low shear rates (from 2 mm/s to 20 mm/s), while at high shear rates all the systems show nearly the same value and with the typical shear thinning effect.

At low shear rates, it is possible to make a parallelism of the apparent viscosity with the melt flow index value (MFI), since MFI is a rheological measure obtained at low shear values [26]. In particular, it is possible to observe that the composites with the highest viscosity are those with the lowest MFI value [2], both based on a secondary C₆-mLLDPE polymer (Exceed 3812 and Exceed 3518 respectively).

The formulation containing polybutene-1 (Koattro KTMR05) as secondary polymer shows a different pattern due to its different compatibility with the polymeric matrix of EVA28 (Figure 11). The poor compatibility of these two polymers with EVA could allow them to behave like external lubricants, thus improving the aesthetic appearance of the composites [27].

As reported earlier, a correlation between the viscosity at low shear rate with the value of MFI can be evidenced: the violet curve (compound based on polybutene-Koattro KTMR05) is characterized by lower MFI value than the other compounds [2].

3.4.2. Surface Analysis

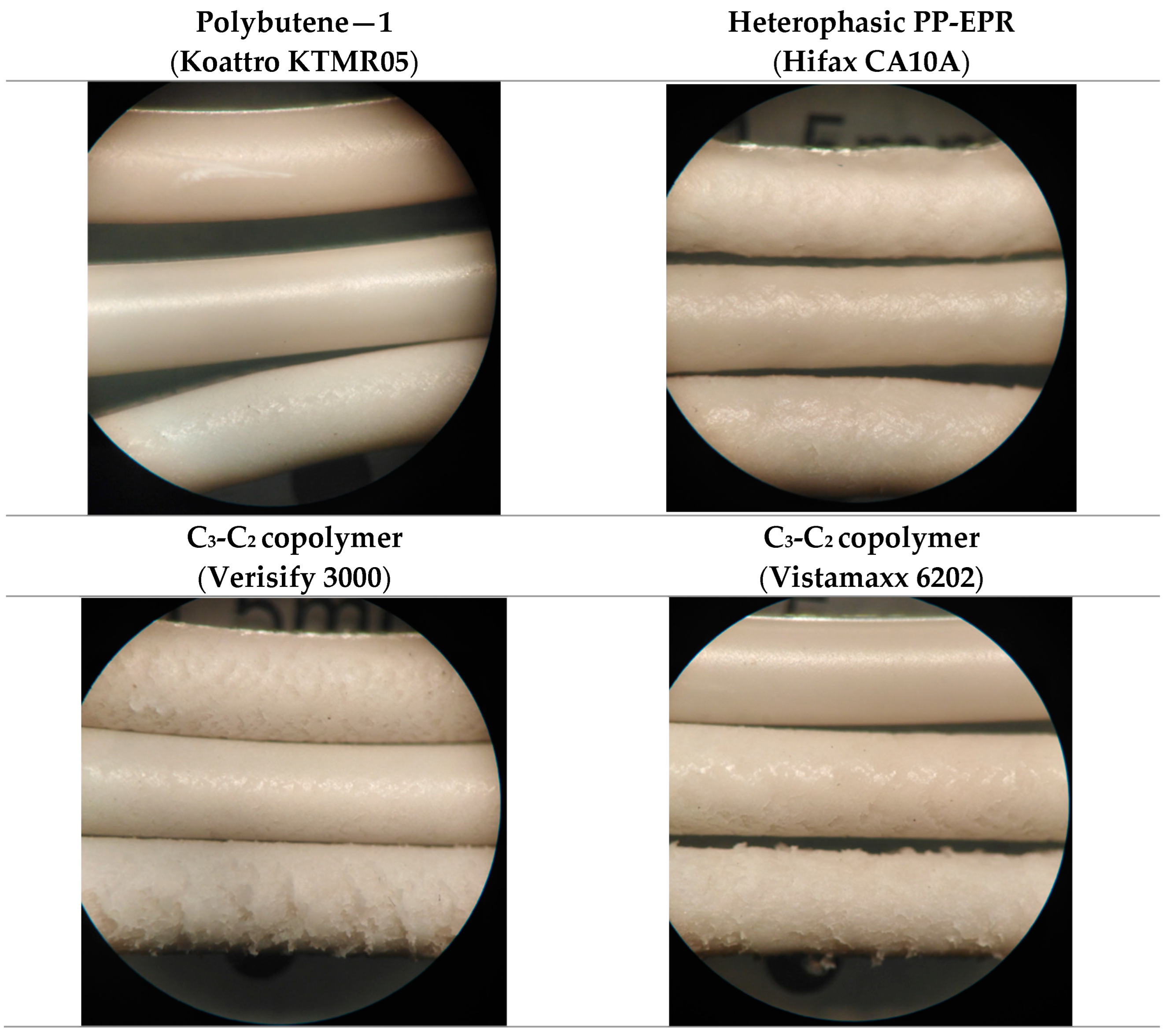

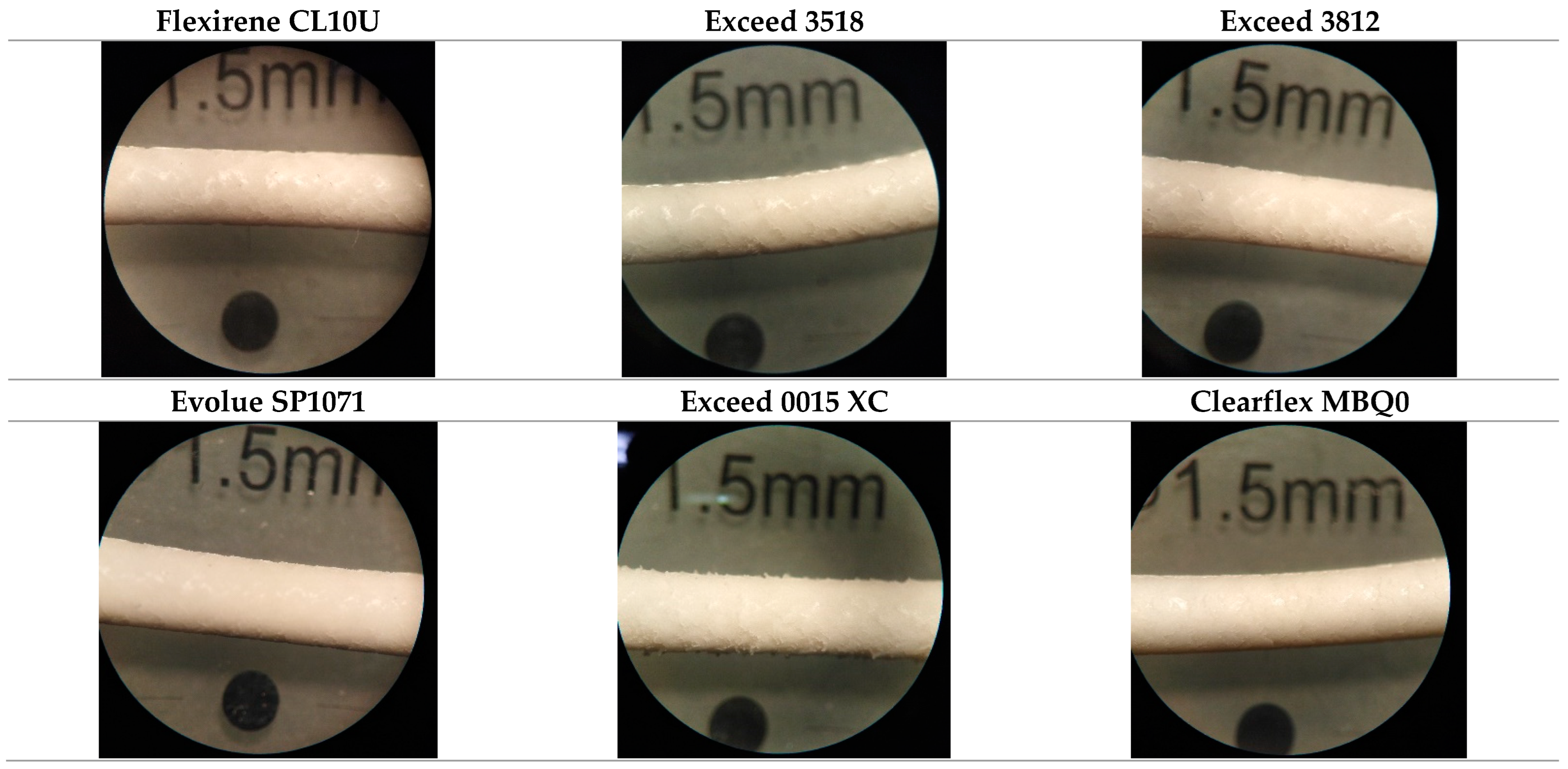

The surface quality of the extrudates obtained by varying the secondary polymer was investigated, and a similar behaviour could be found for all the prepared compounds: while the extrudates at higher shear rate show a very smooth and regular surface due to a plug flow effect generated by the high pressure, at lower shear rate the morphology is in general very irregular (Figure 12 and Figure 13). Notably, the use of a polyethylene secondary polymer did not contribute to a smooth surface, despite the fact that Clearflex MBQ0 seemed the best candidate. This behaviour is possibly addressed to the low density of the polymer due to the presence of different content of C₄-comonomers (see DSC curve in the Supplementary Materials). The derived branch makes the polymer act as an external lubricant, i.e., going to segregate close to the extrudate, thus conferring smoothness to the composite.

As far as polypropylene or polybutene are concerned as secondary polymers, they are characterized by smoother surfaces also at low shear rate (Figure 14), unlike the compounds made by polyethylene. The reason for this behaviour may be addressed to the low compatibility between EVA and these polymers [27].

4. Conclusions

In this work, several mineral fillers in combination with n–MDH and secondary polymers were tested to investigate their influence on the rheological and aesthetical properties of the final EVA-based composites. The studies showed that using n–MDH as the unique filler gave a rough and grey surface and conferred higher viscosity to the composites. Conversely, s–MDH provided higher performances but the formulation was more expensive. The best synergic combinations were found between n–MDH and natural or synthetic fillers. More specifically, the best results were obtained by using Böhmite, calcium carbonate, or s–MDH, whose regular shape conferred a smoother surface and lower viscosity. Moreover, secondary polymers like polybutene-1 endowed the extrudates with the smoothest surface thanks to the poor compatibility with the main polymer EVA, thus acting as an external lubricant.

Overall, in the present work, an optimized recipe was presented for the formulation of polymer composites with the rheological and aesthetical properties required for electric cable applications. This has been possible thanks to the laboratory-scale method based on a capillary rheometer able to simulate the large scale of extrusion.
