Application of Pyroligneous Acid as a Plant Growth Stimulant Can Improve the Nutritional Value of Soybean Seed

Abstract

Farmers today are using biochemical treatments to improve their crop yields. Commercialized organic biostimulants exist in the form of pyroligneous acid generated by burning agricultural waste products. During the 2023 growing season, we demonstrated that soil treatment with a commercial pyroligneous acid product, Coriphol™, manufactured by Corigin Solutions, Inc., stimulated plant growth and significantly improved yield with an optimal treatment dose of 2 gal. acre⁻¹. In the present work, we examined the effect of this treatment on soybean nutritional content using seed harvested from the 2023 season. Total mean seed protein content for untreated control plants was 32.26 ± 0.49% of dry mass and increased 10.8% to 35.64 ± 0.64% with treatment. This increase resulted in a net reduction in total free amino acid content, although levels of the essential dietary amino acid, lysine, were boosted 6-fold. Total lipid content was unaffected by treatment with mean levels of 21.61 ± 0.70% of dry mass noted. Treatment, however, reduced saturated fatty acid content by roughly 40%, and reduced the polyunsaturated content of linoleic acid in favor of the monounsaturated fatty acid, oleic acid. Finally, Coriphol™ treatment did not impact seed content of eight essential micronutrients including Na, Mg, K, Ca, Fe, Ni, Cu, and Mo, but did significantly boost Zn and Mn levels. Altogether, these results demonstrate that soil treatment with the growth stimulant Coriphol™ has the potential to improve the dietary nutritional value of soybean.

1. Introduction

Over the last several years, soybean [Glycine max (L.) Merr.] has become one of the principal crop plants supporting human and animal diets [1]. While all plants synthesize amino acids, soybeans are among the few complete high-protein vegetable-based foods that contain many of the essential amino acids supporting healthy diets [1,2]. For this reason, the soybean has become an important source of human and animal protein, with 85% of its cultivation destined for animal feed and the remaining destined for direct human consumption [3,4,5].

Globally, soybean production has increased from 233 million tons in 2008 to 397 million tons in 2023 with projections of reaching 422 million tons in 2024 [6,7,8]. Demand for soybeans is projected to continue growing over the coming years, due to a variety of factors. On the one hand, consumption of meat and soy-based health products is on the rise due to rising global population figures. Projections indicate that feeding a world population of 9.77 billion people by 2050 [9], coupled with the need to improve not just caloric intake, but nutritional content of animal and human diets, will require significant increases in food production of high nutritional value of more than 60 percent [10]. Furthermore, policymakers are more supportive of the use of biodiesels as a fuel alternative to fossil fuel [11,12,13,14], increasing the demand for oilseed crops in the world market.

Pyroligneous acid is a name synonymous with products that are made from the condensation of vapors produced during the high-temperature oxygen-free pyrolysis of agricultural and forestry biomass [15,16,17,18]. These products typically comprise complex mixtures of organic substrates and can vary in composition depending on the nature of the biomass feedstock used in the process [19]. Recent years have seen an increase in the use of pyroligneous acid as a stimulant in farm management practices to promote plant growth and improve crop yields [20,21,22,23,24,25,26].

In a recent study, we partnered with Corigin Solutions, Inc. (Merced, CA, USA), a manufacturer of a pyroligneous acid product known as Coriphol™. This product is manufactured by condensing the smoke produced from the dry pyrolysis of spent almond shells that normally are treated as agricultural waste generated from California’s large almond nut industry. In that earlier study, we examined the effect of applying different doses of Coriphol™ to soil in outdoor potted plant studies where soybeans were grown [27]. During the 2023 growing season, we documented the growth performance of plants treated at different doses of Coriphol™ equivalent to field applications of 0.5 gal. acre⁻¹, 1.0 gal. acre⁻¹, and 2.0 gal. acre⁻¹, where beneficial effects on growth were noted at 1–2 gal. acre⁻¹, generating a 1.4-fold improvement in the soybean crop yield at harvest. That prior work also reported on the complex chemical composition of the Coriphol™, providing a basis for future comparisons with other pyroligneous acid products.

The present work reflected an extension of our earlier growth performance studies where we wanted to examine whether treatments with Coriphol™ improved the nutritional value of the soybean seeds. Using seeds acquired from our 2023 soybean harvest, we subjected seeds to rigorous assays to examine effects of Coriphol™ treatments on total protein content, the distribution of essential and non-essential ‘free’ amino acids, the fatty acid content, phytic acid content, metal micronutrient content, and iron oxidation state distribution.

2. Materials and Methods

2.1. Plant Growth and Soybean Crop Harvest

During the 2023 growing season, soybean seeds (MorSoy variety 4812E, MFA Inc., Columbia, MO, USA) were sown in mid-May into 2.7-gallon pots (one plant per pot) filled with ProMix (Premier Tech Horticulture, Inc., Salt Lake City, UT, USA) to which 1.2 g of Osmocote™ smart-release fertilizer (Smart-Release Plant Food Flower & Vegetable containing 15% nitrate, 9% phosphate, 12% soluble potash as K₂O, 1.3% magnesium, 6% sulfur, 0.02% boron, 0.05% copper, 0.45% soluble iron, 0.06% manganese, 0.02% molybdenum, and 0.05% zinc: The Scotts Company, Marysville, OH, USA) was mixed into the ProMix before sowing. Fertilizer was reapplied to each pot 30 days after germination and again on day 60. Each pot was connected to a drip irrigation system providing 2 L water per pot daily. Four cohorts of plants were grown under the following conditions, including untreated control plants and plants treated with 100 mL doses of Coriphol™ equivalent to 0.5, 1.0, and 2.0 gal. acre⁻¹. Each cohort had 12 plants. Pots were placed outdoors in a protected area on raised tables and rotated biweekly to ensure uniform exposure to sunlight. Coriphol™ treatments were applied to the ProMix at germination and reapplied after 5 and 10 weeks of growth. At harvest in early September, mature bean pods were collected, bagged according to plant number and treatment type, and stored in a −80 °C freezer until needed.

2.2. Protein Analysis

For protein extraction, whole beans were placed in a freeze dryer (FreezeZone 1 Dryer, Labconco Corp., Kansas City, MO, USA) and lyophilized for 5 days. Once dried, these beans were ground to a fine powder using a mortar and pestle, weighed in 100 mg amounts (±1 mg), and placed into 1.5 mL Eppendorf™ tubes. Pigments and other confounding metabolites were first removed by extracting samples using 1 mL cold acetone (5% trichloroacetic acid, w/v) following procedures [28]. Samples were then sonicated for 15 min and centrifuged at 14,000× g for 10 min to separate the protein pellet. Once the supernatant was removed, the pellet was washed three more times with cold acetone to remove lingering trichloroacetic acid. Samples were dried at ambient temperature under vacuum. Once dried, total proteins were extracted in 1 mL of 50 mM Tris–Cl buffer (pH 8.8) containing (1% v/v) plant protease inhibitors (Plant Protease Inhibitor Cocktail, Sigma Aldrich, Inc., St. Louis, MO, USA). Liquefied tissues were clarified with centrifugation at 14,000× g for 10 min, and supernatant was removed and placed into a clean tube for analysis.

Following Bradford Assay procedures (Sigma Aldrich Technical Report B6916, Sigma Aldrich, Inc., St. Louis, MO, USA), 100 µL aliquots of protein extract were removed from each sample tube and mixed with 3 mL of Bradford Reagent (Sigma Aldrich, Inc., St. Louis, MO, USA) in 10 mL glass vials [29]. Samples were incubated at room temperature for 45 min then transferred to optical cuvettes for measuring their absorbance at 595 nm using an Evolution 201 UV/VIS spectrophotometer (ThermoFisher Scientific Inc., Waltham, MA, USA). Absorbances were correlated with a standard curve created from measurements using a commercial protein standard (1 mg mL⁻¹) of bovine serum albumin (Sigma Aldrich, Inc., St. Louis, MO, USA).

2.3. ‘Free’ Amino Acid Analysis

Dried and ground seeds were weighed (10 mg) and extracted in 0.5 mL methanol/ water (60:40 v/v). After centrifugation at 14,000× g, 100 µL of supernatant was mixed with an equal volume of o-phthalaldehyde (OPA) reagent (Sigma Aldrich, Inc., St. Louis, MO, USA). OPA-derivatized amino acids were analyzed using high-performance liquid chromatography (Sonntek, Inc., Upper Saddle River, NJ 07458, USA) and a 300 mm × 3.9 mm i.d. Waters 10 µm µBondapak C18 column (Phenomenex, Inc., Torrance, CA, USA) operated at room temperature [30]. The mobile phase comprised Solvent A (deionized water, pH 5.75), Solvent B (0.01 M NaH₂PO₄, pH 6.8), and Solvent C (methanol), starting at 75:25 of A/B at injection and increasing to 20:80 of B/C over 30 min at a flow rate of 1.0 mL min⁻¹. On-line fluorescence detection (340 nm excitation, 450 nm emission; Hitachi LaChrom Elite L-2485; Sonntek, Inc.) was used for quantification of the OPA-derivatized amino acids. Data were acquired using PeakSimple™ chromatography software v4.88 (SRI, Inc., Torrance, CA 90503, USA). Peaks were identified according to retention times established using authentic standards, and integrated peaks were normalized for slight differences in the fluorescence detector response to each derivatized amino acid. Integrated normalized peaks were summed from each analyzed sample providing a total amino acid response and used to calculate a relative distribution of individual amino acids.

2.4. Fatty Acid Analysis

Fatty acid derivatization to their respective methyl esters followed prior procedures [31]. Here, 9.7 mL of concentrated (35%, w/w) HCl (Sigma Aldrich, Inc., St. Louis, MO, USA) was diluted with 41.5 mL of methanol (Sigma Aldrich, Inc., St. Louis, MO, USA) to make 50 mL of 8.0% (w/v) HCl. This HCl reagent contained 85% (v/v) methanol and 15% (v/v) water that was derived from conc. HCl and was stored in a refrigerator. Dried and ground seeds were weighed (10 mg) into 1.5 mL Eppendorf™ vials following the protein analysis preparation described in Section 2.1. To each vial, we added 200 µL toluene followed by 300 µL of the HCl/methanol reagent. Tubes were vortexed mixed for 3 min then heated at 100 °C for 1 h. After cooling to room temperature, 1 mL of hexane was added for extraction of the fatty acid methyl esters (FAMEs). Tubes were vortexed mixed for 3 min then centrifuged at 14,000× g for 10 min to facilitate phase separation. Aliquots of the hexane layer were then analyzed by gas chromatography. Samples of 1–2 µL volume were injected into a flame-ionization Hewlett Packard 5890A gas chromatograph equipped with a 30-m long capillary column, 0.53 mm i.d., and 0.25-µm-thick film of Rtx^®-Wax (Restek, Inc., Bellefonte, PA, USA) with a 10 mL min⁻¹ helium flowrate and a 1:50 sample split. At injection, the initial column temperature was maintained at 80 °C and was programmed to increase to 230 °C 5 min after injection at a 15 °C min⁻¹ rate. The sample injector was maintained at 250 °C and the flame-ionization detector at 350 °C. Chromatographic peaks for methyl esters of palmitic acid (PA), stearic acid (SA), oleic acid (OA), linoleic acid (LA), and α-linolenic acid (α-LA) were recorded using PeakSimple™ chromatography software v4.88 (SRI, Inc., Torrance, CA, USA) and quantified against commercial standards (Sigma Aldrich, Inc., St. Louis, MO, USA).

2.5. Elemental Analysis

Inductively Coupled Plasma-Mass Spectrometry (ICP-MS) analysis was used to measure bean elemental metal concentrations. Here, seeds were air-dried in an oven at 70 °C, ground to a powder using a mortar and pestle, then weighed (~200 mg portions) into digestion vessels and finally digested in 2.5 mL of concentrated nitric acid at 190 °C in a Milestone Ethos Plus (Milestone SRL, Sorisole, Italy) microwave digestion system. Digestates were diluted to 50 mL with ultrapure water and gravimetrically diluted by a factor of 10 with 0.45 N nitric acid. Samples were analyzed on a PerkinElmer NexION ICP-MS (PerkinElmer, Inc., Shelton, CT, USA) in Kinetic Energy Discrimination mode. Elemental ion counts were measured for ²³Na, ²⁴Mg, ³⁹K, ⁴⁴Ca, ⁵⁵Mn, ⁵⁶Fe, ⁶⁰Ni, ⁶³Cu, ⁶⁶Zn, and ⁹⁵Mo, and normalized using the internal standards Be, Sc, In, Tl. Calibration standards for each analyte were prepared from commercial stock solutions (High Purity Standards, North Charleston, SC, USA).

2.6. Iron Oxidation State Analysis

While ICP-MS analysis provides quantitative information on seed total iron concentrations, it cannot distinguish between ferric iron (Fe³⁺) or ferrous iron (Fe²⁺) oxidation states. We used a spectrophotometric assay that was specific for Fe²⁺ iron [32]. Once measured, Fe³⁺ was reduced to Fe²⁺ and the measurements repeated to provide a measure of total ‘free’ iron ions.

The following reagents were prepared as follows: a 0.3% o-phenanthroline solution was prepared using 0.6 g dissolved in 200 mL DI water; a 10% hydroxylamine hydrochloride solution was prepared by dissolving 20 g in 200 mL of DI water; a 10% sodium acetate solution was prepared by dissolving 20 g in 200 mL DI water; and a dilute sulfuric acid solution was prepared by adding 0.5 mL of concentrated sulfuric acid to 200 mL DI water. All chemicals were purchased from Sigma Aldrich (Sigma Aldrich, Inc., St. Louis, MO, USA).

Approximately 300 mg of frozen beans (2 beans) were ground to a paste in 2 mL dil. sulfuric acid using a mortar and pestle. Two 0.5 mL aliquots of liquid extract were dispensed into two 15 mL Falcon tubes. To the first tube, 5 mL of 0.3% o-phenanthroline solution was added to complex Fe²⁺ followed by 4 mL of the sodium acetate solution to adjust pH. The mixture was vortex mixed for 3 min and then centrifuged at 14,000× g for 15 min. A 2 mL aliquot of the supernatant solution was transferred to an optical cell for light absorption measurement at 508 nm using an Evolution 201 UV/VIS spectrophotometer (ThermoFisher Scientific Inc., Waltham, MA, USA).

To the second Falcon tube, we added 1 mL of the 10% hydroxylamine hydrochloride reducing agent. The solution was initially vortex mixed for 1 min, and after 15 min of reaction it was vortexed mixed again. To this solution, 5 mL of 0.3% o-phenanthroline solution was added to complex all the Fe²⁺ (including the now reduced Fe³⁺ ions), followed by 4 mL of the sodium acetate solution to adjust pH. The mixture was vortex mixed for 3 min and then centrifuged at 14,000× g for 15-min. A 2 mL aliquot of the supernatant solution was transferred to an optical cell for light absorption measurement at 508 nm (Total Fe Abs. ₅₀₈). The relative ratio (R) of Fe³⁺/Fe²⁺ was calculated using Equation (1):

$${\mathrm{R}}_{\mathrm{Fe}3+/\mathrm{Fe}2+}=\left[{\displaystyle \frac{(\mathrm{T}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l} \mathrm{F}\mathrm{e}\mathrm{ }\mathrm{A}\mathrm{b}\mathrm{s}{.}_{508}/0.895)-(\mathrm{F}{\mathrm{e}}^{2+}\mathrm{A}\mathrm{b}\mathrm{s}{.}_{508})}{\mathrm{F}{\mathrm{e}}^{2+}\mathrm{A}\mathrm{b}\mathrm{s}{.}_{508}}}\right]$$

(1)

A factor of 0.895 was applied to the total Fe absorption measurement to correct for sample dilution due to the addition of the reducing agent.

2.7. Phytic Acid Analysis

The phytic acid content in seeds was measured using procedures [33,34]. Dried beans were weighed (~300 mg), ground to a powder using a mortar and pestle, and added to 10 mL of 3 M HCl in a 15 mL Falcon Tube. Tubes were placed in boiling water for 10 min. The mixture was allowed to cool to room temperature and centrifuged at 14,000× g for 15 min. The supernatant was collected and diluted to 50 mL volume using deionized water. To a 3 mL aliquot of this diluted solution was added 1 mL of Wade reagent (prepared by mixing 30 mg FeCl₃ hexahydrate with 300 mg sulfosalicylic acid in 100 mL deionized water). The resultant solution was vortex mixed for 3 min. Chemicals for preparing the Wade reagent were acquired from Sigma Aldrich (Sigma Aldrich, Inc., St. Louis, MO, USA). An optical cell was filled with this solution for absorbance measurement at 500 nm.

A standard for phytic acid was prepared by dissolving 2 mg of authentic sample in 1 mL deionized water (Sigma Aldrich, Inc., St. Louis, MO, USA). A response curve was generated by repetitively adding 10 µL aliquots of the standard to a 3 mL sample of Wade reagent. The increased amount of phytic acid caused decolorization of the Wade reagent, resulting in increasingly negative absorbances on the spectrophotometer. Data from a standard curve were fitted to a polynomial in Excel and used to calculate the microgram amounts of phytic acid in the biological samples.

2.8. Statistical Analysis

Data were subjected to a one-way analysis of variance (ANOVA) using SigmaPlot 14.5 (Grafiti, LLC, Palo Alta, CA, USA). Tukey’s HSD test was used for post hoc correction of comparisons of treatments to untreated control plants. Significance was set at a level of p < 0.05.

3. Results

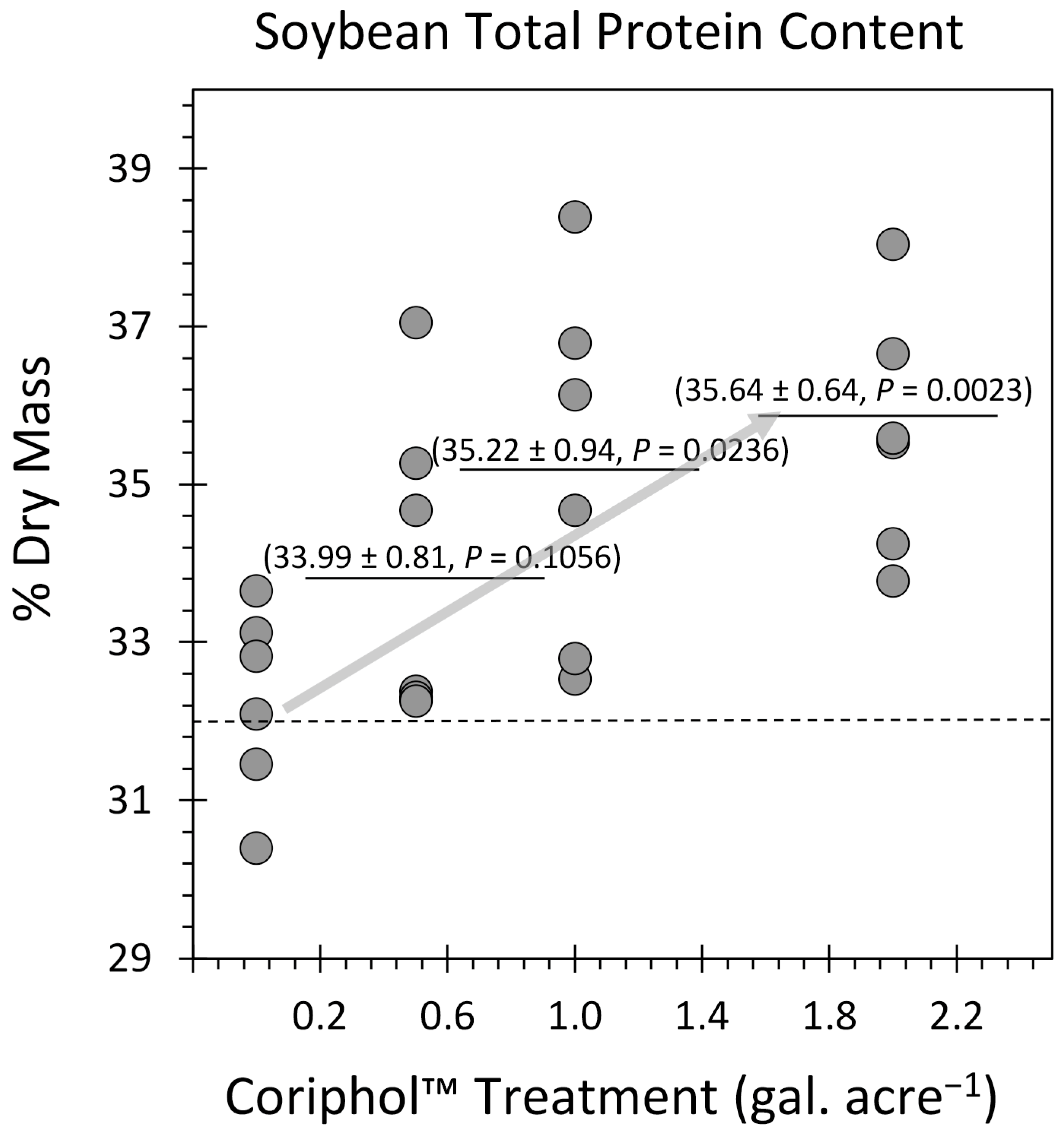

Total mean seed protein levels (Figure 1) for untreated control plants were 32.26 ± 0.49% of dry mass. This level seemed typical of prior published values [35,36,37,38]. However, treatment of soil with Coriphol™ systematically increased seed protein content to 33.99 ± 0.81% with 0.5 gal. acre⁻¹ treatments, 35.22 ± 0.94% with 1.0 gal. acre⁻¹ treatments, and finally to 35.64 ± 0.64% with 2.0 gal. acre⁻¹ treatments, producing an overall 10.8% boost in protein content that was significant (p = 0.0023).

Results in

Table 1. Effect of Coriphol™ treatments on the distribution of soybean seed ‘free’ amino acids.

Amino Acid	Control (N = 4)		0.5 gal. acre−1 (N = 4)		1.0 gal. acre−1 (N = 4)		2.0 gal. acre−1 (N = 4)
	Norm. Peak Area a	% Distribution	Norm. Peak Area a	% Distribution	Norm. Peak Area a	% Distribution	Norm. Peak Area a	% Distribution
Asp	530 ± 142	3.78 ± 0.71	848 ± 369	7.28 ± 1.95	432 ± 147	9.28 ± 2.72	392 ± 73	6.81 ± 1.25
Glu	357 ± 150	2.67 ± 1.08	1178 ± 169	11.86 ± 2.35	283 ± 46	6.28 ± 0.96	312 ± 73	5.21 ± 0.75
GABA	346 ± 72	2.72 ± 0.44	207 ± 59	2.28 ± 0.72	136 ± 32	3.15 ± 0.84	139 ± 36	2.32 ± 0.48
Asn	2984 ± 1011	22.16 ± 5.60	936 ± 181	9.39 ± 2.11	295 ± 97	6.63 ± 2.23	515 ± 106	8.51 ± 1.02
Ser	1394 ± 486	9.87 ± 3.27	842 ± 122	8.06 ± 0.32	261 ± 31	5.72 ± 0.38	289 ± 44	4.97 ± 0.57
Gln	379 ± 136	2.84 ± 0.97	403 ± 80	3.92 ± 0.82	149 ± 22	3.29 ± 0.44	371 ± 68	6.13 ± 0.65
Thr	162 ± 34	1.51 ± 0.50	142 ± 24	1.42 ± 0.30	49 ± 8	1.13 ± 0.26	38 ± 5	0.65 ± 0.07
Gly	907 ± 122	7.15 ± 0.87	549 ± 76	5.36 ± 0.69	283 ± 18	6.45 ± 0.89	445 ± 54	7.62 ± 0.81
Cys	342 ± 46	2.81 ± 0.57	229 ± 39	2.16 ± 0.07	85 ± 25	1.82 ± 0.45	142 ± 26	2.35 ± 0.18
Ala	2871 ± 684	22.78 ± 5.05	2766 ± 790	25.16 ± 3.81	1580 ± 226	34.68 ± 3.32	1684 ± 361	27.69 ± 4.04
Tyr	81 ± 23	0.73 ± 0.30	261 ± 122	2.21 ± 0.69	59 ± 9	1.34 ± 0.25	95 ± 14	1.74 ± 0.43
Val	114 ± 267	16.95 ± 2.42	877 ± 276	9.12 ± 3.11	218 ± 32	4.80 ± 0.49	469 ± 111	7.93 ± 1.62
Met	452 ± 139	3.20 ± 0.90	158 ± 29	1.62 ± 0.26	172 ± 19	3.80 ± 0.29	272 ± 36	4.69 ± 0.53
Trp	98 ± 23	0.86 ± 0.30	148 ± 37	1.54 ± 0.50	72 ± 7	1.64 ± 0.28	67 ± 9	1.18 ± 0.18
Phe	189 ± 45	1.71 ± 0.63	135 ± 28	1.37 ± 0.37	80 ± 9	1.84 ± 0.35	82 ± 10	1.42 ± 0.17
Lys	13 ± 3	0.09 ± 0.01	94 ± 21	0.97 ± 0.30	53 ± 13	1.22 ± 0.32	85 ± 17	1.49 ± 0.34
iLeu	81 ± 10	0.72 ± 0.19	120 ± 33	1.08 ± 0.12	39 ± 13	0.83 ± 0.24	45 ± 12	0.84 ± 0.24
Leu	365 ± 147	2.65 ± 1.05	379 ± 33	5.45 ± 2.13	299 ± 30	6.76 ± 0.98	496 ± 83	8.45 ± 1.05
Total	13,666 ± 1976	100.00	10,270 ± 170	100.00	4544 ± 314	100.00	5937 ± 756	100.00

^a Chromatographic peak areas were normalized to a fixed 6 mg of sample tissue mass.

summarize our findings on the effects of Coriphol™ treatment on seed ‘free’ amino acid content. Individual Peak Area Units (PAUs) for each identified amino acid are listed. These values were normalized to a fixed tissue mass that went into preparing each analysis sample. Levels of individual amino acids were also presented as a relative distribution based on 100%. Altogether, analyses showed that Coriphol™ treatments significantly reduced the ‘free’ acid content from 13,666v ± 1976 PAUs in untreated plants to 10,270 ± 170 PAUs with 0.5 gal. acre⁻¹ treatment and to 4544 ± 313 PAUs for 1.0 gal. acre⁻¹ treatment and 5937 ± 756 PAUs for 2.0 gal. acre⁻¹ treatment for an average 45% reduction in ‘free’ amino acid content. Even so, the level of the essential dietary amino acid lysine increased from 13 ± 3 PAUs in untreated plants to 94 ± 21 PAUs for 0.5 gal. acre⁻¹ treatment, 53 ± 13 PAUs for 1.0 gal. acre⁻¹ treatment, and 85 ± 17 PAUs for 2.0 gal. acre⁻¹ treatment reflecting roughly a 6-fold increase in lysine content.

Results in

Table 2. Effect of Coriphol™ treatment on soybean total fatty acid content and distribution of major fatty acids.

Treatment Type	FA Content (% Dry Mass)	FA	Measured Distribution (%)	p-Value	Literature Range (%)	Measured % Sat. FA	p-Value	Literature Range (%)	Poly-to-Mono UnSat. FA	p-Value
Control (N = 6)	21.61 ± 0.70	PA	15.61 ± 2.03	-	10–15	19.96 ± 1.96	-	12–22	2.39 ± 0.45	-
		SA	4.34 ± 0.28	-	2–7
		OA	25.72 ± 3.26	-	13–26
		LA	44.82 ± 5.33	-	40–64
		α-LA	9.51 ± 1.37	-	4–13
0.5 gal. acre−1 (N = 6)	20.41 ± 1.28	PA	12.59 ± 0.64	0.2054	-	15.36 ± 1.04	0.0703	-	3.09 ± 0.20	0.1953
		SA	2.77 ± 0.38	0.0083	-
		OA	20.27 ± 0.47	0.1587	-
		LA	57.98 ± 1.25	0.0530	-
		α-LA	6.40 ± 0.64	0.0789	-
1.0 gal. acre−1 (N = 6)	20.71 ± 1.40	PA	8.86 ± 0.55	0.0184	-	10.96 ± 1.22	0.0040	-	1.03 ± 0.32	0.0309
		SA	2.10 ± 0.39	0.0012	-
		OA	45.85 ± 4.24	0.0044	-
		LA	34.39 ± 4.58	0.1689	-
		α-LA	8.14 ± 0.92	0.4274	-
2.0 gal. acre−1 (N = 6)	20.26 ± 1.21	PA	11.36 ± 0.64	0.0924	-	13.33 ± 0.74	0.0194	-	0.54 ± 0.10	0.0104
		SA	2.19 ± 0.21	0.0002	-
		OA	57.31 ± 3.69	0.0001	-
		LA	21.54 ± 3.51	0.0054	-
		α-LA	7.61 ± 0.85	0.2723	-

FA: fatty acid, PA: palmitic acid (C16:0), SA: stearic acid (C18:0), OA: oleic acid (C18:1), LA: linoleic acid (C18:2), α-LA: α-linolenic acid (C18:3).

summarize our findings on the effects of Coriphol™ treatment on seed fatty acid (FA) content. We found that in untreated control plants, the seed mean FA content was 21.61 ± 0.70% of dry mass. This level correlated well with prior published values [39,40]. The relative distributions of five major FAs found in soybean are also listed in Table 2, along with typical ranges of distributions found in the literature [41]. In untreated control plants, LA was the major seed FA with a relative mean distribution of 44.82 ± 5.33%. Furthermore, our measured level of saturated FAs was 19.96 ± 1.96% which also correlated well with previous findings [39,40]. Several observations were made from studies where increasing treatments with Coriphol™ were used. Firstly, treatments did not affect the total seed FA content. However, these treatments did significantly alter the relative distributions of individual FAs. Most notably, LA levels significantly decreased from 44.82 ± 5.33% in untreated control plants to levels of 34.39 ± 4.58% with 1.0 gal. acre⁻¹ treatments and to 21.54 ± 3.51% with 2.0 gal. acre⁻¹ treatments. Treatments at 0.5 gal. acre⁻¹ were not effective at altering FA distributions. Commensurate with the decreases in seed LA content, we observed increases in OA levels from 25.72 ± 3.26% in untreated control plants to 45.85 ± 4.24% with 1.0 gal. acre⁻¹ treatments and 57.31 ± 3.69% with 2.0 gal. acre⁻¹ treatments. Secondly, we observed significant decreases in the saturated FA content, reflected by changes in PA and SA levels, with Coriphol™ treatments where levels were 19.96 ± 1.96% in untreated control plants and dropped systematically to 15.36 ± 1.04% with 0.5 gal. acre⁻¹ treatments, and to 10.96 ± 1.22% and 13.33 ± 0.74% with 1.0 and 2.0 gal. acre⁻¹ treatments, respectively. Thirdly, we observed that the ratio of polyunsaturated FAs to monounsaturated FAs significantly decreased from mean values of 2.39 ± 0.45 for untreated control plants to values of 1.03 ± 0.32 and 0.54 ± 0.10 for 1.0 and 2.0 gal. acre⁻¹ treatments, respectively. Treatments at 0.5 gal. acre⁻¹ did not significantly change this ratio.

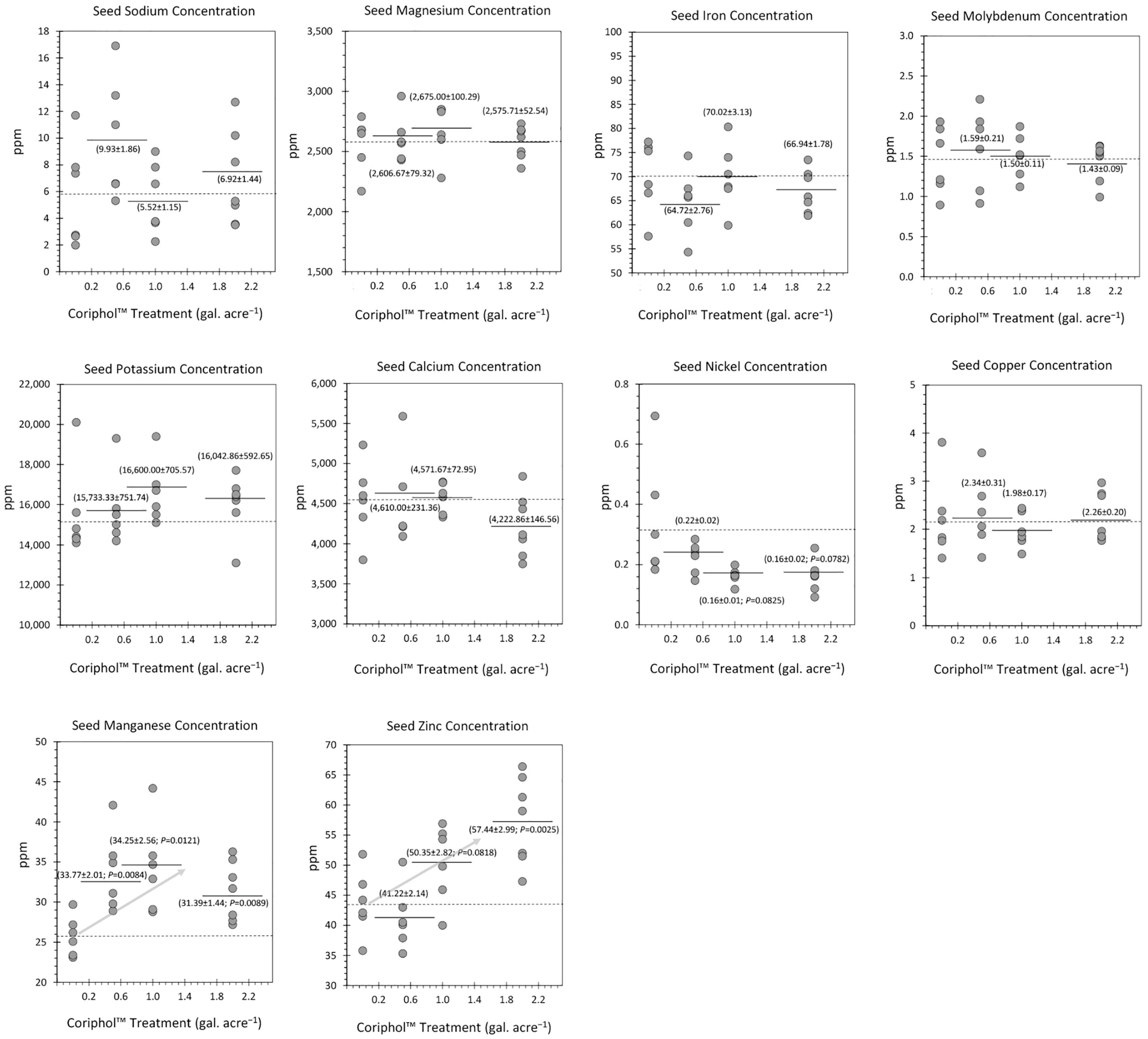

Results from analyses of seed content for seed metal micronutrient content are shown in Figure 2. We measured the part-per-million (ppm) concentrations of ten essential metal micronutrients including sodium (Na), magnesium (Mg), potassium (K0, calcium (Ca), manganese (Mn), iron (Fe), nickel (Ni), copper, (Cu), zinc (Zn), and molybdenum (Mo). With the exception of Mn and Zn, all of the remaining micronutrient levels were unaffected by Coriphol™ treatments where mean values of 5.71 ± 1.58 ppm for Na, 2570.00 ± 91.91 ppm for Mg, 15,550.00 ± 935.50 ppm for K, 4543.33 ± 193.20 ppm for Ca, 70.20 ± 3.09 ppm for Fe, 0.34 ± 0.08 ppm for Ni, 2.23 ± 0.35 ppm for Cu, and 1.45 ± 0.17 ppm for Mo were recorded. Levels of seed Ni appeared to decrease slightly with treatment, but this change was not statistically significant. Contrary to these trends, the levels of micronutrients Mn and Zn were observed to increase significantly with treatments. We observed changes in seed Mn levels from 25.78 ± 1.01 ppm in untreated plants to 33.77 ± 2.01 ppm for 0.5 gal. acre⁻¹ treatment, 34.25 ± 2.56 ppm for 1.0 gal. acre⁻¹ treatment, and 31.39 ± 1.44 ppm for 2.0 gal. acre⁻¹ treatment. Additionally, we observed changes in seed Zn levels from 43.70 ± 2.20 ppm for untreated plants, to 41.22 ± 2.14 ppm for 0.5 gal. acre⁻¹ treatment, 50.35 ± 2.82 ppm for 1.0 gal. acre⁻¹ treatment, and 57.44 ± 2.99 ppm for 2.0 gal. acre⁻¹ treatment.

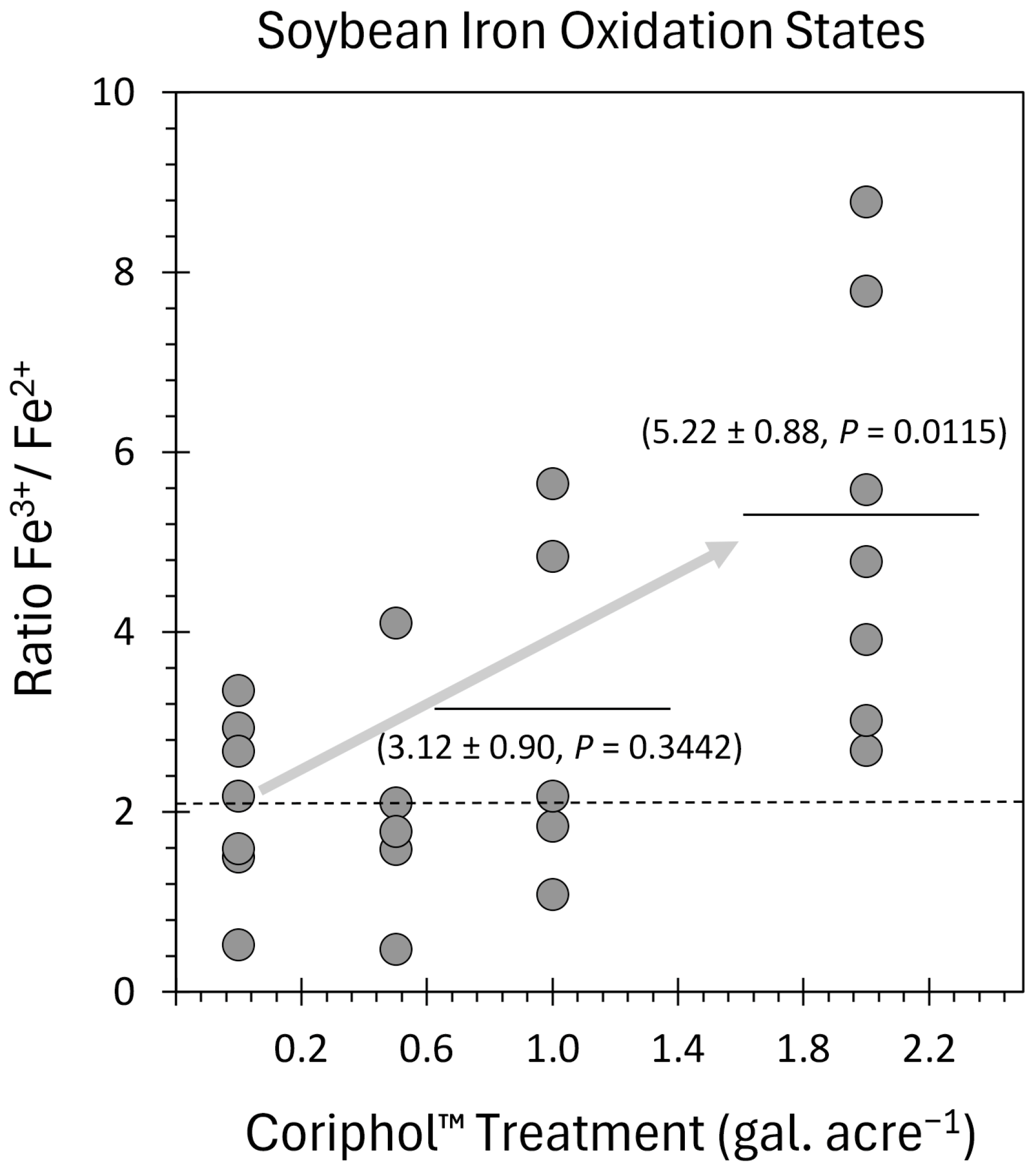

Results from follow-up studies designed to measure the ‘free’ iron ion oxidation state distribution in soybean seeds as a function of Coriphol™ treatments are presented in Figure 3. Here, we observed that 2.0 gal. acre⁻¹ treatments significantly increased the ratio Fe³⁺/Fe²⁺ from a mean value of 2.10 ± 0.37 in untreated control plants to 5.22 ± 0.88. Lesser doses of Coriphol™ were ineffective at changing this ratio.

Results in Figure 4 showed the effects of treatments with Coriphol™ on seed phytic acid (PA) content. Untreated control plants exhibited a mean value of 11.66 ± 0.47 mg PA gDW⁻¹ reflecting a level of 3.57 ± 0.31% of seed mass. This level of PA corresponds well with published values where levels from 1–5% have been noted [42]. Treatments equivalent to 2.0 gal. acre⁻¹ of Coriphol™ increased seed PA content slightly but significantly to a mean value of 15.71 ± 1.19 mg gDW⁻¹, reflecting a level of 4.80 ± 0.62% of seed mass. Lesser doses of Coriphol™ did not elicit a significant change in the seed PA content.

4. Discussion

Amino acids play vital roles in the central metabolism of seeds. They are primarily utilized for the synthesis of seed-storage proteins, but also serve as precursors for the biosynthesis of secondary metabolites and as a source of energy [43,44,45]. Several amino acids that are essential building blocks in protein synthesis are typically found only in low levels in seeds (e.g., Lys, Met, Thr, Val, Leu, Ile, and His). Others that are not directly utilized in protein synthesis, such as asparagine (Asn) or γ-aminobutyrate (GABA), are important in regulating protein synthesis during seed development [46,47].

Humans and livestock are unable to synthesize several essential amino acids necessitating augmentation of their diets to balance nutritional intake. Typically, these essential amino acids are acquired from the dietary utilization of farm animals, and their products (particularly meat, eggs, and milk), as well as from a variety of cereals and legumes. However, in underdeveloped countries where populations rely solely on crop plants as their major food source, many suffer from particular deficiencies [48]. Here, lysine and sulfur-containing methionine are noted to be the most limiting essential amino acids in the food chain [49,50,51], where inadequate dietary levels can result in severe protein deficiencies, disease, and even death [52].

Results of our present work clearly demonstrated that the ‘free’ amino acid pool in soybean seed was significantly reduced by as much as 45% under the growth conditions where Coriphol™ treatments caused a significant 10.8% increase in the seed protein content. However, we suggest that the increase in seed protein synthesis was not sufficient to deplete the ‘free’ amino acid pool to this extent. An additional reason for the reduction in ‘free’ amino acids may lie in the fact that Coriphol™ treatments also increased seed phytic acid content by as much as 35% with 2 gal. acre⁻¹ treatments.

Phytic acid, or inositol hexaphosphate, and its salt, phytate, are a type of organophosphorous compound produced by terrestrial plants as a mechanism to store cellular phosphorous. Typically, phytates can account for 60–80% of total phosphorous stored in developed seeds [53]. Soybean phytates range between 1 and 3% of seed dry mass. A key feature of phytate reactivity is its polyanionic property, enabling facile chelation with many positively charged metal cations including Zn, Mg, Fe, and Cu. For decades, diets high in phytate were originally thought to be unhealthy as these salts were thought to reduce bioavailability of many essential micronutrients [54]. More recently, however, phytates have been shown to possess certain anticancer properties [55,56], and because of numerous clinical studies, phytates thought to lack the ability to permeate the lipid bilayer of plasma membranes were in fact observed in human plasma [57]. Another point worth noting is phytates can interact with amino acids due to the affinity of their phosphate groups for cationic amino acids [58]. Thus, our observation that Coriphol™ treatments increased seed phytates may also be the reason for our observed depletion of seed ‘free’ amino acid pool.

Regardless of the mechanism responsible for this overall depletion of the ‘free’ amino acid pool, it is important to note that the seed Lys content in Coriphol™-treated plants was increased 6-fold. Hence, two benefits seen by treatment were an improvement in protein content and an improvement in the content of this essential dietary amino acid.

Another important feature in soybean production is the lipid content. Vegetable oils constitute one of the world’s most important plant commodities, with current annual production of more than 605 million tons [59]. Since 1970, consumption of vegetable oils has increased steadily at an average annual rate of 4%—about twice the rate of growth in world population. The major use of plant oils can be found both in human and animal diets, accounting for approximately 35% of caloric intake [60]. Seed oils are composed almost entirely of triacylglycerols which are formed by ester linkages of fatty acids with glycerol. Here, different fatty acid structures are known to exist in nature [61,62], but just five account for >90% of the food oils produced: palmitic acid (PA, 16:0), stearic acid (SA, 18:0), oleic acid (OA, 18:1), linoleic acid (LA, 18:2), and α-linolenic acid (α-LA, 18:3). These fatty acids are mostly found in membrane lipids of plant cells [63].

Unfortunately, most vegetable oils exhibit fatty acid compositions that make them less than ideal for human nutrition and the requirements of the food industry. Traditional soybean oils typically contain very high levels of LA [40] which can threaten the shelf life of products made from them due to their ease of oxidation [64,65]. Our present work demonstrated that treatments with Coriphol™ reduced the LA content in soybean seed, favoring a high OA content (Table 2). Oils with a higher OA content are less susceptible to oxidation, providing a benefit to oil functionality with improved shelf life of food products, and they are capable of withstanding higher frying temperatures in food preparation. This change in FA content with treatment was also noted to shift away from saturated FAs. A recent review on dietary FAs discussed concerns over increased plasma non-esterified fatty acids linking obesity with insulin resistance and type 2 diabetes [66]. Most specifically, it was noted that while diets rich in saturated FAs like PA are unhealthy, diets rich in monounsaturated OA were found to elicit beneficial effects on insulin sensitivity [67]. Thus, diets high in OA and low in PA can impact diabetes risk in humans.

There are other benefits to note with high OA content. Improvements in breeding programs over the years have resulted in increased availability of soybean cultivars (Plenish beans) possessing a high OA content. Dairy farmers have capitalized on opportunities to improve their profit by adopting new feeding technologies in the dairy industry, noting that cows supplemented with soybean diets high in OA produced more milk [68]. Altogether, the nutritional benefits seen here from Coriphol™ treatments were two-fold: (i) saturated FA content in seed was significantly decreased; (ii) the OA content in seed was significantly increased.

Dietary needs also require a well-balanced uptake of essential micronutrients [69]. For example, Ca builds bones and teeth; activates enzymes throughout the body; helps regulate blood pressure; and helps muscles to contract, nerves to send messages, and blood to clot. Copper assists with metabolizing fuel, making red blood cells, regulating neurotransmitters, and mopping up free radicals. Iron helps make hemoglobin (the oxygen-carrying chemical in the body’s red blood cells) and myoglobin (a protein in muscle cells). Iron is essential for activating certain enzymes and for making amino acids, collagen, neurotransmitters, and hormones. Magnesium, like calcium, builds bones and teeth. It also helps to regulate blood pressure and blood sugar and enables muscles to contract, nerves to send messages, blood to clot, and enzymes to work. Manganese helps form bones and helps metabolize amino acids, cholesterol, and carbohydrates. Nickel helps increase hormonal activity and is involved in lipid metabolism. Molybdenum activates several enzymes that break down toxins and prevent buildup of harmful sulfites in the body. Potassium balances fluids in the body, helps to maintain a steady heartbeat and make muscles contract, and may benefit bones and blood pressure. Sodium balances fluids in the body, helps send nerve impulses, and helps make muscles contract. Zinc helps blood clot, helps make proteins and DNA, bolsters the immune system, and helps with wound healing and cell division.

In years past, there had been considerable nutritional interest in iron due to its role in hemoglobin formation and oxygen transport [70]. More recently, researchers have observed that while human diets low in iron are responsible for most anemia cases reported in industrialized countries, they only account for half of those cases reported in developing countries [71] where infectious and inflammatory diseases (especially malaria), blood loss from parasitic infections, and other nutrient deficiencies (vitamin A, riboflavin, folic acid, vitamin K, and vitamin B12) are also important contributing factors [72]. In those countries, deficiencies stemming from inadequate dietary Zn and/or Mn in the diet have been associated with reduced immune function, increased risk of stunting growth in children, and increased adverse pregnancy outcomes in women [73,74,75,76].

Our rigorous analysis of soybean seeds by ICP-MS revealed that Coriphol™ treatments did not affect the levels of many essential micronutrients, including Na, Mg, K, Ca, Fe, Ni, Cu, and Mo, but did significantly increase the content of Mn and Zn. Hence, treatment improves soybean nutritional value regarding these elements.

Finally, our spectrophometric analysis of the ‘free’ iron oxidation state distribution in seeds revealed that Coriphol™ treatment significantly increased the Ratio Fe³⁺/Fe²⁺. We note that past proton nuclear magnetic resonance (¹H NMR) measurements revealed that the kinetic rate constants for formation of ferric (Fe³⁺) and ferrous (Fe²⁺) phytates were 4.21 × 10⁻⁶ s⁻¹ and 3.95 × 10⁻⁶ s⁻¹, respectively, while the equilibrium rate constants (k_d) for the dissociation of ferric and ferrous phytates were 1.11 and 1.19, respectively [77]. Hence, ferrous-phytate forms more rapidly in solution and tends to be more stable. Thus, it is reasonable to expect that the Ratio Fe³⁺/Fe²⁺ should increase with Coriphol™ treatments, as observed, since seed phytic acid content also increased with treatments which can favorably sequester Fe²⁺ from the seed pool.

5. Conclusions

To summarize, our previous studies have shown that soil treatment using the commercial biostimulant, Coriphol™, improved soybean crop yields 1.4-fold [27]. The present study also demonstrates that this treatment improved soybean seeds’ nutritional value. Specifically, we showed that soybean seeds from Coriphol™-treated plants had higher protein content, and while the net content of seed ‘free’ amino acids was reduced, the level of lysine was increased 6-fold. Additionally, while the fatty acid content remained unaffected by treatment, the distribution of saturated fatty acids was reduced, as was the distribution of the polyunsaturated fatty acid, linoleic acid, which was compensated by a higher oleic acid content. Finally, our study showed that while many essential seed micronutrients were unaffected by Coriphol™, there was significant improvement in zinc and manganese content, helping to meet critical dietary needs.
