# Multi-Scale Modelling of the Bound Metal Deposition Manufacturing of Ti6Al4V

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Atomistic Modelling of Sintering Ti-6Al-4V Particles

#### Analysis of Diffusion

## 3. Microstructure Evolution

#### 3.1. Model Equations

^{2}, ${l}^{*}\sim $ $1.0$ $\mathsf{\mu}$$\mathrm{m}$, the value of $\delta $ is taken as ∼$1.0$ $\mathsf{\mu}$$\mathrm{m}$, which was shown in the previous part ${\delta}_{gb}$ ∼ $1.0$ $\mathsf{\mu}$$\mathrm{m}$ to be a natural length scale of the problem. The mobilities are defined as

#### 3.2. Mechanical Loading

#### 3.3. Results

#### Sintering Stress

## 4. Discrete Particle Model

## 5. Simple Model of Shrinkage

#### 5.1. Correlations

#### 5.2. Estimation of Shrinkage

#### 5.3. Fault Mitigation

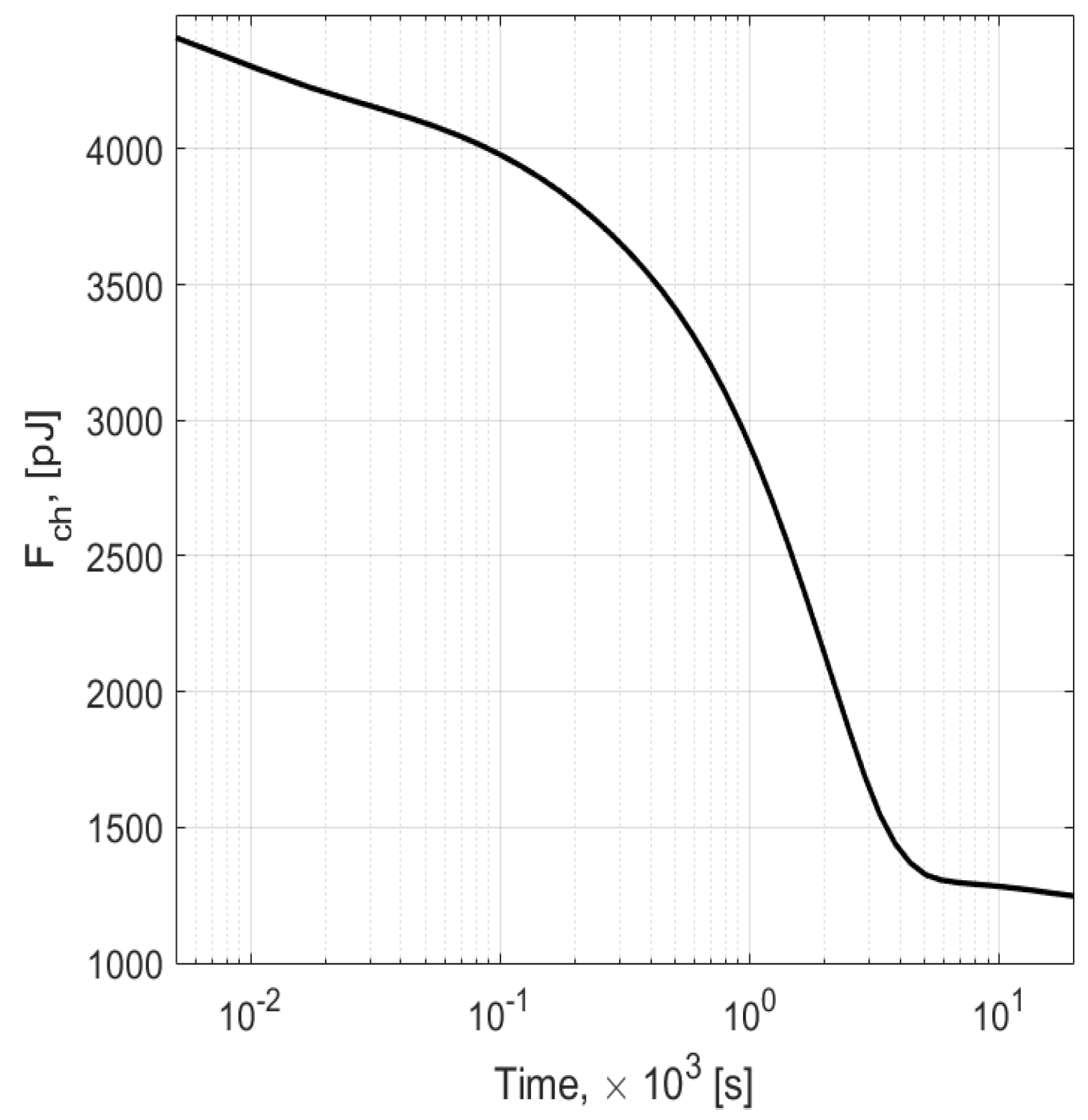

## 6. Macroscopic Modelling of Sintering

#### 6.1. Equations for Modelling Metal-Fused Filament Fabrication Process

#### 6.2. Constitutive Relations for Olevsky Model

#### 6.3. Simulation Results for the Olevsky Model

#### 6.4. Constitutive Model for Backbone Polymer Debinding

#### 6.5. Nonlinear Shrinkage in Continuous Model

## 7. Summary and Discussion

## 8. Conclusions

## Author Contributions

## Funding

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## References

- Tamir, D.; Siewert, T.A.; Matsubuchi, K.; Lee, F.; Su, R.; Eagar, T.W. IN-SPACE WELDING Visions & Realities. In Proceedings of the Thirtieth Space Congress Yesterday’s Vision Is Tomorrow’s Reality, Cocoa Beach, FL, USA, 27–30 April 1993; pp. 1–8. [Google Scholar]
- Luchinsky, D.G.; Hafiychuk, H.; Hafiychuk, V.; Wheeler, K.R. Molecular Dynamics of ULTEM 9085 for 3D Manufacturing: Spectra, Thermodynamic Properties, and Shear Viscosity. Technical Memorandum NASA/TM-2018-220213, 1 December 2018. Available online: https://ntrs.nasa.gov/citations/20190026629 (accessed on 26 April 2022).
- Luchinsky, D.G.; Hafiychuk, H.; Hafiychuk, V.; Chaki, K.; Nitta, H.; Ozawa, T.; Wheeler, K.R.; Prater, T.J.; McClintock, P.V.E. Welding dynamics in an atomistic model of an amorphous polymer blend with polymer–polymer interface. J. Polym. Sci.
**2020**, 58, 2051–2061. [Google Scholar] [CrossRef] - Gonzalez-Gutierrez, J.; Cano, S.; Schuschnigg, S.; Kukla, C.; Sapkota, J.; Holzer, C. Additive manufacturing of metallic and ceramic components by the material extrusion of highly-filled polymers: A review and future perspectives. Materials
**2018**, 11, 840. [Google Scholar] [CrossRef][Green Version] - Coble, R.L. Effects of particle-size distribution in initial-stage sintering. J. Am. Ceram. Soc.
**1973**, 56, 461–466. [Google Scholar] [CrossRef] - Cabezas-Villa, J.L.; Lemus-Ruiz, J.; Bouvard, D.; Jiménez, O.; Vergara-Hernández, H.J.; Olmos, L. Sintering study of Ti6Al4V powders with different particle sizes and their mechanical properties. Int. J. Miner. Metall. Mater.
**2018**, 25, 1389–1401. [Google Scholar] [CrossRef] - German, R.M. Sintering: From Empirical Observations to Scientific Principles; Elsevier: Waltham, MA, USA, 2014. [Google Scholar] [CrossRef]
- Ehrlich, G.; Hudda, F.G. Atomic view of surface self-diffusion: Tungsten on tungsten. J. Chem. Phys.
**1966**, 44, 1039–1049. [Google Scholar] [CrossRef] - German, R.M. Sintering Trajectories: Description on how density, surface area, and grain size change. JOM
**2016**, 68, 878–884. [Google Scholar] [CrossRef][Green Version] - Staab, T.; Helm, R.; Diegeler, A. On the role of grain boundaries during sintering. Preprints
**2021**. [Google Scholar] [CrossRef] - Gong, H.; Snelling, D.; Kardel, K.; Carrano, A. Comparison of stainless steel 316L parts made by FDM- and SLM-based additive manufacturing processes. JOM
**2018**, 71, 880–885. [Google Scholar] [CrossRef] - Vock, S.; Klöden, B.; Kirchner, A.; Weißgärber, T.; Kieback, B. Powders for powder bed fusion: A review. Prog. Addit. Manuf.
**2019**, 4, 383–397. [Google Scholar] [CrossRef][Green Version] - Koparde, V.N.; Cummings, P.T. Molecular dynamics simulation of titanium dioxide nanoparticle sintering. J. Phys. Chem. B
**2005**, 109, 24280–24287. [Google Scholar] [CrossRef] - Tonks, M.R.; Aagesen, L.K. The phase field method: Mesoscale simulation aiding material discovery. Annu. Rev. Mater. Res.
**2019**, 49, 79–102. [Google Scholar] [CrossRef] - Biswas, S.; Schwen, D.; Singh, J.; Tomar, V. A study of the evolution of microstructure and consolidation kinetics during sintering using a phase field modeling based approach. Extrem. Mech. Lett.
**2016**, 7, 78–89. [Google Scholar] [CrossRef][Green Version] - Biswas, S.; Schwen, D.; Tomar, V. Implementation of a phase field model for simulating evolution of two powder particles representing microstructural changes during sintering. J. Mater. Sci.
**2017**, 53, 5799–5825. [Google Scholar] [CrossRef] - Nosewicz, S.; Rojek, J.; Pietrzak, K.; Chmielewski, M. Viscoelastic discrete element model of powder sintering. Powder Technol.
**2013**, 246, 157–168. [Google Scholar] [CrossRef] - Rojek, J.; Nosewicz, S.; Jurczak, K.; Chmielewski, M.; Bochenek, K.; Pietrzak, K. Discrete element simulation of powder compaction in cold uniaxial pressing with low pressure. Comput. Part. Mech.
**2015**, 3, 513–524. [Google Scholar] [CrossRef][Green Version] - Rojek, J.; Nosewicz, S.; Maździarz, M.; Kowalczyk, P.; Wawrzyk, K.; Lumelskyj, D. Modeling of a sintering process at various scales. Procedia Eng.
**2017**, 177, 263–270. [Google Scholar] [CrossRef] - Wawrzyk, K.; Kowalczyk, P.; Nosewicz, S.; Rojek, J. A constitutive model and numerical simulation of sintering processes at macroscopic level. AIP Conf. Proc.
**2018**, 1922, 030011. [Google Scholar] [CrossRef][Green Version] - Olevsky, E.A. Theory of sintering: From discrete to continuum. Mater. Sci. Eng. R Rep.
**1998**, 23, 41–100. [Google Scholar] [CrossRef] - Olevsky, E.A.; Tikare, V.; Garino, T. Multi-scale study of sintering: A review. J. Am. Ceram. Soc.
**2006**, 89, 1914–1922. [Google Scholar] [CrossRef] - Alvarado-Contreras, J.A.; Olevsky, E.A.; German, R.M. Modeling of gravity-induced shape distortions during sintering of cylindrical specimens. Mech. Res. Commun.
**2013**, 50, 8–11. [Google Scholar] [CrossRef] - Xie, X.; Bennett, J.; Saha, S.; Lu, Y.; Cao, J.; Liu, W.K.; Gan, Z. Mechanistic data-driven prediction of as-built mechanical properties in metal additive manufacturing. NPJ Comput. Mater.
**2021**, 7, 86. [Google Scholar] [CrossRef] - Tonks, M.R.; Zhang, Y.; Biner, S.; Millett, P.C.; Bai, X. Guidance to design grain boundary mobility experiments with molecular dynamics and phase-field modeling. Acta Mater.
**2013**, 61, 1373–1382. [Google Scholar] [CrossRef] - Nosewicz, S.; Rojek, J.; Wawrzyk, K.; Kowalczyk, P.; Maciejewski, G.; Maździarz, M. Multiscale modeling of pressure-assisted sintering. Comput. Mater. Sci.
**2019**, 156, 385–395. [Google Scholar] [CrossRef] - Tuncer, N.; Bose, A. Solid-state metal additive manufacturing: A review. JOM
**2020**, 72, 3090–3111. [Google Scholar] [CrossRef] - Bustillos, J.; Kim, J.; Moridi, A. Lack of fusion in additive manufacturing: Defect or asset? arXiv
**2021**, arXiv:2104.07014. [Google Scholar] - German, R.M. Sintering solutions aboard the International Space Station; NASA/Johnson Space Center: Houston, TX, USA, 2018. [Google Scholar]
- Plimpton, S. Fast parallel algorithms for short-range molecular dynamics. J. Comput. Phys.
**1995**, 117, 1–19. [Google Scholar] [CrossRef][Green Version] - Sirk, T.W.; Moore, S.; Brown, E.F. Characteristics of thermal conductivity in classical water models. J. Chem. Phys.
**2013**, 138, 064505. [Google Scholar] [CrossRef] - Permann, C.J.; Gaston, D.R.; Andrš, D.; Carlsen, R.W.; Kong, F.; Lindsay, A.D.; Miller, J.M.; Peterson, J.W.; Slaughter, A.E.; Stogner, R.H.; et al. MOOSE: Enabling massively parallel multiphysics simulation. SoftwareX
**2020**, 11, 100430. [Google Scholar] [CrossRef] - Dadvand, P.; Rossi, R.; Oñate, E. An object-oriented environment for developing finite element codes for multi-disciplinary applications. Arch. Comput. Methods Eng.
**2010**, 17, 253–297. [Google Scholar] [CrossRef] - Dadvand, P.; Rossi, R.; Gil, M.; Martorell, X.; Cotela, J.; Juanpere, E.; Idelsohn, S.; Oñate, E. Migration of a generic multi-physics framework to HPC environments. Comput. Fluids
**2013**, 80, 301–309. [Google Scholar] [CrossRef][Green Version] - COMSOL. COMSOL Multiphysics Reference Manual; Version 5.5; COMSOL Inc.: Stockholm, Sweden, 2020; Available online: www.comsol.com (accessed on 26 April 2022).
- Rahaman, M.N. Sintering of Ceramics; Taylor & Francis Inc.: Boca Raton, FL, USA, 2007. [Google Scholar]
- Cannon, R.M.; Carter, W.C. Interplay of sintering microstructures, driving forces, and mass transport mechanisms. J. Am. Ceram. Soc.
**1989**, 72, 1550–1555. [Google Scholar] [CrossRef] - Pino-Minoz, D.; Julien, B.; Drapier, S.; Valdivieso, F. Sintering at particle scale: An Eulerian computing framework to deal with strong topological and material discontinuities. Arch. Comput. Methods Eng.
**2014**, 21, 141–187. [Google Scholar] [CrossRef] - Hirel, P. Atomsk: A tool for manipulating and converting atomic data files. Comput. Phys. Commun.
**2015**, 197, 212–219. [Google Scholar] [CrossRef] - Lee, B.J.; Baskes, M.; Kim, H.; Cho, Y.K. Second nearest-neighbor modified embedded atom method potentials for bcc transition metals. Phys. Rev. B
**2001**, 64, 184102. [Google Scholar] [CrossRef] - Baskes, M.I.; Johnson, R.A. Modified embedded atom potentials for HCP metals. Model. Simul. Mater. Sci. Eng.
**1994**, 2, 147–163. [Google Scholar] [CrossRef] - Elkhateeb, M.G.; Shin, Y.C. Molecular dynamics-based cohesive zone representation of Ti6Al4V/TiC composite interface. Mater. Des.
**2018**, 155, 161–169. [Google Scholar] [CrossRef] - Stukowski, A. Visualization and analysis of atomistic simulation data with OVITO-the Open Visualization Tool. Model. Simul. Mater. Sci. Eng.
**2010**, 18, 015012. [Google Scholar] [CrossRef] - Dzyaloshinskii, I.E.; Lifshitz, E.M.; Pitaevskii, L.P. General theory of van der Waals’ forces. Sov. Phys. Uspekhi
**1961**, 4, 153–176. [Google Scholar] [CrossRef] - Gottstein, G. Grain Boundary Migration in Metals; Taylor & Francis: Boca Raton, FL, USA, 2010. [Google Scholar]
- Wiki. Grain Boundary. 2022. Available online: https://en.wikipedia.org/wiki/Grain_boundary (accessed on 26 April 2022).
- Luchinsky, D.G.; McClintock, P.V.E. Irreversibility of classical fluctuations studied in analogue electrical circuits. Nature
**1997**, 389, 463–466. [Google Scholar] [CrossRef][Green Version] - Hozé, N.; Holcman, D. Statistical methods for large ensembles of super-resolution stochastic single particle trajectories in cell biology. Annu. Rev. Stat. Its Appl.
**2017**, 4, 189–223. [Google Scholar] [CrossRef] - Wakai, F.; Brakke, K. Mechanics of sintering for coupled grain boundary and surface diffusion. Acta Mater.
**2011**, 59, 5379–5387. [Google Scholar] [CrossRef] - Pouchly, V.; Maca, K. Master sintering curve: A practical approach to its construction. Sci. Sinter.
**2010**, 42, 25–32. [Google Scholar] [CrossRef] - Moelans, N.; Blanpain, B.; Wollants, P. An introduction to phase-field modeling of microstructure evolution. Calphad
**2008**, 32, 268–294. [Google Scholar] [CrossRef] - Allen, S.M.; Cahn, J.W. A microscopic theory for antiphase boundary motion and its application to antiphase domain coarsening. Acta Metall.
**1979**, 27, 1085–1095. [Google Scholar] [CrossRef] - Zhang, X.; Liao, Y. A phase-field model for solid-state selective laser sintering of metallic materials. Powder Technol.
**2018**, 339, 677–685. [Google Scholar] [CrossRef] - Ahmed, K.; Yablinsky, C.A.; Schulte, A.; Allen, T.; El-Azab, A. Phase field modeling of the effect of porosity on grain growth kinetics in polycrystalline ceramics. Model. Simul. Mater. Sci. Eng.
**2013**, 21, 065005. [Google Scholar] [CrossRef] - Yang, Q.; Kirshtein, A.; Ji, Y.; Liu, C.; Shen, J.; Chen, L.Q. A thermodynamically consistent phase-field model for viscous sintering. J. Am. Ceram. Soc.
**2018**, 102, 674–685. [Google Scholar] [CrossRef] - Luchinsky, D.G.; Hafiychuk, V.; Wheeler, K.R.; Prater, T.J. Analysis of Nonlinear Shrinkage for the Bound Metal Deposition Manufacturing using Multi-scale Approach. Technical Memorandum NASA/TM-20210010310, 11 March 2021. Available online: https://ntrs.nasa.gov/citations/20210010310 (accessed on 26 April 2022).
- Wang, G.; Zeng, D.c.; Liu, Z.w. Phase field calculation of interface mobility in a ternary alloy. Trans. Nonferrous Met. Soc. China
**2012**, 22, 1711–1716. [Google Scholar] [CrossRef] - Khachaturyan, A.G. Theory of Structural Transformations in Solids; Dover Books on Engineering Series; Dover Publications: Mineola, NY, USA, 2008. [Google Scholar]
- Greenquist, I.; Tonks, M.R.; Aagesen, L.K.; Zhang, Y. Development of a microstructural grand potential-based sintering model. Comput. Mater. Sci.
**2020**, 172, 109288. [Google Scholar] [CrossRef] - Dai, G.; Niu, J.; Guo, Y.; Sun, Z.; Dan, Z.; Chang, H.; Zhou, L. Microstructure evolution and grain refinement behavior during hot deformation of Fe micro-alloyed Ti-6Al-4V. J. Mater. Res. Technol.
**2021**, 15, 1881–1895. [Google Scholar] [CrossRef] - German, R.M. Sintering Theory and Practice; John Wiley & Sons: Hoboken, NJ, USA, 1996. [Google Scholar]
- Cardona, C.G.; Tikare, V.; Patterson, B.R.; Olevsky, E. On sintering stress in complex powder compacts. J. Am. Ceram. Soc.
**2012**, 95, 2372–2382. [Google Scholar] [CrossRef] - Luding, S. Introduction to discrete element methods. Eur. J. Environ. Civ. Eng.
**2008**, 12, 785–826. [Google Scholar] [CrossRef] - Yeom, S.B.; Ha, E.S.; Kim, M.S.; Jeong, S.H.; Hwang, S.J.; Choi, D.H. Application of the discrete element method for manufacturing process simulation in the pharmaceutical industry. Pharmaceutics
**2019**, 11, 414. [Google Scholar] [CrossRef][Green Version] - SALOME. An Open-Source Software for Pre- and Post-Processing. 2020. Available online: https://docs.salome-platform.org/latest/gui/GEOM/index.html (accessed on 26 April 2022).
- German, R.M. Coordination number changes during powder densification. Powder Technol.
**2014**, 253, 368–376. [Google Scholar] [CrossRef] - Gibson, L.J.; Ashby, M.F. Cellular Solids: Structure and Properties, 2nd ed.; Cambridge Solid State Science Series; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar] [CrossRef]
- Phuong, D.; Duong, V.; Luan, V.; Anh, N.; Trinh, V. Microstructure and mechanical properties of Ti6Al4V alloy consolidated by different sintering techniques. Metals
**2019**, 9, 1033. [Google Scholar] [CrossRef][Green Version] - Téllez-Martínez, J.S.; Olmos, L.; Solorio-García, V.M.; Vergara-Hernández, H.J.; Chávez, J.; Arteaga, D. Processing and characterization of bilayer materials by solid state sintering for orthopedic applications. Metals
**2021**, 11, 207. [Google Scholar] [CrossRef] - Baranau, V.; Tallarek, U. Random-close packing limits for monodisperse and polydisperse hard spheres. Soft Matter
**2014**, 10, 3826. [Google Scholar] [CrossRef][Green Version] - Mueller, S.; Llewellin, E.W.; Mader, H.M. The rheology of suspensions of solid particles. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2009**, 466, 1201–1228. [Google Scholar] [CrossRef][Green Version] - Phillies, G.D.J. Viscosity of suspensions of hard and soft spheres. arXiv
**2004**, arXiv:cond-mat/0403305. [Google Scholar] - Shewan, H.M.; Stokes, J.R. Analytically predicting the viscosity of hard sphere suspensions from the particle size distribution. J. Non-Newton. Fluid Mech.
**2015**, 222, 72–81. [Google Scholar] [CrossRef] - Yu, A.B.; Standish, N. An analytical—Parametric theory of the random packing of particles. Powder Technol.
**1988**, 55, 171–186. [Google Scholar] [CrossRef] - Dias, R.P.; Teixeira, J.A.; Mota, M.G.; Yelshin, A.I. Particulate binary mixtures: Dependence of packing porosity on particle size ratio. Ind. Eng. Chem. Res.
**2004**, 43, 7912–7919. [Google Scholar] [CrossRef][Green Version] - Tang, Y.; Huang, Z.; Yang, J.; Xie, Y. Enhancing the capillary force of binder-jetting printing Ti6Al4V and mechanical properties under high temperature sintering by mixing fine powder. Metals
**2020**, 10, 1354. [Google Scholar] [CrossRef] - Cao, F.; Chandran, K.R.; Kumar, P. New approach to achieve high strength powder metallurgy Ti-6Al-4V alloy through accelerated sintering at β-transus temperature and hydrogenation-dehydrogenation treatment. Scr. Mater.
**2017**, 130, 22–26. [Google Scholar] [CrossRef][Green Version] - bin Suleiman Ahmad, M.J.; bin Abdullah, A.N.; Ibrahim, R.B.; Mohamad, M.; Kasim, N.B.A.; Kadir, M.R.B.D.; Muhamad, S.; Itoh, Y.; Hanada, K.; Shimizu, T. Effect of sintering conditions on mechanical properties and microstructure of titanium alloy produced by metal injection moulding (MIM). Adv. Mater. Res.
**2013**, 686, 164–169. [Google Scholar] [CrossRef] - Azmirruddin, M.; Jabir, M.; Johari, N.; Ibrahim, R.; Hamidi, N. The effect of impurities elements on titanium alloy (Ti-6Al-4V) MIM sintered part properties. AIP Conf. Proc.
**2017**, 1901, 040007. [Google Scholar] [CrossRef] - Ait-Mansour, I.; Kretzschmar, N.; Chekurov, S.; Salmi, M.; Rech, J. Design-dependent shrinkage compensation modeling and mechanical property targeting of metal FFF. Prog. Addit. Manuf.
**2020**, 5, 51–57. [Google Scholar] [CrossRef][Green Version] - Horvath, R.C.J. Mastering 3D Printing; Apress: Berkeley, CA, USA, 2020. [Google Scholar]
- Skorokhod, V.V. Rheological Fundamentals of the Theory of Sintering; Naukova Dumka Kiev: Kyiv, Ukraine, 1972. (In Russian) [Google Scholar]
- Riedel, H. A constitutive model for the finite-element simulation of sintering—Distortions and stresses. In Ceramic Powder Science III; Amer Ceramic Society: Westerville, OH, USA, 1990; pp. 619–630. [Google Scholar]
- Nowacki, W. Thermoelasticity; Pergamon Press PWN-Polish Scientific Publishers: Oxford, UK; New York, NY, USA; Warszawa, Poland, 1986. [Google Scholar]
- Sherief, H.H.; Hamza, F.A.; Saleh, H.A. The theory of generalized thermoelastic diffusion. Int. J. Eng. Sci.
**2004**, 42, 591–608. [Google Scholar] [CrossRef] - Wang, Y.U. Computer modeling and simulation of solid-state sintering: A phase field approach. Acta Mater.
**2006**, 54, 953–961. [Google Scholar] [CrossRef]

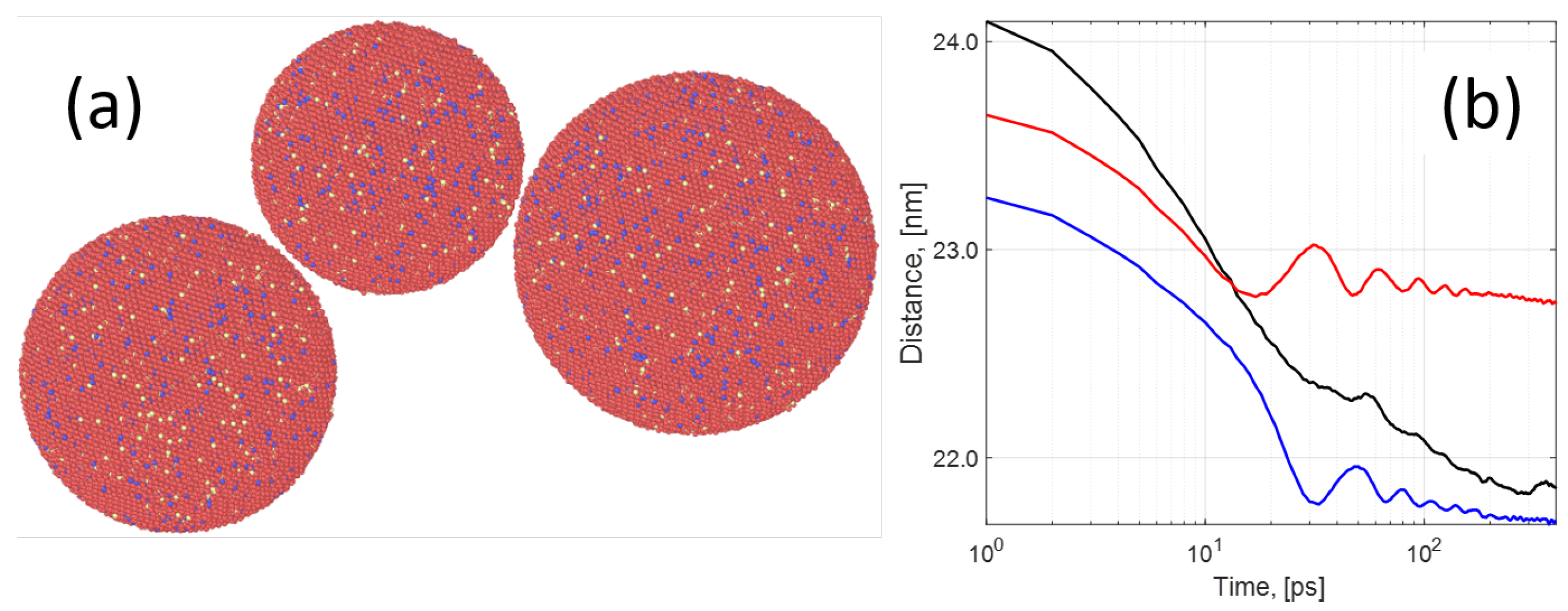

**Figure 1.**(

**a**) Image (obtained with OVITO [43]) of the initial state of sintering of 3 particles with HCP crystal structure ($\alpha $ phase). Diameters of the particles 1 to 3 (from left to right): 1st 14 nm, 2nd 12 nm, and 3rd 16 nm. The colours show Ti (red), Al (yellow), and V (blue). (

**b**) Distances between particles 1–2 (blue), 2–3 (red) and 1–3 (black) as a function of time during first 0.39 ns of sintering. Distance between pairs 1–2 and 2–3 is increased by 9 nm to be in scale with the distance for the pair 1–3.

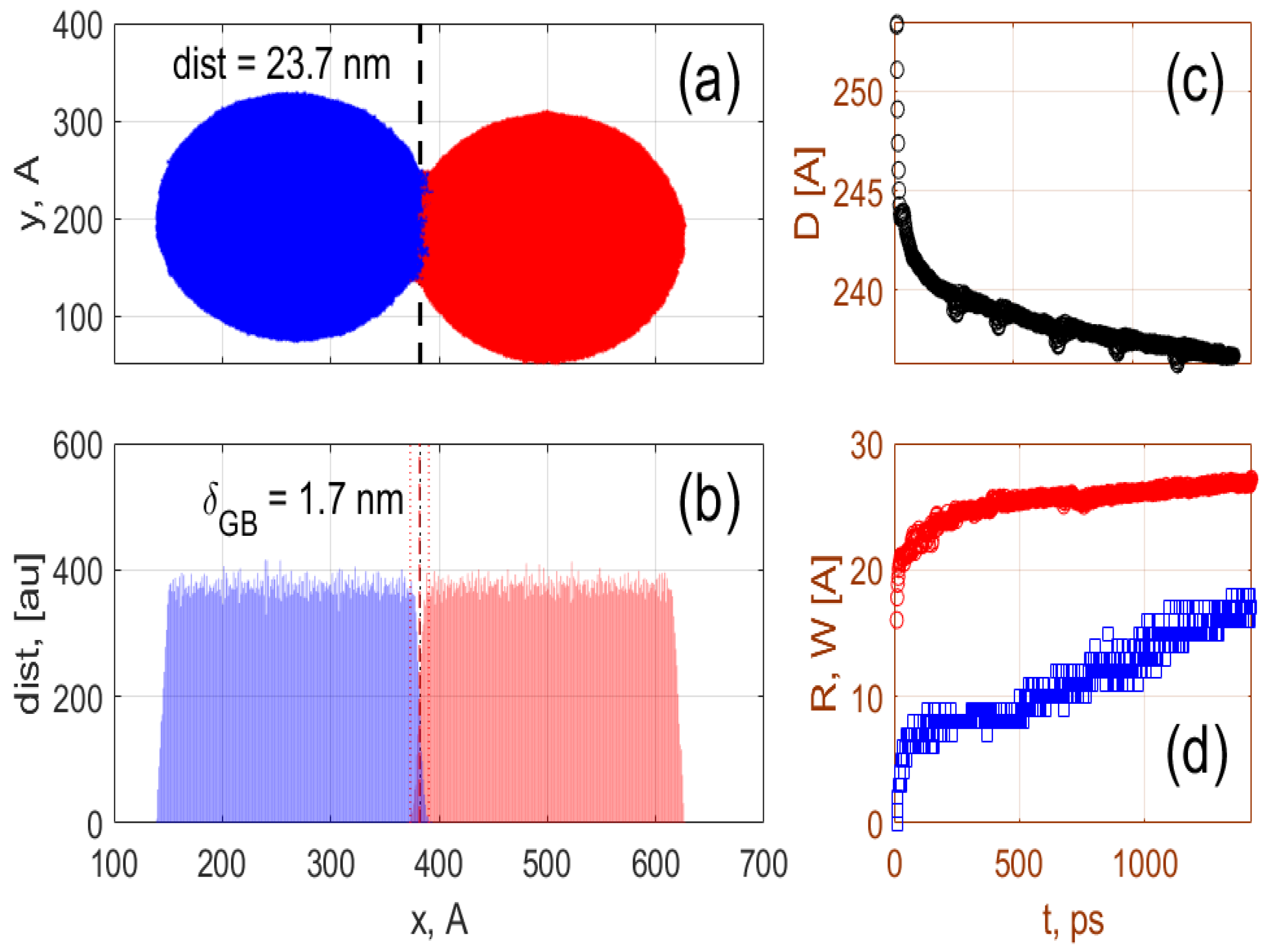

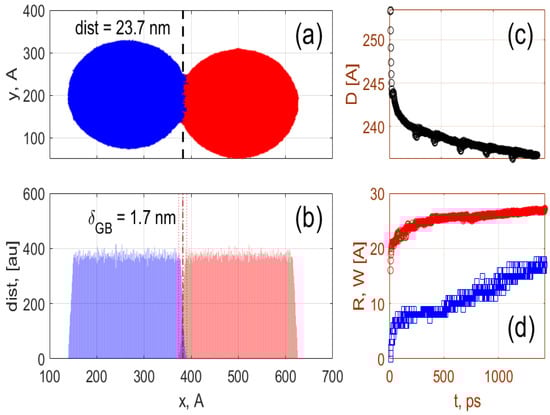

**Figure 2.**(

**a**) Two interacting particles with the interface shown by the vertical dashed line. (

**b**) Distribution of titanium atoms in two particles along the x coordinate within a cylinder of radius 5 nm whose axis passes through the centres of both particles. The interface between the particles is shown by the vertical dashed line. (

**c**) Distance between particle centres as a function of time. (

**d**) The effective grain boundary width (blue squares) and neck radius (red circles) as a function of time. The ${\delta}_{GB}$ is shown by vertical dash-dotted red vertical lines.

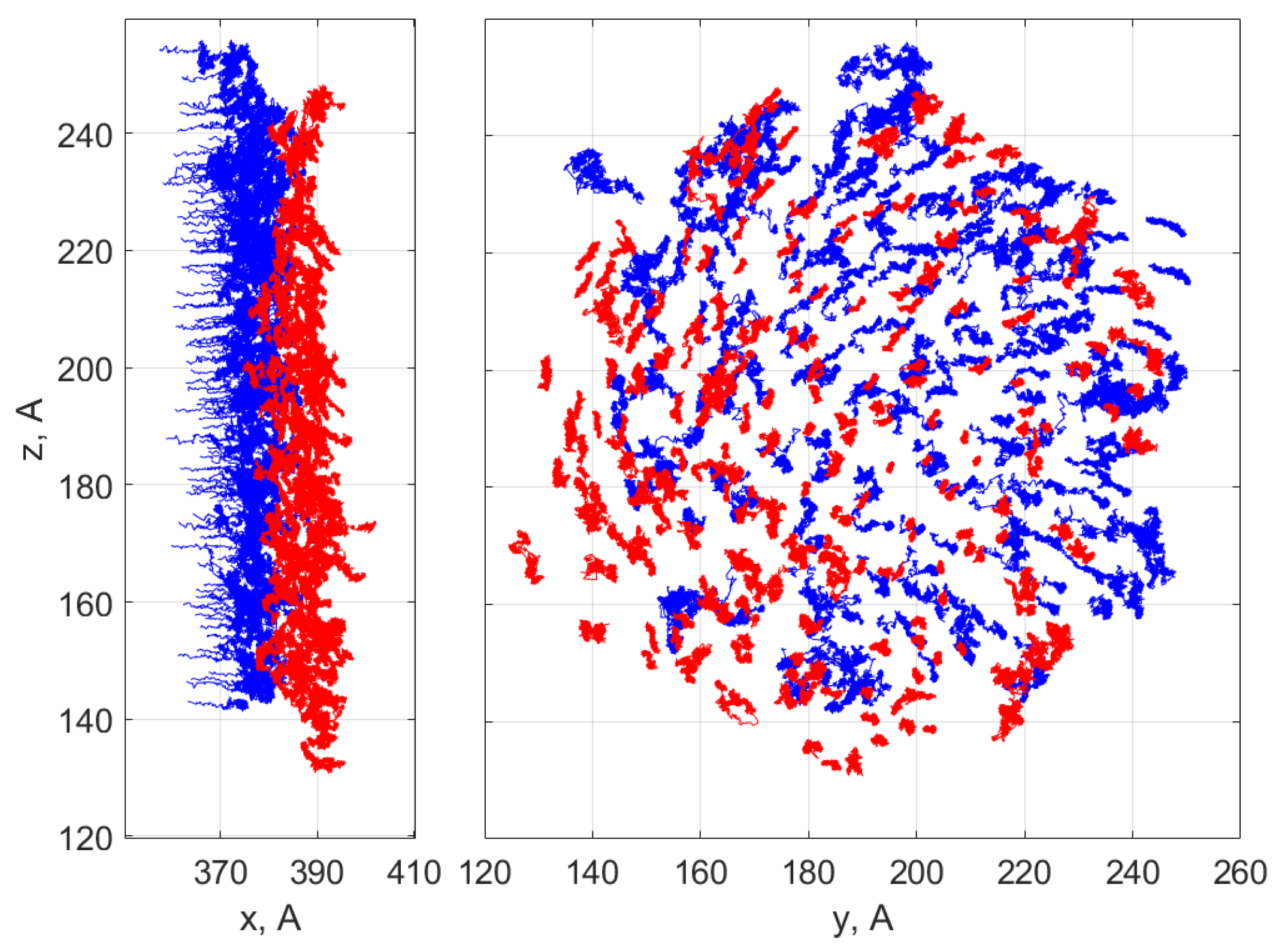

**Figure 3.**A subset of sampled atomic trajectories. (

**left**) $xz$-view of trajectories of Ti atoms within the grain boundary layer after 1 ns of simulation. (

**right**) $yz$-view of the same trajectories. The color coding is the same as in Figure 2: red trajectories belong to the right particle while blue correspond to the left particle.

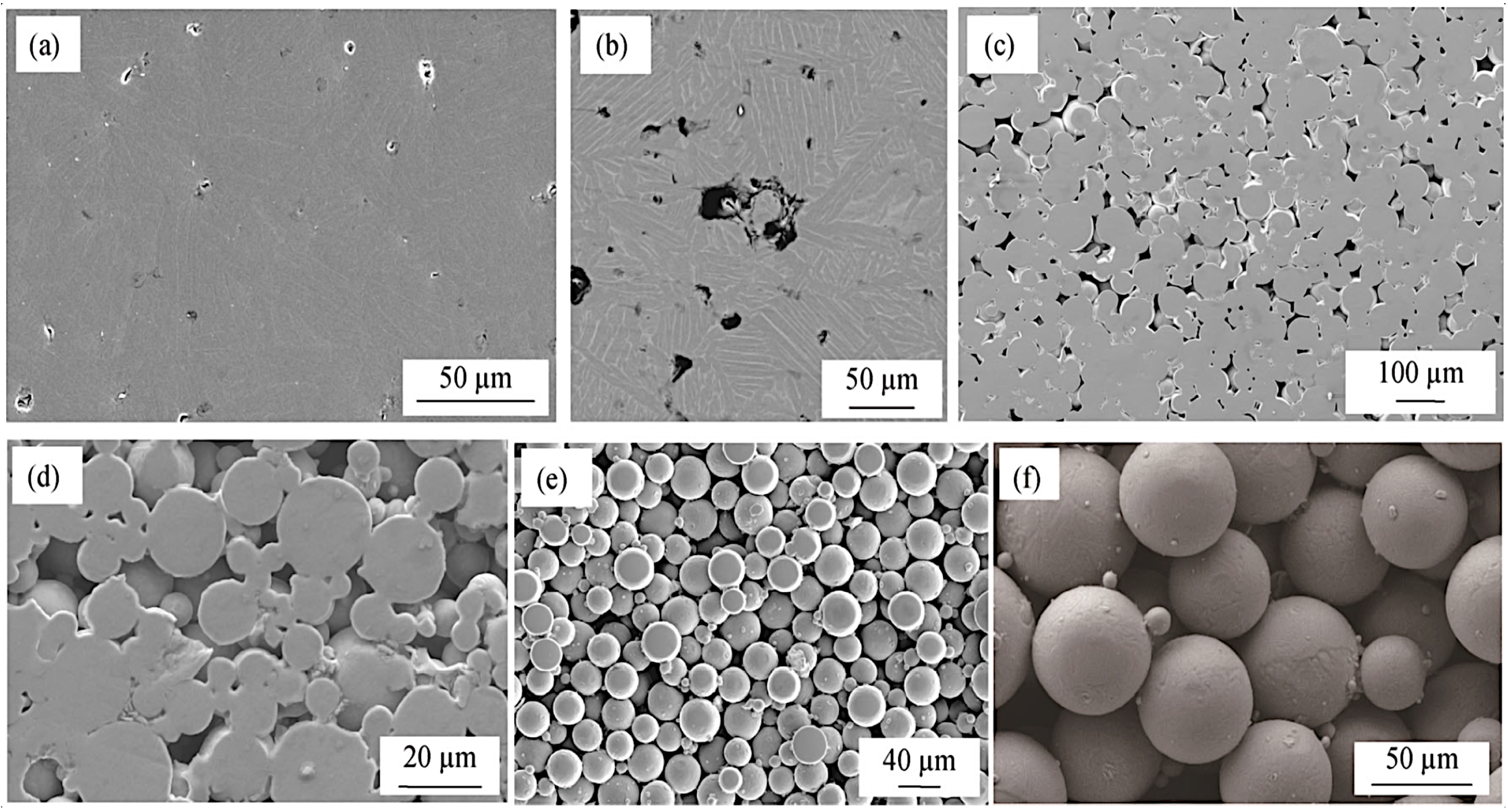

**Figure 4.**SEM micrographs of samples sintered at 1260 ${}^{\circ}$C with particle diameters of (

**a**) 0–20 $\mathsf{\mu}$$\mathrm{m}$, (

**b**) 20–45 $\mathsf{\mu}$$\mathrm{m}$, and (

**c**) 45–75 $\mathsf{\mu}$$\mathrm{m}$; sintered at 900 ${}^{\circ}$C for (

**d**) 0–20 $\mathsf{\mu}$$\mathrm{m}$, (

**e**) 20–45 $\mathsf{\mu}$$\mathrm{m}$, and (

**f**) 45–75 $\mathsf{\mu}$$\mathrm{m}$. Reprinted with permission from Springer Nature Customer Service Centre GmbH: Springer, International Journal of Minerals, Metallurgy, and Materials [6].

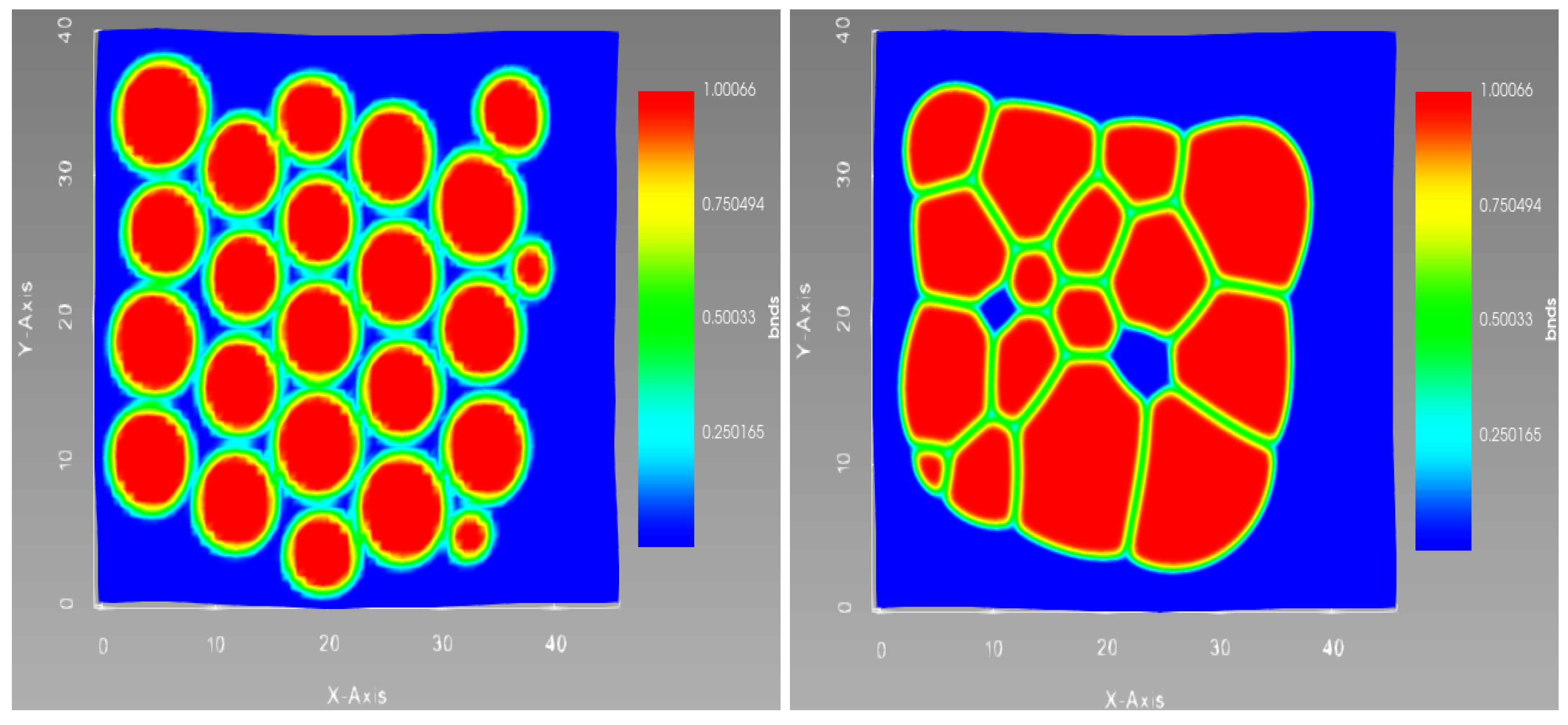

**Figure 5.**Results of the phase-field simulations of the microstructure evolution for 23 particles, in zero gravity, with periodic boundary conditions. (

**left**panel) Initial distribution of the 23 “particles”. (

**right**panel) Distribution of the metal particles in the end of the simulation time.

**Figure 6.**Results of the phase-field simulations of the microstructure evolution in 3D solid state sintering: (

**left**) at initial time and (

**right**) cross-sectional view after 24 time units.

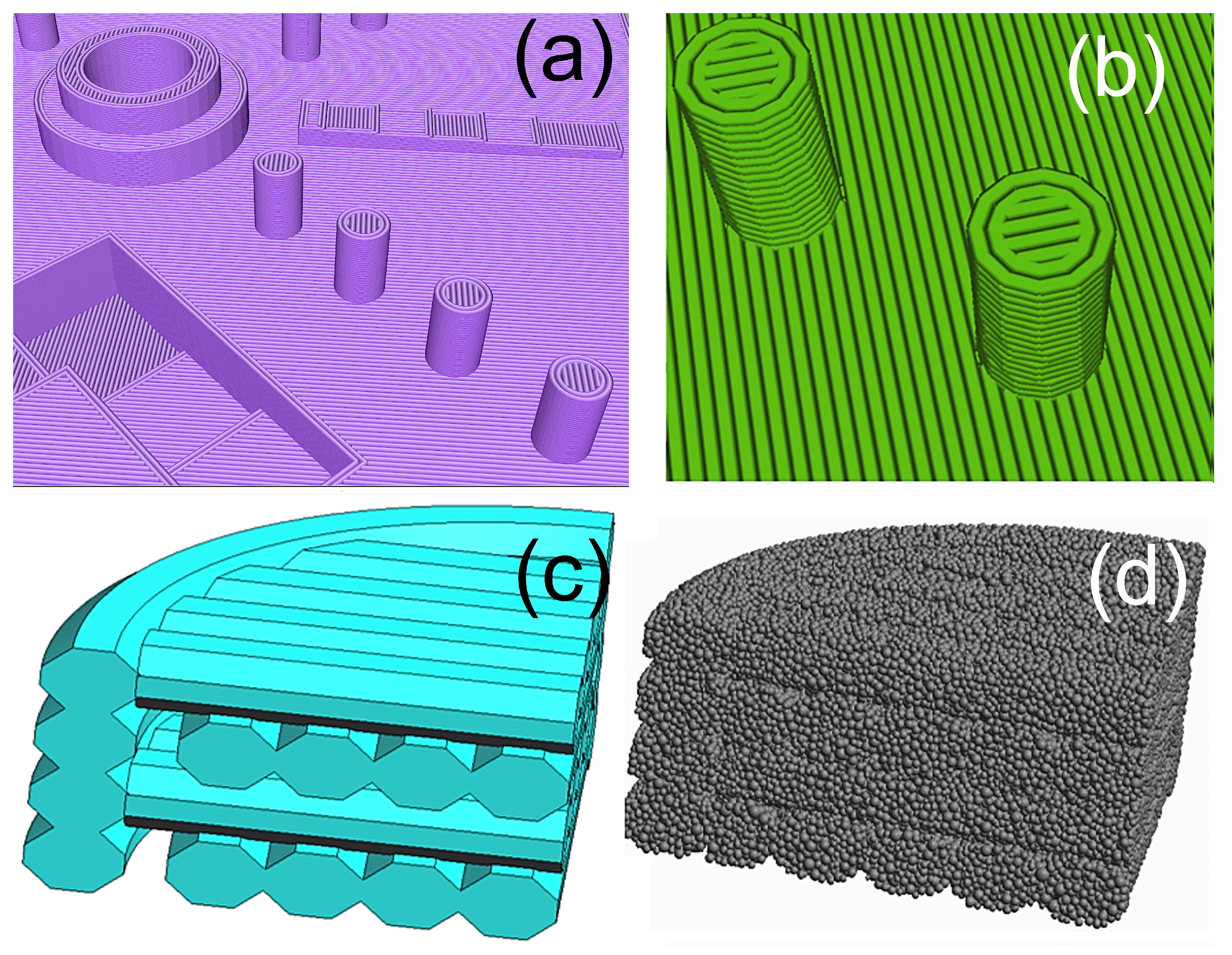

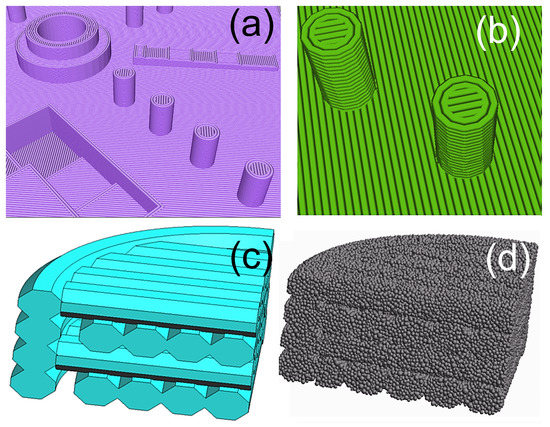

**Figure 8.**(

**a**) Fragment of sliced NIST artefact for additive manufacturing. (

**b**) Zoomed view of a small part of the artefact. (

**c**) Geometry of the top few layers of the cylinder shown in figure (

**b**) obtained in KRATOS DEM. (

**d**) Discrete element model of the filaments in KRATOS DEM. The total number of spherical particles in the model ≈150,000.

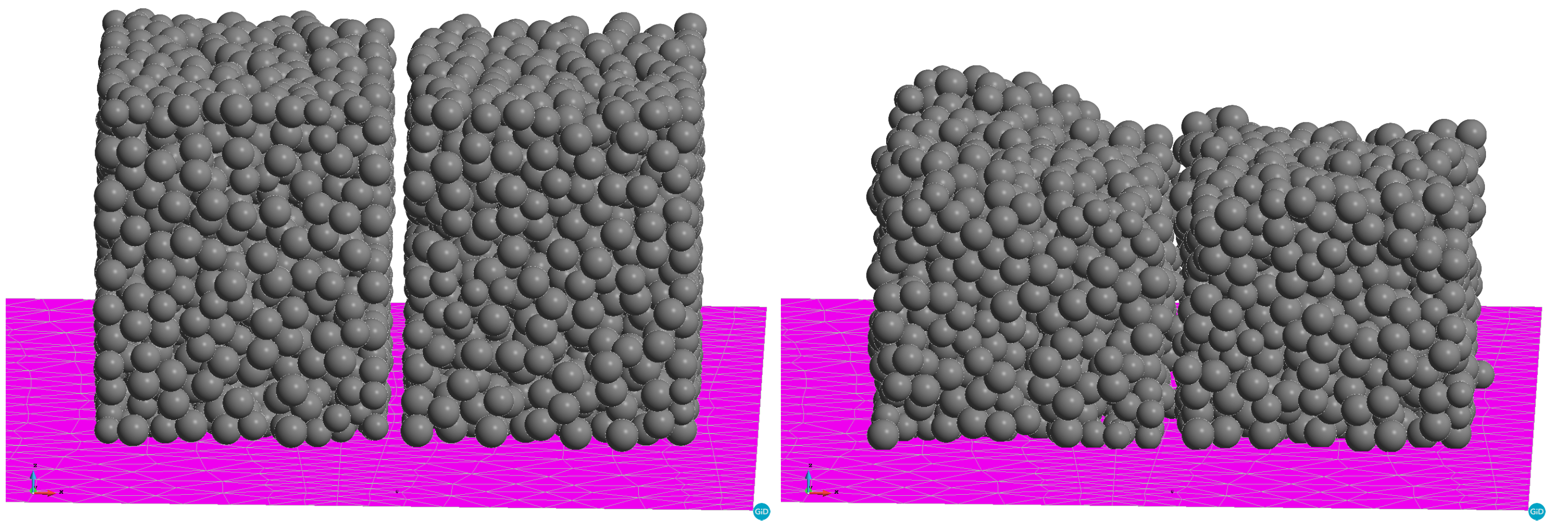

**Figure 9.**The effect of gravity on the initial shrinkage obtained in the DEM model. (

**left**) initial state; (

**right**) final state after 10 s of simulation time. The results of simulations are well reproducible.

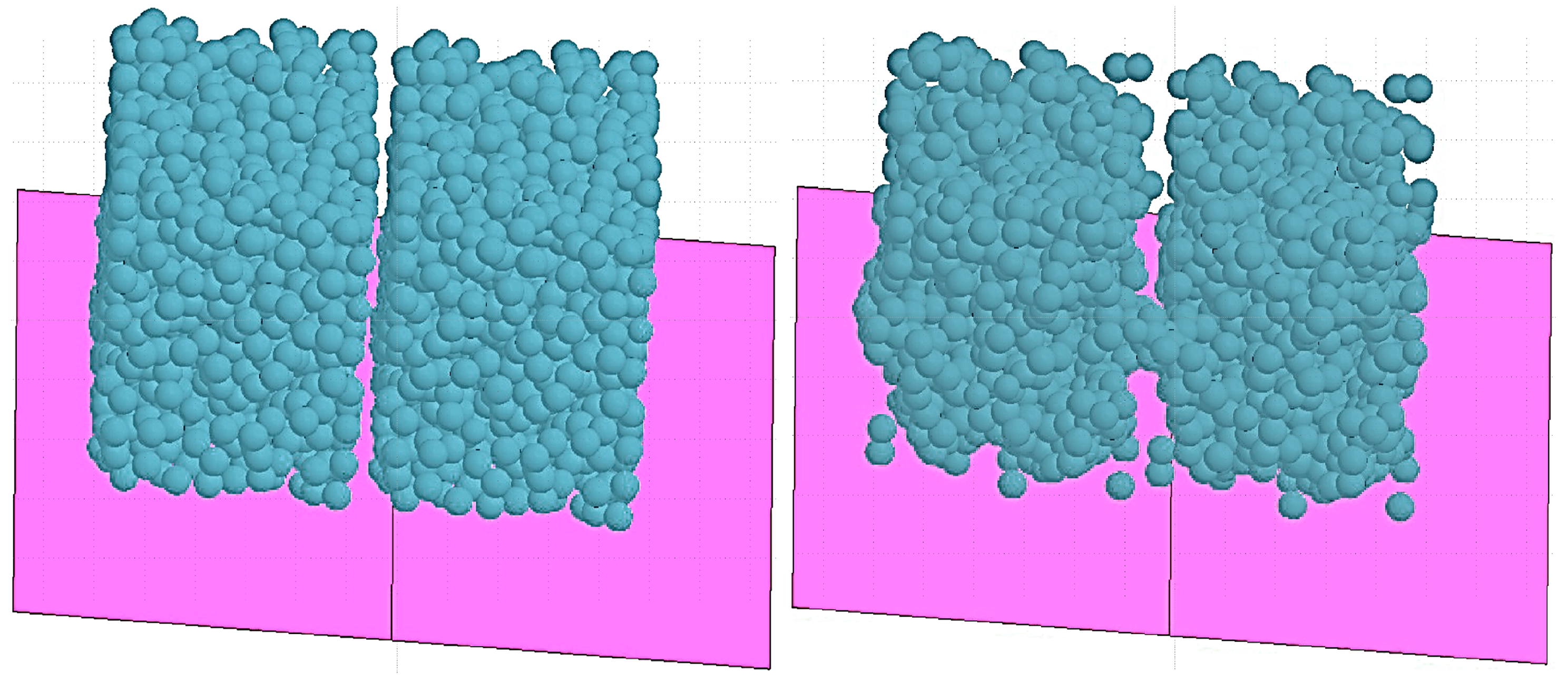

**Figure 10.**An example of the standard outcome of the simulations of the microstructure changes during debinding in zero gravity obtained using discrete element modelling of two rectangular cuboids: (

**left**) before shrinkage and (

**right**) after shrinkage.

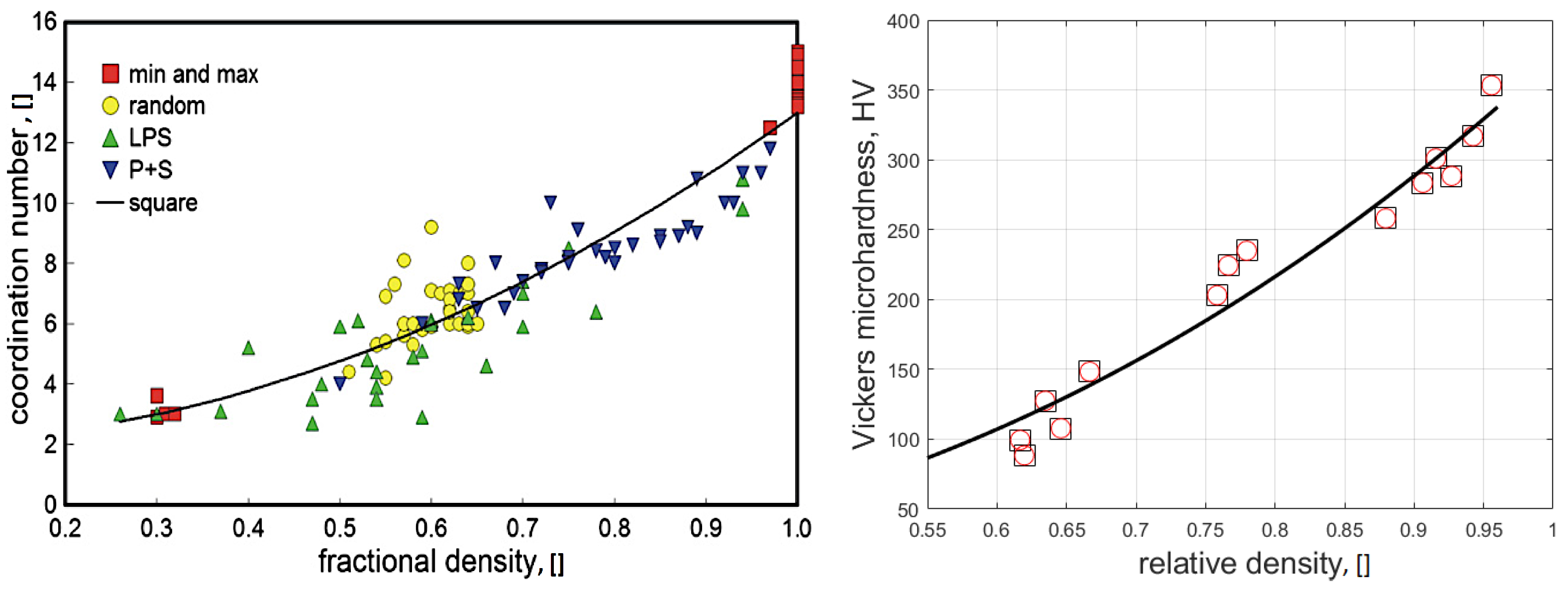

**Figure 11.**(

**left**) Plot of the coordination number versus fractional density using tabulated data for minimum, maximum, random, compacted, sintered, and liquid phase sintered structures, including simulation data. The relation based on the square of the fractional density, according to Equation (15), is given by the solid line. Reprinted with permission from Elsevier and Copyright Clearance Center: Elsevier, Powder Technology [7]. Here LPS represents experimental data obtained using liquid phase sintering, while P+S corresponds to the experimental data obtained by pressing and sintering. “min and max” and “random” represent a mixture of experimental and simulated data. (

**right**) Experimental data for microhardness as a function of relative density [6]. The solid line represents the results of fitting by correlations (19).

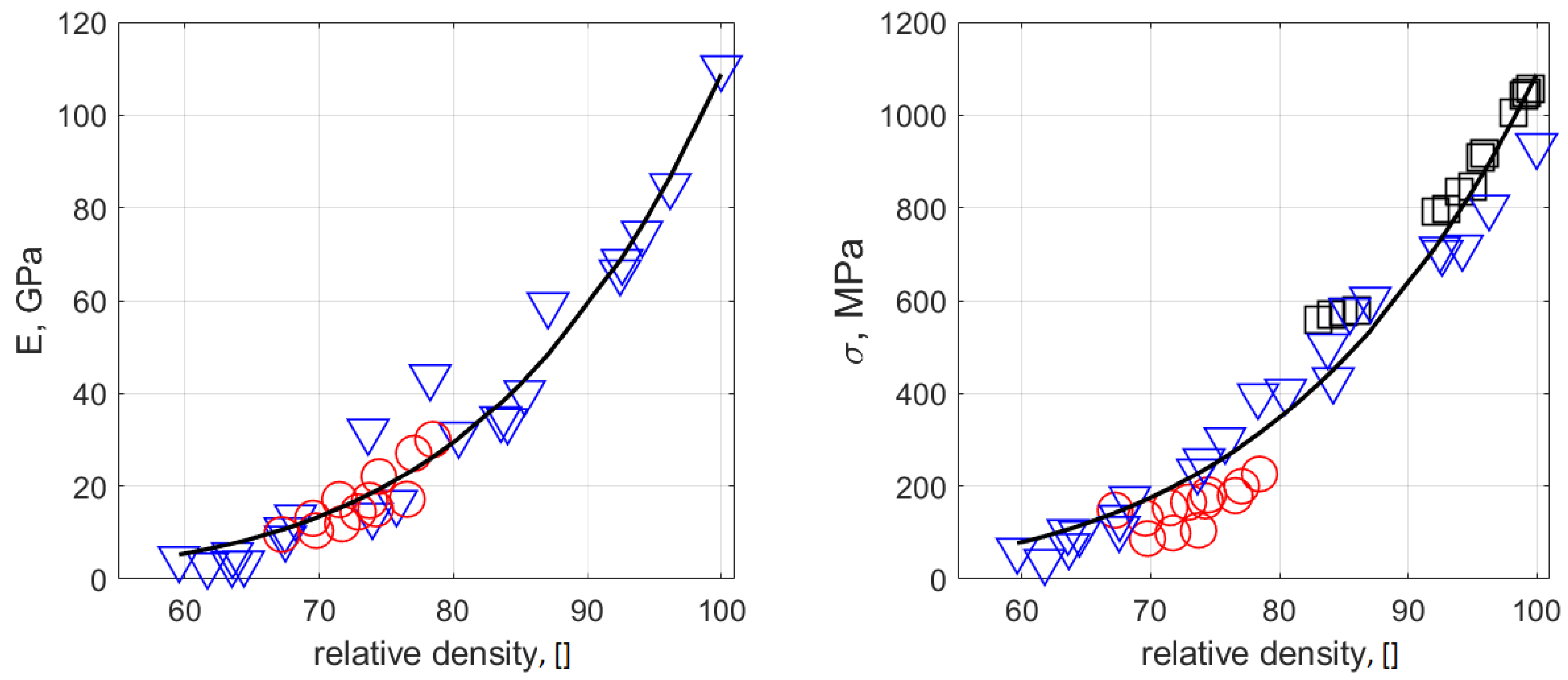

**Figure 12.**Mechanical properties of the sintered samples as a function of the relative density. The (

**left**) panel shows experimentally obtained data for Young’s modulus [6,69] and the (

**right**) panel shows the experimental data for yield stress [6,68,69] as a function of the relative density in each case. The following symbols are used in the left panel ◯ represent results from [68] and ▽ corresponds to [6]; while in the right panel ▽—[6], ◯—[69], □—[68]. The solid lines represent the results of fitting by correlations (18).

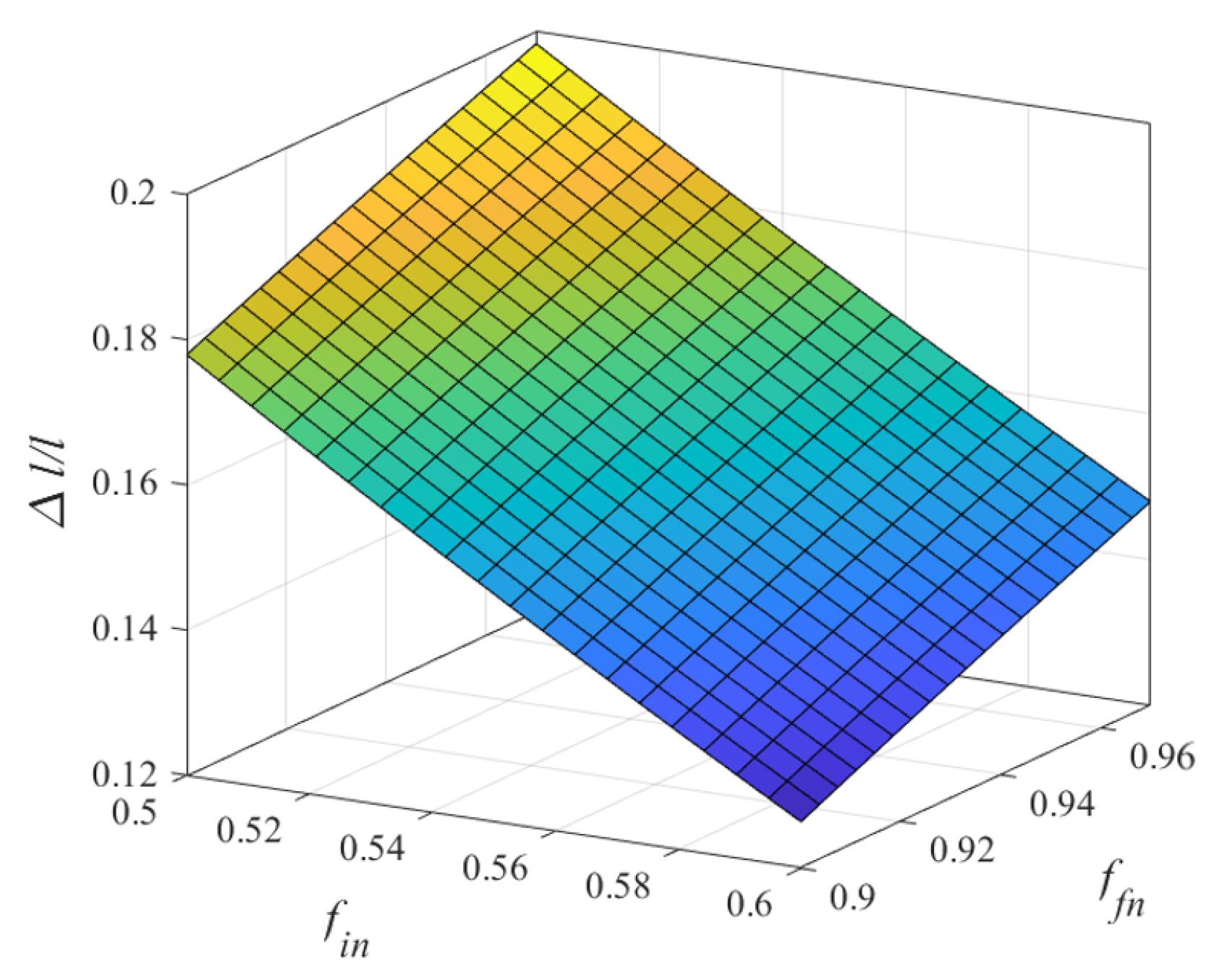

**Figure 13.**Shrinkage as a function of initial ${f}_{in}$ and final ${f}_{fn}$ densities according to correlations given by Equation (17).

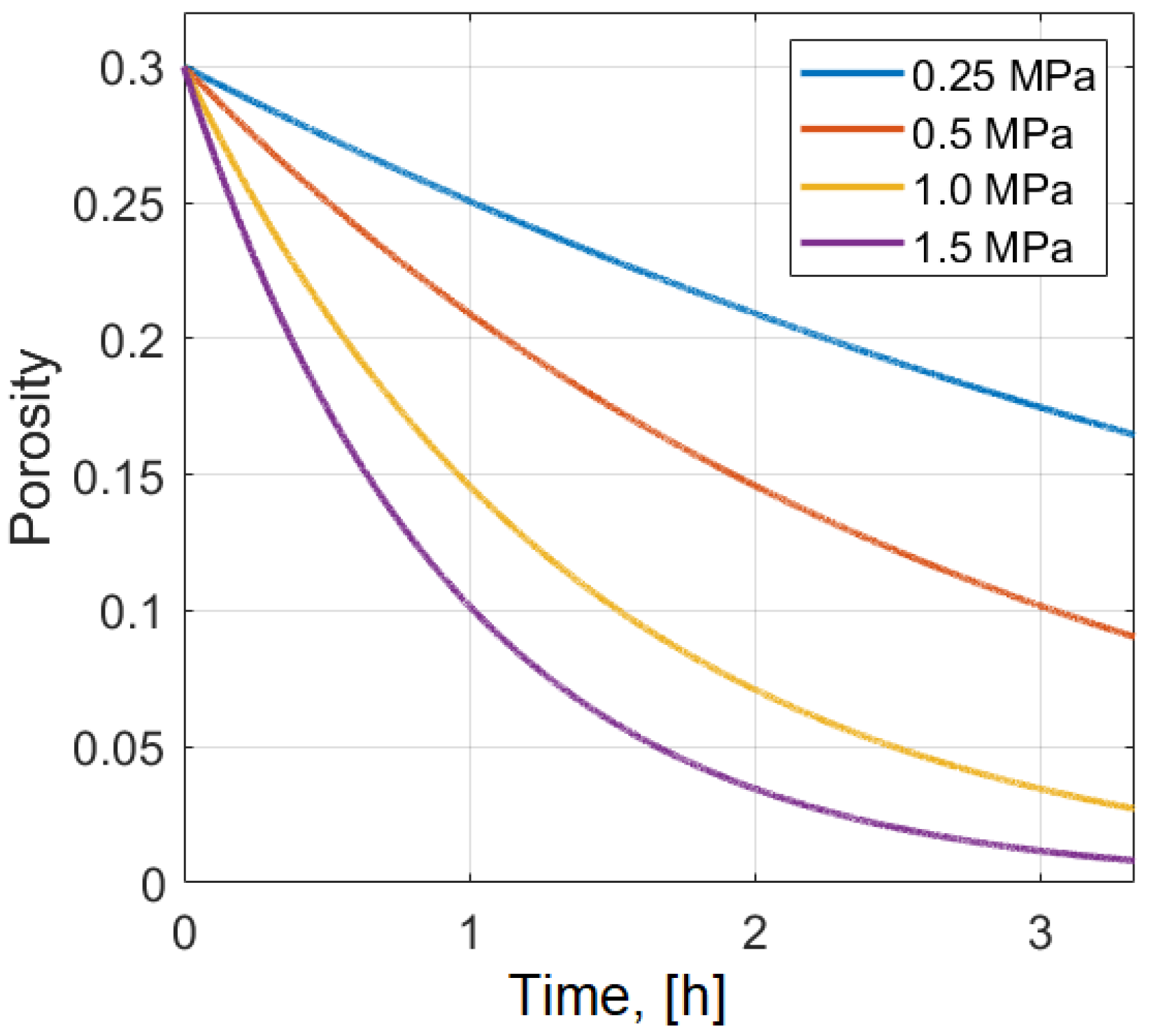

**Figure 14.**Dependence of the porosity on time at different values of the sintering stress. The initial porosity value is 0.3, $\eta =0.5\times {10}^{10}$ Pa$\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}$s.

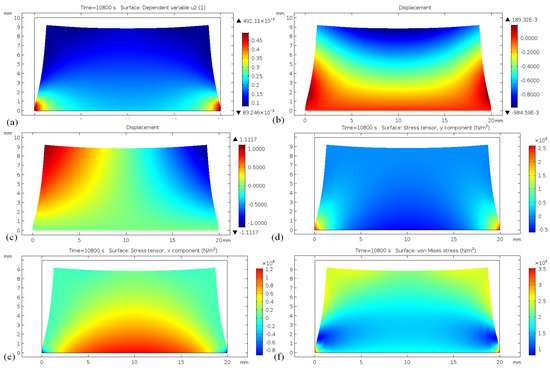

**Figure 15.**(

**a**) Porosity distribution at the end of sintering time; (

**b**) vertical displacement; (

**c**) horizontal displacement; (

**d**) stress distribution ${S}_{yy}$. (

**e**) ${S}_{xx}$; (

**f**) von Mises. The initial porosity value is ${\theta}_{0}$ = 0.3, $\eta =1\times {10}^{11}$ Pa$\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}$s, ${P}_{L}=1$ MPa.

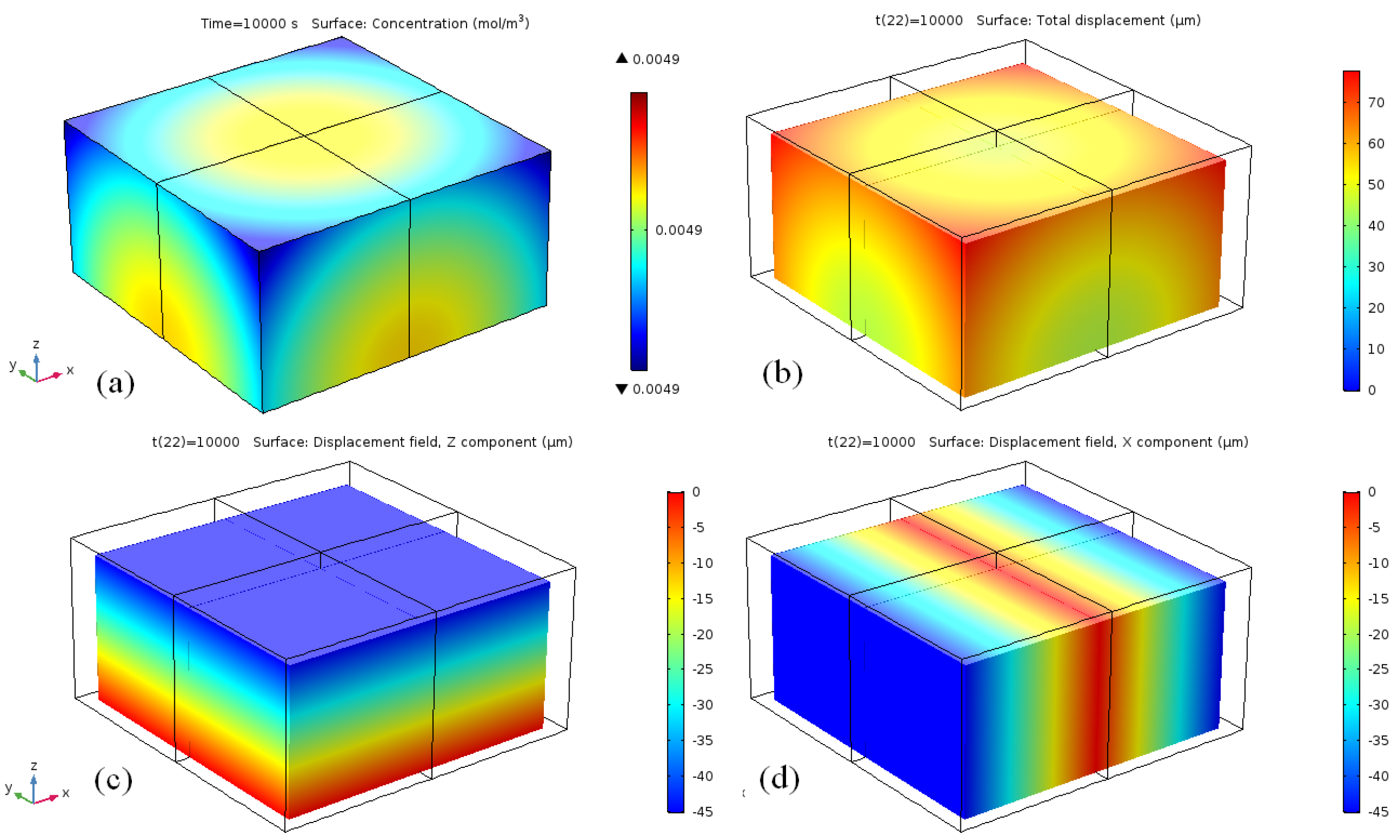

**Figure 16.**(

**a**) Concentration of the backbone debinder after sintering; (

**b**) total displacement; (

**c**) direction z displacement; (

**d**) x displacement. The parameters are $\beta ={10}^{-3}$ m${}^{3}$/kg, initial concentration ${10}^{3}$ mol/m${}^{3}$, diffusion coefficient $D=4\times {10}^{-6}$ m${}^{2}$/s, brown part density was taken as 3000 kg/m${}^{3}$, Young’s modulus 10 GPa, Poisson’s ratio 0.4.

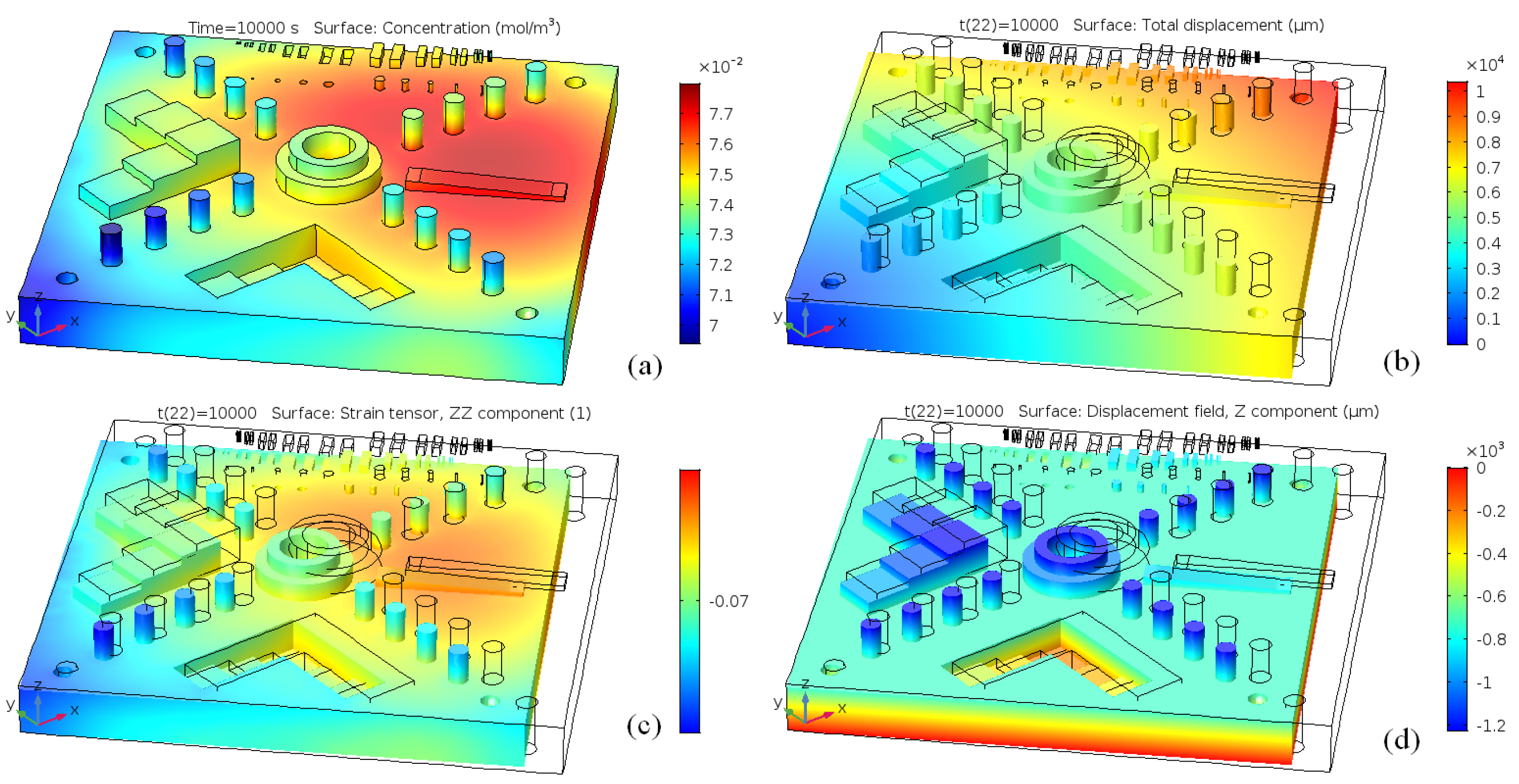

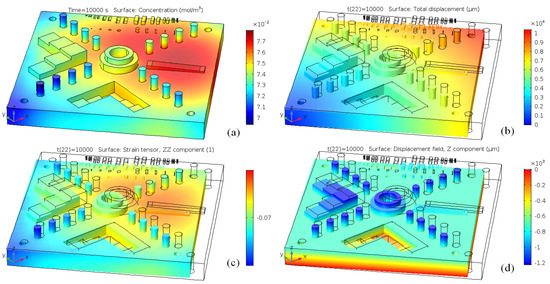

**Figure 17.**COMSOL simulations of: (

**a**) the concentration of backbone debinder in the sintering part (after sintering); (

**b**) total displacement; (

**c**) directional strain; (

**d**) displacement in the vertical direction. The parameters were $\beta ={10}^{-3}$ m${}^{3}$/kg, initial concentration 10${}^{3}$ mol/m${}^{3}$, diffusion coefficient $D=4\times {10}^{-6}$ m${}^{2}$/s, brown part density was taken as 3000 kg/m${}^{3}$, Young’s modulus = 10 GPa, Poisson’s ratio = 0.4.

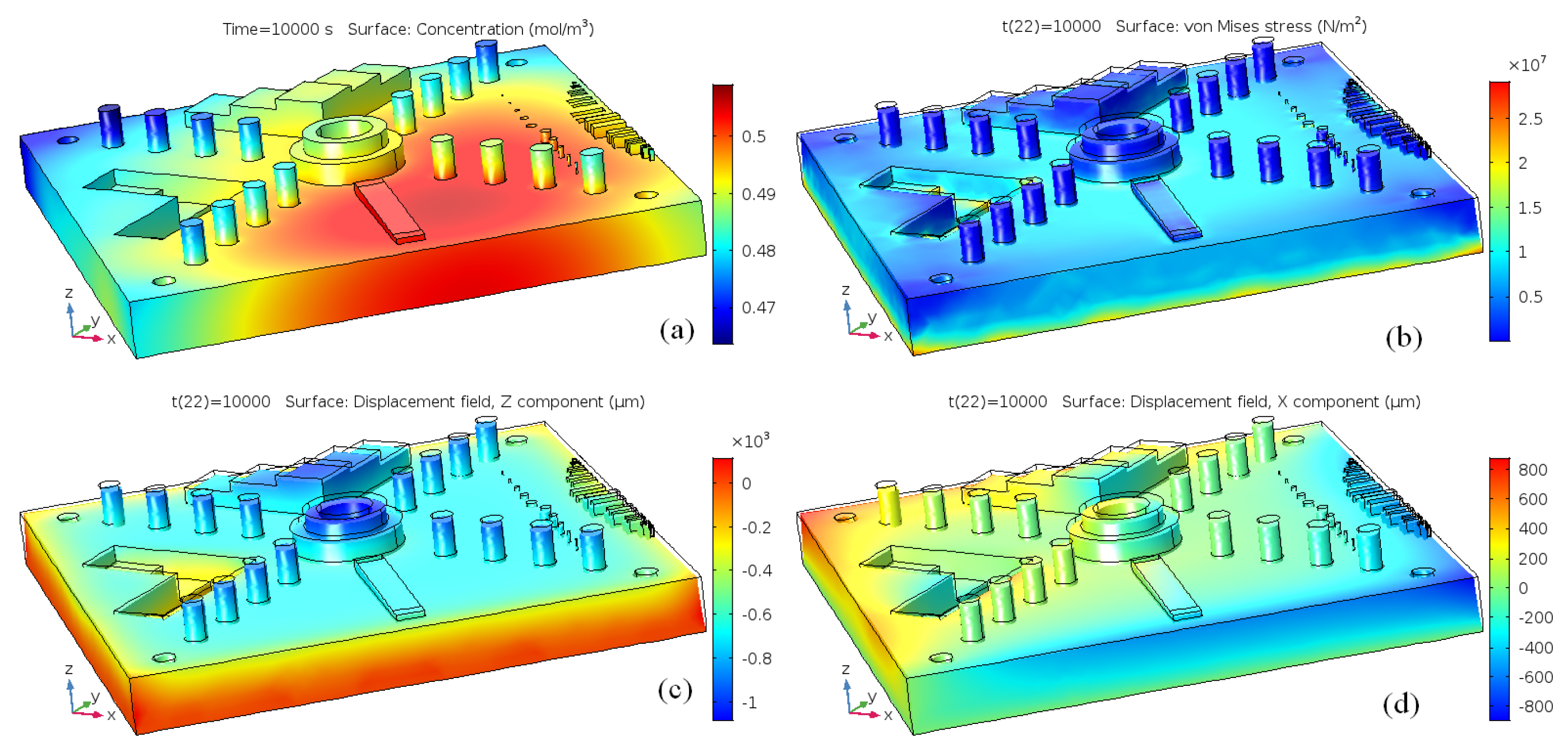

**Figure 18.**COMSOL simulations of: (

**a**) concentration of backbone debinder in the sintering part (after sintering); (

**b**) Von-Mises residual stress; (

**c**) directional displacement vertically; (

**d**) displacement in x. The parameters were $\beta ={10}^{-3}$ m${}^{3}$/kg, intial concentration ${10}^{3}$ mol/m${}^{3}$, diffusion coefficient $D=4\times {10}^{-6}$ m${}^{2}/s$, brown part density was taken as 3000 kg/m${}^{3}$, Young’s modulus = 10 GPa, Poisson’s ratio = 0.4.

# elt | lat | z | ielement | atwt | |||
---|---|---|---|---|---|---|---|

# alpha | b0 | b1 | b2 | b3 | alat | esub | asub |

# t0 | t1 | t2 | t3 | rozero | ibar | ||

Al | fcc | 12 | 13 | 26.9815 | |||

4.975 | 3.2 | 2.6 | 6 | 2.6 | 4.05 | 3.36 | 1.16 |

1 | 3.05 | 0.51 | 7.75 | 1 | 0 | ||

V | bcc | 8 | 23 | 50.942 | |||

4.89 | 4.74 | 1 | 2.5 | 1 | 3.04 | 5.3 | 1 |

1 | 1.7 | 2.8 | −1.6 | 1 | 0 | ||

Ti | hcp | 12 | 22 | 47.867 | |||

5.03 | 2.7 | 1 | 3 | 1 | 2.95 | 4.87 | 0.66 |

1 | 6.8 | −2 | −12 | 1 | 0 |

Parameter Name | Parameter Value |
---|---|

Density $\rho $ | 4500 kg/m${}^{3}$ |

Poisson ratio | 0.3 |

Coefficient of restitution | 0.2 |

Constitutive law | Hertz with JKR cohesion |

Young’s modulus, E | $5\times {10}^{6}$ Pa |

Cohesion ${E}_{c}$ | 1500 Pa |

Gravity acceleration | 9.8 m/s${}^{2}$ |

**Table 3.**Results of simulations of shrinkage of the submodel of the NIST artefact with the following parameters: $E={10}^{6}$ Pa; ${E}_{c}=500$ Pa; $\nu =0.3$; restitution = 0.2; $t=5$ s; porosity default; layout—uni (left) and cross (right).

E = 1 × 6 Pa; ${\mathit{E}}_{\mathit{c}}$ = 500 Pa; Default; Uni | E = 1 × 6 Pa; ${\mathit{E}}_{\mathit{c}}$ = 500 Pa; Default; Cross | ||||||
---|---|---|---|---|---|---|---|

LY0 | 17.3 | LZ0 | 12.34 | LY0 | 15.9 | LZ0 | 10.9 |

LYF | 15.29 | LZF | 9.31 | LYF | 13.96 | LZF | 9.01 |

LYF/LY0 | 0.884 | LZF/LZ0 | 0.754 | LYF/LY0 | 0.878 | LZF/LZ0 | 0.826 |

LX0 | 17.36 | LX0 | 26.42 | LX0 | 15.95 | LX0 | 23.53 |

LXF | 15.51 | LXF | 23.34 | LXF | 13.95 | LXF | 20.54 |

LXF/LX0 | 0.893 | LXF/LX0 | 0.883 | LXF/LX0 | 0.875 | LXF/LX0 | 0.879 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Luchinsky, D.G.; Hafiychuck, V.; Wheeler, K.R.; Biswas, S.; Roberts, C.E.; Hanson, I.M.; Prater, T.J.; McClintock, P.V.E. Multi-Scale Modelling of the Bound Metal Deposition Manufacturing of Ti6Al4V. *Thermo* **2022**, *2*, 116-148.
https://doi.org/10.3390/thermo2030011

**AMA Style**

Luchinsky DG, Hafiychuck V, Wheeler KR, Biswas S, Roberts CE, Hanson IM, Prater TJ, McClintock PVE. Multi-Scale Modelling of the Bound Metal Deposition Manufacturing of Ti6Al4V. *Thermo*. 2022; 2(3):116-148.
https://doi.org/10.3390/thermo2030011

**Chicago/Turabian Style**

Luchinsky, Dmitry G., Vasyl Hafiychuck, Kevin R. Wheeler, Sudipta Biswas, Christopher E. Roberts, Ian M. Hanson, Tracie J. Prater, and Peter V. E. McClintock. 2022. "Multi-Scale Modelling of the Bound Metal Deposition Manufacturing of Ti6Al4V" *Thermo* 2, no. 3: 116-148.
https://doi.org/10.3390/thermo2030011
