Article

Study of Thermodynamic Modeling of Isothermal and Isobaric Binary Mixtures in Vapor-Liquid Equilibrium (VLE) of Tetrahydrofuran with Benzene (303.15 K) Cyclohexane (333.15 K), Methanol (103 kPa), and Ethanol (100 kPa)

by
Leonardo Steyman Reyes Fernández
,
Eliseo Amado-Gonzaléz
* and
Erik Germán Yanza Hurtado
Facultad de Ciencias Básicas, Universidad de Pamplona, Pamplona 543057, Colombia
*
Author to whom correspondence should be addressed.
Thermo 2021, 1(3), 286-296; https://doi.org/10.3390/thermo1030019
Submission received: 1 September 2021 / Revised: 22 September 2021 / Accepted: 28 September 2021 / Published: 11 October 2021
(This article belongs to the Special Issue Vapor–Liquid Equilibrium and Chemical Thermodynamics)

Abstract

:
Tetrahydrofuran (THF) is an aprotic solvent with multiple applications in diverse areas of chemical, petrochemical, and pharmaceutical industries with an important impact in chemical waste liquid with other solvents. In this work, 51 available VLE data, for isothermal binary mixtures of THF(1) + Benzene(2) and THF(1) + Cyclohexane(2) at 303.15 and 333.15 K, respectively, and isobaric THF(1) + Methanol(2) at 103 kPa and THF(1) + Ethanol(2) at 100 kPa were used in the development of the activity coefficient models. The quality of experimental data was checked using the Herington test. VLE binary data was correlated with models Wilson, NRTL UNIQUAC, and UNIFAC to obtain binary parameters and activity coefficients. The best thermodynamic consistency when conducting the Herington test for the VLE data was found for the THF(1) +Cyclohexane(2) isothermal system and THF(1) + Ethanol(2) isobaric system. The UNIQUAC model for isothermal systems THF(1) + Benzene(2) and THF(1) + Cyclohexane(2), the NRTL model for the isobaric system THF(1) + Methanol(2), and the UNIQUAC model for THF(1) + Ethanol(2) perform better than the other models.

1. Introduction

Tetrahydrofuran (THF) is a five-member cyclic ether, widely used as a chemical intermediate in the production of polymers, such as polytetrahydrofuran (PolyTHF), has a great utility for the production of elastic fabrics, synthetic leather, clothing and apparel, compression garments, and household furniture [1]. While THF is used as a solvent in many useful chemical processes, manufacturing activities and active additives in the synthesis of pharmaceutical products, it is also found with other solvents, such as cyclohexane in chemical waste liquids [2]. The mixture of THF and cyclohexane presents an azeotrope at 338.74 K with the composition of THF at 93% (wt %) with an almost impossible separation by conventional distillation [3]. On the other hand, in polymerization reactions, THF is soluble in all proportions with alcohols, phenols, and all common solvents [4]. The separation of azeotropic multicomponent mixtures, such as THF, methanol and water, provide considerable potential for the combination of pervaporation and distillation processes for THF recovery with reliable benefits [5].
In the study of preferential interaction of polymers in mixed solvents, the binary mixtures of THF with aromatic hydrocarbons showed important changes at high THF concentrations [6]. Additionally, THF was used for the selective protonation of aromatic hydrocarbons with high selectivity in moderate to good yields [7] and in electro-reduction mechanism of aromatic hydrocarbons [8].
From the economical point and green chemistry viewpoint, the growing demand for THF from emerging markets is an important factor that is expected to provide opportunities for revenue growth for major players operating in the global THF market in the midst of the COVID-19 crisis [9]. In developing countries, such as Colombia, the imports of THF are around US $8,87,436 against exports of US $204,094 in the same period [10].
On the other hand, the problem of the thermodynamics of mixtures is of great interest, as evidenced by innumerable applications, also in the industrial field, which this research topic discusses. In mixtures where azeotropic systems are present, activity coefficients data are of great utility for the design of efficient separation and purification processes [11]. The objective of this work is based on the evaluation of activity coefficients and the mathematical modeling of vapor-liquid equilibrium (VLE) binary mixtures of THF/organic mixtures for the calculation of activity coefficients from literature data, using activity coefficient models such as local composition models (Wilson and NRTL) and a local distribution model (UNIQUAC).

2. Methodology

The interaction parameter’s optimization for each model calculations were developed using the GRC resolution method software Microsoft Excel® complement.

2.1. Thermodynamic Databases

Experimental data used for this study were collected from thermodynamic databases, Dortmund data bank (DDB) and Korea data bank (KDB), and literature. The data were classified into two types: isothermal data at two different temperatures (303.15, 333.15) and two isothermal data at the pressure of 103 and 100 kPa (Table 1).

2.2. Theoretical Bases

The activity coefficients γi were calculated by Equation (1)
y i Φ i P = x i γ i P s a t
where y i , x i , Φ i , γ i and P refer to the vapor phase composition, liquid phase composition, fugacity coefficient, activity coefficient, and equilibrium pressure, respectively. Since the pressure of the collected experimental data is less than 1, the gas phase can be assumed to be ideal behavior, then i = 1 [16].

2.2.1. Wilson Model

For phase equilibrium calculations, activity coefficients are used to account within a liquid solution for local compositions that, in turn, differ from the overall composition of the mixture. In 1964, G.M. Wilson published a solution behavior model known as the Wilson model [17].
l n ( γ 1 ) = l n ( x 1 + Λ 12 x 2 ) + x 2 ( Λ 12 x 1 + Λ 12 x 2 Λ 21 x 2 + Λ 21 x 1 )
l n ( γ 2 ) = l n ( x 2 + Λ 21 x 1 ) + x 1 ( Λ 21 x 2 + Λ 21 x 1 Λ 12 x 1 + Λ 12 x 2 )
where Λij21, Λ12) is the adjustable parameter of the Wilson model.

2.2.2. Non-Random Two Liquids (NRTL)

The NRTL equation contains 3 parameters for the binary system [18].
l n γ 1 = x 2 2 [ τ 21 ( G 21 x 1 + x 2 G 21 ) 2 + G 12 τ 12 ( x 2 + x 1 G 12 ) 2 ]
l n γ 2 = x 1 2 [ τ 12 ( G 12 x 2 + x 1 G 12 ) 2 + G 21 τ 21 ( x 1 + x 2 G 21 ) 2 ]

2.2.3. Universal Quasi-Chemical Model (UNIQUAC)

Even the mathematical expression of the UNIQUAC model is considered more complex than that of the NRTL model, and it is more commonly used in chemical engineering [19]. One of its advantages is that it has fewer adjustable parameters, two instead of three, which are less temperature dependent and can be applied to systems with larger size differences.
l n γ i = l n   γ i C + l n   γ i R
l n γ i C = 1 J i + l n J i 5 q i ( 1 J i L i + l n J i L i )
l n γ i R = q i ( 1 l n s i j θ j τ k i s j )
τ j i = exp ( u j i u i i R T )
J i = r i j r j x j
L i = q i j q j x j
s i = k θ k τ k i
θ i = x i q i j q j x j
r i = k v k ( i ) R k
q i = k v k ( i ) Q k
In these equations, ri is a parameter representing a relative molecular volume and qi is a parameter representing a relative molecular surface area, each of which is given by the sum of Rk and Qk parameters of functional groups comprising the component and listed Table 2.

2.2.4. UNIQUAC Functional-Group Activity Coefficients (UNIFAC)

In the UNIFAC activity coefficient model, the fugacity of the component i in mixtures consists of two parts, the combined term and the residual term [21].
l n γ i C = l n Φ i x i + z 2 q i l n θ i Φ i + l i Φ i x i j x j l j
l n γ i R = k v k ( i ) ( l n Γ k l n Γ k ( i ) )
l i = z 2 ( r i q i ) ( r i 1 )
where z = 10
θ i = x i q i j x j q j
Φ i = x i r i j x j r j
The Equations (23) and (24) correspond to the area fraction and segment fraction of the component I (Table 3).
r i = k v k ( i ) R k
q i = k v k ( i ) Q k
l n Γ k = Q k [ 1 ( l n ( m θ m Ψ m k ) m θ m Ψ k m θ n Ψ n m )
θ m = X m   Q m n X n Q n
X m = j v m ( j ) x j n j v n ( j ) x j
Equations (25) and (26) correspond and are the volume and surface of the group.
Ψ m k = exp ( a m k T )
In Figure 1, Figure 2, Figure 3 and Figure 4, the comparation between experimental data of THF(1) + Benzene(2), THF(1) + Cyclohexane(2), THF(1) + Methanol(2), and THF(1) + Ethanol correlated are presented.

2.3. Thermodynamic Consistency of the Experimental Data

If a data can be predicted by different measurements and mathematical relationships, then consistency can be claimed if the predicted and experimental values match to within experimental uncertainty [22]. In the current study, the isobaric binary data systems THF(1) + Methanol(2), and THF(1) + Ethanol(2) and the isothermal binary data systems THF(1) + Benzene(2) and THF(1) + Cyclohexane(2) are fitted to Wilson, NRTL, UNIQUAC and UNIFAC models. VLE data literature was used to calculate the interaction parameters. The quality of the experimental data was checked using the consistency the Herington thermodynamic test [23] used in the NIST ThermoData Engine [24].
Herington’s method based on Gibbs Duhem’s theory (Equation (27)) calculates the area under the two curves.
0 1 l n ( γ 1 γ 2 ) d x 1 = P 2 v a p P 1 V a p V ˜ e x p R T d P + T 2 s a t T 1 s a t H ^ e x p R T 2 d T
By definition, if data can be predicted by different measurements and mathematical relationships, then consistency can be claimed if the predicted and experimental values match to within experimental uncertainty [22].
When the VLE measurements are made under constant temperature, the Equation (27) simplifies to:
0 1 l n ( γ 1 γ 2 ) d x 1 = P 2 v a p P 1 V a p V ˜ e x p R T d P
where the volume change may be considered negligible for all systems. Under these conditions, the right-hand side of Equation (28) is almost zero.
When the data is represented in the form of ln(γ1/γ2) versus x1, as shown in Figure 5, the areas above (a) and below (b) the x1 axis must be equal.
A = 100 | 0 1 l n ( γ 1 γ 2 ) d x 1 | < 3
D = 100 [ | A | a + | b | ] < 10
For isobaric VLE measurements, Equation (27) simplifies to:
0 1 l n ( γ 1 γ 2 ) d x 1 = T 2 s a t T 1 s a t H ^ e x p R T 2 d T
J = 150 T m a x T m i n T m i n
| D J | < 10
where, Tmax and Tmin represent the maximum and minimum temperatures in this study [25]. On Table 4 and Table 5, the values of the consistence using the Herington test for isothermal and isobaric systems are presented.

2.4. Correlation of VLE Data

The binary parameters in the five coefficients equations were estimated based on the objective function OF in terms of the calculated and experimental activity coefficient.
O F = i = i N j = 1 2 [ ( γ j e x p γ j c a l γ j e x p ) 2 ]
where i represents the amount of data from 1 to N and j denotes the number of components in the system.
The obtained interaction parameters of Wilson, NRTL, and UNIQUAC models with the objective function (OF) are listed in Table 6.
The root-mean-square deviations (RMSD) were employed to evaluate the difference between the experimental and calculated results. The RMSDyi and RMSDTi for the isobaric systems and RSMDPi for isothermal systems are listed in Table 7 and Table 8.
R M S D P i = i = 1 N ( P i e x p P i c a l ) 2 N
R M S D T i = i = 1 N ( T i e x p T i c a l ) 2 N
R M S D y i = i = 1 N ( y i e x p y i c a l ) 2 N
From Table 7, the UNIQUAC model for isothermal systems THF(1) + Benzene(2) and THF(1) + Cyclohexane(2) performs better than NRTL, UNIFAC, and Wilson models. From Table 8, the NRTL model for the isobaric system THF(1) + Methanol(2) and UNIQUAC model THF(1) + Ethanol(2) fitted the experimental data better than the others.

3. Conclusions

The experimental isothermal VLE data [12,13] and the predicted data for the binary system of THF(1) + Benzene(2) and THF(1) + Cyclohexane(2) at 303.15 and 333.15 K, respectively, isobaric VLE Data [14,15], and the predicted THF(1) + Methanol(2) and THF(1) + Ethanol(2) at 103 kPa were correlated by Wilson, NRTL, UNIQUAC, and UNIFAC models. Using the Herington test, the best thermodynamic consistency for the VLE data was found for the THF(1) + Cyclohexane(2) isothermal system and the THF(1) + Ethanol(2) isobaric system. The RMSDPi and RMSDyi show that the UNIQUAC model for isothermal systems THF(1) + Benzene(2) and THF(1) + Cyclohexane(2) and the NRTL model for the isobaric systems THF(1) + Methanol(2) and UNIQUAC model for THF(1) + Ethanol(2) perform better than the other models. Probably, as previously proposed, the non-equilibrium state between phases in the VLE is focused around the variations of vapor flow quality, entropy generation, and exergy variation [26]. The analysis of the phase equilibrium in magnetorheological fluids could be a second research opportunity for non-equilibrium systems [27,28].

Author Contributions

Data curation, L.S.R.F. and E.G.Y.H. Formal analysis, E.A.-G., L.S.R.F. and E.G.Y.H.; Investigation, E.A.-G., L.S.R.F. and E.G.Y.H.; Methodology, E.A.-G.; Software, L.S.R.F.; Supervision, E.A.-G. and E.G.Y.H.; Visualization, E.G.Y.H.; Writing—original draft, L.S.R.F.; Writing—review & editing, E.A.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Dortmund Data Bank Software Package (DDBSP): http://www.ddbst.de. KDB (Korea Thermophysical Properties Data Bank): http://www.cheric.org/research/kdb.

Conflicts of Interest

The authors declare no conflict.

References

  1. Isikgor, F.H.; Becer, C.R. Lignocellulosic Biomass: A Sustainable Platform for the Production of Bio-Based Chemicals and Polymers. Polym. Chem. 2015, 6, 4497–4559. [Google Scholar] [CrossRef] [Green Version]
  2. Fowles, J.; Boatman, R.; Bootman, J.; Lewis, C.; Morgott, D.; Rushton, E.; Van Rooij, J.; Banton, M. A Review of the Toxicological and Environmental Hazards and Risks of Tetrahydrofuran. Crit. Rev. Toxicol. 2013, 43, 811–828. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Z.; Jia, P.; Huang, D.; Lv, M.; Du, Y.; Li, W. Vapor−Liquid Equilibrium for Ternary and Binary Mixtures of Tetrahydrofuran, Cyclohexane, and 1,2-Propanediol at 101.3 kPa. J. Chem. Eng. Data 2013, 58, 3054–3060. [Google Scholar] [CrossRef]
  4. Parveen, S.; Singh, S.; Shukla, D.; Singh, K.P.; Gupta, M.; Shukla, J.P. Molecular Interaction Study of Binary Mixtures of THF with Methanol and o-Cresol—An Optical and Ultrasonic Study. Acta Phys. Polonica A 2009, 116, 1011–1017. [Google Scholar] [CrossRef]
  5. Scharzec, B.; Merschhoff, D.; Henrichs, J.; Kappert, E.J.; Skiborowski, M. Evaluation of membrane-assisted hybrid processes for the separation of a tetrahydrofuran-methanol-water mixture. Chem. Eng. Process. 2021, 167, 108545. [Google Scholar] [CrossRef]
  6. Nain, A.K. Densities and Volumetric Properties of Binary Mixtures of Tetrahydrofuran with Some Aromatic Hydrocarbons at Temperatures from 278.15 to 318.15 K. J. Solution Chem. 2006, 35, 1417–1439. [Google Scholar] [CrossRef]
  7. Ohmura, S.; Ueno, M.; Miyoshi, N. Strontium-mediated selective protonation of unsaturated linkage of aromatic hydrocarbons and these derivatives. Tetrahedron Lett. 2018, 59, 2268–2271. [Google Scholar] [CrossRef]
  8. Sharifian, H.; Park, S. Studies on electro-reduction mechanisms of selected aromatic hydrocarbons in tetrahydrofuran. J. Electroanal. Chem. 1983, 143, 337–351. [Google Scholar] [CrossRef]
  9. Global Tetrahydrofuran Market Size, Share|Industry Report 2027. Available online: https://marketresearch.biz/report/tetrahydrofuran-market/ (accessed on 19 May 2021).
  10. Available online: https://www.veritradecorp.com/en/COLOMBIA/imports-and-exports/tetrahydrofuran/293211 (accessed on 16 September 2021).
  11. Jaber, Y.; Shojaeian, A. Vapor-Liquid (Azeotropic Systems) and Liquid-Liquid Equilibrium Calculations Using UNIFAC and NRTL-SAC Activity Coefficient Models. Fluid Phase Equilibria 2019, 494, 33–44. [Google Scholar]
  12. Vapor-Liquid Equilibrium Data of Benzene + Tetrahydrofuran from Dortmund Data Bank. Available online: http://www.ddbst.com/en/EED/VLE/VLE%20Benzene%3BTetrahydrofuran.php (accessed on 19 May 2021).
  13. Binary Vapor-Liquid Equil. Data. Available online: https://www.cheric.org/research/kdb/hcvle/showvle.php?vleid=3848 (accessed on 27 August 2021).
  14. Li, Q.; Liu, P.; Cao, L.; Wen, F.; Zhang, S.; Wang, B. Vapor-Liquid Equilibrium for Tetrahydrofuran+methanol+tetrafluoroborate-Based Ionic Liquids at 101.3kPa. Fluid Phase Equilibria 2013, 360, 439–444. [Google Scholar] [CrossRef]
  15. Binary Vapor-Liquid Equil. Available online: https://www.cheric.org/research/kdb/hcvle/showvle.php?vleid=2376 (accessed on 19 September 2021).
  16. Villa, S.; Garriga, R.; Pérez, P.; Gracia, M.; González, J.A.; de la Fuente, I.G.; Cobos, J.C. Thermodynamics of mixtures with strongly negative deviations from Raoult’s law Part 9. Vapor–liquid equilibria for the system 1-propanol + di-n-propylamine at six temperatures between 293.15 and 318.15 K. Fluid Phase Equilibria 2006, 231, 211–220. [Google Scholar] [CrossRef]
  17. Wilson, G.M. Vapor-Liquid Equilibrium. XI. A New Expression for the Excess Free Energy of Mixing. J. Am. Chem. Soc. 1964, 86, 127–130. [Google Scholar] [CrossRef]
  18. Renon, H.; Prausnitz, J.M. Local Compositions in Thermodynamic Excess Functions for Liquid Mixtures. AICHE J. 1968, 14, 135–144. [Google Scholar] [CrossRef]
  19. Abrams, D.S.; Prausnitz, J.M. Statistical Thermodynamics of Liquid Mixtures: A New Expression for the Excess Gibbs Energy of Partly or Completely Miscible Systems. AIChE J. 1975, 21, 116–128. [Google Scholar] [CrossRef]
  20. Poling, B.E.; Prausnitz, J.M.; O’Connell, J.P. The Properties of Gases and Liquids, 5th ed.; McGrawHill: New York, NY, USA, 2001. [Google Scholar]
  21. Fredenslund, A.; Jones, R.L.; Prausnitz, J.M. Group-contribution Estimation of Activity Coefficients in Nonideal Liquid Mixtures. AIChE J. 1975, 21, 1086–1099. [Google Scholar] [CrossRef]
  22. Jackson, P.; Wilsak, R. Thermodynamic consistency tests based on the Gibbs-Duhem equation applied to isothermal, binary vapor-liquid equilibrium data: Data evaluation and model testing. Fluid Phase Equilibria 1995, 103, 155–197. [Google Scholar] [CrossRef]
  23. Herington, E.F. Test for the Consistency of Experimental Isobaric Vapor-liquid Equilibrium Data. J. Znst. Pet. 1961, 37, 457–470. [Google Scholar]
  24. Available online: https://trc.nist.gov/TDE/Help/TDE103b/ExptAndPredictedData-Binary.htm (accessed on 16 September 2021).
  25. Wisniak, J.; Ortega, J.; Fernández, L. A Fresh Look at the Thermodynamic Consistency of Vapour-Liquid Equilibria Data. J. Chem. Thermodyn. 2017, 105, 385–395. [Google Scholar] [CrossRef]
  26. Revellin, R.; Lips, S.; Neveu, P.; Bonjour, J. A comprehensive non-equilibrium thermodynamic analysis applied to a vapor–liquid two-phase flow of a pure fluid. Int. J. Multiph. Flow 2012, 42, 184–193. [Google Scholar] [CrossRef]
  27. Versaci, M.; Palumbo, A. Magnetorheological Fluids: Qualitative comparison between a mixture model in the Extended Irreversible Thermodynamics framework and an Herschel–Bulkley experimental elastoviscoplastic model. Int. J. Non-Linear Mech. 2020, 118, 103288. [Google Scholar] [CrossRef]
  28. Chen, K.C.; Yeh, C.S. A mixture model for magneto-rheological materials. Contin. Mech. Thermodyn. 2002, 15, 495–510. [Google Scholar] [CrossRef]

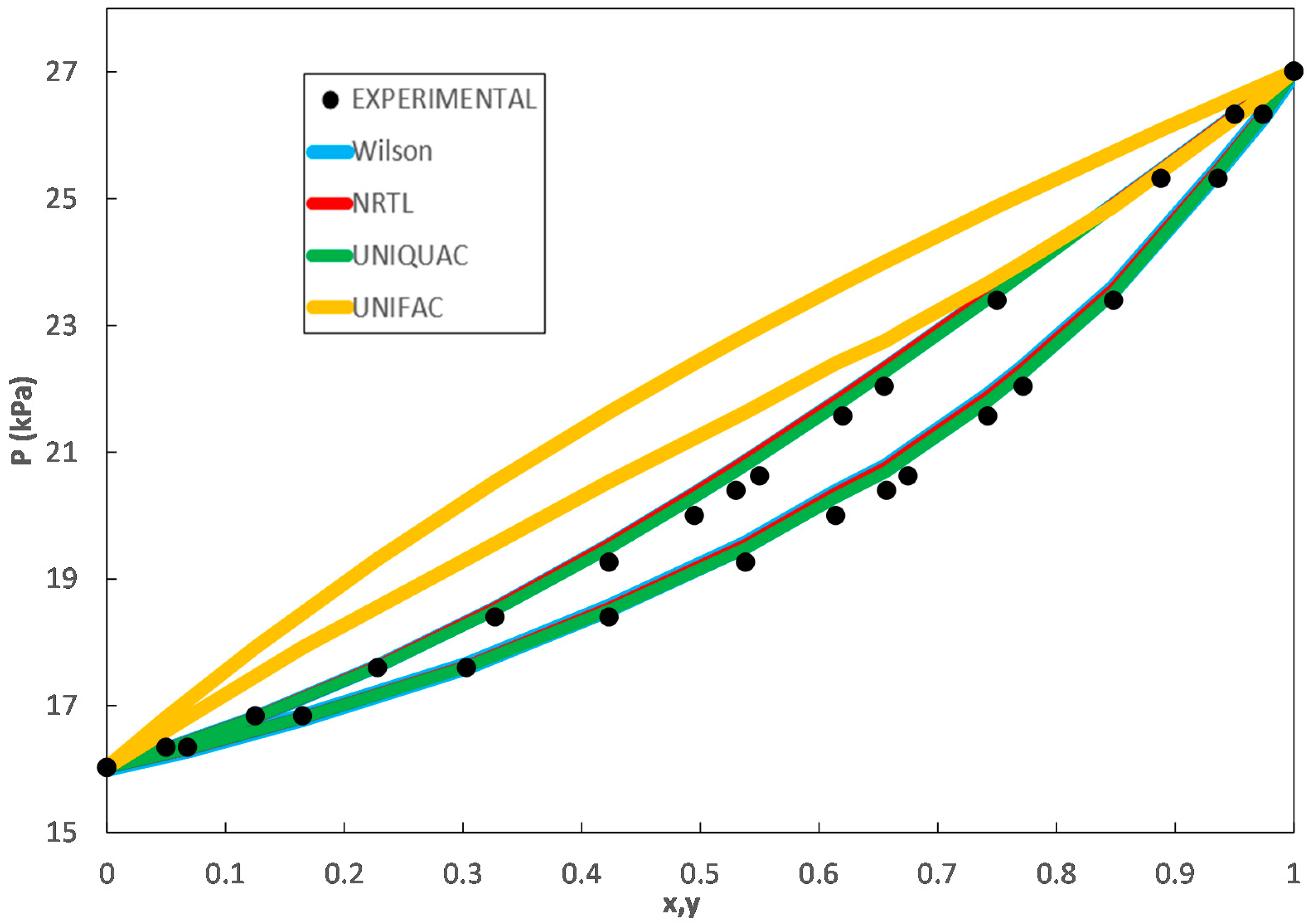

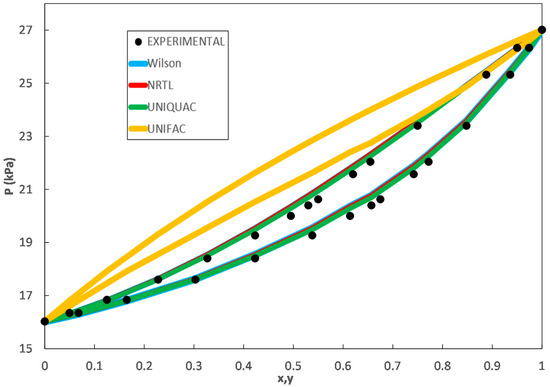

Figure 1. Experimental [12] and predicted P-xy diagram for THF(1) + Benzene(2) at 303.15 K using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Figure 1. Experimental [12] and predicted P-xy diagram for THF(1) + Benzene(2) at 303.15 K using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Thermo 01 00019 g001

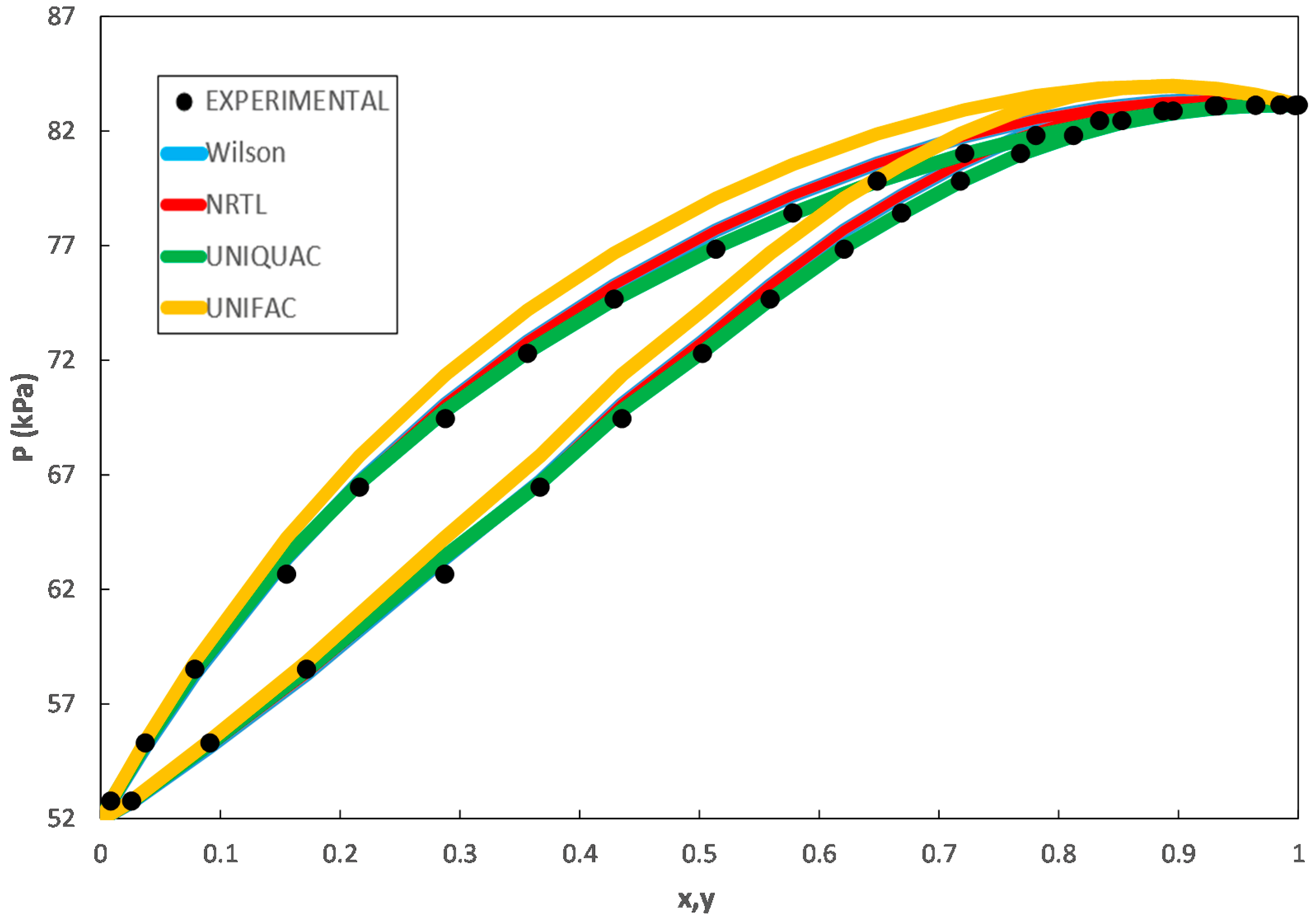

Figure 2. Experimental [13] and predicted P-xy diagram for THF(1) + Cyclohexane(2) at 333.15 K using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Figure 2. Experimental [13] and predicted P-xy diagram for THF(1) + Cyclohexane(2) at 333.15 K using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Thermo 01 00019 g002

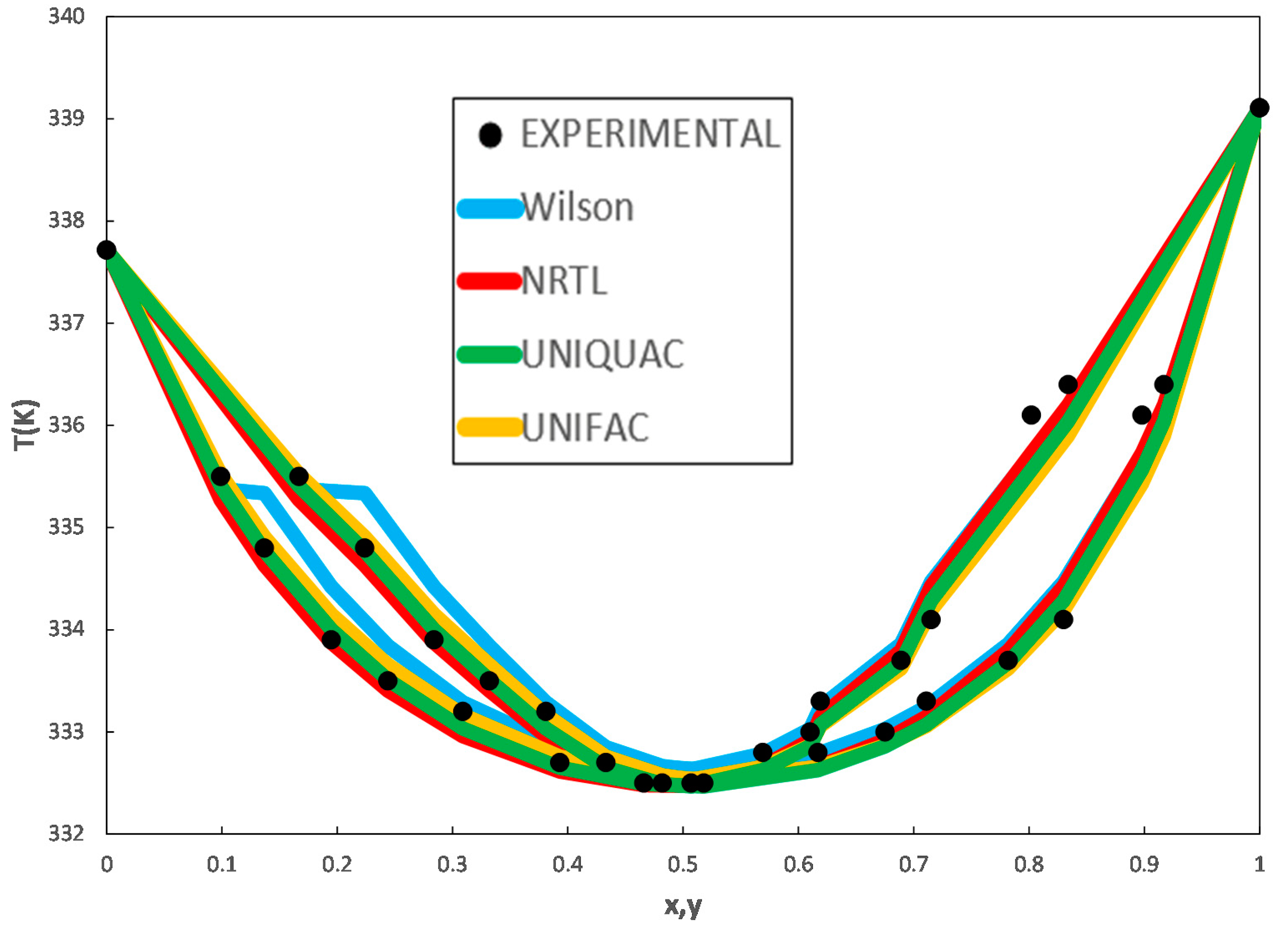

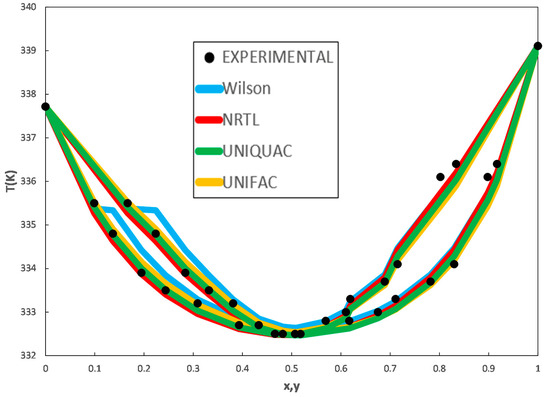

Figure 3. Experimental [14] and predicted T-xy diagram of THF(1) + Methanol(2) at 103 kPa using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Figure 3. Experimental [14] and predicted T-xy diagram of THF(1) + Methanol(2) at 103 kPa using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Thermo 01 00019 g003

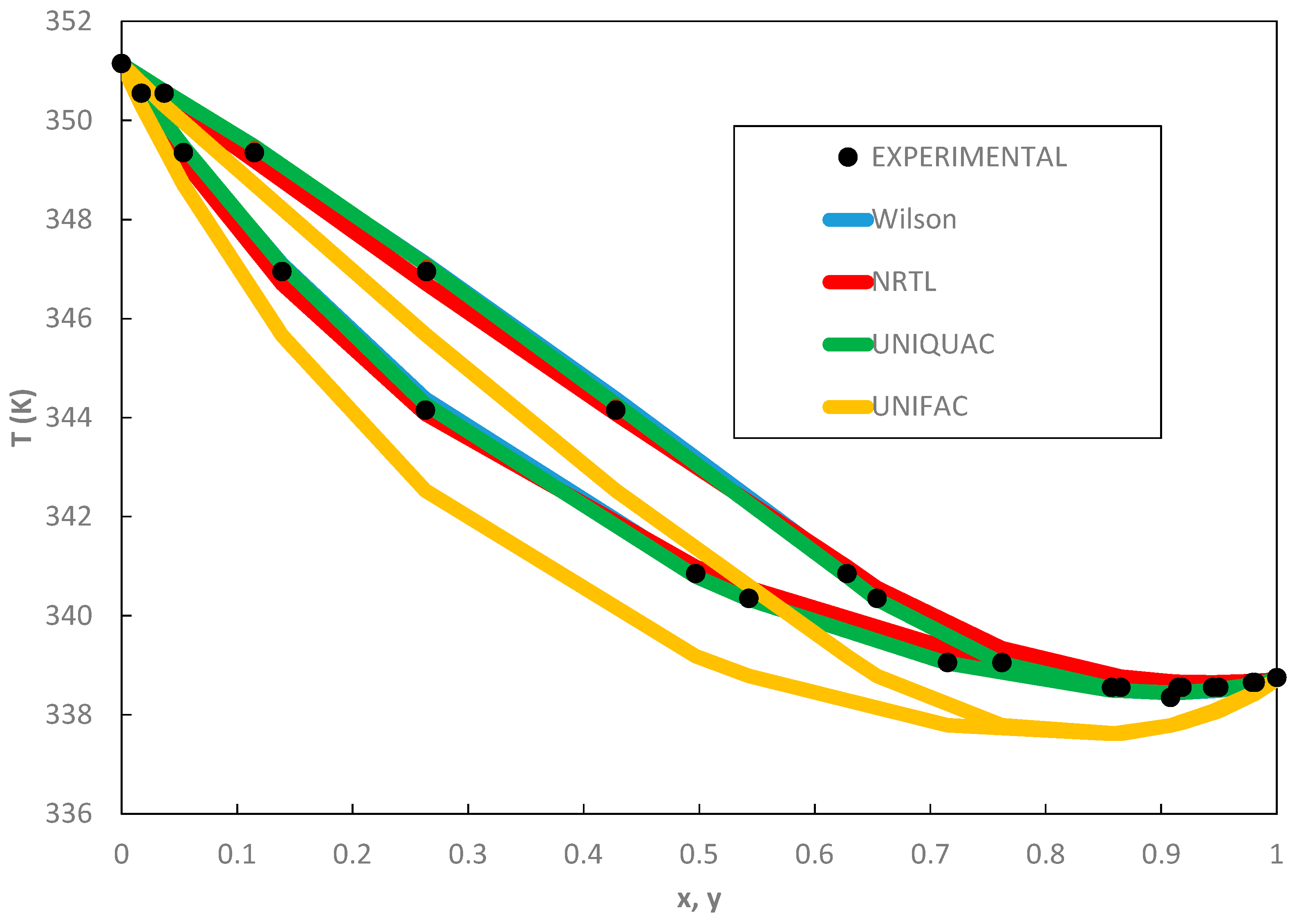

Figure 4. Experimental [15] and predicted T-xy diagram of THF(1) + Ethanol(2) at 100 kPa using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Figure 4. Experimental [15] and predicted T-xy diagram of THF(1) + Ethanol(2) at 100 kPa using Wilson, NRTL, UNIFAC, and UNIQUAC as predictive models.
Thermo 01 00019 g004

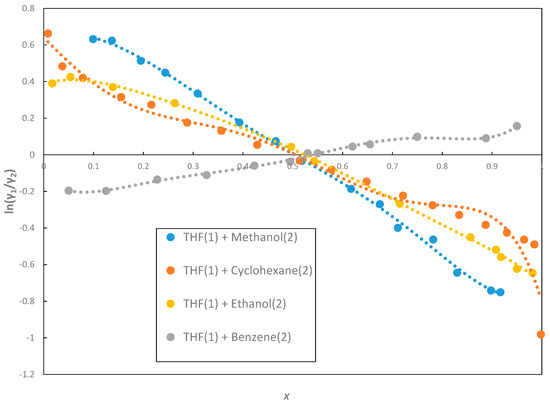

Figure 5. Herington test for isobaric and isothermal systems between THF(1)+ Methanol(2) at 103 kPa [12], THF(1) + Cyclohexane(2) at 333.15 K [13], THF(1) + Ethanol(2) at 100 kPa [14], and THF(1) + Benzene(2) at 303.15 K [15].
Figure 5. Herington test for isobaric and isothermal systems between THF(1)+ Methanol(2) at 103 kPa [12], THF(1) + Cyclohexane(2) at 333.15 K [13], THF(1) + Ethanol(2) at 100 kPa [14], and THF(1) + Benzene(2) at 303.15 K [15].
Thermo 01 00019 g005
Table 1. Binary Vapor-Liquid Equilibrium Data.
Table 1. Binary Vapor-Liquid Equilibrium Data.
Binary SystemTypeReference
THF(1) + Benzene(2)isothermal[12]
THF(1) + Cyclohexane(2)Isothermal[13]
THF(1) + Methanol(2)Isobaric[14]
THF(1) + Ethanol(2)Isobaric[15]
Table 2. Structural parameters for the UNIQUAC equation.
Table 2. Structural parameters for the UNIQUAC equation.
ComponentriqiReference
Tetrahydrofuran2.94152.72[20]
Cyclohexane4.04643.24[20]
Benzene3.18782.4[20]
Methanol1.430.96[20]
Ethanol2.5880.92[20]
Table 3. Structural parameters for the UNIFAC equation.
Table 3. Structural parameters for the UNIFAC equation.
ComponentrqReference
Tetrahydrofuran2.94152.72[18]
Cyclohexane4.04643.24[18]
Benzene3.18782.4[18]
Methanol1.431.432[18]
Ethanol2.5882.588[18]
Table 4. The results of thermodynamic consistency test using the Herington test for the isothermal systems.
Table 4. The results of thermodynamic consistency test using the Herington test for the isothermal systems.
SystemDConsistency
THF(1) + Benzene(2)20.62(−)
THF(1) + cyclohexane(2)3.32(+)
Table 5. The results of thermodynamic consistency when using the Herington test for the isobaric system.
Table 5. The results of thermodynamic consistency when using the Herington test for the isobaric system.
System D   | D J | Consistency
THF(1) + Methanol(2)3.440 1.6806(+)
THF(1) + Ethanol(2)7.6011 2.1925(+)
Table 6. The results of binary parameters using OF
Table 6. The results of binary parameters using OF
ModelAij (J/mol)Aji (J/mol)αij
THF(1) + Benzene(2)
Wilson0.96991.2618
NRTL−938.057386.1770.3
UNIQUAC−8.2597−50.7358
THF(1) + Cyclohexane(2)
Wilson0.77780.7197
NRTL954.65628.290.3
UNIQUAC−99.129174.79
THF(1) + Methanol(2)
Wilson0.69600.5356
NRTLUNIQUAC1154.39553401423.46–135.250.3
THF(1) + Ethanol(2)0.3
Wilson1.10220.4420
NRTL767.15933.81
UNIQUAC579.22−232.99
Table 7. RMSD for the isothermal systems.
Table 7. RMSD for the isothermal systems.
Model R M S D P i R M S D y i
THF(1) + Benzene(2)
Wilson0.23350.0112
NRTL0.23340.012
UNIQUAC0.18540.0121
UNIFAC1.8070.0633
THF(1) + Cyclohexane(2)
Wilson0.52270.0076
NRTL0.52570.0077
UNIQUAC0.20480.0076
UNIFAC1.45620.0363
Table 8. RMSD for the isobaric system.
Table 8. RMSD for the isobaric system.
Model R M S D T i R M S D y i
THF(1) + Methanol(2)
Wilson0.27390.0088
NRTL0.18230.0077
UNIQUAC0.24820.0089
UNIFAC0.19980.0109
THF(1) + Ethanol(2)
Wilson0.10110.005
NRTL0.18940.0069
UNIQUAC0.0810.0053
UNIFAC1.06370.0302
