Review

Abscisic Acid Machinery Is under Circadian Clock Regulation at Multiple Levels

by
Gastón A. Pizzio
Instituto de Biología Molecular y Celular de Plantas, Consejo Superior de Investigaciones Científicas, Universidad Politécnica de Valencia, 46022 Valencia, Spain
Stresses 2022, 2(1), 65-78; https://doi.org/10.3390/stresses2010006
Submission received: 27 December 2021 / Revised: 27 January 2022 / Accepted: 28 January 2022 / Published: 29 January 2022
(This article belongs to the Special Issue Environmental Pollution & Climate Change: Responses of Plant Organisms to Harsh Environments)
Browse Figures
Review Reports Versions Notes

Abstract

:
Abscisic acid (ABA) is recognized as the key hormonal regulator of plant stress physiology. This phytohormone is also involved in plant growth and development under normal conditions. Over the last 50 years the components of ABA machinery have been well characterized, from synthesis to molecular perception and signaling; knowledge about the fine regulation of these ABA machinery components is starting to increase. In this article, we review a particular regulation of the ABA machinery that comes from the plant circadian system and extends to multiple levels. The circadian clock is a self-sustained molecular oscillator that perceives external changes and prepares plants to respond to them in advance. The circadian system constitutes the most important predictive homeostasis mechanism in living beings. Moreover, the circadian clock has several output pathways that control molecular, cellular and physiological downstream processes, such as hormonal response and transcriptional activity. One of these outputs involves the ABA machinery. The circadian oscillator components regulate expression and post-translational modification of ABA machinery elements, from synthesis to perception and signaling response. The circadian clock establishes a gating in the ABA response during the day, which fine tunes stomatal closure and plant growth response.

1. Introduction

Abscisic acid (ABA) is a phytohormone involved in the plant stress response as well as plant growth and development. ABA plays a role in different physiological processes, i.e., seed germination and early seedling growth, shoot and root growth and development, stomata closure, senescence, fruit ripening, fruit and leaf abscission, and bud dormancy, and is also a key player in the induction of tolerance to both abiotic and biotic stress [1]. ABA was initially described as a growth-inhibitor [2,3], and later as a regulator of cotton fruit abscission [4]. Nevertheless, in the last decade the most studied role of ABA has been the induction of drought resistance, among other biotic and abiotic stresses, in model plants and crops [5,6].
After half a century studying the field of ABA, we know the components and dynamics of its machinery in considerable detail, from synthesis to molecular perception and signaling [5], and the details of regulation of the ABA machinery are beginning to emerge [5,7,8]. In this article, we consider a particular regulation of the ABA machinery that comes from the plant circadian system and extends to multiple levels. The circadian clock is a self-sustained molecular oscillator present in each plant cell [9,10,11,12], although hierarchical in nature at tissue level [13]. The circadian system has both input and output pathways. The inputs allow clock synchronization to the environment or external cues, e.g., photoperiod and temperature, among others [14]. For instance, circadian oscillations are efficiently entrained by daily light/dark changes. This environmental photic diurnal cycle acts as a ‘zeitgeber’, or time giver, and induces the clock’s diurnal synchrony to 24 h [14]. On the other hand, output pathways control molecular, cellular and physiological downstream processes, such as hormonal responses, transcriptional activity, the cell cycle and growth, among others [14,15,16,17].

2. Plant Circadian System

For plants, fluctuating external stimuli challenge their survival. The prediction and anticipatory response to these threatening stimuli represent a clear adaptive advantage [18]. The circadian system supports the predictive homeostasis mechanism in almost all living organisms [19,20,21,22]. Predictive homeostasis is an anticipatory response to an expected environmental challenge in the future, such as the diurnal light-dark cycles or temperature changes [18]. The plant circadian clock allows prediction of the appearance of an environmental stimulus, and anticipation of a proper response to any disturbance that threatens a plant’s survival. Furthermore, the circadian clock contributes to oscillatory resonance with the environment and fitness for optimum plant growth [23,24].

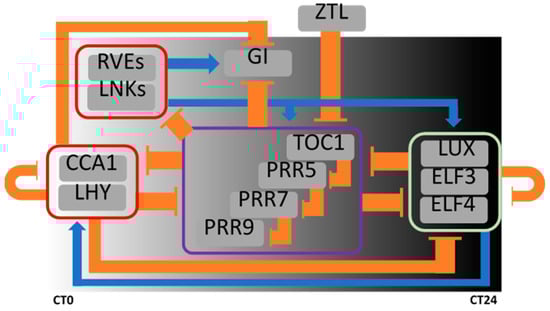

The molecular clock mechanism (Figure 1) for self-sustained oscillation relies on regulatory loops of transcription factors, through both protein to protein and protein to promoter interactions [14]. The pseudo response regulator1/timing of cab expression1 (PRR1/TOC1) is one of the key components of the Arabidopsis circadian system [25,26]. TOC1 constitutive expression slows down the pace of the clock under diurnal conditions and leads to complete rhythm abolishment under constant light conditions [23,26]. However, the clock speeds up in toc1 reduce-of-function plant lines [23,25,27]. The morning-expressed clock genes, circadian clock-associated 1 (CCA1) and late elongated hypocotyl (LHY), participate in feedback transcriptional repression between the afternoon expressed pseudo-response regulator (PRRs: PRR5, PRR7 and PRR9) genes, TOC1, and members of the Evening Complex (EC: early flowering 3/4 “ELF3”, “ELF4”, and lux arrhythmo “LUX”). Moreover, a secondary transcriptional loop involves the mid-day expressed reveille (RVEs: RVE4, RVE6, and RVE8) genes, the PRRs, and the EC, and contributes to clock oscillatory robustness [14]. Other components, such as gigantea (GI), zeitlupe (ZTL), and night light-inducible and clock-regulated gene 1 (LNKs) fine tune oscillation properties. Furthermore, core circadian components are involved in the regulation of different outputs or key cellular events of the plant cell. Transcriptome profiling experiments in A. thaliana show that nearly a third of expressed genes are under circadian clock regulation [28,29,30]. In fact, there is a close relationship between the circadian system and hormonal circuits [17]. We focus this review on the regulation of ABA machinery by the plant circadian clock.

3. Abscisic Acid (ABA) Machinery and Its Regulation by the Circadian Clock

3.1. ABA Synthesis

Plants under normal or non-stress conditions synthesize basal levels of ABA, which promote optimal growth. Upon abiotic stress arrival (i.e., drought or salinity), ABA level increases notably, and activates different stress responses. The sesquiterpenoid ABA contains 15 carbon atoms in its skeleton and its synthesis in plants (Figure 2) starts from the precursor C40 β-carotene, following the carotenoid pathway [31,32]. The first steps, from C40 β-carotene to C15 xanthoxin are carried out in plastids by a battery of enzymes, well described in A. thaliana: viviparous (VPs), zeaxanthin epoxidase (ZEP/ABA1), abscisic aciid (ABA)-deficient 4 (ABA4) and nine-cis-epoxycarotenoid dioxygenase (NCEDs). Later, in the cytosol, ABA2 and ABA3 turn C15 xanthoxin into C15 abscisic acid (Figure 2). The rate-limiting step for ABA synthesis is the cleavage of 9-cis-epoxycarotenoid into xanthoxin by the NCEDs enzymes [33]. Moreover, transgenic plants with constitutive expression of NCEDs have high levels of ABA [34].
Analyzing data from DIURNAL (http://diurnal.mocklerlab.org/, accessed on 21 December 2021; DIURNAL is a web-based tool for accessing the diurnal and circadian genome-wide expression results of genes from several array experiments conducted on common model plants), we can see that NCED2-6 have a rhythmic diurnal oscillation (under light/dark cycles of 12:12 h; Table S1), with a maximum peak or “acrophase” of expression around mid-day (ZT4-7; ZT: zeitgeber time; ZT0 is defined as the light on-set; Table S1). Moreover, NCED4 maintains its oscillation under “free-running” conditions (constant light) peaking at CT6 (CT: circadian time; CT0 is defined as the light on-set; Figure 3B). These observations indicate a possible regulation of ABA synthesis by the circadian clock. In fact, CHIPseq data obtained for PPR5, CCA1, LUX and ELF3 showed a direct regulation of NCEDs promoters by these circadian clock components (Figure 3A; Table S1) [35,36,37]. In agreement with NCEDs oscillatory patterns, a diurnal rhythm in ABA levels was reported with a maximum during mid-day (between ZT6-ZT12) [38]. Moreover, it was shown that the biosynthetic pathway of carotenoid and ABA is under the control of PRR9/7/5 [39]. In this study, the authors showed elevated ABA levels in prr9-7-5 triple mutant lines with respect to wt, suggesting that PRRs may negatively regulate ABA accumulation. Nevertheless, rhythmic oscillations in ABA levels seem also to be dependent on photoperiod and watering status, given that well-watered plants growing under long day conditions (light/dark cycles of 16:8 h) did not shown a clear oscillation [40]. Furthermore, diurnal changes in ABA level also appear to be species specific given that in A. unedo ABA oscillations with two maximum peaks were reported, one of them in the early morning, and the other at midday [41]; in contrast, in two different conifers, S. minimus and C. rhomboidea, ABA rhythms peak in early and mid-morning respectively [42]. Conversely, in N. tobacum three different peaks in ABA levels were observed throughout the 24 h day, two minor peaks at ZT1 and ZT10, and a higher peak at ZT18 or early night [43].
On the other hand, it was shown that NCED3 expression was repressed in transgenic lines with constitutive expression of LHY, suggesting that LHY may also negatively regulate ABA accumulation [40]. Indeed, this LHY-ox line showed low ABA levels with respect to wt. By contrast, the loss-of-function lhy-11 line showed higher ABA levels in comparison to wt lines. Moreover, in wt plants, ABA accumulation was rhythmic under drought conditions, peaking in the evening, at ZT18 [40]. The phase of this rhythm was advanced in lhy-11 mutant lines. However, ABA levels were reduced and arrhythmic in LHY-ox plants under drought stress. These results are in agreement with the idea that the circadian clock regulates ABA accumulation under drought conditions. The model proposed implies direct inhibition of NCED gene expression by LHY, which in turn reduces ABA accumulation in the early morning [40].
Another circadian clock component related to the control of ABA synthesis through NCED3 regulation is gigantea (GI) [44]. Specifically, it was shown that gi-enhanced em level complex (GI-EEL) enhances drought tolerance via up-regulation of ABA levels. NCED3 expression was reduced in the eel, gi-1, and eel/gi-1 mutants under normal growth conditions. Furthermore, these mutants were also hypersensitive to drought stress due to stomatal closure inhibition and the concomitant uncontrolled water loss [44]. Moreover, it was demonstrated that GI-EEl complex binds directly to the ABA-responsive element motif in the NCED3 promoter. These results suggest that the EEL-GI complex positively regulates diurnal ABA levels, contributing to the drought tolerance of Arabidopsis [44]. Indeed, NCED3 expression resembles the GI oscillatory patterns of protein amounts [45], suggesting that GI activity regulates the circadian oscillation in NCED3 expression and ABA oscillations. Is interesting to note that, despite the fact that GI has a positive role in the tolerance response of different abiotic stress, i.e., cold, salt and drought stress [46,47,48,49,50], it also has a negative effect on water use efficiency (WUE) [51]. This apparent contradiction is in agreement with the idea that WUE, under normal conditions, follows different mechanisms than drought stress and does not always correlate reliably with drought resistance [52].

3.2. ABA Inactivation and Conjugation

Net ABA levels are not only set by synthesis, but also by degradation and inactivation. For instance, after stress conditions and the concomitant hormonal induction, ABA levels need to diminish to normal or non-stress values to resume optimal growth and development. In this process ABA catabolism can follow two different pathways: reversible conjugation or irreversible hydroxylation (Figure 2) [31]. In turn, in A. thaliana, ABA can be glycosylated by UGT71C5 to form ABA-glucose ester (ABA-GE), which is stored in vacuoles or the endoplasmic reticulum. ABA-GE is inactive but can be deconjugated to restore the active ABA by β-glycosidases, such as BG1 and BG2 [38,53,54]. The conjugation/deconjugation mechanism, played by UGT71C5 and BGs, allows plants to rapidly adapt to their changing environment through ABA-mediated responses. On the other hand, ABA can be irreversible converted to a partially active form as phaseic acid (PA) by CYP707As [55] and later to a fully inactive form as dihydrophaseic acid (DPA) by ABH2 [56].
Analyzing expression data for ABA inactivation and conjugation/deconjugation components (from DIURNAL data base), we can see that BG2 shows circadian oscillations, with high levels during the mid-subjective day (acrophase at CT6 under constant light conditions; Table S1). Moreover, the BG1 expression pattern shows diurnal rhythms (acrophase at ZT6 under light/dark 12:12 conditions). These oscillatory expression patterns in BGs are in agreement with the diurnal rhythm in ABA levels with a peak between ZT6/ZT12 [36]. Interestingly, in bg1 mutant lines this oscillation in ABA levels disappears [36]. By contrast, the CYP707A family is also diurnally regulated under light/dark cycles (12:12 h DIURNAL web tool) with maximum expression levels during the day between ZT3 to ZT7 (Table S1). Nevertheless, it seems that the diurnal regulation of ABA levels is more associated with conjugation/deconjugation than irreversible degradation, given that the diurnal fluctuations in biologically active ABA levels correlate with BG1/BG2 expression levels [36].

3.3. ABA Transport

ABA synthesis is carried out mainly in vascular parenchyma cells [57]. By contrast ABA effects are systemic. Given the anionic nature of ABA under alkaline environments, this limits its passive diffusion through the plasma membrane, so plants rely on ABA transporters to help in its uptake and efflux from apoplast into the cell and vice versa [58]. In A. thaliana, the transporters involved in ABA translocation are: “(i) detoxification efflux carrier 50 (DTX50) [59]; (ii) nitrate or di/tri-peptide transporter 4.6 (NPF4.6) [60,61]; and (iii) ABC ATP-binding cassette (ABCGs) transporters [62]. In particular, DTX50 and ABCG25/31 are involved in ABA efflux, and NPF4.5 and ABCG20/30/40 in ABA influx (Figure 2).
CHIPseq data from the circadian clock component shows that CC1 and PRR5 are able to interact with the promoter of the ABA efflux transporter ABCG25 and with the ABA influx transporter NPF4.6 [35,36]. Nonetheless, the expression levels of these transporters do not show a circadian expression pattern (DIURNAL web tool data). Possibly, other signals could be contributing to the final modulation of ABA transporter expression. However, the ABA influx transporter ABCG20 has a circadian oscillatory pattern in expression, with acrophase at CT10 or late subjective day (DIURNAL data base; Table S1).

3.4. ABA Core Signaling

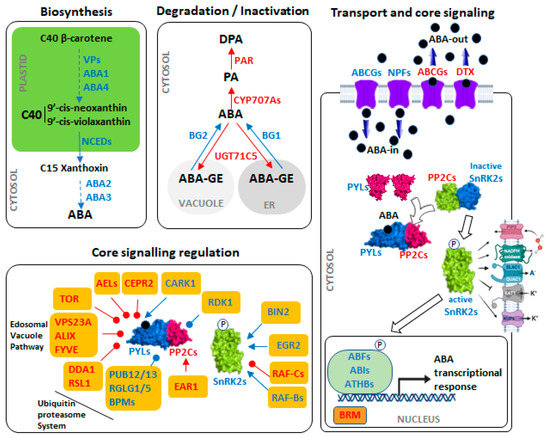

ABA is perceived inside the cell through soluble receptors (Figure 2) called pyrabactin resistance1 (PYR1)/PYR1-like (PYL)/regulatory components of ABA receptors (RCAR) [63,64,65]. This ABA perception leads to interaction-inactivation of clade A protein phosphatase type 2Cs (PP2Cs). The formation of the ternary complex ABA-PYL-PP2CA relieves the inhibition on three ABA-activated subclass III SNF1-related protein kinases 2 (SnRK2s), in A. thaliana SnRK2.2/SnRK2D, 2.3/I, and 2.6/E/OST1 [66,67]. Then, activated SnRK2s induce the activation of a battery of ABA effectors from transmembrane channels (SLAC, KUP and KAT, among others) to transcription factors (i.e., ABFs, ABIs and ATHBs). Estimations in A. thaliana indicate that ABA controls nearly two thirds of water stress-responsive genes [68,69].

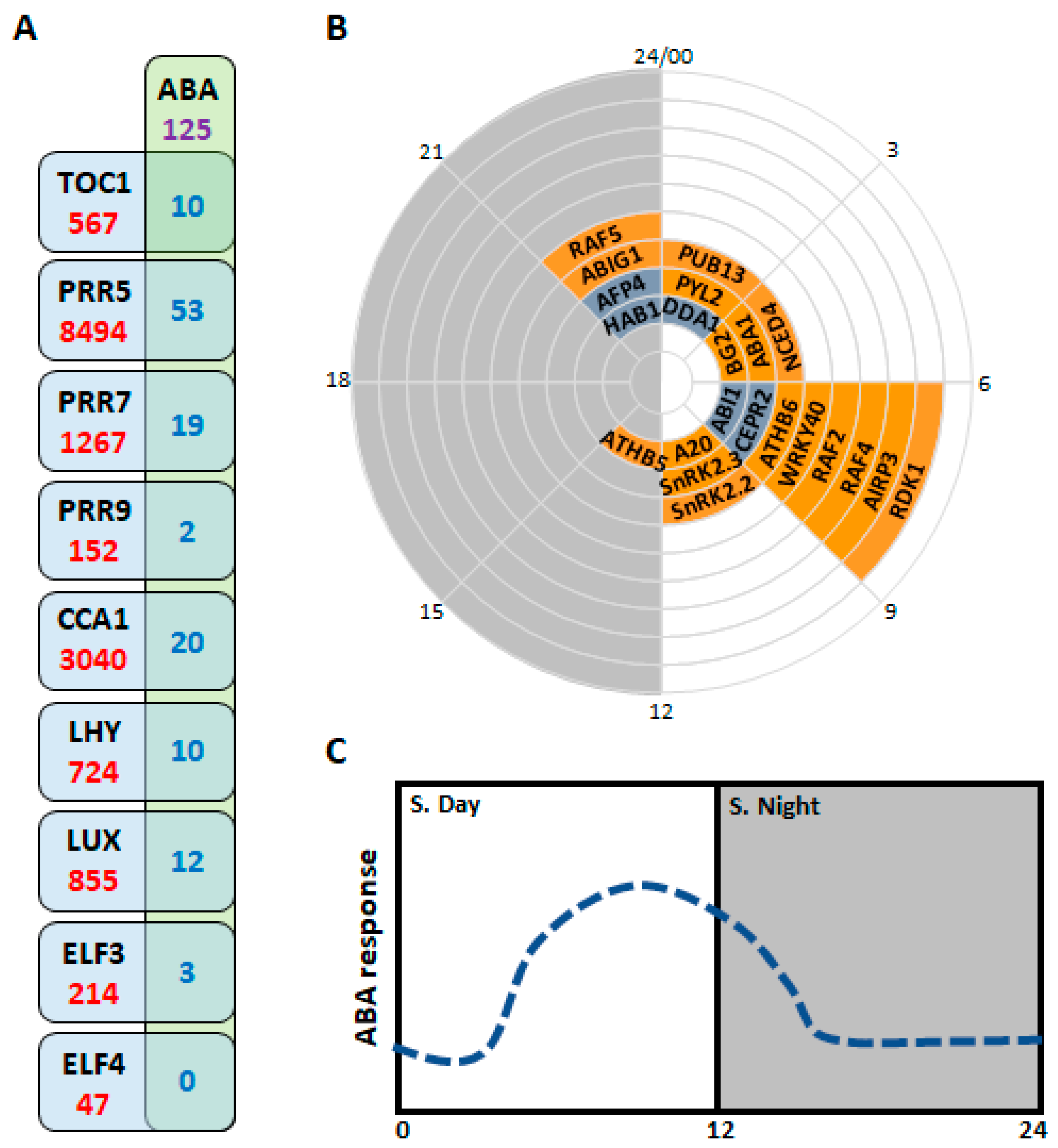

Published CHIPseq data sets from several circadian clock components i.e., TOC1, PRR5, PRR7, PRR9, CCA1, LHY, LUX and ELF3 [35,37,40,54,70,71] show extensive control over the ABA core signaling pathway, from ABA receptors to ABA-related transcription factors (Table S1). Moreover, the ABA receptor PYL2, the phosphatases ABI1 and HAB1, the kinases SnRK2.2 and 2.3, and the transcription factors ATHB5, ATHB6, ABIG1 and WRKY40 show a circadian expression pattern (DIURNAL web data; Figure 3B; Table S1). Furthermore, the circadian regulation of the ABA core signaling pathway also operates at post-translational levels since protein-protein interactions of TOC1-ABI3 and PRR5-ABI5 were reported [72,73]. Interestingly, phosphorylation and activation of Snrk2.2, SnRK2.3 and ABF2 also show a circadian oscillatory pattern, with maximum levels at the middle and end of the subjective day [74]. This data is in agreement with the fact that in soybean GmLCLs/RVEs negatively regulate ABA perception and signaling [75]. In A. thaliana, RVE expression decays from the middle to the end of the subjective day.
Another layer of regulation of ABA signaling is composed of ABI five binding proteins (AFPs). These proteins play a negative role in ABA signaling by interacting with and inhibiting ABI5 activity [76,77,78]. Moreover, transcription of AFPs is activated by ABA, indicating a negative feedback function of these proteins. In particular, AFP4 shows a circadian rhythm in its expression pattern (DIURNAL data; Table S1), with a maximum level at the end of the subjective night (CT23). This negative feedback operates in an antiphase respect to the activity of positive components of ABA signaling, such as SnRK2.2/2.3 or ABF2. Furthermore, AFP4 repression could be involved with TOC1, PPR5, PPR7 and LUX, as CHIPseq data showed a possible connection [35,37,70,71].
The Arabidopsis SWI/SNF chromatin-remodeling ATPase BRAHMA (BRM) modulates ABA response by preventing activation of stress response pathways during germination [79]. Moreover, core ABA signaling pathway components interact with BRM and switch its activity. For instance, SnRK2-dependent phosphorylation of BRM leads to its inhibition, and PP2CA-mediated dephosphorylation of BRM restores its activity. BRM has a negative role repressing ABA response. Interestingly, the circadian clock component LUX is able to interact with BRM [80]. However, it is necessary to characterize the function of this LUX-BRM complex, to further elucidate the real impact on the ABA signaling response.

3.5. ABA Core Signallling Regulation

Post-translational modifications play a key role in regulating protein function and stability. In particular, protein phosphorylation is a fundamental mechanism through which protein function is regulated in response to extracellular stimuli [81]. ABA core signaling components are phosphorylated by multiple protein kinases (Figure 2), including in A. thaliana: target of rapamycin (TOR), Arabidopsis early flowering 1 (EL1)-like casein kinase (AEL), C-terminally encoded peptide receptor 2 (CEPR2), cytosolic ABA receptor kinase 1 (CARK1), receptor dead kinase 1 (RDK1), enhancer of ABA coreceptor (EAR1), brassino-steroid insensitive 2 (BIN2), and mitogen activated kinase kinase kinase RAFs [7,82,83,84,85,86,87,88,89,90]. Some of these kinases have a positive effect on ABA response, i.e., BIN2, RAF-Bs, RDKs and CARK1. Moreover, DIURNAL expression data shows circadian oscillation in RAF2, RAF4 and RAF5 and RDK1, with acrophases from early to mid-subjective day (Figure 3B; Table S1). In addition, PRR5 CHIPseq data [35] show a possible regulation of RAF2 and RDK1, among other kinases (Table S1). Otherwise, kinases, such as TOR, CEPR2, AEL, RAF-Cs and EAR1 have a negative effect on ABA signaling. In particular, CEPR2 shows a circadian oscillatory pattern in gene expression, with a peak at CT9 (Table S1). Moreover, CEPR2 promoter is possibly regulated by several circadian clock components (i.e., PRR5, CCA1, LHY and LUX), as can be inferred from CHIPseq data [35,36,37,40].
On the other hand, protein ubiquitination is a reversible modification involved in a myriad of processes in plant biology. ABA signaling relies on a fine-tuned protein turnover [8]; specifically, the half-life of its components is regulated both through the ubiquitin-26S proteasome system and the endocytic/vacuolar degradation pathway (Figure 2). E3 Ub ligases have been reported that target different ABA signaling core components, i.e., ABA receptors, PP2Cs, SnRK2s, and ABFs/ABI5 transcription factors (Figure 2). The degradation of PYLs is regulated by both the ubiquitin ligase substrate adaptor DDA1 and RING-type E3 ligase RSL1 via the ubiquitin-proteasome system, and by the ESCRT-I components VPS23A and ALIX through the endosomal-vacuole pathways [91,92,93,94]. PP2Cs are also degraded by the 26S proteasome pathway through the PUB12/13 U-box, RGLG1/5 RING-type and (CUL3)-RING based E3 ligases by interacting with the adaptor BTB/POZ and math domain proteins (BPMs) [95,96,97,98]. Circadian clock regulation of these protein degradation systems is less apparent. From CHIPseq data, we only can attribute some regulatory function to PRR5 and PRR7 (Table S1) [35,71]. Moreover, only PUB13, AIRP3 and DDA1 show a circadian expression pattern (Figure 3B; Table S1).

4. Conclusions and Remarks

ABA plays an important role in the response to environmental challenges, including water deficit, salinity, freezing, wounding, and pathogen attack. Moreover, it participates in several developmental processes, i.e., seed germination, early seedling development, and reproduction [1,68,99,100,101,102]. Elucidating the regulation mechanisms on the ABA machinery is vital to further understand its dynamics. On the other hand, the circadian clock is a self-sustained molecular oscillator, with several output pathways that control processes, such as hormonal response and transcriptional activity. One of these outputs involves ABA machinery regulation. The circadian clock anticipates external changes and prepares plants to respond to them in advance, contributing to the plant predictive homeostasis. Moreover, the circadian system also couples plant physiology to external environmental cycles to maximize metabolic efficiency. This constitutes an efficient way to increase stress tolerance without substantially decreasing plant growth [103].
The linkage of circadian clock and ABA machinery possibly establishes a circadian gating of ABA responses. Apparently, this gating maximizes ABA response during the mid-late day and minimizes it during late night and early morning (Figure 3C). This gating in ABA response is directly related to stomatal closure and plant growth. The regulation of stomatal closure by ABA is well established [104]. Moreover, in C3 and C4 plants stomata are open during the day. It is useful to have a system ready to operate during light hours, when it is more required, given that plants at this time of day are more susceptible to water loss. Interestingly, plants also adjust growth to night-light cycles. For instance, root growth occurs mostly at night [105,106], and hypocotyl growth rate is maximal at the end of the night [103,107,108]. Given that ABA plays a negative role in plant growth [109], it is consistent that during the night hours ABA response is low. An interesting way to understand circadian clock regulated ABA gating could involve the use of reporter lines with GFP or luciferase driven by promoters carrying ABA response cis-acting elements. This kind of approach might specifically answer the time and degree of ABA response during the day.
It is worth noting that light-dark cycles must play an important role in regulating ABA machinery and the gating in ABA response, bypassing the circadian system. A high number of ABA machinery components (75 out of 124; 60%) show oscillations in gene expression under diurnal cycles (12:12 h of light:dark; Table S1), but do not under circadian conditions (i.e., constant light), when the clock is in free running mode, without external time cues.
Interactions between ABA signaling and the circadian clock are not unidirectional. There is evidence for the reciprocal impact of ABA on the amplitude, period and phase of the circadian clock. Application of ABA lengthened the period of CCA1 and of the marker gene for clock output chlorophyll A/B-binding protein2 (CAB2) by ~2 h in free-running conditions (constant light) compared with mock treatments [110]. Furthermore, ABA also induces the expression of TOC1 [111] and represses glycine rich protein 7 (AtGRP7) expression [112]. Moreover, CCA1 expression is induced by dry after-ripening; after-ripening modifies the transcriptional amplitude of clock gene oscillations [47]. In addition, there is evidence demonstrating that ABA regulates the GI pathway and activates florigen genes under drought conditions [113]. Furthermore, it was reported that an ABA-inducible R2R3-type MYB transcription factor (MYB96) binds directly to the TOC1 promoter to activate its expression. In turn, TOC1 indirectly regulates MYB96 expression, through CCA1 activity [114]. This feedback network directly links ABA responses with the circadian clock and provides a mechanism whereby the ABA gating is controlled to optimize plant fitness.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/stresses2010006/s1, Table S1: ABA machinery components analyzed in this review.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.
