Fine Structure of the Carbon-Related Blue Luminescence Band in GaN

Abstract

Photoluminescence studies reveal three C_N-related luminescence bands in GaN doped with carbon: the YL1 band at 2.17 eV caused by electron transitions via the −/0 level of the C_N, the BL_C band at 2.85 eV due to transitions via the 0/+ level of the C_N and the BL2 band at 3.0 eV attributed to the C_NH_i complex. The BL_C band studied here has the zero-phonon line at 3.17 eV and a phonon-related fine structure at low temperatures. The 0/+ level of the C_N is found at 0.33 ± 0.01 eV above the valence band, in agreement with recent theoretical predictions. These results will help to choose an optimal correction scheme in hybrid functional calculations.

1. Introduction

GaN attracts the attention of researchers due to its applications in light-emitting devices and high-power electronics [1]. Point defects that may detrimentally affect the material and device efficiency and longevity are still not well understood. Photoluminescence (PL) reveals the properties of the defects, such as the charge state, transition levels and carrier capture coefficients [2,3]. Defects often cause broad PL bands due to strong electron–phonon coupling.

However, in some instances, fine structure is observed, including zero-phonon line (ZPL) and phonon replicas. For PL caused by electron transitions from the conduction band to the −/0 transition level, the ZPL energy is E₀ = E_g − E_i, where E_g is the bandgap and E_i is the distance from the −/0 level to the valence band, also equal to the acceptor ionization energy if there is no barrier for the hole capture. Thus, observation of the ZPL allows us to find the charge transition level with high precision and compare it with predictions of first-principles calculations [4]. Examples include the Zn_Ga and C_N acceptors and the C_NH_i donor in GaN [5,6,7].

The C_N acceptor causes the yellow luminescence band (YL1) in GaN with a maximum at 2.17 eV and ZPL at 2.59 eV [6]. This PL band is commonly observed in unintentionally doped GaN grown by various methods and is especially strong in GaN grown by metalorganic chemical vapor deposition (MOCVD) due to contamination with carbon [2,3,8]. In addition to the YL1 band associated with electron transitions from the conduction band to the −/0 transition level of the C_N acceptor, a blue band (BL_C) can be observed in GaN, which is caused by electron transitions from an excited state close to the conduction band to the 0/+ level of the C_N [9].

First-principles calculations using hybrid functionals predict the 0/+ level of the C_N at 0.26–0.50 eV above the valence band and the PL band maximum at ħω_max ≈ 2.7 eV [9,10,11,12,13]. The uncertainty in the calculated 0/+ level can be related to different correction schemes in hybrid functional calculations [13]. From the analysis of the BL_C band shape at low temperatures, we estimated that E_i ≈ 0.3 ± 0.1 eV and ħω_max ≈ 2.85 ± 0.1 eV [9].

However, the ZPL has not been found, which limited the accuracy of the E_i. The 0/+ level of the C_N defect was also detected in deep-level transient spectroscopy (DLTS) experiments [14]. Narita et al. [14] estimated E_i = 0.29 eV at T ≈ 140 K. However, the ionization energy measured by DLTS may be inaccurate because of the narrow rate window, temperature-dependent ionization energy, and a barrier for the hole capture [15,16]. In particular, the difference between the activation energy (measured by DLTS) and the ionization energy (associated with the defect level) can reach 0.4 eV for C_N [16]. In this work, the ZPL and phonon-related fine structure have been found for the BL_C band in C-doped GaN.

2. Materials and Methods

Carbon-doped 1 μm-thick GaN layers were grown on top of 1.7 μm-thick undoped GaN on sapphire substrates by MOCVD at the Institute für Physik, Magdeburg, Germany [17]. The high crystal quality of the samples was confirmed by scanning transmission electron microscopy measurements [17]. The concentration of carbon, as determined from secondary-ion mass-spectrometry analysis, is 8 × 10¹⁷–7 × 10¹⁸ cm⁻³, and the samples are high-resistivity. The properties of three GaN:C samples studied in this work are similar to the properties of sample MD91 studied in Ref. [9] and samples of series C in Ref. [17], where other details can be found. The samples were annealed in a nitrogen ambient at T = 800 °C. The annealing is necessary to dissociate the C_NH_i complexes that cause a strong BL2 band with a maximum at 3.0 eV [7].

Steady-state PL was excited with a HeCd laser and detected by a cooled photomultiplier tube. Other details of PL experiments can be found elsewhere [3,9].

3. Results

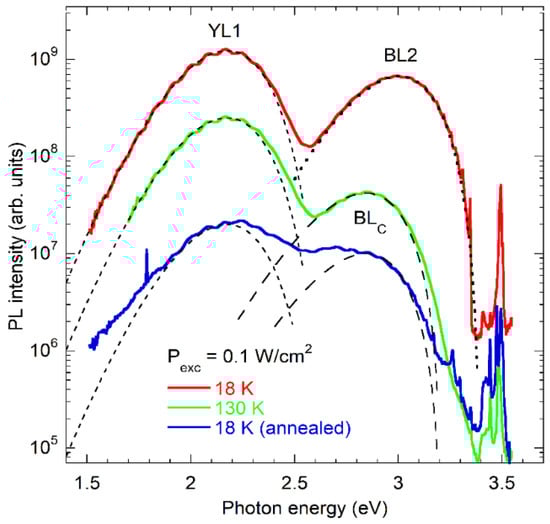

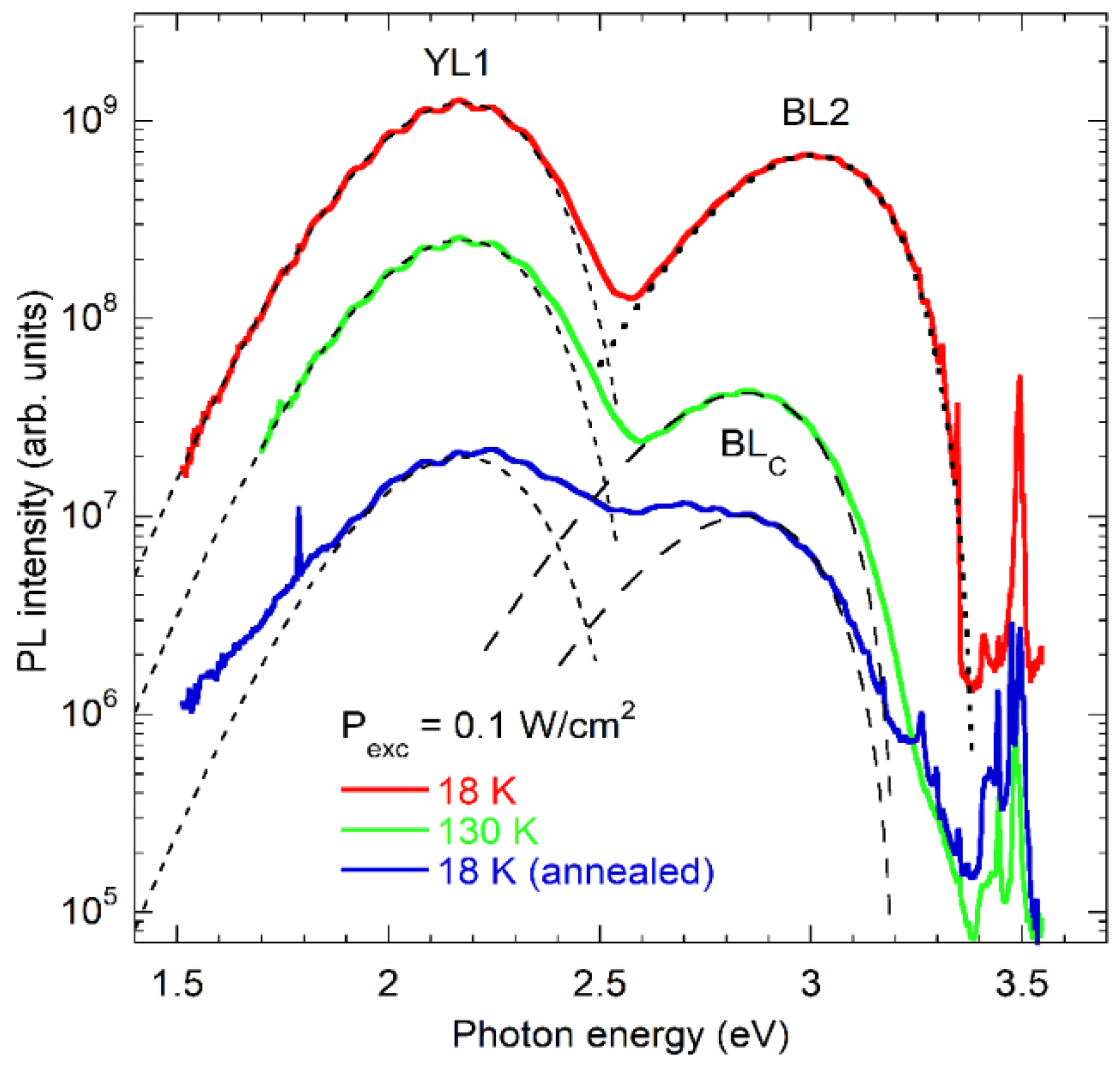

Figure 1 shows PL spectra measured at 18 and 130 K at relatively low excitation intensity (P_exc ≈ 0.1 W/cm²). In the as-grown sample, the YL1 and BL2 bands, attributed to the C_N acceptor and C_NH_i donor, respectively, are very strong at T = 18 K [7,9]. To deconvolute the PL spectra, we simulated shapes of the broad PL bands with the following expression [18].

$$I^{PL}(\hslash \omega )=I^{PL}(\hslash {\omega }_{\max })\exp \left[-2S_e{\left(\sqrt{\frac{E_0^{*}-\hslash \omega +\Delta }{d_{FC}^g}}-1\right)}^2\right]$$

(1)

Here, S_e is the Huang–Rhys factor, $E_0^{*}$ = E₀ + 0.5 ħΩ_e, E₀ is the ZPL energy, d^g_FC = $E_0^{*}$ − ħω_max is the Frank–Condon shift, ħΩ_e is the effective phonon mode energy, and ħω and ħω_max are the photon energy and PL band maximum, respectively. The Δ is a possible minor shift of the PL band maximum due to reasons, such as strain in GaN layers grown on foreign substrates. The shapes of PL bands are reproducible in different samples, and the parameters used in this work are the same as those published before [3].

With increasing temperature, the BL2 band is quenched above 100 K with the activation energy of 0.15 eV and completely disappears at 130 K. The BL_C band with a maximum at 2.85 eV, well-resolved at 130 K, is attributed to transitions via the 0/+ level of the C_N defect [9]. It is difficult to study the BL_C band in as-grown GaN:C at low temperatures because of the much stronger BL2 band. However, after annealing in N₂ ambient at 800 °C, the BL2 band disappears due to the removal of hydrogen from the sample [7], and the BL_C band can be observed at 18 K (Figure 1).

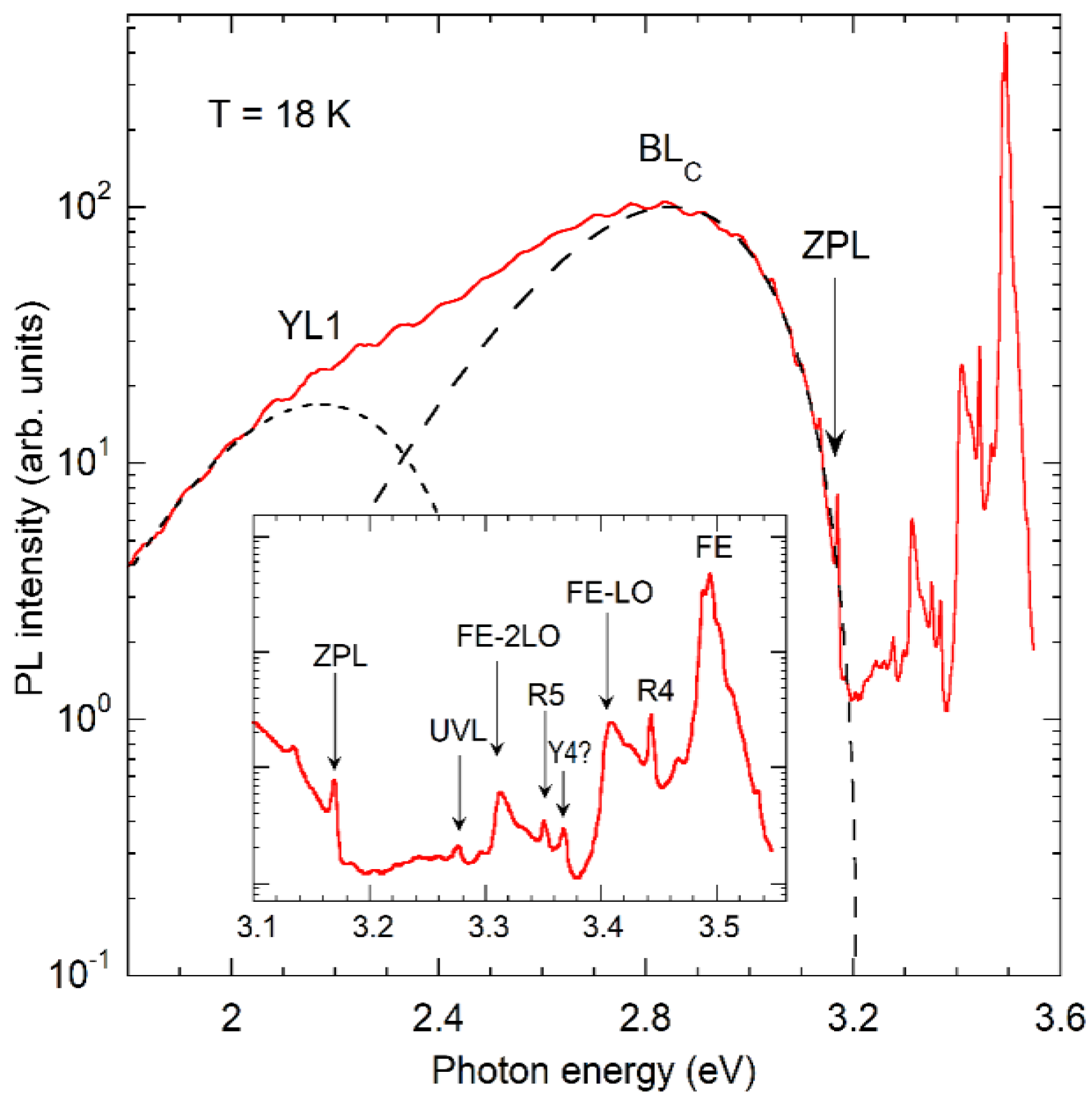

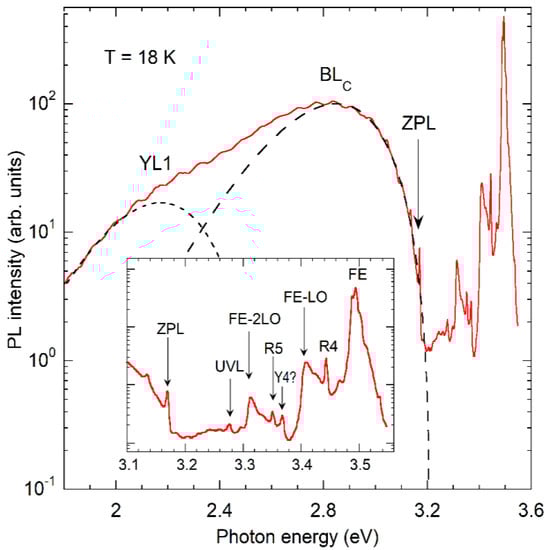

The BL_C band’s shape and fine structure can be better resolved at high excitation intensity when the YL1 band is saturated due to its much longer lifetime. In particular, the decay of the YL1 band in the studied samples is nonexponential at T = 18 K, and it persists for milliseconds, whereas the PL lifetime of the BL_C band is about 1 ns [3]. Figure 2 shows the PL spectrum obtained with a focused laser beam (P_exc ≈ 100 W/cm²).

The inset to this figure depicts the high-energy part of the spectrum. Resonance Raman scattering lines (R4 and R5) are observed at 3.352 and 3.344 eV at distances from the HeCd laser line (3.8135 eV) multiple of the LO phonon energy in GaN (~92 meV). The donor-bound-exciton (DBE) line at 3.487 eV and the free exciton (FE) line at 3.494 eV have about the same intensity. Two LO phonon replicas of the FE line have a characteristic shape and support the assignment of the FE line [19]. The peak at 3.368 eV is likely an exciton bound to structural defects (the Y4 line at 3.35 eV in strain-free GaN) [2]. A weak peak at 3.277 eV is attributed to the donor–acceptor-pair component of the Mg-related UVL band [3]. A narrow line at 3.172 eV is the ZPL of the BL_C band. The transformation of the PL spectrum with temperature (Figure 3) supports the above attributions.

From the positions of the BL2 band ZPL at 3.347 meV (before annealing), the DBE line at 3.487 eV, and the FE line at 3.494 eV (before and after annealing), we determine the strain-related blue shift as Δ = 17 meV and the bandgap E_g = 3.520 eV in the studied GaN:C. The ZPL of the BL_C band is located at 3.172 eV (Figure 3). Assuming that all PL lines close to the bandgap are blue-shifted by 17 meV due to strain, we find that E₀ = 3.155 eV in unstrained GaN. The ZPL does not shift with excitation intensity, as it is expected for an internal transition from an excited state of a deep donor to the ground state. With increasing temperature, the ZPL intensity decreases.

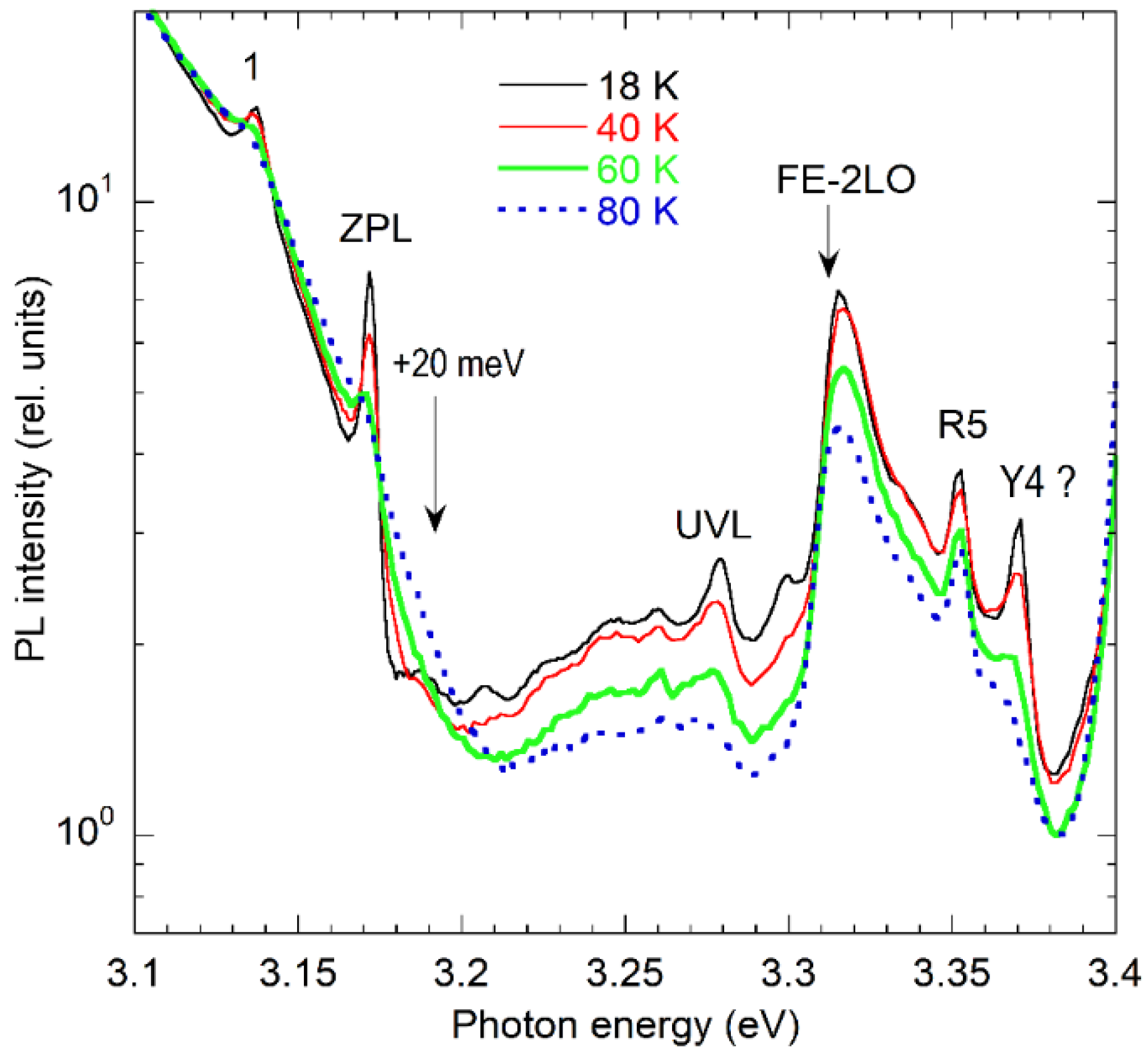

A shoulder at the high-energy side (indicated with the “+20 meV” arrow in Figure 3) emerges with increasing temperature from 30 to 80 K. The shoulder is attributed to transitions from the conduction band to the ground state of the C_N⁺. Indeed, the ZPL of the BL_C band, especially its high-energy side, broadens with increasing temperature much stronger than the excitonic lines or than is expected from thermal broadening. The transformation is similar to that for the C_NH_i donor responsible for the BL2 band [7]. By subtracting E₀ + 0.02 eV from the bandgap, we obtain the 0/+ transition level of the C_N defect at 0.33 ± 0.01 eV above the valence band in the limit of low temperatures. The ZPL at 3.17 eV and a peak at ~3.14 eV (labeled 1 in Figure 3) were observed in three GaN:C samples annealed at 800 °C.

4. Discussion

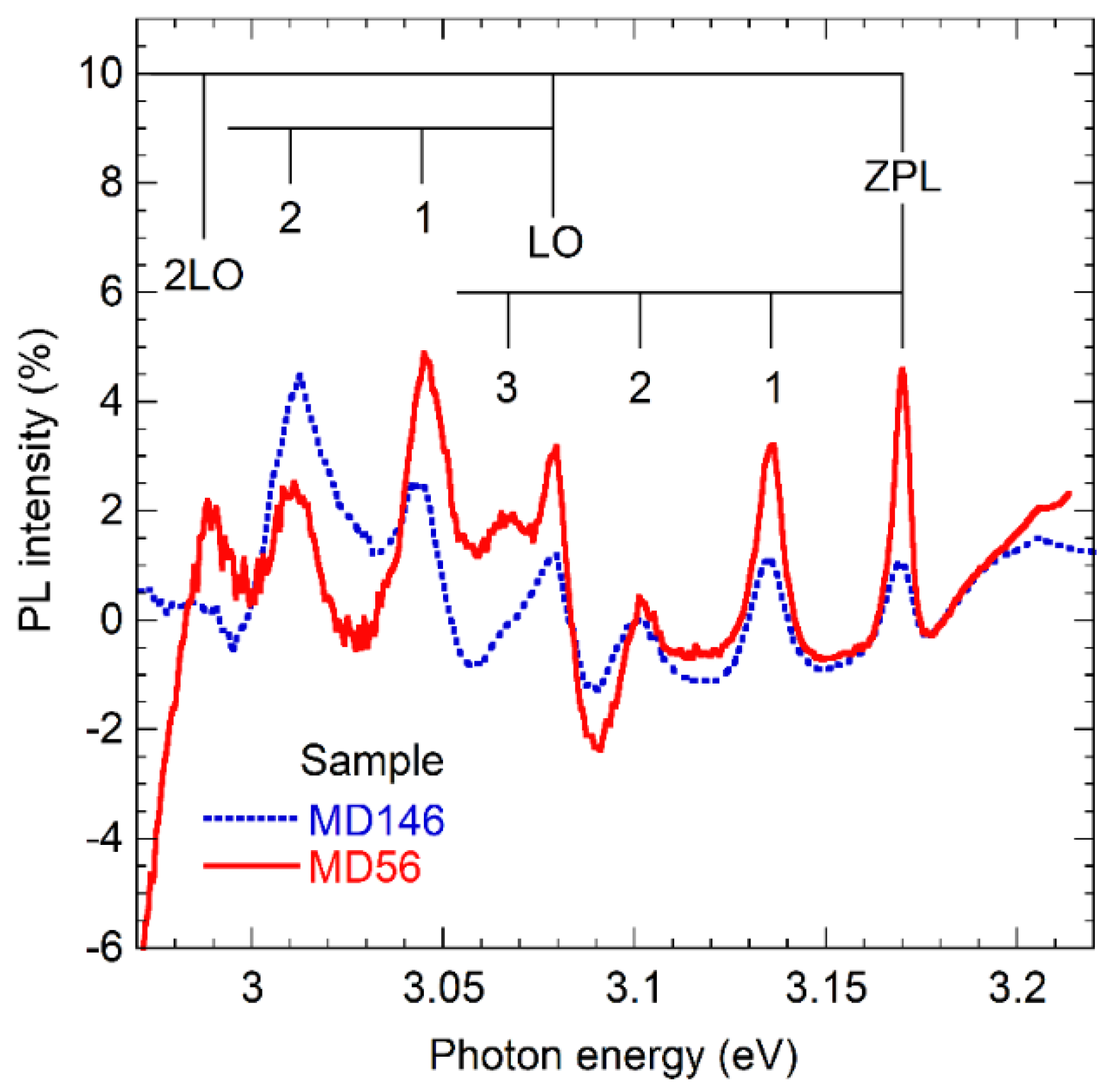

To study the phonon-related fine structure of the BL_C band, we subtracted the smooth component described with Equation (1) with parameters for the BL_C band shape. The obtained fine structure for two GaN:C samples is shown in Figure 4. A sharp line at 3.17 eV is identified as the ZPL of the BL_C band. The FWHM of this line is about 3 meV when the monochromator slit is small enough. Replicas of the ZPL line at energies multiple of 91.2 meV are the crystal LO phonon replicas with phonon energy ħΩ_LO. A set of lines with ħΩ₁ = 34.3 meV is attributed to a pseudo-local phonon mode.

Earlier [9], we explained the exponential decay of the BL_C band after a laser pulse, with PL lifetime shorter than 1 ns in degenerate n-type GaN:C, Si samples and 2.5 ns in high-resistivity GaN:C samples, with the assumption that transitions from an excited state close to the conduction band to the ground 0/+ level and transitions from the conduction band to the same level have similar lifetimes and cannot be resolved. The evolution of the PL spectrum with temperature (Figure 3) agrees with the explanation of electron transitions given in Ref. [9] and indicates that the excited state is located at about 0.02 eV below the conduction band.

5. Conclusions

We studied carbon-doped GaN annealed at 800 °C. The C_N-related BL_C band in these samples revealed the zero-phonon line at 3.17 eV and the phonon-related fine structure caused by LO phonons and a pseudo-local phonon with the energy of 34 meV. The 0/+ transition level of the C_N defect was found at 0.33 ± 0.01 eV above the valence band. The BL_C band with a maximum at 2.85 eV was caused by electron transitions from an excited state at about 0.02 eV below the conduction band to the 0/+ level of the C_N defect.
