Review

Advancements in Retinal Tissue-Mimicking Optical Coherence Tomography Phantoms: Materials, Properties, and Applications

by
Mukhit Kulmaganbetov
1,2,3
1
Centre for Eye and Vision Research (CEVR), 17W Hong Kong Science Park, Hong Kong
2
School of Optometry and Vision Sciences, Cardiff University, Cardiff CF24 4HQ, UK
3
Kazakh Eye Research Institute, Almaty A05H2A8, Kazakhstan
BioChem 2025, 5(2), 6; https://doi.org/10.3390/biochem5020006
Submission received: 13 February 2025 / Revised: 3 April 2025 / Accepted: 7 April 2025 / Published: 9 April 2025
Browse Figure
Versions Notes

Abstract

:
Optical coherence tomography (OCT) phantoms are essential tools for calibrating imaging systems, validating diagnostic algorithms, and bridging technological advancements with clinical applications. This review explores the development and application of materials used in OCT phantoms, emphasising their optical, mechanical, and biochemical fidelity to biological tissues. Gelatin-based phantoms (n = 1.35) offer controllable absorbance and scattering, with penetration depths (PDs) of 500–2000 µm and scattering coefficients (SCs) of 5–20 cm−1 but are unstable at room temperature. Silicone phantoms (n = 1.41) are durable and stable, with SCs of 10–15 cm−1, suitable for long-term studies. Polydimethylsiloxane (PDMS) phantoms (n = 1.41) provide manageable optical properties and are used in microfluidic applications. Polyvinyl alcohol (PVA) phantoms (n = 1.48) mimic soft tissue mechanics, with SCs of 5–15 cm−1, but require freeze–thaw cycles. Fibrin phantoms (n = 1.38) simulate blood clotting, with SCs of 5–20 cm−1. Scattering particles like polystyrene (n = 1.57) and titanium dioxide (TiO2, n = 2.49) offer modifiable properties, while silica microspheres (SiO2, n = 3.6) and gold nanoshells (n = 2.59) provide customisable optical characteristics. These materials and particles are crucial for simulating biological tissues, enhancing OCT imaging, and developing diagnostic applications. Despite progress, challenges persist in achieving submicron resolution, long-term stability, and cost-effective scalability.

1. Introduction

Over the past two decades, while OCT technology has advanced rapidly, the development of standardised test methods to evaluate its functionality has lagged behind. Phantoms are artificial models essential for assessing imaging devices, maintaining signal quality over time, and facilitating comparisons between different devices [1].
The materials used in phantom preparation for various imaging techniques, such as ultrasound [2], optical spectroscopy, imaging, and dosimetry [3], are diverse. These materials are designed to emulate the specific biological and optical properties of tissues. Additionally, phantoms can mimic cellular and subcellular structures by matching the size, refractive index, and volume of scatterers, as well as the matrix medium. These biological structures can be as small as a micron or less.
In the context of retinal neurodegenerations, such as glaucoma and age-related macular degeneration, apoptosis of retinal ganglion cells (RGCs) and photoreceptors is an early pathological event [4,5,6,7]. To detect early, subtle cellular and subcellular changes associated with cell death, phantoms can be created using microparticles sized 1–3 microns, which correspond to the dimensions of organelles like mitochondria, the Golgi apparatus, and the endoplasmic reticulum [8,9,10]. These phantoms can replicate organelle morphology and are useful for exploring the resolution capabilities of OCT systems and training machine learning tools for OCT-based retinal detection [11].
Optical phantoms are indispensable for evaluating imaging systems, and their design has evolved significantly with the introduction of advanced materials. Recent advancements in OCT phantom development emphasise the use of materials like polydimethylsiloxane (PDMS) and hydrogels doped with nanoparticles to simulate multi-layered retinal structures. This enables precise calibration of axial resolution and depth-dependent imaging performance [12]. High-resolution 3D printing can replicate micrometre-scale anatomical features, such as layered photoreceptors and capillary networks, improving the benchmarking of OCT systems [13]. Agrawal et al. (2020) demonstrated the use of an engineered texture phantom with biologically inspired microfeatures to quantitatively assess lateral resolution in adaptive optics (AO) systems, providing a standardised approach for evaluating retinal imaging performance [14].
This paper reviews the materials used to prepare OCT retinal phantoms, focusing on their optical and mechanical properties, advantages, disadvantages, and potential applications. It concludes by addressing the ongoing challenges in selecting phantom materials, their preparation, and their application in OCT diagnostics, highlighting areas for future research.
The commonly used materials for the matrix media and scattering particles in OCT phantoms are detailed here. The matrix medium simulates the cytoplasm and intercellular matrix, while the scatterers represent dense particles of cellular morphology, including cell and nuclear membranes and organelles (Figure 1). Table 1 and Table 2 summarise the phantom matrices and scattering particles, respectively, their optical and mechanical properties, and the advantages and disadvantages of phantom preparation.

2. Phantom Matrix

The phantom matrix serves as the artificial medium that replicates the intracellular space and cytoplasm of tissues. Therefore, its physical and chemical properties should closely resemble those of the fluid compartments found in tissues and cells, such as intracellular fluid and cytoplasm. In addition to the matrix, OCT phantoms incorporate chemicals with higher refractive indices and specific sizes and shapes, which act as scatterers for OCT light. These scatterers simulate the cell and nuclear membranes, as well as organelles. Below, we define the materials commonly used as phantom matrices.

2.1. Gelatin-Based Phantoms

Gelatin, a homogeneous colloid gel derived primarily from animal collagen [15], is one of the earliest materials used for phantom preparation, alongside other hydrogel-based substances like agarose [16,17]. These organic materials are well-characterised and easily controlled. Alimentary gelatin and agar are readily available, exhibiting minimal absorption and very low turbidity [18].
As a matrix for phantoms, gelatin encapsulates water as its main component and can be combined with both organic and inorganic scattering particles to mimic the heterogeneous structure of tissues [19,20,21]. Gelatin’s optical and mechanical properties are relatively similar to those of biological tissues [22]. For example, its mechanical properties, such as wave speed (in ultrasonography) and mass density (approximately 1000 kg/m3), align closely with those of tissue [23].
In a study by Zhang et al. (2011), elasticity measurements of five phantoms with varying gelatin concentrations demonstrated a positive correlation between elasticity and gelatin concentration [24]. The refractive index of a gelatin phantom is 1.35, which is close to that of biological materials, and its scattering coefficient is 1 at a central wavelength of 1280 nm, as calculated by Mie theory [22]. Consequently, gelatin-based matrices possess the desired absorbance, scattering, and background fluorescence for creating tissue-mimicking optical phantoms. Additionally, the optical properties, particularly the variation in transmission at wavelengths of 600–1000 nm, remain stable for 2–4 weeks [25], making them suitable for a series of phantom fabrication and imaging studies.
The scattering and absorption properties of gelatin phantoms can be adjusted by mixing the gelatin medium with a lipid emulsion [18,26]. In this combination, the lipid emulsion enhances absorption and fluorescence, while gelatin provides rigidity and scattering characteristics [15,27]. However, gelatin-based phantoms lack rigidity at room temperature, which limits their durability and complicates the creation of complex shapes and forms [28]. Due to gelatin’s lower viscosity (<2 Pa) compared to tissue, its elasticity is sensitive to fabrication, testing, and imaging conditions [29]. Like other hydrogels, gelatin’s stiffness restricts water mobility, but additives such as EDTA, penicillin, fluorophores, gadolinium, and copper sulphate can enhance the functionality of gelatin-based phantoms [3].
Given these optical and mechanical properties and its availability, gelatin is a common foundational material for tissue-imitating phantoms used in evaluating diagnostic equipment and software. Furthermore, gelatin-based phantoms are cost-effective, making them valuable for training and practical applications [30].

2.2. Silicone Phantoms

Silicone offers the ability to create phantoms with complex shapes and diverse optical properties, addressing some of the limitations associated with gelatin-based phantoms. This is due to silicone’s low viscosity and resistance to fracture, which also allow for the creation of permanent phantom media suitable for routine testing and calibration of devices. The refractive index of silicone is approximately 1.4 [31], closely matching the average value for human tissue [32] and the retina [33]. Silicone’s scattering contribution is minimal, with an attenuation coefficient of less than 0.5 mm−1 [34].
As a matrix for phantoms, silicone is both stable and transparent, making it suitable for a wide range of scattering particles. However, achieving a homogeneous distribution of inorganic scatterers, such as fluorophores, chromophores, and absorbers, can be challenging. Bays et al. (1997) addressed this by adding solvents like water, ethanol, methanol, and dimethyl sulfoxide to silicone-based phantoms to create a solution with scattering particles [32]. After mixing with silicone, the solvents were removed through evaporation, resulting in a monodispersed distribution of scattering particles within the matrix [32].
Silicone-based phantoms are also useful for measuring blood flow velocity in Doppler OCT [35]. This can be achieved by embedding a flow channel with a diameter of 50–150 µm, similar to retinal vessels, within an eye model. Phantoms incorporating special gel colourants for silicone and TiO2 scatterers can be employed to investigate both relative changes and absolute values of retinal blood flow velocity [36].
Despite these advantages, silicone has some drawbacks as a phantom material, notably its incompatibility with biological tissue constituents and other organic chemicals [3]. Significant efforts have been made to develop silicone-based optical phantoms, promoting the use of polymeric organosilicon, such as polydimethylsiloxane (PDMS).

2.3. Polydimethylsiloxane Phantoms

The use of PDMS, a silicon-based elastomeric polymer, in phantom preparation is increasingly popular. PDMS is optically transparent, with a refractive index of 1.41 ± 0.01 in the near-infrared range (λ = 800–1300 nm) [1]. Its optical properties can be precisely controlled to achieve various intensity levels [37,38]. Inorganic scatterers can be incorporated to mimic tissue structures with similar absorption and scattering coefficients [39]. However, due to PDMS’s hydrophobic nature, hydrophilic chromophores and scatterers cannot be used, which is a limitation of this polymer.
PDMS maintains its stability over long periods, lasting several years [40]. The fabrication of PDMS phantoms is straightforward, as well as easy and safe to use [41]. Mixing silicone with PDMS allows for customizable viscosity, although the softening process of silicone can take weeks to cure if not heated [28]. Once cured, the elastic polymer is strong and retains consistent optical properties, as demonstrated in the study by Wu et al. (2015) [42].
Thanks to its tunable optical properties, PDMS is suitable for creating multi-layered phantoms [43]. Baxi et al. (2014) used PDMS as a matrix for phantoms, adding scatterers such as barium sulphate (BaSO4) powder, titanium dioxide (TiO2) nanopowder, and silica (SiO2) microspheres [1]. These substances were varied in concentration across layers to mimic different retinal layers. A spin-coating method was employed to achieve similar thickness and intensity for each retinal layer [1].
Wang et al. (2021) developed a custom-built eye model with PDMS and polystyrene bead-embedded phantoms for the calibration and quality assessment of OCT devices [44], including evaluating the axial and lateral resolution of tomography. The potential of PDMS extends to retina-mimicking phantoms and can be used for fabricating external eye structures [45] and preparing birefringent tissue phantoms (such as the cornea and retina), which can be imaged using polarisation-sensitive OCT [46].

2.4. Polyvinyl Alcohol (PVA) Phantoms

Polyvinyl alcohol (PVA) has been introduced as a phantom matrix material to enhance the quality of artificial tissues [2,47], particularly in ultrasound, photoacoustic tomography, and MRI research [48,49]. PVA is a synthetic polymer that can form a hydrogel when dissolved in water or dimethyl sulfoxide (C2H6OS). Following freeze/thaw processes, this solid composition is known as PVA-cryogel (PVA-C) [28].
The mechanical properties of PVA-C closely resemble those of human tissue [50,51], exhibiting increased inherent breaking strength after freeze–thaw cycles and elastic characteristics similar to the extracellular matrix [49]. Although PVA’s mechanical properties are tunable, controlling its scattering features is challenging [3]. The optical properties depend on additives, catalysts, water, and C2H6OS [28]. Additionally, the scattering coefficient can be adjusted through repeated freeze and thaw cycles; for example, after seven cycles, the scattering coefficient decreases to 0.8–1 mm [52].
An innovative application of PVA as an ophthalmic phantom was demonstrated by Fogli et al. (2014), who used the polymer as a synthetic vitreous humour for vitrectomy procedures [53]. The rigid structure, cost-effectiveness, and long-term durability of PVA-C make it a promising material for retinal and vitreous phantoms, facilitating the evaluation of optical diagnostic and surgical devices.

2.5. Fibrin Phantoms

Fibrin overcomes many of the disadvantages associated with other phantom materials. As a natural protein, fibrin provides structural support in biological tissues, particularly in blood clots. It forms when fibrinogen is activated by the proteolytic action of thrombin [54]. Fibrin is transparent and can be combined with both inorganic and organic chemicals to enhance the scattering coefficient of the resulting phantom. Additionally, fibrin is compatible with biological tissues and hydrogels [28].
The process of preparing fibrin phantoms is straightforward and not time-consuming. The primary components needed are fibrinogen and thrombin, with their concentrations affecting the mechanical properties of the phantom [55]. Kennedy et al. (2010) demonstrated the creation of a fibrin phantom combined with Intralipid™ [56]. The low scattering characteristic of fibrin makes it an excellent choice for a phantom matrix in OCT devices, while Intralipid serves as the scatterer to mimic cell and organelle membranes [3]. The inclusion of these lipid scattering materials allows for precise control over the optical properties. Another example of using fibrin with Intralipid in a phantom was presented by Yu et al. (2014), showcasing a time-efficient fabrication process and an extended phantom lifespan with low scattering (μ’s = 1.25 ± 0.04 mm−1) [57].
Newer materials such as agarose [58], polyethylene glycol diacrylate (PEGDA) [59], and alginate hydrogels [60,61] are increasingly used in phantom fabrication due to their advantageous optical and mechanical properties. Agarose hydrogels, with a refractive index similar to gelatin, provide low turbidity and can be adjusted for varying optical densities, making them suitable for optical applications [58]. They are easy to prepare and form stable structures at room temperature, offering moderate mechanical strength, often enhanced by combining with other materials. PEGDA hydrogels are highly transparent and can be engineered to have specific refractive indices by varying polymerization conditions, making them ideal for phantoms with precise optical properties: tunability and biocompatibility [59]. Known for their biocompatibility, alginate gels have adjustable mechanical properties and are particularly useful in organ-on-chip models, with stability enhanced through crosslinking with calcium ions [62]. These materials provide versatile options for developing phantoms that closely mimic biological tissues in both optical and mechanical aspects.

3. Scattering Particles

In addition to the medium material, phantoms incorporate scattering constituents, which enable precise and independent control of optical properties. Phantoms can be categorised into two main groups based on how their light scattering properties are achieved: those using nano- or microparticle-induced scattering and those relying on the intrinsic scattering of the materials used. The type, size, shape, and concentration of scatterers are crucial in achieving the desired scattering coefficient for phantoms.

3.1. Polystyrene

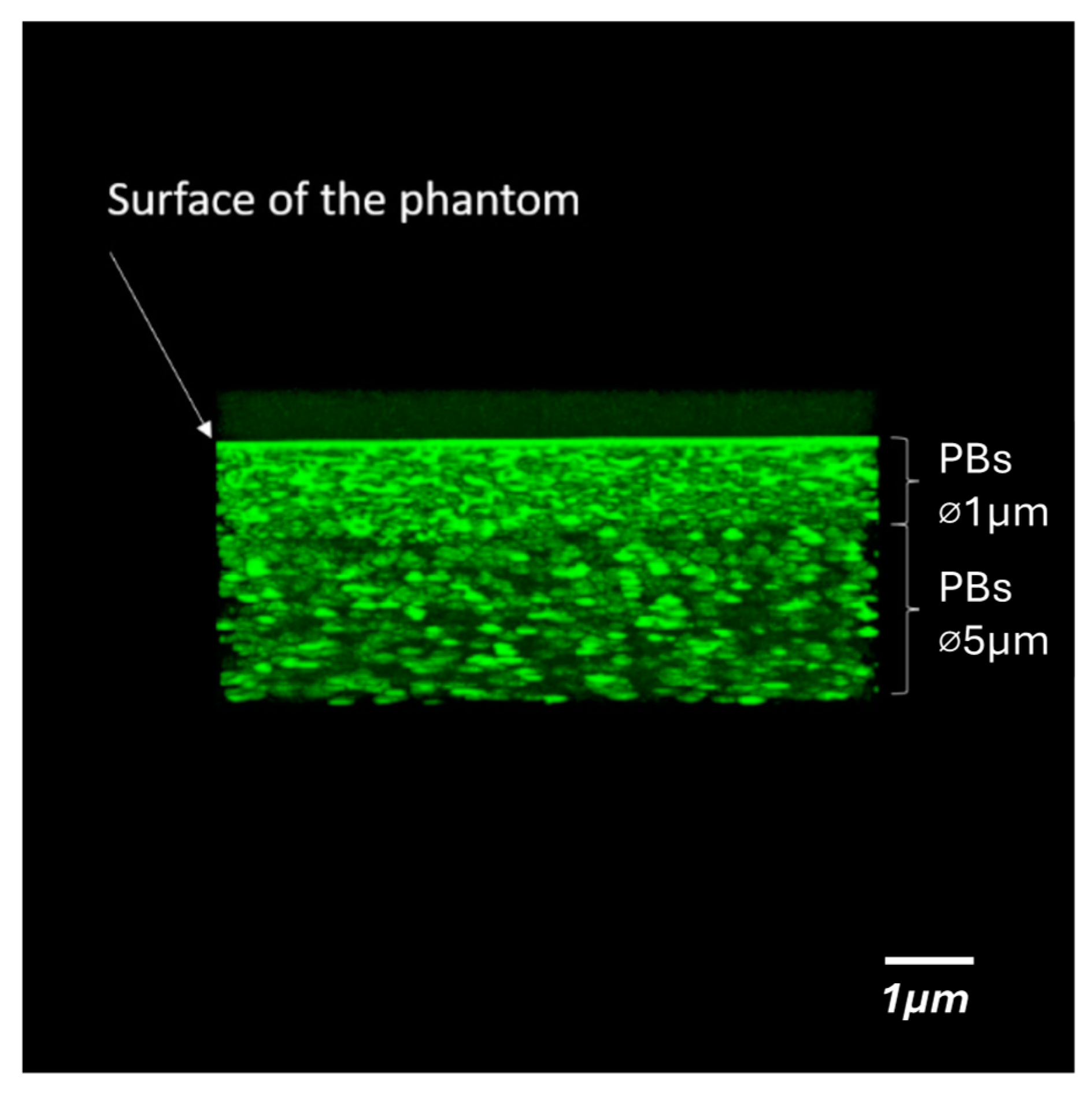

Polystyrene beads are among standard optical phantoms’ most commonly used scattering particles [3]. These microspheres offer easily controllable physical and optical properties, and their refractive index can be adjusted [63]. The size and concentration of the beads significantly influence their optical scattering properties [64], with a scattering coefficient of 2.3 and a refractive index of 1.59 [22]. The availability of beads in various sizes and refractive index is another advantage, allowing for good repeatability and theoretical prediction of spectra [3]. Like other polymer beads, polystyrene is suitable for assembling multilayer phantoms. Chang et al. (2012) used layered phantoms with polystyrene microspheres to assess and validate OCT axial resolution and depth of field [65]. Scanning electron microscopy (SEM) images reveal the uniformity and spherical shape of polystyrene beads, contributing to their predictable scattering behaviour.
Due to their unique optical properties, including a tunable scattering coefficient and refractive index, polystyrene beads are often the first choice for OCT phantom preparation. In gelatin-based phantoms, polystyrene nanoparticles are frequently used as scattering constituents. However, because of the cost and short lifespan of these phantoms (ranging from 1 day to 1 week, rarely longer), alternatives such as titanium dioxide (TiO2) and aluminium oxide (Al2O3) powders are often preferred.

3.2. Titanium Dioxide

Titanium dioxide (TiO2) is a widely used particle mixture in optical phantoms due to its high scattering coefficient and low absorption value, with peak absorbance occurring at wavelengths of 250–450 nm [3,66]. For well-defined and reproducible optical properties, it is preferable to use liquid-based supplies of TiO2, as the powder form requires continuous stirring to achieve a homogeneous phantom with a solid dispersion of scatterers [67].
TiO2, along with other inorganic scattering materials like aluminium oxide (Al2O3) or barium oxide (BaO), is ideal for gelatin-based phantoms because of its availability and cost-effectiveness. However, like gelatin, TiO2 has a limited lifespan, which restricts its use in phantoms over time. Achieving an exact scattering coefficient from a phantom mixture can be challenging, as demonstrated by Pogue and Patterson (2006), who reported significant variability in scattering from TiO2 phantoms [3].
The effective resolution of a speckle-modulating OCT (SM-OCT) system was enhanced by imaging a small gap in a PDMS-based phantom containing a titanium dioxide mixture [68]. Compared to other scatterers, TiO2 has a higher refractive index, making it suitable for mimicking the hyperreflective retinal pigment epithelium and photoreceptors [1]. In the wide-field eye phantom developed by Corcoran et al. (2015), TiO2 was a key component of the Verowhite region, used to design concentric rings of high-scattering materials, while carbon black served as Veroblack to increase absorption [69].
Beyond SD-OCT and SM-OCT, TiO2 is also used in the preparation of retinal phantoms for OCT-angiography [70], for fabricating microfluidic channels, and in adaptive optics (AO) OCT [14] to replicate the opto-structural properties of photoreceptor outer segments [71]. Kuttippurath et al. (2023) demonstrated the utility of TiO2-doped gel wax phantoms to replicate lipid absorption features at 1210 nm, validating a 1200 nm spectroscopic OCT system’s ability to discriminate lipid-rich tissues from water-based environments using attenuation spectral analysis and predictive modelling [72]. These lipid-mimicking phantoms are particularly valuable for studying diseases like AMD, where lipid dysregulation in the retinal pigment epithelium (RPE) is a hallmark [73].

3.3. Silica Microspheres

Silica microspheres (SiO2) offer low to moderate levels of OCT signal intensity compared to titanium dioxide [1], yet they have a relatively high refractive index of about 3.6 in the red and near-infrared spectral regions [74]. The first silicone-based phantom using silica microspheres as scatterers was developed by Charles-Etienne et al. (2008), who demonstrated the relationship between speckle size in OCT and the density of microspheres [75]. SiO2 maintains a simple, well-defined microstructure and has a sufficiently large scattering cross-section. Additionally, silica nanoparticles facilitate elastography due to a speckle field pattern that can be easily tracked [75].
SEM images show well-defined microstructures of SiO2, contributing to their large scattering cross-section. Silicon nanoparticles (SiNPs) are gaining attention due to their unique optical properties and biocompatibility. Recent studies have explored the use of these particles in enhancing OCT contrast [76], although comprehensive validation studies are still needed.
The preparation methods for silica microspheres vary and include techniques such as laser ablation and electrochemical etching followed by mechanical grinding [77]. The choice of method depends on the desired target size of the SiO2 for OCT phantoms.

3.4. Gold Nanoshells

Gold nanoshells are emerging as a promising scattering particle for optical imaging techniques [78]. These nanostructured particles consist of a dielectric core surrounded by a gold shell. By adjusting the parameters of this core/shell structure, the wavelength can be tuned to match the surface resonance [79].
Agrawal et al. (2006) demonstrated that the optical properties of phantoms depend on the concentration of gold nanoshells [80]. Higher concentrations of nanoshells enhance the OCT signals backscattered from tissue [81]. The scattering strength of these particles is sufficient to mimic biological tissue in phantoms and even skin in vivo [82]. In initial experimental models, OCT signal enhancement reached 7 dB [83]. Tuersun et al. (2015) studied the optimal dimensions of nanoparticles to achieve the maximum scattering coefficient (7.01 μm−1), determining that a core radius of 54.2 nm and a gold shell thickness of 10.1 nm at a wavelength of 830 nm were ideal [79]. SEM images of gold nanoshells show their unique core–shell structure [84], which is critical for their optical behaviour.
In addition to their use in imaging, gold nanostructured particles are also being explored as a treatment option for photothermal therapy of cancer, thanks to their high absorption in the near-infrared region and favourable thermal characteristics [79].

4. Molecular Mechanisms in OCT-Studied Retinal Diseases

Recent advances in OCT have enabled the correlation of structural retinal changes with molecular pathways. Below, we highlight key biochemical mechanisms studied using OCT, emphasising their relevance to phantom design for disease modelling.

4.1. Lipid Metabolism and RPE Dysfunction

Progressive rod-cone degeneration (PRCD)-deficient mice exhibit aberrant lipid accumulation in the retina, including elevated cholesteryl esters and lipofuscin deposits in the RPE, mimicking age-related macular degeneration (AMD) pathology. These lipid-driven changes correlate with OCT-detected hyperreflective RPE lesions and Bruch’s membrane deposits [73]. Phantoms replicating lipid-rich environments (e.g., using TiO2-doped matrices) are critical for validating OCT systems in detecting early AMD biomarkers [72,73].
While oxidative stress is theorised to contribute to vitreomacular interface pathologies like epiretinal membranes (ERMs), recent OCT studies found no correlation between total oxidant status in surgically removed ERMs and retinal morphological changes [85]. This highlights the need for phantoms incorporating reactive oxygen species (ROS)-responsive nanoparticles to better model oxidative stress dynamics in vitro.

4.2. Complement System in Photoreceptor Degeneration

C3 knockout mice show reduced photoreceptor loss in sodium iodate-induced retinal degeneration models, implicating complement-mediated outer segment opsonisation in disease progression [86]. OCT phantoms with tunable scattering properties (e.g., gold nanoshells) can simulate complement-driven structural changes to optimise therapeutic monitoring.

4.3. Lysosomal Storage Disorders and Phagocytosis Defects

CLN3 disease models demonstrate impaired RPE phagocytosis of photoreceptor outer segments, leading to lipofuscin accumulation and photoreceptor loss visible on OCT [87]. Multi-layered PDMS phantoms with lipid-rich scatterers can emulate these defects to test OCT-based diagnostic algorithms.
A porcine retinal hole model demonstrated that holes < 1380 µm close via astrocyte-dominated gliotic plug formation visible on OCT [88]. Phantoms with PDMS-based glial cell mimics could help calibrate OCT systems to track wound healing responses in macular hole surgery.
Validating phantoms against in vivo OCT data involves a comparative analysis of OCT signals from phantoms and in vivo tissues [89], assessing parameters such as signal intensity, scattering profiles, and structural resolution. Key metrics used in validation include the scattering coefficient, signal-to-noise ratio (SNR), and axial and lateral resolution, ensuring that phantoms exhibit similar optical behaviour and image quality as biological tissues. For instance, phantoms designed to mimic AMD incorporate lipid-rich environments to replicate drusen deposits, with validation comparing OCT signal intensity and scattering profiles to in vivo AMD lesions.

5. Discussion

The advancement of OCT technology focuses on several key areas: enhancing axial and lateral resolutions and penetration through improved light sources, implementing adaptive optics for isotropic resolution, and applying AI-based tools for image classification. Despite significant progress in these areas over the past two decades, there has been limited development in standard test methods to assess the performance of OCT devices. Phantoms serve as essential test models for ensuring the quality of OCT hardware and software, as well as for dynamic quality control and device comparison, maintaining reliability and accuracy in medical diagnostics.
Most commercial phantoms are made from hard plastics and are used to validate clinical machines such as computed tomography, ultrasound, magnetic resonance imaging, biomedical optical spectroscopy, Raman spectroscopy, OCT, and near-infrared fluorescence [27]. Heikka et al. (2020) conducted a comparison of commercially available phantoms across eleven OCT machines, demonstrating highly comparable outcomes when the data were analysed consistently [90]. The adoption of PDMS and hydrogels addresses key challenges in phantom fabrication, such as achieving anatomical accuracy in retinal layers while maintaining optical stability [15].
One of the main limitations of titanium and silicon dioxides is their tendency to aggregate, which can affect their dispersion. In the case of TiO2, their high surface energy and reactivity can lead to aggregation when exposed to certain conditions, such as changes in pH, temperature, or solvent composition. This aggregation can result in the formation of larger clusters or agglomerates, which may impact the uniformity and stability of the dispersion. Similarly, SiO2 particles also face challenges related to aggregation and dispersion. The surface properties of SiO2 particles can influence their interaction with surrounding molecules or particles, leading to agglomeration. This agglomeration can hinder the effective dispersion of SiO2 particles in a matrix medium.
Addressing the challenges of OCT imaging through mediums like silicon oil or gas involves understanding their optical properties and developing phantoms that simulate their effects on image quality. Silicon oil, with a refractive index of n = 1.40, can create significant refractive index mismatches when used as a tamponade in the eye, leading to image distortion, reduced resolution, and artefacts in intraoperative OCT [91]. Similarly, gases used in ophthalmic procedures, such as perfluoropropane (C3F8) [92] or sulphur hexafluoride (SF6) [93], have much lower refractive indices compared to biological tissues, resulting in altered light paths and reduced image clarity. Both silicon oil and gas can alter the scattering properties of the medium, affecting the OCT signal’s intensity and contrast and complicating the interpretation of structural details. To address these challenges, phantoms can be designed using materials that closely match the refractive index of silicon oil or gas, incorporating layered structures to simulate the interface between biological tissues and these mediums.
Tissue phantoms with anatomically realistic geometries face limitations because they simulate tissue on a large spatial scale but do not adequately capture the complex optical absorption and scattering properties arising from cellular, subcellular, and tissue structures of varying sizes. Zhang et al. (2024) recently demonstrated that high-resolution 3D printing enables the creation of retinal phantoms with micrometre-scale anatomical features, including layered photoreceptors and capillary networks, which closely match human retinal morphology and improve OCT system benchmarking [13].
Recent studies demonstrate that OCT-detected structural alterations often correlate with molecular dysfunction. For instance, lipid-rich TiO2 phantoms replicate drusen-like deposits in AMD, which are associated with PRCD gene mutations and oxidative stress in the RPE [73,85]. Similarly, PDMS-based multi-layered phantoms with tunable scattering coefficients can model complement-mediated photoreceptor degeneration observed in sodium iodate-treated retinas [86], providing testbeds for anti-complement therapies. These applications underscore the importance of matching phantom material properties (e.g., refractive index, scattering coefficients) to the biochemical signatures of diseases.
Ensuring the consistency and reliability of phantoms across different studies and applications can be achieved by standardisation procedures. The National Institute of Standards and Technology (NIST) has been involved in developing reference materials and protocols for the characterisation of optical phantoms. These efforts aim to provide benchmarks for optical properties, such as scattering and absorption coefficients, ensuring that phantoms used in research and clinical practice meet consistent quality standards [94].
The development of multimodal phantoms represents a promising frontier in medical imaging. By integrating OCT with fluorescence and photoacoustic imaging, these phantoms can provide a more comprehensive understanding of biological tissues and disease processes. Future research should focus on material innovation, dynamic simulation, and standardisation to fully realise the potential of multimodal phantoms in advancing medical diagnostics and improving patient outcomes.
Phantoms with well-defined optical and mechanical properties can be used to generate training data for artificial intelligence (AI) models. These models can then be applied to OCT images to improve the detection and classification of retinal diseases. In our recent study, we demonstrated the use of phantoms in training machine learning tools for OCT-based retinal detection [11], highlighting their role in advancing AI-driven diagnostics [95,96,97].

Funding

M.K. was supported by a scholarship from the Cardiff University Vice-Chancellor’s International Scholarships for Research Excellence, the InnoHK initiative of the Innovation and Technology Commission of the Hong Kong Special Administrative Region Government.

Conflicts of Interest

The author declares no conflicts of interest.
