New Assessment of the Analysis of Wastewater Quality on a Wastewater Treatment Plant Using the RAPS Method ^†

Abstract

Water is an important factor in human health and an essential ingredient of living organisms. The increase in population and living standards has led to increased water consumption, consequently causing an increase in wastewater, as well as greater quality impairment. Wastewater treatment of the public mixed drainage system of the city of Čakovec (Croatia) and surrounding suburban settlements is carried out by mechanical and biological procedures, with the final treatment of separated sludge. In this paper, we analyzed the input and output values of annual time series for chemical oxygen demand (COD) on the wastewater treatment plant in 2015 using the RAPS method (Rescaled Adjusted Partial Sums). The results showed that the input series contained more pronounced subseries with respect to their mean values and trends of increase and decrease, respectively. When comparing the input and output subseries, the output subseries does not oscillate to a large extent given that they express the output quality of wastewater. A significant reduction in the output values of the indicators determines the quality treatment of incoming wastewater.

1. Introduction

Water is one of the basic conditions for maintaining life, which is why it is important to determine water needs and uses. The development of industry and technology contributes to a higher standard and life quality, which is especially reflected in the large increase in water consumption. Water is easily accessible to all consumer groups through the construction of water supply systems. This results in large quantities of waste (used) water of significantly changed quality compared to the original [1]. Wastewater treatment is a technological process that is carried out on treatment plants. The choice of treatment procedures, and the level of water purification, depends primarily on the quantity and composition of wastewater (type of wastewater), as well as on the required water quality at the discharge site [2]. The Wastewater Treatment Plant (WWTP) of the city of Čakovec is located at the southeastern entrance to Čakovec, Croatia, as shown in Figure 1 [3,4].

WWTP and facilities (rain overflows, rain retention basins, and transport collectors) were constructed for Čakovec and suburbs with a capacity of 91,000 ES. Wastewater treatment of the public drainage system of Čakovec and suburban settlements, which is of a mixed type, is carried out by mechanical and biological procedures with the final treatment of the separated sludge. Impacts on inlet wastewater quality can be natural and anthropogenic. Natural influences that affect the quality of wastewater are temperature, precipitation and evaporation. Human activity belongs to the anthropogenic factor that significantly negatively affects the quality of wastewater.

The aim of this paper is to use the Rescaled Adjusted Partial Sums (RAPS) method to determine whether the series of indicators of wastewater quality of WWTP in Čakovec contain characteristic subseries with respect to their mean values and trends of increase or decrease.

2. Methods

The RAPS method is used for the analysis of input and output values of the chemical oxygen demand (COD) for Level II treatment, according to Croatian legislation [5] for the time series during 2015. Level II implies a process that generally involves biological treatment with secondary sedimentation. COD could be tested by application of the titration method and spectrophotometry method. Dichromate solution is added to the sample, and everything is refluxed for 2 h. After that, the remaining dichromate is determined by titration. Ammonium iron (II) sulfate is used as the titrant. Regarding spectroscopy, the procedure is similar to a titration method. In the spectroscopy method, the main process is the oxidation of organic matter with the aid of dichromate dissolved in concentrated sulfuric acid with silver sulfate as the catalyst. Reflux takes place in a closed ampoule in a COD reactor [1,2].

The RAPS method is based on the analysis of the time distribution of the outflow of the summary deviation curve. A visual graphical display based on RAPS transformation is convenient because it overcomes small systematic and random changes, errors and variability in the analyzed time series. The graphical representation of the RAPS method indicates the existence of several subseries that have similar characteristics, a larger number of trends, sudden jumps and falls in values, unregulated fluctuations, etc. [6]. The expression used for the RAPS calculation is defined as:

$$RAP{S}_k={\displaystyle \sum }_{t=1}^k\frac{Y_t-\overline{Y}}{S_y}$$

(1)

Y_t is the value of the analyzed member (parameter) of the considered time series;

$\overline{Y}$ is the average value of the considered time series;

Sy is the standard deviation of the considered time series;

n is the number of members of the considered time series;

k = 1, 2,..., n is the counter during summation [7,8].

The graphical representation of the RAPSk value over time indicates the existence of regularity in the fluctuations of the analyzed parameter Yt, which in this case represents the value of a certain indicator of wastewater quality. Once the existence (or non-existence) of a subseries within a given series is determined, the further procedure is to determine the linear trend of that subseries and, if necessary, statistical processing, i.e., calculation of basic statistical parameters of the given (original) series, such as mean value, standard deviation, range, maximum and minimum value, etc. [7,8].

The RAPS method is applied worldwide, as in the following examples. In particular, RAPS is commonly used most in the analysis of hydrological and meteorological indicators. Bonacci, in his work from 2010, uses the RAPS method in the analysis of series of mean annual air temperatures measured at 26 meteorological stations in Croatia [7]. In Ref. [9], RAPS was used to determine the mean daily flow characteristics of the Sacramento River in California, USA. In Ref. [10], RAPS was applied to the analysis of the dependence of annual sediment volumes and flow of rivers in China, as well as annual total precipitation volumes, in order to explain and define the mutual influences and dependencies of these quantities.

In Ref. [11], RAPS was used to determine the impact of climate change on limestone deposits in the Krka River Basin. The values of RAPS were determined by the average daily air temperature, the total amount of precipitation and the average daily water flow, i.e., the analysis of these indicators was performed. Bonacci and Andrić apply RAPS to determine the regime of karst water flow in the Lika and Gacka river basins [12]. Tadić uses the RAPS method in the analysis of trends in total daily precipitation in assessing the possibility of irrigation in Osijek-Baranja County [13].

After reviewing the available bibliographic units related to the analysis of time series in which the RAPS method is used, it was found that this method has never been used in the world on the example of the analysis of wastewater quality indicators. The exception is research from the group of authors lead by the first author Durin in [14,15,16,17], in which this research was started, and now, it is our intention to extend research with domicile and international collaborators.

3. Results and Discussion

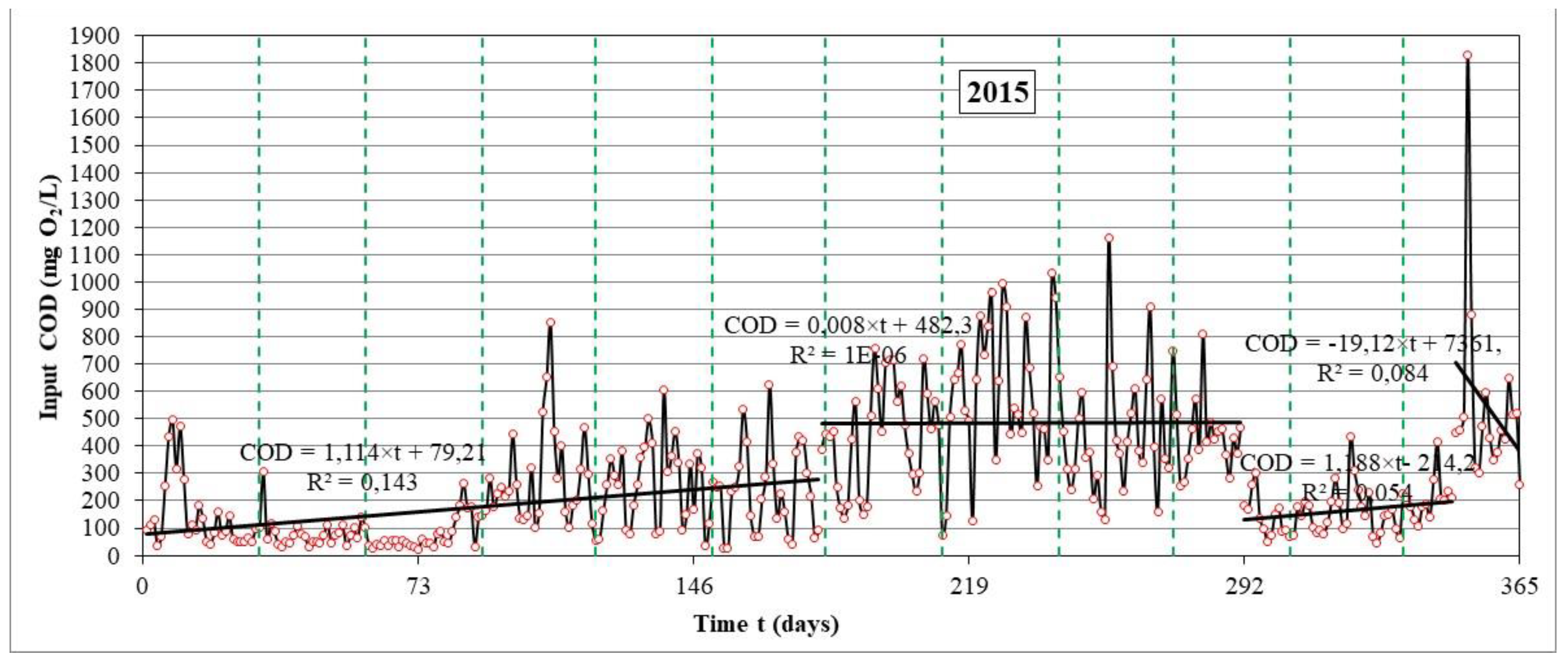

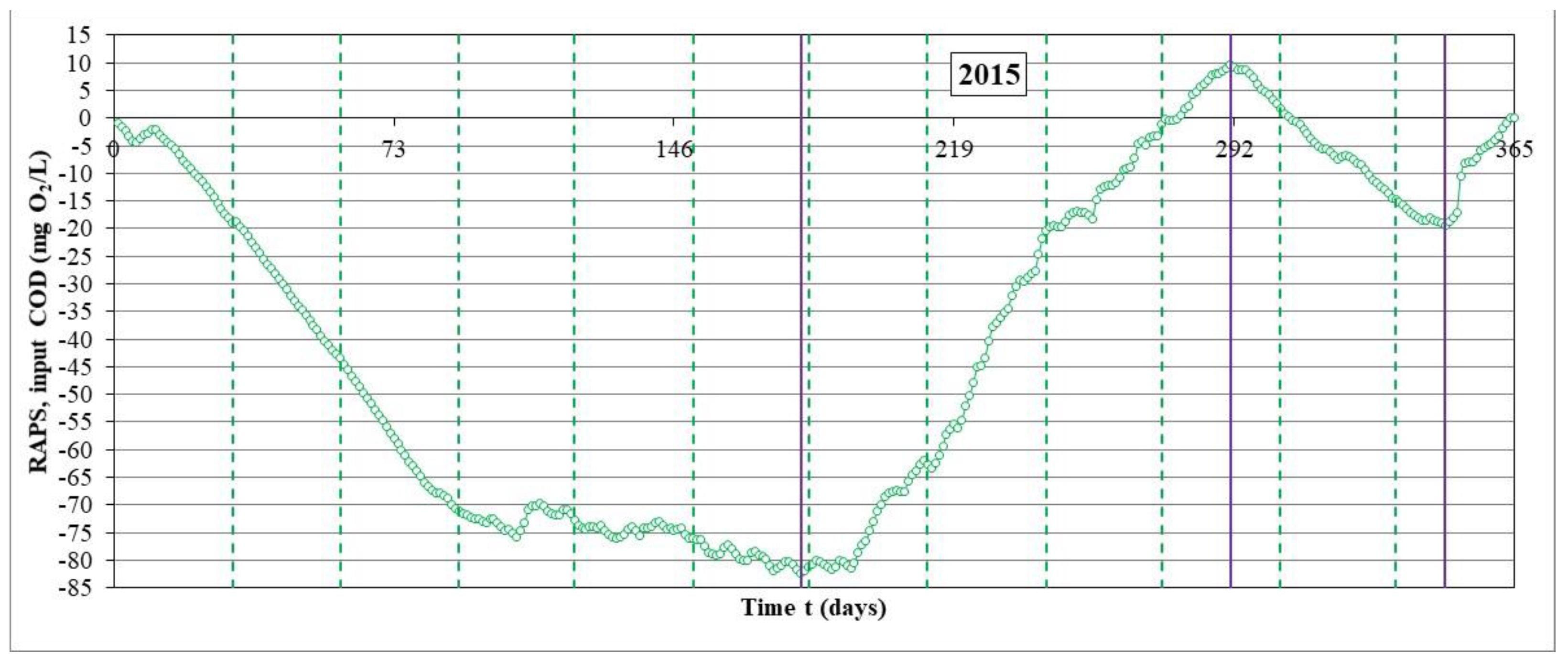

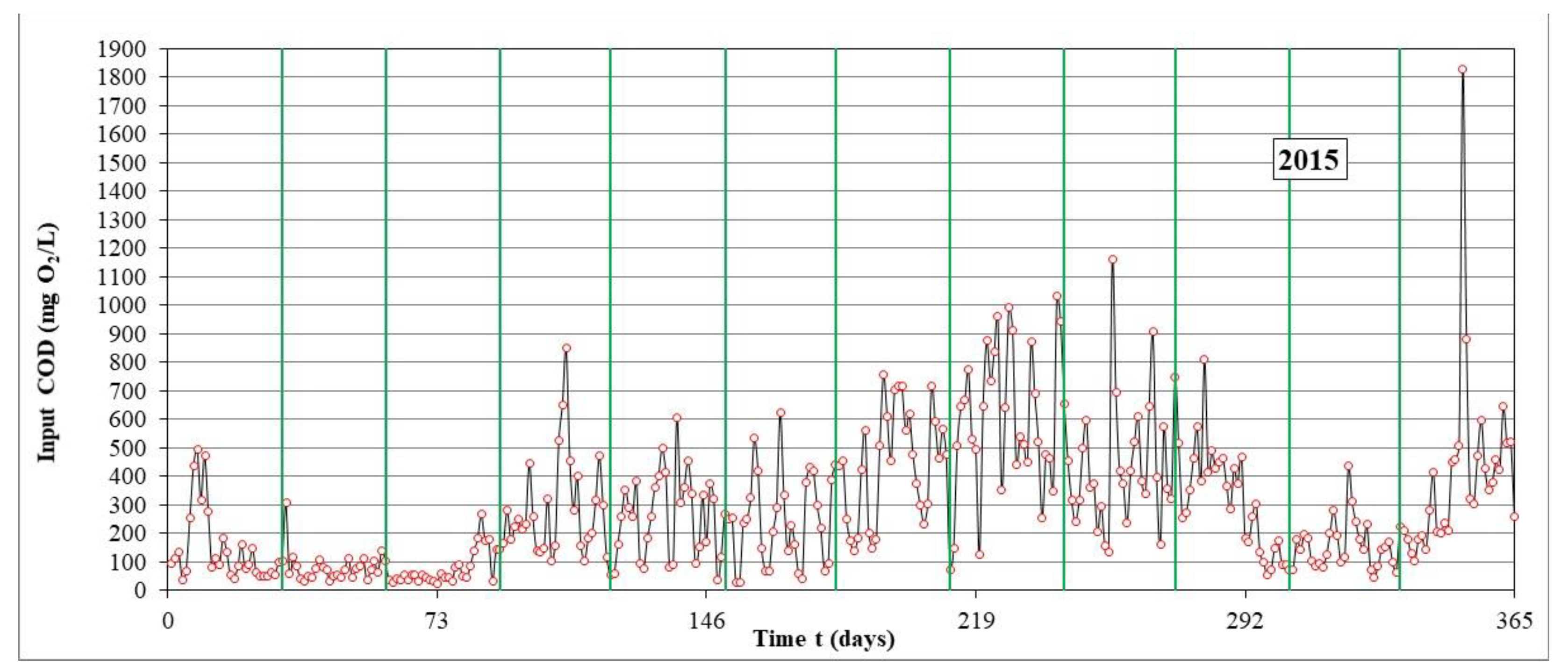

Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7 show the total input and output values of COD, obtained from the laboratory of the WWTP in the city of Čakovec, where the RAPS method was applied to the given series.

The values of input indicators of wastewater quality for 2015 in the second half of the year are above the value of the maximum allowed value (MAV), which is 700 mg O2/L for the COD [5]. Based on the performed analysis, it can be seen that the highest measured value of the coefficient of determination R² of an input series is equal to 0.1439, while the lowest calculated value of R² is 10⁻⁶. In both cases, there are insignificant differences. Growing trends of all subseries are observed, but given the negligible values of R², this has no argumentative significance.

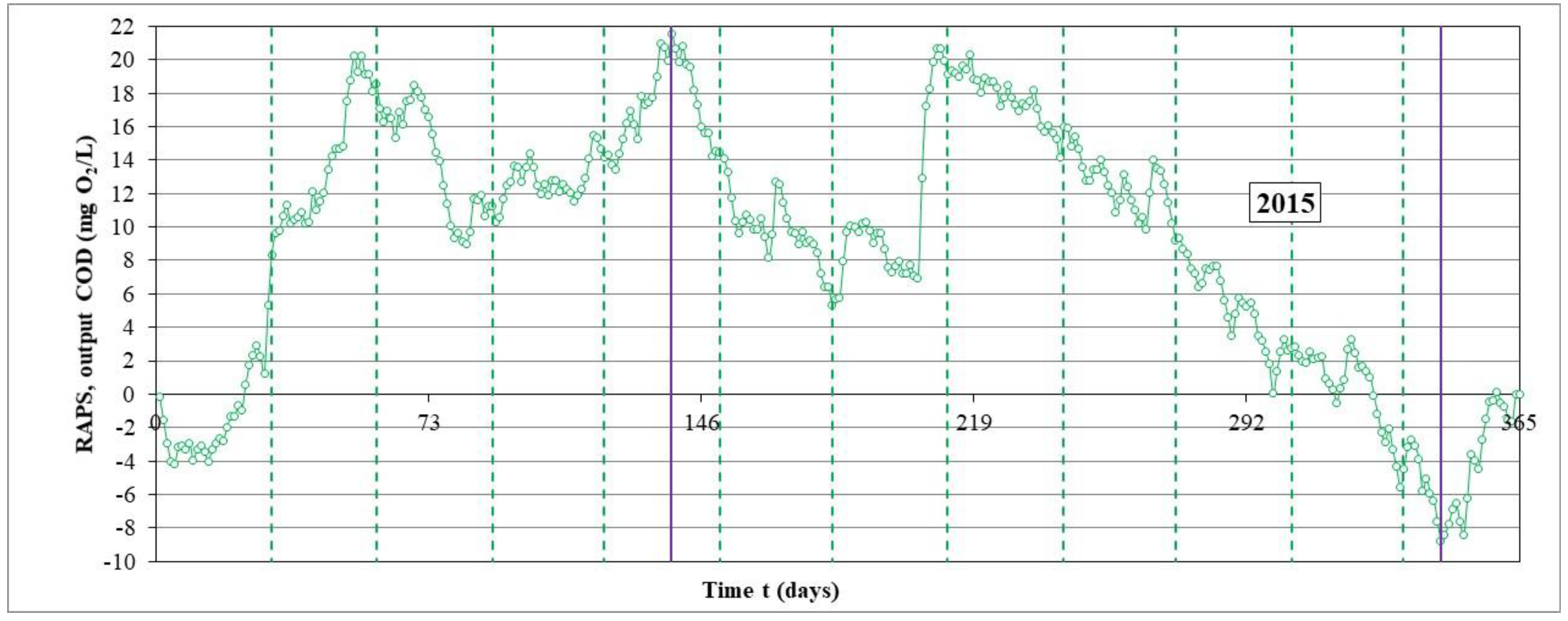

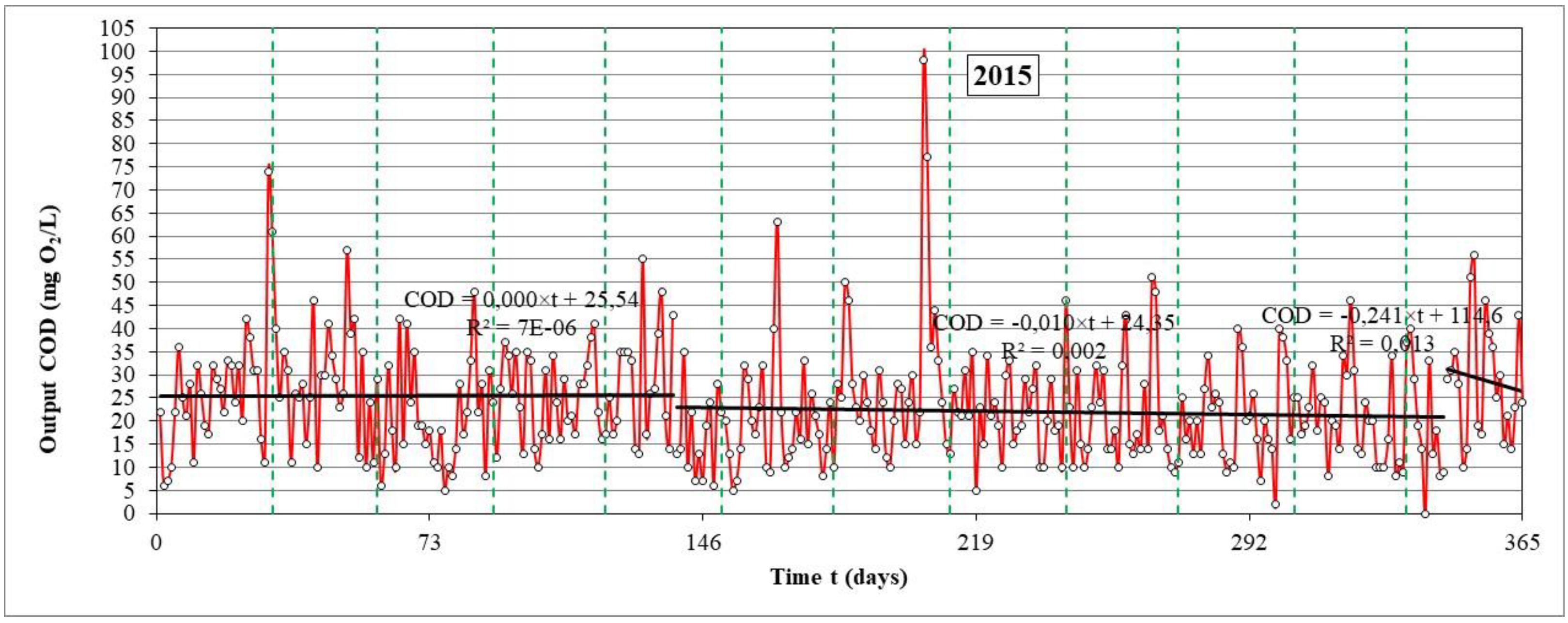

Figure 5, Figure 6 and Figure 7 show the total output values of the output indicators of the COD for 2015, as well as with the application of RAPS.

Declining trends of output subseries are observed, but given the negligible values of R², this has no argumentative significance, just as with the input subsequences.

According to the explanations and analysis at the laboratory in WWTP Čakovec, the output values of COD in 2015 did not exceed the permitted limit of 125 mg/L, according to the MAV [5]. Biological treatment efficiencies, expressed as a percentage reduction in COD values deviated in the first quarter of the year, are a result of changes in COD inputs (reductions) due to the inflow of large amounts of precipitation. In addition to this, there is certainly industrial water that is discharged into the public drainage system without prior treatment. Equally important is the quality of the sewer system, i.e., its water tightness, especially in those parts where the old concrete sewer is. Since the set output values are preserved and in accordance with regulations, these deviations are not significant. All deviations from the efficiency of COD reductions are due to poorly loaded water. In the conditions of inflow of very dilute wastewater, it is not biologically possible to achieve the required treatment efficiencies.

4. Conclusions

RAPS provides the ability to analyze that part of the time series that is problematic, while the trend of the entire time series does not allow this. In most cases, trends do not indicate or warn of a possible problem that occurs in a certain part of the time series. This enables faster and more accurate analysis, focusing on the real problem, as well as faster reaction in order to eliminate it, which is extremely important in every branch of human activity, and thus in wastewater treatment. The RAPS method can significantly help in monitoring the operation of WWTPs and also in the design of such devices, since the simplest procedures used today, namely data display and trend analysis, cannot give such a picture of the problem as it provides the RAPS method.

Further research will include analysis for the longer time period, comparison with the time series of the hydraulical load, precipitation and insolation, as well as extension for the other indicators of wastewater quality, i.e., Biochemical Oxygen Demand during 5 days, Suspended Solids, etc.
