Fuzzy Logic Modeling for Integrating the Thematic Layers Derived from Remote Sensing Imagery: A Mineral Exploration Technique ^†

Abstract

In this study, fuzzy logic modeling was implemented to fuse the thematic layers derived from principal components analysis (PCA) in order to generate mineral prospectivity maps. Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) and WorldView-3 (WV-3) satellite remote sensing data were used. A spatial subset zone of the Central Iranian Terrane (CIT), Iran was selected in this study. The PCA technique was implemented for the processing of the datasets and for the production of alteration thematic layers. PCA4, PCA5, and PCA8 were selected as the most rational alteration thematic layers of ASTER for the generation of a prospectivity map. The fuzzy gamma operator was used to fuse the selected alteration thematic layers. The PCA3, PCA4, and PCA6 thematic layers (most rational alteration thematic layers) of WV-3 were fused using the fuzzy AND operator. Field reconnaissance, X-ray diffraction (XRD) analysis, and Analytical Spectral Devices (ASD) spectroscopy were carried out to verify the image processing results. Subsequently, mineral prospectivity maps were produced showing high-potential zones of Pb-Zn mineralization in the study area.

1. Introduction

Remote sensing satellite imagery has been applied to detect alteration minerals, specifically dolomite and gossan zone [1,2,3,4,5,6,7]. A variety of image processing techniques have been used to map hydrothermal alteration minerals. However, previous researchers had not attempted to fuse the most rational thematic layers to generate a comprehensive mineral prospectivity map for sediment-hosted Pb-Zn exploration. Fuzzy logic modeling has been successfully used for mineral prospectivity mapping in metallogenic provinces. Fuzzy logic modeling for mineral prospectivity mapping typically incorporates three main stages, including the fuzzification of evidential data, the logical combination of fuzzy evidential maps with the support of an inference network and proper fuzzy set operations, and the defuzzification of fuzzy mineral prospectivity output in order to aid its interpretation [8]. The Central Iranian Terrane (CIT) area (Figure 1) contains great potential for carbonate-hosted Pb-Zn deposits [9]. At present, there has been no comprehensive study conducted to map hydrothermal alteration mineral zones in this area. In this research, ASTER and WorldView-3 (WV-3) satellite remote sensing data were used for prospectivity mapping. The main objective of this analysis was to apply principal components analysis (PCA) to ASTER and WV-3 data in order to generate mineral prospectivity maps using fuzzy logic modeling.

2. Geological Setting of the Study Area

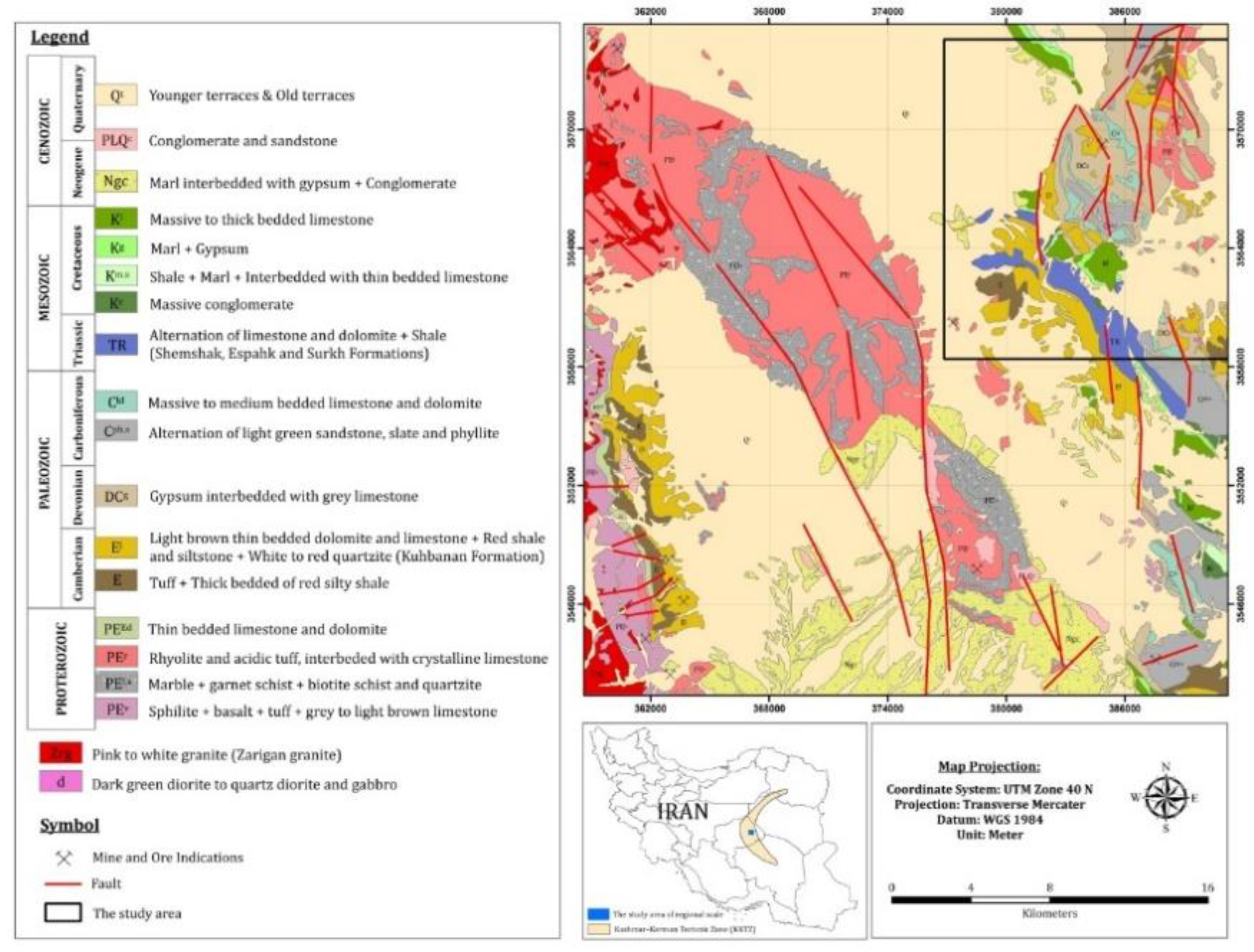

Three fault systems are documented in the CIT area, including the Nayband and Nehbandan faults, Poshteh-Badam and Kalmard faults, and the Kuhbanan and Rafsanjan faults. The occurrence of magmatism in the area is associated with a back-arc extension zone [10]. The sediment-hosted Pb-Zn mineralization in the study area is formed during synchronous faulting activities with sedimentation, detrital sedimentation associated with faulting activities, the replacement of rhyolitic volcanic rocks, and the formation of rift sediments and subsidence [10].

3. Materials and Methods

3.1. Data Characteristics

ASTER and WV-3 were utilized in this analysis. ASTER has three bands in the visible and near-infrared (VNIR) region (0.52 to 0.86 μm), six bands in the shortwave infrared (SWIR) region (1.6 to 2.43 μm), and five bands in the thermal infrared (TIR) region (8.125 to 11.65 μm) with 15 m, 30 m, and 90 m spatial resolutions, respectively [11]. The ASTER strip size is 60 km. WV-3 has eight spectral bands in the VNIR wavelength region (1.24 m spatial resolution) and eight spectral bands in the SWIR region (3.7 m spatial resolution) with a strip size of 13 km [12]. An ASTER scene cloud-free level 1T product and level 2A WV-3 data covering the study area were processed in this study.

3.2. Image Processing

3.2.1. Principal Components Analysis (PCA)

PCA is a mathematical technique that transforms a quantity of correlated variables into a number of uncorrelated linear variables called PCs [13]. In this analysis, the PCA method was implemented based on covariance matrix to ASTER (VNIR + SWIR bands) and WV-3 (VNIR bands) for identifying hydrothermal alteration mineral assemblages in the study area.

Table 1. Eigenvector matrix derived from PCA for the selected bands of the remote sensing datasets used in this study. (A) ASTER bands (VNIR + SWIR); (B) WV-3 band (1 to 8 VNIR).

(A) Eigenvector	Band 1	Band 2	Band 3	Band 4	Band 5	Band 6	Band 7	Band 8	Band 9
PCA 1	0.306376	0.354156	0.357999	0.373947	0.327957	0.351186	0.312760	0.294817	0.311584
PCA 2	−0.506185	−0.503027	−0.377710	0.175856	0.271555	0.270302	0.240492	0.247816	0.226041
PCA 3	−0.277958	−0.020633	0.232513	0.555288	0.118013	0.231883	−0.218093	−0.635404	−0.202253
PCA 4	−0.123343	−0.657125	−0.626671	0.626671	0.219378	0.135436	−0.037673	−0.233067	−0.106928
PCA 5	−0.005336	−0.013068	−0.049688	0.544534	−0.082811	−0.437342	0.180406	0.400661	−0.556429
PCA 6	0.269821	−0.516554	0.233199	0.285564	−0.309355	−0.365753	0.067872	−0.145724	0.518769
PCA 7	−0.209453	0.529334	−0.464617	0.294560	−0.485018	−0.017691	−0.005474	−0.049871	0.367733
PCA 8	0.027679	−0.039707	0.000725	0.469109	0.336338	−0.003040	−0.870266	0.409042	0.160571
PCA 9	0.152864	−0.239013	0.098348	0.029191	−0.632661	0.637281	−0.028538	0.205046	−0.244409
(B) Eigenvector		Band 1	Band 2	Band 3	Band 4	Band 5	Band 6	Band 7	Band 8
PCA 1		−0.314986	−0.330951	−0.348156	−0.359256	−0.364601	−0.367182	−0.369097	−0.370119
PCA 2		0.655926	0.454510	0.183457	−0.046042	−0.154854	−0.251952	−0.320189	−0.370709
PCA 3		−0.331273	−0.598506	0.354295	−0.129646	0.661001	−0.220796	0.341420	0.108973
PCA 4		−0.244961	0.345377	0.145561	0.631659	0.012267	0.368220	−0.509311	−0.142316
PCA 5		−0.384633	0.279151	0.433976	−0.092808	0.081588	−0.370014	−0.142544	0.187618
PCA 6		0.236442	−0.427799	−0.515988	−0.065670	0.646312	0.248715	0.043257	0.095274
PCA 7		0.257771	−0.301701	−0.070317	−0.389055	0.471694	0.225588	−0.427691	0.035215
PCA 8		0.174655	−0.560947	0.307690	−0.163685	−0.332755	0.108819	0.068151	−0.001993

A,B shows the eigenvector matrix for the selected bands of the remote sensing datasets.

3.2.2. Fuzzy Logic Modeling

Fuzzy logic modeling was proposed by Zadeh [14]. It is a form of many-valued logic in which the truth values of variables can be any real number between 0 and 1, inclusive [15]. A fuzzy set A is a set of ordered pairs:

$$A=\left\{\left(x, {\mu }_A\left(x\right)\right) | x ϵ X\right\}$$

(1)

where µ_A (x) is the membership function or membership grade of x in A. µ_A (x) maps x to the membership space (M), where M contains only the two points 0 and 1. The range of µ_A (x) is [0, 1], where zero expresses non-membership and one expresses full membership [14]. A set of fuzzy membership values is stated in a continuous series from 0 to 1.

3.2.3. Fieldwork Data and Laboratory Analysis

GPS survey, X-ray diffraction (XRD) analysis, and Analytical Spectral Devices (ASD) spectroscopy were carried out in the study area and performed on the samples collected from the main lithological units exposed, respectively.

4. Results and Discussion

The PCA technique was also implemented on the spatial selected subset of ASTER for mapping alteration minerals. The eigenvector matrix for ASTER VNIR + SWIR bands is shown in Table 1A. The PC3 has 0.555288 loading in band 4 and −0.635404 loading in band 8. The chlorites and carbonate show high reflectance at about 1.6 μm (band 4 of ASTER), while showing absorption features at 2.350 μm (band 8 of ASTER) [16,17]. Therefore, the PC3 is considered here as a thematic layer. The PC4 has −0.657125 loadings in band 2 and 0.626671 loadings in band 4 (Table 1A). Iron oxide/hydroxide minerals are illustrated by strong absorption at 0.40 to 1.10 μm and reflection at about 1.60 μm [18]. Seeing the spectral location of bands 2 and 4 of ASTER, it can be seen that the PC4 image can be considered as a thematic layer. PC5 shows 0.544534 loading in band 4, −0.437342 loading in band 6, and −0.556429 loading in band 9 (Table 1A). The sulfate minerals display absorption features at 2.20 to 2.50 μm (Clark, 1999), corresponding to bands 6 to 9 of ASTER. Consequently, sulfate minerals can be mapped in the PC5 image as a thematic layer. Carbonate minerals have diagnostic CO₃ spectral absorptions near 2.35 μm, which can be significantly used to identify carbonate-bearing rocks [19]. The carbonate minerals such as calcite and dolomite show distinctive narrow absorption features around 2.35 μm analogous to band 8 (2.295–2.365 μm) of ASTER data (Mars and Rowan, 2010). Thus, the PC8 image has information related to the spatial distribution of dolomite. PC8 has 0.469109 loading in band 4 and 0.336338 loading band 5, in addition to 0.870266 loading in band 7 (Table 1A). The PC8 image was also considered as a thematic layer.

The PCA statistical results for the WV-3 bands indicates that PC3, PC4, and PC6 can be considered as thematic layers for mapping iron-stained alteration, dolomite/Fe²⁺, and Fe³⁺ oxides, respectively. The PC3 has −0.598506 loading in band 2 and 0.661001 loading in band 5 (Table 1B) for mapping iron-stained alteration. PC4 shows 0.345377 loading in band 2 and 0.631659 loading in band 4 as well as −0.509311 loading in band 7 (Table 1B) for the identification of dolomite/Fe²⁺. PC6 contains −0.427799 in band 2 and −0.515988 loading band 3, as well as 0.646312 loading in band 5 (Table 1B) for mapping Fe³⁺ oxides.

Mineral prospectivity maps were produced from alteration thematic layers using a fuzzy-logic model (

Table 2. Fuzzification parameters for the thematic layers.

Data Origin	Input Layer	Detection	Membership Type	Fuzzy Operator
ASTER Dataset	PC4	Iron oxide/hydroxide minerals	Linear	Gamma (γ = 0.6)
	PC5	OH/S-O/CO3-bearing minerals
	PC8	Dolomite
WorldView-3 Dataset	PC3	All iron oxides	Linear	AND
	PC4	Dolomite/Fe2+ oxides
	PC6	Fe3+ oxides

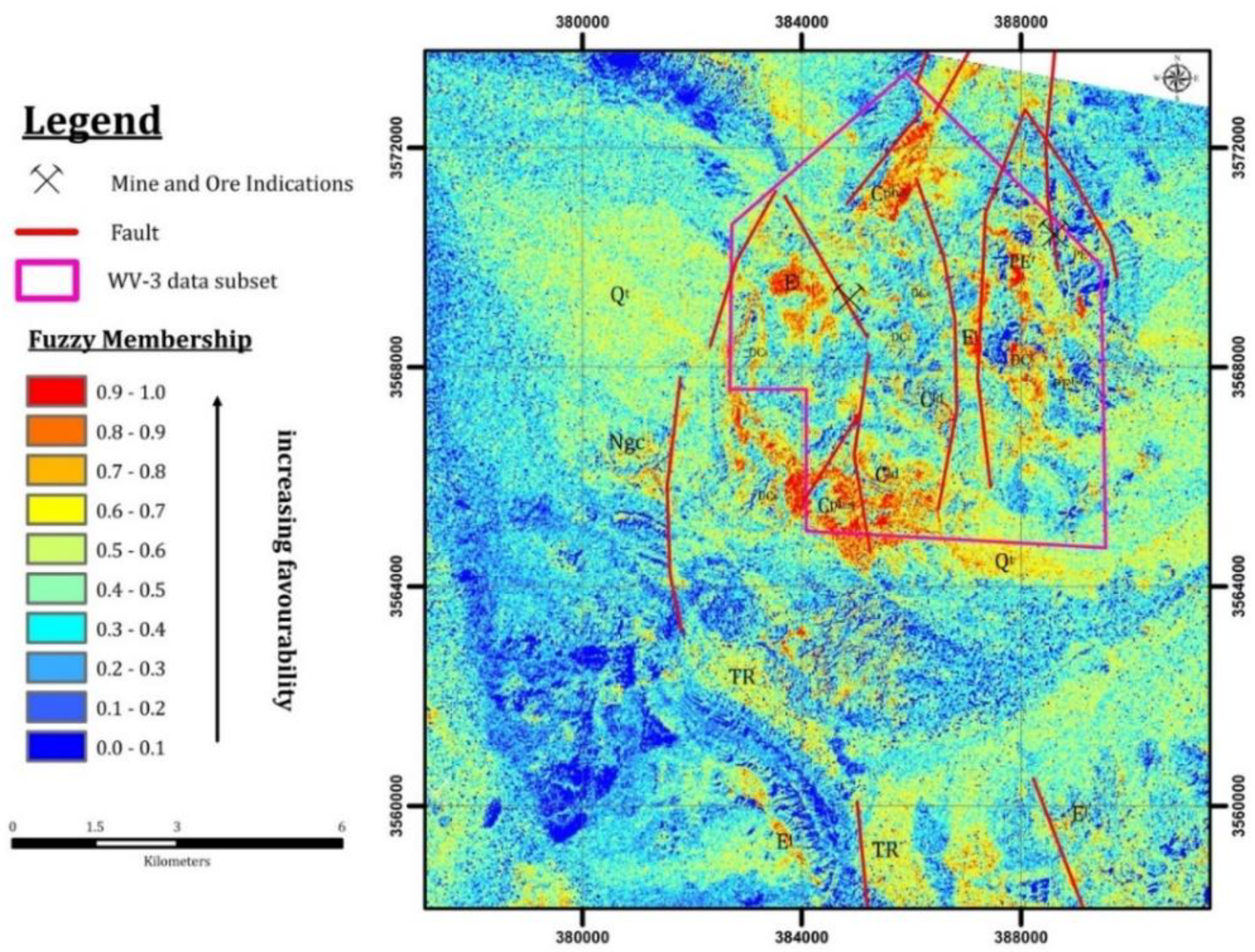

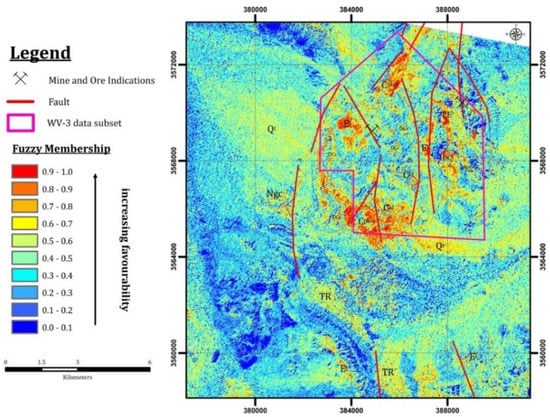

). The alteration thematic layers of ASTER were integrated using the fuzzy gamma operator (γ = 0.6) (Table 2). The ASTER prospectivity map shows the high value (0.7 to 1.0) of the favorability index as prospective zones (Figure 2). However, the highest value (0.9 to 1.0) of the favorability index can be considered as the high prospective zones for Pb-Zn mineralizations, which overlap with documented Pb-Zn occurrences alongside fault systems (Figure 2).

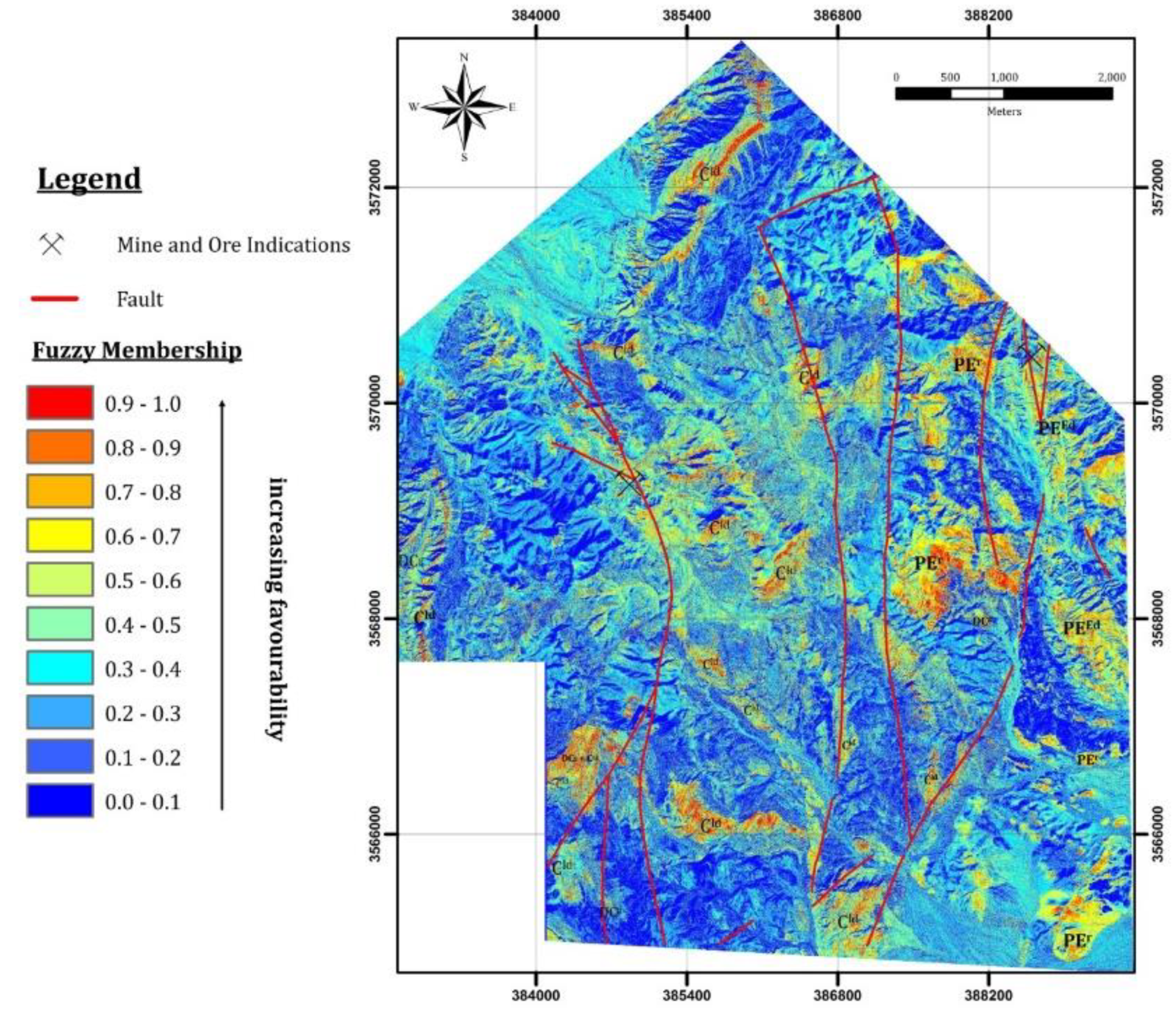

Figure 3 shows the prospectivity map derived from the alteration thematic layers of WV-3 data. The fuzzy AND operator was implemented to fuse the selected alteration thematic layers (Table 2). The highest value (0.8 to 1.0) of the favorability index was obtained for few parts, and a high value (0.6 to 0.9) of the favorability index was obtained in some parts of the study area. The Pb-Zn mineralization zones contain a high favorability index value (0.6 to 1.0) and also connect to fault systems at the local scale (Figure 3). Accordingly, the most favorable/prospective zones for Pb-Zn mineralization in the study area are in fault contact zones with impermeable lithological units.

Argillic alteration, sericitic zones, iron oxides, and dolomitization were during fieldwork. Several surface expressions of hematite, malachite, pyrite, galena, and sphalerite were observed. The surface expression of Pb-Zn mineralization was typically detected in the fault contact of dolomite with other lithological units in several parts of the study area. The XRD analysis revealed the presence of quartz, dolomite, calcite, muscovite, chlorite, gypsum, albite, illite, jarosite, and malachite. The ASD analysis for shale, gypsum, dolomite, and calcite was measured, and shows some typical absorption features about 1.40 μm attributed to OH/H₂O stretching, 1.90 μm related to H₂O stretching, 2.20 μm due to the combination of the OH-stretching fundamental with Al-OH bending mode (Al-rich phyllosilicates). The absorption feature near 2.20 μm is related to the S-O bending mode and there are absorption features related to Fe²⁺ at 0.9 to 1.2 μm and CO₃ at 2.35 μm.
