Proceeding Paper

Comparative Morphology of the Leaf Epidermis in Four Species of Meliaceae L. Family †

by
Adejoke O. Akinyele
*,
Adeola Grace Fabowale
and
Alfred Ossai Onefeli
Department of Forest Production and Products, University of Ibadan, Ibadan 200213, Nigeria
*
Author to whom correspondence should be addressed.
Presented at the 1st International Electronic Conference on Forests—Forests for a Better Future: Sus-tainability, Innovation, Interdisciplinarity, 15–30 November 2020; Available online: https://iecf2020.sciforum.net.
Environ. Sci. Proc. 2021, 3(1), 73; https://doi.org/10.3390/IECF2020-08032
Published: 12 November 2020

Abstract

:
Meliaceae is a family of woody species that is very useful for timber and ethnomedicine in Nigeria. However, there is scarce information on their taxonomic description, which is important in realizing their full potentials. Existing floristic studies on members of Meliaceae have revealed overlap in key morphological characters like number of lateral nerves, shape, size and number of leaflets. Aside from the floral and fruit characters, the use of leaf epidermal characters has proven to be gene-dependent and as such provides stable and less expensive grouping compared to the molecular methods. This study investigated the leaf epidermal and petiole anatomical significance in four species of Melieceae; Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola for taxa delimitation. The choice of leaf for this study is based on their regular availability unlike the flowers, which are seasonal. Plant materials of the species were collected from University of Ibadan, Forest Research Institute of Nigeria and National Center for Genetic Research and Biotechnology in south western Nigeria based on availability. Leaf samples were examined under the microscope for epidermal and petiole anatomical characteristics. Characters such as epidermal cell shape, epidermal cell wall pattern, trichome type and stomata abundance were differentiated in the four species. Petiole anatomical characteristics for delimiting the taxa include cuticle thickness, presence or absence of crystal, crystal type and vascular bundles arrangement. The analyzed characters produced two major clusters: cluster 1: Khaya senegalensis and Khaya grandifoliola; cluster 2: Azadiracta indica and Cederella odorata. Azadiracta indica and Cederella odorata are more closely related species than Khaya senegalensis and Khaya grandifoliola. The affinity of the studied characters is an evidence of their correlation and supports the relationship existing among the species. These characters support delimitation of the taxa even in fragment condition.

1. Introduction

The mahogany family (Meliaceae) is an average-sized angiosperm family of the order Sapindales found in the tropical part of the world. This family is made up of more than fifty genera having about 1400 species [1]. They are distributed both in the tropics and subtropics. Species of the family are popularly known for their high-quality timbers, traded as “mahogany”. The Meliaceae family exhibits great morphological variability. Much confusion has been noted in the systematics of this family with regards to the taxonomy demonstrated by inconsistency regarding the correct name and specific epithet. Furthermore, the species delimitations within the genus are complex and these pose a huge task in plant systematics [2]. Morphological diversity is partitioned differently among these species according to various authors. A researcher [3] published the treatment for the genus complexity and took a conservative approach, recognizing one highly variable species which encompasses the diversity represented by both the domesticated one and its closest relatives [3]. However, [3] acknowledged that the material examined was inadequate and mostly sterile, and suggested that further detailed studies were necessary. Literature search has demonstrated that there are gaps and not much research has been conducted on the taxonomic properties of four species of Melieceae namely Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola, especially in the area of their anatomical properties.
The Meliaceae family has lower diversity in tropical Africa (102 species) compared with tropical Asia (303 species) or the Neotropics (189 species). Many species of this family are used in traditional medicine for the treatment of various diseases and also in pest control [4,5]. Correct identification of species is very important as several morphological characteristics are species-specific. It is not enough to know which plant cures an ailment; it is more important to be able to identify the plant. Current thinking among taxonomists is that morphometric analysis is more sensitive in delimiting taxa and that they provide better keys and classification systems in comparison to the conventional taxonomic methods. The quality of convention taxonomy is improved by numerical taxonomy as more and better characters are used in the latter [6].
Aside from the molecular markers that give a relatively stable plant grouping regardless of the environmental vagaries, leaf epidermis is one of the important taxonomic characters that have been used severally in providing a solution to taxa identification problems [7]. It was lately discovered to be gene-dependent; hence, taxonomic delimitation without leaf epidermal traits is now considered incomplete. Therefore, the choice of leaf for this study was based on their regular availability unlike the flowers, which are seasonal.
In view of the complex taxonomic status in the family Meliaceae and the difficulty in identifying members of the genus morphologically, this study was carried out to describe the leaf and petiole anatomy of four species of the genus to provide useful additional information for the delimitation, subsequent identification and the taxonomy of the genus with respect to the characters viz, nature of epidermis, the thickness of upper and lower cuticle, number of layers of palisade mesophyll cells in the pith, type of vascular bundles, occurrence of cortical and pericyclic fiber, etc.

2. Materials and Method

Plant materials of Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola were collected from the lower branch portion of the tree canopies in University of Ibadan (UI), Forest Research Institute of Nigeria (FRIN) and National Center for Genetic Research and Biotechnology (NACGRAB) in southwestern Nigeria based on availability. The taxonomic study was based on description, identification and classification of the species using their epidermal morphology, leaf transverse section (TS) morphology and petiole TS morphology. The leaf epidermal analysis study was carried out in the Department of Forest Production and Products laboratory, Faculty of Renewable Natural Resources, University of Ibadan while the anatomical studies of the leaves and petioles transverse sections were carried out at the wood anatomy laboratory of the Forest Research Institute of Nigeria (FRIN), Jericho, Ibadan, Oyo state.
Ten leaf samples per tree and ten petiole samples per tree were collected from two trees per species in each of the study areas. The collected samples were then preserved in a fixative of 50% ethanol [8]. The TS of leaf and petiole of each plant were cut at 10-micron thickness using a rotary microtome (Reichert, Vienna, Austria). These were prepared for further analysis and stained following the procedures of [8]
Microscopic observations of each slide were made and recorded. Photomicrographs of the slides were made using an ACCU-scope trinocular microscope (ACCU-scope 3001 LED Trinocular microscope with 3.2 MP CMOS digital camera attachment). Tissues and cell identification of the Meliaceae species were done according to IAWA hardwood features list, definition and illustration [9]. Tissues and cell identification and description of leaf and petiole were done according to [10] Characters like epidermal cell shape, epidermal cell wall pattern, trichome type and stomatal abundance were differentiated in the four species. Petiole anatomical characteristics for delimiting the taxa include cuticle thickness, presence or absence of crystal, crystal type and vascular bundles arrangement. Data were subjected to descriptive statistics, Analysis of variance (ANOVA), principal component analysis (PCA) and phylogenetic analysis. The PCA was used to identify the most important traits that contributed best to the possible variations using the corresponding factor loadings within the species while the phylogenetic analysis was used to produce a phylogenetic tree based on various characters using Treecon version 1.3b.

3. Results

3.1. Leaf Epidermal Characteristics of All the Species

The epidermal peels of Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola were largely characterized by the presence of stomata on both the adaxial and abaxial surface in all the species, i.e., amphistomatic, although the stomata were more abundant on the abaxial layer and fewer on than the adaxial layer. The cell wall alignment is anticlinal in Azadiracta indica and Cederella odorata and periclinal in both Khaya senegalensis and Khaya grandifoliola. The stomatal type is anomocytic in Azadiracta indica, Actinocyticin in Cederella odorata and Staurocytic in both Khaya senegalensis and Khaya grandifoliola. The epidermal cell shapes were mainly irregular for all locations of Azadiracta indica and Khaya senegalensis from NACGRAB and irregular for all locations of Cederella odorata, Khaya grandifoliola and Khaya senegalensis from FRIN and University of Ibadan. Filiform and sterllate trichomes were observed in all the epidermal peels of Azadiracta indica collected from all the three locations. For Khaya grandifoliola, Filiform and falcate trichomes were present in the species collected from FRIN and NACGRAB but absent in the species collected from UI. Druses and prismatic crystals were present in all the locations for all the species.

3.1.1. Between Species Leaf Epidermal Morphology Variation

Table 1 shows that the abaxial epidermal characteristics of all the species were significantly different (p < 0.05) but those of the adaxial layer are not (p > 0.05). For the abaxial layer, the species with the highest number of stomata per microscopic field of view was Khaya senegalensis (44), while Khaya grandifoliola had the least (33). Khaya grandifoliola had the highest (88) epidermal cell count, while Cederella odorata was the least (63). Highest stomata index (39.31) was reported in Cederella odorata while Khaya grandifoliola had the least (27.76). In the adaxial layer, Azadiracta indica had the highest number of stomata (18), while Khaya grandifoliola had the least (10). In addition, for epidermal cell count, Khaya grandifoliola had the highest (91) and Azadiracta indica had the least (83). Azadiracta indica had the highest stomatal index (17.28) while Khaya grandifoliola had the least (10.12).

3.1.2. Between Location Leaf Epidermal Morphology Variation

Table 2 reveals that there was no significant difference within each species from different operational taxonomic units (OTUs) (p > 0.05) except for the stomata index of the abaxial layer of Azadiracta indica, number of epidermal cells for the abaxial layer of Cederella odorata and Khaya senegalensis, and the number of stomata (NS) and the number of epidermal cells (NEC) for the abaxial layer of Khaya grandifoliola. For the abaxial layer of Azadiracta indica, NACGRAB OTU had the highest number of stomata per field of view (49), while UI OTU had the least (33). FRIN OTU had the highest number of epidermal cells (75), while UI OTU had the least (64). NACGRAB OTU had the highest stomatal index (42.97), while FRIN OTU had the least (31.71). For Cederella odorata, UI OTU had the highest number of stomata per field of view (43), while FRIN OTU had the least (36). NACGRAB OTU had the highest number of epidermal cells per field of view (77), while FRIN OTU had the least (52). UI OTU had the highest stomatal index (45.11), while NACGRAB OTU had the least (34.13). For Khaya senegalensis, UI OTU had the highest number of stomata per field of view (49), while FRIN OTU had the least (36). FRIN OTU had the highest number of epidermal cells per field of view (99), while NACGRAB OTU had the least (66). UI OTU had the highest stomatal index (42.22), while FRIN OTU had the least (25.53). For Khaya grandifoliola, NACGRAB OTU had the highest number of stomata per field of view (43), while FRIN OTU had the least (20). UI OTU had the highest number of epidermal cells per field of view (97), while FRIN OTU had the least (78). NACGRAB OTU had the highest stomatal index (33.07), while FRIN OTU had the least (23.23).

3.2. Principal Component Analysis of the Leaf Epidermal Characteristics

Figure 1 showed the scree plot for principal component analysis of Khaya grandifoliola, K. senegalensis, Azadiracta indica and Cederella odorata using leaf epidermal taxonomic characters from different operational taxonomic units (OTUs). The plot flattened out at the third principal component, therefore only the first and second are retained for the taxonomic delimitation of the species. Approximately 52% of the total variation in the characters was observed in the first principal component having about 0.571742 Eigenvalue and approximately 36% of the total variation was observed in the second principal component having 0.397588 Eigenvalue (Table 3). Of all the epidermal characters subjected to principal component analysis, only the epidermal cell shape, epidermal cell wall pattern, trichome type, and stomatal abundance with 0.45016, 0.47407, 0.72354 and 0.31068 loadings, respectively, are significant for the delimitation of the tree species (Table 3). Figure 2a, derived from the PCA, separated the species into different groups, with some located close to each other.

3.2.1. Principal Component Analysis of the Leaf Transverse Sections

Figure 1b shows the scree plot for principal component analysis of Khaya grandifoliola, Khaya senegalensis, Azadiracta indica and Cederella odorata using leaf transverse section taxonomic characters from. The plot did not flatten out at all, only the first and second principal components are retained for the taxonomic delimitation of the species. Approximately 54% of the total variation in the characters is observed in the first principal component having about 1.57647 eigenvalue and approximately 40% of the total variation was observed in the second principal component having 1.14543 eigenvalue (Table 4). Of all the leaf TS characters subjected to principal component analysis, only the epidermal layer form, cuticle thickness, epidermal layer thickness, mesophyll organization, shape of xylem, presence or absence of trichome and trichome type with 0.24793, 0.39352, 0.67081, 0.31746, 0.44013, 0.2614 and 0.36595 loadings, respectively, are significant for the delimitation of the tree species (Table 4; Figure 2b) derived from the PCA separated the species into different groups with some located close to each other.

3.2.2. Principal Component Analysis of the Petiole Transverse Sections

Figure 1c indicated the scree plot for principal component analysis of Khaya grandifoliola, K. senegalensis, Azadiracta indica and Cederella odorata using petiole transverse section taxonomic characters. The plot did not flatten out at all, only the first and second are retained for the taxonomic delimitation of the species. Approximately 52% of the total variation in the characters is observed in the first principal component having about 0.84091 eigenvalue and approximately 37% of the total variation was observed in the second principal component having 0.59901 eigenvalue (Table 5). Of all the petiole TS characters subjected to principal component analysis, only the cuticle thickness, epidermal layer, presence or absence of crystals, crystal type and vascular bundles arrangement with 0.46974, 0.37399, 0.39017, 0.55663 and 0.3063 loadings, respectively, are significant for the delimitation of the tree species (Table 5). The scatter plot (Figure 2c) derived from the PCA separated the species into different groups with some located close to each other.

3.3. Phylogenetic Analysis of the Studied Species

The phylogenetic tree (Figure 3) produced two major clusters. The first cluster consists of Khaya senegalensis and Khaya grandifoliola while the second cluster consists of Azadiracta indica and Cederella odorata. According to the phylogenetic tree, the most closely related species of meliaceae considered in this study are Azadiracta indica and Cederella odorata, which formed a paraphyletic group with 87% branch support. Khaya senegalensis and Khaya grandifoliola also shared a common ancestor having branch support of 83%. For Azadiracta indica, the phylogenetic tree reveals that OTU of NACGRAB is 100% supported to UI and FRIN OTUs as a monophyletic group. However, UI and FRIN OTUs are more closely related compared to NACGRAB. For Cederella odorata, the phylogenetic tree reveals that l the OTUs of UI and NACGRAB OTU are more closely related with 99% branch support to OTU of FRIN. Among the OTUs of Khaya senegalensis, UI was found to be closely related to FRIN, which is distantly related to NACGRAB at 73% branch support. Khaya grandifoliola of FRIN OTU had branch support of 100% with NACGRAB OTU and are more closely related compared to UI OTU.

4. Discussion and Conclusions

The leaf epidermal morphology of the collected species was assessed in terms of their overall aspect such as the stomata morphology, trichome morphology, anticlinal/periclinal wall pattern and crystal structures. The principal component analysis revealed that the valuable epidermal characters that can be used for differentiating the species are the epidermal cell shape, epidermal cell wall pattern, trichome type and stomata abundance. These can be used to distinctly separate the taxa under study. This agrees with the findings of [11] who used the presence or absence of trichomes to separate the general Senna and Chamaecrista from their initial genus. They, therefore, affirmed that the trichomes of different types, sizes and numbers are therefore good diagnostic features for taxonomic studies. Ref. [12] discovered that variation in leaf epidermal cell size, shape and thickness form the premise for the taxonomic position of some angiosperm families. Furthermore, [13] revealed that the combination of leaf epidermal data and stomatal data can further give information concerning species identification.
For the anatomical study of the leaf transverse sections, the principal component analysis revealed that the best descriptors that can be used for easy and correct identification are epidermal layer, cuticle thickness, epidermal layer thickness, Mesophyll organization, shape of xylem, presence or absence of trichome and trichome type. These characters are diagnostic and can be used in separating the species. Furthermore, the Petiole anatomical characteristics that are best for delimiting the taxa as revealed by the principal component analysis are the; cuticle thickness, epidermal layer thickness, Crystal presence or absence, crystal type and vascular bundles arrangement. The repetition of characters, such as cuticle thickness and epidermal layer thickness, that were listed among the valuable characters for the Leaf TS affirms their strength in delimiting the taxa. The macro morphological characters that are of taxonomic importance are the stem color, leaf type, leaf shape, leaf margin, leaf base, leaf adaxial surface, leaf abaxial surface, petiole shape and leaf texture.
The techniques that were used in this work, i.e., principal component analysis is the most common tool used in numerical taxonomy. Ref. [14] used this technique in analyzing quantitative data gotten from 31 species of Ficus their result revealed the hierarchical classification and visual interpretation of the taxonomic relationships between the thirty-one Ficus species and also sub-sectional discrepancies (discrete differences) in the existing traditional classification of the genera. Ref. [15] also utilized these techniques in the phytochemical and morphometric analysis of the genus Acalypha. The results obtained from these techniques are often regarded as unbiased indicators of the similarities and/or differences existing among the taxa.
The finding obtained from the phylogenetic analysis of this family supported and served as epidermal basis for molecular classification of the taxa. This is occasioned by the fact that the genus Cedrella, which shares the same subfamily Swietenioideae with Khaya, formed a paraphyletic group with Azadirachta that belongs to the subfamily melioideae. According to [4], which studied the molecular phylogenetics of meliaceae using nuclear and plastid DNA sequences, the subfamily Swietenioideae exhibited paraphyly, while Melioideae formed a monophyletic group. The monophyletic grouping of Azadirachta indica achieved from this study also agrees with the finding of [8]. The high branch support recorded from the phylogenetic analysis is a confirmation of the fact that epidermal markers are of taxonomic significance in the family Meliaceae. These characters, therefore, support the delimitation of the taxa even in fragment condition.

Author Contributions

Conceptualization, A.O.A.; A.O.O. and A.G.F.; Methodology, A.O.A.; A.O.O. and A.G.F. Analysis, A.O.A.; A.O.O. and A.G.F. Original draft preparation, A.O.A.; Writing—review and editing, A.O.A. and A.O.O.; Supervision, A.O.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors appreciate the contributions and support of Forestry Research Institute (FRIN), National Center for Genetic Research and Biotechnology (NACGRAB) and University of Ibadan, Nigeria.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nakatani, M.; Abdelgaeil, S.A.M.; Kurawaki, J.; Okamura, H.; Iwagawa, T.; Doe, M. Antifeedant rings B and D opened limonoids from Khaya senegalensis. J. Nat. Prod. 2001, 65, 1261–1265. [Google Scholar] [CrossRef]
  2. Zerega, N.J.C.; Ragone, D.; Motley, T.J. Systematics and species limits. Syst. Bot. 2005, 30, 603–615. [Google Scholar] [CrossRef]
  3. Jarrett, F.M. Studies in allied genera, III. A revision of subgenus. J. Arnold Arbor. 1959, 40, 113–155. [Google Scholar] [CrossRef]
  4. Muellner, A.N.; Samuel, S.; Johnson, S.A.; Cheek, M.; Pennington, T.D.; Chase, M.W. Molecular phylogenetics of meliaceae (sapindales) based on nuclear and plastid DNA sequences. Am. J. Bot. 2003, 90, 471–480. [Google Scholar] [CrossRef]
  5. Muellner, A.N.; Savolainen, V.; Samuel, R.; Chase, M.W. The mahogany family “out-of-Africa”: Divergence time estimation, global biogeographic patterns inferred from plastid rbcL DNA sequences, extant, and fossil distribution of diversity. Mol. Phylogenetics Evol. 2006, 40, 236–250. [Google Scholar] [CrossRef] [PubMed]
  6. Feng, J.; Shulian, X. Numerical taxonomy of species in the Genus Mallomonas (Chrysophyta) from China. ISRN Biodivers. 2013, 2013, 653958. [Google Scholar] [CrossRef]
  7. Rejdali, F.L.S. Leaf micromorphology and taxonomy of North African species of Sideritis L. (Lamiaceae). Bot. J. Linn. Soc. 1991, 107, 67–77. [Google Scholar] [CrossRef]
  8. Akinloye, A.J.; Borokini, T.I.; Adeniji, K.A.; Akinnubi, F.M. Comparative anatomical studies of Artocarpusaltilis (Parkinson) Fosberg and Artocarpuscommunis (J. R. & G. Forster) in Nigeria. Sci. Cold Arid Reg. 2015, 7, 0709–0721. [Google Scholar] [CrossRef]
  9. International Association of Wood Anatomists. List of Microcopie Features for Hardwood Identification. Int. Assoc. Wood Anat. 1989, 10, 219–332. [Google Scholar]
  10. Metcalfe, C.R.; Chalk, L. Anatomy of the Dicotyledons, 2nd ed.; Clarendon Press: Oxford, UK, 1989; Volume II, pp. 98–116. [Google Scholar]
  11. Saheed, A.; Illoh, H.C. A Taxonomic Study of some Species in Cassiinae (Leguminosae) using Leaf Epidermal Characters. Not. Bot. Horti Agrobot. Cluj-Napoca 2010, 38, 21–27. [Google Scholar]
  12. Jones, J.H. Evolution of the Fagaceae: The Implications of Foliar Features. Ann. Mo. Bot. Gard. 1986, 73, 228–275. [Google Scholar] [CrossRef]
  13. Da Silva, N.R.; da Silva Oliveira, M.W.; de Almeida Filho, H.A.; Pinheiro, L.F.S.; Rossatto, D.R.; Kolb, R.M.; Bruno, O.M. Leaf epidermis images for robust identification of plants. Sci. Rep. 2016, 6, 25994. [Google Scholar] [CrossRef] [PubMed]
  14. Sonibare, M.A.; Jayeola, A.A.; Egunyomi, A. A morphometric analysis of the genus Ficus Linn. (Moraceae). Afr. J. Biotechnol. 2004, 3, 229–235. [Google Scholar]
  15. Soladoye, M.O.; Amusa, N.A.; Raji-Esan, S.O.; Taiwo, A.A. Ethnobotanical survey of anticancer plants in Ogun state, Nigeria. Ann. Biol. Res. 2010, 1, 261–273. [Google Scholar]

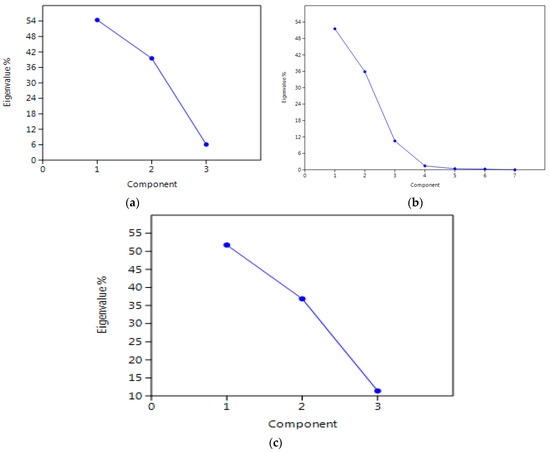

Figure 1. Scree plot for principal component analysis for Azadiracta indica, Cederella odorata, Khaya senegalensis, Khaya grandifoliola from different taxonomic units using (a) Leaf Epidermal characters (b) Leaf transverse section characters (c) Petiole transverse section characters.
Figure 1. Scree plot for principal component analysis for Azadiracta indica, Cederella odorata, Khaya senegalensis, Khaya grandifoliola from different taxonomic units using (a) Leaf Epidermal characters (b) Leaf transverse section characters (c) Petiole transverse section characters.
Environsciproc 03 00073 g001

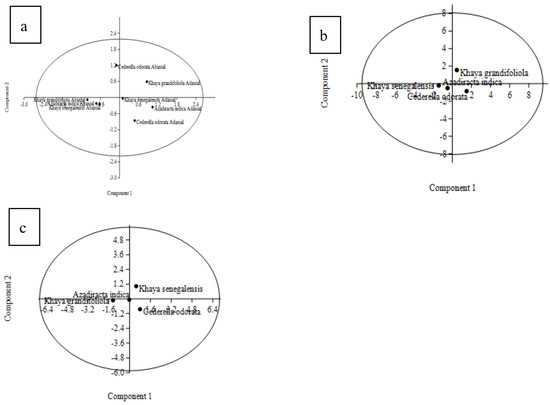

Figure 2. Scatter plot for Azadiracta indica, Cederella odorata, Khaya senegalensis, Khaya grandifoliola from different taxonomic units using (a) Leaf Epidermal characters (b) Leaf transverse section characters (c) Petiole transverse section characters.
Figure 2. Scatter plot for Azadiracta indica, Cederella odorata, Khaya senegalensis, Khaya grandifoliola from different taxonomic units using (a) Leaf Epidermal characters (b) Leaf transverse section characters (c) Petiole transverse section characters.
Environsciproc 03 00073 g002

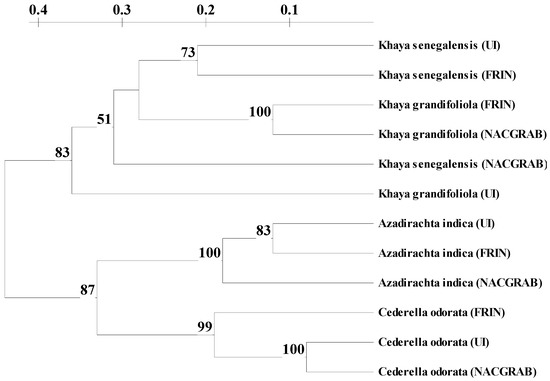

Figure 3. Phylogenetic tree produced based on the overall characters (i.e., Adaxial leaf epidermal characters, Abaxial leaf epidermal characters, Morphology of petiole transverse section, Morphology of leaf transverse section).
Figure 3. Phylogenetic tree produced based on the overall characters (i.e., Adaxial leaf epidermal characters, Abaxial leaf epidermal characters, Morphology of petiole transverse section, Morphology of leaf transverse section).
Environsciproc 03 00073 g003
Table 1. Abaxial and adaxial epidermal characteristics of Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola.
Table 1. Abaxial and adaxial epidermal characteristics of Azadiracta indica, Cederella odorata, Khaya sensegalensis and K. grandifoliola.
SpeciesNSABNECABSIABNSADNECADSIAD
Azadiracta indica38.25 ± 8.79ab70.17 ± 8.23ab34.64 ± 5.61a17.58 ± 14.99a82.75 ± 16.43a17.28 ± 13.08a
Cederella odorata40.08 ± 6.96ab63.25 ± 12.41a39.31 ± 6.25b12 ± 5.44a84.17 ± 7.30a12.44 ± 5.61a
Khaya senegalensis43.83 ± 9.24b77.92 ± 12.91bc36.38 ± 8.41b13 ± 6.31a87.66 ± 6.75a12.74 ± 6.01a
Khaya grandifoliola32.58 ± 10.99a88.25 ± 8.98c27.76 ± 6.61b10.25 ± 5.92a90.83 ± 7.32a10.12 ± 5.97a
p-value0.033 *0.000 *0.001 *0.247 ns0.228 ns0.21 ns
Note: Means bearing the same letter along the same column are not significantly different from each other. * = significant at 5% probability level; ns = not significant at 5% probability level; NSAB = number of stomata on the leaf abaxial layer; NECAB = number of epidermal cell per view on the abaxial layer; SIAB = stomata index for the abaxial layer; NSAD number of stomata on the leaf adaxial layer; NECAD = number of epidermal cells per view on the adaxial layer; SIAD = stomata index for the adaxial layer.
Table 2. Leaf epidermal characters of different operational taxonomic units (OTU).
Table 2. Leaf epidermal characters of different operational taxonomic units (OTU).
OTUsNSABNECABSIABNSADNECADSIAD
Azadiracta indicaFRIN36.50 ± 2.12a75.00 ± 2.82a31.71 ± 1.14a8.50 ± 2.12a98.50 ± 10.60a7.68 ± 2.42a
UI33.00 ± 9.89a64.40 ± 14.84a33.40 ± 1.27a13.5 ± 10.6a72.50 ± 26.16a16.92 ± 15.67a
NACGRAB49.00 ± 2.82a65.00 ± 0.00a42.97 ± 1.42b31.50 ± 19.09a79.50 ± 3.53a27.44 ± 13.36a
p-value0.149 ns0.488 ns0.006 *0.303 ns0.384 ns0.379 ns
Cederella odorataFRIN36.00 ± 9.89a51.50 ± 0.71a40.78 ± 7.04a8.50 ± 7.78a86.50 ± 3.54a8.46 ± 7.08a
UI43.00 ± 7.07a52.00 ± 0.00a45.11 ± 4.09a16.00 ± 2.83a84.50 ± 3.54a15.86 ± 1.81a
NACGRAB39.50 ± 3.54a76.50 ± 7.78b34.13 ± 4.30a10.50 ± 2.12a83.83 ± 2.12a11.17 ± 2.26a
p-value0.671 ns0.018 *0.262 ns0.405 ns0.662 ns0.365 ns
Khaya senegalensisFRIN36.00 ± 15.56a99.00 ± 2.83b25.53 ± 8.04a5.50 ± 4.95a85.50 ± 2.12a5.97 ± 5.23a
UI48.50 ± 4.95a71.00 ± 4.24a42.55 ± 6.68a17.50 ± 0.71a88.50 ± 9.19a16.55 ± 0.88a
NACGRAB46.50 ± 6.36a66.00 ± 2.83a41.27 ± 4.36a18.50 ± 6.36a79.00 ± 5.66a18.95 ± 6.39a
p-value0.500 ns0.004 *0.135 ns0.116 ns0.421 ns0.137 ns
Khaya grandifoliolaFRIN20.00 ± 1.42a77.50 ± 3.54a23.23 ± 4.27a5.50 ± 2.12a89.50 ± 3.54a5.81 ± 2.32a
UI38.00 ± 0.00b96.50 ± 3.34b28.27 ± 0.74a9.50 ± 2.12a97.50 ± 0.71a8.87 ± 1.87a
NACGRAB42.50 ± 2.12b86.67 ± 1.41ab33.07 ± 1.47a12.50 ± 7.78a90.50 ± 2.12a11.95 ± 6.89a
p-value0.001 *0.018 *0.075 ns0.447 ns0.81 ns0.464 ns
Note: Means bearing the same letter along the same column are not significantly different from each other. * = significant at 5% probability level, ns = not significant at 5% probability level; NSAB = number of stomata on the leaf abaxial layer, NECAB = number of epidermal cell per view on the abaxial layer; SIAB = stomata index for the abaxial layer; NSAD number of stomata on the leaf adaxial layer; NECAD = number of epidermal cell per view on the abaxial layer; SIAD = stomata index for the abaxial layer.
Table 3. Eigenvalue, Percentage variance and Loadings for the principal components from the leaf epidermal section characters of all the species in all locations.
Table 3. Eigenvalue, Percentage variance and Loadings for the principal components from the leaf epidermal section characters of all the species in all locations.
Principal Components
1234567
Eigenvalue0.5717420.3975880.1168780.0158420.004268010.002770544.52 × 10−17
% variance51.54935.84710.5381.42830.384810.249790.0040709
Character
Epidermal Cell Shape
0.450160.446180.38040.12363−0.12463−0.1258−0.6379
Epidermal Cell Wall Pattern0.474070.39280.25374−0.192130.311120.108640.64115
Cell Wall Alignment2.31 × 10−17−1.92 × 10−17−5.58 × 10−173.48 × 10−17−5.50 × 10−172.54 × 10−162.12 × 10−15
Trichome (P/A)0.074685−0.151560.0497680.797860.39666−0.397090.13183
Trichome Type−0.230690.72354−0.619970.10220.018223−0.166190.022597
Crystal Present/Absent−0.0009510.026288−0.140480.192440.51110.77589−0.28163
Crystal Type0.156760.054208−0.0348320.501−0.684560.41890.276
Stomata Abundance−0.699460.310680.618970.112860.0128850.0979080.092863
Table 4. Eigenvalue, percentage variance and loadings for the principal components from the leaf transverse section characters of all the species in all locations.
Table 4. Eigenvalue, percentage variance and loadings for the principal components from the leaf transverse section characters of all the species in all locations.
Principal Component
123
Eigenvalue1.576471.145430.176239
% variance54.39639.5236.0811
Characters
Epidermal Layer
−0.104610.247930.16735
Cuticle Thickness−0.205710.393520.7116
Epidermal layer Thickness0.67081−0.115890.1577
Mesophyll Type0.00182−0.21646−0.10331
Location of Crystals0.0017897−0.21647−0.10324
Mesophyll Organisation0.317460.68164−0.078538
Vascular Bundle Arrangement000
Shape of Xylem0.440130.29266−0.35685
Trichome Present/Absent0.2614−0.206520.31079
Trichome Type0.36595−0.289130.4351
Table 5. Eigenvalue, percentage variance and loadings for the principal components from the Petiole transverse section characters of all the species in all locations.
Table 5. Eigenvalue, percentage variance and loadings for the principal components from the Petiole transverse section characters of all the species in all locations.
Principal Component
123
Eigenvalue0.840910.599010.185047
% variance51.74936.86311.388
Characters
Cuticle Thickness−0.316570.469740.42581
Epidermal Layer−0.349870.373990.47895
Shape of Epidermal Cell1.45 × 10−161.80 × 10−17−1.53 × 10−16
PO−0.47056−0.42719−0.064372
Crystal Present/Absent0.39017−0.0340760.20595
Crystal Type0.556630.44464−0.059759
Vascular Bundles Arrangement0.3064−0.508060.73427
