5.1. Determination of Unsafe Slopes Using the Model and the Influence of Individual Variables

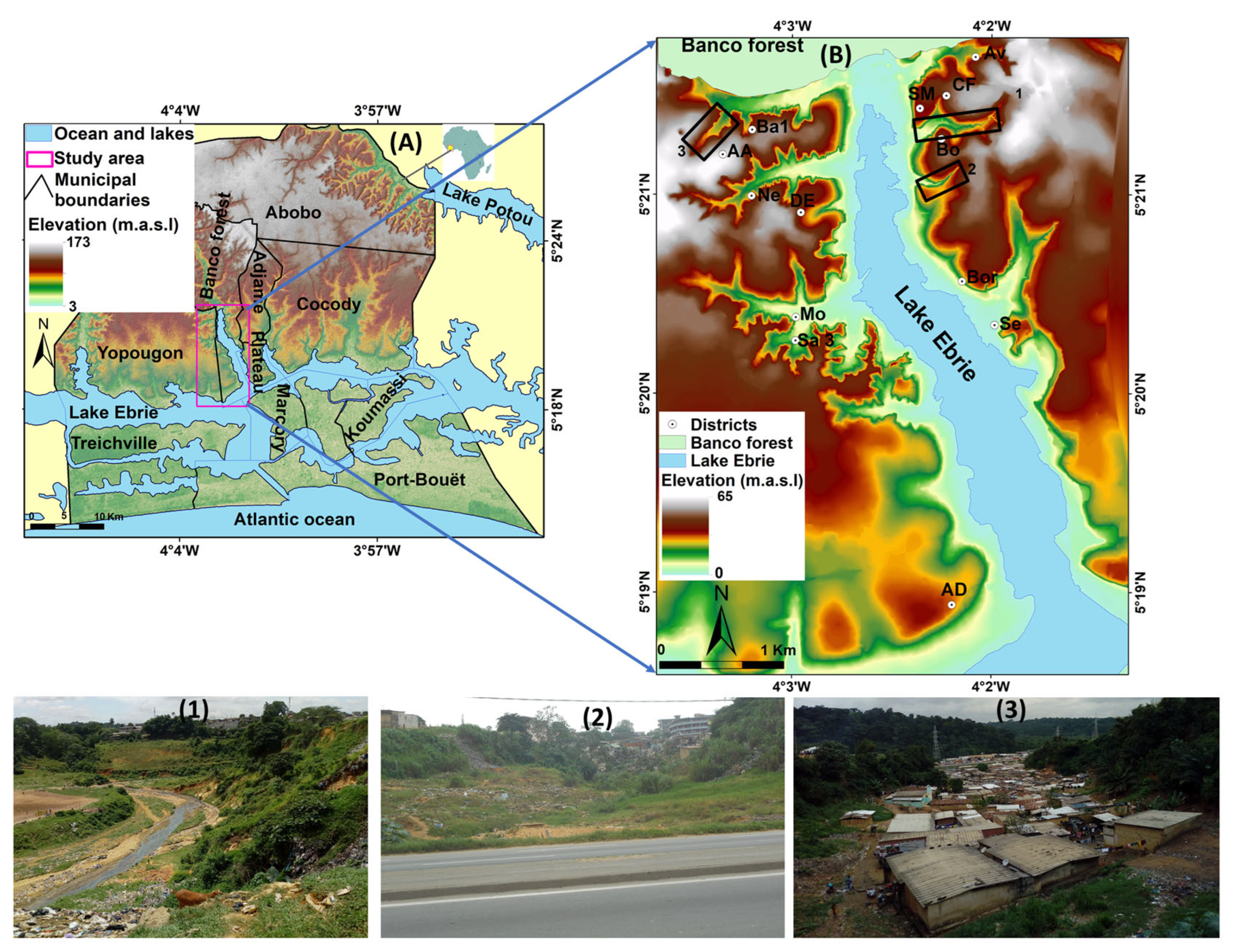

The study area, located in the central part of Greater Abidjan, is frequently subject to LSs. This study aims to fill the knowledge gap about LSs and to produce a LS susceptibility map for the study area. Some research has been conducted in this urbanized area [
22] focused on the impacts of meteorological conditions on slope classification. Marcel et al. [
23] have assessed the socio-economic impacts of LS occurrence. However, they did not assess the LS-driving variables or LS susceptibility.

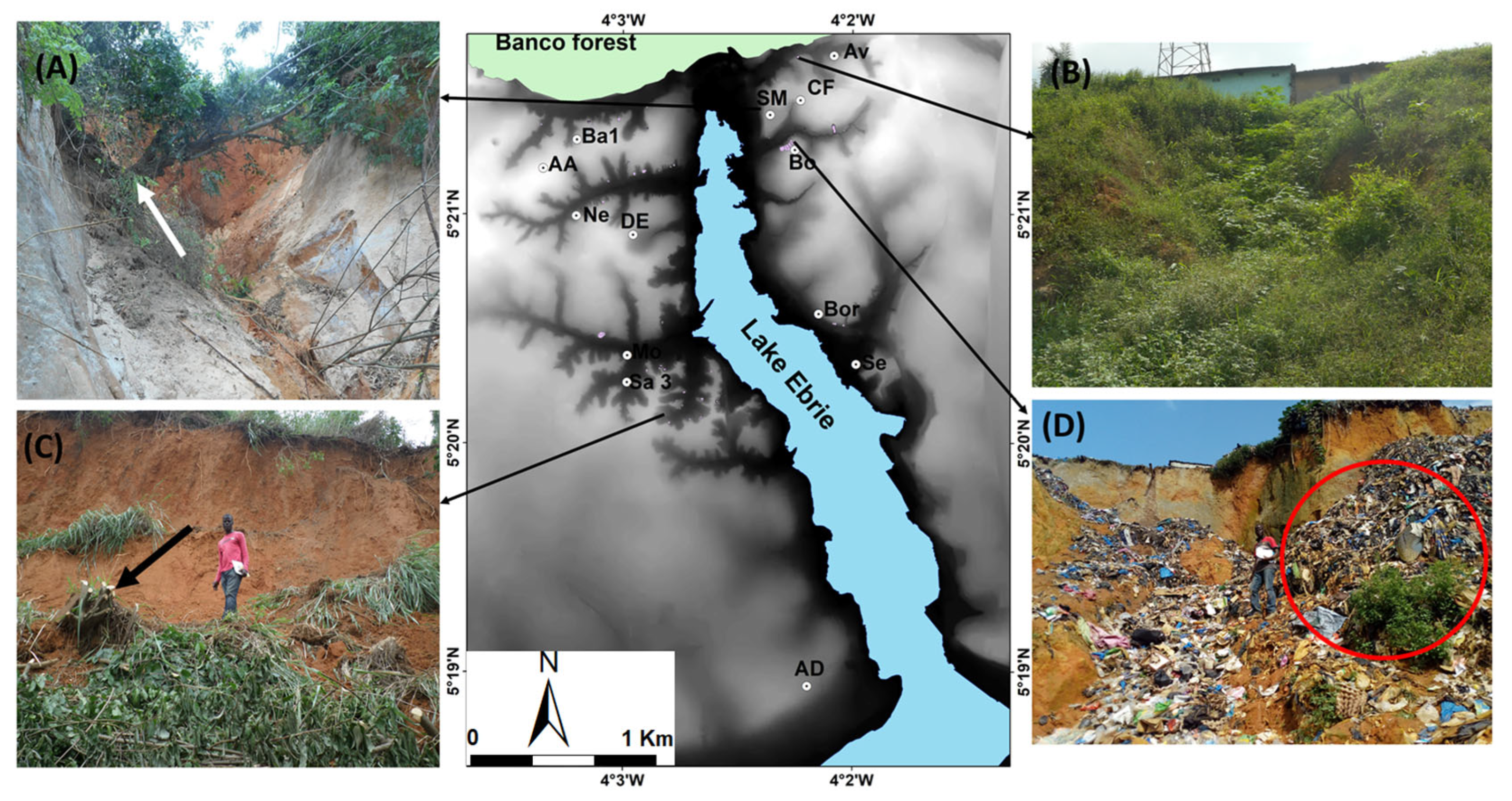

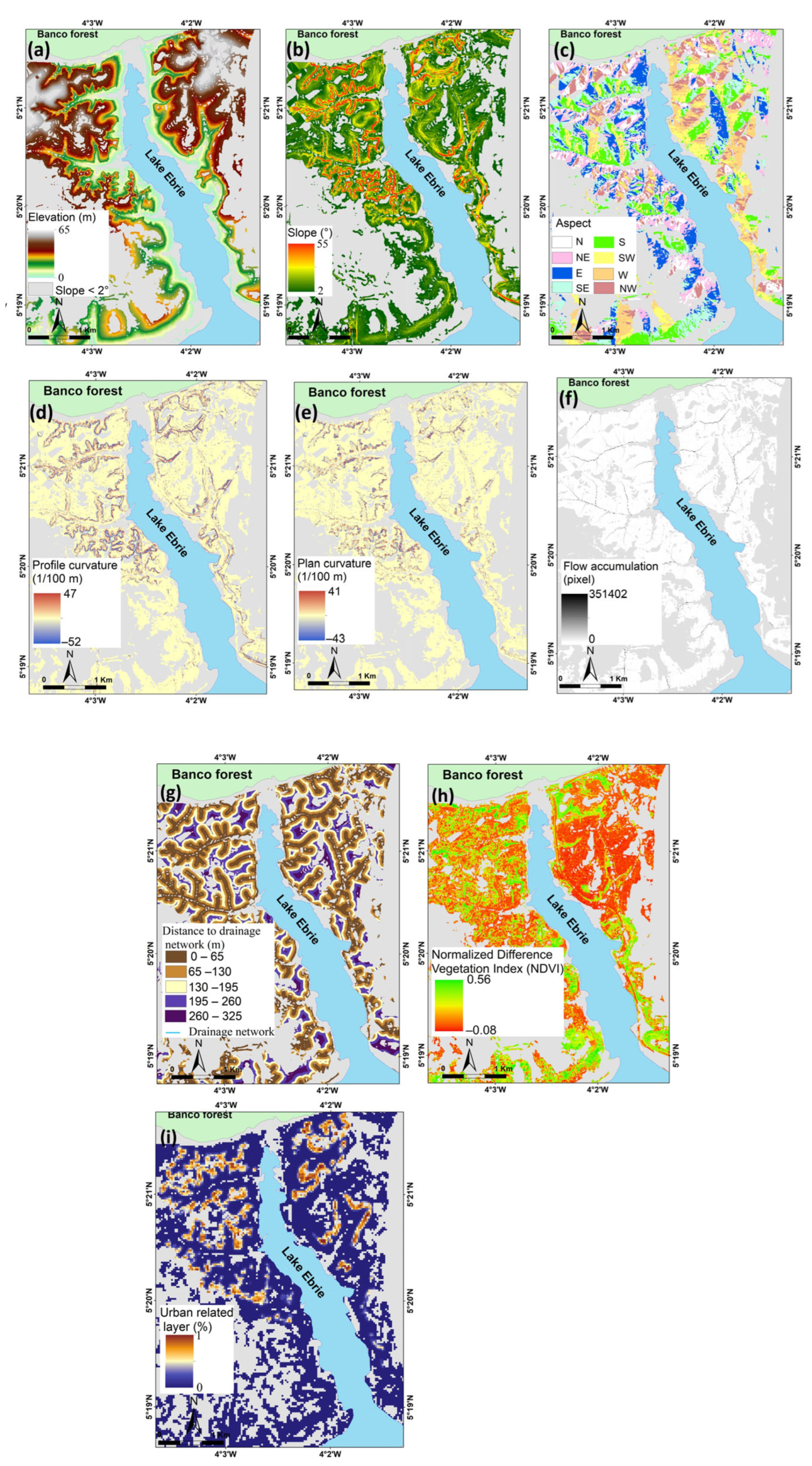

Field observations and the interpretation of satellite images revealed that many natural and human-made factors contribute to triggering these mass movements. In the study area, LS are mainly affected by morphological factors, precipitation, geological formations, and changes in land use. To determine the relationship between LS occurrence and the driving variables, the FR approach was produced using weights for each class of conditioning factors (
Table 6).
Table 6 represents the relationship between LS events and the classes of each conditioning factor. In the case of the relationship between LS occurrence and altitude, the failure mainly occurred at altitude between 30 and 40 m. For areas with a slope angle > 45°, the area’s susceptibility to the LS occurrence is higher. Regarding distance to drainage, susceptibility to LS increases with class 75–150 m. The ratio for the urban driving variable is higher for the 0.22–0.44% class. NDVI is one of the conditioning factors that directly impact the presence of LS.
For this driving variable, the highest FR ratio (2.35) was obtained for forested slopes, which amplified the LS occurrence. For flow accumulation, the increase in LS occurrence was obtained for class 0–57,274 (pixels). The impact of each aspect was assessed as contributing to the occurrence of LS. The ratio was highest (3.56) for the NW class. A high value of the FR ratio for the slope curvature class is characteristic of concave slopes, indicating a high probability of landslides.
The multivariate statistical analysis (MSA) was performed using LR, and the relationship between the LS incidence and LS driving factors was assessed. The LS favouring factors are obtained and listed in
Table 8. As shown in this table, driving variables (altitude, slope, southeast, south, northwest, and NDVI) positively influenced LS occurrence in this urban area. Among these six significant driving factors, NDVI was the main conditioning factor. This predictive variable had a high magnitude positive coefficient (
), revealing vegetated areas where slopes are likely to be stable. Some studies have pointed out that the presence of vegetated surfaces may be more effective in reducing susceptibility [
59]. Similarly, other work [
60] highlighted that vegetated areas are commonly related to increased slope stability. However, we note the inverse relationship between NDVI and LS occurrence in the study area. The density of LS occurrence increases and decreases with increasing NDVI values. Surfaces with NDVI values of 0.24–0.38 are most susceptible to LS incidence. The presence of plants (Rottboellia Cochinchinensis and Panicum Maximum) and urban crops such as maize, cassava, potato, and peanut along the hillslopes does not offer protection against LS, because these plants have shallow roots. Recent studies [
61] in Lin’an, a city in Zhejiang Province, China, have revealed that shrub forests with shallow root systems (0 to 30 cm) favor the occurrence of LS. On the other hand, low NDVI values are primarily concentrated in valleys and interfluves where human activities are prevalent. These areas are relatively flat and are not conducive to the formation of LSs.
In this study, the results showed that the most susceptible class of the aspect factor was the northwest (
), followed by the south (
) and southeast (
) classes. This may be due to the prevailing wind direction coming from the south and southeast (Greater Abidjan). These hillslopes, exposed to the wind during the rainy season, receive rainfall that infiltrates the clayed sand units. This water infiltration reduces the shear strength of this formation and triggers a LS. Regarding the slope, our results revealed that slope angle plays a role in the occurrence of LSs in the study area. The frequency distribution of LSs shows that slopes above 5° are potentially subject to landsliding. This is consistent with results found in other tropical regions [
62]. However, our results do not align with those of [
63]. Those authors reported that, at a constant altitude, the probability of LS occurrence increased, then decreased with the increasing slope, reaching its maximum between 28° and 50°. These findings were confirmed by the work of [
64], who indicated that the probability of LS increased with the slope, but decreased with slopes greater than 70°. We note that the altitude variable has a minor influence on the occurrence of LS in this urbanized area, as its odds ratio (
) is close to unity. The interelationship between LSs and altitude is more pronouced at elevations ranging from 20 m.a.s.l to 40 m.a.s.l. The weak association of LSs with altitude has been investigated in previous studies. For example, Van Den Eeckhaut et al. [
65] used a “rare event logistic regression” model to assess LS susceptibility prediction in W Belgium (altitude ranging from 10 m.a.s.l to 150 m.a.s.l) and stressed that terrain height had a relatively minor influence, with an odds value estimated at (
).
Although altitude has little impact on the initiation of LSs, hillslopes concentrate anthropogenic activities such as clearing of slopes, construction of informal settlements at the tops of slopes, and inadequate solid waste management, which can lead to an increase in LSs in areas with gentle slopes [
66]. In this highly urbanized context, we introduced an anthropogenic variable (URL) that describes artificial loading (informal settlements) of upper hillslopes to assess its real contribution to LS occurrence. Incorporated into the dataset to assess the prediction map, the model revealed that this variable had no significant influence (
= 0.23) on LS development. Several reasons may explain this situation. Firstly, this variable reflected the low levels of construction at the immediate edges of the hillslopes, especially since distributed loads created by buildings with diffuse local stress presented a weak intensity of surcharge. Secondly, the size of the map unit (25 m
2) may not be appropriate to cover a sufficient portion of the buildings. Therefore, increasing the pixel size will be necessary in future research. Notwithstanding its lesser contribution, this variable remains important when modeling LSs in a continuously changing urban context. On the other hand, in addition to this, it would be desirable to include other anthropogenic variables such as huge amounts of waste, pedestrian paths, and makeshift pipes, to improve understanding of their influence on LS incidence. Given the spatial dynamics, it will be important to update our construction dataset (polygons) by considering recent satellite images of urban sprawl.

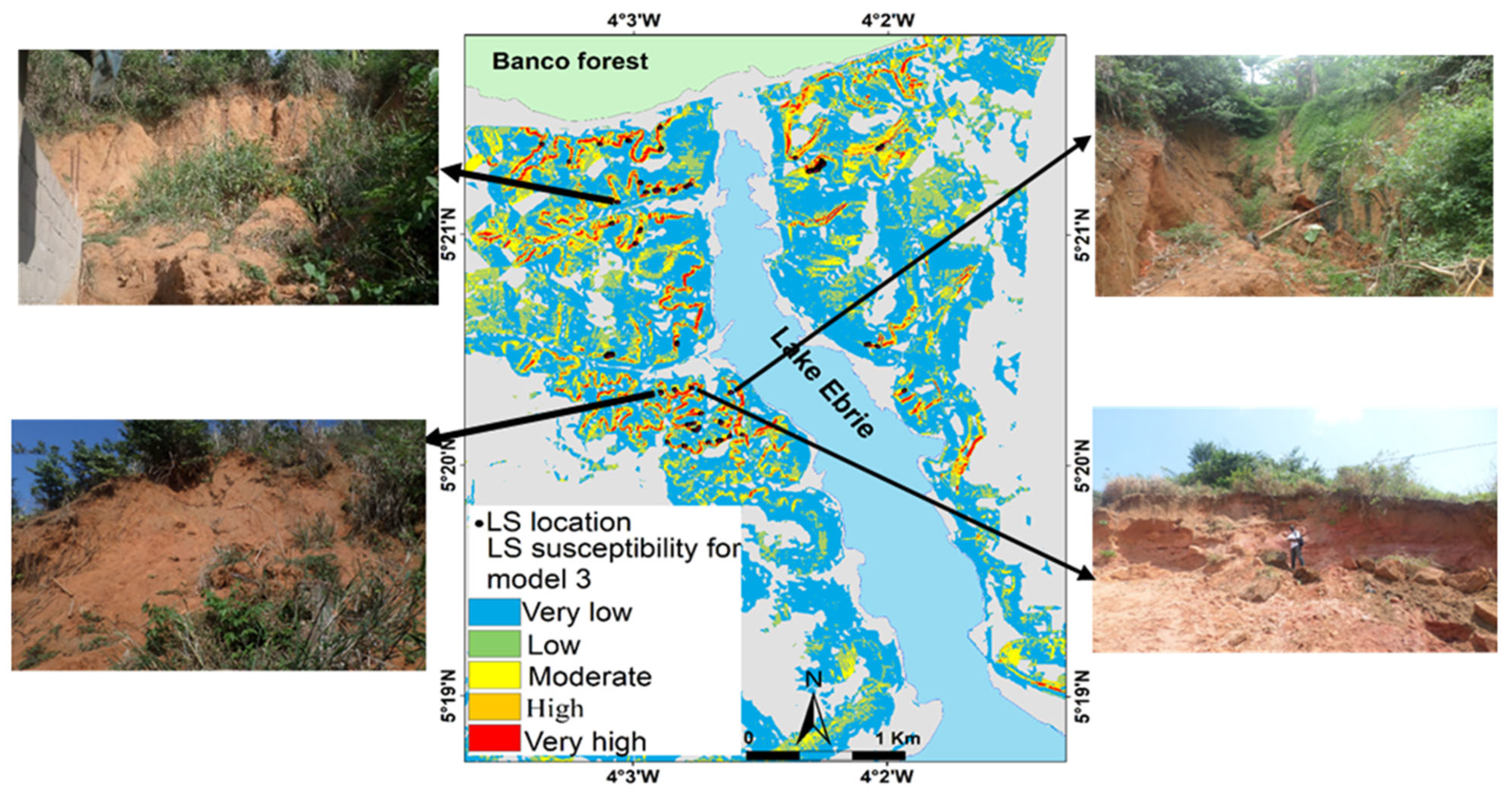

Based on the coefficients derived from the LR, the LS probability map was generated from the (5E1:5|10) model. This LS probability map shows that the probability of failure is high along hillslopes with steep slopes and altitudes. The obtained LS probability map was categorized into five susceptibility levels, using the Jenks Breaks method. This classification approach was used because it minimizes intra-class variance and maximizes inter-class variance. Finally, the LS susceptibility map for Attecoube, using only the main escarpments, included values as follows: very low (0–0.06), low (0.06–0.2), medium (0.2–0.4), high (0.4–0.7), and very high (0.7–1); map is shown in
Figure 6. Based on the LS susceptibility map acquired, most areas (around Lake Ebrie, interfluves, and valley bottoms) are located in very low and low susceptibility zones, covering more than 86.7% or 9.5 km
2, with a proportion of LS equal to 15.6% and an estimated frequency ratio (FR) of 0.6. The high and very high susceptibility zones cover only 6.3% (0.7 km

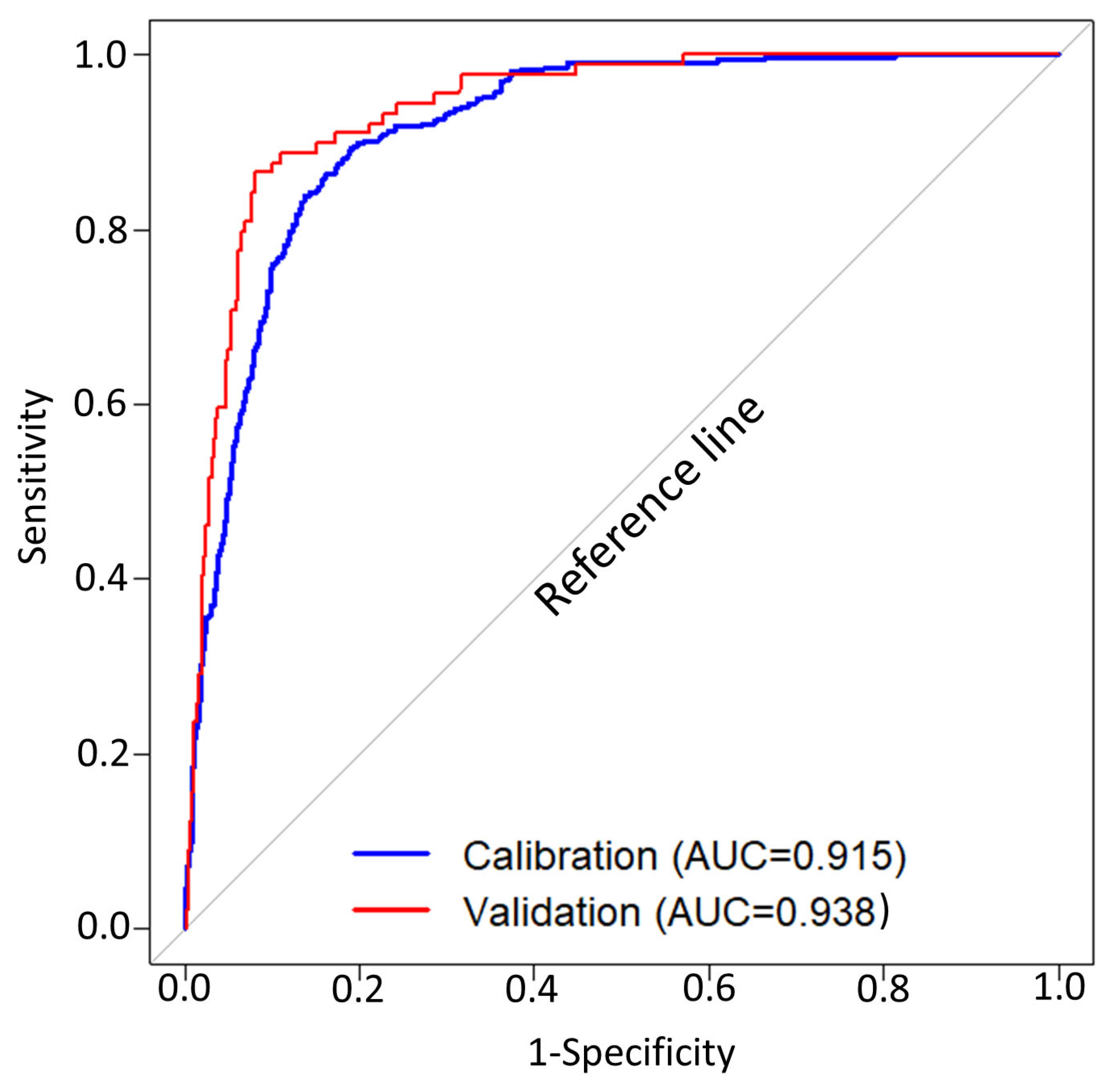

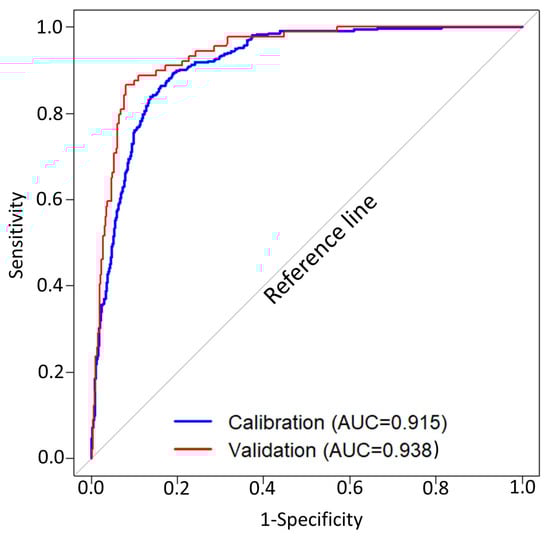

2) of the urban area, with values of 61.2% and 20.2% attributed to the proportion of LS and the FR, respectively. These zones are distributed over almost the entire study area and are located along the slopes. The (5E1:5|10) model obtained during this research was evaluated using the area under the curve (AUC-ROC). The performance and predictive capacity of the model were determined by considering different configurations of calibration and validation samples. The AUC-ROC values obtained were described as excellent (AUC-ROC > 0.9). This result suggests that the model produced in this study demonstrates a high level of accuracy in predicting the spatial probability of LS in Attecoube. Having been used in several publications, logistic regression has produced promising AUC-ROC results ranging from 0.79 to 0.93 [
67].
The results of this study can help urban planners and decision-makers reduce the areas where LSs are likely to occur. The prediction model used in this study has proven to be very useful for effective land management.
5.2. ROC and Cost Curves
The adoption of the prediction model enabled the assessment of the minimum costs for the study area, based on various cost ratios.

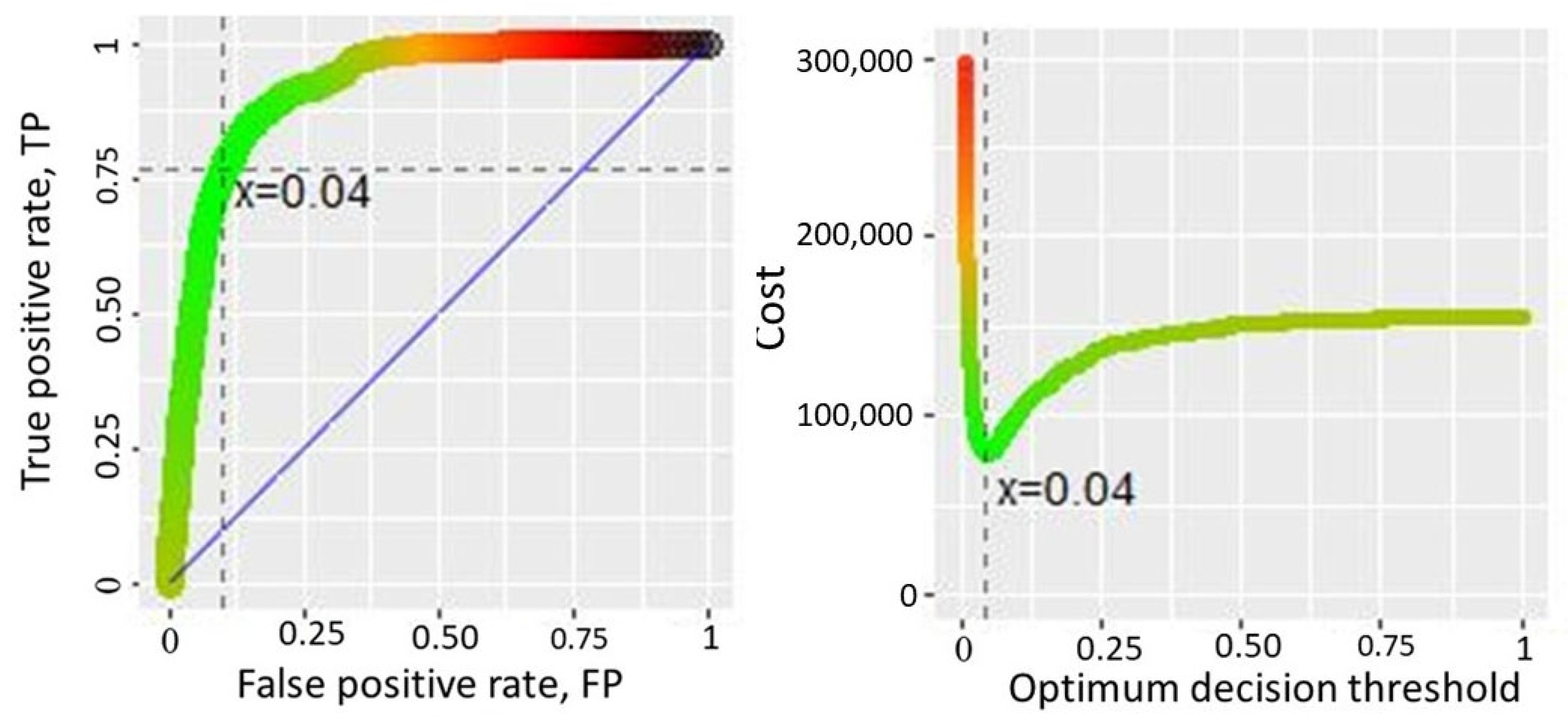

Figure 7 shows a negligible optimum threshold value, which was used to estimate these two costs. Integrating a cost function into a logistic regression model (5E1:50|10) enables the determination of optimum thresholds, which are useful for discriminating between areas susceptible to mass movement and stable zones (
Figure 7). The threshold (X = 0.04) shows a low frequency of pixels exposed (unsafe/unstable) to mass movements in the study area. However, a significant fraction of pixels were classified as safe or stable. This was due to the sufficient quantity of non-events derived from the sampling ratio (1:50), which was introduced to calibrate the susceptibility model.

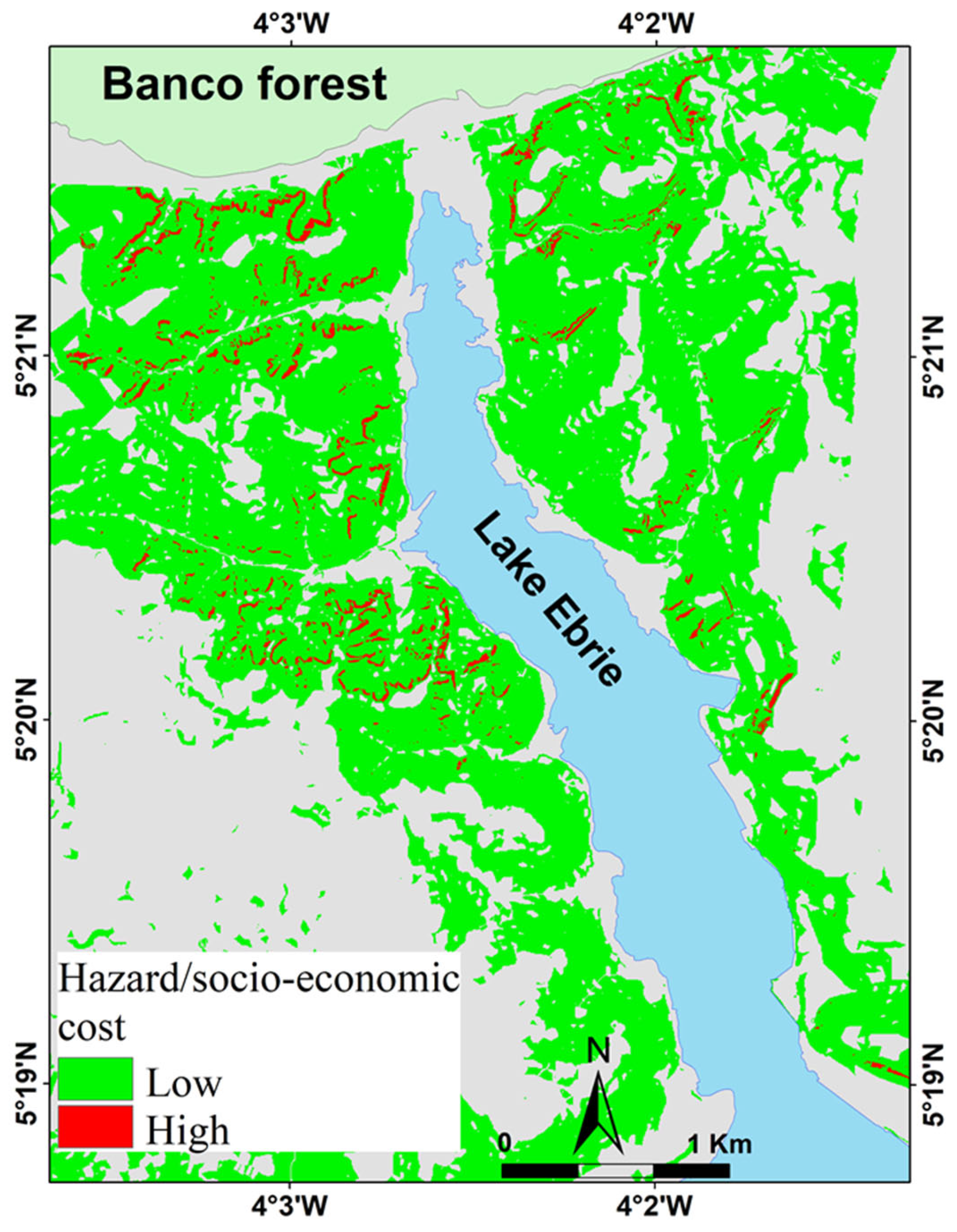

The increase in stable zones (FN) coupled with the reduction in unstable zones (FP) constitutes a significant housing problem in the study area (
Table 11). Unstable areas, characterized by high economic costs, are concentrated on the upper parts of the hillslopes. To a certain extent, these areas, which are considered dangerous, are unsuitable or even unfit for construction. The current planning regulations adopted by the Attecoube municipal authorities (and, indeed, the Ivorian government) are very close to this situation. In this context, residents reported the destruction of several buildings at the top of the hillslopes during our fieldwork. This was linked to the recurrent occurrence of mass movements with their attendant loss of life and injuries. Stable zones with low economic costs occupy a significant proportion of the study area (talwegs, slopes, and hilltops). Analysis of the costs associated with misclassification reveals that the probability of committing a type II error (false negative rate) is almost three times higher than that of committing a type I error (false positive rate). Given the evolution of the hillslopes in this urban area, except for the gentle slopes (talwegs, tops of slopes, around the bay lagoon), the other slopes can be assumed to be hazardous. It is, therefore, essential to recommend preventive measures to stabilize hillslopes, especially as human activities and the effects of climate change have adverse consequences on the balance of slopes in urban areas.
This study assessed the costs associated with classification errors based on empirical data (extracted from LS datasets). Using real socio-economic conditions, which control the cost of elements exposed to LS risk, would be interesting. This approach would enable the susceptibility model to effectively determine the real costs associated with type I and type II misclassifications. These costs could also be allocated based on the decision-maker’s approach to the hazard, which reflects society’s perception of the risk. For example, suppose a given company is prepared to tolerate a high level of risk. In that case, decision-makers will depreciate the cost of false negatives, reducing the cost ratio (FN/FP). On the other hand, if the company tolerates a low level of risk, decision-makers will have to increase the cost of false negatives. In the first case (low cost ratio), a cost-sensitive criterion would favor a model that classifies a small part of the zone as unstable and of course, the opposite would apply in the second case.
