Using XVIII–XIX Cent. Maps and Modern Remote Sensing Data for Detecting the Changes in the Land Use at Bulgarian Fortified Settlements in the Volga Region

Abstract

This study uses modern and historic spatial data to analyze land use around 13th Century AD Bulgarian fortified settlements to examine the current state of these features and how changes in land use over the past two centuries have affected these features. Historic maps from the late 18th to the early 19th centuries AD were used alongside Landsat 8 images from 2015–2018 as a source of information about land use. Based on the results of archival map analysis and the classification of satellite imagery, the interpretation of land use around Bulgarian fortified settlements was possible. This method generated new data about land use dynamics near cultural heritage sites in the Volga Region. The diachronic study of sequential map data allowed researchers to further understand how anthropogenic factors have impacted the survivability of Bulgarian sites in the region. Among these, arable farming, hydro-electric power generation, and urban growth have had the greatest impact on these features.

1. Introduction

The use of digitized historical survey data in Russia to analyze heritage sites has been slowly growing over the past 30 years. However, formative studies of archaeological data from historical surveys are not widely cited in the wider heritage literature [1,2,3,4], largely because the primary drive in Russian archaeology is to understand the heritage of vast swathes of land.

The most widely used studies have typically been archaeological site catalogs prepared as geodatabases, which have been used in areas such as Karelia [5]. The use of a geographic information system (GIS), in this case, is not entirely unproblematic, as it requires a code of best practice that must be developed from a solid theoretical stance. In Russia, this has largely been implemented by Grishin [6,7,8], who has attempted to codify the practice of GIS for archaeology. R.N. Batalov and L.K. Radchenko recently reviewed the theoretical and methodological aspects of historical cartographic research using GIS in Russia [9,10]. Their review focused on the importance of site recording from these maps, and the possibility of cataloging historically known sites, and the further possibilities of applying GIS analyses to this data. R.N. Batalov and L.K. Radchenko took the view that through the analysis of historic maps, more site data may be recovered and that these maps may play an important part in better understanding the spatiality of Russian archaeology.

Recent advances in digital technology have opened up new and previously inaccessible opportunities to review cartographic data. In particular, georeferencing transforms old maps from purely archival documents into real geographical data. Today, the use of historical maps in the digital environment is a common phenomenon both in many historical disciplines, including archaeology and in the management of historical and cultural heritage. This allows cultural heritage sites that have since been destroyed to be recorded as a component of heritage databases.

In addition, historical maps provide valuable information on changes in the built environment and natural landscapes before active economic and industrial development, which allows researchers to assess the distribution of archaeological features [11]. Remote sensing data is more commonly used to study anthropogenic and natural changes. However, this only allows the researcher to view data from the past six decades. The use of historical maps from the 18th and 19th centuries AD in GIS allows archaeologists and historians to analyze features that may have been damaged by natural or anthropogenic effects over the past few centuries.

At present, this interdisciplinary historical and geographical research is actively developing. These studies are particularly important for analyses of the cultural heritage of forests [12] and archaeological predictive model agricultural areas [13] and allow a deeper temporal analysis of changing landscapes over the past two centuries [14,15,16].

One of the key issues in the inclusion of digitized historical maps into GIS environments is that they must be georeferenced into a modern coordinate reference system for direct comparison with other maps and spatial data, either historical or modern [17]. Georeferencing is done using reference points, which can be represented by churches, bridges, and other objects that have survived to the present day. The reference points can be taken from either terrestrial surveyed data or satellite imagery [18]. It is not always possible to correlate historical maps with modern spatial data because of issues with their accuracy and the difficulty of finding reference points. As a result, even modern algorithms cannot guarantee the necessary level of accuracy [19].

Nevertheless, these materials are a sufficient basis for analyzing changes in land use boundaries: arable land, forest land, settlements, changes in rivers [20,21], etc.—i.e., factors directly affecting the conservation of archaeological heritage sites. The study of historical maps allows the researcher to understand the changing spatial and contextual features of the surveyed region and the evolution of the broader landscape. Analysis of changes in agricultural land use, as well as landscape conditions, is important for understanding transformations associated with human intervention and natural phenomena [14,15].

An important research problem that may be resolved using georeferenced archival materials and modern remote sensing data is the assessment of the impact of anthropogenic factors on medieval settlements and their surrounding area [22]. The population of Volga Bulgaria, which existed for about 500 years, had a significant impact on the surrounding landscape. The main activity of the population was farming in both arable and pastoral modalities. Their highly developed arable farming and producing a lot of bread not only for themselves but also for trade with neighboring peoples and the Bulgars cultivated vast areas and mastered almost all lands of the Middle Volga region with chernozem soils and even the farmed part of the lands with less fertile soils of the forest zone. During this period, natural ecozones were destroyed, and most of the land controlled by the Volga Bulgars was prepared as arable farmland. Natural landscapes were replaced by meadows for pastoral farming and arable farmland. After the collapse of the Bulgarian state, there came a period of prolonged desolation of the territory and the restoration of vegetation cover.

Russian colonization led to even more intense use of farmland. Rapid population growth and economic development required the exploitation of increasingly larger areas. Almost all open lands are being plowed, and intensified deforestation is beginning, with the advancement of Russian colonization, forested area first on the right bank of the Volga region, and then on the left bank in the Kama region. In the 13th Century AD population density here was still low, so not only extensive forested areas, but also some areas of virgin steppes were preserved. In the 18th Century AD, there was mass migration into the Volga region, and the share of land turned into arable land significantly increased in all districts.

At the turn of the 18th–19th centuries AD in the densely populated right-bank region of the Volga, arable land and farmland took up approximately half of the total land area (in Sviyazhsk County—52.6%, in Tetyush County—49.6%) [23]. According to land statistics for 1887, arable land took up to three-quarters of the area of the Volga region (Sviyazhsk County—64%, Tetyush County—75.9%) [24].

One of the key indicators that can be used to assess the risks of destruction of archaeological sites is land use [25]. Changes in land use during the period of intensive agriculture allow researchers to estimate the causes and determine the period when the impact began, as well as making a forecast of the future state of the monument.

The purpose of this study is to prepare an estimate of the dynamics of land use among medieval settlements in Volga Bulgaria over a 200-year period.

The study of Volga Bulgarian sites is especially important to understand the Middle Ages in the Volga-Kama territory better. In the complete absence of Bulgarian written sources from the 10th to the 13th centuries AD, archaeological analyses provide unique evidence of urban life in Volga Bulgaria, the spatial distribution of military, administrative, trade centers and their relationships, fortification architecture, etc. Due to their distinctive features, fortifications since the 18th Century, which distinguish them from the surrounding landscape, have attracted the attention of scientists [26] and are of historical and cultural value.

Fortified settlements with a system of defensive structures [27] located in the Volga region of the Republic of Tatarstan (RT) (Figure 1) were chosen as the subjects of this study. This region is characterized by a very high level of agricultural development (76.4% of plowed and 40% of eroded land). There are 20 Volga Bulgarian settlements, most of which have been negatively impacted by anthropogenic and natural factors. The assessment of these processes at a number of monuments has already been covered by the authors in other studies [28,29]. For this study, we chose nine fortified settlements of the first–relief related, and the third–not related to relief types (according to P.A. Rappoport [30]) which had similar areas, except the Deushevskoe fortified site, which is much larger than the others [30]. These sites were chosen due to the relationship between the types of fortified settlement and the use of their territories. On the basis of the analysis conducted using multi-temporal remote sensing data, it was determined that the third type of fortified settlement is most affected by destructive anthropogenic effects, as these monuments are usually located on land suitable for plowing, while subordinate to the relief of the first type of fortified settlement is usually difficult to access and unsuitable for agricultural development, even with the use of modern technology.

2. Materials and Methods

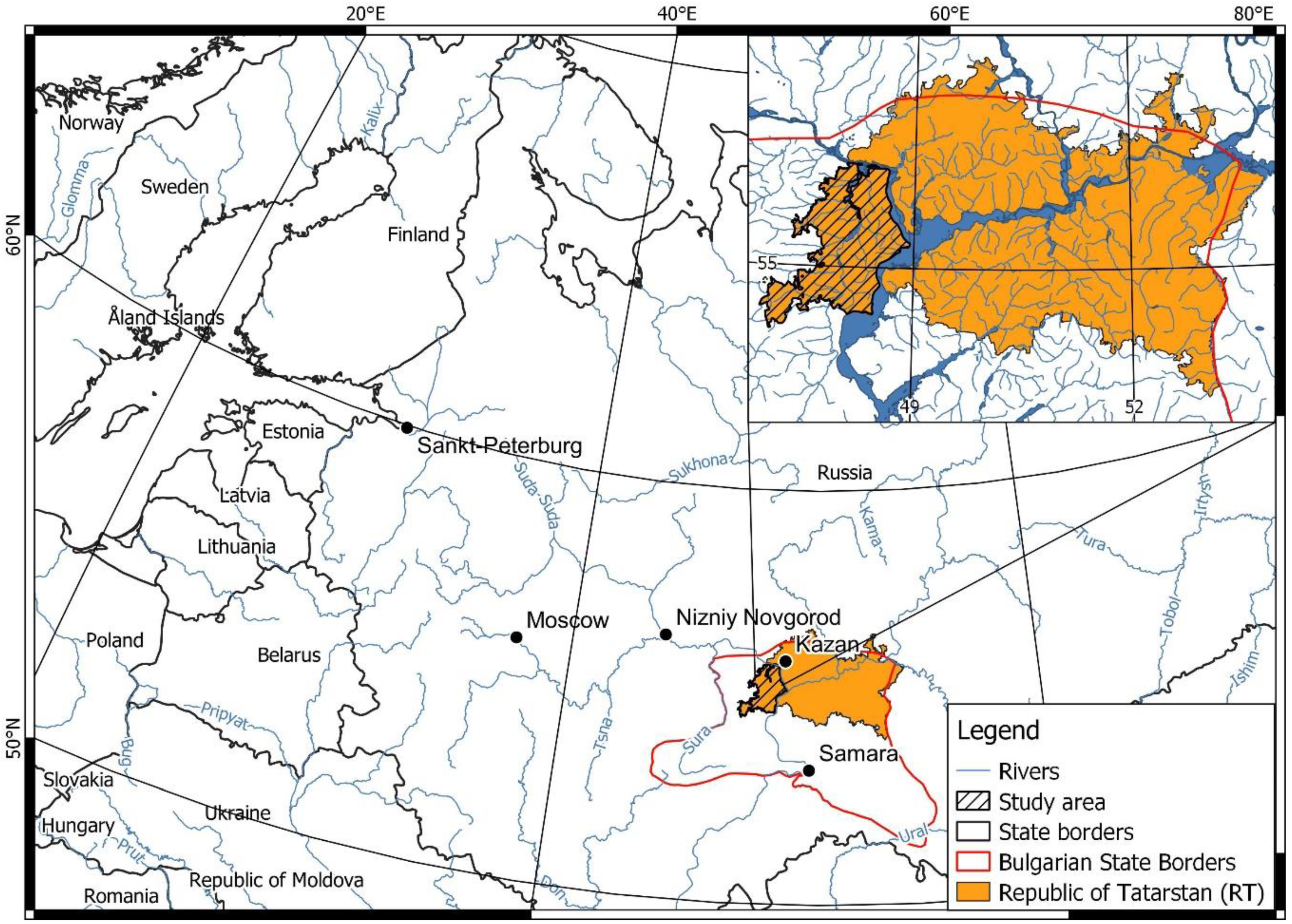

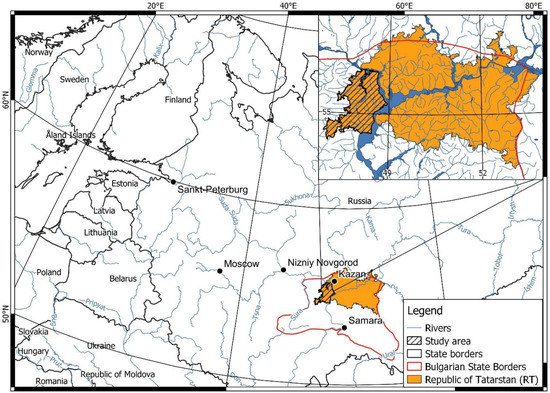

The study covered the area surrounding 9 settlements of the Volga Bulgaria in the Sviyazhsk, Tetyush, and Buinsk districts of Kazan and Simbirsk provinces (

Table 1. The list of settlement areas for land use structure analysis.

County Name	Modern Municipal District	Settlement/Type 1	Area from Aerial Photographs of the 1950s, ha	Preservation/Main Impact 2
Sviyazhsk	Zelenodolsky	Tavlinskoe/1	0.77	<50%/1
		Lukovskoe/1	12	<50%/2
Tetyush	Apastovsky	Churu-Baryshevskoe/1	12.2	85%/1
		Staroenaleiskoe/3	12.4	0%/3
		Tanay-Turaevskoe/3	12.5	0%/4
		Deushevskoe/3	98.5	0%/3 and 4
	Kamsko-Ustiinsky	Bolsheklyarinskoe/3	16.3	35%/3
		Urazlinskoe/3	3.1	90%/3
Buinsk	Drozhzhanovsky	Chuvashsko-Bezdninskoe/3	2.6	95%/2

Note: ¹ Type of settlement: 1—relief related, 3—not related to relief; ² Impact: 1—exogenous processes, 2—fluvial processes, 3—plowing, 4—development.

). Square buffer zones with 10 km sides were prepared during work with historical maps, matching the radius of 5 km of the economic zone around the settlement, which corresponds to the optimal costs of exploitation of specific territories in the Middle Ages [31]. Maps of the 18th Century AD are interesting primarily because these data reflect the economic development of land in the pre-industrial era, and as the closest in the system to the period under study and can provide material for further analysis of the pattern of land use and road locations in the Middle Ages.

To assess land use in the late 18th–early 19th centuries AD, materials from two main state archives containing information on the territory of distribution of Bulgarian settlements in the Volga–Kama region were used: Russian State Archive of Ancient Acts (RSAAA) and the State Archive of the Republic of Tatarstan (SA RT), as well as some materials that are publicly available. Among the sites where historical maps are publicly available are the “Collection of ancient maps of the Russian Empire” [32] and Retromap [33].

The stored maps and materials in Collection № 1356 “Provincial, county and city atlases, maps and plans for the general survey of 1766–1883. (collection)”, include materials relating to the territory of the Kazan and Simbirsk provinces. These materials were analyzed in The Russian State Archive of Ancient Acts (RSAAA). The following maps of surveys from the late 18th to early 19th centuries AD were used as the main source for this analysis:

• “General geometric plan of the city of Sviyazhsk and its county, which is part of the Kazan Province. Written in the Kazan Fringe Office in 1798”—this is the most detailed plan of the territory of Sviyazhsk County at that time. The map is handwritten and in color. This map is also similar to the atlas of Buinsk County, as it includes the shapes of settlements in Kazan County. Unlike the atlas, there is a legend with a clear description of the features. Map details in the city of Sviyazhsk include slobodas, villages, factories, ponds, large and country roads, swamps, sands, stone places, mowed areas, forest hayfields, forests, arable land, bridges, transportation. Most importantly, clear boundary lines were identified, including the urban areas, property, and county possessions, and disputed areas.
• “General County Plan of Tetyush County”—the most detailed plan of the territory of Tetyush County from this period. The date and name of the plan are not specified. We can assume that it was prepared in the last decade of the 18th Century AD. The map is hand-drawn and in color. The map includes the city, villages, factories, flour mills, roads: large and country roads, gullies, swamps, sandy places, clay places, hayfields, hayfields with forest, forests, arable land, bridges, transportations. The map specifies boundaries between owned areas and includes a Wind Rose. The plan was signed “Senior surveyor of the 8th class Alexander Fedorov testified to the boundary office in the drawing room”.
• “Geometric atlas of Buinsk county”—This map specifies all inner-city, treasury, and possession boundaries of each village and city and indicates the boundaries between each municipal area. Composed in 1808 AD, it is based on the plans of the general survey. The map shows not only the settlements but also their real outlines at that period. In addition, all the farmland around the villages, roads, gullies, riverbanks, forests, and meadows are clearly identified. And most importantly, the boundaries of landholdings were drawn, and their numbering was given. Parts of the atlas are handwritten. Buinsk is represented in the outlines of the early 19th Century AD and surrounding villages. These are the most detailed maps of individual regions of the province of that period, and they used for many decades.

To assess the current structure of land use in the studied areas, the main data were Landsat images from the archive of the United States Geological Survey (USGS). The satellite images and additional materials used, and the methods are described below.

2.1. Georeferencing of General Survey Plans

Universal Transverse Mercator (UTM) using the ellipsoid WGS84, zone 39 of the northern hemisphere, was chosen as a working projection.

The georeferencing of the General Survey Plans (hereinafter referred to as GSP) of Sviyazhsk (2 sheets), Tetyush (3 sheets), and Buinsk (1 sheet) counties was performed in ArcGIS. These counties cover the Volga region of the RT and part of the Chuvash Republic and Ulyanovsk region of Russia.

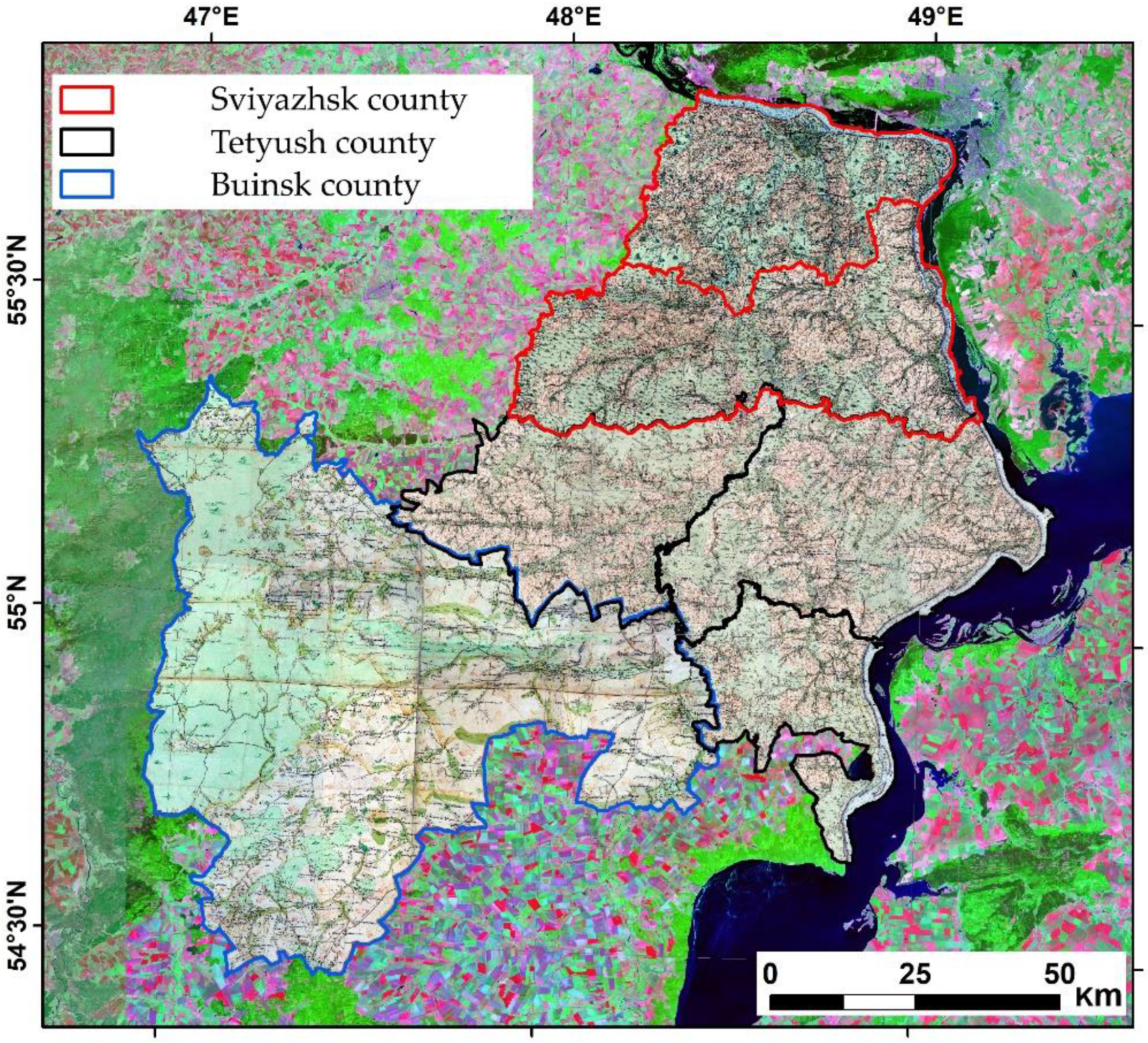

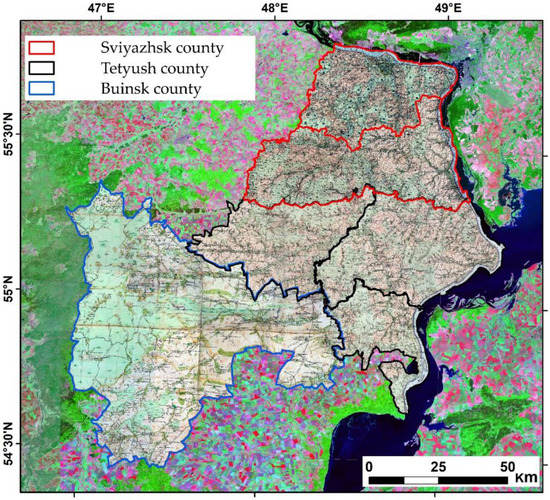

Landsat TM mosaics of 5 degrees latitude and 6 degrees longitude (Tri-Decadal TM Mosaics) from the open archive of the United States Geological Survey (USGS) with a spatial resolution of 30 m were used as basic reference data for geolocation. Since GSPs are made at a scale of 1–2 verst in 1 inch, which is equal to the scales of 1:420,000 and 1:840,000, respectively, the resolution of Landsat 5 images is more than enough to find the reference points. As additional data, a sheet of the topographic map 1-N-39 of 1946 at the scale of 1:300,000 georeferenced by a regular coordinate grid was used. This topographic map reflects the state of the area before the creation and filling of the Kuibyshev reservoir (in contrast to satellite images), which allowed finding additional reference points near the Volga River banks. Georeferencing was carried out in the Esri ArcMAP program using the “Georeferencing” tool.

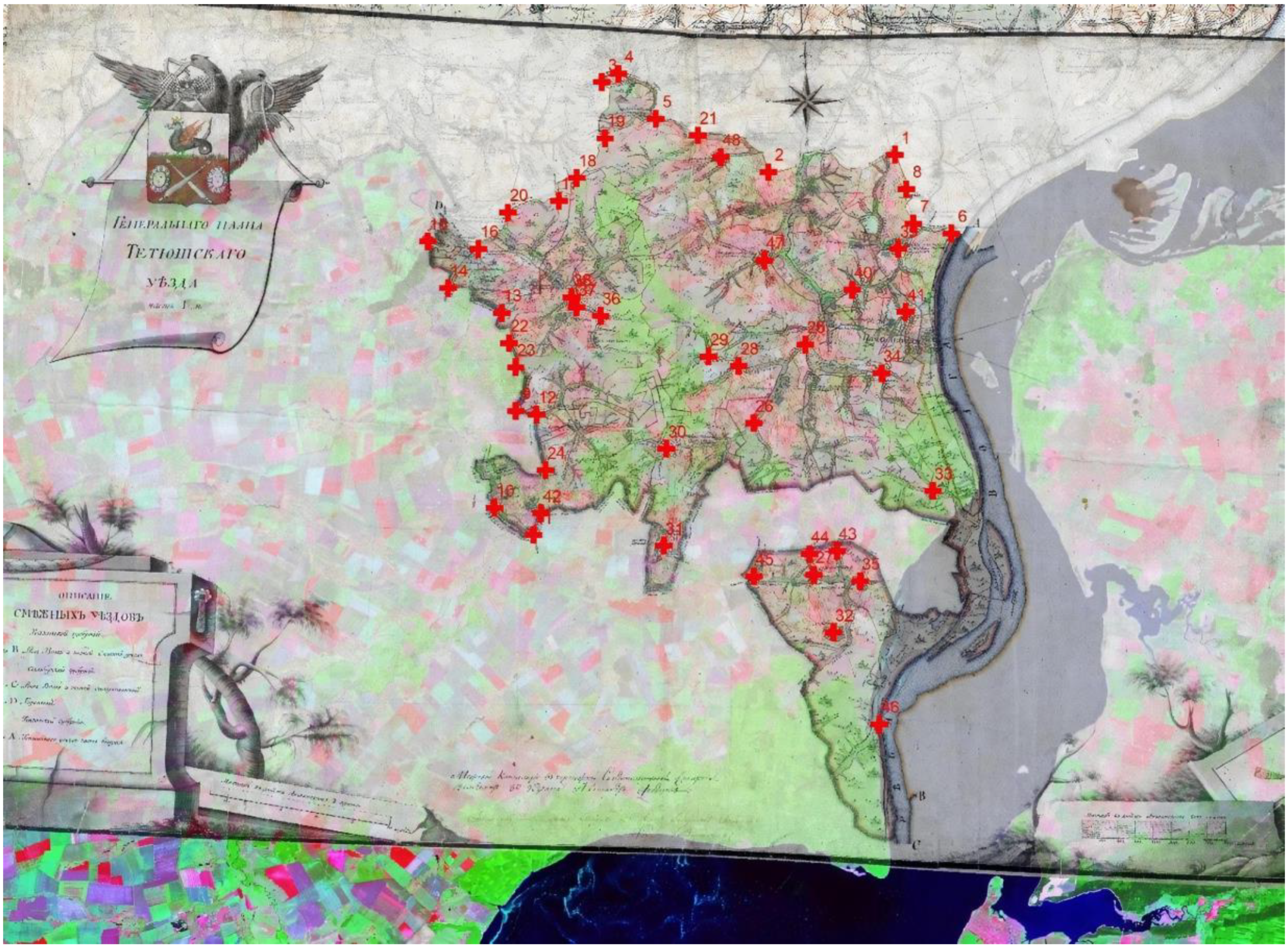

Since GSPs were compiled at the end of the 18th to the beginning of the 19th Century AD, it is rather difficult to find closely related reference points. As such, typical branches of the river network, river junction points (in case the configuration on the GSP and the image or topographic map were visually identical), centers of small settlements (again, in case of maximum invariability of borders), river estuaries flowing into the Volga River were used. A rather large number of reference points (not less than 30) were used for each plan (Figure 2). Due to large distortions and the inaccuracy of positions and configuration of objects in boundary plans, quantitative estimation of reference points and errors was meaningless. For the same reason, 3rd order polynomial and, in some cases, splines were used as transformation methods for georeferencing. Both methods, especially splines, are used in similar works by other researchers [34]. It allows correcting irregular inaccuracies typical for drawn maps. The method transforms the image according to the nearest reference points, correcting the area between them even if the errors are not linear [35].

As the counties have adjacent borders, each georeferenced plan was used as reference data for georeferencing the next image. Adjacent borders were also used as reference points, which georeferencing error on the one hand and to improve the accuracy of georeferencing the next set of borders. This method permitted all 6 GSP images to be georeferenced for the Volga Region (Figure 3).

2.2. Land Use Structure Detection

Land use around 9 settlements between the late 18th to the early 19th Centuries AD was extracted from the GSP. For this study, the most significant land categories were manually vectorized using the EasyTrace software. These included water bodies (reservoirs and rivers), settlements, forests, natural hayfields and pastures, arable land, swamps, and sandy coastlines (Figure 4). Corresponding maps were drawn based on the vectorization results.

Cloud-free Landsat 8 images (Surface Reflectance Level-2 Data Products) for the snow-free periods between 2015 and 2018 were used to analyze modern land use. The use of multi-seasonal images is necessary to take into account the phenological features of different types of lands.

The Random Forest method was used for recognition, which is widely used for both land use and land cover interpretation, including in historical context [36].

The images selected for the studied period were assembled into a single composite. It included separate bands (2–7), calculated normalized difference vegetation indexes (NDVI) for all images, and metrics calculated based on indices, i.e., average, sum, maximum, minimum, standard deviation, median.

The reference samples were selected for six land types: 1. Water objects, 2. Croplands, 3. grasslands (natural hayfields and pastures), 4. deciduous and mixed forests, 5. coniferous forests, 6. anthropogenic objects, human settlements. Reference samples are represented by vector polygons. To provide better classification accuracy, training samples were prepared analyzing multiseasonal Landsat images [37]. Visualization examples of main land use types are presented in

Table 2. Example of main land use types viewed in different seasons Landsat images (band combination 6-5-4).

Land Use Type	26 May 2018	27 June 2018	30 August 2018	1 October 2018	27 April 2019	29 May 2019	4 October 2019
Water objects
Cropland
Grassland
Deciduous and mixed forest
Conifer forest
Settlement

. Verification of the sample sets was carried out using high resolution images presented in Google Earth.

Classification and accuracy assessment was performed in the EnMAP module for QGIS using the Random Forest method with the number of trees equal to 100. Eighty percent of the reference pixels were used for classification and 20% for results validation. Using the error matrix, the Producer’s accuracy and User’s accuracy were calculated (

Table 3. Classification accuracy assessment results.

Land Use	User’s Accuracy, %	Producer’s Accuracy, %
Water objects	99.94	99.23
Croplands	95.21	97.23
Grasslands	74.05	64.27
Deciduous and mixed forests	99.3	98.72
Coniferous forests	97.81	99.49
Anthropogenic objects	87.16	87.16

).

3. Results and Discussion

After the results from land use classification were processed, they were vectorized to easily quantify the results, the results of which can be seen in

Table 4. Land use structure near the fortified settlements according to the general survey plans and remote sensing data.

Land Use	GSP		Landsat 8		Changes, ha	Changes, % of Total Area	Changes, % from 18th to 19th Centuries AD Category
	Area, ha	Share, %	Area, ha	Share, %
Tavlinskoe settlement
Grassland	2609.0	26.1	2266.0	22.7	−343.0	−3.4	−13.1
Cropland	6835.5	68.4	6353.5	63.5	−482.0	−4.8	−7.1
Forests	358.6	3.6	468.0	4.7	109.4	1.1	30.5
Swamps	1.9	0.02	0.00	0.0	−1.9	0.0	−100.0
Water object	34.7	0.3	14.9	0.1	−19.8	−0.2	−57.0
Settlements	160.3	1.6	897.6	9.0	737.3	7.4	460.0
Lukovskoe settlement
Grassland	2053.1	20.5	2732.4	27.3	679.3	6.8	33.1
Cropland	6368.8	63.7	5640.0	56.4	−728.8	−7.3	−11.4
Forests	554.2	5.5	745.4	7.5	191.2	1.9	34.5
Swamps	631.5	6.3	45.7	0.5	−585.8	−5.9	−92.8
Water object	327.6	3.3	300.2	3.0	−27.4	−0.3	−8.4
Settlements	64.9	0.6	536.3	5.4	471.4	4.7	726.3
Churu-Baryshevskoe settlement
Grassland	2036.0	20.4	2148.6	21.5	112.6	1.1	5.5
Cropland	5248.2	52.5	6878.6	68.8	1630.4	16.3	31.1
Forests	2125.9	21.3	642.2	6.4	−1483.7	−14.8	−69.8
Swamps	433.6	4.3	15.2	0.2	−418.4	−4.2	−96.5
Water object	127.4	1.3	58.0	0.6	−69.4	−0.7	−54.5
Settlements	28.9	0.3	257.4	2.6	228.5	2.3	791.0
Staroenaleiskoe settlement
Grassland	2102.8	21.0	2049.6	20.5	−53.2	−0.5	−2.5
Cropland	4503.1	45.0	6378.4	63.8	1875.4	18.8	41.6
Forests	2645.7	26.5	679.2	6.8	−1966.5	−19.7	−74.3
Swamps	493.2	4.9	5.5	0.1	−487.7	−4.9	−98.9
Water object	132.5	1.3	68.2	0.7	−64.3	−0.6	−48.5
Settlements	122.8	1.2	819.1	8.2	696.3	7.0	567.2
Tanay-Turaevskoe settlement
Grassland	2038.9	20.4	2172.2	21.7	133.4	1.3	6.5
Cropland	5588.7	55.9	7034.9	70.3	1446.2	14.5	25.9
Forests	1706.0	17.1	382.3	3.8	−1323.7	−13.2	−77.6
Swamps	391.3	3.9	5.5	0.1	−385.8	−3.9	−98.6
Water object	142.4	1.4	40.5	0.4	−101.9	−1.0	−71.6
Settlements	132.7	1.3	364.6	3.6	231.9	2.3	174.7
Deushevskoe settlement
Grassland	5348.1	53.5	2416.1	24.2	−2932.0	−29.3	−54.8
Cropland	2989.5	29.9	5524.2	55.2	2534.7	25.3	84.8
Forests	1177.5	11.8	1319.6	13.2	142.1	1.4	12.1
Swamps	133.1	1.3	0.0	0.0	−133.1	−1.3	−100.0
Water object	270.7	2.7	120.4	1.2	−150.3	−1.5	−55.5
Settlements	81.0	0.8	619.7	6.2	538.7	5.4	665.1
Bolsheklyarinskoe settlement
Grassland	2836.5	28.4	1458.8	14.6	−1377.7	−13.8	−48.6
Cropland	5986.2	59.9	6798.2	68.0	812.0	8.1	13.6
Forests	742.3	7.4	1146.4	11.5	404.1	4.0	54.4
Swamps	334.4	3.3	0.0	0.0	−334.4	−3.3	−100.0
Water object	9.2	0.1	28.3	0.3	19.1	0.2	209.0
Settlements	91.5	0.9	568.3	5.7	476.8	4.8	521.3
Urazlinskoe settlement
Grassland	1483.58	15.2	2441.4	24.4	957.8	9.6	64.6
Cropland	5216.91	53.4	3464.6	34.6	−1752.3	−17.5	−33.6
Forests	1675.18	17.1	808.5	8.1	−866.7	−8.7	−51.7
Swamps	93.19	1.0	0.0	0.0	−93.2	−0.9	−100.0
Water object	706.69	7.2	2410.4	24.1	1703.7	17.0	241.1
Settlements	110.8	1.1	875.1	8.8	764.3	7.6	689.8
Sandy coastline	483.14	4.9	0.0	0.0	−483.1	−4.8	−100.0
Chuvashsko-Bezdninskoe settlement
Grassland	4157.8	41.6	2053.0	20.5	−2104.8	−21.0	−50.6
Cropland	4834.8	48.3	5978.3	59.8	1143.5	11.4	23.7
Forests	679.8	6.8	1568.8	15.7	889.0	8.9	130.8
Swamps	268.5	2.7	0.0	0.0	−268.5	−2.7	−100.0
Water object	4.7	0.05	0.8	0.01	−3.9	0.0	−83.0
Settlements	54.4	0.5	399.1	4.0	344.7	3.4	633.6

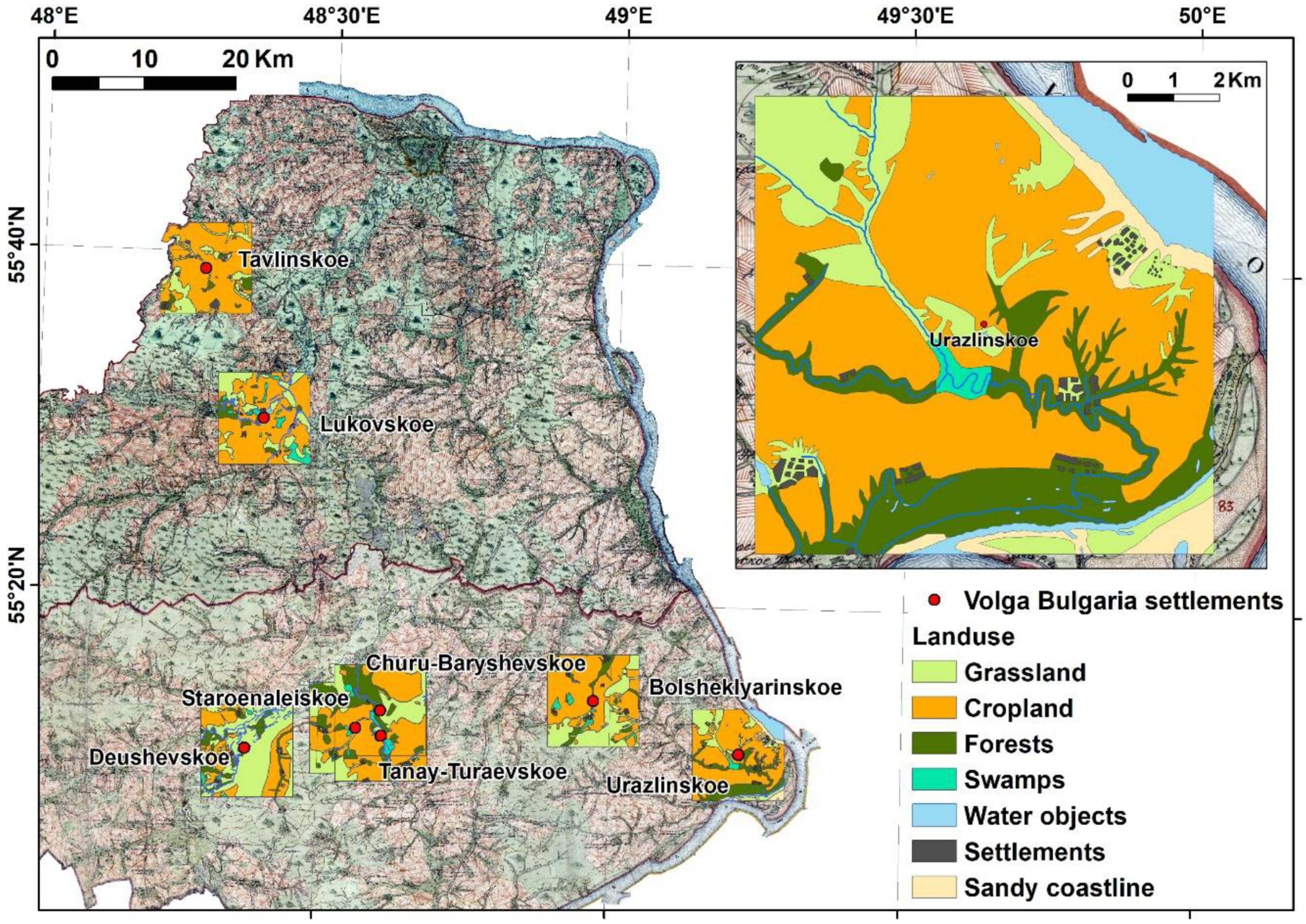

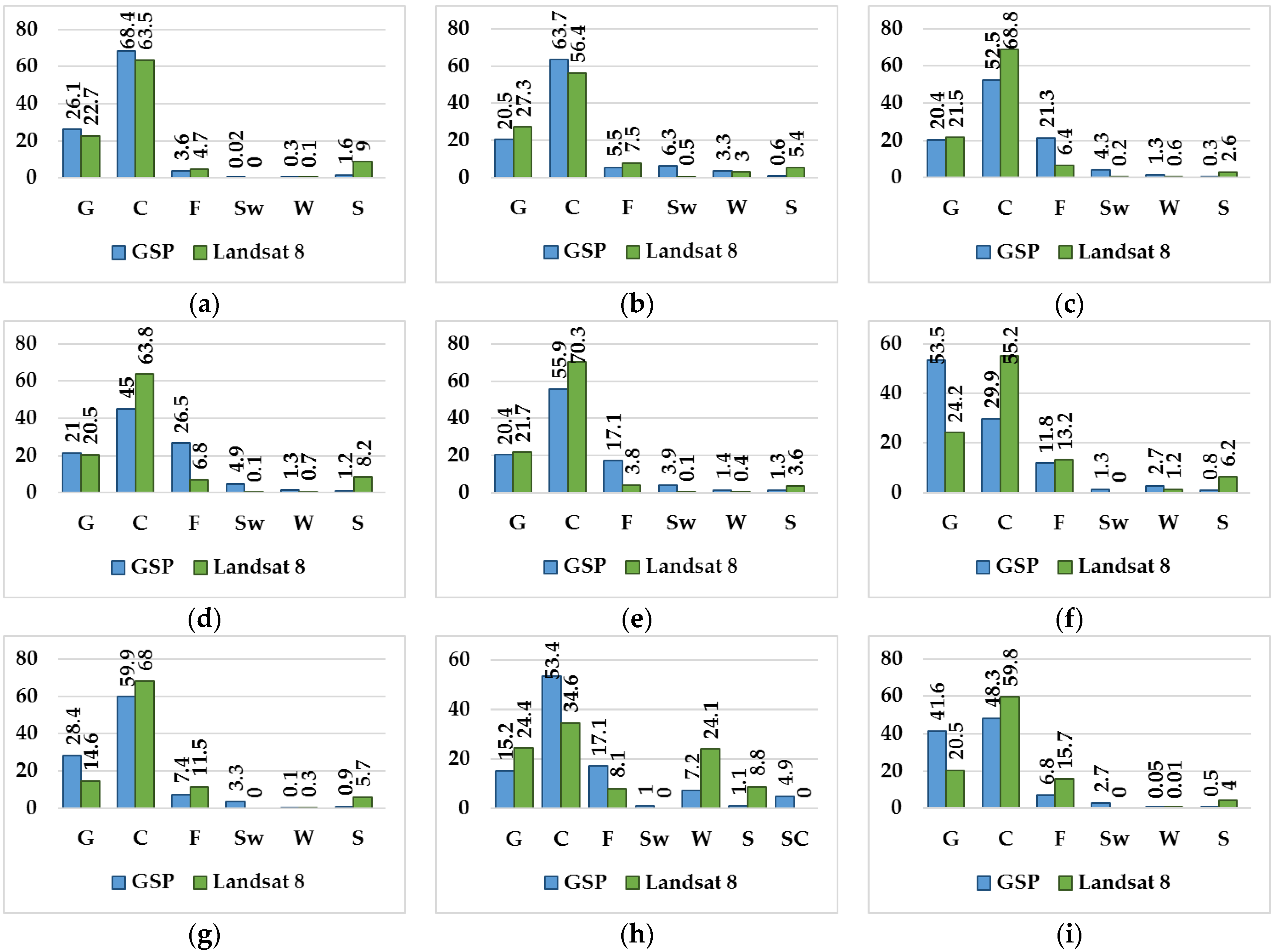

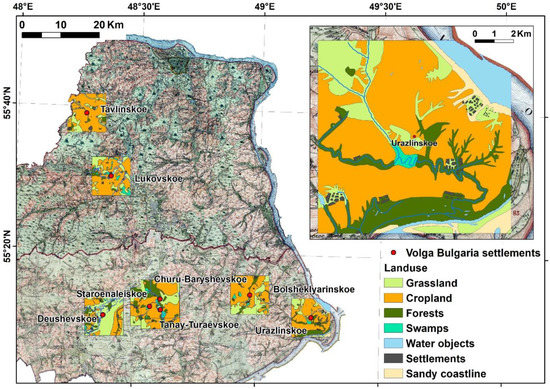

and Figure 5.

The table shows that arable land is most common near the settlements. Before the 18th Century, the first period, arable land covered 45–74% of the area. An exception was the area surrounding the Deushevskoe settlemfaent, which was natural grassland.

After the 19th Century, the second period, there was an increase in the area of settlements. For most of them, arable land had also increased by 13–85% of the area of the corresponding category in the first period. This increase was primarily due to the massive deforestation of the modern Republic of Tatarstan over the last 200 years to expand the area available for farming [38]. A different scenario is observed in the areas around Tavlinskoe and Lukovskoe settlement, where there was a slight (7–12%) decrease in arable land, which may be due to abandonment, typical of the former USSR territory in recent decades [39,40].

The area of arable land in the area around the Urazlinskoe settlement had also been significantly reduced. However, the greatest loss here was due to the creation of the Kuibyshev reservoir.

As already described above, economic activity is one of the key anthropogenic factors in the destruction of cultural heritage objects. This is confirmed by the current state of the investigated settlements, most of which, along with natural areas, were destroyed as a result of plowing. An example of this can be seen at the Bolsheklyarinskoye settlement, where more than 60% of the site has been destroyed, and at the Staroenaleiskoye settlement, which has been completely destroyed [41]. Thus, the change in land use (especially the increase in the area of arable land and settlements) can be seen through this research, indicating a high risk of destruction for cultural heritage sites.

The historical maps from the 17th Century AD contain unique information about the land use of that time in this vast territory. Despite their disadvantages—low detail, inaccurate drawing, inconsistency with modern projections—these cartographic products are the only source of spatial data on the structure of land use in the study time interval. Starting from the middle of the 19th Century AD, maps were produced at a smaller scale, using more accurate methods. In the archives from the end of 19th to the beginning of the 20th Century, we were able to find maps of Strelbitsky at a 10-verst per inch scale and 19th Century military topographic maps at a scale of 3 versts per inch. They do not contain detailed information about land use in the studied territory, but some topographic features, such as forest massifs and gullies, are indicated. As they did not allow the identification of the land use boundaries, they could not be used in this study.

The categories of land use were extracted for the oldest historical maps, and these were used in this study for that reason, despite their disadvantages.

Returning to the topic at the start of this section, a few key points are worth mentioning, which should be considered when georeferencing historical maps. Due to the time interval, it is obvious that there are not many objects preserved and displayed on old maps. Among the preserved objects are the estuaries of ancient river gullies (known as balkas), the intersections of major traffic routes, which became modern highways. The coordinates of religious buildings, such as churches, that have become de facto centers of urban areas, which are relatively accurate.

An important task in georeferencing historical maps is evaluating the possibility of using them to obtain quantitative data and finding the optimal source resolution for digitization. In this context, the use of Landsat images is optimal for comparison with historical maps because of the similarity of spatial resolution. This is very important because more detailed images produce large errors in alignment and georeferencing. In this study, we used satellite imagery (the most accurate source) as a georeferencing benchmark. To improve the accuracy of georeferencing historical maps, it is also necessary to sequentially georeference maps (from the most recent to the oldest) in pairs. The scale is also important, as this must also be matched as closely as possible. When these two factors are considered (scale/resolution and age of the data), the level of error can be minimized [25]. In this study, georeferencing errors ranged from several meters to the first tens of meters. Since we were dealing with land dynamics estimation, we could rely on the CORINE Land Cover 2000 (CLC2000) project [42,43], where the geometry accuracy of object boundaries is 3 pixels of Landsat TM in width, i.e., 90 m. In addition, 100 m is the minimum boundary displacement that is mapped as land use change [44,45]. Thus, the resulting georeferencing accuracy can be considered satisfactory for the goal of analyzing historic land use.

It should be noted that the purpose of this study was to assess the possibility of using historical maps as a source of information about land use. As a result of this, we did not look for a correlation between changes in the structure of land use within the economic zone and the rate of anthropogenic impact on a particular ancient settlement, since the condition of the monuments under consideration depends rather on the proximity of developed areas (agricultural lands, urban areas), as well as the relief. However, using historical maps and remote sensing data could allow us to prepare more concrete estimates of land use dynamics and their effects on archaeological features in this region.

It also should be noted that a future goal of this research project is to examine both simple and complex indicators to allow the estimation of landscape fragmentation. Confidence in estimating landscape fragmentation will allow researchers to better quantify the degradation of ancient settlements through the number of patches (NP), mean patch size (MPS), landscape form index (LFI), Shannon diversity index (SHDI), mean area fractal dimension (MAFD), etc.

4. Conclusions

As a result of the work carried out, significant changes in the land structure were identified, and general trends in land use dynamics were assessed. The research region is an area of intensive agriculture, which explains the significant increase in the percentage of arable land during the analyzed period. Even in the case of a slight reduction in arable lands on some plots, this type of land use is still dominant. This was confirmed by data on the current state of the fortified settlements in the area studied—most of them have been plowed, but it can not be confirmed that the fortified settlement was plowed in the modern period, rather than before the creation of the used GSP.

The growth of modern settlements in this area must also be noted, particularly around the Deushevskoe and Tanay–Turaevskoe settlements, which have now been covered over. The development of agriculture and the growth of urban settlements must also be considered as it has led to the development of infrastructure (primarily road network), which has also led to the destruction of archaeological sites in this region.

In conclusion, it can be said that historical maps and modern RS data are a valuable source of data enabling qualitative and quantitative analysis of land use structure near cultural heritage monuments. Their combined use, however, is complicated by their incomparability in scale, detail, and quality. One of the main disadvantages of historical materials is a significant misrepresentation of objects. All this, along with the small scale, makes it impossible to analyze the structure of land use and the state of the territory of the settlements themselves in the past.

Nevertheless, the analysis of the surrounding area of archeological monuments can give an understanding of trends in the transformation of the land use structure and key anthropogenic factors affecting them.
