Patch Antenna as Thermal Sensor for Structural Health Monitoring ^†

Abstract

Structural health monitoring (SHM) is crucial for the longevity of engineering structures, especially under thermal loading conditions. Elevated temperatures pose challenges for sensors in data acquisition and characterization. Once suitable sensors are deployed, temperature data help detect and evaluate potential damage or defects. This work uses a Rectangular Microstrip Antenna (RMSA)-based sensor for temperature sensing, offering non-invasive, accurate, and stable measurements. The antenna resonant frequency is sensitive to changes in temperature, acting as an indicator. Simulations using HFSS analyze the antenna’s reflection characteristics under thermal loading, simplifying sensing systems, reducing sensor count, and minimizing installation efforts work. Simulated results are comparable to the experimental ones, which ascertain the performance of patch antennas as temperature sensors.

1. Introduction

Temperature measurement is crucial in production processes, environmental protection, and safety protection. Heat sensors are generally divided into three types: intrusive, semi-intrusive, and non-intrusive. Invasive temperature sensors are installed either on or next to a component and involve a cable to connect the sensors to the measuring instrument. Due to their simplicity and low cost, thermocouples are widely used in multiple applications. However, they have weak and noise-sensitive output signals and expensive cables, which limit their applications. In addition to high costs related to installation and maintenance, another disadvantage of these cabling systems is the difficulty of measuring temperature in moving or heavy areas. Patch antennas have been introduced as thermal sensors recently. These sensors are lightweight and small with high sensitivity and wide bandwidth [1]. Non-invasive sensors are usually based on infrared thermometers, interferometers, and luminescence; they can measure the temperature of an environment remotely without physical contact, though their price is often high. Semi-invasive sensors were placed at the point of interest, but temperature readings were taken far away. Such temperature sensors have garnered attention recently since the implementation of such a system can be substantially lower than that of an invasive or non-invasive temperature sensing system [2]. To maintain standards, all airlines seeking SHM systems must improve the safety of the aircraft, lower the maintenance costs and frequency, and extend the operation of the aircraft. SHM systems can also be used for static monitoring applications such as long-distance transmission lines, cultural heritage monitoring, and modern wooden model home maintenance. [3,4].

The use of patch antennas for various applications has been demonstrated. They can be used for strain measurements [5], as crossovers in beamforming applications [6,7], and in multiple-input/multiple-output (MIMO) systems [8], to mention a few. When temperature is applied to a patch antenna, it changes its shape and current distribution, causing the resonant frequency to change [9]. Recently, a patch antenna has been used together with an IoT platform as a temperature sensor [10]. Using PEDOT: PSS-based chipless printed loop antenna for temperature sensing applications is presented [11]. The impact of antenna shape on sensor performance has also been investigated by researchers [12]. A dual-band antenna for temperature sensing has been reported by Dong, Helei et al. recently [13]. A simple and easy method for realizing a high-sensitivity, fast-response microstrip temperature sensor using a passive RFID antenna has been demonstrated [14]. In this work, a rectangular patch antenna is subjected to thermal load, and its influence on the resonance characteristics is studied in detail.

2. Design of Patch Antenna

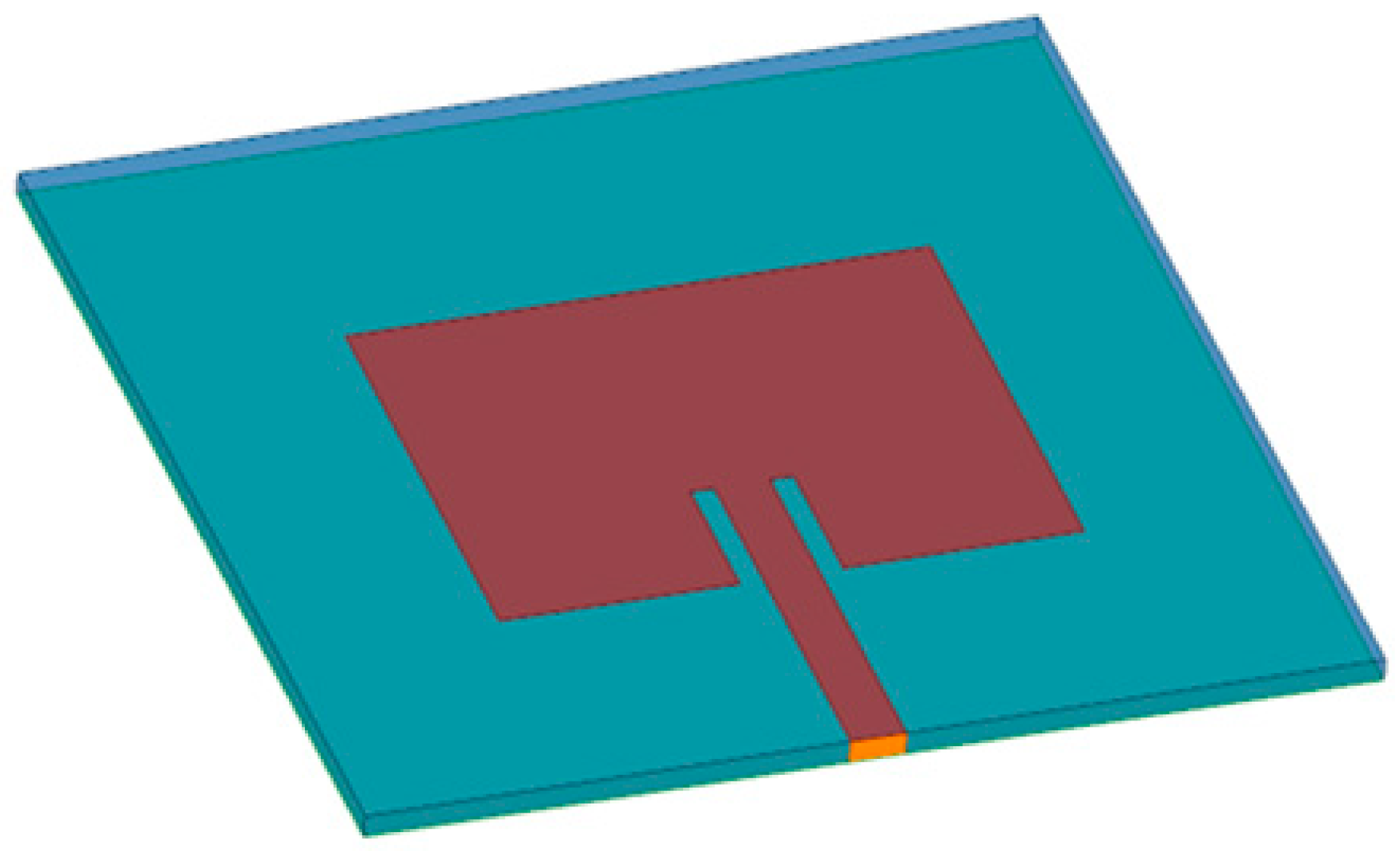

The rectangular patch antenna, depicted in Figure 1, is vital in wireless communication systems, especially when repurposed as a temperature sensor, as explored in this study. Carefully chosen dimensions, such as length (L) and width (W), are tailored to meet desired specifications like resonant frequency and bandwidth, while also enabling accurate temperature sensing. Employing an FR4 substrate, having a dielectric constant (εᵣ) of 4.4 and a thickness (h) of 1.6mm, significantly influences the antenna’s performance. The paper aims to explain the design details of a patch antenna for temperature sensing purposes, providing insights into geometric considerations and material properties for optimal performance in this specific role.

The design process of an inset-fed rectangular patch antenna targets a resonant frequency of 2.45 GHz, which involves comprehensive simulations using ANSYS HFSS.

Table 1. Patch antenna design parameters.

Symbol	Parameter	Values (in mm)
Dielectric Substrate (FR-4 Epoxy) Dielectric constant = 4.4	Height	1.6
Radiation Patch	Length	28.8
	Width	37.3
Ground Plane	Length	65
	Width	65
Feed Line	Length	25
	Width	3.06
Feed Gap	Length	9
	Width	6.12

outlines the specific design dimensions critical to achieving the desired resonance. Simulation assessments are conducted across a frequency spectrum ranging from 2 GHz to 4 GHz to evaluate the antenna’s performance. Upon simulation, the fundamental frequency of the unaltered rectangular patch antenna is determined to be 2.4413 GHz, aligning closely with the intended operational frequency. This resonance frequency validation underscores the effectiveness of the antenna’s design parameters in facilitating optimal performance within the designated frequency band.

3. Principle of Operation

A metallic ground plane, a dielectric substrate, and a metallic radiation patch form a microstrip patch antenna. An electromagnetic resonator consists of a ground plane and an electromagnetic field, which is the electric field of the resonant frequency. The transmission line model states that the antenna resonant frequency, f, can be written as:

$$f={\displaystyle \frac{c}{2\sqrt{\left({\mathsf{\epsilon }}_{\mathrm{r}}\right)\left({\mathrm{l}}_{\mathrm{e}}\right)}}}$$

(1)

where ε_r = dielectric constant of the substrate, c = speed of light, and l_e = electrical length of the patch.

The patch antenna’s resonance frequency is highly sensitive to changes in the dielectric constant of the substrate materials. As the temperature fluctuates, the dielectric constant changes, altering the antenna’s resonance frequency. As a result, temperature-induced alterations in resonant frequency have an impact on the patch antenna’s impedance. This fluctuation in impedance may be monitored and associated with temperature variations, making the patch antenna a useful thermal sensor. However, calibration is essential for precise temperature measurement. Calibration is the process of characterizing the link between temperature variations and changes in antenna properties, such as resonant frequency or impedance.

4. Calculation of Change in Length

The electromagnetic resonator is constructed between the ground layer and the electromagnetic resonator two types TM010 and TM100 at the resonance frequency, ensuring their flow throughout the field’s length and width, respectively. When calculating particularly the TM010, we are measuring only the length of the microstrip antenna. When the antenna is subjected to temperature, the length and width of the patch become deformed, and therefore the resonant frequency will be shifted. The resonant frequency variation can be calculated by:

ΔL = αLΔT

(2)

ΔL: Change in length (meters)

α: Coefficient of thermal expansion (meter/meter/°C)

L: Original length of the antenna (meters)

ΔT: Change in temperature (°C)

Resonant frequency changes in the antenna can be represented by changes in dielectric constant variation in the substrate and length of the radiating element of the patch.

$$\mathsf{\Delta }\mathrm{f}={\displaystyle \frac{\partial \mathrm{f}}{\partial \mathsf{\epsilon }}}\mathsf{\Delta }\mathsf{\epsilon }+{\displaystyle \frac{\partial \mathrm{f}}{\partial {\mathrm{L}}_{\mathrm{e}}}}\mathsf{\Delta }{\mathrm{L}}_{\mathrm{e}}$$

(3)

In which

$${\displaystyle \frac{\partial \mathrm{f}}{\partial \mathsf{\epsilon }}}={\displaystyle \frac{\mathrm{c}}{4\mathsf{\epsilon }\sqrt{\mathsf{\epsilon }\mathrm{l}\mathrm{e}}}}$$

(4)

And

$${\displaystyle \frac{\partial f}{\partial l_e}}=-{\displaystyle \frac{c}{2\sqrt{ϵ}{l}_e^2}}$$

(5)

By substituting Equations (4) and (5) into Equation (2) and normalizing frequency shifts with the resonant frequency, the normalized frequency change ${\displaystyle \frac{\Delta f}{f}}$ is directly proportional to the change in electrical length.

$${\displaystyle \frac{\Delta f}{f}}=-{\displaystyle \frac{\Delta \epsilon }{2\epsilon }}-{\displaystyle \frac{\Delta l_e}{l_e}}$$

(6)

Deformation due to thermal loading is approximated to the thermal expansion of the patch antenna and can be determined from the coefficient of thermal expansion (α).

$${\displaystyle \frac{\Delta l}{l}}={\displaystyle \frac{\Delta \omega }{w}}=\alpha \Delta T$$

(7)

The normalized frequency change and the temperature change can be expressed as

$${\displaystyle \frac{\Delta f}{f}}=-\left[{\displaystyle \frac{{\alpha }_{\epsilon }}{2}}+\alpha \right]\Delta T=k_T\Delta T$$

(8)

Thermal stress arises from the restriction imposed on a material’s expansion or contraction by its surroundings. When a material experiences heating or cooling, it expands or contracts correspondingly. However, external constraints may hinder this free expansion or contraction process. Consequently, thermal stresses build up within the material, potentially resulting in changes in length, as demonstrated in Figure 2.

5. Results and Discussion

This study investigated the impact of temperature variations on the resonant frequency of a 2.4 GHz patch antenna. Simulations were conducted using Ansys Workbench software to analyze the relationship between temperature-induced dimensional changes and the resulting shifts in resonant frequency.

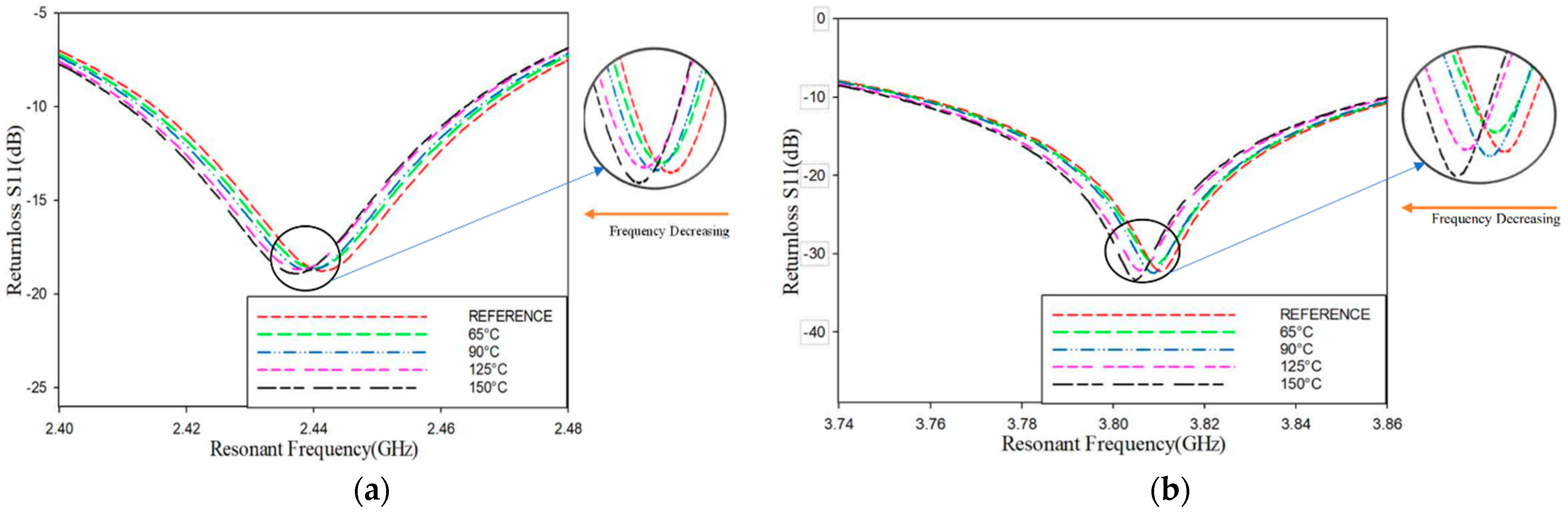

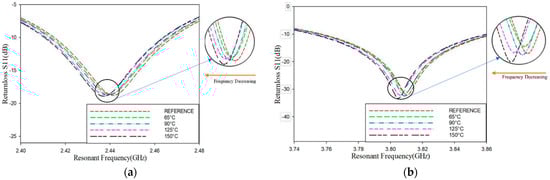

As the temperature surrounding the patch antenna increased from 30 °C to 150 °C, the resonant frequency exhibited a trend in decrease at both 2.4 GHz and 3.8 GHz. Figure 3a,b illustrate the return loss of the patch antenna, highlighting the shift in response to frequency changes caused by temperature fluctuations. Specifically, the frequency shift at 2.44 GHz primarily reflected changes in the length (ΔL) of the patch, whereas the shift at 3.81 GHz predominantly corresponded to changes in the width (ΔW).

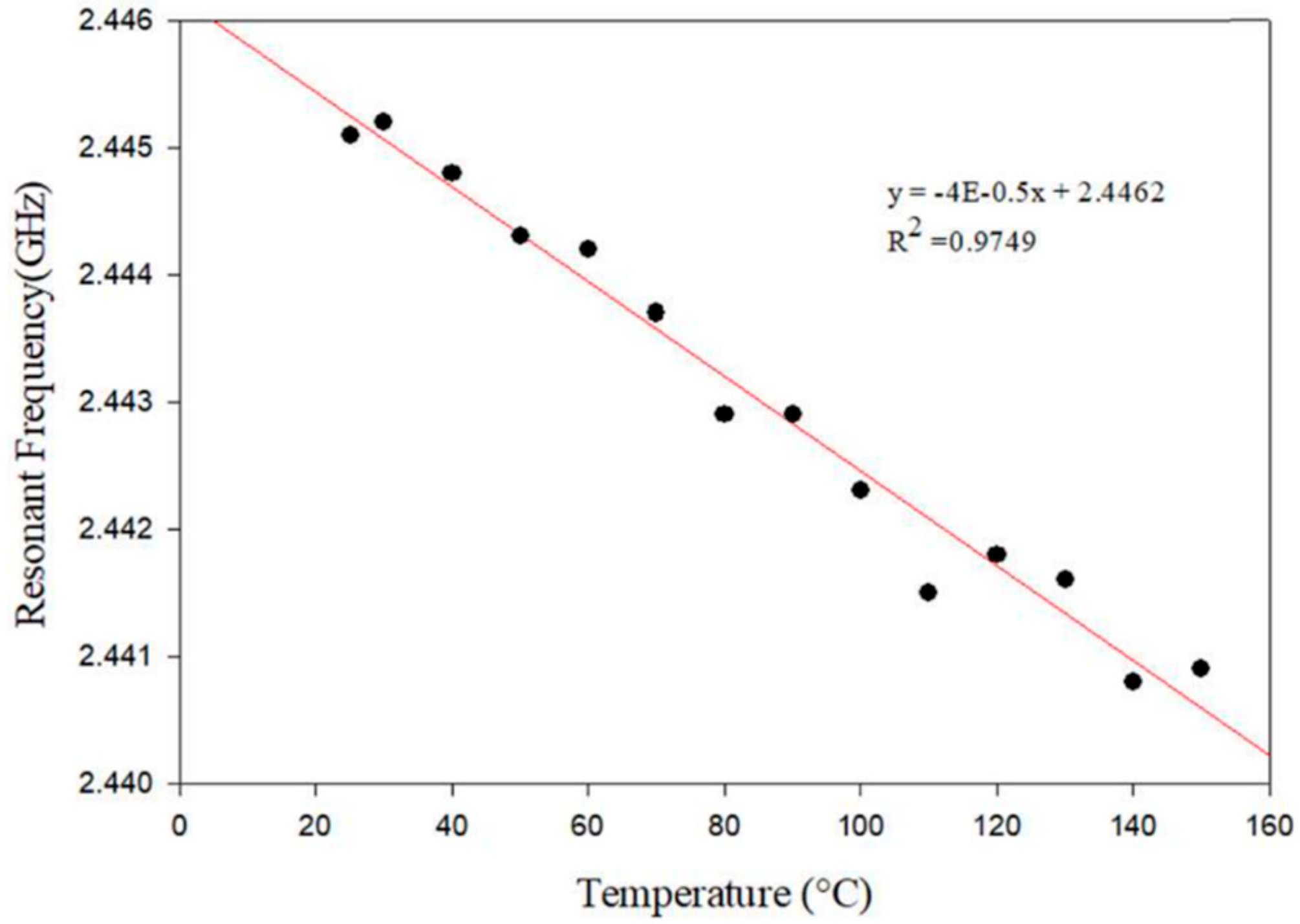

The graph Figure 4 illustrates a negative correlation between temperature and frequency at 2.4 GHz. As temperature increases, the frequency decreases, indicating a clear relationship between temperature variations and frequency shifts. The measured 2.4 GHz frequency reflects variations caused by changes in the antenna’s width dimension. It is noteworthy that the data presented in the graph encompasses a limited temperature range, spanning from 30 °C to 150 °C, corresponding to a frequency range of 2.4406 GHz to 2.4364 GHz. Within this range, sensitivity can be calculated as the change in frequency per unit degree Celsius, which came to be 0.4 MHz. Additionally, the graph allows for the determination of the correlation coefficient (R), which is 0.9749 at 2.4 GHz.

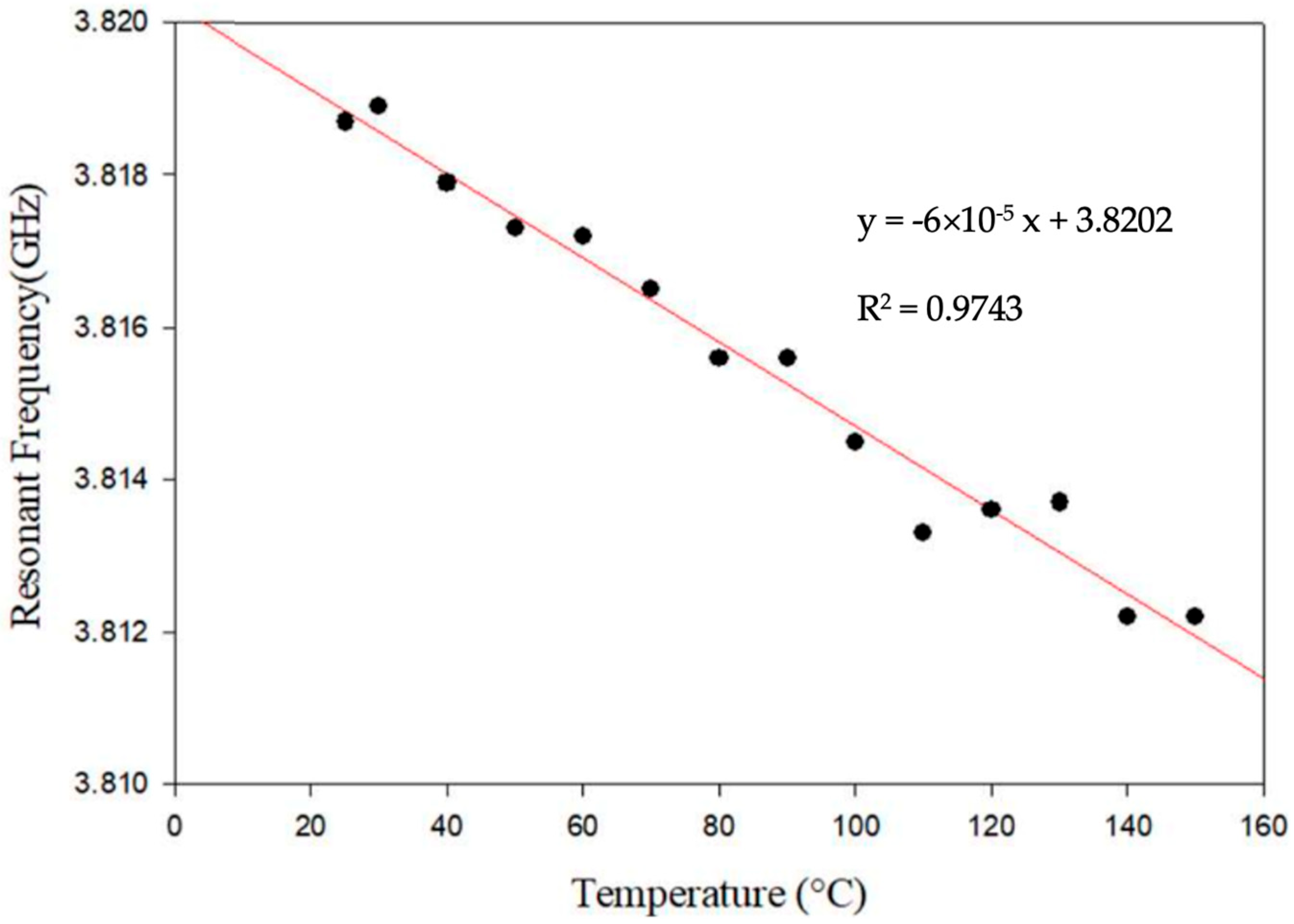

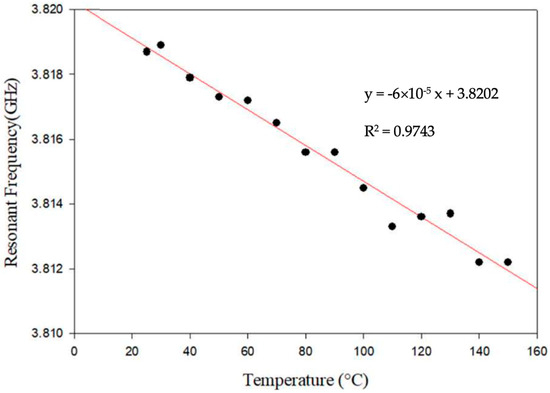

Similarly to the observations in Figure 4, Figure 5 also demonstrates a negative correlation between temperature and frequency at 3.8 GHz. The measured 3.8 GHz frequency reflects variations attributed to changes in the antenna’s length dimension. It is pertinent to note that the data presented in the graph are confined to a limited temperature range, spanning from 30 °C to 150 °C, corresponding to a frequency range of 3.8042 GHz to 3.8107 GHz. Within this range, sensitivity can be calculated as the change in frequency per unit degree Celsius, computed as 0.6 MHz. Moreover, the graph facilitates the determination of the correlation coefficient (R), which registers at 0.9743 at 3.8 GHz.

The findings highlight the proposed antenna’s potential as a sensitive thermal sensor, with the ability to detect temperature changes through frequency shifts. Moreover, the calculated sensitivities and correlation coefficients further validate the reliability and effectiveness of the sensor for temperature monitoring applications.

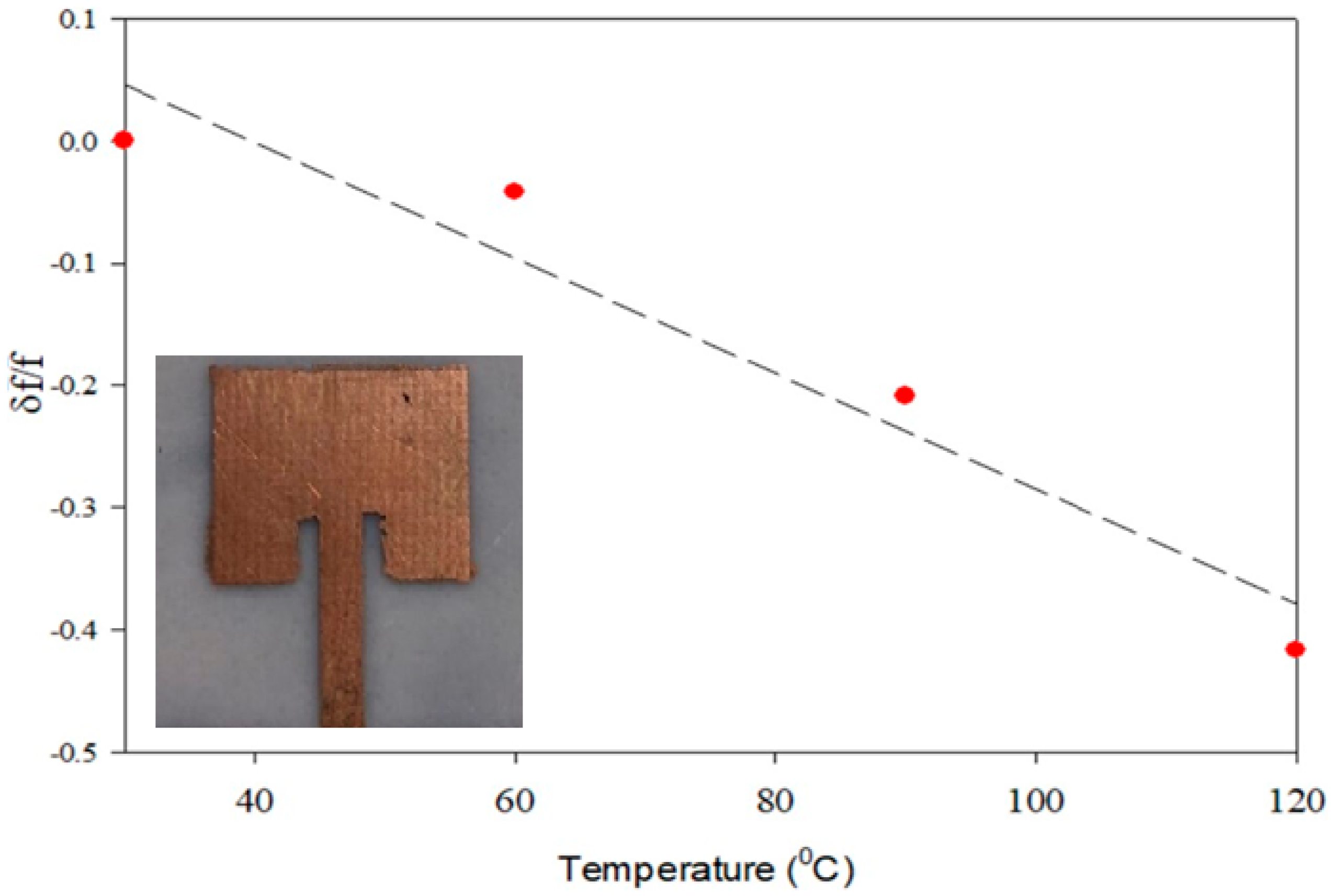

An RMSA is fabricated and tested in a controlled environment in a heat chamber from 30 °C to 120 °C. The results obtained are presented in Figure 6.

The same analysis is carried out over the width of the patch. The first resonance of the patch shows a sensitivity of 0.04 MHz/°C and the second resonance shows a sensitivity of 0.06 MHz/°C. This provides an R² = 0.932 from the experiment during the first resonance characterization. The results obtained experimentally are in good agreement with the simulated ones.

6. Conclusions

This paper explores the utilization of Rectangular Microstrip Antennas (RMSAs) as effective sensors for monitoring temperature changes in structures, focusing on structural health monitoring. The core principle revolves around the frequency shift in a patch antenna in response to shape variations caused by temperature changes. The design entails crafting an RMSA sensor on an FR-4 substrate specifically engineered to operate at 2.4 GHz, with simulations indicating that thermal-induced structural changes directly influence the antenna’s reflection parameters.

The sensing principle depends on the observation that the frequency of the patch antenna changes in accordance with the thermal expansion, offering a direct correlation between frequency variation and the degree of thermal loading and potential structural deformations. This insight presents a non-invasive method for tracking temperature fluctuations in structures wirelessly, thus potentially obviating the need for wired sensors in various scenarios. The applications of this technique span diverse domains, such as buildings, bridges, aircraft, and other structures, where temperature variations pose significant concerns for structural integrity.

Furthermore, the paper emphasizes the cost-effectiveness and simplicity of the RMSA approach for temperature sensing, suggesting its viability as a practical solution for widespread implementation in structural health monitoring. By demonstrating the efficacy of patch antennas as thermal sensors, this work paves the way for innovative avenues in the realm of structural health assessment, promising exciting possibilities for future applications and advancements in monitoring techniques.
