1. Introduction
As an alternative to the standard techniques of Covid-19 [
1] diagnostics, novel miniaturized electronic devices have been introduced for rapid detection even in asymptomatic carriers of the virus or in individuals with low viral load. Miniaturization of electrochemical techniques was demonstrated by several studies using commercially available screen-printed electrodes and small-footprinted potentiostats, where authors performed the measurements with either immunosandwich assays with labeled secondary antibodies [
2] or redox mediators [
3] to provide the electrical signal. Alternative electronic biosensing devices are field-effect transistors (FETs). They sense even minor alterations in the electrical signal caused by simple biorecognition events without the need for redox mediators or receptors labeled with electroactive tags.
A number of FET-based biosensors have already been reported for the detection of SARS-CoV-2 antigens [
4,
5]. FETs based on silicon nanowires are known to have excellent sensitivity [
6,
7]. However, they are also known for their severe limitation based on the Debye length screening distance when immersed in high ionic strength samples [
8]. As a result, the conductivity changes caused by the binding of target pathogens to the bioreceptors may not be detected by the biosensor. A promising solution to this problem was found via surface chemistry by the co-deposition of the dielectric polyethylene glycol (PEG) on the surface of the FET [
9]. However, two-dimensional surface modification approaches still suffer from certain disadvantages compared to three-dimensional ones, such as limited interaction kinetics between the surface and the sample and possible instability of the bioreceptors. The incorporation of PEG and antibodies as a three-dimensional fluid-like environment in the form of hydrogels introduces a new way of FET-based biosensing where the effective Debye length is increased, offering an increased degree of receptor-analyte interaction and a higher degree of surface protection from undesired non-specific interactions.
In this contribution, we demonstrate antibody–antigen binding transduction in high ionic strength using PEG-based hydrogels as host environments for the receptors and nanomaterial-based FETs as transducers. Specifically, we used the star-shaped PEG hydrogel where antibodies against the spike protein of the novel coronavirus (SARS-CoV-2) are hosted. Silicon nanonet-based FETs were used to perform spike protein detection in spiked buffer, spiked saliva, cultured viral solutions, and real samples from nasopharyngeal swabs.
2. Results and Discussion

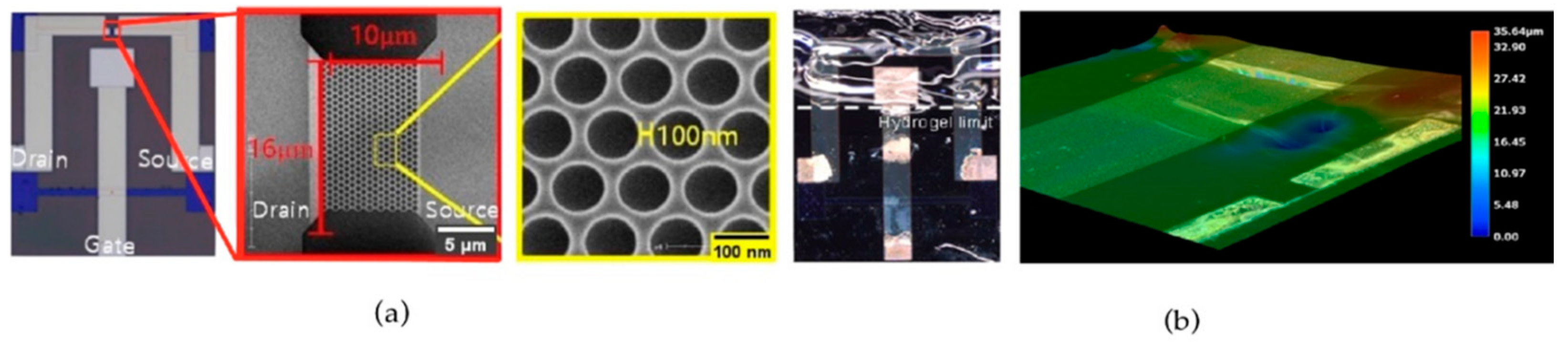

The used FETs consist of microfabricated electrodes with a silicon nanonet with lateral distances of 100 nm at the interconnects (
Figure 1a) covered with the starPEG-based hydrogel. The hydrogel deposition resulted in the formation of a receptor molecule hosting platform homogeneously distributed on top of the FETs gate electrode and the regions with the nanonet. The homogeneous shaping of the hydrogel layer with a thickness of ca. 35 µm (
Figure 1b) was achieved due to the pressure from the applied glass slide.
During the FETs transfer characteristics recording the drain-source current Ids was monitored, while the gate voltage Vg of the devices was swept with applied constant source-to-drain potential Vds equal to 0.1 V. After each incubation of the samples on the biosensing platform with increasing concentrations of spike protein receptor binding domain (RBD) (from 5 pg mL
−1 to 50 ng mL
−1) in PBS (

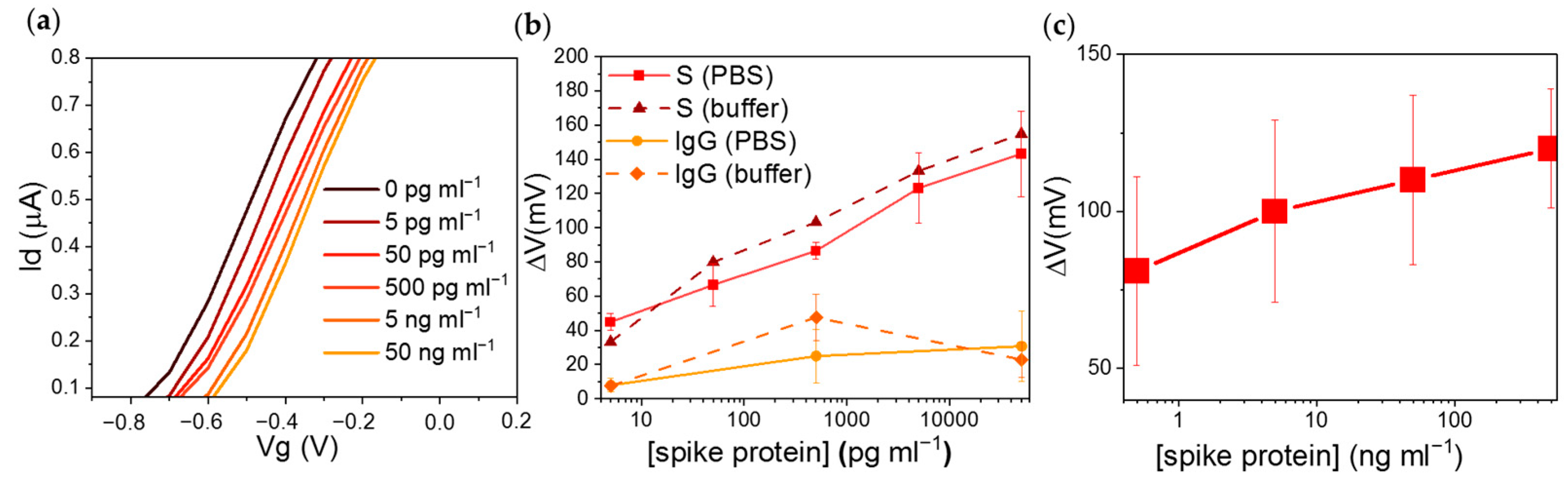

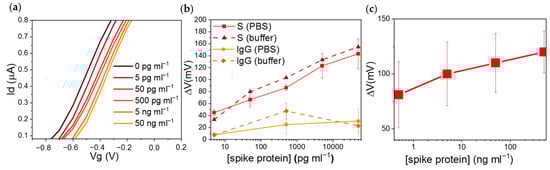

Figure 2a), the signal was measured in pure PBS. Significant concentration dependency of the transfer curve was observed (
Figure 2a,b). The FET-based biosensor covered with hydrogel showed a sensitivity of 30 mV ± 5.7 mV to a ten-fold increase of spike protein concentration in PBS. The voltage shift direction is in agreement with the theoretical isoelectric point of 3.9 and negative net charge at pH 7.4 (z = −1.483) for the amino acid sequence of the RBD (region 480–499: cngvegfncyfplqsygfqp). In comparison, the performance in a diluted buffer demonstrated similar sensitivity to the antigens concentration changes (31 mV ± 3.5 mV). These results suggest that the hydrogel layer on top of the FETs preserves the sensitivity of the device in high ionic strength solutions. Non-specific interactions of the sensor were discarded by exposing the hydrogel to human IgG (
Figure 2b).
Purified saliva spiked with RBD was used to assess the capability of the biosensor to detect the presence of COVID-19 pathogens in complex biological fluids. Although recorded I–V curves demonstrated clear dependence on the antigen concentration (
Figure 2c), the achieved sensitivity was smaller in comparison to those obtained in PBS (20 mV ± 9 mV to ten-fold increase of RBD concentration). Our assumption is that the reason for this is the higher viscosity of human saliva in comparison to PBS, which could lead to a reduced diffusion of the molecules and, therefore, a diminished interaction between the target and bioreceptors.
Before measuring patients’ samples, we analyzed samples of cultured viruses to confirm that spike protein was detectable after inactivation. Incubation of the hydrogel layer with heat-deactivated samples (80 °C for 1 h [
10]) led to consistent signals with clear dependence of the FETs gate voltage shift on the virus concentration (

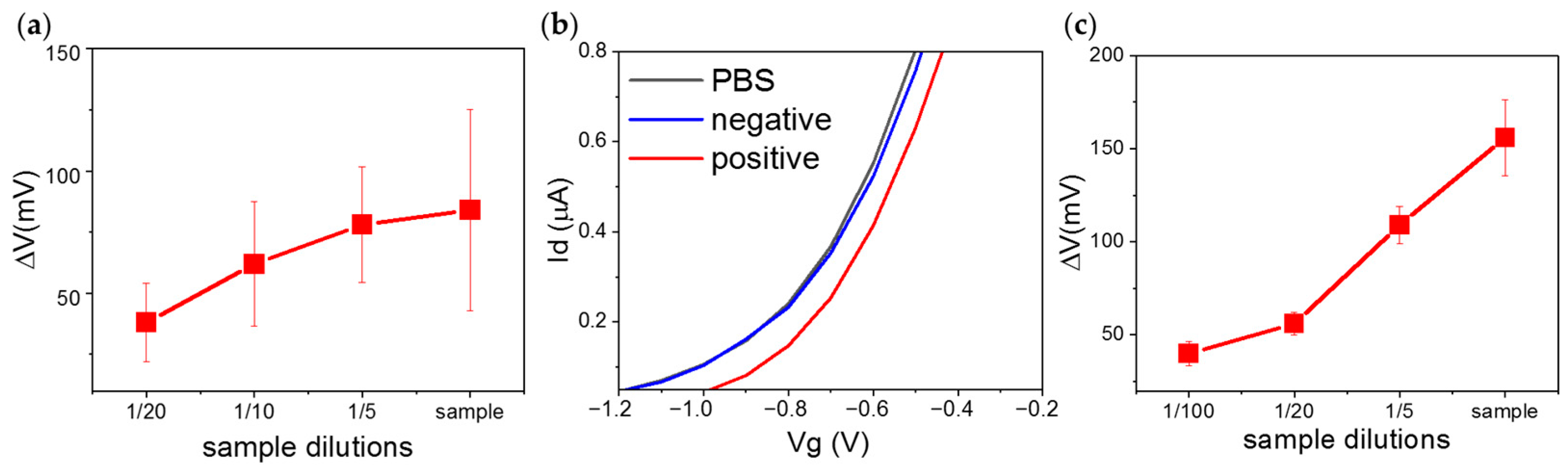

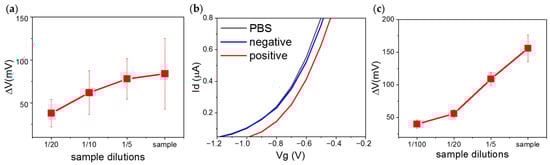

Figure 3a). Further measurements with heat-inactivated samples of COVID-19-positive (CT value 15.8) and negative patients proved the capability of the device to identify the presence of the virus in a realistic clinical scenario (
Figure 3b). The I–V curve recorded after incubation with the negative sample overlapped with the baseline originated from a measurement with only PBS, while the incubation with COVID-19 positive sample resulted in a significant shift of the signal (105 mV). Additionally, the transfer characteristics of the biosensor were also recorded for different dilutions of heat-inactivated viral samples from nasopharyngeal swabs (
Figure 3c). All three devices used for the measurements demonstrated a clear dependence on the FETs gate voltage shift on the concentration of the inactivated viral samples.
3. Conclusions
In the frame of this study, we demonstrated the capability to use FETs coated with the starPEG-heparin hydrogel-containing antibodies for direct SARS-CoV-2 detection in high ionic strength solutions. This was proven by consecutive incubation of the biosensing hydrogel platform with different concentrations of spike protein RBDs dissolved in PBS solution, and the observation of the I–V curves shift to more positive values after each incubation-washing cycle. Thus, we confirmed the dependency of the signal on the target protein concentration in the analyzed liquid samples. Additionally, it was possible to sense the change of the RBD concentration on femtomolar levels in diluted and undiluted buffer, overcoming the Debye length limitation. The biosensor was able to perform the detection in femtomolar levels of the analyte in both conditions, high and low ionic strength, demonstrating the ultrasensitivity required for early diagnostics. Successful results by spiking human purified saliva showed the potential use of such fluid as a non-invasive source, offering an alternative to the uncomfortable nasopharyngeal swab. Finally, real samples in the form of cultured viruses could be measured, and nasopharyngeal swabs from healthy and sick patients could be discriminated. However, to achieve a quantitative result with saliva and real samples with high viral load, sample dilution would be beneficial due to the sensor signal saturation.
All in all, we showed the suitability of pegylated hydrogels as a new method to overcome the Debye length problem in samples with high ionic strength, providing the advantages of such hydrogels to protect the sensor surface from non-specific adsorption and preserve the activity of antibodies. Further improvement may be necessary to avoid saturation of the device after incubation with highly concentrated samples. The opportunity to quantitatively measure the virus concentration by this biosensor may be helpful for obtaining an overview of the infection and disease situation. In addition, the biosensor can be used as a rapid early test to avoid overloading medical facilities, additionally, in view of future epidemics or pandemics, by adjusting the hydrogel composition according to the needs of other receptors and target biomarkers.
4. Methods
4.1. Silicon Nanonet-Based Field-Effect Transistor Fabrication
KrF photolithography and inductively coupled plasma reactive ion etching was used as a highly reproducible method to define the active region on silicon-on-insulator wafers with a 100 nm top Si layer (p-type, 10 Ω·cm, (100)) and a 400 nm buried oxide layer. The source and drain regions were formed by arsenic ion implantation with a dose concentration of 5 × 1015 cm−2. A 5 nm oxide was grown as a gate insulator by rapid thermal annealing at 1000 °C for 20 s. The contact pads, source/drain transmission lines, and gate electrodes were formed using an I-line stepper and a lift-off process. Finally, a SU-8 passivation layer was formed on the entire surface except for the contact pads, channel, and reference electrode regions.
4.2. Hydrogel Preparation and Deposition
StarPEG-heparin hydrogel was prepared via Michael addition reaction, where PEG-thiol reacted with heparin maleimide 6 in the presence of the antibodies against SARS-CoV-2 RBD epitope (480–499). Details can be found in ref. [
11]. The final mixture was drop cast on top of the FETs for in situ gelation. A glass slide was put on top for 60 min in order to achieve a homogeneous and flat surface. Finally, the glass slide was removed, and the gel was hydrated using PBS.
4.3. Optical Microscopy and Thickness Estimation
Optical microscopy of the hydrogel layer was done using a digital microscope (VHX-7000, Keyence Deutschland, Neu-Isenburg, Germany). The layer of star-PEG-heparin was visualized on top of the FET chip surface. The scanning mode of the microscope provided a 3D profile to estimate the thickness of the hydrogel after the deposition procedure described above.
4.4. Virus Culture and Deactivation
Virus isolates were obtained from nasopharyngeal swabs of anonymous patients. The swab sample was filtered through a 0.2 µM filter and then added to Vero E6 cells cultured in DMEM GlutaMAX supplemented with 10% fetal bovine serum, 1% non-essential amino acids, and 1% penicillin/streptomycin. The virus was harvested upon the destruction of the cell layer. The supernatant was cleared by centrifugation to remove cell debris. Passage two of any isolate was used for experiments. Virus stocks were inactivated by heating for 1 h at 80 °C.
4.5. Electrical Measurements
All I–V curves with FETs were obtained using a source measure unit (2604B, Keithley Instruments, Germering, Germany) in a probe station with micropositioners for electrical connection. For the biosensing response, the hydrogel-FET was incubated for 15 min with 4 µL of the target solution. Every incubation step was followed by washing in pure PBS in order to remove unbounded antigens and other possible molecules or cell debris. Measurements were taken after each incubation-washing cycle using either a drop of PBS (4 µL) as a high ionic strength solution or a drop of the same volume of 5 mM sodium phosphate buffer as a low ionic strength solution.
Author Contributions
A.P. performed the biosensing experiments, analyzed the results, prepared the figures, and wrote the manuscript with feedback and revision from all authors. W.C. and S.S. fabricated the field-effect transistors coordinated and supervised by J.-S.L. M.S. prepared the viral samples including their inactivation. T.F.A. prepared the hydrogel supervised by C.W. B.I. conceived and supervised the overall work with feedback from G.C. G.C. acquired the funding. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Sächsische AufbauBank, grant number 100525920.
Institutional Review Board Statement
All clinical samples were retrieved from biobanks. The study was conducted according to the guidelines of the Declaration of Helsinki and all protocols and registries have been approved by the Ethics Committee of the TU Dresden. All participants have provided signed written informed consents.
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data is available from the corresponding authors upon reasonable request.
Acknowledgments
This work was funded by the Sächsische AufbauBank project 100525920.
Conflicts of Interest
The authors declare no conflict of interest.
