Web-Based Solid Waste Management System and Plastic Combustion Detection Using Internet of Things Technology ^†

Abstract

The implementation and monitoring of Republic Act (RA) 9003 of the Philippines presents significant challenges due to the vast area and limited number of implementing enforcers. RA 9003 focuses on ecological solid management systems. The law relies on citizens’ identification of violators. In this study, we developed a plastic combustion monitoring system, Green Guardian, which detects and monitors methane (CH₄), carbon dioxide (CO₂), and carbon monoxide (CO) concentrations using the Internet of Things technology. The system was tested in Barangay in Cabuyao City, Laguna, Philippines. This system supports RA 9003 implementation, enabling efficient tracking, reporting, and management of plastic combustion incidents. By using self-calibration testing, third-party testing, isolation testing, location testing, and user acceptance test (UAT), the system’s accuracy and reliability were validated.

1. Introduction

Plastics are used for industry, agriculture, packaging, and transportation. A staggering 400 million tons of plastics are produced annually. However, the world generates 52 million metric tons of plastics every year, which has become a major global issue. In the Philippines, lawmakers enacted Republic Act 9003 to regulate solid waste management. The law establishes institutional mechanisms, offering incentives for compliance while imposing penalties for violations. The Philippines has a significant issue with single-use plastic, generating between 2.7 and 5.5 million metric tons of plastic waste annually, with approximately 20% leaking into the environment [1].

Different methods have been designed to handle plastic garbage to either break it down or transform it into a usable form. Plastic wastes are separated from other types of waste for recycling [2]. Currently, the global disposal of plastic waste is a significant challenge. Existing research has proposed various strategies for the disposal of plastic trash, including landfilling, incineration, recycling, use in road building, conversion into petroleum-based goods, and degradation. The Philippines employs several methods for waste disposal, including landfills, collectors, recycling, scavengers, waterway dumping, and burning [3]. Unfortunately, most Filipinos are burning plastics [4]. However, burning plastic produces air pollutants including polychlorinated biphenyls (PCBs), polycyclic aromatic hydrocarbons (PAHs), dioxins, and furans [5]. Such air pollutants are the third most significant contributor to mortality and disability from non-communicable diseases in the Philippines [6]. Furthermore, the impact of air pollution extends beyond individuals and communities, affecting entire landscapes. Many low- and middle-income countries have adopted unregulated practices, such as openly burning plastic, which has led to the serious issue of toxic air pollution. Therefore, innovative technological solutions are essential to addressing the complexities of this environmental challenge.

2. Literature Review

Plastic waste management is important, particularly in developing countries, including the Philippines, where poverty significantly drives the demand for disposable products [7]. Traditional waste management methods, such as landfilling, recycling, and incineration, are widely used but with notable challenges. Landfills occupy significant land areas and contribute to secondary environmental pollution. Recycling, while potentially cost-effective, suffers from a lack of investment incentives, limiting its widespread adoption. Incineration, though efficient in terms of space, raises concerns about harmful emissions into the atmosphere [8].

In the Philippines, waste management is further complicated by improper disposal practices. A significant portion of formally collected waste ends up in open or regulated dump sites, and while recycling efforts are growing, they face numerous challenges. Informal scavenging plays a crucial role in collecting recyclable materials, including plastics, which are often sold to recycling centers. However, illegal dumping of waste into waterways remains a significant issue, contributing heavily to ocean pollution [9].

The environmental and health impacts of plastic waste are profound. Open burning of waste, which includes plastics, releases toxic gases such as dioxins, furans, mercury, and polychlorinated biphenyls, which pose severe health risks [10,11,12]. Additionally, plastic, particularly low-density polyethylene (LDPE), emits methane and ethylene when exposed to sunlight, contributing to greenhouse gas emissions [13]. From the combustion of various plastic polymers, different toxic gases are released. For instance, burning polystyrene (PS), polyethylene (PE), and poly (vinyl chloride) (PVC) releases varying levels of carbon monoxide (CO) and carbon dioxide (CO₂) depending on combustion conditions [14]. Additionally, polyethylene terephthalate (PET) and polystyrene are major contributors to black carbon emissions when burned, highlighting the environmental dangers of improper plastic waste disposal [15]. Therefore, optimized combustion processes are required to minimize harmful emissions.

In response to these challenges, various policies have been enacted to address plastic and air pollution in the Philippines. The Philippines is a signatory to the Stockholm Convention on Persistent Organic Pollutants (POPs), committing to reducing or eliminating the release of harmful pollutants [16]. Additionally, the Republic Act 8749, known as the Clean Air Act of the Philippines, sets air quality standards and promotes cleaner technologies to mitigate air pollution. More recently, Republic Act No. 11898, the Extended Producer Responsibility Act of 2022, was enacted to mandate large enterprises to develop and implement programs for collecting plastic packaging, thereby reducing plastic waste at its source.

Despite these regulatory frameworks, illegal activities continue to pose significant environmental risks. These activities arise from negligence and deliberate actions for financial gain, taking advantage of regional disparities in labor costs and environmental regulations [17]. Therefore, the deployment of IoT technology to monitor and detect plastic combustion incidents is important to enhance the enforcement of environmental regulations and prevent illegal disposal practices.

3. Methodology

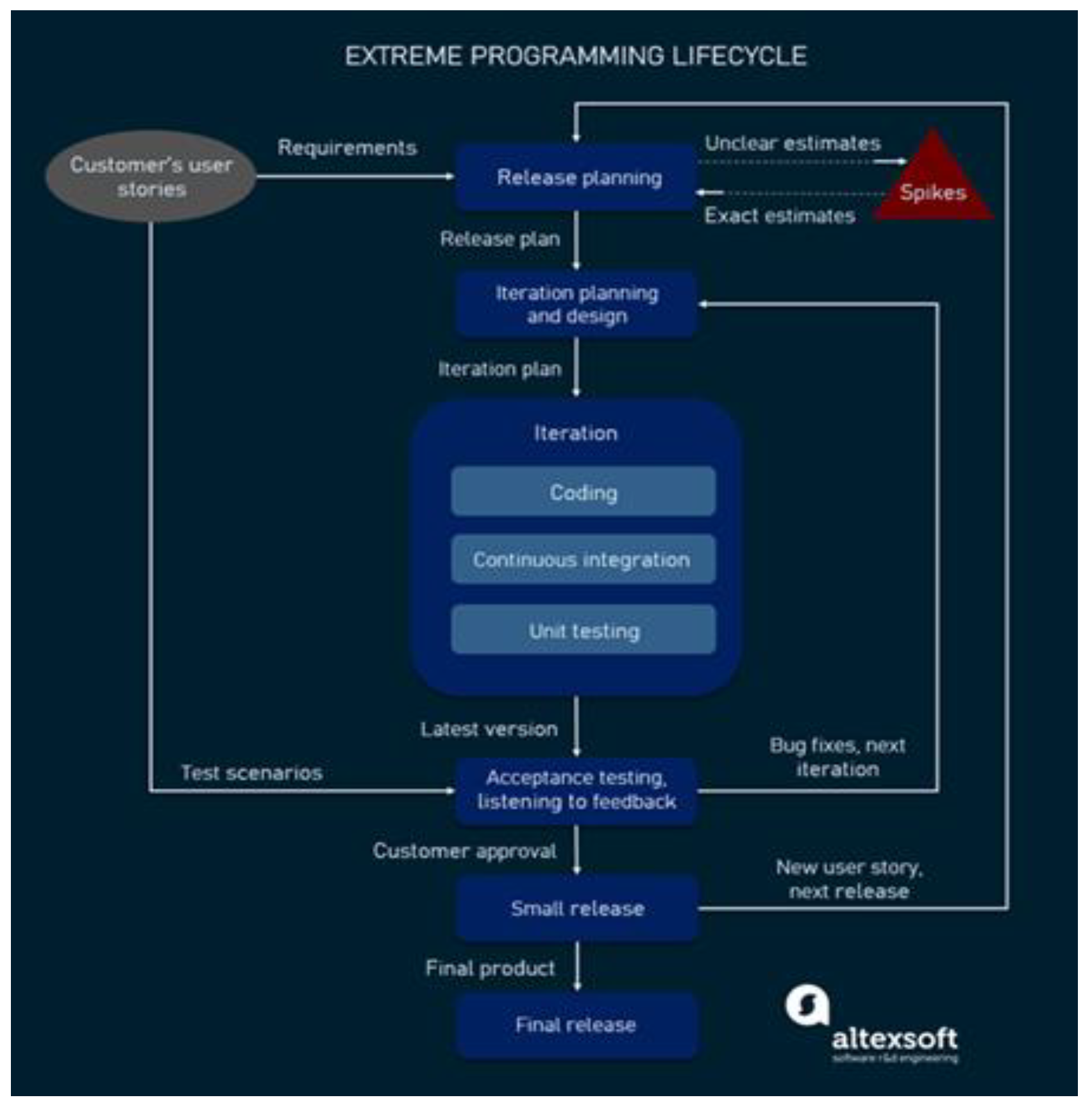

By using Extreme Programming (XP), we conducted requirement analysis and formulated the release plan, iteration plan, customer approval, and final product to develop a solid waste management system. This method is commonly used for web application development. The steps are shown in Figure 1.

In the planning stage, we gathered data through user stories and sorted them to create a release plan. For uncertain requirements, additional research, known as “spikes”, was conducted, involving interviews to gather more data to identify relevant sensors to detect chemicals released by burning plastic. A simple, responsive prototype design of software and hardware was created and modified through testing, calibration, and system integration to meet the system requirements and project objectives. In the coding phase, software was developed and finetuned using dummy data. Alpha testing and beta testing were used on both software and hardware for the refinement of the developed system. In the listening phase, client feedback was gathered to modify the software and incorporate changes into the next iteration.

4. Results

4.1. Self-Calibration of Sensors

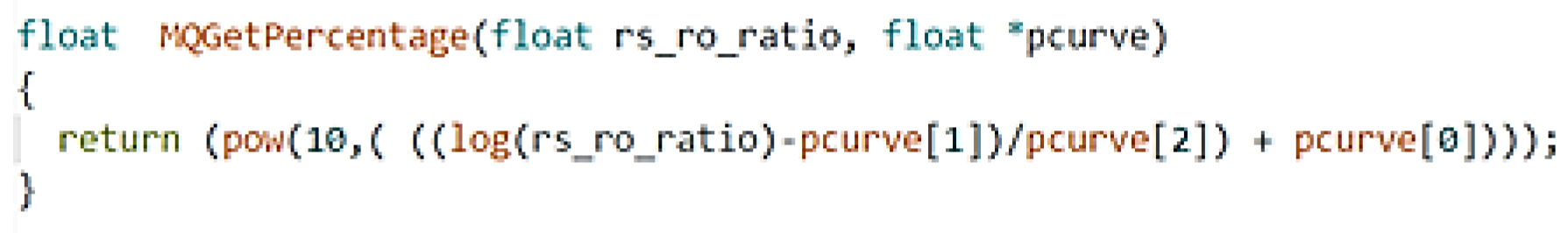

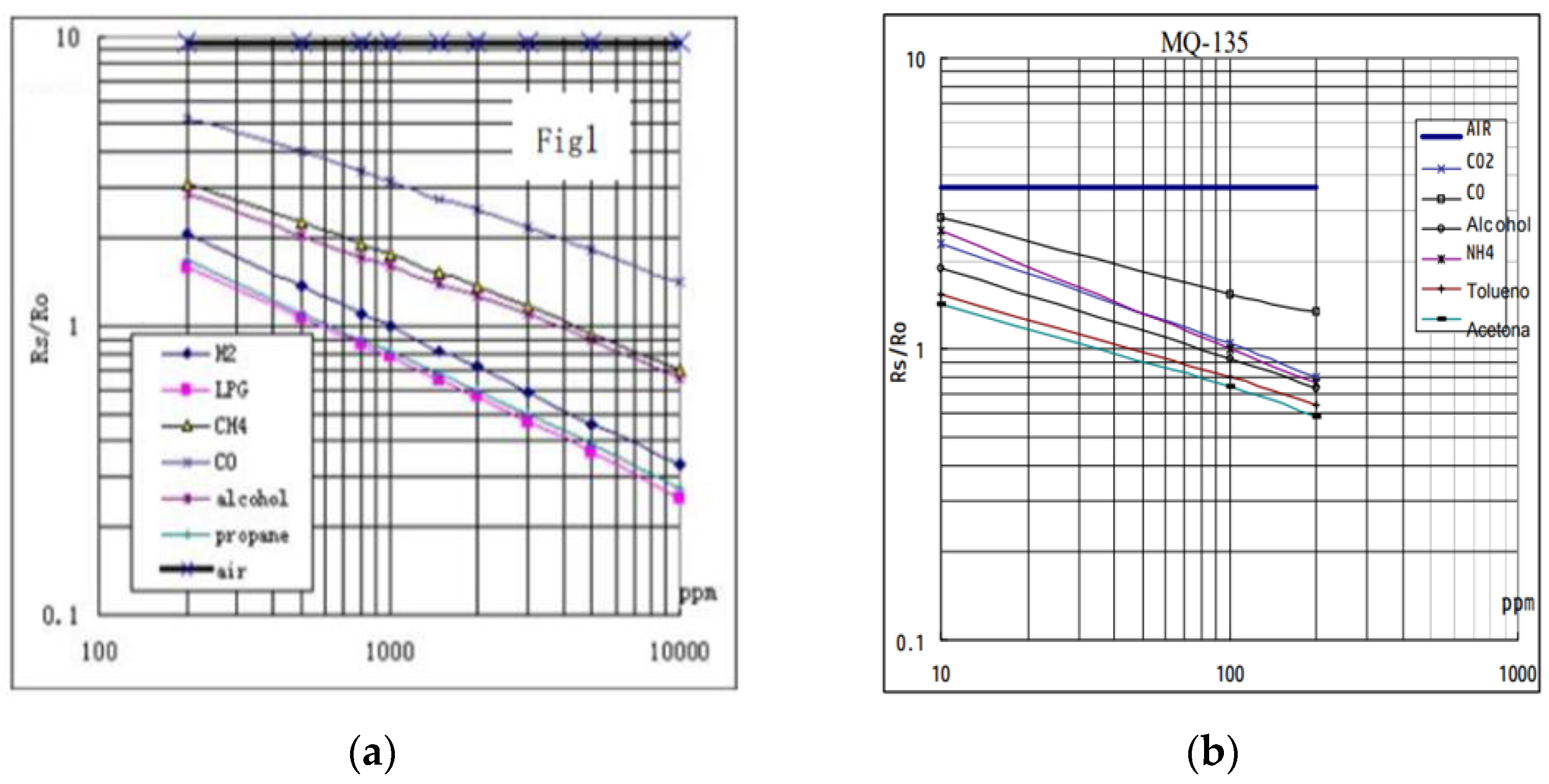

Self-calibration was conducted by comparing the output data from the MQ2 gas sensors used in the prototype with the datasheet and specifications provided by the manufacturer. The sensors were tested for various gases to calibrate. We calculated the slope of regression lines of detected and standard data using the manufacturer-provided formula to determine the theoretical value and assess the error in the sensor data [18,19]. Figure 2 shows the concentrations on the horizontal axis and the Rs/Ro ratio on the vertical axis, reflecting the sensor’s resistance. Mathematically, determining a particular ppm value involves referencing the graph in the datasheet and identifying the corresponding Rs/Ro ratio. Figure 2a,b illustrates the linear relationship of concentrations in ppm, from which the slope is calculated to establish for self-calibration [20].

For CO, CH₄, and CO₂ sensors, Rs/Ra ratio ranges and slopes were (2.3–0.72, −0.34), (2.3–0.48, −0.40), and (1.03–0.36, −0.02). The calibration results for CH₄ was m = (−0.157407608 − 0.484567453)/(4 − 2.303895551), which yielded a slope of 0.378499721. For CO, the slope was −0.398351, calculated from m = (−0.1573176 − 0.48)/(3.9 − 2.30011). Lastly, for CO₂, the slope was –0.33208 from m = (−0.098404383 − 0.3617014)/(2.4155226 − 1.03). Figure 3 shows the algorithm to convert the output to the concentration in ppm.

Table 1. Unpaired t-test result of different readings of sensors.

Gas	Reading from the Sensors	Readings from the Third-Party Devices	Significance	p-Value
Carbon Monoxide	21	22	Not Significant	0.9878
	26	24
	16	14
	17	16
	20	23
	63	65
Carbon Dioxide	6236	6500	Not Significant	0.8644
	6033	6500
	6271	6500
	8816	8500
	7552	7500
	8451	8500
Methane	11.9	11	Not Significant	0.8519
	6.93	7.3
	9.9	8.2
	4.3	4
	4.3	4.1
	6.93	7.3

shows the summary of the results of the self-calibration test.

4.2. Third-Party Testing

We evaluated the accuracy of detecting CO₂, CO, and CH₄ by comparing the readings with those from two different third-party devices used at the Land Transportation Office. Through the comparison, the reliability of the MQ135 and MQ2 gas sensors in the developed system was validated. An unpaired t-test was conducted to examine the difference between the third-party devices and the developed system. The statistical analysis results showed no significant differences in the data collected by the developed system and the third-party devices (Table 1). The p-values for all gases were above the threshold (0.05), indicating no significant difference between the two sets of readings. This confirmed that the developed system provided reliable and comparable data in line with third-party measurements.

4.3. Isolation Testing

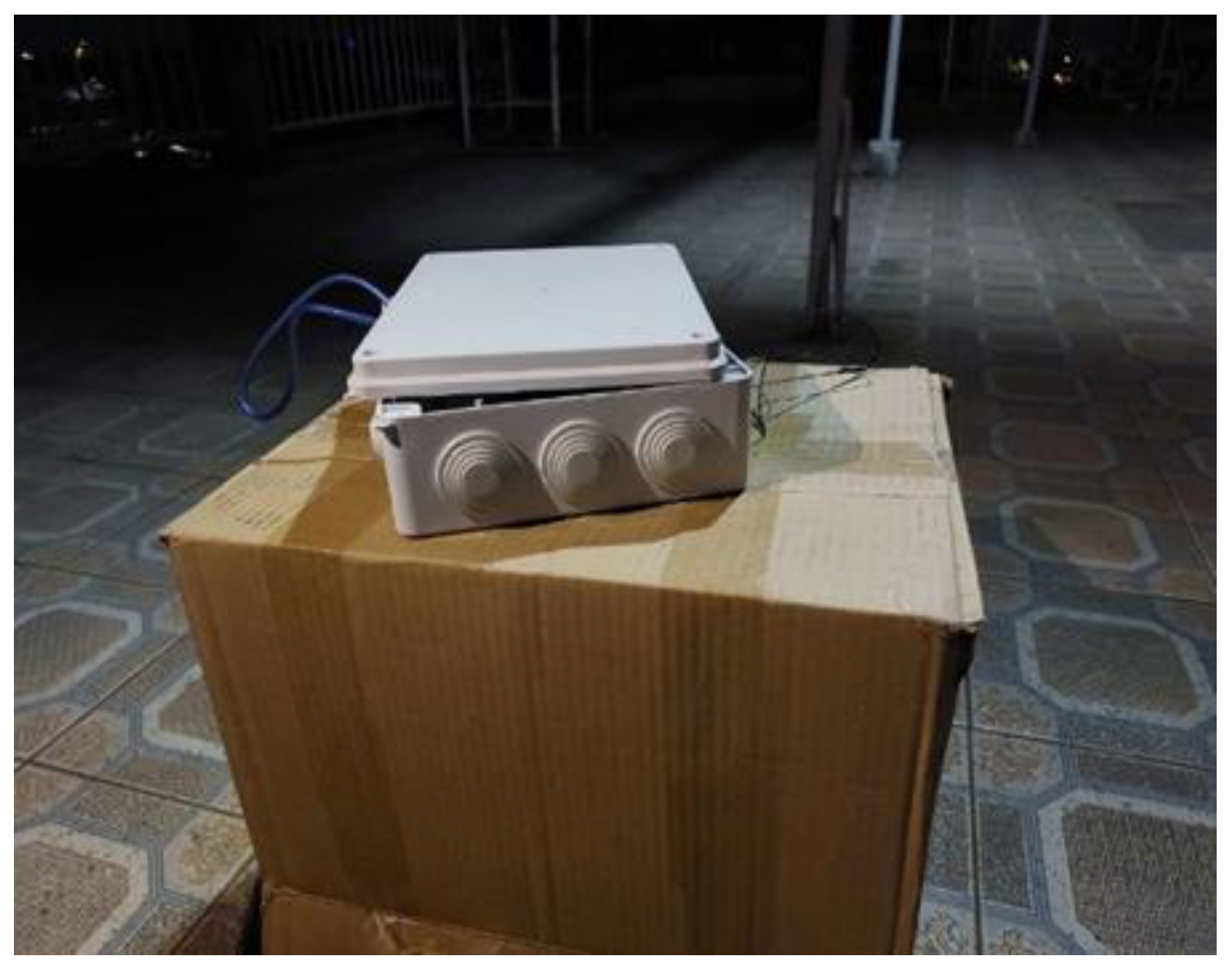

Isolation testing was conducted to verify whether the data generated by the sensors aligned with ISO 9705 standards [21] where a customized container will be used to evaluate the fire performance on a selected scenario. The box with dimensions of 18.5 × 12 × 12 inches with gas sensors was mounted (Figure 4). A towel was burned to produce thick black smoke, allowing the sensors to measure the smoke concentration [22]. The butane gas, towel, paper bag, plastic bag, and a piece of bed cloth were burned for one minute to produce thick black smoke in the box. This setup allowed the sensors to measure the gases in the smoke.

Isolation testing was also performed in a clean-air setting to calibrate the sensors to ensure reliable measurement.

Table 2. Expected gas concentration based on ISO 9705 Standards.

Time for Measurement	Test No.	Gas Concentration (Dose)
		O2 [%]	CO2 [ppm]	CO [ppm]	CO Dose [ppm min]	HCN [ppm]
Photoelectric detector; minimum response time	1	20.6	1465	576	30,859	N/A
	2	20.5	1792	733	31,384	N/A
	3	20.6	1431	502	17,855	N/A
	4	20.5	1868	639	22,690	N/A
	5	20.6	1630	643	18,985	N/A
	6	20.4	2095	993	57,903	N/A

presents the observations, with highlighted values indicating increased readings of 28,445 ppm for CO and 6290 ppm for CO₂, which align with ISO standards, as shown in Table 2.

Table 3. Reading of MQ2 and MQ135 gas sensors.

Measurement Number	CO (ppm)	CO2 (ppm)	CH4 (ppm)
1	1	7369	0
2	2	9159	1
3	32	8696	2
4	24,679	9045	25,064
5	31,080	8461	20,024
6	4672	9125	7660
7	17,008	9007	23,510
8	15,232	8300	24,725
9	6016	7891	16,348
10	19,200	9122	11,164
11	29,952	8930	9432
12	9600	9557	16,676
13	24,192	9197	8172
14	17,600	9778	21,002
15	11,136	9803	28,456
16	24,896	9122	5842
17	17,152	8637	21,430
18	13,440	8087	20,296
19	12,288	8087	9596
20	19	8087	22

shows the concentration levels of gases accumulated and dissipated. The result suggested that the gas sensors met international standards and functioned properly in diverse settings [20].

To test the device’s ability to differentiate smoke from fire sources, we conducted an unpaired t-test.

Table 4. Unpaired t-test results between burned materials with and without plastics.

Gas	Alpha	One-Tailed p-Value	Mean Difference (Mean 2 − Mean 1)	Interpretation
CO	0.05	0.0113	5091.85	Significantly higher emission of materials with plastic
CO2	0.05	0.0367	786.2
CH4	0.05	4.9588 × 10−5	546.75

shows the results and differences between burned materials with and without plastics. All p-values were below 0.05, indicating significant differences, with higher emissions from materials with plastics.

Table 5. Unpaired t-test results between burned materials with and without plastics.

Gas	Alpha	p-Value (One Tail)	Mean Difference (Mean 2 − Mean 1)	Interpretations
CO	0.05	0.0113	5091.85	Significantly higher emission of materials with plastic
CO2	0.05	0.0367	786.2
CH4	0.05	4.9588 × 10−5	546.75

shows the results of the second isolation testing, which also confirmed a significant difference between burned materials with and without plastics, with materials with plastics showing higher emissions of the gases. The results validated the sensors’ accuracy and reliability, confirming their alignment with ISO 9705 standards.

The location testing was conducted at a selected site in an unobstructed environment, free from buildings or dense foliage, facilitating an accurate assessment of the devices’ GPS performance. The accuracy of the recorded GPS locations was evaluated by comparing the system outputs with those of the third-party device. A Samsung Galaxy A22 smartphone was used with the Google Maps application. The latitude and longitude readings from the third-party device are shown in Figure 5.

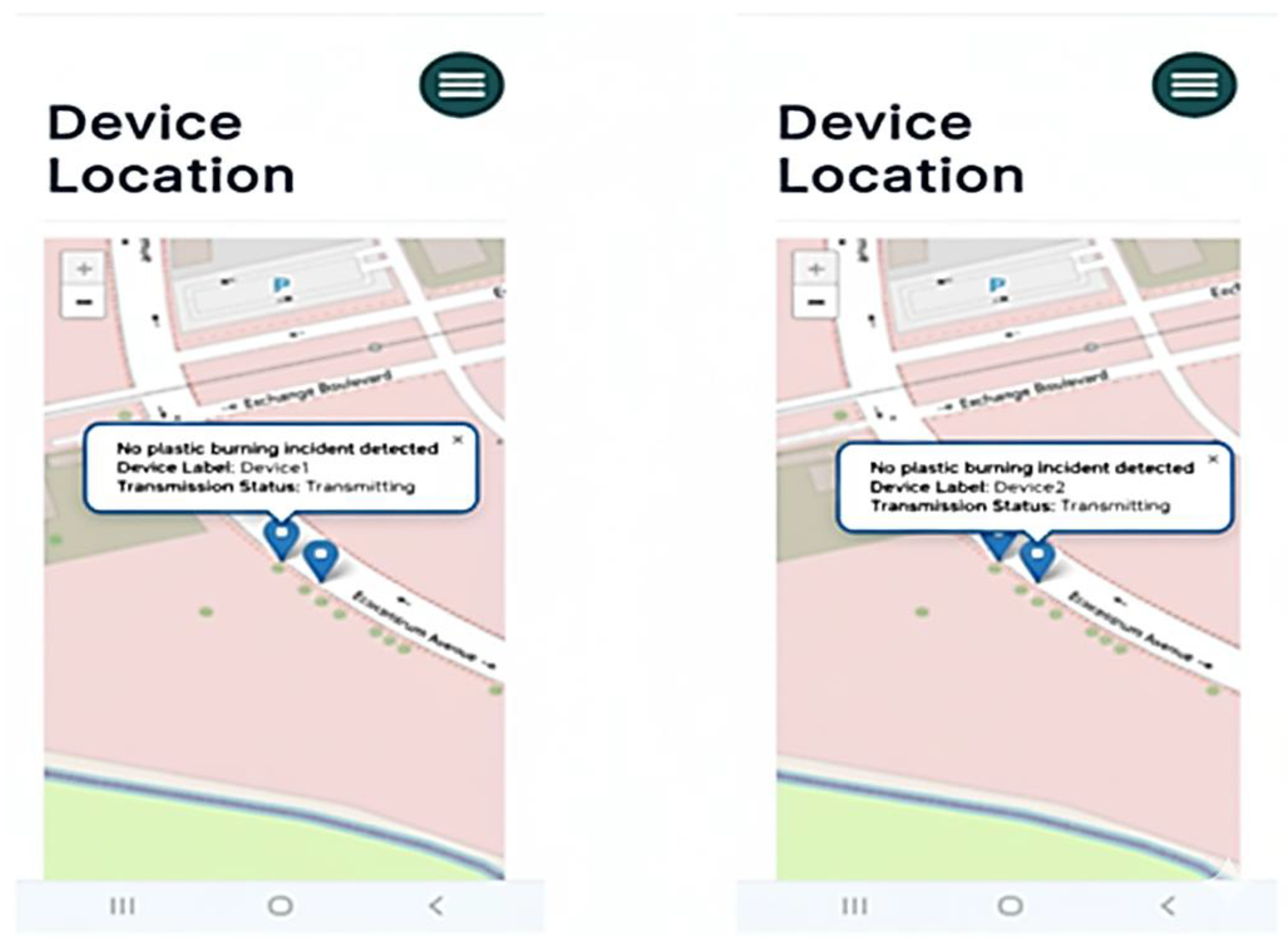

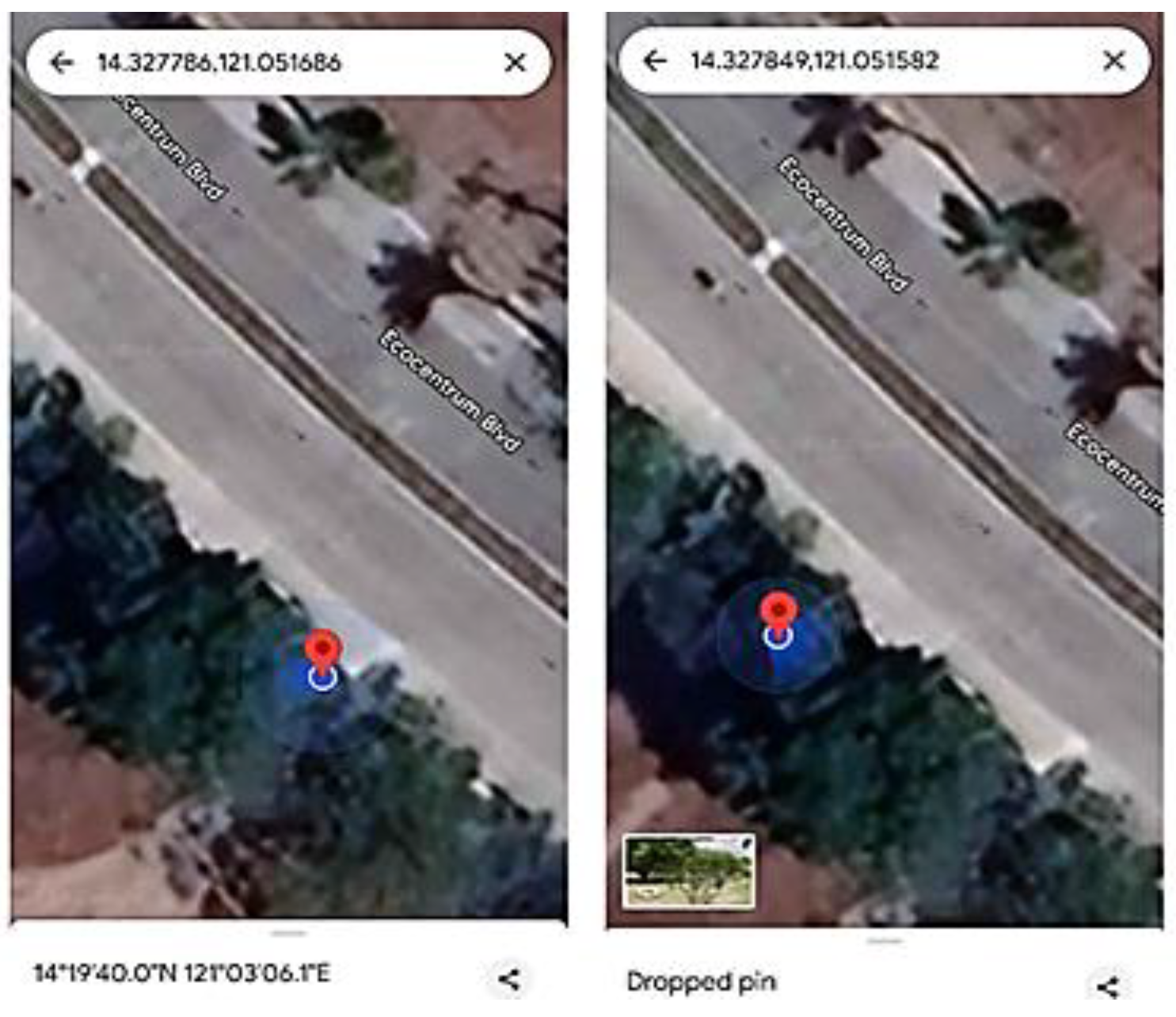

Pin markers were used to show the geographical positions recorded by the global positioning system (GPS) modules for easy comparison with the reference location (Figure 6).

The high accuracy indicated that the system was reliable in open and unobstructed environments. This reliability is critical for the study’s focus on determining the location of plastic combustion incidents. The slight variation in latitude accuracy causes errors in satellite positioning or device sensitivity. The errors were within acceptable limits for most practical purposes (

Table 6. GPS location accuracy.

Testing Device	Reading from GPS (Latitude and Longitude)	Reading from Third-Party Device (Latitude and Longitude)	Accuracy for Latitude	Accuracy for Longitude
Device 1	14.327867, 121.051601	14.327786, 121.051686	99.9994%	99.9999%
Device 2	14.3277607, 121.0517474	14.327849, 121.051582	99.9994%	99.9999%

).

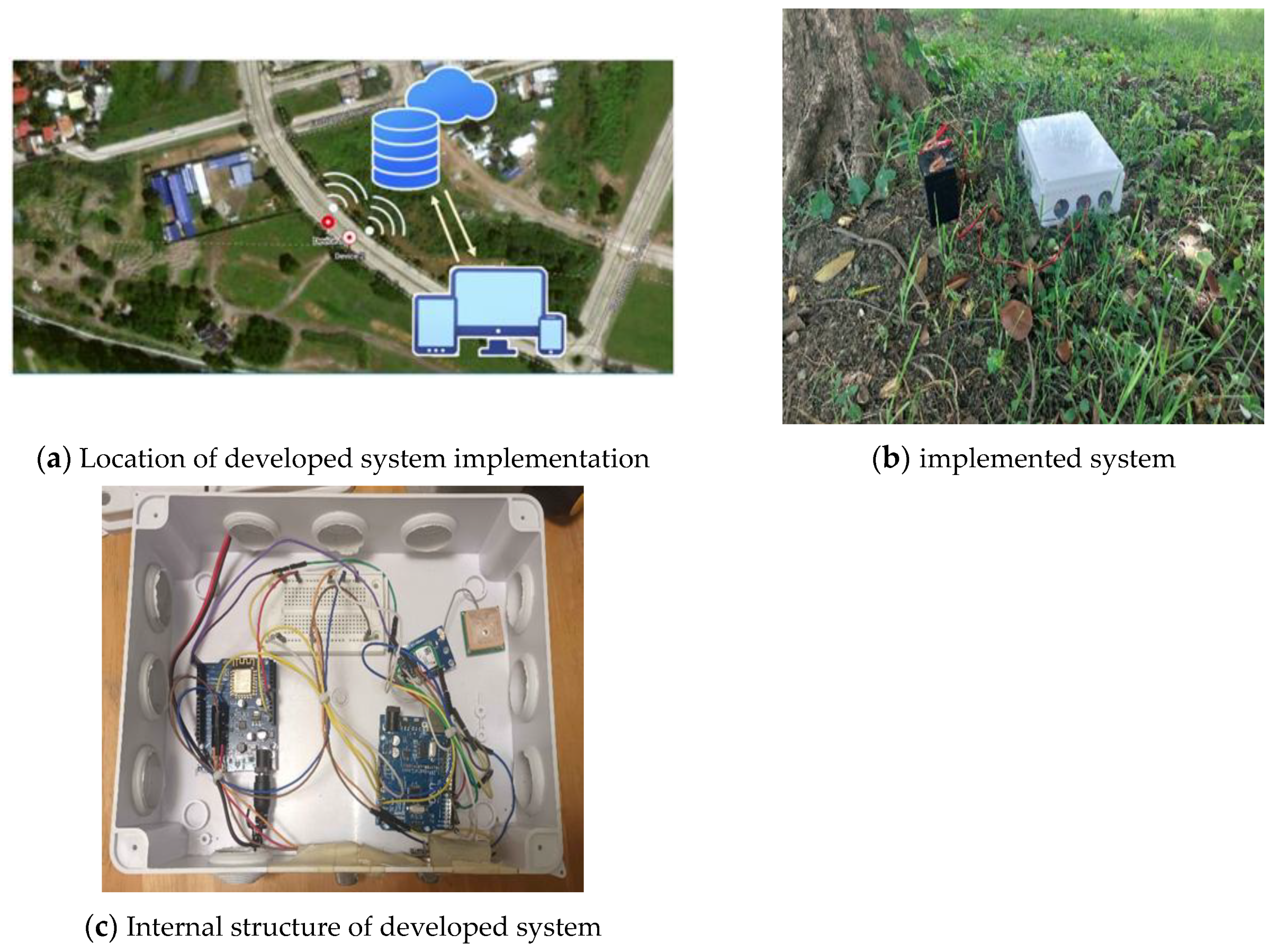

The developed system was installed in an empty site in Southwoods, Barangay San Francisco, Laguna, after conducting the self-calibration, third-party, and isolation testing as shown in Figure 7. The gas sensors were placed on the floor, and the data collected was sent to the cloud server to measure gas emissions.

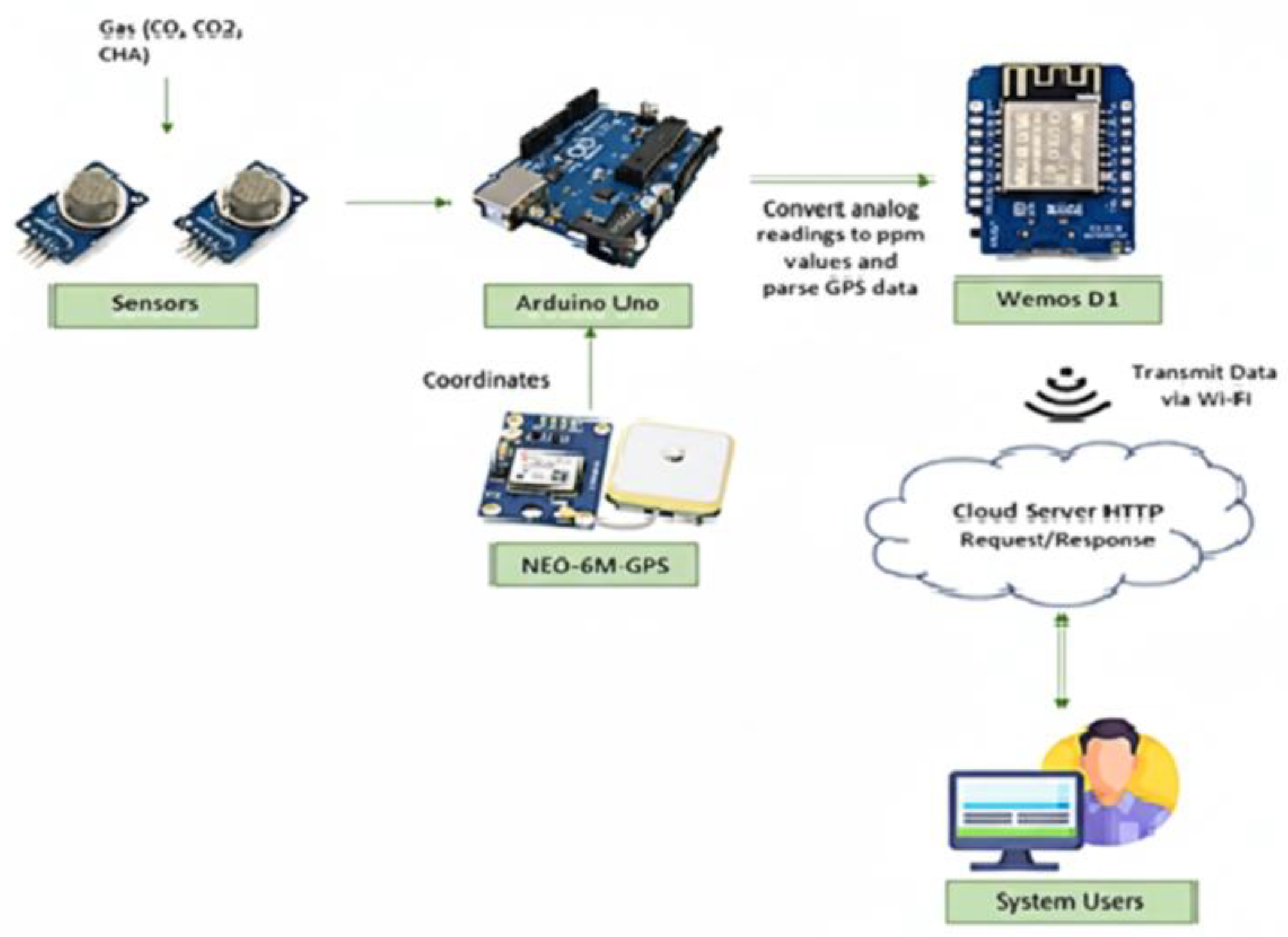

Figure 8 illustrates the intercommunication structure among the system’s integral components. Gas sensors, namely MQ2 and MQ135, transmit raw data to the Arduino, complemented by the Neo-6M GPS module, which transmits geographical coordinates. The Arduino is responsible for the processing and transmission of the refined information to the WeMos D1 device through Wi-Fi. The cloud server also processes and stores the data, catering to user requests through a dedicated website interface.

The process of detecting gas emissions from plastic combustion involved regular monitoring and recording of CO, CH₄, and CO₂. The data was collected every 5 min for 24 h to ensure a comprehensive assessment of the gas concentrations in the environment (

Table 7. Gas emissions collection every 5 min for 24 h.

Date and Time	CO	CH4	CO2
19 June 2024 13:03	0	0	5136
19 June 2024 13:08	0	0	5178
19 June 2024 13:13	0	0	5307
19 June 2024 13:18	0	0	5264
19 June 2024 13:24	0	0	5136
19 June 2024 13:29	0	0	5095
19 June 2024 13:34	0	0	5095
19 June 2024 13:40	0	0	5136
19 June 2024 13:45	0	0	5053

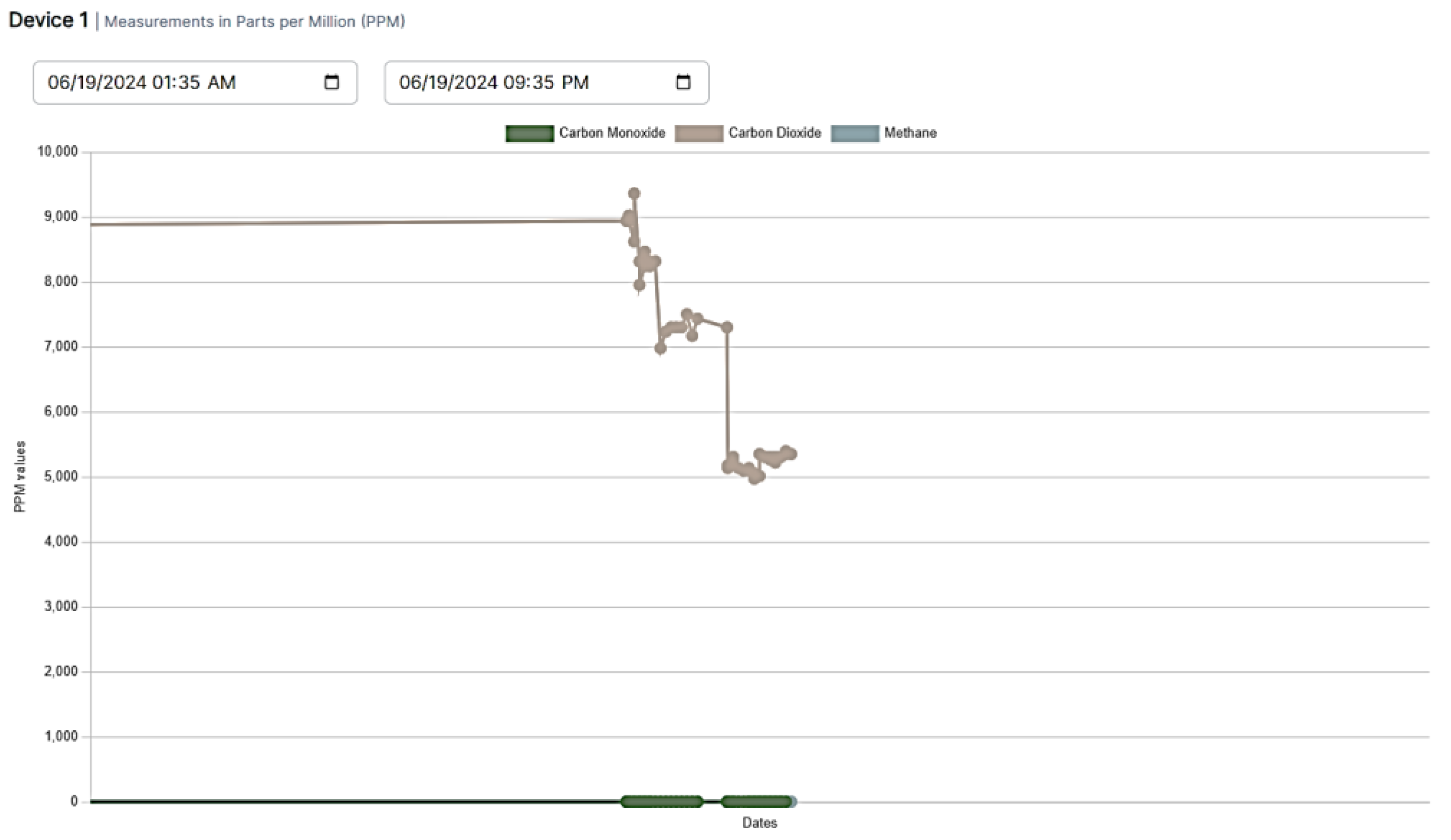

and Figure 9).

The compatibility testing was conducted to ensure the website functions on various devices and browsers. The website was developed using Bootstrap, cascading style sheets (CSS), and hypertext preprocessor (PHP) for optimal compatibility with mobile browsers. The testing was carried out across various mobile and desktop browsers to ensure a seamless and optimized user experience.

Table 8. Compatibility for desktop browsers.

Browser	Chrome	Firefox	Safari	Edge	Opera
Windows	✔	✔	NA	✔	✔
Mac	✔	✔	✔	NA	✔

and

Table 9. Compatibility for mobile browsers.

Browser	Chrome	Firefox	Safari
Android	✔	✔	NA
iOS	✔	✔	✔

display the compatibility of the developed system on different browsers.

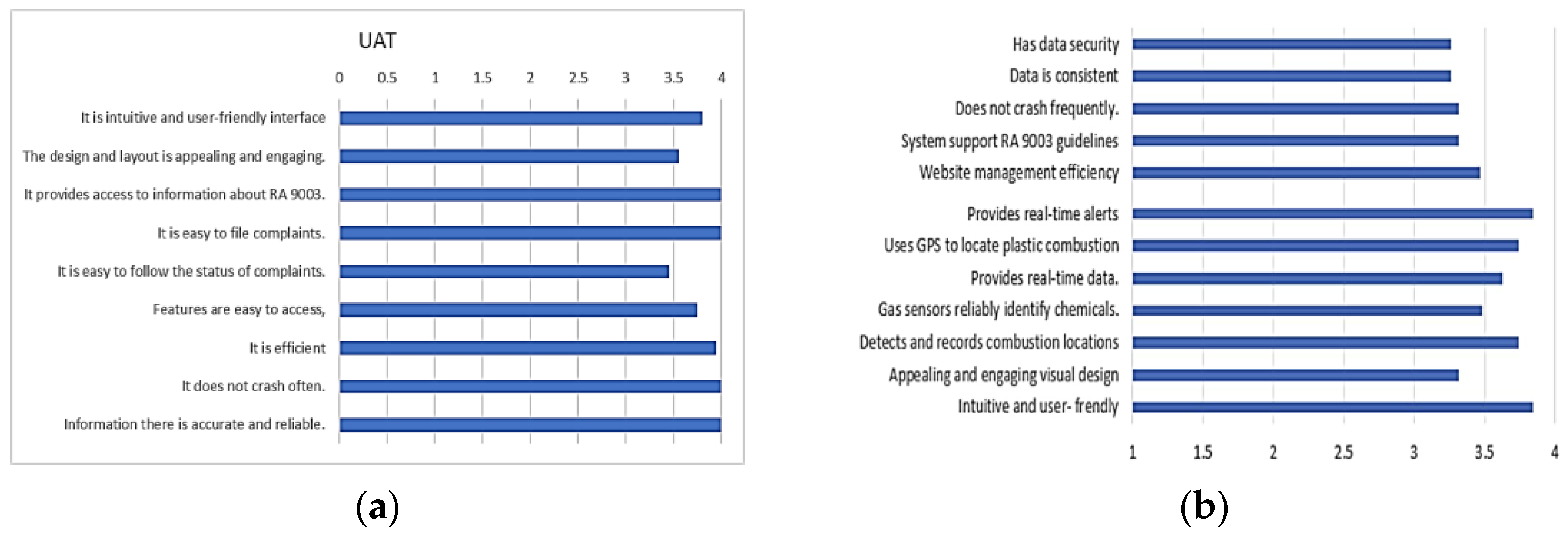

A questionnaire survey was conducted to evaluate the website and improve the quality of the system and its applications. UAT was assessed by calculating the average scores, and the results were used to modify the website. The respondents included citizens and personnel from Barangay San Francisco and the City Environment and Natural Resources Office in the Philippines. The average score was 3.7, showing “Strongly Agree”. The developed system was considered reliable, with few crashes or errors, and the information provided was accurate and trustworthy (Figure 10).

5. Conclusions

This study developed a system for the monitoring and enforcement of Republic Act 9003, specifically addressing Section 4 paragraph 3, which prohibits the open burning of waste, including plastics. The designed and implemented system integrates MQ2 and MQ135 gas sensors to monitor the concentration of CO, CO_2, and CH₄. The system effectively identified the specific location where the violation occurred. The system contributes to environmental compliance and the enhancement of the effectiveness of regulatory enforcement, as it can be implemented in any location.
