Recovery of Waste Industrial Waters Containing Red Congo by Multifunctionalized Mesoporous Silica Nanomaterials ^†

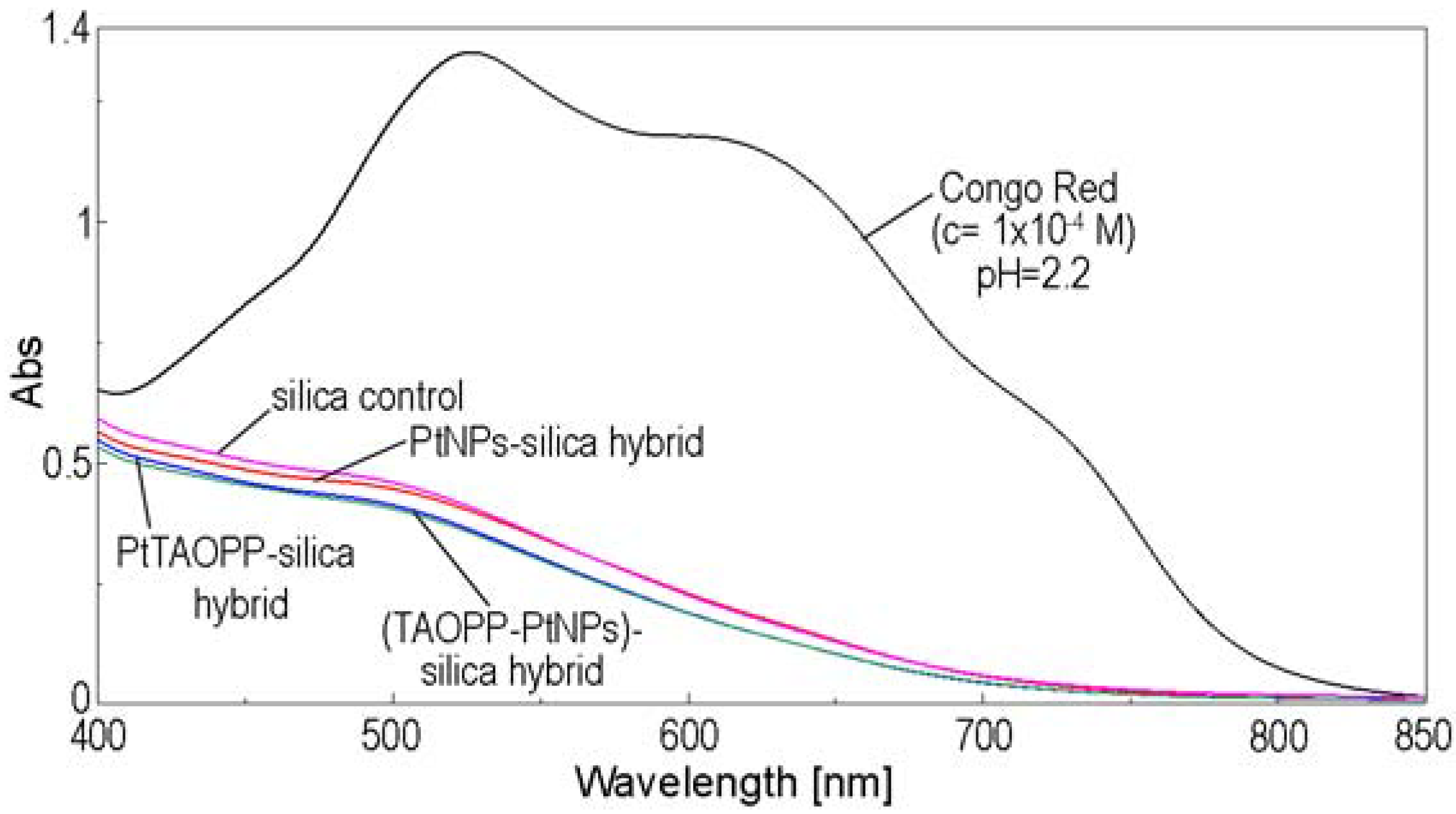

Introduction: Colored wastewaters, containing toxic dyes, such as Congo red, methylene blue, malachite green, fuchsine B, bromothymol blue, must first focus on the removal of dyes, before any other recovery treatment. Comparing the efficiency of adsorbent materials used to remove dyes, functionalized silica derivatives, tailored to have specific surface areas exceeding 600 m²/g, are among the best performing [1]. Particularly, for the removal of Congo red dye, silica and chitosan materials have also been shown in the literature to be effective adsorbents [2,3]. Materials and Methods: A set of mesoporous silica nanomaterials, functionalized either with Pt-metalloporphyrin (PtTAOPP-silica hybrid), or with PtNPs (PtNPs-silica hybrid) or bis-functionalized with both the same porphyrin-base and PtNPs (TAOPP-PtNPs)-silica hybrid, were successfully used as adsorbent materials for methylene blue, malachite green, fuchsine B, bromothymol blue and Congo red [1,4]. Results: A novel example of monitoring (by UV-vis spectrometry) the capacity of the three impregnated-silica hybrid materials, PtTAOPP-silica hybrid, PtNPs-silica hybrid and (TAOPP-PtNPs)-silica hybrid, in comparison with silica control, for Congo red removal from wastewaters, is given in Figure 1. From Figure 1, it is clear that the absorption intensity of the Congo red solution is significantly decreased, meaning that most of the dye was absorbed by the silica materials. After the Congo red was adsorbed, very interesting haystack aggregates, randomly distributed, were deposited on silica matrices, proving the absorption of the dye. In Figure 2, the atomic force microscopy (AFM) images of PtNPs-silica hybrid material are shown, after Congo red adsorption from waters containing an initial concentration of 5 × 10⁻⁵ M Congo red. The adsorption capacity of Congo red (for initial concentration of the dye: 5 × 10⁻⁵ M) realized by the tested silica materials, at a loading of 3.33 g/L, are: (a) silica control: q_e = 8.25 mg/g; η = 78.13%; (b) PtTAOPP-silica hybrid: q_e = 8.43 mg/g; η = 79.84%; (c) (TAOPP-PtNPs)-silica hybrid: q_e = 8.73 mg/g; η = 82.75%; (d) PtNPs-silica hybrid: q_e = 8.02 mg/g; η = 76.03%. Conclusions: As demonstrated in this study, all the functionalized silica materials have a good performance in removing red Congo dye, with the best result attaining a yield of 82%, registered for the bis-functionalized (TAOPP-PtNPs)-silica hybrid.
