Ecotoxicity of Mixtures of IL and Lithium Salt †

by
Juan José José Parajó
1,2,*,
Pablo Vallet
1,
Lois Fernádez-Míguez
1,
María Villanueva
1 and
Josefa Salgado
1
1
NAFOMAT Group, Departamentos de Física Aplicada y Física de Partículas, Universidade de Santiago de Compostela, 15782 Santiago de Compostela, Spain
2
Departamento de Química e Bioquímica, CIQUP-Centro de Investigaçao em Química da Universidade do Porto, Universidade do Porto, P-4169-007 Porto, Portugal
*
Author to whom correspondence should be addressed.
Presented at the 24th International Electronic Conference on Synthetic Organic Chemistry, 15 November–15 December 2020; Available online: https://ecsoc-24.sciforum.net/.
Chem. Proc. 2021, 3(1), 84; https://doi.org/10.3390/ecsoc-24-08361
Published: 14 November 2020

Abstract

:
The applicability of ionic liquids (IL) has been increased during the last years and even new opportunities are becoming a reality, i.e., mixtures of pure IL and inorganic salt as electrolytes for smart electrochemical devices. In this work, the ecotoxicity of two protic ILs (Ethylammonium nitrate and Ethylimidazolium nitrate) and one aprotic IL (butylmethylpyrrolidinium bis(trifluoroomethylsulfonyl)imide) doped with the corresponding Lithium salt was tested towards changes on the bioluminescence of the bacteria Aliivibrio fischeri, using the Microtox® standard toxicity test. Half maximal effective concentration (EC50) of these mixtures was determined over three standard periods of time and compared with the corresponding values to pure ILs.

1. Introduction

The applicability of Ionic liquids (IL) seems never-ending, since they are still not fully studied and mixtures of pure IL and inorganic salt burst in as electrolytes for smart electrochemical devices [1,2]. ILs can be divided into two different subclasses depending in their structural characteristics: protic (PIL) and aprotic (AIL) ionic liquids. PILs are formed by the transfer of proton from acid to base, and hence, they consist of proton-donor and -acceptor sites which are responsible for building extended three-dimensional hydrogen bond networks as in the case of water and AILs are mainly based on bulky organic cations (i.e., pyrrolidinium, imidazolium…) with long alkyl chain substituents and huge variety of anions (i.e., bis trifluoromethylsulfonyl imide (TFSI), tris(pentafluoroethyl)trifluorophosphate (FAP), halides). Despite having many useful properties (arising from the protic nature) and potential applicability, the literature on PILs is still scarce compared to their AIL [3,4].
In recent years, significant growth in the structure−property relationships of ILs has been achieved with a better understanding of the intermolecular forces [5,6]. As mentioned above, when IL properties are not still fully known, mixtures of ILs and inorganic salts increases gives new possibilities improving, in some particular cases, some of their properties [1,7]. Salgado et al. [1] have stated how melting and glass transition temperatures present lower values when salt concentration increases and thermal stability remains equal on mixture than pure IL. Kim et al. [8] have studied the mixture n-butyl-n-methylpyrrolidinium TFSI with Li TFSI salt showing slight decrease on ionic conductivity when salt concentration increases.
However, apart from good physico-chemical properties, current European Union environmental legislation including REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) [9] makes firm demands for safety materials, that sometimes, unfortunately ecotoxicity test are skipped since they are usually expensive and time-consuming [10]. Therefore, it is urgent to establish evaluation procedures to estimate the toxicity of ILs that can provide the needed information without taking too long and reducing the costs. Aliivibrio fischeri (A. fischeri) is a well-known marine luminescent bacterium with short reproductive cycle, and the toxicity inference for A. fischeri may be extrapolated for a wide variety of aquatic organisms and thus can be effectively applied for toxicological risk assessment [11,12].
In this work, the ecotoxicity of two protic ILs (Ethylammonium nitrate (EAN) and Ethylimidazolium nitrate (EIm NO3)) and one aprotic IL (butylmethylpyrrolidinium bis(trifluoromethylsulfonyl)imide (C4C1pyrr TFSI)) doped with the corresponding Lithium salt (Li NO3, for the protic ILs and Li TFSI for the aprotic IL) was tested towards changes on the bioluminescence of the bacteria Aliivibrio fischeri, using the Microtox® standard toxicity test. The effective concentration (EC50) of these mixtures was determined over three standard periods of time, namely 5, 15, and 30 min and compared with the corresponding values to pure ILs.

2. Materials and Methods

2.1. Chemicals

The main characteristics of selected ILs (EAN, EIm NO3, and C4C1pyrr TFSI) with the corresponding Lithium salt (Li NO3, and Li TFSI) are indicated in Table 1. Nitrate ionic liquids were dried into high vacuum. Water content for all the samples was below 100 ppm.
The different solutions of IL+salt mixtures were prepared by mixing both components with the help of an ultrasound bath and a magnetic stirrer during, at least, 48 h. Saturated solutions have been reached using the hydrated salts by increasing molality in intervals of 0.5 mol·kg−1 until saturation point at room temperature [1]. The molar fraction (χ) of metal salts and pure IL and the final molecular mass (Mm) for every saturated mixture are indicated in Table 2.

2.2. Experimental Section

Acute toxicity was assessed by determining the luminescence inhibition of the marine bacteria Aliivibrio fischeri (A. fischeri). A Microtox® M500 Analyzer (Modern water) was used. After exposing the bacteria to each different IL or IL+salt solutions (from 0 to 81.9%) at 5, 15, and 30 min, the light output was measured and compared with a blank control sample. The concentration of the sample (mg L−1) which produces a 50, 20, and 10% luminescence inhibition after exposure at the three selected times (5, 15, and 30 min) is designated as the Effective Concentration (EC50, EC20, and EC10, respectively) and is calculated, together with the corresponding 95% confidence intervals, through a non-linear regression, using the least-squares method to fit the data to the logistic equation [11].

3. Results and Discussion

Figure 1 shows the behavior of % of luminescence relative to control Aliivibrio fischeri bacteria versus concentration, of C4C1pyrr TFSI and C4C1pyrr TFSI + TFSI 1.5 m mixture. The luminescence strongly decreases with the concentration of the toxic, following a logistic equation. Furthermore, it can be seen how the salt affects, negatively in this case, to the toxicity of the final solution mixture.
From this curves the effective concentration values (EC10, EC20, and EC50) of the different compounds at different times have been calculated and exposed in Table 3.
Results found in Table 3 exhibit the well-known effect of time in the toxicity results, which typically describes the lowest EC values for the highest time of exposure. Some authors [13,14,15] have reported that aromatic cations (imidazolium in this case) are more toxic than non-aromatic based ILs (pyrrolidinium and ammonium); this statement perfectly fits with our results that present the following trend: EAN < < C4C1pyrr TFSI < EIm NO3.
According to Passino & Smith classification [16], pure EAN can be considered as harmless (>1000 mg L−1), and pure C4C1pyrr TFSI and EIm NO3 practically harmless (10 mg L−1 < EC50 < 100 mg L−1). Scarce values of the toxicity of these compounds can be found in literature, to the best of our knowledge, except for pure EAN [17] and C4C1pyrr TFSI [15], who found similar values than the present study.
It can be seen how lithium salt induces different effects on these pure ILs: whereas LiNO3 seems that does not induce changes on EC values for pure EAN, EIm NO3 + Li NO3 mixture presents higher EC values than the corresponding to pure one, indicating slightly lower toxicity in mixture than in pure IL [16]. Nevertheless Li TFSI clearly decrease EC values for the pure Aprotic ILs, being the mixture more toxic than pure IL, considered as moderately toxic on EC20 and EC10 indicators [16]. No previous bibliographic data have been found for the mixtures of IL with salt. The differences between these results can be explained in terms of the saturation concentration of the different salts on the ILs as it is exposed in Table 2. Since EAN + LiNO3 is the mixture with the lowest salt molar fraction and the lowest toxicity effect, and C4C1pyrr TFSI + Li TFSI is the mixture with the highest salt molar fraction and, consequently, highest toxicity change.

4. Conclusions

The main conclusion of this work is that there are some differences between PIL and APIL toxicity, and even among the two selected PILs. Salt addition clearly affects to the toxicity and is highly depending on the molar fraction, as expected. Ethylammonium nitrate and its mixture can be considered as non-toxic, EIm NO3 pure is slightly toxic meanwhile its mixture is non-toxic, and finally, C4C1pyrr TFSI goes from practically harmless to moderately toxic when lithium salt is added.

Author Contributions

Conceptualization, J.J.P. and J.S.; methodology and data, J.J.P., P.V., L.F.-M.; software, J.J.P., P.V., L.F.-M.; writing—original draft preparation, J.J.P., J.S., M.V.; funding acquisition, J.S. and M.V. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Spanish Ministry of Economy and Competitiveness and European Regional Development Fund. (FEDER) Program through the project, MAT2017-89239-C2-1-P, as well as by Xunta de Galicia through Grupo de Referencia Competitiva (GRC) ED431C 2020/10 project and the Galician Network of Ionic Liquids (ReGaLIs) ED431D 2017/06. P.V. and J.J.P. thank funding support of Formación de Personal Investigador (FPI) Program from Spanish Ministry of Science, Education and Universities and Postdoctoral Program of Xunta de Galicia, respectively.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The study did not report any supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Salgado, J.; Parajó, J.J.; Villanueva, M.; Rodríguez, J.R.; Cabeza, O.; Varela, L.M. Liquid range of ionic liquid–Metal salt mixtures for electrochemical applications. J. Chem. Thermodyn. 2019, 134, 164–174. [Google Scholar] [CrossRef]
  2. Lui, M.Y.; Crowhurst, L.; Hallett, J.P.; Hunt, P.A.; Niedermeyer, H.; Welton, T. Salts dissolved in salts: Ionic liquid mixtures. Chem. Sci. 2011, 2, 1491–1496. [Google Scholar] [CrossRef]
  3. Peric, B.; Sierra, J.; Martí, E.; Cruañas, R.; Garau, M.A.; Arning, J.; Bottin-Weber, U.; Stolte, S. (Eco)toxicity and biodegradability of selected protic and aprotic ionic liquids. J. Hazard. Mater. 2013, 261, 99–105. [Google Scholar] [CrossRef] [PubMed]
  4. Lindberg, S.; Jeschke, S.; Jankowski, P.; Abdelhamid, M.; Brousse, T.; Le Bideau, J.; Johansson, P.; Matic, A. Charge storage mechanism of α-MnO2 in protic and aprotic ionic liquid electrolytes. J. Power Sources 2020, 460, 228111. [Google Scholar] [CrossRef]
  5. Salgado, J.; Villanueva, M.; Parajó, J.J.; Fernández, J. Long-term thermal stability of five imidazolium ionic liquids. J. Chem. Thermodyn. 2013, 65, 184–190. [Google Scholar] [CrossRef]
  6. Sánchez, P.B.; González, B.; Salgado, J.; José Parajó, J.; Domínguez, Á. Physical properties of seven deep eutectic solvents based on L-proline or betaine. J. Chem. Thermodyn. 2019, 131, 517–523. [Google Scholar] [CrossRef]
  7. Yang, H.; Luo, X.-F.; Matsumoto, K.; Chang, J.-K.; Hagiwara, R. Physicochemical and electrochemical properties of the (fluorosulfonyl)(trifluoromethylsulfonyl)amide ionic liquid for Na secondary batteries. J. Power Sources 2020, 470, 228406. [Google Scholar] [CrossRef]
  8. Kim, J.-K.; Lim, D.-H.; Scheers, J.; Wilken, S.; Johansson, P.; Ahn, J.-H.; Matic, A.; Jacobsson, P. Properties of N-butyl-N-methyl-pyrrolidinium Bis(trifluoromethanesulfonyl) Imide Based Electrolytes as a Function of Lithium Bis(trifluoromethanesulfonyl) Imide Doping. J. Korean Electrochem. Soc. 2011, 14, 92–97. [Google Scholar] [CrossRef]
  9. Union OJ of the E (2007) Regulation (EC) No 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).
  10. Heckenbach, M.E.; Romero, F.N.; Green, M.D.; Halden, R.U. Meta-analysis of ionic liquid literature and toxicology. Chemosphere 2016, 150, 266–274. [Google Scholar] [CrossRef] [PubMed]
  11. Parajó, J.J.; Macário, I.P.E.; De Gaetano, Y.; Dupont, L.; Salgado, J.; Pereira, J.L.; Gonçalves, F.J.M.; Mohamadou, A.; Ventura, S.P.M. Glycine-betaine-derived ionic liquids: Synthesis, characterization and ecotoxicological evaluation. Ecotoxicol. Environ. Saf. 2019, 184, 109580. [Google Scholar] [CrossRef] [PubMed]
  12. Ventura, S.P.M.; Gonçalves, A.M.M.; Sintra, T.; Pereira, J.L.; Gonçalves, F.; Coutinho, J.A.P. Designing ionic liquids: The chemical structure role in the toxicity. Ecotoxicology 2013, 22, 1–12. [Google Scholar] [CrossRef] [PubMed]
  13. Zhao, D.; Liao, Y.; Zhang, Z. Toxicity of Ionic Liquids. Clean Soil Air Water 2007, 35, 42–48. [Google Scholar] [CrossRef]
  14. Ventura, S.P.M.; Marques, C.S.; Rosatella, A.A.; Afonso, C.A.M.; Gonçalves, F.; Coutinho, J.A.P. Toxicity assessment of various ionic liquid families towards Vibrio fischeri marine bacteria. Ecotoxicol. Environ. Saf. 2012, 76, 162–168. [Google Scholar] [CrossRef] [PubMed]
  15. Stolte, S.; Matzke, M.; Jürgen, A.; Böschen, A.; Pitner, W.-R.; Welz-Biermann, U.; Jastorff, B.; Ranke, J. Effects of different head groups and functionalised side chains on the aquatic toxicity of ionic liquids. Green Chem. 2007, 9, 1170–1179. [Google Scholar] [CrossRef]
  16. Passino, D.R.M.; Smith, S.B. Acute bioassays and hazard evaluation of representative contaminants detected in great lakes fish. Environ. Toxicol. Chem. 1987, 6, 901–907. [Google Scholar] [CrossRef]
  17. Montalbán, M.G.; Hidalgo, J.M.; Collado-González, M.; Díaz Baños, F.G.; Víllora, G. Assessing chemical toxicity of ionic liquids on Vibrio fischeri: Correlation with structure and composition. Chemosphere 2016, 155, 405–414. [Google Scholar] [CrossRef]

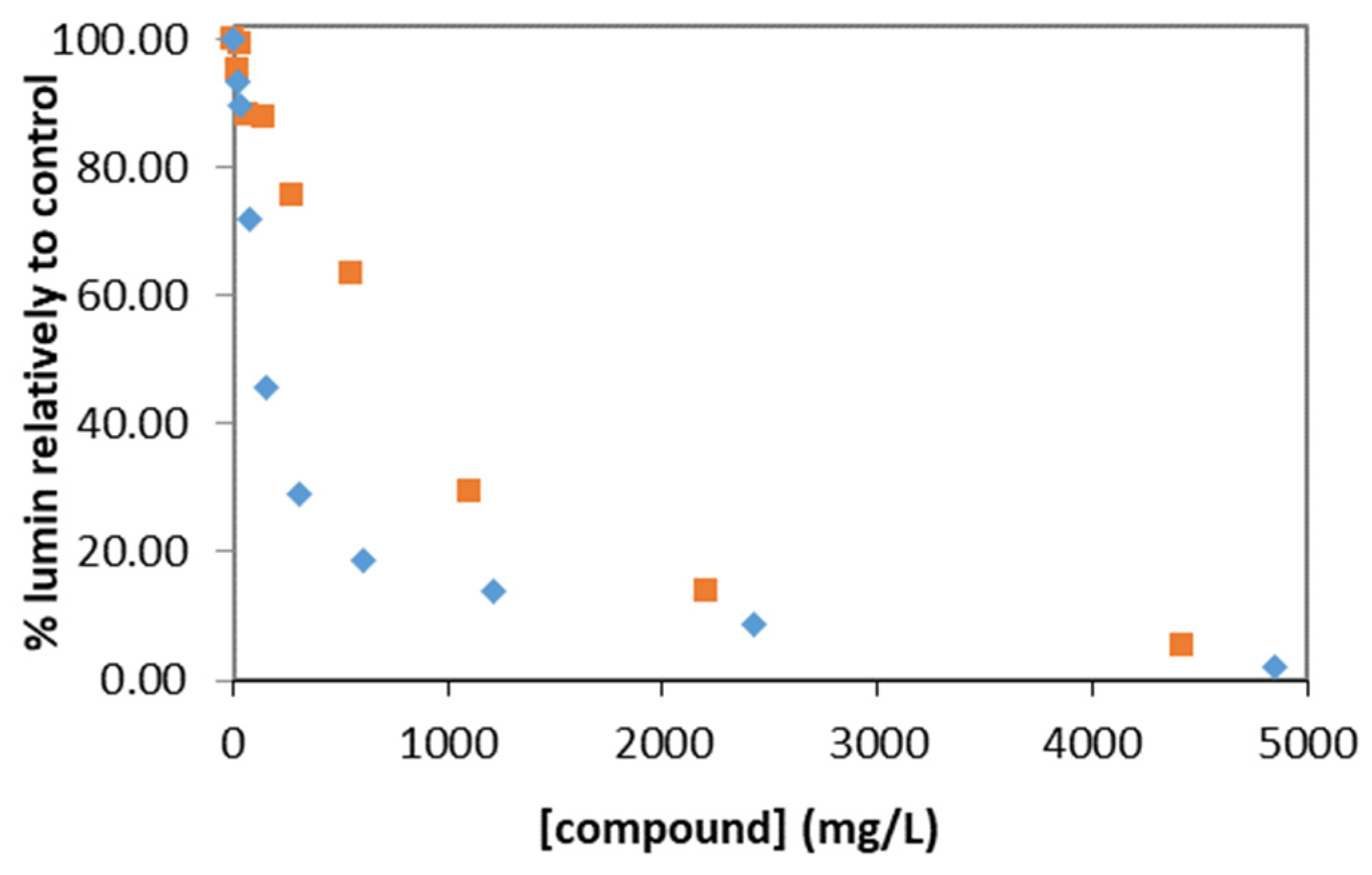

Figure 1. Comparative of the relationship between concentration of: pure C4C1pyrr TFSI () and C4C1pyrr TFSI + Li TFSI 1.5m () mixture and the bioluminescence after 30 min of exposure.
Figure 1. Comparative of the relationship between concentration of: pure C4C1pyrr TFSI () and C4C1pyrr TFSI + Li TFSI 1.5m () mixture and the bioluminescence after 30 min of exposure.
Chemproc 03 00084 g001
Table 1. Chemical structure, identification number, molecular mass, and purity of ILs and salts.
Table 1. Chemical structure, identification number, molecular mass, and purity of ILs and salts.
Name
Molecular Mass (g·mol−1)
AbbreviationChemical StructurePurity
Provenance
CAS Number
Ethylammonium Nitrate
108.10
EAN
22113-86-6
Chemproc 03 00084 i001>0.97
Iolitec
Ethylimidazolium nitrate
159.14
EIm NO3
501693-38-5
Chemproc 03 00084 i002>0.98
Iolitec
butylmethylpyrrolidinium bis(trifluoromethylsulfonyl)imide
422.41
C4C1pyrr TFSI
223437-11-4
Chemproc 03 00084 i003>0.99
Merck
Lithium Nitrate
68.95
Li NO3
7790-69-4
Chemproc 03 00084 i004>0.999
Merck
Lithium bis(trifluoromethylsulfonyl)imide
287.09
LiTFSI
90076-65-6
Chemproc 03 00084 i005>0.99
Acros organics
Table 2. Molar fraction of metal salts and pure IL with final molecular mass (Mm) for the mixtures.
Table 2. Molar fraction of metal salts and pure IL with final molecular mass (Mm) for the mixtures.
MixtureEAN + Li NO3C4C1pyrr TFSI + Li TFSIEIm NO3 + LiNO3
Molalitysaturation2.0001.5002.000
χmolar sal0.1780.3880.241
Mm/g mol−1123.01604.31181.08
Table 3. Mean effective concentration values (EC50, EC20, EC10) in mg L−1 and the respective 95% confidence intervals, obtained after 5, 10, and 30 min of exposure of the marine bacteria A. fischeri.
Table 3. Mean effective concentration values (EC50, EC20, EC10) in mg L−1 and the respective 95% confidence intervals, obtained after 5, 10, and 30 min of exposure of the marine bacteria A. fischeri.
ILTime/minEC50 (Lower Limit; Upper Limit)/mg·L−1EC20 (Lower Limit; Upper Limit)/mg·L−1EC10 (Lower Limit; Upper Limit)/mg·L−1
EAN512,582 (8186; 16,977)4314 (1548; 7081)2304 (248; 4361)
1510,665 (6650; 14,680)3236 (951; 5522)1609 (56; 3163)
309711 (6561; 12,860)3012 (1264; 4761)1517 (332; 2703)
EAN +
Li NO3 2 m
513,911 (12,469; 15,232)8892 (7412; 10,373)6842 (5316; 8368)
1511,210 (9613; 12,808)7495 (5603; 9386)5920 (3841; 8000)
309706 (7233; 12,179)6145 (3301; 8988)4701 (1744; 7658)
EIm NO35612 (395; 828)195 (79; 312)100 (21; 179)
15573 (372; 774)194 (79; 310)103 (22; 184)
30597 (408; 785)223 (105; 342)127 (37; 214)
EIm NO3 +
Li NO3 2 m
51178 (691; 1665)423 (119; 727)232 (9; 455)
151114 (644; 1583)435 (118; 753)251 (6; 496)
301073 (626; 1520)442 (125; 759)263 (10; 515)
C4C1pyrr TFSI51463 (1162; 1765)684 (441; 926)438 (225; 650)
15964 (791; 1137)416 (286; 545)254 (146; 362)
30714 (577; 851)289 (192; 386)170 (93; 247)
C4C1pyrr TFSI + Li TFSI 1.5 m5453 (360; 547)89 (56; 123)35 (17; 51)
15208 (142; 274)51 (23; 79)23 (6; 39)
