Towards Transformative Healthcare Applications: Biomimetic Hydroxyapatite Systems for Controlled Drug Delivery ^†

Abstract

Recently, interest in multifunctional materials has increased; therefore, we developed a system that combines biocompatibility, gradient changing, and antibacterial properties. We aim to combine these properties in the development of a biomimetic system based on hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂, HA) by incorporating silver nanoparticles (Ag NPs) into HA matrices, leveraging their antimicrobial effects, while also exploring their role as drug-release triggers (which absorb infrared (IR) light of 808–960 nm, convert it to heat energy to induce localized heating, and cause a structural leak for drug release) to unmodified HA, which cannot be activated by IR in significant amounts. Limited diffusion aggregation is used to form HA (enhanced with glycine or produced with different outer electrolytes) by diffusing calcium phosphates through Na₂HPO₄-agar. The composite is then packed with tetracycline and a deposition of polyelectrolytes (PE). The combination of polydiallyldimethylammonium chloride (PDADMAC) and heparin forms a robust PE. Infrared light (808 nm, 1.4 mW/cm²) was utilized as energy source for non-invasive and on-demand drug release. Physical and chemical characterization of HA was carried out. Glycine did not affect the p-factor of the resulting rings, which is equal to ca. 1.00. NIR increased release rates 2.1-fold (k = 39.21 compared to 18.22). High glycine concentrations reduce HA crystallinity (94 to 30%), result in a 12.5% increased drug-loading capacity, and increase solubility (5× control). NIR reduced the Korsmeyer–Peppas release exponent (n) from 0.42 (Fickian) to 0.11 (PE-coated HA-Ag), confirming the photothermal disruption of diffusion barriers due to the presence of silver nanoparticle peaks in the composition.

1. Introduction

This research is devoted to the development of a biomimetic system based on hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂, HA), modified by amino acids, silver nanoparticles, and infrared-sensitive polyelectrolytes (PE) to prolong drug release. Beyond its structural role, HA’s multifunctionality confers the essential characteristics required for use as a local drug-delivery biocompatible coating. This is owing to its near resemblance in composition and structure to the primary inorganic component of bones. Nowadays, there has been a growing interest in multifunctional materials; therefore, we have decided to present a system that combines biocompatibility, gradient changing, and antibacterial properties. In this study, we aim to combine these properties by incorporating silver nanoparticles (Ag NPs) into HA matrices, leveraging their well-documented antimicrobial effects, while also exploring their role as drug-release triggers to unmodified/pure HA, which cannot be activated by IR in significant amounts without this functionalization. The Ag NPs are known to absorb the IR light of 808–960 nm depending on their size (40–100 nm in diameter) and convert it into heat energy which can induce localized heating and cause a structural leak, or increase the permeability of the matrix which consequently leads to the release of the packed drugs [1,2].

2. Materials and Methods

Calcium nitrate tetrahydrate (Ca(NO₃)₂·4H₂O, 99% purity), disodium hydrogen phosphate (Na₂HPO₄), sodium hydroxide (NaOH), and glycine were bought from Sigma Aldrich (St. Louis, MI, USA). Hydrochloric acid (HCl, 37%), polydiallyldimethylammonium chloride (PDADMAC) solution (20% w/v concentration: 1 mg/mL), and heparin sodium salt solution (concentration: 5000 EU) were also obtained. The system involves agar diffusion, resulting in the formation of HA (enhanced with glycine of different concentrations or produced with different outer electrolytes) through the diffusion of calcium phosphates through Na₂HPO₄. The composite was then incorporated with tetracycline hydrochloride and a deposition of PE [3]. The combination of polydiallyldimethylammonium chloride (PDADMAC) and heparin forms a robust PE, while HA provides a biocompatible matrix. Infrared (IR) light at (808 nm, 1.4 mW/cm²) was utilized as a trigger for controlled drug release, offering a non-invasive method to modulate therapeutic delivery.

Physical and chemical characterization of HA was carried out. Infrared spectra were scanned with Nicolet iS5 FTIR Spectrometer (Nicolet Instrument Corporation, Madison, WI, USA). Scanning electron microscopy Quanta inspect S microscope (FEI Company Scanning Electron Microscope, Hillsboro, OR, USA) was used to study the morphology and size of the samples. Electron-Dispersive X-ray Spectroscopy (EDX) EDXA equipment (FEI Company Scanning Electron Microscope, Hillsboro, OR, USA) with dispersive X-ray was used to confirm powder sample composition and identify phase peaks. The X-ray diffraction (XRD) was used to analyze the crystalline structure phase, purity, and crystallinity of the HA powders and zeta potential measurements of all samples was determined in water before and after loading with tetracycline at room temperature (25 °C). Photocor Compact Z Zetasizer (Moscow, Russia).

Zero-order Drug-Release Kinetics Model. Equation (1)

t = C₀ +k₀t

(1)

Ct is the concentration of the drug remaining at time t, C₀ is the initial concentration of the drug, and K₀ is the zero-order rate constant.

First-order kinetics model. Equation (2)

log Ct = log Co − (k₁t)/2.303

(2)

K₁ is the first-order rate constant.

Korsmeyer–Peppas kinetics model. Equation (3)

Mt/Mα = ktn

(3)

Mt/Mα is the fraction of the drug released at time t, k is the rate constant, and n is the release exponent indicating the drug transport mechanism through the polymer [4].

3. Results and Discussion

The different concentrations of glycine are found to have a significant effect on the crystallinity of the HA due to its effect on kinetic of HA crystallization (nucleation of new crystals) by enhancing the surface diffusion mechanism in the precipitate. It was found that the addition of glycine to the system does not affect the p-factor of the resulting rings, which is equal to ca. 1.00. NIR increased release rates 2.1-fold (k = 39.21 compared to 18.22). High glycine concentrations reduce HA crystallinity (94 to 30%), result in a 12.5% increased drug-loading capacity, and increase solubility (5× control). Furthermore, in the silver nanoparticle-infused composites, the NIR light reduced the Korsmeyer–Peppas release exponent (n) from 0.42 (Fickian) to 0.11 (PE-coated HA-Ag), confirming photothermal disruption of diffusion barriers due to the presence of silver nanoparticle peaks in the composition (Figure 1).

3.1. Hydroxyapatite Characterization

Scanning electron microscopy (SEM) showed irregular particle shapes in glycine-modified hydroxyapatite (HA) composites, with glycine concentration significantly influencing particle size. Unmodified HA (0 mg/mL glycine) showed the smallest average particle size (55.6 nm), reflecting higher crystallinity (as corroborated by XRD). Glycine-modified HA exhibits progressive reduction in average particle size with increasing glycine concentration—94.3 nm (0.5 mg/mL), 89.3 nm (1 mg/mL), and 75.5 nm (2 mg/mL). Glycine inhibits crystal growth and promotes nanostructuring. The study found glycine-enhanced and pure hydroxyapatite have nearly identical p-factor values, indicating glycine’s effects on HA properties may not translate into significant differences. This supports higher drug-loading and potential bone-targeted applications.

The Ca/P ratios of pure HA (1.41) deviated from stoichiometric HA (1.67), with lower ratios indicating non-stoichiometric or defective structures. The defective, non-stoichiometric, observed HA Ca/P ratio (for 1–2 mg/mL glycine, the modified HA ranged between 1.32 and 1.14). Glycine’s interaction with HA led to a 3.6-fold increase in HA solubility at 2 mg/mL glycine compared to 0.5 mg/mL. This suggests that glycine disrupts the HA lattice, leading to defects and improved drug adsorption. Defective, non-stoichiometric HA has more surface vacancies and functional groups, improving drug adsorption due to factors such as changes in crystal structure, particle size and surface properties of HA.

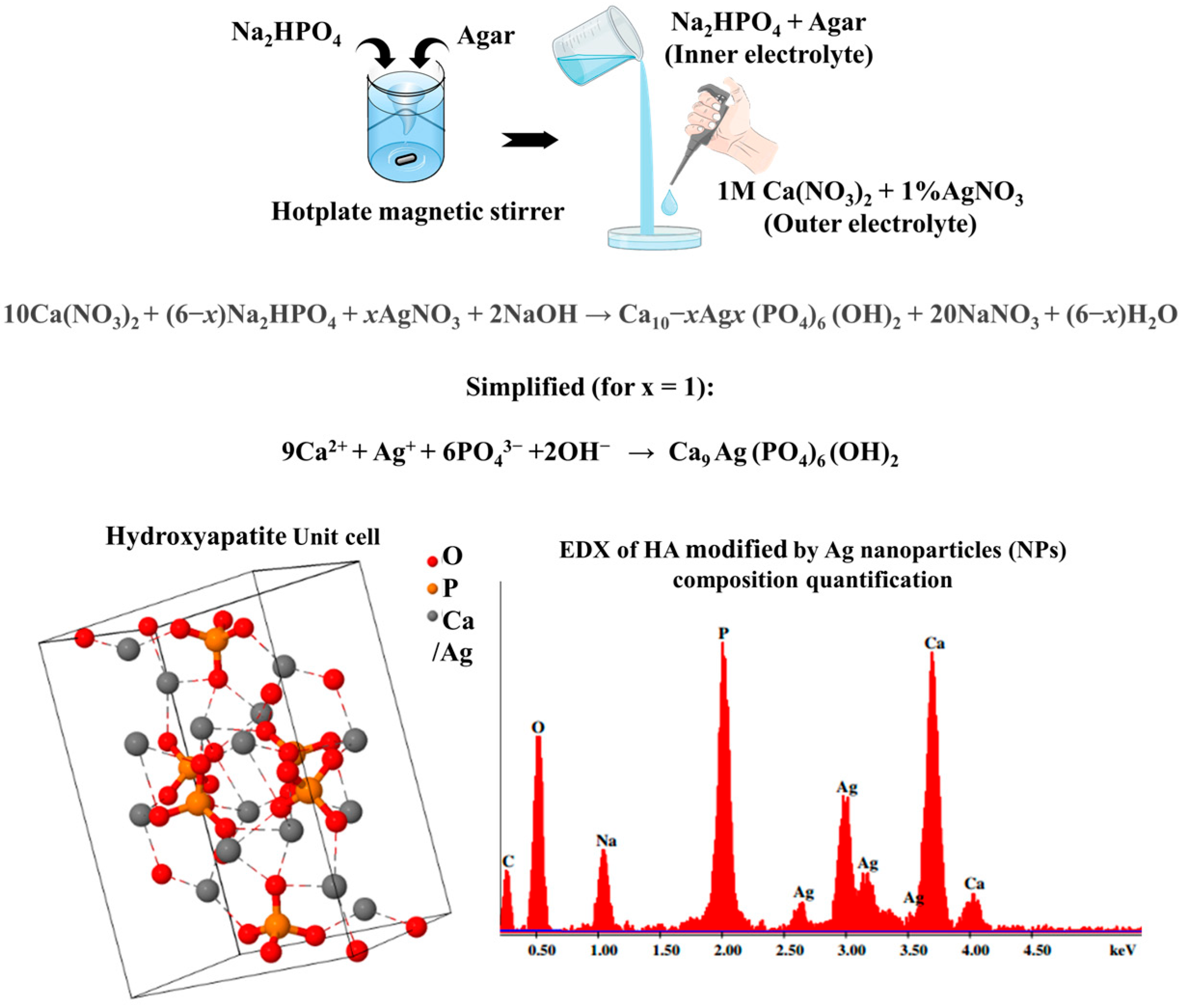

The micrographs for the powders that were obtained from the HA rings formed with different outer electrolytes of 1 M CaCl₂, 1 M Ca(NO₃)₂, a mixture of 1 M Ca(NO₃)₂, and 1 wt. % AgNO₃ display fine-grained nanostructures and a uniform distribution. According to prior research, this particular form is typical of hydroxyapatite produced by the agar diffusion process [5]. The crystallinity trends (HA from CaCl₂ electrolyte exhibited 90% crystallinity, HA produced with only 1 M Ca(NO₃)₂ showed 65% crystallinity while HA produced with a mixture of 1M Ca(NO₃)₂ and 1wt. % AgNO₃ as electrolyte showed 59% crystallinity), as observed by [6], were correlated with the irregularly shaped HA particle diameters of ca. 55.6 nm (HA-Cl), 86.8 nm (HA-Ca(NO₃)₂), and 80.8 nm (HA-Ag) as determined by SEM. The particle size and morphology variations reflect the influence of electrolyte composition on HA formation and silver doping [7].

Electron-Dispersive X-ray Spectroscopy (EDX) identified the elemental composition and phases of hydroxyapatite (HA) samples, with a mixture of 1 M Ca(NO₃)₂ and 1 wt. % AgNO₃ producing silver peaks. The HA-Ag composite showed 12.4 wt. % Ag incorporation, similar to previous studies on antibacterial efficacy. The samples were consistent with hydroxyapatite and were found to be composed of elongated nanocrystallites. XRD analysis of HA-Ag powders revealed good crystal structure and apatite properties, making it suitable for controlled drug delivery and antibacterial coatings. The study also revealed that the surface charge of particles in colloidal systems affects their stability and interaction. HA-Cl, a CaCl₂-based HA, shows moderate stability before and after drug loading of tetracycline into composites. Silver-modified HA, HA-Ag, shows a significant increase in negativity after TET loading, indicating synergistic interactions (Figure 1).

3.2. In Vitro Tetracycline Drug Loading and IR-Controlled Drug Release

3.2.1. Drug-Loading Efficiency

The UV–Vis spectrophotometry analysis revealed that drug-loading efficiency varied with glycine concentration. Higher concentrations improved drug loading by 12.5%, likely due to increased surface porosity and carboxylate–drug interactions. Films with 0.5 mg/mL glycine exhibited the lowest loading efficiency, likely due to the interaction between glycine and hydroxyapatite eroding binding sites for tetracycline. Glycine 1 and 2 mg/mL showed better loading than 0.5 mg/mL glycine, suggesting increased porosity may have aided with packing hydroxyapatite and subsequently interacting better with drug molecules. Glycine can create more functional groups on the hydroxyapatite surface, which can interact with drug molecules through hydrogen bonding, electrostatic interactions, or van der Waals forces, improving drug-loading efficiency [8]. Films prepared with different electrolytes showed varying drug-loading properties; the mixture of 1 M Ca(NO₃)₂ and 1 wt. % AgNO₃ yielded samples that loaded more drugs (0.30 ± 0.03 mg), than control CaCl₂ at 0.21 ± 0.02 mg despite higher crystallinity (90%).

3.2.2. Drug Release

Experimental conditions accelerating release such as infrared (IR) light (808 nm, 1.4 mW/cm²) disrupts electrostatic/drug bonds, causing photothermal burst release. This artificially inflates initial rates, shortening apparent t½. For example, NIR increased release rates 2.1-fold (k = 39.21 compared to 18.22). High glycine concentrations reduce HA crystallinity (94% to 30%) and increase solubility (5× control), creating porous matrices that accelerate diffusion. At 1–2 mg/mL glycine, faster release aligns with smaller particle sizes (75.5–89.3 nm, SEM data) and also uncoated HA samples without polyelectrolyte (PE) coatings showed 78.6% release in 1 h), as no diffusion barrier exists.

The study found that IR light effectively triggered the release of tetracycline from films, with rapid release followed by a prolonged liberation phase. HA samples with different electrolytes released more drugs under NIR triggering, confirming Ag NPs’ ability to enable photothermal-triggered release. HA sample powders from a mixture of 1 M Ca(NO₃)₂ and 1 wt. % AgNO₃ as electrolyte released tetracycline (0.06 mg/mL at 400 min) four times faster than CaCl₂ (0.02 mg/mL at 400 min) and Ca(NO₃)₂. (0.02 mg/mL at 400 min). The 4-fold increase in drug release from HA-Ag under NIR confirms the hypothesis that Ag NPs enable photothermal-triggered release by converting NIR to localized heat [9].

3.2.3. Kinetics Analysis

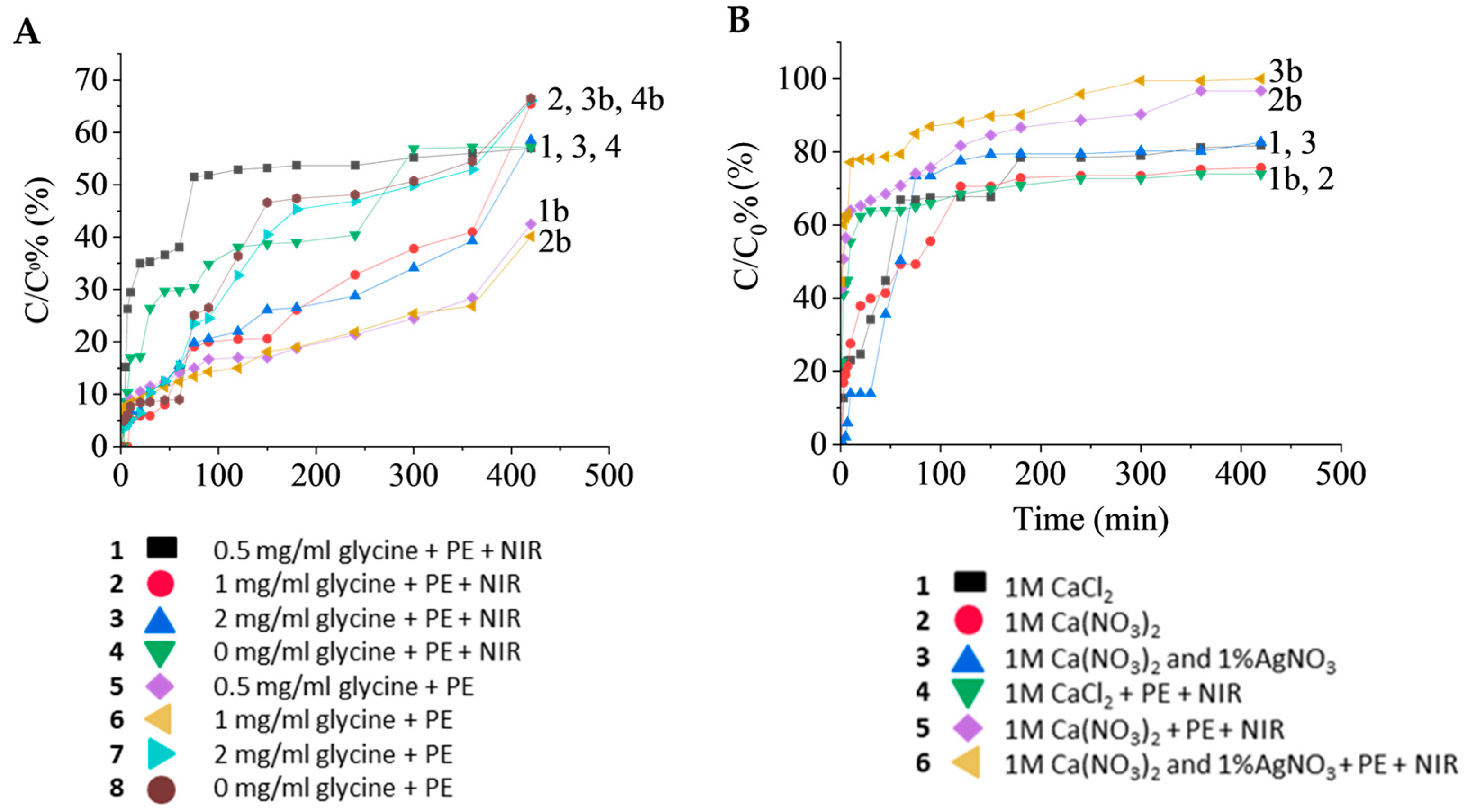

The overall interpretation of the study suggests that the presence of NIR (808 nm, 1.4 mW/cm²) tends to result in faster release rates disrupts electrostatic/drug bonds, causing photothermal burst release and potentially more complex release mechanisms. (Figure 2A) This artificially inflates initial rates, shortening apparent t½. For example, NIR increased release rates 2.1-fold (k = 39.21 compared to 18.22). High glycine concentrations reduce HA crystallinity (94% to 30%) and increase solubility (5× control), creating porous matrices that accelerate diffusion. At 1–2 mg/mL glycine, faster release aligns with smaller particle sizes (75.5–89.3 nm, SEM data) and also uncoated HA samples without polyelectrolyte (PE) coatings showed 78.6% release in 1 h, as no diffusion barrier exists.

The primary release mechanism (identified as Fickian diffusion, swelling, or erosion) using the Korsmeyer–Peppas model and the release exponent (n). The composite system involves glycine-induced porosity (SEM), PE coatings (diffusion barriers), and NIR-triggered disruption (photothermal effects). The results reveal that uncoated HA showed Fickian diffusion (n < 0.45), where the release is pore-mediated. PE-coated HA showed non-Fickian (n = 0.66–0.81), suggesting combined diffusion/polymer relaxation.

The release mechanism of a material is affected by the presence of different electrolytes (1 M CaCl₂, 1 M Ca(NO₃)₂, a mixture of 1 M Ca(NO₃)₂ and 1 wt. % AgNO₃). Fickian diffusion is the most common, with HA-Ag showing slower release rates without PE coating (Figure 2B). The Fickian diffusion mechanism (n = 0.42) aligns with [10], who observed similar kinetics in mesoporous HA. The heparin/PDADMAC PE coating reduced the release rate constant (k) from 0.04 h⁻¹ to 0.001 h⁻¹). Ref. [11] found similar results for coatings made of calcium phosphate that are modified with iron and have antibacterial qualities.

The following key findings on electrolyte-dependent structural properties, p-factors, and Liesegang ring formation show that HA-Cl (CaCl₂) and HA-Ca(NO₃)₂ exhibited p-factors ≈ 1.00, indicating regular ring spacing and homogeneous nucleation. Electrolyte impact on Ca/P ratios shows HA-Cl (1.41), HA-Ca(NO₃)₂ (1.97) and HA-Ag (0.97), where Ag⁺ substitution created Ca-deficient HA, disrupting nucleation in the HA lattice. The crystallinity and phase content of HA-Cl revealed it has the highest crystallinity (90%) with minimal defects, favoring rapid drug diffusion. HA-Ca(NO₃)₂ had lower crystallinity (65%) and higher porosity, enhancing drug adsorption and HA-Ag recorded intermediate crystallinity (59%) with 12.4 wt. % Ag, confirmed by EDX, introducing defects but improving photothermal response. Korsmeyer–Peppas best fit all samples, showing Fickian diffusion (n ≈ 0.3–0.4), with R² > 0.92. NIR reduced n to 0.11 for PE-coated HA-Ag, confirming photothermal disruption.

Future directions include optimization of Ag loading to balance antibacterial efficacy with release kinetics. In vivo validation tests on PE-coated HA-Ag in bone defect models and advanced modeling using Density Functional Theory simulations to predict drug–HA binding energies.

4. Conclusions

The findings indicated that varying glycine amino acid concentrations had a number of important effects on the system, including on the hydroxyapatite’s crystallinity because they improved the precipitate’s surface diffusion mechanism and influenced the kinetics of hydroxyapatite crystallization, or the formation of new crystals.

This work demonstrates that electrolyte choice, CaCl₂, Ca(NO₃)₂ or Ag modification critically tune HA’s structure, drug affinity, and release profiles. The Ca(NO₃)₂ + 1 wt. % AgNO₃ system (p-factor = 0.81) emerges as the most versatile, offering: high drug loading (HA-Ag loaded 52% more tetracycline than HA-Cl, 0.30 ± 0.03 mg), photothermal responsiveness (4× faster release under NIR), and PE-compatible sustained release.

These findings could pave the way for smart, multifunctional HA coatings in orthopedics, dentistry, and targeted therapy. The study finds applications in biomedicine such as bone implant coatings, and HA-Ag assisted with NIR for on-demand infection control (t₁/₂ = 2.57 h) under irradiation). As wound dressings, PE-coated HA-Ag combines sustained antimicrobial action (Ag⁺) with triggerable drug release. In cancer therapy, NIR-responsive HA-Ag could deliver chemotherapeutics locally with spatiotemporal control. Glycine addition to hydroxyapatite enhances even bioactivity, and compatibility with bone tissue, making it a promising candidate for regenerative medicine and bone repair strategies, providing insights for optimizing biomaterials.
