Hexa-Substituted Hybrid C60 Derivatives with Norbornadiene Fragments: Synthesis and Structure †

,
,
and
Institute of Petrochemistry and Catalysis, Ufa Federal Research Center, Russian Academy of Sciences, 450075 Ufa, Russia
*
Author to whom correspondence should be addressed.
†
Presented at the 27th International Electronic Conference on Synthetic Organic Chemistry (ECSOC-27), 15–30 November 2023; Available online: https://ecsoc-27.sciforum.net/.
Chem. Proc.2023, 14(1), 67;https://doi.org/10.3390/ecsoc-27-16104
This article belongs to the Proceedings of 27th International Electronic Conference on Synthetic Organic Chemistry
Version Notes
Order Reprints

Abstract

New hybrid fullerene C60 derivatives with five norbornadiene fragments, at a distance from the fullerene core of several methylene groups, were synthesized for the first time. Subsequent photoirradiation of these derivatives leads to only partial (up to 20%) opening of double bonds in norbornadiene fragments to form quadricyclane substituents. It is assumed that the resulting fullerene C60 derivatives can serve as a basis to create high-energy materials.

1. Introduction

Fullerenes and their derivatives attract great attention due to their unique properties that allow them to be used as effective antioxidants [1], solar energy converters [2], semiconductor materials [3], additives for motor oils [4], and modern medicinal products [5]. Such a wide applied significance of fullerene C60 derivatives is due to various methods of their functionalization, among which the most popular are currently the Prato [6] and Bingel–Hirsch reactions [7]. These approaches make it possible to selectively prepare not only mono-, bis-, and tris- but also hexa-adducts of fullerene C60 [8,9,10,11] with specified symmetry types, in which addends are located almost throughout the entire fullerene sphere. Besides these studies, there are works devoted to the synthesis of various highly symmetric fullerene C60 polyadducts, when a chlorofullerene C60Cl6 was used as a starting compound. Indeed, this method makes it possible to obtain various alkoxyfullerenes [12], aminofullerenes [13], sulfides [14], and arylated [15] C60 derivatives, which have particular interest and application in medicine [16,17].
We reported recently [18,19,20,21] the synthesis of energy-rich methanofullerenes through the reaction of fullerene C60 with mono- and bis-quadricyclane esters of malonic acid under Prato reaction conditions [22]. It was shown that some distance between a quadricyclane fragment and a fullerene core is necessary to maintain the metastable structure of a hybrid fullerene–quadricyclane molecule. At the same time, it seemed interesting and relevant to study the photochemical isomerization of norbornadiene fragments into quadricyclane ones in the C60 cycloadducts synthesized.
Considering these facts, we performed a covalent binding of fullerene C60 with norbornadienes and quadricyclanes in this work, where chlorofullerene C60Cl6 was used as a starting compound. It was assumed that the selective synthesis of C60 adducts containing five addends, according to the method described in the literature [12], will increase the solubility of new hybrid molecules due to a higher number of quadricyclanes attached covalently to a C60 carbon core. The photochemical isomerization of norbornadiene-containing penta-derivatives of fullerene C60 into quadricyclane derivatives was also studied.

2. Results and Discussion

The interaction between hexachlorofullerene and norbornadiene alcohols 1a–1e [23,24] at room temperature for 30 min led to the formation of hexa-substituted adducts 2a–2e, in which the fullerene core was bound to a polycycle fragment through an ether bond. Fullerene polyadducts 2a–2e were isolated from the reaction mass using preparative HPLC with a chromatographic purity of ~99.9%.
The structure of compounds 2a–2e was elucidated with one-dimensional (1H and 13C) and two-dimensional (1H–1H COSY, 1H–13C HSQC, 1H–13C HMBC) NMR techniques and MALDI–TOF mass spectrometry. High-frequency signals (δ 158.72, 144.39, 142.30, and 133.30 ppm), characteristic of sp2 hybridized carbon atoms of a norbornadiene fragment, and low-frequency ones (δ 73.53, 55.66 and 50.20 ppm), typical of sp3 carbon atoms of this fragment, for example, are observed in the 13C NMR spectrum of compound 2e, in which the norbornadiene fragment is removed from a fullerene core to the greatest extent compared to those in the derivatives 2a–2d. The 13C NMR signals of seven methylene groups appear in the low-frequency region at δ 31.73, 30.57, 29.77, 29.63, 27.44, 26.67, and 26.59 ppm, and the signal of a methylene group bound to an oxygen atom is at δ 68.34 ppm. The sp3 hybridized carbon atom of a fullerene sphere bound to a chlorine one resonates at δ 71.47 ppm in the 13C NMR spectrum, and fullerene carbon atoms in the sp3 hybridization bound to oxygen atoms give signals at δ 79.39 and 81.66 ppm, which is in agreement with previous published data [12,25]. Fullerene carbon atoms in the sp2 hybridization give 47 signals at δ 138–154 ppm, of which seven signals have a double relative intensity, and the rest have a single one. This indicates that the molecule of this derivative is assigned to a C1 symmetry point group, probably due to the asymmetric arrangement of a norbornadiene fragment at the C-1 fullerene carbon atom relative to the conventional symmetry plane passing through the C-1 and C-9 carbon atoms of a fullerene sphere (see Scheme 1 for numbering of carbon atoms) [26]. A molecular ion peak in the MALDI–TOF mass spectrum recorded in the negative ion mode at m/z 1851.8505 indicates that five oxooctylnorbornadiene fragments and one chlorine atom are attached to a fullerene sphere, which confirms the proposed structure of derivative 2e. Similarly, the molecules of the compounds 2a–2d are assigned to the C1 symmetry group, regardless of the length of an alkyl fragment that connects an oxygen atom and a norbornadiene fragment.

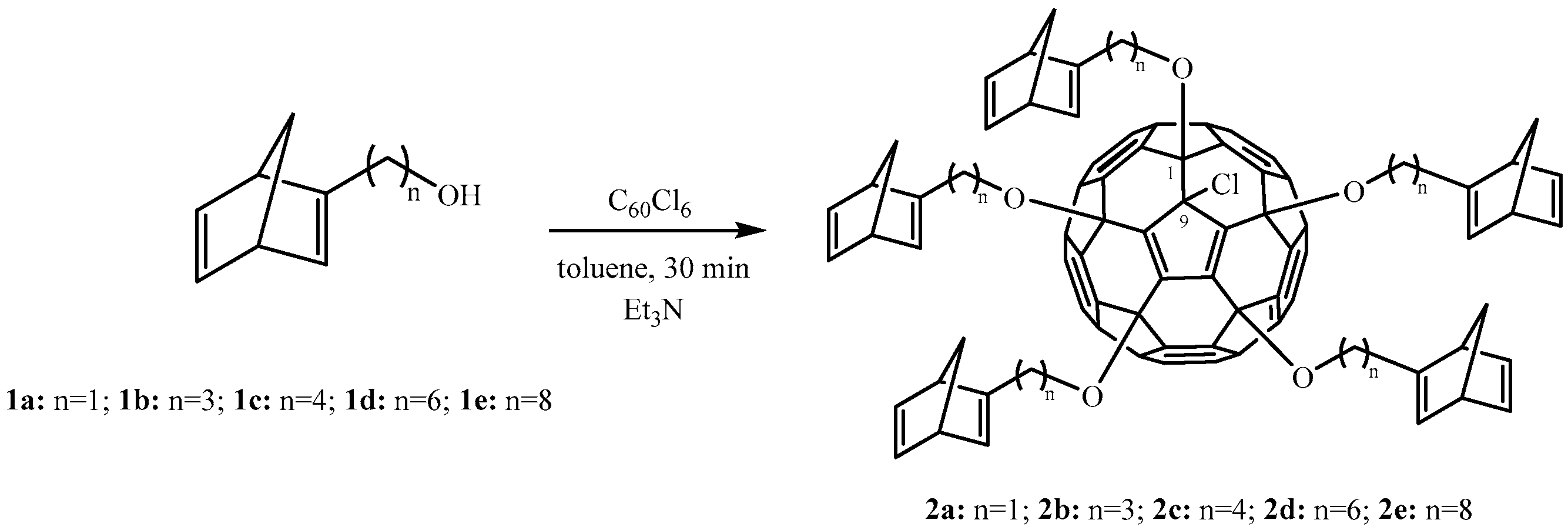

Scheme 1. Preparation of hexa-adducts of fullerene C60.
We reported previously [18] that it is impossible to perform the photoisomerization of norbornadiene fragments into quadricyclane ones in hybrid molecules, but it is known [11] that such compounds are capable of converting into quadricyclane derivatives under certain conditions. We converted the hybrid molecules 2a–2e with norbornadiene fragments into those with quadricyclane ones 3a–3e via photochemical isomerization according to the method described earlier [11] (Scheme 2). As a result, it was found that the norbornadiene fragments are only partially isomerized into quadricyclane ones with a yield of no more than 20%. It was impossible to isolate and to determine the composition of new hybrid molecules because of the formation of a complex mixture of stereoisomers consisting of norbornadiene and quadricyclane fragments bound to one fullerene molecule. We assumed that quadricyclane fullerene C60 derivatives can be synthesized through the reaction between chlorofullerene C60Cl6 and the corresponding quadricyclanes in this regard.

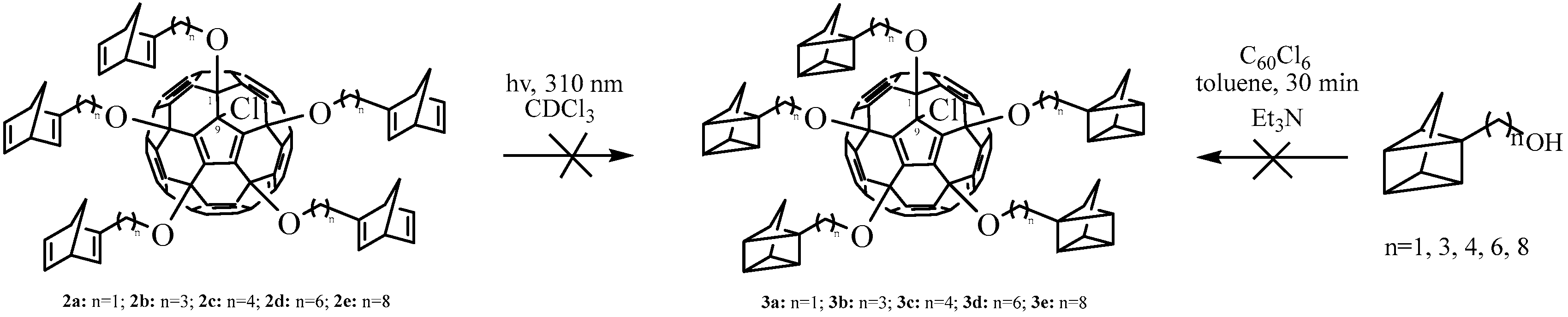

Scheme 2. Synthesis of quadricyclane fullerene C60 derivatives.
The reaction between quadricyclane alcohols and hexachlorofullerene also led to the formation of a difficult-to-identify reaction mass of the compounds 3a–3e under previously developed conditions [12], which is probably because of the partial opening of strained C–C bonds in quadricyclane fragments.

3. Materials and Methods

All reactions were performed in an argon atmosphere and in an anhydrous solvent. The solvents and reagents were dried or purified according to procedures described in the literature. Commercially available fullerene C60 (purity of 99.5%, Sigma-Aldrich, 9402 Alberene Drive, Houston, TX 77074, USA) was used.
The reaction products were analyzed on a Shimadzu SPD-20A HPLC chromatograph (1900 SE 4th Avenue, Canby, OR 97013, USA) equipped with a UV detector at 313 or 340 nm. The mixtures were separated on a Cosmosil Buckyprep Waters preparative column (250 × 10 mm) at a temperature of ~20 °C. Toluene was used as an eluent, and the flow rate was 3.0 mL min−1. The 1H, 13C, and two-dimensional NMR spectra were acquired on a Bruker Avance III HD 500 NMR spectrometer with frequencies of 500 and 125 MHz, respectively. A mixture of CDCl3 and CS2 (1:5) was used as a solvent. The 1H and 13C NMR chemical shifts (δ) are given in ppm relative to internal standard SiMe4. Mass spectra were recorded on a MALDI–TOF/TOF mass spectrometer (Bruker Daltonik GmbH, Germany), operating in linear (TOF) and reflective (TOF/TOF) modes of positive and negative ions. S8 and DCTB (trans-2-[3-(4-tert-butylphenyl)-2-methyl-2-propenylidene]malononitrile) were used as a matrix. The solutions of the samples in toluene were used to apply them to a metal target for mass spectrometric measurements. The photoisomerization of norbornadiene derivatives into quadricyclane derivatives was performed on a HAMAMATSU LC 8 irradiator at 310 nm.
Compound 2a
  • Brown powder. 1H NMR, δ: 1.60 (m, 1H), 2.06 (m, 1H), 2.19 (m, 1H), 2.21 (m, 1H), 3.59 (m, 2H), 6.12 (m, 1H), 6.77 (m, 1H), 6.78 (m, 1H). 13C NMR, δ: 25.84, 27.31, 29.41, 29.49, 29.56, 29.83, 31.62, 32.92, 50.11, 50.28, 51.57, 51.99, 53.59, 63.14, 66.63, 66.81, 67.04, 67.26, 67.69, 68.05, 69.10, 69.65, 70.06, 70.29, 73.50, 73.73, 76.83, 77.08, 77.34, 133.21, 137.21, 137.33, 137.45, 137.62, 137.81, 138.18, 142.36, 142.51, 142.61, 143.31, 143.40, 143.55, 143.83, 144.39, 147.28, 147.70, 148.08, 148.28, 148.46, 148.93, 149.14, 149.48, 149.57, 154.68, 154.85, 154.99, 155.14, 158.92. MALDI–TOF, [M]– calcd. for C100H45ClO5 1361.3024, found 1361.3020.
Compound 2b
  • Brown powder. 1H NMR, δ: 1.62 (m, 2H), 1.71 (m, 1H), 1.99 (m, 2H), 2.07 (m, 1H), 3.02 (m, 2H), 3.52 (m, 2H), 6.13 (m, 1H), 6.76 (m, 2H). 13C NMR, δ: 22.96, 26.49, 28.15, 29.47, 29.93, 30.43, 30.62, 31.56, 32.10, 42.00, 50.34, 50.58, 50.87, 53.71, 60.47, 65.95, 67.73, 67.99, 68.16, 68.33, 68.58, 68.80, 73.61, 133.81, 134.00, 134.17, 134.44, 136.12, 136.32, 136.39, 136.48, 142.20, 142.26, 142.32, 143.84, 143.92, 143.99, 146.94, 147.00, 147.10, 147.16, 147.32, 147.50, 147.76, 147.86, 147.93, 148.07, 148.14, 148.42, 148.55, 148.92, 149.06, 149.21, 157.74. MALDI–TOF, [M]– calcd. for C110H65ClO5 1501.4657, found 1501.4662.
Compound 2c
  • Brown powder. 1H NMR, δ: 1.29 (m, 2H), 1.56 (m, 2H), 1.78 (m, 1H), 1.99 (m, 2H), 2.03 (m, 1H), 3.29 (m, 1H), 3.32 (m, 1H), 3.51 (m, 2H), 6.18 (m, 1H), 6.76 (m, 2H). 13C NMR, δ: 24.12, 29.96, 30.10, 31.48, 50.29, 53.65, 67.83, 68.06, 68.45, 73.59, 133.78, 133.90, 134.00, 142.26, 143.86, 146.96, 147.08, 147.23, 147.36, 147.55, 147.77, 147.89, 148.18, 148.31, 148.41, 148.53, 149.02, 149.16, 149.46, 149.56, 158.07, 158.35. MALDI–TOF, [M]– calcd. for C115H75ClO5 1571.5337, found 1571.5331.
Compound 2d
  • Brown powder. 1H NMR, δ: 1.30 (m, 2H), 1.33 (m, 2H), 1.39 (m, 2H), 1.47 (m, 2H), 1.81 (m, 1H), 1.98 (m, 2H), 2,06 (m, 1H), 3.28 (m, 2H), 3.48 (m, 2H), 6.12 (m, 1H), 6.74 (m, 2H). 13C NMR, δ: 26.48, 27.46, 28.67, 29.56, 30.03, 30.54, 31.77, 33.43, 50.31, 53.72, 67.77, 67.93, 68.12, 68.32, 73.60, 133.52, 142.25, 143.85, 144.40, 145.13, 145.30, 145.50, 145.63, 147.13, 147.30, 147.53, 147.71, 147.81, 148.08, 148.21, 148.41, 148.71, 148.88, 149.06, 149.21, 149.38, 149.51, 158.47. MALDI–TOF, [M]– calcd. for C125H95ClO5 1711.6943, found 1711.6939.
Compound 2e
  • Brown powder. 1H NMR, δ: 1.34 (m, 10H), 1.43 (m, 2H), 1.82 (m, 1H), 1.97 (m, 2H), 2.00 (m, 1H), 2.21 (m, 2H), 3.49 (m, 2H), 6.12 (m, 1H), 6.75 (m, 2H). 13C NMR, δ: 26.60, 26.69, 27.45, 29.64, 29.72, 29.78, 30.58, 31.74, 50.20, 53.66, 68.34, 68.71, 73.54, 133.30, 142.30, 143.83, 144.05, 144.26, 144.39, 144.69, 144.81, 145.14, 145.29, 145.47, 145.63, 145.93, 146.93, 147.14, 147.35, 147.56, 147.68, 147.96, 148.11, 148.33, 149.14, 149.32, 149.44, 158.71. MALDI–TOF, [M]– calcd. for C135H115ClO5 1851.8515, found 1851.8505.

4. Conclusions

In summary, we synthesized hybrid molecules containing five norbornadiene or quadricyclane fragments bound covalently to a fullerene core through one, three, four, six, and eight oxymethylene units for the first time. The stereoselectivity of this reaction was studied thoroughly with spectral methods. It was shown for the first time that quadricyclane alcohols, reacting with C60Cl6, are converted under selected conditions into the corresponding norbornadiene derivatives.

Author Contributions

Conceptualization, data curation, synthetic investigation, writing—original draft, review and editing, A.R.A., A.R.T. and Z.R.S.; supervision, L.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Russian Ministry of Science and Higher Education (Government themes FMRS-2022-0075 and FMRS-2022-0081).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The structural studies of the compounds 2a–3e were performed on equipment of the “Agidel” Collective Usage Center located at the Institute of Petrochemistry and Catalysis (Ufa Federal Research Center, Russian Academy of Sciences).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Piotrovsky, L.B.; Dumpis, M.A.; Litasova, E.V.; Safonova, A.F.; Selina, E.N.; Bulion, V.V.; Rodionova, O.M.; Sapronov, N.S. Toxicology of carbon nanostructures. Med. Acad. J. 2010, 10, 125–134. [Google Scholar]
  2. Rubio Arias, J.J.; Marques, M.D.F.V. Performance of poly(3-hexylthiophene) in bulk heterojunction solar cells: Influence of polymer size and size distribution. React. Funct. Polym. 2017, 113, 58–69. [Google Scholar] [CrossRef] [Scilit]
  3. Nakatsuji, S.i.; Ogawa, Y.; Takeuchi, S.; Akutsu, H.; Yamada, J.-i.; Naito, A.; Sudo, K.; Yasuoka, N. Novel photo-responsive organic spin systems: Preparation and properties of norbornadienes and spiropyrans with TEMPO radical substituents. J. Chem. Soc. Perkin Trans. 2 2000, 1969–1975. [Google Scholar] [CrossRef] [Scilit]
  4. Tuktarov, A.R.; Akhmetov, A.R.; Kirichenko, G.N.; Glazunova, V.I.; Khalilov, L.M.; Dzhemilev, U.M. Synthesis of functionally substituted methanofullerenes and study of their tribological properties. Russ. J. Appl. Chem. 2010, 83, 1238–1242. [Google Scholar] [CrossRef] [Scilit]
  5. Castro, E.; Garcia, A.H.; Zavala, G.; Echegoyen, L. Fullerenes in biology and medicine. J. Mater. Chem. B 2017, 5, 6523–6535. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Maggini, M.; Scorrano, G.; Prato, M. Addition of azomethine ylides to C60: Synthesis, characterization, and functionalization of fullerene pyrrolidines. J. Am. Chem. Soc. 1993, 115, 9798–9799. [Google Scholar] [CrossRef] [Scilit]
  7. Camps, X.; Hirsch, A. Efficient cyclopropanation of C60 starting from malonates. J. Chem. Soc. Perkin Trans. 1 1997, 1595–1596. [Google Scholar] [CrossRef] [Scilit]
  8. Lamparth, I.; Hirsch, A. Water-soluble malonic acid derivatives of C60 with a defined three-dimensional structure. J. Chem. Soc. Chem. Commun. 1994, 1727–1728. [Google Scholar] [CrossRef] [Scilit]
  9. Hirsch, A.; Vostrowsky, O. C60 Hexakisadducts with an Octahedral Addition Pattern—A New Structure Motif in Organic Chemistry. Eur. J. Org. Chem. 2001, 2001, 829–848. [Google Scholar] [CrossRef] [Scilit]
  10. Yan, W.; Seifermann, S.M.; Pierrat, P.; Bräse, S. Synthesis of highly functionalized C60 fullerene derivatives and their applications in material and life sciences. Org. Biomol. Chem. 2015, 13, 25–54. [Google Scholar] [CrossRef] [Scilit]
  11. Lorenz, P.; Hirsch, A. Photoswitchable Norbornadiene–Quadricyclane Interconversion Mediated by Covalently Linked C60. Chem. Eur. J. 2020, 26, 5220–5230. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Khakina, E.A.; Kraevaya, O.A.; Popova, M.L.; Peregudov, A.S.; Troyanov, S.I.; Chernyak, A.V.; Martynenko, V.M.; Kulikov, A.V.; Schols, D.; Troshin, P.A. Synthesis of different types of alkoxy fullerene derivatives from chlorofullerene C60Cl6. Org. Biomol. Chem. 2017, 15, 773–777. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Kornev, A.B.; Khakina, E.A.; Troyanov, S.I.; Kushch, A.A.; Peregudov, A.; Vasilchenko, A.; Deryabin, D.G.; Martynenko, V.M.; Troshin, P.A. Facile preparation of amine and amino acid adducts of [60]fullerene using chlorofullerene C60Cl6 as a precursor. Chem. Commun. 2012, 48, 5461–5463. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. Khakina, E.A.; Yurkova, A.A.; Peregudov, A.S.; Troyanov, S.I.; Trush, V.V.; Vovk, A.I.; Mumyatov, A.V.; Martynenko, V.M.; Balzarini, J.; Troshin, P.A. Highly selective reactions of C60Cl6 with thiols for the synthesis of functionalized [60]fullerene derivatives. Chem. Commun. 2012, 48, 7158–7160. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Kraevaya, O.A.; Peregudov, A.S.; Godovikov, I.A.; Shchurik, E.V.; Martynenko, V.M.; Shestakov, A.F.; Balzarini, J.; Schols, D.; Troshin, P.A. Direct arylation of C60Cl6 and C70Cl8 with carboxylic acids: A synthetic avenue to water-soluble fullerene derivatives with promising antiviral activity. Chem. Commun. 2020, 56, 1179–1182. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  16. Huang, H.-J.; Chetyrkina, M.; Wong, C.-W.; Kraevaya, O.A.; Zhilenkov, A.V.; Voronov, I.I.; Wang, P.-H.; Troshin, P.A.; Hsu, S.-h. Identification of potential descriptors of water-soluble fullerene derivatives responsible for antitumor effects on lung cancer cells via QSAR analysis. Comput. Struct. Biotechn. J. 2021, 19, 812–825. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Troshina, O.A.; Troshin, P.A.; Peregudov, A.S.; Kozlovskiy, V.I.; Balzarini, J.; Lyubovskaya, R.N. Chlorofullerene C60Cl6: A precursor for straightforward preparation of highly water-soluble polycarboxylic fullerene derivatives active against HIV. Org. Biomol. Chem. 2007, 5, 2783–2791. [Google Scholar] [CrossRef] [Scilit]
  18. Tuktarov, A.R.; Akhmetov, A.R.; Khuzin, A.A.; Dzhemilev, U.M. Synthesis and Properties of Energy-Rich Methanofullerenes Containing Norbornadiene and Quadricyclane Moieties. J. Org. Chem. 2018, 83, 4160–4166. [Google Scholar] [CrossRef] [Scilit]
  19. Dzhemilev, U.M.; Akhmetov, A.R.; Khuzin, A.A.; D’yakonov, V.A.; Dzhemileva, L.U.; Yunusbaeva, M.M.; Khalilov, L.M.; Tuktarov, A.R. A new original approach to the design of anticancer drugs based on energy-rich quadricyclanes. Russ. Chem. Bull. 2019, 68, 1036–1040. [Google Scholar] [CrossRef] [Scilit]
  20. Dzhemilev, U.M.; Khuzin, A.A.; Akhmetov, A.R.; D’yakonov, V.A.; Dzhemileva, L.U.; Yunusbaeva, M.M.; Tuktarov, A.R. Synthesis of C60 Fullerene–Quadricyclane Hybrid Compound and Its Preliminary In Vitro Antitumor Activity in Combination with Cisplatin. ACS Omega 2019, 4, 15929–15934. [Google Scholar] [CrossRef] [Scilit]
  21. Dzhemilev, U.M.; Akhmetov, A.R.; D’yakonov, V.A.; Dzhemileva, L.U.; Yunusbaeva, M.M.; Tuktarov, A.R. Synthesis and antitumor activity of methanofullerenes equipped with norbornadiene and quadricyclane moieties. Mendeleev Commun. 2020, 30, 150–152. [Google Scholar] [CrossRef] [Scilit]
  22. Akhmetov, A.R.; Tuktarov, A.R.; Sadretdinova, Z.R.; Khalilov, L.M.; Dzhemilev, U.M. New norbornadiene-tethered fulleropyrrolidines. Mendeleev Commun. 2020, 30, 352–354. [Google Scholar] [CrossRef] [Scilit]
  23. Yip, C.; Handerson, S.; Tranmer, G.K.; Tam, W. Intramolecular 1,3-Dipolar Cycloadditions of Norbornadiene-Tethered Nitrile Oxides. J. Org. Chem. 2001, 66, 276–286. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Tranmer, G.K.; Tam, W. Intramolecular 1,3-Dipolar Cycloadditions of Norbornadiene-Tethered Nitrones. J. Org. Chem. 2001, 66, 5113–5123. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Avent, A.G.; Birkett, P.R.; Darwish, A.D.; Houlton, S.; Taylor, R.; Thomson, K.S.T.; Wei, X.-W. Formation and characterisation of alkoxy derivatives of [60]fullerene. J. Chem. Soc. Perkin Trans. 2 2001, 782–786. [Google Scholar] [CrossRef] [Scilit]
  26. Birkett, P.R.; Avent, A.G.; Darwish, A.D.; Kroto, H.W.; Taylor, R.; Walton, D.R.M. Preparation and 13C NMR spectroscopic characterisation of C60Cl6. J. Chem. Soc. Chem. Commun. 1993, 1230–1232. [Google Scholar] [CrossRef] [Scilit]
