Review of Vibrational Spectroscopy Studies of Coatings Based on Hexavalent or Trivalent Chromium Baths

Abstract

Major vibrational spectroscopy studies have focused on the preparation of chromium coatings via chemical processes (conversion coatings), and few studies have focused on electrochemical processes (electrodeposition). Initially, the chemical precursors were hexavalent chromium salts, but these compounds are now replaced by less toxic trivalent ions. There is a profound understanding of the process when vibrational spectroscopy is used in combination with other techniques. This is the case for chromium(VI) conversion coatings, and the results of several techniques, such as synchrotron infrared microspectroscopy, have made it possible to understand the structure of the two-layer coating and the chemical composition of each layer. Vibrational spectroscopy confirmed the mechanism for coating formation, in which ferricyanide was a redox mediator. In addition, vibrational spectroscopy was effective in determining the mechanism of corrosion resistance of the coatings. Conversely, there are very few studies on the electrodeposition of trivalent chromium ions, and the mechanics of electrodeposition are unknown. To simplify the use of spectroscopy, spectra of potassium dichromate and chromium(III) sulfate are presented as references for coating studies, and a compilation of $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ and $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ vibrational modes is provided to facilitate band assignment. Our review highlights that spectroscopic techniques have been insufficiently applied in this field; however, the results of vibrational spectroscopy accelerate the transition to safer Cr(III) technology.

1. Introduction

In the nineteenth century, three patents were filed on trivalent chromium baths; however, the massive use of chromium coatings emerged in the 1930s. During these historical time periods, the quality of the coatings obtained from Cr(III) baths was lower than that of the Cr(VI) coatings [1]. Therefore, industrial production during the 20th century was based on Cr(VI) baths, but at the beginning of the 21st century, interest in Cr(III) baths resumed on the basis of their lower toxicity. Currently, there is a systematic abandonment of Cr(VI) baths in favor of Cr(III) baths, but the success of these new coatings depends on understanding precisely the underlying mechanisms of protection offered by hexavalent chromium. Consequently, studies involving vibrational spectroscopy of hexavalent baths have also been revised.

The coatings can be formed by electrodeposition of a chromium bath with trivalent chromium or by conversion coatings, which are formed through a chemical reaction between a metal substrate and a solution containing trivalent chromium. Studies of the electrodeposition of chromium from Cr(VI) baths were reviewed by Dubpernell [1] and Mandich et al. [2], and studies of chromate(VI) conversion coatings were reviewed by Prakash and Balaraju [3]. The processes involving Cr(VI) provide excellent corrosion protection but have the disadvantage that Cr(VI) is highly toxic. Studies of the electrodeposition of coatings from Cr(III) baths have been reviewed by several authors [4,5,6]. Hesamedini [7] reviewed 105 studies of Cr(III)-based conversion coatings and analyzed how the studies answered fundamental questions.

In the aerospace industry, chromium conversion coatings have been used because of their outstanding performance in the corrosion protection of aluminum alloys. Becker [8] presented a comprehensive overview of new promising technologies in terms of corrosion inhibition. In the case of chromium coatings, the formation of Cr(VI) from Cr(III) is an intense drawback, and future research should focus on eliminating Cr(VI) formation. On the other hand, chromium electrodeposition comprises 2 categories according to the thickness of the Cr layer: (1) a decorative coating with a thickness of less than 0.8 μm, which provides acceptable resistance to corrosion, and (2) a functional coating with a thickness greater than 0.8 μm, which provides hardness and high corrosion resistance [2].

There are more publications based on vibrational spectroscopies for the characterization of coating surfaces [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51], and few studies have focused on electrodeposition baths [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66], which implies a lack of use of vibrational spectroscopies to determine the species in solution. On the other hand, UV–visible spectroscopy is routinely used in Cr(III) bath studies; however, this technique has not allowed us to understand the mechanisms of coating formation, and our proposal is that it must be complemented with vibrational spectroscopies. Therefore, our objective is to summarize the contributions of vibrational spectroscopy to the study of chromium coatings and to demonstrate that these techniques are fundamental to understanding the coating formation process. Vibrational spectroscopy is a very effective technique for surface characterization because it clearly shows how the constituent ions of the bath are transformed into surface species. Vibrational spectroscopy studies can focus on several aspects: (1) determining the influence of surface species on the tribological, visual or other properties (Section 2); (2) identifying corrosion products on the surface (Section 2); and (3) determining the species in the solution and electrolyte/electrode interface to understand the mechanisms of formation of the coating (Section 3). The aspects (i) and (ii) are presented in the majority of studies, whereas the aspect (iii) is addressed in a few studies.

2. Vibrational Spectroscopy to Elucidate the Structures of the Coatings

2.1. Studies of Hexavalent Chromium Conversion Coatings

Between 1920 and 1985, the unfortunate results of trivalent chromium baths favored the entry of hexavalent chromium baths [1]. Hexavalent baths have few requirements and extensive lifetimes, which makes it difficult to replace them with trivalent baths, which require many conservation operations. This explains why Cr(VI) conversion baths were first studied, and these coatings were prepared from commercially named Alodine baths. This chemical treatment of surfaces involves immersing the metal piece in a solution containing chromic acid and potassium hexacyanoferrate, which reacts with the metal surface to form a thin film. The coatings have the objective of creating a layer that is highly resistant to corrosion, which is why studies have focused on determining the species on the surface and the evolution of the passive layer immersed in corrosion media.

Ahern et al. [9] compared the sensitivity of 3 Fourier transform infrared spectroscopy (FTIR) techniques to characterize chromium-phosphate conversion coatings on aluminum: (1) attenuated total reflectance (ATR), (2) diffuse reflectance infrared spectroscopy (DRIFTS), and (3) reflection absorption infrared spectroscopy (RAIRS). This study and other studies [10,11] revealed that these techniques have very low sensitivity to chromium species. Nonetheless, IR specular reflectance detected the presence of ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ deposited in stainless steel [12]. The bands observed via infrared spectroscopy in several studies [11,12,13,14,15,16,20,26,27] are listed in

Table 1. Assignments of the main bands observed in the IR or Raman spectra of the hexavalent chromium conversion coatings. The band shoulder is abbreviated as sh.

Wavenumber cm−1	Technique	Vibration Assignment	Reference
398, 416, 417	IR	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ rock	[12]
492, 510sh, 526, 528, 555	IR	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}\mathrm{H}$	[13,15,16]
592–593	IR	$\mathrm{F}\mathrm{e}-\mathrm{C}\mathrm{N}$	[13,14,15]
606	IR	$\mathrm{C}\mathrm{r}-\mathrm{O}$$\mathrm{stretching} \mathrm{in} {\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$	[20]
805, 817, 933, 934	IR	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ asymmetric stretching	[12]
852, 862, 955, 957	IR	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ symmetric stretching	[12]
816–817, 840, 903, 919–933, 960sh	IR	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$	[15]
1400, 1384	IR	$\mathrm{N}{\mathrm{O}}_3^{-}$	[13]
1621, 1623	IR	$\mathrm{H}-0-\mathrm{H}$ bending	[11,13,15]
2083, 2088, 2090, 2098, 2154sh, 2145	IR	$\mathrm{C}\equiv \mathrm{N}$$\mathrm{in} \mathrm{F}\mathrm{e}-\mathrm{C}\mathrm{N}$	[11,13,14,15]
3386, 3000, 3338	IR	$\mathrm{O}-\mathrm{H}$ stretching	[11,13,15]
535, 665	Raman	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)$ oxyhydroxide	[27]
750–950	Raman	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ stretching	[27]
858–860	Raman	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$$, \mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{C}\mathrm{r}(\mathrm{V}\mathrm{I}$) mixed oxide	[25,26]
987	Raman	sulfate ions	[27]
1709	Raman	$\mathrm{H}-\mathrm{O}-\mathrm{H}$ bending	[13]
2095, 2145	Raman	$\mathrm{C}\equiv \mathrm{N}$$\mathrm{in} \mathrm{F}\mathrm{e}-\mathrm{C}\mathrm{N}$	[25]
3600–3000	Raman	$\mathrm{O}-\mathrm{H}$ stretching	[13]

. In the IR spectra, there is a band of C-N, and the bands of water are related to the hydration of the films. In addition, the wavenumbers of the aluminum oxide bands were reported by Ahern [9] and Campestrini [16]. Chromating has also been applied to hot-dipped galvanized steels to improve the protective action of metallic zinc coatings.

Petit [17] identified bands of zinc chromate at 960, 860, and 820 cm⁻¹, which are similar to the bands of the $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ anions. Chromium phosphate conversion coatings on aluminum were studied by Schram et al. [18]. In the RAIRS spectra, several bands of chromium phosphate were observed, and a band at 758 cm⁻¹ was assigned to chromium oxide. The Raman spectra of this coating revealed that aluminum oxide was a minor component of the surface. The combination of vibrational and ellipsometry techniques results in a two-layer optical model in which the upper layer can be attributed to the chromium phosphate film. Schram and Terryn [19] selected the infrared spectroscopic ellipsometry (IRSE) technique to analyze chromium phosphate conversion films. This technique involves directing infrared light onto the sample surface at various angles of incidence and analyzing the reflected light. This technique allows for a comprehensive characterization of a film, which is essentially composed of chromium phosphate ($\mathrm{C}\mathrm{r}\mathrm{P}{\mathrm{O}}_4·\mathrm{n}{\mathrm{H}}_2\mathrm{O}$) with a lower concentration of aluminum oxide. The IRSE technique measures the thickness of the films, which varies from approximately 20 nm to a few micrometers. Chidambaram [20] analyzed aluminum alloys AA2024-T3 via two different FTIR techniques employing a synchrotron source: (1) grazing angle infrared spectroscopy (GAIRS) and (2) the RAIRS technique. This type of electromagnetic radiation is produced when charged particles accelerate to high speeds, and the radiation is in the range of far-infrared wavelengths [21]. The grazing incidence was highly sensitive, and the chromium on the surface was aligned perpendicular to the surface, whereas approximately half of the $\mathrm{C}\mathrm{r}-\mathrm{O}$ bonds of Cr(III) were oriented in that direction. The thickness of the coating (approximately 400 nm) was calculated via theoretical expressions. A new band of Cr(III) was observed at 606 cm⁻¹ and was tentatively assigned to oxide ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$. Vasquez et al. [22,23] analyzed coatings on the aluminum–copper alloy AA2024-T3 via synchrotron radiation. The synchrotron infrared microspectroscopy (SIRMS) measurements were performed on a small spot (less than 5 μm) in reflection mode. This technique was complemented by extended X-ray absorption fine structure (EXAFS) and X-ray absorption near edge structure (XANES) techniques. Infrared radiation was used to map the distribution of chromate oxides (820 cm⁻¹) and cyano species (2100 cm⁻¹) on the surface. Additionally, wavenumbers at approximately 3300 cm⁻¹ were analyzed to determine the hydration state of the film. The coating formed on the AA2024-T3 alloy had a topographically heterogeneous composition and was formed by a mixed oxide. Moreover, a lower aluminum content in the film decreases the thickness of the coating. In addition, the surface was monitored for 24 h after deposition of the coating. A slight decrease in the Cr(VI)/Cr(III) ratio was observed in the mixed oxide, and there was no significant change in hydration. Vasquez and Halada [23] confirmed that ferricyanide is a mediator that oxidizes aluminum in the mechanism of coating formation (Figure 1). A thinner coating was formed, only when ferricyanide was absorbed by the Cu-enriched particles. When damage occurred in the coating, the Cr(VI) located on the thicker film mitigated corrosion [23]; that is, the Cr(VI) present on the coating provided a repair mechanism by migrating to active sites and Chidambaram [24] studied this process via SIRMS. The coating contains a Cr(VI)/Cr(III) mixed oxide, but several lateral and depth heterogeneities are associated with the microstructural features. Repassivation occurred when Cr(VI) ions slowly migrated from the protected surface to the scratch. In addition, a band corresponding to the Al(III)-Cr(VI) film (797 cm⁻¹) appeared in the pits, and secondary ion mass spectra revealed an adjacent film of $\mathrm{A}\mathrm{l}{\left(\mathrm{O}\mathrm{H}\right)}_{\mathrm{x}}$. These two-layer film processes are referred to as bipolar models of repassivation. The Al(III)–Cr(VI) complex formed within the scratch, predominantly along the edges, where the chromium concentration was relatively high [24].

The studies are focused on pitting corrosion and passivation in chloride media. The Raman spectra confirm the effectiveness of passivation because chromate accumulates at pits, and this compound forms a barrier that inhibits further reactions on the surface. Vibrational spectroscopies could effectively evaluate the influence of environmental conditions and other unresolved issues, but more studies are necessary on this topic.

Table A1. Remarks, comments, and further reading *; literature of special interest **; or outstanding interest ***.

2.1 Studies of Hexavalent Chromium Conversion Coatings
References	Remarks
[72] *** [73] *	When pitting corrosion occurs, the migration process of Cr(VI) ions to repair the coating in damage zones was described on the basis of Raman or FTIR spectra. Vibrational spectroscopy reveals zones with high Cr(VI) contents and the distributions on the surfaces of the different phases on surface were accurately identified. Corrosion was studied in chloride solution and Cr(VI) conversion coating delay corrosion on aluminum in this media [71].
2.2 Studies of trivalent chromium conversion coatings
[74] *	The toxicity of Cr(VI) species has restricted their use in surface finishing, and they have been replaced by the trivalent chromium conversion coatings. The presence of Cr(VI) in these coatings is promoted by the presence of hydrogen peroxide, which is formed by the reduction of dissolved oxygen gas in the bath (Appendix B). The formation of Cr(VI) in these coatings is controversial with respect to environmental directives. Consequently, it has been proposed that baths containing Cu(II) or Fe(II) species suppress the formation of Cr(VI). This strategy was evaluated via vibrational spectroscopy.
2.3 Studies of coatings formed from electrodeposited hexavalent chromium baths
[2] *	To probe the remarkable capabilities of spectroscopic techniques, studies of cathodes for the production of sodium chlorate have been described.
2.4 Studies of coatings formed from electrodeposited trivalent chromium baths
[65] **	The Cr(III) bands were not addressed. Due to the limited number of baths investigated, the correlation between the species in the bath and their impact on the properties of the coatings remains unexplained. Although Liu et al. [65] did not address the Cr(III) bands, the spectra at each electrical potential provide more information than the voltammogram, with no peak clearly defined; for example, shift of carbonyl bands suggests the initiation Cr(III) electrodeposition.
3.1 Studies of hexavalent chromium baths
[54] ** [57] **	The solution species produced by the corrosion of a pure Cr electrode or Ni–Cr alloys were clearly identified. The combination of cyclic voltammetry and in situ Raman spectroscopy enables an understanding of corrosion mechanisms. The predominant species at pH values less than 6 are ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ and $\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$ ions, whereas the predominant species at pH values greater than 6 are $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ ions.
3.2 Studies of trivalent chromium baths
[54] **	The wavenumbers of the FTIR bands of the main oligomers (monomers, dimers, and trimers) are clearly identified. However, no spectra are reported.

(Appendix A) offers further insights into the chromium protection mechanism, which has been investigated for several techniques, exceeding the scope of Section 2.1.

Between 1998 and 2012, hexavalent chromium coatings were systematically studied via Raman spectroscopy [13,14,25,26,27]. These studies highlight the great potential of vibrational spectroscopy, since the mechanism of coating formation has been clarified [14,25]. Zhao et al. [26] reported the spectra of pure oxides ${\mathrm{K}}_2\mathrm{C}\mathrm{r}{\mathrm{O}}_4$, ${\mathrm{K}}_2{\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_4$, ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ and Cr(VI) coatings, and the Raman bands of the coatings were close to those of the pure elements but significantly broadened. The spectrum of the coating displayed a band at 852 cm⁻¹ when the spatial resolution was 15 μm. In another series of experiments, the laser was focused across a light area of approximately 50 μm in diameter, and a mapping surface was obtained. After 48 h of exposure to 0.1 M NaCl, the pit corrosion zone had a diameter of approximately 100 μm, and the band corresponding to Cr(VI) was observed at 839 cm⁻¹. The Raman spectra were plotted in a Cartesian coordinate system, where the x-axis represents the wavenumber, the y-axis represents the distance from a central point, and the z-axis represents the signal intensity [25]. This graph significantly assists in identifying the distributions on the surfaces of the different phases present. A protective film was detected, and a low concentration of Cr(VI) in the film or a lack of chromium did not ensure good corrosion protection. This study demonstrates how vibrational spectroscopy is very effective in determining the conditions under which a highly corrosion-resistant coating is formed. In these studies [13,26], mixed oxide Cr(VI)/Cr(III) bands were observed, and the wavenumbers are listed in Table 1. In the study of McGovern [25], the formation of chromium conversion coatings on aluminum alloys was monitored via a single band at 860 cm⁻¹. Raman spectroscopy revealed that the reduction of Cr(VI) to Cr(III) during coating formation is dependent upon redox mediation by ferricyanide. Figure 1 shows a scheme of the mechanism proposed on the basis of Raman spectroscopy; Cr(VI) ions react with hexacyanoferrate(II) ions, forming Cr(III) and hexacyanoferrate(III) ions, which subsequently undergo redox mediation, and the latter reacts with aluminum metal to form a passive layer in aluminum [14,25]. Hurley [27] attributed a broad band between 535 and 665 cm⁻¹ to a Cr(III) species with contributions from α-CrOOH. Table A1 (Appendix A) provides further readings and summarizes this section.

2.2. Studies of Trivalent Chromium Conversion Coatings

Owing to the high toxicity of Cr(VI), it began to be replaced by the trivalent chromium process. Cr(III) coatings on aluminum alloys were studied from 2004 to 2023 via infrared [28,29] and Raman spectroscopy [29,30,31,32,33,34,35,36,37,38,39,40]. Table 2 lists the Raman bands observed in studies of chromate(III) conversion coatings.

Zhang [28] investigated the compositions of conversion coatings on steel via FTIR and Auger electron spectroscopy. The Cr(III) coatings contained a mixture of zinc oxides and Cr(III) oxides. The main constituents of trivalent chromium conversion baths are Cr(III) and fluoro-zirconate salts [30,31,32,33,34,35,36,37,38,39,40], and no IR or Raman spectra of these solutions have been reported. On the other hand, the surfaces were well characterized via vibrational spectroscopy, and Table 2 lists the Cr(III) oxide and hydroxide bands observed in the studies [13,29,30,32,34,35,39,42,43,44]. The first Raman study of the trivalent coating process revealed a band at 547 cm⁻¹ assigned to the oxide Cr(III) [29], but the band position shifted between 520 and 580 cm⁻¹ depending on the state of hydration of the oxide [30]. Previous studies [29,30,31,32,33] revealed the formation mechanism of the coating on an Al alloy from a bath, which contains ${\mathrm{K}}_2\mathrm{Z}\mathrm{r}{\mathrm{F}}_6$, $\mathrm{H}\mathrm{B}{\mathrm{F}}_4$ and a Cr(III) sulfate salt.

In the first step, the anions ${\mathrm{F}}^{-}$ assisted in the dissolution of the native oxide layer of $\mathrm{A}\mathrm{l}$, and simultaneously, the oxygen reduction reaction and hydrogen discharge accompanied the dissolution of the $\mathrm{A}\mathrm{l}$ alloy. In the second step, as a consequence of these reactions, the interfacial pH increases, and $\mathrm{Z}\mathrm{r}{\mathrm{O}}_2·\mathrm{n}{\mathrm{H}}_2\mathrm{O}$ and $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$ precipitate. The trivalent chromium conversion coating consists of two main layers [32]: (1) the outer layer of a mixture of aluminum hydroxide and oxide (438, 804 and 945 cm⁻¹) [32,34,35], zirconium oxide (233 and 470 cm⁻¹) [32], chromium hydroxide species and ${\mathrm{C}\mathrm{r}}_2{\left(\mathrm{S}{\mathrm{O}}_4\right)}_3$ species [32]; (2) the inner layer, which has a high content of aluminum, with the presence of oxide and fluoride species. The products of reactions (1) and (2) form a two-layer coating, and the combination of Raman and X-ray photoelectron spectroscopy (XPS) allows a detailed description of the formation of these two-layers on an Al alloy [32] or an AZ91D magnesium alloy [39,40].

$$\mathrm{Z}\mathrm{r}{\mathrm{F}}_6^{2-}+4\mathrm{O}{\mathrm{H}}^{-}\to \mathrm{Z}\mathrm{r}{\mathrm{O}}_2+6{\mathrm{F}}^{-}+2{\mathrm{H}}_2\mathrm{O}$$

(1)

$${\mathrm{C}\mathrm{r}}^{3+}+3\mathrm{O}{\mathrm{H}}^{-}⟶\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$$

(2)

The main components of the coating were $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3/\mathrm{C}\mathrm{r}\mathrm{O}\mathrm{O}\mathrm{H}$, ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$, ${\mathrm{C}\mathrm{r}}_2{\left({\mathrm{S}\mathrm{O}}_4\right)}_3$ and $\mathrm{Z}\mathrm{r}{\mathrm{O}}_2$. Although the bath solutions were composed only of Cr(III) ions, $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ species on the surface were identified on the basis of the Raman spectra (Table 1), which implies that the coating contains mixed oxides of Cr(VI) and Cr(III) on the surface (Table 2) [25,26,29,30,31,32,33,34,35,42,44]. Munson et al. [34] evaluated 3 different baths and noted that the precipitates contained a mixture of $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ (Table 2) and transiently formed $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ (Table 1) species. Raman imaging spectra were plotted in a Cartesian coordinate system with axes as previously described in Section 2.1. The spectra revealed the presence of spot regions of $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ species with neighboring regions containing the formed $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ species [29,34].

Table 2. Assignments of the main bands Cr(III) observed in the Raman spectra.

Wavenumber cm−1	Vibration Assignment	Reference
526–540	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}\mathrm{H}$	[13,29,30,32,34,35,39]
550–580	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[33]
550–552	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ ${\mathrm{E}}_{\mathrm{g}}$ *	[42,43]
625	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ ${\mathrm{A}}_{1\mathrm{g}}$	[42]
995, 1050, 1155	$\mathrm{S}-\mathrm{O}$$\mathrm{in} {\mathrm{C}\mathrm{r}}_2{\left(\mathrm{S}{\mathrm{O}}_4\right)}_3$	[32,34]
538–540, 543	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{F}$	[33,34]
255	$\mathsf{\nu }(\mathrm{A}\mathrm{u}-\mathrm{C}\mathrm{l})$ **	[42]
446	$\mathsf{\nu }\left(\mathrm{C}\mathrm{r}\mathrm{C}\mathrm{l}\right)$ **	[42]
800	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}\mathrm{O}\right)$ bound to Au	[42]
848	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}\mathrm{O}\right)$ mixed oxide Cr(III)/Cr(VI) ***	[42,44]
946	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\left(\mathrm{C}\mathrm{r}{\mathrm{O}}_3\right)$ dichromate	[42]

* The solution contained 200 μm and 0.1 M KCl adjusted to pH 3 with $\mathrm{H}\mathrm{C}\mathrm{l}$ [42]. ** In our opinion, this band is related to $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ bonds in Table 2. *** This band has A1g symmetry in reference [47].

Table 2. Assignments of the main bands Cr(III) observed in the Raman spectra.

Wavenumber cm−1	Vibration Assignment	Reference
526–540	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}\mathrm{H}$	[13,29,30,32,34,35,39]
550–580	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[33]
550–552	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ ${\mathrm{E}}_{\mathrm{g}}$ *	[42,43]
625	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ ${\mathrm{A}}_{1\mathrm{g}}$	[42]
995, 1050, 1155	$\mathrm{S}-\mathrm{O}$$\mathrm{in} {\mathrm{C}\mathrm{r}}_2{\left(\mathrm{S}{\mathrm{O}}_4\right)}_3$	[32,34]
538–540, 543	$\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{F}$	[33,34]
255	$\mathsf{\nu }(\mathrm{A}\mathrm{u}-\mathrm{C}\mathrm{l})$ **	[42]
446	$\mathsf{\nu }\left(\mathrm{C}\mathrm{r}\mathrm{C}\mathrm{l}\right)$ **	[42]
800	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}\mathrm{O}\right)$ bound to Au	[42]
848	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}\mathrm{O}\right)$ mixed oxide Cr(III)/Cr(VI) ***	[42,44]
946	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\left(\mathrm{C}\mathrm{r}{\mathrm{O}}_3\right)$ dichromate	[42]

* The solution contained 200 μm and 0.1 M KCl adjusted to pH 3 with $\mathrm{H}\mathrm{C}\mathrm{l}$ [42]. ** In our opinion, this band is related to $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ bonds in Table 2. *** This band has A1g symmetry in reference [47].

The presence of Cr(VI) is promoted by the presence of hydrogen peroxide [33,36,37,38], which is formed by the reduction of dissolved oxygen gas (reaction (3)). This reaction is promoted by the presence of ${\mathrm{F}}^{-}$ anions [35]. Reaction (3) involves the formation of peroxide, which reacts with hydroxide Cr(III) to produce Cr(VI) in reaction (4). Note that the formation of hydrogen peroxide is the reduction reaction (3), but in the literature, the coupled oxidation reaction is not addressed. Nonetheless, in Appendix B we speculate about the redox process.

$${\mathrm{O}}_2+{2\mathrm{H}}^{+}+{2\mathrm{e}}^{-}{\leftrightarrows \mathrm{H}}_2{\mathrm{O}}_2$$

(3)

$$3{\mathrm{H}}_2{\mathrm{O}}_2+2{\mathrm{C}\mathrm{r}\left(\mathrm{O}\mathrm{H}\right)}_3+4{\mathrm{OH}}^{-}\leftrightarrows {2\mathrm{C}\mathrm{r}\mathrm{O}}_4^{2-}+8{\mathrm{H}}_2\mathrm{O}$$

(4)

The Raman band of $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ is approximately 3 orders of magnitude larger than that of $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$, and consequently, verifying the proposed reaction (4) was difficult [30]. The Cr(VI) Raman band at 860 cm⁻¹ is only observed in coatings formed in an oxygenated solution [30]; in contrast, coatings formed from a deoxygenated solution do not present bands in the range of 840–904 cm⁻¹ [30]. These observations indicate that Cr(VI) species are only formed in oxygenated solutions, and this band is evidence that Cr(III) species are oxidized by peroxide, which is produced by the oxygen reduction reaction (3) [30]. It has been proposed that the formation of Cr(VI) is suppressed in baths containing Cu(II) or Fe(II) species [36,37,38], since these ions react preferentially with hydrogen peroxide. The success of this strategy could be accurately evaluated on the basis of Raman spectroscopy [36,37,38]. Qi et al. [33] used a sodium sulfite solution to eliminate Cr(VI) species from a coating, and the Cr(VI) of the first layer was effectively removed by sulfite ions. Table A1 (Appendix A) provides further readings and summarizes this section.

2.3. Studies of Coatings Formed from Electrodeposited Hexavalent Chromium Baths

The mechanisms of Cr(VI) electrodeposition remain unidentified [2], and the identification of intermediates remains unclear. In general, the literature [2] assumes the following consecutive reactions to electrodeposition from Cr(VI) species:

$${\mathrm{C}\mathrm{r}}^{6+}+3{\mathrm{e}}^{-} \to {\mathrm{C}\mathrm{r}}^{3+}$$

(5)

$${\mathrm{C}\mathrm{r}}^{3+}+{\mathrm{e}}^{-} \to {\mathrm{C}\mathrm{r}}^{2+}$$

(6)

$${\mathrm{C}\mathrm{r}}^{2+}+{2\mathrm{e}}^{-} \to {\mathrm{C}\mathrm{r}}^0$$

(7)

Industrial experience has noted that Cr(VI) electrodeposition can be performed only in the presence of ${\mathrm{H}}_2\mathrm{S}{\mathrm{O}}_4$ [2]. However, there are no studies that use vibrational spectroscopy to characterize sulfate baths used in the electrodeposition of Cr(VI). Other Cr(VI) coatings have been explored for elaborate cathodes for the production of sodium chlorate. In 2016, Hedenstedt et al. [41] noted that the nature of the coating formed by the reduction of Cr(VI) was unknown. In subsequent years, chromium species were determined via vibrational spectroscopy. These chromium (VI) coatings were studied via Raman spectroscopy in Au [42,43], Fe [43] and Ti [43,44] substrates. Table 1 lists the bands observed in the Raman spectra of these chromium coatings from a solution of Cr(VI). Hatch [42] models several reactions on the basis of these bands, and the most relevant are the following:

$$2{\mathrm{C}\mathrm{r}}^{6+}{\mathrm{O}}_4^{2-}+10{\mathrm{H}}^{+}+{6\mathrm{e}}^{-}+{\mathrm{A}\mathrm{u}}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}⟶{5{\mathrm{H}}_2\mathrm{O}+{\mathrm{C}\mathrm{r}}_2^{3+}{\mathrm{O}}_3^{2-}-\mathrm{A}\mathrm{u}}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}$$

(8)

$${\displaystyle \frac{5}{3\mathrm{n}}}{\mathrm{H}}_2\mathrm{O}+{\mathrm{C}\mathrm{r}}_2^{3+}{\mathrm{O}}_3^{2-}-{\mathrm{A}\mathrm{u}}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}⟶2{\mathrm{C}\mathrm{r}}^{3+}{\mathrm{C}\mathrm{r}}^{6+}{\mathrm{O}}_{\mathrm{m}}-{\mathrm{A}\mathrm{u}}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}+10{\mathrm{H}}^{+}+\mathrm{n}{\mathrm{e}}^{-}$$

(9)

where m = 3 or 2 and n = 0 or 3.

“Traditional electrochemical methods” are usually based on measuring the current required to establish the experimental potential of a working electrode. These techniques suggest general models similar to schema reactions (5)–(7). In contrast, the combination of electrochemical methods and vibrational spectroscopy results in an understanding of the structural features at the molecular level, and it is possible to elaborate on the scheme of reactions (8) and (9).

Two processes are noted: first, amorphous $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$ is formed in the coating, and second, the phase transformation of amorphous $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$ produces crystalline ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ [44]. As a result of local heating by the Raman laser, there is in situ formation of ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ [43,44]; with this consideration, the coating on Au consists of an oxide, whereas the coatings on Fe and Ti are covered with a mixture of hydroxides and oxides [44]. A weak band at 850 cm⁻¹ is observed for amorphous $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$; conversely, at higher laser powers, the oxide ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ forms in situ as a result of local heating, and new bands are observed [44]. Different symmetries (A1g symmetry [47] or Eg symmetry [42,43]) have been reported for a band at 550–552 cm⁻¹ of ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$. Nevertheless, Table 2 is based on the study of Hatch [42]; that is, the characteristic band at approximately 550–552 cm⁻¹ corresponds to the A1g vibrational mode involving Cr-O stretching in octahedrally O-coordinated Cr(III) of ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$. Table A1 (Appendix A) provides further readings and summarizes this section.

2.4. Studies of Coatings Formed from Electrodeposited Trivalent Chromium Baths

Cr(III) electrodeposition is an essential process in several industries and needs improvement. There are approximately 880 articles focused on evaluating the quality of Cr(III) coatings, and in some cases, the quality of these coatings is acceptable. However, few studies have reported vibrational spectroscopy results [45,46,47,48,49,50,51], which limits a deeper understanding of the coating formation process.

Mardanifar et al. [45] evaluated the effects of heat treatment temperature on the characteristics of cobalt chromium coatings. FTIR spectra of the surfaces of the deposited oxides were obtained at several temperatures. Mardanifar et al. [45] suggested that the surface is composed of oxide ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ on the basis of bands at 589 and 882 cm⁻¹; however, in our opinion, this claim needs to be revised, and the bands corresponding to water (1623 cm⁻¹) and hydroxyl groups (1680 cm⁻¹) observed in the spectra indicate that Cr(III) was hydrated (bond $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}\mathrm{H}$ in Table 2). In addition, the Raman spectra obtained by Zhao et al. [26] of pure ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ did not display a band at 882 cm⁻¹, and consequently, in the study [45], the coating contained some Cr(VI). The band observed at 420 cm⁻¹ is related to the formation of an oxide $\mathrm{C}\mathrm{o}{\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_4$. Kus [46] electrodeposited Cr(III) via a pulse current and recorded the FTIR spectra of the coating over time. The evaporation of water was detected by the changes in the bands corresponding to water (1620 cm⁻¹) and hydroxyl groups (3100 cm⁻¹). Kus [46] reported a band at 1430 cm⁻¹, which was attributed to a native oxide formed due to exposure to air; however, this band has not been reported in other studies. Zhou [47] prepared a Cr/SiC coating on a ferronickel alloy via pulse electrodeposition. Raman and XPS revealed that the coating mainly included a small amount of SiC and the oxide ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$ (551 cm⁻¹ bond $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ in Table 2). Kajita et al. [48] recorded the Raman spectrum of Cr(III) electrodeposited on $\mathrm{T}\mathrm{i}{\mathrm{O}}_2$. The authors attributed the band at 850 cm⁻¹ to chromium-oxo compounds (${\mathrm{C}\mathrm{r}}_{\mathrm{x}}^{3+}{\mathrm{O}}_{\mathrm{y}}$), which implies that the band is related to a vibrational mode of $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$. In addition, a band at 848 cm⁻¹ (Table 2) was ascribed to amorphous $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$ in the mixed oxide Cr(III)/Cr(VI) [44]. In our opinion, these 2 claims need to be revised, and it is likely that the spot area of the laser focused in the area that contains Cr(III) and Cr(VI) species. Consequently, bands cannot be directly related to specific species. These bands may be related to dehydrated Cr(VI) oxide ($\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$ in Table 1). Huang et al. [49] analyzed the carbon in a coating by monitoring the Raman band of sp3 carbon at several temperatures (approximately 1330 cm⁻¹). The hardness increases with the precipitation of the diamond structure on the surface. Prabhakar et al. [50] evaluated a coating with an outer layer composed of oxygen and chromium ($\mathrm{C}\mathrm{r}-\mathrm{O}$) and an inner layer containing chromium, oxygen and carbon ($\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}$). The thickness of the outer layer was between 1.5 nm and 12 nm, and the thickness of the inner layer was approximately 10 nm. In the outer layer, a Raman band appears at 551 cm⁻¹ ($\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ bond and E_g symmetry in Table 2); conversely, in the inner phase, this band disappears, probably due to the formation of new bonds $\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}$. In addition, Raman spectroscopy and XPS revealed the presence of unsaturated carbon ($\mathrm{C}-\mathrm{H}$) and aliphatic carbon ($\mathrm{C}=\mathrm{C}$).

Survilienė [51] recorded the IR spectra of coatings formed from a formate-urea bath, a formate–urea bath containing hydroxylaminophosphate and a formate–urea bath containing hydrazine. The analysis of the spectra focused on bands of organic compounds, and no data on the Cr(III) bands were provided. In the coating, no bands were attributed to hydroxylaminophosphate, and consequently, this compound was not incorporated into the Cr(III) coating; conversely, in the bath with hydrazine, a band appeared at 1625 cm⁻¹, and the authors speculated that this feature was related to amino compounds, but in our opinion, this band was related to water in the coating (the $\mathrm{H}-0-\mathrm{H}$ bending vibrations are shown in Table 1). On the other hand, the XPS spectra of the coatings displayed signals of Cr(III), oxygen, nitrogen, carbon and phosphate, which suggested that the species were derived from the decomposition of hydroxylaminophosphate, hydrazine and urea. These residual compounds were integrated into the Cr deposits during the electrodeposition process. Table A1 (Appendix A) provides further readings and summarizes this section.

3. Vibrational Studies on Aqueous Solutions

3.1. Studies of Hexavalent Chromium Baths

It is possible that the species in the baths used for electrodeposition and conversion coating are similar, so they are discussed in a single section. Several studies have focused on the spectra of the coating surface (Section 2.1, Section 2.2, Section 2.3 and Section 2.4); conversely, very few studies have focused on dissolved species [13,26,52], and the observed bands of these studies are listed in Table 3. Only 2 studies [13,26] have reported the Raman bands of commercial baths for chromium (VI) conversion coatings, and only 1 electrodeposition bath study has been reported [52]. Nonetheless, some speciation studies of Cr(VI) have also been reviewed [53,54,55,56,57,58].

The concentration of Cr(VI) used in the conversion coating process is approximately 0.05 M, and the pH ranges between 1 and 2 [53]. Frankel et al. [13,26] reported a Raman band at 373 cm⁻¹, but these authors did not assign the band to vibrational modes; however, in our opinion, this band is related to bending deformation (δ in Table 3). In industry, the Cr(VI) electrodeposition bath concentration ranges from 1.5 M to 2.5 M, and Raman spectroscopy detected $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ ions at significant concentrations in this bath [52]. Ottonello [54] compared vibrational frequencies calculated via density functional theory with experimental vibrational frequencies. There are 4 main vibrational modes of anions $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$, and these modes correspond to tetrahedral symmetry (T_d) [54,55,59].

Table 3. Raman bands of commercial Cr(VI) baths. There is a symmetric stretch, which implies that bonds stretch simultaneously in a symmetrical manner ($v_1\equiv A_1$). There are doubly degenerate vibrations, where bonds bend symmetrically into two independent modes with the same energy ($v_2\equiv E$). There is an asymmetric bend ($v_3\equiv T_2\equiv F_2$) or asymmetric stretch ($v_4\equiv T_2\equiv F_2$), where bonds stretch or bend in three independent ways [59]. The band shoulder is abbreviated as sh. The Raman shift is independent of the excitation wavelength. v_as, antisymmetric stretching; v, symmetric stretching; δ, bending deformation.

Wavenumber cm−1	Bath or Solution	Assignee	Reference
373	Alodine	Unassigned	[26]
944sh, 906	Alodine	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$	[13,26]
1050	Alodine	$\mathrm{N}{\mathrm{O}}_3$	[13,26]
1648	Alodine	$\mathrm{H}\mathrm{O}\mathrm{H}$ bending	[13,26]
2134	Alodine	$\mathrm{C}\equiv \mathrm{N}$$\mathrm{in} \mathrm{F}\mathrm{e}-\mathrm{C}\mathrm{N}$	[13,26]
3600–3000	Alodine	$\mathrm{O}\mathrm{H}$$\mathrm{stretching} {\mathrm{H}}_2\mathrm{O}$	[13]
347–349	Electrodeposition	${\mathsf{\delta }}_{\mathrm{d}}\left(\mathrm{E}\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[53,54]
364, 368–398	Electrodeposition	${\mathsf{\nu }}_4\left({\mathrm{F}}_2\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[52,53,54]
844–847	Electrodeposition	${\mathsf{\nu }}_{\mathrm{s}}\left({\mathrm{A}}_1\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[52,53,54,57]
884–891	Electrodeposition	${\mathsf{\delta }}_{\mathrm{d}}\left({\mathrm{F}}_2\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[53,54]
217, 220	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	$\mathsf{\delta }\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r}$	[52,53]
320	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$	$\mathsf{\delta }\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
340	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
364, 365	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	$\mathsf{\delta }\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53]
553	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3;\mathrm{C}\mathrm{r}{\mathrm{O}}_2^{-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
558	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}(\mathrm{O}-\mathrm{C}\mathrm{r}-\mathrm{O})$	[53]
772, 783	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}(\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r})$	[53,57]
833sh	$\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}-\mathrm{O}$$, {\mathsf{\nu }}_{\mathrm{s}}\left({\mathrm{A}}_1\right)$	[57]
898	$\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}{\mathrm{O}}_3\right)$	[53]
903, 904	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53]
942, 946, 943	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53,57]

Table 3. Raman bands of commercial Cr(VI) baths. There is a symmetric stretch, which implies that bonds stretch simultaneously in a symmetrical manner ($v_1\equiv A_1$). There are doubly degenerate vibrations, where bonds bend symmetrically into two independent modes with the same energy ($v_2\equiv E$). There is an asymmetric bend ($v_3\equiv T_2\equiv F_2$) or asymmetric stretch ($v_4\equiv T_2\equiv F_2$), where bonds stretch or bend in three independent ways [59]. The band shoulder is abbreviated as sh. The Raman shift is independent of the excitation wavelength. v_as, antisymmetric stretching; v, symmetric stretching; δ, bending deformation.

Wavenumber cm−1	Bath or Solution	Assignee	Reference
373	Alodine	Unassigned	[26]
944sh, 906	Alodine	$\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}$	[13,26]
1050	Alodine	$\mathrm{N}{\mathrm{O}}_3$	[13,26]
1648	Alodine	$\mathrm{H}\mathrm{O}\mathrm{H}$ bending	[13,26]
2134	Alodine	$\mathrm{C}\equiv \mathrm{N}$$\mathrm{in} \mathrm{F}\mathrm{e}-\mathrm{C}\mathrm{N}$	[13,26]
3600–3000	Alodine	$\mathrm{O}\mathrm{H}$$\mathrm{stretching} {\mathrm{H}}_2\mathrm{O}$	[13]
347–349	Electrodeposition	${\mathsf{\delta }}_{\mathrm{d}}\left(\mathrm{E}\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[53,54]
364, 368–398	Electrodeposition	${\mathsf{\nu }}_4\left({\mathrm{F}}_2\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[52,53,54]
844–847	Electrodeposition	${\mathsf{\nu }}_{\mathrm{s}}\left({\mathrm{A}}_1\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[52,53,54,57]
884–891	Electrodeposition	${\mathsf{\delta }}_{\mathrm{d}}\left({\mathrm{F}}_2\right)$$,\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	[53,54]
217, 220	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	$\mathsf{\delta }\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r}$	[52,53]
320	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$	$\mathsf{\delta }\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
340	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
364, 365	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	$\mathsf{\delta }\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53]
553	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3;\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3;\mathrm{C}\mathrm{r}{\mathrm{O}}_2^{-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$	[52]
558	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}(\mathrm{O}-\mathrm{C}\mathrm{r}-\mathrm{O})$	[53]
772, 783	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}(\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r})$	[53,57]
833sh	$\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}-\mathrm{O}$$, {\mathsf{\nu }}_{\mathrm{s}}\left({\mathrm{A}}_1\right)$	[57]
898	$\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$	${\mathsf{\nu }}_{\mathrm{s}}\left(\mathrm{C}\mathrm{r}{\mathrm{O}}_3\right)$	[53]
903, 904	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	${\mathsf{\nu }}_{\mathrm{s}}\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53]
942, 946, 943	${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-};{\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$	${\mathsf{\nu }}_{\mathrm{a}\mathrm{s}}\mathrm{C}\mathrm{r}{\mathrm{O}}_3$	[52,53,57]

Industrial experience indicates that ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ ions are orange in solution and that $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ ions are yellow [2]. Moreover, X-ray diffraction studies have identified the following species in bath solutions: trichromate (${\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$), dichromate (${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$) and monochromate ($\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$) ions [60]. In the 1980s, Michel et al. [55,56] studied Cr(VI) solutions via Raman spectroscopy and reported that hydrogen chromate ($\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$) was not present in aqueous solutions; conversely, Ramsey et al. [53] assumed the existence of this protonated species. This discrepancy is resolved via a sufficiently sensitive spectrometer [53]; consequently, the band of the $\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$ species is listed in Table 3.

Zheng [52] studied the corrosion of a pure Cr electrode via cyclic voltammetry and in situ Raman spectroscopy. This combination of techniques enables an understanding of reaction mechanisms because each voltammetric peak can be associated with a specific reaction. The Cr electrode was corroded to $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$, which in turn transformed into ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$. The concentration of Cr(VI) is high in the conversion coating bath; however, in other cases, when the coating is corroded, the concentration of Cr(VI) is lower. In this context, Ramsey et al. [53] studied dilute chromate solutions, and the experimentally observed bands are listed in Table 3. The corrosion of Ni–Cr alloys was investigated by Honesty [57] via voltammetry and Raman spectroscopy. This study established a clear correlation between techniques because the current density in voltammograms can be related to features in the Raman spectra. Cr(VI) ions are the major product formed in the transpassive voltammetric region. For example, at 0.95 V (V vs. Ag/AgCl), a group of bands appearing at 783 cm⁻¹ and 943 cm⁻¹ is assigned to ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ ions, which are formed from the corrosion of the alloy [57].

Dvoynenko [58] reported surface enhanced Raman scattering spectra of Cr(VI) in water (0.05 M ≈ 2.6 g/L) at several pH values. At pH 3.5 and 5.5, weak broad bands were observed at approximately 610 cm⁻¹ and 850 cm⁻¹; conversely, at pH 10, these broad bands were observed at approximately 350 cm⁻¹ and 800 cm⁻¹, and a shoulder was also observed at approximately 900 cm⁻¹. These features can be explained on the basis of the speciation diagram [53], which indicates that at pH values below 6, the ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ and $\mathrm{H}\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{-}$- ions were the predominant species. On the other hand, the predominant species at pH values higher than 6 is $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ ions. Although the presence of $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ and ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ in an aqueous solution [52,53,57,58] is well accepted, there are still discrepancies in the other species. Another species is assumed to exist at high acidity or high concentrations of Cr(VI): chromic acid (${\mathrm{H}}_2\mathrm{C}\mathrm{r}{\mathrm{O}}_4$), hydrogen dichromate ($\mathrm{H}{\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{-}$), trichromate (${\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$), and tetrachromate (${\mathrm{C}\mathrm{r}}_4{\mathrm{O}}_{13}^{2-}$). However, Raman bands are observed only for certain species, which are listed in Table 3. In the literature, there are still discrepancies in the predominance ranges of Cr(VI), and Szabó [61] claimed that these discrepancies can be resolved via pH potentiometric and UV–vis titrations; however, this claim on the basis of these techniques is questionable. A comparison between the UV–visible and Raman spectra of Cr(VI) shows that vibrational spectroscopy is more sensitive to changes in the Cr(VI) concentration [53]; consequently, studies need to include vibrational spectroscopy combined with other analytical techniques to reach a conclusion. Table A1 presents a summary of each section and recommended literature.

3.2. Studies of Trivalent Chromium Baths

Studies of the baths used for electrodeposition and conversion of Cr(III) coatings are discussed in this section [62,63,64,65,66]. The FTIR spectroscopy data of the principal oligomers (monomers, dimers, and trimers) of the hexaaqua complex of Cr(III) were reported by Zhang et al. [62]. At pH 2.5, the wavenumbers of the Cr(III)-O rocking bands are 528 cm⁻¹ (monomer), 472 cm⁻¹ (dimer) and 481 cm⁻¹ (trimer); however, Zhang et al. [62] did not show the FTIR spectra, and many issues are unresolved, such as the influence of pH on the positions of the FTIR or Raman bands. In another study, urea and formate in sulfate-based Cr(III) baths were studied via FTIR and XPS techniques [63]. In the solutions, bands of water were observed (Table 1), and a band at 3220 cm⁻¹ was produced by stretching vibrations (ν) of the amido group ($-\mathrm{N}\mathrm{H}-\mathrm{C}\mathrm{O}-$), implying the formation of a bond between the carboxylic group of formate and the amide group of urea. The authors suggested that a bond occurs between the Cr(III) ions and the carboxylic group of formate or the carbamate groups. However, this claim should be interpreted with great caution because there is no band attributed to $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$. Therefore, it cannot be confirmed that Cr(III) participates in the changes observed in organic compounds and that these variations may be due to reactions in organic compounds and not to new bonds with Cr. This study also includes XPS results, which suggest that $\mathrm{C}\mathrm{r}{\left(\mathrm{O}\mathrm{H}\right)}_3$ deposits on the surface. The FTIR spectrum of the coating displays bands corresponding to the sulfate and amide groups incorporated into the coating [63].

In 2006, electrodeposition baths containing Cr(III), Ni(II) and oxalate were studied via IR spectroscopy [64]. The Cr(III) was deposited as a CrNi alloy, but the FTIR bands of Cr(III) or Ni(II) were not addressed; that is, the study focused on oxalate bands. Additionally, water bands were observed (Table 1). The author suggested that all oxalate ions (L) are coordinated to chromium to form an inner complex; however, this claim should be taken with caution because the authors did not provide evidence of the formation of bonds $\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{L}$ or $\mathrm{C}\mathrm{r}-\mathrm{L}$. The FTIR spectra of the freshly prepared Cr(III) bath were compared with those of the spent bath, and the oxalate band shifted from 1677 cm⁻¹ to 1717 cm⁻¹. This variation could be produced by changes in the pH of the solution, which was not addressed by the authors. This shift was attributed to the coordination of oxalate and Cr(III) [64]. In 2021, in situ infrared spectroscopy was performed in a bath containing oxalic acid and glycine compounds [65]. The authors claim that inner complexes were formed between organic compounds and Cr(III); however, no bands were attributed to bonds $\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}$ or $\mathrm{C}\mathrm{r}-\mathrm{C}$, and consequently, this claim must be revised. Conversely, the IR bands of the carbonyl groups (1717 cm⁻¹) of oxalate or glycine evolve with the electric potential of the nickel electrode; simultaneously, the voltammograms display slight changes in electric current density. This finding indicates that voltammetry suggests reactions without distinctive features, whereas in situ spectroscopy provides clear evidence of reactions. The presence of organic compounds such as oxalic acid or glycine promotes the formation of Cr(III) coatings [65].

García-Antón et al. [66] evaluated the quality of passivation baths by monitoring the Raman band at 541 cm⁻¹ (vibrational mode ${\mathsf{\nu }}_{\mathrm{s}}\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ at 553 cm⁻¹ in Table 3). The presence of Cr(III) oxides on coatings decreases with increasing impurities of zinc and iron in spent baths, and the band intensity of Cr(III) ions increases with increasing purity of the baths [66]. Table A1 presents a summary of each section and recommended literature.

4. Reference Spectra of the Pure Chromium Compounds

Dichromate ion spectra have been reported in some studies, but this section reviews the most representative [67,68]. In 1973, Bates et al. [67] reported that the bending vibrational modes of bridge bonds ($\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r}$) were observed at wavenumbers less than 390 cm⁻¹, and the stretching vibrational modes of terminal bonds ($\mathrm{C}\mathrm{r}-\mathrm{O}$) were observed between 746 and 968 cm⁻¹. In 2023, Vats et al. [68] reviewed studies of Cr(VI) compounds and noted that the characteristic $\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r}$ antisymmetric vibrations (742 cm⁻¹) can be distinguished from the symmetric stretching vibrational modes associated with the $\mathrm{C}\mathrm{r}{\mathrm{O}}_4$ tetrahedra (894 cm⁻¹).

A comparison between the spectra of the coatings and the spectra of the pure oxides would enable the identification of the vibrational modes. In addition, it facilitates comparisons between spectra obtained in different laboratories. Therefore, the spectra of the pure potassium dichromate recorded in our laboratory are included (Figure 2a), and this spectrum is compared with the measurements reported in the database of the National Institute of Standards and Technology (NIST) [69,70], which is an agency of the Administration of Technology of the United States of America government. The spectrum of the NIST was measured in FTIR-transmission mode; more details can be found at the link of reference [69,70], and structural compounds were drawn with Jmol software, version 16.3.3 [71]. The spectrum in the NIST database corresponds to the hydrate compound, and broad bands at 1570–1650 cm⁻¹, 3200–3600 cm⁻¹ and 410–545 cm⁻¹ are observed only when the oxide is hydrated. These bands are not observed in the spectrum of anhydrous oxide in Figure 2a.

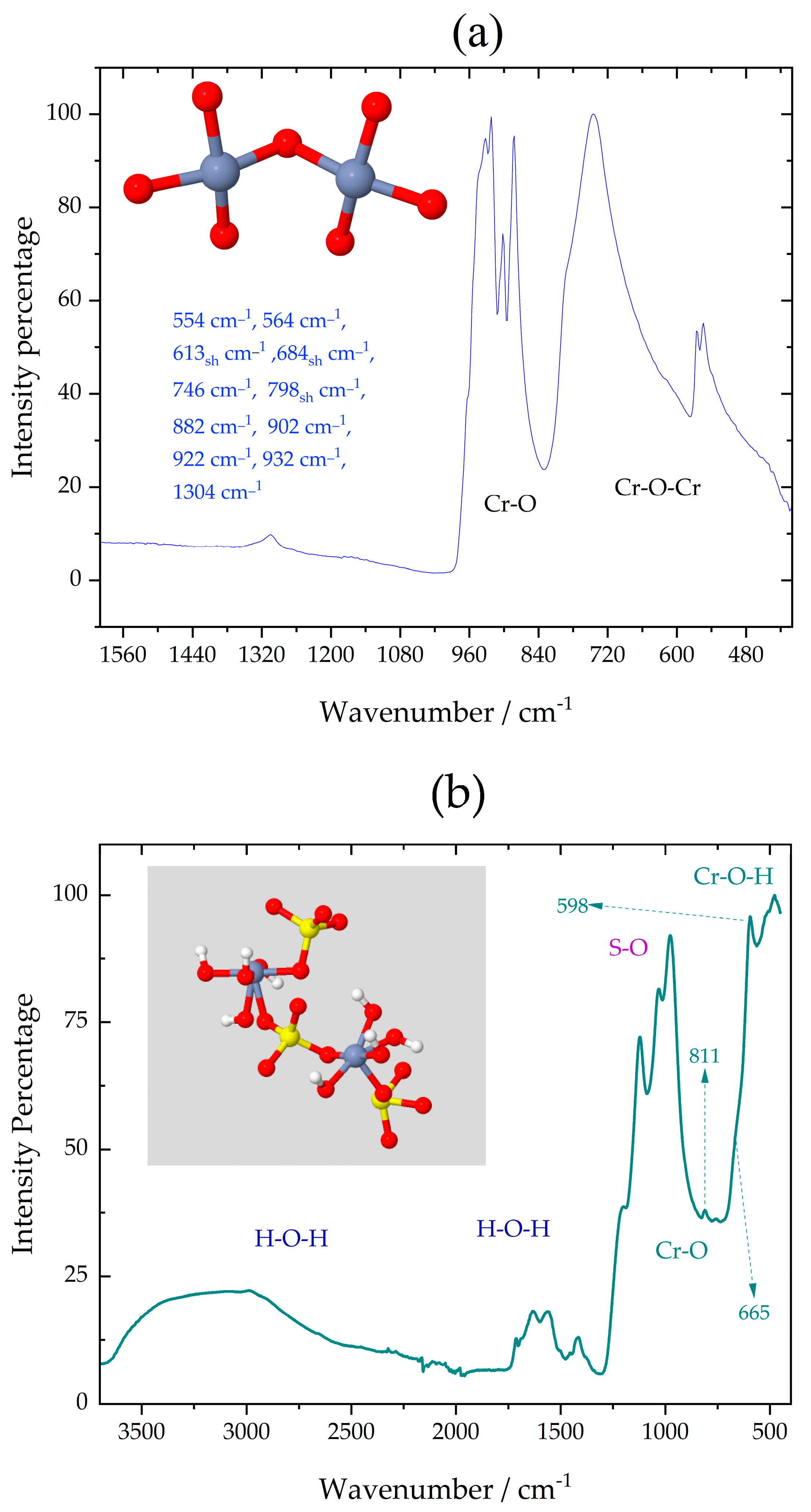

When the FTIR-ATR spectrum (Figure 2a) is compared with the transmission spectrum of hydrated oxide (NIST reference spectrum on a web link [69]), there are slight differences between them; that is, there are variations in peak intensity and peak position, and these differences arise from the differing indices of refraction of the FTIR-ATR crystal. Therefore, when the wavelength changes from 10 μm (1000 cm⁻¹) to 20 μm (500 cm⁻¹), the experimental spectrum (FTIR-ATR) has 7 peaks very close to each other, and the NIST spectrum shows only 6 peaks. Bates et al. [67] calculated 21 vibrational normal modes of dichromate, and the ion has a structure of two tetrahedra that share a corner, as shown in Figure 2a. The calculation shows that the central $\mathrm{C}\mathrm{r}-\mathrm{O}-\mathrm{C}\mathrm{r}$ bonds are weaker than the terminal $\mathrm{C}\mathrm{r}-\mathrm{O}$ bonds. Figure 2b shows the FTIR-ATR spectrum of hydrated chromium (III) sulfate, which can be compared with the spectrum of chromium potassium sulfate (NIST reference spectrum on a web link [70]). In both spectra, the bands observed in the range of 1300–3700 cm⁻¹ are tentatively assigned to water vibrational modes, and the other bands (900–1300 cm⁻¹) are tentatively assigned to sulfates. The bands observed in the range of 500–900 cm⁻¹ are related to the vibrational modes of the $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ bands. A comparison of the spectra in Figure 2a,b shows that FTIR-ATR effectively differentiates between Cr(VI) and Cr(III) species.

5. Future Needs: Perspective on Methodology

The wavelengths of the $\mathrm{C}\mathrm{r}-\mathrm{O}$ bands for each oligomer of hexa-aqueous complexes were measured via IR spectroscopy [62], as discussed in Section 3.2. However, these data are not addressed in studies of electrodeposition by Survilienė et al. [63]. These authors presented a graph of time electrodeposition versus current efficiency (CE). In the free solution without additives, there was a decrease in the CE, which was attributed to the effect of inert oligomeric species. This assumption can be tested with IR spectra of the solutions before, during, and after electrolysis. Survilienė et al. [64] suggested the formation of the $\mathrm{C}-\mathrm{O}-\mathrm{C}\mathrm{r}$ bond in the spectra of a bulk solution (Section 3.2); however, this claim needs to be revised because there is a formation of compounds between additives, which also produces features in the IR spectra. In addition, the $\mathrm{C}\mathrm{r}-\mathrm{O}$ bands of the monomer, dimer and trimer complexes were not measured. Nonetheless, the approach of Survilienė et al. [63,64] can be used to understand the chemical nature of baths.

Liu et al. [65], via FTIR spectroscopy, studied the electrodeposition of Cr(III) in a bath with glycine and oxalic acid as additives. Liu et al. [65] suggested that oxalic acid or glycine can replace one water molecule in ${\left[\mathrm{C}\mathrm{r}({\mathrm{H}}_2\mathrm{O}{)}_6\right]}^{3+}$; however, there are no bands directly assigned to $\mathrm{C}-\mathrm{O}-\mathrm{C}\mathrm{r}$ or $\mathrm{C}-\mathrm{C}\mathrm{r}$ bonds. An analysis of the spectra in these studies is still incomplete, and more measurements are needed.

Our work updates the Cr(VI) oxide spectra, and the reference spectra shown in Figure 2 will facilitate comparisons across laboratories. On the other hand, there are no reported spectra of trivalent baths in the region of $\mathrm{C}\mathrm{r}-\mathrm{O}$ bonds, and consequently, it is important to conduct experiments to determine these reference Cr(III) spectra. Ottonello [54] reviewed studies of the Cr(III) hexaaqua complex on the basis of density functional theory, and there is no comparison between experimental FTIR bands and theoretical studies.

Finally, vibrational spectroscopy has great potential as an analytical tool for quality control during industrial production. Unlike XPS, which requires vacuum facilities, the nature of the species can be easily identified in solids via vibrational spectroscopy. FTIR-ATR and hull cells can straightforwardly monitor electrodeposition baths, and these techniques are alternatives to liquid chromatography or mass spectrometry. In addition, several infrared or Raman spectrometers have been designed for in-line production monitoring.

6. Conclusions

The main conclusion is that spectroscopic techniques have been insufficiently applied in this field. The conclusions of each section are as follows:

Section 2.1 (hexavalent chromium conversion coatings): The majority of studies focus on Cr(VI) coatings, and the combination of several methods and vibrational spectroscopy results in a complete understanding of the surface at the molecular level, and the mechanisms of deposition were identified.

Section 2.2 (trivalent chromium conversion coatings): Vibrational spectroscopy revealed the formation mechanism of the coating on an aluminum alloy. This coating consists of two main layers, whose compositions were identified on the basis of vibrational spectroscopy. The formation of undesirable Cr(VI) was identified through vibrational spectroscopy, and effective strategies for inhibiting the formation of chromate anions were evaluated via Raman spectroscopy.

Section 2.3 (electrodeposited hexavalent chromium baths): Vibrational spectroscopy has not been used to answer the questions presented in Cr(VI) electrodeposition in sulfate baths. Consequently, the electrodeposition mechanism is ignored.

Section 2.4 (electrodeposited trivalent chromium): Few studies involving vibrational spectroscopy of coatings obtained via electrodeposition of Cr(III) ions. However, the great differences in operational conditions and substrates prevent a common conclusion. Nonetheless, vibrational spectroscopy was able to identify the bonds $\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}$ on the surface of the coatings, but these techniques are not used to identify species in solution.

Section 3.1 (hexavalent chromium baths): Few studies have focused on species in solution. The species of commercial Alodine Cr(VI) baths used for chromate (VI) conversion coatings are ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}$ and ${\mathrm{C}\mathrm{r}}_3{\mathrm{O}}_{10}^{2-}$; conversely, the use of a sulfate bath for the electrodeposition of Cr(VI) was revised in only 1 study, with the conclusion that the species in the bath are $\mathrm{C}\mathrm{r}{\mathrm{O}}_4^{2-}$ ions. In the literature, there are still discrepancies in the predominance ranges of Cr(VI), which can be resolved when vibrational spectroscopy is combined with other analytical techniques.

Section 3.2 (trivalent chromium baths): There are only 4 studies concerning Cr(III) baths. In these studies, the FTIR spectra of organic compounds were recorded, and the Cr(III) bands were not measured; consequently, there was no evidence of the formation mechanics of the coating.

Section 4 (reference spectra): Data on the positions of the stretching vibrations (ν) allow us to create the following inequality for the wavenumbers of the dichromate bands:

$${\mathrm{\nu }}_{\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-{\mathrm{O}}_4}>{\mathrm{\nu }}_{\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)}$$

(10)

where $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-{\mathrm{O}}_4$ are the terminal bonds and where $\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-\mathrm{O}-\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)$ are bridge bonds in the dichromate compound. Inequalities (10) and (11) were deduced on the basis of the positions of the bands corresponding to the stretching vibrations (ν) of pure ${\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3$, ${\mathrm{C}\mathrm{r}}_2{\left(\mathrm{S}{\mathrm{O}}_4\right)}_3·\mathcal{x}{\mathrm{H}}_{2}O$ and ${\mathrm{K}}_2\mathrm{C}\mathrm{r}{\mathrm{O}}_4$.

$${\mathrm{\nu }}_{\mathrm{C}\mathrm{r}\left(\mathrm{V}\mathrm{I}\right)-{\mathrm{O}}_4}>{\mathrm{\nu }}_{\mathrm{C}\mathrm{r}\left(\mathrm{I}\mathrm{I}\mathrm{I}\right)-\mathrm{O}}$$

(11)

Inequalities (10) and (11) demonstrate that vibrational spectroscopy can effectively differentiate between Cr(VI) and Cr(III) species.
