TD-DFT Monitoring of the Absorption Spectra of Polycyclic Aromatic Hydrocarbons over the Basque Country, Spain

Abstract

Brown carbon is a type of carbonaceous aerosol with strong light absorption in the ultraviolet and visible wavelengths that leads to radiative forcing. However, it is difficult to correlate the chemical composition of brown carbon with its atmospheric light absorption properties, which translates into significant uncertainty. Thus, a time-dependent density functional theory (TD-DFT) approach was used to model the real-world absorption properties of 14 polycyclic aromatic hydrocarbons (PAHs) over three regions of the Basque Country (Spain): Bilbao, Urretxu, and Azpeitia. The data were corrected for atmospheric concentration. The results show that the absorption spectra over each region are qualitatively identical, with the absorption intensities being significantly higher over Bilbao than over Azpeitia and Urretxu. Furthermore, it was found that the light absorption by PAHs should be more relevant for radiative forcing when it occurs at UVA and (sub)visible wavelengths. Finally, among the 14 studied PAHs, benzo[b]fluoranthene, pyrene, fluoranthene, benzo[a]pyrene, and benzo[k]fluoranthene and benzoperylene were identified as the molecules with larger contributions to radiative forcing.

1. Introduction

Light-absorbing aerosols have been receiving significant attention during the past few years, due to the increasing realization of their important role in radiative forcing [1,2,3,4]. A large proportion of this type of aerosol is composed of carbonaceous components, such as black carbon (BC) and brown carbon (BrC) [2,5]. While BC is known to be an important absorber due to its strong light absorption, the properties and importance of BrC are still poorly understood.

Absorption of solar radiation by BrC in the ultraviolet (UV) and (sub)visible wavelengths accounts for ~20–40% of aerosol absorption at 350 nm and 27% at 404 nm (absorption at 536 nm is negligible) [6,7,8]. Some authors even state that BrC dominates absorption by aerosols at specific wavelengths and/or specific regions of the globe [9,10]. While the mass absorption of BrC can be lower than that of BC, UV absorption by carbonaceous aerosols becomes relevant due to its sheer abundance in continental aerosols [5]. Despite this, many climate models still downplay the contribution of BrC to light absorption [10,11], which could explain why there are still significant differences between model predictions of aerosol-related radiative forcing and real measurements [3,12].

Understanding the photophysics of BrC aerosols is essential for the accurate modeling of radiative forcing. However, quantitatively predicting the contribution of BrC aerosol to light absorption is not trivial: while the optical properties of organic compounds depend on their molecular structures, there is a lack of detailed information on the composition of BrC and its impact on absorption spectra [3,13]. BrC aerosols, which can also be generated by atmospheric processes such as oxidation and solar irradiation [11,14,15], are composed of diverse structures with different light-absorption properties: polycyclic aromatics (and their oxygenated and nitrated derivatives), phenols, biopolymers, or humic-like substances [2,16,17]. Furthermore, both the concentration and composition of BrC can change significantly across emission locations and sources [3,13]. Online (real-time) light absorption measurements of BrC are complex, and the results differ from those provided by offline methods (e.g., solvent extraction of pollutants) [18].

Despite such uncertainties, polycyclic aromatic hydrocarbons (PAHs) have been identified as ubiquitous compounds [19], act as important chromophores in BrC [4,5,8,20], and are among the most recurrent environmental contaminants, being classified as persistent environmental pollutants [21,22]. While PAHs can be emitted into the atmosphere in natural burning events, the main contribution comes from anthropogenic sources, such as motor vehicle exhaust, coal burning, and industrial activities [23].

Obtaining reliable atmospheric light absorption measurements of PAHs is important for understanding and predicting the radiative forcing effect of BrC aerosols. Herein, this study aims to use a computational chemistry approach to model the real-world absorption spectra of atmospheric PAHs by considering their experimental atmospheric concentration and speciation. This approach can determine which PAHs have higher radiative forcing potential: the most relevant regions in their UV and visible spectra are identified in terms of radiative forcing, and their light absorption is correlated to individual species. The obtained data will be invaluable for the prediction of real-world light absorption measurements of BrC aerosols over different regions of the globe, which is essential for the development of accurate global models to predict and mitigate the radiative forcing effects of BrC.

Modeling efforts rely on a density functional theory (DFT) approach, which has been increasingly and successfully used in the field of environmental sciences, for example, to determine reaction mechanisms and energetics in systems and reactions of environmental concern [24,25,26,27]. Besides providing reliable results, DFT calculations present some advantages over experimental studies since they do not require a large number of steps, as is the case in chemical synthesis, separation/purification, and characterization. DFT can also be extended to account for the time-dependent (TD) nature of electromagnetic waves and used to model excited states [28]. DFT calculations are also the most widely used approach to model the structure, photophysics, and photochemistry of organic molecules, including BrC [29,30,31,32].

The developed model is based on the speciation and quantification of PAHs over the atmosphere of three regions of the Basque Country, an autonomous region in Northern Spain. One dataset was provided by the work of Elorduy et al., who collected PM₁₀ samples between July and December 2013 in an urban area of the city of Bilbao [33]. The other dataset was provided by the work of Oleagoitia et al., who collected PM₂.₅ samples between October 2011 and October 2012 in Azpeitia and Urretxu, two villages in Gipuzkoa, an area characterized by an industrial sector focused on iron and steel [34]. The former study identified 13 PAHs (mean concentration of 0.06–0.69 ng m⁻³), while the latter identified 11 PAHs (mean concentration of 0.05–0.19 ng m⁻³) (Table S1, Supplementary Materials).

Our group previously used a similar computational approach to model the real-world absorption spectra of PAHs over the atmosphere of four cities: Porto (Portugal), Florence (Italy), Athens (Greece), and Seoul (South Korea) [35,36], and concluded that in all cities, PAHs should contribute to radiative forcing mainly through light absorption in the UVB/UVA region of the spectrum, but also moderate light absorption in the blue region of the visible spectrum. PAHs such as fluoranthene, benzo[a]anthracene, dibenzo[a,h]anthracene, and coronene were identified as main contributors to UV absorption, while PAHs such as benzoperylene, benzo[a]pyrene, and indenopyrene as capable of visible light absorption. Interestingly, our calculations identified Porto as the most affected by PAH-induced radiative forcing among the studied cities. By expanding this modeling effort to more regions of the world, we expect to develop a more comprehensive and global assessment of the effect of PAHs on radiative forcing, which is needed in order to develop more global climate models, including BrC aerosols.

2. Computational Methods

For this study, 14 PAHs (naphthalene (NAP), phenanthrene (PHE), fluoranthene (FLUO), pyrene (PYR), benzo[a]anthracene (BaA), chrysene (CHRY), benzo[b]fluoranthene (BbF), benzo[k]fluoranthene (BkF), benzo[a]pyrene (BaP), benzoperylene (BghiP), indenopyrene (IdP), fluorene (FLU), dibenzo[a,h]anthracene (DahA) and anthracene (ANTH)) (Figure S1) were computed and then corrected with their experimental atmospheric concentrations over three Basque Country regions (Table S1), which were extracted from the works of Elorduy et al. and Oleagoitia et al. [33,34].

The present calculations were performed with the Gaussian 09 program package [37] at two levels of theory. All calculations were made in the gas phase. Calculations were performed with stable wavefunctions with a closed-shell approach. First, the geometries of each PAH were optimized by using the PBE0 density functional [38] and the 6-31G(d,p) basis set, while vibrational calculations were made at the same level of theory to ensure that the obtained structures were at the minima in their potential energy surface. This functional was chosen because it provides accurate geometric optimization of organic molecules [39,40,41,42].

The absorption properties (oscillator strength and absorption wavelengths) were calculated by performing single-point vertical excitation calculations with a TD-DFT approach, by computing 10 singlet excited states on top of the structures obtained at the PBE0/6-31G(d,p) level of theory. These single-point calculations were performed with a 6-31+G(d,p) basis and 4 density functionals: BP86, PBE0, B3LYP, and ωB97XD. BP86 is a generalized gradient approximation (GGA) functional composed of the Becke 1988 and Perdew 86 correlation functionals [43]. BP86 was previously used in the study of the real-world absorption spectra of PAHs (and derivatives) over different locations of the globe [35,36]. PBE0 is a hybrid functional that mixes the Perdew–Burke–Ernzerhof (PBE) exchange energy and Hartree–Fock exchange energy, along with full PBE correlation energy [38]. B3LYP is another hybrid functional, which uses the non-local correlation provided by the Lee–Yang–Parr (LYP) expression and VWN functional III for local correlation [43]. Finally, ωB97XD is a long-range-corrected hybrid functional that includes empirical dispersion [44]. PBE0 and B3LYP generally provide accurate estimates for local n→π* and π→π* states, while functionals such as ωB97XD are typically required for either charge-transfer (CT) or Rydberg transitions [28].

The absorption spectrum for individual PAH species was plotted with SpecDis software (version 1.71) [45], based on the 10 singlet excited state transitions calculated at the TD (BP86, PBE0, B3LYP, or ωB97XD)/6-31+G(d,p) level of theory. The curves were generated with a Gaussian band shape and a peak broadening of 0.16 eV. The combined theoretical absorption spectrum of all PAHs was obtained by summing the individual spectra, without considering the experimentally obtained concentrations, resulting in absorption intensities only composed by ε (mol⁻¹ cm⁻¹) [45]. The next step was to correct the intensity values of this spectrum by considering the experimentally obtained concentrations of target PAHs for each of the three Basque Country regions, which was achieved by multiplying the theoretical absorption intensity (ε) of each PAH by its atmospheric concentration (ng m⁻³), resulting in absorption intensities expressed as absorption per concentration (ε × ng m⁻³). The global spectrum was obtained as the sum of individual spectra.

This computational approach was successfully used by our group to model the real-world absorption spectra of different PAH datasets present in the atmosphere over different regions in Europe and Asia [35,36].

3. Discussion and Results

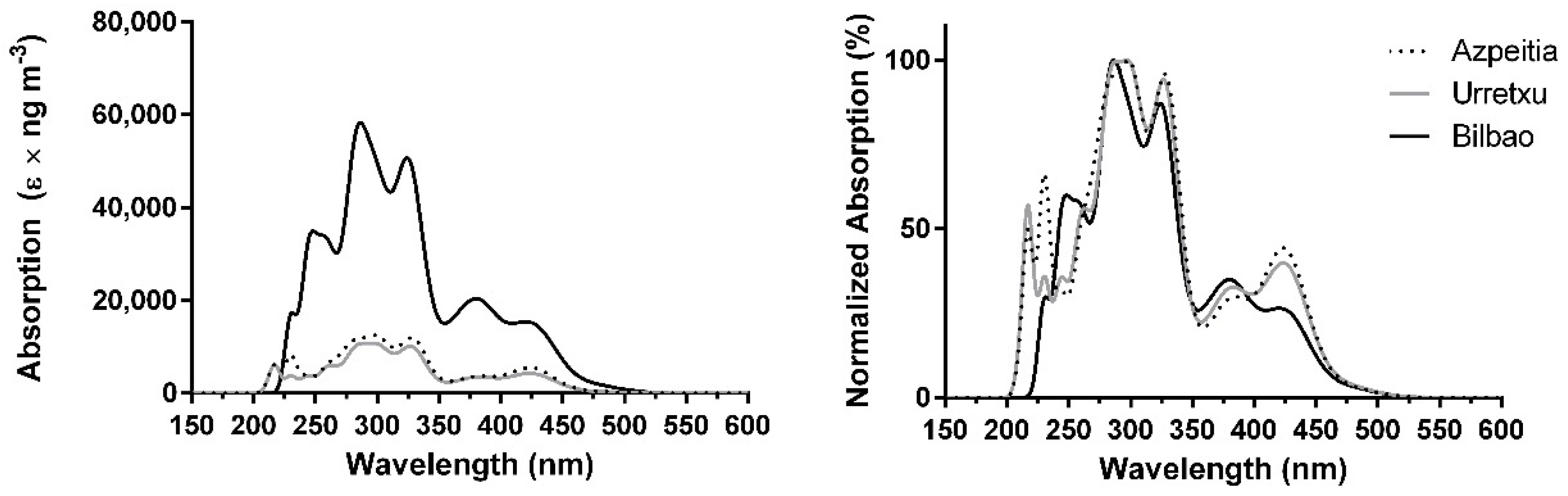

The combined absorption spectra of the PAHs found over different regions of Basque Country (Spain), when calculated with BP86 and corrected for their mean experimental concentrations, are presented in Figure 1. The absorption spectrum over Azpeitia consists of two stronger peaks at ~300 and ~330 nm (UVB and UVA regions); three peaks of more moderate intensity at ~220, ~230, and ~425 nm (UVC and visible regions); and a weaker band at ~380 nm (UVA region). The absorption spectrum for Urretxu, the other location in the Gipuzkoa region, is identical to that found for Azpeitia. Nevertheless, we can see the decrease of relative importance of the peak at ~230 nm and the appearance of small shoulders at ~250 and ~265 nm. Interestingly, the major difference between the absorption spectra of the two Gipuzkoa locations may be their intensity, which is higher in Azpeitia than in Urretxu. This indicates that these PAHs could lead to higher radiative forcing effects in the former than in the latter, which is not unexpected, given that the mean concentration of PAHs is slightly higher over Azpeitia (0.90 ng m⁻³) than over Urretxu (0.73 ng m⁻³), as seen in Table S1. Regarding Bilbao, the most notable difference between its related absorption spectrum and the spectra for the Gipuzkoa region (Figure 1) is also the absorption intensity. More specifically, while the maximum absorption intensity is just ~10,000–12,000 e × ng m⁻³ in the latter region, in Bilbao the maximum absorption is about six times higher (~60,000 e × ng m⁻³). Thus, Bilbao should be subjected to significantly more PAH-induced radiative forcing than the Gipuzkoa region. Once again, this is not unexpected, as the mean concentration of PAHs over Bilbao (3.29 ng m⁻³) is higher than in Azpeitia and Urretxu (0.79–0.90 ng m⁻³) [33,34]. What is interesting is that the difference between absorption intensities is about six times higher than the difference between mean concentrations (about 3.5–4.5 times). Thus, the contribution of PAHs to radiative forcing in certain locations/regions could be more problematic than expected if we just consider the obtained mean concentrations.

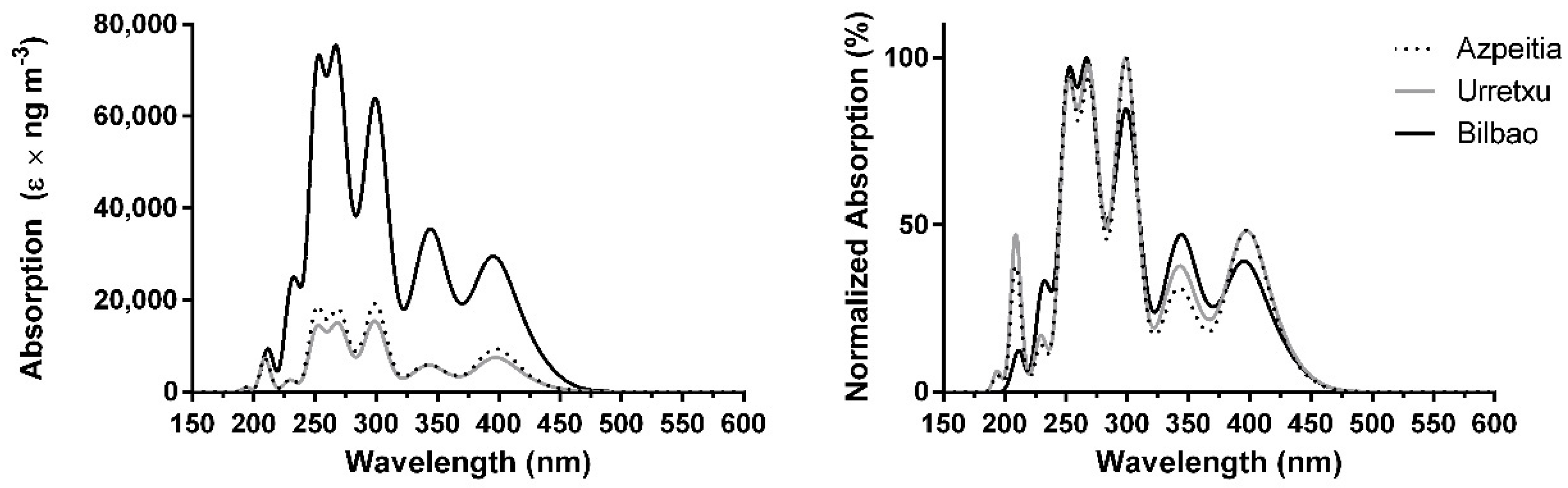

As for the concentration-corrected absorption spectra, computed at the TD PBE0/6-31+G(d,p) level of theory, the results can be found in Figure 2. The spectra are qualitatively identical among the three locations, being composed of three stronger bands at ~270, ~255, and ~300 nm (UVC and UVB regions); three moderate bands at ~345, ~400, and ~235 nm (UVA, UVC, and a small extent of the visible region); and a weaker band at ~215 nm (UVC region). Thus, these results indicate that PBE0 predicts an absorption spectrum more blue-shifted (Figure 2) than that generated with BP86 (Figure 1). That is, light absorption is more intense in the UVC-UVB than the UVB-UVA range. There are no other major qualitative differences between the spectra calculated with the two methods. In terms of intensity difference, PBE0 also predicts similar absorption intensity over the Gipuzkoa region, with the absorption over Bilbao being significantly higher. Furthermore, the difference in absorption intensity between Bilbao and the Gipuzkoa region (4–5 times) is still higher than the simple difference in atmospheric concentration of PAHs (about 3.5–4.5 times).

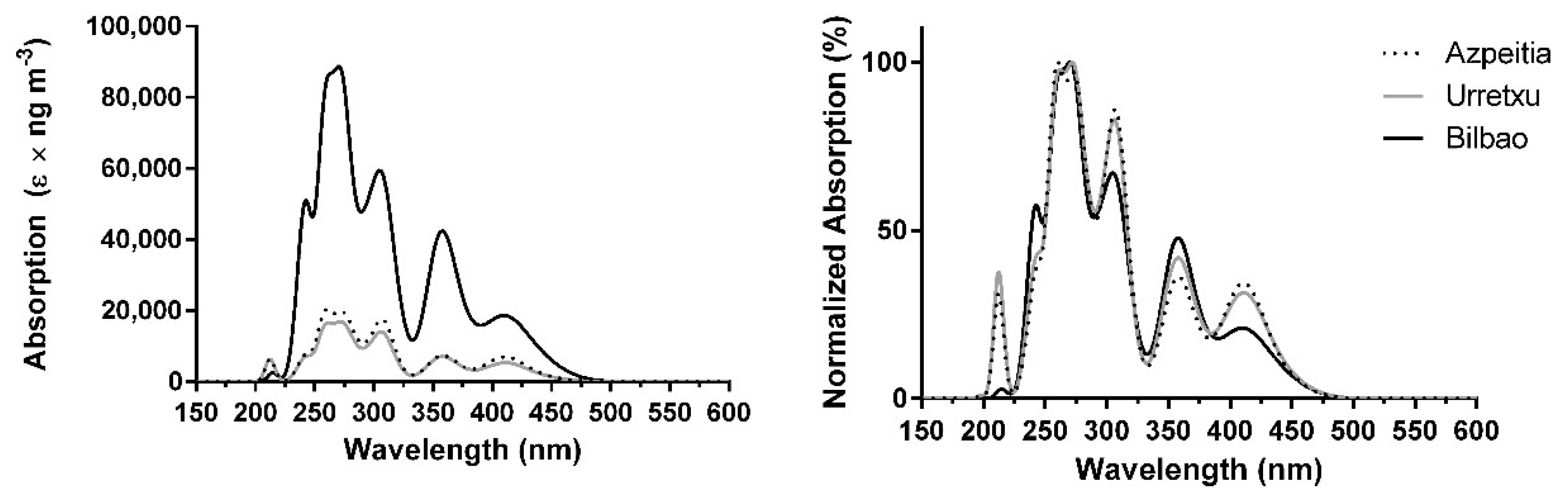

The absorption spectra, computed with the B3LYP functional and corrected for the experimental concentration of PAHs, can be found in Figure 3. The results are similar to those obtained with PBE0 (Figure 2) and BP86 (Figure 1), with some differences. The two stronger peaks (which are somewhat mixed) are at ~265 and ~270 nm (UVC region), followed by two relevant bands at ~240 and ~305 nm (UVC and UVB regions). Another moderate band can be found at ~360 nm (UVA region), with a weaker band in the visible region (~415 nm). These results can be considered as somewhat intermediate compared to those obtained with PBE0 and BP86, as the results obtained with B3LYP (Figure 3) are red-shifted compared to those obtained with PBE0 (Figure 2), and not as red-shifted as BP86 (Figure 1). The absorption intensity over Bilbao is once again 4–5 times higher than in the Gipuzkoa region.

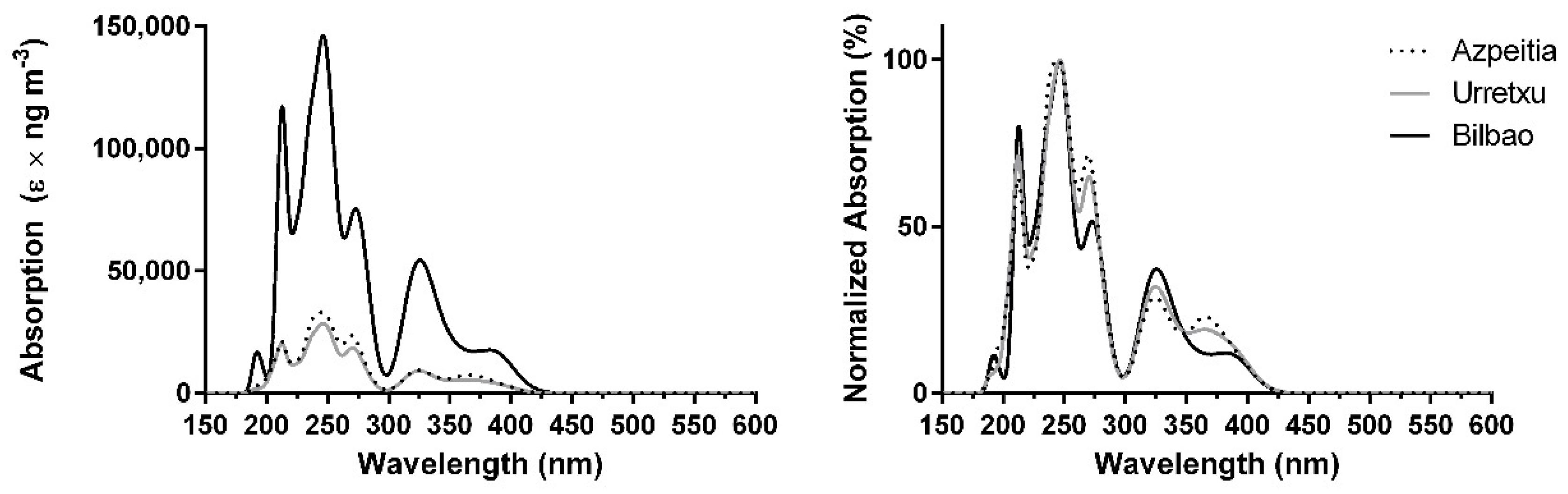

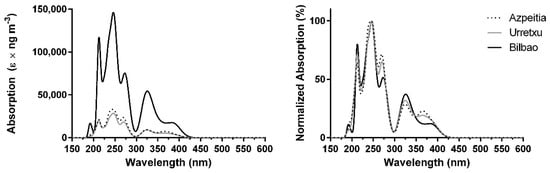

Finally, the absorption spectra computed at the TD ωB97XD/6-31+G(d,p) level of theory, when corrected for the mean atmospheric concentration of the studied PAHs, can be found in Figure 4. This functional provides the most blue-shifted results, with the spectra being composed of two stronger bands at ~245 and ~215 nm (UVC region), followed by moderate absorption at ~275 and ~325 nm, and a weaker absorption band can be found at ~380 nm (Bilbao) and ~365 nm (Gipuzkoa region). Once again, the difference in intensity between Bilbao and the Gipuzkoa region is 4–5 times.

It should be noted that while the absorption intensity of PAHs over Bilbao was found to be significantly higher than over Azpeitia/Urretxu, it is still significantly lower compared to other important Southern European cities. While the maximum light absorption intensity found for Bilbao was 60,000 e × ng m⁻³ (with BP86, Figure 1), the same functional calculated an absorption intensity maxima of ~100,000–400,000 e × ng m⁻³ for Porto (Portugal), Florence (Italy), and Athens (Greece) [36]. This indicates that Bilbao is still relatively protected from PAH-induced radiative forcing, at least when compared with other Southern European cities.

In summary, the absorption spectra of PAHs are qualitatively similar for all locations (Bilbao, Azpeitia, and Urretxu) regardless of the employed functional, with the absorption intensities being similar in the Gipuzkoa region but significantly lower than in Bilbao. The main difference is the position in the bands. Figure 5 presents the normalized absorption spectrum over Bilbao (as a representative example) calculated with all functionals. We can see that the number and shape of the bands are similar, with each functional simply shifting the maximum wavelength. For example, we can see that the band computed by ωB97XD at ~380 nm corresponds to the band found at ~400–425 nm (Figure 5). Similarly, the bands found at ~380 (BP86), ~360 (B3LYP), ~345 (PBE0), and ~325 nm (ωB97XD) should correspond to the same maximum wavelength (Figure 5). The bands at ~330 (BP86), ~305 (B3LYP), ~300 (PBE0), and ~275 nm (ωB97XD) should correspond to the same band in the real-world absorption spectra. The same can also be said for the bands found in the UVC region. Given these data, there is general agreement between the calculations with different functionals that stronger light absorption occurs in the UVC and UVB regions, with more moderate absorption in the UVA region and weaker absorption in the visible region.

At this point of the study, it is important to note that UVC radiation is completely filtered by the atmosphere. Moreover, not much ground-level solar insolation at ~290–300 nm is expected due to ozone absorption [46]. Thus, the only bands that should be relevant for PAH-induced radiative forcing are those with wavelengths above that threshold: ~330, ~385, and ~425 nm for BP86; ~345 and ~400 nm for PBE0; ~305, ~360 and ~415 nm for B3LYP; and ~325 and ~365–380 nm for ωB97XD. We can see that there is qualitative agreement between all functionals. The results are also in line with BrC-related measurements. More specifically, it was reported that BrC contributes ~20–40% to aerosol absorption at 350 nm and 27% at 404 nm, with almost negligible absorption at 536 nm [6,7,8]. These values are in line with the absorption bands found at ~330–385 and ~400–425 nm predicted here (Figure 2, Figure 3 and Figure 4). These reported values also indicate that ωB97XD excessively blue-shifts the absorption spectra, while the other functionals predict light absorption at wavelengths more closely related to BrC measurements.

Subsequently, the next step of the study was to decompose the absorption intensity of the bands referred to above into the relative contribution of individual PAHs (Tables S2–S9). It should be noted that we excluded the absorption band found at ~330 nm for BP86, as it appeared to correspond to the bands found at ~275–305 nm for other methods.

Starting with calculations made with the BP86 functional, the contributions of PAHs to light absorption at ~380 nm (as predicted by BP86) can be found in Table S2. BbF is the major contributor in all cases (51–58%), followed to a lesser extent by FLUO (16–21%), PYR (7–14%), and IdP (7–11%). The relative contributions to absorption at ~425 nm (computed with BP86) can be found in Table S3. Once again, there is a major contributor to the absorption intensity at this wavelength: BghiP (30–60%), and its contribution is significantly higher in Azpeitia/Urretxu (49–60%) than in Bilbao (30%). BaP, BkF, and IdP are also relevant contributors at similar levels in all locations.

As for the PBE0-related results, the individual contributions of PAHs to light absorption at ~345 nm can be found in Table S4. The results are quite similar in all locations, with 96% of light absorption being explained by contributions from BbF (31–41%), PYR (26–32%), CHRY (15–16%), and FLUO (13–17%). As for light absorption at ~400 nm (Table S5), the most relevant contributions are from BghiP (22–50%), BbF (23–37%), BkF (12–19%), and BaP (9–11%). Interestingly, while in the Gipuzkoa region BghiP is clearly dominant (40–50%), in Bilbao it is not (22%). In the latter region, BbF is clearly dominant (37%), while it shows more moderate contributions in Azpeitia/Urretxu (23–27%).

The individual contributions of PAHs (as computed with B3LYP) to absorption at ~360 nm can be found in Table S6. The results are very similar to those computed with PBE0 (Table S4), with light absorption being explained mainly by contributions from BbF (42–49%), PYR (23–28%), FLUO (13–15%), and CHRY (10%). The main difference between B3LYP and PBE0 is that the former predicts higher contributions from BbF than the latter, with varying decreased contributions of the other PAHs. In terms of the contributions to absorption at ~410 nm (Table S7), B3LYP predicts that the main contributors are BghiP (34–54%), BkF (15–27%), BaP (15–23%), and BaA (4–7%). Once again, BghiP is dominant in Azpeitia/Urretxu (53–64%), while in Bilbao its contribution (34%) is similar to that of BkF (27%).

Finally, the decomposition of light absorption at ~325 nm into individual contributions from PAHs (for ωB97XD) can be found in Table S8. Here, the main contributors are BbF (44–53%), PYR (18–23%), FLUO (14–16%), and CHRY (8%). As for the contributions to light absorption at ~365–380 nm (Table S9), the main contributors are BghiP (21–75%), BaP (9–53%), BkF (1–12%), BaA (2–8%), and IdP (3–19%). Interestingly, at this wavelength, the ωB97XD functional predicts major differences between locations. For one, while BghiP makes significant contributions in Azpeitia/Urretxu (65–75%), in Bilbao this PAH makes only a moderate contribution (21%), with a value similar to that presented by IdP (19%). This PAH was also found to be relevant by BP86 calculations, but not by B3LYP/PBE0 computations. For Bilbao, the ωB97XD functional predicted BaP as the main contributor (53%).

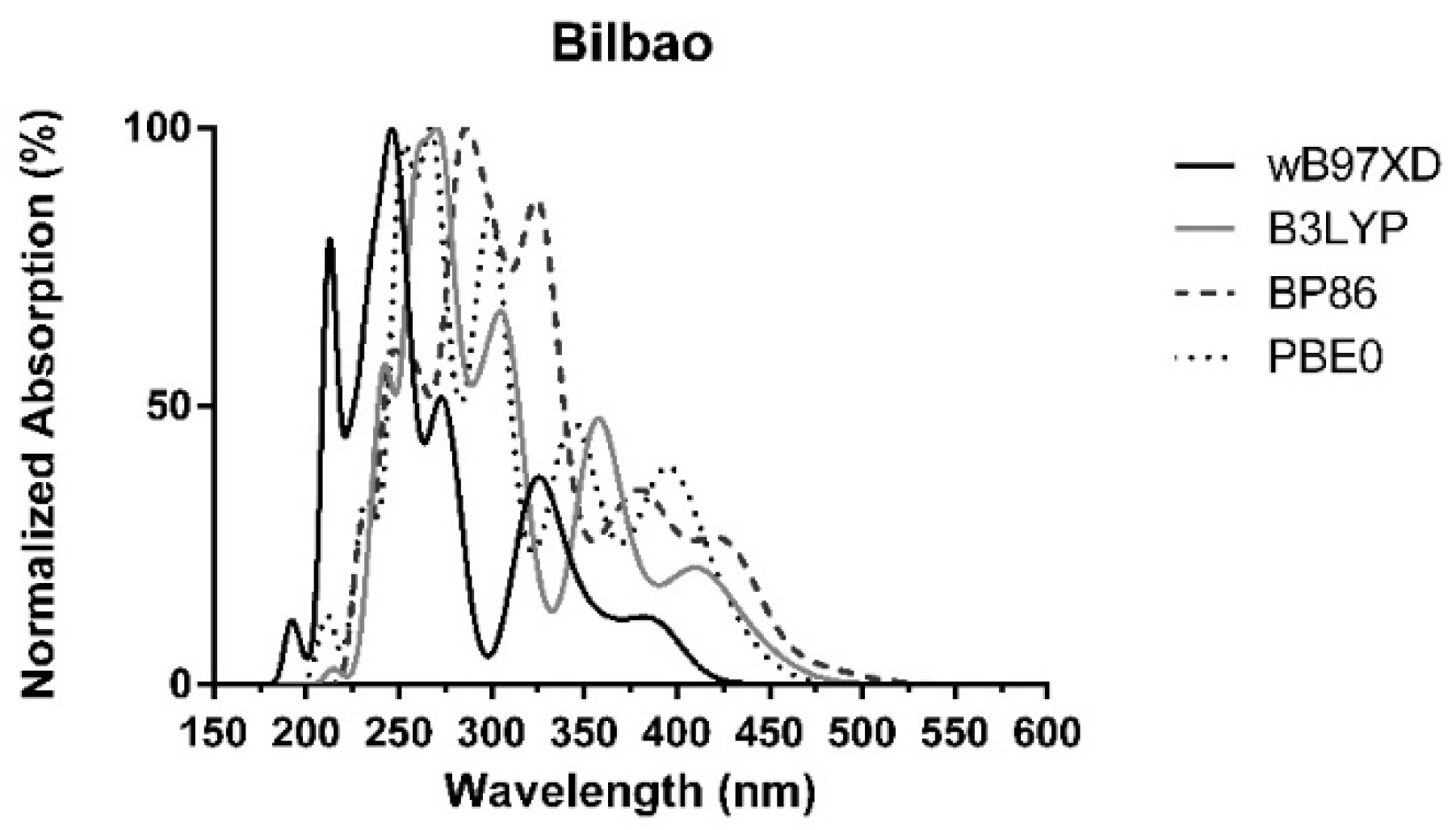

Having analyzed these findings, it is interesting to note that while calculations with different functionals show general agreement with the number and position of absorption bands, the relevance of each PAH can vary significantly.

Considering the most red-shifted absorption band provided by each functional (Tables S3, S5, S7, and S9), all calculations agree qualitatively that BaP, BghiP, and BkF provide relevant contributions. However, BP86 and ωB97XD predict moderate contributions from IdP, while this PAH was found to be not relevant by PBE0 and B3LYP calculations. BaA is another PAH found to have nonnegligible contributions by some functionals (B3LYP and ωB97XD) but not others (PBE0 and BP86). Finally, only PBE0 predicts relevant contributions from BbF in the visible region.

As for the more blue-shifted absorption bands in the UVA region (Tables S2, S4, S6, and S8), calculations with the four functionals agree on the relevance of the contributions made by BbF, PYR, and FLUO. Three functionals (B3LYP, PBE0, and ωB97XD) also agree on the relevance of CHRY, with BP86 instead predicting contributions from IdP. Nevertheless, the level of agreement regarding individual contributions made by PAHs for the band at ~325–380 nm (depending on the functional used) appears to be greater than for the band at ~365/380–425 nm (once again, depending on the functional).

In conclusion, and despite some functional-dependent variability, these calculations agree that the studied PAHs should induce radiative forcing in the target Basque Country regions by light absorption at the “middle” of the UVA region and at short (sub)visible wavelengths. The potentially most problematic PAHs in the UVA region were found to be BbF, PYR, and FLUO, with some doubt regarding the importance of CHRY and IdP. As for the absorption at short (sub)visible wavelengths, BaP, BkF, and BghiP were consistently found to be problematic PAHs, while the contributions made by IdP, BaA, BghiP, and BbF to radiative forcing in this region require further study.

Finally, it should be noted that differences between the absorption spectra simulated in this work and those from the real world are expected. In the atmosphere, PAHs are susceptible to degradation and can be transformed into secondary organic aerosols (e.g., conversion of PAHs into oxygenated and nitrated derivatives). Furthermore, since we are working with mean atmospheric concentration values, and studies typically do not indicate the concentrations obtained for each measured sample, we are not able to model daily real-world absorption spectra. We are still at the beginning of the use of computational chemistry to model real-world absorption spectra of BrC, and studies of this sort show the intrinsic absorption properties of these PAHs at target sites. Moreover, if real-world spectra are obtained by other means, the differences between them and the models presented here can point to the processes that determine the light absorption of PAHs in the atmosphere.

4. Conclusions

In this work, the real-world light absorption spectra of 14 PAHs over three regions of the Basque Country (Spain)—Azpeitia and Urretxu in the Gipuzkoa region and Bilbao—were modeled to identify the most significant absorption regions for PAH-induced radiative forcing. The theoretical absorption spectrum for each PAH at each sampling site was calculated using a TD-DFT approach with four density functionals, corrected with the experimental concentration, and the resulting data were combined to generate real-world absorption spectra.

Our results indicate that the combined absorption spectra of the PAHs over the different regions are qualitatively identical, with the main difference being the absorption intensity. More specifically, light absorption by PAHs appears to be more intense over Bilbao than in the Gipuzkoa region, meaning that the former should be subjected to more PAH-induced radiative forcing than the latter.

The theoretical calculations also indicate that PAH-induced radiative forcing over the studied regions should be limited to light absorption at the UVA and (sub)visible regions of the spectrum. Specifically, benzo[b]fluoranthene, pyrene, and fluoranthene were consistently found to be relevant for absorption at the UVA region, while some doubt about the relevance of chrysene and indenopyrene remained. As for absorption at (sub)visible wavelengths, benzo[a]pyrene, benzo[k]fluoranthene, and benzoperylene were identified as problematic PAHs, while the magnitude of light absorption by indenopyrene, benzo[a]anthracene, and benzo[b]fluoranthene still requires further study.
