# Enhanced Integrated Satellite-Terrestrial NOMA with Cooperative Device-to-Device Communication

^{*}

## Abstract

**:**

## 1. Introduction

- A novel user pairing scheme is proposed, considering the satellite channels and the terrestrial D2D channels. In order to study this problem, graph theory is invoked—modeling it as a maximum weighted perfect matching problem.
- Power allocation for NOMA in each transmission period considers the achieved rates through orthogonal multiple access (OMA). In this way, the proposed power allocation guarantees that user pairing will lead to a higher rate for each pair member and an overall rate increase for the network.
- The impact of various system parameters inherent to satellite-based access and D2D networks have been evaluated, i.e., the elevation angle and the bandwidth allocation, respectively. As a result, guidelines are given in order to achieve improved satellite-terrestrial cooperation and spectral efficiency, compared to standalone NOMA and OMA deployments.

## 2. System Model

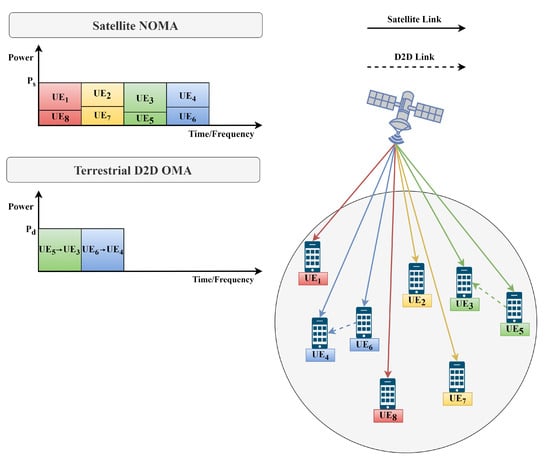

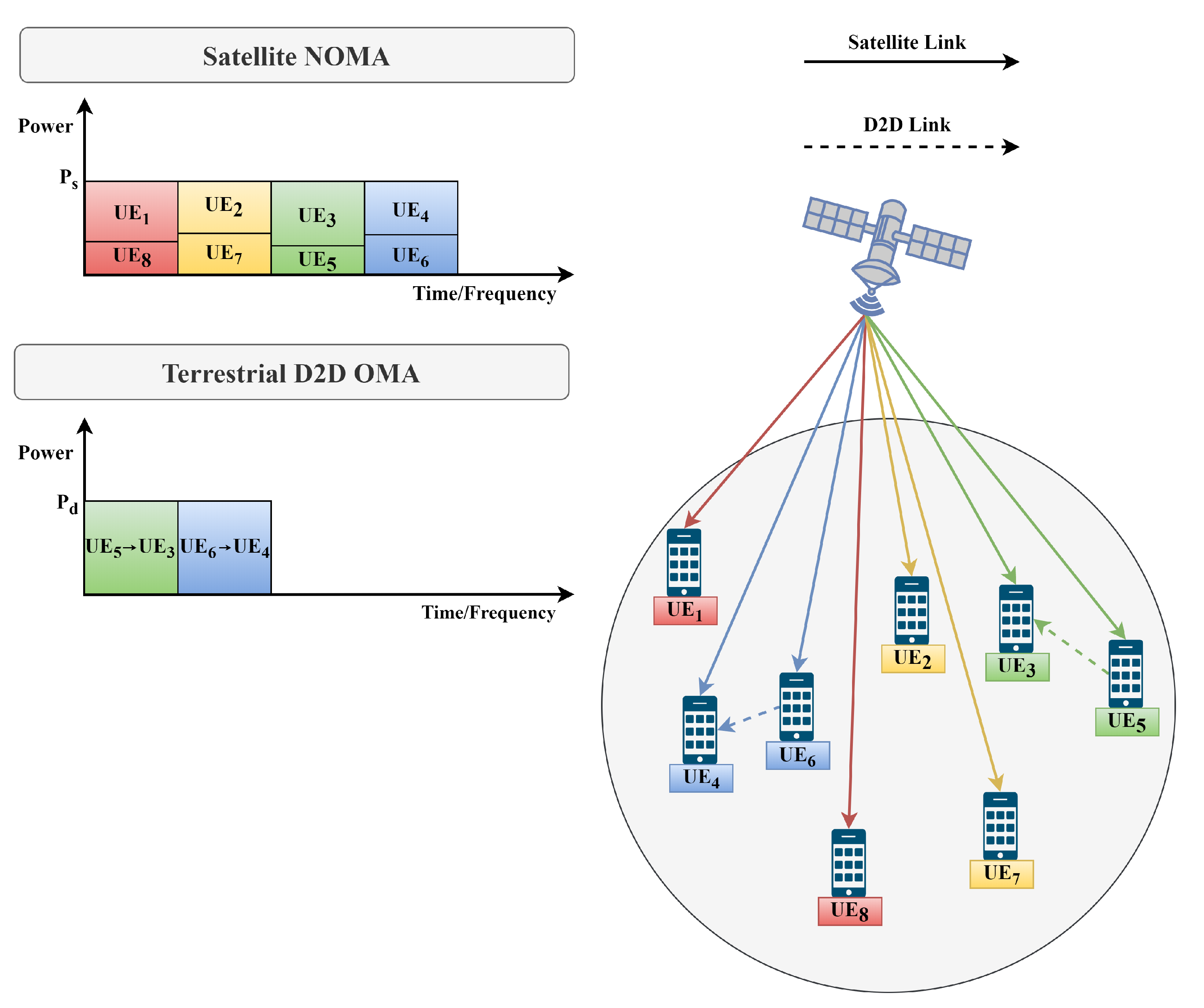

#### 2.1. Topology

#### 2.2. Channel Model

#### 2.3. Transmission Parameters and Achievable Rates

## 3. Satellite-Aided NOMA with Cooperative D2D Communication

#### 3.1. SANOCO-D2D Operation

**Remark**

**1.**

**Remark**

**2.**

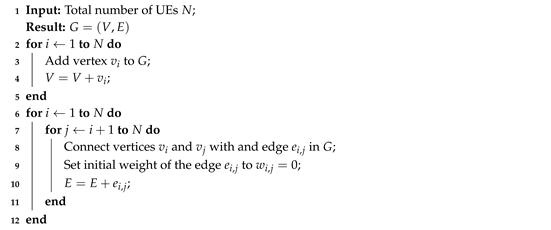

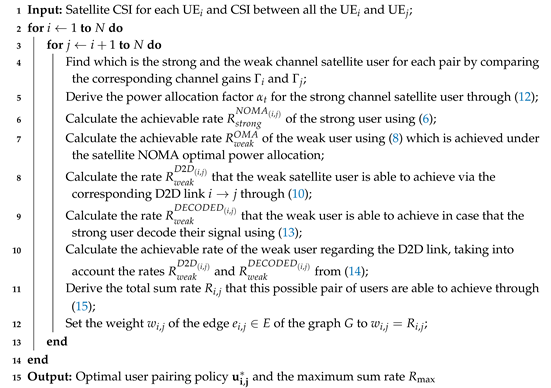

Algorithm 1: Graph creation. |

Algorithm 2: SANOCO-D2D. |

#### 3.2. Toy Network

## 4. Performance Evaluation

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Acknowledgments

## Abbreviations

5G | Fifth Generation |

AWGN | Additive White Gaussian Noise |

BS | Base Station |

C-NOMA | Cooperative NOMA |

CSI | Channel State Information |

D2D | Device-to-Device |

FSL | Free Space Pathloss |

GEO | Geosynchronous Earth Orbit |

IoT | Internet of Things |

LEO | Low Earth Orbit |

LMS | Land Mobile Satellite |

LoS | Line of Sight |

MC | Medium Channel |

MEO | Medium Earth Orbit |

MP | Multipath Component |

NOMA | Non-Orthogonal Multiple Access |

OMA | Orthogonal Multiple Access |

QoS | Quality-of-Service |

SANOCO-D2D | Satellite-Aided NOMA with Cooperative D2D Communication |

SC | Strong Channel |

SIC | Successive Interference Cancellation |

SNR | Signal-to-Noise Ratio |

TDMA | Time-Division Multiple Access |

UE | User Equipment |

WC | Weak Channel |

## References

- Liu, J.; Shi, Y.; Fadlullah, Z.M.; Kato, N. Space-Air-Ground Integrated Network: A Survey. IEEE Commun. Surv. Tutor.
**2018**, 20, 2714–2741. [Google Scholar] [CrossRef] - Michailidis, E.T.; Nomikos, N.; Bithas, P.S.; Vouyioukas, D.; Kanatas, A.G. Optimal 3-D Aerial Relay Placement for Multi-User MIMO Communications. IEEE Trans. Aerosp. Electron. Syst.
**2019**, 55, 3218–3229. [Google Scholar] [CrossRef] - Di, B.; Song, L.; Li, Y.; Poor, H.V. Ultra-Dense LEO: Integration of Satellite Access Networks into 5G and Beyond. IEEE Wirel. Commun.
**2019**, 26, 62–69. [Google Scholar] [CrossRef] - Ding, Z.; Liu, Y.; Choi, J.; Sun, Q.; Elkashlann, M.; Chih-Lin, I.; Poor, H.V. Application of Non-Orthogonal Multiple Access in LTE and 5G Networks. IEEE Commun. Mag.
**2017**, 55, 185–191. [Google Scholar] [CrossRef] [Green Version] - Ding, Z.; Lei, X.; Karagiannidis, G.K.; Schober, R.; Yuan, J.; Bhargava, V.K. A Survey on Non-Orthogonal Multiple Access for 5G Networks: Research Challenges and Future Trends. IEEE J. Sel. Areas Commun.
**2017**, 35, 2181–2195. [Google Scholar] [CrossRef] [Green Version] - Zhu, L.; Zhang, J.; Xiao, Z.; Cao, X.; Wu, D.O. Optimal User Pairing for Downlink Non-Orthogonal Multiple Access (NOMA). IEEE Wirel. Commun. Lett.
**2019**, 8, 328–331. [Google Scholar] [CrossRef] - Nomikos, N.; Charalambous, T.; Vouyioukas, D.; Karagiannidis, G.K.; Wichman, R. Hybrid NOMA/OMA with Buffer-Aided Relay Selection in Cooperative Networks. IEEE J. Sel. Top. Signal Process.
**2019**, 13, 524–537. [Google Scholar] [CrossRef] [Green Version] - Yan, X.; An, K.; Liang, T.; Zheng, G.; Ding, Z.; Chatzinotas, S.; Liu, Y. The Application of Power-Domain Non-Orthogonal Multiple Access in Satellite Communication Networks. IEEE Access
**2019**, 7, 63531–63539. [Google Scholar] [CrossRef] - Zhu, X.; Jiang, C.; Kuang, L.; Ge, N.; Lu, J. Non-Orthogonal Multiple Access Based Integrated Terrestrial-Satellite Networks. IEEE J. Sel. Areas Commun.
**2017**, 35, 2253–2267. [Google Scholar] [CrossRef] - Yan, X.; Xiao, H.; Wang, C.; An, K.; Chronopoulos, A.T.; Zheng, G. Performance Analysis of NOMA-Based Land Mobile Satellite Networks. IEEE Access
**2018**, 6, 31327–31339. [Google Scholar] [CrossRef] - Yan, X.; Xiao, H.; An, K.; Zheng, G.; Tao, W. Hybrid Satellite Terrestrial Relay Networks With Cooperative Non-Orthogonal Multiple Access. IEEE Commun. Lett.
**2018**, 22, 978–981. [Google Scholar] [CrossRef] [Green Version] - Dun, H.; Ye, F.; Jiao, S.; Liu, D. Power Control for Device-to-Device Communication with a Hybrid Relay Mode in Unequal Transmission Slots. Electronics
**2018**, 7, 17. [Google Scholar] [CrossRef] [Green Version] - Penda, D.D.; Nomikos, N.; Charalambous, T.; Johansson, M. Minimum Power Scheduling under Rician Fading in Full-Duplex Relay-Assisted D2D Communications. In Proceedings of the IEEE GLOBECOM 2017 Workshops: Workshop on Full-Duplex Communications for Future Wireless Networks, Singapore, 4–8 December 2017. [Google Scholar]
- Gür, G. Spectrum Sharing and Content-Centric Operation for 5G Hybrid Satellite Networks: Prospects and Challenges for Space-Terrestrial System Integration. IEEE Veh. Technol. Mag.
**2019**, 14, 38–48. [Google Scholar] [CrossRef] - Di, B.; Zhang, H.; Song, L.; Li, Y.; Li, G.Y. Ultra-Dense LEO: Integrating Terrestrial-Satellite Networks Into 5G and Beyond for Data Offloading. IEEE Trans. Wirel. Commun.
**2019**, 18, 47–62. [Google Scholar] [CrossRef] [Green Version] - Yan, X.; Xiao, H.; Wang, C.; An, K. Outage Performance of NOMA-Based Hybrid Satellite-Terrestrial Relay Networks. IEEE Wirel. Commun. Lett.
**2018**, 7, 538–541. [Google Scholar] [CrossRef] - FCC, OneWeb Non-Geostationary Satellite System (Attachment A). 2016. Available online: http://licensing.fcc.gov/myibfs/download.do?attachment_key=1190495 (accessed on 4 September 2020).
- FCC, SpaceX Non-Geostationary Satellite System (Attachment A). 2016. Available online: https://licensing.fcc.gov/myibfs/download.do?attachment_key=1252848 (accessed on 4 September 2020).
- Loo, C. A Statistical Model for a Land Mobile Satellite Link. IEEE Trans. Veh. Technol.
**1985**, 34, 122–127. [Google Scholar] - Jakes, W.C. Microwave Mobile Communication; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 1974. [Google Scholar]
- 3GPP. Evolved Universal Terrestrial Radio Access (E-UTRA); Further Advancements for E-UTRA Physical Layer Aspects. TR 36.814. V9.0.0. 3rd Generation Partnership Project (3GPP). 2010. Available online: http://www.3gpp.org/ftp/Specs/html-info/36814.htm (accessed on 4 September 2020).
- Edmonds, J. Maximum matching and a polyhedron with 0,1-vertices. J. Res. Natl. Bur. Stand. Sect. B
**1969**, 69, 125–130. [Google Scholar] [CrossRef] - Gabow, H.N. Implementation of Algorithms for Maximum Matching on Nonbipartite Graphs; Department of Computer Science, Stanford University: Stanford, CA, USA, 1973. [Google Scholar]
- Lawler, E.L. Combinatorial Optimization: Networks and Matroids; Holt, Rinehart and Winston: New York, NY, USA, 1976. [Google Scholar]
- Galil, Z.; Micali, S.; Gabow, H. An O(EV log V) Algorithm for Finding a Maximal Weighted Matching in General Graphs. SIAM J. Comput.
**1986**, 15, 120–130. [Google Scholar] [CrossRef] [Green Version] - Library of Efficient Models and Optimization in Networks. Available online: http://lemon.cs.elte.hu/pub/doc/latest-svn/a00388.html (accessed on 4 September 2020).
- Fontan, F.P.; Vazquez-Castro, M.; Cabado, C.E.; Garcia, J.P.; Kubista, E. Statistical Modeling of the LMS Channel. IEEE Trans. Veh. Technol.
**2001**, 50, 1549–1567. [Google Scholar] [CrossRef] - Fontán, F.P.; Espiñeira, P.M. The Land Mobile Satellite Channel. In Modelling the Wireless Propagation Channel: A simulation approach with Matlab; Wiley: Hoboken, NJ, USA, 2008; pp. 213–227. [Google Scholar]
- Wattenhofer, R. Distributed Weighted Matching. In Distributed Computing; Springer: Berlin/Heidelberg, Germany, 2004; pp. 335–348. [Google Scholar]
- Kato, N.; Md Fadlullah, Z.; Tang, F.; Mao, B.; Tani, S.; Okamura, A.; Liu, J. Optimizing Space-Air-Ground Integrated Networks by Artificial Intelligence. IEEE Wirel. Commun.
**2019**, 26, 140–147. [Google Scholar] [CrossRef] [Green Version] - Bithas, P.S.; Michailidis, E.T.; Nomikos, N.; Vouyioukas, D.; Kanatas, A.G. A Survey on Machine-Learning Techniques for UAV-Based Communications. Sensors
**2019**, 19, 5170. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Liau, Q.Y.; Leow, C.Y.; Ding, Z. Amplify-and-Forward Virtual Full-Duplex Relaying-Based Cooperative NOMA. IEEE Wirel. Commun. Lett.
**2018**, 7, 464–467. [Google Scholar] [CrossRef] - Nomikos, N.; Charalambous, T.; Pappas, N.; Vouyioukas, D.; Wichman, R. LoLA4SOR: A Low-Latency Algorithm for Successive Opportunistic Relaying. In Proceedings of the IEEE International Conference on Computer Communications: Workshop on Ultra-Low Latency in Wireless Networks (ULLWN), Paris, France, 29 April–2 May 2019. [Google Scholar]
- Nomikos, N.; Charalambous, T.; Vouyioukas, D.; Wichman, R.; Karagiannidis, G.K. Integrating Broadcasting and NOMA in Full-Duplex Buffer-Aided Opportunistic Relay Networks. IEEE Trans. Veh. Technol.
**2020**, 69, 9157–9162. [Google Scholar] [CrossRef] - Vicario, J.L.; Bel, A.; Lopez-Salcedo, J.A.; Seco, G. Opportunistic Relay Selection with Outdated CSI: Outage Probability and Diversity Analysis. IEEE Trans. Wirel. Commun.
**2009**, 8, 2872–2876. [Google Scholar] [CrossRef] - Islam, T.; Michalopoulos, D.S.; Schober, R.; Bhargava, V.K. Buffer-Aided Relaying with Outdated CSI. IEEE Trans. Wirel. Commun.
**2016**, 15, 1979–1997. [Google Scholar] [CrossRef]

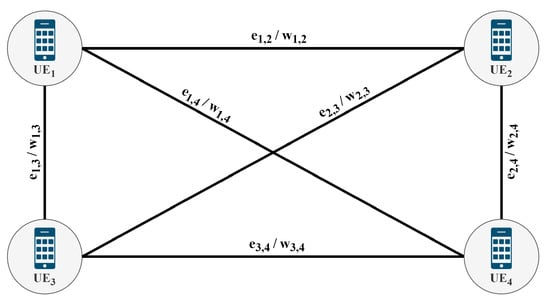

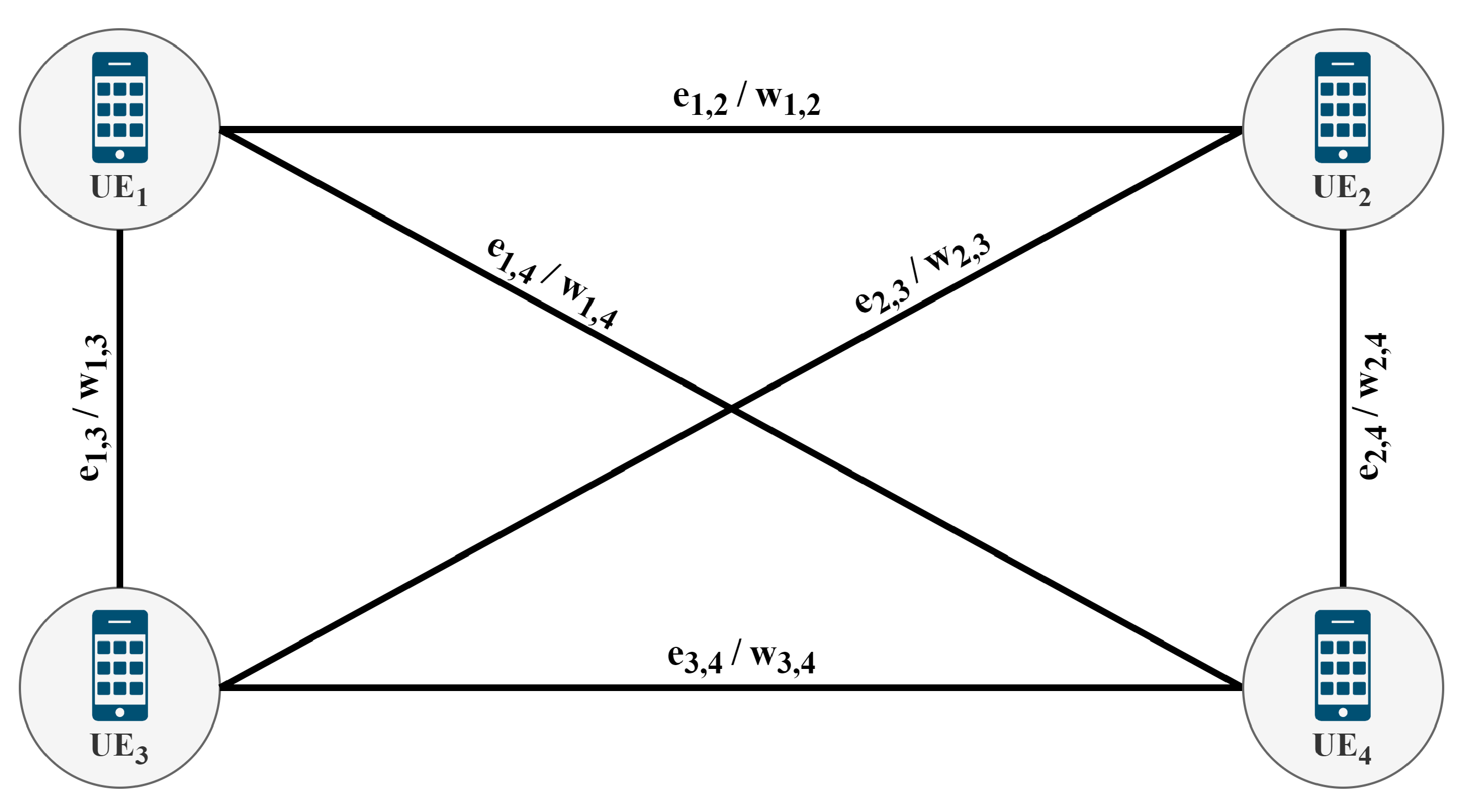

**Figure 2.**An illustrative example of the graph setup that is used by the proposed technique in order to find the optimal user pairing policy ${\mathbf{u}}_{\mathbf{i},\mathbf{j}}^{*}$ and the maximum sum rate ${R}_{\mathrm{max}}$ for $N=4$ UEs.

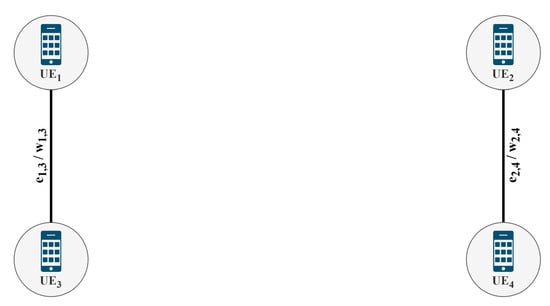

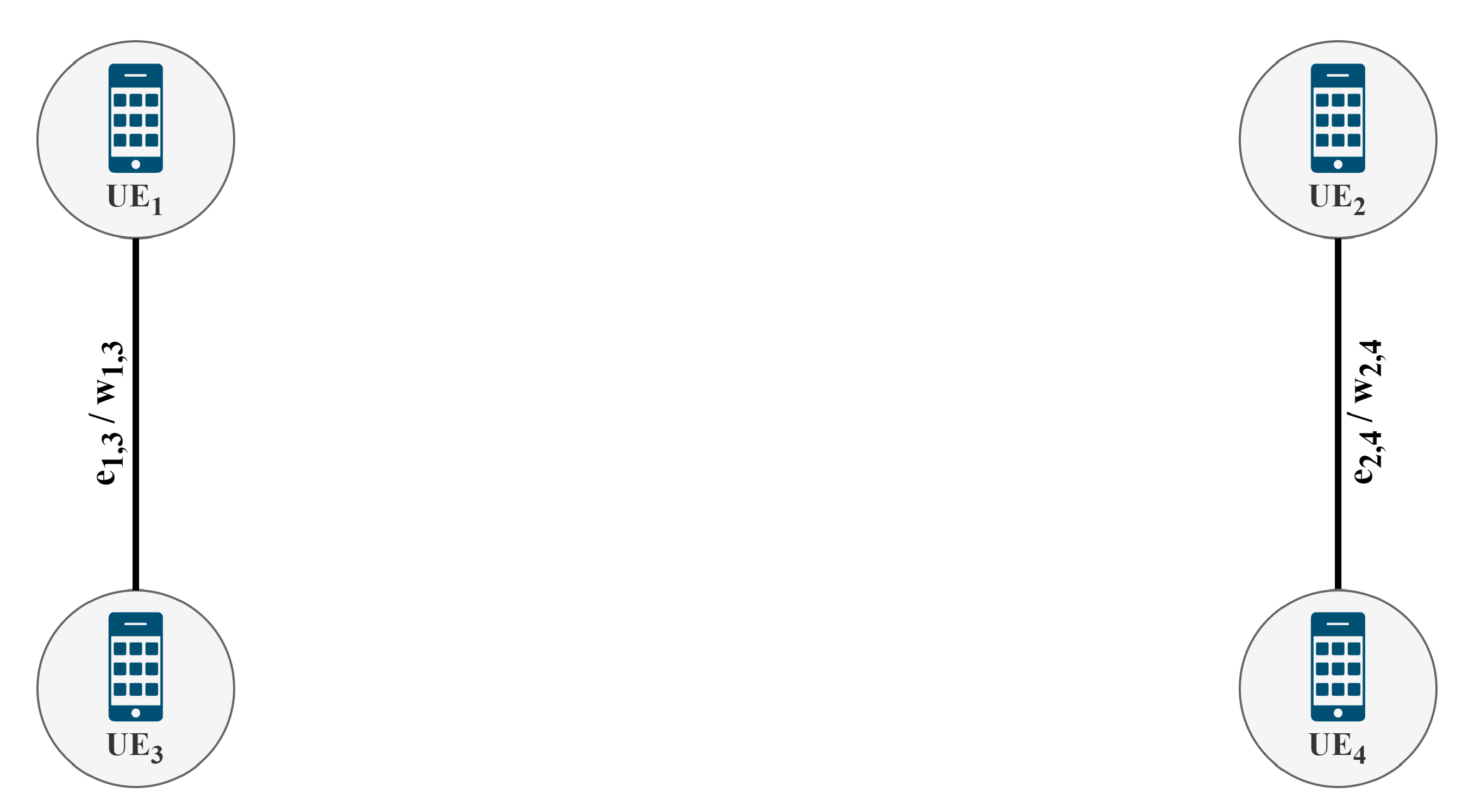

**Figure 3.**Optimal user pairing policy ${\mathbf{u}}_{\mathbf{i},\mathbf{j}}^{*}$ that gives the maximum sum rate ${R}_{\mathrm{max}}$ for $N=4$ UEs and the studied toy network.

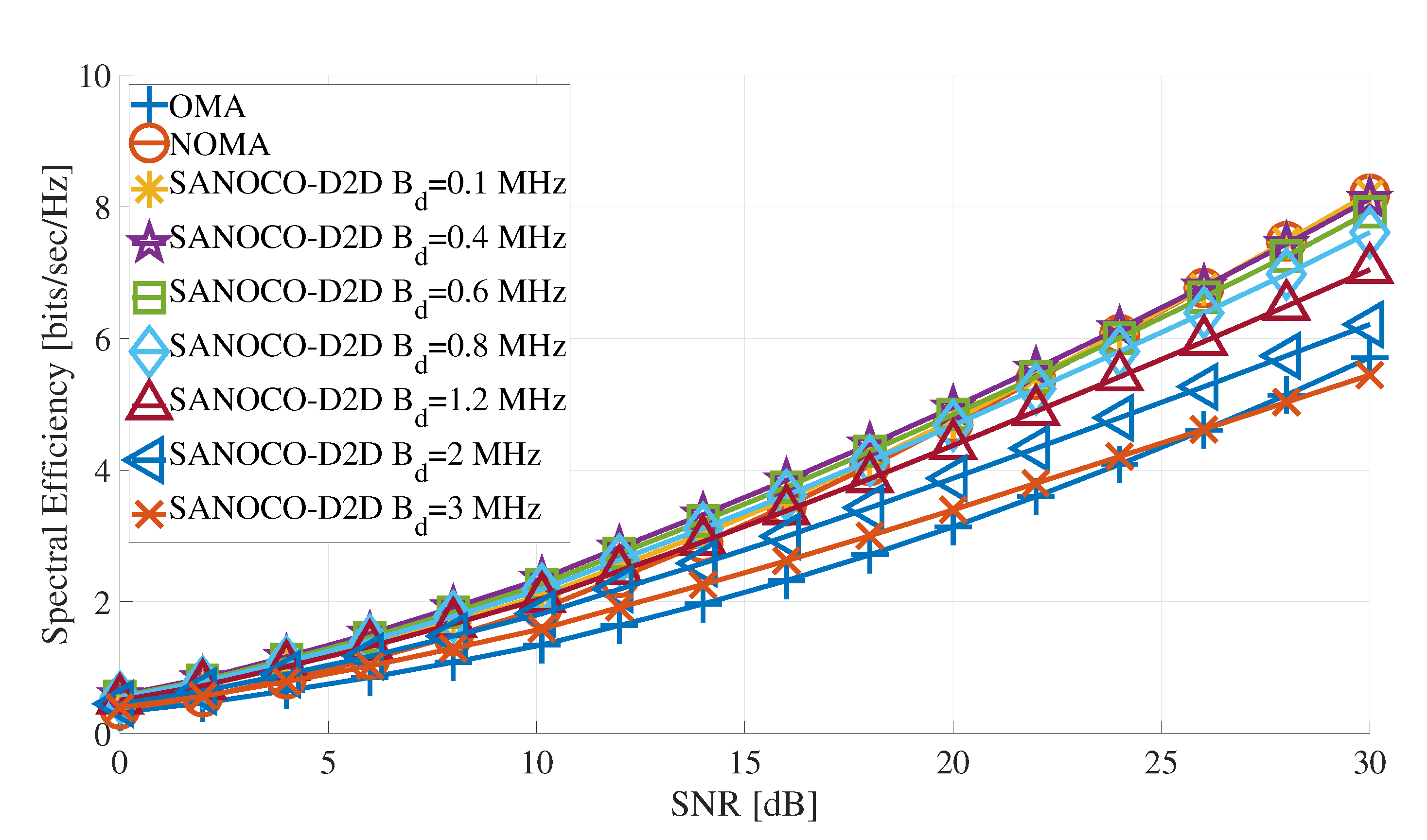

**Figure 4.**Spectral efficiency for scenario 1, $E={10}^{\circ}$ and different terrestrial D2D bandwidth values.

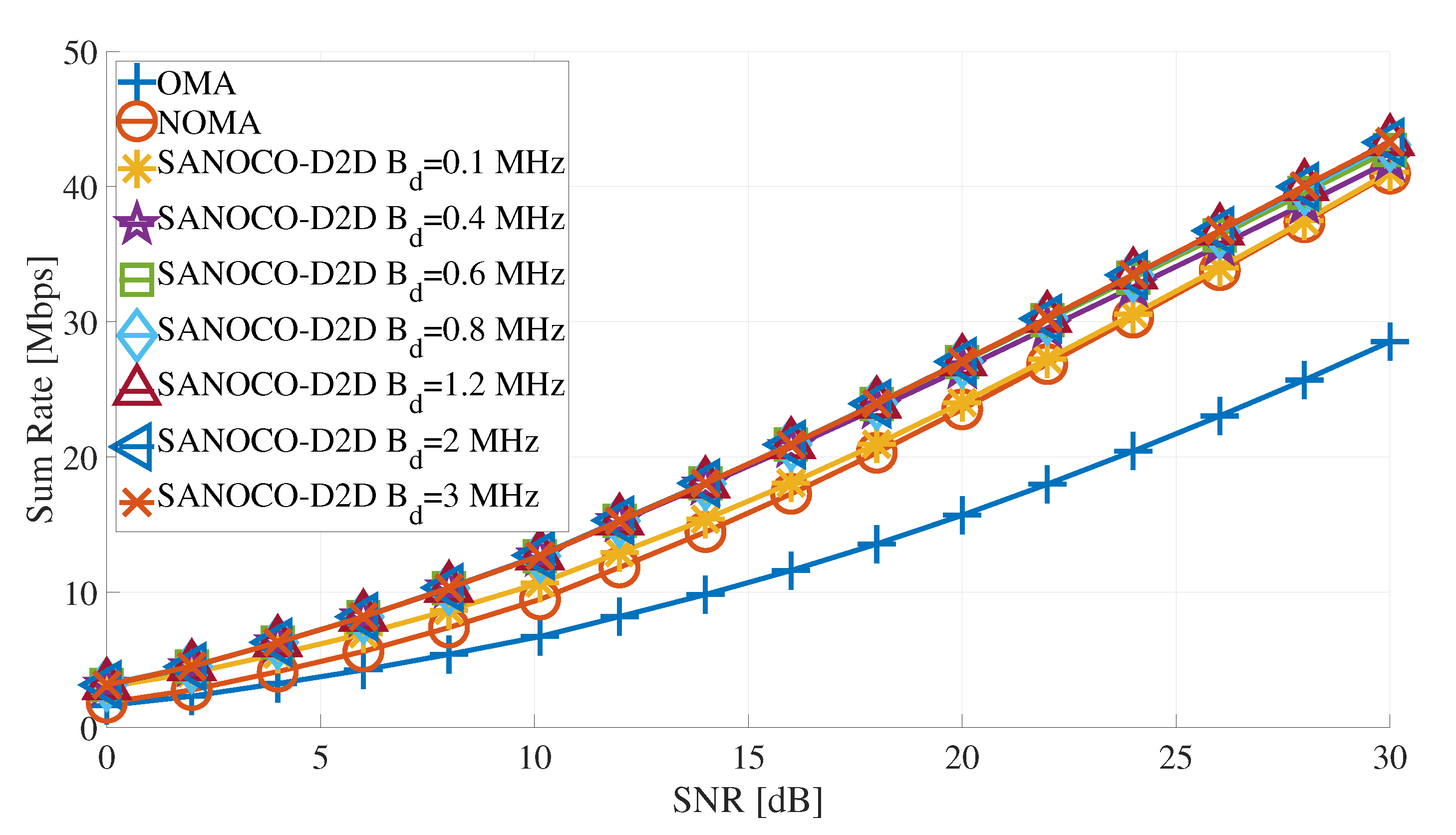

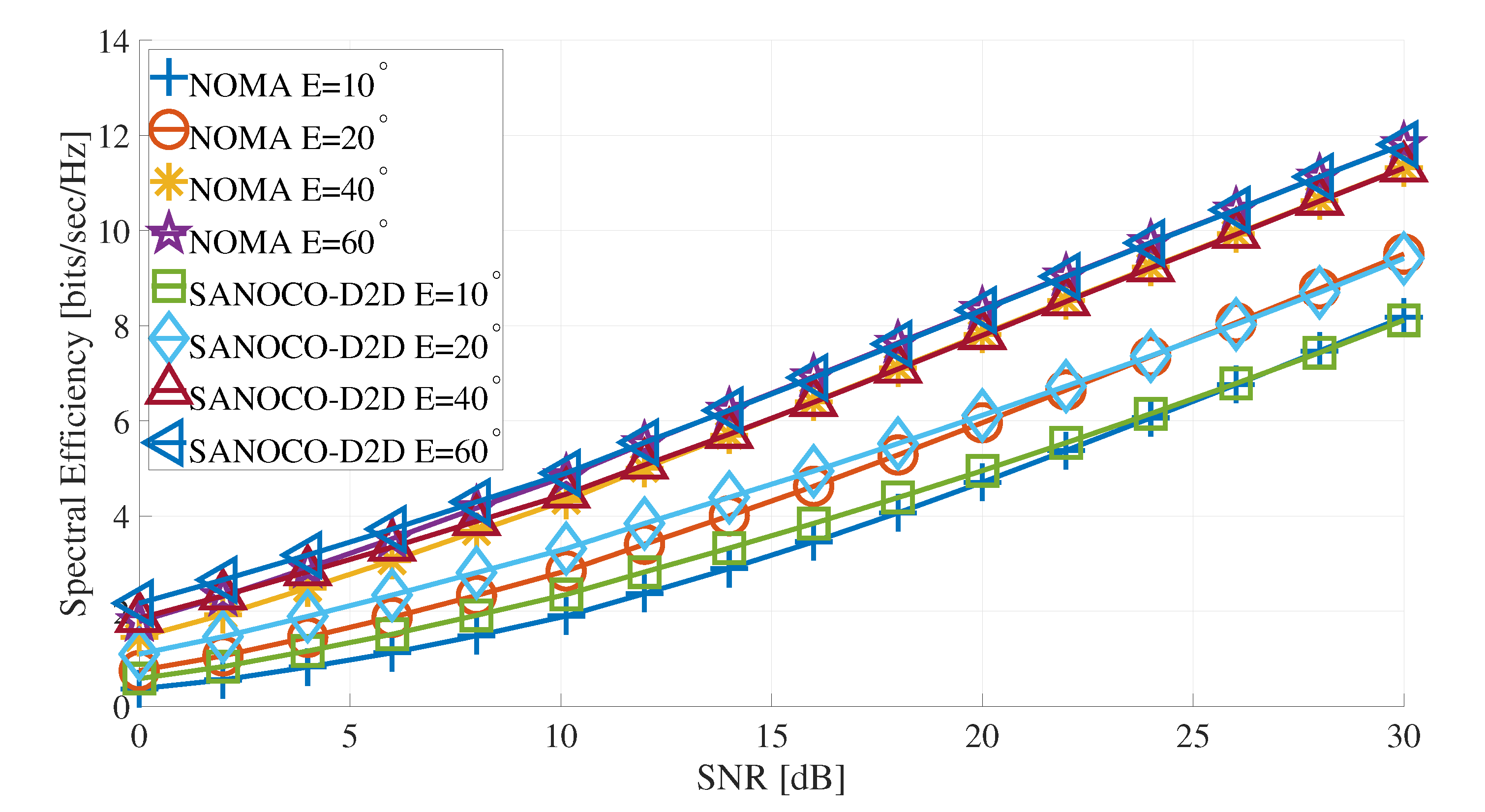

**Figure 6.**Spectral efficiency for scenario 1, ${B}_{d}=0.4$ MHz and different elevation angle values.

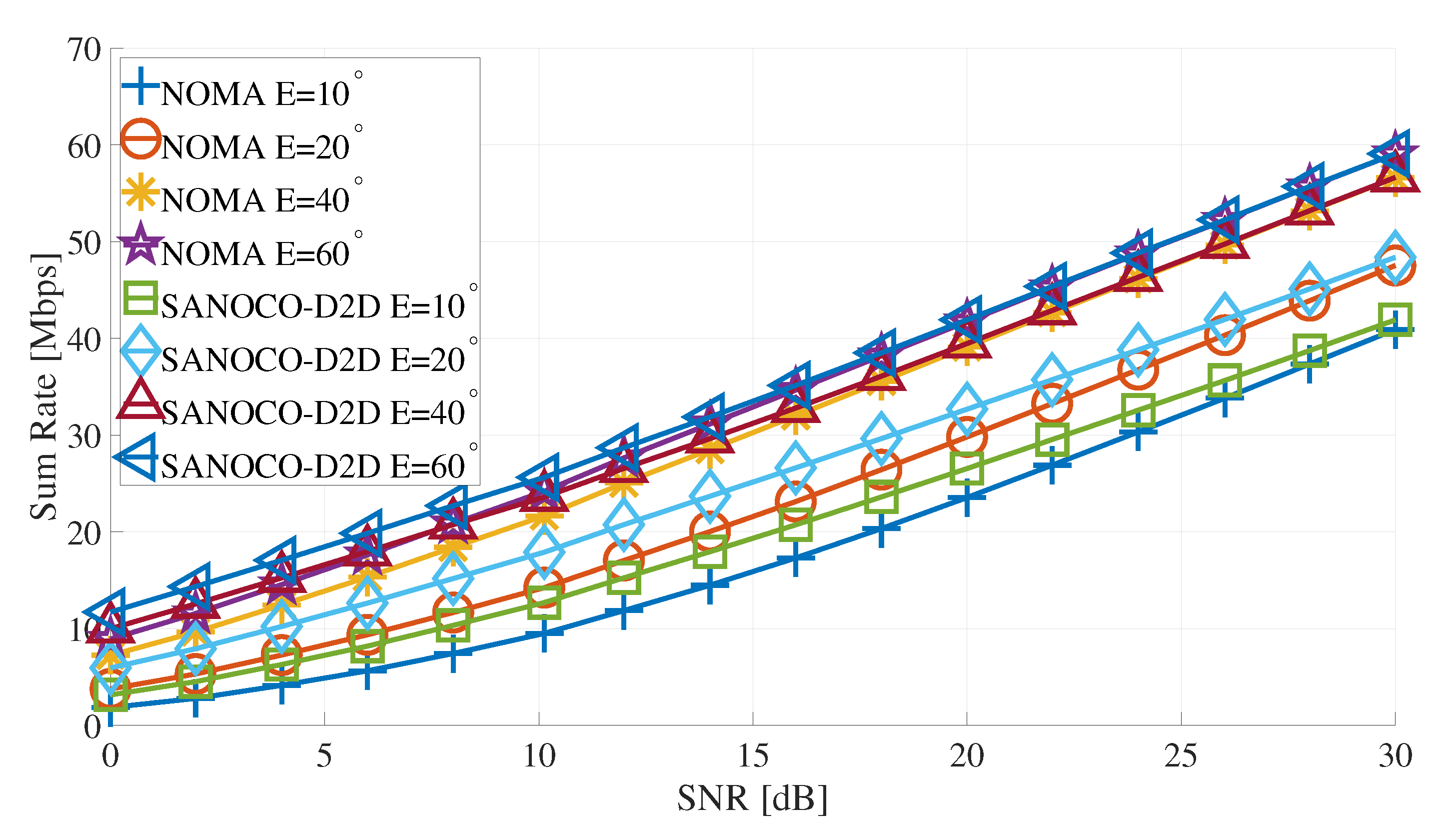

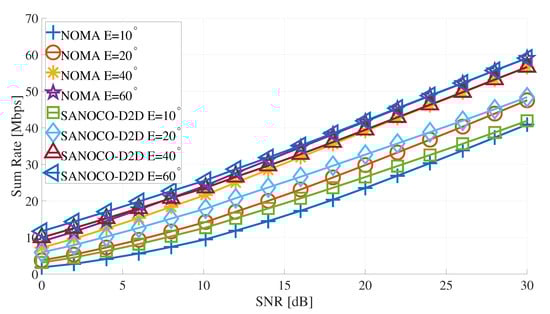

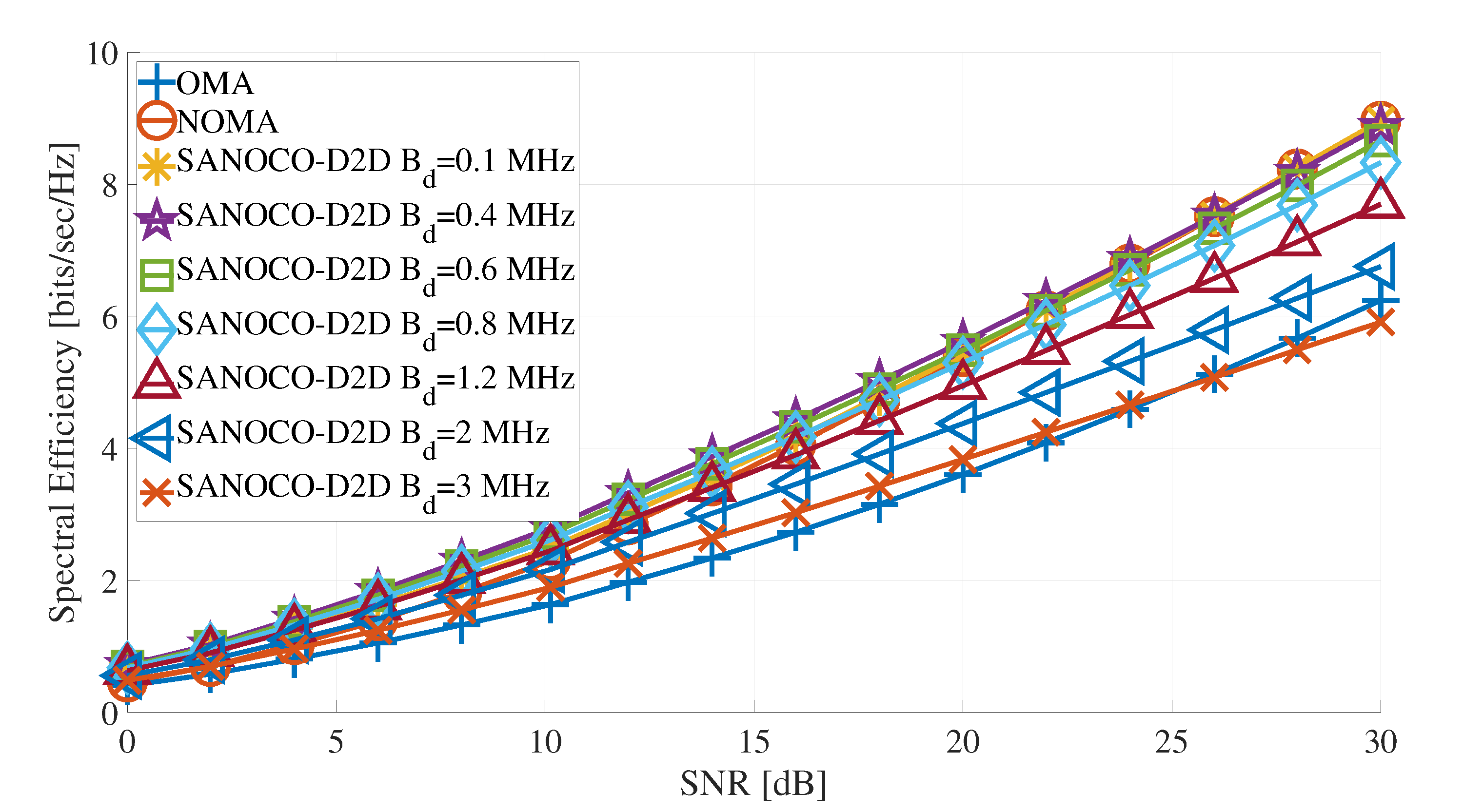

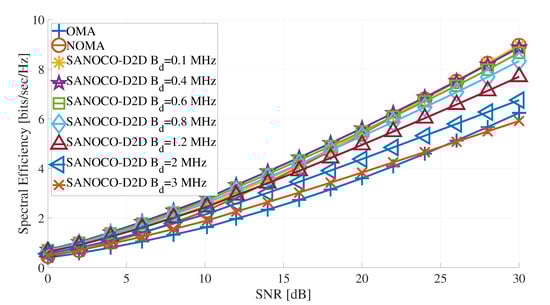

**Figure 8.**Spectral efficiency for scenario 2, $E={10}^{\circ}$ and different terrestrial D2D bandwidth values.

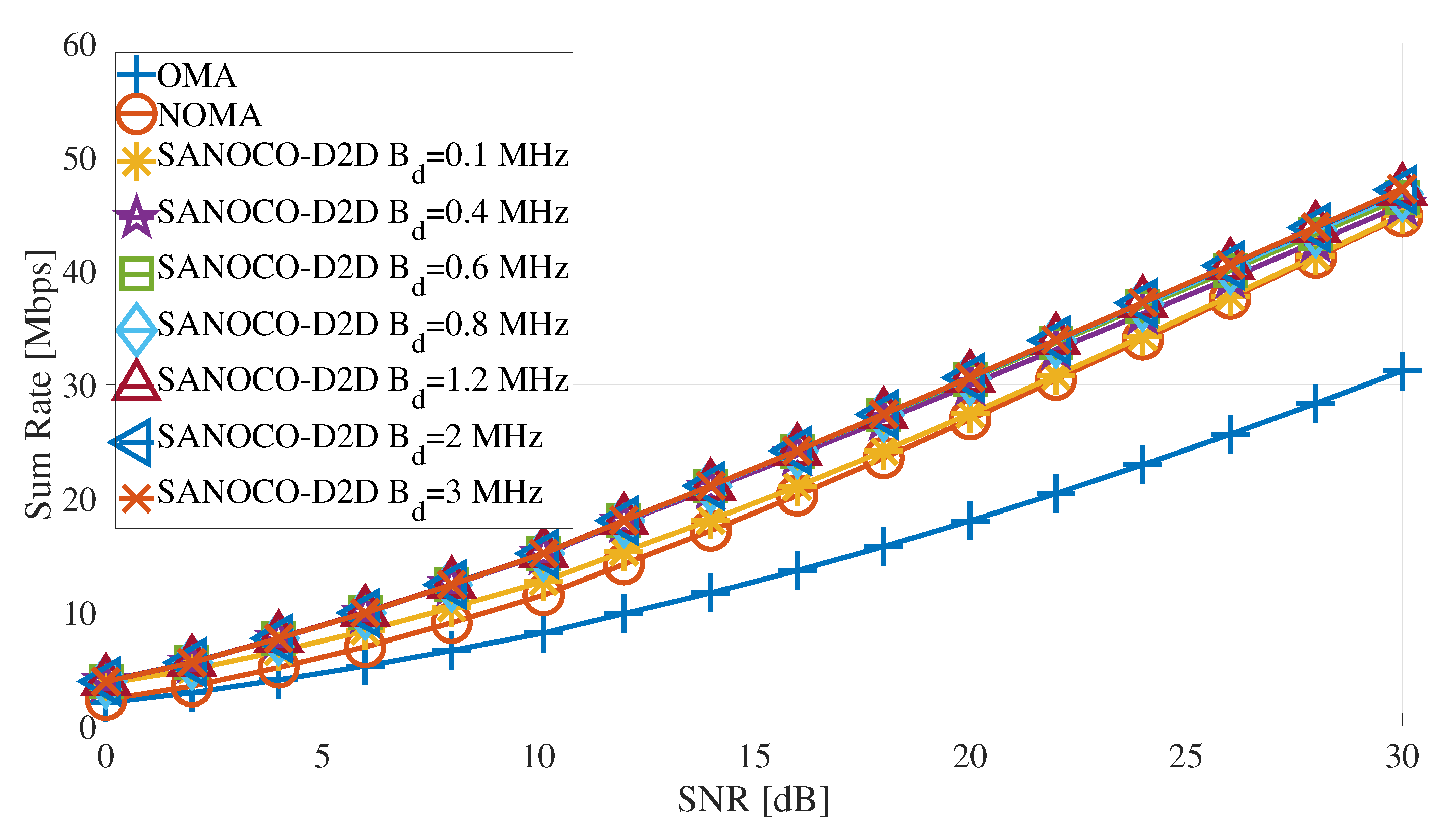

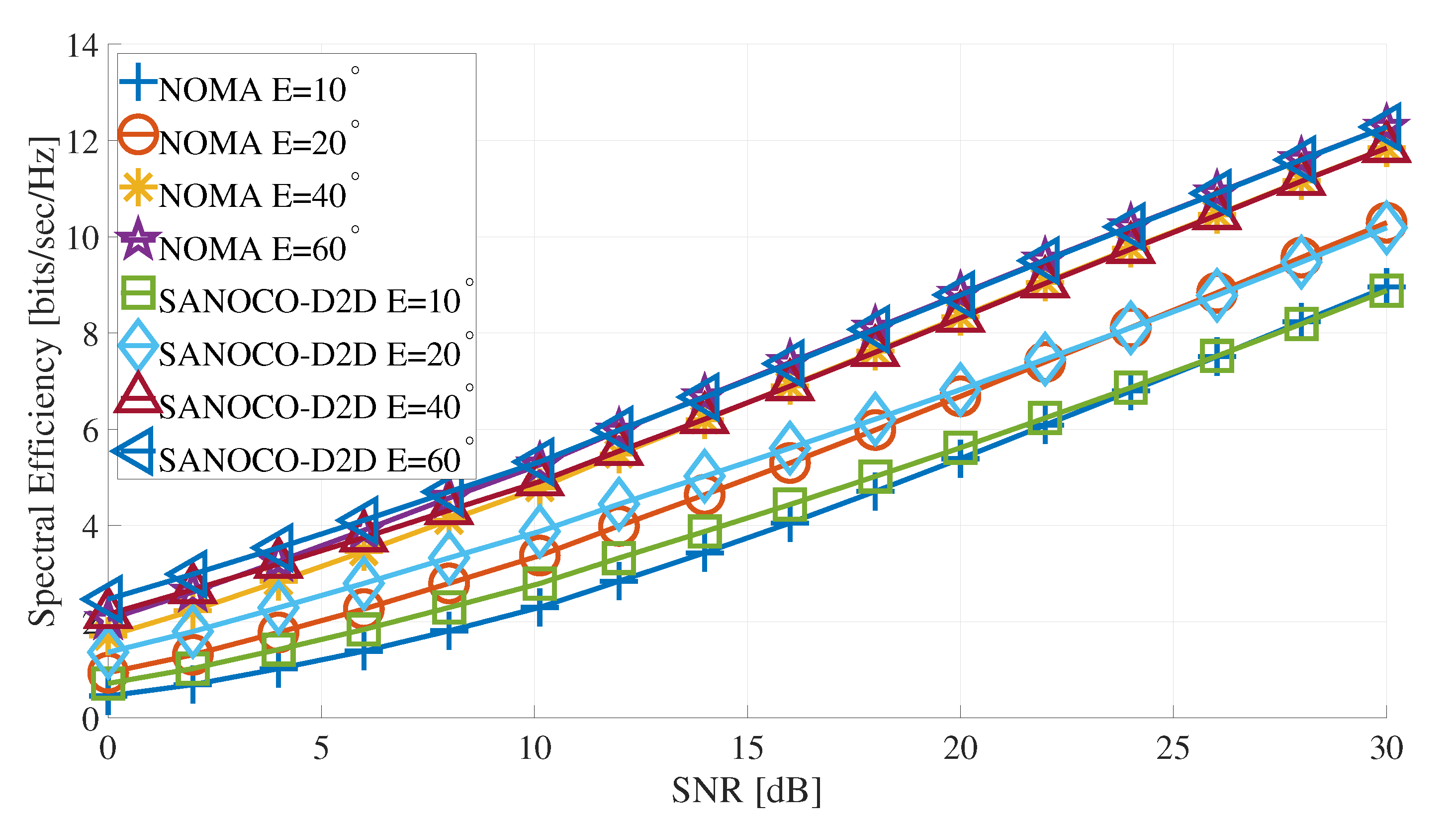

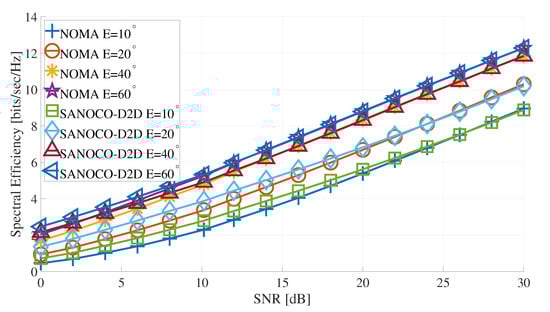

**Figure 10.**Spectral efficiency efficiency for scenario 2, ${B}_{d}=0.4$ MHz and different elevation angle values.

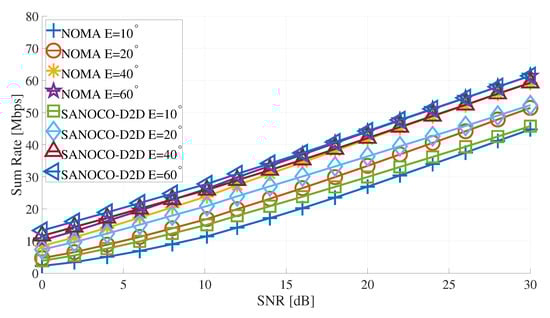

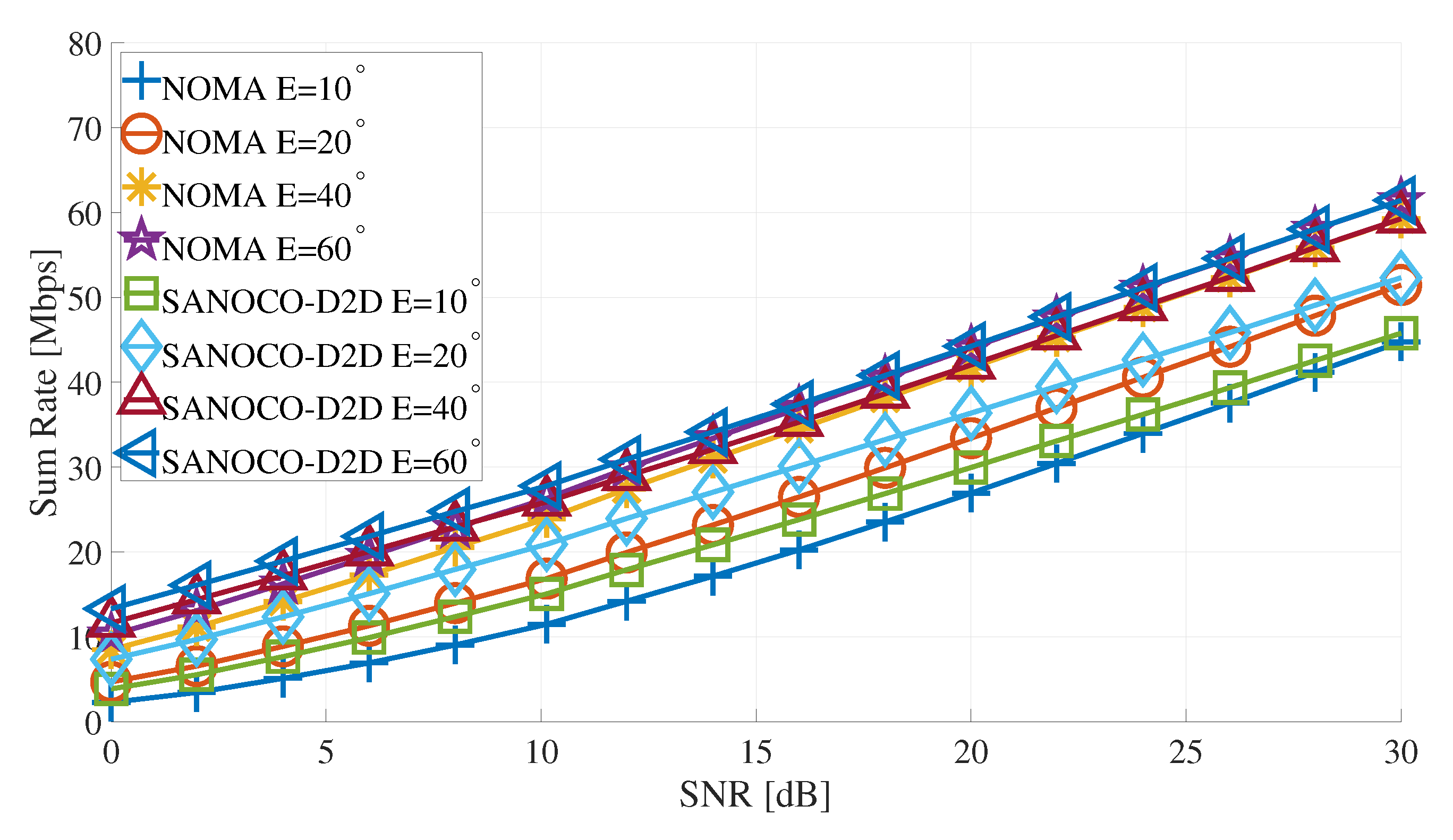

**Table 1.**An example of the different possible pairs and the corresponding achievable system sum rate for the possible formations with $N=4$ UEs.

Possible Formed Pairs | System Sum Rate |
---|---|

${P}_{1,2}=\{{\mathrm{UE}}_{1},{\mathrm{UE}}_{2}\}$ and ${P}_{3,4}=\{{\mathrm{UE}}_{3},{\mathrm{UE}}_{4}\}$ | ${w}_{1,2}+{w}_{3,4}=7$ |

${P}_{1,3}=\{{\mathrm{UE}}_{1},{\mathrm{UE}}_{3}\}$ and ${P}_{2,4}=\{{\mathrm{UE}}_{2},{\mathrm{UE}}_{4}\}$ | ${w}_{1,3}+{w}_{2,4}=12$ |

${P}_{1,4}=\{{\mathrm{UE}}_{1},{\mathrm{UE}}_{4}\}$ and ${P}_{2,3}=\{{\mathrm{UE}}_{2},{\mathrm{UE}}_{3}\}$ | ${w}_{1,4}+{w}_{2,3}=3$ |

**Table 2.**Loo’s model’s channel parameters and average range D between the LEO satellite and UE for different elevation angles and channel states.

${\mathit{E}}^{\circ}$ | Line-of-Sight | Intermediate Shadow | Deep Shadow | D (km) | ||||||
---|---|---|---|---|---|---|---|---|---|---|

M (dB) | $\Sigma $ (dB) | MP (dB) | M (dB) | $\Sigma $ (dB) | MP (dB) | M (dB) | $\Sigma $ (dB) | MP (dB) | ||

10${}^{\circ}$ | −0.7 | 1.9 | −38.3 | −18.4 | 8.6 | −14.7 | −24.4 | 9.4 | −23.9 | 2300 |

20${}^{\circ}$ | 0.7 | 2.1 | −25.5 | −10.0 | 4.9 | −23.3 | −25.3 | 7.0 | −26.5 | 1700 |

40${}^{\circ}$ | −0.2 | 1.0 | −32.9 | −8.6 | 3.8 | −16.1 | −15.1 | 2.6 | −16 | 1000 |

60${}^{\circ}$ | 0.1 | 1.9 | −27.2 | −6.9 | 2.2 | −18.6 | −13.1 | 4.2 | −19.7 | 900 |

Simulated frames | 100,000 |

Number of UEs N | 32 |

Region of interest circle radius R | 500 m |

Satellite downlink frequency ${f}_{s}$ | 1.625 GHz |

D2D operating frequency ${f}_{d}$ | 2 GHz |

Satellite Tx antenna gain ${G}_{t}^{s}$ | 24 dBi |

Satellite transmit SNR | 0–30 dB |

UE satellite Rx antenna gain ${G}_{r}^{s}$ | 2.7 dBi |

System receiver noise temperature ${T}_{s}$ | 25.7 dBK |

UE transmit SNR and ${P}_{d}$ | 23 dBm and 0.1995 Watt |

System receiver noise temperature ${T}_{d}$ | 24.6 dBK |

D2D Tx/Rx antenna gain ${G}_{g}^{d}$ with $g=\{t,r\}$ | 0 dBi |

D2D pathloss model | $127+30{log}_{10}\left(d\right)$ |

D2D log-normal shadowing | 8 dB |

Satellite Bandwidth ${B}_{s}$ | 5 MHz |

UE speed | 3 km/hr |

Maximum Doppler Shift | 40 kHz |

Terrestrial Environment | Urban |

**Table 4.**Comparative table regarding the key characteristics of the SANOCO-D2D and the scheme of [6].

SANOCO-D2D | NOMA Scheme [6] | |
---|---|---|

Complexity | Medium | Low |

D2D Cooperation | Yes | No |

Relaying Mode | Half Duplex | N/A |

CSI Overhead | Medium | Low |

Power Allocation | Optimal | Optimal |

Dynamic D2D Channel Bandwidth | Yes | N/A |

Reliability | High | Medium |

Spectral Efficiency | High | Medium |

Sum Rate | High | Medium |

Fairness | High | Low |
