Textile Materials for Wireless Energy Harvesting

Abstract

Wireless energy harvesting, a technique to generate direct current (DC) electricity from ambient wireless signals, has recently been featured as a potential solution to reduce the battery size, extend the battery life, or replace batteries altogether for wearable electronics. Unlike other energy harvesting techniques, wireless energy harvesting has a prominent advantage of ceaseless availability of ambient signals, but the common form of technology involves a major challenge of limited output power because of a relatively low ambient energy density. Moreover, the archetypal wireless energy harvesters are made of printed circuit boards (PCBs), which are rigid, bulky, and heavy, and hence they are not eminently suitable for body-worn applications from both aesthetic and comfort points of view. In order to overcome these limitations, textile-based wireless energy harvesting architectures have been proposed in the past decade. Being made of textile materials, this new class of harvesters can be seamlessly integrated into clothing in inherently aesthetic and comfortable forms. In addition, since clothing offers a large surface area, multiple harvesting units can be deployed to enhance the output power. In view of these unique and irreplaceable benefits, this paper reviews key recent progress in textile-based wireless energy harvesting strategies for powering body-worn electronics. Comparisons with other power harvesting technologies, historical development, fundamental principles of operation and techniques for fabricating textile-based wireless power harvesters are first recapitulated, followed by a review on the principal advantages, challenges, and opportunities. It is one of the purposes of this paper to peruse the current state-of-the-art and build a scientific knowledge base to aid further advancement of power solutions for wearable electronics.

1. Introduction

With ever-increasing interest in anytime anywhere access to various electronic functionalities, electronic textiles (e-textiles) have been featured in recent research. Having both functions as electronics and comfortable apparel, textile-based electronics have been advocated to remove the technical hurdle for long-term detection and sensing, data analysis and transmission for various healthcare [1,2,3], military [4], space [5] and entertainment [6] applications.

One major challenge with the current e-textile technology is power supply [7]. Most e-textile products are powered by conventional rechargeable or disposable batteries that are heavy and bulky [8]. It has been pointed out, for instance, that batteries could account for nearly 20% of the carry-on load for U.S. soldiers on mission [8,9]. Although efforts have been made to develop lightweight, flexible, and small form-factor power storage devices [10], these substitutes have not yet reached the capacity of conventional ones [8].

As an alternative approach, ambient energy harvesting has been spotlighted. Ambient energy harvesting is a technique to generate direct current (DC) electricity from ambient energy. Several energy sources have been identified for ambient energy harvesting, including wireless energy from telecommunication (e.g., mobile, satellite and Wi-Fi) signals [11,12,13], light energy from the sun and artificial light [14,15], kinetic energy from vibrations, body motions and airflow [16,17,18], and thermal energy from body and waste heat [19,20,21]. Although each source has reasons to support and oppose [22], wireless energy has a prominent advantage of ceaseless availability—wireless signals are almost always available regardless of the location and time [12]. In addition, it has recently been demonstrated that wireless energy harvesting units can be produced in inherently aesthetic and comfortable forms by using textile materials, making this option perfectly viable for powering body-worn electronics that are expected to function in both indoor and outdoor settings without interruption [23,24,25,26,27]. Moreover, multiple textile-based energy harvesters can be incorporated into clothing, which offers a large surface area for such integration, to enhance the output power. To date, various textile-based wireless energy harvesters have been proposed for these reasons.

Given this context, this paper reviews the textile-based wireless energy harvesting technology for powering wearable electronics with respect to the early concept and fundamental principles, advantages and challenges of using textile materials, fabrication techniques, recent research mainstream, and future perspectives. It is one of the purposes of this paper to summarize the current state-of-the-art and build a scientific knowledge base for this rapidly expanding realm of research.

2. Comparison of Various Ambient Energy Harvesting Techniques for Powering Wearable Electronics

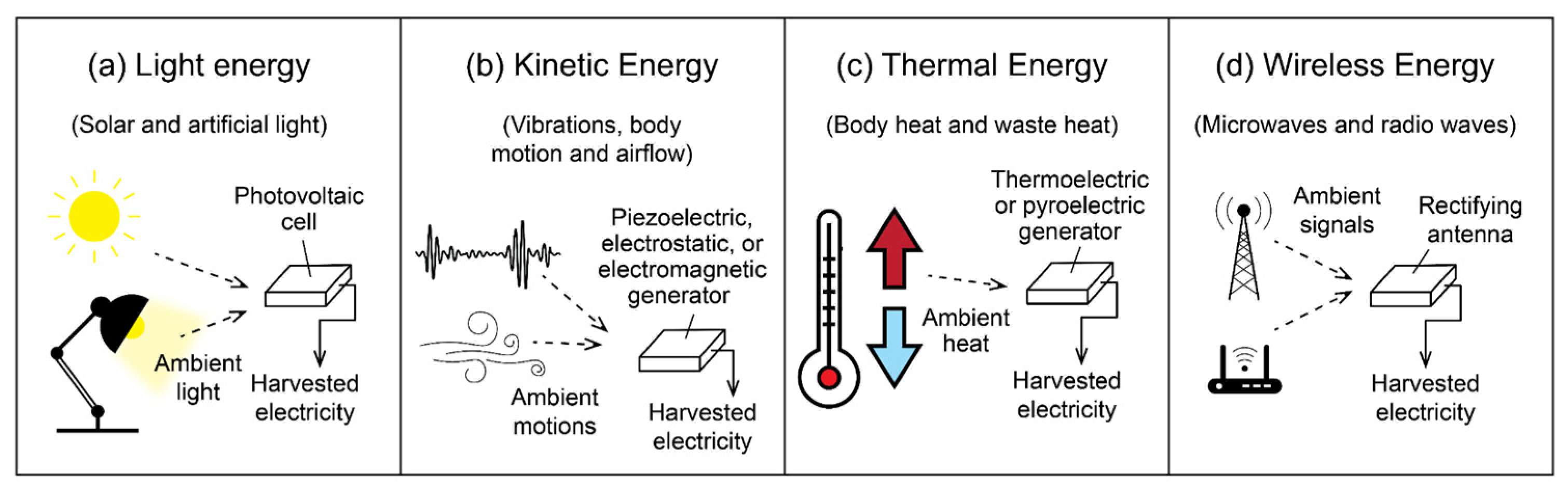

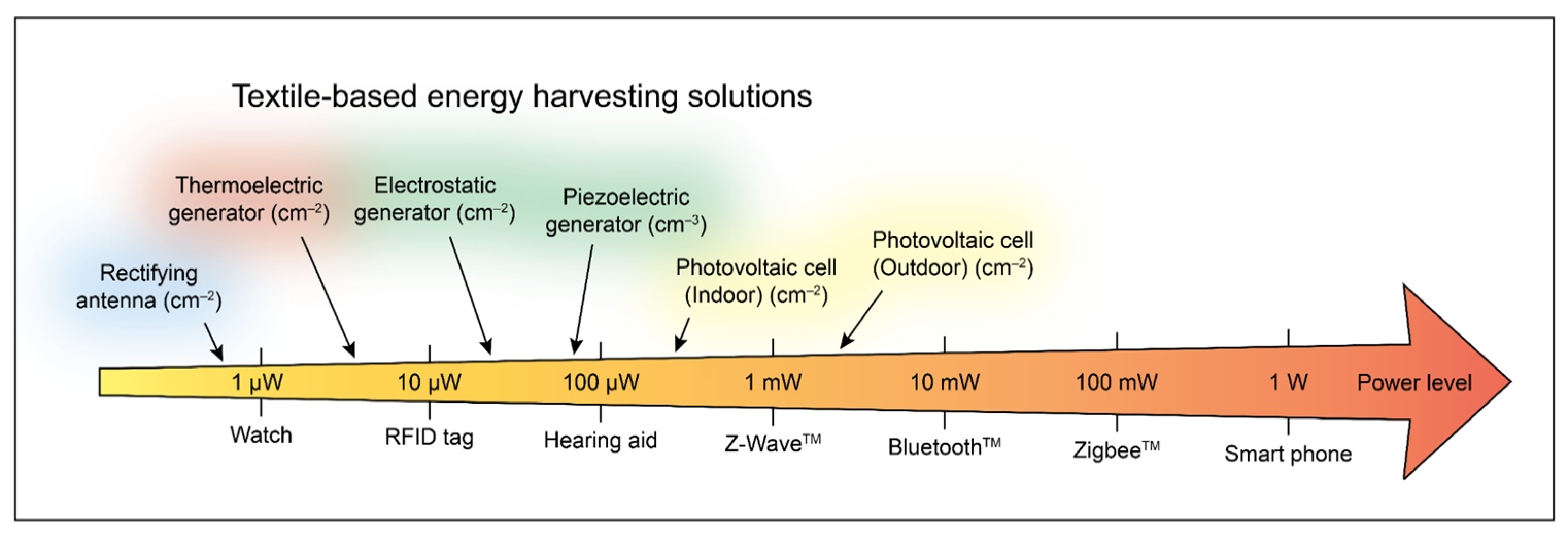

Light, kinetic, thermal, and wireless energies are the four major categories of ambient sources from which electricity can be harvested (Figure 1). Light energy is one of the most popular ambient energy sources and can be converted into electricity by a photovoltaic cell. Photovoltaic cells have been successfully rendered into textile forms for wearable applications, and a high power output was proven to be attainable in areas where there is consistent sunshine (Figure 2 and

Table 1. Ambient energy sources and harvesters for wearable applications.

Energy Category	Ambient Energy Source	Ambient Power Density	Harvesting Mechanism	Non-Textile Solution		Textile-Based Solution
				Harvestable Power Density	Efficiency (%)	Harvestable Power Density	Efficiency (%)
Light energy	Outdoor (irect sun light)	0.1 W/cm2 [48]	Photovoltaic cell	15 mW/cm2 [14]	19.44 [49]	2.15–4.6 mW/cm2 [32,33,34]	0.6–4.6 [29,30,33]
	Indoor light	0.01–1.8 mW/cm2 [14,33,50]		0.22 mW/cm2 [15]		0.14 mW/cm2 [33]
Kinetic energy	Body motion	–	Piezoelectric generator	7.8–81.25 μW/cm3 [51,52]	0.5–50 [53,54]	2–87 μW/cm3 [35,36]	27–40 [35]
			Electrostatic generator	50–193.6 μW/cm2 [55,56]	50–69.3 [56,57,58]	1.56–46.6 μW/cm2 [37,38,39]	24.94 [39]
Thermal Energy	Body heat (at rest)	1–10 mW/cm2 [20,59]	Thermoelectric generator	15.8–97.6 μW/cm2 [20,60,61]	5–24 [62,63]	5.15–7 μW/cm2 [40,41]
Wireless energy	Radiofrequency and microwave radiation	0.00018–1 μW/cm2 [64,65]	Rectenna	0.08 nW/cm2–1 μW/cm2 [66]	30–88 [66]	–	28.7–50 [24,67,68]

) [28,29,30]. However, during dark hours or in indoor environment, the output power is considerably reduced [31].

Kinetic energies in the form of vibrations, body motions, and airflow are the second category of ambient energy and can be converted into electricity by piezoelectric, electrostatic, or electromagnetic generators. Although kinetic energy harvesting has been widely examined for wearable applications [69], one of the major disadvantages of kinetic energy is discontinuous availability—kinetic energy from human motions is often intermittent and unpredictable [70].

Thermal energy, such as body or waste heat, can also be transformed into electricity, and a thermoelectric material is generally used to achieve energy conversion. Some of the commonly investigated thermoelectric materials are bismuth telluride [71], antimony telluride [72], and copper sulfides [73,74,75,76], but because of their bulkiness and brittleness, these substances are not ideal for wearable applications [8,76,77,78]. In view of these limitations, textile-based flexible thermoelectric generators made of poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS) have recently been proposed for on-body harvesting applications [8,77,79]. Yet, thermal energy harvesting has a major drawback of low efficiency—an efficient thermoelectric material needs to have both low electrical resistivity and low thermal conductivity, but such combinations are hardly achievable [80,81]. In addition, because the amount of harvestable energy depends on the temperature difference between the human body and ambient temperature, the power output is critically affected by the climate [82].

The last category of ambient source is wireless energy, which is electromagnetic radiation from telecommunication base stations (e.g., television and radio towers, cell sites, satellite stations and Wi-Fi routers), wireless mobile devices (e.g., smart phones, personal data assistants, and tablet and laptop computers), or any other wireless systems [82,83]. Unlike solar, kinetic, and thermal energies, whose availability depends on the location, time, climate, and/or other relevant factors, wireless signals are ceaselessly available in present times [12]. In wireless energy harvesting, ambient signals are converted into electricity by a rectifying antenna (or rectenna) that can be produced in an inherently aesthetic and comfortable form from textile materials; therefore, wireless energy harvesting is a propitious solution to continuously power body-worn electronics [23,24,25,26,27].

There is, however, a major challenge in wireless energy harvesting. Compared with the other ambient sources, the available ambient power density is much lower for wireless signals (Table 1) [66]. Nevertheless, wireless energy harvesting has practical significance because of its high energy conversion efficiency (Table 1). In addition, if a higher output is required, multiple rectennas could be incorporated into clothing to support more power-demanding electronics [24,84].

3. Major Milestones in Wireless Power Transfer and Wireless Energy Harvesting

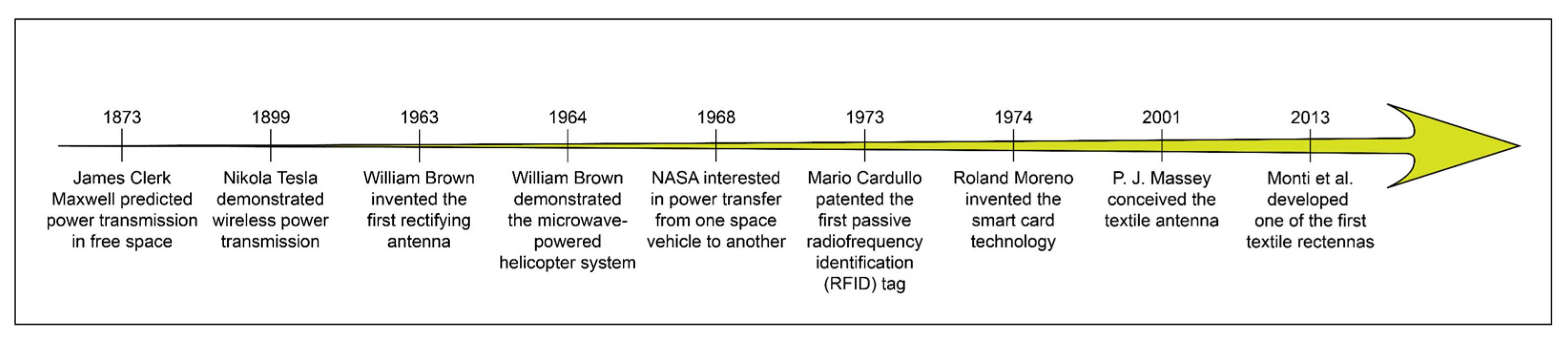

As summarized in Figure 3, the history of wireless power transmission, an essential phenomenon in wireless energy harvesting, could date back to 1873, when James Clerk Maxwell unified the theories of light and electromagnetism and predicted the transmission of electrical energy in free space [85]. This prediction was, for the first time, attested in 1899 by Nikola Tesla, who lighted a fluorescent lamp from a distance of 25 miles by using a low-frequency electrical resonant transformer circuit, commonly known as Tesla coil [86]. Although the Tesla’s innovation never found an applicable route to its commercialization [87], the concept of wireless power transmission has led to various consequential applications—it requires no physical element between the source of energy and the point of consumption, and the energy can be transferred at the speed of light with almost neglectable attenuation losses [85].

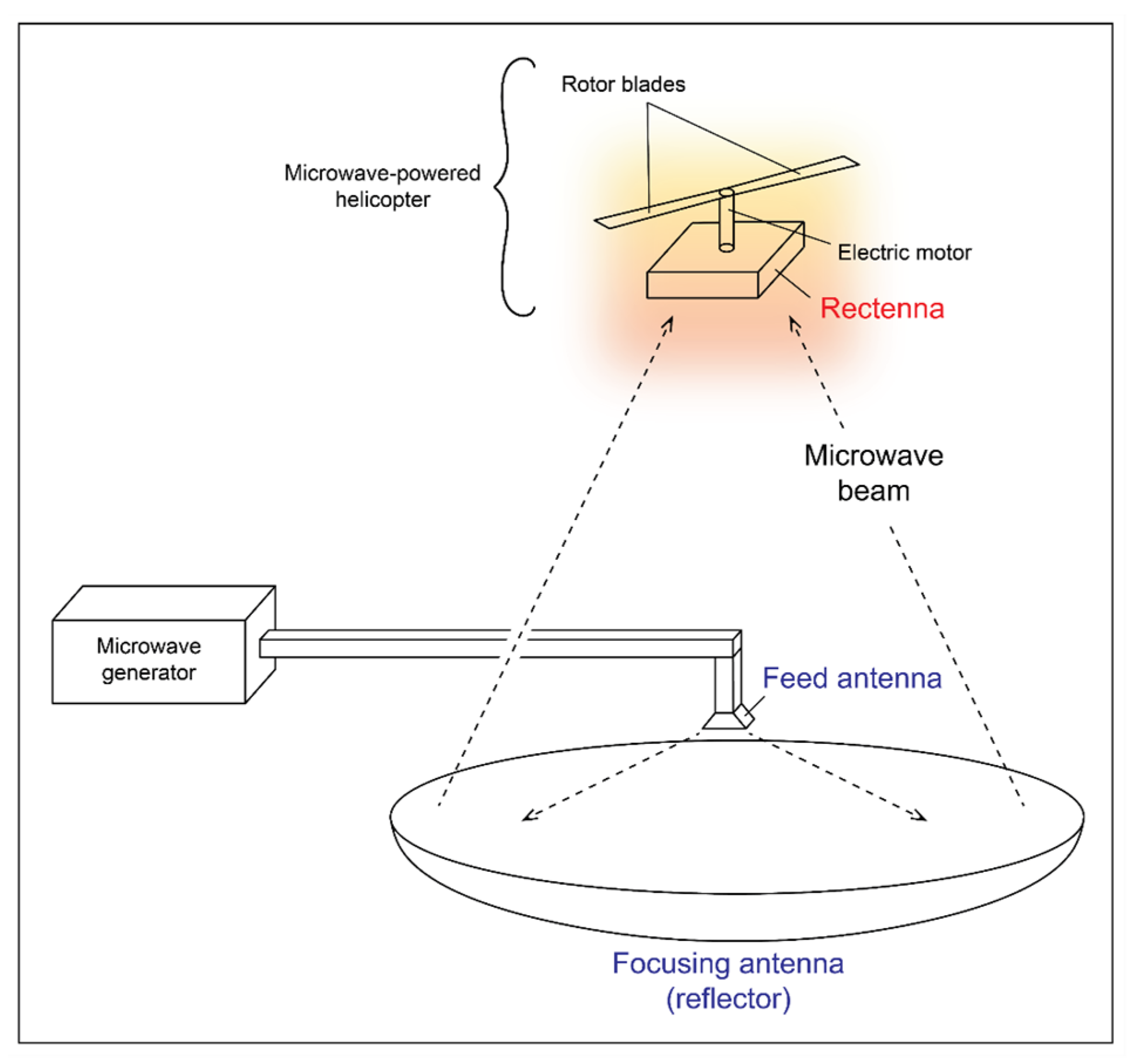

One of the most revolutionary inventions that are based on wireless power transmission is a rectenna. A rectenna is an antenna integrated with a rectifying circuit to absorb (i.e., receive) wireless signals and convert them into DC electricity [85]. The rectenna was conceived by William Brown in 1963, and a year later, a rectenna-based, microwave-powered helicopter system was developed for demonstration of wireless power transfer on television [85,90]. As illustrated in Figure 4, the helicopter system was transiently charged by the embedded rectenna that absorbed microwave energy emitted from the power source (reflector antenna) placed on the ground. This system could be seen, in one view, as one of the earliest examples of wireless energy harvesting.

Although the initial motivation for developing a rectenna was to power a high-altitude atmospheric platform by a focused microwave beam under the Raytheon Company and the United States Air Force sponsorship, the rectenna technology has soon led to various industrially important investigations and applications [90]. Those include the power transfer exploration for space vehicles by the National Aeronautics and Space Administration (NASA) in 1968 [90], development of radiofrequency identification (RFID) tag by Mario Cardullo in 1973 [93,94], and invention of smart card technology by Roland Moreno in 1974 [95,96]. Currently, various rectenna-based wireless power transmission techniques are used for charging smartphones and smartwatches [97], electric vehicles [98,99,100], and medical implants [101].

As a potential method to power textile-based electronics, the rectenna technology has also been spotlighted in the textile industry. In 2001, P.J. Massey developed the first textile-based antenna, which was constructed by combining a copper-plated ripstop nylon fabric as a conductor and a breathable foam as a dielectric spacer [88]. Although this very first example had a considerable thickness (i.e., the breathable foam alone had a thickness of 12.5 mm), significantly thin designs were soon devised [102,103,104,105]. One of the first textile-based rectennas was reported by Monti et al. in 2013 and was made of a copper-plated nylon non-woven fabric as a conductor and pile and denim fabrics as dielectric substrate [24,25,67]. The rectification circuit was on the denim layer attached to the ground plane of the antenna, and the energy conversion efficiency was as high as 50% at the frequency of 876 MHz [67].

Since then, it has been well-documented that textile-based rectennas could be an ideal candidate for powering body-worn electronics because of their innately wearable form factors [23,24,25,26], but equally importantly, textile materials could have a relatively low electrical permittivity owing to their highly porous nature, and therefore, the use of textile materials has great potential in ameliorating the gain, efficiency and frequency bandwidth of the conventional materials such as printed circuit boards (PCBs) [106,107,108,109]. The latter aspect is exceedingly invaluable for ambient wireless energy harvesting applications, where available energy is limited and enhancement of the energy conversion efficiency is of paramount importance [24]. To date, myriads of textile-based designs have been proposed for these reasons.

4. Principles of Wireless Energy Harvesting

4.1. Antennas

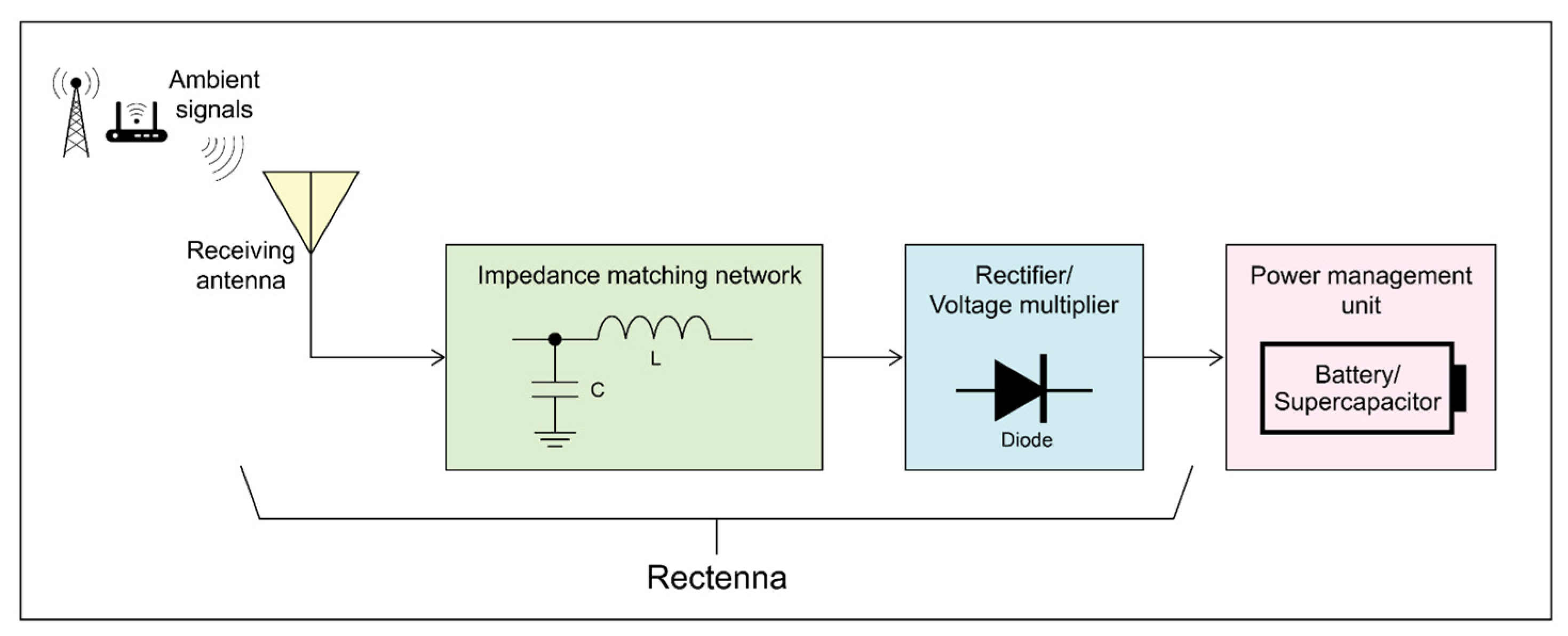

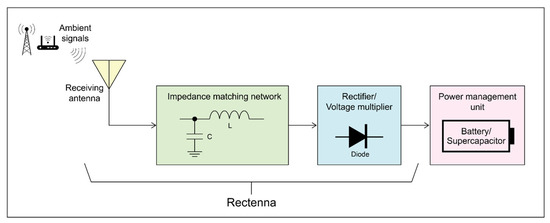

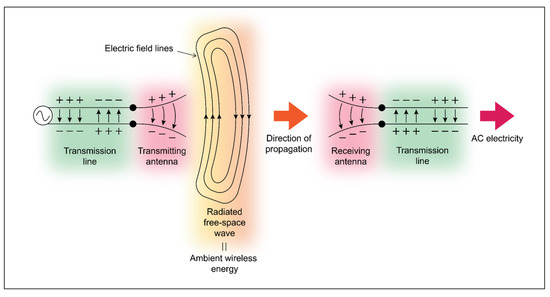

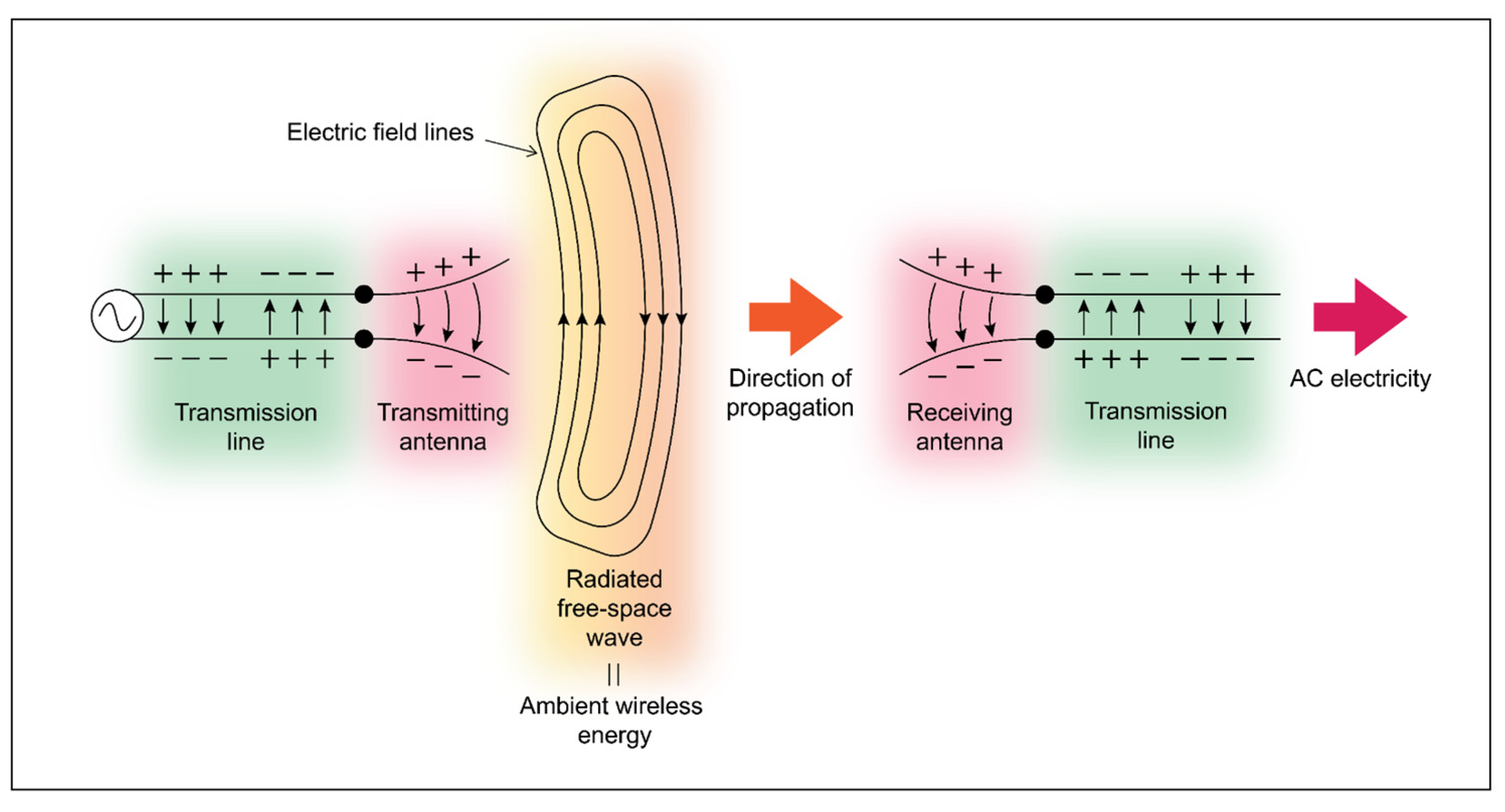

The principal components in wireless energy harvesting are drawn in Figure 5 and are a receiving antenna, an impedance matching circuit, a rectifier (or a voltage multiplier), and a load (or a power management unit). A receiving antenna is the unit that receives ambient wireless signals and converts them into alternating current (AC) electricity as depicted in Figure 6. Receiving antennas can generally be classified into wire, traveling wave, log-periodic, microstrip, aperture, and reflector antennas (Figure 7) [110], and the antenna performance, form factors and design strategies or rules are primarily dependent on the antenna type. For instance, wire antennas can be designed in a simple linear (dipole, folded dipole, sleeve, and monopole) or curved (loop) geometry with dimensions directly related to the wavelength (λ), although there are several exceptions [111]. The radiation pattens of wire antennas are typically omnidirectional and hence are commonly used to receive broadcast and cellular signals. This class of antennas was, for instance, employed by Nguyen et al. to develop a wireless energy harvesting necklace to power a fitness monitor pendant in stand-by mode [112]. In their design, a dipole antenna was bend to form a U-shape to be part of the neckless, and good comfort and aesthetic appearance were achieved in addition to the required energy harvesting performance [112].

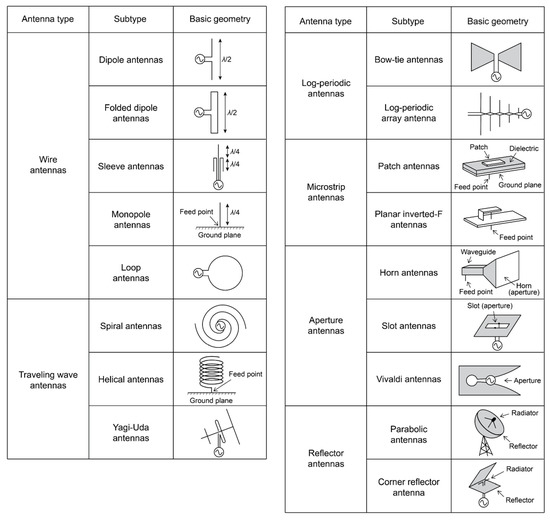

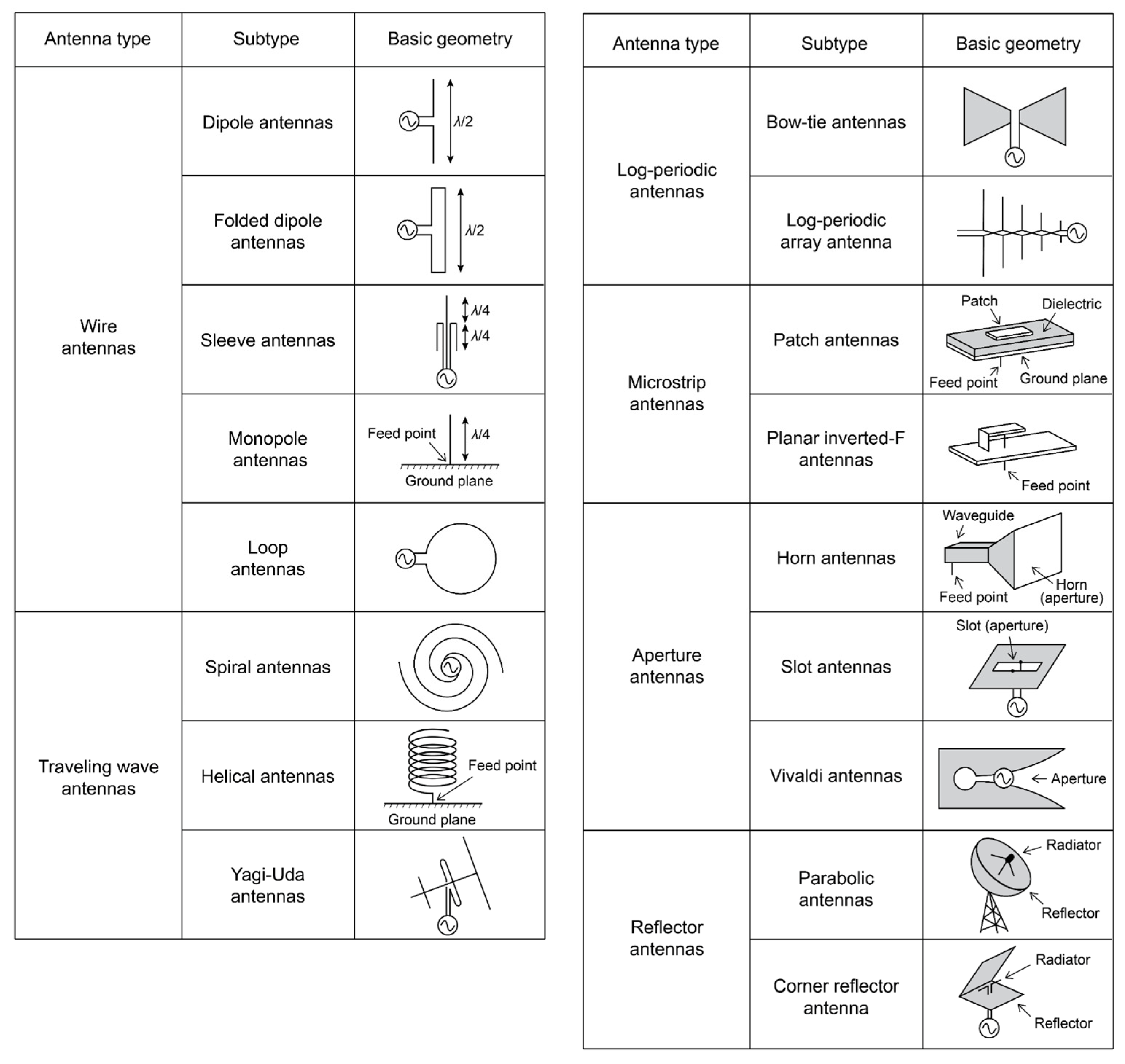

Traveling wave antennas such as spiral, helical, and Yagi-Uda antennas are based on a traveling wave on a guided structure as the main radiating mechanism [116]. Although some of these antennas can operate in the normal (omnidirectional) mode, they are usually employed as a directional antenna for better efficiency. Among various traveling wave antennas, spiral antennas have been frequently investigated in wearable wireless energy harvesting research for their low-profile planar structure and wide bandwidth [117,118]. In addition, the radiation characteristics of spiral antennas can be easily adjusted by changing the circular radius, number of turns, spacing between turns, and width of the spiral arm, making this class of antennas a great option [118].

Log-periodic antennas such as bowtie and log-periodic array antennas are wideband antennas, which exhibit essentially constant characteristics over a broad frequency range [114,119,120]. In addition, they can be produced in planar forms [121,122,123,124], and hence, log-periodic antennas are suitable for wireless energy harvesting applications that require reception of broadband frequencies, although characterized by a relatively low gain [125,126,127].

Microstrip antennas are planar antennas consisting of a conductive layer mounted on a grounded substrate, and patch antennas and planar inverted-F antennas are grouped into this category. Although microstrip antennas have several drawbacks such as narrow bandwidth, low power handling capabilities, high dielectric and conductor losses, they are the most commonly used antennas in wireless energy harvesting as they are lightweight, low-cost, high-efficiency, easy to produce from a PCB [128,129,130]. It is also favorable for rectenna applications that the ground plane layer of the patch antenna could eliminate the possibility of undesirable interference between the antenna and human body [131,132]. The dimensions of the patch antennas can be easily determined from the wavelength and the dielectric properties of the substrate by simple analytical formulas [114,133,134], but for a better accuracy, an electromagnetic simulator is often used [135].

Aperture antennas contain some sort of opening through which wireless signals are received or transmitted, and the representative examples are horn, slot, and Vivaldi antennas [114]. Among these antennas, slot and Vivaldi antennas have been studied for wearable wireless energy harvesting applications as they can be produced in compact, planar shape [136,137,138,139,140,141]. On the other hand, horn antennas are usually not considered for on-body applications because of their heavy weight and bulkiness—they are mostly employed for spacecraft and aircraft applications with the opening (aperture) covered by a dielectric material for minimization of aerodynamic impact and protection from environmental conditions [114].

Reflector antennas such as parabolic and corner reflector antennas are antennas that uses a reflector to direct wireless signals to the receiver (feed antenna) in its focal point. Hence the major advantage is their high gain [110], which is ideal for radio astronomy, satellite tracking, and deep-space communication applications [114]. On the other hand, because the reflector and feed antenna are placed physically apart, the antenna size is usually large and opted out for wearable applications [114].

4.2. Impedance Matching Networks

The second essential element in wireless energy harvesting is the impedance matching circuit, which ensures that the power received by the antenna is fully delivered to the rectifying unit without reflection [142]. For wireless energy harvesting applications, design of an impedance matching network involves complications. This is because the input impedance of the rectifier depends not only on the frequency of the input signal but also on its power level, which is fairly complex to predict as the instantaneous wireless signal available in the environment is constantly changing [24]. Consequently, designing a highly efficient impedance matching networks is of great challenge particularly for wideband applications [142], and even elimination of matching circuit has been suggested [142,143].

While various impedance matching techniques have been devised, three of the most common structures for wireless energy harvesting applications are the quarter-wave transformer, tuning stub, and lumped element networks (Figure 8). The quarter-wave transformer network is an intermediate section of length l (=λ/4) that can be placed between two systems of different impedances to match the impedance (Figure 9) [82]. Although this type of network can only match the real part of the impedance at a single frequency, they have been commonly employed for the simplicity in design and fabrication [82]. The characteristic impedance of a quarter-wave transformer (Z_Q) required to match the input transmission line impedance (Z₀) and the load impedance (Z_L) is given by [144]:

$$Z_{\mathrm{Q}}=\sqrt{Z_0{Z}_{\mathrm{L}}}$$

(1)

The width of the trace ($W_{\mathrm{T}}$) can then be determined by plugging the value of Z_Q into Equation (2) and solving it for $W_{\mathrm{T}}$ [114]:

$$Z_{\mathrm{Q}}=\{\begin{array}{ll}\frac{60}{\sqrt{{\epsilon }_{\mathrm{r},eff}^{\prime }}}\ln \left(\frac{8h_{\mathrm{S}}}{W_{\mathrm{T}}}+\frac{W_{\mathrm{T}}}{4h_{\mathrm{S}}}\right)& \mathrm{for} \frac{W_{\mathrm{T}}}{h_{\mathrm{S}}}\le 1\\ \frac{120\pi }{\sqrt{{\epsilon }_{\mathrm{r},\mathrm{eff}}^{\prime }}\left[\frac{W_{\mathrm{T}}}{h_{\mathrm{S}}}+1.393+0.667\ln \left(\frac{W_{\mathrm{T}}}{h_{\mathrm{S}}}+1.444\right)\right]}& \mathrm{for} \frac{W_{\mathrm{T}}}{h_{\mathrm{S}}}>1\end{array}$$

(2)

where ${\epsilon }_{\mathrm{r},\mathrm{eff}}^{\prime }$ and $h_{\mathrm{S}}$ are the effective dielectric constant and thickness of the substrate, respectively. For W_T/h_S ≫ 1, ${\epsilon }_{\mathrm{r},\mathrm{eff}}^{\prime }$ can be calculated by [114]:

$${\epsilon }_{\mathrm{r},\mathrm{eff}}^{\prime }=\frac{{\epsilon }_{\mathrm{r}}^{\prime }+1}{2}+\frac{{\epsilon }_{\mathrm{r}}^{\prime }-1}{2}{\left(1+\frac{12h_{\mathrm{S}}}{W_{\mathrm{T}}}\right)}^{\raisebox{1ex}{$-1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$$

(3)

where ${\epsilon }_{\mathrm{r}}^{\prime }$ is the dielectric constant of the substrate.

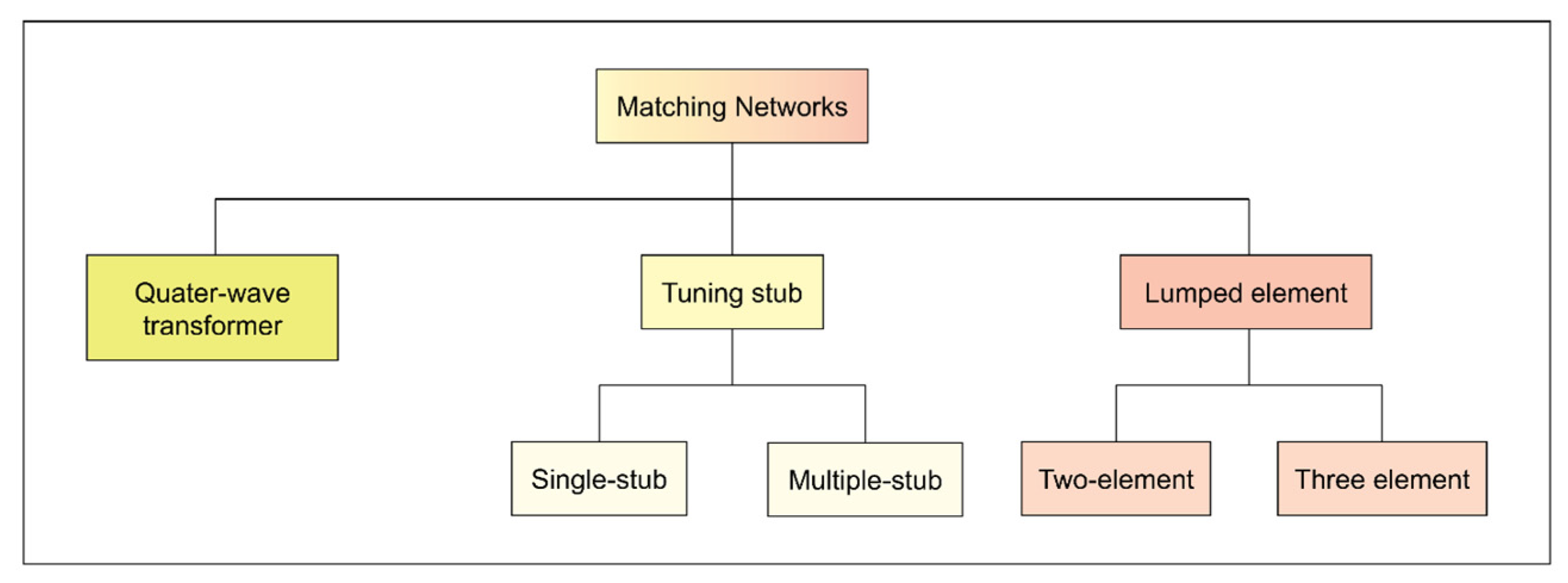

Figure 8. Matching network taxonomy for wireless energy harvesting applications, redrawn from [82] (p. 76).

Figure 8. Matching network taxonomy for wireless energy harvesting applications, redrawn from [82] (p. 76).

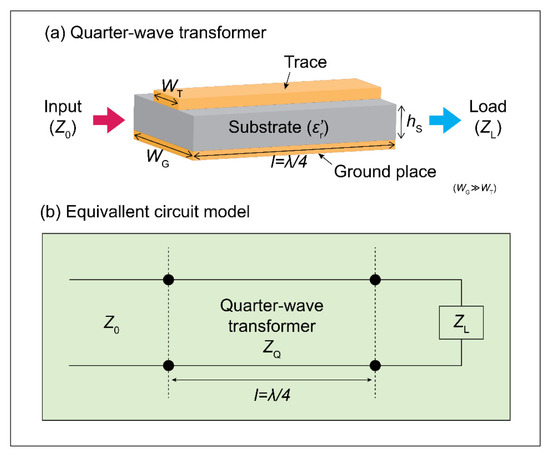

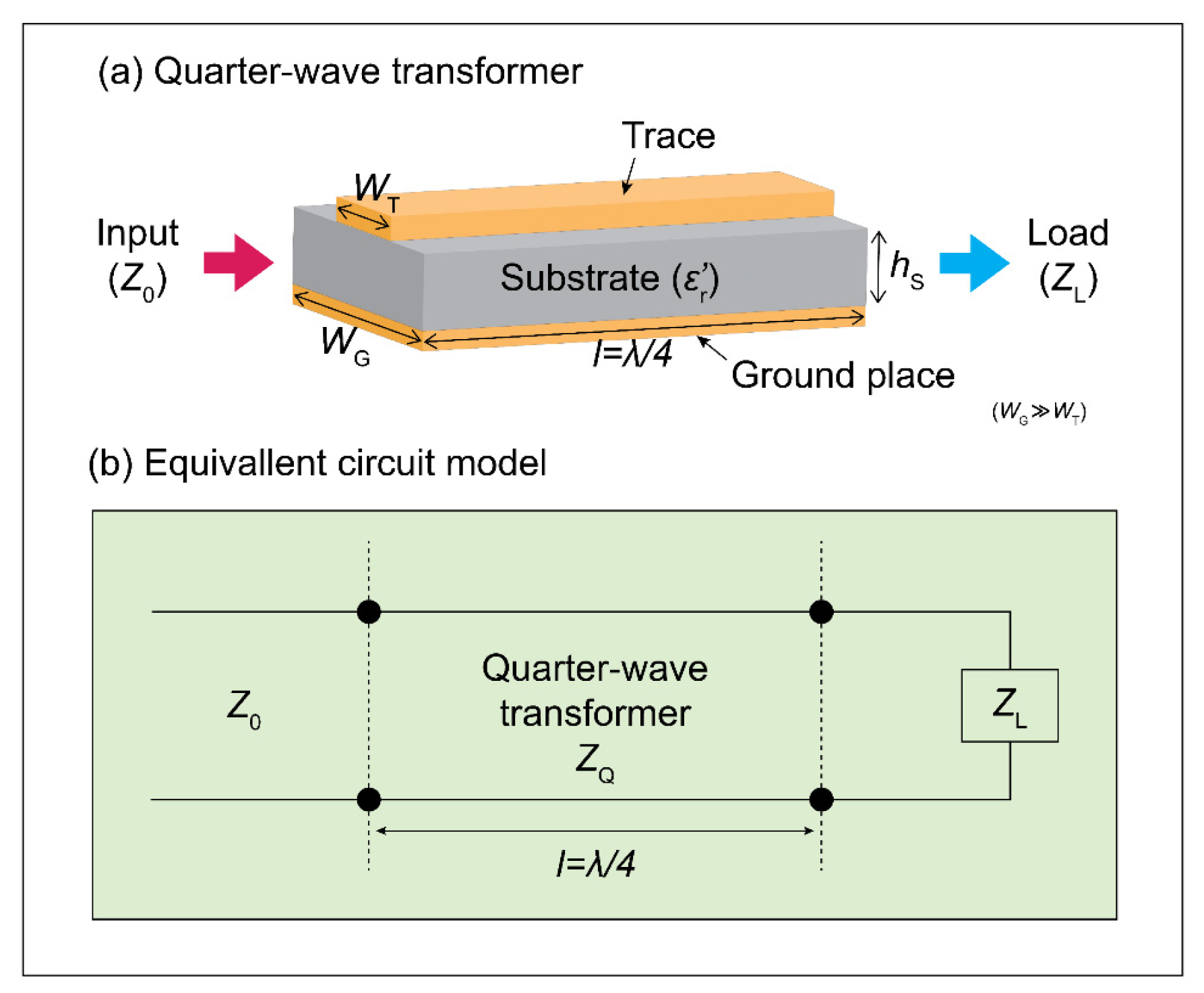

Figure 9. Schematic illustration of (a) a quarter-wave transformer and (b) its equivalent circuit model, redrawn from [145] (p. 36) and [144] (p. 247).

Figure 9. Schematic illustration of (a) a quarter-wave transformer and (b) its equivalent circuit model, redrawn from [145] (p. 36) and [144] (p. 247).

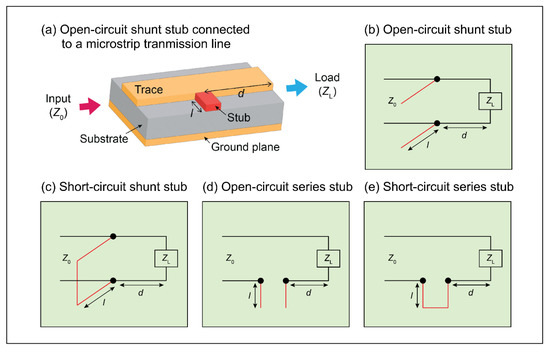

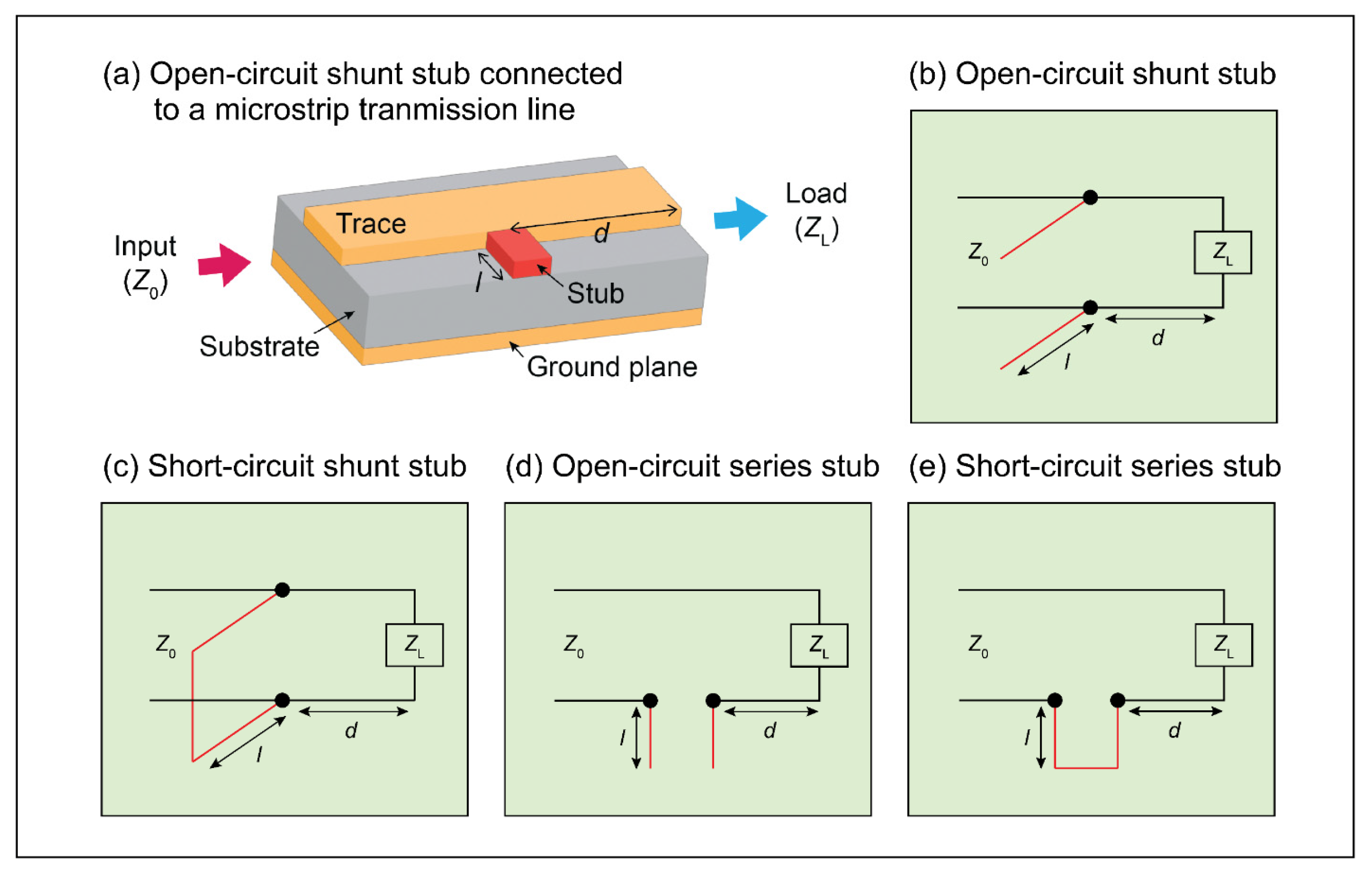

The stub tuning network is an impedance matching technique based on another transmission line connected to the main transmission line, and some of the topologies are shown in Figure 10 [146]. Among these configurations, open-circuit shunt stubs are predominantly used in wireless energy harvesting applications as they are the simplest to fabricate [144]. In order to determine the appropriate position and dimensions of a tuning stub, analytical formulas can be used. For the position of the tuning stub, its distance from the load (d) is chosen so as to cancel the real part of the load impedance (or admittance) and hence can be calculated by [144]:

$$d=\{\begin{array}{ll}\frac{\lambda }{2\pi }{\tan }^{-1}A& \mathrm{for} A\ge 0\\ \frac{\lambda }{2\pi }\left(\pi +{\tan }^{-1}A\right)& \mathrm{for} A<0\end{array}$$

(4)

where A is given by [144]:

$$A=\{\begin{array}{l}\begin{array}{ll}\frac{X_{\mathrm{L}}\pm \sqrt{\frac{R_{\mathrm{L}}\left[{\left(Z_0-R_{\mathrm{L}}\right)}^2+X_{\mathrm{L}}^2\right]}{Z_0}}}{R_{\mathrm{L}}-Z_0}& \mathrm{for}\mathrm{shunt}\mathrm{stubs}\mathrm{with}{R}_{\mathrm{L}}\ne Z_0\\ \frac{-X_{\mathrm{L}}}{2Z_0}& \mathrm{for}\mathrm{shunt}\mathrm{stubs}\mathrm{with}{R}_{\mathrm{L}}=Z_0\end{array}\\ \begin{array}{ll}\frac{B_{\mathrm{L}}\pm \sqrt{\frac{G_{\mathrm{L}}\left[{\left(Y_0-G_{\mathrm{L}}\right)}^2+B_{\mathrm{L}}^2\right]}{Y_0}}}{G_{\mathrm{L}}-Y_0}& \mathrm{for}\mathrm{series}\mathrm{stubs}\mathrm{with}{G}_{\mathrm{L}}\ne Y_0\\ \frac{-B_{\mathrm{L}}}{2Y_0}& \mathrm{for}\mathrm{series}\mathrm{stubs}\mathrm{with}{G}_{\mathrm{L}}=Y_0\end{array}\end{array}$$

(5)

where R_L and X_L are the real and imaginary parts of the load impedance, respectively; G_L and B_L are the real and imaginary parts of the load admittance, respectively; and Y₀ is the input transmission line admittance.

The stub length (l), on the other hand, is chosen to introduce a capacitive or inductive reactance (or susceptance) that has the same magnitude but in opposite sign to match the imaginary part [146,148]. Hence, the stub length is given by [144]:

$$l=\{\begin{array}{l}\begin{array}{l}\frac{\lambda }{2\pi }{\tan }^{-1}\left(\frac{B_{\mathrm{S}}}{Y_0}\right)\mathrm{for}\mathrm{an}\mathrm{open}-\mathrm{circuit}\mathrm{shunt}\mathrm{stub}\\ \frac{-\lambda }{2\pi }{\tan }^{-1}\left(\frac{Y_0}{B_{\mathrm{S}}}\right)\mathrm{for}\mathrm{a}\mathrm{short}-\mathrm{circuit}\mathrm{shunt}\mathrm{stub}\end{array}\\ \begin{array}{l}\frac{-\lambda }{2\pi }{\tan }^{-1}\left(\frac{Z_0}{X_{\mathrm{S}}}\right)\mathrm{for}\mathrm{an}\mathrm{open}-\mathrm{circuit}\mathrm{series}\mathrm{stub}\\ \frac{\lambda }{2\pi }{\tan }^{-1}\left(\frac{X_{\mathrm{S}}}{Z_0}\right)\mathrm{for}\mathrm{a}\mathrm{short}-\mathrm{circuit}\mathrm{series}\mathrm{stub}\end{array}\end{array}$$

(6)

where X_S and B_S are the imaginary parts of the stub impedance and admittance, respectively.

Although the stub-based method can match both real and imaginary parts of the impedance [82], a single stub will only achieve a perfect match at one specific frequency. This is because the reactance is a function of the frequency, but such compensation can be only done by changing the physical position (d) of the stub [146]. For variable matching circuits, therefore, a second stub is required to provide an additional degree of freedom. More details on the multi-stub strategies are described in [149,150].

Lumped elements can also be used to achieve the impedance matching. Based on the topology, lumped elements can be categorized into L-type, Π-type, and T-type networks (Figure 11). The L-type network, which has a simple architecture that resembles the letter L, usually consists of a series capacitor with a shunt (parallel) inductor (or vice versa) [148]. The function of the shunt component is to transform a larger impedance down to a smaller value equating the real part of the impedances between the source and the load. Thus, the shunt susceptance (B) is given by [144]:

$$B=\{\begin{array}{ll}\frac{X_{\mathrm{L}}\pm \sqrt{\frac{R_{\mathrm{L}}}{Z_0}}\sqrt{R_{\mathrm{L}}^2+X_{\mathrm{L}}^2-Z_0{R}_{\mathrm{L}}}}{R_{\mathrm{L}}^2+X_{\mathrm{L}}^2}& \mathrm{for}{Z}_0<R_{\mathrm{L}}\\ \pm \frac{\sqrt{\frac{Z_0-R_{\mathrm{L}}}{R_{\mathrm{L}}}}}{Z_0}& \mathrm{for}{Z}_0>R_{\mathrm{L}}\end{array}$$

(7)

On the other hand, the series component cancels out any reactive components by resonating with equal and opposite reactance [151], and accordingly the series reactance is given by [144]:

$$X=\{\begin{array}{ll}\frac{1}{B}+\frac{X_{\mathrm{L}}{Z}_0}{R_{\mathrm{L}}}-\frac{Z_0}{B{R}_{\mathrm{L}}}& \mathrm{for}{Z}_0<R_{\mathrm{L}}\\ \pm \sqrt{R_{\mathrm{L}}\left(Z_0-R_{\mathrm{L}}\right)}-X_{\mathrm{L}}& \mathrm{for}{Z}_0>R_{\mathrm{L}}\end{array}$$

(8)

Therefore, these two elements of the L-type network together leave the source driving an equal load for the maximum power transfer.

One of the major drawbacks of the L-type network is its inability to control the matching bandwidth. For applications that require a narrow bandwidth such as to match a narrowband antenna, the Π-type or T-type networks can be formed by introducing an additional element [152]. The Π-type network has a configuration resembling the Greek letter Π, whereas the T-type network has a T-like configuration and is a dual of the Π-type network; the third element provides an additional degree of freedom that enables the bandwidth control [151]. However, because of the additional element, the Π-type or T-type networks usually have a higher component loss than the two-element (L-type) network [151].

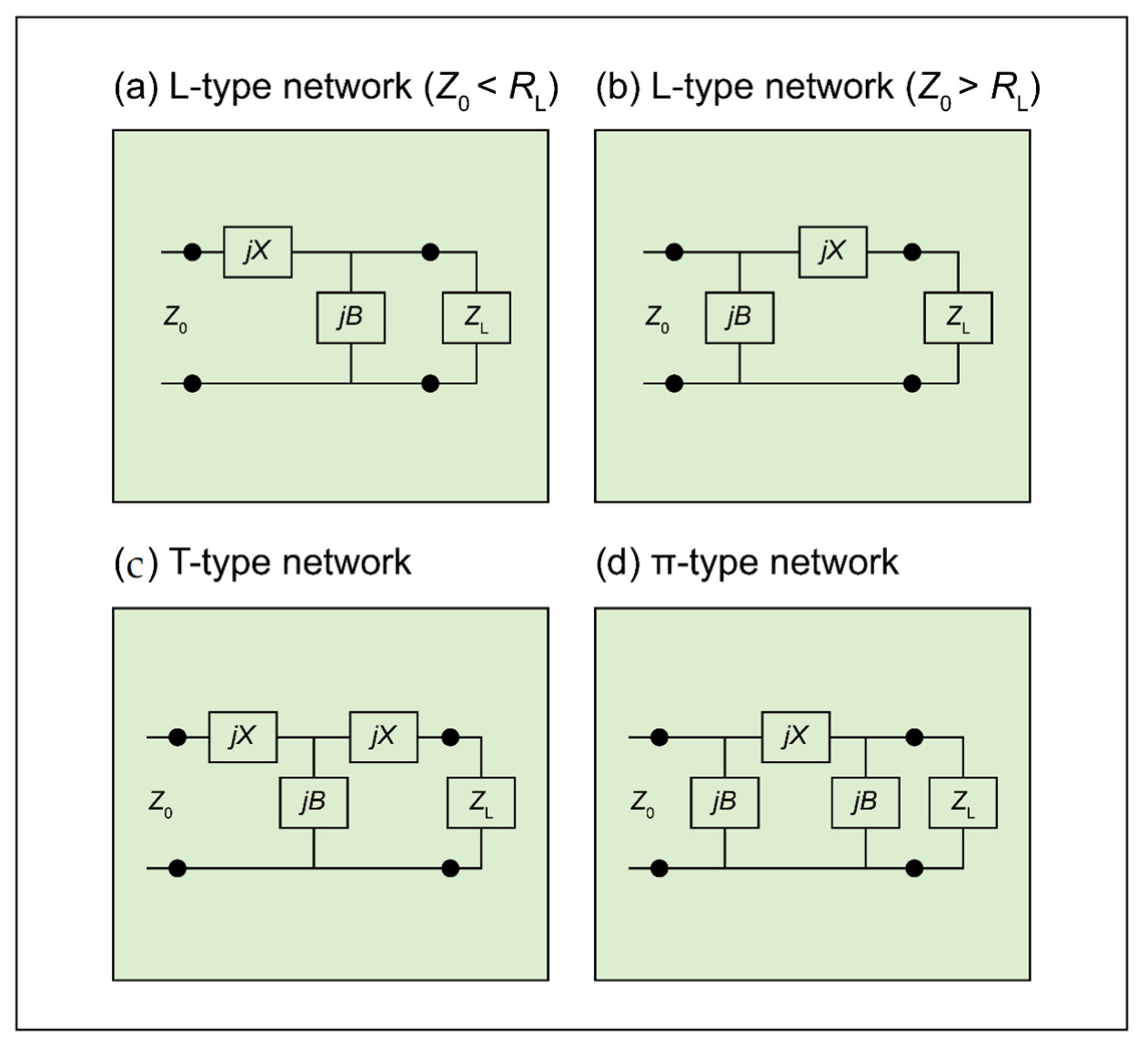

Figure 11. Schematic illustration of basic impedance matching networks: (a) L-type (Z₀ < R_L), (b) L-type (Z₀ > R_L), (c) Π-type, and (d) T-type, where C and L represent a capacitor and an inductor, respectively, and TL represents any circuit element that contains resistance, capacitance, or inductance, redrawn from [144] (pp. 229, 390).

Figure 11. Schematic illustration of basic impedance matching networks: (a) L-type (Z₀ < R_L), (b) L-type (Z₀ > R_L), (c) Π-type, and (d) T-type, where C and L represent a capacitor and an inductor, respectively, and TL represents any circuit element that contains resistance, capacitance, or inductance, redrawn from [144] (pp. 229, 390).

4.3. Rectification Circuits

The third component in wireless energy harvesting is the rectifier, which converts AC electricity into DC electricity. There are two classes of rectifiers: half-wave and full-wave rectifiers. The half-wave rectifier comprises of a single diode (Figure 12a), through which only the positive half of the AC input voltage is passed and the negative half is removed [12]. Consequently, the half-wave method leaves the discontinuity in the output voltage and has a low efficiency [12].

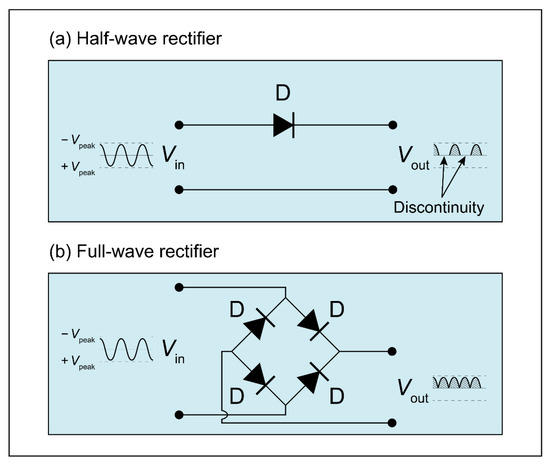

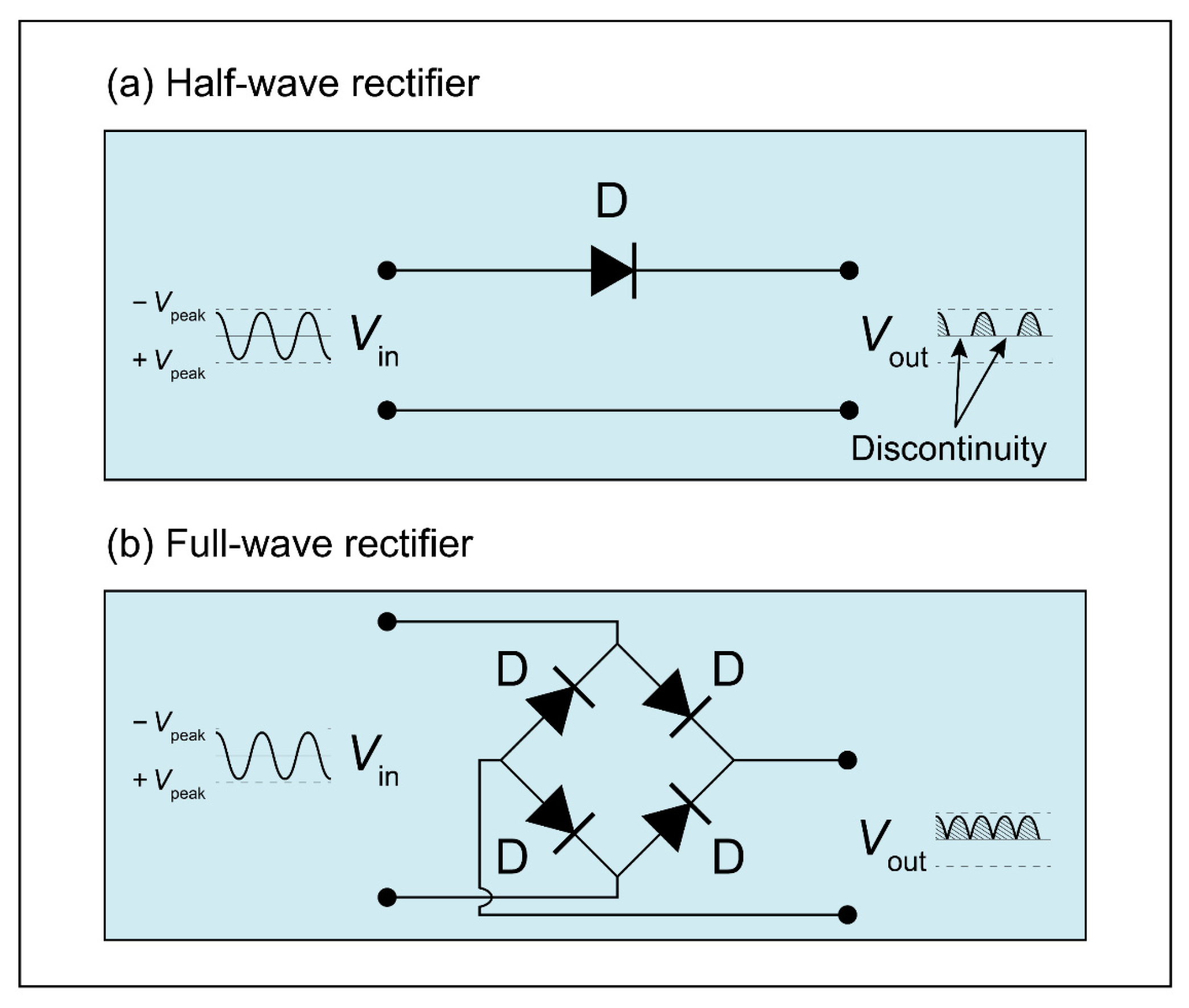

In order to improve both ripple factor and conversion efficiency, the full-wave rectifier was conceived. As depicted in Figure 12b, the full-wave rectifier may consist of four alternatively blocking pairs of diodes to rectify both positive and negative cycles [12]. Although structurally more complex, the full-wave configuration is more preferable for wireless energy harvesting applications, where available energy is limited, and a higher efficiency is of crucial factor.

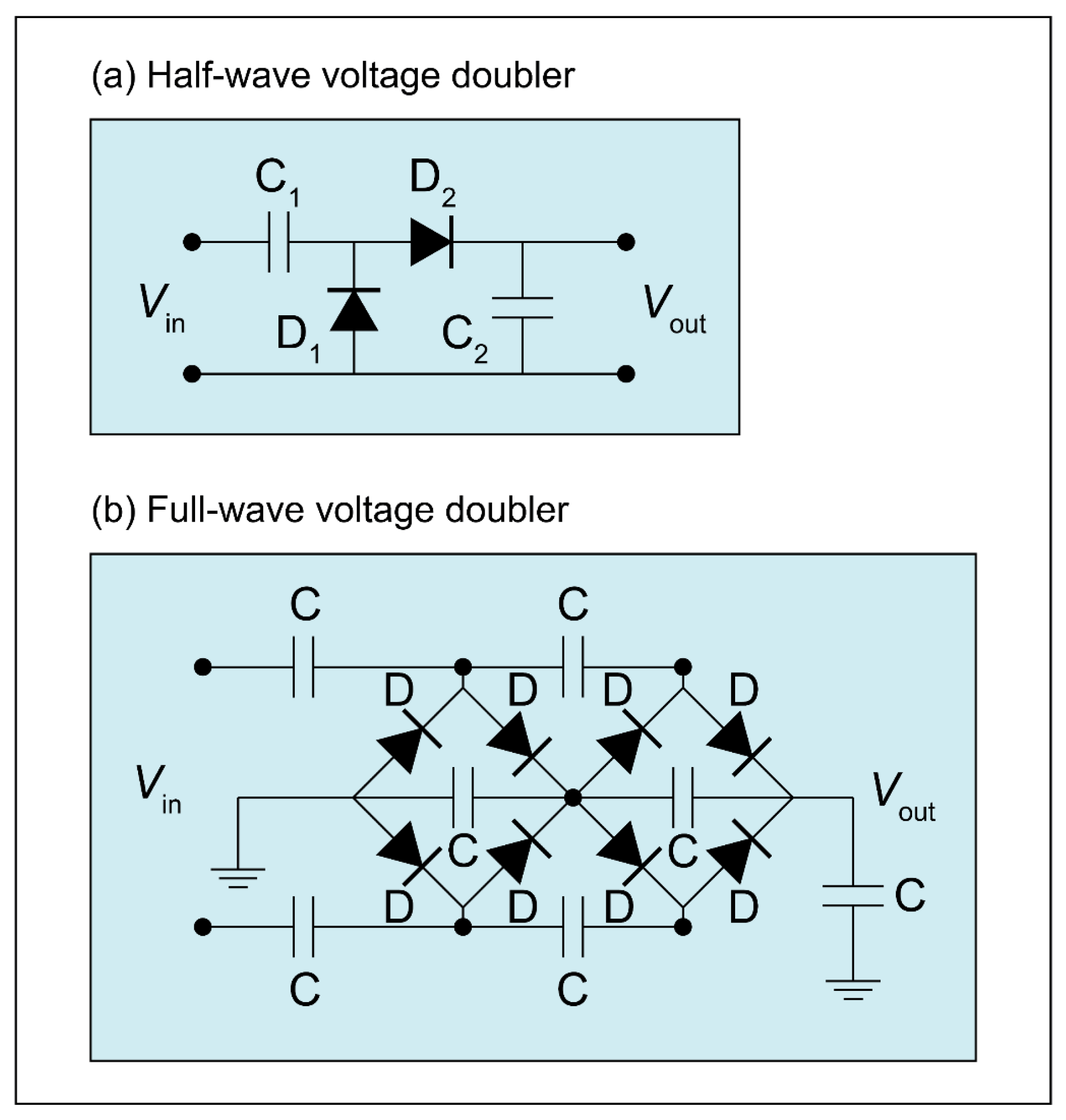

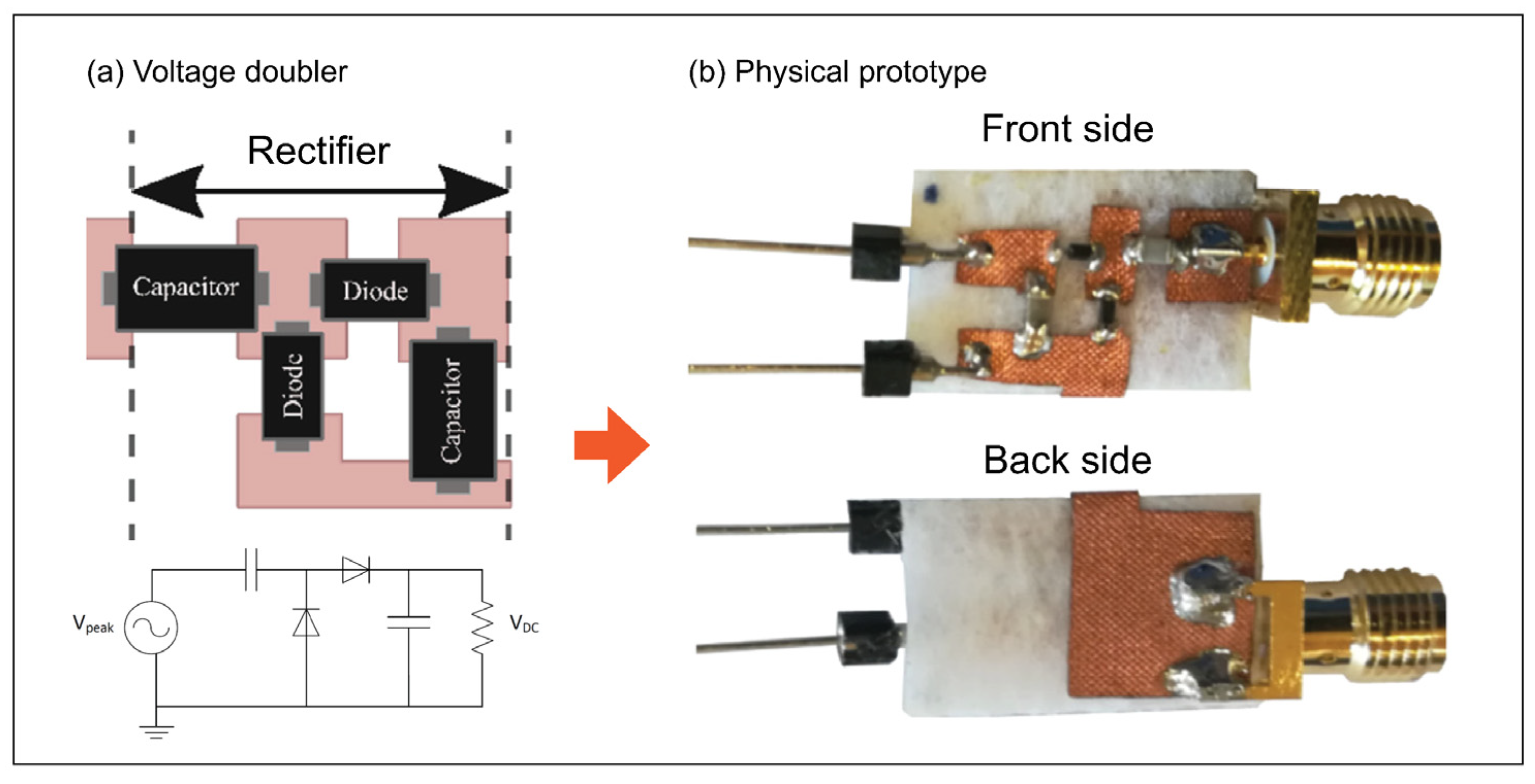

A voltage multiplier is a special kind of rectifier circuit that converts AC electricity into higher-voltage DC electricity and is widely used in ambient wireless energy harvesting applications, where an enhancement of the output voltage is crucial [12,83]. Voltage multipliers can be generally divided into half-wave and full-wave multipliers and their common topologies are shown in Figure 13. In the half-wave voltage multiplier (Figure 13a), the first capacitor (C₁) is charged during the negative cycle, whereas the second capacitor (C₂) is charged during the following positive cycle; consequently, the output voltage is doubled as it sees two capacitors in series [12]. The similar mechanisms is due for the full-wave voltage multiplier (Figure 13b), however, because of a higher current driving capability, the full-wave architecture has an advantage of better stability in exchange for structural complexity [153].

4.4. Loads

The last component in wireless energy harvesting is the load, which can be an application device such as a wireless sensor node [142,155]. However, if a higher power is necessary, the harvested energy can be stored in a buffer such as a rechargeable battery or a supercapacitor until there is sufficient power to support the application device (Figure 5) [155]. Details on the wearable batteries and supercapacitors are available in [156,157,158,159].

5. Textile Materials for Wireless Energy Harvesting

5.1. Electrically Insulating and Condcutive Textile Materials

Textile materials offer unique advantages over the conventional, rigid materials such as PCBs, and those include the flexibility, tenacity, breathability, and aesthetic appearance that are exceedingly suitable for wearable applications [106,107,160,161,162,163]. In addition, because clothing offers a considerable surface area, more than one textile rectenna could be integrated into clothing to uplift the harvestable energy.

As described in Section 4, a rectenna, an enabling element of wireless energy harvesting, consists of a receiving antenna, an impedance matching network, and a rectification circuit. In order to fabricate these components with textile materials, two types of materials are necessary: electrically insulating and conductive textiles.

Electrically insulating textile materials are ordinary (conventional) fibers, yarns, and fabrics that do not actively support a flow of electrons but provide an electrical insulation. Some examples of electrically insulating textiles are cotton, wool, silk, polyesters, polyamides, and polyurethanes, whose electrical conductivities are practically negligible [164]. Electrically insulating textiles have a consequential role of preventing electrical leakage between conductors but also serve as a dielectric medium to store (or dissipate) electrical energy under an applied electric field [165]. The latter function has found a variety of uses in microwave engineering including wireless energy harvesting, where the properties of dielectric materials (i.e., dielectric constant and loss tangent) largely determine the end-product performance [114,133,134].

One of the key features of using textile-based dielectrics in rectenna development is that they typically offer a relatively low dielectric constant and loss tangent because of their highly porous nature (

Table 2. Dielectric properties of electrically insulating materials.

Material		Construction	Characterization Frequency (GHz)	Relative Humidity (%)	Dielectric Constant	Loss Tangent	References
Textile (fabric)	Cotton	Plain weave	~2.45	80 ± 2.5	1.24–1.46	–	[170]
				65 ± 5	1.24–1.43
				50 ± 2.5	1.26–1.38
				35 ± 2.5	1.21–1.35
				20 ± 2.5	1.18–1.31
			1.1	65	1.875–2.499	0.0950–0.1355	[172]
		Twill weave	2.45		1.71	0.020	[173]
			1.1	65	1.858–1.940	0.1012–0.1053	[172]
		Satin weave	1.1	65	1.649	0.0859	[172]
		Single jersey	~2.45	80 ± 2.5	1.37–1.62	–	[170]
				65 ± 5	1.35–1.59
				50 ± 2.5	1.30–1.50
				35 ± 2.5	1.28–1.47
				20 ± 2.5	1.23–1.40
	Polyester	Plain weave	2.26	–	1.55	0.0087	[108]
		Fleece	2.45	–	1.15	0.000	[173]
		3D spacer knit	2.25	–	1.10–1.13	0.004–0.018	[169]
	Cordura®	–	2.45	–	1.93	0.015	[174]
	Kevlar®	3D orthogonal weave	1.9	–	1.96	0.042	[175]
	E-glass	3D orthogonal weave	1.5	–	3.2	0.008	[176]
Non -textile	Cellulose film	–	7.3	(Dry condition)	~3.2	~0.03	[177]
	Poly(ethylene terephthalate)	–	2.45	–	~2.1–2.4	~0.016–0.04 *	[178]
	Standard FR4	–	2.08–3.70	–	4.5	0.035	[179]
	Rogers RT/duroid® 5870	–	8–40 (dielectric constant) and 10 (loss tangent)	–	2.33	0.0012	[180]

* Calculated by the formula $\tan \delta ={\epsilon }_r^{″}/{\epsilon }_r^{\prime }$, where $\tan \delta$ is the loss tangent, ${\epsilon }_r^{″}$ is the imaginary part of the relative permittivity and ${\epsilon }_r^{\prime }$ is the real part of the relative permittivity (dielectric constant).

) [107,108,109,165,166,167,168,169]. Since the antenna parameters such as gain, efficiency and bandwidth can be improved by lowering the dielectric constant and/or loss tangent, the use of textile materials could improve the overall energy harvesting efficiency [107,114,133,134,165,170,171].

Yet, the use of textile materials brings a latent concern for rectenna development. The dielectric properties of moisture-absorbing materials such as cotton are reported to be highly susceptible to the relative humidity of the environment (Table 2); consequently, rectennas made of hygroscopic textiles may experience a shift in the resonant frequency and a reduction in the conversion efficiency during operation. Therefore, although moisture absorbing materials may be preferable from the sensorial comfort point of view [106,162,181,182], the effect of the relative humidity must be well-assessed in the rectenna design stage.

Electrically conductive textile materials, on the other hand, are fibers, yarns, and fabrics with a significant electrical conductivity. Because a higher electrical conductivity leads to lower conductor-related losses [183,184], improvement in the electrical conductivity has been a primary research interest for textile materials over the past several decades.

Since the ordinary textile materials do not possess a tangible electrical conductivity, a special preparation is required to attain good conductivity. A variety of fabrication methods have been developed for electrically conductive fabrics, but the most fundamental approach is to produce electrically conductive fibers, which can then be transformed into yarns for integration into fabrics. There are four general routes to electrically conductive fibers and are depicted in Figure 14.

In the first route, electrically conductive metals such as silver and copper are converted into metal fibers by wire drawing [185]. The advantages of this method include the high electrical conductivity and a high-temperature stability of bulk metals (

Table 3. DC electrical properties of electrically conductive materials.

Material		Construction	Conductivity (S/m)	Sheet Resistance (Ω/Square)	References
Textile (Fabric)	Copper/nickel-plated polyamide	Ripstop	4.17 × 106	0.03	[183]
	Silver/copper/nickel-plated polyamide	Ripstop	–	0.009	[187]
	Silver-plated polyamide	Single jersey	2.08 × 10−1	–	[188]
	Carbon-nanotube-coated cotton	Knit	1.25 × 104	<1	[189]
	PEDOT-coated polyester	Woven	–	52	[190]
	Silver-printed polyester	Nonwoven	–	<0.025	[191]
	Silver-printed Evolon®	Nonwoven	1.3 × 106	–	[192]
	Lycra® with silver yarn	Woven	–	0.6	[193]
Non-textile (Bulk material)	Silver	–	6.3 × 107 *	–	[194]
	Copper	–	6.0 × 107 *	–	[194]
	Gold	–	4.4 × 107 *	–	[194]
	PEDOT	–	1 × 105	–	[190]

* Calculated by taking the reciprocal of electrical resistivity.

), in exchange for a high rigidity and fatigue-related concerns [186].

The second approach is based on conductive polymers, which exhibit a good electrical conductivity. Since the discovery of the first conductive polymer by Shirakawa et al. in 1977 [195], a variety of conductive polymers such as polyaniline, polythiophenes, PEDOT, PEDOT:PSS, and polypyrrole have been synthesized. The underlying mechanism responsible for electrical conduction by these polymers is a conjugated structure that enables the delocalization of π electrons across adjacent p orbitals and hence electrical conduction is achieved [196]. Fibers can be formed from conductive polymers by conventional spinning methods such as melt spinning, wet spinning, or electrospinning [197], and those fibers have excellent flexibility as a soft yarn [198] but typically with a limited electrical conductivity (Table 3) [199].

Being well-recognized for their exceptional conductivities and mechanical strengths, carbon nanotubes have also been transformed into fiber forms by various spinning techniques such as forest spinning, direct spinning, or solution spinning [200]. However, one of the current challenges with carbon nanotube fibers is the limited industrial scalability for high quality, continuous carbon nanotube fiber production due to the complex fabrication procedure [201].

The last category of electrically conductive fibers is coated fibers, which can be produced by coating the surface of a conventional, electrically insulating fiber with an electrically conductive substance. Two of the most widely used coating methods are electroplating and electroless plating usually with a high-conductivity metals such as silver, copper, or gold, and finished fibers have advantages of good electrical conductivity, flexibility, durability, and processability [202,203].

An electrically conductive yarn is a monofilament yarn or a bundle of fibers, where the latter can be produced by twisting electrically conductive fibers alone for an enhanced electrical conductance or with conventional fibers for a better processability (Figure 14) [204]. Additionally, electrically conductive yarns can also be produced by coating conventional yarns with electrically conductive materials such as metals [205].

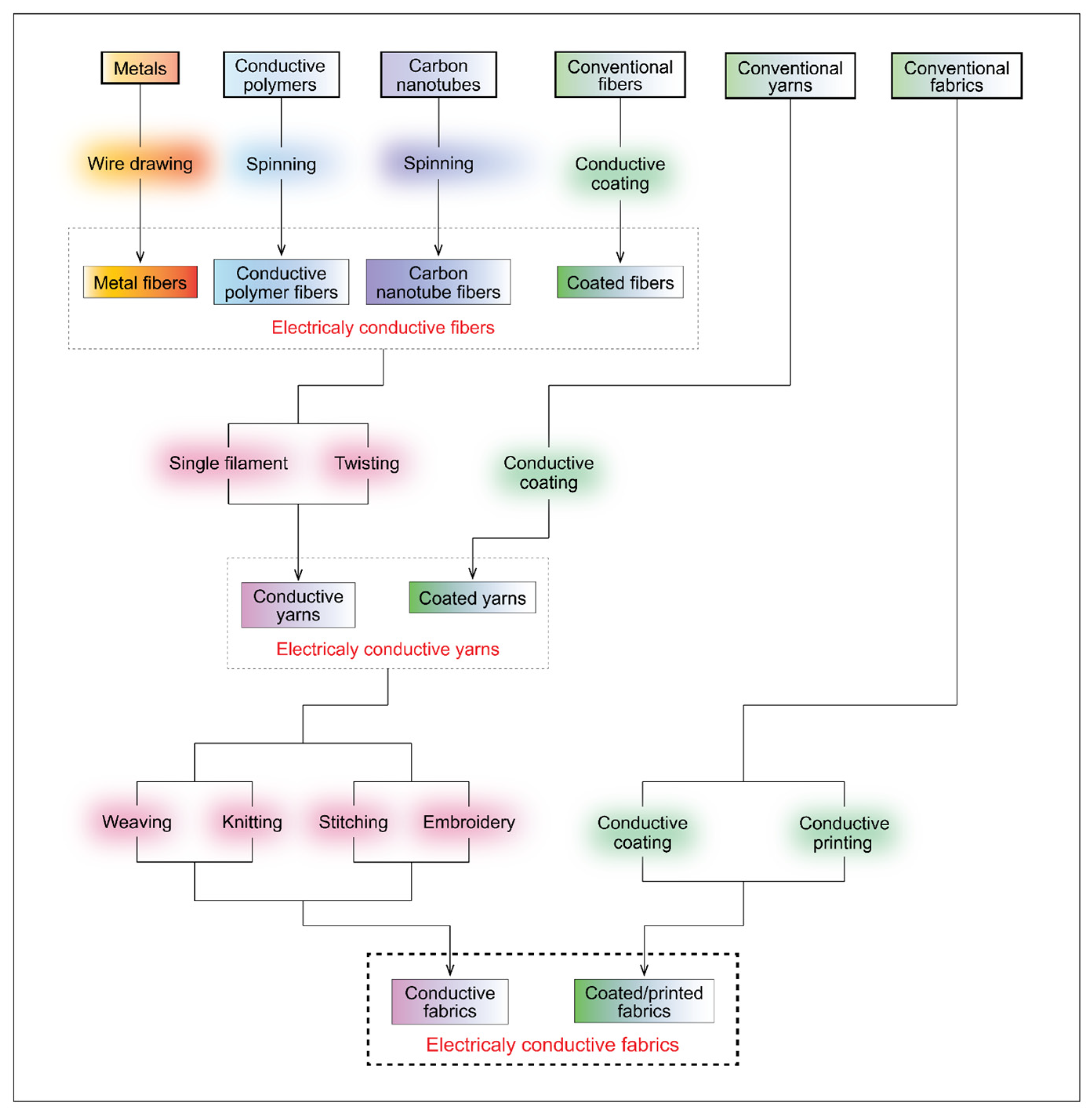

Electrically conductive fabrics can be produced in two different ways. In the first way, electrically conductive yarns are converted into fabric forms by a conventional textile processing technique such as weaving [176,206], knitting [204], stitching [207,208], or embroidering [209,210,211]. While these processes have an advantage of seamless integration as the electrically conductive components are inherently embedded into a fabric, relatively strict requirements are imposed on the yarn mechanical properties. For instance, warp yarns for weaving need to have a higher tenacity to withstand a high tension during weaving, whereas yarns for knitting, stitching, and embroidery are required to be of lower bending modulus to be able to form small loops [212,213]. Therefore, while these processes could realize a sufficiently high conductivity (Table 3), yarns that do not have suitable mechanical properties may not be processed by these techniques.

The second method involves coating with an electrically conductive substance. Similar to the preparation of electrically conductive fibers and yarns, electrically conductive fabrics can also be produced by coating conventional fabrics with an electrically conductive material to attain good electrical properties (Table 3) [183,188,189,190]. In addition, a highly conductive coating layer can also be formed by screen or inkjet printing with an electrically conductive ink (Table 3) [191,192,214,215,216].

5.2. Textile-Based Antennas

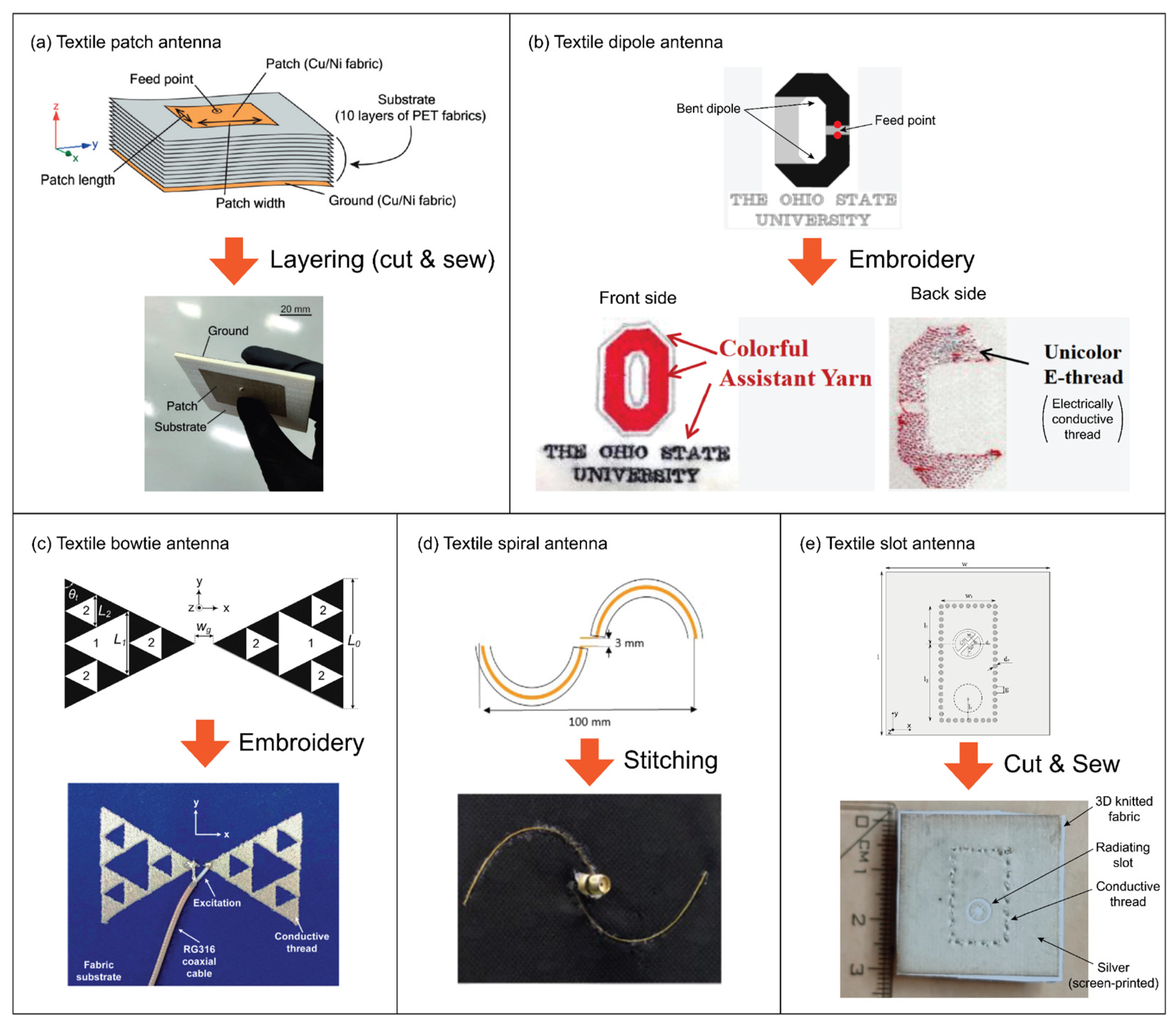

Textile antennas can be produced by a variety of techniques from electrically conductive and insulating fibers, yarns, and fabrics. For instance, a patch antenna, which is the most widely investigated antennas for wearable energy harvesting applications [128,129,130], can be fabricated in aesthetic and comfortable form factors simply by stacking conductive and dielectric fabrics [106,108,109,162] (Figure 15a) but also by a fundamental textile processing technique such as weaving [175,176,217,218], knitting [219], or embroidery [220,221,222] with conductive and insulating threads, or by printing electrically conductive inks on electrically insulating fabrics [192]. In a similar way, many of the other antenna structures such as dipole (Figure 15b) [211,223,224], bowtie (Figure 15c) [225], spiral (Figure 15d) [226], slot (Figure 15e) [187,227], Vivaldi [228], Yagi-Uda [193], log-periodic array [229], antennas can also be produced in textile forms by adapting these techniques.

5.3. Textile-Based Impedance Matching Networks

As discussed in Section 4, a variety of impedance matching techniques have been developed in the literature, and in theory, any of them could be employed for rectennas. However, for textile rectennas, tuning stubs are probably the most widely employed matching networks since they involve a small number of components and soldering points; they are relatively simple to fabricate [24]. An example of a textile-based single tuning stub is given in Figure 16a. The open-circuit shunt stub made of a highly conductive copper-plated polyester fabric was placed between the microstrip feed line and rectification circuit to maximize the energy transfer from the receiving antenna to the rectifier.

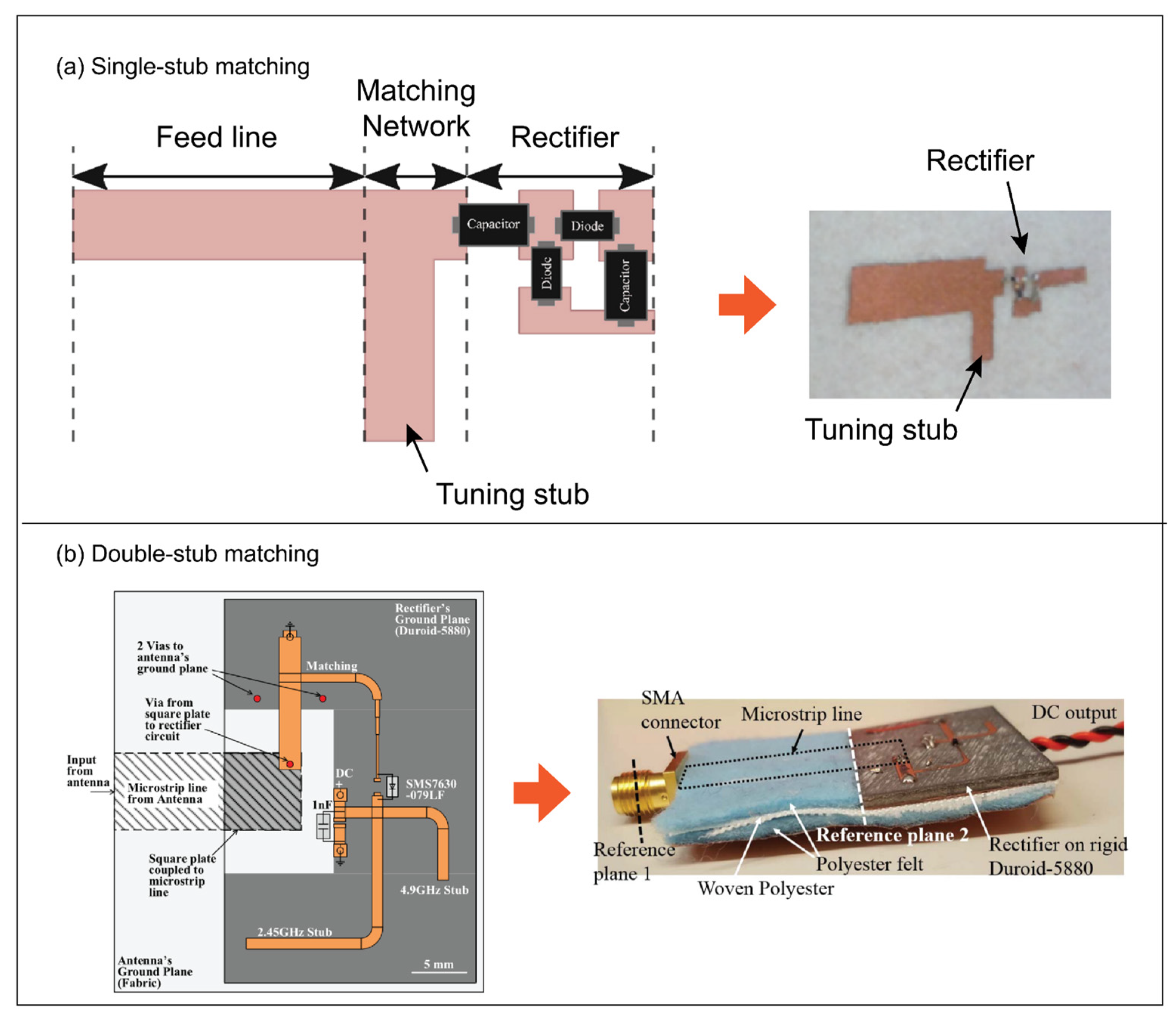

A double stub tuning network, which was fabricated on a textile-integrated PCB, is shown in Figure 16b. Although the double-stub network requires fabrication of the second stub and is more space-demanding, this additional component was demonstrated to support the second harmonics; consequently, the output power was calculated to be improved by about 1% (compared with a single-stub counterpart) [68]. However, because of the rigidity of the PCB-based impedance matching network, the flexibility and conformity of this structure was impaired.

5.4. Textile-Based Rectification Circuits

Among the various rectification circuit options available, the full-wave (bridge) rectifier (Figure 12b) and voltage doubler (Figure 13a) are commonly used in textile-based wireless energy harvesters as they are a good compromise between the circuit complexity and rectification efficiency [24]. In realizing a rectification circuit on a textile platform, diodes and capacitors can be soldered to electrically conductive textile materials. For instance, Lopez-Garde et al. soldered commercially available Schottky diodes and capacitors to an electrically conductive copper fabric to create a voltage doubler (Figure 17) [24]. The dimensions of the textile voltage doubler were optimized by using a computer-aided software (Keysight Advanced Design System) to achieve a rectification efficiency of 56%.

Another textile-based rectification circuit was presented by Vital et al. and was fabricated by soldering a Schottky diode to an organza fabric embroidered with an electrically conductive thread (silver-plated copper strands) [84]. The diode was connected to a transmission line on each end, but one of the transmission lines was shorted to generate a standing wave. In this configuration, by optimizing the lengths of these two transmission lines, the power stored in the standing wave was successfully transformed into DC electricity with a rectification efficiency of 70% (at 8 dBm), which was far greater than the theoretical limit of half-wave rectifiers. Therefore, this strategy of extracting the negative half of the AC input electricity with a single diode not only improves the rectification efficiency of half-wave rectifiers but also enables a more minimalistic and hence mechanically flexible architecture particularly invaluable for wearable applications.

6. Current Research Mainstream and Future Perspectives

As reviewed so far, the use of textile materials in wearable wireless energy harvesting applications offers a variety of unique and often irreplaceable features, such as lightweight, flexible, breathable, low-profile, comfortable, and aesthetic form factors, and textile-based wireless energy harvesters can be inherently integrated into clothing with minimum alteration of its performance as an apparel product. In addition, several harvesting units can be incorporated into clothing, which offers a large surface area for such integration. This aspect is of particular interest for wireless energy harvesting applications, where the available ambient energy is limited and the amount of harvestable energy from a single rectenna element could be insufficient. For instance, Lopez-Garde et al. developed a 4-element (2 × 2 array) rectenna made of a copper-plated polyester fabric and a felt (Figure 18). It was reported that this 4-element rectenna was able to harvest 1.1 mW of DC power from an input power of 14 μW/cm², while only 0.26 mW of DC power was harvested with a single-element rectenna [24].

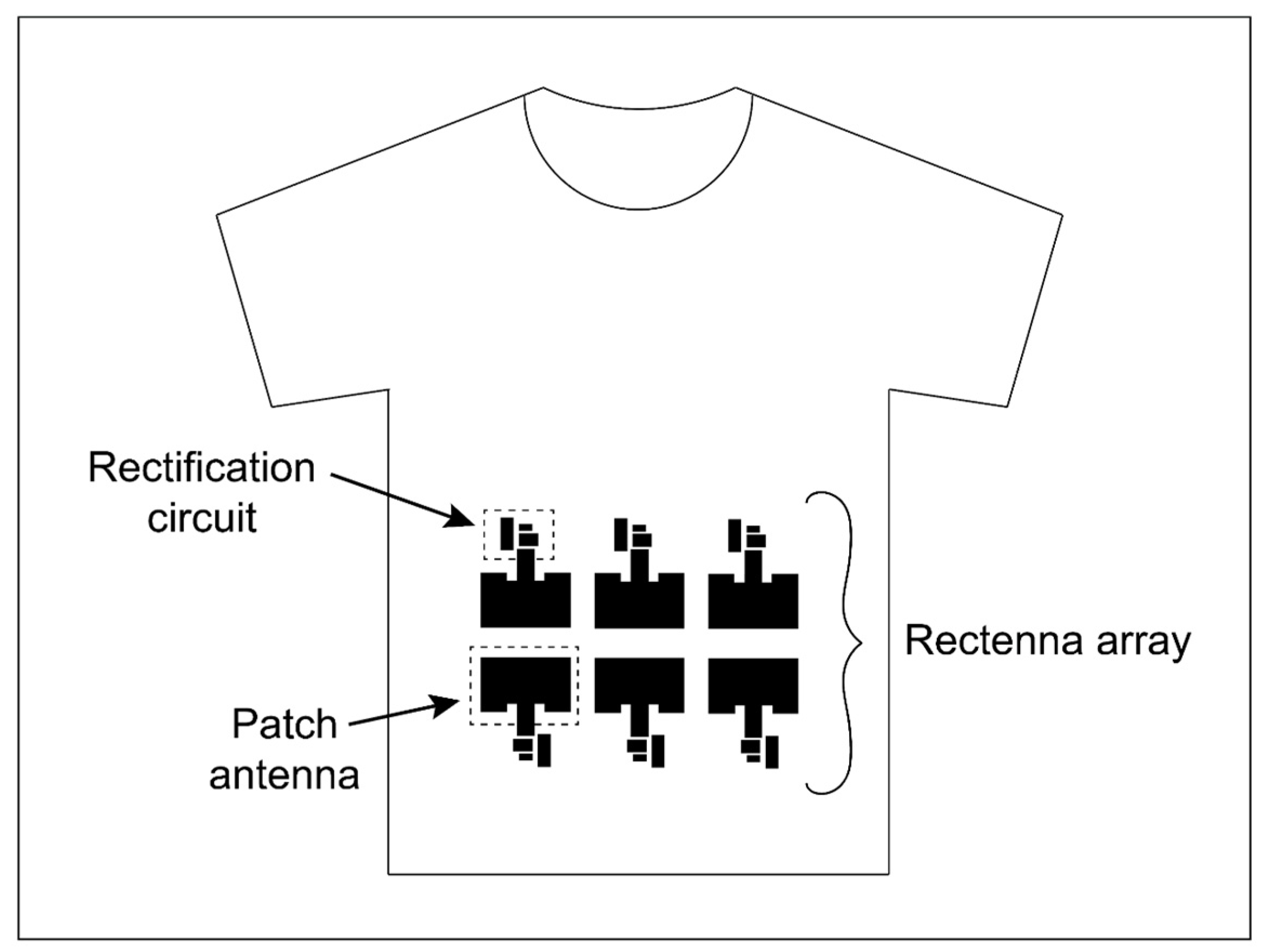

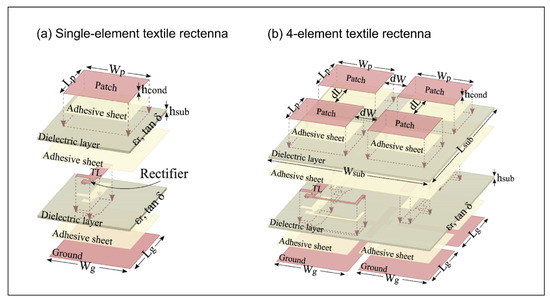

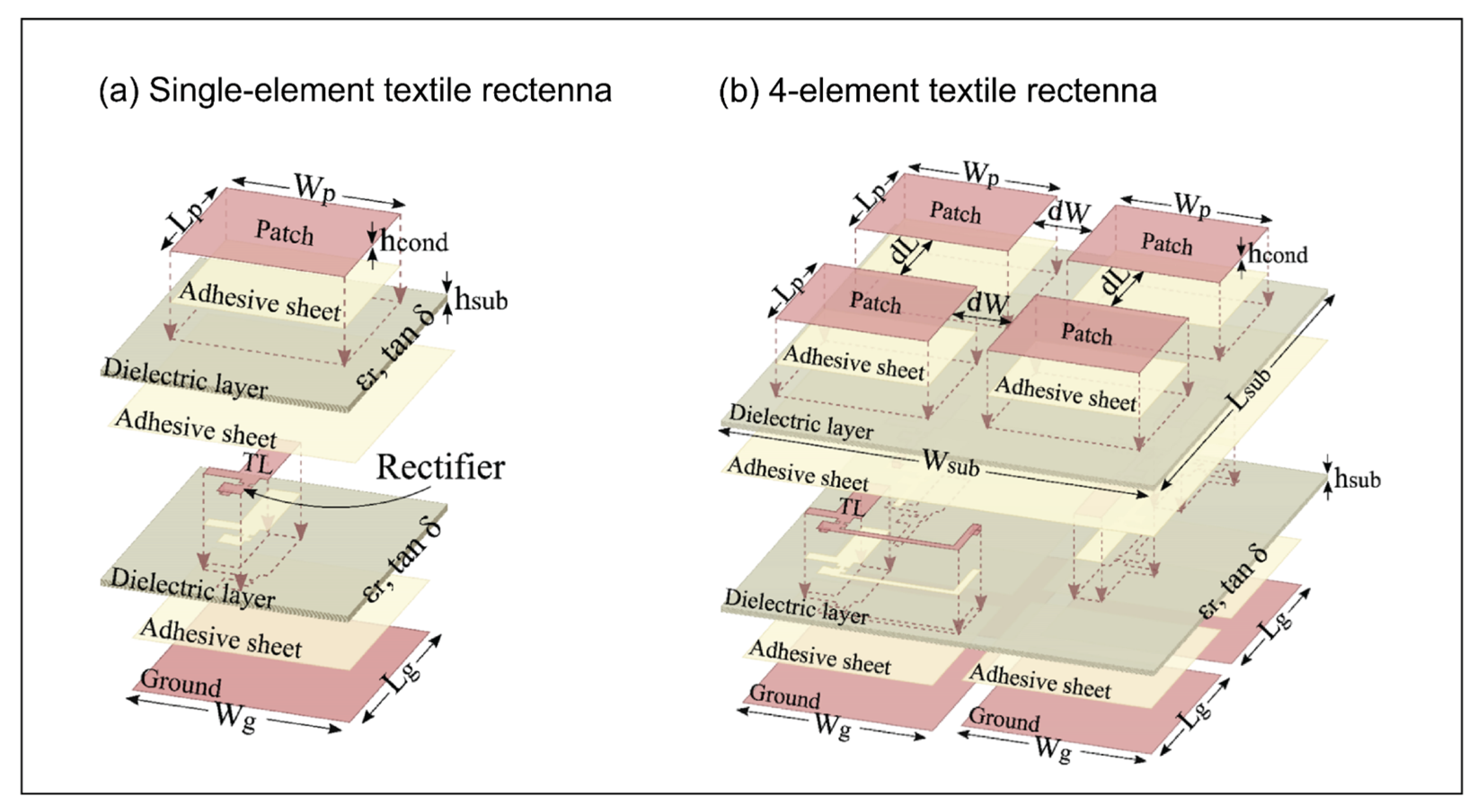

The use of multi-element rectenna was also reported by Vital et al., who developed 2 × 2 and 2 × 3 rectenna arrays made of an organza fabric embroidered with an electrically conductive thread (Figure 19) [84]. Under a natural ambient environment, it was demonstrated that the 2 × 2 rectenna array can harvest up to 100 μW, which was significantly higher than that of a single-element rectenna made of the same materials. In addition, the 2 × 3 rectenna array was tested with Wi-Fi signals boosted by an external amplifier and was able to generate a DC output power of up to 600 μW. These results indicate that textile-based rectenna arrays could be a promising solution to power wearable electronics under a natural ambient environment, and if a higher power output is required, ambient signals could be amplified by an external device.

While textile-based rectenna arrays are propitious, there are also challenges. For instance, Estrada et al. developed T-shirt-integrated 16-element and 81-element rectenna arrays. The receiving antennas were bow-tie arrays that were produced by screen-printing an electrically conductive silver ink on a cotton fabric [230]. Although, a higher DC output is generally expected from a larger array, the measured output powers of these textile rectenna arrays were nevertheless not significantly different. The authors elucidated this observation that the resistivity of the screen-printed ink was relatively high and as such the efficiency have dropped as the array was scaled up in size. Therefore, an improvement of the electrical conductivity of textile materials is crucial for further advancement of multi-element arrays made of textile materials.

In addition, rectification circuits of textile rectennas found in the literature are predominantly constructed with commercially available rigid diodes, and as such the flexibility and conformity of current textile rectennas are impaired by these components. In addition, it has been pointed out that the rectification efficiency is largely capped by the relatively high cut-in voltage of commercial diodes under low ambient power conditions [231]. In order to overcome these limitations, an investigation on flexible (and preferably textile-based) diodes that enable a highly efficient rectification is pivotal in future work.

Another vital research topic is on the improvement of aesthetic appearance of textile-based wireless energy harvesters. As an apparel product, it is essential to have an aesthetically pleasing design but this facet was often overlooked in early development of wearable electronics [232]. Currently, a variety of approaches have been proposed to accommodate both functionality and aesthetic look. For instance, Kiourti and Volakis developed a logo antenna made of textile materials [223]. As shown in Figure 15b, the slightly bent dipole antenna was seamlessly integrated into a fabric by embroidering an electrically conductive thread, and this was followed by another embroidery process with ordinary color threads to ensure that the antenna form part of logo and invisible from outside. The finished antenna was flexible, lightweight, and mechanically robust to withstand daily wear and repetitive washing and drying cycles [223], evidencing that functional and fashionable requirements could be met without a compromise. Further journey to improve the aesthetic performance and meet the essential criteria as apparel products would make the textile-based solutions to strongly appeal to healthcare, military, entertainment, and other relevant sectors.

7. Conclusions

This paper reviewed unmissable recent progress in textile-based wireless energy harvesters for powering body-worn electronics. Textiles are flexible, lightweight, breathable materials and could be ideal for the fabrication of wireless energy harvesting devices with excellent comfort and aesthetic appearance. Moreover, because clothing offers a substantial surface area, multiple harvesting units can be seamlessly integrated into clothes to enhance the output power.

For further advancement of the textile-based wireless energy harvesting technology, several future research topics were suggested. First, it is essential to improve the electrical conductivity of textile materials to reduce the conductor-related losses and increase the overall conversion efficiency. In addition, development of flexible (and ideally textile-based) diodes with a high rectification efficiency is vital to improve both conversion efficiency and wearability. Lastly, product design and aesthetics research is crucial for a broader acceptance of this emerging technology in various key sectors.
