Passive Intermodulation at Contacts of Rough Conductors

Abstract

Passive intermodulation (PIM) is a niggling phenomenon that debilitates the performance of modern communications and navigation systems. PIM products interfere with information signals and cause their nonlinear distortion. The sources and basic mechanisms of PIM have been studied in the literature but PIM remains a serious problem of signal integrity. In this paper, the main sources and mechanisms of PIM generation by joints of good conductors are discussed. It is shown that the passive electrical, thermal and mechanical nonlinearities are intrinsically linked despite their distinctively different time scales. The roughness of the contact surfaces plays an important role in PIM generation by conductor joints. A review of the PIM phenomenology at the contacts of the good conductors suggests that novel multiphysics models are necessary for the analysis and reliable prediction of PIM products generated by several concurrent nonlinearities of a diverse physical nature.

1. Introduction

The continuously growing volume and speed of data transmission pose major challenges to existing and future wireless and satellite communications and navigation systems [1,2,3,4,5,6,7]. The stringent requirements for the integrity of information signals push the limits of radio frequency (RF) hardware. Weak nonlinearities of passive devices such as antennas, filters, couplers and multiplexers at the RF front-end of the smart multi-radio base stations and user terminals generate spurious emissions, corrupt information signals and debilitate system performance [8,9,10]. Therefore, mitigation of nonlinear signal distortions is a major requirement to dynamically adjustable RF front-ends, their passive components and reconfigurable antennas [11,12,13,14,15,16].

Constituent materials and their contacts proved to be the main sources of passive nonlinearities in RF devices [17,18,19]. The state-of-the-art RF materials normally have low loss, high thermal conductivity and good mechanical properties. But when exposed to the high power of RF signals, they exhibit weakly nonlinear behaviour and generate frequency harmonics and passive intermodulation (PIM) products. PIM in passive “linear” devices is the result of mixing several high-power electromagnetic signals by weak nonlinearities of good conductors, their contacts and surface finish. The detrimental effect of PIM manifests itself in spurious emissions, increased noise and distortion of the original information signals. PIM products are particularly harmful to radars, wireless and space communications systems and radio astronomy [5,6,7,20,21].

PIM phenomenology has been studied for more than 40 years but still remains a nagging problem. The basic physical mechanisms of nonlinearities and PIM generation were explored in metal contacts [22,23,24,25,26,27,28,29], printed RF transmission lines [30,31,32,33,34,35,36], cable assemblies [17,18,31,37,38,39,40] and antennas [21,41,42,43,44,45]. The main sources of passive nonlinearities include Metal–Insulator–Metal (MIM) junctions [22,23,24,26,27,28,29], electro-thermal processes [37,40,46,47], surface roughness [32,48,49] and contact mechanical deformations [49,50,51,52,53]. The advent of micro-electro-mechanical systems (MEMS) has sparked extensive investigations of the electrical contacts with rough surfaces and their RF performance. Whilst the mechanical properties of MEMS have been explored in great detail (see [50,51,52,53] and references therein) the existing models were developed for the linear devices operated with weak RF signals. The effect of high RF power on the contacts and junctions of conductors with rough surfaces were studied only in coaxial connectors [38,39,40] and waveguide flanges [54]. The practical means of mitigating nonlinear distortions and PIM in passive RF circuits remain predominantly semi-empirical [10,55].

The analysis and prediction of PIM effects with the aid of multiphysics models proved to be a challenging task. The published PIM studies are normally limited to a single dominant mechanism of nonlinearity. However, the stochastic nature of multifarious sources of weak nonlinearities and their intrinsic links dictates the need for multiphysics models and novel simulation tools. The diverse physical nature of PIM sources also requires that several concurrent mechanisms of nonlinearity are considered together. It is necessary to note that the linearisation techniques used for power amplifiers are not suitable for mitigating PIM in the passive components of RF front-end and antennas due to absence of the real-time feedback required for signal predistortions.)

PIM products generated by junctions of conductors with rough surfaces are usually characterised with the aid of the equivalent electrical circuit models. The lumped element model, proposed in [54], has been applied to the analysis of PIM in waveguide flanges where the physical dimensions of surface asperities are much smaller than the wavelengths of high-power RF signals. The parameters of this equivalent circuit depend not only on the electrical properties of the contact materials but also on their thermal and mechanical properties and the surface finish. Therefore, the concurrency of multiphysics effects is an essential feature of PIM in passive RF circuits and devices.

The PIM in coaxial connectors has recently been examined in [56,57,58] with the help of an equivalent circuit model from [54]. The relationship between an applied force and a contact linear resistance is evaluated in [59] using Meyer’s empirical law. It suggests that the contact resistance decreases as the square root of applied force when nonlinearity is approximated by a Taylor series. The simulation and measurement results presented in [59] are in fair agreement owing to the empirical description of the linear elements and data fitting for the nonlinear sources.

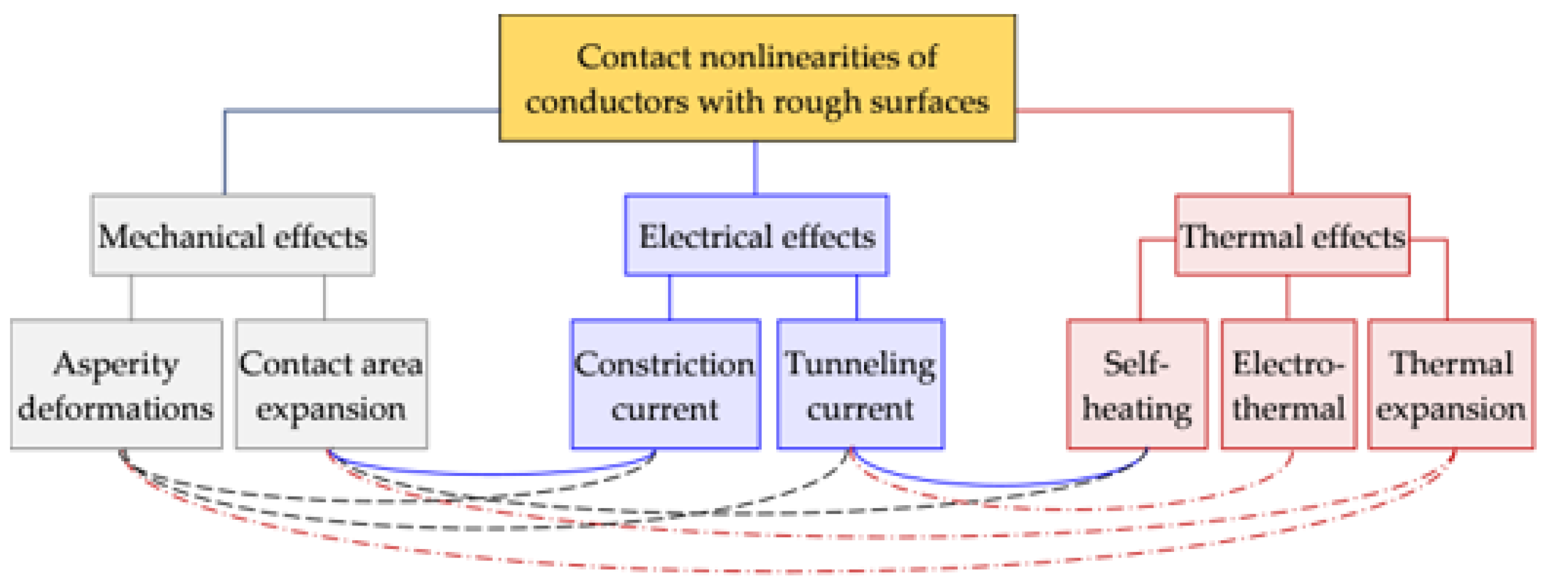

The main types of contact nonlinearities in the conductor joints and connectors can be cast in the three broad groups: (i) electrical, (ii) thermal and (iii) mechanical. Their sources and interlinks are summarised in Figure 1 and include

-

Charge tunnelling and diffusion at MIM junctions of conductor asperities;

-

Current constriction at asperities of rough contact surfaces;

-

Self-heating and thermal expansion of the contact surfaces and asperities;

-

Electro-thermal effect due to ohmic losses in conductors and contacts;

-

Asperity deformations of the conductors with rough surfaces and their contacts subjected to mechanical stresses, expansion and creep.

These nonlinearities exist in conductor joints concurrently and influence each other despite their notably different time scales. The underlying physical mechanisms are intrinsically linked as discussed in Section 2, Section 3 and Section 4 and are influenced by the layouts and profiles of the contact surfaces. The frequency and phasing of the high-power carrier signals also have a notable effect on the generated PIM products. For example, the positions of the hot spots in the antenna beamforming networks vary with the carriers’ phasing. As the result, the observed pattern of PIM products is affected by a profile of the contact area, its deformations and heat flow. This implies that the locations of the PIM hot spots can change with the contact pressure that flattens sharp asperities and expands the contact area. This entails reduction of the current density at the MIM junctions and the lesser effect of their nonlinearity.

In this paper, we review the main types of nonlinearities at contact joints of good conductors and the related mechanisms of PIM generation. The effects of electrical nonlinearity in the conductor contacts are discussed in Section 2. Thermal and electro-thermal nonlinearities are the subject of Section 3. The effects of surface roughness and mechanical deformations of the conductor joints on PIM products are considered in Section 4. The main properties of different mechanisms of nonlinearities, their effect on PIM at contact joints of conductors with rough surfaces are summarised in the conclusion.

2. Electrical Nonlinearities of Conductor Joints

PIM at contacts of conductors with rough surfaces is a nonlinear multiphysics process with several distinct time scales, as illustrated in Figure 1. The fastest nonlinearities in contacts of good conductors are associated with the electrical effects of charge tunnelling and current constriction at the MIM junctions [17]. The charges are funnelled through the contact spots of rough surfaces as shown in Figure 2a. The current magnitude depends on the size of a contact spot and thickness of an insulating layer, which are determined by the applied pressure, local temperature and deformations of the surface asperities as illustrated by the links in Figure 1. The high-power carriers are mixed and modulated at the contact nonlinearities due to variations of the contact size, temperature and resistance [27,38,39,40]. The thermal effects and mechanical deformations develop much slower than the oscillations of the RF carriers and the tunnelling current. However, both fast and slow nonlinearities remain intrinsically coupled to each other despite their different time scales.

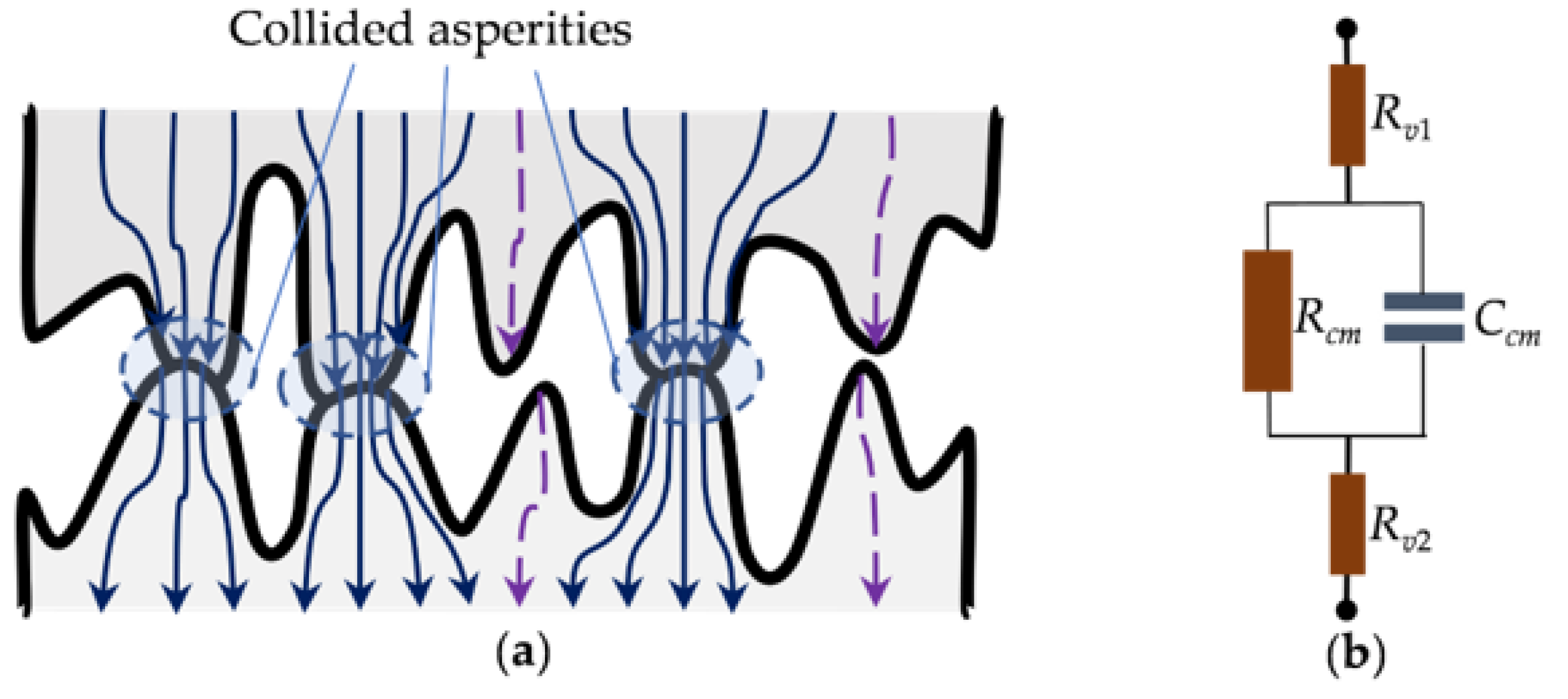

Current flow through the contact asperities of rough surfaces can be described by the equivalent circuit shown in Figure 2b, where R_v1 and R_v2 are the resistances of solid conductors outside of the asperities. The resistance and capacitance of a pair of compressed or non-touching asperities are represented by R_cm and C_cm. The linear resistance R_cm of the thin oxide film is very high even in contacts of good conductors. For example, Al₂O₃ film of thickness δs = 1 nm, area 10 μm² and the macroscopic resistivity ρ_Al2O3 = 1 × 10¹⁴ Ω·cm has its Maxwell resistance at R_cm = 10¹⁴ Ω. Such a high value of R_cm is typical for good insulators and suggests that the charge tunneling must be responsible for the resistance of conductor junctions with thin insulating films. It is also necessary to note that the capacitive reactance 1/jωC_cm of the conductor joint can noticeably influence the contact impedance. Indeed, the reactance of this junction is 1/jωC_cm = −j89.9 Ω that affects the impedance of the contact joint. Therefore, the resistance of the electrical contacts of rough conductors and their basic properties have to be examined in more detail.

2.1. Contact and Constriction Resistances

Contacts of conductors with rough surfaces contain the MIM and metal-to-metal junctions. Their resistance depends on the number of touching asperities, size of each contact spot and thickness of an insulating layer in MIM junctions [60]. The mechanical and thermal deformations of individual asperities determine an overall size of the contact area and its contact resistance. The resistance R_c of a single contact spot with an equivalent radius a is usually approximated as [61]

$$R_c=\frac{{\rho }_c}{2a}\left[f\left(\frac{\lambda }{a}\right)+\frac{8\lambda }{3\pi a}\right]$$

(1)

where ρ_c is an average electrical resistivity of a pair of contact asperities, λ is an electron-free path and f(λ/a) is an interpolation function describing a contribution of Maxwell resistance R_M = ρ_c/2a. The approximation of f(λ/a) was proposed in [61] and has a maximum error less than 1% at any λ/a

$$f\left(\lambda /a\right)=\frac{1+0.83·\lambda /a}{1+1.33·\lambda /a}$$

(2)

The values of f(λ/a) vary in a relatively narrow range between f(λ/a) ≈ 0.624 at λ >> a and f(λ/a) ≈ 1 at λ << a. The second term in (1) represents Sharvin resistance [62]: $R_S=\frac{4{\rho }_c\lambda }{3\pi a^2}$ that is associated with the collision-free motion of charges. It plays an important role when the size a of a contact spot is smaller than λ. Then Sharvin resistance R_S can exceed Maxwell resistance R_M and its contribution to the constriction current becomes significant.

Current constriction by asperities is an inherent feature of the contacts of conductors with rough surfaces [50,54,63]. The constriction resistance is determined by the number of the compressed asperities, sizes of their contact spots and thicknesses of the insulating layer. The constriction current decreases when the size of the contact spot is larger than the mean free path of electrons, a > λ, as evident from (2). Then the charge transport is predominantly diffusive and is determined by Maxwell resistance R_M, defined in (1). In high-quality conductor contacts, e.g., in MEMS, the constriction current is much smaller than the conduction current and is usually combined with the conduction or tunnelling currents [64].

The effective resistance R_u of the whole junction surface containing M asperities can be averaged and approximated as suggested in [50]

$$R_u={\left({\displaystyle \sum _{m=1}^M{R}_{cm}^{-1}}\right)}^{-1}\approx \frac{{\rho }_{av}}{2a_{eff}}\left[f\left(\frac{\lambda }{a_{eff}}\right)+\frac{8\lambda }{3\pi a_{eff}}\right]$$

(3)

where M is the number of compressed asperity pairs, and R_cm is defined by (1) and describes the contact resistance of mth pair of asperities. It was suggested in [50] that R_u could be evaluated with (1) where a and ρ are replaced by an effective radius a_eff and average resistivity ρ_av. Such an approximation given in (3) proved to be fairly accurate when the contact area is large at a_eff > λ. Then the contribution of Sharvin resistance is small and deviations of resistivities ρ_cm from their average value ρ_av remain small.

The contact resistances R_cm of individual contact pairs and the whole ensemble, R_u, are the main electrical parameters used for characterising the performance of MEMS switches. They include the effects of both the electrical properties of the contact surfaces and the mechanical deformations. The electro–mechanical models of the contacts in the MEMS switches have been discussed in detail in [50,51,52,64].

2.2. Nonlinearity of MIM Contacts

The tunnelling current in MIM contacts subjected to RF power is the main source of their fast nonlinearity [22,23,24]. When a thin insulating film of a few nanometre thick separates asperities of rough conductors, the tunnelling current flows through. The timescale of the tunnelling effects in the conductor junctions allows an efficient interaction of the high-power RF carriers with free charges. However, when the thickness of the insulating layer exceeds the free path of electrons, charges cannot penetrate the potential barrier and the tunnelling current rapidly decays. The tunnelling current becomes practically negligible at the insulator between asperities thicker than 10 nm.

The charge tunnelling between two smooth conductor surfaces was studied first by Somerfield and Bethe in the cases of the electric bias being either very weak or very strong. Holm has extended their model to the range of intermediate voltages [22] to characterise the tunnelling effect at a moderate electric field applied to MIM junction. For this purpose, Holm introduced an additional corrective term into the transition function, which determined the likelihood that electrons can pass through a thin insulator layer. However, Simmons showed that Holm’s approximation was valid for the symmetric structure only and failed in asymmetric cases. Simmons analysed a general case of a potential barrier, assuming smooth variations of the barrier height and fairly small changes of its average value [23]. In the widely accepted Simmons model, the current density J(V_g) in MIM junction is represented as

$$J\left(V_g\right)=J_0\left[\overline{\phi }{e}^{-A\sqrt{\overline{\phi }}}-\left(\overline{\phi }+e{V}_g\right)e^{-A\sqrt{\overline{\phi }+e{V}_g}}\right]$$

(4)

where $J_0=\frac{e}{2\pi h{\left(\beta \Delta s\right)}^2}$ and $A=\frac{4\pi \beta \Delta s}{h}\sqrt{2m}$; $\overline{\phi }$ is an average height of potential barrier inside an insulator layer, V_g is the voltage between the contact conductors, e is the electron charge, h is the Planck constant, β is the correction factor used in the approximation, m is the electron mass, and Δs is an effective thickness of insulator film which is usually smaller than the actual thickness. The value of the parameter β is close to 1, and at insulator thicknesses Δs~4–5 nm, the error of the approximation β = 1 is less than a few percent [23].

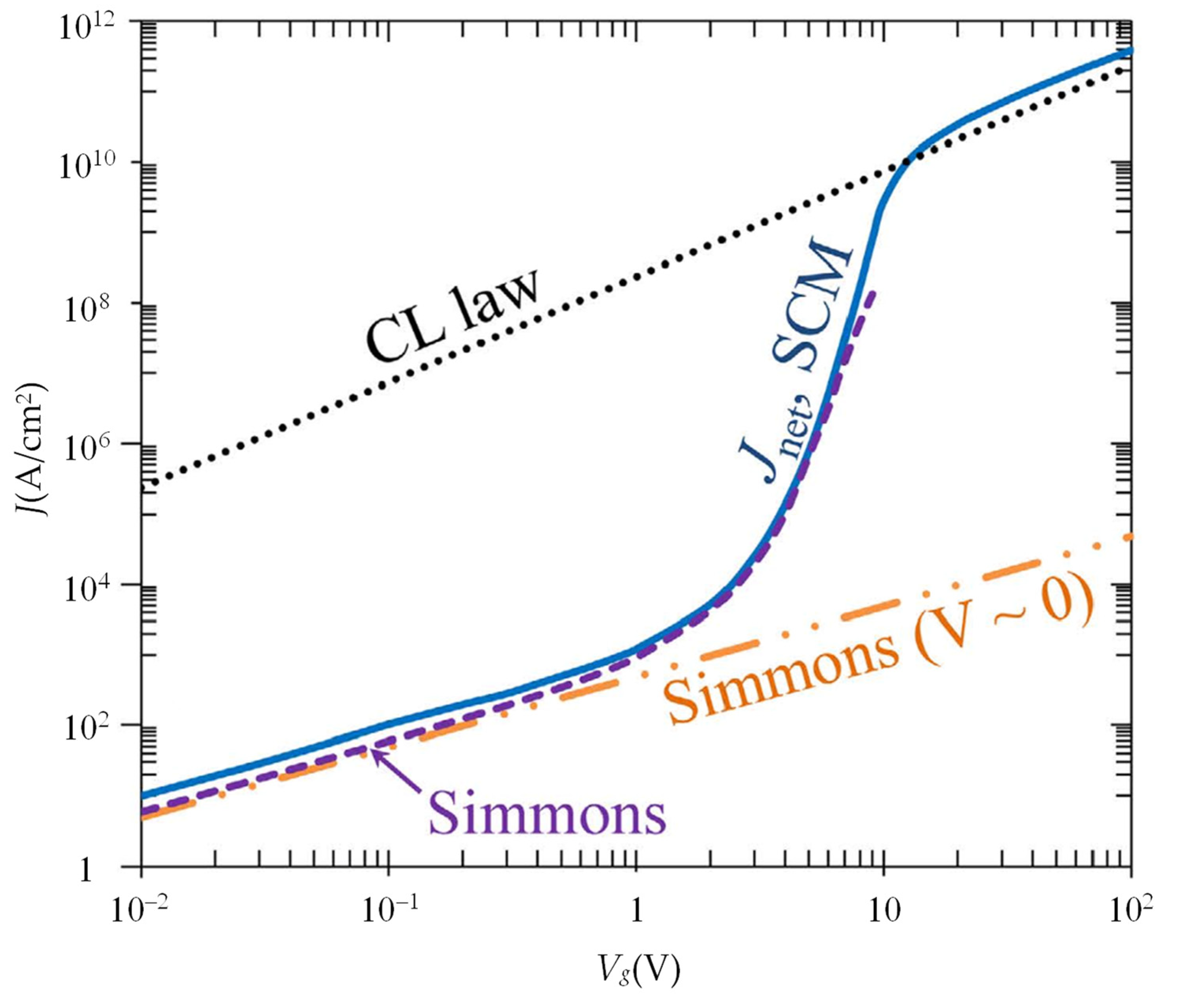

The accuracy of the Simmons model (4) of MIM junctions was recently examined for thin insulator films in [26,27,28,29]. The simulated characteristics of J(V_g) in the MIM junction are shown in Figure 3 for an insulating film with a thickness of 1 nm. Comparison of the Simmons model [23] with the self-consistent model (SCM) [26] demonstrates their good correlation. The Simmons model also proved to be fairly accurate when the insulator thicknesses varied between 1 nm and 10 nm. It was also found that the equivalent resistivity V_g/J inferred from (4) is slightly overestimated at sub-nanoscale Δs and underestimated at Δs > 5–7 nm. The uncertainty of the Simmons model in these cases increases to a few percent.

The effect of current crowding at the conductor edges and the nonuniform current distribution at the metal plates of partially overlapped parallel MIM contacts were modelled in [27,28,29]. The nonlinear tunnelling resistivity of MIM junction, defined as the ratio of voltage to current density, was evaluated in dependence of several parameters such as contact length, permittivity and thickness of an insulating layer and the sheet resistance. It was observed that at the sub-nanometre insulator thicknesses 0.5 nm and 0.65 nm, the contact resistivity reduced and remained nearly linear at low applied voltages (v < 0.3 V). At voltages in the range ~0.4 V–5 V, the slope of resistivity–voltage curves rapidly changed, similar to Figure 3, and exhibited the essentially nonlinear behaviour of the MIM junction. Thus, the MIM nonlinearity evidently represents a source of PIM that has not been considered in the literature, yet. The effects of conductor surface roughness, thickness and conductivity of the insulating layer on the MIM junction resistance are still debated in the literature.

2.3. The Effect of Surface Roughness

Surface roughness significantly affects the performance of electrical contacts in high frequency applications [49,50,51,52,54]. Asperity random heights and patterns of the contact surfaces are never the same, even when the materials and fabrication process used are identical. Therefore, the statistical models have been used for simulating the contacts of rough surfaces. These techniques were applied to the characterisation of losses in printed circuit boards [48]. Surface roughness also proved to be an important factor influencing the performance of MEMS devices, and the contact phenomena in MEMS with rough conductors have been extensively studied in [50,51,52,53,60,63,64].

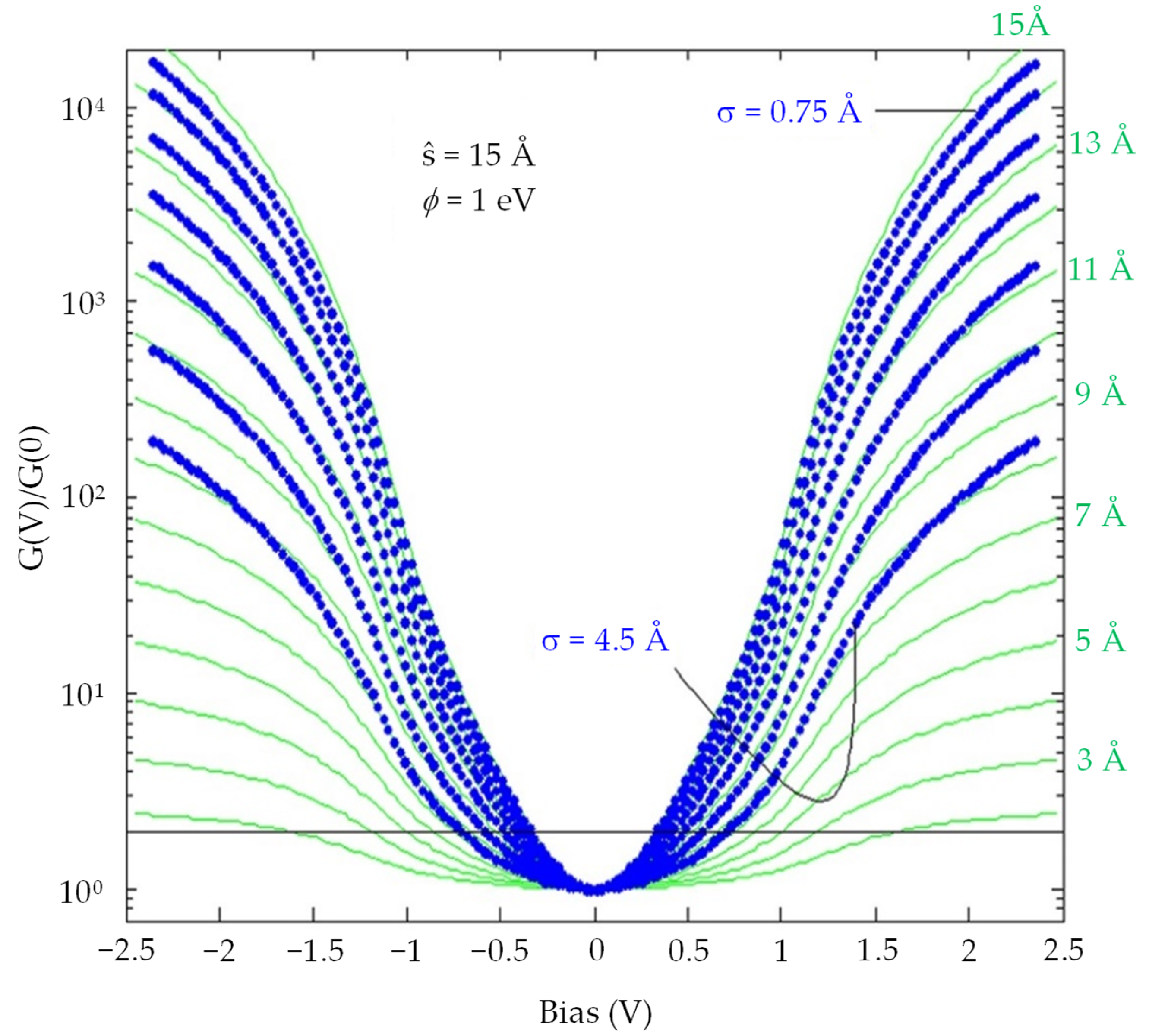

Gaussian distribution of contact asperity heights with the standard deviation up to 20% from an average value was examined in [65], taking into account the effect of an insulator thickness on the contact resistance of rough surfaces. Using the Brinkman–Dynes–Rowell model [66], it has been shown that a single thickness model reasonably estimates the surface conductance when the standard deviation of asperity heights remains within 5% of the average value, see Figure 4. However, as roughness increases, the average thickness of the insulator layer becomes smaller than its actual value used earlier for approximating the surface conductance. Moreover, at a larger standard deviation of thickness, the mean thickness decreases that makes a single-thickness approximation less accurate. Roughness also “flattens” the conductance as if the barrier were thinner. This effect is illustrated by the conductance curves for ideal single-thickness barriers (i.e., σ ≡ 0) presented for comparison (solid lines) in Figure 4 [65].

To relate a mean thickness to its actual value, inferred from the conductance measurements, the rules of thumb were suggested in [55]. However, the accuracy and uniqueness of such fitting the normalised conductance values in a range of asperity heights remain a major problem, as was earlier pointed out in [67].

2.4. Thermionic Emission

Thermionic emission is the process of electron discharge from the free metal surface. In good conductors, it is observed at very high temperatures, i.e., above 1000 °C [68], when hot electrons can gain enough energy to break their bonding and escape from the conductor surface.

At operational temperatures of electronic devices, the thermionic emission current in joints of good conductors is negligible in comparison with the tunnelling current. It also decreases exponentially with the thickness of the insulating layer and becomes practically undetectable as the insulator layer is thicker than 5 nm. Thus, the thermionic emission current can be neglected in contacts of good conductors when the tunnelling current in MIM junctions exhibits nonlinear behaviour as discussed in Section 2.2.

3. Thermal Nonlinearities at Contacts of Good Conductors

Thermal effects at conductor joints are associated with the main processes listed in Figure 1: (i) self-heating due to RF power dissipation in imperfect conductors; (ii) electro-thermal coupling in contact joints; and (iii) thermal expansion of the contact areas. They are linked intrinsically and influence other types of nonlinearities despite significant differences in the time scales of the underlying physical processes. Ambient temperature also has a notable impact on the effect of thermal nonlinearities [69]. The main properties and distinctive features of the thermal effects at contacts of conductors with rough surfaces are discussed below.

3.1. Self-Heating Effect and Nonlinearity of Contact Resistivity

Heat generation is an inherent feature of electromagnetic (EM) wave interactions with conductors and their contact joints. This multiphysics process couples the electric and thermal domains as illustrated by Figure 5. Namely, the dissipative losses of high-power RF signals generate heat which, in turn, changes the resistance of conductors and causes their thermal expansion and mechanical deformations. These nonlinear processes are interlinked but the time scales of the thermal and mechanical processes notably differ.

High-power RF signals are attenuated by imperfect conductors due to their resistive losses. The dissipated power causes conductor self-heating, and the changes of local temperature at point x alter a conductor resistivity ρ_c(x). In a broad range of temperatures, ρ_c(x) is well approximated by the linear temperature dependence

$${\rho }_c\left(x\right)={\rho }_0[1+\alpha ·\delta T(x\left)\right]$$

(5)

where ρ₀ is an average resistivity of the conductors at ambient temperature, α is the temperature coefficient of resistivity and δT(x) is the local temperature increment due to RF heating of the contact

$$\delta T\left(x\right)={\displaystyle \sum _n\delta q\left({\omega }_n,x\right)}\cdot R_{th,eq}\left({\omega }_n\right)$$

(6)

In (6), δq(ω_n, x) is the heat generated by the high-power carrier of frequency ω_n with current density J_c(ω_n, x) in an imperfect conductor [49]. Then

$$\delta q\left({\omega }_n,x\right)=\frac{1}{2}\mathrm{Re}\left\{Z_{\mathrm{c}}\left({\omega }_n,x\right)\right\}{\left|J_{\mathrm{c}}\left({\omega }_n,x\right)\right|}^2\delta S$$

(7)

where Z_c(ω_n, x) is a local impedance at carrier frequency ω_n, and δS is a differential area of the contact spot. An equivalent thermal resistance R_th,eq(ω_n) can be defined as [37]

$$R_{th,eq}\left({\omega }_n\right)=\mathrm{Re}\left\{\frac{R_{th}}{1+R_{th}\sqrt{j{\omega }_n{C}_{th}}}\right\}$$

(8)

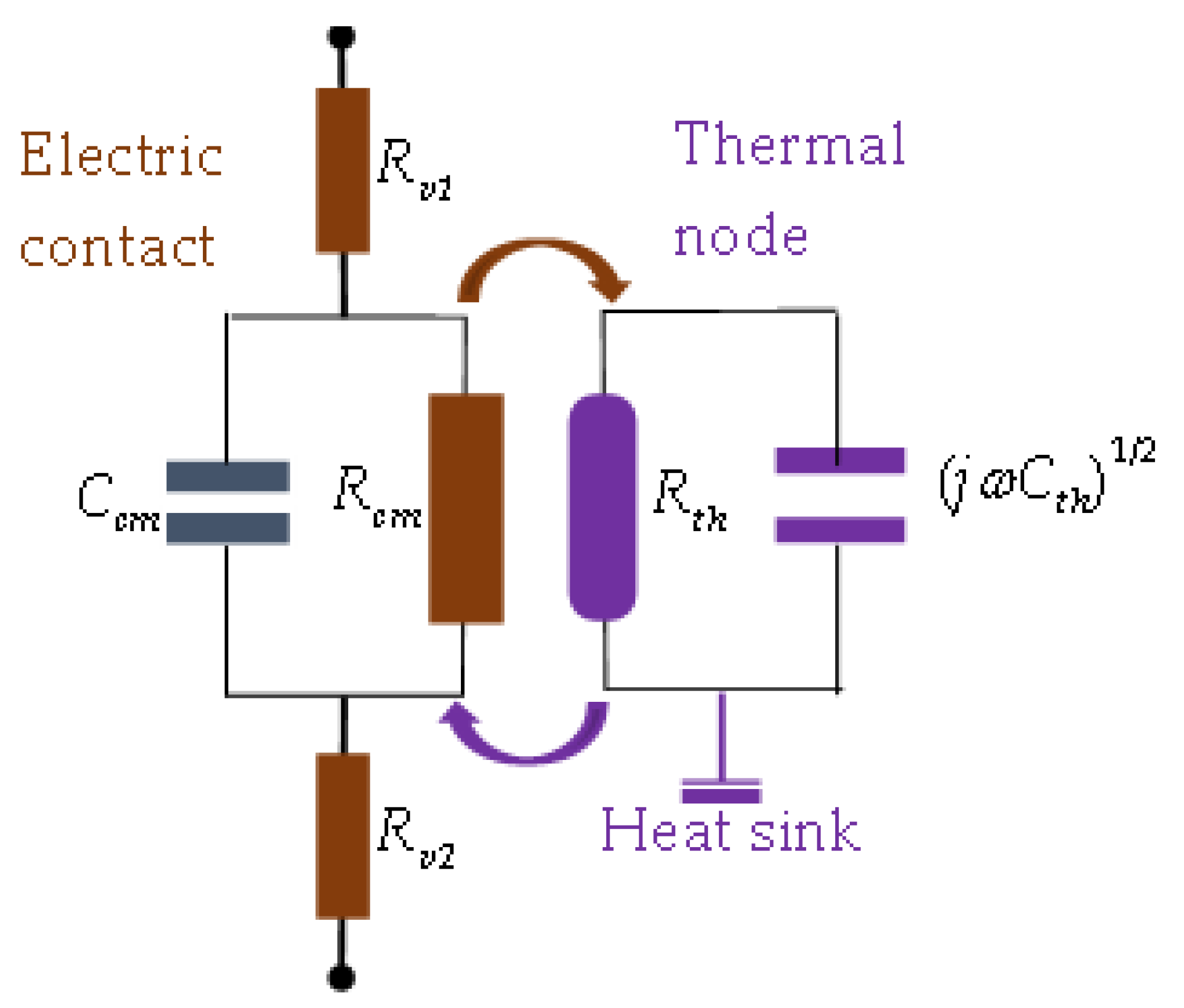

where R_th and C_th are the thermal resistance and thermal capacitance, respectively. They form a thermal node shown in Figure 5.

Simultaneous solution of (5)–(7) gives an approximation of the local resistivity

$${\rho }_c\left(x\right)={\rho }_0\left[1+\alpha {\Delta }_{\mathrm{T}}\left(x\right)+O\left({\alpha }^2\right)\right]$$

(9)

where

$${\Delta }_{\mathrm{T}}\left(x\right)=\delta S{\displaystyle \sum _n\left[R_{th,eq}\left({\omega }_n\right)\delta q\left({\omega }_n,x\right)\right]}=\frac{1}{2}\delta S{\displaystyle \sum _n\left[R_{th,eq}\left({\omega }_n\right)\mathrm{Re}\left\{Z_{c0}\left({\omega }_n\right)\right\}{\left|J_c\left({\omega }_n,x\right)\right|}^2\right]}$$

(10)

is the resistivity increment proportional to the heat generated by the contact resistances Re{Z_c0(ω_n)} at ambient temperature. Thus, (9), (10) show that the contact resistivity ρ_c(x) depends on the squared current density magnitudes |J_c(ω_n,x)²| of individual carriers and has the nonlinearity of Kerr type. An important feature of (9) is that ρ_c(x) represents a local nonlinear resistivity, which may vary across the contact area due to inhomogeneity of the local thickness of the insulator in the MIM junction.

3.2. Electro-Thermal Effect in Contact Joints and PIM Generation

Electrothermal PIM (ET–PIM) is caused by self-heating due to conductor and dielectric losses [37]. ET–PIM has a distinct signature of the nonlinear coupling of electrical and thermal domains as illustrated by Figure 5. The basic mechanism of this nonlinearity is the thermal modulation of resistivity. In essence, the heat due to RF losses alters the resistance, which is heated by the high-power carriers, and this results in the generation of PIM products. The effects of ET–PIM have been studied in the termination resistors [37,47], printed TLs [36,70] and thin-film coplanar waveguides with spatially inhomogeneous current distributions [35]. The developed theory of the ET–PIM and supporting experiments [36,37,70] have revealed that the baseband resistivity of conductors is modulated by the heat oscillations. The effect of resistivity variation on the skin depth due to modulation of the RF carriers was analysed in [42,43]. It enables both the development of the qualitative analytical model, which sheds light on the principal mechanisms of ET–PIM generation, and provides an accurate assessment of signal distortion by ET–PIM in the full-wave EM simulations [33,34,35,36,70].

Evaluation of the dissipative losses and the rate of self-heating are the critical steps in the ET–PIM analysis. While the skin effect is routinely modelled in the EM simulators when calculating the losses of imperfect conductors, surface roughness is often ignored despite its proven major impact on the performance of printed circuit boards [48,49] and MEMS switches [50,51,52]. The conductors with rougher surfaces exhibit not only higher RF losses but also worse thermal performance and a higher level of PIM [32].

The ET–PIM phenomenon was described first in [37], where a thermal modulation of the load resistance by two high-power RF signals was examined. A load with a size much smaller than the carrier wavelength has the resistance proportional to its temperature-dependent resistivity ρ_L(δT) where δT is the temperature increment. Since ρ_L(δT) has the same temperature dependence as ρ_c(x) in (5), its modulation by the high-power carriers is described by (9). This basic model, illustrated by Figure 5, directly relates an instantaneous power of the electrical current in the load with resistance R_cm to the heat flow at a thermal node with the thermal resistance R_th and thermal capacitance C_th. Such a thermal system acts as a low pass filter as the thermal response of the resistive load is much slower than variations of the high-power RF signals of frequencies ω₁ and ω₂. However, when the frequency of thermal oscillations is comparable with an intermediate frequency Δω = |ω₂–ω₁| generated by the electro-thermal nonlinearity, the resulting temperature oscillations modulate the load resistance. Then the PIM products fall in the operational frequency band [35,36,37,42,46,47] as illustrated by Figure 6. When the difference of the carrier frequencies exceeds several MHz, the thermal oscillations become too slow to follow the frequency Δω and the magnitude of the ET–PIM products decreases [36,37,70].

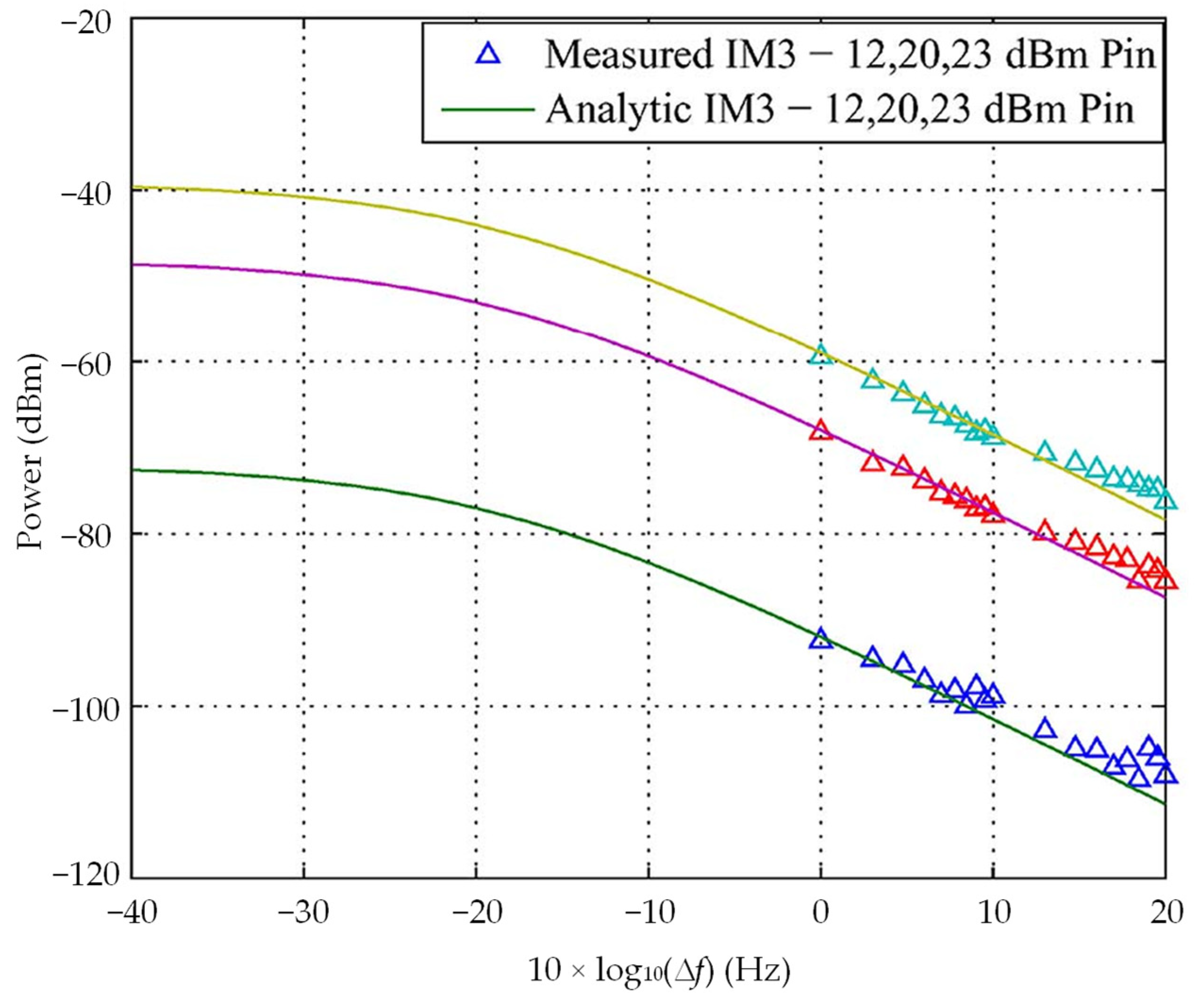

The distinctive feature of the ET–PIM is that the power slope of the PIM products versus a difference of carrier frequencies is only 10 dB per frequency decade [37]. Such a rate of the ET–PIM decay with the carrier frequency offset implies that ET–PIM products may have a significantly stronger impact on the signal distortion in broadband communications systems with a dense spectrum of closely spaced high-power carriers.

The ET–PIM in contact joints is strongly affected by the surface roughness as the asperity height and size of a contact spot determine its resistance and reactance. The current constriction and contact heating at rough surfaces increase the spot temperature and asperity resistivity. The ET–PIM generated by joints of rough surfaces is related to their effective contact resistance R_u defined in (3) and depends on the effective size a_eff of a contact area and an averaged contact resistivity ρ_av that increases with temperature as defined by (5). This results in the higher ET–PIM level at rougher surfaces that was observed in the printed circuits and conductor joints [32,49,64].

3.3. Thermal Expansion of the Contact Area

The heat, generated by the high RF power, is dissipated in conductors and their joints and causes the thermal expansion and deformation of contact surfaces. As the result, the contact areas and the conductor resistivity ρ_c(x) increase with temperature. The contact resistance R_cm of asperities also grows with temperature, whilst the pace of its growth depends on the relation between the temperature coefficient of resistivity α, the rate of the thermal expansion of the contact areas and asperity deformations as illustrated by Figure 1. An increase of the contact area is linked to the rate of heat flow from the contact spots, but it progresses much slower. Therefore, the pace of establishing the thermal equilibrium is dictated by the lower speed of the asperity deformations.

The thermal effects at joints of conductors with rough surfaces are amplified by the current constriction by the contact spots. For example, as the temperature of an asperity increases due to the current constriction, the thermal expansion of the compressed asperities somewhat reduces the constriction current density. But the growing contact pressure normally exceeds the yield stress of the heated asperities. As the result, they become susceptible to creep when subjected to compressive strain [71]. The effect of the contact pressure and the asperity deformations are dictated by the mechanical properties of the contact surfaces, which are discussed next.

4. Mechanical Nonlinearities at Conductor Contacts

Mechanical deformations of electric contacts and conductor joints in connectors, MEMS switches, micro and nano electronic circuits have been extensively studied in the literature, see, e.g., [49,50,51,52,53,60,64,71] and references therein. The performance and longevity of contacts in RF devices proved to be affected by conductor surface roughness and stiffness. The high-frequency applications of MEMS have inspired the detailed studies of the effects of micro deformations on the contact resistivity, losses and reliability of conductor joints. The first models taking into account roughness of the conductor surfaces in microcontacts had been developed in [60,64] and later refined in [50,51,52,53].

The contact resistance R_c of asperities, defined in (1), is proportional to the electrical resistivity ρ_c and depends on the size a of a contact spot. In a broad range of the contact pressure variation, ρ_c of good conductors remains practically constant whereas the linear and nonlinear deformations of the contact spots become the dominant factors. It has also been observed in [64] that these deformations are weakly affected by thickness t and permittivity K of an insulating layer, as illustrated by Figure 7, if its energy level remains above the Fermi levels of the conductive surfaces. The asperity deformations and contact area expansion are also closely connected to the electrical and thermal effects discussed earlier and demonstrated by Figure 1.

4.1. Effect of Asperity Deformations on Conductor Resistivity

Contact resistances of rough surfaces calculated with the aid of (1) or (3) take into account the effects of an external pressure and deformations of the compressed asperities [50,51,52,53,54,64,71]. The factors affecting expansion of the contact areas and asperity compression include the mechanical stresses, elasticity and surface finish. At low pressure, the colliding asperities experience elastic deformations and their contact areas enlarge. When contact pressure increases, the compressed asperities experience plastic deformations and their contact regions are hardened. This results in the slowing down of the expansion of the contact spots and a change in contact resistivity ρ_c(x) [50,60,64]. Thus, the combined effect of the contact area enlargement and asperity hardening is governed by the relations between the contact pressure and contact resistance, cf. Figure 1. The nonlinear effects of strain hardening and softening on the resistivity ρ(x) of a contact spot is accounted in [72]

$$\rho \left(x\right)={\rho }_c\left(x\right){\left(1+\frac{{\epsilon }_p}{{\epsilon }_{ref}}\right)}^q\left[1-\exp \left(-\frac{Q}{kT}\right)\right]$$

(11)

where ρ_c(x) is the temperature dependent resistivity of a contact, defined in (5), ε_p is plastic strain, ε_ref is a reference strain, q is a material dependent parameter, Q is the activation energy for the mechanism of relaxing the stored dislocations, T is the absolute temperature and Boltzmann constant k = 1.38 × 10⁻²³ J/K.

In addition to altering the contact resistance, heat softens contact asperities [50,51,52,53] and increases their plastic and creep deformations. Very slow creep deformations have been examined in micro-contacts with a low current in [50], where the strain-rate $\dot{\epsilon }$ is described by a power law dependence on the stress σ as

$$\dot{\epsilon }=A{\sigma }^p\exp \left(-\frac{Q_c}{kT}\right)$$

(12)

where A is a parameter defined by the material properties and the creep mechanism, σ is the stress, Q_c is the activation energy for creep. The stress exponent p used in (12) usually varies between 3 and 10, depending on the material composition.

When contact joints are exposed to the high RF power, the contact area of asperities increases further due to its thermal expansion. But the conductor resistivity ρ_c(x) also grows due to Joule heat as discussed in Section 3. These two effects counteract each other as the rise of contact temperature increases both ρ_c(x) and the dissipative losses, whilst enlargement of the contact area reduces the resistance and a current density. Joule heat, generated by the current flowing through contact asperities, increases the temperature T of the contact spots. The temperature dependence on the contact voltage V_c was examined in [73,74] for conductor joints with the characteristic size a of the contact spot considerably larger than the electron mean free path λ. Since the boundary scattering has a minor effect on the self-heating of the contact spots in this case, the contact temperature is evaluated with the asperity heating model [50]

$$T=\sqrt{T_0^2+\frac{\gamma }{4L}\frac{V_c^2}{\xi \left(\lambda /a\right)}}$$

(13)

where T₀ is ambient temperature, γ is the scaling parameter of the asperity distribution, L = 2.45 × 10⁻⁸ W·Ω/K² is Lorentz number, V_c is the contact voltage, $\xi \left(x\right)=1+\frac{8}{3\pi }\frac{x}{f\left(x\right)}$ and f(x) is defined in (2). It is interesting to note in (13) that T depends on ρ(x) only implicitly, through contact voltage V_c.

The slow deformations of contact asperities in conductor joints also affect the temperature dependent resistivity ρ(x) which is related to the material stress and strain. Variations of ρ(x) due to the contact deformations are much slower than the charge tunnelling and thermal effects. Therefore, the mechanical effects in the RF contacts can be considered in the quasi-static approximation that significantly simplifies the multiphysics analysis of the complex conductor joints.

4.2. Contact Area Expansion

Pressure, applied to the contacts of conductors with rough surfaces, causes asperity deformations. The compressed asperities expand laterally, and their contact areas increase with the applied pressure and mechanical stress, depending on the material stiffness and surface coatings. When exposed to the RF power, the contact spots are heated due to conductor losses and the compressed asperities spread gradually to reduce their strain. The thermal expansion and softening of the contact spots also cause plastic deformations and creep of the colliding asperities. These effects were examined in [71] for RF MEMS with frustoconical contact asperities. At a small radius r₁ of the undeformed frustum tip, contact radius r_c(t) of the compressed asperity varies with time t and is approximated as [71]

$$r_c\left(t\right)={\left[r_1^{1/\alpha }+t\frac{LC}{\alpha \tan \beta }{\left(\frac{F}{\pi }\right)}^{\left(1/\alpha -1\right)/2}\exp \left(-\frac{Q_c}{kT}\right)\right]}^{\alpha }$$

(14)

where L is asperity initial height, C is a constant dependent on the contact material and creep mechanism, β is a slant angle of the asperity frustum, F is contact load, Q_c is the activation energy for creep, α = 1/(1 + 2p), and p is the stress exponent defined in (12). The value of α is specifically related to the creep coefficient, and it is fitted to the experimental data. Values of α are usually small, and α < 0.1 in the example presented in [71].

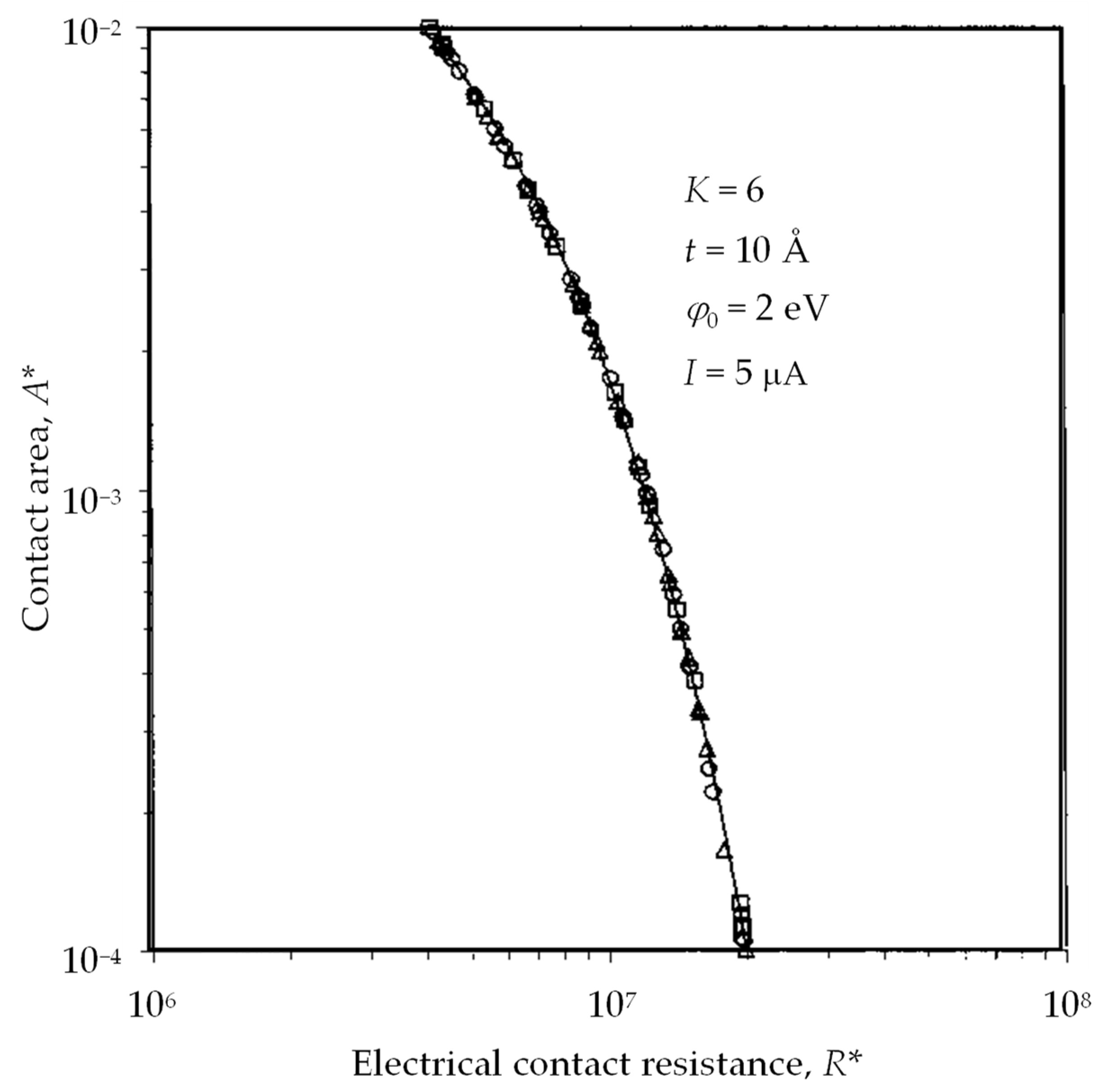

Maxwell contact resistance R_M of conical frustums with the time-dependent radius r_c(t) and resistivity ρ_c of the contact spot can be calculated with (1). The simulated and measured time-dependent resistances R_M(t) are shown in Figure 8. Approximated by (1) with constant ρ_c and the time variable contact size r_c(t) defined in (14), R_M(t) fits the measurement results very well when the switch is closed the first time. When the contacts are closed for the second and third times (middle and top plots), the measured resistance R_M(t) is flatter than the calculated ones at the first δt = 4 s and δt = 9 s, respectively. But R_M(t) is well correlated with the simulations later on. It is also necessary to note that Sharvin resistance showed no visible effect on the contact resistance and its time variations here. This is a manifestation of the incommensurate time scales of the charge tunnelling effects and the mechanical deformation in the contacts of conductors with rough surfaces.

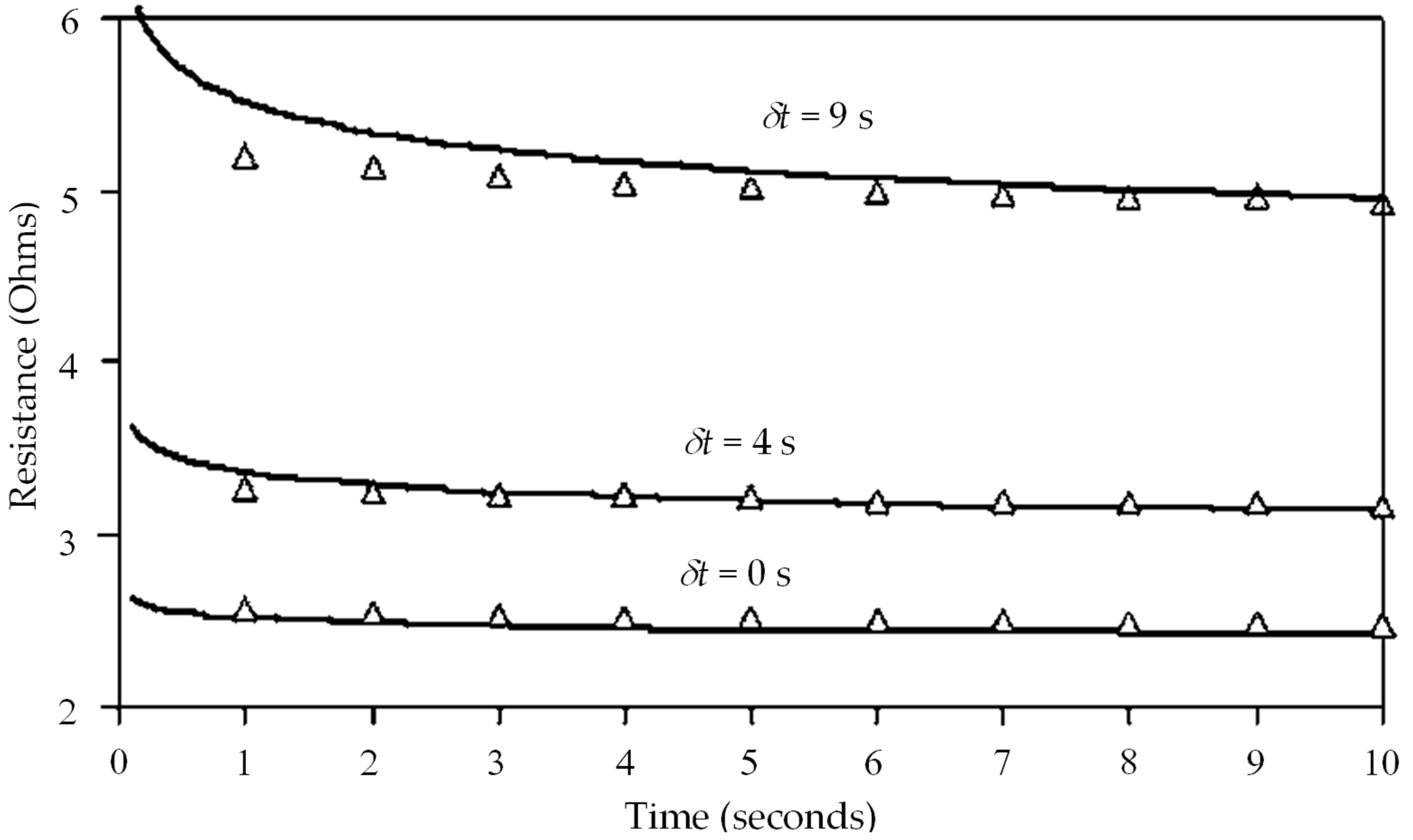

The dynamics of MEMS contacts was alternatively examined in [51,52] where the contact area was evaluated in the frequency domain. This approach required less computational resources but its accuracy was lower, and it did not allow the analysis of the temporal variations of the contact area and its resistance. These works were applicable to the very slow contact deformations that allowed calculations of the size of the expanded contact area, which determined the contact resistance only.

5. Conclusions

The main mechanisms of dissipative losses and sources of passive nonlinearities in contacts and joints of conductors with rough surfaces are reviewed. The discussed physical mechanisms are cast in the three main groups of (i) electrical, (ii) thermal and (iii) mechanical effects. It is shown that all these mechanisms are intrinsically linked but their time scales differ significantly. Namely, the electromagnetic interactions at MIM junctions are very fast and can follow the pace of the RF signals. The thermal processes are much slower being limited by the speed of heat flow in the conductor contacts. As well as this, the mechanical deformations develop even slower. It is emphasised that roughness of the contact surfaces considerably affects losses and nonlinearity in contact joints, especially at RF frequencies. The main sources of the passive nonlinearities at the contacts of rough surfaces have been discussed in the context of their effect on the RF performance of the joints of good conductors.

An important outcome of this study is a demonstration that types of electrical, thermal and mechanical contact nonlinearities are very different in spite of being linked intrinsically. Namely, the MIM nonlinearity is of the exponential type, whereas the electrothermal nonlinearity is of Kerr type. The nonlinearities of mechanical deformations are of the mixed type described by the combination of the exponential and algebraic dependencies. This implies that the analysis of PIM in contact joints of good conductors requires multiphysics models taking into account multiple sources of nonlinearities.
