Article

Development of Porous Polyacrylonitrile Composite Fibers: New Precursor Fibers with High Thermal Stability

by
Ehsan Samimi-Sohrforozani
1,
Sara Azimi
1,
Alireza Abolhasani
2,
Samira Malekian
1,
Shahram Arbab
3,
Mahmoud Zendehdel
4,5,
Mohammad Mahdi Abolhasani
1,* and
Narges Yaghoobi Nia
5,*
1
Chemical Engineering Department, University of Kashan, Kashan 8731753153, Iran
2
Civil Engineering Department, University of Kashan, Kashan 8731753153, Iran
3
Department of Textile Engineering, ATMT Research Institute, Amirkabir University of Technology, Tehran 1591634311, Iran
4
Kimia Solar Research Institute, Kimia Solar Company, Kashan 8713745868, Iran
5
Centre for Hybrid and Organic Solar Energy (CHOSE), University of Rome Tor Vergata, 00133 Rome, Italy
*
Authors to whom correspondence should be addressed.
Electron. Mater. 2021, 2(4), 454-465; https://doi.org/10.3390/electronicmat2040031
Submission received: 23 July 2021 / Revised: 18 September 2021 / Accepted: 28 September 2021 / Published: 8 October 2021
Browse Figures
Versions Notes

Abstract

:
Polyacrylonitrile (PAN) fibers with unique properties are becoming increasingly important as precursors for the fabrication of carbon fibers. Here, we suggest the preparation of porous PAN composite fibers to increase the homogeneity and thermal stability of the fibers. Based on the thermodynamics of polymer solutions, the ternary phase diagram of the PAN/H2O/Dimethylformamide (DMF) system has been modeled to introduce porosity in the fibers. Adding a conscious amount of water (4.1 wt.%) as a non-solvent to the PAN solution containing 1 wt.% of graphene oxide (GO), followed by wet spinning, has led to the preparation of porous composite fibers with high thermal stability and unique physicochemical properties. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) results elucidate that PAN/GO/H2O porous composite fibers have a higher thermal decomposition temperature, increased residual weight, reduced heat release rate, and higher crystallinity in comparison with the pristine PAN fibers, being a promising precursor for the development of high-performance carbon fibers. The results show a promising application window of the synthesized PAN fibers in electronic and electrochemical devices.

1. Introduction

Carbon fibers have been considered as promising materials for a large number of applications in the automotive industry, motorsports, and turbine blade manufacturing due to their light weight, stiffness, and extraordinary properties [1,2]. Polyacrylonitrile (PAN) fibers with high crystallinity, excellent thermal stability, and other remarkable characteristics are widely utilized as primary precursors in manufacturing high-performance carbon fibers [3,4,5].
Among various polymer fiber fabrication techniques, wet spinning and electrospinning have been the most frequently applied methods in the recent years [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. Known as a primary method, wet spinning has been employed to prepare a significant majority of PAN fibers [23,24,25,26]. In addition, numerous researches have focused on the modification of PAN precursor fibers since the quality of carbon fibers entirely depends on the physical and structural properties of the precursor such as crystallinity and thermal stability [3,27].
The inclusion of various fillers such as clay, cellulose nanocrystal, carbon allotropes, and other nanoparticles (MoS2, TiO2, Fe3O4) into the structure of fibers has been widely conducted to modify PAN fibers [28,29,30,31,32,33,34,35,36,37,38]. For instance, PAN composite fibers containing graphene oxide (GO) have gained significant interest owing to their large surface area and the effect of the functional groups of filler, which result in appropriate interactions with polymer [39,40]. Zhao et al. [41] provided PAN/GO composite fibers with enhanced thermal stability by increasing the amount of graphene oxide up to 3 wt.%. PAN/functionalized graphene composite fibers have demonstrated improved thermal properties as the corresponding heat release rate peak decreased by 36.7% compared to pristine PAN fibers [42]. Papkov et al. [43] introduced 1.4 wt.% of GO to the PAN solution, leading to an increment in the graphitic order of the final carbon nanofibers by increasing the carbonization temperature. The gel-spinning approach has also been employed to fabricate a porous PAN/GO composite with higher crystallinity [39].
As an alternative approach to modify PAN precursors, low-density fibers can be fabricated to develop light carbon fibers for high-performance structures. To fulfil this goal, recent studies have designed porosity in PAN fibers [33,44].
Here, we offer an elegant method to prepare porous PAN composite fibers with enhanced physical properties through studying the thermodynamics of polymer solutions and the physics of polymer/solvent/anti-solvent interaction along with the addition of nanofiller. To introduce porosity in the fibers, the ternary phase diagram of PAN/H2O/DMF system is modeled using the Flory–Huggins theory, and then 4.1 wt.% of water as non-solvent is added to the PAN solution containing 1 wt.% of GO. The cloud points of the ternary system are also determined experimentally and are in good agreement with the obtained theoretical phase diagram. The as-spunned PAN/GO/H2O composite fibers demonstrate higher crystallinity, a reduction in heat release rate, and grow thin thermal decomposition temperatures as well as residual weight compared to the pristine PAN fibers. Such outstanding outcomes confirm the excellent homogenous structure and thermal stability of the resulting fibers, which are of great importance for the fabrication of lightweight and high-performance carbon fibers.

2. Materials and Methods

2.1. Materials

Poly(acrylonitrile-ran-methylacrylate) (94 wt.% of acrylonitrile monomer, Mn = 36,000 g/mol, Mv = 70,000 g/mol, Mw = 116,000 g/mol, and PDI = 3.2) was purchased from Polyacryl Company, Isfahan, Iran. GO nanoparticle (thickness of 3.4–7.0 nm) was obtained from USNANO, Houston, TX, USA. Dimethylformamide (DMF) was supplied from Merck, Darmstadt, Germany.

2.2. Preparation of PAN Fibers

Four solutions were prepared for the wet spinning according to Table 1. For preparation of blank sample (dope A), a specific amount of PAN powder (14.4 gr) was added into 108 mL DMF to make an initial spinning dope for the wet spinning system, and it was stirred overnight at 45 °C. For dope B, H2O (4.8 mL) and DMF (103.2 mL) were mixed and stirred for 30 min at room temperature. Then, PAN (14.26 gr) was added to the solution and stirred overnight at 45 °C. In the case of dope C, GO (0.14 gr) was sonicated in DMF (108 mL) for 1 h to make a homogeneous dark solution. Subsequently, PAN was added to the solution and stirred overnight at 45 °C. Dope D was prepared by mixing defined amounts of H2O (4.8 mL), DMF (103.2 mL) and GO (0.14 gr) in the solution. Following this, PAN powder was swelled in the resultant solution and stirred overnight at 45 °C. It is to be noted that for the determination of cloud points, PAN/DMF solutions with different concentrations of 5, 8, 10, and 15 wt.% PAN was first prepared. Afterward, water was added slowly to the PAN/DMF solution till the initial solution turned turbid. The doped polymers were spun into the fibers using wet spinning system method. A metering pump (pump constant = 0.5 cm3/rev) extruded the dopes at same shear rate (16,000 1/s) into a 1-m-long coagulation bath containing tap water at 25 °C. The process was carried out through a single-hole spinneret with a diameter of 200 µm and L/D of 2.

2.3. Characterization

2.3.1. Field Emission Scanning Electron Microscope (FE-SEM)

Cross-sectional images of as-spun fibers were obtained using a MIRA3 TESCAN microscope (Brno-Kohoutovice, Czech Republic). All samples were freeze-fractured in liquid nitrogen. Then, a thin layer of gold was coated on the fractured surfaces to be observed with FE-SEM.

2.3.2. High Resolution Transmission Electron Microscopy (HR-TEM)

The morphology of wet spun fibers was imaged by an HR-TEM (FEI Tecnai F20, Hillsboro, OR, USA) operated at 200 kV.

2.3.3. Fourier Transform Infrared Spectroscopy (FTIR)

FTIR spectra of the samples were obtained in a range between 500 and 4000 cm−1 using the KBr pellets on a Magna 550 Nicolet spectrometer (Waltham, MA, USA).

2.3.4. Differential Scanning Calorimetry (DSC)

DSC analysis was performed on a Mettler Toledo calorimeter (Strategy Tower 1, Singapore) through heating the samples from 25 °C to 400 °C at a rate of 10 °C/min under N2 atmosphere.

2.3.5. X-ray Diffraction (XRD)

XRD pattern of samples was recorded using an X-ray diffractometer (Panalytical Company, Almelo, Netherlands) equipped with Cu Kα radiation (40 kV, 30 mA).

2.3.6. Thermogravimetric Analysis (TGA)

In order to study thermal stability of the fibers, TGA was carried out using a BAHR thermal analyzer (model STA 503, Hüllhorst, Germany) at a heating rate of 10 °C/min in the temperature range of 25–800 °C under a constant flow of argon environment.

3. Results

3.1. Ternary Phase Diagram

The porosity within the wet spun fibers is accurately outlined using the thermodynamics and kinetics of liquid–liquid phase separation in the ternary mixture of PAN, solvent (DMF), and H2O (non-solvent). Achieving a correlation between PAN fiber morphology and initial H2O content is in no way trifling. To gain further intuition into phase behavior, the ternary phase diagram of PAN/H2O/DMF was constructed using the Flory–Huggins theory. Details of the model are presented in Note 1 in the Supporting Information. The calculated ternary phase diagram is shown in Figure 1. For clarity, the cloud points and tie lines are shown by the blue squares and black dashes, respectively. The obtained binodal fits the experimental cloud points excellently, confirming our approach.
In the next step, we aimed to determine the percentage of water related to the critical points. At such points, the polymer dopes move from the miscible region to the unstable region without passing through the metastable region, leading to spontaneous liquid–liquid demixing and the formation of an interpenetrating bicontinuous structure. Interestingly, the resulting as-spun fibers are homogeneous and have suitable properties [45]. On the other hand, a high percentage of non-solvent in the dope results in the formation of fibers with low porosity [46]. Thus, 4.1 wt.% of water as a non-solvent was added to the polymer dope, which is close to the critical point.

3.2. Morphological Analysis of PAN-Based Fibers

Cross-sectional FE-SEM images of different PAN fibers are illustrated in Figure 2. Pristine PAN fibers with a diameter of 277 μm have porosity and micrometric voids due to the presence of water as the coagulating agent in the coagulation bath during the wet spinning process [47]. FE-SEM images show that in the presence of H2O, its concentration enrichment lowered overall fiber porosity. In PAN/H2O fibers (d = 504 μm), a diminished thermodynamic affinity toward mass transfer between H2O and fiber precursor emerges, which decreases the numbers of micrometric channels compared to the pristine PAN fibers [46]. However, the number of finger-like channels with decreased width increased. PAN/GO composite fiber (d = 312 μm) has the same cross-sectional structure as pristine PAN fiber and no noticeable change in the channels or voids of fibers appeared. The cross-section FE-SEM image of PAN/GO/H2O (d = 319 μm) shows that the micrometric channels and holes protect the center of the fibers. Additionally, the number of finger-like channels enhances from the center to the outer surface of the fibers.
The HR-TEM image of the PAN/GO/H2O composite fiber and the corresponding SAED pattern are shown in Figure 3. The SAED pattern reveals continuous circles, originating from the crystalline nature of GO. The observed rings are related to the planes of GO with “d” spacing of 1.2 Å and 2.1 Å [48], suggesting the presence of GO inside the composite fiber.

3.3. Structural Analysis of PAN-Based Fibers

FTIR spectra of the PAN-based fibers are represented in Figure 4a. The band in the range of 2850–2950 cm−1 is attributed to the stretching vibration modes of CH and CH2 groups of PAN chains and the characteristic band at 2244 cm−1 is delineated to the stretching vibration of nitrile (C≡N). The absorption bands at 1631 cm−1 and 1732 cm−1 are related to C=C and C=O bonds, respectively [49]. Moreover, the C-O stretching band in the methyl acrylate monomer structure appears in the range of 1255–1090 cm−1 [50,51,52]. In the FTIR spectra of PAN/H2O and PAN/GO composite fibers, the intensity of bonds increased compared to that of the PAN/GO/H2O composite fiber, which could be related to the bond polarity. As illustrated in Figure 4b, hydroxyl groups of H2O and GO can form H-bonding with the nitrile group of PAN chain that enhances the nitrile bond polarity. However, in the case of PAN/GO/H2O composite fiber, this polarity decreases since H2O has more affinity to interact with GO rather than PAN.
XRD patterns of PAN-based fibers reveal a sharp and a small peak at 2θ angle of ~17° and ~27°, which are related to the crystalline and amorphous regions in the fibers, respectively (Figure 5) [25,53]. Crystallinity of the pristine PAN fiber, PAN/H2O composite fiber, PAN/GO composite fiber, and PAN/GO/H2O composite fiber were obtained as 19.4%, 21.6%, 25.6%, and 26%, respectively, using the corresponding XRD patterns. The presence of GO with a layered structure during the composite fiber gelation process leads to higher crystallinity of the fiber as it can enforce the alignment of polymer chains [54]. Results suggest that the addition of a non-solvent along with filler resulted in the formation of PAN precursor fibers with augmented crystallinity, which can improve the graphite order and mechanical properties of the final carbon fibers [55,56].

3.4. Thermal Behavior of PAN-Based Fibers

DSC thermograms of the fibers are demonstrated in Figure 6 and their relevant parameters have been summarized in Table 2. For the pristine PAN fibers, an exothermic peak temperature (Tp) appeared at 308.4 °C, related to the typical cyclization reaction of PAN [57,58]. The PAN/H2O, PAN/GO, and PAN/GO/H2O composite fibers showed peak temperatures at 297.6, 295.1, and 294.6 °C, respectively. Due to the addition of H2O to the PAN fiber, the TP decreased by 10.75 °C compared to the pristine PAN fiber. Additionally, for the PAN/GO composite fiber, a decline of 13.31 °C was observed for the exothermic peak temperature since acidic functional groups can decline the cyclization temperature and the released heat by ionic interactions between GO and PAN [59]. Interestingly, the most change in the exothermic peak temperature occurs in the presence of both H2O and GO. Results illustrate that the incorporation of H2O and GO in the PAN fibers decreases the required activation energy for initiation cyclization reaction, reducing Tp [60]. In addition, such a reduction in Tp can help avoid extreme heat eruptions and obtain a homogeneous stabilized structure in the prepared composite fibers [61]. The exothermic rate parameter (ΔH/ΔT) was also calculated for each sample from the DSC thermograms (Table 2). It was found that the parameter decreased by 31.2% and 49.2% for PAN/H2O and PAN/GO composite fiber, respectively, in comparison with pristine PAN fiber. However, a significant reduction (51.6%) was obtained in ΔH/ΔT when both H2O and GO were introduced into the PAN fibers, confirming that our integrated technique was successful in diminishing the amount of released heat in less time for the fiber. As a consequence, the as-prepared, modified PAN-based composite fiber had a homogeneous stabilized structure with less decomposition of polymer chains and high graphitic order, which are vital for manufacturing high-performance carbon fibers [43,62].
TGA curves of the PAN-based fibers are observed in Figure 7a and the corresponding parameters are listed in Table 3. For all samples, the first main weight loss starts around 50 °C, which can be attributed to the loss of water molecules and low molecular weight oligomers [63]. DTG curves show a thermal decomposition temperature (Td) of 299.4 °C for pristine PAN fibers (Figure 7b). Through the addition of water and nanofiller to the fibers, the temperature reached 302.6 and 302.8 °C for PAN/H2O fiber and PAN/GO composite fibers, respectively. However, Td increased to a high temperature of 307.1 °C for PAN/GO/H2O composite fibers. It is worth noting that decomposition, which happens above ~300 °C, is assigned to backbone degradation of the pristine PAN fibers [41]. Thus, the PAN backbone decomposition temperature was notably enhanced for the PAN/GO/H2O composite fibers. The layered structures of GO may function as cross-bonding points and contribute to a vital interaction between polymer chains and nanofillers, resulting in a highly intensified thermal stability [64]. Moreover, the weight loss in Td was calculated as 10.1%, 9.5%, 5.1%, and 2.2% for pristine PAN fibers, PAN/H2O fibers, PAN/GO composite fibers, and PAN/GO/H2O composite fibers, respectively, demonstrating high thermal stability of the PAN/GO/H2O composite fibers among other samples [42]. The residual weight percentages of the samples were also attained at 800 °C ignoring the weight of evaporated H2O in the water-containing fibers. This parameter reached 33.8% for the pristine PAN fiber; however, it increased to 35.0%, 47.2%, and 48.2% for PAN/H2O fiber, PAN/GO composite fibers, and PAN/GO/H2O composite fibers, respectively. High residual weight percentages of the modified PAN/GO/H2O composite fibers originate from high thermal stability of the sample [42,65]. Additionally, it can be seen that compared to previous studies, notable results have been obtained in our study (Table S3). As a consequence, the promising approach presented here is an effective strategy to produce modified precursor PAN fibers with unique properties, which helps the fabrication of high-performance carbon fibers.

4. Conclusions

In summary, we have prepared PAN precursor porous composite fibers by simultaneously adding nanofiller (GO) and non-solvent (H2O), which are profoundly modified in thermal stability and properties. The ternary phase diagram of the PAN/H2O/DMF system has been modeled using the Flory–Huggins theory to determine the non-solvent content and tailor porosity in the fibers. DSC results demonstrate higher crystallinity content and a more homogeneous stabilized structure of PAN/GO/H2O composite fiber compared to pristine PAN fibers due to its reduced heat release rate. Our modification technique also results in the thermal stability of porous composite fibers confirmed by TGA. Thermal decomposition temperature and residual weight of PAN/GO/H2O composite fibers has increased in comparison with pristine PAN fibers, giving a suitable precursor for the production of high-performance carbon fibers.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/electronicmat2040031/s1, Note S1: including additional descriptions for 1. Phase diagram of PAN/H2O/DMF ternary system, 2. Critical point, 3. H2O–DMF binary system, 4. DMF–PAN binary system, 5. H2O –PAN binary system, 6. Algorithm description, Table S1: Molar absorption constant at 16 °C and Table S2: Chemical structure and calculated solubility parameter. Table S3: An overview on the properties of the PAN fibers prepared in our work and previous studies.

Author Contributions

Conceptualization, E.S.-S., S.A. (Sara Azimi), A.A., S.M., S.A. (Shahram Arbab), M.Z., M.M.A. and N.Y.N.; methodology, E.S.-S., S.A. (Sara Azimi), A.A., S.M., S.A. (Shahram Arbab), M.Z., M.M.A. and N.Y.N.; software, E.S.-S. and S.M.; validation, E.S.-S., S.A. (Sara Azimi), A.A., S.M., S.A. (Shahram Arbab), M.Z. and M.M.A.; formal analysis, E.S.-S. and S.M., investigation E.S.-S., S.A. (Sara Azimi), A.A., S.M., S.A. (Shahram Arbab), and M.M.A.; resources, M.M.A.; data curation, E.S.-S., S.A. (Sara Azimi), S.M., S.A. (Shahram Arbab), and M.M.A.; writing—original draft preparation, E.S.-S. and S.A. (Sara Azimi); writing—review and editing, S.A. (Sara Azimi), M.Z., M.M.A. and N.Y.N.; visualization, E.S.-S. and S.A. (Sara Azimi); supervision, M.M.A. and N.Y.N.; project administration, M.M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank the Max Planck Institute for Polymer Research and the University of Kashan for their support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Edie, D.D. The effect of processing on the structure and properties of carbon fibers. Carbon 1998, 36, 345–362. [Google Scholar] [CrossRef]
  2. Zabihi, O.; Ahmadi, M.; Li, Q.; Shafei, S.; Huson, M.G.; Naebe, M. Carbon fibre surface modification using functionalized nanoclay: A hierarchical interphase for fibre-reinforced polymer composites. Compos. Sci. Technol. 2017, 148, 49–58. [Google Scholar] [CrossRef]
  3. Wangxi, Z.; Jie, L.; Gang, W. Evolution of structure and properties of PAN precursors during their conversion to carbon fibers. Carbon 2003, 41, 2805–2812. [Google Scholar] [CrossRef]
  4. Morris, E.A.; Weisenberger, M.C.; Abdallah, M.G.; Vautard, F.; Grappe, H.; Ozcan, S.; Paulauskas, F.L.; Eberle, C.; Jackson, D.; Mecham, S.J.; et al. High performance carbon fibers from very high molecular weight polyacrylonitrile precursors. Carbon 2016, 101, 245–252. [Google Scholar] [CrossRef] [Green Version]
  5. Fox, B. Making stronger carbon-fiber precursors. Science 2019, 366, 1314–1315. [Google Scholar] [CrossRef] [PubMed]
  6. Nataraj, S.K.; Yang, K.S.; Aminabhavi, T.M. Polyacrylonitrile-based nanofibers-A state of the art review. Prog. Polym. Sci. 2012, 37, 487–513. [Google Scholar] [CrossRef]
  7. Agarwal, S.; Greiner, A.; Wendorff, J.H. Functional materials by electrospinning of polymers. Prog. Polym. Sci. 2013, 38, 963–991. [Google Scholar] [CrossRef]
  8. Abolhasani, M.M.; Naebe, M.; Amiri, M.H.; Shirvanimoghaddam, K.; Anwar, S.; Michels, J.J.; Asadi, K. Hierarchically structured porous piezoelectric polymer nanofibers for energy harvesting. Adv. Sci. 2020, 7, 2000517. [Google Scholar] [CrossRef]
  9. Azimi, S.; Golabchi, A.; Nekookar, A.; Rabbani, S.; Amiri, M.H.; Asadi, K.; Abolhasani, M.M. Self-powered cardiac pacemaker by piezoelectric polymer nanogenerator implant. Nano Energy 2021, 83, 105781. [Google Scholar] [CrossRef]
  10. Anwar, S.; Amiri, M.H.; Jiang, S.; Abolhasani, M.M.; Rocha, P.R.F.; Asadi, K. Piezoelectric nylon-11 fibers for electronic textiles, energy harvesting and sensing. Adv. Funct. Mater. 2020, 31, 2004326. [Google Scholar] [CrossRef]
  11. Baqeri, M.; Abolhasani, M.M.; Mozdianfard, M.R.; Guo, Q.; Oroumei, A.; Naebe, M. Influence of processing conditions on polymorphic behavior, crystallinity, and morphology of electrospun poly(VInylidene fluoride) nanofibers. Appl. Polym. Sci. 2015, 132, 30. [Google Scholar] [CrossRef]
  12. Jia, Z.; Lu, C.; Liu, Y.; Zhou, P.; Wang, L. Lignin/Polyacrylonitrile composite hollow fibers prepared by wet-spinning method. ACS Sustain. Chem. Eng. 2016, 4, 2838–2842. [Google Scholar] [CrossRef]
  13. Fashandi, H.; Abolhasani, M.M.; Sandoghdar, P.; Zohdi, N.; Li, Q.; Naebe, M. Morphological changes towards enhancing piezoelectric properties of PVDF electrical generators using cellulose nanocrystals. Cellulose 2016, 23, 3625–3637. [Google Scholar] [CrossRef]
  14. Abolhasani, M.M.; Shirvanimoghaddam, K.; Naebe, M. PVDF/graphene composite nanofibers with enhanced piezoelectric performance for development of robust nanogenerators. Compos. Sci. Technol. 2017, 138, 49–56. [Google Scholar] [CrossRef] [Green Version]
  15. Mishra, R.K.; Mishra, P.; Verma, K.; Mondal, A.; Chaudhary, R.G.; Abolhasani, M.M.; Loganathan, S. Electrospinning production of nanofibrous membranes. Environ. Chem. Lett. 2018, 17, 767–800. [Google Scholar] [CrossRef]
  16. Abolhasani, M.M.; Naebe, M.; Shirvanimoghaddam, K.; Fashandi, H.; Joordens, H.K.M.; Pipertzis, A.; Anwar, S.; Berger, R.; Floudas, G.; Michels, J.; et al. Thermodynamic approach to tailor porosity in piezoelectric polymer fibers for application in nanogenerators. Nano Energy 2019, 62, 594–600. [Google Scholar] [CrossRef]
  17. Zhang, H.; Quan, L.; Gao, A.; Tong, Y.; Shi, F.; Xu, L. The structure and properties of polyacrylonitrile nascent composite fibers with grafted multi walled carbon nanotubes prepared by wet spinning method. Polymers 2019, 11, 422. [Google Scholar] [CrossRef] [Green Version]
  18. Sun, L.; Shang, L.; Xiao, L.; Zhang, M.; Li, M.; Ao, Y. Structural changes of polyacrylonitrile fibers in the process of wet spinning. Appl. Polym. Sci. 2020, 137, 48905. [Google Scholar] [CrossRef]
  19. Abolhasani, M.M.; Azimi, S.; Fashandi, H. Enhanced ferroelectric properties of electrospun poly (vinylidene fluoride) nanofibers by adjusting processing parameters. RSC Adv. 2015, 5, 61277–61283. [Google Scholar] [CrossRef]
  20. Abolhasani, M.M.; Jalaei, A.; Tavana, R.; Kashani, F.Z. Processing and performance properties of amino silicone-based softener on various textile substrates. Polym. Bull. 2020, 77, 2557–2572. [Google Scholar] [CrossRef]
  21. Abolhasani, M.M.; Shirvanimoghaddam, K.; Khayyam, H.; Moosavi, S.M.; Zohdi, N.; Naebe, M. Towards predicting the piezoelectricity and physiochemical properties of the electrospun P (VDF-TrFE) nanogenrators using an artificial neural network. Polym. Test. 2018, 66, 178–188. [Google Scholar] [CrossRef]
  22. Soleymani, H.; Noormohammadi, M.; Kashi, M.A.; Amiri, M.H.; Michels, J.J.; Asadi, K.; Abolhasani, M.M. Self-Poled Sausage-Like PVDF nanowires produced by confined phase inversion as novel piezoelectric nanogenerators. Adv. Mater. Interfaces 2021, 8, 2001734. [Google Scholar] [CrossRef]
  23. Chen, J.; Ge, H.-Y.; Dong, X.-G.; Wang, C.-G. The formation of polyacrylonitrile nascent fibers in wet-spinning process. J. Appl. Polym. Sci. 2007, 106, 692–696. [Google Scholar] [CrossRef]
  24. Fakhrhoseini, S.M.; Khayyam, H.; Naebe, M. Chemically enhanced wet-spinning process to accelerate thermal stabilization of polyacrylonitrile fibers. Macromol. Mater. Eng. 2018, 303, 1700557. [Google Scholar] [CrossRef]
  25. Al Faruque, M.A.; Remadevi, R.; Razal, J.; Wang, X.; Naebe, M. Investigation on structure and characteristics of alpaca-based wet-spun polyacrylonitrile composite fibers by utilizing natural textile waste. Appl. Polym. Sci. 2019, 137, 48370. [Google Scholar] [CrossRef]
  26. Yang, H.-S.; Kim, Y.-M.; Choi, H.; Jang, J.; Youk, J.H.; Lee, B.-S.; Yu, W.-R. Electrochemical wet-spinning process for fabricating strong PAN fibers via an in situ induced plasticizing effect. Polymer 2020, 202, 2641. [Google Scholar] [CrossRef]
  27. Liu, Y.; Kumar, S. Recent progress in fabrication, structure, and properties of carbon fibers. Polym. Rev. 2012, 52, 234–258. [Google Scholar] [CrossRef]
  28. Liu, Y.; Chae, H.G.; Kumar, S. Gel-spun carbon nanotubes/polyacrylonitrile composite fibers. Part III: Effect of stabilization conditions on carbon fiber properties. Carbon 2011, 49, 4487–4496. [Google Scholar] [CrossRef]
  29. Gao, Q.; Ma, H.; Bao, W.; Gao, C.; Ge, M. Polyacrylonitrile/electroconductive TiO2 nanoparticles composite fibers via wet-spinning. Fibers Polym. 2016, 17, 1048–1054. [Google Scholar] [CrossRef]
  30. Hiremath, N.; Mays, J.; Bhat, G. Recent developments in carbon fibers and carbon nanotube-based fibers: A Review. Polym. Rev. 2016, 57, 339–368. [Google Scholar] [CrossRef]
  31. Elagib, T.H.H.; Hassan, E.A.M.; Fan, C.; Han, K.; Yu, M. Microwave pre-oxidation for polyacrylonitrile precursor coated with nano-carbon black. Polym. Eng. Sci. 2019, 59, 457–464. [Google Scholar] [CrossRef]
  32. Chang, H.; Luo, J.; Liu, H.C.; Zhang, S.; Park, J.G.; Liang, Z.; Kumar, S. Stabilization study of polyacrylonitrile/cellulose nanocrystals composite fibers. ACS Appl. Polym. Mater. 2019, 1, 1015–1021. [Google Scholar] [CrossRef]
  33. Liu, H.C.; Luo, J.; Chang, H.; Davijani, A.A.B.; Wang, P.-H.; Kumar, S. Polyacrylonitrile sheath and polyacrylonitrile/lignin core bi-component carbon fibers. Carbon 2019, 149, 165–172. [Google Scholar] [CrossRef] [Green Version]
  34. Sun, J.; Ge, Q.; Guo, L.; Yang, Z. Nitrogen doped carbon fibers derived from carbonization of electrospun polyacrylonitrile as efficient metal-free HER electrocatalyst. Int. J. Hydrog. Energy 2020, 45, 4035–4042. [Google Scholar] [CrossRef]
  35. Zhang, C.-L.; Jiang, Z.-H.; Lu, B.-R.; Liu, J.-T.; Cao, F.-H.; Li, H.; Yu, Z.-L.; Yu, S.-H. MoS2 nanoplates assembled on electrospun polyacrylonitrile-metal organic framework-derived carbon fibers for lithium storage. Nano Energy 2019, 61, 104–110. [Google Scholar] [CrossRef]
  36. Dai, Z.; Ren, P.-G.; Jin, Y.-L.; Zhang, H.; Ren, F.; Zhang, Q. Nitrogen-sulphur Co-doped graphenes modified electrospun lignin/polyacrylonitrile-based carbon nanofiber as high performance supercapacitor. Power Sources 2019, 437, 226937. [Google Scholar] [CrossRef]
  37. Benko, A.; Nocuń, M.; Gajewska, M.; Błażewicz, M. Addition of carbon nanotubes to electrospun polyacrylonitrile as a way to obtain carbon nanofibers with desired properties. Polym. Degrad. Stab. 2019, 161, 260–276. [Google Scholar] [CrossRef]
  38. Cao, Z.; Li, W.; Sou, X.; Liu, Y.; Lu, C. Structures and cyclization behaviors of gel-spun cellulose/polyacrylonitrile composite fibers. Polym. Test. 2020, 81, 106276. [Google Scholar] [CrossRef]
  39. Chien, A.T.; Liu, H.C.; Newcomb, B.A.; Xiang, C.; Tour, J.M.; Kumar, S. Polyacrylonitrile fibers containing graphene oxide nanoribbons. ACS Appl. Mater. Interfaces 2015, 7, 5281–5288. [Google Scholar] [CrossRef] [PubMed]
  40. Mottaleb, M.M.A.; Mohamed, A.; Karim, S.A.; Osman, T.A.; Khattab, A. Preparation, characterization, and mechanical properties of polyacrylonitrile (PAN)/graphene oxide (GO) nanofibers. Mech. Adv. Mater. Struct. 2018, 27, 346–351. [Google Scholar] [CrossRef]
  41. Zhao, R.; Tian, M.; Zhao, Y.; Chen, S.; Han, G. Wet-spinning assembly of continuous and macroscopic graphene oxide/polyacrylonitrile reinforced composite fibers with enhanced mechanical properties and thermal stability. Appl. Polym. Sci. 2019, 136, 46950. [Google Scholar] [CrossRef]
  42. Qiu, M.; Wang, D.; Zhang, L.; Li, M.; Liu, M.; Fu, S. Simultaneously electrochemical exfoliation and functionalization of graphene nanosheets: Multifunctional reinforcements in thermal, flame-retardant, and mechanical properties of polyacrylonitrile composite fibers. Polym. Compos. 2020, 41, 1561–1573. [Google Scholar] [CrossRef]
  43. Papkov, D.; Goponenko, A.; Compton, O.C.; An, Z.; Moravsky, A.; Li, X.-Z.; Nguyen, S.T.; Dzenis, Y.A. Improved graphitic structure of continuous carbon nanofibers via graphene oxide templating. Adv. Funct. Mater. 2013, 23, 5763–5770. [Google Scholar] [CrossRef]
  44. Gulgunje, P.V.; Newcomb, B.A.; Gupta, K.; Chae, H.G.; Tsotsis, T.K.; Kumar, S. Low-density and high-modulus carbon fibers from polyacrylonitrile with honeycomb structure. Carbon 2015, 95, 710–714. [Google Scholar] [CrossRef]
  45. Tan, L.; Pan, D.; Pan, N. Thermodynamic study of a water-dimethylformamide-polyacrylonitrile ternary system. Appl. Polym. Sci. 2008, 110, 3439–3447. [Google Scholar] [CrossRef] [Green Version]
  46. Arbab, S.; Noorpanah, P.; Mohammadi, N.; Soleimani, M. Designing index of void structure and tensile properties in wet-spun polyacrylonitrile (PAN) fiber. I. Effect of dope polymer or nonsolvent concentration. Appl. Polym. Sci. 2008, 109, 3461–3469. [Google Scholar] [CrossRef]
  47. Takahashi, M.; Nukushina, Y.; Kosugi, S. Effect of fiber-forming conditions on the microstructure of acrylic fiber. Text. Res. 1964, 34, 87–97. [Google Scholar] [CrossRef]
  48. Saxena, S.; Tyson, T.A.; Shukla, S.; Negusse, E.; Chen, H.; Bai, J. Investigation of structural and electronic properties of graphene oxide. Appl. Phys. Lett. 2011, 99, 013104. [Google Scholar] [CrossRef] [Green Version]
  49. Korobeinyk, A.V.; Whitby, R.L.D.; Mikhalovsky, S.V. High temperature oxidative resistance of polyacrylonitrile-methylmethacrylate copolymer powder converting to a carbonized monolith. Eur. Polym. J. 2012, 48, 97–104. [Google Scholar] [CrossRef]
  50. Haris, M.R.H.M.; Kathiresan, S.; Mohan, S. FT-IR and FT-Raman spectra and normal coordinate analysis of poly methyl methacrylate. Der Pharma Chem. 2010, 2, 316–323. [Google Scholar]
  51. Singhal, A.; Dubey, A.; Bhardwaj, Y.K.; Jain, D.; Choudhury, S.; Tyagi, A.Y. UV-shielding transparent PMMA/In2O3 nanocomposite films based on In2O3 nanoparticles. RSC Adv. 2013, 3, 43. [Google Scholar] [CrossRef]
  52. Tucureanu, V.; Matei, A.; Mihalache, I.; Danila, M.; Popescu, M.; Bita, B. Synthesis and characterization of YAG:Ce,Gd and YAG:Ce,Gd/PMMA nanocomposites for optoelectronic applications. Mater. Sci. 2014, 50, 1883–1890. [Google Scholar] [CrossRef]
  53. Jin, J.; Ogale, A.A. Carbon fibers derived from wet-spinning of equi-component lignin/polyacrylonitrile blends. Appl. Polym. Sci. 2018, 135, 45903. [Google Scholar] [CrossRef]
  54. Guo, Z.; Wang, M.; Huang, Z.-H.; Kang, F. Preparation of graphene/carbon hybrid nanofibers and their performance for NO oxidation. Carbon 2015, 87, 282–291. [Google Scholar] [CrossRef] [Green Version]
  55. Liu, F.; Wang, H.; Xue, L.; Fan, L.; Zhu, Z. Effect of microstructure on the mechanical properties of PAN-based carbon fibers during high-temperature graphitization. Mater. Sci. 2008, 43, 4316–4322. [Google Scholar] [CrossRef]
  56. Gutmann, P.; Will, J.M.; Kurt, S.; Xu, Y.; Horn, S. Carbonization of polyacrylonitrile-based fibers under defined tensile load: Influence on shrinkage behavior, microstructure, and mechanical properties. Polym. Degrad. Stab. 2019, 163, 174–184. [Google Scholar] [CrossRef]
  57. Kim, J.; Kim, Y.C.; Ahn, W.; Kim, C.Y. Reaction mechanisms of polyacrylonitrile on thermal treatment. Polym. Eng. Sci. 1993, 33, 1452–1457. [Google Scholar] [CrossRef]
  58. Zhao, W.; Lu, Y.; Wang, J.; Chen, Q.; Zhou, L.; Jiang, J.; Chen, L. Improving crosslinking of stabilized polyacrylonitrile fibers and mechanical properties of carbon fibers by irradiating with γ-ray. Polym. Degrad. Stab. 2016, 133, 16–26. [Google Scholar] [CrossRef]
  59. Kaur, J.; Millington, K.; Cai, J.Y. Rheology of polyacrylonitrile-based precursor polymers produced from controlled (RAFT) and conventional polymerization: Its role in solution spinning. Appl. Polym. Sci. 2016, 133, 48. [Google Scholar] [CrossRef]
  60. Bose, S.; Kuila, T.; Uddin, M.E.; Kim, N.H.; Lau, A.K.T.; Lee, J.H. In-situ synthesis and characterization of electrically conductive polypyrrole/graphene nanocomposites. Polymer 2010, 51, 5921–5928. [Google Scholar] [CrossRef]
  61. Ouyang, Q.; Wang, X.; Wang, X.; Huang, J.; Huang, X.; Chen, Y. Simultaneous DSC/TG analysis on the thermal behavior of PAN polymers prepared by aqueous free-radical polymerization. Polym. Degrad. Stab. 2016, 130, 320–327. [Google Scholar] [CrossRef]
  62. Liu, H.; Zhang, S.; Yang, J.; Ji, M.; Yu, J.; Wang, M.; Chai, X.; Yang, B.; Zhu, C.; Xu, J. Preparation, stabilization and carbonization of a novel polyacrylonitrile-based carbon fiber precursor. Polymers 2019, 11, 1150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Zhang, H.; Quan, L.; Gao, A.; Tong, Y.; Shi, F.; Xu, L. Thermal analysis and crystal structure of poly(acrylonitrile-co-itaconic acid) copolymers synthesized in water. Polymers 2020, 12, 221. [Google Scholar] [CrossRef] [Green Version]
  64. Wang, Q.; Li, G.; Zhang, J.; Huang, F.; Lu, K.; Wei, Q. PAN nanofibers reinforced with MMT/GO hybrid nanofillers. J. Nanomater. 2014, 2014. [Google Scholar] [CrossRef] [Green Version]
  65. Qiao, M.; Kong, H.; Ding, X.; Zhang, L.; Yu, M. Effect of graphene oxide coatings on the structure of polyacrylonitrile fibers during pre-oxidation process. RSC Adv. 2019, 9, 28146–28152. [Google Scholar] [CrossRef] [Green Version]
Electronicmat 02 00031 g001 550
Figure 1. Obtained ternary phase diagram for PAN/H2O/DMF. The binodal curve has been fitted against experimentally determined cloud point compositions (blue squares). The spinodal curve and tie lines are indicated in green and gray, respectively.
Figure 1. Obtained ternary phase diagram for PAN/H2O/DMF. The binodal curve has been fitted against experimentally determined cloud point compositions (blue squares). The spinodal curve and tie lines are indicated in green and gray, respectively.
Electronicmat 02 00031 g001
Electronicmat 02 00031 g002 550

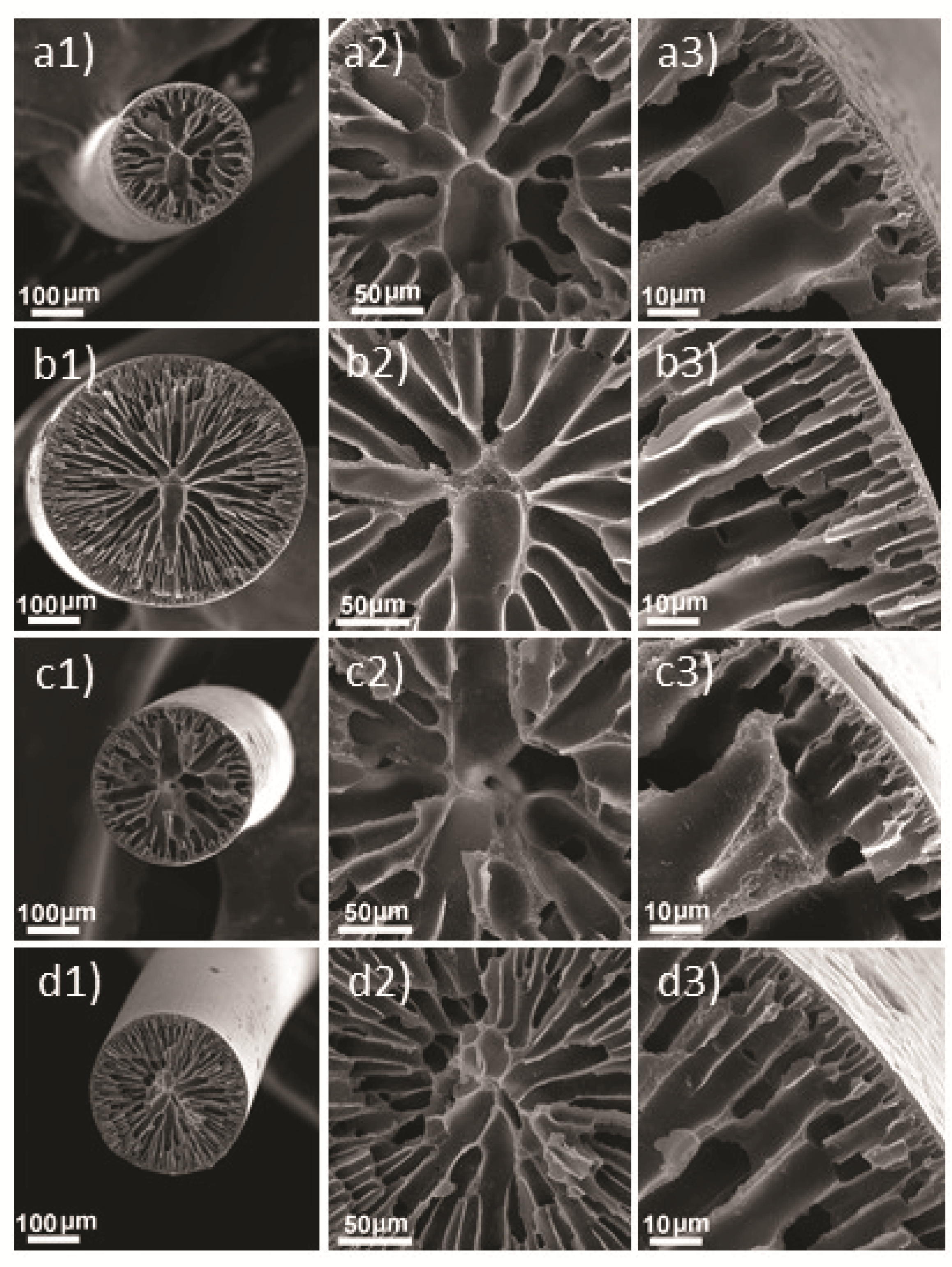

Figure 2. SEM images of fiber cross-section; (a1–a3) pristine PAN fibers, (b1–b3) PAN/H2O fibers, (c1–c3) PAN/GO composite fibers, and (d1–d3) PAN/GO/H2O composite fibers.
Figure 2. SEM images of fiber cross-section; (a1–a3) pristine PAN fibers, (b1–b3) PAN/H2O fibers, (c1–c3) PAN/GO composite fibers, and (d1–d3) PAN/GO/H2O composite fibers.
Electronicmat 02 00031 g002
Electronicmat 02 00031 g003 550

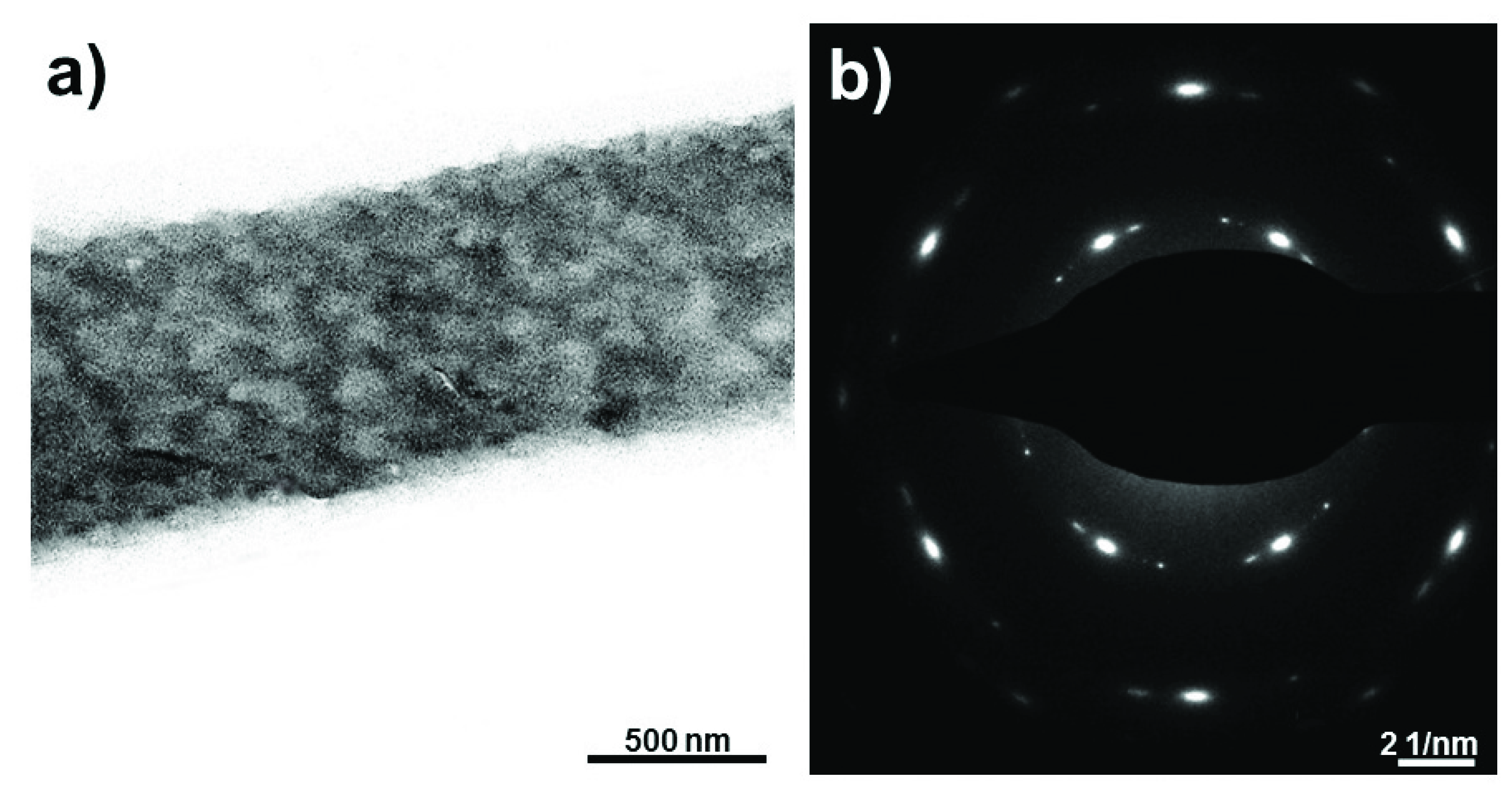

Figure 3. (a) HR-TEM image and (b) corresponding SAED pattern of PAN/GO/H2O composite fiber.
Figure 3. (a) HR-TEM image and (b) corresponding SAED pattern of PAN/GO/H2O composite fiber.
Electronicmat 02 00031 g003
Electronicmat 02 00031 g004 550

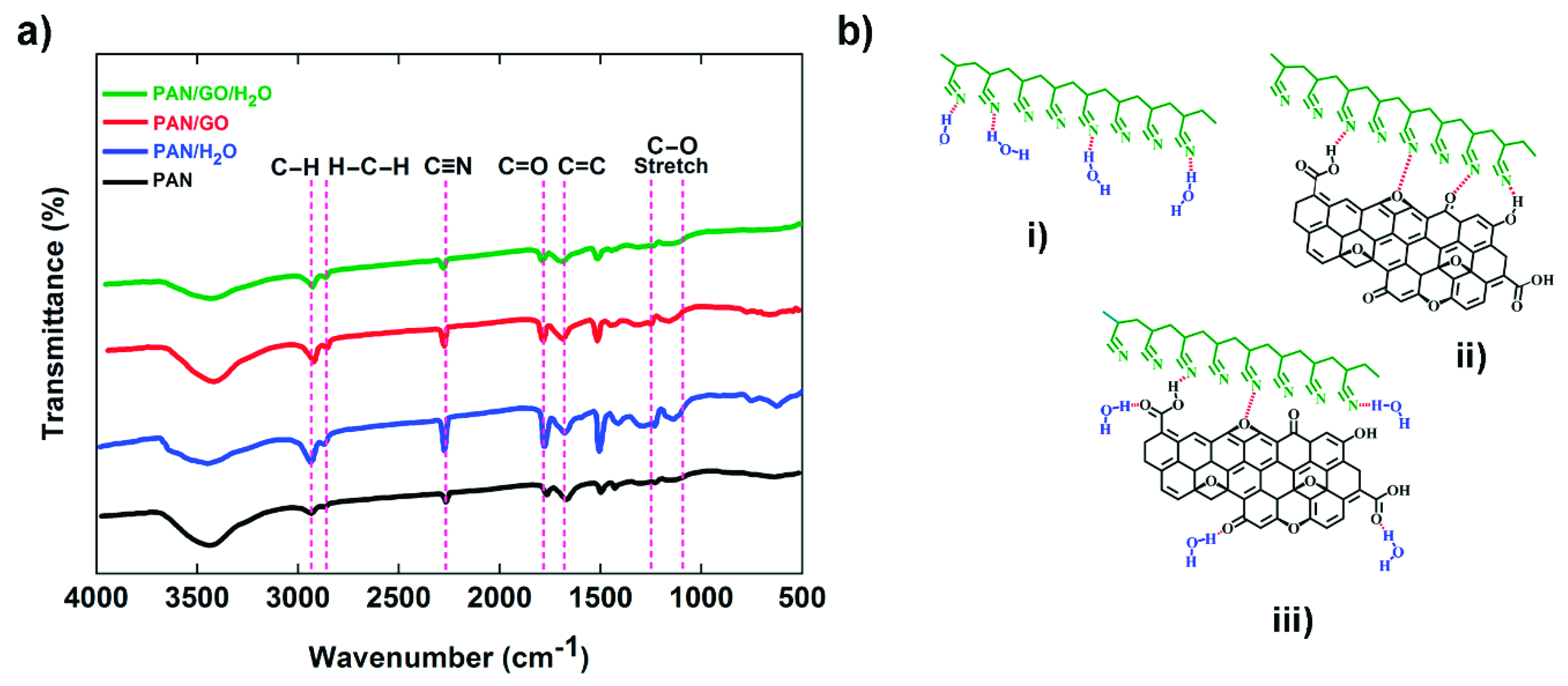

Figure 4. (a) FTIR spectra of PAN-based fibers, (b) Schematic of the interaction in (i) PAN/H2O composite fiber, (ii) PAN/GO composite fiber, and (iii) PAN/GO/H2O composite fiber.
Figure 4. (a) FTIR spectra of PAN-based fibers, (b) Schematic of the interaction in (i) PAN/H2O composite fiber, (ii) PAN/GO composite fiber, and (iii) PAN/GO/H2O composite fiber.
Electronicmat 02 00031 g004
Electronicmat 02 00031 g005 550

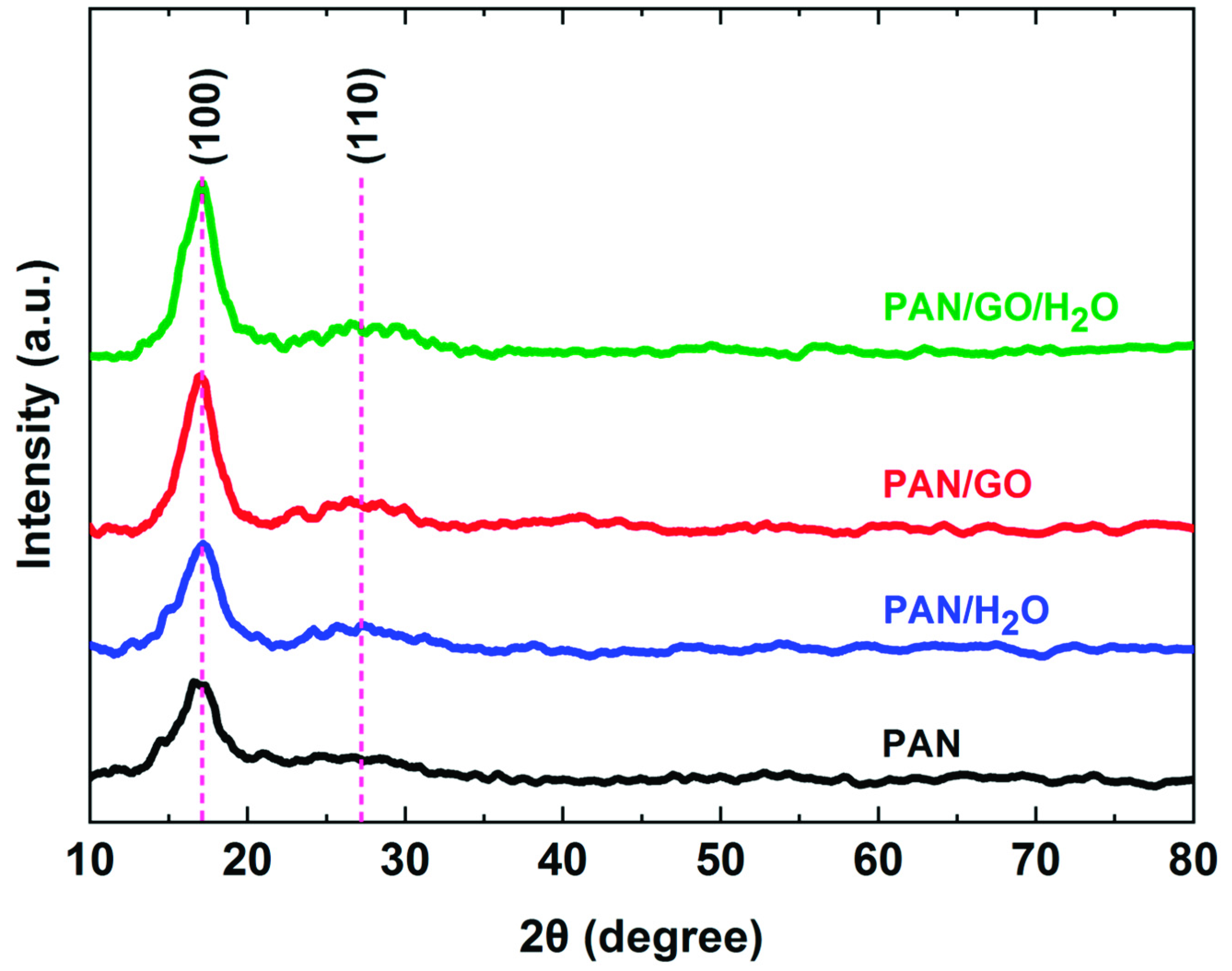

Figure 5. XRD patterns of PAN-based fibers.
Figure 5. XRD patterns of PAN-based fibers.
Electronicmat 02 00031 g005
Electronicmat 02 00031 g006 550
Figure 6. DSC thermograms of PAN-based fibers.
Figure 6. DSC thermograms of PAN-based fibers.
Electronicmat 02 00031 g006
Electronicmat 02 00031 g007 550

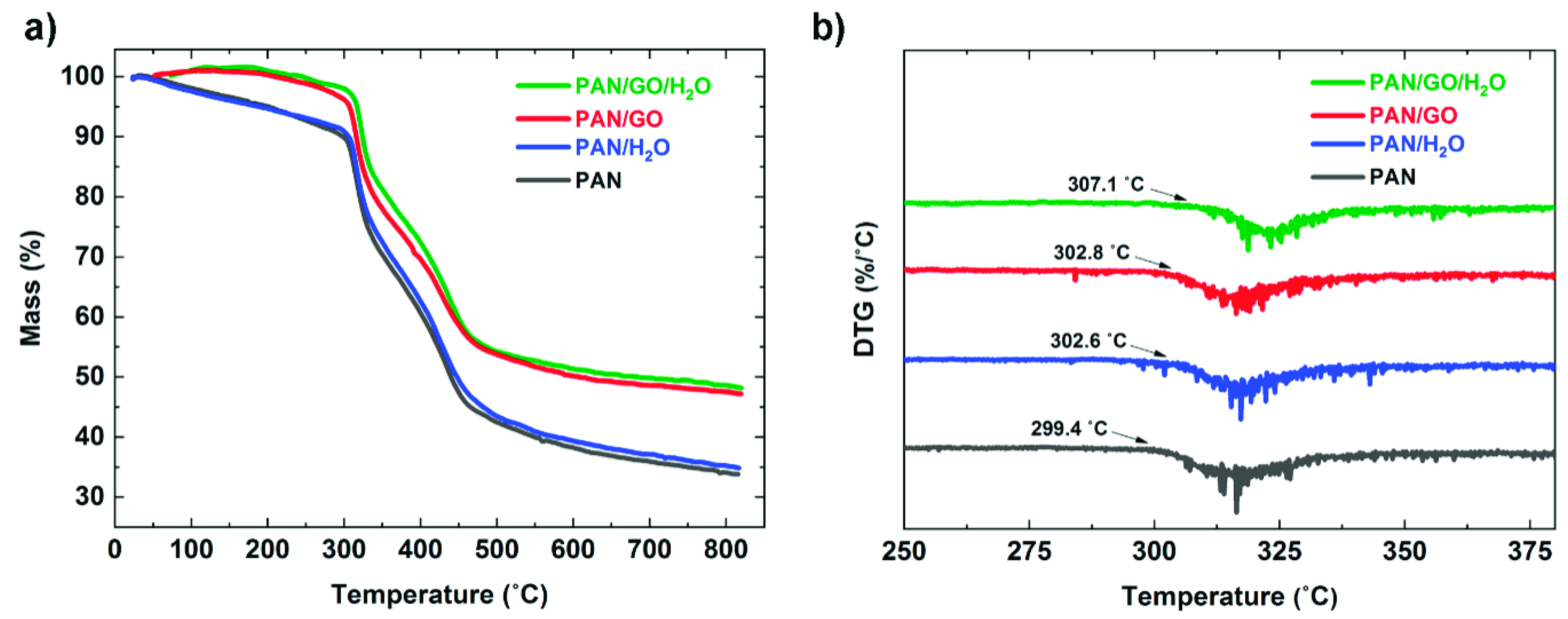

Figure 7. (a) TGA and (b) DTG curves of PAN-based fibers.
Figure 7. (a) TGA and (b) DTG curves of PAN-based fibers.
Electronicmat 02 00031 g007
Table
Table 1. Description of PAN-based fibers.
Table 1. Description of PAN-based fibers.
DopeGO (wt%)H2O (wt%)Sample Code
A00PAN
B04.1PAN/H2O
C10PAN/GO
D14.1PAN/GO/H2O
Table
Table 2. DSC parameters of PAN-based fibers.
Table 2. DSC parameters of PAN-based fibers.
Sample FiberTi (°C)TP (°C)Tf (°C)∆T (°C)∆H (Wg−1)∆H/∆T (Wg−1·°C−1)
PAN271.5308.4328.156.67.260.128
PAN/H2O270.1297.6310.640.53.570.088
PAN/GO260.6295.1310.249.63.240.065
PAN/GO/H2O254.9294.6309.454.53.410.062
Table
Table 3. Thermal properties of PAN-based fibers calculated from TGA and DTG curves.
Table 3. Thermal properties of PAN-based fibers calculated from TGA and DTG curves.
Sample FiberTd (°C)Wight Loss at Td (%)Residual Weight at 800 °C (%)
PAN299.410.133.8
PAN/H2O302.69.535.0
PAN/GO302.85.147.2
PAN/GO/H2O307.12.248.2
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Samimi-Sohrforozani, E.; Azimi, S.; Abolhasani, A.; Malekian, S.; Arbab, S.; Zendehdel, M.; Abolhasani, M.M.; Yaghoobi Nia, N. Development of Porous Polyacrylonitrile Composite Fibers: New Precursor Fibers with High Thermal Stability. Electron. Mater. 2021, 2, 454-465. https://doi.org/10.3390/electronicmat2040031

AMA Style

Samimi-Sohrforozani E, Azimi S, Abolhasani A, Malekian S, Arbab S, Zendehdel M, Abolhasani MM, Yaghoobi Nia N. Development of Porous Polyacrylonitrile Composite Fibers: New Precursor Fibers with High Thermal Stability. Electronic Materials. 2021; 2(4):454-465. https://doi.org/10.3390/electronicmat2040031

Chicago/Turabian Style

Samimi-Sohrforozani, Ehsan, Sara Azimi, Alireza Abolhasani, Samira Malekian, Shahram Arbab, Mahmoud Zendehdel, Mohammad Mahdi Abolhasani, and Narges Yaghoobi Nia. 2021. "Development of Porous Polyacrylonitrile Composite Fibers: New Precursor Fibers with High Thermal Stability" Electronic Materials 2, no. 4: 454-465. https://doi.org/10.3390/electronicmat2040031

Article Metrics

Back to TopTop
