Third-Order Optical Nonlinearities in Antireflection Coatings: Model, Simulation, and Design

Abstract

We present a practical numerical model for calculating transmittance and reflectance of multilayer antireflection coatings taking third-order optical nonlinearities into account. Thereby, the impact of different types of discretization of the complex refractive index profile on the predicted system performance is investigated. Additionally, aspects of parallelism of the calculations are discussed. It is shown that the inclusion of nonlinearity is essential when large laser intensities are incident to the coating. The developed method is applied for the design of different antireflective coatings matching various types of targets.

1. Introduction

Today, optical coatings are applied in practically all branches of optics, with the purpose of modifying optical and non-optical properties of optical surfaces [1]. Antireflection coatings belong to the most frequently produced groups of optical coatings and are indispensable in any transmissive optical system. The design of optical coatings is usually performed in the framework of standard model assumptions [2]. In many antireflection tasks, a broad spectral range and different illumination conditions (angle of incidence, polarization state) must be covered [3,4]. For a wide variety of specifications, optimal solutions are well known [5,6,7,8], and the impact of layer number and optical constants on the expected optical performance can be estimated by empirical expressions [9].

In many applications (only performance for s-polarization is specified), in accordance with the maximum principle [10], only two materials with maximum refractive index contrast are required in the coating design. Additionally, further non-optical aspects such as mechanical and environmental stability may have to be considered [11,12].

In particular, the standard model assumes the validity of linear optics, which results in transmittance and reflectance values that do not depend on the light intensity.

However, this result is only true for incident light intensities that are small enough for neglecting any nonlinear optical processes in the coating as well as in the substrate. Nowadays, high-power lasers are widely available and the demand for optical components that work at high laser intensities is increasing accordingly. Often, the most important additional requirement is to achieve the highest possible laser-induced damage threshold (LIDT). However, reversible changes in optical performance (for example the reflectance) of a component could be observed in the pre-damage regime and can be explained by the emerging significance of nonlinear effects. In [13], a reversible drop of reflectivity with increasing intensity was observed and could be explained by two-photon absorption in the high refractive index component. Several approaches have been reported for including third-order optical nonlinearities into the calculation of the coating reflectance [14,15,16]. While a calculation of the reflectance might be sufficient for mirrors, this is not valid in the general case. This can be exemplified by an antireflective coating that is used to maximize the transmittance in the presence of optical losses.

The motivation of this study is in the formulation of a design recipe for antireflection coatings when third-order nonlinear optical effects cannot be neglected. We will have to formulate certain model assumptions that extend the usual thin film model accordingly.

2. Theory

2.1. Considerations on the Field Strength in an Antireflection Optical Coating in Linear Optics

Let us assume that in a layered system, similar to the system shown in Figure 1, a certain number of films (numbered by the index m) is separated from each other by flat infinitesimally thin interfaces (the vertical lines). The light is incident from the right. In Figure 1, the electric fields’ strength $\mathit{E}$ for both travelling directions at the interfaces is visualized. The contribution of the m-th layer can be calculated by the matrix method [17,18,19,20], when the (complex) refractive indices ${\widehat{n}}_m$ and thickness $d_m$ are given. Here, no damping in the two semi-infinite media substrate and ambient (superstrate) is assumed and therefore the refractive indices $n_{Sub}$ and $n_{Amb}$ are considered as real numbers.

Transmittance $T$ and reflectance $R$ are defined as ratios. In the case of normal incidence, we have the following expressions [17,18,19,20]:

$$\begin{gathered} T={\displaystyle \frac{n_{Sub}}{n_{Amb}}}{\displaystyle \frac{{\left|E_{Sub}^{-}\right|}^2}{{\left|{E\prime }_{Amb}^{-}\right|}^2}} \\ R={\displaystyle \frac{{\left|{E^{\prime }}_{Amb}^{+}\right|}^2}{{\left|{E\prime }_{Amb}^{-}\right|}^2}} \end{gathered}$$

(1)

In the case of a perfect antireflective coating, the requirement $R=0$ directly leads to $\left|{E^{\prime }}_{Amb}^{+}\right|=0$. Additionally, the semi-infinite substrate results in $\left|E_{Sub}^{+}\right|=0$ and from $T=1,$ the electric field strength in the substrate is as follows:

$${\left|E_{Sub}^{-}\right|}^2={{\displaystyle \frac{n_{Amb}}{n_{Sub}}}\left|{E\prime }_{Amb}^{-}\right|}^2$$

(2)

For the antireflective coating, we can easily deduct that the electric field strength in the substrate does not depend on the design or optical constants of the selected materials.

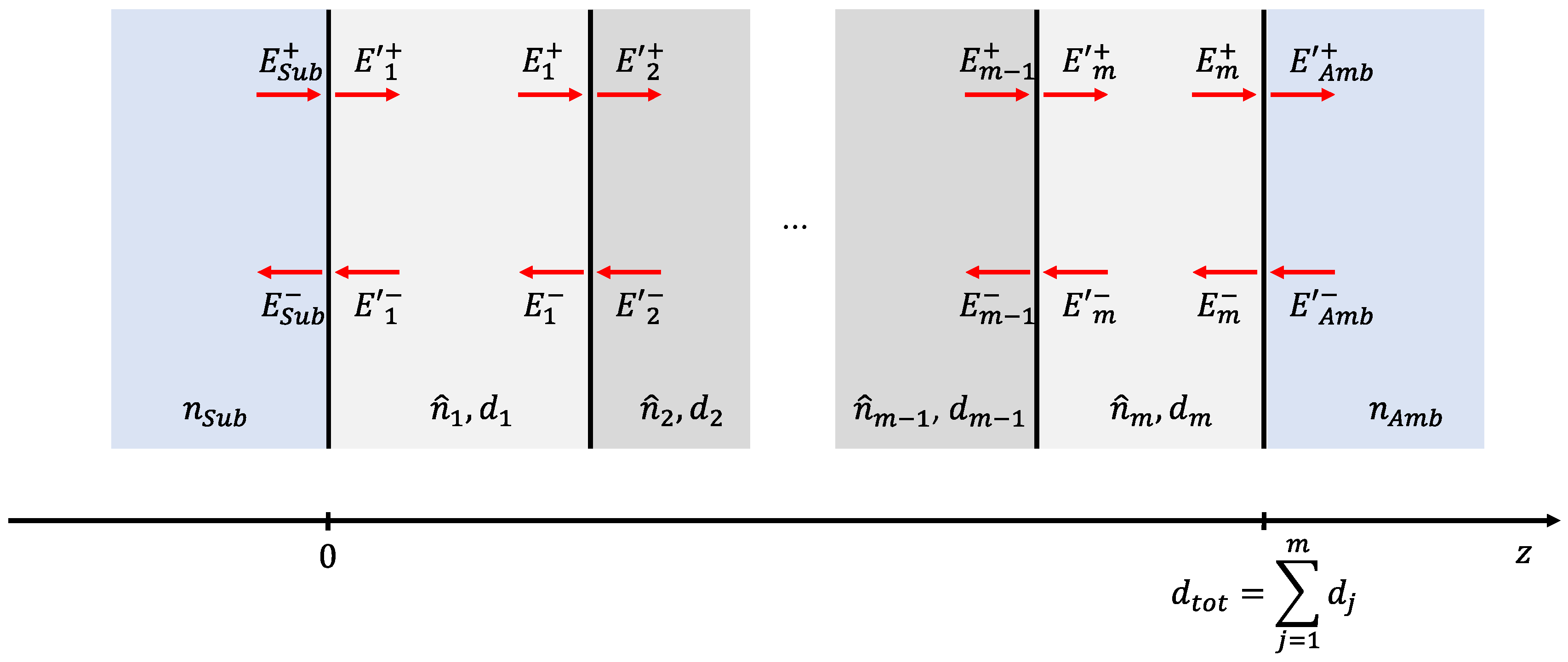

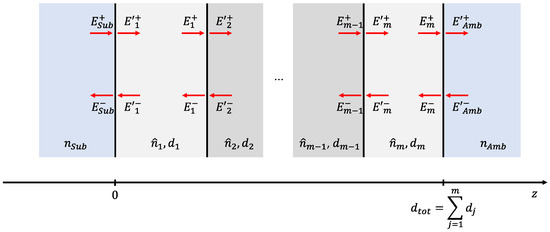

In Figure 1, we focus our attention on the electric field strength, but of course, the magnetic field of the waves have to be included accordingly. Note that in any stratified system, the spatial dependence of the $E$- and $H$-field must suffice for the system of equations [20,21] (here for normal incidence and linear optics only):

$$\begin{gathered} {\displaystyle \frac{dE}{dz}}=-i{\mu }_0\omega H \\ {\displaystyle \frac{dH}{dz}}=-i{\epsilon }_0\epsilon \omega E \end{gathered}$$

(3)

with angular frequency $\omega$, vacuum permeability ${\mu }_0$ and vacuum permittivity ${\epsilon }_0$.

In the case of a single wavelength at a fixed angle of incidence, zero reflectance can be achieved when a certain amplitude and phase conditions are fulfilled by the coating. Theoretically, this could be achieved by a single layer coating, but the required refractive index of the coating material is not always available in nature.

The two layer antireflecting coating for a single wavelength at normal incidence of light is known as V-coating and has two primitive solutions for the layer thicknesses [22]. In the case of loss-free coatings, an infinite number of additional two-layer solutions can be generated by increasing the optical thicknesses by an arbitrary number of halfwave layers [18]. Thereby, the spatial electric field distributions near both semi-infinite media (regions I and III in Figure 2) are identical for both designs. The electric field strength at the interface between the high and low refractive index material is also identical for both solutions (red, dotted horizontal line) and depends on the refractive indices used. The refractive indices assumed in the present design are summarized in

Table 1. Assumed linear optical constants $n$ and $K$ and real and imaginary part of the cubic susceptibility of the underlying materials for the target wavelength 532 nm.

Material	n	K	Re χ(3)/m2V−2	Im χ(3)/m2V−2
Substrate	1.4607	0	0	0
H	2.249	0	1.86 × 10−20	2.74 × 10−21
L	1.477	0	2.05 × 10−22	7.32 × 10−24
Ambient	1	0	0	0

.

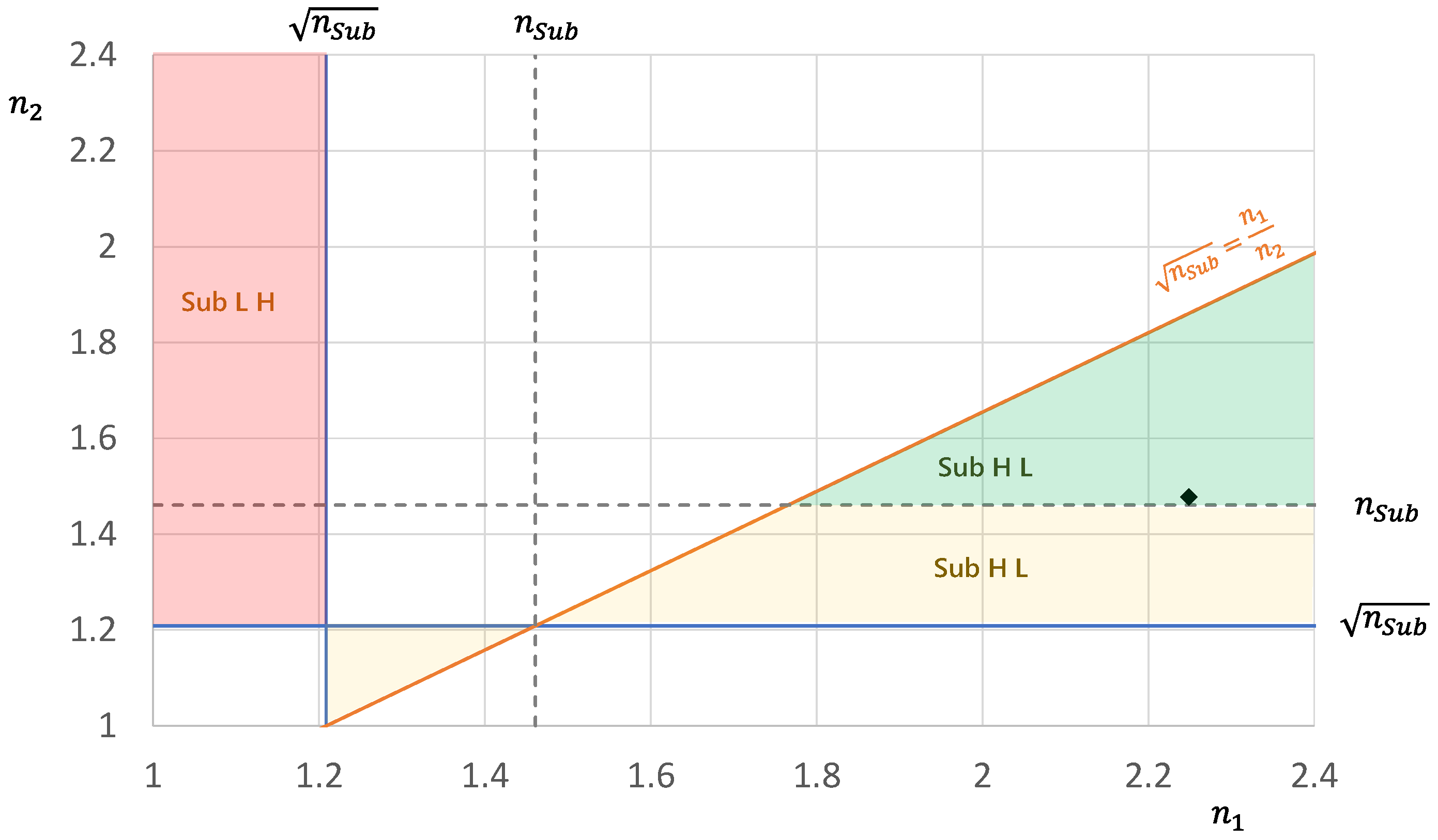

In general, feasible combinations of the refractive indices can be visualized in the Schuster plot (Figure 3) [22]. Commonly, the low refractive index material is located at the interface to the ambient medium (here air) and has a refractive index close to that of the substrate. In Figure 3, this area is highlighted by a green triangle and the position of the assumed refractive indices (Table 1) is marked by a black diamond. As long as the refractive index at the interface to the substrate is larger than the square root of the substrate refractive index, the lower refractive index must be located closest to air (denoted as Sub H L). In the area highlighted in red, this is no more fulfilled (Sub L H) but for typical optical glass substrates, this requires optical constants commonly not available from bulk materials. The same applies to the Sub H L region highlighted in yellow.

It is obvious that for a single-wavelength antireflective coating, complete suppression of the reflected light does not require a maximum contrast of the refractive indices.

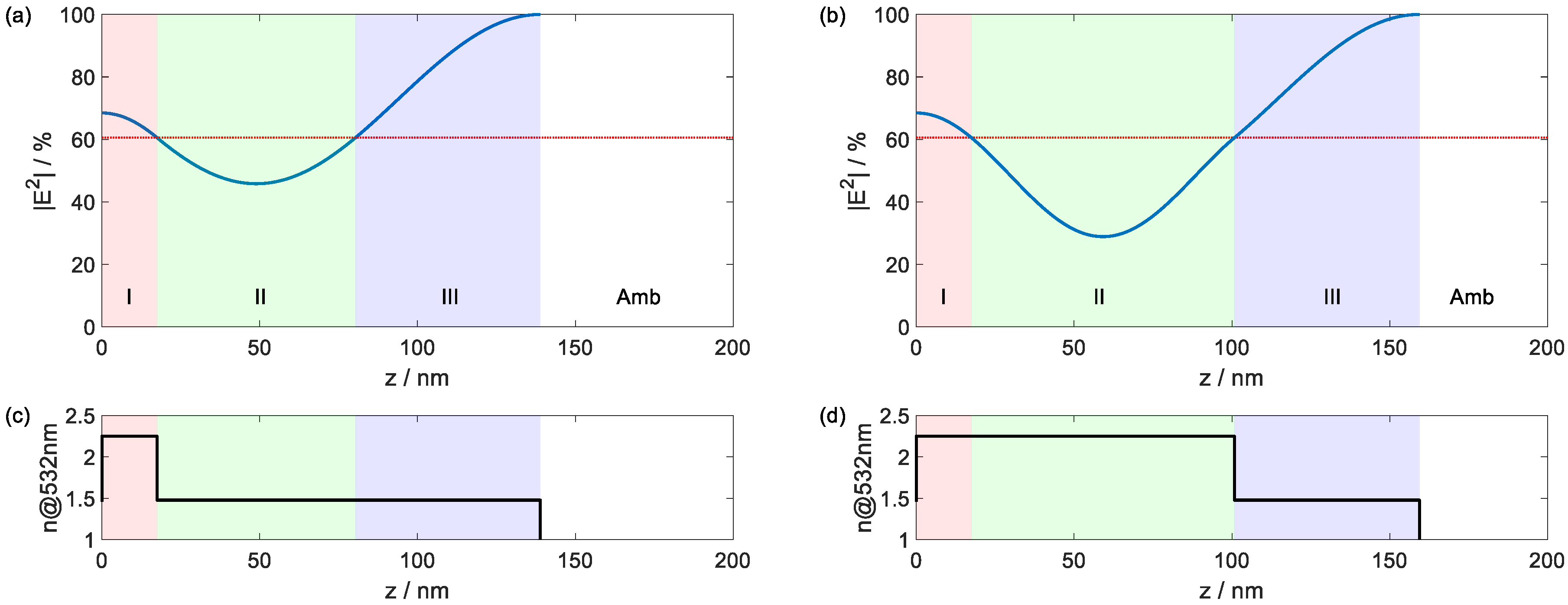

In Figure 2, the electrical field distribution in section II is symmetric, but is different for both types of the V-coating. In particular, the observed minimum electrical field strength depends on the refractive index of this section. In general, the refractive index of section II is not limited to the value of the selected high and low refractive index material and can be replaced by a different material. Then, zero reflectance of the coating will persist when an adapted thickness is used for the layer that replaces Section II. This finding in combination with Herpin’s concept of an equivalent layer for a symmetrical layer sequence [23] has been used to form further initial designs with an increased number of layers [24,25,26,27,28].

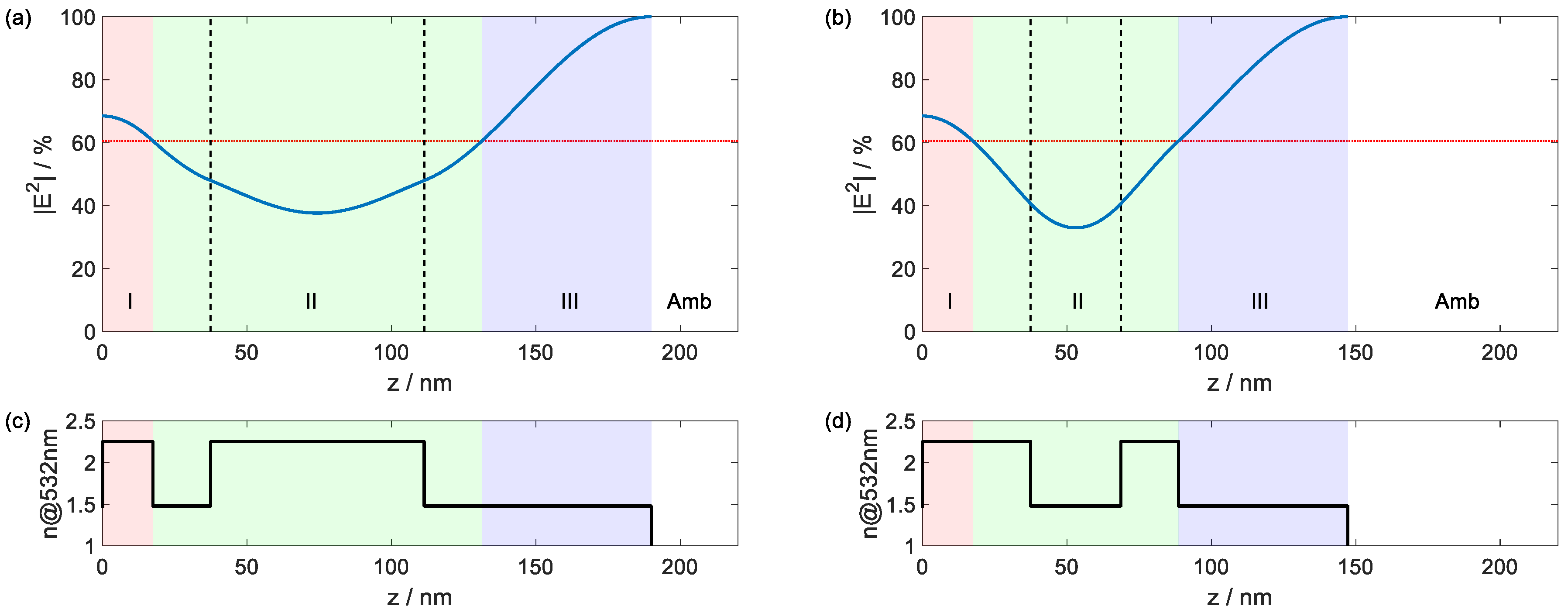

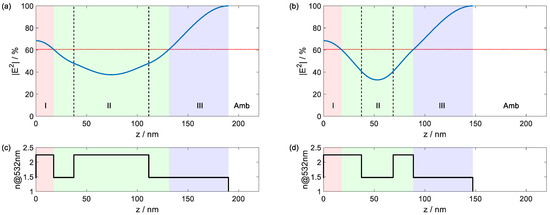

Figure 4 shows further types of solutions. In (a), the central layer in Section II is the high index material, while in (b), it is the low refractive index material. One-layer thickness can be freely selected during the design process. Here, a layer thickness of 20 nm was chosen for the identical two layers of Section II that are adjacent to regions I and III.

Note that the replacement of Section II by a symmetric three-layer sequence increases the number of layers in the coating only by two. In other words, instead of a two-layer coating, we now obtain a four-layer coating. The replacement procedure may thus be understood as the addition of a pair of layers and subsequent adoption of the thicknesses. We will make use of this approach later in Section 3.4 and Section 3.5.

So far, our discussion has been restricted to linear optics. In applications with high-power lasers, several specific aspects are relevant:

• The high intensity of the laser can cause damage of the coating (quantified by laser-induced damage threshold LIDT);
• Even in the pre-damage regime, nonlinear behavior of the materials can decrease the optical performance;
• It is common that only a single wavelength or a very limited wavelength range must be considered.
• The substrate is not only the sheet “holding” the coating, but it may also be curved (lens) or provide the main functionality when nonlinear effects are used to generate light of a different wavelength (four-wave mixing: harmonic generation, sum- and difference-frequency generation, spontaneous parametric down-conversion, etc.). Often, the corresponding materials are optically anisotropic crystals.

Our further focus will be on the second and third points. Note that our model does only consider reversible processes in the coating; hence, phenomena like material intermixing at interfaces or LIDT are not included into the model. It is implicitly assumed that the field strength at any point in the coating does not exceed a critical value relevant for the emergence of laser damage. Concerning LIDT, we would like to refer to two more specialized references where further information can be found [29,30].

2.2. Basic Assumptions to Consider Nonlinear Effects

In conventional thin film optics, the electric dipole approximation and optically isotropic materials (without magnetic response) are assumed. Thereby, the time-dependent electric field $\mathit{E}$ induces a macroscopic polarization $\mathit{P}$ in the medium as follows [31]:

$$\mathit{P}\left(t\right)={\epsilon }_0{\int }_0^{\mathrm{\infty }}\kappa \left(\xi \right)\mathit{E}\left(t-\xi \right)d\xi$$

(4)

Thereby, $\kappa$ is the real response function of the medium, $t$ the time and the integration variable $\xi$ stands for the time delay.

In the case of nonlinear optics, the macroscopic polarization can be generalized as follows [31]:

$$\begin{array}{l}\mathit{P}\left(t\right)={\mathit{P}}^{\left(1\right)}+{\mathit{P}}^{\left(2\right)}+{\mathit{P}}^{\left(3\right)}+\dots ={\epsilon }_0{\int }_0^{\mathrm{\infty }}{\kappa }^{\left(1\right)}\left(\xi \right)\mathit{E}\left(t-\xi \right)d\xi +\\ {\epsilon }_0\underset{\mathbf{0}}{\overset{\mathbf{\infty }}{\iint }}{\mathit{\kappa }}^{\left(\mathbf{2}\right)}\left({\xi }_1,{\xi }_2\right)\mathit{E}\left(t-{\xi }_1\right)\mathit{E}\left(t-{\xi }_1-{\xi }_2\right)d{\xi }_{1}d{\xi }_2+\\ {\epsilon }_0\underset{0}{\overset{\mathrm{\infty }}{\iiint }}{\kappa }^{\left(3\right)}\left({\xi }_1,{\xi }_2,{\xi }_3\right)\mathit{E}\left(t-{\xi }_1\right)\mathit{E}\left(t-{\xi }_1-{\xi }_2\right)\mathit{E}\left(t-{\xi }_1-{\xi }_2-{\xi }_3\right)d{\xi }_{1}d{\xi }_{2}d{\xi }_3+\cdots \end{array}$$

(5)

In the more common frequency domain, the corresponding formulation of the macroscopic polarization is

$$\mathit{P}={\mathit{P}}^{\left(1\right)}+{\mathit{P}}^{\left(2\right)}+{\mathit{P}}^{\left(3\right)}+\dots ={\epsilon }_0{\chi }^{\left(1\right)}\mathit{E}+{\epsilon }_0{\chi }^{\left(2\right)}{\mathit{E}}^2+{\epsilon }_0{\chi }^{\left(3\right)}{\mathit{E}}^3+\cdots$$

(6)

with (linear) susceptibility ${\chi }^{\left(1\right)}$, quadratic susceptibility ${\chi }^{\left(2\right)}$ and so on. In the case of third-order nonlinearity addressed in this article, the contributions to the macroscopic polarization are limited to ${\chi }^{\left(1\right)}$ and ${\chi }^{\left(3\right)}$.

The spectral dependence from the angular frequency $\omega$ of the linear susceptibility ${\chi }^{\left(1\right)}$ can be expressed by the complex dielectric function $\widehat{\epsilon }$, the complex refractive index $\widehat{n}$ or the (ordinary) refractive index $n$ and the extinction coefficient $K$ using the following equations:

$$\widehat{\epsilon }\left(\omega \right)=1+{\chi }^{\left(1\right)}\left(\omega \right)={\widehat{n}\left(\omega \right)}^2={\left[n\left(\omega \right)+iK\left(\omega \right)\right]}^2$$

(7)

In the case of a monochromatic input, the cubic susceptibility ${\chi }^{\left(3\right)}$ is related to the nonlinear refractive index $n_2$ and two-photon absorption coefficient $\beta$ by the following set of equations:

$$\begin{gathered} n_2\left(\omega \right)={\displaystyle \frac{3{\mu }_{0}c}{4\left[{n\left(\omega \right)}^2+{K\left(\omega \right)}^2\right]}}\left[\mathrm{R}\mathrm{e}{\chi }^{\left(3\right)}\left(\omega \right)+{\displaystyle \frac{K\left(\omega \right)}{n\left(\omega \right)}}\mathrm{I}\mathrm{m}{\chi }^{\left(3\right)}\left(\omega \right)\right] \\ \beta \left(\omega \right)={\displaystyle \frac{3{\mu }_0\omega }{2\left[{n\left(\omega \right)}^2+{K\left(\omega \right)}^2\right]}}\left[\mathrm{I}\mathrm{m}{\chi }^{\left(3\right)}\left(\omega \right)-{\displaystyle \frac{K\left(\omega \right)}{n\left(\omega \right)}}\mathrm{R}\mathrm{e}{\chi }^{\left(3\right)}\left(\nu \right)\right] \end{gathered}$$

(8)

Thereby, $c$ is the velocity of light in a vacuum.

For simplification, in further equations, the absence of linear absorption ($K\left(\nu \right)\equiv 0)$ will be assumed. In a stratified medium, the Maxwell equations can be reduced to a boundary value problem of two differential equations. In the case of normal incidence, and neglecting all other possible nonlinear optical effects except nonlinear absorption and refraction phenomena, the following wave equations can be obtained as a generalization of Equation (3):

$$\begin{gathered} {\displaystyle \frac{dE}{dz}}=-i{\mu }_0\omega H \\ {\displaystyle \frac{dH}{dz}}=-i{\epsilon }_0\epsilon \omega E-{\displaystyle \frac{3}{4}}i{\epsilon }_0\omega {\chi }^{\left(3\right)}{\left|E\right|}^{2}E \end{gathered}$$

(9)

The system of Equation (9) is an expression of specific model assumptions, namely the significance of linear optical processes combined with nonlinear refraction and absorption, while neglecting all other nonlinear interactions. In contrast to the linear case, in this model, each material is characterized by a set of four optical constants, namely $n$, $K$, $\mathrm{R}\mathrm{e}{\chi }^{\left(3\right)}$ and $\mathrm{I}\mathrm{m}{\chi }^{\left(3\right)}$ (see Table 1).

2.3. Iterative Approach for Calculation of the Spectral Response

2.3.1. Runge–Kutta Calculation

In the case of a semi-infinite substrate, no back travelling wave will occur and the boundary conditions at the interface coating/substrate (i.e., at $z=0$ in Figure 1) can easily be formulated. Then, the Maxwell equations can be numerically solved by Runge–Kutta [16]. The resulting spatial distribution of the electric and magnetic field can be used for the calculation of transmittance and reflectance according to the corresponding definition as intensity ratios.

This approach is very efficient when the intensity dependence of transmittance and reflectance is calculated. Calculation of the response to a given intensity of the incident light is more challenging because this requires defining a boundary condition at the interface coating/ambient, i.e., at $z=d_{tot}$. In this case, the following iterative approach can be used [16]:

• Calculate transmittance of the coating for the linear case;
• Estimate the expected electric field strength at $z=0$ according to the definition of the transmittance;
• Calculate spatial distribution of the electric and magnetic field for the given electric field strength at $z=d_{tot}$;
• Adapt electric field strength at $z=0$ according to the remaining discrepancy in the electric field at $z=d_{tot}$;
• Repeat with step 3 until the discrepancy is below a certain threshold.

2.3.2. Iterative Matrix Method

This is a rather tedious procedure, and therefore, an alternative approach seems prospective and has been already successfully applied for high reflective coatings [15]. Basically, all layers are sliced in sufficiently thin homogeneous layers and the linear optical constants are replaced by “effective” optical constants calculated based on individual average electrical field strength (see Figure 5, compare Equations (10) and (11)). Here, “sufficiently thin” means that the slice thickness must not exceed a certain threshold value $d_{max}$, obtained as a compromise between calculation time and accuracy. Considerations on the choice of $d_{max}$ form the content of Section 3.1.

The electric field strength at the boundaries of the slices can be calculated directly as outlined in [32,33,34].

In the initial stage, the resulting “effective” optical constants are as follows:

$$\begin{gathered} n^{\left(\mathrm{e}\mathrm{f}\mathrm{f},\left(1\right)\right)}\left(z\right)=n^{\left(0\right)}\left(z\right)+{\displaystyle \frac{3}{8}}{\displaystyle \frac{\mathrm{Re}{\chi }^{\left(3\right)}}{n^{\left(0\right)}\left(z\right)}}{\left|E_0^{\left(0\right)}\right|}^2\equiv n^{\left(0\right)}\left(z\right)+n_2\left(z\right)I\left(z\right) \\ {K}^{\left(\mathrm{e}\mathrm{f}\mathrm{f},\left(1\right)\right)}\left(z\right)={\displaystyle \frac{3}{8}}{\displaystyle \frac{\mathrm{Im}{\chi }^{\left(3\right)}}{n^{\left(0\right)}\left(z\right)}}{\left|E_0^{\left(0\right)}\right|}^2\equiv \beta \left(z\right)I\left(z\right) \end{gathered}$$

(10)

In subsequent iterations, the corresponding spatial distribution of the electric field strength is used to update the “effective” optical constants:

$$\begin{gathered} n^{\left(\mathrm{e}\mathrm{f}\mathrm{f},\left(j\right)\right)}\left(z\right)=n^{\left(0\right)}\left(z\right)+{\displaystyle \frac{3}{8}}{\displaystyle \frac{\mathrm{Re}{\chi }^{\left(3\right)}}{n^{\left(0\right)}\left(z\right)}}{\left|E_0^{(j-1)}\right|}^2 \\ {K}^{\left(\mathrm{e}\mathrm{f}\mathrm{f},\left(j\right)\right)}\left(z\right)={\displaystyle \frac{3}{8}}{\displaystyle \frac{\mathrm{Im}{\chi }^{\left(3\right)}}{n^{\left(0\right)}\left(z\right)}}{\left|E_0^{(j-1)}\right|}^2 \end{gathered}$$

(11)

2.4. Design Process

There are currently no established design approaches that consider the nonlinear behavior of the materials. For better differentiation, the terms “conventional” and “nonlinear” are used below to distinguish whether nonlinear effects are also considered or not.

The partial discrepancy function $DF\left(Y\right)$ use a weighted difference between modelled value $Y^{\mathit{modelled}}$ and target value $Y^{\mathit{target}}$ and is commonly [19] defined as follows:

$$DF\left(Y\right)={\left[{\displaystyle \frac{1}{N}}{\sum _{j=1}^N\left({\displaystyle \frac{Y_j^{\mathit{modelled}}-Y_j^{\mathit{target}}}{\Delta Y_j}}\right)}^p\right]}^{{\displaystyle \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$p$}\right.}}$$

(12)

Thereby, $N$ is the number of target values, $\Delta Y$ are the corresponding tolerances and $p$ is the power (often 2).

In the following section, it will be useful to introduce various target functions $Y^a$, $Y^b$, and $Y^c$, which will be minimized by different designs. They are introduced in Equation (13). For $Y^a$ $(=R)$ and $Y^c$ ($=\left(1-T\right))$, the common target value for an antireflection coating is zero and the modelled values for both quantities are always non-negative. For this reason, a power of 1 is a natural choice for the discrepancy function and represents the weighted average value. For the design calculations performed here, the quantities were weighted equally and therefore, $\Delta Y=1$.

$$\begin{gathered} Y^a=R \\ {Y}^b=I_{0}R \\ {Y}^c=1-T \end{gathered}$$

(13)

It is obvious that the number of required parameters must be increased to consider the nonlinear effects. Besides the layer thicknesses, in conventional designs, the refractive index and the extinction coefficient are commonly used. In the nonlinear case, knowledge on the real and imaginary parts of the cubic susceptibility (we neglect the tensor character of ${\chi }^{\left(3\right)}$ for simplicity here) are required as well.

The simplest way to generate a nonlinear design is to refine a conventional design [35].

While in most cases, we will use targets $Y^a$ and $Y^c$, for a special specification, $Y^b$ turned out to deliver the best results.

As long as the number of parameters is small, a “brute force” approach could be used to find the global minimum of the function. Thereby, the value of the discrepancy function is calculated at each point of a sufficient fine multidimensional grid. In conventional designs for a single wavelength, halfwave layers will have no effect and can be eliminated from the design. In the nonlinear case, an additional halfwave layer will mainly increase the absorption. For this reason, commonly, the optical thickness of individual layers should not exceed the halfwave optical thickness.

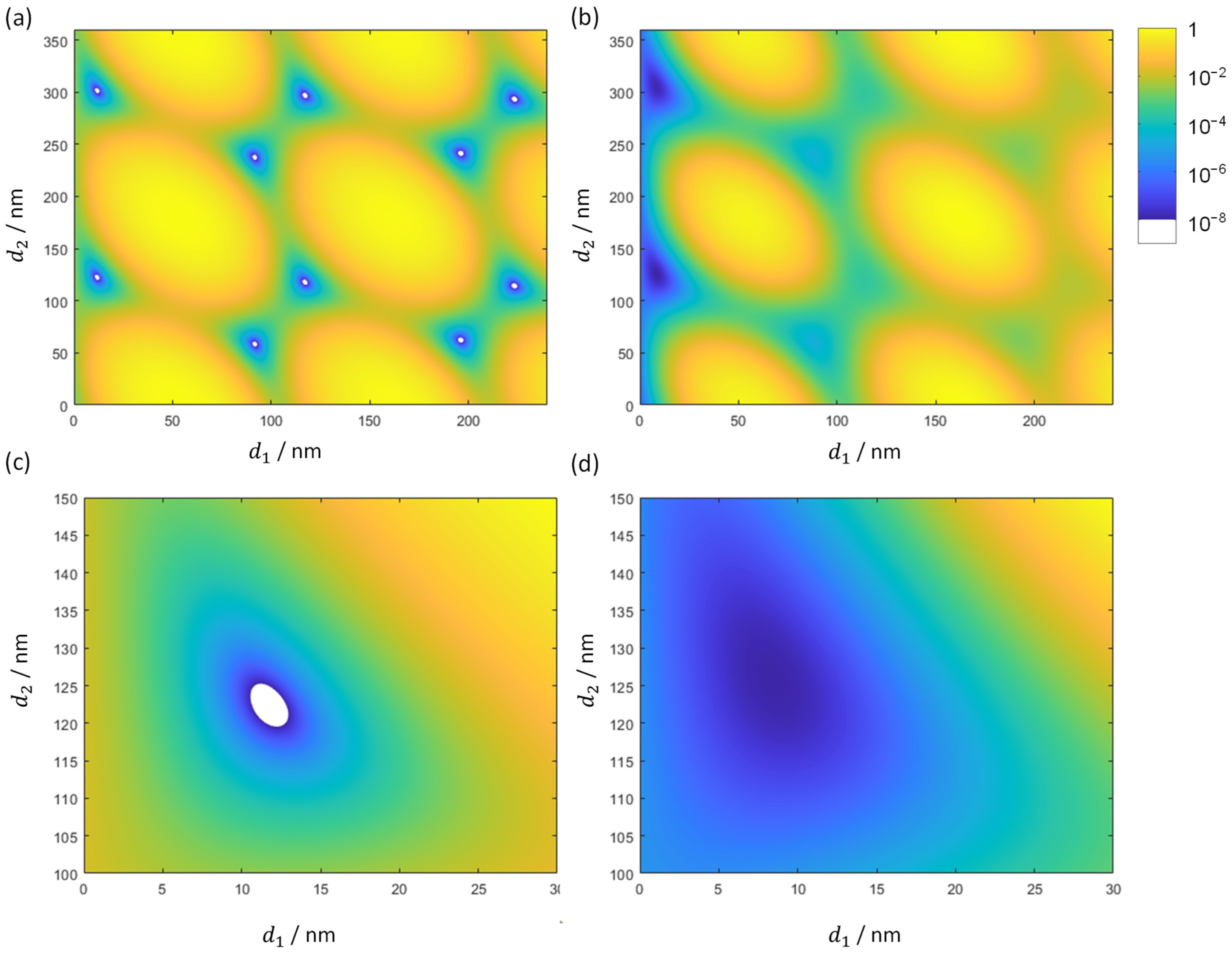

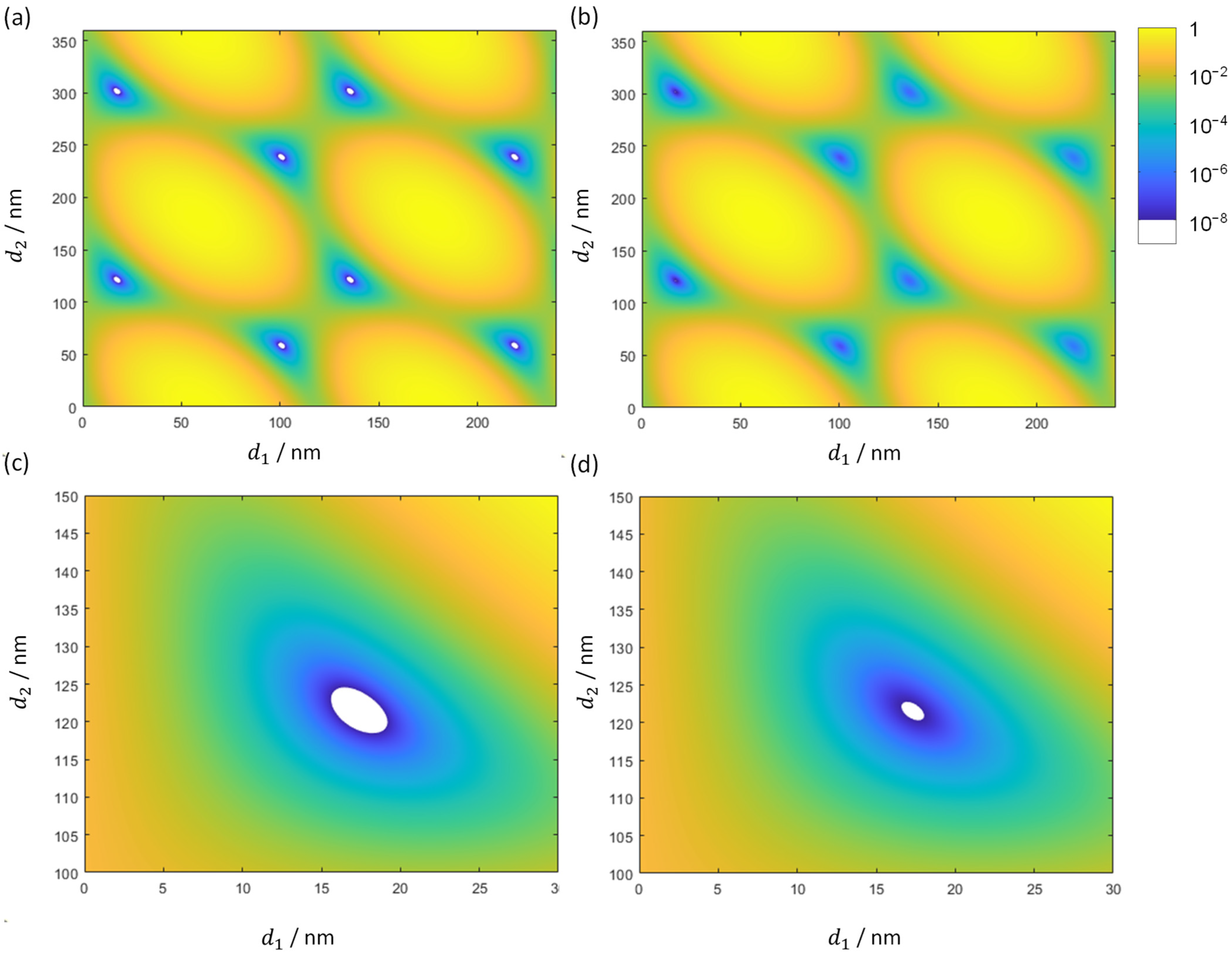

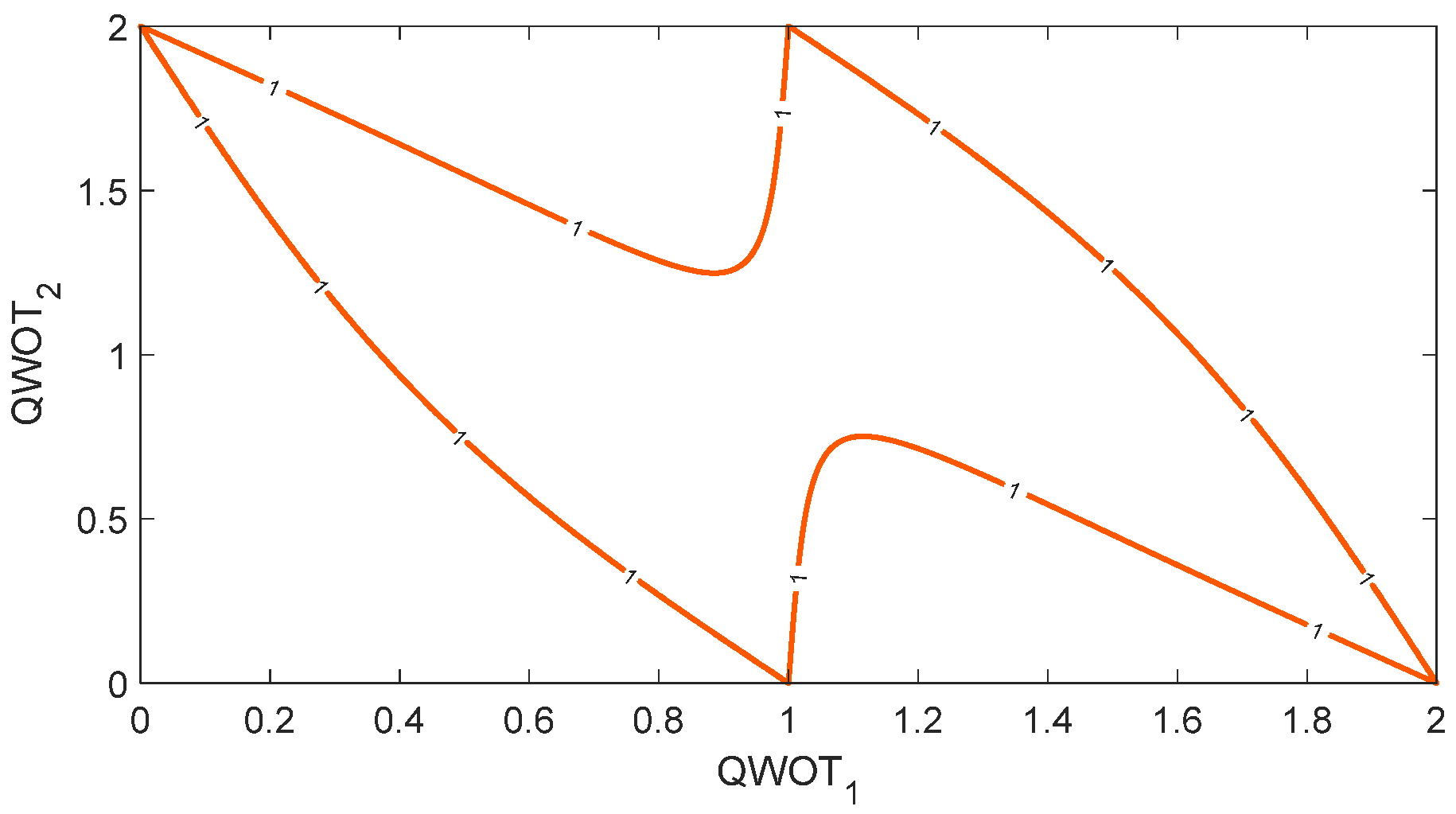

In Figure 6 and Figure 7, a logarithmic plot of the discrepancy function is shown for different light intensities. Therefore, different kind of targets and $p=1$ have been used. On the left, target $Y^a$ is used, while on the right, target $Y^c$ is relevant. In the case of an intensity of 10⁹ W/cm², both representations are very similar and show a nearly periodic dependence when the thickness is increased by integer multiples of the halfwave optical thickness [36]. The zoomed view (Figure 6c,d) of a local minimum shows that the corresponding layer thicknesses at the minimum are nearly identical for both discrepancy functions.

In the case of an intensity of 10¹¹ W/cm², the quasi-periodicity persists only when target $Y^a$ is used. The layer thickness of the high refractive index material decreases and is different for both discrepancy functions. Additionally, the area of discrepancy function below 10⁻⁸ (estimated numerical precision of floating-point calculations) shrunk for reflectance and completely disappeared for transmittance.

In the conventional design process, various methods summarized as gradual evaluation are a well-established approach [37]. Thereby, either a new layer is added, or the layer thickness of an already existing layer is increased until a different local minimum of the discrepancy function is reached. In this case, the layer number is kept constant or increased by one. If the new layer is added on an arbitrary position, the layer number is increased by two. In the case of very thin layers, this is known as the needle algorithm [38].

In the case that only a single intensity is specified, the concept of effective optical constants enables a straightforward implementation of established design approaches to the nonlinear case. In the case of a limited number of required intensities, an extension of the multi-environment concept implemented in OptiLayer [39] and OTF Studio [40] seems to be prospective.

In the case of a specification that only contains a single wavelength, the concept of Herpin [24] is a well-suited approach to increase the layer number [24,25,26,27,37,41,42]. At a single wavelength, a symmetrical three-layer sequence with $d_1=d_3$ and $n_1=n_3$ performs identical to a single layer with equivalent thickness and refractive index. Adding such a layer sequence at the interface to air, the linear optical response of the coating remained constant when the equivalent refractive index was identical to the refractive index of the ambient media. For the assumed optical constants of the high and low refractive index materials, this can be achieved for various thickness combinations (Figure 8).

3. Results

3.1. Impact of the Maximum Slice Thickness

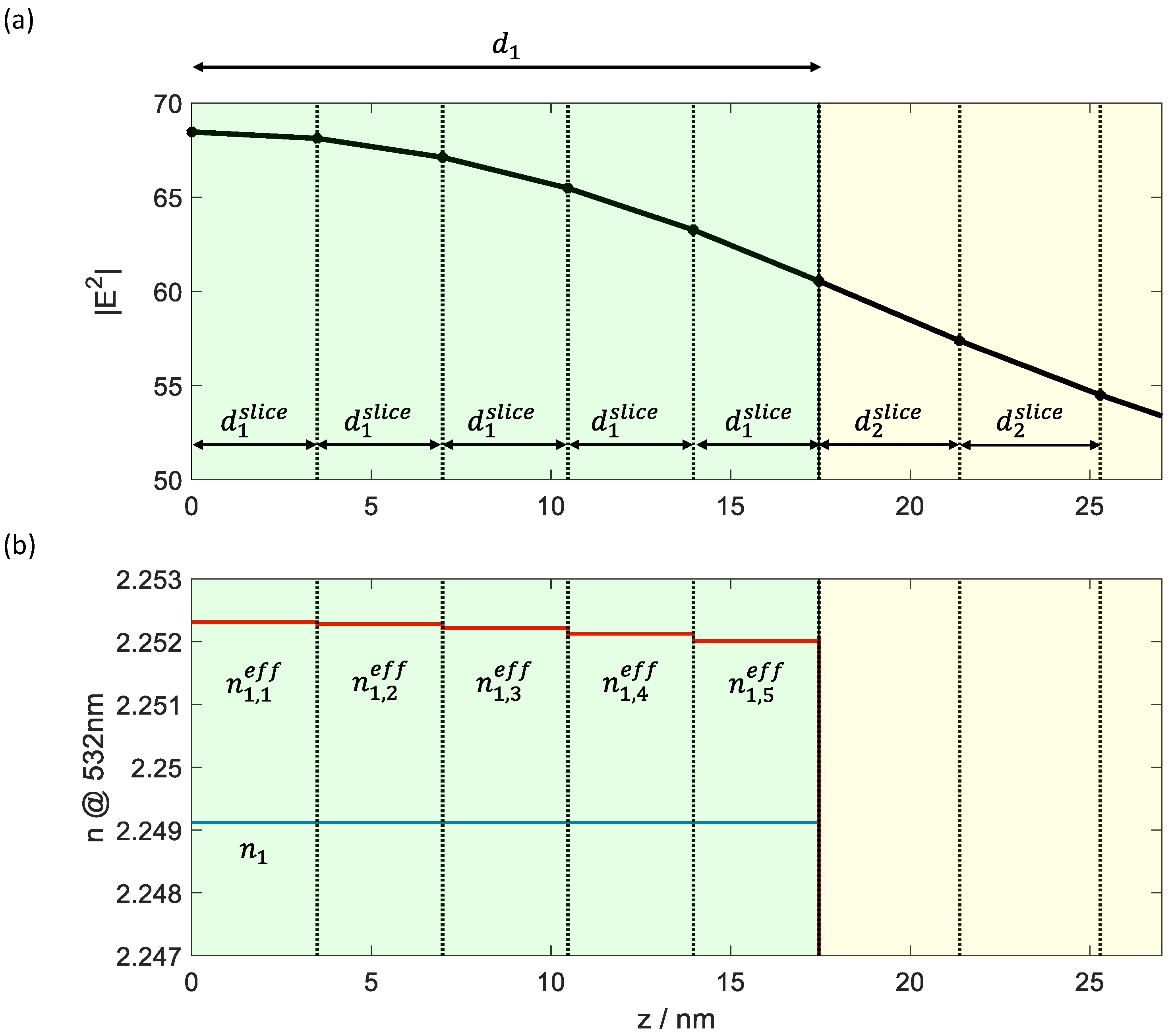

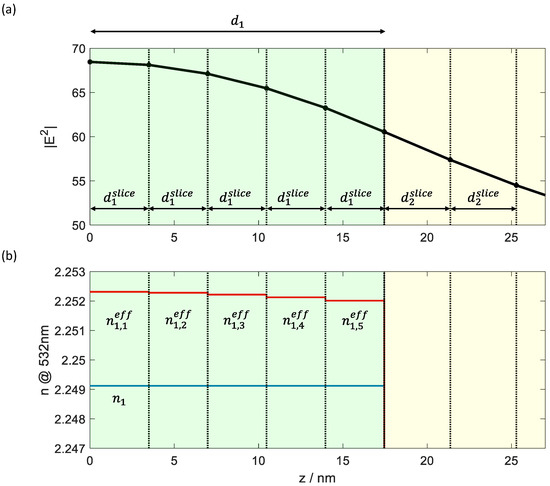

For each individual layer with thickness $d_m,$ the number of slices $N_m^{slice}$ is calculated according to the maximum thickness of slices $d_{max}$ and used to generate slices with an equal thickness $d_m^{slice}$ (see Figure 5).

$$\begin{gathered} N_m^{slice}=⌈{\displaystyle \frac{d_m}{d_{max}}}⌉ \\ {d}_m^{slice}={\displaystyle \frac{d_m}{N_m^{slice}}} \end{gathered}$$

(14)

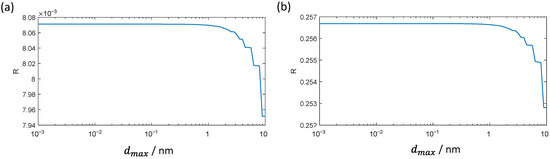

In the case of the V-coating specified for a wavelength in the visible spectral range (VIS), a maximum thickness of slices $d_{max}=1$ nm was sufficient (Figure 9). The situation is similar to the design of rugate filters, when inhomogeneous layers are replaced by homogeneous slices during the design process [43]. In the VIS, this is consistent with the condition $d_{max}\ll \lambda$.

For larger values of $d_{max},$ the ceiling in Equation (14) has only a small impact on the number of slices $N_m^{slice}$ of the thin high refractive index layer and the calculated reflectance values of the coating remain nearly constant (Figure 9) until the resulting number of slices is further decreased. Even with a maximum slice thickness of 10 nm, the relative deviation for the reflectance is only ~1.5% for both intensities.

3.2. Convergence

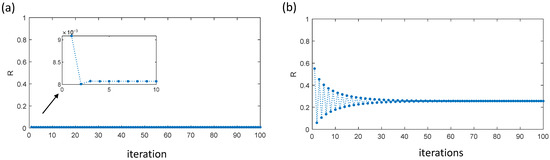

When implementing the iterative matrix method, the required number of iterations until convergence of the result is important. In the case of the investigated antireflective coatings, for intensities corresponding to small deviations between linear and effective optical constants, only ~3 iterations are required (Figure 10a). In the case of very high intensities, the basic assumptions are no longer valid. For an intensity of 10¹² W/cm², the method still converges and reaches its final value after approximately 50 iterations (Figure 10b). Nevertheless, the correctness of the result is questionary.

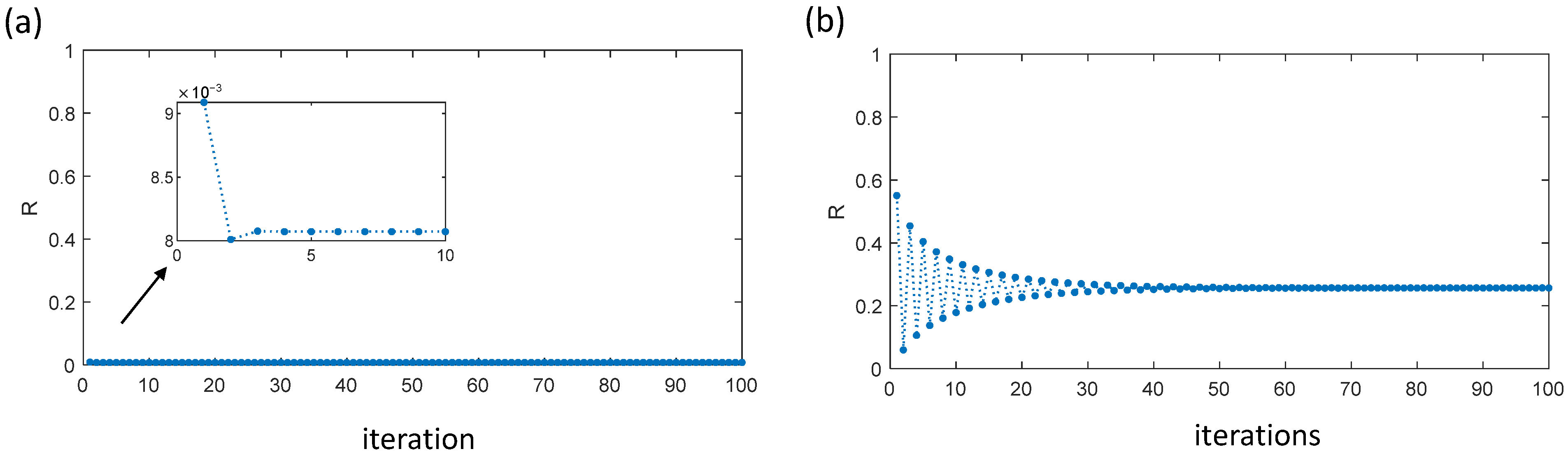

Similar results are obtained when investigating the convergence of the calculated transmittance.

3.3. Normal Incidence, Single-Wavelength AR-Coatings Optimized for a Single Intensity

As already explained, the additional specification of the intensity is required to take nonlinear effects in the coating design into account. Wavelengths, angles of incidence, polarizations and light intensities must therefore be specified for an antireflection coating. In the following section, we will first consider the simplest case: The antireflection coating should only be applied for a single wavelength, normal incidence of light and a specified light intensity. The discrepancy function with target values $Y^a$ and $Y^b$ according to Equation (13) are practically the same for this problem, because the target light intensity 10¹¹ W/cm² only acts as a scaling factor. Due to the losses caused by the two-photon absorption, the discrepancy function with target values $Y^a$ and $Y^c$ according to Equation (13) are different and lead to different solutions accordingly. The conventional V-coating is also sufficient for laser applications [44] and was used as the starting design for the refinement in both cases. The intensity-dependent performance for both target values and conventional V-coating has recently been published in [2] and is shown in Figure 11. Layer thicknesses for the three different designs are summarized in

Table 2. Layer thicknesses for the calculated 2-layer coating.

Layer Number	Material	$\mathit{d}$/nm
		V-Coating	R-Optimized Design (Target Ya)	T-Optimized Design (Target Yc)
1	H	17.5	11.7	8.4
2	L	121.5	122.4	125.8

.

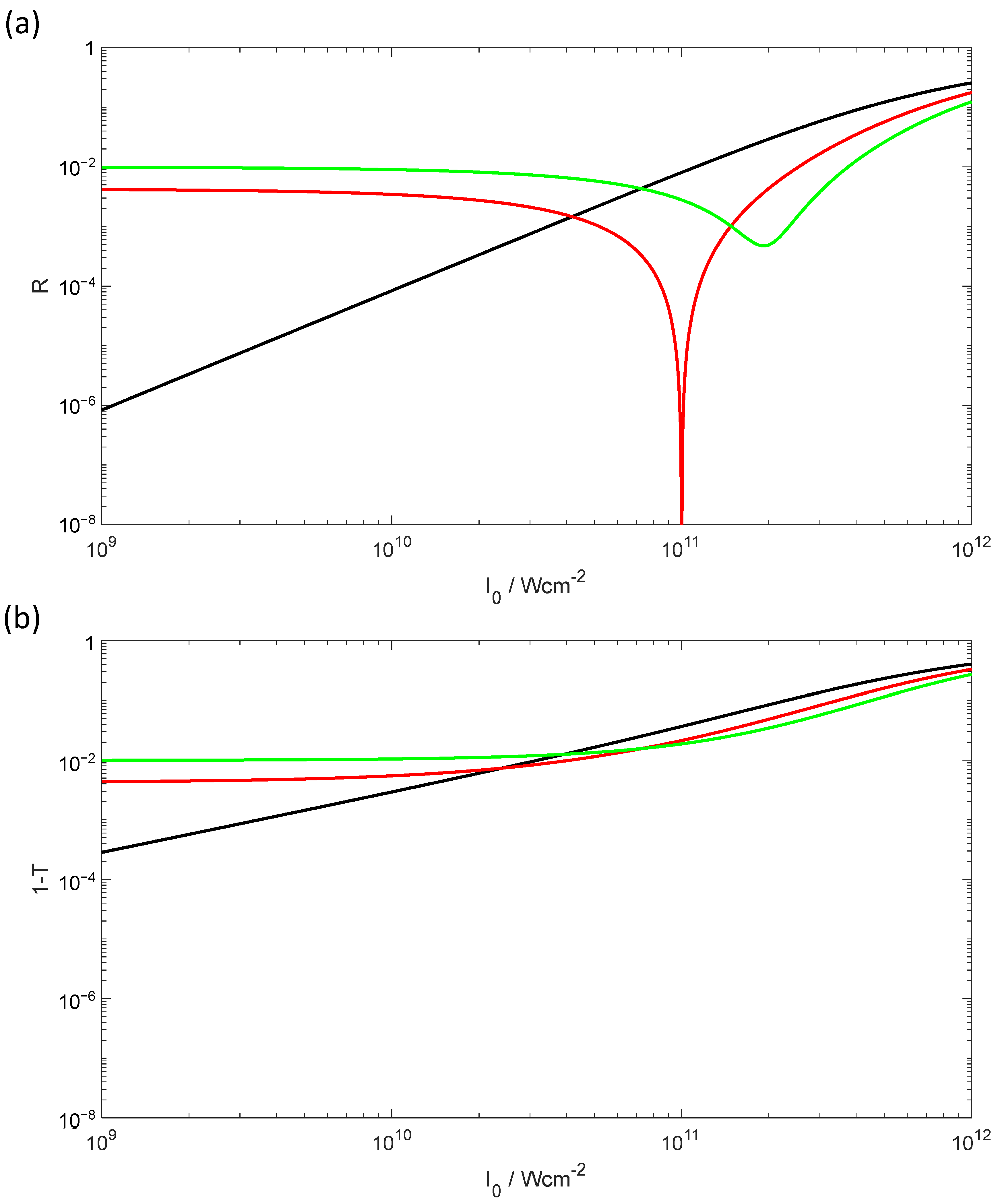

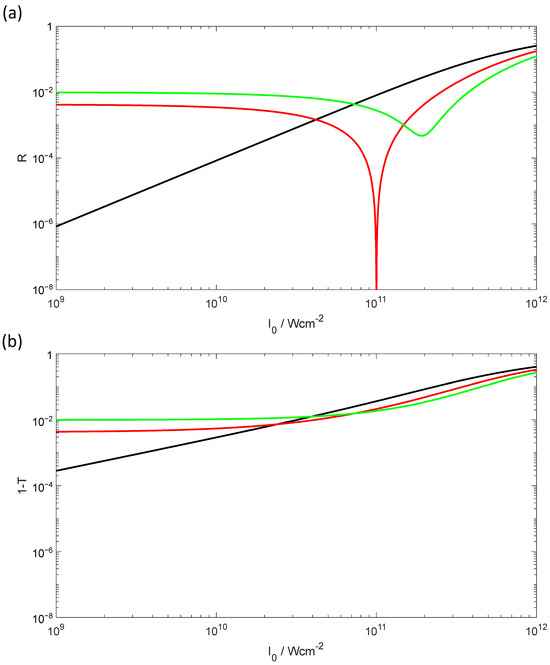

While the conventional V-coating shows a monotonic increase in both target values with the light intensity, the optimized designs show a clearly pronounced minimum in reflectivity. For the $R$-optimized design, this minimum is naturally observed at the specified light intensity and achieves values in the range of the numerical accuracy. The design for maximum transmittance, on the other hand, only reaches its minimum reflectance at a slightly higher light intensity and, although it has a low reflectance, $R$ is significantly larger than for the design optimized for minimum reflectance. Both optimized designs have an almost constant transmission and reflectivity at low light intensities, but this is significantly worse than with the conventional V-coating.

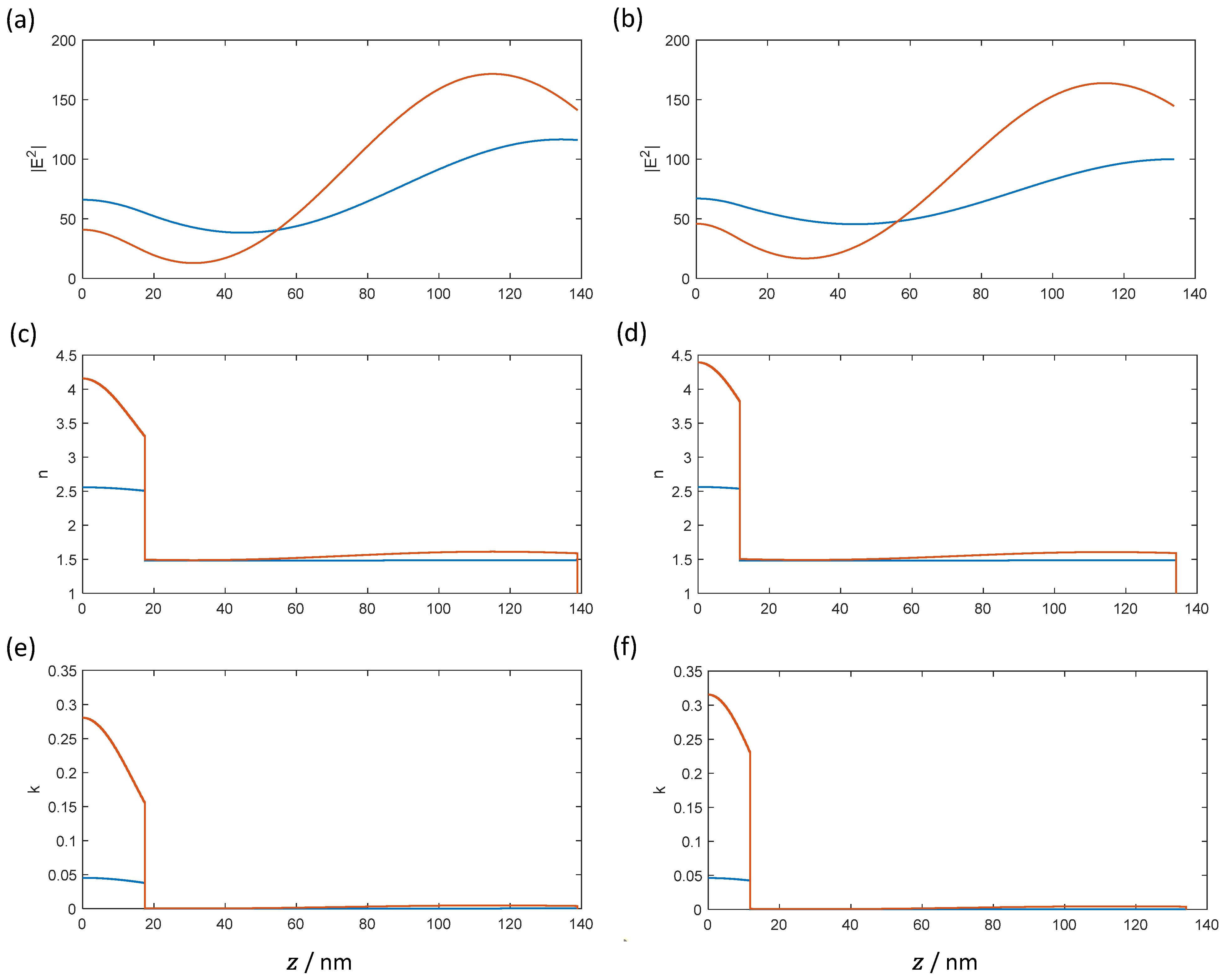

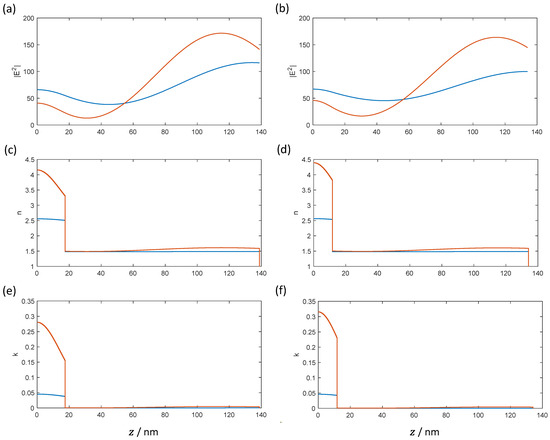

Figure 12 shows the spatial distribution of the electric field strength (a,b), the effective refractive index (c,d) and the effective extinction coefficient (e,f) for the conventional V-coating and the design with minimum reflection for the specified light intensity of 10¹¹ W/cm² and for an increased light intensity of 10¹² W/cm².

For the intensity of 10¹¹ W/cm² (blue curves in Figure 12), the curves deviate only slightly from those calculated in the linear optics range as shown in Figure 2a,c. For the conventional V-coating, for example, the electric field strength at the interface to air is slightly higher than in the linear case, which corresponds to 100%. For the optimized design for minimum reflection at this intensity (right column), the spatial field strength distributions look similar to the conventional case. Additionally, the effective optical constants remain close to their linear counterparts. For the intensity of 10¹² W/cm² (red curves in Figure 12) on the other hand, the deviations in Figure 2 are already significant. This is consistent with the estimated upper limit for the light intensity due to the poor convergence in the previous section.

3.4. Normal Incidence, Single-Wavelength AR-Coating Optimized for Two Intensities

The AR coating from the previous chapter demonstrated that almost complete anti-reflection can be achieved for a single light intensity with a two-layer system. However, even small deviations from the specified intensity led to a significant increase in reflectivity, so that in practice, somewhat more complex and therefore less sensitive design solutions appear desirable.

For antireflective coating at high intensities, the possibility of using an additional pair of layers to achieve almost complete anti-reflective coating for a further light intensity was investigated. It was found that a minimum reflectance for intensities 10⁹ W/cm² and 10¹¹ W/cm² for a wavelength of 532 nm and normal incidence of light are required. The dependence of the reflectance from light intensity for the deducted design (

Table 3. Layer thicknesses for the calculated 4-layer coating.

Layer Number	Material	$\mathit{d}$/nm
1	H	16.5
2	L	37.3
3	H	37.3
4	L	95.6

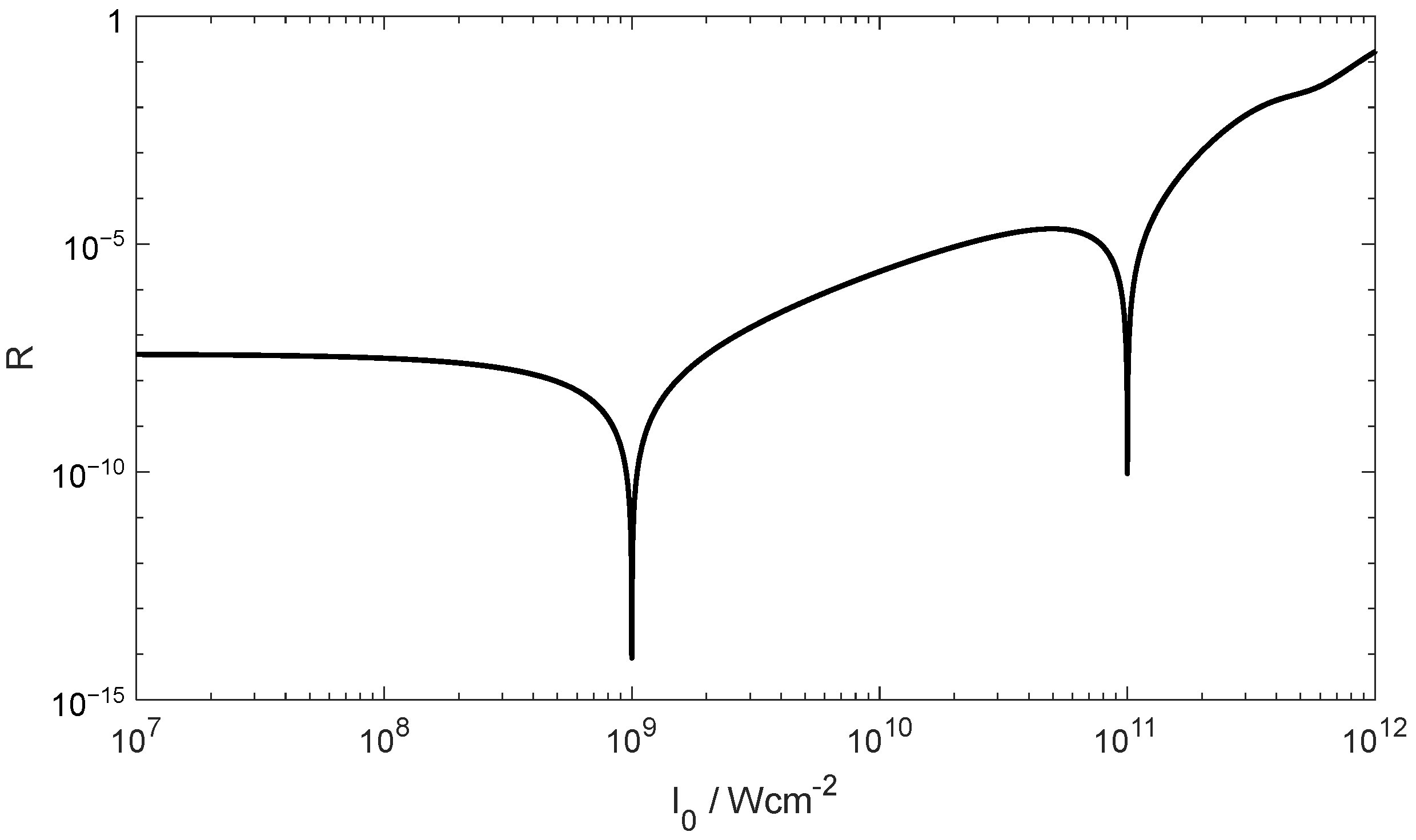

) is shown in Figure 13. A sharp drop of the reflectance for both specified intensities can be observed. Again, the reflectance level at lower intensities nearly remains constant, but is significantly lower in comparison to the optimized two-layer coating from the previous section.

3.5. Normal Incidence, Single-Wavelenth AR-Coatings Optimized for an Intensity Range

This section presents different design solutions for the intensity range 10⁹ W/cm² to 10¹¹ W/cm². The 201 discrete intensities used form a geometric series and are therefore equally distributed in the logarithmic representation. Although the high number of support points for the light intensity is associated with a significantly increased computational effort, it improves convergence, as an almost complete antireflection coating only appears possible for a few discrete intensities due to the limited number of layers. Additionally, the reflected intensity $Y^b$ instead of the reflectance $Y^a$ (compare to Equation (13)) was used to reduce problems with numerical stability when a sum of very small value is calculated.

Again, initial design solutions for up to eight layers have been created this way. Layer thicknesses for the generated designs are outlined in

Table 4. Layer thicknesses for the calculated design solutions.

Layer Number	Material	Number of Layers
		2	4	6	8	10
		$\mathit{d}$/nm	$\mathit{d}$/nm	$\mathit{d}$/nm	$\mathit{d}$/nm	$\mathit{d}$/nm
1	H	13.9	16.3	11.9	3.6	0.005
2	L	122.1	37.8	44.5	64.1	79.8
3	H		36.8	75.6	16.2	4.3
4	L		95.6	7.9	32.8	56.1
5	H			16.9	98.3	16.7
6	L			71.6	44.1	30.9
7	H				1.5	97.2
8	L				32.7	44.5
9	H					1.6
10	L					32.3
Figure 14		(a,b)	(c,d)	(e,f)	(g,h)	(i,j)

.

For the design with 10 layers, a different approach has been applied. In this case, an 100-layer coating with identical layer thickness for all layer has been used as a starting design for the refinement. In the intermediate results, the layers with a thickness of almost zero were removed from the design. Finally, a 10-layer design was found. It is obvious that the thickness of the first layer is too small for a practical realization of the design, so this layer should be removed. Then, the small contrast between the new initial layer and the substrate can be used to eliminate the former 10th layer as well without a serious impact on the discrepancy function. The resulting design contains eight layers and is close to the already deducted solution for an eight-layer coating. After a further refinement, the designs become identical.

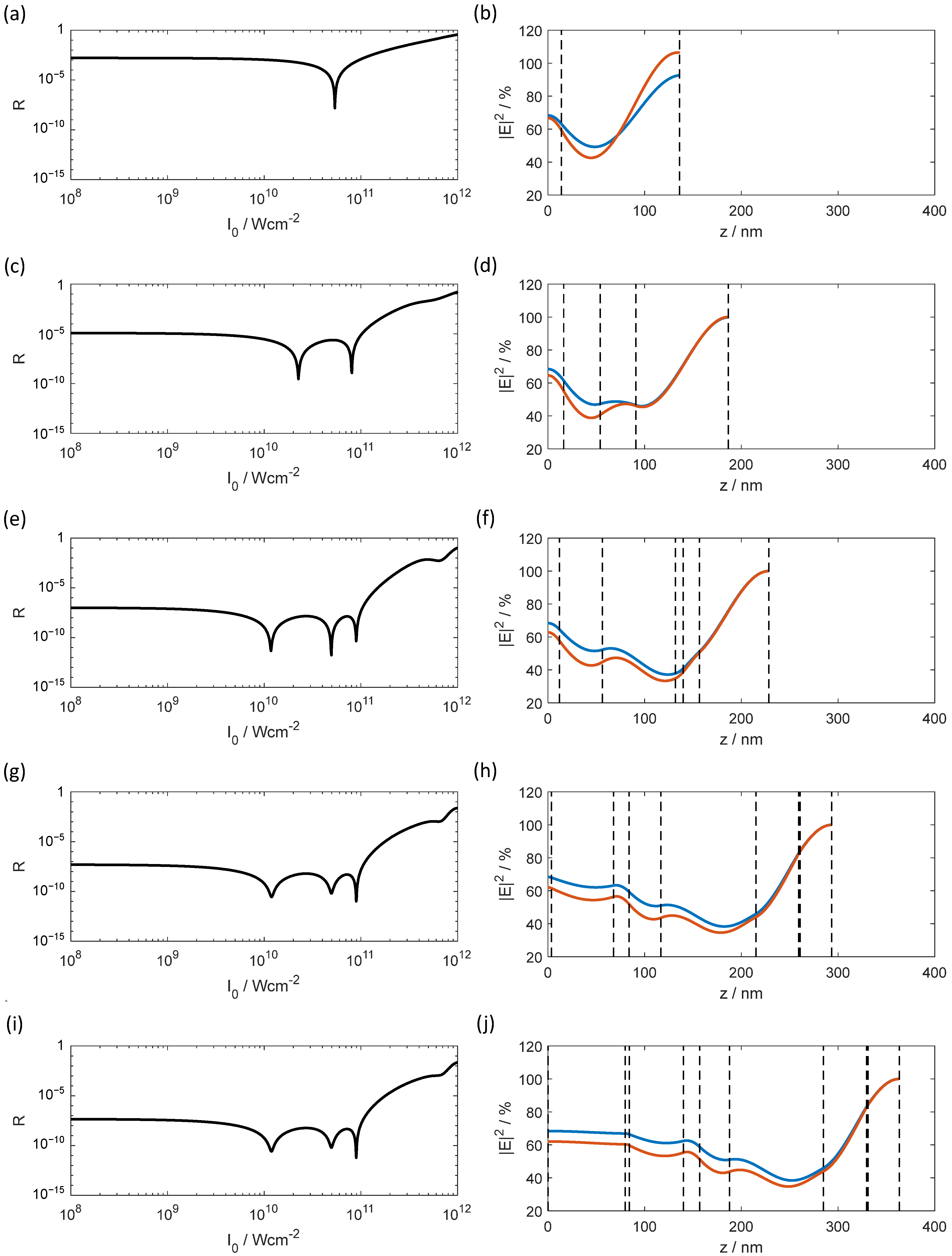

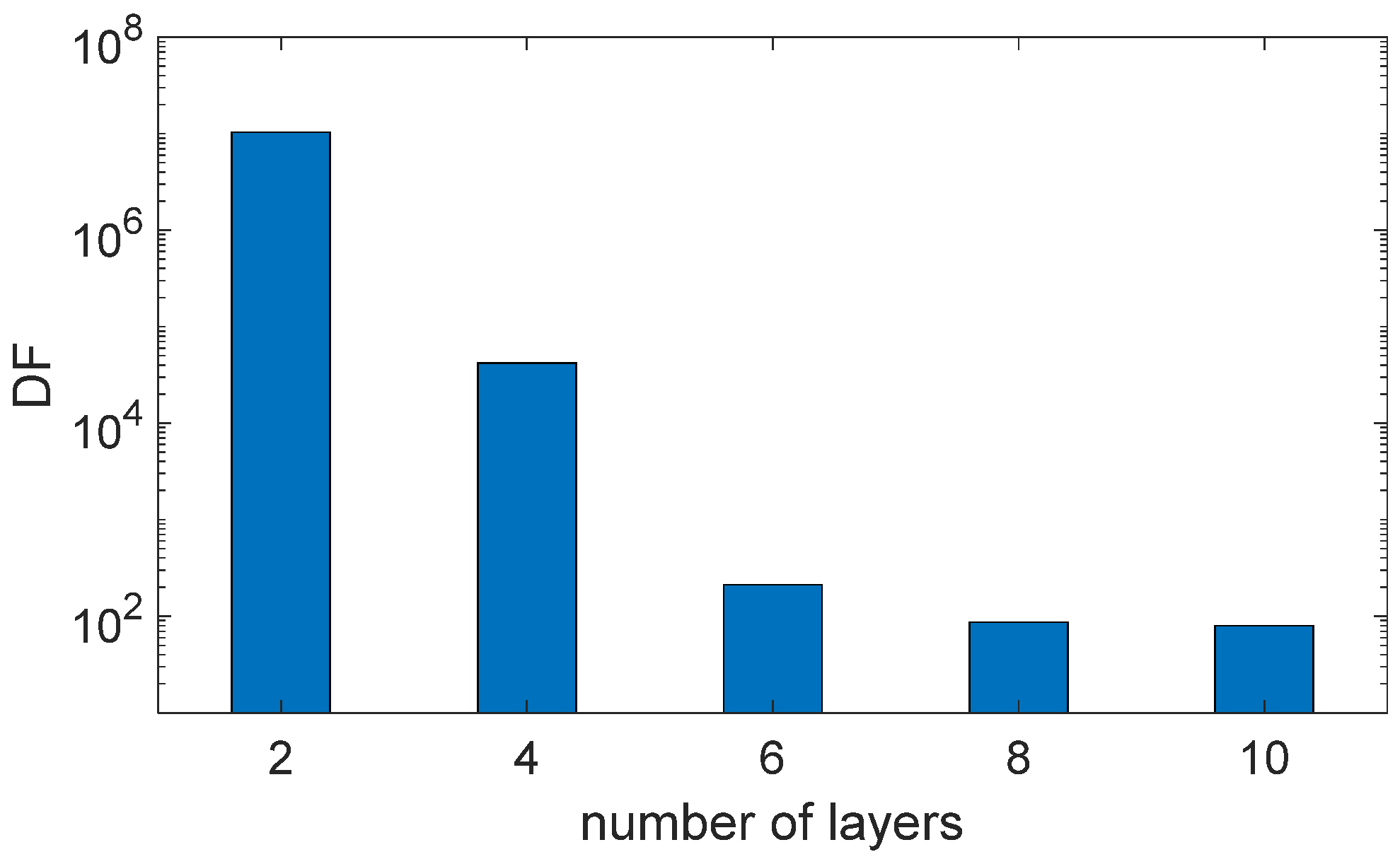

In Figure 14, the dependence of the reflectance from light intensity and the spatial electric field distribution for the limiting value of the light intensities are shown for all designs from Table 4. Within the specified range of the light intensities, only up to three reflectance minima are observed. This could be an indication that the number of minima could not be further increased by adding a pair of layers.

Nevertheless, an increased number of layers results in a significant drop in the discrepancy function (Figure 15).

3.6. Parallelism of the Calculations

The hardware in modern computers supports the parallel processing of calculations. Commercially available processors contain several processor cores that enable different parts of a task to be processed simultaneously. Hyperthreading further increases the number of tasks that can be performed simultaneously. Many modern graphics cards contain a large number of graphics processors that can also be used for calculations. This means that a significant acceleration can be achieved by dividing the calculations appropriately. The additional effort involved in organizing and coordinating the tasks can negate the performance advantage of parallelization if the division is too small.

For this reason, the iterative calculation of the characteristic matrix of the film stack [17] at a given intensity was not parallelized. In contrast, local optimization offers a significantly higher potential for parallelization, as the calculation of the discrepancy function and its partial derivatives requires only a small exchange of data. With an Intel i9-13900 processor, an acceleration of the calculations by a factor of 2-3 could be achieved.

Methods adapted to multilayers for global optimization [45,46] that use different starting points are also suitable and have led to almost complete processor utilization.

Parallelization can be achieved particularly easily for the anti-reflection coating for an intensity range, as the calculations of the discrepancy function for the 201 specified interpolation points can be carried out independently and in any order. Almost complete processor utilization was also achieved here. During a calculation lasting several hours the processor temperature rising to 94 °C despite water cooling, thus remaining only just below the maximum permitted processor temperature. The measured clock frequency was stable at 5500 MHz and thus at the maximum turbo boost frequency. With this approach, the parallel implementation was accelerated by a factor of ~9 compared to the sequential algorithm.

4. Discussion

Let us emphasize at this point that we have presented model calculations in order to investigate challenges and chances of antireflection designs specially suited for light intensities where nonlinear optical effects become significant. Our model essentially considers the effect of nonlinear absorption, while other possible nonlinear optical interactions have not been taken into account. Even in this case, sample heating by the absorbed light is also to be expected and may result in additional thermal effects [13]. In the simplest case, the temperature coefficient of the refractive index leads to further reversible changes, but irreversible changes, such as those known from post-deposition tempering, can also occur. The thermal conductivity and further properties of the materials, the sample geometry and environmental conditions additionally become relevant for modelling these effects. For simplification, however, all these effects have not been included in the current study.

At the moment, we cannot present experimental data for confirmation or falsification of the thus obtained simulation results. In the case of reflectors, the previously published dependences of the reflectance [15] were consistent with the experimental data published in [13]. The basic experimental setup for a test is identical to a spectrophotometric measurement in the linear case, but intensity-dependent measurements of transmission or reflection are required [47]. Similar experimental setups are provided in [14,48,49]. For an indirect verification, intensity-dependent measurements of the absorption can be used [50]. One challenge is the elimination of other effects not taken into account in the model during experimental verification. While the measurements on single layers of titania reproduce the expected linear behavior [50], a more complicated relationship is found for hafnia [51]. Furthermore, often only pulsed laser sources with sufficient power are available, but in the model, a cw laser source is assumed.

Let us further emphasize that our approach is designed for the consideration of weak nonlinearities. This has been emphasized when discussing convergence topics, and it is consistent with the chosen structure of Equations (5) and (7).

In agreement with the restriction to weak nonlinearities, the natural choice was to start design development from well-established AR design solutions in linear optics. We therefore started from traditional V-coatings, restricting our attention to almost homogeneous and absorption-free traditional optical coating materials [52]. We mention in this context that AR solutions based on heterogeneous coating materials (porous coatings, motheye structures [53,54]) have been developed in the past, thus extending the range of accessible refractive index combinations shown in Figure 3. Such heterogeneous materials have not been addressed in our study, particularly because we have no reliable information about their nonlinear optical properties.

This brings us to the basic critical point in our study, namely the acquisition of optical constants. While in linear design, the knowledge of two optical constants n and K might provide a complete description of the material response, in our model, already four optical constants need to be known. Nonlinear optical material characteristics such as ${\chi }^{\left(3\right)}$ may be measured, but this requires complicated and cost-efficient equipment [51,55]. Fortunately, manageable theoretical models for the frequency dependence of these quantities exist, and we would like to refer in this connection to the model of Sheik-Bahae [56]. With a few reliable experimental points available for calibration, such models may be used for predicting the nonlinear optical constants at any wavelength of interest. Then, $T$ and $R$ may be calculated at any wavelength of interest.

Two-photon absorption represents the basic specific loss mechanism in our approach. Therefore, in order to maximize the performance of the coatings, the efficiency of two-photon absorptions should be minimized. When remembering Equation (5), we must take the following equation into account:

$${\mathit{P}}^{\left(3\right)}={\epsilon }_0{\chi }^{\left(3\right)}{\mathit{E}}^3$$

(15)

In principle, in Equation (6), higher order terms may be taken into account as well. However, to our knowledge, the contribution for higher order susceptibilities is weaker [57] and the data basis is even poorer than in the case of ${\chi }^{\left(3\right)}$ [58], so this would be a rather academic extension of the presented model. From here, we see two basic research directions in this connection, which are outlined below.

Material design: reduction in the imaginary part of ${\chi }^{\left(3\right)}$. As two-photon absorption occurs when the incident light photon energy exceeds half the optical gap of the corresponding material [56], optical materials with a tailored value of their optical gap seem promising. Recently, several studies explored the potential of optical nanolaminates for optical band gap engineering by explicit use of confinement effects [59,60]. We see such nanolaminates as potential materials for constructing superior antireflection coatings for use at large light intensities [61].

Coating design optimization: Reduction in $E$. The effect of absorbing fractions in a design may also be minimized by a suitable choice of the individual layer thicknesses [62,63]. For that, the absorbing fractions must be minimized in thickness, and electric field strength maxima should be spatially removed from the absorbing fractions. This is essentially the path we took in our study. Note that the incident light intensity now appears as an additional design parameter: the obtained design is best suited for the assumed light intensity but may be unsuitable for use at other light intensities. This offers space for the definition of unconventional reflection (or transmission) targets. One might try to design coatings optimized for a certain set of light intensities, or even a certain intensity range. So far, these are conclusions from the presented numerical study only, but they offer perspectives for designing antireflection coatings especially suited for applications when large light intensities are employed.

In practice, it is not only the theoretical optical performance that is of relevance. Sensitivity to deposition errors can be addressed by computational manufacturing [64,65,66]. Additionally, other non-optical aspects such as durability of the coating, the cost of the coating material and the available deposition technique also play an important role and should also be taken into account when thinking on practical implementations of the algorithm.

Note that our algorithm can be generalized to oblique incidences as demonstrated in [67]. Additionally, corresponding cosine terms appear in Equation (1).

5. Conclusions

In this paper, we have discussed various aspects for the modelling, simulation and design of antireflective coatings where third-order nonlinearities must be considered. This is particularly important for laser applications. In this case, only a single wavelength needs to be taken into account. In the theoretical section, a brief description of the underlying theoretical model was given. Additionally, two different approaches for the implementation were outlined. The presented iterative matrix method has proven to be advantageous, as it can be realized as an add-on to the usual software packages in the field of linear optics. Not only transmittance and reflectance can be calculated, but also all other quantities supported by the underlying software, such as phase, group delay and group delay dispersion. In addition, build-in design approaches can provide some support in accounting for third-order nonlinearities when using the concept of effective optical constants.

The developed method has been applied to generate different design solutions for antireflective coatings at high light intensities. The conventional V-coating can be adapted to a single light intensity through refinement, but reacts sensitively to intensity fluctuation. The sensitivity can be reduced if a larger number of layers (~6–8) are used. The concept of Herpin’s equivalent layer can be applied for this purpose. A larger number of layers also leads to a significant reduction in the average reflected light intensity.

Additionally, it turned out that a slice thickness of ~1 nm is sufficient for accurate calculations in the visual spectral range and that only a few iterations are required for the assumed optical constants and a light intensity up to 10¹¹ W/cm². With the developed parallel implementation of the discrepancy function, the calculation was accelerated by a factor of ~9 compared to the sequential algorithm. A further acceleration seems to be achievable when a graphics processing unit (GPU) is used for parallelism in the implementation of the matrix algorithm.
