Modelling Dispersion Compensation in a Cascaded-Fiber-Feedback Optical Parametric Oscillator

Abstract

Fiber-feedback optical parametric oscillators (OPOs) incorporate intracavity fibers to provide a compact high-energy wavelength-tunable laser platform; however, dispersive effects can limit operation to the sub-picosecond regime. In this research article, we modeled pulse propagation through systems of cascaded fibers, incorporating SMF-28 and ultra-high numerical aperture (UHNA) fibers with complementary second-order dispersion coefficients. We found that the pulse duration upon exiting the fiber system is dominated by uncompensated third-order effects, with UHNA7 presenting the best opportunity to realise a cascaded-fiber-feedback OPO.

1. Introduction

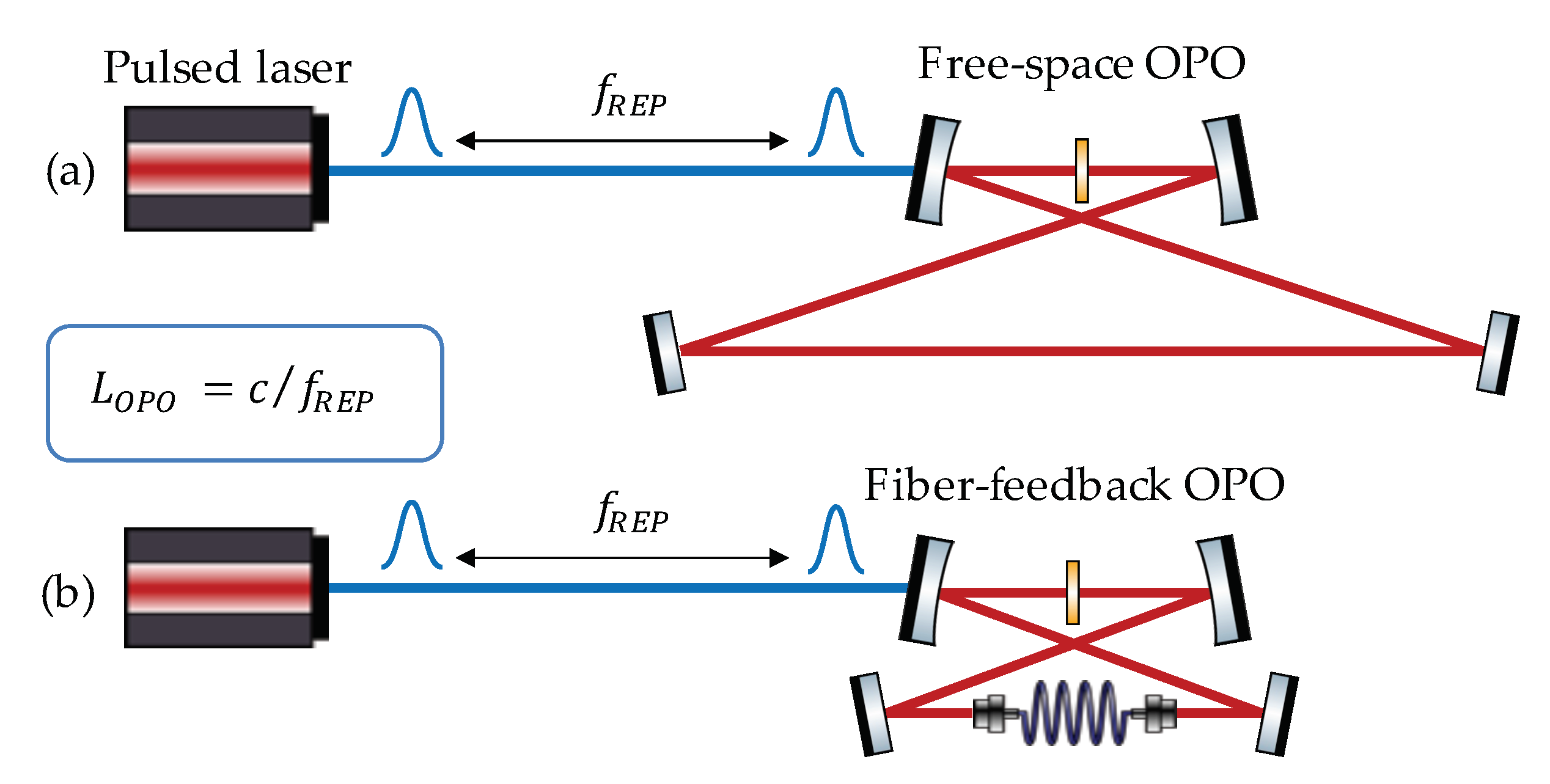

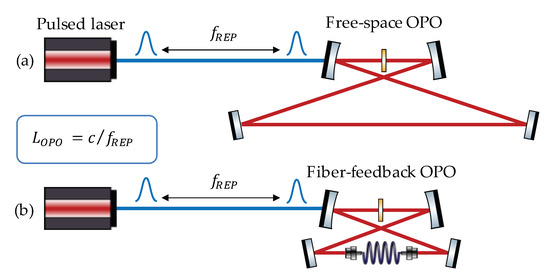

Optical parametric oscillators (OPOs) provide a versatile platform for the generation of wavelengths ordinarily inaccessible directly from laser gain media [1,2,3], and have found applications in spectroscopy [4], metrology [5] and multi-photon imaging [6]. Exploiting ${\chi }^{\left(2\right)}$ effects in nonlinear crystals, an OPO acts as a photon splitter, generating longer wavelength signal and idler outputs from a short wavelength pump laser in an energy conserving process. Ultrashort pulsed operation requires synchronous pumping, in which a cavity resonant at the signal wavelength is formed around the nonlinear crystal [7], as illustrated in Figure 1a. A conventional synchronously-pumped OPO has a cavity length $L_{OPO}$ that is inversely proportional to the repetition frequency $f_{REP}$ of its pump laser. The cavity length is selected to provide periodic temporal overlap between the incoming pump and resonant signal pulse trains, with a length directly equal to that of the pump laser providing the highest gain [8]. Meeting these criteria becomes increasingly challenging when moving to a high-energy regime with few-MHz repetition frequencies, as long cavity lengths introduce space and engineering constraints [9].

Fiber-feedback OPOs (Figure 1b) address this issue by placing a single-mode fiber inside the OPO cavity as a length-eating mechanism, exploiting the ∼1.45x optical path reduction in silica-based fibers [10]. Due to the large material dispersion introduced by the fiber, these OPOs have primarily operated in the picosecond regime [11]; however, sub-150-fs femtosecond operation is desirable for many applications but has only been demonstrated in a few instances [12,13]. Intracavity compression using prism or grating pairs is not feasible when longer fiber lengths are employed, and these approaches also introduce additional engineering complexities.

In this paper, we modeled the net dispersion of cascaded fibers for use in OPOs operating at 1550, 1700 and 2090 nm, wavelengths of interest for infrared material processing [14], three-photon imaging [15] and mid-IR frequency comb applications, respectively [16]. We simulated pulse propagation through lengths of SMF-28 Ultra (Corning) and ultra-high numerical aperture fibers (UHNA, Coherent-Nufern) to identify combinations that balance both second- and third-order dispersive effects to support femtosecond operation.

2. Methods

2.1. Determination of Beta Coefficients

Chromatic dispersion within a fiber can be expressed in terms of phase constant $\beta$, which can be expanded as a Taylor series around central frequency ${\omega }_0$ [17]:

$$\beta \left(\omega \right)={\beta }_0+{\beta }_1\left(\omega -{\omega }_0\right)+\frac{1}{2!}{\beta }_2{\left(\omega -{\omega }_0\right)}^2+\frac{1}{3!}{\beta }_3{\left(\omega -{\omega }_0\right)}^3+\dots$$

(1)

with

$${\beta }_m=\frac{d^m}{d{\omega }^m}\left(n\left(\omega \right)\frac{\omega }{c}\right){|}_{\omega ={\omega }_0}\left(m=0,1,2\dots .\right)$$

(2)

where $n\left(\omega \right)$ is the refractive index at frequency $\omega$. The second-order dispersion ${\beta }_2$ is responsible for pulse broadening and is given by:

$${\beta }_2=\frac{1}{c}\left(2\frac{dn}{d\omega }+\omega \frac{d^{2}n}{d{\omega }^2}\right)$$

(3)

However, it is also common to use the alternative representation D to describe the dispersion parameter of a fiber, which is linked to ${\beta }_2$ by:

$$D=-\frac{2\pi c}{{\lambda }^2}{\beta }_2$$

(4)

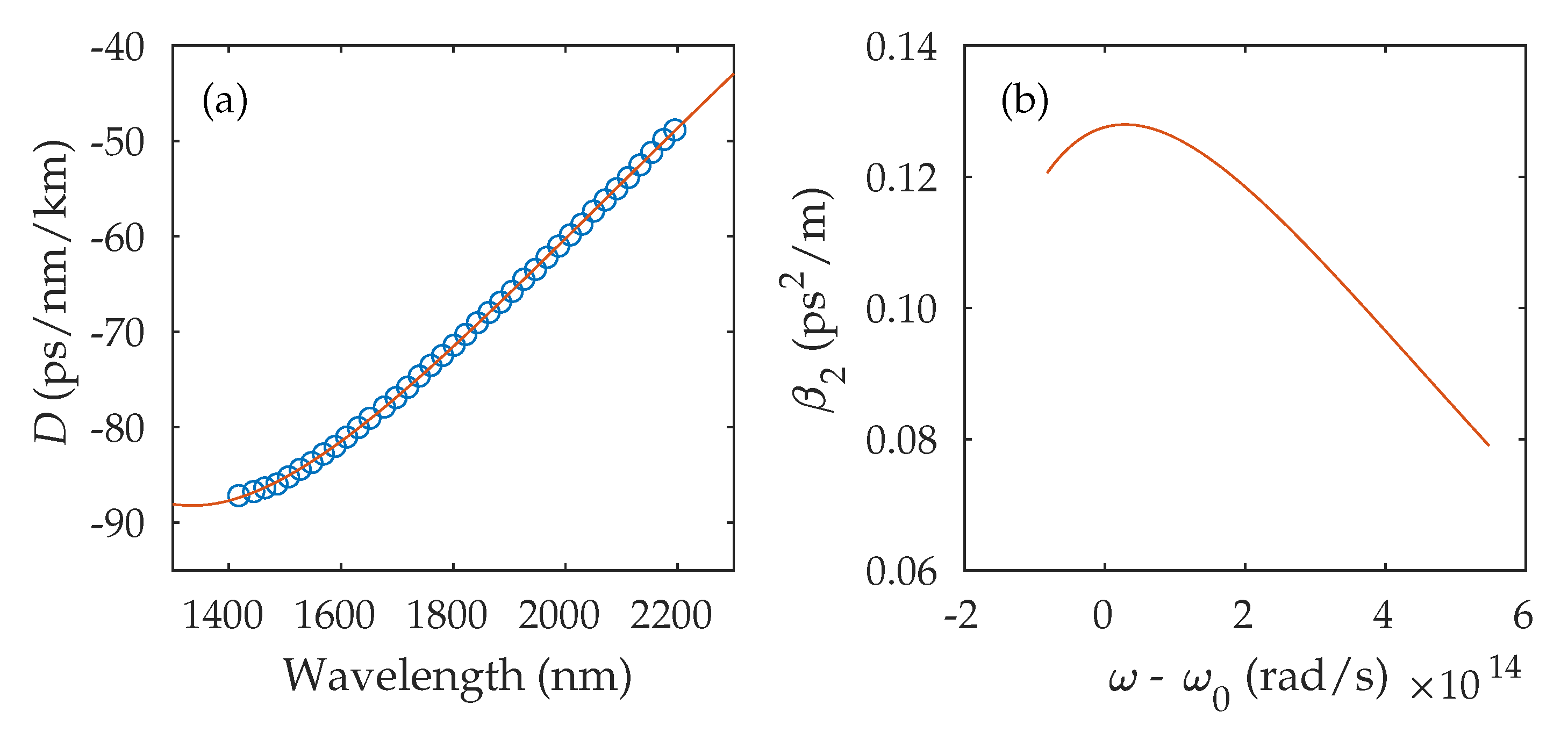

Dispersion information for Coherent-Nufern UHNA fibers was not available from the manufacturer; however, measurements of dispersion parameter D were carried out by Ciąćka et al. [18] over the 1400–2200 nm wavelength region using spectral interferometry [19,20]. Their results also provided good agreement with dispersion measurements of Corning SMF-28 Ultra over the 1200–1625 nm range specified by the manufacturer [21]. We extracted numerical data for D for SMF-28 Ultra, UHNA1, UHNA3, UHNA4 and UHNA7 from [18] using the free software WebPlotDigitzer [22], with around 40 points collected per data set across each wavelength range. Fitting to this data and evaluating at a higher point density provided increased resolution (Figure 2a). The second-order dispersion ${\beta }_2$ was calculated from Equation (4), and a multi-order polynomial fit applied to evaluate the dispersion coefficients from ${\beta }_2$ to ${\beta }_n$, evaluated at $\omega -{\omega }_0$, where ${\omega }_0$ is a frequency corresponding to a selected wavelength of interest (Figure 2b). The calculated ${\beta }_2$ and ${\beta }_3$ coefficients for each fiber, evaluated at 1550, 1700 and 2090 nm, are shown in

Table 1. ${\beta }_2$ coefficients (ps${}^2$/m).

	SMF-28	UHNA1	UHNA3	UHNA4	UHNA7
1550 nm	−0.0215	0.0436	0.1065	0.0694	0.0263
1700 nm	−0.0371	0.0463	0.1178	0.0814	0.0316
2090 nm	−0.0852	0.0207	0.1276	0.0801	0.0514

and

Table 2. ${\beta }_3$ coefficients (ps${}^3$/km).

	SMF-28	UHNA1	UHNA3	UHNA4	UHNA7
1550 nm	0.1256	−0.0392	−0.1133	−0.1149	−0.0402
1700 nm	0.1679	−0.0023	−0.0947	−0.1006	−0.0603
2090 nm	0.3173	0.3384	0.0290	0.2062	−0.1452

, respectively. Uncertainties in our approach are dominated by the standard deviations reported in [18]; however, these only introduce a <1% error in our calculations of ${\beta }_2$ and ${\beta }_3$.

2.2. Pulse Propagation Model

To model pulse propagation in different fibers, we simulated a temporal electric field with a Gaussian pulse envelope of the following form:

$$E\left(t\right)\propto exp\left(-\frac{[2ln2]t^2}{\Delta {\tau }^2}\right)$$

(5)

where $\Delta \tau$ is the full-width half-maximum (FWHM) of the temporal intensity. The spectral field can be obtained via Fourier transform of the temporal field:

$$E\left(\omega \right)={\int }_{-\infty }^{+\infty }E\left(t\right)e^{-i\omega t}dt$$

(6)

The spectral phase accumulated by propagation through fiber length L with phase constant $\beta$ was added to $E\left(\omega \right)$, with the resultant change in pulse duration obtained by inverse Fourier transform:

$$E(t,L)=\frac{1}{\sqrt{2\pi }}{\int }_{-\infty }^{+\infty }E\left(\omega \right)e^{-i\beta L}{e}^{i\omega t}d\omega$$

(7)

We selected an input pulse duration of $\Delta \tau$ = 50 fs and a length resolution of $dL$ = 5 mm. The UHNA fibers have core diameters ≤ 2.5 μm [23], presenting an acute coupling challenge. We addressed this by using SMF-28 Ultra as an input/output coupler, taking advantage of the larger 8.2 μm core diameter and connectorized end facets, resulting in a cascaded SMF-28/UHNA/SMF-28 fiber system. Losses between these mismatched cores can be as low as ∼0.3 dB when using a “fire polish” thermal diffusion splice [13]. Component fiber lengths were selected such that the net second-order dispersion after 1 m of propagation was close to zero, within the 5 mm resolution of our simulation. SMF-28 possesses negative ${\beta }_2$ at our test wavelengths, while all UHNA fibers have positive ${\beta }_2$ coefficients, providing compensation of second-order dispersive effects. Individual fiber lengths are shown in

Table 3. Length ratios minimising ${\beta }_2$ through 1-m of cascaded SMF-28/UHNA/SMF-28 fibers.

	UHNA1	UHNA3	UHNA4	UHNA7
1550 nm	0.325/0.35/0.325	0.41/0.18/0.41	0.38/0.24/0.38	0.275/0.45/0.275
1700 nm	0.265/0.47/0.265	0.38/0.24/0.38	0.34/0.32/0.34	0.23/0.54/0.23
2090 nm	0.09/0.82/0.09	0.30/0.40/0.30	0.235/0.53/0.235	0.185/0.63/0.185

, and were determined by the absolute ratio of the ${\beta }_2$ coefficients in the cascaded SMF-28/UHNA/SMF-28 system, such that:

$$\frac{L_{\mathrm{SMF}\text{-}28}}{L_{\mathrm{UHNA}}}=\left|\frac{{\beta }_{2\left(\mathrm{UHNA}\right)}}{2{\beta }_{2\left(\mathrm{SMF}\text{-}28\right)}}\right|$$

(8)

3. Results and Discussion

In Figure 3, Figure 4, Figure 5 and Figure 6, we plotted the results of our fiber dispersion model, along with output pulse profiles after propagation through the cascaded system. Stepwise animations of pulse propagation through each fiber combination at a wavelength of 2090 nm are available as Supplementary Files.

The normalized FWHM output duration was calculated at each wavelength for comparison against the 50 fs input pulse. With fiber lengths selected to minimize second-order dispersion, pulse broadening is dominated by uncompensated third-order contributions. SMF-28 possesses positive ${\beta }_3$ that increases with wavelength; therefore, the UHNA fibers must provide negative ${\beta }_3$ contributions to prevent pulse breakup.

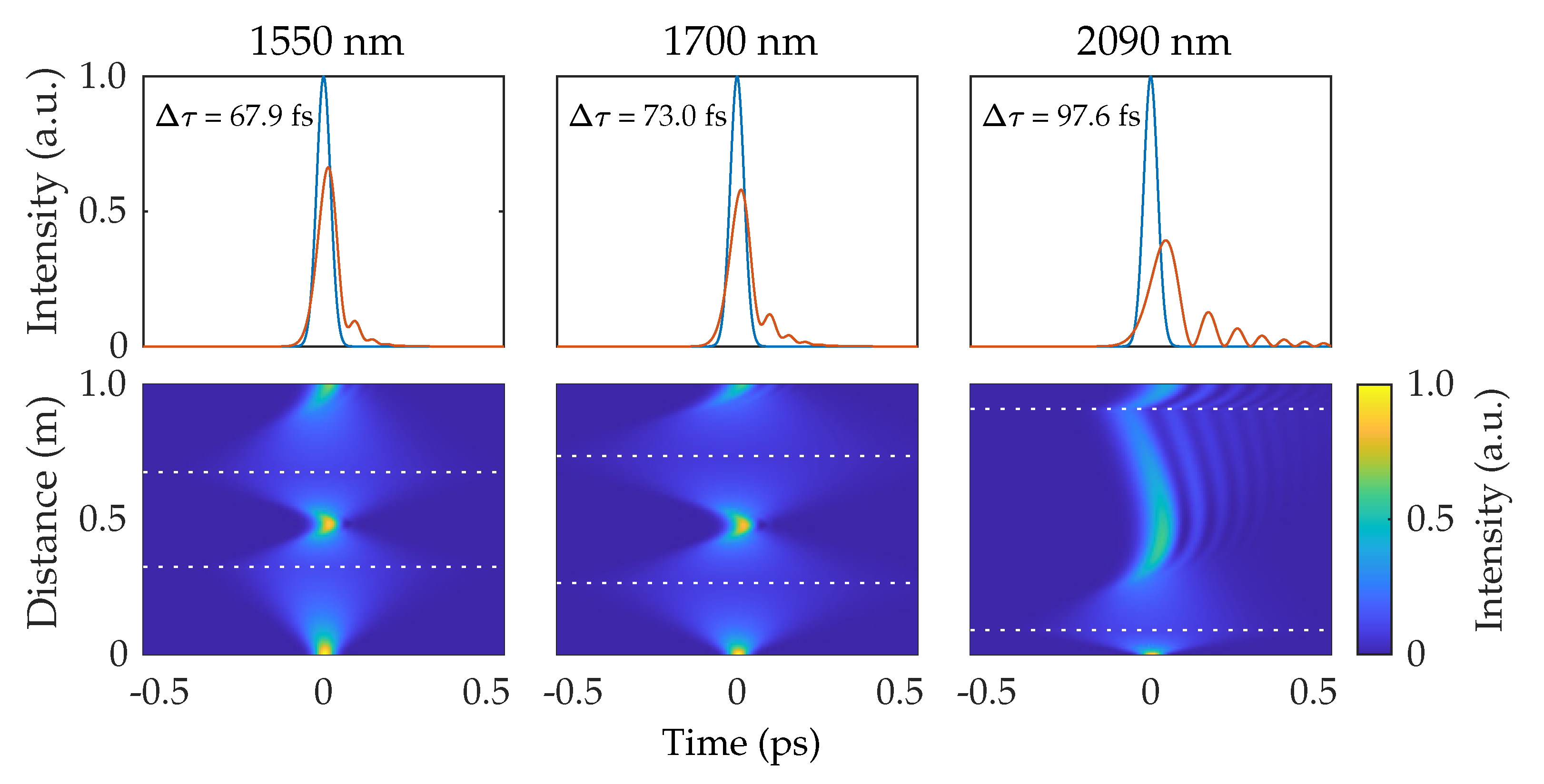

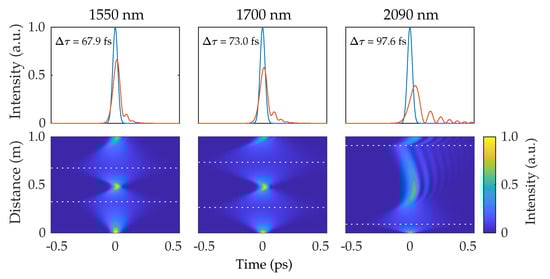

The cascaded UHNA1 system (Figure 3) displayed moderate broadening at 1550 and 1700 nm, with net positive third-order dispersion producing a trailing pulse edge. Oscillations in the pulse envelope did not drop to zero; therefore, the pulse remained intact. However, at 2090 nm, both SMF-28 and UHNA1 had large ${\beta }_3$ coefficients (>0.31 ps${}^3$/km) and the pulse broke up, with only 76% of the input energy remaining in the primary pulse.

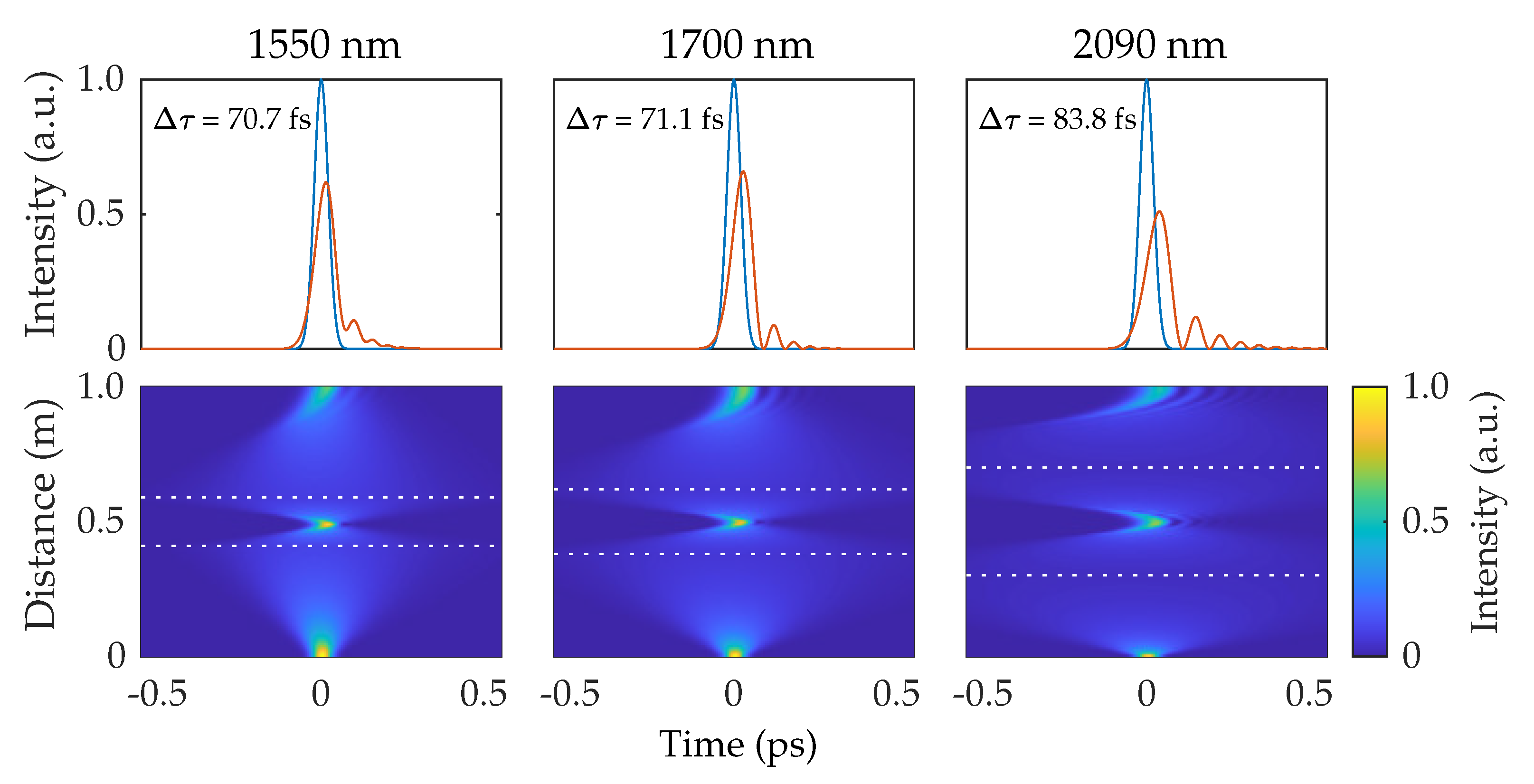

UHNA3 displayed high ${\beta }_2$ values (>0.1 ps${}^2$/m) and, therefore, longer lengths of SMF-28 are required in this cascaded system (Figure 4). Uncompensated third-order terms were positive at all test wavelengths, and pulse breakup was evident at 2090 nm.

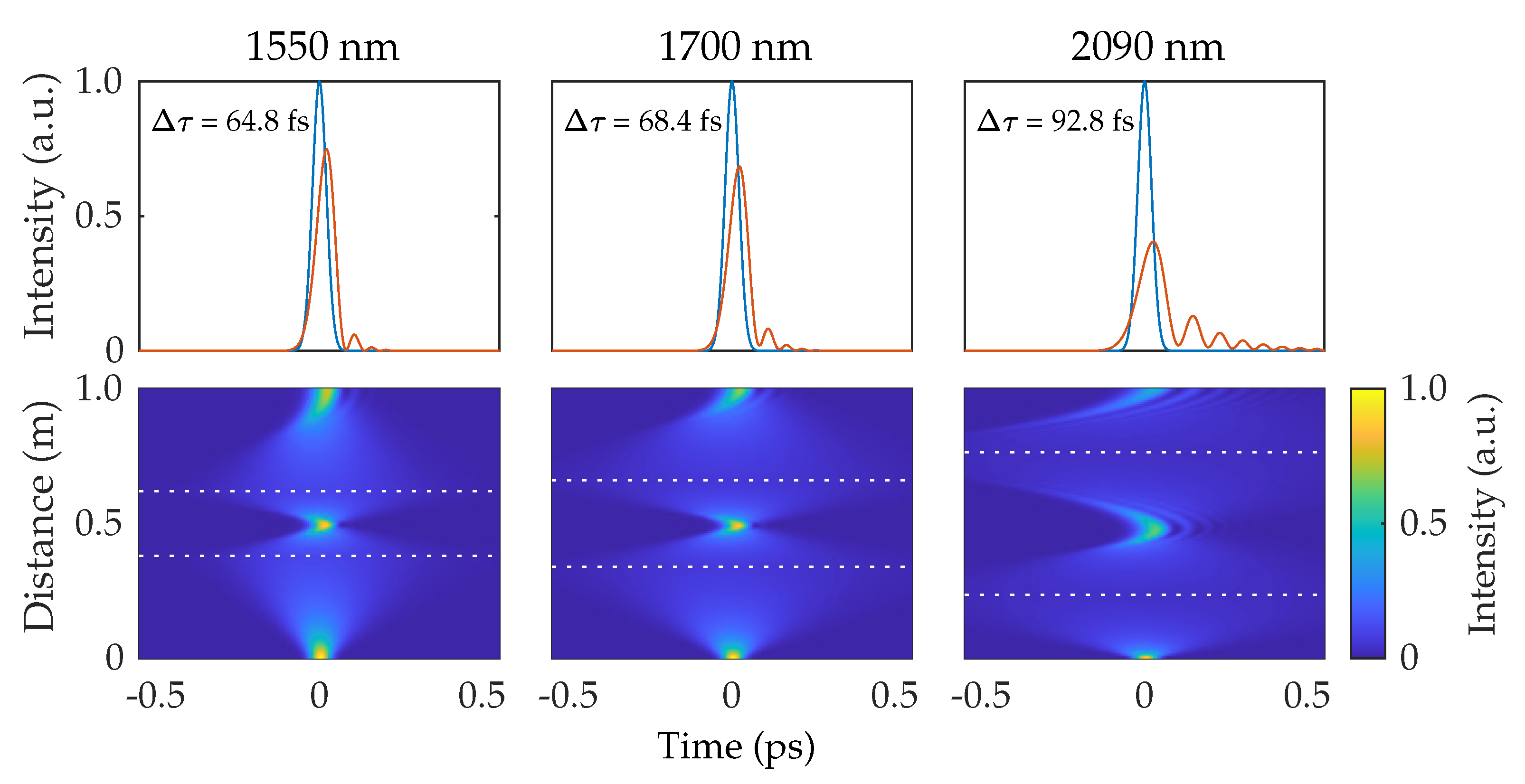

Results for UHNA4 are shown in Figure 5. Both UHNA3 and UHNA4 possessed similar ${\beta }_3$ coefficients at 1550 and 1700 nm, and both fibers displayed similar amounts of broadening. At 2090 nm, UHNA4 had a large positive ${\beta }_3$ which, when combined with the SMF-28, created significant pulse breakup, again with around 75% of the energy remaining in the primary pulse.

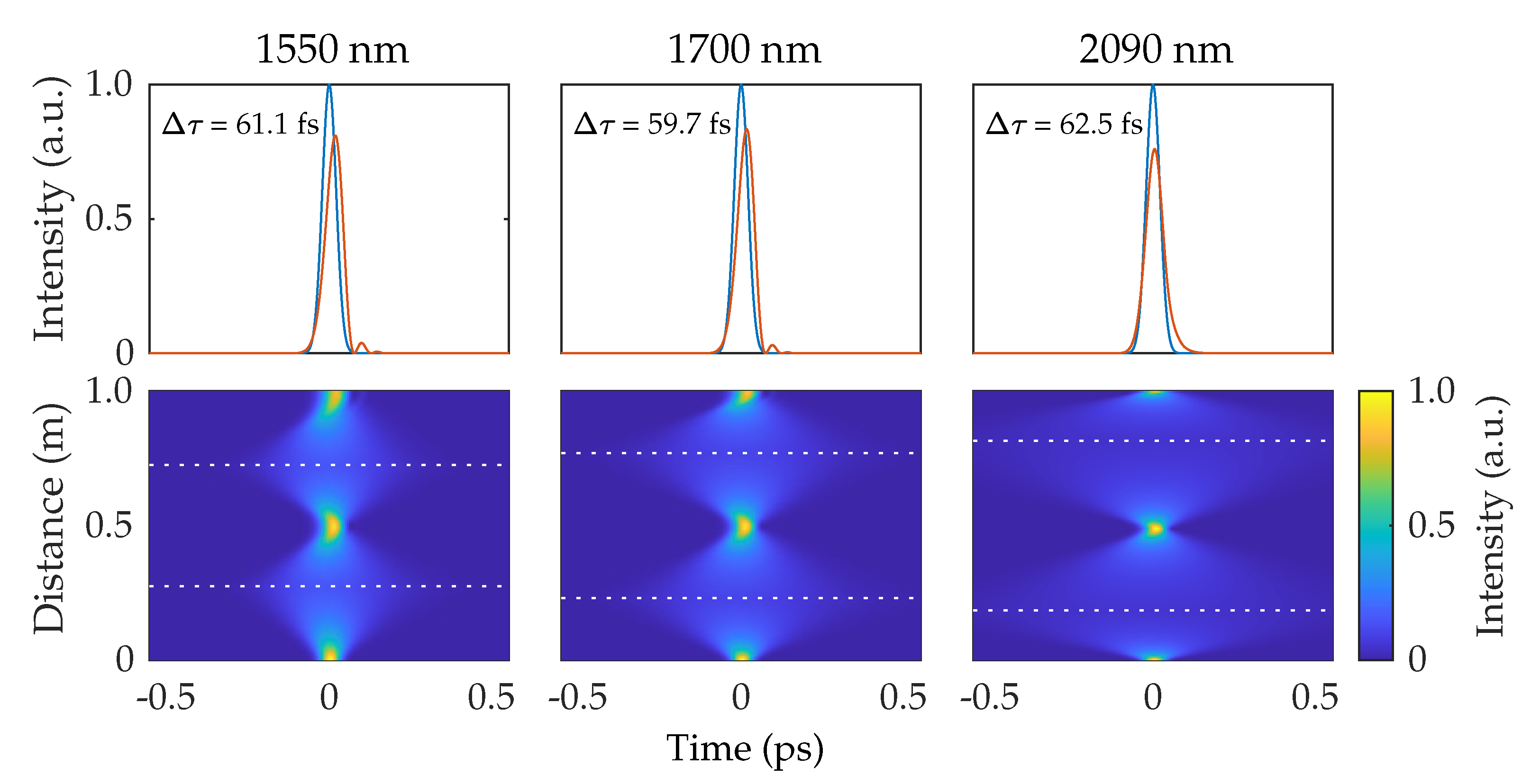

UHNA7 differed from the other fibers in that it had a low and flat ${\beta }_2$ curve, but also displayed negative ${\beta }_3$ at all test wavelengths. With both second- and third-order coefficients opposite in sign to those of SMF-28, it presents the best opportunity for dispersion compensation in a fiber-feedback OPO. The pulse propagation results for UHNA7 are shown in Figure 6. At all wavelengths, pulse broadening was minimal, with the shortest pulses observed in our model (59.7 fs) found when using UHNA7 at 1700 nm. This agrees with the experimental results reported in [13], which incorporated cascaded SMF-28/UHNA7/SMF-28 in a degenerate OPO operating at 2090 nm.

4. Conclusions

We modeled pulse propagation through systems of cascaded SMF-28 and UHNA fibers for use in fiber-feedback optical parametric oscillators. Dispersion curves were extracted from [18] using freely available software [22] and evaluated at key wavelengths of interest to the ultra-fast community. We observed that uncompensated third-order dispersion dominates in a cascaded fiber system, and will produce pulse breakup in many UHNA fibers at 2090 nm. The design of UHNA7 produced negative ${\beta }_3$ coefficients that complemented the positive third-order dispersion of SMF-28, leading to minimal pulse broadening after propagation along 1 m of cascaded fiber. Our results will serve as a guideline for the design of fiber-feedback OPOs operating in the few-MHz regime and incorporating longer lengths of fiber.
